Harman Kardon HS100/230 User manual

HS100/230
SERVICE MANUAL
(See separate service manual for HKTS7/230 speaker system)
harman/kardon
®
Power for the Digital Revolution®
www.audiodna.sk

1
2
3
4
5
6
8
9
10
11
7
12
2
13

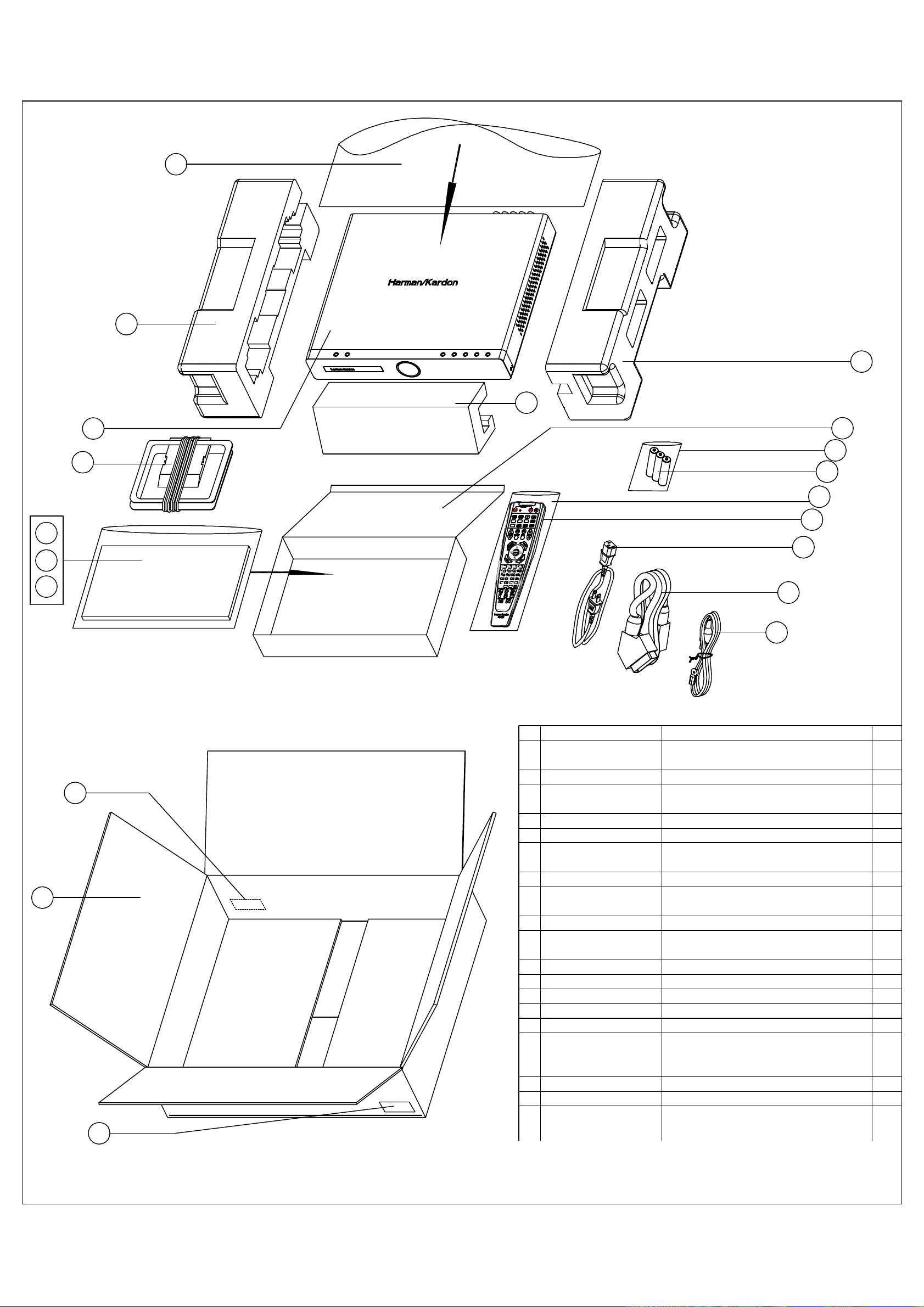

No.PartNo. Description
Qty.
101.00.BZ.X.W.E232 Carton boxHS100EUversion 1
01.00.BZ.X.W.E231 Carton boxHS100USversion 1
2Barcordlabel 1
301.00.YS.SM1.E261 OwnermanualHS100 USversion 1
01.00.YS.SM1.E262 OwnermanualHS100 EUversion 1
401.00.BZ.D.Z.E020 Plasticbagfor manual25*35cm 1
501.00.YS.FY3.345 Safety instruction manual HS100EU 1
01.00.YS.FY3.346 Warningcard HS100USversion 1
01.00.YS.FY3.347 Guarantee card HS100USversion 1
601.47.CNT.CTX.042 AM antennaAM-300-AWM 1
701.47.CNT.CTX.037 FM antennaFM-075 1
01.47.CNT.CTX.038 FM antennabFM-TV-75-A 1
801.47.CNT.LJX.5.012 SCART cabel 1
901.47.CNT.ACX.E052 ACpowercordEUversion 1
01.47.CNT.ACX.E053 ACpowercordUSversion 1
1001.00.RC.100 RemotecontrolHS100-RC 1
1101.00.BZ.D.H.E034 Plasticbagfor RC9*27.5cm 1
1201.14.DX.B.0007 battery7#battery 3
1301.00.BZ.D.Z.E008 Plasticbagfor battery 6*9cm 1
1401.00.BZ.X.B.E178 accessories box 1
15 accessoriesPolyfoam 2
01.00.BZ.F.P.E100 PolyfoamHS100-left 1
01.00.BZ.F.P.E101 PolyfoamHS100-right 1
16 Main unit 1
1701.00.BZ.D.C.E065 Plasticbagfor unit 54.5*60cm 1
15
15
17
18
16
15
Harman Consumer Group
Exploded view
HS100
www.audiodna.sk

Harman Consumer Group
Exploded view
HS100
www.audiodna.sk

Component List
Location.No. Description Specification P/N Qty
HS100-PT01 HS100 metals part HS100-chassis 01.00.WJ.TJ.415 1
HS100-PT02 HS100 metals part HS100-top cover 01.00.WJ.TJ.416 1
HS100-PT03 HS100 metals part HS100-rear panel (EU) 01.00.WJ.TJ.417 1
HS100-PT03 HS100 metals part HS100-rear panel (US) 01.00.WJ.TJ.418 1
DSC1000-PT07 HS100 metals part HS100-heatsink support 01.00.WJ.TJ.419 1
HS100-PT04 HS100 metals part HS100-top cover support 01.00.WJ.TJ.544 1
Magnetism annulus toggle headphone line H16*9*28-HA 01.13.L.H.011 1
DSC1000-PT08 heatsink for AMP board 135*95*45mm 01.00.WJ.TJ.420 1
match D17，D18 heatsink 16*12*32mm 01.00.WJ.TJ.317 2
match Q6 on SMPS heatsink 50*19*35mm 01.00.WJ.TJ.421 1
for U4 on mainboard heatsink 28*28*10mm 01.00.WJ.TJ.268 1
G1 G2 G3 G4 on SMPS 3 pin grounding piece M4 01.00.WJ.QT.041 4
HS100-RE01 HS100 plastic part HS100－front panel 01.00.SJ.HS100.001 1
HS100-RE02 HS100 plastic part HS100－5 in 1 button 01.00.SJ.HS100.002 1
HS100-RE03 HS100 plastic part HS100－2 in 1 button 01.00.SJ.HS100.003 1
HS100-RE04 HS100 plastic part HS100－5 in 1 button collar 01.00.SJ.HS100.004 1
HS100-RE05 HS100 plastic part HS100－Open/Close button collar 01.00.SJ.HS100.005 1
HS100-RE06 HS100 plastic part HS100－volume chamfer 01.00.SJ.HS100.006 1
HS100-RE07 HS100 plastic part HS100－power indicator lampshade 01.00.SJ.HS100.007 1
HS100-RE08 HS100 plastic part HS100－volume button lampshade 01.00.SJ.HS100.008 1
HS100-RE09 HS100 plastic part HS100－disc tray door 01.00.SJ.HS100.009 1
HS100-RE10 HS100 plastic part HS100－volume button 01.00.SJ.HS100.010 1
HS100-RE11 HS100 plastic part HS100－pedestal underlay 01.00.SJ.HS100.011 2
HS100-RE12 HS100 plastic part HS100－len for tray door 01.00.SJ.HS100.012 1
HS100-RE13 HS100 plastic part HS100－len for VFD 01.00.SJ.HS100.013 1
HS100-RE14 HS100 plastic part HS100－little plastic piece 01.00.SJ.HS100.014 1
HS100 plastic part 1000A-IR receiver support 01.00.SJ.1000A.016 1
Harman consumer Group Bill of Material HS100
www.audiodna.sk

B
Component List
Location.No. Description Specification P/N Qty
Screw map Ф3*4mm 01.00.FZ.TG.025 2
PCB plastic frame Φ7*8mm 01.00.SJ.QT.005 8
between volume button and PCB astigmatism PVC Φ45.5*Φ9.5mm 01.00.FZ.QT.153 1
VFD filter 105.7mm*24.3mm*0.5 01.00.SJ.QT.001 1
AC power socket WS-044-0 01.40.CON.DCZ.178 1
stick on the len for tray door Metal logo 47mm"Harmarn" supper slim logo 01.00.SB.035 1
stick on the top cover Metal logo 100mm"Harmarn" supper slim logo 01.00.SB.036 1
stick on len for front panel Metal logo HS100 supper slim logo 01.00.SB.037 1
for AC power cord Magnetism annulus M248 01.13.L.H.020 1
Owner manual HS100 US version 01.00.YS.SM1.E261 1
Owner manual HS100 EU version 01.00.YS.SM1.E262 1
paster Laser precausion mark 01.00.YS.TZ.T.E363 1
paster Laser precausion guide 01.00.YS.TZ.T.E364 1
EU version MADE IN P.R.C. label 23*7MM transparent PET 01.00.BZ.B.021 1
Safety instruction manual HS100 EU version 01.00.YS.FY3.345 1
Warning card HS100 US version 01.00.YS.FY3.346 1
Guarantee card HS100 US version 01.00.YS.FY3.347 1
Remote control HS100-RC 01.00.RC.100 1
battery 7# battery 01.14.DX.B.0007 3
EU version AC power cord WS-002E+WS-019 HO5VV-F 0.75×2C 01.47.CNT.ACX.E052 1
US version AC power cord WS-002E+WS-004A SJT18AWG×2C 01.47.CNT.ACX.E053 1
SCART cabel SCART 01.47.CNT.LJX.5.012 1
FM antenna FM-075 01.47.CNT.CTX.037 1
FM antenna FM-TV-75-A 01.47.CNT.CTX.038 1
AM antenna AM-300-AWM 01.47.CNT.CTX.042 1
loader DV342 loader 01.15.JX.DV342 1
EU version Tuner module TFCF1E803A EU version 01.49.06 1
Harman consumer Group Bill of Material HS100
www.audiodna.sk

Component List
Location.No. Description Specification P/N Qty
US version Tuner module TFCF1E804A US version 01.49.07 1
stick inside the volume button mask PVC Φ38.5 01.00.FZ.QT.187 1
EU version Carton box HS100 EU version 01.00.BZ.X.W.E232 1
US version Carton box HS100 US version 01.00.BZ.X.W.E231 1
for accessories accessories box 320*255*70mm 01.00.BZ.X.B.E178 1
Polyfoam HS100- left 01.00.BZ.F.P.E100 1
Polyfoam HS100- right 01.00.BZ.F.P.E101 1
for unit Plastic bag for unit 54.5*60cm 01.00.BZ.D.C.E065 1
for owner manual Plastic bag for user's manual 25*35cm 01.00.BZ.D.Z.E020 1
for remote control Plastic bag for remote control 10*34.5cm 01.00.BZ.D.H.E063 1
for battery Plastic bag for battery 6*9cm 01.00.BZ.D.Z.E008 1
for logo on top cover safeguard film 15*110mm 01.00.BZ.B.025 1
Plastic fastener 12mm 01.00.FZ.QT.122 3
connect loader and mainboard Connect cable 2.0-5Y-5Y-260mm -B 01.47.CNT.LJX.7.026 1
connect loader and mainboard Connect cable 2.0-6Y-6Y-320mm -B 01.47.CNT.LJX.7.087 1
for CN1 on power supplier board Connect cable VH 40mm 01.47.CNT.LJX.7.096 1
connect VFD board and mainboard Connect cable 2.0-9Y-9Y-320mmA 01.47.CNT.LJX.7.088 1
connect power supplier board and mainboard Connect cable 2.54-10Y-2.0-160mmB 01.47.CNT.LJX.4.015 1
connect power supplier board and amplifier
board Connect cable 2.54-5Y-2.0-200mmA 01.47.CNT.LJX.4.016 1
connect power supplier board and amplifier
board Connect cable VH-3Y-2Y-2Y-180mmB 01.47.CNT.LJX.7.097 1
connect power supplier board and AC power
socket Connect cable VH-3Y-2Y-700mm 01.47.CNT.LJX.7.172 1
connect front panel board and mainboard Connect cable 2.0-5Y-5Y-720mmA (with shield) 01.47.CNT.LJX.7.173 1
connect VFD board and power supplier board Connect cable 2.54-3Y-3Y-150mmA 01.47.CNT.LJX.4.013 1
connect 1815C and 1816C Connect cable 2.0-7Y-7Y-240mmA 01.47.CNT.LJX.7.090 1
connect 1815C and 1813C Connect cable 2.0-9Y-9Y-60mmB 01.47.CNT.LJX.7.150 1
Harman consumer Group Bill of Material HS100
www.audiodna.sk

s
g
o
Component List
Location.No. Description Specification P/N Qty
connect 1814C and 1813C Connect cable 2.0-7Y-7Y-80mmA 01.47.CNT.LJX.7.092 1
connct 1813C and ground Grounding cable 40mm( 01.47.CNT.LJX.5.052 1
connect point A and B on power supplier board Grounding cable 35mm 01.47.CNT.LJX.5.023 1
connect amplifier board and mainboard flat cable 1.0*16P*50mmA 01.48.BPX.1.E084 1
connect tuner module and mainboard flat cable 1.25*11P*70mmA 01.48.BPX.1.E085 1
connect loader and mainboard flat cable 0.5*24P*190mmB 01.48.BPX.2.E031 1
for IR receiver support sponge 10*10*4mm (with double sides glue) 01.00.DP.HM.E165 1
for VFD sponge 20*20*7mm (with double sides glue) 01.00.DP.HM.E199 2
fixed plat cable on the chassie sponge 20*10*2.5mm (with double sides glue) 01.00.DP.HM.E142 1
for power supplier Insulated PVC 130*126mm (with single side glue) 01.00.DP.JY.E110 1
stick on the top cover support Insulated PVC 80*55*0.5mm ( transparence PVC ) 01.00.DP.JY.E149 1
place between the main transfer and chassis sponge 20*20*11mm (with double sides glue) 01.00.DP.HM.E198 1
place under the amplifier board sponge 20*20*10mm (with single side glue) 01.00.DP.HM.E250 3
place under the amplifier board sponge 20*10*10mm (with single side glue) 01.00.DP.HM.E207 2
place between the amplifier board and heatsink sponge 20*20*3.5 (with single side glue) 01.00.DP.HM.E015 2
place between tuner module and left side of cha sponge 20*20*10mm (with double sides glue) 01.00.DP.HM.E252 1
place on the chassis to support the top cover sponge 70*30*67mm( +0/-0.5 with single side 01.00.DP.HM.E255 1
cover on the amplifier output jack I/O electric interleaver WNH4P-S-46.2-2-96-N-P 01.00.DD.QT.E049 1
two layers board mainboard (semi-manufactured goods) HS100（1239C-PV1）02.03.70.1239C 1
two layers board amplifier board (semi-manufactured goods) HS100（1241C-1）02.03.70.1241C1 1
single layer board power supplier board (semi-manufactured go HS100（1356C）02.03.70.1356C 1
two layers board front panel (semi-manufactured goods) HS100（1813C VFD board）02.03.70.1813C 1
two layers board front panel (semi-manufactured goods) HS100（1814C volume board）02.03.70.1814C 1
two layers board front panel (semi-manufactured goods) HS100（1815C button board）02.03.70.1815C 1
two layers board front panel (semi-manufactured goods) HS100（1816C standby board) 02.03.70.1816C 1
Harman consumer Group Bill of Material HS100
www.audiodna.sk

MainBoard (1239C-PV1)
Location.No. Description Specification P/N Qty
R1 R116 FB24 FB25 DR1 DR2 DR3 R143 Resistor, chip 0603-0Ω±5% 01.57.R.2.E000J 8
R61 R62 R63 R114 3R2 3R4 DR4 DR5 DR6 Resistor, chip 0603-10Ω±5% 01.57.R.2.E100J 9
R29 (R30) (R31) (R32) (R33) R202 Resistor, chip 0603-22Ω±5% 01.57.R.2.E220J 6
R145 R146 Resistor, chip 0603-27Ω±5% 01.57.R.2.E270J 2
R184 R185 R186 R189 R190 Resistor, chip 0603-33Ω±5% 01.57.R.2.E330J 5
R149 R150 Resistor, chip 0603-56Ω±5% 01.57.R.2.E560J 2
R9 R37 R39 R40 (R41) (R42) R43 (R44)
R45 R46 R47 R48 AR3 AR4 AR5 AR6 Resistor, chip 0603-75Ω±1% 01.57.R.2.E750F 16
R182 R183 R187 Resistor, chip 0603-82Ω±5% 01.57.R.2.E820J 3
AR10 Resistor, chip 0603-91Ω±5% 01.57.R.2.E910J 1
R117 R137 R199 RR11 RR12 Resistor, chip 0603-100Ω±5% 01.57.R.2.E101J 5
R89 R98 Resistor, chip 0603-150Ω±5% 01.57.R.2.E151J 2
R11 (R12) Resistor, chip 0603-187Ω±1% 01.57.R.2.E1870F 2
RR6 RR7 RR8 RR9 Resistor, chip 0603-220Ω±5% 01.57.R.2.E221J 4
R56 R67 Resistor, chip 0603-330Ω±5% 01.57.R.2.E331J 2
R193 R211 (R212) R213 Resistor, chip 0603-470Ω±5% 01.57.R.2.E471J 4
R55 R66 (3R3) (3R9) Resistor, chip 0603-680Ω±5% 01.57.R.2.E681J 4
R78 R191 R192 R194 RR3
R173A1 R173B1 R173C1 R173D1 Resistor, chip 0603-1KΩ±5% 01.57.R.2.E102J 9
R204 Resistor, chip 0603-1.2KΩ±5% 01.57.R.2.E122J 1
R57 R68 Resistor, chip 0603-1.78KΩ±1% 01.57.R.2.E1781F 2
R139 Resistor, chip 0603-2.2KΩ±5% 01.57.R.2.E222J 1
(R17) (R18) (R19) (R20) AR11 Resistor, chip 0603-2.7KΩ±5% 01.57.R.2.E272J 5
R81 R120 Resistor, chip 0603-3KΩ±5% 01.57.R.2.E302J 2
(R195) Resistor, chip 0603-3.9KΩ±5% 01.57.R.2.E392J 1
R4 R7 R15 (R53) (R65) R93 R99 R106 R107
R108 R109 R110 R111 R113 AR2 AR12
(R4B1)
(R5A1) (R121) (R122) (R123) AR7 R144
Resistor, chip 0603-4.7KΩ±5% 01.57.R.2.E472J 23
Harman consumer Group Bill of Material HS100
www.audiodna.sk

MainBoard (1239C-PV1)
Location.No. Description Specification P/N Qty
R54 R64 Resistor, chip 0603-4.75KΩ1% 01.57.R.2.E4752F 2
R133 R197 Resistor, chip 0603-5.6KΩ±5% 01.57.R.2.E562J 2
R128 Resistor, chip 0603-6.2KΩ±5% 01.57.R.2.E622J 1
R86 R97 Resistor, chip 0603-6.8KΩ±5% 01.57.R.2.E682J 2
R58 R69 R126 R196 R131 R134 Resistor, chip 0603-7.5KΩ±5% 01.57.R.2.E752J 6
R90 R96 Resistor, chip 0603-8.2KΩ±5% 01.57.R.2.E822J 2
(R2) (R3) (R5) (R6) (RR1) (RR2) (RR10) (R16)
(R21) (R22) (R23) (R24) (R27) (R34) R35
(R36) R38 R59 (R60) (R71) R72 (R79) R80
R84 (R85) R112 (R118) (R125) R132 R151
R152 R153 R154 R155 R158 R159 R167 R172
R175 (R176) (R177) (R178) R180 R188 (R205)
(R206) (R207) (R208) R209 (R215) R156 R157
Resistor, chip 0603-10KΩ±5% 01.57.R.2.E103J 52
R130 R135 Resistor, chip 0603-10KΩ±1% 01.57.R.2.E103F 2
R26 (R119) (R210) Resistor, chip 0603-15KΩ±5% 01.57.R.2.E153J 3
R124 R141 R201 Resistor, chip 0603-18KΩ±5% 01.57.R.2.E183J 3
3R1 3R5 3R6 3R10 Resistor, chip 0603-20KΩ±5% 01.57.R.2.E203J 4
R203 Resistor, chip 0603-27KΩ±5% 01.57.R.2.E273J 1
R127 Resistor, chip 0603-33KΩ±5% 01.57.R.2.E333J 1
R115 Resistor, chip 0603-47KΩ±5% 01.57.R.2.E473J 1
R181 Resistor, chip 0603-68KΩ±5% 01.57.R.2.E683J 1
(R28) R95 R102 (R129) 3R7 Resistor, chip 0603-100KΩ±5% 01.57.R.2.E104J 5
(R14) (R138) R198 3R8 Resistor, chip 0603-1MΩ±5% 01.57.R.2.E105J 4
R147 R148 Resistor, chip 0805-2.2Ω±5% 01.57.R.3.E2R2J 2
RN13 RN16 RN17 RN18 Resistor, thick film chip network 33Ω*4 ±5% 01.57.R.8.EP3304 4
RN12 Resistor, thick film chip network 82Ω*4 ±5% 01.57.R.8.EP0824 1
RN2 Resistor, thick film chip network 47KΩ*4 ±5% 01.57.R.8.EP4734 1
R75 Fixed carbon film RT1/4W-75Ω01.57.R.C.ED750 1
ESD10 ESD11 Zinc oxide varistor, for ESD AVR-M1608C270MTABB 01.57.R.Y.270 2
Harman consumer Group Bill of Material HS100
www.audiodna.sk

CB131 CB132 CB134 C85
MainBoard (1239C-PV1)
Location.No. Description Specification P/N Qty
C24 Capacitor,multilayer ceramic, chip 0603-6.8P X7R 01.54.CS.2.E6P8X 1
(C21) C124 C125 (C151) Capacitor,multilayer ceramic, chip 0603-10P NPO±5%/50V 01.54.CS.2.E100N 4
(2C4) (2C8) (C31) (C35) (C37) (C43) Capacitor,multilayer ceramic, chip 0603-20P NPO±5%/50V 01.54.CS.2.E200N 6
(C22) (C23) (C47) Capacitor,multilayer ceramic, chip 0603-22P NPO±5%/50V 01.54.CS.2.E220N 3
(C91) (C95) C119 Capacitor,multilayer ceramic, chip 0603-33P NPO±5%/50V 01.54.CS.2.E330N 3
(C20) C81 C83 C108 C115 C60 C61 C87 Capacitor,multilayer ceramic, chip 0603-47P NPO±5%/50V 01.54.CS.2.E470N 8
(C38) (C42) Capacitor,multilayer ceramic, chip 0603-51P NPO±5%/50V 01.54.CS.2.E510N 2
C59 C74 Capacitor,multilayer ceramic, chip 0603-200P NPO±5%/50V 01.54.CS.2.E201N 2
C109 Capacitor,multilayer ceramic, chip 0603-220P NPO±5%/50V 01.54.CS.2.E221N 1
C90 Capacitor,multilayer ceramic, chip 0603-270P NPO±5%/50V 01.54.CS.2.E271N 1
(C26) (C72) C94 Capacitor,multilayer ceramic, chip 0603-560P NPO±5%/50V 01.54.CS.2.E561N 3
(C139) Capacitor,multilayer ceramic, chip 0603-102 X7R±10%/50V 01.54.CS.2.E102X 1
C110 Capacitor,multilayer ceramic, chip 0603-152 X7R±10%/50V 01.54.CS.2.E152X 1
C116 Capacitor,multilayer ceramic, chip 0603-562 X7R±10%/50V 01.54.CS.2.E562X 1
C82 C84 (C114) (C158) (C161) Capacitor,multilayer ceramic, chip 0603-103 Y5V-20+80%/50V 01.54.CS.2.E103Y 5
(C122) (C28) (C36) Capacitor,multilayer ceramic, chip 0603-183 X7R±10%/50V 01.54.CS.2.E183X 3
(C112) Capacitor,multilayer ceramic, chip 0603-333 X7R±10%/50V 01.54.CS.2.E333X 1
CB1 CB2 CB3 CB4 CB5 CB6 CB7 CB8 CB9
CB10 CB11 CB12 CB13 CB14 CB15 CB16
CB17 CB18 CB19 CB20 CB21 CB22 CB23
CB24 CB25 CB26 CB27 CB28 CB29 CB30
CB31 CB32 CB33 CB34 CB35 CB36 CB37
CB38 CB39 CB40 CB41 CB42 CB43 CB44
CB45 CB46 CB47 CB48 CB49 CB50 CB51
CB52 CB53 CB54 CB55 CB56 CB57 CB58
CB59 CB60 CB61 CB62 CB63 CB64 CB65
CB66 CB67 CB68 CB69 CB70 CB71 CB72
CB73 CB74 CB75 CB76 CB77 CB78 CB79
CB80 CB81 CB82 CB83 CB84 CB85 CB86
CB87 CB88 CB89 CB90 CB91 CB92 CB93
CB94 CB95 CB96 CB97 CB98 CB99 CB102
CB103 CB104 CB105 CB106 CB107 CB108
CB110 CB111 CB112 CB113 CB114 CB115
CB116 CB117 CB135 CB120 CB121 CB122
Capacitor,multilayer ceramic, chip 0603-104 Y5V-20+80%/50V 01.54.CS.2.E104Y 122
Harman consumer Group Bill of Material HS100
www.audiodna.sk

MainBoard (1239C-PV1)
Location.No. Description Specification P/N Qty
(C150) (C156) (C157) Capacitor,multilayer ceramic, chip 0603-105 Y5V-20+80%/10V 01.54.CS.2.E105Y 3
C54 C64 Capacitor,multilayer ceramic, chip 0805-100P NPO±5%/50V 01.54.CS.3.E101N 2
(C67) (C68) Capacitor,multilayer ceramic, chip 0805-680P NPO±5%/50V 01.54.CS.3.E681N 2
C56 C69 Capacitor,multilayer ceramic, chip 0805-102 NPO±5%/50V 01.54.CS.3.E102N 2
C41 C44 EC22 EC23 EC24 EC25
3C1 3C2 3C3 Capacitor, AL.electrolytic CD110-1UF/50V 5*11 01.34.CL.D.E1U50VC 9
C93 Capacitor, AL.electrolytic CD110-2.2UF/50V 5*11 01.34.CL.D.EV2U250VC 1
EC43 EC44 Capacitor, AL.electrolytic CD110-4.7UF/50V 5*11 01.34.CL.D.E4U750VC 2
EC15 EC16 EC20 EC21 EC28 EC29
EC33 EC34 EC35 EC36 EC39 C12 Capacitor, AL.electrolytic CD110-10UF/16V 5*11 01.34.CL.D.E10U16VC 12
C27 C40 C46 Capacitor, AL.electrolytic CD110-22UF/16V 5*11 01.34.CL.D.E22U16VC 3
C6 C14 C15 C29 C30 C49 C51 C58 C66 C75
C79 C80 C99 C100 C101 EC9 EC10 EC12
EC13 EC14 EC19 EC27 EC42 EC45
Capacitor, AL.electrolytic CD110-47UF/16V 5*11 01.34.CL.D.E47U16VC 24
C11 C25 C39 C45 EC1 EC2 EC32 Capacitor, AL.electrolytic CD110-100UF/10V 5*12 01.34.CL.D.E100U10VD 7
C17 C76 EC30 EC31 Capacitor, AL.electrolytic CD110-100UF/25V 6.3*12 01.34.CL.D.E100U25VD 4
C4 C7 Capacitor, AL.electrolytic CD110-100UF/50V 8*12 01.34.CL.D.E100U50VD 2
EC3 EC4 EC5 EC6 EC7 EC8 EC11 EC40 EC41
C1 C3 C8 C16 C19 C34 C77 3C6 3C7 Capacitor, AL.electrolytic CD110-220UF/16V 6.3*12 01.34.CL.D.E220U16VD 18
C52 C53 Capacitor, AL.electrolytic CD110-330UF/16V 6.3*12 01.34.CL.D.E330U16VD 2
C5 C13 C18 Capacitor, AL.electrolytic CD110-470UF/16V 8*12 01.34.CL.D.E470U16VD 3
C48 Capacitor, AL.electrolytic CD110-1500UF/6.3V 8*17 01.34.CL.D.EV1500U6V3 1
R136 Inductor, multilayer ceramic, chip 0603-10UH 01.13.L.L.S.E002 1
(L18) Inductor, multilayer ceramic, chip 0805-0.39UH 01.13.L.L.S.E117 1
(L16) (L17) Inductor, multilayer ceramic, chip 0805-0.68UH 01.13.L.L.S.E118 2
Z1 Z2 Tuner 19k filter EJ219 01.13.L.R.068 2
R74 Bead, chip 0603-300Ω01.13.L.Z.ESA300 1
FB10 FB11 FB12 (FB13) (FB14)
(FB15) FB26 FB31 FB32 FB33 (FB34) Bead, chip 0603-50Ω01.13.L.Z.ESA50 11
Harman consumer Group Bill of Material HS100
www.audiodna.sk

MainBoard (1239C-PV1)
Location.No. Description Specification P/N Qty
FB1 FB2 FB4 FB6 FB7 FB8 FB27 FB28
FB29 L1 L2 L3 L4 L5 L6 L7 (L8) L9 L10 L11
L12 L13 L14 L15 L19 L20 L21 L22 (L23) L24
L25 L26 L28 L29 L30 L31 L33
Bead, chip 0805-50Ω01.13.L.Z.ESB50 37
FB3 FB5 FB9 FB30 Bead, leaded fixed 50Ω（3.5*6.0*0.8）01.13.L.Z.ED50A 4
match with Y1 Bead, without pin HFSFBB3.5*6*0.8 01.13.L.Z.EHFSF 2
D15 D17 D18 D19 D20 Diode IN4148 DIP 01.41.D.PD.IN4148 5
D24 D26 D27 Diode IN5393 DIP 01.41.D.PD.5393 3
D16 D25 Diode LL4148 SMD 01.41.D.PS.LL4148 2
Q3 Q4 Q5 Q6 Q7 Q8 Q13 Transistor C9014 SMD 01.42.Q.S.9014 7
Q23 Q24 Q25 2Q4 2Q5 Q20 Transistor KTC8050 SMD 01.42.Q.S.8050 6
Q1 Q2 Q12 Q17 Q26 Transistor S8550 SMD 01.42.Q.S.8550 5
Q9 Q10 (Q19) (Q27) Transistor DTC343TKT146 SMD 01.42.Q.S.EDTC343 4
Q22 Transistor DTA114EKAT146 SMD 01.42.Q.S.DTA114 1
Q18 Transistor 2SK3018T106 SMD 01.42.Q.S.E3018 1
Q16 Transistor 8050 DIP 01.42.Q.D.8050 1
Q15 Transistor 8550 DIP 01.42.Q.D.8550 1
Y1 Fundamental. Oscillator 27.000MHZ-49S-20P 01.00.JZ.E27000 1
Y2 Fundamental. Oscillator 33.8688MHZ-49S-20P 01.00.JZ.E33868 1
Y3 Fundamental. Oscillator 4.332MHz-49S-20P 01.00.JZ.E4332 1
U1 IC, Panasonic, Motor Driver AN8785SB, HSOP042 01.44.IC.S.8785 1
U2 IC, Sharp, Voltage Regulator O18EZ01, PQ025 01.44.IC.S.018EZ01 1
U3 IC, NS, Voltage Regulator 79L05, 3P, TO-92 01.44.IC.D.79L05 1
U4 IC, Amlogic, decoder AML3390DTS, 208P, PQFP 01.44.IC.S.3390 1
U5 IC, TI, 8-bit serial-in/ parallel-out shift register 74HC164, 14P, SO14 01.44.IC.S.74HC164 1
U7（burn-in firmware）IC, AMD, Flash AM29LV160DB-90EC, 48P, TSOP48 01.44.IC.S.29LV160DB 1
U8（burn-in servo code) IC, Atmel Servo FLASH. AT27C020-70ZC, PLCC 01.46.IC.27C02 1
U9 IC, Panasonic, Servo chip MN103S47JRB, 176P, QFP 01.44.IC.S.103S47 1
(U6) IC, Hyundai, SDRAM HY57V641620HGT-7, 54P, TSOP54 01.46.IC.641620 1
U12 IC, JRC, Pre-amp NJM4558, 8P, SOP 01.44.IC.S.4558 1
Harman consumer Group Bill of Material HS100
www.audiodna.sk

a
MainBoard (1239C-PV1)
Location.No. Description Specification P/N Qty
U11 U20 IC, NS, Pre-amp LM833, 8P, SOP 01.44.IC.S.833 2
U14 IC, Rohm, Video Buffer BH7862FS, 32P, SSOP-A32 01.44.IC.S.7862 1
3U2 IC, NS, Audio Power Amplifier LM4880, 8P, SOP8 01.44.IC.S.4880 1
U15（burn-in EU or US firmware）IC, Atmel, EEPROM AT24C64, 8P, SOP 01.44.IC.S.24C64 1
U16 IC, Wolfson, Audio DAC WM8728, 20P, SSOP20 01.44.IC.S.8728 1
U10 U13 U19 IC, NS, Voltage Regulator 78L05, 3P, TO-92 01.44.IC.D.78L05 3
U21 IC, NS, Analog Multiplexer CD4052, 16P, SOP16 01.44.IC.S.4052 1
U22 IC, TI, Data selectors 74HC158, 16P, SOP16 01.44.IC.S.74HC158 1
U23 IC, Crystal, A/D Converter CS5333, 16P, TSSOP16 01.44.IC.S.5333 1
U24 IC, NS, Voltage Regulator L7809, 3P, TO-220 01.44.IC.D.L7809 1
U25 IC, Rohm, RDS decoder BU1924, 16P, SOP16 01.44.IC.S.1924 1
U26 IC, Philips, Hex inverting Schmitt trigger 74HCT14, 14P, SO14 01.46.IC.7414 1
CN3 Connector FPC-0.5-24P (upward touching) 01.40.CON.S05.E007 1
CN2 Jack, Sharp, Fiber optic input jack GP1FA513RZ, In-line Package 01.43.004 1
CN1 Connector 1.25-11P 01.40.CON.DCZ.062 1
CN4 CN6 Connector PH-5A, 5P, In-line Package 01.40.CON.DPH.023 2
CN5 Connector PH-6A, 6P, In-line Package 01.40.CON.DPH.027 1
CON6 Connector PH-9A, 5P, In-line Package 01.40.CON.DPH.041 1
CON7 Connector PH-10A, 6P, In-line Package 01.40.CON.DPH.001 1
CON8 Jack, YuanChang, Video&S-Video output jack SAV-01 (yellow) 01.40.CON.DCZ.142 1
CON4 Jack, YuanChang, Component Video output j AV3-8.4-13G 01.40.CON.DCZ.183 1
CON9 Jack, YuanChang, Audio output&input jack AV4-8.4-5 01.40.CON.DCZ.173 1
CON5 Jack, YuanChang, Coaxial output jack AV1-8.4-6G (orange) 01.40.CON.DCZ.123 1
CON1 Connector 1.0-16P 01.40.CON.S10.E024 1
Harman consumer Group Bill of Material HS100
www.audiodna.sk

MainBoard (1239C-PV1) only for US version
Location.No. Description Specification P/N Qty
R92 R101 R104 R105 Resistor, chip 0603-4.7KΩ±5% 01.57.R.2.E472J 4
R88 R94 Resistor, chip 0603-8.2KΩ±5% 01.57.R.2.E822J 2
hand-make solder Fixed carbon film RT1/6W-3KΩ01.57.R.C.EC302 2
ESD4 ESD5 Zinc oxide varistor, for ESD AVR-M1608C270MTABB 01.57.R.Y.270 2
CON3 Connector AV2-8.4-7B/PB 01.40.CON.DCZ.182 1
MainBoard (1239C-PV1) only for EU version
Location.No. Description Specification P/N Qty
R49 R50 R51 R52 Resistor, chip 0603-75Ω±1% 01.57.R.2.E750F 4
2R11 2R12 Resistor, chip 0603-2KΩ±5% 01.57.R.2.E202J 2
2R3 2R4 2R6 2R7 2R8 2R9 Resistor, chip 0603-3.3KΩ±5% 01.57.R.2.E332J 6
R104 R105 2R10 Resistor, chip 0603-4.7KΩ±5% 01.57.R.2.E472J 3
R88 R94 R92 R101 Resistor, chip 0603-8.2KΩ±5% 01.57.R.2.E822J 4
(2R13) Resistor, chip 0603-15KΩ±5% 01.57.R.2.E153J 1
2R5 Fixed carbon film RT1/4W-150Ω01.57.R.C.ED151 1
2R1 2R2 Fixed carbon film RT1/4W-1KΩ01.57.R.C.ED102 2
ESD4 ESD5 ESD6 ESD7 ESD8 ESD9 Zinc oxide varistor, for ESD AVR-M1608C270MTABB 01.57.R.Y.270 6
CB100 CB101 CB109 Capacitor, multilayer ceramic, chip 0603-104 Y5V-20+80%/50V 01.54.CS.2.E104Y 3
FB18 FB19 FB20 FB21 FB22 FB23 Bead, chip 0603-50Ω01.13.L.Z.ESA50 6
2Q1 2Q2 2Q3 Transistor DTC343TKT146 SMD 01.42.Q.S.EDTC343 3
CON3 SCART Connector CS-101 with shield 01.40.CON.DCZ.181 1
Harman consumer Group Bill of Material HS100
www.audiodna.sk

Amplifier Board (1241C-1)
Location.No. Description Specification P/N Qty
RR1 RR2 RR3 RR7 RR8 RR9 Resistor, chip 0603-0Ω±5% 01.57.R.2.E000J 6
R11 Resistor, chip 0603-150Ω±5% 01.57.R.2.E151J 1
R15 Resistor, chip 0603-270Ω±5% 01.57.R.2.E271J 1
R8 R12 Resistor, chip 0603-1KΩ±5% 01.57.R.2.E102J 2
R7 R9 R10 Resistor, chip 0603-1.5KΩ±5% 01.57.R.2.E152J 3
AR5 Resistor, chip 0603-3.3KΩ±5% 01.57.R.2.E332J 1
R3 R4 R5 R6 AR9 AR16 AR23 Resistor, chip 0603-10KΩ±5% 01.57.R.2.E103J 7
R13 Resistor, chip 0603-47KΩ±5% 01.57.R.2.E473J 1
AR6 AR7 AR10 AR11 AR13 AR14 AR17
AR18 AR20 AR21 Resistor, chip 1206-4.7Ω±5% 01.57.R.4.E4R7J 10
AR8 AR12 AR15 AR19 AR22 Resistor, chip 1206-15Ω±5% 01.57.R.4.E150J 5
C2 Capacitor,multilayer ceramic, chip 0603-27P NPO±5%/50V 01.54.CS.2.E270N 1
C5 Capacitor,multilayer ceramic, chip 0603-100P NPO±5%/50V 01.54.CS.2.E101N 1
AC22 Capacitor,multilayer ceramic, chip 0603-220P NPO±5%/50V 01.54.CS.2.E221N 1
AC6 C4 Capacitor,multilayer ceramic, chip 0603-102 X7R±10%/50V 01.54.CS.2.E102X 2
C1 Capacitor,multilayer ceramic, chip 0603-153 Y5V-20+80%/50V 01.54.CS.2.E153Y 1
(CB2) CB3 (CB4) (AC1) (AC2) (AC3) (AC4)
(AC7) (AC8) (AC9) (AC10) (AC13) (AC14)
(AC15) AC18 (AC19) AC23 AC25 (AC26)
(AC27) (AC29) AC31 AC32 AC40 AC42 AC50
AC51 AC55 AC59 AC60 AC68 AC70 AC78
AC79 AC83 AC87 AC88 AC98 AC96 AC100
AC101 AC102
Capacitor,multilayer ceramic, chip 0603-104 Y5V-20+80%/50V 01.54.CS.2.E104Y 42
(CB7) (CB8) (CB9) (CB10) (CB11) (CB12)
(CB13) (CB14) (CB15) (CB16) Capacitor,multilayer ceramic, chip 0805-102 NPO±5%/50V 01.54.CS.3.E102N 10
AC20 Capacitor,multilayer ceramic, chip 0603-122 X7R±10%/50V 01.54.CS.2.E122X 1
AC28 AC33 AC38 AC41 AC43 AC47 AC52
AC54 AC56 AC61 AC66 AC69 AC71 AC75
AC80 AC82 AC84 AC89 AC94 AC97
Capacitor,multilayer ceramic, chip 0805-104 Y5V+80-20%/50V 01.54.CS.3.E104Y 20
AC30 AC46 AC58 AC74 AC86 Capacitor,multilayer ceramic, chip 1206-470P X7R±10%/50V 01.54.CS.4.E470 5
AC37 AC44 AC65 AC72 AC93 Solid Electrolyte Tantalum Chip Capacitor C-1UF-50V 01.33.CT.C1U50V 5
AC11 AC24 Solid Electrolyte Tantalum Chip Capacitor B-22UF-10V 01.33.CT.B22U10V 2
AC36 AC49 AC64 AC77 AC92 Box-type metallized polyester film capacitor 0.68uF 63V J NPO P=5 01.34.CL.D.E68463J 5
Harman consumer Group Bill of Material HS100
www.audiodna.sk

Amplifier Board (1241C-1)
Location.No. Description Specification P/N Qty
EC5 Capacitor, AL.electrolytic 105 CD110-10UF/25V 5*11 105C 01.34.CL.D.E10U25VC 1
EC1 EC2 AC12 Capacitor, AL.electrolytic CD110-100UF/16V 5*11 105C 01.34.CL.D.E100U16VC 3
AC34 AC62 AC90 Capacitor, AL.electrolytic CD288H-1000UF/50V 13*25 105C 01.34.CL.D.E1000U50V 3
EC3 EC4 Capacitor, AL.electrolytic CD110-47UF/16V 5*11 105C 01.34.CL.D.E47U16VC 2
FB1 Bead, chip 0805-50Ω01.13.L.Z.ESB50 1
L2 L3 Bead, chip 0805-300Ω01.13.L.Z.ESB300 2
LL1 LL2 LL3 LL4 LL5 LL6 LL7 LL8 LL9 LL10 Magnetic shielding Inductor 983BN-1003-15UH 01.13.L.L.D.127 10
D4 D5 Diode LL4148 SMD 01.41.D.PS.LL4148 2
Q2 Transistor DTC343TKT146 SMD 01.42.Q.S.EDTC343 1
Q1 Jumper 5mm 01.00.FZ.ZZ.009 1
AU1 AU2 AU3 IC, Apogee, Power Device DDX2100, 36P 01.44.IC.S.2100 3
U3 IC, Apogee, Digital Audio Processor DDX8001, 64P, TQFP64 01.44.IC.S.8001 1
U2 IC, Analogic, Microprocessor Reset Circuit AAT3522IGY-3.08, 3P, SST3 01.44.IC.S.3522 1
U4 IC, JRC, Pre-amp NJM4558, 8P, SOP 01.44.IC.S.4558 1
U1 IC, RichTek, Voltage Regulator RT9161/A-33, 4P, SOT-89 01.44.IC.S.9161A 1
CN1 Connector - horizontal Vertical VH three holes two pins 01.40.CON.DCZ.129 1
CN5 Connector 1.0-16P 01.40.CON.S10.E024 1
CN3 Jack, YuanChang, Sub output jack AV1-8.4-6G (Purple) 01.40.CON.DCZ.172 1
CN4 Amplifier output jack WP10-23-3 01.40.CON.DCZ.184 1
CN6 Connector - horizontal PH-5A 01.40.CON.DPH.058 1
Harman consumer Group Bill of Material HS100
www.audiodna.sk

Power Supply Board (1356C)
Location.No. Description Specification P/N Qty
NTC NTC thermistor NTC-5D-9 01.57.R.R.5D9 1
RV1 Zinc oxide varistor 10K.471 01.57.R.Y.10K 1
R3 R5 R23 R25 Fixed carbon film RT1/6W-10Ω01.57.R.C.EC100 4
R16 Fixed carbon film RT1/6W-100Ω01.57.R.C.EC101 1
R13 R14 Fixed carbon film RT1/6W-220Ω01.57.R.C.EC221 2
R30 Fixed carbon film RT1/6W-330Ω01.57.R.C.EC331 1
R27 R31 R36 Fixed carbon film RT1/6W-1KΩ01.57.R.C.EC102 3
R18 R19 R20 R29 Fixed carbon film RT1/6W-2.2KΩ01.57.R.C.EC222 4
R33 R32 R11 R12 R15 R17 Fixed carbon film RT1/6W-5.1KΩ01.57.R.C.EC512 6
R10 Fixed carbon film RT1/6W-10KΩ01.57.R.C.EC103 1
R22 Fixed carbon film RT1/6W-12KΩ01.57.R.C.EC123 1
R9 Fixed carbon film RT1/6W-30KΩ01.57.R.C.EC303 1
R21 Fixed carbon film RT1/6W-100KΩ01.57.R.C.EC104 1
R26 Fixed carbon film RT1/4W-20Ω01.57.R.C.ED200 1
R39 Fixed carbon film RT1/4W-300Ω01.57.R.C.ED301 1
R35 Fixed carbon film RT1/4W-1KΩ01.57.R.C.ED102 1
R4 Fixed carbon film RT1/4W-47KΩ01.57.R.C.ED473 1
R7 R8 Fixed carbon film RT1/4W-30KΩ01.57.R.C.ED303 2
R2 Fixed carbon film RT1/4W-470KΩ01.57.R.C.ED474 1
R0 Fixed carbon film RT1/4W-1MΩ01.57.R.C.ED105 1
R6 Cermet Resistor RI40-1/2W-4.3MΩ01.57.R.C.40E435 1
R1 R24 Fixed carbon film RT1W-68KΩ01.57.R.C.EF683 2
R28 Fixed carbon film RT2W-0.22Ω01.57.R.C.EGR22 1
R34 R38 Fixed carbon film RT2W-1KΩ01.57.R.C.EG102 2
CX3 CX1 CX2 High-voltage metallized polyester film 104/275V X2 01.00.CD.GY.E104275V 3
CY3 CY4 CY5 CY6 High-voltage metallized polyester film 471/400V Y1 01.00.CD.GY.E471400V 4
CY1 CY2 High-voltage metallized polyester film 221/400V Y1 01.00.CD.GY.E221400V 2
C1 C10 High-voltage metallized polyester film 103/1KV 01.00.CD.CP.E1031KV 2
C13 Radial leads mlcc 471/50V X7R±10% 01.00.CD.DS.E47150V 1
Harman consumer Group Bill of Material HS100
www.audiodna.sk

Power Supply Board (1356C)
Location.No. Description Specification P/N Qty
C2 C8 C14 Radial leads mlcc 473/25V X7R±10% 01.00.CD.DS.E47325V 3
C3 C4 C5 C6 C7 C11 Radial leads mlcc 104/25V X7R±10% 01.00.CD.DS.E10425V 6
C12 Radial leads mlcc 272/50V X7R±10% 01.00.CD.DS.E27250V 1
C16 Metallized capacitor CT-104/100V 01.00.CD.JZ.104100VJ 1
EC22 EC25 Capacitor, AL.electrolytic CD110-1UF/50V 5*11 01.34.CL.D.E1U50VC 2
EC10 Capacitor, AL.electrolytic CD110-2.2UF/25V 5*11 01.34.CL.D.E2U225VC 1
EC1 EC17 Capacitor, AL.electrolytic CD110-47UF/50V 6.3*12 01.34.CL.D.E47U50VCD 2
EC23 EC24 C9 Capacitor, AL.electrolytic CD110-100UF/16V 5*11 01.34.CL.D.E100U16VC 3
EC3 EC4 EC5 EC6 Capacitor, AL.electrolytic CD110-100UF/25V 6.3*12 105C 01.34.CL.D.E100U25VD 4
EC18 EC19 EC20 EC21 Capacitor, AL.electrolytic CD288H-1000UF/35V 12*25 01.34.CL.D.E1000U35V 4
EC13 EC14 Capacitor, AL.electrolytic CD288H-1000UF/16V 10*20 105C 01.34.CL.D.E1000U16VG 2
EC9 EC15 Capacitor, AL.electrolytic CD110-220UF/10V 5*12 01.34.CL.D.E220U10VD 2
EC7 EC8 EC11 EC12 Capacitor, AL.electrolytic CD110-220UF/16V 6.3*12 01.34.CL.D.E220U16VD 4
EC16 Capacitor, AL.electrolytic CD294-220UF/400V 25*40 105C 01.34.CL.D.E220U400V 1
EC2 Capacitor, AL.electrolytic CD110-4.7UF/160V 8*13 01.34.CL.D.E4U7160V 1
L7 Filter inductor L630-100 01.13.L.L.D.013 1
L6 Filter inductor L630(10UH) 01.13.L.L.D.085 1
L2 L3 L4 L5 Filter inductor LH0608-20UH 01.13.L.L.D.E002 4
LF2 Common Mode Choke LCL-UF1601(30mH) 01.13.L.L.D.132 1
LF1 Common Mode Choke LCL-203A(20mH) 01.13.L.L.D.133 1
FB1 Inductor 10UH Axial 0.4 01.13.L.L.D.037 1
LF3 Filter inductor 470UH 01.13.L.L.D.134 1
BG1 Bridge Rectifiers KBU8M 01.41.D.PD.8M 1
D7 Diode 21DQ10 DIP 01.41.D.PD.21DQ10 1
D9 Diode 31DQ06 DIP 01.41.D.PD.31DQ06 1
D1 D2 D3 D5 D6 D8 D13 D15 Fast recovery rectifiers diode FR107 DIP 01.41.D.PD.FR107 8
D10 D11 D12 D16 Switching Diode IN4148 DIP 01.41.D.PD.IN4148 4
D17 D18 Schottky diode FCH20A20 DIP 01.41.D.PD.20A20 2
D14 Fast recovery rectifiers diode FR207 DIP 01.41.D.PD.207 1
Harman consumer Group Bill of Material HS100
www.audiodna.sk

Power Supply Board (1356C)
Location.No. Description Specification P/N Qty
ZD1 Zener Diode 24V 01.41.D.WD.24V 1
ZD2 Zener Diode 18V 01.41.D.WD.18V 1
SC1 Silicon controlled rectifiers MCR100-6 DIP 01.41.D.PD.MCR100-6 1
Q1 Q3 NPN Transistor 2N5551 DIP 01.42.Q.D.5551 2
Q4 Q7 NPN Transistor C9014 DIP 01.42.Q.D.9014 2
Q5 PNP Transistor 8550 DIP 01.42.Q.D.8550 1
Q6 MOS-FET FQA11N90 DIP 01.44.IC.D.11N90 1
IC5 IC, NS, Voltage Regulator L7805 DIP 01.44.IC.D.L7805 1
IC3 IC, NS, Voltage Regulator L7812 DIP 01.44.IC.D.7812 1
IC4 IC, NS, Voltage Regulator L7912 DIP 01.44.IC.D.7912 1
IC6 IC, Rohm, Voltage Regulator BA033T DIP 01.44.IC.D.BA033T 1
IC2 IC, Fairchild, Versatile PWM Controller FAN7554 DIP 01.44.IC.D.7554 1
IC1 IC, Fairchild, Power Switch KA5L0380RYDTU DIP 01.44.IC.D.5L0380R 1
IC7 IC8 IC, Fairchild, Precision Adjustable Voltage
Regulator KA431AZ DIP 01.44.IC.D.KA431A 2
PH1 PH2 IC, Sharp, Photoelectric Coupler PC817 DIP 01.44.IC.D.PC817 2
CN2 CN3 Connector Vertical VH three holes two 01.40.CON.DCZ.129 2
CN1 Connector
pins(white)
Vertical VH three holes two
pins(orange) 01.40.CON.DCZ.130 1
CN4 Connector TJC3-3A 01.40.CON.DTJ.006 1
CN5 Connector TJC3-10A 01.40.CON.DTJ.028 1
CN6 Connector TJC3-5A 01.40.CON.DTJ.011 1
FU1 Fuse Holder BLX-2A 01.40.CON.DCZ.131 1
FU1 Fuse T3.15AL/250V 01.38.FUSE.D.315AL 1
TR1 Transformer BCK-ER2802S1 01.13.L.R.082 1
TR2 Transformer BCK-EC4201A 01.13.L.R.081 1
Harman consumer Group Bill of Material HS100
www.audiodna.sk

Front Panel Board - Display board (1813C)
Location.No. Description Specification P/N Qty
3R35 Resistor, chip 0805-4.7KΩ±5% 01.57.R.3.E472J 1
3R1 3R2 3R14 Resistor, chip 0805-10KΩ±5% 01.57.R.3.E103J 3
3R13 Resistor, chip 0805-20KΩ±5% 01.57.R.3.E203J 1
ESD1 ESD2 Zinc oxide varistor, for ESD AVR-M1608C270MTABB 01.57.R.Y.270 2
3C18 Capacitor,multilayer ceramic, chip 0805-30P NPO±5%/50V 01.54.CS.3.E300N 1
C90 C91 Capacitor,multilayer ceramic, chip 0805-56P NPO±5%/50V 01.54.CS.3.E560N 2
3C4 3C19 3C20 Capacitor,multilayer ceramic, chip 0805-100P NPO±5%/50V 01.54.CS.3.E101N 3
3C21 3C22 Capacitor,multilayer ceramic, chip 0805-473 X7R±10%/50V 01.54.CS.3.E473X 2
3CB1 Capacitor,multilayer ceramic, chip 0805-104 Y5V+80-20%/50V 01.54.CS.3.E104Y 1
3CB5 Capacitor,multilayer ceramic, chip 0805-225 Y5V-20+80%/16V 01.54.CS.3.E225Y 1
FB9 FB10 Bead, chip 0805-220Ω01.13.L.Z.ESB220 2
FB5 Bead, chip 0805-50Ω01.13.L.Z.ESB50 1
FB11 Inductance, chip 0805-10UH 01.13.L.L.S.E007 1
3C5 Capacitor, AL.electrolytic CD11X-100UF/16V 6.3*7 01.34.CL.D.EX100U16VB 1
3D12 Diode LL4148 SMD 01.41.D.PS.LL4148 1
3Q2 Transistor KTC8050 SMD 01.42.Q.S.8050 1
3Q1 Transistor S8550 SMD 01.42.Q.S.8550 1
3U2 IC, Sanyo, VFD driver LC75710 01.44.IC.S.75710 1
3IR1 IR receiver HL38B17, DIP 01.44.IC.D.38B17 1
VFD VFD VFD22-1301F 01.16.1301F 1
3J5 Headhpone jack CKX-3.5-12 01.40.CON.DCZ.219 1
3J3 Connector PH-5A 01.40.CON.DPH.023 1
3J10 Connector PH-7A 01.40.CON.DPH.031 1
3J11 3J12 Connector PH-9A 01.40.CON.DPH.041 2
Harman consumer Group Bill of Material HS100
www.audiodna.sk
