Harman Stove Company Conquest Installation instructions
1
SAVE THESE INSTRUCTIONS.
The Harman Conquest Gas Stove
Installation & Operating Manual
R12
“Ce manuel est disponible en Français sur demande”
WARNING: If the information in these instructions
result causing property damage, personal injury or
loss of life.
Installation and service must be performed by a quali-
and liquids in the vicinity of this or any other appli-
ance.
phone in your building.
• Immediately call your gas supplier from a neighbor’s
department.
Tested to
ANSI Z21.88-2002,
CSA2.33-M02 and
CAN-CGA-2.17-M91
2
CAUTION: Do not operate the appliance with glass removed, cracked or broken. Re-
placement of the panel(s) should be done by a licensed or qualied service person.
This appliance must be installed in accordance with local codes, if any. If not, follow
the current edition of the National Fuel Gas Code, ANSI Z223.1 or Canadian Installation
Codes, CAN/CGA B149. (Installer l’appareil selon les codes ou règlements locaux, ou, en
l’absence de tels règlements, selon les Codes d’installation CAN/CGA-B149)
-
-
ADVETISSEMENT: Quinconque ne respect
pas à la lettre les instructions dans le
présent manuel risque de déclencher un in-
cendie ou une explosion entraíant des dom-
mages matérials, des lésions corporelles ou
la perte de vies humaines. Installation ou
modication, consulter le manuel des usag-
ers fourn avec ce génerateur d’air chaud.
Ne pas entreposer ni utiliser d’essence ni
d’autres vapeurs ou liquides inammables
dans le voisinage de cet appareil ou de tout
autre appareil.
POUR VOTRE SÉCURITÉ: Que faire si vous
sentez une odeur de gaz:
• Ne pas tenter d’allumer d’appareil.
• Ne touchez à aucun interrupteur. Ne pas
vous servir des téléphones se trouvant dans
le batiment où vous trouvez.
• Evacuez la pièce, le bâtiment ou la zone.
• Appelez immédiatement votre fournisseur
de gaz depuis un voisin. Suivez les instruc-
tions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur
de gaz, appelez le service dos incendies.
3
Introduction 4
Operation 5
Installation 22
Option Installation
Thermostat 26
Glass Grill 26
Manufactured by The
Introduction
The Harman Conquest Direct Vent Gas Stove is a
listed gas-red direct vent room replace tested by
Intertek Testing Services/Warnock Hersey to ANSI
Z21.88-2002-CSA 2.33-2002 and CANL/CGA-
2.17-M91.
The installation of the Conquest Direct Vent
Gas Stove must conform with local codes, or in the
absence of local codes, with National Fuel Gas Code,
ANSI Z223.1 — latest edition and CAN 1 B1-149.1
and .2 Installation Code.
Also for use in mobile (manufactured) homes
after home is sited.
Mobile (manufactured) home installations must
adhere to Title 24 CFR, Part 3280, or CSA Z240.4.
CAUTION: This appliance must be vented to
the outside.
Installation and repair of the Conquest Direct
Vent Gas Stove should be done by a qualied service
person. The appliance should be inspected before
use and at least annually by a qualied service per-
son. More frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc.
It is imperative that control compartments, burners,
and circulating air passageways of the Conquest be
kept clean.
When operating your Harman Conquest Gas
Stove, respect basic safety standards. Read these
instructions carefully before you attempt to operate
the stove. Failure to do so may result in damage to
property or personal injury and may void the product
warranty.
Consult with your local building code agency
and insurance representative before you begin your
installation to ensure compliance with local codes,
including the need for permits and follow-up inspec-
tions.
Several issues must be addressed when selecting
a suitable location for your Conquest Gas Stove. Ob-
serving required clearances to combustible materials,
the proximity to a safe chimney or venting system
location, and the accessibility of the gas and electrical
supply must all be considered. In addition, selecting a
location that takes advantage of the building’s natural
air ow is also desirable to maximize the heating
effectiveness of the stove. In many cases, this is a
central location within the building.
and away from furniture and draperies.
hazards of high surface temperatures and
should stay away to avoid burns or clothing
ignition.
when they are in the same room as the
appliance.
not be placed on or near the appliance.
meubles, lessence ou autres liquides a vapeur
This appliance may be installed in an af-
termarket permanently located (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the
type(s) of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certied kit is used.
Cet appareil peut etre installe dans un maison
prefabriquee (mobile) deja installee a demeure si
les reglements locaux le permettent.
Cet appareil doit etre utilise uniquement
avec les types de gas indiques sur la plaque sig-
naletique. Ne pas l utiliser avec d autres gas sauf
si un kitde conversion dertie est installe.
Any safety screen or guard removed for
servicing an appliance must be replaced prior
to operating the appliance.
5
A. This appliance has a pilot. When lighting the pilot, follow instructions exactly.
Before operating, smell all around the appliance area for gas. Be sure to smell next to the oor because some
gas is heavier than air and will settle on the oor.
What to do if you smell gas:
• Do not try to light any gas appliance.
• Do not touch any electric switch.
• Do not use any phone in the building.
• Immediately call your gas supplier from a neighbor’s phone.
Follow gas supplier’s instructions.
• If you cannot reach your gas supplier, call the Fire Department.
Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not push in or
turn by hand, don’t try to repair it. Call a qualied service technician. Force or attempted repair may result in
a re or explosion.
Do not use this appliance if any part has been under water. Immediately call a qualied service technician to
inspect the appliance and to replace any part of the control system and gas control that has been under water.
Read the safety information above.
2. If using optional thermostat, set thermostat to lowest setting.
Turn off electric power to the appliance.
4. Turn switch to (center) position.
5. Push in gas control knob slightly and turn clockwise to
NOTE: Knob cannot be turned from to unless
knob is pushed in slightly. Do not force.
6. Wait ve (5) minutes to clear out any gas. If you then smell gas,
Follow “B” in the safety information (above) on this label. If you don’t smell gas, go to the next step.
Set to by turning fully counterclockwise.
Press in the gas control knob slightly and turn it counterclockwise to
Find the pilot by looking in front of the rear log, 4 inches right of center.
Push the control knob fully down and hold. Immediately push the red piezo igniter button to light the pilot.
It is normal to have to push the red button several times before the pilot ignites. Continue to hold the control
knob in for about one (1) minute after the pilot is lit. Release knob and it will pop back up. Pilot should
remain lit. If it goes out, repeat steps 5 through 9.
• If knob does not pop up when released, stop and immediately call your service technician or gas supplier.
• If the pilot will not stay lit after several tries, turn the gas control knob to and call your service
technician or gas supplier.
Turn the gas control knob counterclockwise to
.Place the switch to (up) position or “ (down) position if
the optional thermostat is used.
Turn on electric power to appliance.
Set the optional thermostat to desired room temperature.
Set the to desired setting by turning fully counterclockwise for High and fully
clockwise for .
damage, personal injury, or loss of life.

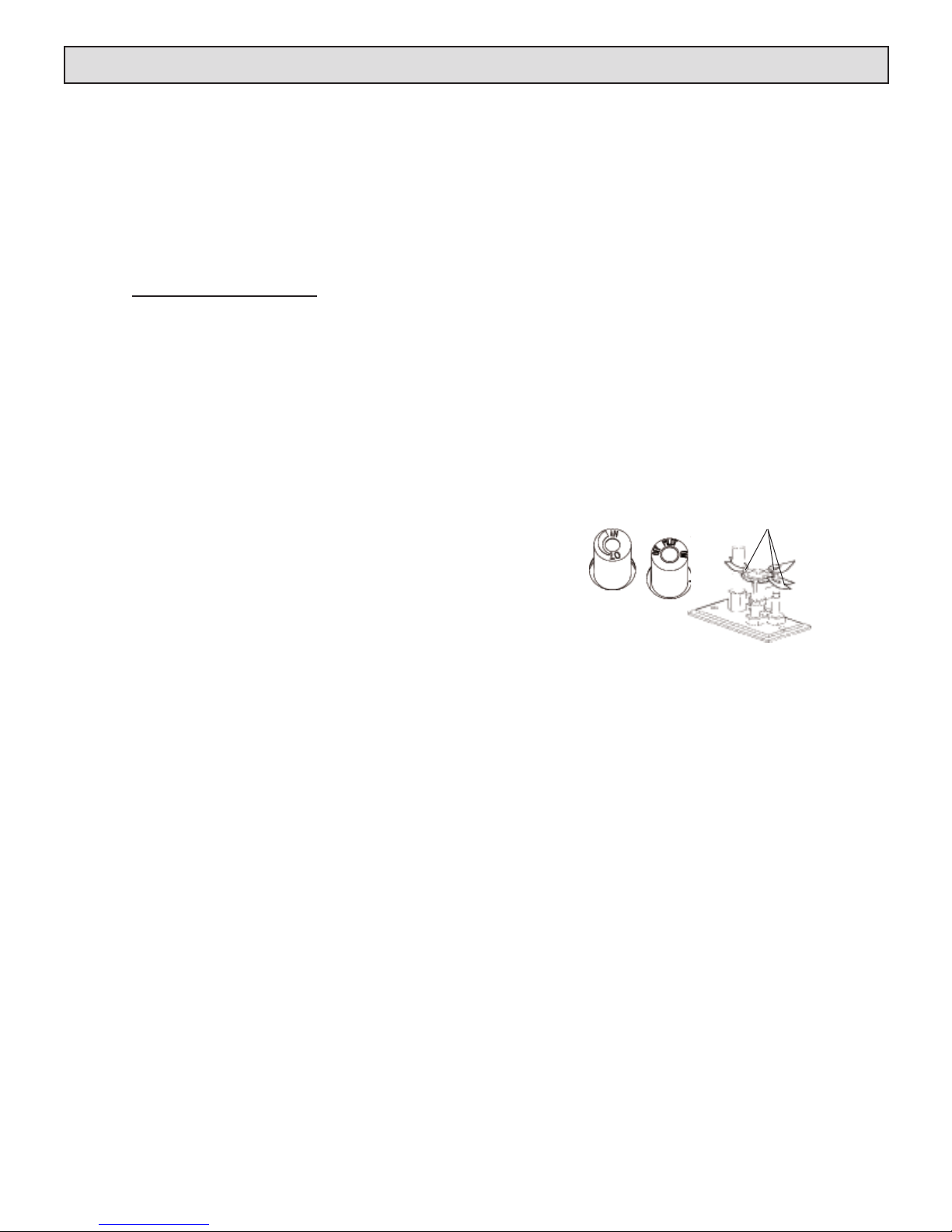

Pilot Flames
6
Operation
1. STOP! Read the safety information on the
front cover of this manual.
2. If using the optional thermostat, set thermostat
to the lowest setting.
3. Turn off electric power to the optional blower.
4. Turn the ON-OFF switch to the OFF position.
5. Push in the gas control knob slightly and turn
it clockwise to “OFF.” NOTE: THE KNOB
CANNOT BE TURNED FROM “PILOT” TO
“OFF” UNLESS IT IS PUSHED IN SLIGHT-
LY. DO NOT FORCE IT.
6. Wait ve (5) minutes to clear out any gas. If
you then smell gas, STOP! Follow the safety
information on the front cover. If you don’t
smell gas, go to the next step.
7. Set the High-Low Regulator to High by turning
it fully counterclockwise.
8. Press in the gas control knob slightly and turn
counterclockwise to “PILOT.”

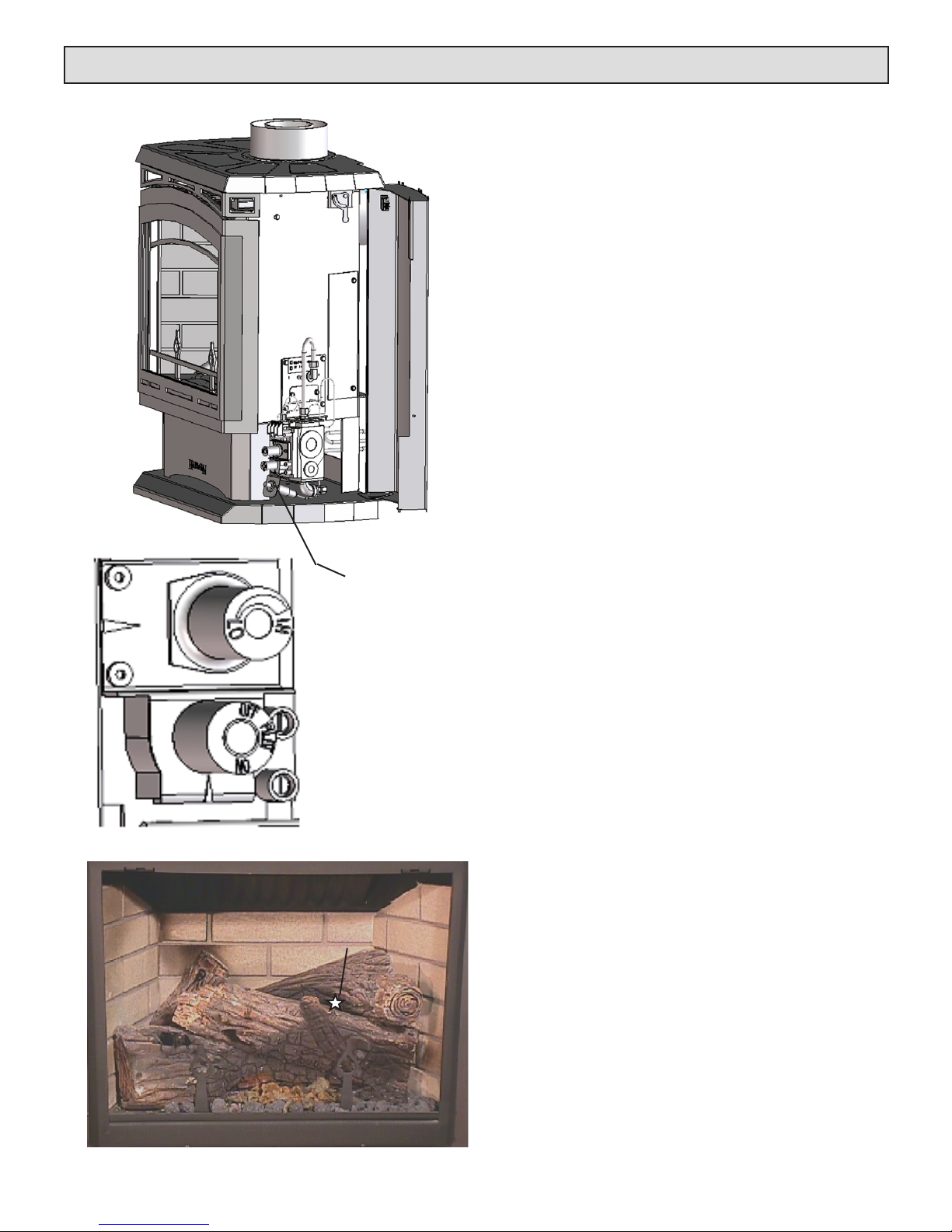

9. Find the pilot by looking down between the
logs as shown at lower left.
10. Push the control knob fully down and hold.
Immediately push the red piezo ignitor button
to light the pilot. It is normal to have to push the
red button several times before the pilot ignites.
Continue to hold the control knob in for about
one (1) minute after the pilot is lit. Release
the knob and it will pop back up. Pilot should
remain lit. If it goes out, repeat steps 5 through
10.
•If the knob does not pop up when re-
leased, stop and immediately call your service
technician or gas supplier.
•If the pilot will not stay lit after several
tries, turn the gas control knob to “OFF” and
call your service technician or gas supplier.
11. Turn the gas control knob counterclockwise to
“ON.”
12. Place the ON-OFF switch in the ON position
or turn up the thermostat setting if the optional
thermostat is used.
13. Turn on the electric power to the optional
blower if installed.
14. Set the optional thermostat to the desired room
temperature.
Piezo Ignitor
Button
PILOT
Gas Control
High-Low
15. Set the High-Low Regulator to desired setting:
Turn fully counterclockwise for High and fully
clockwise for Low. If using a Thermostat, keep
on High setting.
NOTE: An odor, resulting from the initial heating
of new materials in your heater, is not unusual
during the rst re, and in most cases will disap-
pear after an hour or two.
1. If using optional thermostat, set thermostat to
the lowest position.
2. Turn off the electric power to the blower.
3. Turn the ON-OFF switch on the upper right
rear of the stove to the OFF position.
4. Push in the gas control knob slightly and turn it
clockwise to “OFF.”
NOTE: The knob cannot be turned from “PILOT”
to “OFF” unless it is pushed in slightly. Do not
force it.
The ame height adjuster can be accessed by
opening the right side panel. Turn the adjuster clock-
wise to increase ame height and counterclockwise
to decrease. See above left. Adjusting the ames too
high will cause them to have black tips and cause
sooting. Sooting can cause the glass to get dirty.
Check ame height after ve to ten minutes and
readjust if necessary.
If pilot ames are less than shown at left, use
pilot adjuster shown below, to increase ames.
Flame Height
Adjuster
Normal Flame pattern. Note: Flames will vary in height
and position depending on the placement and the amount of
ember wool.
Warning: The unit and
adjuster may be hot.
Wear gloves and arm
protection if making
adjustments while in
operation.
Pilot Adjuster
Only For Qualied Installers
Input Rating (Btu/hr)(0-4500 ft.)(0-1375 m) 29000 29000
Min. Input Rating (Btu/hr)(0-4500 ft.)(0-1375 m) 14900 14100
Orices (DMS)(0-4500 ft.)(0-1375 m) 37 53
Manifold Pressure (in w.c./kPa) 3.8/.95 11.0/2.75
Min. Manifold Pressure (in w.c./kPa) 1.1/.27 2.8/.7
Min. Inlet Pressure (in w.c./kPa) 5.0/1.25 11.5/2.87
Max. Output (Btu/hr)(0-4500 ft.)(0-1375 m) (Blower Off) 21375 21854
24.974
29.396
14.102
32.094
Only For Qualied Installers
Unit to corner walls 2 in.
Unit to side wall 8 in.
Unit to back wall 3 in.
Unit to alcove ceiling 16 in.
Maximum alcove depth 16 in.
Electrical Rating: 120 Volts, 60 Hz, < 0.7 AMP
8”
3”
2”
2”
8” 8”
16”
16”
Only For Qualied Installers
The Conquest can burn either natural gas or pro-
pane, but requires a change-over kit for natural gas. The
label on the burner system module indicates the fuel for
which it is equipped. A second label, (on the valve) also
indicates the fuel type.
The gas inlet is located on the bottom right side of
the stove. The inlet tting is a 1/2” male are tting.
A separate gas shut-off valve and a 1/8” N.P.T.
plugged tapping should be installed immediately upstream
of the connection to the appliance.
The Conquest Direct Vent Gas Heater must be dis-
connected from the gas supply piping during any pressure
testing of that system at pressures in excess of 1/2 psig
(3.5 kPa).
The Conquest gas control valve must be in the OFF
position during any pressure testing of the gas supply sys-
tem at pressures equal to or less than 1/2 psig (3.5 kPa).
WARNING: To avoid pipe compounds from
entering into the gas train, apply compounds only
to male pipe threads and do not apply compound
CAUTION: TESTALL JOINTS FOR LEAKS
BEFORE OPERATING.
Gas Pressure Requirements:
Correct gas pressure and the use of a properly sized
gas supply line are essential for the safe and efcient
performance of this appliance. Make sure that the plumber
or gas supplier checks the gas supply line and gas pres-
sure at installation.
NOTE: Improper gas pressure can affect heater
performance, ame color, or cause pilot outage.
WARNING: This product must be installed by a
licensed plumber or gas tter when installed within the
Commonwealth of Massachusetts.
Natural Gas:
Maximum inlet pressure 7.0” w.c. (1.74 kPa)
Minimum inlet pressure 5.0” w.c. (1.25 kPa)
Gas manifold pressure 3.8” w.c. (0.87 kPa)
Maximum inlet pressure 13” w.c. (3.24 kPa)
Minimum inlet pressure 11.5” w.c. (2.74 kPa)
Gas manifold pressure 11” w.c. (2.49 kPa)
Do not use this heater if any part has been under
water or exposed to moisture corrosion. Immediately
call a qualied service technician to inspect the heater
and replace any part of the control system and any
gas control which has been under water.
Ne pas se servir de cet appareil s’il a étre plongé dans
l’eau, complètement ou en partie. Appeler un technicien
qualié pour inspecter l’appareil et remplacer toute partie
du système de contrôle et toute commande qui ont été
plongés dans l’au.
If appliance is installed directly on carpeting,
tile, or other combustible material other than wood
ooring, the appliance shall be installed on a metal
or wood panel extending the full width and depth of
the appliance.
Keep areas around air openings into the combus-
tion chamber free of obstructions, and do not block
any panels where access is needed for servicing.
Pipe Length Schedule 40 Pipe Tubing, Type L
(Feet) Inside Diameter Outside Diameter
N.G. L.P. N.G. L.P.
0-10 1/2” 3/8” 1/2” 3/8”
1.3 cm 1.0 cm 1.3 cm 1.0 cm
10-40 1/2” 1/2” 5/8” 1/2”
1.3 cm 1.3 cm 1.6 cm 1.3 cm
40-100 1/2” 1/2” 3/4” 1/2”
1.3 cm 1.3 cm 1.6 cm 1.3 cm
100-150 3/4” 1/2” 7/8” 3/4”
2.0 cm 1.3 cm 2.3 cm 2.0 cm
RECOMMENDED GAS PIPE DIAMETER
-
NATURAL GAS
PROPANE
Only For Qualied Installers
n/a 1208 6” Pipe Length
908B 1208B 6” Pipe Length, Black
n/a 1207 9” Pipe Length
907B 1207B 9” Pipe Length, Black
906 1206 12” Pipe Length
906B 1206B 12” Pipe Length, Black
904 1204 24” Pipe Length
904B 1204B 24” Pipe Length, Black
903 1203 36” Pipe Length
903B 1203B 36” Pipe Length, Black
902 1202 48” Pipe Length
902B 1202B 48” Pipe Length, Black
n/a 1211 11” to 14-5/8” Pipe, Adjustable
911B 1211B 11” to 14-5/8” Pipe, Adjustable, Black
n/a 1217 17” to 24” Pipe, Adjustable
945 1245 45oElbow
945B 1245B 45oElbow, Black
990 1290 90oElbow
990B 1290B 90oElbow, Black
940 1240 Rnd Support Box/Wall Thimble Cover
941 1241 Cathedral Ceiling Support Box
943 1243 Flashing, 0/12 to 6/12 Roof Pitch
943S 1243S Flashing, 7/12 to 12/12 Roof Pitch
953 1253 Storm Collar
963 1263 Ceiling Firestop
988 1288 Wall Strap
981 1281 Snorkel Termination (36”)
982 1282 Snorkel Termination (14”)
984 1284 Horizontal Square Termination
980 1280 Vertical Termination
991 1291 Vertical Termination, High Wind
950 1250 Vinyl Siding Standoff
1222D (Only available from Harman) 8” x 5” to 6 5/8” x 4” Adaptor

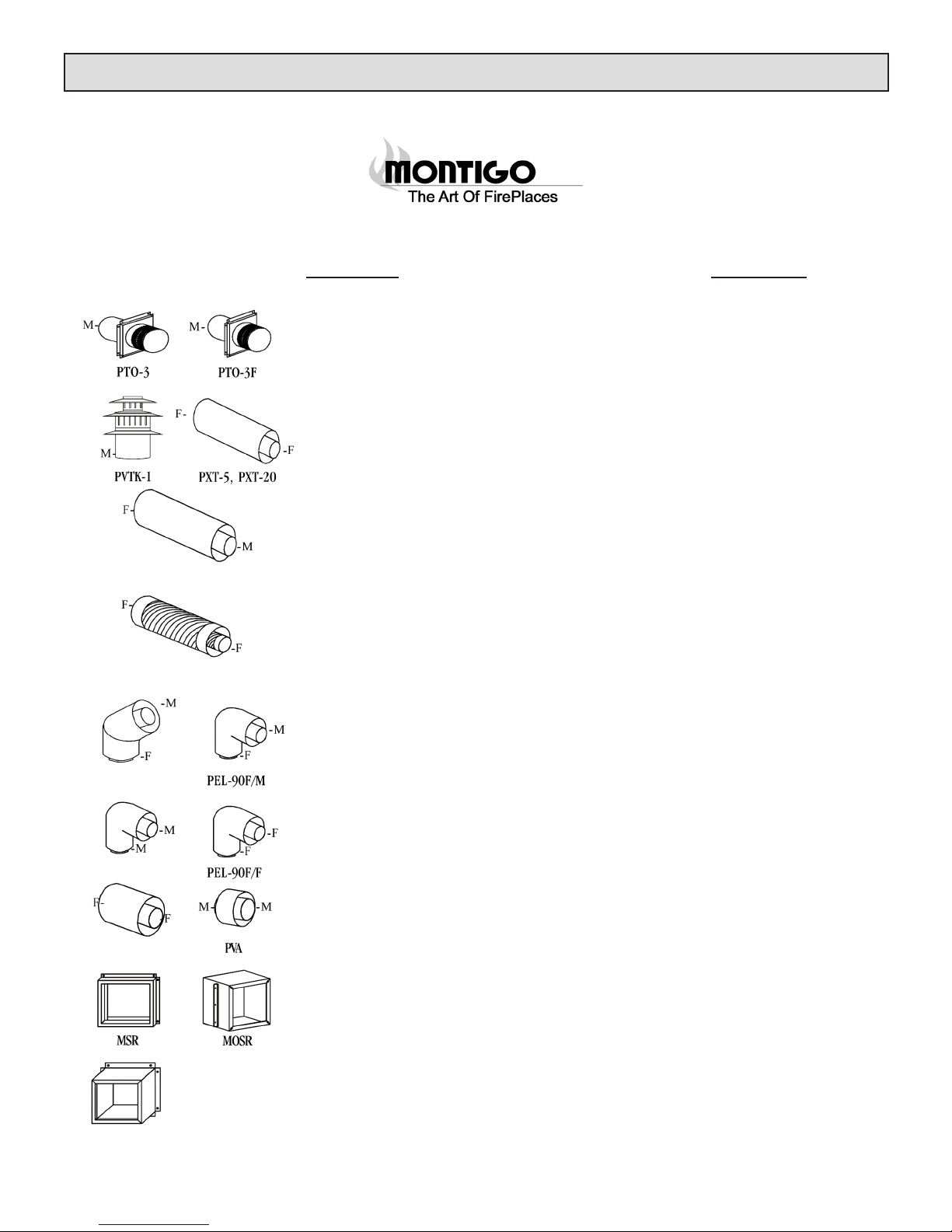

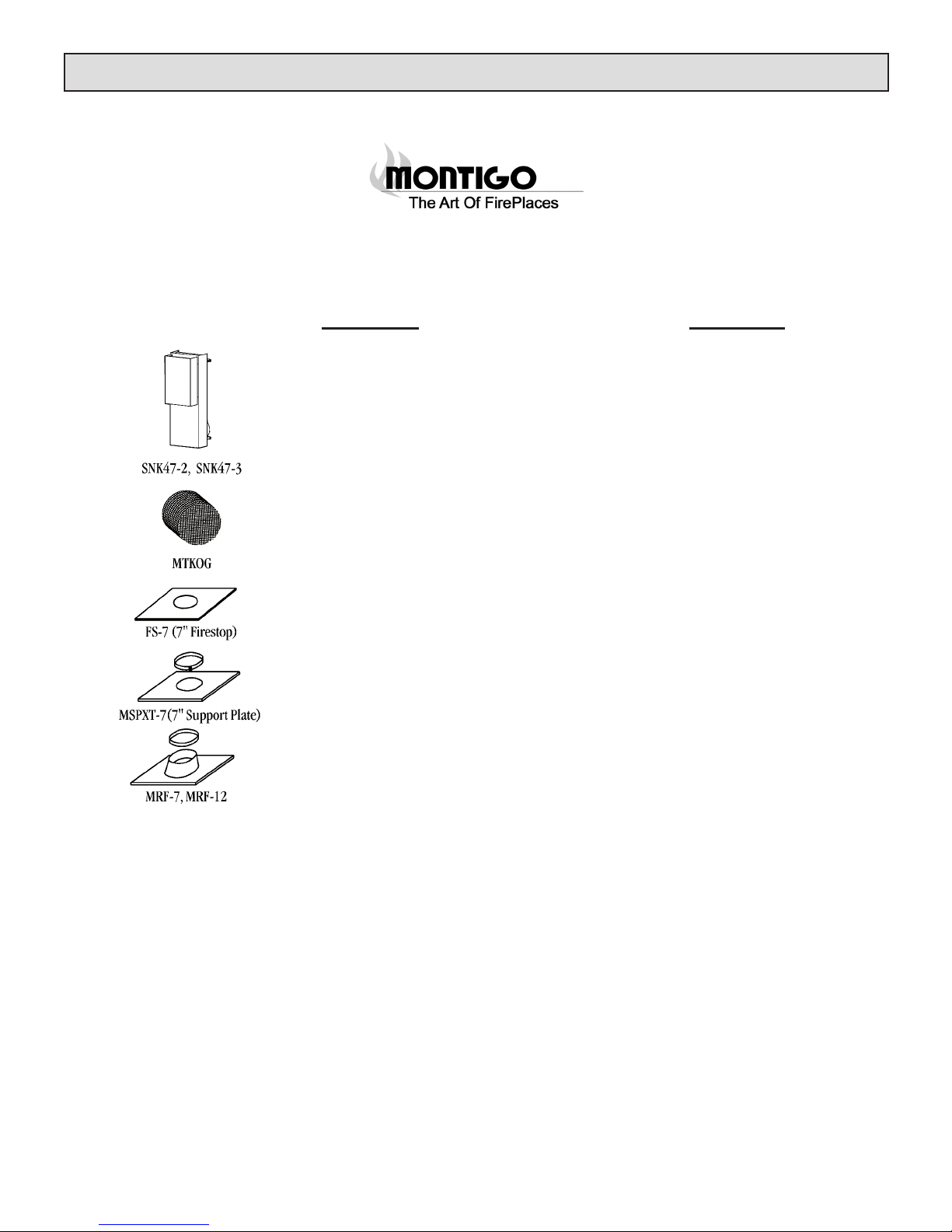

This appliance has been tested and is listed for installation with Simpson Duravent GS venting compo-
nents. The Simpson Duravent GS warranty will be voided, and serious re, health, or other safety hazards
may result from any of the following actions:
• Installation of any damaged Duravent GS component.
• Unauthorized modication of the Duravent GS System.
• Installation of any component part not manufactured or approved by Simpson Duravent.
• Installation other than as instructed by Simpson Duravent and the appliance manufacturer.
Consult your local building codes before beginning the installation, and follow the manufacturer’s
instructions exactly. The Simpson Duravent GS venting components listed below are approved for use with
the Conquest Direct Vent Gas Stove.
Only For Qualied Installers
908 6” Pipe Length, Galvanized
908B 6” Pipe Length, Black
907 9” Pipe Length, Galvanized
907B 9” Pipe Length, Black
906 12” Pipe Length, Galvanized
906B 12” Pipe Length, Black
n/a
n/a
904 24” Pipe Length, Galvanized
904B 24” Pipe Length, Black
903 36” Pipe Length, Galvanized
903B 36” Pipe Length, Black
902 48” Pipe Length, Galvanized
902B 48” Pipe Length, Black
911 Adjustable Length, 11”-14”, Galv.
911B Adjustable Length, 11”-14”, Black
945 45o Elbow, Galvanized
945B 45oElbow, Black
990 90o Elbow, Galvanized
990B 90oElbow, Black
n/a
929 Restrictor Disc
949 Round Ceiling Spt/Wall Thimble Cvr
941 Cathedral Ceiling Support Box
988 Wall Strap
989 Elbow Strap
942 Wall Thimble
963 Ceiling Firestop
n/a
970 Basic Horizontal Term. Kit
971 Horizontal Termination Kit A
978 Vertical Termination Kit
991 High Wind Termination Cap
985 Horizontal Square High Wind Termination
953 Storm Collar
943 Adjustable Flashing, 0/12-6/12
943S Adjustable Flashing 6/12-12/12
950 Vinyl Siding Standoff
n/a
982 Snorkel Termination Cap 14”
981 Snorkel Termination Cap 36”
4DT-6 6” Pipe Length, Galvanized
4DT-6B 6” Pipe Length, Black
4DT-9 9” Pipe Length, Galvanized
4DT-9B 9” Pipe Length, Black
4DT-12 12” Pipe Length, Galvanized
4DT-12B 12” Pipe Length, Black
4DT-18 18” Pipe Length, Galvanized
4DT-18B 18” Pipe Length, Black
4DT-24 24” Pipe Length, Galvanized
4DT-24B 24” Pipe Length, Black
4DT-36 36” Pipe Length, Galvanized
4DT-36B 36” Pipe Length, Black
4DT-48 48” Pipe Length, Galvanized
4DT-48B 48” Pipe Length, Black
4DT-AJ Adjustable Length, 11” - 14”, Galv.
4DT-AJB Adjustable Length, 11” - 14”, Black
4DT-EL45 45o Elbow, Galvanized
4DT-EL45B 45oElbow, Black
4DT-EL90 90o Elbow, Galvanized
4DT-EL90B 90oElbow, Black
4DT-AA Appliance Adaptor, Black
4DT-RD Restriction Disc
4DT-CS Ceiling Support
4DT-CSS Cathedral Support Box
4DT-WS/B Wall Support Band
4DT-OS Offset Support
4DT-WT Round Wall Thimble, Black
4DT-FS Firestop Spacer
4DT-TP Trim Plate, Black
4DT-HKA Horizontal Term. Kit A
4DT-HKB Horizontal Term. Kit B
4DT-VKC Vertical Termination Kit
4DT-HVC High Wind Vertical Cap
4DT-HHC High Wind Horizontal Cap
4DT-SC Storm Collar
4DT-AF6 Adjustable Flashing, 0/12-6/12
4DT-AF12 Adjustable Flashing 6/12-12/12
4DT-VS Vinyl Siding Standoff
4DT-VSP Vinyl Siding Shield Plate
4DT-ST14 Snorkel Termination 14”
4DT-ST36 Snorkel Termination 36”
Only For Qualied Installers
Length 6” (Galvalume).........................SV4L6 908 SV5L6 1208
Length 6” (Black)................................SV4LB6 908B SV5LB6 1208B
Length 12” (Galvalume).......................SV4L12 906 SV5L12 1206
Length 12” (Black)..............................SV4LB12 906B SV5LB12 1206B
Length 24” (Galvalume).......................SV4L24 904 SV5L24 1204
Length 24” (Black)..............................SV4LB24 904B SV5LB24 1204B
Length 36” (Galvalume).......................SV4L36 903 SV5L36 1203
Length 36” (Black)..............................SV4LB36 903B SV5LB36 1203B
Length 48” (Galvalume).......................SV4L48 902 SV5L48 1202
Length 48” (Black)..............................SV4LB48 902B SV5LB48 1202B
Adj. Length (Galv.)(Adjustable 6”).........SV4LA n/a SV5LA n/a
Adj. Length (Blk)(Adjustable 6”)...........SV4LBA n/a SV5LBA n/a
Adj. Length (Galv.)(Adjustable 12”).......SV4LA12 n/a SV5LA12 n/a
Adj. Length (Blk)(Adjustable 12”).........SV4LBA12 n/a SV5LBA12 n/a
Adj. Length (Galv.)(Adjustable 24”).......SV4LA24 917 SV5LA24 1217
Adj. Length (Blk)(Adjustable 24”)..........SV4LBA24 917B SV5LBA24 1217B
Swivel 45o elbow (Galvalume)...............SV4E45 945G SV5E45 1245G
Swivel 45o elbow (Black).....................SV4EB45 945BG SV5EB45 1245BG
Rigid 45o elbow (Black).......................SV4EBR45 945B SV5EBR45 1245B
Swivel 90o elbow (Galvalume)..............SV4E90 990G SV5E90 1290G
Swivel 90o elbow (Black).....................SV4EB90 990BG SV5EB90 1290BG
Rigid 90o elbow (Black).......................SV4EBR90 990B SV5EBR90 1290B
Adjustable Decorative
Square Cathedral Support...................SV4CSB 941 SV5CSB 1241
Collar for the Decorative
Square Cathedral Support....................SV4AC n/a SV5AC n/a
Decorative Black Plate (square)...........SV4PF 940 SV5PF 1240
Universal Support...............................SV4SU 989 SV5SU 1289
Floor Support.....................................SV4SD n/a SV5SD n/a
Roof Brace.........................................SV4BS n/a SV5BS n/a
Roof Support......................................SV4ST n/a SV5ST n/a
Wall Band..........................................SV4BM 988 SV5BM 1288
Attic Radiation Shield..........................SV4RSA n/a SV5RSA n/a
Wall Radiation Shield..........................SV4RSM 942 SV5RSM 1242
Firestop..............................................SV4BF 963 SV5BF 1263
Flat Roof Flashing(storm collar incl.)....SV4F 943F SV5F 1243F
Adjustable Roof Flashing
1/12 - 7/12 (storm collar incl.)..............SV4FA 943 SV5FA 1243
Adjustable Roof Flashing
8/12 - 12/12 (storm collar incl.)............SV4FB 943S SV5F B 1243S
Storm Collar.......................................SV4FC 953 SV5FC 1253
Vinyl Shield Protector.........................SV4VS 950 SV5VS 1250
Restrictor Disk...................................SV4RD 929 SV5RD n/a
VERTICAL TERMINATION CAP...........SV4CGV 980 SV5CGV 1280
HORIZONTAL TERMINATION CAP.......SV4CHC-1 984 SV5CHC-1 1284
SNORKEL CAP 14”...........................SV4STC14 982 SV5STC14 1282
SNORKEL CAP 36”...........................SV4STC36 981 SV5STC36 1281
Cross Reference List
Only For Qualied Installers
Only For Qualied Installers
corner installations & straight through the wall installations
with 2 x 4 construction.
Only For Qualied Installers
Only For Qualied Installers
Only For Qualied Installers

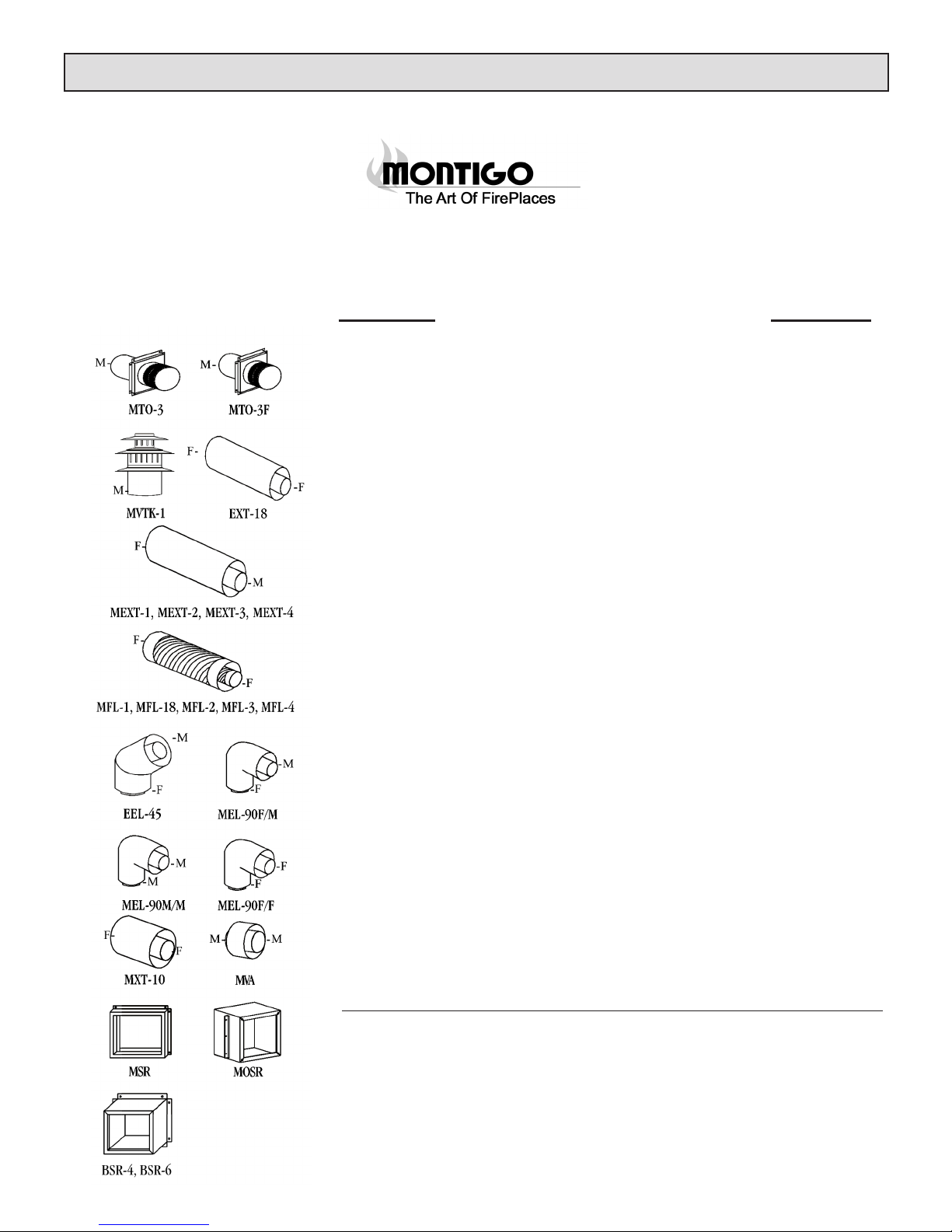

EXCELDirect - Component List
Liste des composants Component Name
Ø4” I.D
Ø 6 5/8” O.D
Ø5” I.D.
Ø8” O.D
Longueurs Lengths
Longueur 6’’, Galvalume 6” Length, Galvalume TC-4DL6 TC-5DL6
Longueur 6’’, Noire 6” Length, Black TC-4DL6B TC-5DL6B
Longueur 12’’, Galvalume 12” Length, Galvalume TC-4DL1 TC-5DL1
Longueur 12’’, Noireueur 12’’, Noire 12” Length, Black TC-4DL1B TC-5DL1B
Longueur 24’’, Galvalume 24” Length, Galvalume TC-4DL2 TC-5DL2
Longueur 24’’, Noire 24” Length, Black TC-4DL2B TC-5DL2B
Longueur 48’’, Galvalume 48” Length, Galvalume TC-4DL4 TC-5DL4
Longueur 48’’, Noire 48” Length, Black TC-4DL4B TC-5DL4B
Longueur exible 36’’ Flexible Length, 36” TC-4DLF TC-5DLF
Longueur télescopique 12’’, Galvalume 12” Adjustable Length, Galvalume TC-4DLT TC-5DLT
Longueur télescopique 12’’, Noire 12” Adjustable Length, Black TC-4DLTB TC-5DLTB
Coudes Elbows
Coude 45º, Galvalume 45º, Elbow, Galvalume TE-4DE45 TE-5DE45
Coude 45º, Noir 45º, Elbow, Black TE-4DE45B TE-5DE45B
Coude 90º, Galvalume 90º, Elbow, Galvalume TE-4DE90 TE-5DE90
Coude 90º, Noir0º, Noir 90º, Elbow, Black TE-4DE90B TE-5DE90B
Supports et coupe-feux Supports & Firestops
Support carré / Coupe-feu radiant * Square Support / Radiation Shield * TM-4SS TM-5SS
Support rond / Coupe-feu radiant ** Round Support / Radiation Shield ** TM-4RDS TM-5RDS
Support pour plafond / Coupe-feu Ceiling Support / Firestop TM-4CS TM-5CS
Support de déviation Offset Support TM-OS
Support de toitRoof Support TM-SR
Support mural ajustableAdjustable Wall Support TM-WS
Coupe-feu mural ajustable Adjustable Wall Thimble TM-4WT TM-5WT
Anneau de nition, noir Trim Ring, Black TM-4TR TM-5TR
Coupe-feu radiant d’entretoit Attic Radiation Shield / Firestop TM-4AS TM-5AS
Chapeaux Terminations
Chapeau horizontal Horizontal Termination TM-4HT TM-5HT
Chapeau horizontal de luxe Deluxe Horizontal Termination TM-4DHT TM-5DHT
Chapeau vertical Vertical Termination TM-4VT TM-5VT
Chapeau périscope 14” 14” Snorkel Termination TM-4ST14 TM-5ST14
Chapeau périscope 36” 36” Snorkel Termination TM-4ST36 TM-5ST36
Solins et collets Flashing and collar
Solin plat Flat Flashing TF-4F XF-6EF
Solin ajustable 1/12 – 7/12 Adjustable Flashing 1/12 – 7/12 TF-4FA XF-6EFA
Solin ajustable 8/12 – 12/12 Adjustable Flashing 8/12 – 12/12 TF-4FB XF-6EFB
Solin pour cheminée de maçonnerie Masonry Chimney Flashing TF-4MF ---
Collet de solin Storm collar TM-SC
Accessoires Accessories
Disque restricteur Restrictor Disk TM-4RD ---
Protecteur de vinyl Vinyl Siding Standoff TM-VSS
Adaptateur pour appareil de coaxial à colinéaire Coaxial to Collinear Appliance Adapter TM-4CAA ---
Adaptateur pour chapeau de colinéaire à coaxial Collinear to Coaxial Termination Adapter TM-4CTA ---
Raccord de gaine exible 3’’ Flex Liner Connector 3’’ TM-CFAA3
Adaptateur de cheminée 6’’ – Type A et maçonnerie *** Type A / Masonry Chimney Adapter 6” *** TM-4CA6 ---
Adaptateur de cheminée 7” – Type A *** Type A Chimney Adapter – 7” *** TM-4CA7 ---
Adaptateur de cheminée 8” – Type A *** Type A Chimney Adapter – 8” *** TM-4CA8 ---
*: Order the Excel Chimney Square Support Extension (6ESSE for 4” Ø ; 7ESSE for 5” Ø) if required.
**: Order the Excel Chimney Round Support Extension (6ERDSE for 4” Ø ; 7ERDSE for 5” Ø) if required.
***: These components are not UL or Warnock Hersey listed.
Only For Qualied Installers
A combination of one 900elbow and two 450
elbows is allowed.
Subtract three feet of total horizontal pipe
length for each 450 elbow used.
Maximum of four 450 elbows allowed.
Subtract three feet of total horizontal pipe
length for each of the 3rd and 4th 450 elbows
used.
Maximum of two 900 elbows allowed.
Subtract ve feet of total horizontal pipe
length for second elbow.
5
This appliance must not be
connected to a chimney ue serving
a separate solid fuel burning
appliance.
6 5/8
”to 8” Increaser
8”
A snorkel termination is
recommended when no
vertical pipe is used.
Vent termination must remain within the
shaded area regardless of conguration.
Venting terminals shall not be recessed
into a wall or siding.
Only For Qualied Installers
The following diagram and table detail the restrictions on the vent terminal location.
Table of contents
Other Harman Stove Company Stove manuals
Harman Stove Company
Harman Stove Company TLC 2000 Stove User manual
Harman Stove Company
Harman Stove Company Clarity 929bv Installation instructions
Harman Stove Company
Harman Stove Company Invincible T User manual
Harman Stove Company
Harman Stove Company PC 45 Installation instructions
Harman Stove Company
Harman Stove Company 44 Magnum User manual
Harman Stove Company
Harman Stove Company SF 3500A User manual
Harman Stove Company
Harman Stove Company FireLuxe Direct Vent Gas Stove With Top Cooking Burner... User manual
Harman Stove Company
Harman Stove Company Accentra Manual
Harman Stove Company
Harman Stove Company PP38+ Installation instructions
Harman Stove Company
Harman Stove Company Clarity 929 DV User manual
Harman Stove Company
Harman Stove Company I Setup guide
Harman Stove Company
Harman Stove Company RS User manual
Harman Stove Company
Harman Stove Company P61A-2 User manual
Harman Stove Company
Harman Stove Company TLC 2000 Stove Installation instructions
Harman Stove Company
Harman Stove Company XXV Installation instructions
Harman Stove Company
Harman Stove Company Pellet Pro 2 User manual
Harman Stove Company
Harman Stove Company SF-150 SF-250 Setup guide
Harman Stove Company
Harman Stove Company Harman Stove The Harman Magnum Stoker User manual
Harman Stove Company
Harman Stove Company P68 Installation instructions
Harman Stove Company
Harman Stove Company XXV User manual
Popular Stove manuals by other brands
Moretti Design
Moretti Design COMPACT DESIGN A/C DEDICATED MANUAL
Force 10
Force 10 751 Series owner's manual
Heat Design
Heat Design FW7i Installation and operating instructions
Dimplex
Dimplex Purifire Electric Stove Practical user's guide
Westfire
Westfire WF17 /UNIQ 17 Installation manual and operating instructions
alchemy
alchemy FB18-MKII Installation & user manual
Vogelzang International
Vogelzang International BX26E owner's manual
Omega
Omega Omega user manual
New Buck Corporation
New Buck Corporation GAS STOVE HEATER OWNER'S OPERATION AND INSTALLATION MANUAL
TONWERK
TONWERK T-EYE operating instructions
Heat Design
Heat Design SR4SE Installation and operating instructions
hergom
hergom E-10 PLUS Instructions for installation, use and maintenance
Contura
Contura NIBE i50 installation instructions
Enviro
Enviro M-55-FS Technical manual
Palazzetti
Palazzetti CLEMY Instructions for use and maintenance
Regency
Regency Ultimate U45-NG Installation and operating instructions
IronStrike
IronStrike CI1500DVF Installation and operation
FOTILE
FOTILE GAG76202 user manual
