Harman Stove Company P61A-2 User manual

Assembly & Installation
A~~tomaticOperation
Maintenance
Trouble Shooting
Feeder Parts
Wiring Diagram
Please read this entire manual beforeyou install and use our new
property damage, bodily injury, or even death.
Y
room heater. Failureto follow instructions may resut in
SUITABLE FOR MOBILEHOME INSTALLATIONS.
Harman Stove Company
352MountainHouseRoad
Halifax,
PA 1 7032
3 P61A-2 PelletStove

Unpacking
The P61 isboltedtotheskidtopreventmovement
To fieethestovefiomthe skidyou mustremove
thehold-down bolts
in therear ofthepedestalbase.
Installingrear coverpanels
The rearcoverpanelsareremovedhmthestove
tomakeit easierto get atthehold-downbolts.
Therear coverpanelsarepackedinsidethehop-
perandshouldbeinstalledonthestoveasshown.It is
recommended thattherearcoversareinstalledafter
theunit isinplaceandtheventpipe isinstalled.
Installthefirebrickverticallyontheangleabove
Installthecastironflameguideontopoftheburnpot
andmakesureitisfullyseatedagainsttheaugeropen-
ing.Thebottomoftheflameguideismarked
38+.
Panels
DO NOT INSTALLAFLUE DAMPERINTHE
EXHAUSTVENTINGSYSTEMOFTHIS
UNIT.
DO NOT CONNECTTHISUNIT TOA
CHIMNEY
FLUE SERVINGANOTHER
APPLIANCE.
INSTALL
VENT AT CLEARANCES
SPECIFIEDBY THEMANUFACTURER
Mobile home installationshouldbe donein
accordancewith theManufacturedHome and
SafetyStandard(HUD), CFR3280,Part24.
DO NOT INSTALLIN SLEEPINGROOM
CAUTION
THESTRUCTLWINTEGRITYOFTHE
MOBILEHOME FLOOR, WALL, AND
CEILINGJROOFMUST BE MAINTAINED.
CAUTION
KEEPCOMBUSTIBLEMATERIALS
(SUCHAS GRASS,LEAVES,ETC.) AT LEAST
3
FEETAWAYFROM THE FLUE OUTLETON
THE OUTSIDEOFTHEBUILDING.
P61A-2 Pellet Stove 4

Bottom Glass Retainer Clip Instructions
r+%. (2)Glass Retainer Clips
supplied with the door kit
Follow the instructions in the door kitexceptforthe
bottomglassretainers.Installthe specialglassretainer
(4)10-24 x 3/8" button head allen
clipstothebottomof thedoor.
screws supplied in the door kit
Thereisaleftandrightretainerclip with aradiustomatch
thedoorbottom.Thefiberglassropeon theclipmustbe
facingthe stovebody when installed,NOT FACING
Gasket goes
THE GLASS ! !
toward the stove (2)
ghss retainer clips ,
-
Theseclipsaredesignedtodirectthe air wash air more
(I) right hand evenly.
Gasket goes
toward the stove
Assembling the door
Refening to the diagram,notehow thevarious
componentsof thedoor systemfittogether. Laythe
loaddoorfacedownon a softsurface.
Cleantheglassand golddoorusinganonabrasive
9
cleaner.Installtheglassgasketaroundtheouteredgeof
thefrontfaceof thedoorglasscarefullytoinsureproper
6'
QI
sealing. Settheglasspanegentlyontothe door. Install
thehold-downclipsandtightenwithbolts asshown.
PA W
Installdooron stovewithhingepins.
Q
BOLT
Install door handle as shown on the diagram.
@
NOTE: Withtheflatsurfaceof thepaw bolttothe in-
sideof thedoor.
4 GLASS
Turnthepawbolt "in"forapprox. (17) turns.
RETAINER CLI
9- 4 GLASS RETAINER
Turn thebrass elbow ontothepaw boltapprox.
BOLTS (5) turns.
Align the setscrewwiththeflatspotonthepaw
andtighten.
Afterattachingthedoorhandle, closeandlatch
thedoorbyturningthehandletothe sixo'clockposi-
tion. Doesthedoorrope compress?
If not,loosenthe
setscrew,turnthepawboltonemoreturnintothedoor.
Repeatasrequiredtoachieveatightdoorfit.
NOTE:Remembertothoroughlycleanthe glass
andthegolddoor&mebeforelightingthestoveforthe
httime.
Fig. 2
5 P61A-2 PelletStove

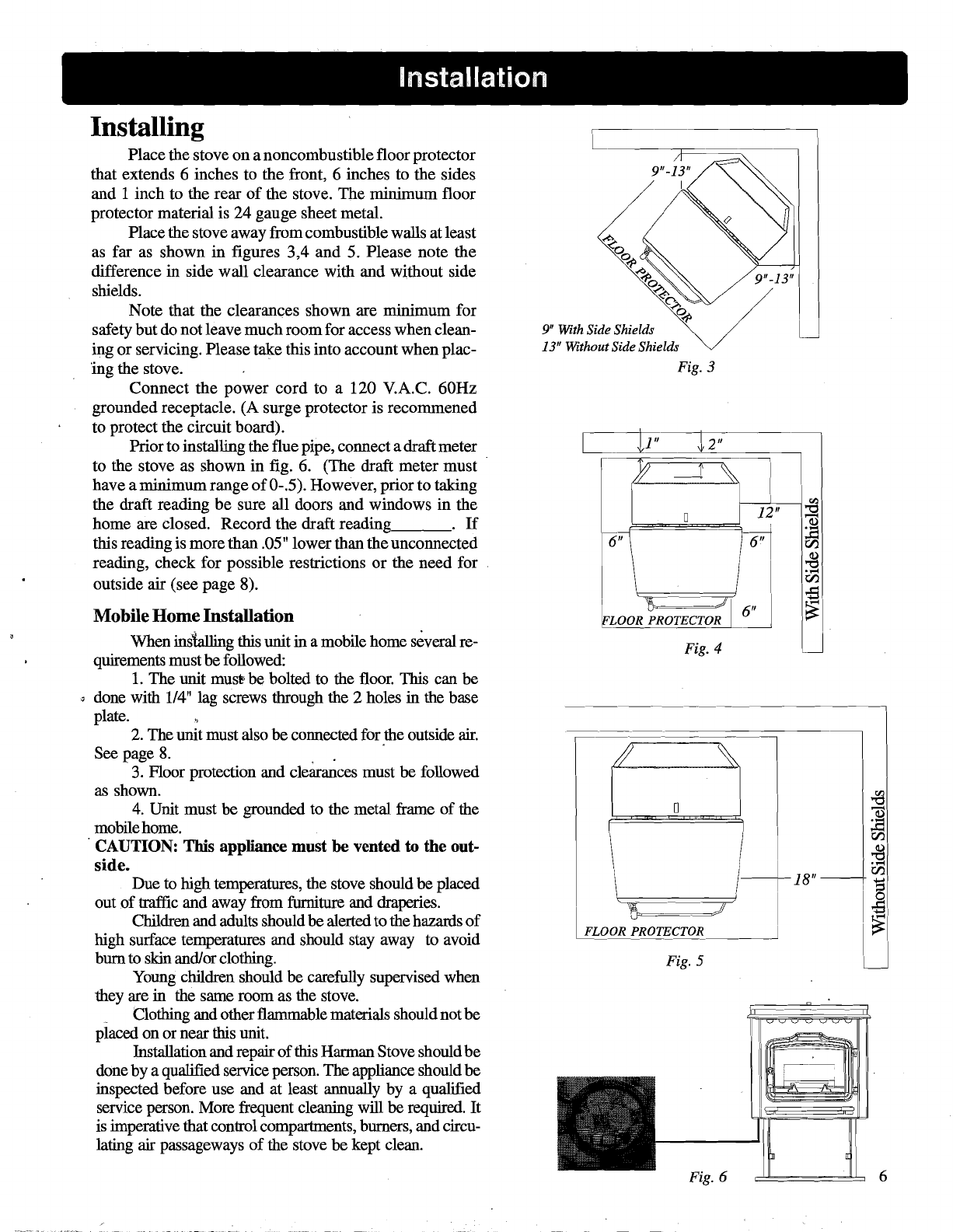

Installing
Placethe stoveonanoncombustiblefloorprotector
that extends
6 inches to the front, 6 inches to the sides
and 1 inch to the rear of the stove. The minimum floor
protector material is 24 gauge sheetmetal.
Placethestoveawayfromcombustiblewalls atleast
as far as shown in figures 3,4 and 5. Please note the
difference in side wall clearance with and without side
shields.
Note that the clearances shown are minimum for
safetybut do not leavemuchroom foraccesswhen clean-
ingor servicing.Pleasetake this intoaccountwhenplac-
'ing the stove.
Connect the power cord to a 120 V.A.C.
60Hz
groundedreceptacle. (A surgeprotector is recommened
to protect the circuit board).
Priortoinstallingthefluepipe, connecta
draft meter
to the stove as shown in fig.
6. (The draft meter must
have aminimumrangeof 0-.5).However, prior totaking
the draft reading be sure all doors and windows in the
home are closed. Record the draft reading
. If
this readingismorethan .05"lowerthan theunconnected
reading, check for possible restrictions or the need for
outside
air (see page 8).
MobileHomeInstallation
When insbllingthis unit in amobilehome severalre-
quirementsmustbe followed:
1. The unit mu&be bolted to the floor. This can be
2 done with 114" lag screws through the 2 holes in the base
plate.2. Theunit must alsobe connectedforthe outside
air.
Seepage 8.
3. Floor protection and clearances must be followed
as shown.
4. Unit must be grounded to the metal frame of the
mobilehome.
CAUTION: This appliance must be vented to the out-
side.
Due to high temperatures,the stove should be placed
out of -c and away from
furniture and draperies.
Childrenand adultsshouldbe alertedtothehazardsof
high surface temperatures and should stay away to avoid
burn to skin andlorclothing.
Young children should be carefully supervised when
they are in the same room as the stove.
Clothingand otherflammablematerials shouldnot be
placed onor near this unit.
Installationandrepair of this
Harman Stoveshouldbe
doneby aqualified serviceperson. Theapplianceshouldbe
inspected before use and at least annually by a qualified
serviceperson. More frequent cleaning will
be required. It
isimperativethatcontrolcompartments,burners, andcircu-
lating air passageways of the stove be kept clean.
9" WithSide Shields
13" WithoutSide Shields \/
Fig. 3
-
Fig. 4 u
FLOOR PROTECTOR 1
Fig. 5 Id

Requirementsfor Terminating the Venting
WARNING: Venting terminalsmust not be re-
cessed intoa wall or siding.
NOTE: Only
PL vent pipewall pass-throughs
andfirestopsshouldbeusedwhenventingthrough
combustible materials.
NOTE: Always take into consideration the ef-
fect the prevailingwind directionor otherwind cur-
rentswillcausewithflyashandlorsmokewhen plac-
ingthe termination.
Inaddition,the followingmustbeobserved:
A. The clearanceabovegrade mustbea mirii-
mumof 18".l
6. Theclearancetoa windowor doorthat may
be opened must be a minimumof 48" to the side,
48" belowthe windowldoor,and 12" abovethewin-
do~ldoor.~
( with outside air installed, 18" )
C. A 12" clearance to a permanently closed
window is recommendedto preventcondensation
onthewindow.
D. The vertical clearance to a ventilatedsoffit
located above the terminal within a horizontal dis-
tance of 2 feet
(60 cm) from the center-line of the
terminal must be a minimum of 18".
E.The clearancetoan unventilatedsoffit must
bea minimumof 12".
F. The clearance to an outside corner is 11"
from centerof pipe.
G. Theclearanceto an insidecorneris 12".
H. Avent mustnotbeinstalledwithin3feet (90
cm) above a gas meterlregulator assembly when
measuredfromthe horizontalcenter-lineofthe regu-
1ator.I
I.The clearancetoserviceregulatorvent outlet
mustbe a minimum of
6 feet1
J. The clearanceto a non-mechanicalair sup-
ply inlettothe buildingor the combustion air inletto
any other appliance must be a minimumof 48'l.l
K. The clearance to a mechanical air supply
inlet must be a minimumof
10 feet.I
(with outside air installed, 6 feet )
L. The clearanceabovea paved sidewalk or a
paveddriveway locatedon public property must be
a minimumof
7 feet.Iw2
M. Theclearanceunderaveranda, porch,deck
or balcony must be a minimumof 12 inche~.~.~
NOTE: The clearanceto vegetation and other
exteriorcombustiblessuchas mulchis 36"as mea-
sured from the center of the outlet or cap. This 36
radius continues to grade or a minimum of
7 feet
belowthe outlet.
ICertainCanadianandor Localcodesor regu-
lations may requiredifferent clearances.
2Aventshallnotterminatedirectlyaboveaside-
walk or paved driveway which is located between
two single family dwellings and serves both dwell-
ings.=Onlypermittedifveranda, porch,deck, or bal-
cony isfully openona minimumof 2 sides beneath
thefloor.
NOTE: Where passage through a wall, or
partitionofcombustibleconstructionisdesired,
theinstallationshall conformto CANICSA-B365.
(if in Canada)
=Vent terminal
7
0
= Air supply inlet
= Area where terminal is not permitted

Fig. 7 ,
together to forman air tightseal in mostcases;however,
in somecasesa perfect sealisnot achieved.For this
8 = Positive staticpressure
8= Negative staticpressure
reasonandthefactthatthe P61 operateswithapositive
ventpressure
we specifythatthejointsalsobesealed
with clearsilicone.

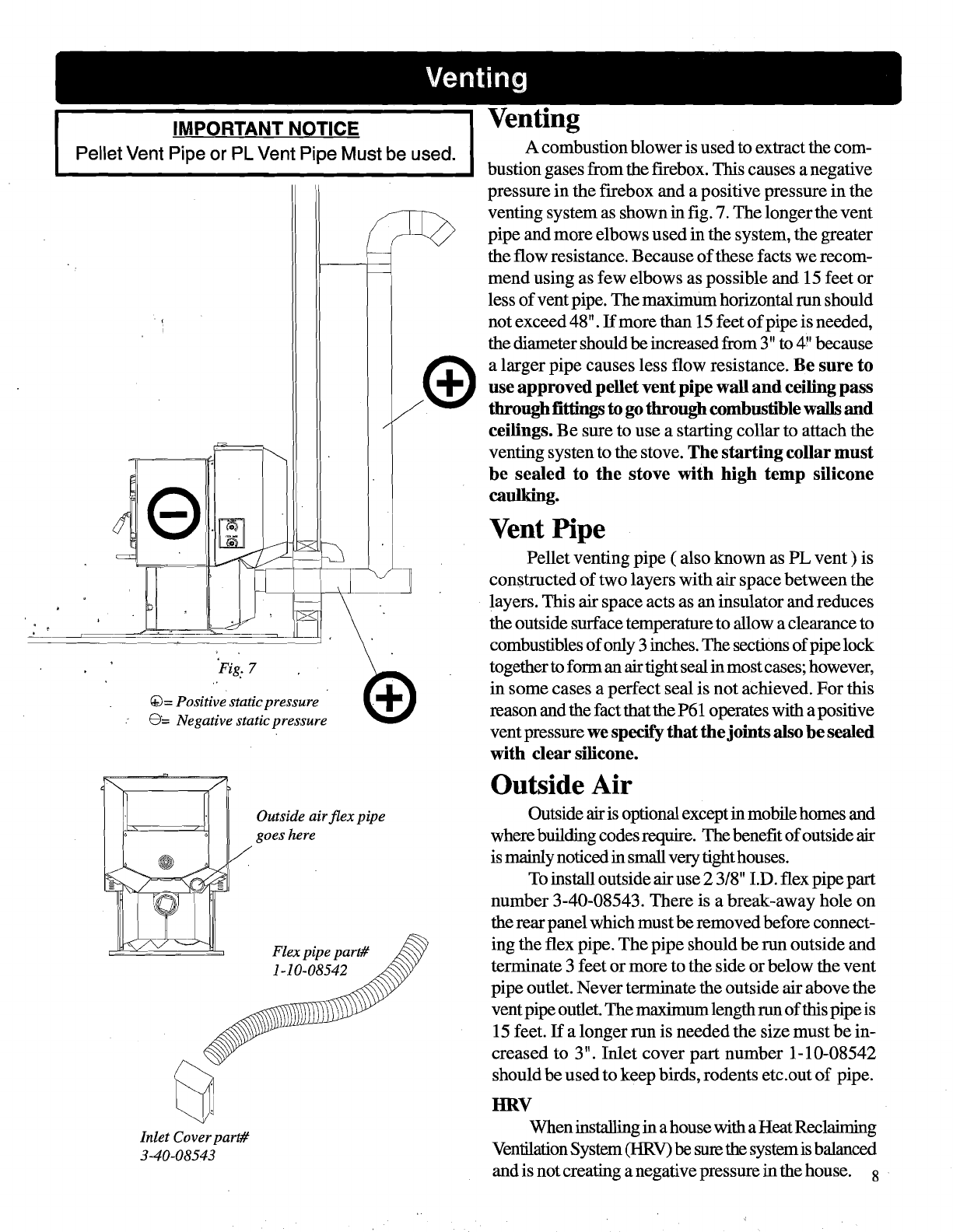

PelletVent Pipe or PLVent PipeMustbe used.
Outside Air
Venting
A combustionblowerisusedtoextractthecom-
bustiongasesfromthefnebox.Thiscausesanegative
Outside airflex pipe
1 a1 1 goes here
Outside air isoptionalexceptinmobilehomesand
wherebuildingcodesrequire. Thebenefitof outside
air
pressurein thefireboxand a positivepressureinthe
venting systemasshowninfig.
7. Thelongerthevent
pipeandmoreelbowsused inthe system,the greater
theflowresistance.Becauseof thesefactswerecom-
mend using asfew elbows aspossible and
15 feetor
lessof ventpipe. Themaximumhorizontalrun should
not exceed
48". If morethan 15 feetof pipeisneeded,
thediametershouldbeincreasedfrom
3" to 4" because
a largerpipe causesless flow resistance.
Be sure to
useapprovedpelletventpipewallandceilingpass
through
fittings togothroughcombustible walls and
ceilings.
Besuretouse a startingcollarto attachthe
ventingsystentothe stove.
Thestartingcollarmust
be sealed to the stove with high temp silicone
caulking.
Vent Pipe
Pelletventing pipe ( alsoknown as PL vent ) is
constructed of twolayerswith
air spacebetweenthe
layers.This
air spaceactsasaninsulatorandreduces
--
theoutsidesurfacetemperaturetoallowaclearanceto
combustiblesof only
3 inches.Thesectionsof pipelock
Inlet Coverpart#
3-40-08543
ismainlynoticedinsmallvery tighthouses.
Toinstalloutside
air use 2 318" I.D. flexpipepart
number
3-40-08543. Thereis a break-away hole on
therearpanelwhich mustberemovedbefore connect-
ingtheflexpipe.Thepipe shouldberun outsideand
terminate
3 feetormoretothe sideorbelow thevent
pipeoutlet.Never terminatetheoutsideairabovethe
ventpipeoutlet.Themaximumlength
run of thispipeis
15 feet. If alongerrun isneededthe sizemust bein-
creased to
3". Inlet cover part number 1- 10-08542
shouldbeused tokeepbirds,rodentsetc.outof pipe.
HRV
Wheninstalling in ahousewithaHeatReclaiming
VentilationSystem
(HRV) be surethesystemisbalanced
andisnotcreatinganegativepressure
in thehouse. 8

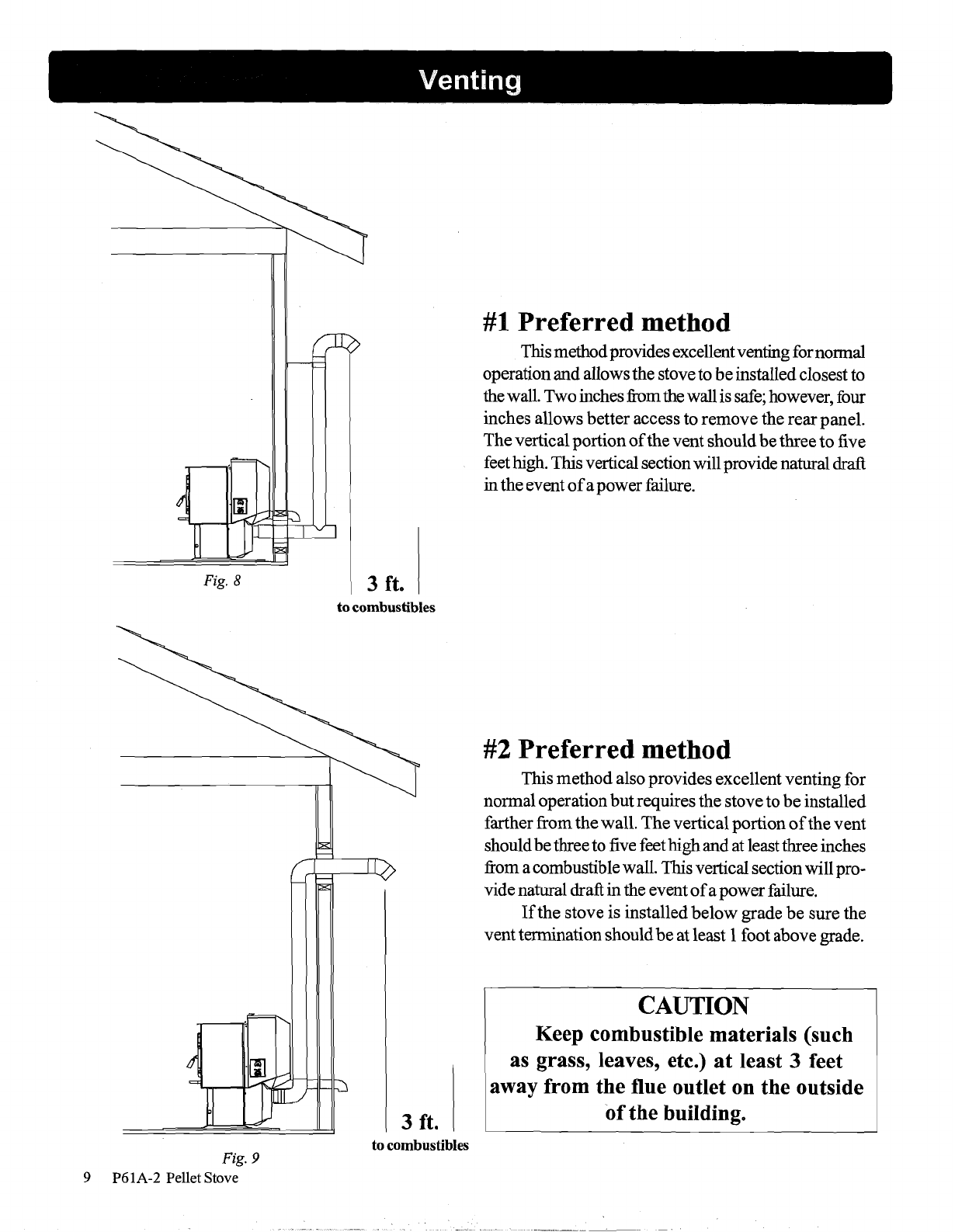

#I Preferred method
Thismethodprovidesexcellentventing fornormal
operationand allowsthe stoveto beinstalledclosestto
thewall.Twoinches
hm thewallissafe;however,four
inchesallowsbetter accessto remove the rearpanel.
Theverticalportionofthevent shouldbethreetofive
feet
high. Thisverticalsectionwillprovidenatural draft
in theeventofapowerfailure.
Fig. 8
1 3 ft. 1
tocombustibles
#2 Preferredmethod
Thismethodalsoprovidesexcellentventingfor
normaloperationbutrequiresthe stovetobe installed
fartherfromthewall. Theverticalportionofthevent
shouldbethreeto fivefeet
high and at leastthreeinches
fiomacombustiblewall.Th~sverticalsectionwillpro-
videnaturaldraftin the eventofapower failure.
If the stoveis installedbelow gradebe surethe
ventterminationshouldbe atleast 1footabovegrade.
CAUTION
Keep conlbustible materials (such
as grass, leaves, etc.) at least
3 feet
away from the flue outlet on the outside
ofthe building.
to combustibles
Fig. 9
9 P61A-2 PelletStove

Fig. 10
5s
Fig. I1
#4 Installing into an existing
chimney
( US only )
Thismethodprovidesexcellentventingfornormal
operation. Thismethod alsoprovidesnaturaldraftin
theeventof apowerfailure.
If thechimneyconditionis
questionableyou may wantto
install a liner as inmethod
#7.
#5 Installinginto an existing
fireplace chimney
( US only )
Thismethodprovidesexcellentventingfornormal
operation. Thismethod alsoprovidesnatural
drafe in
theeventof apowerfailure.
Thedamperareamust
be sealedwithasteelplate
orfiberglass.
A capshouldbeinstalled onthechimney
tokeepoutrain.If the chimney conditionisquestion-
ableyoumay wanttoinstall
a liner all theway tothetop
as in method #6.
P61A-2Pellet Stove 10

#6 Installing into an existing
.
fireplace chimney ( US and
Canada
)
Thismethodprovidesexcellentventingfornormal
operation. Thismethod alsoprovidesnaturaldraft
in
theeventof apowerfailure.
In Canadaandsomeplacesinthe US itisrequired
thatthe ventpipe extendallthe way tothe top of the
chimney.
In thismethod acapshouldalso be installedonthe
chimneytokeepoutrain.Besuretouse approved pel-
letventpipefittings.
Seal pipejoints with siliconeinad-
ditiontothesealingsystemusedby themanufacturer.
Pipesizeshouldbe increasedto
4" using thismethod.
--
Fig. 12
#7 Installing into an existing
chimney
( US and Canada )
Thismethodprovidesexcellentventingfornormal
operation. Thismethod alsoprovidesnaturaldraft
in
theeventof apowerfailure.
In Canadaand someplaces in the US itisrequired
that theventpipeextendallthe way tothetop of the
chimney.Thepipeor
liner insidethechimneyshould be
4" diameter.
In thismethodacapshouldalsobeinstalledonthe
chimney to keep out rain. One disadvantageof this
methodisthatitishardertoclean theventpipe,there-
fore,thereisatendancynottodoitasoftenasneeded.
11 P61A-2 PelletStove Fig. 13

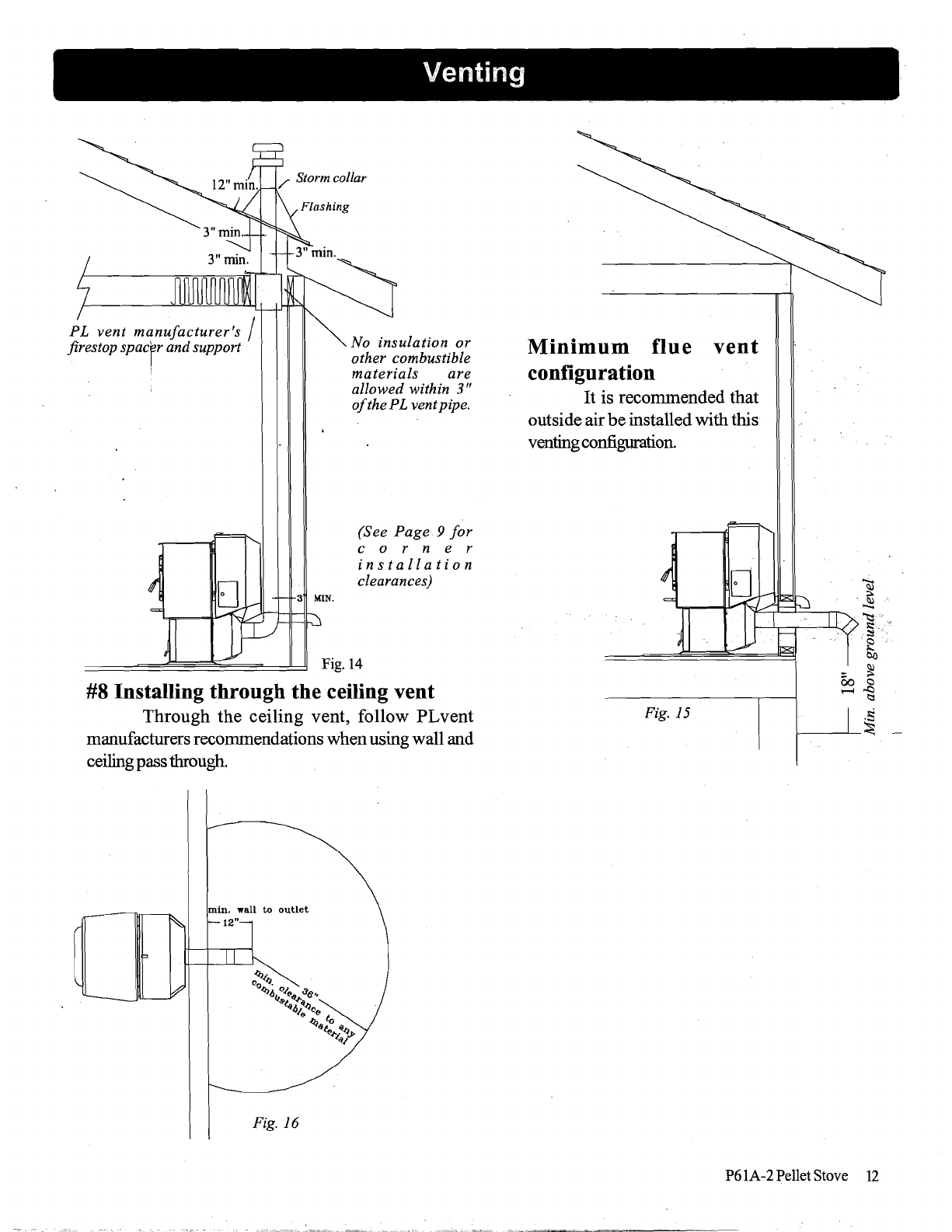

Minimum flue vent
configuration
It is recommended that
outsideairbeinstalledwiththis
ventingconfiguration.
#8 Installing through the ceiling vent
Through the ceiling vent, follow PLvent
manufacturersrecommendationswhenusingwall and
ceilingpassthrough.
Fig. 16
P'
P61A-2 Pellet Stove 12
- - -- - - - - - -

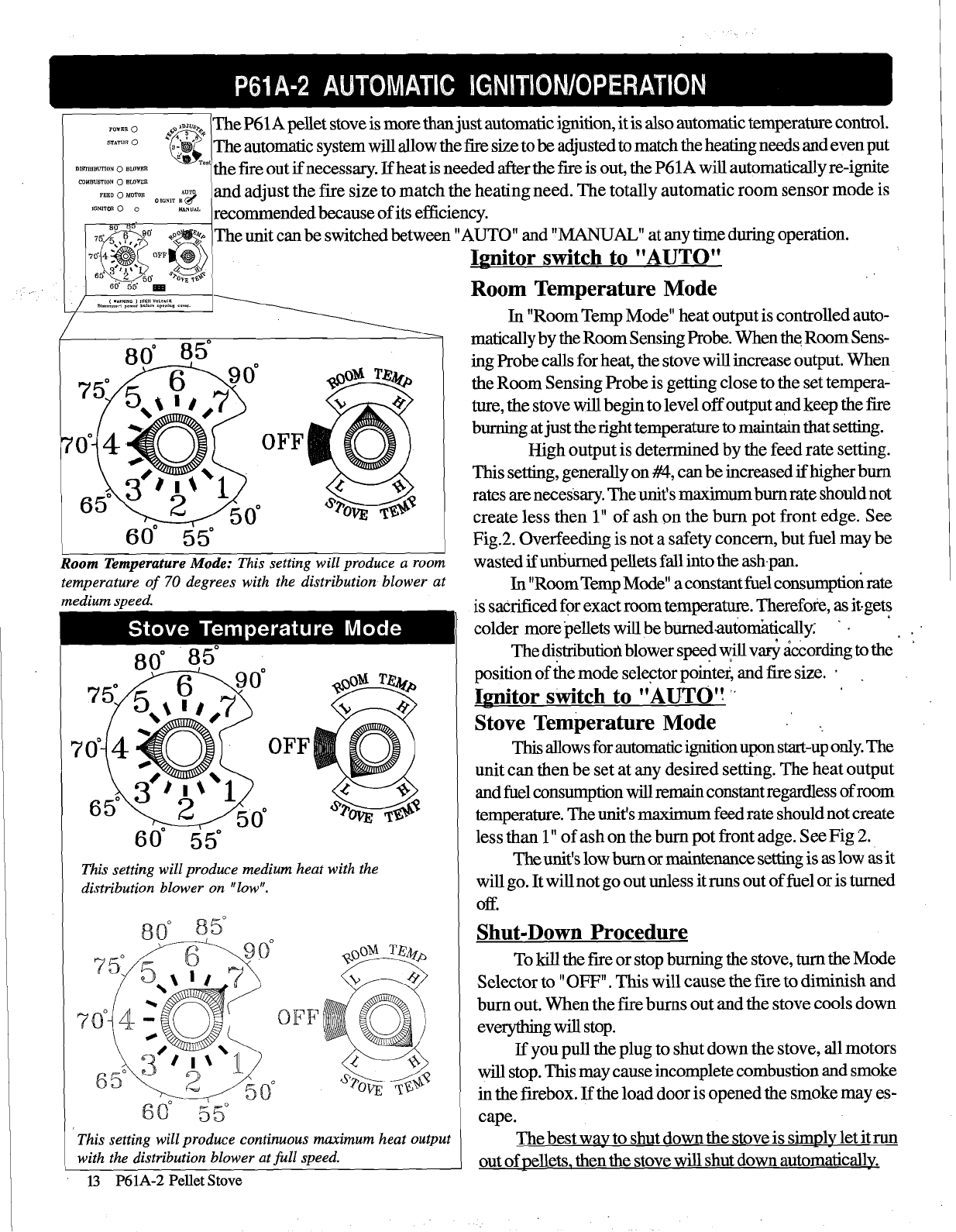

TheP61Apellet stoveismore than just automaticignition,it is alsoautomatictemperaturecontrol.
Theautomaticsystem
will allowthefiresizeto be adjustedtomatchtheheatingneedsandevenput
dedafterthefireisout,theP61A willautomaticallyre-ignite
andadjustthe fire sizetomatch the heatingneed.Thetotallyautomaticroom sensormode is
recommendedbecauseof itsefficiency.
Theunit canbe switchedbetween
"AUTO" and "MANUAL" atanytimeduringoperation.
Ignitor switch to "AUTO"
Room Temperature Mode
In "RoomTempMode"heat outputiscontrolledauto-
maticallyby theRoomSensingProbe.WhentheRoomSens-
ingProbecallsforheat,thestovewillincreaseoutput.When
theRoom SensingProbeisgettingclosetothe settempera-
ture,thestovewillbegintoleveloff outputandkeepthefire
burningatjust therighttemperatureto maintain thatsetting.
Highoutputisdeterminedby the feedrate setting.
Thissetting,generallyon
#4, canbeincreasedifhgherburn
ratesarenecessary.Theunit's
maximum burnrateshouldnot
createless then 1"of ash on the burn pot front edge. See
Fig.2.Overfeedingisnota safety concern,but fuelmaybe
Room Temperature Mode: This setting will produce a room
wasted if unburnedpelletsfallintotheashpan.
temperature of 70 degrees with the distribution blower at
In "RoomTempMode"aconstantfuelcomurnption rate
mediumspeed.
issacrificedforexactroomtemperature.Therefore,asit.gets
colder morepelletswillbeburnedautomatically:
' .
Thedistdbutiodblower speedwillv& &cording to the ' '
positionof themode selectorpo&te;, andfiresize. *
Ignitor switch to "AUTO''
Stove Temperature Mode
This allowsforautomaticignitionuponstart-uponly.The
unitcanthen be setatany desiredsetting.Theheatoutput
andfuelconsumption
will remain constantregardlessof room
temperature.Theunit'smaximumfeedrateshouldnotcreate
lessthan
1 " of ashontheburn pot frontadge.SeeFig2.
This setting will produce medium heat with the
distribution blower on "low".
This setting will produce continuous maximum heat output
with the distribution blower at
.full speed.
Theunit'slowburnormaintenancesetting is aslow asit
willgo.Itwillnotgooutunless itrunsoutof fueloristurned
off.
Shut-Down Procedure
To kill thefireorstopbegthe stove, turn the Mode
Selectorto "OFF". Thiswill causethefiretodiminish and
burnout.Whenthefireburnsoutandthe stovecoolsdown
everythrngwill stop.
If youpull the plug toshutdownthe stove,allmotors
will stop.Thismaycauseincompletecombustionandsmoke
inthefirebox.If theloaddoorisopenedthe smokemayes-
cape.
Thebestwavtoshutdownthestoveissimplyletitrun
outof pellets,thenthestovewillshutdownautomatically.
13 P61A-2 Pellet Stove

StartinpFirst Fire
IgnitorSwitchto"AUTO"(upposition)
Make suretheunit ispluggedinto a 120
VAC, 60 HZ electrical source.Thepowerlight
shouldbe the onlylightlit.
NOTICE:
Whenpower isgivento the stove,the controlboard
willblink afewtimestoindicatecurrentversionof
controlboard.
1. Turn Mode Selector to "OFF".
2. Fillhopper withpe1lets.l
3. Cleanburnpot with scraper,ifnece~sary.~
4. If starting after an empty hopper, turn
FeedAdjusterto "TEST"
(forone 60 second
I. Fines are smallpieces of brokenpellets (sawdust).Fines do not
flow easily and often build up on thehopperfunnel bottom angles.
Thesefines can bepushed into thefeeder opening and thenfill the
hopper withpellets. As thesystem works, they will be burned.
2. The "TEST"cycle will operate thefeeder motorfor exactly one
minute. Turning to "TEST"again and again maypurge too much
fuel into the burnpot causing excessive smoke on start-up.
3. Thefirebox lowpressure switch will not allow the auger motor
or the igniter element to operate ifthe view door or the ash pan
door are open.
4. AdjustFeed Rate.Ifthis isyourfirstfire oryou aretryingdzferent
pellets, set thefeed adjuster to #4, Fig. 17. This is a conservative
number and willprobablyneed to be increased. Afteryou know a
feed rate setting that works well, use that setting. Remember,
if
yourfeed rate is too high you may wastefuel.
5. This is usually a weekly maintence procedure. Cleaning the
burnpot with the scraper with a small amount of newfuel in the
bottom
is not aproblem. First, scrape theashes on thefiontof the
burnpot intotheashpan. Thenscrape theholedsurfacedownward
into theburnpot. Whenthestove is ignited thesescrapings will be
pushed out by thefeeder.
6. The ash pan can hold the ashesfrom approximateIy
I ton of
premiumfuel. Thismeans theashes will only need to be emptied a
few timesayear.
7. Setting thefeed adjuster #for maximum burn: With the unit
burning in
'Y AT0",turn to "StoveModeffandputthefan on "H':
Set the Temperature Dial to #7.Allow the unit to burnfor about
30 minutes and check ash on
fivnt of burnpot. Fzg. 18.Ifthe ash
line is larger than
I", turn thefeed adjtlsterfrom #3 to #4. Allow
another 30minutes ofburntimeand check again.If,at #6setting,
a 1" or less ash bed is not obtainable, it is not aproblem. The I"
ash bed is only a rnaximtlmburn rate and at most normal settings
the ash bed will be larger.
~ycle).~This will purge pellets into the auger
tube and also allow you to check the motors
for operation.
NOTE: The auger motor will
not operate with the view door or ash pan
door opene3
5. Turn Feed Adjuster to #4.4
6. FliptheIgnitorSwitchup intothe "AUTO"
position.
7. TurntheTemperatureDial to desiredroom
temperature.
8. TurnMode Selector toRoomTemperature
or StoveTemperature.
9. Fill hopper with pellets and remove ashes
as req~ired.~
Warning
"NEVERUSE GASOLINE, GASOLINE-TYPELANTERN
FUEL, KEROSENE, CHARCOAL LIGHTER FLUID, OR
SIMILARLIQUIDS TOSTART OR "FRESHENUP "A
Fm
lNTHISHEATERKEEPALLSUCHLIQUDS WELLAWAY
FROM THEHEATER WHILEIN USE".
P61A-2PelletStove 14

7 Ignitor Switchto "MANUAL"
Room Temperature Mode
'7 o0 OFF
Thefire will have to be litwith startinggelandamatch,
orstartedautomatically,see"AutomaticOperation".Turn
to"Manual"positionwhenthefireisestablished.
6
TheWerencebetween "AUTO"RoomTemperature
Modeand "Manual"RoomTemperatureModeisthatthe
1
firewillnotgooutastheroomtemperaturegoesabovethe
Room Temperature Mode: This setting will produce a room
controlboard me unit can only go to lowburnand
temperature of 70 degrees with the distribution blower at
willremainthereuntilitrunsoutof fueloruntilmoreheatis
needed andthefeedrateincreases.Feedrateadjustments
anddialsettingsarethesame
as "AUTO" settings.
POWER 0
STATUB fl
olsrnleurlolr 0 nLowsn
,,,
POWER 0
STATUS 9
DISTRIBUTION 0 BLOWER

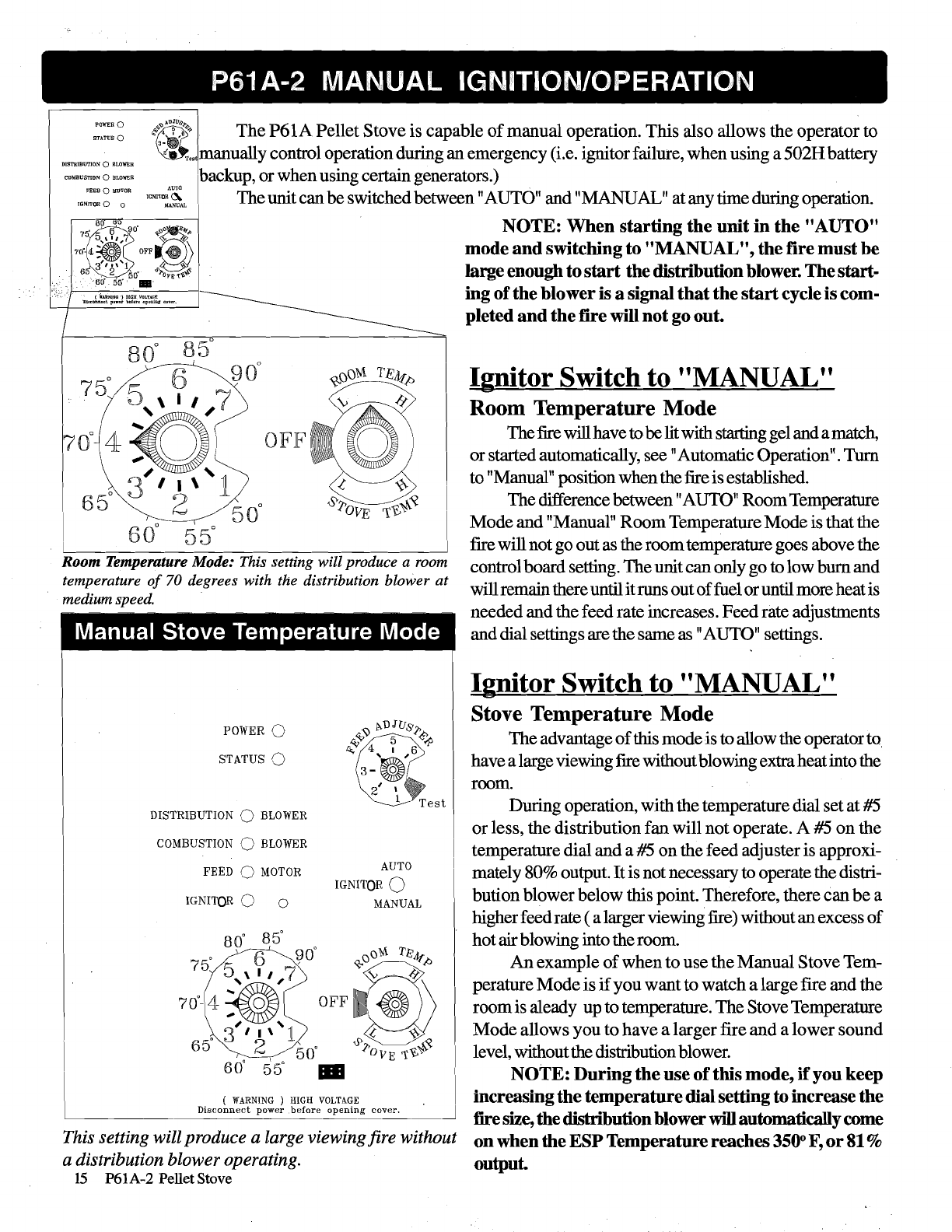

TheP61A PelletStoveis capableof manualoperation. This alsoallowsthe operatorto
manuallycontroloperationduringanemergency(i.e.ignitorfailure,when using a
502H battery
COMBUSTION 0 BLOWER
l
colrsusnoa 0 n~omn
'backup,orwhen using certaingenerators.)
m 0 m.
bum
~
IGNITOR
rcmrm o
Theunit canbeswitchedbetween "AUTO"and "MANUAL" atanytimeduringoperation.
NOTE: When starting the unit in the "AUTO"
modeandswitchingto "MANUAL",the firemustbe
largeenoughtostart thedistributionblower.Thestart-
, _*,_ , 1°C" "OLIUiS
Dl.crnrrl On.lIw oO...
ingof theblowerisasignalthatthestartcycleiscom-
pletedandthefirewillnotgoout.
1 ( WARNING ) HIGH VOLTAGE . 1
Disconnect power before opening cover.
________A
Thissetting willproduce a largeviewingfire without
a distributionblower operating.
15 P61A-2 PelletStove
Ignitor Switchto "MANUAL"
Stove Temperature Mode
Theadvantageof thismodeistoallowtheoperatorto
havealargeviewingfirewithoutblowingextraheatintothe
room.
During operation,withthetemperaturedialsetat
#5
orless,thedistributionfanwill not operate.A #5 onthe
temperaturedialand a
#5 onthefeedadjusterisapproxi-
mately
80% output.Itisnotnecessarytooperatethedistri-
butionblower below thispoint. Therefore,therecanbe a
higherfeedrate
( alargerviewing£ire) withoutanexcessof
hot
air blowingintotheroom.
An exampleof whentouse theManualStoveTem-
peratureModeisif youwanttowatch alargefireandthe
roomisaleady uptotemperature.TheStoveTemperature
Modeallowsyou tohavealargerfireandalower sound
level,withoutthedistributionblower.
NOTE: Duringtheuseof thismode,if youkeep
increasingthetemperaturedialsettingtoincreasethe
firesize,thedistributionblower
will automaticallycome
onwhen theESPTemperaturereaches
350" F, or 81 %
output.

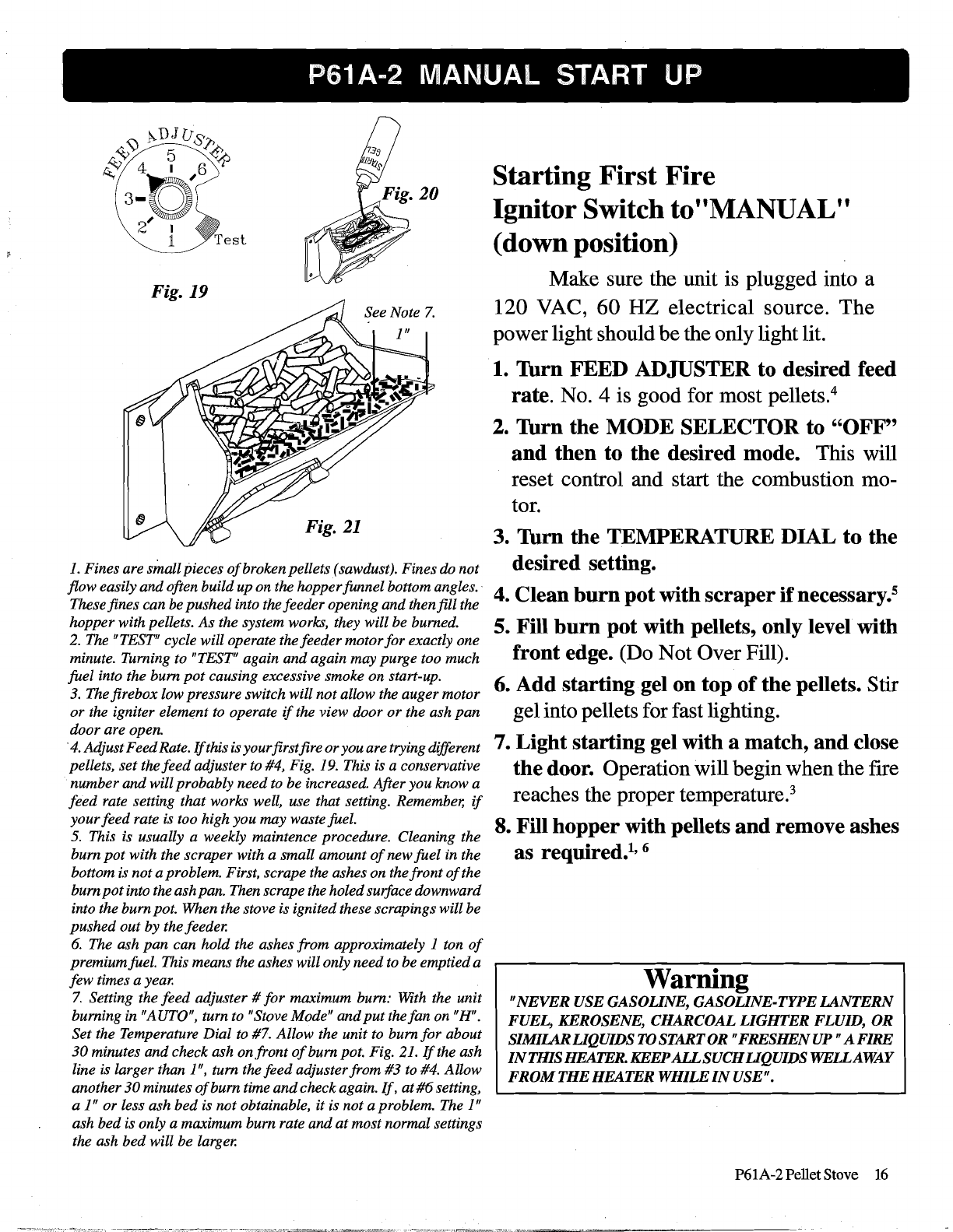

Starting First Fire
IgnitorSwitchto"MANUAL"
(downposition)
Make sure the unit is plugged into a
120 VAC, 60 HZ electrical source. The
power light shouldbethe only lightlit.
1. Turn FEED ADJUSTER to desired feed
rate.
No. 4 is good for most pellet^.^
2. Turn the MODE SELECTOR to "OFF"
and then to the desired mode.
This will
reset control and start the combustion mo-
tor.
3. Turn the TEMPERATURE DIAL to the
1. Fines are shallpieces of brokenpellets (sawdust).Fines do not
desired setting*
flow easilyand often build upon thehopperfunnel bottomangles.
Thesefines can bepushed intothe
feeder opening and thenfill the
4. Cleanburnpot withscraperif necessaryO5
hopperwithpellets. As the system works, they will be bumed.
5. Fill burn pot with pellets, only level with
2. The "TESTrrcycle will operatethefeeder motorfor exactly one
minute. Turning to "TESTragain and again may purge too much
front edge* (Do Not Over Fill).
fuel into the bumpot causing excessive smoke on start-up.
3. Thefirebox lowpressure switchwill not allow theaugermotor
6. Add starting gel on top of the pellets. Stir
or the igniter element to operate if the view door or the ashpan
gelintopelletsforfastlighting.
door are open.
4.Adjust Feed Rate.Ifthis isyourfirstfire oryou aretryingdi$erent
7. Light startinggel with a match,and close
pellets, set thefeed adjusterto#4, Fig. 19. This is a conservative thedoor. Operationwillbegin whenthefire
numberand willprobably need to be increased.After you know a
feed rate setting that works well, use that setting. Remember:
if reaches the proper
your feed rate is too highyou may wastefuel.
5. This is usually a weekly maintence procedure. Cleaning the
8. Fill hopper with pelletsand remove ashes
- -4 r
burnpot with the scraper with a small amount of newfuel in the aS required.'' "
bottomisnotaproblem. First,scrape the ashes on thefront of the
bumpot intotheashpan. Thenscrapetheholed surfacedownward
intothe burnpot. Whenthestove is ignited these scrapingswill be
pushed out by thefeeder.
6. The ashpan can hold the ashesfrom approximately I ton of
premiumfuel. Thismeans theasheswill onlyneed to be emptied a
few timesa year.
7. Setting thefeed adjuster # for maximum bum: With the unit
burning in "AUTO",turn to "StoveMode" andput thefan on "H".
Set the Temperature Dial to #7. Allow the unit to bumfor about
30 minutesand check ash onfront of bumpot. Fig. 21.
If the ash
line is larger than I", turn thefeed adjusterfrom#3 to#4. Allow
another30minutesof burntimeand check again.If,at#6 setting,
a I" or less ash bed is not obtainable,it is not aproblem. The
1"
ash bed is only a maximum burn rate and atmost normal settings
the ash bed will be larger.
Warning
"NEVERUSEGASOLINE,GASOLINE-TYPELANTERN
FUEL, KEROSENE, CHARCOAL LIGHTER FLUID, OR
SIMILARLJQUIDS
TO STMTOR "FRESHENUP " AFIRE
IN THISHEATERKEEPALLSUCHLIQUIDS WELLAWAY
FROM THEHEATER WHILEIN USE".
P61A-2PelletStove 16

Power Light
Indicatespower to the Sets the maximumfeed
Runs all motors atfull
speed for one minute
StatusLight to check operation.
Willbe lit in either stove or After two minutes the
room temp mode when
pointer is not within of minimumburnandthe
position band except after blowers will alternate
normal shut down. Blinks from highto lowevey
*" e,.L.wu-eu u, ,"," .".,*.,..
AUTO
below.
MANUAL
IGNITOR \
Indicatespower to /
distribution blower.
Indicatespower to
combustion blower
Indicatespower to th
feed motor.
minute to remind you
that you are stillin
"TestModef1.
\ Innitor switch
-
Set to appropriate
Start-Up mode.
DistributionBlowerspeed
/adjustment range.
L =low
H
= high
Variablespeed anywhere
between
L and H;
although as the stove
temp.goes up,so does the
L and H scale.
Indicates ignitor is on.
( WARNING ) HIGH v
Disconnect power before
Mode Selector
/ \ \pllowsyou to choose between
Temp dial / \
Dealer Diagnostic Port koom TempMode,StoveTemp
Allowsyou to anjust the room temperature in Room Temp For dealer maintenance Mode,or OFF.Also allowsyou
Mode using the outer scale marked in degrees Fahrenheit. only. Requires special DDM tova
y thedistributionblower
It also allows you to adjust the stove temperature while in monitor supplied to Harman speed by turning the knob to
Stove Temp Mode using the innerscale markedfrom
1 to 7.
Dealers exclusivelv. the high or low side of each
mode.
Statuslighterrormessages:
1 Blink: Indicatescontrolboard selfdiagnosticfailure.
Thisrequiresamanualreset*.
2 Blinks: Indicatesthatthejumper (J2) ontherear of
thecontrolboard isnot connected.Withoutthisjumper
theunit
will onlyburnat minimum rate.
3 Blinks: IndicatesESP (ExhaustSensingProbe)fail-
ure.Thisrequires amanualreset*.
4 Blinks: Can occuronly inRoom Temp Mode and
indicatesRoomSensingProbefailedornotinstalled.If
aRoomSensingProbeisthen installed,thestatuslight
willautomaticallyreset.
5 Blinks (In Igniter Auto. Mode Only): Indicates
thattheunit has failedto light
within the 36 minutestart
cycle.Toreset
- TurnMode Selectorto "OFF",then
17 turn to eithermodeagain.)
6 Blinks : Indicatesthatthecontrolhascalculatedpoor
orincompletecombustionoccurringformorethan
50
minutes.
A sixblink statusmaybe setif the stoveis allowedto
run outofpellets.Toreset, turn modeselectorto"OFF"
thenback on to the desiredmode. If theunit was not
outofpellets,seeTroubleshootingsectionformorede-
tails.
* Manualreset- disconnectpowercord for afew sec-
ondsandreconnect.IferrorstilloccurscallyourDealer.
NOTICE: Whenpowerisgivento thestove,thecon-
trolboardwillblink afewtimesto indicatecurrentver-
sionofcontrolboard.
Thisshouldnotbe confusedwith
error messages.

Combtlstion
M-d
Control
Low draft only
set point.
Thesmall straight
screwdriverslot is
plastic; therefore,
the unit can be
adjusted while in
operation.
, Draft Meter bolt
hole location
On a P61
the draft hole is under
the left rear corner of
the firibox. .
Fig.22 Fig. 23
Low Draft Voltaye Adiustment
Theseunits arepre-testedatthefactorywith exactly
120Volts A.C., 60Hz. They arecheckedbd adjisted for
fireboxtightness,gasketledmge,motoroperationandignitor
.operation. Th&P61~,isthen factory set at a mid-point
adj&tmentadinmostcaseswillnotneed any adjustments.
NOTE:Thefactory'lowdraftsettingmaynotbecorrect
fortheunitspermanentinstallationconditions.
Thecontrolboard on theP61Ais equippedwith a
lowdraftadjustmentport. Locatedonthe controlfacejust
to therightof theigniterlight.Thisvoltageadjustmentis
provided toallow theunit tobeadjustedforthehousehold
voltagewheretheunitisgoingtobeinpermaneantoption.
NOTE: Thelinevoltagevaries fromareato areaandoften
hometohome.
Thelow
draft voltageshouldbeadjustedtoachieve
themost efficientburnonlowburnor "maintenance".This
voltageadjustmentallowstheinstallerto changethelow
voltagesetpointapproximately10volts. Thisadjustment
shouldbedoneby theinstallerduringsetup becauseadraft
meterreadingis reauired toinsureproper setup.
If theunitisnot adjustedproperly,itdoesnotcause
asafetyconcern.
If theunitisadjustedtoo high, onlyeffiency
islost.
If theunitisadjustedtoolow,thelow draft pressure
switch
will notallowthefeedermotor ortheignitertooperate.
. B
A simple draft test should be performed after
completingthe
flue pipeinstallation.Torecordtheresultsfor
future reference:
1. Plugunit into
g 12OVAC,60 HZ outlet.
2. Closethehopper lid,frontview door,andthe ashpan.
Neither pelletsor afirearerequiredforthistest.
3. Withthemodeselectorin the"OFF"position,
turn the
feedadjusterto
"TEST".
4. Recordthehighdraft inW.C. (Nomalis-.50to -
.60)Thecontrolwillbeon the HighDraft for atotal of 2
minutes.
5. After 2minutesisup,thecombustionmotorwillgodown
tolow
draft andthedistributionblower will goon high. Allow
approximately 15secondstopassforthecombustionmotor
toslowbeforecheckingthelowdraft.
6. If the low draft is between -.35 and -.45, record the
reading inW.C.
If thereadingishigher, slowly turn
thesetscrewcounter-clockwise until the draft lowers. If the
readingislower,very slowly
turn the setscrew clockwise
until the draft increases.
NOTE: Thetestmodealternatesfrom high tolowdraft
every
60 seconds. If more time is needed for draft
adjustment,wait untilthenextlowdraftcycle.
NOTE:In somecases,thedraftmaynotgoaslow as
-.35 to -.45 evenwiththesetscrewcompletelycounter-
clockwise.
P61A-2PelletStove 18

Room Sensor Installation Rear Shields
Fig. 24
The room sensor is a small temperature sen-
sor on the end of a 60" gray wire. This sensor is
installed much likea standardwall thermostat. Be-
cause it isso small, it can be hiddenalong the trim
of a doorway or even up the leg of a coffee table.
There is a remote room sensor port on the rear of
the unitfor easy external connection. Usestandard
18-2thermostatwire to extend the distance to the
desired location (100' maximum). The room sen-
sorshouldbeinstalledinthe locationwhereyouwant
to controlthe temperature.
IVOTE: Distances of more than 25 feet from
the unit or inanother room are not recommended.
The room sensor isessentialfor the PGIA'sexcel-
lentefficiency.
IVOTE:
It is recommended that the room
sensor be installed,
even if only installed on the
rearofthe unitas a returnair sensor.
5/16" Hex I\
-1.1 1 (1 1 each side)
Fig. 25
The rear isolated shields are split in the middlefor
a
easy removal. Eachshield hastwo 5116" hex head
screws that only need to be loosened (NOT
REMOVED) to allow the shield to slide away from
the UI-lit.
NOTE: It is not recommended that the
unit be operatedwith the shields removed,due
to the hotandmovingpartswhichthey protect.
19 P6 1A-2 PelletStove
