Harman Stove Company PC 45 User manual

R1
SAFETY NOTICE
PLEASEREAD THISENTIRE MANUAL BEFORE YOUINSTALLANDUSE YOURNEW ROOMHEATER. FAILURE TO
FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTYDAMAGE, BODILYINJURY, OR EVEN DEATH.
FOR USE INTHE U.S. AND CANADA. SUITABLE FOR INSTALLATION INMOBILE HOMES
IF THIS HARMAN STOVE IS NOT PROPERLYINSTALLED,AHOUSEFIRE MAYRESULT. FORYOURSAFETY,FOLLOW
INSTALLATIONDIRECTIONS.
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION
REQUIREMENTS INYOUR AREA.
CONTACT YOUR LOCAL AUTHORITY (SUCHAS MUNICIPAL BUILDING DEPARTMENT, FIRE DEPARTMENT, FIRE
PREVENTIONBUREAU,ETC.) TODETERMINE THENEED FORAPERMIT.
CETTEGUIDE D'UTILISATIONEST DISPONIBLEENFRANCAIS.CHEZVOTRECONCESSIONNAIRE DEHARMANSTOVE
COMPANY.
SAVETHESEINSTRUCTIONS.
The Harman PC 45 Corn/Pellet Stove
Installation & Operating Manual
R3
“Ce manuel est disponible en Français sur demande”

2 PC45Corn/PelletStove

3PC45Corn/Pellet Stove
Introduction
Harman Stove Company
352 MountainHouseRoad
Halifax,PA 17032
[e-mail]@harmanstoves.com
SAFETYNOTICE: IFTHISHARMANSTOVEISNOTPROP-
ERLY INSTALLED. A HOUSE FIRE MAY RESULT. FOR
YOUR SAFETY, FOLLOW THE INSTALLATION DIREC-
TIONSCONTACTLOCALBUILDING ORFIRE OFFICIALS
ABOUTRESTRICTIONSANDINSTALLATIONINSPECTION
REQUIREMENTSINYOURAREA.

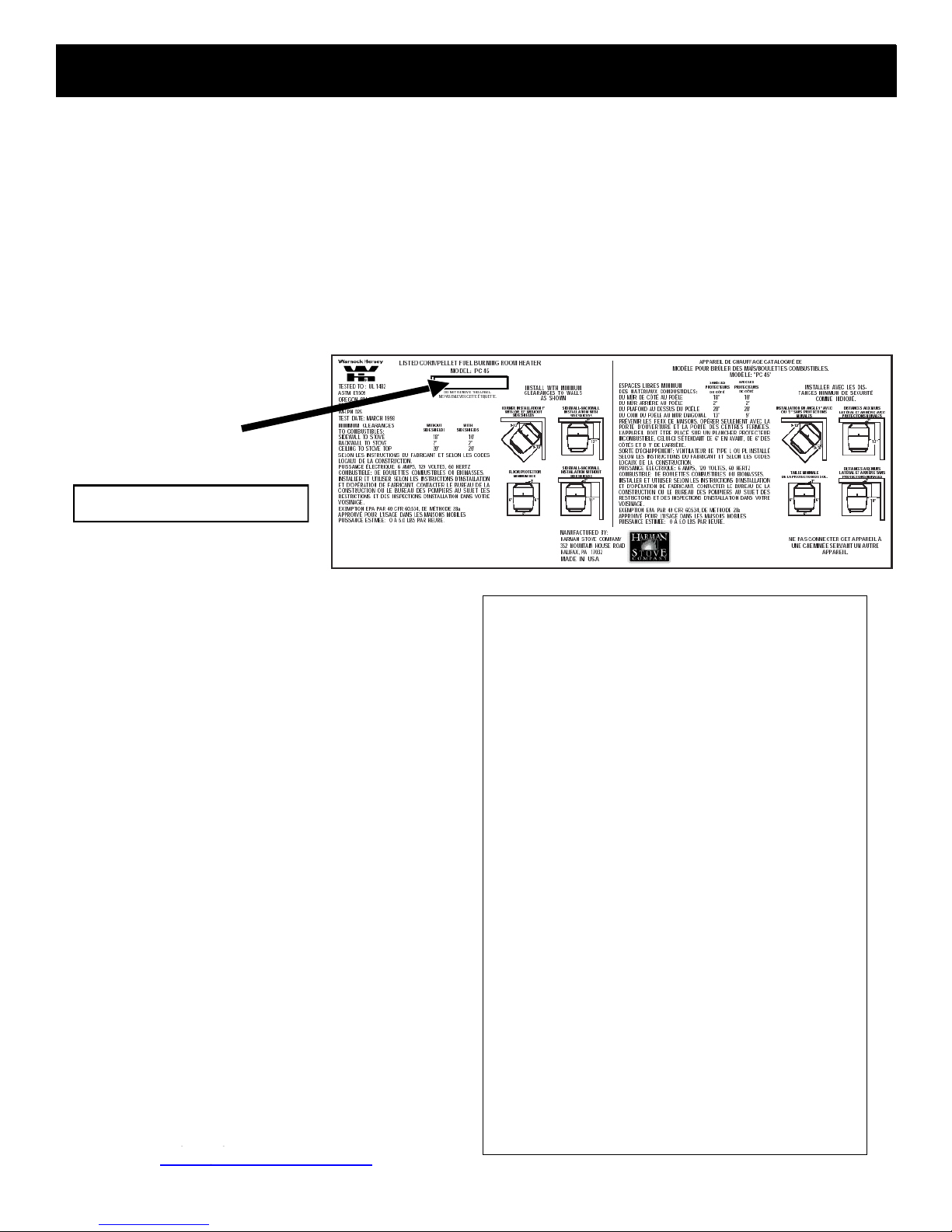

Please copy your
serial number fromthe
label on your stove to
thebox below.
SERIAL NUMBER
Assembly & Installation 4
Installation 6
Venting 7
Automatic Operation 13

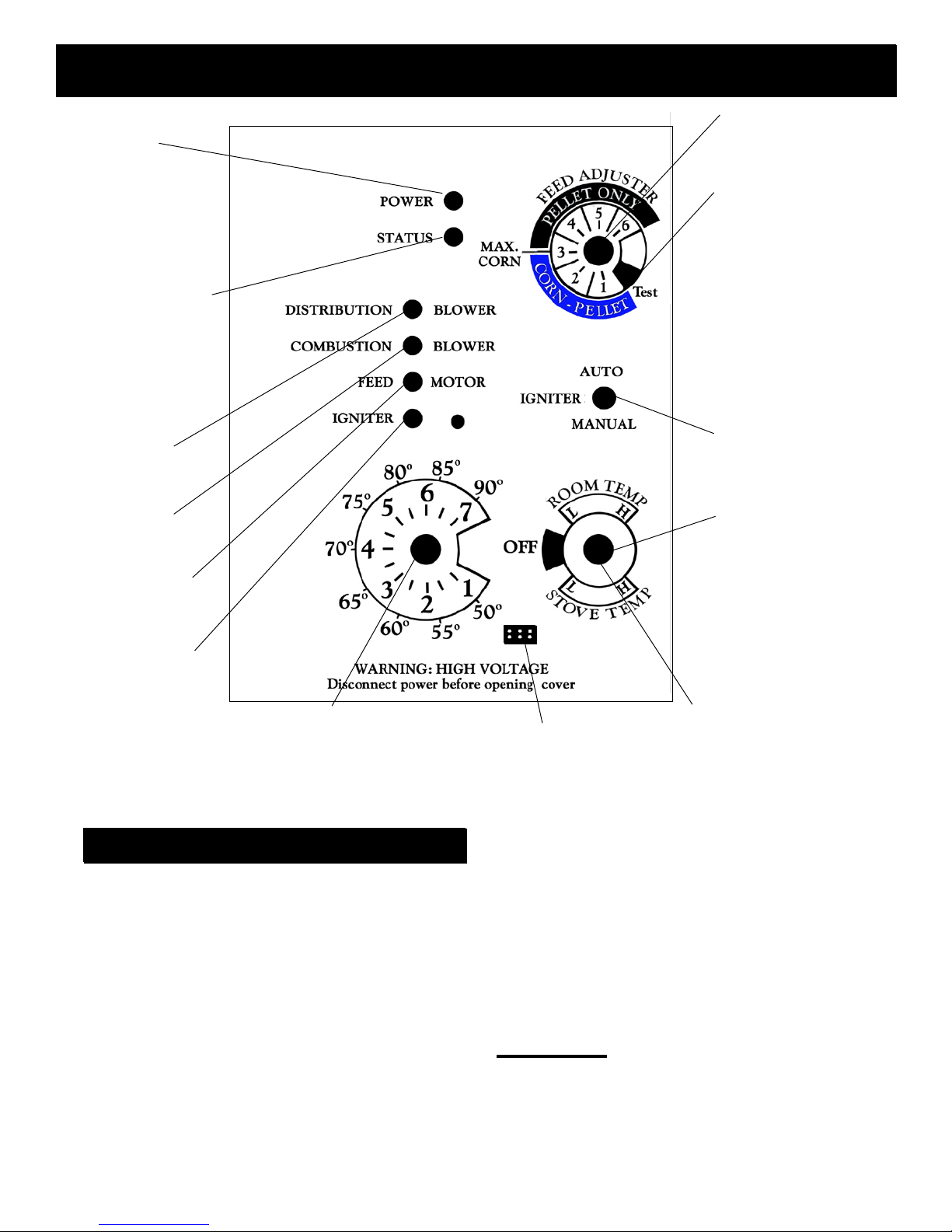

ESP Control 17
Maintenance 19
Trouble Shooting 22
Feeder Parts 23
Specifications 23
Options 24
Wiring Diagram 26
Parts List 27
Warranty 28
Table of Contents
The PC 45 Corn Stove makes burning corn more convenient than ever. It’s special Sidewinder Burn Pot
allows corn to be burned from three days up to a week without cleaning, depending on the corn’s moisture
level and burn rate.
Automatic Ignition allows you to fill the hopper, set your desired room temperature and walk away. The PC
45 will adjust it’s feed rate based on the temperatures received by the roomsensor, and keep your home
at the set temperature.
The PC 45’s automatic temperature control system eliminates the warm/cold cycle associated with ther-
mostatically controlled heating systems and even turns the PC 45 on and off as needed.
Our exclusiveAccordion Heat Exchanger andAir Cooled Combustion Blower allows the PC 45 to produce
maximum heat without creating high exhaust temperatures. The Outside Air option can increase heat
efficiency even more.
The PC 45 can burn corn withmoisture levels up to 16%, with 14.5% or less being ideal. It can also burn
pellets regardless of ash content. This allows you to buy lower cost fuel and still achieve the same results.

4 PC45Corn/PelletStove
Assembly and Installation
Unpacking
ThePC 45is boltedto theskidtoprevent move-
ment during shipping.
To free the stove from the skid you must re-
move the hold-down bolts inthe rear of the pedestal
base.

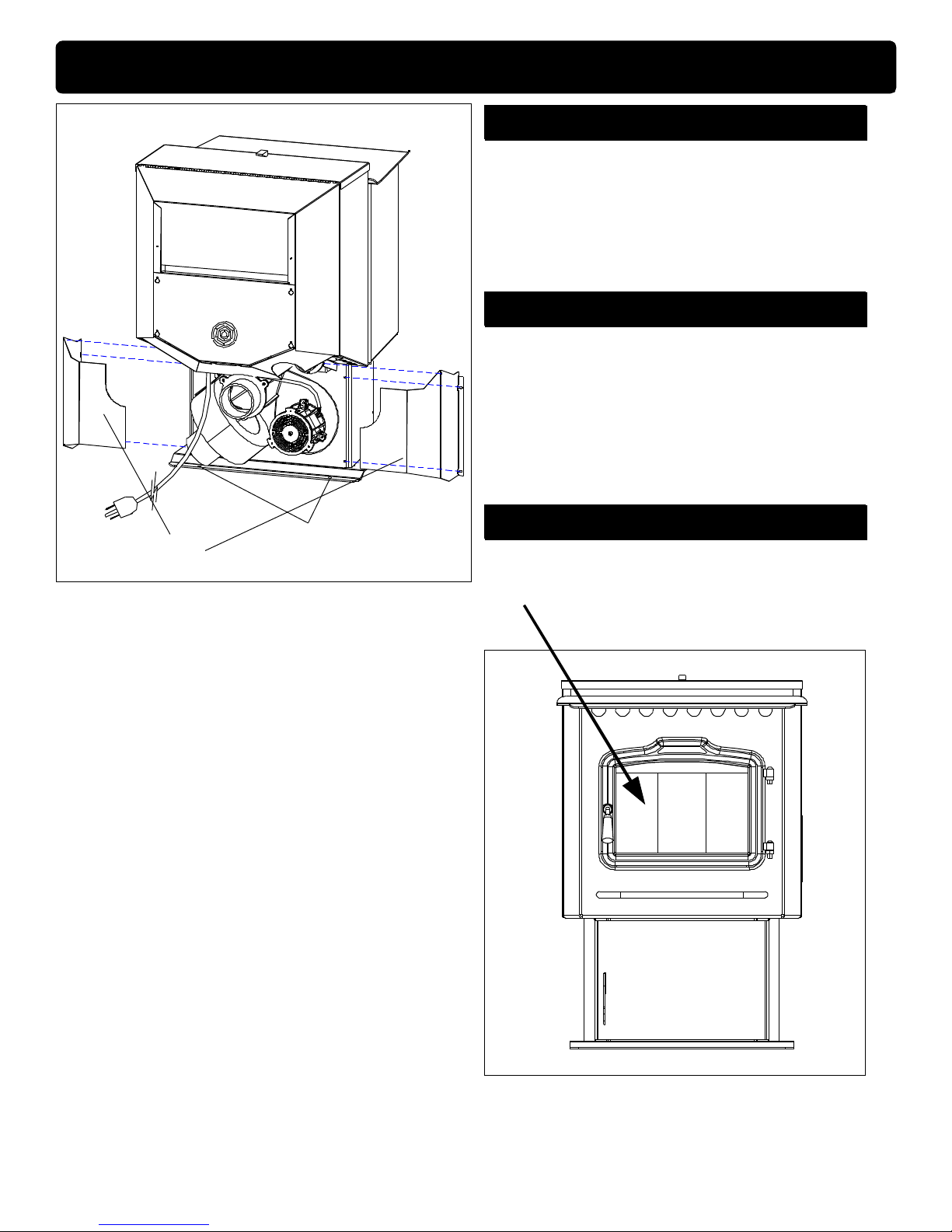

Installing rear cover panels
The rear cover panels are removed from the
stove to make it easier to getatthe hold-downbolts.
The rear cover panels are packed inside the
hopper and should be installed on the stove as
shown. It is recommended that the rear covers are
installed after the unit is in place and the vent pipe is
installed.
Firebrick
Installthe firebrick verticallyonthe angle above
the burnpot.
Rear
Cover Panels
Fig. 1
Fig. 2
Shipping Bolts:These holes are
also used for Mobile Home
Installation

5PC45Corn/Pellet Stove

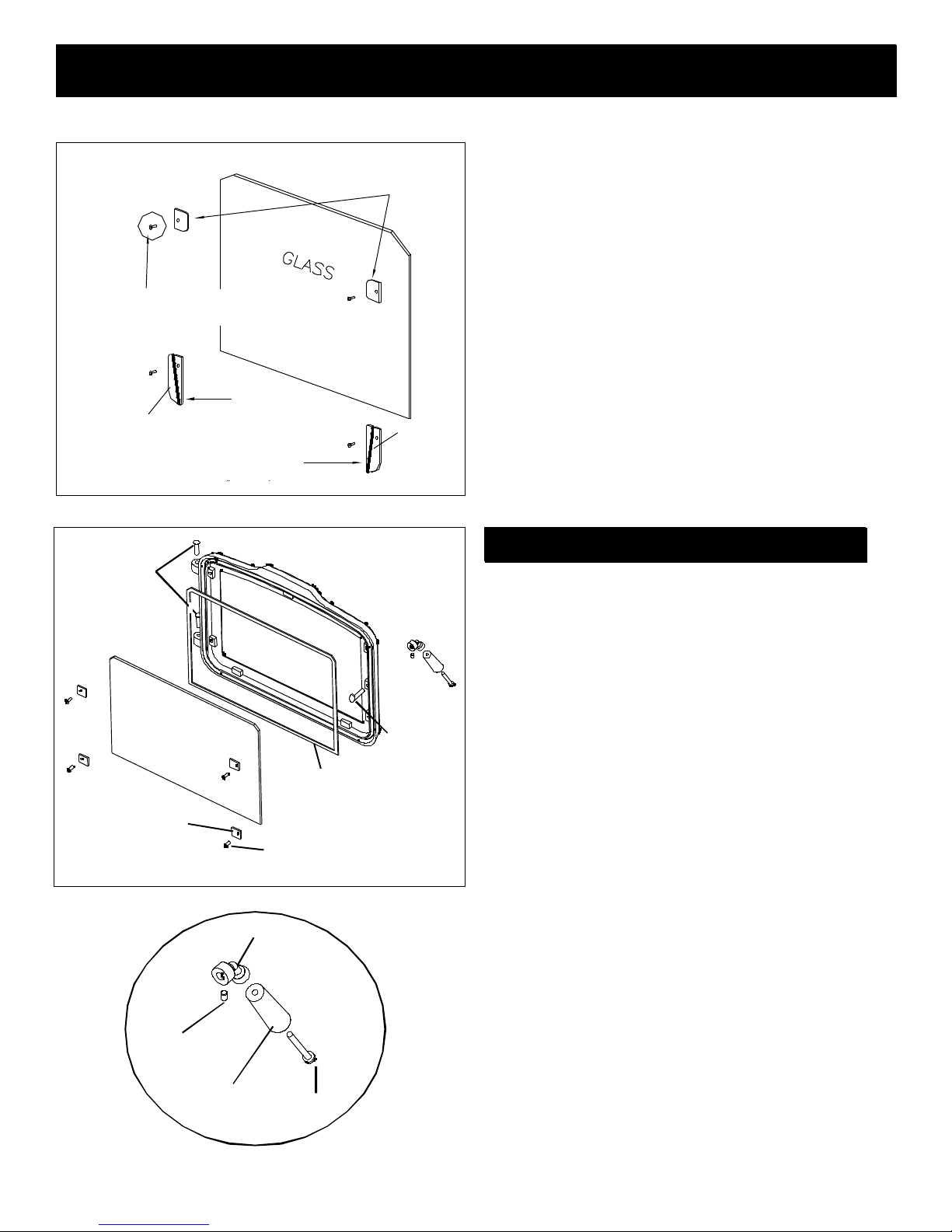

Door Assembly/Installation Tips
Assembling the door
• Referring to the diagram, note how the various
components of the door system fit together.
• Lay the load door face down on a soft surface.
• Cleantheglass andgolddoor usinga nonabrasive
cleaner.Installtheglassgasketaroundtheouter edge
of the frontface of the door glass carefullyto insure
proper sealing. Set the glass pane gently onto the
door. Installthehold-downclipsandtightenwithbolts
as shown.
• Install door on stove with hinge pins.
• Install door handle as shown on the diagram.
NOTE: With the flat surface of the paw bolt to the
inside of the door.
• Turn the paw bolt "in" for approx. (17) turns.
• Turnthe brass elbowonto the pawbolt approx. (5)
turns.
• Align the set screw with the flat spot on the paw
and tighten.
• After attaching the door handle, close and latch
the door by turning the handle to the six o'clock
position. Does the door rope compress? If not,
loosen the set screw, turn the paw bolt one more
turn into the door. Repeat as required to achieve a
tight door fit.
NOTE: Rememberto thoroughly cleantheglass and
the gold door frame before lighting the stove for the
first time.
Bottom Glass Retainer Clip Instructions
(4)10-24 x3/8" buttonhead allen
screws suppliedin thedoor kit
(1)left hand
(2) glassretainer clips
(1)righthand
Follow the instructions in the door kit except for the
bottom glass retainers. Install the special glass
retainer clips to the bottomof the door.
There is a left and right retainer clip with a radius to
match the door bottom. The fiber glass rope on the
clip must be facing the stove body when installed,
NOTFACINGTHE GLASS!!
These clips are designed to direct the air wash air
more evenly.
4 GLASS
RETAINER
CLIPS 4 GLASS RETAINER
BOLTS
GLASS
GLASS
GASKET
DOOR
HINGE
PINS
PAW
BOLT
Fig. 3
(2) GlassRetainerClips
supplied with thedoor kit
Fig. 4
Fig. 5
BRASS
HANDLE
HANDLE
BOLT
WOOD
HANDLE
SET
SCREW
Gasket
goes
toward
the stove
Gasket goes
toward the stove

6 PC45Corn/PelletStove
6"
Fig. 7
10"
2"
1"
6"
WithSide Shields
FLOOR PROTECTOR
6"
Fig. 8
18"
WithoutSideShields
FLOOR PROTECTOR
FLOOR PROTECTOR
Fig. 6
Fig.9: Referto page18 for
detailed draftsettings and
adjustmentprocedures.
9"-13"
9"-13"
9" WithSide Shields
13"WithoutSide Shields

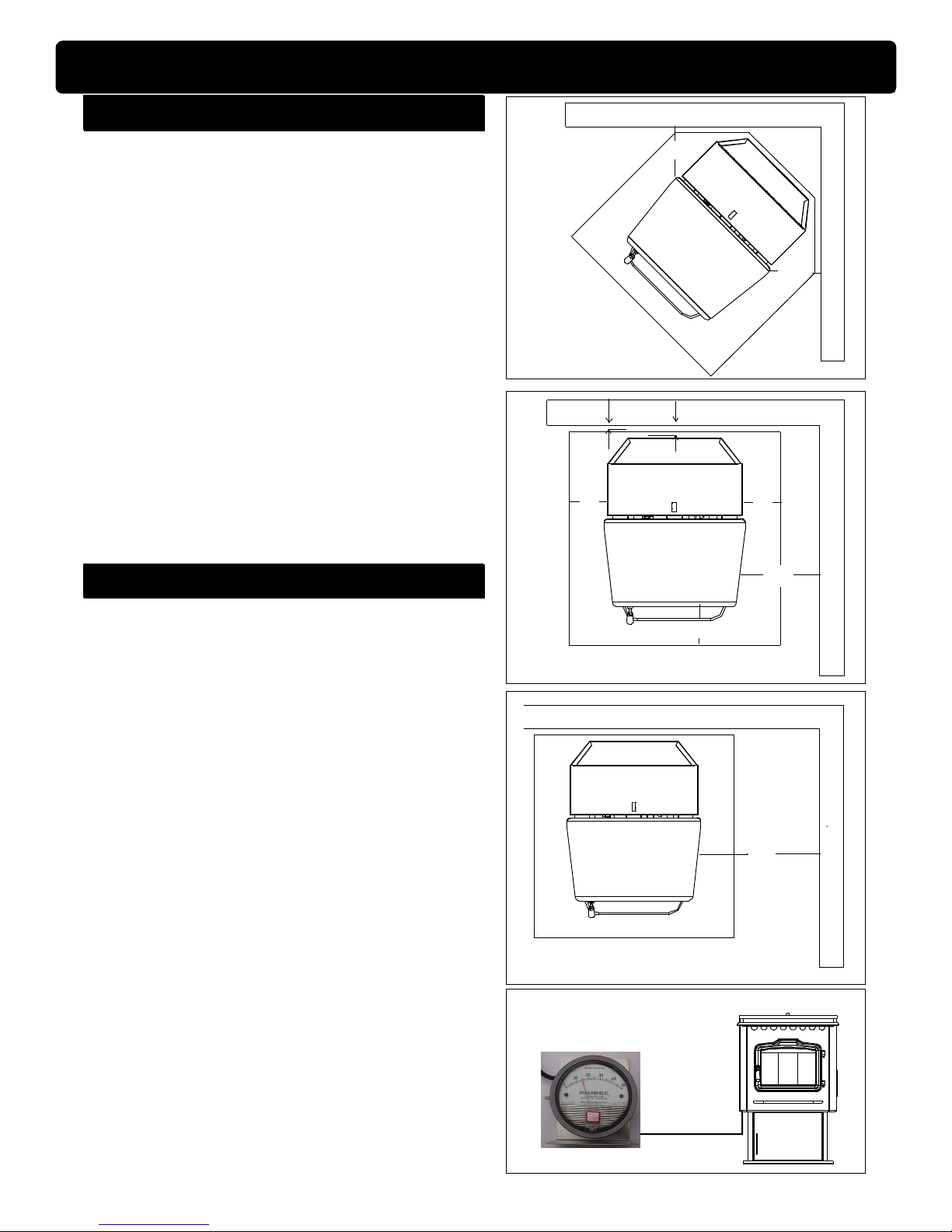

Installation
Installing
Place the stove on a noncombustible floor protec-
tor that extends 6 inches to the front, 6 inches to the
sides and 1 inch to the rear of the stove. The minimum
floor protector material is 24 gauge sheet metal.
Placethestoveawayfromcombustiblewallsatleast
asfarasshowninfigures 6,7&8.Pleasenotethediffer-
ence in side wallclearance withandwithoutside shields.
Note that the clearances shown are minimum for
safetybutdonotleavemuchroomforaccesswhenclean-
ingor servicing. Pleasetake this into accountwhenplac-
ingthe stove.
Connect the power cord to a 120 V.A.C. 60Hz
groundedreceptacle.(Asurge protectoris recommened
to protect the circuit board).
Priortoinstallingthefluepipe,connectadraftmeter
to the stove as shown in fig. 9. (The draft meter must
havea minimumrange of 0"- 0.5").Turnstoveto "TEST"
Modeandrecordthe draftreading______.After theflue
pipe is connected, checkthe draftreading againmaking
sure all doors and windows in the home are closed. If
thisreadingis morethan.05"higherthantheunconnected
reading, check for possible restrictions or the need for
outsideair.(Seepage 8).
Mobile Home Installation
When installing this unit in a mobile home several
requirements must be followed:
1.Theunitmustbeboltedtothefloor.Thiscanbedone
with1/4" lagscrews throughthe2 holes inthe base plate.
2. The unit must also be connected for the outside
air. See page 8.
3. Floor protection and clearances must be followed
as shown.
4. Unit must be grounded to the metal frame of the
mobile home.
CAUTION:Thisappliancemustbeventedtotheout-
side.Duetohightemperatures,thestoveshouldbeplacedoutoftraffic
andawayfromfurnitureanddraperies.
Children and adults should be alerted to the haz-
ards of high surface temperatures and should stay away
to avoid burn to skin and/or clothing.
Young children should be carefully supervised when
they are in the same room as the stove.
Clothing and other flammable materials should not
be placed on or near this unit.
Installation and repair of this Harman Stove should
be done by a qualified service person. The appliance
should be inspected before use and at least annually by a
qualified service person. More frequent cleaning will be
required. It is imperative that control compartments, burn-
ers, and circulating air passageways of the stove be kept
clean.
Mobile home installation should be done in accordance
with the Manufactured Home and Safety Standard (HUD),
CFR 3280, Part 24.

7PC45Corn/Pellet Stove

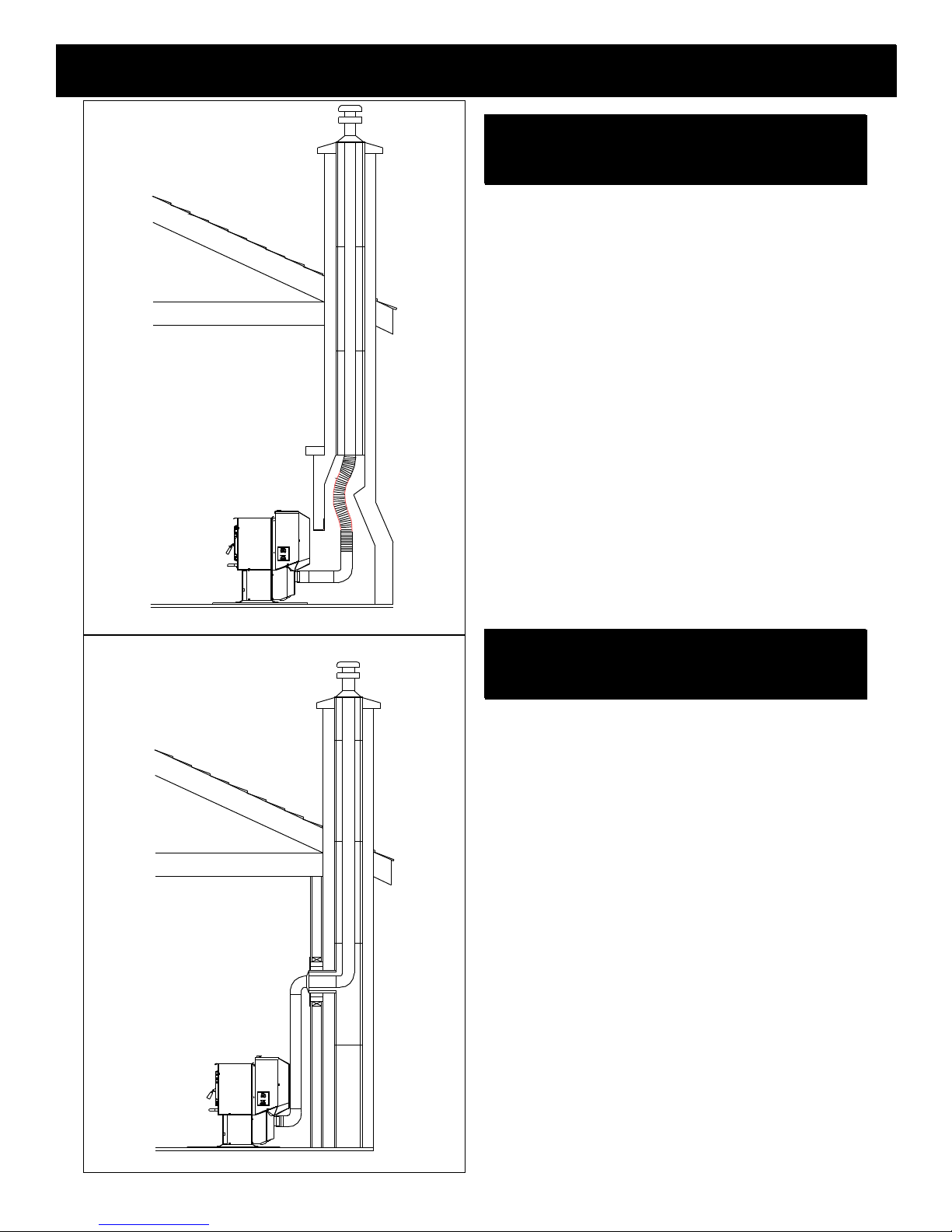

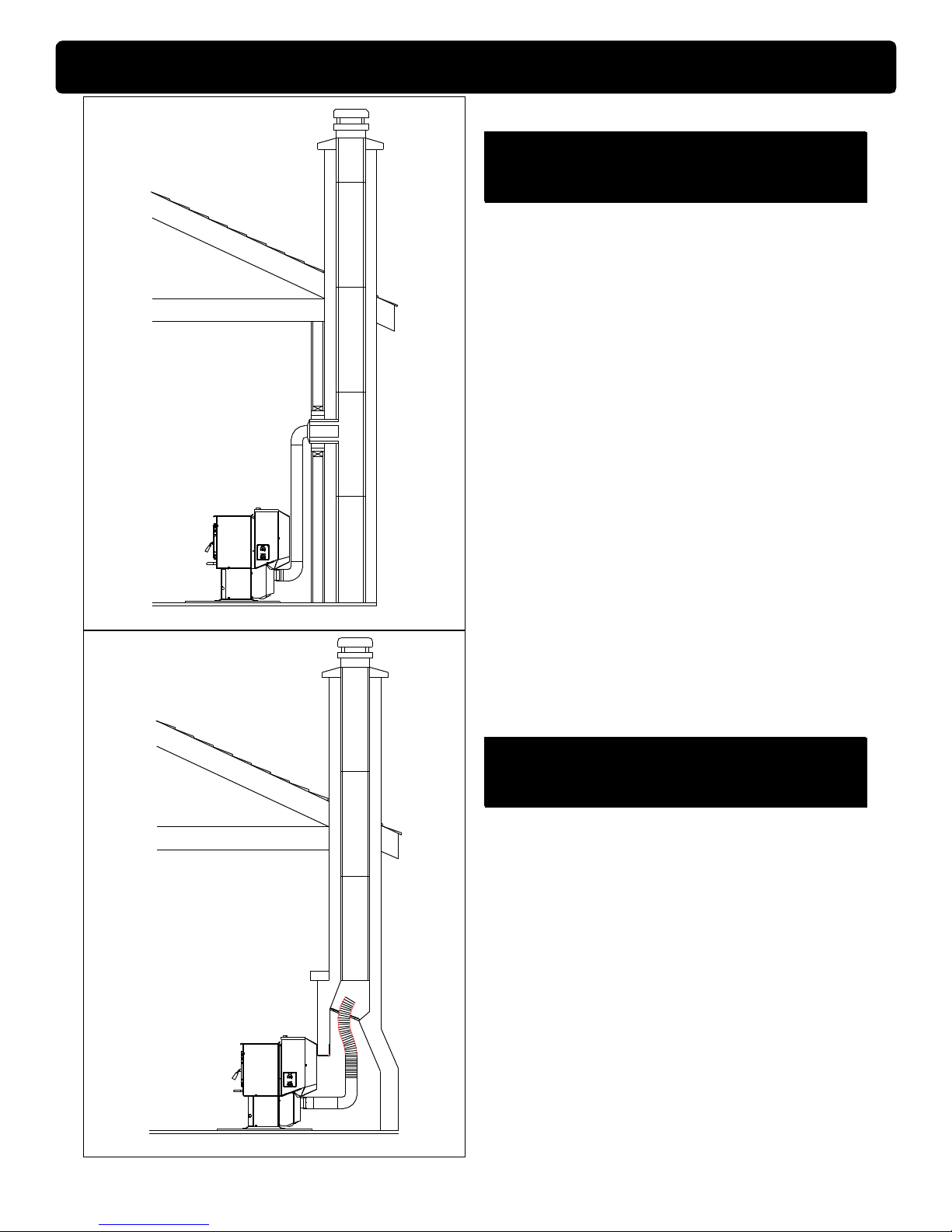

Venting

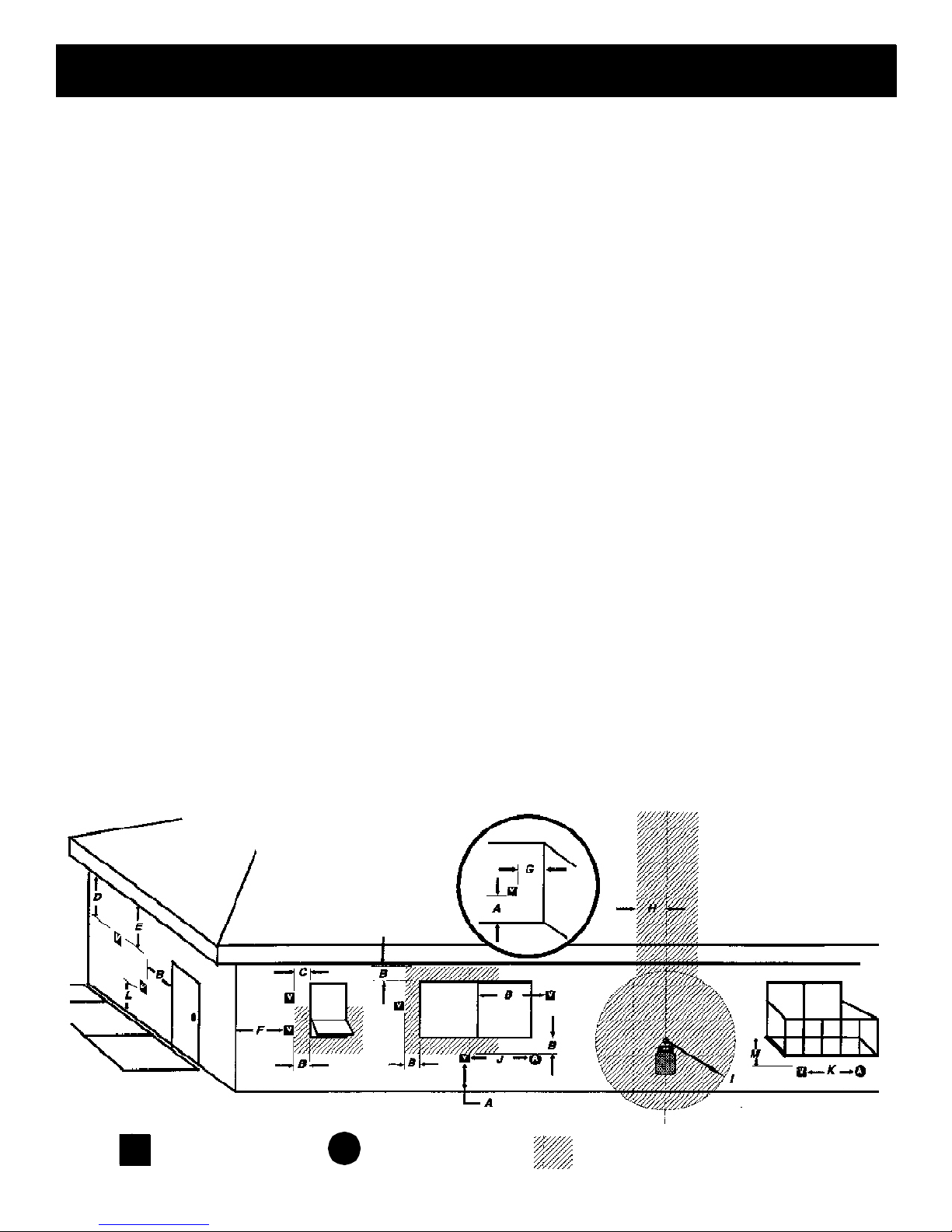

Requirements for Terminating the Venting
WARNING: Venting terminals must not be re-
cessed into a wall or siding.
NOTE: Only PL vent pipe wall pass-throughs
and fire stops should be used when venting through
combustible materials.
NOTE: Always take into consideration the ef-
fect the prevailing wind direction or other wind cur-
rents willcausewithflyashand/orsmoke whenplac-
ing the termination.
Inaddition,thefollowing mustbe observed:
A.The clearance above grade must be a mini-
mum of 18".1
B. The clearance to a windowor door that may
be opened must be a minimum of 48" to the side,
48" below the window/door, and 12" above the win-
dow/door.1
( with outside air installed, 18” )
C. A 12" clearance to a permanently closed
window is recommended to prevent condensation
on the window.
D. The vertical clearance to a ventilated soffit
located above the terminal within a horizontal dis-
tance of 2 feet (60 cm) from the center-line of the
terminal must be a minimum of 18".
E.The clearance to anunventilatedsoffit must
be a minimum of 12".
F. The clearance to an outside corner is 11"
from center of pipe.
G. The clearance to an inside corner is 12".
H. Avent must notbe installedwithin3 feet (90
cm) above a gas meter/regulator assembly when
measuredfromthe horizontalcenter-line ofthe regu-
lator.1
I.The clearance toservice regulator vent outlet
must be a minimum of 6 feet.1
J. The clearance to a non-mechanical air sup-
ply inlet to the building or the combustion air inlet to
any other appliance must be a minimum of 48”.1
K. The clearance to a mechanical air supply
inlet must be a minimum of 10 feet.1
(with outside air installed,6 feet )
L. The clearance above a paved sidewalk or a
paved driveway located on public property must be
a minimum of 7 feet.1,2
M.The clearanceundera veranda, porch,deck
or balcony must be a minimum of 12 inches.1,3
NOTE: The clearance to vegetation and other
exterior combustibles such as mulch is 36” as mea-
sured from the center of the outlet or cap. This 36”
radius continues to grade or a minimum of 7 feet
below the outlet.
1CertainCanadianandor Localcodesor regu-
lations may require different clearances.
2Aventshallnot terminatedirectlyabovea side-
walk or paved driveway which is located between
two single family dwellings and serves both dwell-
ings.3Only permitted if veranda, porch, deck, or bal-
cony is fully open on a minimumof 2 sides beneath
the floor.
NOTE: Where passage through a wall, or
partition ofcombustibleconstruction isdesired,
the installation shall conformto CAN/CSA-B365.
(if in Canada)
VA
= Vent terminal = Air supply inlet
Fixed
Closed
Openable
Openable Fixed
Closed
Inside Corner
Detail
= Area where terminal is not permitted

8 PC45Corn/PelletStove
Outside airflex pipe
goeshere
InletCoverpart#
1-10-08542
Flexpipe part#
2-00-08543
HRV
Wheninstallingina housewithaHeat Reclaim-
ing Ventilation System(HRV) be sure the system is
balanced and is not creating a negative pressure in
the house.
Outside Air
Outside air is optional except in mobile homes
and where building codes require. The benefit of
outside air is mainly noticed in small very tight
houses.
To install outside air use 2 3/8" I.D. flex pipe
partnumber2-00-08543. Thereis abreak-awayhole
on the rear panel which must be removed before
connectingthe flexpipe.The pipe shouldbe runout-
side and terminate 3 feet or more to the side or be-
lowthe vent pipe outlet. Never terminate the outside
air above the vent pipe outlet. The maximum length
run of this pipe is 15 feet. If a longer run is needed
the size must be increased to 3". Inlet cover part
number 1-10-08542 should be used to keep birds,
rodents etc.out of pipe.
Vent Pipe
Pellet venting pipe ( also known as PL vent ) is
constructed of two layers with air space between
the layers. This air space acts as an insulator and
reduces the outside surface temperature to allow a
clearance to combustibles of only 3 inches. The
sections of pipe lock together to form an air tight
seal in most cases; however, in some cases a per-
fect seal is not achieved. For this reason and the
factthatthe PC45operates witha positiveventpres-
sure we specify that the joints also be sealed
with clear silicone.
Venting
Fig. 11
Acombustionbloweris usedto extractthe com-
bustiongases fromthefirebox.This causes a nega-
tive pressure in the firebox anda positive pressure
inthe ventingsystemas shown infig. 10. The longer
the vent pipe and more elbows used in the system,
the greater the flow resistance. Because of these
facts we recommend using as few elbows as pos-
sible and 15 feet or less of vent pipe. The maximum
horizontal run should not exceed 48". If more than
15 feet of pipe is needed, the diameter should be
increasedfrom3" to4" becausea largerpipe causes
less flow resistance. Be sure to use approved
pellet vent pipe wall and ceiling pass through
fittings to go through combustible walls and
ceilings. Be sure to use a starting collar to attach
the venting system to the stove. The starting col-
lar must be sealed to the stove with high temp
silicone caulking.
+ = Positive static pressure
= Negative static pressure
Fig.10
IMPORTANT NOTICE
PelletVentPipe orPLVentPipe Mustbeused.

9PC45Corn/Pellet Stove
Fig.12
3 ft.
to
combustibles
3 ft.
to
combustibles

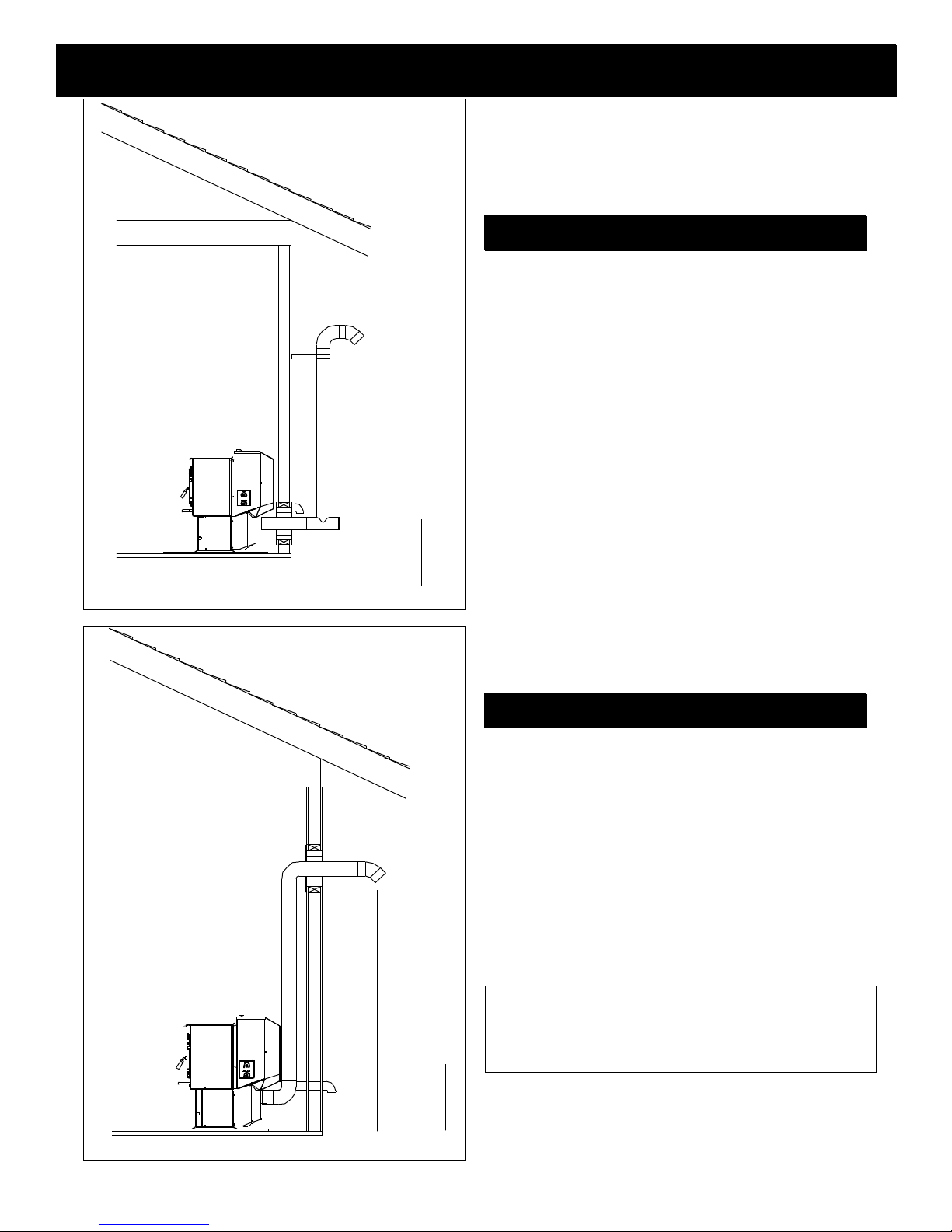

Venting
#1 Preferred method
This methodprovides excellent ventingfor nor-
mal operation and allows the stove to be installed
closest to the wall. Two inches from the wall is safe;
however, fourinches allowsbetter accesstoremove
the rearpanel.Theverticalportionof thevent should
be three to five feet high. This vertical section will
provide natural draft in the event of a power failure.
#2 Preferred method
This methodalso provides excellent ventingfor
normaloperationbutrequires thestove tobe installed
farther from the wall. The verticalportion of the vent
should be three to five feet high and at least three
inches from a combustible wall. This vertical sec-
tion will provide natural draft in the event of a power
failure.
If the stove is installed below grade the vent
termination should be at least 1 foot above grade.
CAUTION
Keepcombustible materials(such as grass, leaves,
etc.) at least 3 feet awayfrom the flue outlet on the
outside of the building.
Fig.13

10 PC45 Corn/PelletStove
Fig.14
Fig.15
Venting
#3 Installing into an existing
chimney ( US only )
This methodprovides excellent ventingfor nor-
mal operation. This method also provides natural
draft in the event of a power failure. If the chimney
condition is questionable you may want to install a
liner as in method #6.
#4 Installing into an existing
fireplace chimney ( US only )
This methodprovides excellent ventingfor nor-
mal operation. This method also provides natural
draft in the event of a power failure.
The damper area must be sealed with a steel
plate or fiberglass. A cap should be installed on the
chimney to keepout rain. If the chimney condition is
questionable you may want to install a liner all the
way to the top as in method #5.

11PC45Corn/Pellet Stove
Fig.16
Venting
#5 Installing into an existing
fireplace chimney (US and Canada)
Thismethodprovidesexcellentventingfor nor-
mal operation. This method also provides natural
draft in the event of a power failure.
In Canada and some places in the US it is
requiredthat the vent pipe extend allthe way to the
top of the chimney.
In this method a cap should also be installed
on the chimney to keep out rain. Be sure to use
approved pellet vent pipe fittings. Seal pipe joints
with silicone in additionto the sealing system used
by themanufacturer.Pipesize shouldbeincreased
to 4" using this method.
#6 Installing into an existing
chimney ( US and Canada )
This methodprovides excellent ventingfor nor-
mal operation. This method also provides natural
draft in the event of a power failure.
In Canada and some places in the US it is re-
quiredthat the vent pipe extendall the wayto the top
of the chimney. The pipe or liner inside the chimney
should be 4"diameter.
In this method a cap should also be installed
on the chimney to keep out rain.
Fig.17

12 PC45 Corn/PelletStove
Fig. 18
No insulation or
othercombustible
materials are
allowed within 3"
of the PL vent
pipe.
PL vent manufacturer's
firestop spacer and
support
(See Page 6 for
cornerinstallation
clearances)
Minimumflueventconfiguration
It is recommended that
outside air be installed with this
venting configuration.
Min.aboveground level
12"
Storm collar
Flashing
3" min. 3" min.
12" min.
3" min.
Venting
Fig.19
Fig.20

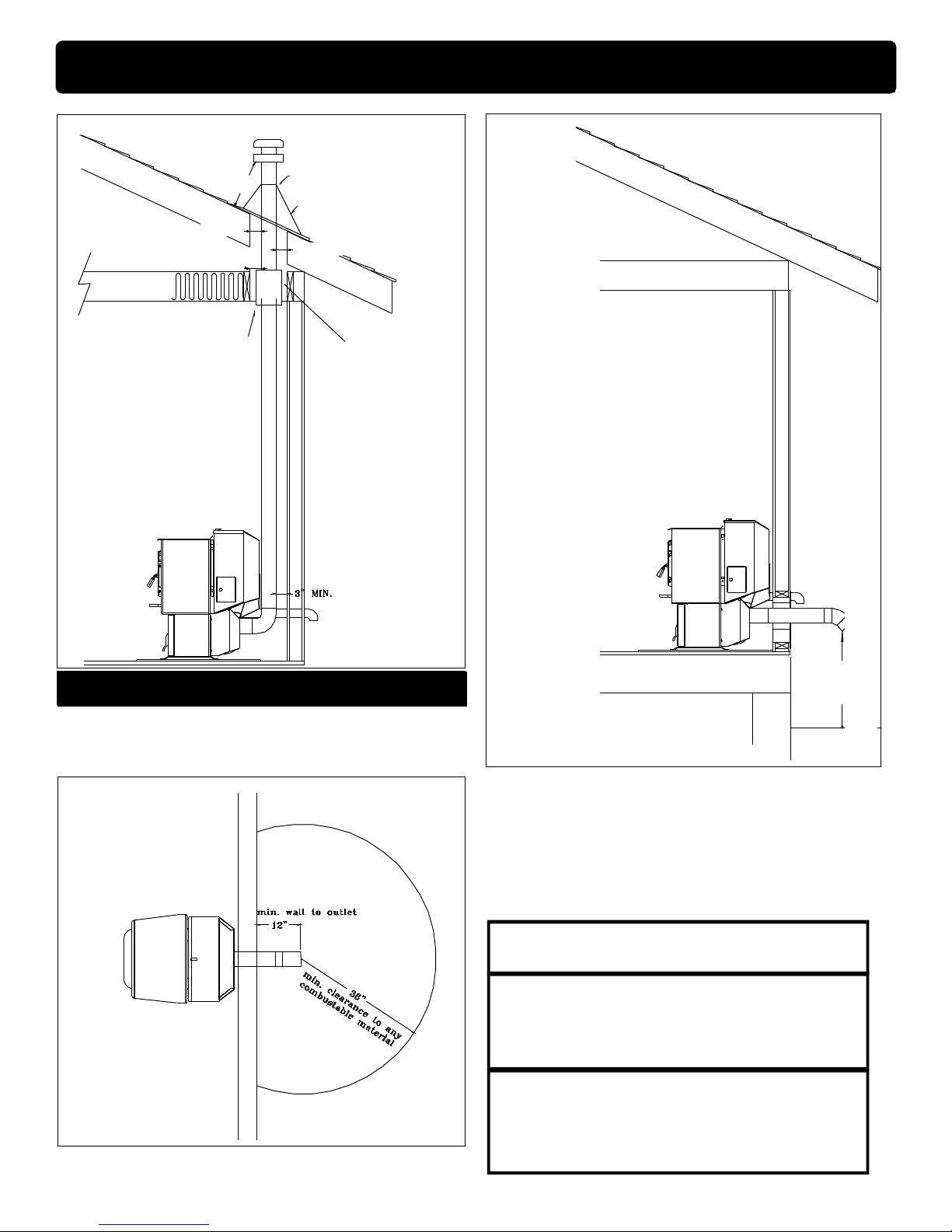

#7 Installing through the ceiling vent
Through the ceiling vent, follow PL vent
manufacturers recommendations when using wall and
ceiling pass through. DO NOT INSTALL A FLUE DAMPER IN THE
EXHAUST VENTING SYSTEM OF THIS UNIT.
DO NOT CONNECT THIS UNIT TO A CHIMNEY
FLUE SERVING ANOTHER APPLIANCE.
INSTALL VENT AT CLEARANCES SPECIFIED
BY THE MANUFACTURER
CAUTION
DO NOT INSTALL IN SLEEPING ROOM
WARNING
CAUTION
THE STRUCTURAL INTEGRITY OF THE
MOBILE HOMEFLOOR,WALL,AND CEILING/
ROOF MUST BE MAINTAINED.
THE STOVE IS HOT WHILE IN OPERATION.
KEEP CHILDREN, CLOTHING AND
FURNITURE AWAY. CONTACT MAY CAUSE
SKIN BURNS.

13PC45Corn/Pellet Stove
The PC45 corn/pellet stove is more than just automatic ignition, it is also automatic temperature
control. The automatic system will allow the fire size to be adjusted to match the heating needs
and even put the fire out if necessary. If heat is needed after the fire is out, the PC 45 will
automatically re-ignite and adjust the fire size to match the heating need. The totally automatic
room sensor mode is recommended because of its efficiency.
The unit can be switched between "AUTO" and "MANUAL" at any time during operation.

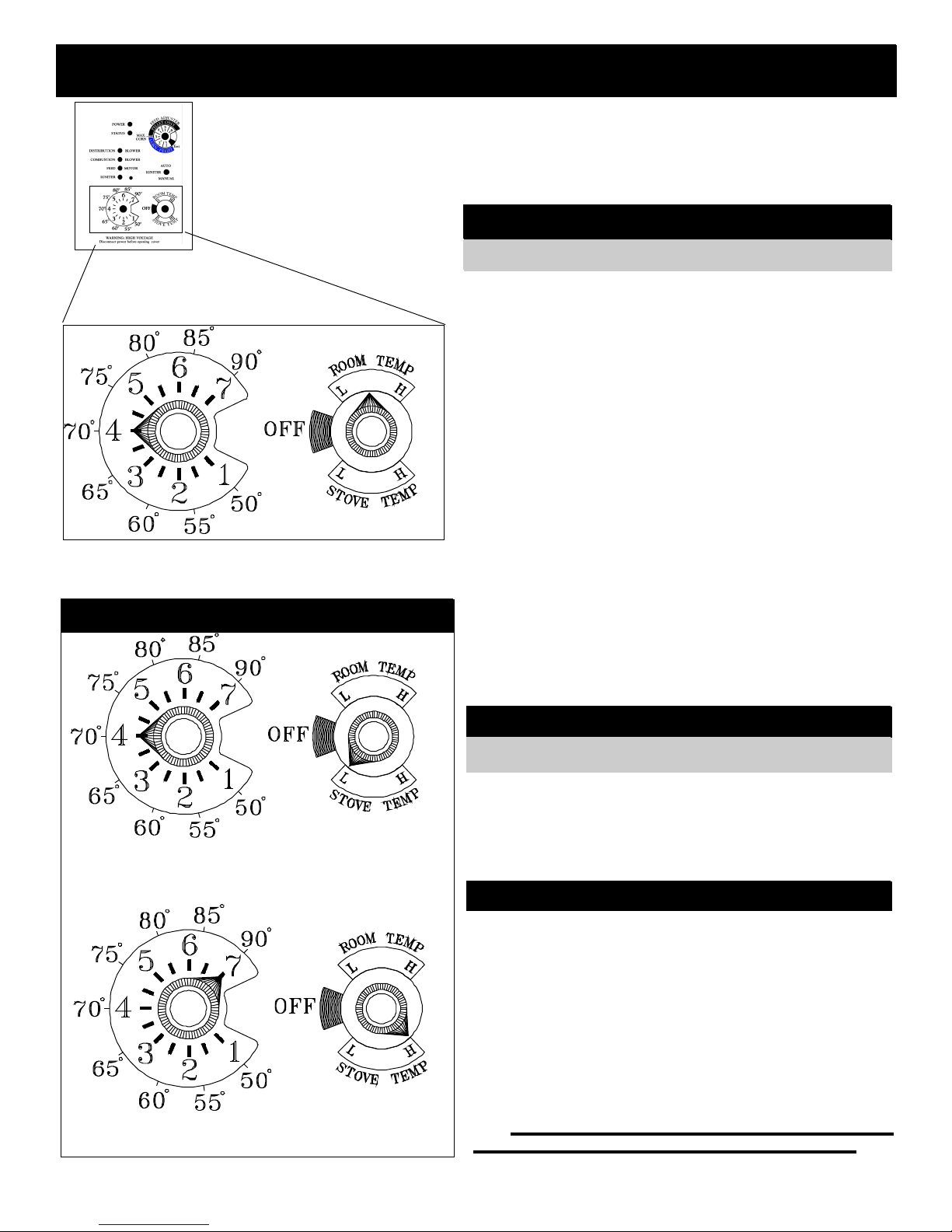

AUTOMATIC IGNITION/OPERATION
Fig. 21:Room TemperatureMode:This settingwill produce
a room temperatureof70 degrees withthe distribution blower
at medium speed.
This settingwill produce medium heatwith the
distribution bloweron "low".
This settingwill produce continuous maximum heatoutput
with the distributionbloweratfull speed.
Stove Temperature Mode
Igniter switch to "AUTO"
Room Temperature Mode
In "Room Temp Mode" heat output is controlled auto-
matically by theRoomSensing Probe.WhentheRoomSens-
ing Probe calls for heat, the stove willincrease output. When
the Room Sensing Probe is getting close to the set tempera-
ture, the stove will begin to level off output and keep the fire
burning at just the right temperature to maintain that setting.
High output is determined by the feed rate setting.
This setting, generally on #2 (corn) or #4 (pellet), can be
increased if higher burn rates are necessary.
When burning corn the feed rate setting can be ad-
justed anywhere within the yellow range with a #3 setting
being the maximum setting, #1 the lowest setting. This set-
ting will vary depending on the quality of corn used.
When burning pellets the feed rate setting can be
adjusted within the full range between #1 on the low side to
#6 on the high side.
Overfeeding is not a safety concern, but the fire may
be pushed off the burnpot and extinguish in the ash pan.
In"RoomTempMode"aconstantfuelconsumptionrate
issacrificed for exactroom temperature.Therefore,as it gets
colder more fuel will be burned automatically.
The distribution blower speed will vary according to the
positionof the mode selector pointer, and fire size.
Igniter switch to "AUTO"
Stove Temperature Mode
This allows for automatic ignition upon start-up only.
The unit can then be set at any desired setting. The heat
output and fuel consumption will remain constant regardless
of room temperature.
The unit's low burn or maintenance setting is as low as it
will go. It will not go out unless it runs out of fuel or is turned off.
Shut-Down Procedure
To kill the fire or stop burning the stove, turn the Mode
Selector to "OFF". This will cause the fire to diminish and
burn out. When the fire burns out and the stove cools down
everything willstop. NOTE: The combustion blower
motor will run for 5hours after the stove is completely
cool. This insures that all fuel in the burnpot and ashes
located in the ash pan are completely cold before shut
down ofthe combustion motor.
If you pull the plug to shut downthe stove, all motors will
stop. This may cause incomplete combustion and smoke in
the firebox. If the load door is opened the smoke may es-
cape.The best way to shut downthe stove is simply let it run
out of fuel, then the stove will shut down automatically.
Fig. 22

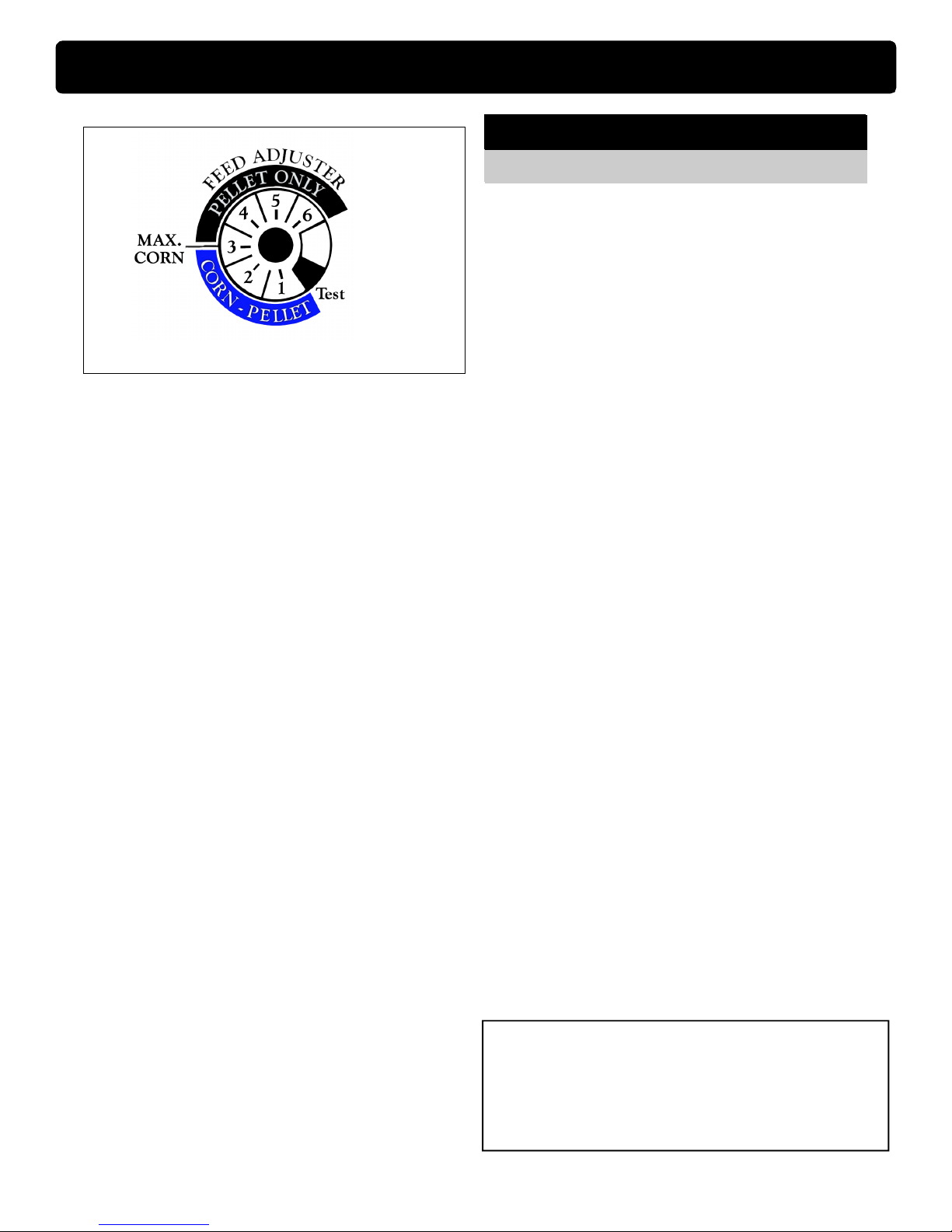

14 PC45 Corn/PelletStove

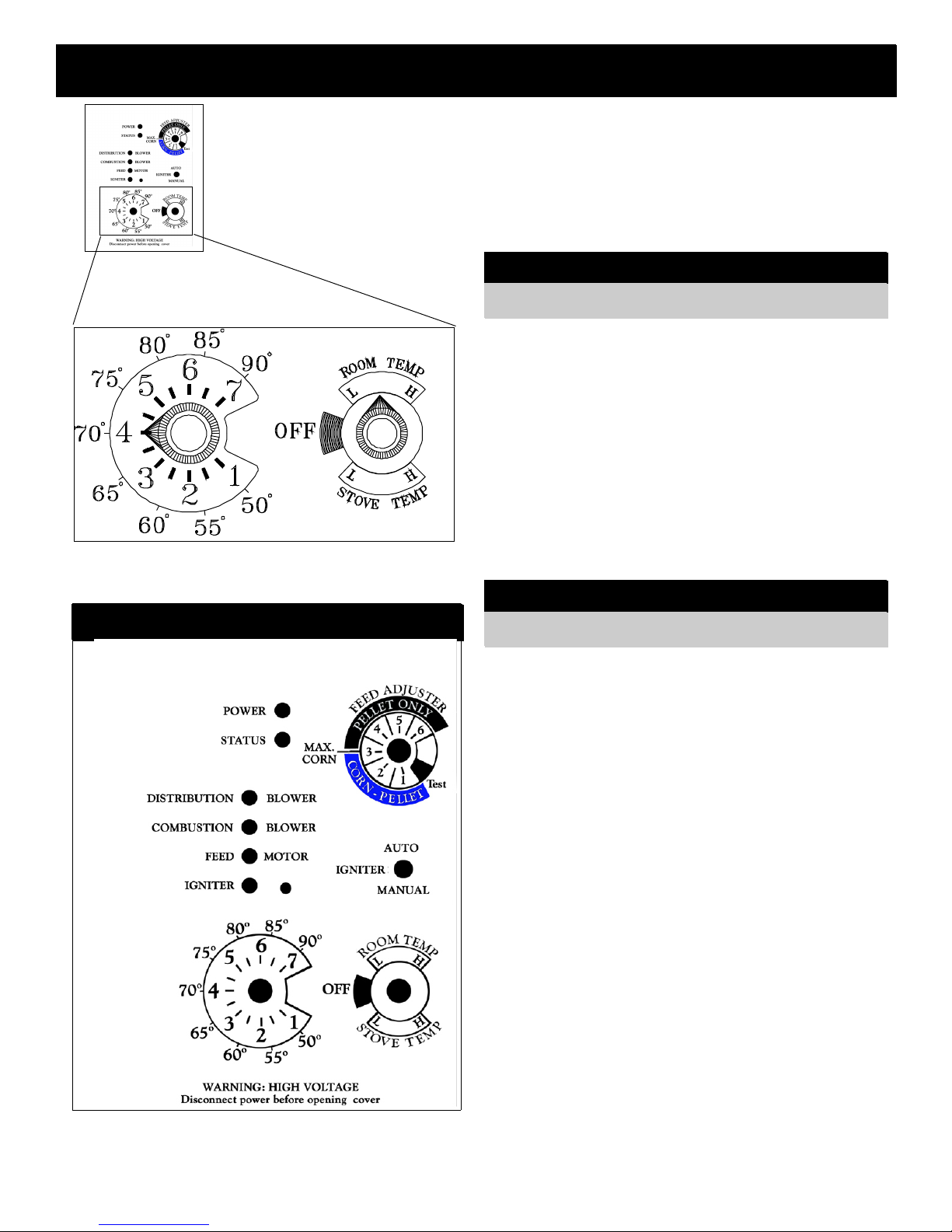

Starting the Fire
Igniter Switch to"AUTO"(up position)
Make sure the unitis plugged into a 120 VAC,60 HZ
electrical source. The power light should be the only
light lit. Anytime there is interruption in power at the
receptacle, the combustion blower will run for 1
minute after the power is regained.
1.Turn the Mode Selector to "OFF"
2. Fill the hopper with corn or pellets.
3. Clean the burn pot and housing, if necessary.
4. If starting after an empty hopper, turn the feed
adjuster to "TEST" untilthefuelis visible inthe auger
tube opening. This also allows you to check the
motors for operation.
NOTE: The auger motor will not operate with the
view door or ash door open.
NOTE:Theinitialstart-uponanewstovemayrequire
the corn to be purged into the burnpot area before
continuing to step 5.
5. Turn the feed adjuster to #2 (corn) or #4 (pellet)
6. Flipthe igniter switch upinto the "AUTO" position.
7. Turn the temperature dial to the desired room
temperature.
8. Turnthe mode selector dialto RoomTemperature
or Stove Temperature.
9. Fill the hopper withcorn or pellets and remove the
ashes as required.
AUTOMATIC START UP
"NEVERUSE GASOLINE,GASOLINE-TYPELANTERN
FUEL, KEROSENE,CHARCOAL LIGHTER FLUID, OR
SIMILAR LIQUIDS TO START OR "FRESHEN UP " A
FIRE IN THIS HEATER. KEEP ALL SUCH LIQUIDS
WELL AWAY FROM THE HEATER WHILE IN USE".
Warning
Fig.23

15PC45Corn/Pellet Stove
The PC45 Corn/Pellet Stove is capable of manual operation. This also allows the op-
erator to manually control operation during an emergency (i.e. ignitor failure, when using a
502H battery backup, or when using certain generators.)
The unit can be switched between"AUTO" and "MANUAL"atany time duringoperation.
NOTE:When startingthe unitin the"AUTO" mode andswitchingto"MANUAL",
the fire must be large enough to turn the ignitor light off (located on the control
board). This is a signal that the start cycle is completed and the fire will not go out.
MANUAL IGNITION/OPERATION
Manual Stove Temperature Mode
Fig.24:RoomTemperature Mode:Thissettingwill producea
room temperatureof 70 degrees with the distribution blower
at medium speed.
O
O
Igniter Switch to "MANUAL"
Room Temperature Mode
The fire will have to be lit with starting gel and a
match, or started automatically, see "Automatic Op-
eration". Turn to "Manual" position when the fire is es-
tablished.
The difference between "AUTO" Room Tempera-
ture Mode and "Manual" Room Temperature Mode is
that the fire will not go out as the room temperature
goes above the controlboardsetting.The unitcanonly
go to low burn and will remain there until it runs out of
fuel or until more heat is needed and the feed rate in-
creases. Feed rate adjustments and dial settings are
the same as "AUTO" settings.
Igniter Switch to "MANUAL"
Stove Temperature Mode
The advantage of this mode is to allowthe opera-
tor to have a large viewing fire without blowing extra
heat into the room.
During operation, with the temperature dial set at
#5 or less, the distribution fan will not operate. A #5 on
the temperature dial and a #5 on the feed adjuster is
approximately 80% output. It is not necessary to oper-
ate the distribution blower below this point. Therefore,
there can be a higher feed rate ( a larger viewing fire)
without an excess of hot air blowing into the room.
Anexampleof whento usethe ManualStove Tem-
perature Mode is if you want to watch a large fire and
the room is already up to temperature.The Stove Tem-
perature Mode allows you to have a larger fire and a
lower sound level, without the distribution blower.
NOTE: During the use of this mode, if you
keep increasing the temperaturedial settingto in-
creasethe firesize, the distribution blowerwill au-
tomatically come on when the ESP Temperature
reaches 350oF, or 81%output.
Fig.25:This setting will producea large viewing firewithout a
distribution blower operating.

16 PC45 Corn/PelletStove

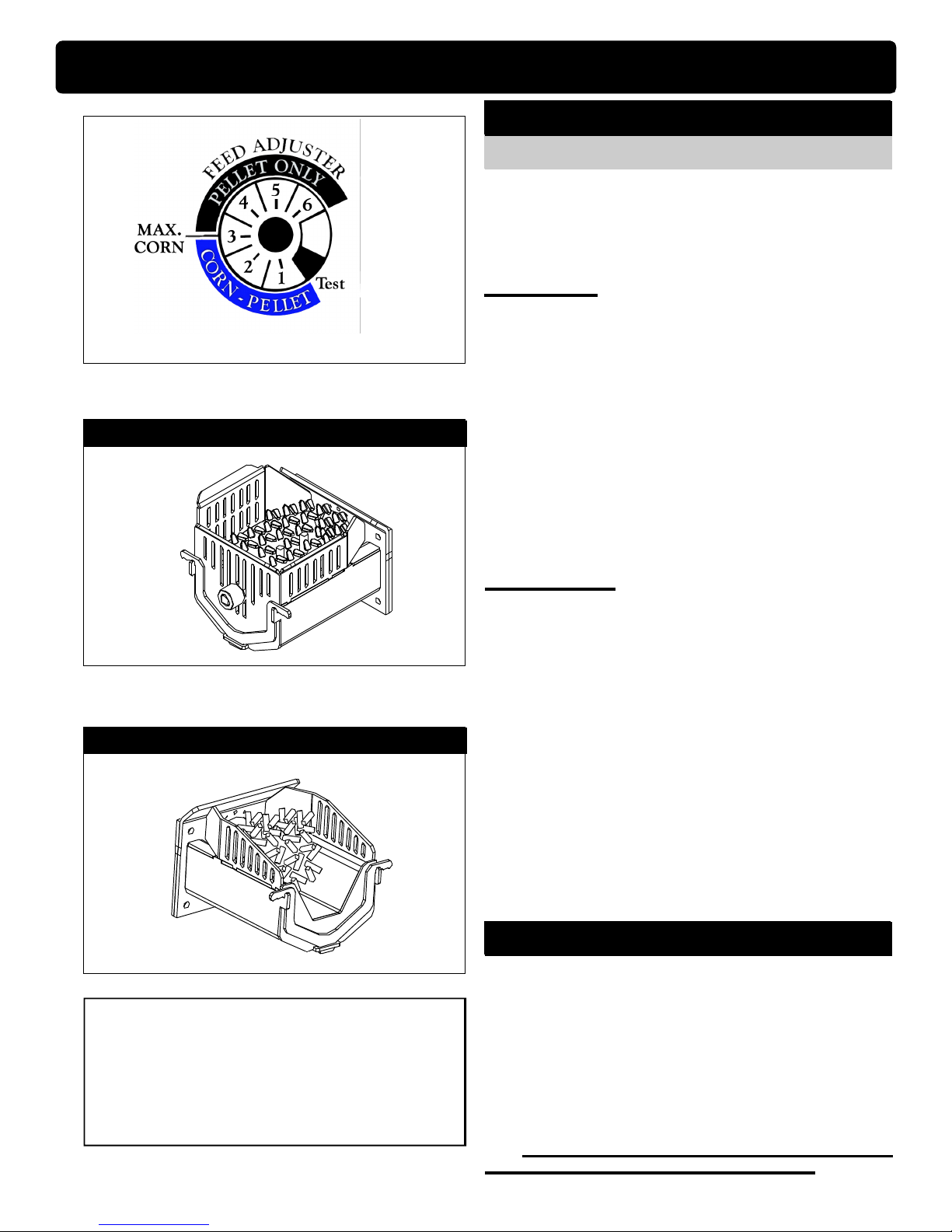

MANUAL START UP
Starting the Fire
Igniter Switch to"MANUAL" (down position)
Make sure the unit is plugged into a 120 VAC, 60
HZ electrical source. The power light should be the only
light lit. Anytime there is interruption in power at the
receptacle, the combustion blower will run for 1 minute
after the power is regained.
Burning Corn
1.TurntheFeedAdjusterto desiredfeedrate,approximately #2.
2. Turn theMode Selector to "OFF" and then to the desired
mode. This will reset the control and start the combustion
motor.
3. Turn the Temperature Dialto thedesiredsetting.
4. Clean the burnpotand housing, if necessary.
5. Filltheburnpot withcorn upto theauger shaft.Thenplace
pellets ontopofthe cornas highas the shelf area. See corn
burnpot shownon left.
6. Addstartinggelon topof thepellets, stirgelintothe pellets
andcorn forfaster lighting.
7. Light the starting gel with a match and close the door.
Operation will begin when the fire reaches the proper
temperature.
8. Fillthe hopperwith cornand remove the ashesas required.
Burning Pellets
Optional pellet burnpot required to burn pellet fuel.
1. Turn the Feed Adjuster to the desired feed rate,
approximately #4.
2. Turn theMode Selector to "OFF" and then to the desired
mode. This will reset the control and start the combustion
motor.
3. Turn the Temperature Dialto thedesiredsetting.
4. Clean the burnpotand housing, if necessary.
5. Fillthe burnpot withpelletsso thatthe augertube opening
is covered and slopes away from the auger tube opening.
See pelletburnpot shown onleft.
6. Add the starting gel on topof the pellets. Stir the gel into
the pellets for fast lighting.
7. Light the starting gel with a match and close the door.
Operation will begin when the fire reaches the proper
temperature.
8. Fill the hopper with pellets and remove the ashes as
required.
Fig.26
Corn Burnpot
Optional Pellet Burnpot
"NEVER USE GASOLINE, GASOLINE-TYPE LANTERN
FUEL, KEROSENE, CHARCOAL LIGHTER FLUID, OR
SIMILAR LIQUIDS TOSTARTOR"FRESHEN UP"AFIRE
INTHISHEATER.KEEPALL SUCHLIQUIDSWELLAWAY
FROM THE HEATERWHILE IN USE".
Warning
Fig.27
Fig.28 Shut-Down Procedure
To kill the fire or stop burning the stove, turn the Mode
Selector to "OFF". This will cause the fire to diminishandburn
out. When the fireburns out andthestove coolsdown every-
thing will stop. NOTE: The combustion blower motor will
run for 5 hours afterthe stove is completely cool. This in-
sures that allfuel in the burnpot and ashes locatedinthe ash
pan are completely cold before shut down of the combustion
motor.
If you pullthe plugto shut downthe stove, allmotors will
stop. This may causeincomplete combustionandsmokeinthe
firebox.Ifthe loaddooris openedthesmokemay escape.
The bestway toshutdownthe stoveis simplylet itrunout
of fuel,thenthestove willshutdownautomatically.

17PC45Corn/Pellet Stove
AUTOMATIC IGNITION ESP CONTROL
Feed adjuster
Sets the maximum
feedrate
Test
Runsallmotorsatfull
speedforoneminute
to check operation.
After twominutes the
stove will go to
minimum burn and
the blowers will
alternatefromhigh to
lowevery minute to
remind youthat you
are still in "Test
Mode".
Igniterswitch
Setto appropriate
Start-Up mode.
Distribution Blower
speedadjustmentrange.
L = low
H= high
Variablespeedanywhere
between L and H;
although as the stove
temp. goesup ,so does
theL andH scale.
Temp dial
Allows you to adjustthe room temperature in Room
TempModeusing the outerscale markedindegrees
Fahrenheit. It also allows you to adjustthestove
temperature whilein Stove TempMode usingthe inner
scale markedfrom 1 to 7.
Mode Selector
Allows you to choose
between RoomTemp Mode,
Stove Temp Mode,or OFF.
Also allows you to vary the
distribution blowerspeedby
turning the knob tothe high
orlowside ofeach mode.
Power Light
Indicates powerto the
control.
Indicates powerto the
feedmotor.
Indicates igniteris on.
Indicates power to
combustionblower
Status Light
Will be lit ineither stove
orroom tempmode when
pointeris notwithin off
positionband except
afternormalshutdown.
Blinks toindicate errors
listed below.
Indicates power to
distributionblower.
6 Blinks : Indicates that the control has calculated
poor or incomplete combustion occurring for more
than 50 minutes. See Troubleshooting section for
more details.
A six blink status may be set if the stove is allowed
to run out of pellets. To reset, turn mode selector to
"OFF" then back on to the desired mode. If the unit
was not out of pellets, see Troubleshooting section,
Page 24, for more details.
* Manual reset- Disconnect power cord for a few
seconds andreconnect. If error stilloccurs callyour
HarmanDealer.
Status light error messages:
1 Blink: Indicates controlboard self diagnostic fail-
ure. This requires a manual reset*.
3 Blinks: Indicates ESP (Exhaust Sensing Probe)
failure. This requires a manual reset*.
4 Blinks: Can occur only in Room Temp Mode and
indicates RoomSensingProbefailedornot installed.
If a Room Sensing Probe is then installed, the sta-
tus light will automatically reset.
NOTE: Unit will not start in "AUTO" with this status
error.
5 Blinks (In Igniter Auto. Mode Only): Indicates
that the unit has failed to light within the 45 minute
start cycle. To reset - Turn Mode Selector to "OFF",
then turn to either mode again.
DealerDiagnostic Port
Fordealermaintenanceuse
only. RequiresspecialDDM
monitorsuppliedto Harman
Dealers exclusively.

18 PC45 Corn/PelletStove
These units are pre-tested atthe factorywith
exactly 120 VoltsA.C.,60 Hz. They are checkedand
adjusted for fireboxtightness, gasketleakage, motor
operation and ignitor operation. The PC 45 is then
factory set at a mid-point adjustment and in most
cases will not need any adjustments. NOTE: The
factory low draft setting may not be correct for
theunitspermanentinstallation conditions.
The control board on the PC45 is equipped
with a low draft adjustment port. Located on the
control face just to the right of the igniter light. This
voltage adjustment is provided to allow the unit to be
adjusted for the household voltage where the unit is
going to be in permanent operation. NOTE: The line
voltage varies from area to area and often home to
home. The low draft voltage should be adjusted to
achieve the most efficient burn on low burn or
"maintenance". This voltage adjustment allows the
installer to change the low voltage set point
approximately 10 volts. This adjustment should be
done by the installer during set up because a draft
meter reading is required to insure proper set up.
If the unit is not adjustedproperly, itdoes not
cause a safety concern. If the unit is adjusted too
high, only effiency is lost. If the unit is adjusted too
low, the low draft pressure switch will not allow the
feeder motor or the igniter to operate.
Combustion Motor
SpeedControl
Low draft only set
point.
The small straight
screwdriver slot is
plastic;therefore, the
unitcan be adjusted
whilein operation.
Fig.29 Fig.30
Asimple drafttestshouldbe performedafter
completing the flue pipe installation. To record the
results for future reference:
1. Plug unit into a 120VAC, 60 HZ outlet.
2. Close the hopper lid,front viewdoor, andthe ash
pan access door. Neither fuel or a fire are required
for this test.
3. With the mode selector in the "OFF" position,
turn the feed adjuster to "TEST".
4. Record the high draft_____in W.C. (Normal is
-.35 to -.55) The control willbe on the HighDraft for
a total of 2 minutes.
5. After 2 minutes is up, the combustion motor will
go down to low draft and the distribution blower will
go on high.Allowapproximately 15 seconds to pass
for the combustion motor to slow before checking
the low draft.
6. If the low draft is between -.25 and -.35, record
the reading _____ in W.C. If the reading is higher,
slowly turn the set screw counter-clockwise until the
draft lowers. If the reading is lower, very slowly turn
the set screw clockwise until the draft increases.
NOTE: The test mode alternates from high to
low draft every 60 seconds. If more time is
needed for draft adjustment,wait until the next
low draft cycle.
NOTE: In some cases, the draft may not go as
low as -.25 to -.35 even with the set screw
completely counter-clockwise. This is not a
problem.

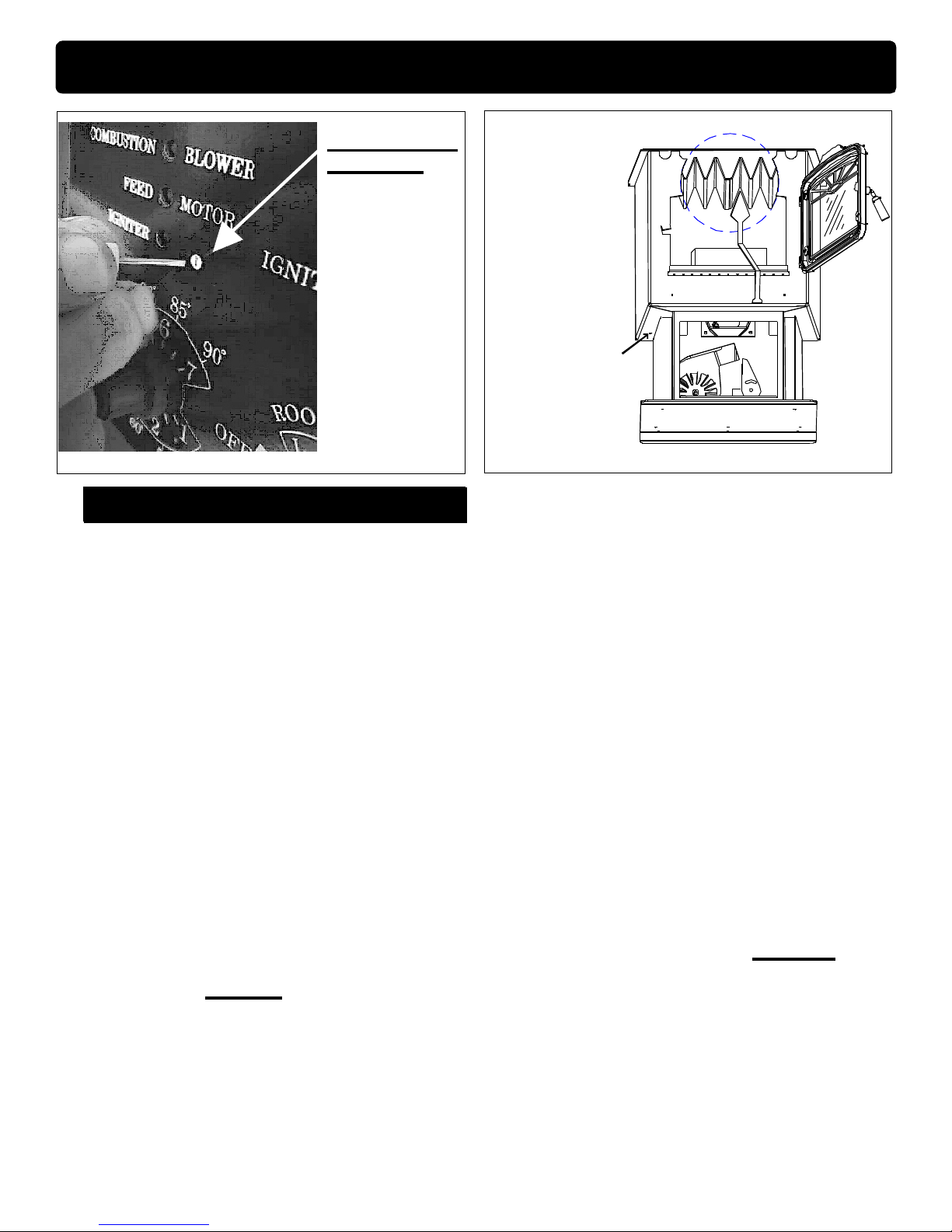

Low Draft Voltage Adjustment
Draft Meter bolt
holelocation
Ona PC 45 the draft
hole is under the left
rear corner of the
firebox.
Low Draft Voltage Adjustment

19PC45Corn/Pellet Stove
Removing Ashes:
The frequency in which you will need to empty
the ash pan will vary depending on the conditions
that the stovehas beenoperatingin.For example:A
stove burningon highcontinuouslywillprobably need
the ashes removed every 1 to 2 days, whereas a
stove burning on low or cycling off periodically may
be able to go 3 to 8 days or longer.
Ashes should be placed in a metal con-
tainer with a tight fitting lid. The closed con-
tainerof ashes should beplaced on a noncom-
bustible flooror on the ground, well awayfrom
all combustiblematerials,pendingfinal disposal.
If ashes are disposed ofbyburial in soil or oth-
erwise locally dispersed, they should be re-
tained in the closed container until all cinders
have thoroughlycooled.
It is recommended that the stove is cold and
shut down when removing ash pan.
1. Pull up on the latch handle to swing the ash pan
access door out and to the right.
2. Use the ash pan handle to carry and dispose of
ashes.
3. Slide the ash pan back into the stove.
Cleaning:
If you have been burning corn, the stove will
need to be cleaned approximately once a month.
The amount of corn burned and the frequency of
these cleanings will varydepending on the quality of
the corn used.
If you have been burning pellets, the stove will
need to be cleaned approximately every 2 to 3
months. The amount of pellets burned and the fre-
quency of these cleanings will vary depending on
the quality of the pellets used.
1. Shut down stove and disconnect power cord
to insure that all motors are stopped.
2. Clean the heat exchanger with the scraper as
shown if Fig. 32.
3. Brush or scrape the inside walls of the stove to
remove fly ash.
4. Remove the burn pot for cleaning by:
•Liftupandremove thefront platelock&frontplate.
•Remove the auger extension (cornburnpot only).
•Remove the burnpot grate.
•Clean all fines and debris.
•Reinstall in reverse order.
NOTE: See burnpot maintenance section for
amore detaileddescriptiononburnpot maintenance
and cleaning.
Maintenance
Scraper
BlowerCover
Latch
Blower
Wheel
Flue Outlet

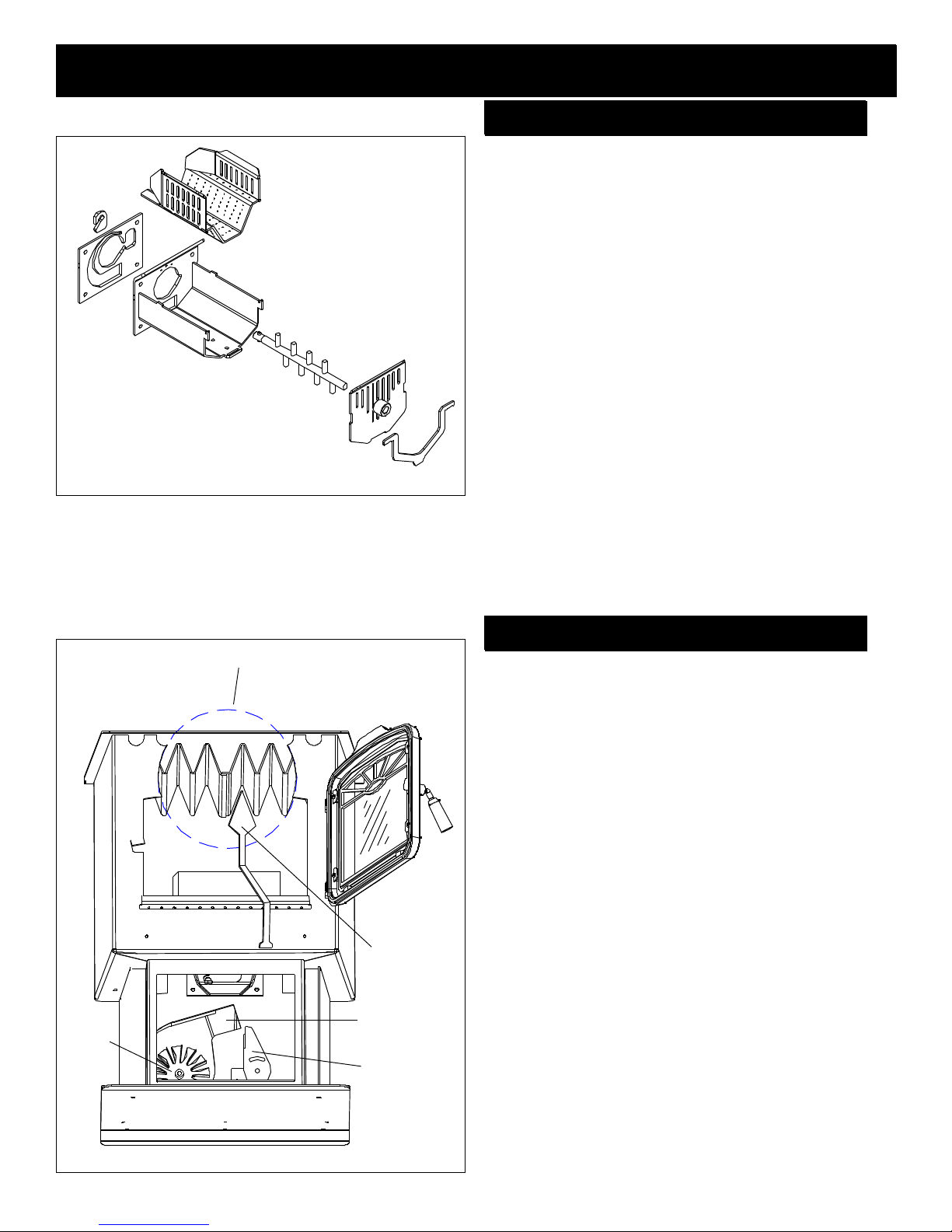

HeatExchangerFins
Fig32
Fig31CornBurnpot

20 PC45 Corn/PelletStove
ESPProbe
Fig.39
Be carefulnotto
damageESP probe
whencleaningwith
brush.
Maintenance
(Cleaning continued)
5. Remove the ash pan.
6. Remove the combustion blower cover by turning
the blower cover latch vertical as shown in fig. 32.
Slide the cover out of the slot on the left. This will
expose the combustionblower wheeland flue outlet,
fig.35.
7. Cleanthe blower wheelwitha brushanda vacuum
cleaner.
8. Use a brush to clean the flue, beingcareful not to
damage the ESP probe. The flue goes straight
through into the vent pipe therefore, the vent pipe
can also be cleaned to some extent through the flue
outlet.
9. Reinstall the blower cover and relatch.
10. Slide ash paninto the stove andlatchinto place.
Cleaning of Feeder Fines Area
1. Remove the rear shields to access the feeder
cover.
2. Remove the wing nut on the feeder cover and
slide the cover off the threaded rod.
3. Remove all fines with a vacuum.
Fig.37
Brush not
supplied.Can be
found in
hardwarestores.

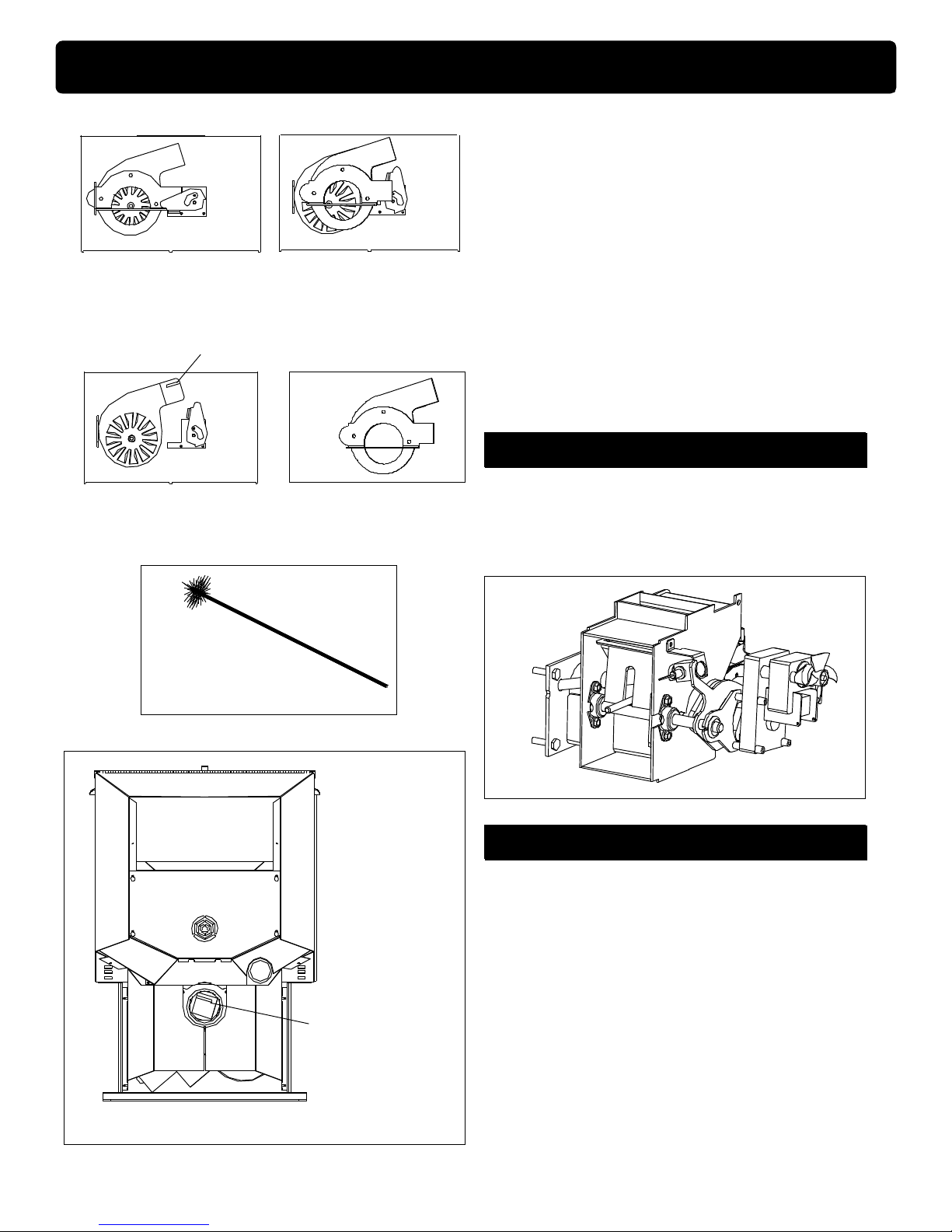

Fig.33: Latch"closed "with
blowercoverin place.Burn
potclean-outis closed.
Fig.34
ESPprobe
Fig. 35: Exposed blower
wheel and flue opening,
NOTE:ESPprobe is visible.
Fig.36:Blower cover
removed.
Soot and Fly Ash
The products of combustion will contain small
particles of fly ash. The fly ash will collect in the
exhaust venting system and restrict the flow of the
flue gases. Incomplete combustion, such as oc-
curs during startup, shutdown, or incorrect opera-
tion of the room heater, will lead to some soot for-
mation which will collect in the exhaust venting sys-
tem. The exhaust venting system should be in-
spectedafter the first monthof burningto determine
thefrequencyofcleaningthatwillberequired.NOTE:
The frequencycouldvaryfromonceamonthto once
a season depending on the quality of the fuel being
used.
Fig.38:Forfurtherdetailssee explodedviewonpage23.
