Installation
and
Operator’s
Manual
Caution:
Read Warnings and Safety
Considerations/Recommendations
For Safe Installation & Operation.
Please “Read Carefully.”
“Built To A Standard Not A Price”
2004

Thank You . . .
THANK YOU FOR PURCHASING AHARMAN STOVE AND FOR
READING THIS OWNER’S MANUAL. It is our desire to provide as much
data as needed to allow you to install and operate your Harman Stove in
the safest manner possible.
If you have any questions regarding your Harman Stove which were
not covered in this manual, contact your local dealer or factory direct.
✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽
Safety Notice:
IF THIS STOVE IS NOT PROPERLY INSTALLED, AHOUSE FIRE MAY
RESULT. FOR YOUR SAFETY, FOLLOW INSTALLATION DIRECTIONS.
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRIC-
TIONS AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR
AREA.

1
Index
INTRODUCTION
READ ALL INFORMATION “PRIOR” TO PROCEEDING WITH INSTALLATION, AND CHECK WITH YOUR
LOCAL AUTHORITIES FOR PREVAILING FIRE ORDINANCES AND RECOMMENDATIONS.
1. SAFETY CONSIDERATIONS - Warnings to owner/operator of possible dangers, fire hazards and cautions.
1.1 Keep children away -- may cause serious burns.
1.2 Fuel/Firing Warnings
1.3 Curing Paint
1.4 Mobile Homes
2. ASSEMBLY
3. CHIMNEY - Proper draft/venting
3.1 Types of Chimneys
3.2 Common Chimney Problems
3.3 What To Do When You Have A Problem
3.4 Chimney Details
4. ELECTRICAL
4.1 Electrical Warnings
5. GRATES
5.1 Grate System and Controls
6. INSTALLATION INSTRUCTIONS
6.1 Unpacking and Inspection of Parts
6.2 Warnings
6.3 Locating the Stove
6.4 General Information
7. PREVENTIVE MAINTENANCE INSTRUCTIONS
7.1 Periodic and Normal Everyday
8. OPERATING INSTRUCTIONS
8.1 Starting ACoal Fire
8.2 Loading
8.3 Increase Heat From ALow Fire
8.4 Shaking
8.5 Draft Controls
8.6 Ashes
8.7 Safety
9. WARRANTY
9.1 Terms - Warranty
10. WARRANTY ACTIVATION COUPON AND LIABILITY STATEMENT
11. OPTIONAL HOT WATER COIL

2
1.1 KEEP CHILDREN AWAY - MAY
CAUSE SERIOUS BURNS
C A U T I O N : A L L S U R FACES OF
STOVE ARE HOT. DO NOT TOUCH.
K E E P CHILDREN AWAY. SERIOUS
BURNS WILL RESULT IF TOUCHED.
THIS IS A HEAT PRODUCING APPLI-
ANCE. SERIOUS BURNS MAY
RESULT IF THE STOVE IS TOUCHED
DURING FIRING.
1.2 FUEL/FIRING WARNINGS
DANGER! FIRE HAZARD! DO NOT
USE CHEMICALS OR FLUIDS TO
START OR “FRESHEN UP” A FIRE.
SEVERE BODY BURNS OR AFIRE IN
YOUR HOME COULD RESULT. DO
NOT BURN GARBAGE, GASOLINE,
THINNERS, DRAIN OR ENGINE OIL,
KEROSENE, OR FUEL OIL, ETC. AN
EXPLOSION, A HOUSE FIRE OR
PERSONAL INJURY COULD RESULT.
K E E P A L L SUCH LIQUIDS WELL
AWAY FROM THE STOVE WHILE IN
USE.
This heater is for burning coal
only. Use of any other fuel except for
coal ignition is a violation of federal
law.
When and if the chimney pipes or
connectors reach 500 degrees fahren-
heit (maximum temperature), the stove
is being over fired. We recommend the
purchase of a Harman Magnetic
Temperature Gauge to monitor the
stove and stack temperatures relative
to the amount of draft the customer per-
mits the stove to operate.
It has been verified that creosote
will ignite at 650 degrees fahrenheit. It
is the owner’s responsibility to follow
these recommendations.
This stove consumes air when it is
burning. It is advisable that a window in
the vicinity be opened slightly while
stove is burning if your house is tightly
sealed and insulated. (Information con-
tained in this manual is manufacturer’s
recommendations and if there is any
difference between our recommenda-
tions and local code requirements, we
suggest following local code require-
ments.)
1.3 Curing Paint
During the first few hours of burn-
ing, a blue smoke will be observed ris-
ing from the painted surface of the
stove. It is advisable to increase the
amount of fresh air in the room during
this breaking-in period. This may be
achieved by opening doors, windows,
etc. Don’t be alarmed, this is normal.
1.4 Mobile Homes
Harman Stoves are not approved
or recommended for mobile homes.
2. Assembly
Slide blower into slots as shown.
Blower will rest at bottom of slot.
Firebrick Diagram
3. Chimney
3.1 Types of Chimneys
The chimney is one of the most
important, yet most neglected and mis-
understood portion of any solid fuel
burning installation. We do not recom-
mend that the stove be connected to a
chimney with other heating devices.
THE STOVE MUST BE CON-
NECTED TO ITS OWN TILE-LINED
FLUE. AMINIMUM FLUE SIZE OF 8" X
8" IS NECESSARY FOR PROPER
OPERATION AND APPROVED FOR
ALL FUELS.
UNDER NO CIRCUMSTA N C E S
SHOULD A MANUAL FLUE DAMPER
BE INSTALLED IN THE SMOKE PIPE
BETWEEN STOVE AND CHIMNEY!
1. Safety Considerations

3
No damper, heat saver, or automat-
ic vent damper device should be
installed in or on the smoke pipe.
NO OTHER A P P L I A N C E S
SHOULD BE VENTED TO THIS FLUE!
CAUTION: THE CHIMNEY MUST
BE ACLASS “A” CHIMNEY IN GOOD
OPERATION CONDITION.
NOTE: THE USE OF ALUMINUM
TYPE “B” GAS VENT FOR SOLID
FUELS IS UNSAFE AND PROHIBIT-
ED BY THE NATIONAL FIRE PRO-
TECTION ASSOCIATION CODE.
There are three types of Class “A”
chimneys:
A. Masonry with tile liner to
include brick or stone. It must be
supported on grade level founda-
tion.
B. Insulated Class “A” manufac-
tured chimney, listed or certified by
a national test agency.
C. Triple Wall Metal Class “A”
chimney, listed or certified by a
national test agency.
If your masonry chimney has not
been used for some time, have it
inspected by a qualified person (build-
ing inspector, fire department person-
nel, etc.) If a listed or certified manu-
factured chimney is to be used, make
certain it is installed in accordance with
the manufacturer’s instructions and all
local and state codes. See Figure No. 1
of Manufactured Chimney Installation
and Figure No. 2 of Masonry Chimney
(note roof clearance in accordance with
NFPA 211.)
3.2 Common Chimney Problems
In order to have a proper operating
solid fuel heating system, the chimney
must be capable of providing the draft
required.
The minimum required draft is .06
inches W.C. (water column). This must
be measured using a draft gauge.
If the chimney cannot supply this
constant draft, the unit will not operate
properly.
In some installations, a barometric
draft regulator may be used and prop-
erly adjusted to compensate for exces-
sive draft.
IMPORTANT!
Whenever you measure the draft,
the stove must be operating and suffi-
cient time given for the chimney and
stove to warm up. This should take a
minimum of thirty minutes.
The draft reading is taken 18" up
from the center of the stove flue outlet
in the smoke pipe.
REASONS for insufficient draft read-
ings:
A. Leaky Chimney - Air leaking in
around a loose fitting cleanout door,
flue pipes not tight at the joints, improp-
er plug openings or defective masonry.
B. Chimney Improper Height - Chim-
ney does not extend through the roof
to a sufficient height to promote suffi-
cient draft or causes a down drafting
condition to take place. (See Figure
No. 3).
C. Obstructions in the chimney.
Check prior to using by holding a mirror
in chimney clean-out door.This will
give a view of the chimney.
D. Trees or Other To p o g r a p h i c a l
Barriers - Impeding the chimneys oper-
ation or causing a down draft condition
to exist. This can also be caused by
adjacent buildings or the roof of the
same structure where the chimney is
not high enough (See Figure no. 3).

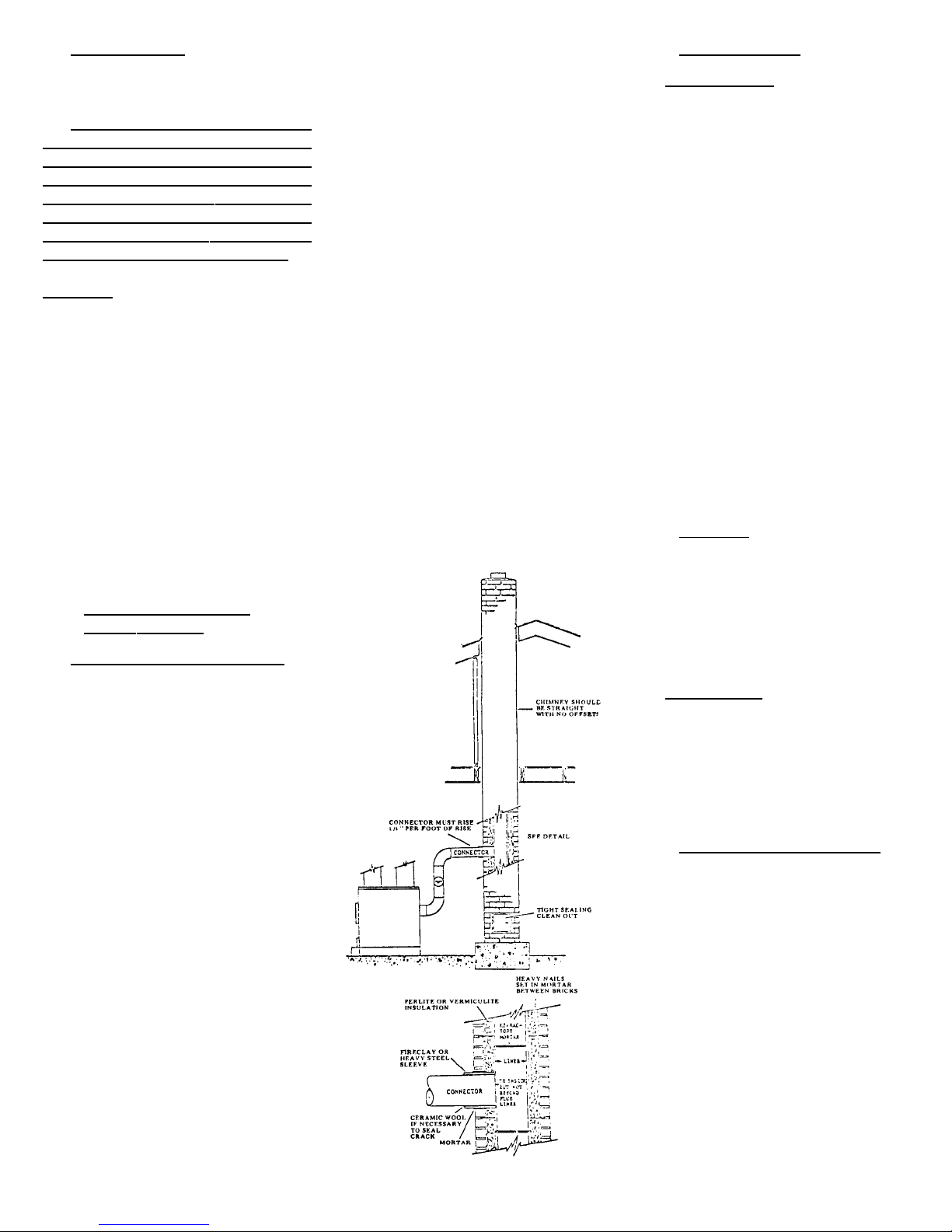

Figure 3
NOTE: The Chimney on the house
illustrated is too low. It should be raised
to compensate for drafts.
E. Chimney Size - Chimney is not
properly sized to adequately vent the
appliance. It is either too small or too
large.
F. Chimney Offsets - Chimneys with
offsets should not be used. They cause
an obstruction to draft as well as a
place for debris to collect.
G. Elbow Restrictions -The flue pipe
is connected to the chimney with too
many elbows, reducing the draft the
chimney can provide.

4
H. Multiple Venting - No more than
one device shall vent into the same
chimney flue.
THE MOST IMPORTANT THING
TO REMEMBER ABOUT CHIMNEYS
IS THEIR NEED FOR MAINTENANCE
AND CLEANING. IF CHIMNEYS ARE
N O T CLEANED ON A F R E Q U E N T
BASIS. IT WILL AFFECT THE DRAFT,
AS WELL AS BEING A CONTRIBUT-
ING CAUSE TO A CHIMNEY FIRE.
CAUTION
ANYTIME YOU HAVE A CHIMNEY
FIRE THE FOLLOWING POINTS
SHOULD BE OBSERVED:
1. BE SURE EVERYONE IS OUT
OF THE HOUSE.
2. C A L L THE FIRE DEPA RT-
MENT.
3. CLOSE DOWN DRAFT
DAMPER ON STOVE.
AFTER THE FIRE IS EXTIN-
GUISHED, DO NOT USE THE CHIM-
NEY UNTIL A QUALIFIED PERSON
HAS INSPECTED YOUR CHIMNEY.
3.3 What To Do When You
Have A Problem
A. Smoke Puffs From Your Stove:
1. Check the chimney draft. With
a good fire burning, the chimney should
supply .06" updraft.
2. Check draft controls for proper
operation.
3. Check the smoke pipe and be
sure it is clean.
4. Chimney may be too low.
Increase the height. Make sure the
chimney is structurally sound.
5. Add more air to the room. Your
home may be so airtight that not
enough oxygen is reaching the fire.
6. REMEMBER, open the draft
controls and crack the fire door slightly
before recharging the fire chamber or
checking the fire.
SPECIAL WARNING: NEVER OPER-
ATE YOUR STOVE WITH THE FIRE
OR ASH DOOR OPEN!
7. Check the smoke pipe and
make certain each joint is tight and the
connections to the stove and chimney
are airtight.
8. Check the ashes. Ashpan and
fire compartment may be overloaded
with ashes.
9. Check your chimney for down
drafts. This is caused by air currents
being deflected down the chimney from
higher objects, such as trees, buildings
and hills. This problem can usually be
corrected with an open-vented chimney
cap.
10. Make sure the chimney
cleanout door is tightly closed and
sealed.
11. If other fuel-burning devices
are connected to the chimney they may
be causing draft problems. This must
be corrected by your heating contrac-
tor.
3.4 Chimney Details
Chimney Liners - Most of the cus-
tomer inquiries received are problems
caused by poor, or in some cases,
excessive draft. Aresult of poor draft
could be creosote, backpuffing, and
smoky firebox when loading.
Indications of excessive draft are burn-
ing too much fuel and high stack tem-
peratures.
The most common cause of poor
draft is an improperly sized flue liner.
We recommend that the chimney
liner’s inside dimensions be at least as
large as the appliance’s collar size.
TO SUMMARIZE, A H E AT I N G
UNIT CAN PERFORM ONLYAS WELL
AS ITS VENTING SYSTEM WILL
ALLOW IT.
4. Electrical
4.1 Warnings
Turn off electric power at fuse box
or circuit breaker panel before making
any line voltage connections. Follow
local electrical codes. Be sure to route
power so that it doesn’t come in contact
with the stove.
I M P O RTA N T ! A L L W I R I N G
SHOULD BE DONE IN A C C O R -
DANCE WITH LOCAL AND STAT E
CODES.
5. Grates
5.1 Grate System and Controls
A. Heavy-Duty Cast Iron Grate
System - The functions of a grate sys-
tem are to support the coal and at the
same time provide air flow through the
grates to the coal. Harman grates have
a maximum amount of air flow to pro-
duce an even burning fire. Another
function is to remove the ash from the
unburned coal by grinding, breaking or
shaking them until the ashes fall
through the grates. Harman grates pro-
vide a variable amount of grinding
action controlled by the movement of a
long shaker-lever located on the left
side of the stove. Grates are removable
without tools.

5
B. Burns Three Sizes of Anthracite -
You can burn pea, nut or stove coal
with these stoves.
C. Exterior Shaker-Lever - For greater
safety (from getting burned) and
greater convenience (no need for sep-
arate tools).
I M P O RTANT! WHEN SHAKING IS
COMPLETED, TURN THE SHAKER
UNTIL THE GRATES ARE FLAT AND
HORIZONTAL. KEEP ASH DRAWER
EMPTY!
6. Installation
Instructions
6.1 Unpacking and Inspection
of Parts
Inspect the unit for visible damage.
Stove parts and accessories are pack-
aged inside the stove. It is recommend-
ed that the owner remove these parts
prior to proceeding with the installation
to avoid parts damage.
NOTE: The doors, grates, and firebrick
can be easily removed to lighten the
weight prior to moving and placing the
stove.
6.2 Warnings
All stoves must be installed in
accordance with state and local build-
ing codes.
6.3 Locating The Stove
Locate the stove as close to the
chimney or flue as possible.
Locate stove where there is suffi-
cient air supply for ventilation and prop-
er combustion to comply with the mini-
mum clearance required for fire protec-
tion and accessibility.
6.4 General Information
Installation Checklist:
A. Have only a qualified stove installer
install the stove.
B. Before starting installation, check
for proper clearance to combustibles
and where the stove will be located.
C. Chimney - Have chimney inspect-
ed for:
1. Proper type, Class “A” only,
masonry or all-fuel factory-built.
2. Good physical and mechanical
condition.
3. If manufactured chimney, look
for listing mark and installation in accor-
dance with manufacturer installation
instructions.
4. Multiple venting should be
avoided wherever possible. Never
install your stove into the same vent as
a gas furnace.
5. Check for proper roof clear-
ances. See pg. 3 and check your local
codes.
6. Chimney must be two feet
higher than anything ten feet around it.
D. Flue Pipe
1. Chimney should be within 8
feet of the stove.
2. No more than two 90 degree
elbows should be used.
E. Check for Proper Draft
The chimney used must be capa-
ble of providing a minimum of .06 inch-
es water column draft.
F. A Barometric Draft Regulator
May be used and set at .06 to .10
inches water column.
Safety and Service Clearances -
Regardless if you use your stove as a
separate independent stove installation
or in the parallel configuration with
another furnace, the following steps will
apply in your decision as to where and
how you will install your new solid fuel
stove.

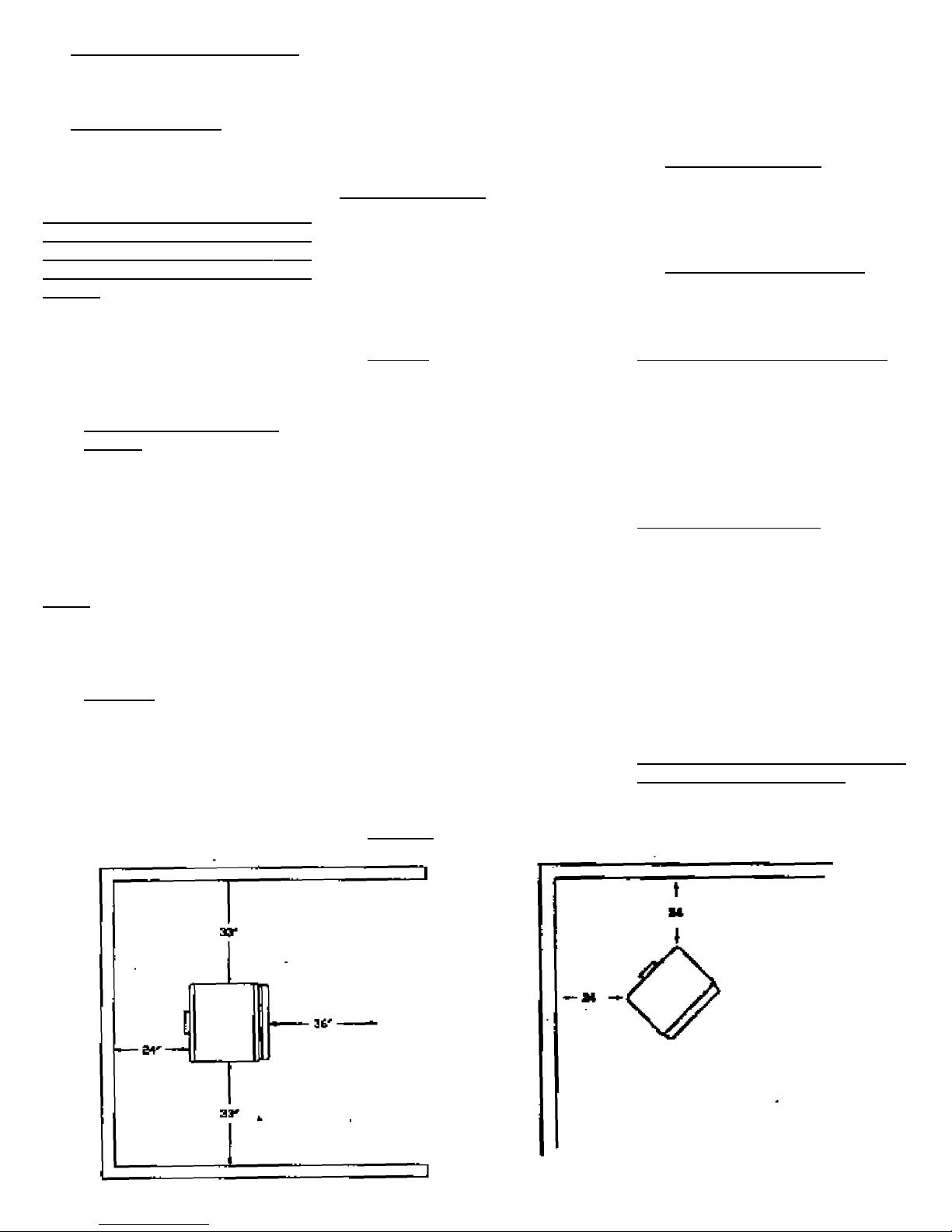

Clearance to combustibles
Safe stove clearance to com-
bustible walls is 24" to rear and 33" to
sides and front. Floor protection for a
combustible floor should consist of a
non-asbestos stove mat with a K Factor
of .84. The floor protector should
extend 8" to either side and 16" in front
of the stove. Floor protection should
also extend 2" to either side of chimney
connector.
IMPORTANT! THE FLUE PIPE MUST
BE 24 GAUGE OR THICKER.
When connecting the flue pipe to
the stove the first section of the pipe

6
or the elbow should be installed inside
the flue connector on the stove. It
should be held in place by drilling three
holes through the pipe. The holes
should be of suitable diameter for the
sheet metal screws or pop rivets used
for fastening.
Astraight section of pipe or an
elbow must now be installed.
A barometric damper may be
installed on this vertical section of the
pipe. Use a listed barometric damper.
I M P O RTANT! A L L H O R I Z O N TA L
RUNS SHOULD HAVE A1/4" RISE TO
THE FOOT SO THAT ANY LIQUID
T H ATM AYD E V E L O P W I L L R U N
BACK INTOTHE STOVE.
Connector thru Walls and Chimney
NFPA 211 does not permit a chim-
ney connector to pass through any floor
or ceiling or through any fire wall or fire
partition. However, where necessary, a
connector may pass through a partition
other than a fire partition under any of
the following conditions:
A. Where a ventilated type metal thim-
ble, (see figure 4) is used. Such a thim-
ble must be at least 12 inches larger in
diameter than the chimney connector.
B. Where a metal or burned fire-clay
thimble is used and the thimble is sur-
rounded on all sides by not less than 8
inches of brickwork or equivalent fire-
proofing material.

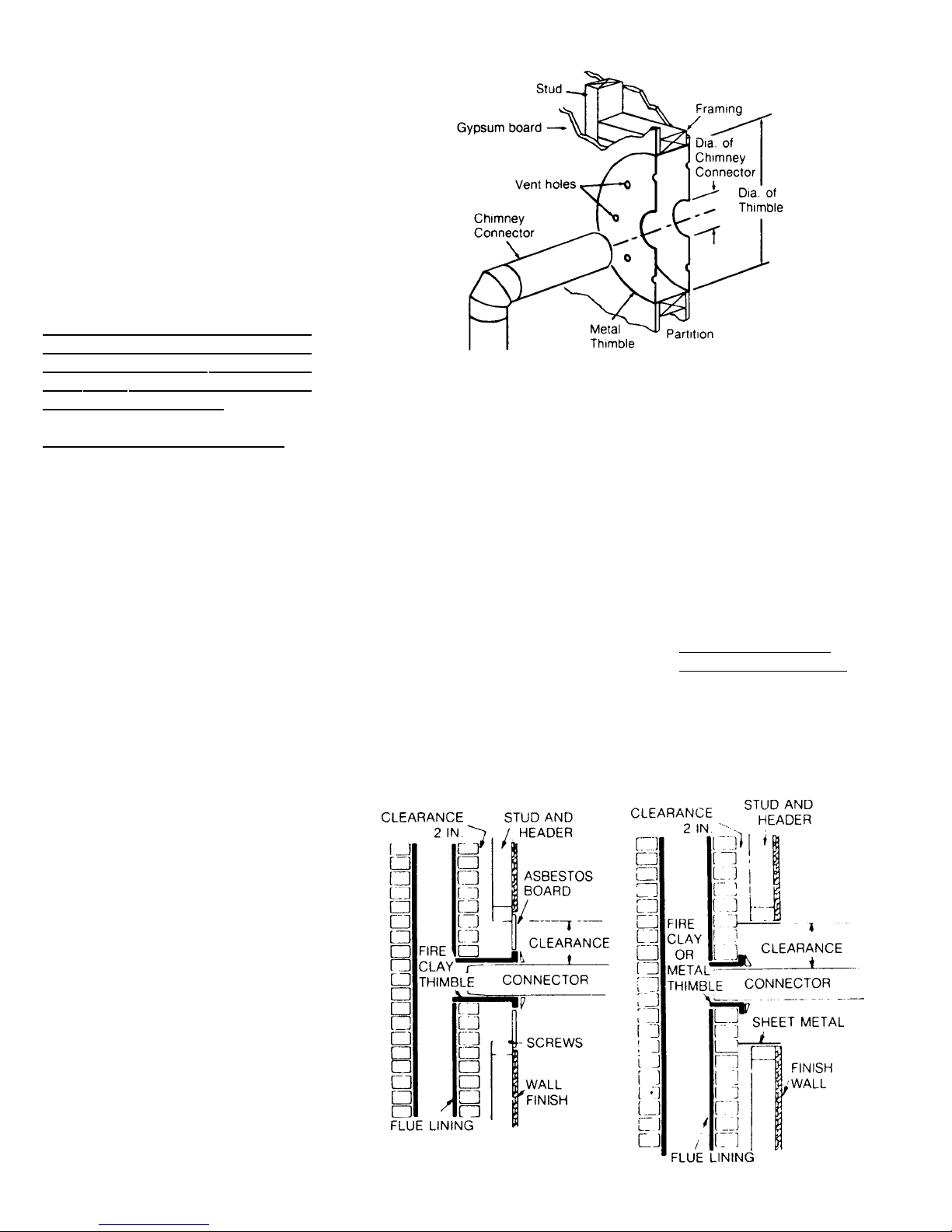

Figure 5: Connecting smokepipe
(Connector) to Chimney Through Wall.
Two methods of connecting a
chimney connector to a chimney
flue where the connector must
pass through a combustible parti -
tion wall. Instead of the asbestos
board shown, sheet metal may be
used, or a metal lath and plaster
finish may be applied at that area.
Use 24 gauge or heavier metal.
Clearance needed is three times
the diameter of stovepipe.
C. Where all combustible material is
cut out of the partition wall for a suffi-
cient distance to provide not less than
18 inches clearance on all sides of the
connector. Any material used to close
this opening must be noncombustible
insulating material.
D. Where the section of connector
pipe passing through the wall is
replaced by a properly installed section
of factory-built chimney, the chimney
section must be listed for solid fuel use
and be insulted.
Where an existing chimney is used,
it must be large enough to provide a
draft adequate for exhausting the
gaseous products of combustion. The
cross-sectional area of the chimney
flue should be at least 25 percent
greater than that of the chimney con-
nector (stovepipe). For example, the
common 8 inch by 8 inch chimney flue
liner has an actual interior cross-sec-
tional area of only 49 square inches (7"
x 7") and, thus, can only accommodate
a 7" stove connector.
7. Preventive
Maintenance
Instructions
7.1 Periodic and Normal
Everyday Maintenance
Blower Motor - Oil twice yearly.
Grates - Keep ash drawer emptied.
Failure to do this may cause grates to
warp.
Figure 4. Thimble for Passing Smokepipe (Connector) Thru Walls

7
CAUTION! BEFORE CLEANING
C H I M N E Y AND SMOKE PIPE BE
SURE FIRE IS OUT AND INSIDE OF
STOVE IS COOL.
Cleaning The Chimney and Smoke
Pipe
Avoid chimney fires. On a regular
schedule, check for creosote and soot
buildup in the chimney, smoke pipe and
spiral chamber.They must be kept
clean. Keep a professional chimney
sweep in mind if you have access to
one.
Steel brushes are the safest for
cleaning metal surfaces. Salt solutions
and some chemicals may damage
metal surfaces. Do not overfire your
stove. Do not burn anything that com-
busts in seconds. Excessive flue tem-
peratures may result thereby igniting
creosote.
To clean the chimney, obtain a stiff
brush with an extendible handle and
insert the brush into the chimney from
the top. Continue the brushing and
sweeping downward until the entire
length of the chimney is cleaned.
After cleaning the chimney, the
debris will be at the bottom of the chim-
ney at the clean-out opening. Open the
clean-out door and sweep the debris
out into a metal container.
The smoke pipe from the stove to
the chimney can be cleaned with a
steel brush.
8. Operating
Instructions
8.1 Starting a Coal Fire
Take about eight sheets of news-
paper, crumble into balls and place on
top of grates. Next, lay fine kindling on
top of the paper.This kindling must be
dry and no larger than 3/4" in diameter.
Layer the kindling in a criss-cross fash-
ion to allow good air flow. Open the
draft control fully and light the paper
just inside the door. Now, close the
loading door and allow the kindling to
catch fire. After a few minutes, open the
loading door an inch or two for a few
seconds before opening completely.
This method will allow smoke to clear
away from the door opening before the
loading door is completely opened.
Add small, compact pieces of hard-
wood when the kindling is burning hot.
Keep the draft controls fully open to
establish a hot fire quickly.The ash
door also may be opened during start-
up to accelerate the initial burn.
When a substantial bed of red
wood coals are built up, start adding
coal (pea or nut is preferred to stove
coal for starting) small amounts at a
time. Keep the draft control open.
Continue adding small amounts of
coal until there is a solid bed of burning
coal. Do not add too much at one time.
Allow sufficient time between each
small loading (at least 5-10 minutes),
so that each loading has time to ignite
thoroughly before the next load is put
in. When a substantial bed of burning
coals has been established, fill the
stove to the top of the firebrick. A deep
bed of coal always will burn more satis-
factorily than a shallow bed.
When most of the wood is burned
and the coal is completely ignited (usu-
ally 5-10 minutes or less after filling the
stove), the draft control should be
turned down to the proper operating
level. (If the ash door has been opened,
it must be closed to prevent overfiring,
which can cause dangerously high
temperatures.)
8.2 Loading
Coal should never be added unless
there is a reasonable hot fire. The coal
bed should be bright and vigorous.
If the fire is burning hot and there is
a deep bed of coals, full loads of coal
can be added at any time. However, if
there is not a deep bed of coals, it is
best to add small amounts of coal at
first.
8.3 Increasing Heat From a
Low Fire
Every effort should be made not to
let a coal fire burn too long so that the
fire has started to die. This will cause
the reloading process to be much
longer, and there is a good possibility of
losing the fire.
Do not shake or stir with a low fire.
Open the draft control wide or open
the ash cleanout door to get the maxi-
mum draft.
Run the stove with the draft control
or ash door fully open until the fire is
reasonably hot.
Start adding small amounts of coal.
When the new coal is thoroughly ignit-
ed or there is a substantial bed of hot
coals, the stove may be shaken thor-
oughly. Be sure to shake down all
ashes (but do not overshake).
After shaking, keep the bottom
draft control open until you are sure the
fire is continuing to burn hot, then turn
the draft control down to the proper
operating level. IF THE ASH DOOR
HAS BEEN OPENED, BE SURE TO
SHUT IT (SERIOUS DAMAGE CAN
RESULT IF THE STOVE IS RUN FOR
EXTENDED PERIODS WITH T H E
ASH DOOR OPEN).
Count the exact number of turns
from full shut to the normal operating
positions so that you can adjust the
stove to the exact level of heat output
and length of burn you desire.
Figure 7

8
8.4 Shaking
Shaking should be done only when
there is a hot fire.
The frequency of shaking will
depend on the type of stove and the
degree of burning. Shaking should be
done at least once a day, and prefer-
ably twice a day.
Best results from shaking with
Harman grates will occur if short “chop-
py” strokes are used rather than long,
even strokes.
The amount of shaking is critical.
Too little or too much, either can result
in the extinguishing of a fire due to
blocked air flow.The proper amount
normally occurs when red coals first
start to drop through onto the bed of
ashes.
8.5 Draft Controls
The heat output of the coal is con-
trolled by the primary draft control on
bottom door. Experience will dictate the
proper settings for heat requirements.
Coal responds very slowly to
changes in the draft settings. Because
of this slow response time, over-cor-
recting is a common problem. When
changes in heat output are needed,
make only small changes in the draft
setting and wait for the temperature to
stabilize.
8.6 Ashes
Ashes should never be allowed to
accumulate in the ash pit so that they in
any way impede the flow of combustion
air to the fire. Excess ash accumulation
can cause the fire to go out and also
can cause severe damage to the grates
because of the absence of a cooling
flow of air beneath them.
Ashes should be placed in a metal
container with a tight fitting lid. The
closed container of ashes should be
placed on a noncombustible floor or on
the ground, well away from all com-
bustible materials, pending final dis-
posal. If the ashes are disposed of by
burial in soil or otherwise locally dis-
persed, they should be retained in the
closed container until all cinders have
thoroughly cooled outside the dwelling.
CAUTION! ASHES SHOULD NEVER
BE ALLOWED TO A C C U M U L AT E
ABOVE THE TOP OF THE ASH PAN.
ASHES IN CONTACT WITH THE BOT-
TOM OF THE GRATES ACT AS AN
I N S U L ATOR, INTENSIFYING T H E
HEAT ON THE GRATES, AND COULD
CAUSE THEIR WARPAGE. WITH AN
EXCESSIVE ASH BUILDUP, PRIMA-
RY COMBUSTION AIR IS RESTRICT-
ED, THUS, THE UNIT’S OUTPUT
COULD BE REDUCED.
GRATES DAMAGED IN THIS WAY
ARE EASILYRECOGNIZED BY THE
EXTREME DAMAGE CAUSED TO
THE GRATES.
PLEASE REFER TO YOUR WAR-
RANTY TO SEE HARMAN STOVES
LIMIT OF LIABILITY IN CASES OF
ABUSE OR NEGLECT.
Coal produces considerably more
ash than wood, so the intervals
between emptying are much shorter.
For equal heat output, coal will produce
seven to ten times more ash than
wood.
8.7 Safety
Whenever a loading door is
opened, it always should be cracked
slightly to allow oxygen to enter and
burn any combustion gases that are
present before fully opening. Failure to
do this could result in sudden ignition of
the unburned gases when the door is
opened.
Astove never should be filled with
excess coal so that the flue gas exit is
blocked or impeded in any way.
Burning coal generates carbon monox-
ide. If the flue gas exit is blocked, the
carbon monoxide can be forced out of
the stove into the room, with possible
fatal consequences.
WITH THE EXCEPTION OF THE
S TA RT- U P PERIOD, THE ASH PIT
DOOR SHOULD NEVER BE LEFT
OPEN. ALSO NOTE THAT A STOVE
SHOULD NEVER BE LEFT U N AT-
TENDED WITH THE ASH PIT DOOR
OPEN.
Serious damage to the stove can
occur from overheating.
Coal stoves should not be installed
in any chimney that has had a history of
back-drafting or flow reversal. These
conditions can cause improper draft,
resulting in carbon monoxide entering
the house rather than being drawn up
the chimney. REMEMBER! COAL
GASES ARE TOXIC!
Sulfur dioxide, sulfur trioxide and
other ions released from coal burning
may corrode stainless and masonry
chimneys, and even terra cotta chim-
ney liners and brick in nearby buildings.
Coal with high sulfur content will
destroy chimneys especially fast if soot
sits in the flue for extended lengths of
time. It is important to clean chimneys
regularly.
9. Warranty
9.1 Terms and Warranty
Harman Stoves are warranted for
five years in accordance with the fol-
lowing warranty terms. Exclusions to
the six years will be the following items:
A. Electrical Blower (3 year warranty)
B. Door Packing
C. Glass
D. Firebricks
E. Paint
F. Any Damage Deemed Abuse
10. Warranty
Activation
Coupon and
Liability
Statement
Instructions to Activate Your 6-Ye a r
Written Warranty
The Activation Coupon must be
filled out in its entirety to have an effec-
tive warranty!
Serial number of stove is located
on the right side of unit, near the front
lower corner. Numbers are stamped
into the steel.
Your Signature is Required!

9
11. Optional Hot Water Coil (Not Available For Mark I)
PLUMBING DIAGRAM FOR THERMO-SIPHON METHOD - MAX. DISTANCE 10 FT.
COIL INSTALLATION (See Coil Diagram on Page 14)
Place one of the nuts supplied on each leg of the coil. Place coil through the holes in the back of the firebox and adjust the nuts so the pipes
stick out about 1 1/4 to 1 1/2 inches from the side of the stove. Put flat washers and nuts on the outside and tighten within 1/4 inch. Then
place fiberglass rope around each pipe the washers and tighten. You are now ready to run pipes.
THERMO-SiPHON METHOD (LESS THAN 10 FEET)
This is the simplest and most economical method, however, the hot water tank must be less than ten feet from the stove. The water inlet,
where the temp./press/relief valve is located, must be higher than the top leg of the coil. The hot water tank should be elevated, if necessary,
to allow for proper thermo-siphon action (the method by which hot water will circulate automatically through the system.)
a) Shut off the hot water heater and the old water supply to it. Drain the tank completely.
b) Remove the temp./press/relief valve and discard. Install a short 3/4" nipple and tee (1) along with a new temp./press/relief valve.
c) Run 3/4" copper tubing along with the necessary fittings between the hot water tank and the top leg of the water coil. Install a 3/4" vent
elbow and automatic “float type” air vent (2) in the high point of the line. Within two feet of the top leg of the water coil install a 150 lb.
pressure relief valve. (7) Run 3/4" tubing from the release exit of both relief valves downward (3) so the hot water may escape the event
of overheating.
d) Remove the drain valve at the bottom of the tank. Install a short 3/4" nipple and tee and re-install the drain valve to the tee (4). Run 3/4"
copper tubing with the necessary fittings between the drain/tee combination and the lower leg of the coil. After all of the connections have
been complete, you may refill the tank. Turn on the hot water heater only after the tank has been completely refilled.

10
PLUMBING DIAGRAM FOR CIRCULATING PUMP METHOD - MORE THAN 10 FT.
CIRCULATING PUMP METHOD (MORE THAN 10 FEET)
This method is used when the hot water heater tank is more than ten feet away from the stove or the stove is on a higher level than the hot
water heater tank. In addition to a circulator pump, you may want to add an aquastat to thermostatically control the pump according to water
temperature. This is optional and not necessary if the circulator pump is left run continuously.Another option is a gate valve placed near the
pump to control the rate of water flow.
a) Shut off the hot water heater and the old water supply to it and drain the tank completely.
b) Remove the temp./press/relief valve and discard. Install a short 3/4" nipple and tee (1) along with a new temp./press/relief valve.
c) Remove the drain valve at the bottom of the tank. Install a 3/4" short nipple and tee and re-install the drain valve to the tee (4).
d) Install a circulating pump (6) as shown. Run 3/4" copper tubing from the circulating pump to the lower leg of the heat exchanger coil. This
is where the optional gate valve (5) can be installed to regulate the water flow.
e) Install a 3/4" tee and a 150 lb. pressure relief valve (7) in the top leg within two feet of the top outlet of the water coil.
(f) Complete the 3/4" copper line by running it back to the tee at the top of the hot water tank, making sure to install a 3/4" vent elbow and
automatic air vent (2) at the high point of the line. The optional aquastat can be installed in this line a maximum of 6 feet from the fur-
nace. This aquastat must be a close on temperature rise type and must be wired and adjusted to turn on the circulating pump when the
water temperature reaches 120 degrees F.
The system is now ready to be refilled and the hot water heater turned back on.
COIL DIAGRAM

Harman Stove Company warrants its products to be free from defects in material or workmanship, in normal use and service, for a
period of 6 years from the date of sales invoice and for mechanical and electrical failures, in normal use and service, for a period of 3
years from the date of sales invoice.
If defective in material or workmanship, during the warranty period, Harman Stove Company will, at its option, repair or replace the
product as described below.
The warranty above constitutes the entire warranty with respect to Harman Stove Company products. HARMAN STOVE COMPA-
NY MAKES NO OTHER WARRANTY, EXPRESSED OR IMPLIED, INCLUDING “ANY” WARRANTY OF MER-
CHANTABILITY, OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. No employee, agent, dealer, or other per-
son is authorized to give any warranty on behalf of Harman Stove Company.This warranty does not apply if the product has been
altered in any way after leaving the factory. Harman Stove Company and its agents assume no liability for “resultant damages of any
kind” arising from the use of its products. In addition, the manufacturer and its warranty administrator shall be held free and harmless
from liability from damage to property related to the operation, proper or improper, of the equipment.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF.
THESE WARRANTIES APPLY only if the device is installed and operated as recommended in the user’s manual.
THESE WARRANTIES WILL NOT APPLY if abuse, accident, improper installation, negligence, or use beyond rated capacity caus-
es damage.
HOW TO MAKE ACLAIM - Any claim under this warranty should be made to the dealer from whom this appliance was purchased.
Then contact is made with manufacturer, giving the model and serial numbers, the date of purchase, your dealer’s name and address,
plus a simple explanation of the nature of the defect. Extra costs such as mileage and overtime are not covered. Nuisance calls are
not covered by these warranties.
THIS WARRANTY IS LIMITED TO DEFECTIVE PARTS - REPAIR AND/OR REPLACEMENT AT HARMAN STOVE
COMPANY’S OPTION AND EXCLUDES ANY INCIDENTAL AND CONSEQUENTIAL DAMAGES CONNECTED
THEREWITH.
WARRANTY EXCLUSIONS: Failure due, but not limited to, fire, lightning, acts of God, power failures and/or surges, rust, corrosion
and venting problems are not covered. Damage and/or repairs including but not limited to; remote controls, filters, fuses, knobs, glass,
ceramic brick panels, ceramic fiber afterburners, door packing, tile, ceramic log sets, paint, batteries or battery back-up and related duct
work are not covered. Also excluded from this warranty are consumable or normal wear items including but not limited to; flame
guides, grates, coal bars, afterburner hoods, fire brick, gaskets. Additional or unusual utility bills incurred due to any malfunction or
defect in equipment and the labor cost of gaining access to or removal of a unit that requires special tools or equipment are not cov-
ered. Maintenance needed to keep the stove in “good operating condition” is not covered. This includes, but is not limited to, clean-
ing, adjustment of customer controls and customer education. Labor, materials, expenses and/or equipment needed to comply with law
and/or regulations set forth by any governmental agencies are not covered.
This Warranty provides specific legal rights and the consumer may have other rights that vary from state to state.
In the event of change in ownership, the remaining portion of this warranty may be transferred to the new owner by sending the new
owner information and a transfer fee of $25.00 US to the Harman Stove Company.
PLEASE READ THE LITERATURE BY THE MANUFACTURER FOR THE VARIOUS ACCESSORY DEVICES. THE
MANUFACTURER WARRANTS THESE ACCESSORY DEVICES, NOT HARMAN STOVE COMPANY OR THEIR WAR-
RANTY ADMINISTRATOR. FURTHERMORE, THESE ACCESSORY DEVICES MUST BE INSTALLED AND USED
ACCORDING TO THE RECOMMENDATIONS OF THE MANUFACTURER.
REMEDIES - The remedies set forth herein are exclusive and the liability of seller with respect to any contract or sale or anything
done in connection therewith, whether in Contract, in tort, under any warranty, or otherwise, shall not, except as herein expressly pro-
vided, exceed the price of the equipment or part of which such liability is based.
CLARIFY - The above represents the complete warranty, which is given in connection with stoves, manufactured by Harman Stove
Company. No other commitments, verbal or otherwise, shall apply except by a written addendum to this warranty.
HARMAN GOLD WARRANTY
6YEAR TRANSFERABLE LIMITED
WARRANTY (Residential)
1YEAR LIMITED WARRANTY (Commercial)

MIP-9331 Rev. 07/04
