Harman JBL Club A754 User manual

Club A754 and Club A5055 Amplifiers
EN
DE
ES
FI
FR
IT
NL
PL
PT
SV
TR
RU
ZH-CN
ZH-TW
ID
JP
KO
DA
Owner's Manual
Betjeningsvejledning
Bedienungsanleitung
Manual de propietario
Käyttöopas
Mode d'emploi
Manuale d'istruzioni
Gebruikershandleiding
Instrukcja obsługi
Manual do utilizador
Bruksanvisning
Kullanıcı Kılavuzu
Руководство пользователя
欽䨪䩛ⱃ
⢪欽罏䩛ⱁ
Panduan Pengguna
《䪔铡僇剅
칺푷핞 컲졓컪
 


   


  



 
X-OVER
FREQ FREQ
PHASE
320HZ
MAX
MIN
EXT
INT
32HZ
GAIN GAIN
X-OVER INPUT
FREQ
BASS
BOOST
GAIN
FRONT
REAR
SUB
HI2
MIN
HPF
LPF
320Hz
MAX
MIN
HPF
320Hz
32Hz
LPF
FULL
32Hz
FULL
MAX
0dB
12dB
0°
180°
DC
REM
HI1
LO
A5055

Club A754 and Club A5055 Amplifiers
EN
ACCESSING CONNECTORS AND CONTROL
PANEL
1. Pry off trim piece
INPUT
LEVEL X-OVER
FREQ FREQ
PHASE
320HZ
MAX
MIN
EXT
INT
32HZ
GAIN GAIN
X-OVER INPUT
FREQ
BASS
BOOST
GAIN
FRONT
REAR
SUB
HI2
MIN
HPF
LPF
320Hz
MAX
MIN
HPF
320Hz
32Hz
LPF
FULL
32Hz
FULL
MAX
0dB
12dB
0°
180°
DC
REM
HI1
LO
TURN-ON
MODE
A5055
2. Slide the panel cover down
INPUT
LEVEL X-OVER
FREQ FREQ
PHASE
320HZ
MAX
MIN
EXT
INT
32HZ
GAIN GAIN
X-OVER INPUT
FREQ
BASS
BOOST
GAIN
FRONT
REAR
SUB
HI2
MIN
HPF
LPF
320Hz
MAX
MIN
HPF
320Hz
32Hz
LPF
FULL
32Hz
FULL
MAX
0dB
12dB
0°
180°
DC
REM
HI1
LO
TURN-ON
MODE
A5055
3. Remove panel cover
INPUT
LEVEL X-OVER
FREQ FREQ
PHASE
320HZ
MAX
MIN
EXT
INT
32HZ
GAIN GAIN
X-OVER INPUT
FREQ
BASS
BOOST
GAIN
FRONT
REAR
SUB
HI2
MIN
HPF
LPF
320Hz
MAX
MIN
HPF
320Hz
32Hz
LPF
FULL
32Hz
FULL
MAX
0dB
12dB
0°
180°
DC
REM
HI1
LO
TURN-ON
MODE
A5055
MOUNTING THE AMP
INPUT
LEVEL X-OVER
FREQ FREQ
PHASE
320HZ
MAX
MIN
EXT
INT
32HZ
GAIN GAIN
X-OVER INPUT
FREQ
BASS
BOOST
GAIN
FRONT
REAR
SUB
HI2
MIN
HPF
LPF
320Hz
MAX
MIN
HPF
320Hz
32Hz
LPF
FULL
32Hz
FULL
MAX
0dB
12dB
0°
180°
DC
REM
HI1
LO
TURN-ON
MODE
A5055
Note: It is recommended that you make all wire connections
before permanently mounting the amp.
WHAT'S IN THE BOX

EN
IMPORTANT: Disconnect the vehicle's negative (–) battery
terminal before beginning the installation.
• Always wear protective eyewear when using tools.
• Choose a safe mounting location, away from moisture. Check
clearances on both sides of a planned mounting surface. Be
sure that screws or wires will not puncture brake lines, fuel
lines, or wiring harnesses and that wire routing will not interfere
with the safe vehicle operation. Use caution when drilling or
cutting in the mounting area.
• Choose a location that provides enough air circulation.
• Do not mount the amplifier with the heat sink facing downward,
as this interferes with cooling.
• Mount the amplifier so that it will not be damaged by the feet of
backseat passengers or shifting cargo in the trunk.
WIRING FOR POWER AND GROUND
At amplifier:
+12V REM GND
Fuse holder, fuse
Chassis ground (–)
Remote turn-on to
aftermarket stereo REM out
(used only with low-level signal inputs)
Battery
18”(46cm)
At ground location:
Ring Connector
Ground Wire
Star Washer
Factory Bolt
Note: Remove any paint
below ring connector
WIRING FOR INPUT SIGNAL
Club A754 low-level signals
L
FRONT REARPRE OUT
R
From stereo front
low-level outputs
From stereo rear
low-level outputs
To optional
VHFRQGDPSOLŰHU
low-level inputs









Note: when using low-level signals and remote turn-on lead, set
the " " switch to " " and the " "
switch to " ".
Club A5055 low-level signals
L
FRONT REARSUB
R
From stereo front
low-level outputs
From stereo rear
low-level outputs
From stereo subwoofer
low-level outputs


 









Note: when using low-level signals and remote turn-on lead with
the Club A5055, set the " " switch to " ", the
SUB " " switch to " ", and the " " switch
to " ".
Club A754 high-level signals
Loosen
Screws
Insert
Wires
Tignten
Screws
L
FRONT REARPRE OUT
R
Stereo front
speaker wires
Stereo rear
speaker wires
To optional
VHFRQGDPSOLŰHU
low-level inputs









Note: when using high-level signals, set the " "
switch to " " and the " " switch to " ". If no
sound plays, change the " " switch to " ".
Club A5055 high-level input signals
L
FRONT REARSUB
R
Stereo front
speaker wires
Stereo rear
speaker wires












Note: when using high-level signals with the Club A5055, set the
"" switch to " ", the SUB " " switch to
"", and the " " switch to " ". If no sound plays,
change the " " switch to " ".

EN
WIRING FOR OUTPUT
Club A754 4-channel output (4ohm/2ohm)
FRONT

LR
REAR
LR

Front right speaker
+ -
Front left speaker
+-
+-
+
-
Rear right
Rear left speaker
speaker
Club A754 3-channel output (Front: 4ohm/2ohm; Rear: 4ohm)
Front right speaker
+ -
FRONT

LR
REAR
LR

Front left speaker
+-
+-
Subwoofer
Club A754 2-channel output (4ohm)
Subwoofer
+-
+ -
FRONT

LR
REAR
LR

Subwoofer
Club A5055 5-channel output (4ohm/2ohm)
FRONT

SUB
LR
REAR
LR

Front right speaker
+ -
Front left speaker
+-
+-
+
-
Rear right
Rear left speaker
speaker
Subwoofer
+-
CONNECTING THE REMOTE BASS
CONTROLLER (CLUB A5055 ONLY)
REMOTE
CONTROL
SETTING GAIN, CROSSOVERS, AND BASS
BOOST



Setting the gain
1. Start with control set to minimum,
and the crossover control rotated midway.
2. For the front and rear channels, choose
music you're familiar with. For the subwoofer
channel on the Club A5055, choose music
with substantial bass content.
3. Turn the volume control on your receiver to
¾ of its total output.
4. Adjust the control clockwise,
listening carefully to the bass output. If
you hear distortion, turn the control
counterclockwise to decrease the gain.




Selecting the crossover mode
On the front and rear channels, you can select
your preferred crossover mode.
Choose to allow only frequencies
above a certain point to reach your speakers.
Recommended if you're using a subwoofer in
your system, as it keeps low base from your
full-range speakers.
Choose to allow only frequencies below
a certain point to reach your speakers.
Recommended if you're bridging the front or
rear channels to power a subwoofer.
Choose to allow all frequencies to reach
your speakers. Recommended if you're not
using a subwoofer in your system.
Note: The crossover mode for the subwoofer
channel of the Club A5055 is low-pass only.



Selecting the crossover frequency
Choose the crossover point to suit listening
preferences. Turn the dials to the left to lower
the crossover point and to the right to raise
the crossover point. Exact crossover settings
for coaxial speakers and subwoofers depend
on your listening preferences.



Selecting the subwoofer phase (Club
A5055 only)
Switch the back and forth to
determine which setting provides the most
clean bass output.



Selecting the bass boost (Club A5055 only)
Adjust the control clockwise or
counterclockwise to suit your taste.

EN
SPECIFICATIONS
Club A754 Club A5055
Power output @ 4 ohms 75 watts RMS x 4 50 watts RMS x 4,
320 watts x 1
Power output @ 2 ohms 100 watts RMS x 4 75 watts RMS x 4,
500 watts x 1
Power output in
bridged mode
200 watts RMS x
2 at 4 ohms
150 watts RMS x
2 at 4 ohms
Frequency response 10-40K Hz 10-40K Hz /
10-320 Hz
Crossover frequencies 32-320 Hz variable,
12 dB/ octave
32-320 Hz variable
high- and low-pass
(front and rear);
32-320 Hz low-
pass (subwoofer);
12 dB/octave
Line-level input
sensitivity
200 mVrms –
2.0 Vrms
200 mVrms –
2.0 Vrms
High-level input
sensitivity 2.0 Vrms – 20 Vrms 2.0 Vrms – 20 Vrms
Signal-to-noise ratio >80 dB >80 dB
THD+N @ rated power <1% <1%
Fuse rating 30 A x 2 30 A x 3
Operating voltage 9~16V 9~16V
Dimensions (W x H x D)
12-5/8" x 2-1/16"
x 7-1/8" (320mm x
51.3mm x 180mm)
14-3/16" x 2-1/16"
x 7-1/8" (360mm x
51.3mm x 180mm)
Weight 3.08 kg 3.98 kg
Recommended wire
gauge 84
TROUBLESHOOTING
No audio and POWER INDICATOR is off.
• No voltage at BATT+ and/or REM terminals, or bad or no
ground connection. Check voltages at amplifier terminals with
VOM.
No audio and PROTECT INDICATOR flashes every 4
seconds.
• DC voltage on amplifier output. Amplifier may need service; see
enclosed warranty card for service information.
No audio and PROTECT and POWER INDICATORS flash.
• Voltage less than 9V on BATT+ connection. Check vehicle
charging system.
No audio and PROTECT INDICATOR is on.
• Amplifier is overheated. Make sure amplifier cooling is not
blocked at mounting location. Or, there may be voltage greater
than 16V (or less than 8.5V) on BATT+ connection. Check
vehicle charging system.
Amplifier fuse keeps blowing.
• The wiring is connected incorrectly or there is a short circuit.
Check wiring connections.
Distorted audio.
• Gain is not set properly. Check setting. Check wires for shorts
or grounds. Amplifier or source unit may be defective.
Distorted audio and PROTECT INDICATOR flashes.
• Short circuit in speaker or wire. Remove speaker leads one at
a time to locate shorted speaker or wire, and repair.
Music lacks dynamics or "punch".
• Speakers are not connected properly. Check speaker
connections for proper polarity.
Engine noise—whining or clicking—in system when the
engine is on.
• Amplifier is picking up alternator noise. First, check ground
connection on the amplifier – a loose or improper ground is
one of the main causes for noise. Turn down gain. Move RCA
audio cables away from power wires. Installing an alternator
noise filter on power line between battery and alternator might
also be necessary.
HARMAN International Industries,
Incorporated 8500 Balboa Boulevard,
Northridge, CA 91329 USA
www.jbl.com
© 2019 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated,
registered in the United States and/or other countries. Features, specifications
and appearance are subject to change without notice.

CA_JBL_Club A754 and A5055_QSG_CR_V9

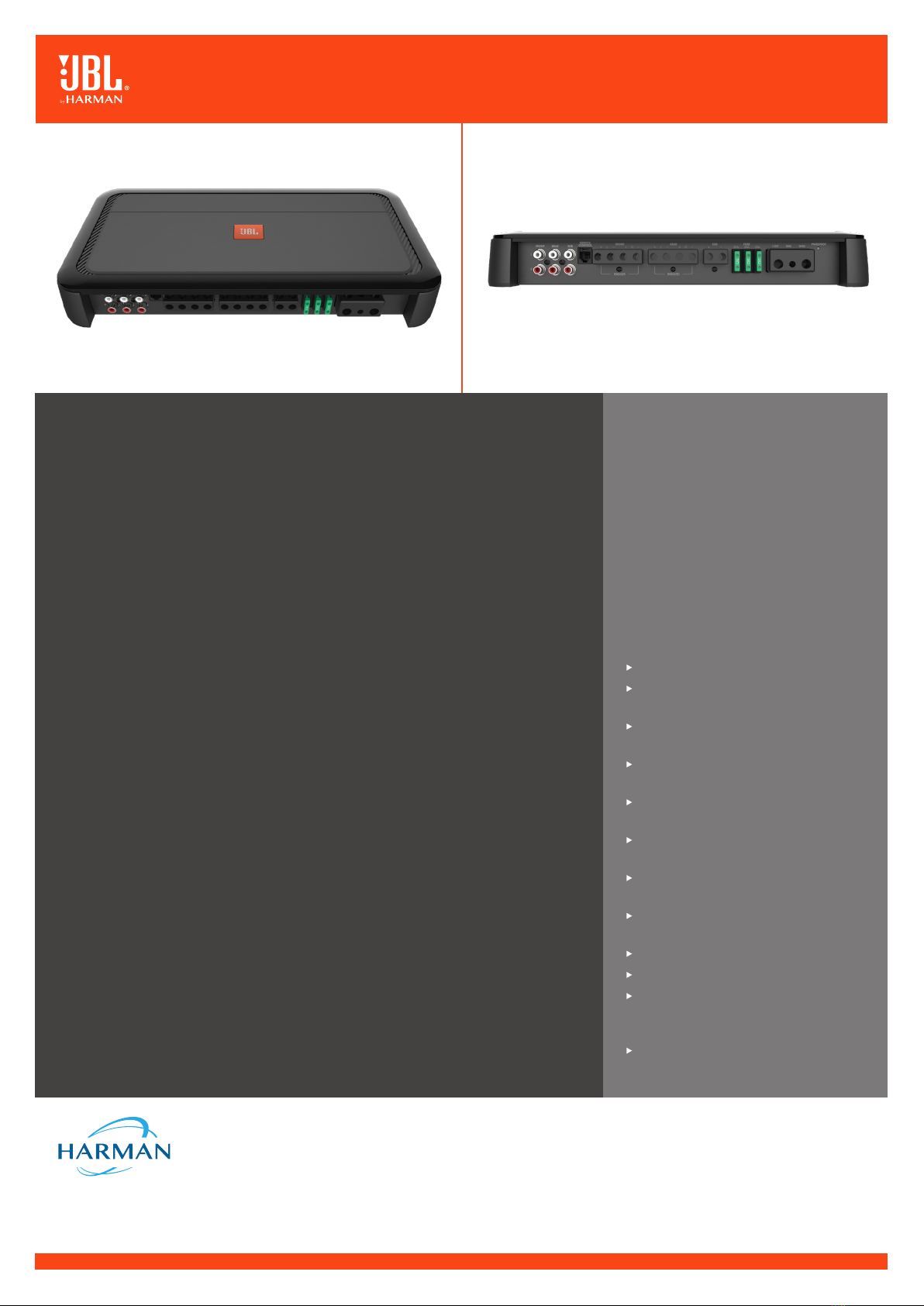

High-performance 5 channel car amplifier
Features
Compact size
High and low level input
Variable crossover and bass boost
Low noise and distortion
Input Level Control
Full on-board protection
Phase Switch
RBC wired remote
Class AB+D amp technology
Turn-on mode
Value engineered car amplifier with JBL power and performance.
The Club A5055 5-channel amplifier delivers a powerful 50-Watts RMS to each of the front
and rear speakers in your car, and a pounding 500-Watts RMS to the subwoofer channel
— a much smarter ratio of subwoofer-to-full-range power than what is typical in 5-channel
amps. You can also bridge the amp to 3-channel mode to deliver 140-Watts RMS to your
front speakers while driving your sub with 500-Watts RMS. Speaker-level inputs allow
this amplifier to integrate into almost any system, even one using your car’s factory radio.
Separate high-pass and low-pass crossovers on the front and rear channels allow you dial
in the perfect roll off to best suit speaker placement and cabin acoustics. The subwoofer
channel features a low-pass crossover, selectable bass boost, and phase switch to optimize
subwoofer performance.
CLUBA5055

HARMAN International Industries, Incorporated
8500 Balboa Boulevard, Northridge, CA 91329 USA
www.jbl.com
© 2020 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademark of HARMAN
International Industries, Incorporated, registered in the United States and/or other countries. Features, specifications
and appearance are subject to change without notice.
What’s in the box:
One Club A5055 five channel amplifier
4 Bare wire-to-RCA adapters
Six 30A ATO fuses (3 installed, 3 spare)
Remote bass control module
16.5’ Remote control cable (RJ-25 plugs on
both ends)
2 Self-tapping screws for remote (M3 x 15mm)
4 Mounting screws (M4 x 53mm)
Owner’s Manual
Two JBL stickers
1 logo badage
Technical specifications:
5 channel car amplifier
50 watts RMS x 4 + 320 watts RMS x 1 at
4 ohms
75 watts RMS x 4 + 500 watts RMS x 1 at
2 ohms
150 watts RMS x 2 bridged at 4 ohms +
500 watts RMS x 1 at 2 ohms
Variable high- and low-pass filters (32–320Hz,
12dB/octave) on front and rear channels
Low-pass filter (32–320Hz, 12dB/octave) on
subwoofer channel
Bass boost on subwoofer channel
(0-12dB at 45Hz)
Phase switch on subwoofer channel
(0, 180 degrees)
Preamp and speaker-level inputs
Fuse rating: 30A x 3
4-gauge power and ground leads
recommended — wiring and hardware not
included with amplifier
W x H x D = 360mm x 51.3mm x 180mm
W x H x D = 14-3/16" x 2-1/16" x 7-1/8"
Features and Benefits
Compact size
The JBL Club A5055 amplifier features a low-profile chassis and a small overall footprint to fit
in more vehicles where available space is limited.
High and low level input
Speaker-level and low-level inputs allow the Club A5055 to integrate with both aftermarket
and factory car stereo systems.
Variable crossover and bass boost
Unlike many amplifiers available at similar prices, the JBL Club A5055 features variable electronic
crossovers and bass boost circuits allowing for precise system tuning and performance.
Low noise and distortion
The Club A5055 has been engineered using Balanced Differential Inputs to ensure low noise
and distortion even at high output levels. This also makes it far less susceptible to line induced
radiated engine noise.
Input Level Control
When the low-level inputs are used, this control adjusts the input sensitivity between
200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input
sensitivity between 2Vrms and 20Vrms.
Full on-board protection
On-board circuitry protects the Club A5055 from shorts, high-temperature, overvoltage and
undervoltage. An LED indicator is provided to let you know when one of these conditions exists.
Phase Switch
This switch changes the input phase to inverted or non-inverted. This is especially helpful with
the subwoofer channel.
RBC wired remote
The RBC wired remote is an easy installation and can be mounted for convenient volume
adjustment from driver’s seat.
Class AB+D amp technology
The JBL Club A5055 5 channels subwoofer amplifier delivers 780-Watts RMS using a
Class AB+D amplifier design to ensure high output and minimum current draw.
Turn-on mode
This switch changes DC to REM to adapt with low-level signals or high-level signals, this is especially
helpful as part of remote turn-on lead of your installation more choice. A selectable “Turn-on mode”
can protect battery to avoid current drain, when you don’t expect turn on your amplifier.
High-performance 5 channel car amplifier
CLUBA5055
