~~~ JBL STADIUM 600 AMPLIFIER
HARMAN
THANK YOU FOR YOUR PURCHASE ...
~ Your product has been designed to provide you the performance and ease of operation you expect from JBL. Take
_... time to read this manual before operating or installing your amplifier. Keep it in your glove compartment along with the
owner's manual for your car. Put your amplifier sales receipt with other important documents
in order to expedite warranty
service if needed. This manual describes general installation guidelines and operation instructions. Please note that proper
installation of mobile audio components requires qualified experience with mechanical and electrical procedures.
If you do
not have the knowledge and tools to perform this installation, we strongly recommend consulting an authorized JBL dealer
about your installation options.
What's in the box
1x amplifier
2x speaker-level input adapter
4x mounting screws
2x spare fuses
INSTALLATION AND WIRING
1x E.A.R.L ground terminal
3x self-tapping screws
1x remote bass controller and cable
1x owner's manual
IMPORTANT: Disconnect the vehicle's negative (-) battery terminal before beginning the installation.
• Wear protective eyewear when using tools.
• Choose a safe mounting location, away from moisture. Check clearances on both sides
of the location. Be sure that
screws will not puncture brake or fuel lines or wiring harnesses, and that wire routing will not interfere with vehicle
operation. Use caution when drilling or cutting.
• When making electrical connections, make sure they are secure and properly insulated.
•
To keep the amplifier cool, choose a location that provides enough air circulation, such as under a seat or in the trunk.
• Do not mount the amplifier with the heat sink facing downward, as this interferes with cooling.
• Mount the amplifier so that it will not be damaged by the feet of passengers
or shifting cargo in the trunk, and so that
it remains
dry.
• Using the amplifier as a template, mark the locations of the holes on the mounting surface.
• Drill pilot holes
in the mounting surface.
• Attach the amplifier
to the mounting surface with the included screws.
· NOTE: You may find it more convenient to make all of the connections to the amplifier before you permanently mount it.
' '
Ull.
0000
croo
<£
<£

0 Speaker Output Connectors
Connect the speakers to these terminals, observing
proper polarity (connect each speaker's positive(+) lead
to
the appropriate positive(+) terminal, and negative(-)
lead to the appropriate negative(-) terminal.
To
power two subwoofers, connect one sub's positive
(+)and negative(-) leads
to
the positive and negative
terminals on the left, and the other sub's positive and
negative leads to the positive and negative terminals
on
the right. The terminals are internally paralleled.
To
power one sub, connect the positive wire from the
single subwoofer to the
left+
terminal, and the negative
wire from the subwoofer to the right -terminal.
NOTE:
Minimum speaker impedance for subwoofer oper-
ation
is
2 ohms.
f)
Fuses
Replace fuses only with the same amperage: 35A.
E)
Power Input Connectors
• Power:
Run 4-gauge power wire from the +12V input
to the positive terminal of the vehicle's battery. Insert
bare wire into the terminal on the amplifier, then tighten
the setscrew with a Phillips screwdriver.
• Install
an
appropriate fuse holder and 1
OOA
fuse within
18" (457mm)
of
the battery. Install protective grom-
mets when routing wires through the bulkhead or
other sheet metal. Use larger-gauge wiring for longer
runs.
• Remote: The
REM
lead detects signal and instructs
the amplifier to turn on/off. Connect a
• 20-gauge wire from the "Remote Out" lead of the
source unit to the
REM
input between the +12V and
GND inputs.
+
12
volt
Remote
Ground
t tt
jj&;,
0(
o"oJj
To
in-dash
receiver
l_j
Power
wire
T
Vehicle
battery
Vehicle
chassis
Ground
wire
II

• Ground: Run a wire (the same gauge as the power
wire) from the
GND
input
to
a factory bolt
in
the vehi-
cle's chassis (see illustration below). NOTE: Remove
any paint from the
chas~is
for best contact. If using
a ring connector, place a star washer below the
ri
ng
connector for a secure connection.
• For a more secure ground connection, use the includ-
ed E.A.R.L. ground terminal. Crimp the open end of
the terminal
to
the end
of
your ground wire, then place
the terminal against bare chassis metal, and secure
with the
in
cluded self-tapping screws. NOTE: Be sure
to check below your desired ground location to ensure
that the screws will not puncture brake lines, fuel lines,
or wiring harnesses.
Fact
o
ry
Bott
Note:
Rem
o
ve
an
y
pain
t
below
ring
conn
ec
tor
Ring
Conne
c
to
r
Star
Wa
sher
0
Remote
bass level control
To
control the bass output from a convenient location in
the vehicle, plug the
in
cl
uded
co
ntro
ll
er into the Remote
Level Control input. Mount the controller
in
a convenient
location that doesn't interfere with normal vehicle
operation.
(]
10
~~
I
f----------
E)
Line-level inputs (RCA)
If your source unit offers prea
mp
output
s,
connect to the
front and rear L and R, and s
ubw
oo
fer
in
puts us
in
g RCA
patch
ca
bles.
@ -
11
- -
~
@,
--==o
o
o~-
If
your
car
audio system's head unit does
not
have
line-level outputs, use the s
up
p
li
ed bare wire-to-RCA
a
dap
ters
to
co
nnect the Stadium amp
lifi
er
's
in
puts to
either the front or the rear speaker ou
tp
uts of your
ca
r
audio system's head unit (sp
li
ce c
ri
mps
not inc
lu
de
d)
.
Use a sma
ll
Phillips screw
dr
iver to l
oo
sen the adapter's
set screws and
in
sert the speaker wir
es
into the holes
on
the ba
ck
of the adapte
r.
Tighten the set s
cr
ews to secure
the wires.
Always
co
nn
ect the (+) speaker wire to the adapter
's
(
+)
term
in
al and the (-) speaker wi
re
to the adapter
's
(-)
termina
l.
When all wires are
co
nnected, plug the adapters
in
to
the Stadium amp
li
fier's
pr
eamp
in
puts.
~
..
~
.
~
~~
;
~
.,,,.
Loosen
Screws
Insert
Wires
Ti
ghten
Screws
Important: Some factory audio system amplifiers
include electronic filters that limit the amount
of
bass
sent
to
the system's smaller speakers. This
fil
tering will
adversely affect the Stadium amplifier's performance.
To
get the most bass possible, splice the high-lev
el
wires
into the factory speaker outputs that are connected to
the system's largest speakers (the ones designed
to
reproduce the most bass).
C) Input level INPUT
LEVEL
Sele
ct
LO
if
providing signal
to
the
amplifier with line-level
co
nn
ections.
II D
II
Select Hl1 or Hl2 if using speaker-level
__J
1
L-
connections
LO
Hl1
Hl2
Note: Ifyou have connected your amplifier
to
factory
speaker outputs and the audio fails to pla
y,
change the
switch to "
HI
2". The "HI2" position
in
cludes a circuit
designed
to
fool a factory audio system into "seeing" a
speaker
co
nn
ected
to
its input. Important: "HI2" should
never be used when the amplifier
is
connected to a head
unit's line-level
(RCA)
out
puts.
0 GAIN: Setting
the
input sensitivity
Adjusting the ga
in
lets you match the input sensit
iv
ity
of
am
p with the o
ut
put
of
your receiver, and match the
relative volume
to
the
re
st
of
your speakers.
• Start with gain control set to minimum,
an
d the
cro
ssover
co
ntrol and bass
co
ntrol rotated midway.
• Choose music with subs
ta
ntial bass content and
turn the volume
co
nt
ro
l on your receiver to
%
of its
tota
l o
ut
put.
• Adjust the gain controlclockwise, listening carefully
to
the bass output. If you hear distortion, turn the g
ain
con
trol
co
unterclockwise to
de
crease the
ga
in.
E)
Crossover-filterfrequency controls
(FREQ)
Turn the d
ia
l to the left to lower the
crossover
po
int, and to the
ri
ght to raise it.
Adjust the crossover until your s
ubw
oo
fer
plays only low-frequency
in
formation.
G)
Bass boost
Yo
u can increase the bass o
ut
p
ut
of
your
system up to
+9
dB
. Turn the dial to the
ri
g
ht
to
in
crease the bass ou
tp
ut.
~·--
«~~
32Hz 320Hz
=~~~"fill
0
0 0
OdB

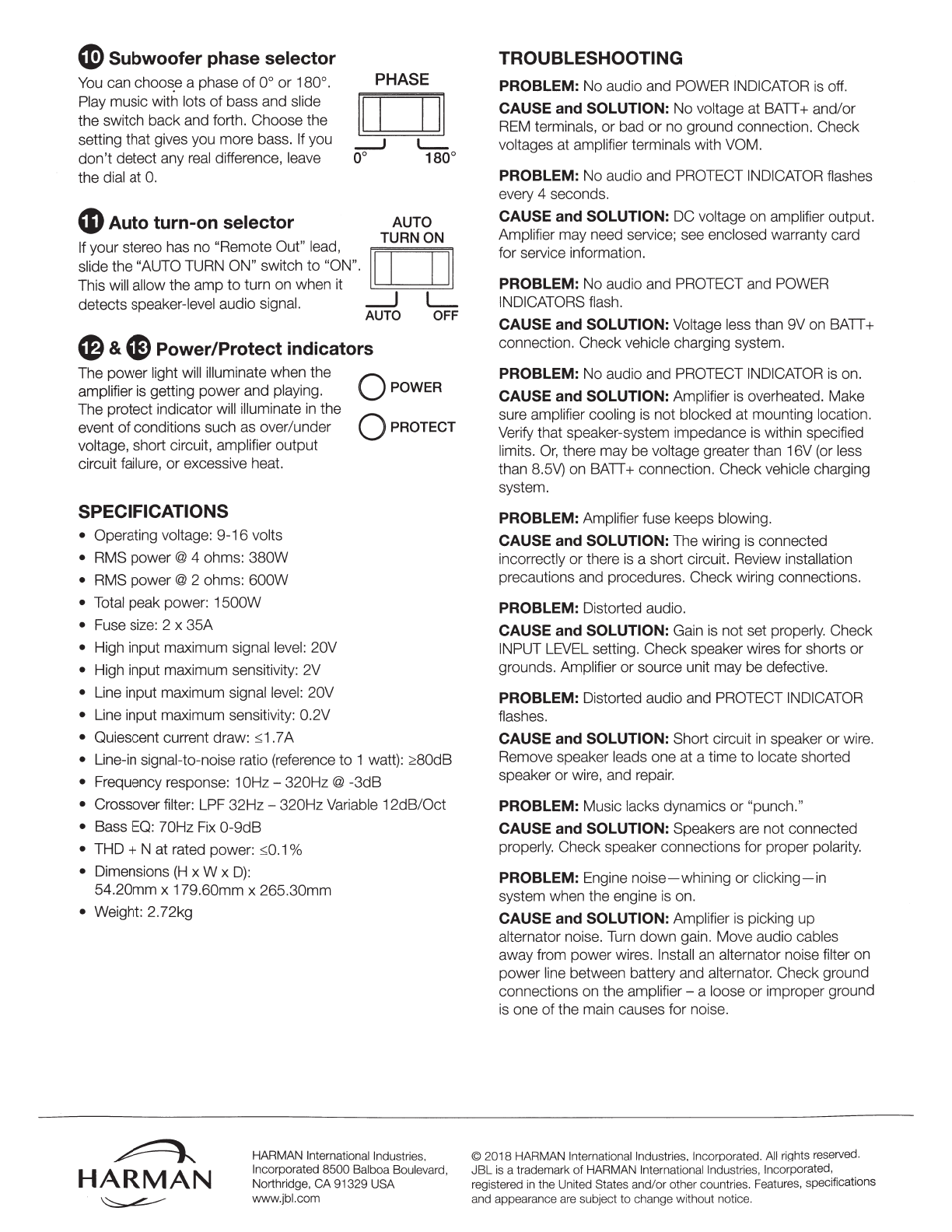

+9dB

PHASE
~ Subwoofer phase selector
You can choo~e a phase of oo or 180°.
Play music with lots
of bass and slide
the switch back and forth. Choose the
setting that gives you more bass. If you
don't detect any real difference, leave
the dial at 0.
[[]
~ '-
00 180°
4D Auto turn-on selector
If your stereo has no "Remote Out" lead,
slide the "AUTO TURN ON" switch to "ON".
This will allow the amp
to turn on when it
detects speaker-level audio signal.
AUTO
TURN ON
[CO
_j L
AUTO OFF
4f) & 4e Power/Protect indicators
The power light will illuminate when the O
amplifier is getting power and playing. POWER
The protect indicator will illuminate in the
event
of conditions such as over/under 0 PROTECT
voltage, short circuit, amplifier output
circuit failure,
or excessive heat.
SPECIFICATIONS
• Operating voltage: 9-16 volts
• RMS power @ 4 ohms:
380W
• RMS power @ 2 ohms: 600W
• Total peak power: 1500W
• Fuse size: 2 x 35A
• High input maximum signal level: 20V
• High input maximum sensitivity: 2V
• Line input maximum signal level: 20V
• Line input maximum sensitivity: 0.2V
• Quiescent current draw:
:S;1.7A
• Line-in signal-to-noise ratio (reference to 1 watt): ::::80dB
• Frequency response: 1OHz -320Hz @ -3dB
• Crossover filter: LPF 32Hz -320Hz Variable 12dB/Oct
• Bass
EO: 70Hz Fix 0-9dB
• THO + N at rated power: :S;0.1%
• Dimensions (H x W x D) :
54.20mm x 179.60mm x 265.30mm
• Weight: 2.72kg
~
HARMAN
~
HARMAN International Industries.
Incorporated 8500 Balboa Boulevard,
Northridge,
CA 91329 USA
www.jbl.com
TROUBLESHOOTING
PROBLEM: No audio and POWER INDICATOR is off.
CAUSE and SOLUTION: No voltage at BATI + and/or
REM terminals,
or bad or no ground connection. Check
voltages at amplifier terminals with VOM.
PROBLEM: No audio and PROTECT INDICATOR flashes
every 4 seconds.
CAUSE and SOLUTION: DC voltage on amplifier output.
Amplifier may need service; see enclosed warranty card
for service information.
PROBLEM: No audio and PROTECT and POWER
INDICATORS flash.
CAUSE and SOLUTION: Voltage less than 9V on BATI +
connection. Check vehicle charging system.
PROBLEM: No audio and PROTECT INDICATOR is on.
CAUSE and SOLUTION: Amplifier is overheated. Make
sure amplifier cooling
is not blocked at mounting location.
Verify that speaker-system impedance
is within specified
limits.
Or, there may be voltage greater than 16V (or less
than 8.
5V) on BATI + connection. Check vehicle charging
system.
PROBLEM: Amplifier fuse keeps blowing.
CAUSE and SOLUTION: The wiring is connected
incorrectly or there
is a short circuit. Review installation
precautions and procedures. Check wiring connections.
PROBLEM: Distorted audio.
CAUSE and SOLUTION: Gain is not set properly. Check
INPUT LEVEL setting. Check speaker wires for shorts or
grounds. Amplifier
or source unit may be defective.
PROBLEM: Distorted audio and PROTECT INDICATOR
flashes.
CAUSE and SOLUTION: Short circuit in speaker or wire.
Remove speaker leads one at a time
to locate shorted
speaker or wire, and repair.
PROBLEM: Music lacks dynamics or "punch."
CAUSE and SOLUTION: Speakers are not connected
properly. Check speaker connections for proper polarity.
PROBLEM: Engine noise-whining or clicking-in
system when the engine is on.
CAUSE and SOLUTION: Amplifier is picking up
alternator noise. Turn down gain. Move audio cables
away from power wires. Install an alternator noise filter on
power line between battery and alternator. Check ground
connections on the
amplifier- a loose or improper ground
is one of the main causes for noise.
© 2018 HARMAN International Industries. Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated,
registered
in the Un ited States and/or other countries. Features, specifications
and appearance
are subject to change without notice.
