Harman JBL Free WFH Wireless User manual

quick
start
guide
EERF
WFH
SSELERIW
WHAT’S
IN THE
BOX
OVERVIEW
01
02
01 Volume Control
02 Microphone Mute / unMute
03 CHARGING LED
04 USB-C port
05 2.5mm jack for boom microphone
06 Flat-fold ear cup
07 POWER / 2.4G LED
08 POWER ON / OFF slider
09 2.4G PAIRING BUTTON
10 2.4G LED
03
04
05
06
07
08
09
10
01 power on
POWER ON & CONNECT
2.4G Wireless
MANUAL CONTROLS
02
PC | mac
>5S
01 02
power on
BUTTON COMMAND
ON
OFF
INCREASE MASTER VOLUME
DECREASE MASTER VOLUME
Microphone Mute / unMute
× 1

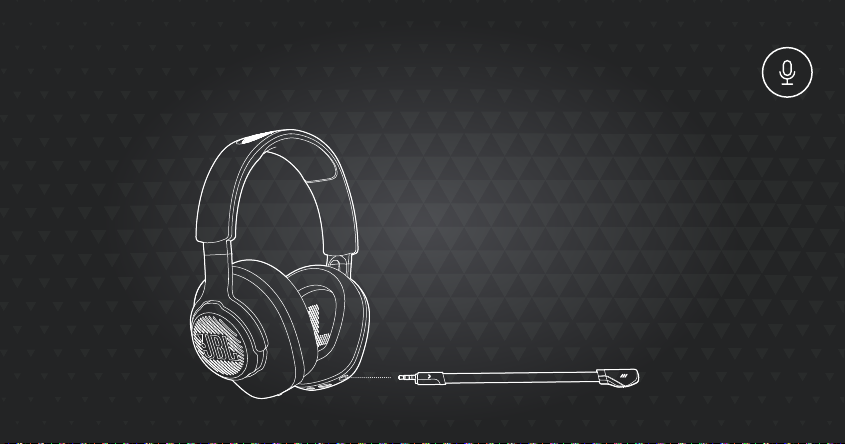

MICROPHONE

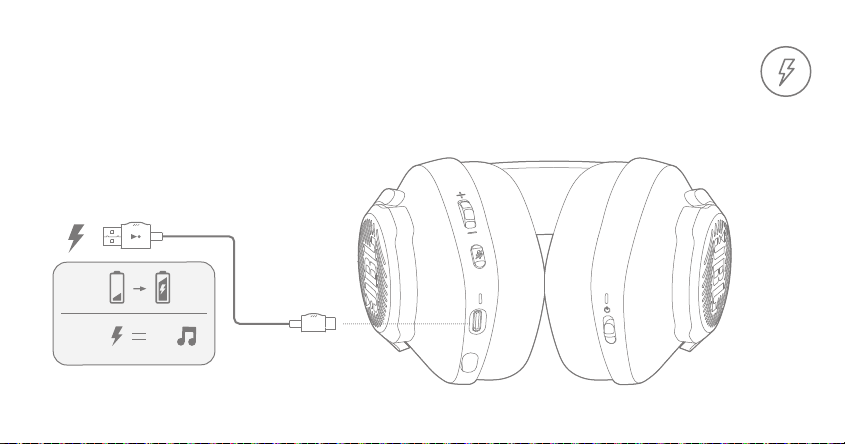

CHARGING
2HRCHARGE
1HR
5MIN
LED BEHAVIOURS
LOW BATTERY
CHARGING
FULLY CHARGED POWER OFF
POWER ON
2.4G CONNECTING
2.4G PAIRING
2.4G CONNECTED
2.4G CONNECTING
2.4G CONNECTED
Driver size: 40 mm Dynamic Drivers
Frequency response: 20 Hz - 20 kHz
Microphone frequency response: 100 Hz - 10 kHz
Sensitivity: 115 dB SPL @1 kHz
Maximum SPL: 93 dB
Microphone sensitivity: -42 dBV/Pa @1 kHz
Impedance: 32 ohm
2.4G Wireless transmitter power: <10 dBm/MHz & <20 dBm
2.4G Wireless modulation: GFSK
2.4G Wireless carrier frequency: 2402 MHz - 2480 MHz
Battery type: Li-ion battery (3.7 V / 500 mAh)
Power supply: 5V 1A
Charging time: 2 hrs
Music play time: 16 hrs
Microphone pickup pattern: Omni-directional
Weight: 252 g
TECH
SPEC
HP_JBL_FREE WFH Wireless (Q350)_QSG_Global_PV_V6.indd 1HP_JBL_FREE WFH Wireless (Q350)_QSG_Global_PV_V6.indd 1 4/2/2021 11:52:11 AM4/2/2021 11:52:11 AM
