Harman Advance Pellet Stove Installation instructions
“Ce manuel est disponible en Français sur demande”
#135-S-19b-6.2
FUELS: WOOD PELLET FUEL OR UP TO A 50% CORN/PELLET MIX ONLY.
USA Canada
Sides (A) 6” 8” (20cm)
Back (B) 1” 1” (2.5cm)
Front (C) 6” 18” (46cm)
AA
B
C
USA Canada
(A) 6” 8” (20cm)
(B) 1” 1” (2.5cm)
(C) 6” 18” (46cm)
135-S-19b-6.2
* Measured From Glass
*
Tested &
Listed By
352 Mountain House Road
Halifax, PA 17032
www.harmanstoves.com
This heating appliance does not just have automatic ignition, it has total automatic temperature control. The Advance uses
a small room sensor rather than a wall thermostat for a more accurate temperature control.
The Advance's control panel is designed for easy and efcient operation. It has 2 automatic modes of operation and 2
manual modes of operation. The Advance's specially designed burn pot and the "Advance Igniter" Automatic Ignition
System, allow the unit to burn a large variety of biomass fuels with varying ash content. The Advance feed system has a
maximum feed rate of 6 lbs. per hour and a minimum (maintenance) feed rate of 1.0 lbs. per hour.
This 0 to 48,000 BTU pellet stove has an accordion style heat exchanger system that allows maximum surface area for
the most efcient heat transfer in a smaller rebox.
The unit has an easy to clean combustion system with an ash pan that holds ash from 1 ton of burned premium pellets.
This unit is equipped with several different safety devices which will be explained later in this manual.
SAFETY NOTICE: IF THIS HARMAN ADVANCE PEL-
LET STOVE IS NOT PROPERLY INSTALLED. A HOUSE
FIRE MAY RESULT. FOR YOUR SAFETY, FOLLOW THE
INSTALLATION DIRECTIONS. CONTACT LOCAL BUILD-
ING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND
INSTALLATION INSPECTION REQUIREMENTS IN YOUR
AREA.
Please copy
your serial
number
from the label on your stove to
the box below.
Note: This appliance is also approved for
installation into a shop.
Advance Pellet Stove
Omni-Test Laboratories
Pellet Burning Room Heater
ASTM E1509-04, ULC S627-00 and
ULC C1482-M1990. In accordance with OAR 814-
23-900 through 814-23-909
135-S-19b-6.2
The Advance pellet stove is more than just automatic ignition, it is also automatic temperature
control. The automatic system will allow the re size to be adjusted to match the heating
needs and even put the re out if necessary. If heat is needed after the re is out, the
Advance will automatically re-ignite and adjust the re size to match the heating need. The
totally automatic room sensor mode is recommended because of its efciency.
The unit can be switched between "AUTO" and "MANUAL" at any time during operation.
Room Temperature Mode: This setting will produce a room
temperature of 70 degrees with the distribution blower at
medium speed.
This setting will produce medium heat with the
distribution blower on "low".
This setting will produce continuous maximum heat
output with the distribution blower at full speed.
In "Room Temp Mode" heat output is controlled
automatically by the Room Sensing Probe. When the
Room Sensing Probe calls for heat, the stove will increase
output. When the Room Sensing Probe is getting close to
the set temperature, the stove will begin to level off output
and keep the re burning at just the right temperature to
maintain that setting.
High output is determined by the feed rate setting.
This setting, generally on #4, can be increased if higher
burn rates are necessary. The unit's maximum burn rate
should not create less than 1" of ash on the burn pot front
edge. See Fig.2, Page 5. Overfeeding is not a safety
concern, but fuel may be wasted if unburned pellets fall
into the ash pan.
In "Room Temp Mode" a constant fuel consumption
rate is sacriced for exact room temperature. Therefore,
as it gets colder more pellets will be burned automati-
cally.
The distribution blower speed will vary according to
the position of the mode selector pointer, and re size.
This allows for automatic ignition upon start-up only.
The unit can then be set at any desired setting. The heat
output and fuel consumption will remain constant regard-
less of room temperature. The unit's maximum feed rate
should not create less than 1" of ash on the burn pot front
edge. See Fig 2, Page 5.
The unit's low burn or maintenance setting is as
low as it will go. It will not go out unless it runs out of
fuel or is turned off.
To kill the re or stop burning the stove, turn the Mode
Selector to "OFF". This will cause the re to diminish and
burn out. When the re burns out and the stove cools down
everything will stop.
If you pull the plug to shut down the stove, all motors will
stop. This may cause incomplete combustion and smoke in the
rebox. If the load door is opened the smoke may escape.
The best way to shut down the stove is simply let it run
out of pellets, then the stove will shut down automatically.
Make sure the unit is plugged into a 120 VAC,
60 HZ electrical source. The power light should be the
only light lit.
1.
2. with pellets.1
3. with scraper, if necessary.5
4.
(for one 60 second cycle).2 This
will feed pellets into the auger tube and also allow you
to check the motors for operation.
5.
6. into the "AUTO"
position.
7. to desired room
temperature.
8. to Room Temperature or Stove
Temperature.
9. with pellets and as
required.6
1. Fines are small pieces of broken pellets (sawdust). Fines do not
ow easily and often build up on the hopper funnel bottom angles.
These nes can be pushed into the feeder opening and then ll the
hopper with pellets. As the system works, they will be burned.
2. The "TEST" cycle will operate the feeder motor for exactly one
minute. Turning to "TEST" again and again may purge too much
fuel into the burn pot causing excessive smoke on start-up.
3. The rebox low pressure switch will not allow the auger motor
or the igniter element to operate if the view door or the ash pan
door are open.
4. Adjust Feed Rate. If this is your rst re or you are trying different
pellets, set the feed adjuster to #4, Fig. 1. This is a conservative
number and will probably need to be increased. After you know a
feed rate setting that works well, use that setting. Remember, if your
feed rate is too high you may waste fuel.
5. This is usually a weekly maintenance procedure. Cleaning the
burn pot with the scraper with a small amount of new fuel in the
bottom is not a problem. First, scrape the ashes on the front of the
burn pot into the ash pan. Then scrape the holed surface downward
into the burn pot. When the stove is ignited these scrapings will be
pushed out by the feeder.
6. The ash pan can hold the ashes from approximately 1 ton of
premium fuel. This means the ashes will only need to be emptied
a few times a year.
7. Setting the feed adjuster # for maximum burn: With the unit
burning in "AUTO", turn to "Stove Mode" and put the fan on "H".
Set the Temperature Dial to #7. Allow the unit to burn for about 30
minutes and check ash on front of burn pot. Fig. 2. If the ash line is
larger than 1", turn the feed adjuster from #4 to #5. Allow another
30 minutes of burn time and check again. If , at #6 setting, a 1" or
less ash bed is not obtainable, it is not a problem. The 1" ash bed
is only a maximum burn rate and at most normal settings the ash
bed will be larger.
"NEVER USE GASOLINE, GASOLINE-TYPE LANTERN
FUEL, KEROSENE, CHARCOAL LIGHTER FLUID, OR
SIMILAR LIQUIDS TO START OR "FRESHEN UP " A
FIRE IN THIS HEATER. KEEP ALL SUCH LIQUIDS
WELL AWAY FROM THE HEATER WHILE IN USE".
See Note 7.

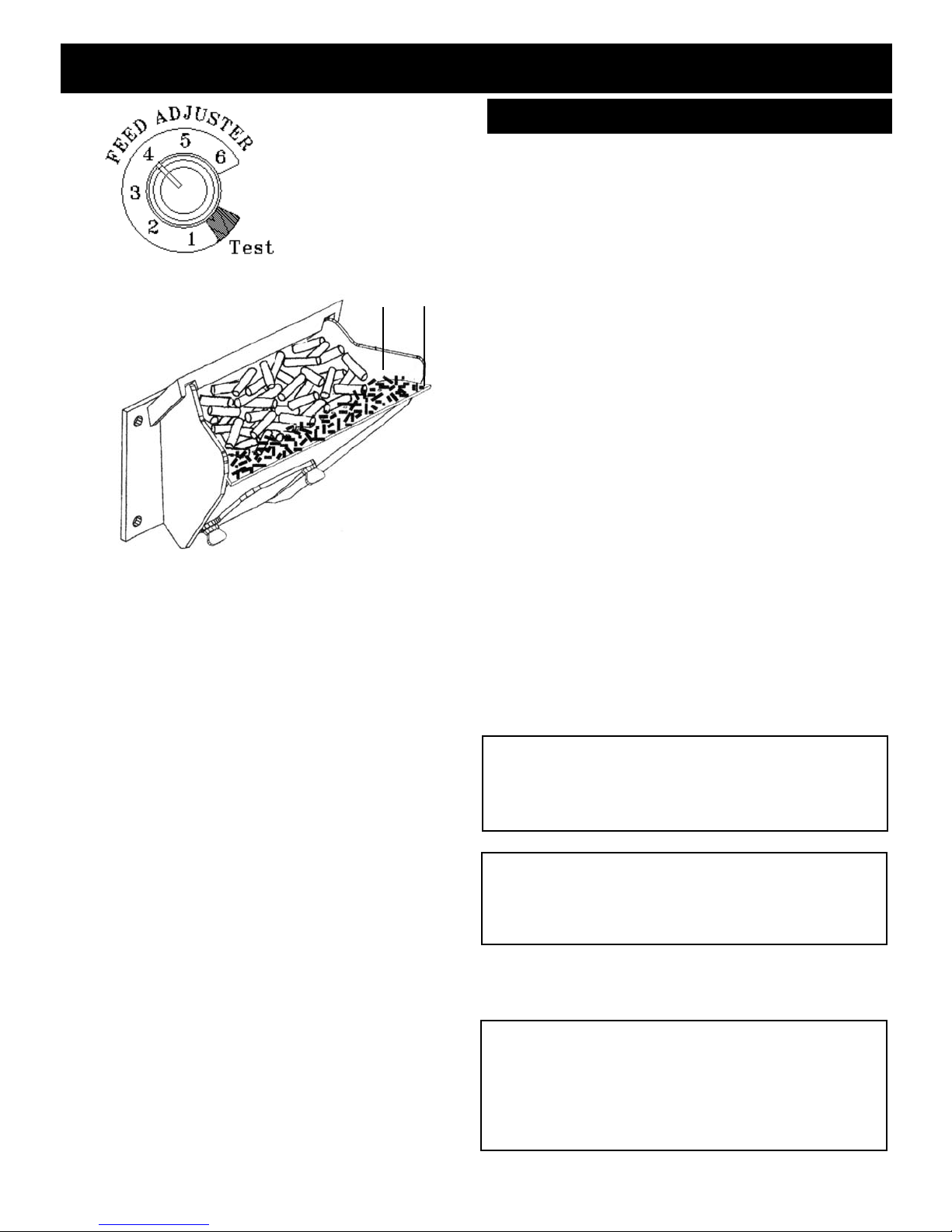

Fig. 1
Fig. 2
1"
HOT WHILE IN OPERATION. KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS.
KEEP HOPPER LID, FIRE DOOR, AND
ASH DRAWER PROPERLY CLOSED WHEN
APPLIANCE IS IN OPERATION.
The Advance Pellet Stove is capable of manual operation. This also allows the opera-
tor to manually control operation during an emergency (i.e. igniter failure.) The unit can be
switched between "AUTO" and "MANUAL" at any time during operation.
This setting will produce a large viewing re without
a distribution blower operating.
Room Temperature Mode: This setting will produce
a room temperature of 70 degrees with the distribution
blower at medium speed.
The re will have to be lit with starting gel and a
match, or started automatically, see "Automatic Opera-
tion". Switch to "Manual" position after the ignition cycle
begins.
The difference between "AUTO" Room Tempera-
ture Mode and "Manual" Room Temperature Mode is
that the re will not go out as the room temperature goes
above the control board setting. The unit can only go to
low burn and will remain there until it runs out of fuel or
until more heat is needed and the feed rate increases.
Feed rate adjustments and dial settings are the same
as "AUTO" settings.
The advantage of this mode is to allow the operator
to have a large viewing re without blowing extra heat
into the room.
During operation, with the temperature dial set at
#3 or less, the distribution fan will not operate. A #3 on
the temperature dial and a #5 on the feed adjuster is
approximately 80% output. It is not necessary to operate
the distribution blower below this point. Therefore, there
can be a higher feed rate ( a larger viewing re) without
an excess of hot air blowing into the room.
An example of when to use the Manual Stove
Temperature Mode is if you want to watch a large re
and the room is already up to temperature. The Stove
Temperature Mode allows you to have a larger re and
a lower sound level, without the distribution blower.
1. Fines are small pieces of broken pellets (sawdust). Fines do not
ow easily and often build up on the hopper funnel bottom angles.
These nes can be pushed into the feeder opening and then ll the
hopper with pellets. As the system works, they will be burned.
2. The "TEST" cycle will operate the feeder motor for exactly one
minute. Turning to "TEST" again and again may purge too much
fuel into the burn pot causing excessive smoke on start-up.
3. The rebox low pressure switch will not allow the auger motor
or the igniter element to operate if the view door or the ash pan
door are open.
4. Adjust Feed Rate. If this is your rst re or you are trying different
pellets, set the feed adjuster to #4, Fig. 3. This is a conservative
number and will probably need to be increased. After you know a
feed rate setting that works well, use that setting. Remember, if your
feed rate is too high you may waste fuel.
5. This is usually a weekly maintenance procedure. Cleaning the
burn pot with the scraper with a small amount of new fuel in the
bottom is not a problem. First, scrape the ashes on the front of the
burn pot into the ash pan. Then scrape the holed surface downward
into the burn pot. When the stove is ignited these scrapings will be
pushed out by the feeder.
6. The ash pan can hold the ashes from approximately 1 ton of
premium fuel. This means the ashes will only need to be emptied
a few times a year.
7. Setting the feed adjuster # for maximum burn: With the unit
burning in "AUTO", turn to "Stove Mode" and put the fan on "H".
Set the Temperature Dial to #7. Allow the unit to burn for about 30
minutes and check ash on front of burn pot. Fig. 5. If the ash line is
larger than 1", turn the feed adjuster from #4 to #5. Allow another
30 minutes of burn time and check again. If , at #6 setting, a 1" or
less ash bed is not obtainable, it is not a problem. The 1" ash bed
is only a maximum burn rate and at most normal settings the ash
bed will be larger.
Fig. 4
Fig. 3
Fig. 5
1"
See Note 7.
Make sure the unit is plugged into a 120 VAC, 60
HZ electrical source. The power light should be the
only light lit.
. No.
4 is good for most pellets.4
This will reset control and
start the combustion motor.
(Do Not Over Fill).
Stir gel
into pellets for fast lighting.
Operation will begin when the re reaches
the proper temperature.3
"NEVER USE GASOLINE, GASOLINE-TYPE LANTERN
FUEL, KEROSENE, CHARCOAL LIGHTER FLUID, OR
SIMILAR LIQUIDS TO START OR "FRESHEN UP " A
FIRE IN THIS HEATER. KEEP ALL SUCH LIQUIDS
WELL AWAY FROM THE HEATER WHILE IN USE".
HOT WHILE IN OPERATION. KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS.
Feed adjuster
Sets the maximum
feed rate
Test
Runs all motors at
full speed for one
minute to check
operation. Afterward
the combustion blower
will stay on low to
simulate a low burn
rate.
Igniter switch
Set to appropriate
Start-Up mode.
Distribution Blower
speed adjustment
range.
L = low
H = high
Variable speed
anywhere between L
and H; although as the
stove temp. goes up ,
so does the low end of
the scale.
Indicates a poor ESP connection or that the
ESP (Exhaust Sensing Probe) has gone out of range too
many times. If the stove seems to be operating normally,
perform a manual reset*.
Can occur only in Room Temp Mode and
indicates Room Sensing Probe failed or not installed. If
a Room Sensing Probe is then installed, the status light
will automatically reset.
NOTE: Unit will not start in "AUTO" with this status er-
ror.
Indicates that
the unit has failed to light after 4 consecutive igniter
cycles, 32 minutes total. To reset - Turn Mode Selector
to "OFF", then turn to either mode again.)
: Indicates that the control has calculated poor
or incomplete combustion occurring for more than 50
minutes. See Troubleshooting section for more details.
A six blink status may be set if the stove is allowed to run
out of pellets. To reset, turn mode selector to "OFF" then
back on to the desired mode. If the unit was not out of
pellets, see Troubleshooting section for more details.
- disconnect power cord for a few seconds
and reconnect. If error still occurs call your Dealer.
Temp dial
Allows you to adjust the room temperature in
Room Temp Mode using the outer scale marked in
degrees Fahrenheit. It also allows you to adjust the
stove temperature while in Stove Temp Mode using
the inner scale marked from 1 to 7.
Mode Selector
Allows you to choose between
Room Temp Mode, Stove Temp
Mode, or OFF. Also allows you
to vary the distribution blower
speed by turning the knob to
the high or low side of each
mode.
Power Light
Indicates power to the
control.
Indicates power to the
feed motor.
Indicates power to the
igniter.
Indicates power to
combustion blower
Status Light
Will be lit in either stove
or room temp mode
when pointer is not
within off position band
except after normal shut
down. Blinks to indicate
errors listed below.
Indicates power to
distribution blower.
Dealer Diagnostic Port
For dealer maintenance
only. Requires special DDM
monitor supplied to Harman
Dealers exclusively.
Read these instructions carefully before you attempt to install
or operate the Advance. Failure to do so may result in dam-
age to property or personal injury and may void the product
warranty.
Consult with your local building code agency and insurance
representative before you begin your installation to ensure
compliance with local codes, including the need for permits
and follow-up inspections.
Several issues must be addressed when selecting a suitable
location for your Advance Pellet Stove. Observing required
clearances to combustible materials, the proximity to a safe
chimney or venting system, and the accessibility of electrical
supply must all be considered. In addition, selecting a location
that takes advantage of the building's natural air ow is also
desirable to maximize the heating effectiveness of the heater.
In many cases, this is a central location within the building.
Place the stove on a noncombustible oor protector that ex-
tends 6 inches to the front, 6 inches to the sides and 1 inch
to the rear of the stove. (Fig. 8.)
Place the stove away from combustible walls at least as far
as shown in gures 6, and 7. The clearance to a ceiling above
the appliance is 24" (61cm).
Note that the clearances shown are minimum for safety, but
do not leave much room for access when cleaning or servicing.
Please take this into account when placing the stove.
When installing this stove in a mobile home several require-
ments must be followed:
1. The unit must be bolted to the oor. This can be done with
1/4" lag screws through the 2 holes in the base plate shown
in Fig. 11, Page 10.
2. The unit must also be connected to outside air. See page 14.
3. Floor protection and clearances must be followed as shown
to right.
4. Unit must be grounded to the metal frame of the mobile
home.
5. The unit may not be installed in a bedroom.
Installation and repair of this stove should be done by a
qualied service person. The appliance should be inspected
before use and at least annually by a qualied service person.
Frequent cleaning will be required. It is imperative that control
compartments, burners, and circulating air passageways of
the stove be kept clean.
Fig.6
Fig.7
7"
7"
1"
10"
6"
(152mm)
6" (152mm)
Fig.8
FLOOR
PROTECTOR
6"
(152mm)
Floor protection measured from window opening.
1"
Fig. 9
Fig.10
Fig.11 Fig.12
Fig.13
Side Door
Magnets
Use hand hole to swing open side doors to at least
90o.
Remove side doors by lifting upward on the door until
the bottom pin is out of its hole. Move the bottom of
the door out and away from the pedestal base about
1/2". Allow the door to slide downward until the top
door pin is out of its top hole.
There are (2) #10 hex head screws holding each rear
shield. Using a 5/16" nut driver or socket, loosen the
(2) screws about 4 or 5 turns.
Slide the rear shields straight outward until the
ends come out of the rear retaining clips, as seen in
Fig.13.
There are two bolts holding the stove to the pallet (see
Fig. 11) Remove the bolts to move the stove.
1. When replacing the shields, always insert the top
and bottom ends of the sheet metal into the retaining
clips rst.
2. Slide the shields straight inward until the (2) hex
head screws are fully inserted into the stove slots.
3. Make sure the top edges of the shield are against
the hopper bottom and tighten screws.
The rear shields are split around the ue tail pipe
and outside air knockout. This allows removal and
installation of the rear shields with the unit completely
installed.
Rear Shield Retaining clip
Outside Air
Knockout
Pallet Hold Down Bolts
Side
Door
Side Door
Rear
Shield
Rear
Shield
Rear
Shield
These units are pre-tested at the factory with exactly
120 Volts A.C., 60 Hz. They are checked and adjusted
for rebox tightness, gasket leakage, motor operation
and igniter operation. The Advance is then factory set
at a mid-point adjustment and in most cases will not
need any adjustments.
The control board on the Advance is equipped with a
low draft adjustment port, located on the control face just
to the right of the igniter light. See Figure 14. This voltage
adjustment is provided to allow the unit to be adjusted
for the household voltage where the unit is going to be
in permanent operation. NOTE: The line voltage varies
from area to area and often home to home.
The low draft voltage should be adjusted to achieve
the most efcient burn on low burn or "maintenance".
This voltage adjustment allows the installer to change
the low voltage set point approximately 15 volts. This
adjustment should be done by the installer during set
up because a draft meter reading is to insure
proper set up.
If the unit is not adjusted properly, it does not cause
a safety concern. If the unit is adjusted too high, only
efciency is lost. If the unit is adjusted too low, the low
draft pressure switch will not allow the feeder motor or
the igniter to operate.
A simple draft test should be performed after
completing the ue pipe installation. To record the
results for future reference:
1. Plug unit into a 120 VAC, 60 HZ outlet.
2. Close the hopper lid, front view door, and the ash
pan. Neither pellets nor a re are required for this
test.
3. With the mode selector in the "OFF" position, turn
the feed adjuster to "TEST".
4. Record the high draft_____in W.C. (Normal is -.50
to -.60) The control will be on the High Draft for a total
of 2 minutes.
5. After 1 minute, the combustion motor will go down
to low draft and the distribution blower will go on
high. Allow approximately 15 seconds to pass for the
combustion motor to slow before checking the low
draft.
6. If the low draft is between .35 and .45, record the
reading _____ in W.C. If the reading is higher, slowly
turn the set screw counter-clockwise until the draft
lowers. If the reading is lower, very slowly turn the set
screw clockwise until the draft increases.
Combustion
Motor Speed
Control
Low draft only
set point.
The small straight
screwdriver slot is
plastic; therefore,
the unit can be
adjusted while in
operation.
Fig.14
Draft Meter bolt hole location
Fig.15:
The room sensor is a small temperature sensor
on the end of a 60" gray or black wire. This sensor is
installed much like a standard wall thermostat. Be-
cause it is so small, it can be hidden along the trim
of a doorway or even up the leg of a coffee table.
There is a remote room sensor port on the rear of the
unit for easy external connection. Use standard 18-2
thermostat wire to extend the distance to the desired
location (50' maximum). The room sensor should be
installed in the location where you want to control the
temperature.
NOTE: Distances of more than 25 feet from the
unit or in another room are not recommended. It is
recommended that the room sensor be installed, even
if only installed on the rear of the unit as a return air
sensor. The room sensor is essential for the Advance's
excellent efciency.
Do not allow pellets or sawdust to build up on the
hopper lid gasket.
Inspect the hopper lid gasket for damage. A good hopper
lid seal is very important for proper operation.
Fig. 18
Insert the two tail end hooks of the Air Grill Assembly
up under the stove top edge. Insert inward until the
two center hooks drop into the stove body slots in
the front of the unit.
Fig. 16 Fig. 17
Hopper Lid
Foam Gaskets
T
without exhaust
blower operation. Negative pressure in the house
will resist this natural draft if not accounted for in the
pellet appliance installation.
Heat rises in the house and leaks out at upper
levels. This air must be replaced with cold air from
outdoors, which ows into lower levels of the house.
Vents and chimneys into basements and lower levels
of the house can become the conduit for air supply,
and reverse under these conditions.
Per national building codes, consideration must be
given to combustion air supply to all combustion ap-
pliances. Failure to supply adequate combustion air
for all appliance demands, may lead to back-drafting
of those and other appliances.
When the appliance is side-wall vented: The air
intake is best located on the same exterior wall as
the exhaust vent outlet and located lower on the wall
than the exhaust vent outlet.
When the appliance is roof vented: The air intake
is best located on the exterior wall oriented towards
the prevailing wind direction during the heating
season.
The outside air connection will supply the demands
of the pellet appliance, but consideration must be
given to the total house demand. House demand
may consume some air needed for the stove, es-
pecially during a power failure. It may be necessary
to add additional ventilation to the space in which
the pellet appliance is located. Consult with your lo-
cal HVAC professional to determine the ventilation
demands for your house.
To reduce probability of reverse drafting
during shut-down conditions, Hearth & Home
Technologies strongly recommends:
• Installing the pellet vent with a minimum
vertical run of ve feet, preferably terminating
above the roof line.
• Installing the outside air intake at least four feet
below the vent termination.
To prevent soot damage to exterior walls of the
house and to prevent re-entry of soot or ash into
the house:
• Maintain specied clearances to windows,
doors, and air inlets, including air conditioners.
• Vents should not be placed below ventilated
softs. Run the vent above the roof.
• Avoid venting into alcove locations.
• Vents should not terminate under overhangs,
decks or onto covered porches.
• Maintain minimum clearance of 12 inches from
the vent termination to the exterior wall. If you see
deposits developing on the wall, you may need
to extend this distance to accommodate your
installation conditions.
A combustion blower is used to extract the combus-
tion gases from the rebox. This causes a negative
pressure in the rebox and a positive pressure in the
venting system as shown in g. 19. The longer the
vent pipe and more elbows used in the system, the
greater the ow resistance. Because of these facts
we recommend using as few elbows as possible and
15 feet or less of vent pipe. The maximum horizontal
run should not exceed 48". If more than 15 feet of
pipe is needed, the diameter should be increased
from 3" to 4".
Be sure to use a starting
collar to attach the venting system to the stove.
The fasteners included are a self-drilling
type. However, due to material thickness, drilling a
3/32" pilot hole is recommended.
Outside air is necessary in mobile homes and
where building codes require. The benet of outside
air is mainly noticed in small, very tight houses.
To install outside air use 2 3/8" I.D. ex pipe part
number 1-00-08543. There is a break-away hole on
the rear panel which must be removed before con-
necting the ex pipe. The pipe should be run outside
and terminate to the side or below the vent pipe outlet
so the ue outlet is more than 12" from the inlet cover.
The maximum length run of this pipe is 15 feet. If a
longer run is needed, the size must be increased to 3".
Inlet cover part number 1-10-09542 should be used
to keep birds, rodents, etc. out of pipe.
Fig.19
Pellet venting pipe ( also known as PL vent ) is
constructed of two layers with an air space between
the layers. This air space acts as an insulator and
reduces the outside surface temperature to allow a
clearance to combustibles of only 3 inches or less.
The sections of pipe lock together to form an air tight
seal in most cases; however, in some cases a perfect
seal is not achieved. For this reason and the fact that
the Advance operates with a positive vent pressure,
+ = Positive static pressure
= Negative static pressure
Inlet Cover part# 1-10-08542
Flex pipe part# 1-00-08543
Outside air ex pipe
goes here
Room Sensor
Connection Ports
Outdoor Half
Indoor Half
This method also provides excellent venting for
normal operation but requires the stove to be installed
farther from the wall. The vertical portion of the vent
should be three to ve feet high and at least three inch-
es from a combustible wall. This vertical section will
provide natural draft in the event of a power failure.
This method provides excellent venting for normal
operation and allows the stove to be installed closest
to the wall. One inch from the wall is safe; however,
two or three inches allows better access to remove the
rear panel. The vertical portion of the vent should be
three to ve feet high. This vertical section will provide
natural draft in the event of a power failure.
Fig.20
Fig.21
This method can be used for normal opera-
tion. This method also provides natural draft in the
event of a power failure. If the chimney condition is
questionable you may want to install a liner as in
method #6.
This method can be used for normal operation.
This method also provides natural draft in the event
of a power failure.
The damper area must be sealed with a steel
plate (not supplied). Kaowool, mineral wool or an
equivalent non-combustible insulation is recom-
mended to be installed on top of the sealing plate,
to reduce the possibility of condensation. A cap
should be installed on the chimney to keep out
rain. If the chimney condition is questionable you
may want to install a liner all the way to the top as
in Method #5.
Fig.22
Fig.23
This method provides excellent venting for nor-
mal operation. This method also provides natural
draft in the event of a power failure.
In Canada and some places in the US it is
required that the vent pipe extend all the way to the
top of the chimney.
In this method a cap should also be installed
on the chimney to keep out rain. Be sure to use
approved pellet vent pipe ttings. Seal pipe joints
with silicone in addition to the sealing system used
by the manufacturer. Pipe size should be increased
to 4" using this method.
This method provides excellent venting for nor-
mal operation. This method also provides natural
draft in the event of a power failure.
In Canada and some places in the US it is re-
quired that the vent pipe extend all the way to the top
of the chimney. The pipe or liner inside the chimney
should be 4" diameter.
In this method a cap should also be installed
on the chimney to keep out rain.
Fig.24
Fig.25
PL vent manufacturer's
firestop spacer and
support.
No insulation or other
combustible materials
are allowed within 3"
of the PL vent pipe.
Through the ceiling vent, follow PL vent
manufacturer's recommendations when using wall
and ceiling pass through.
Flashing
Storm collar
12" min.
3" min.
3" min.
Fig. 26 Fig. 27
3" min.
It is recommended that outside air be installed with
this venting conguration.
18"
Fig. 28
12" min. wall to outlet
Keep any materials that may be
affected by the elevated exhaust
temperatures at least 3 feet away
from the ue termination.
min. above ground level
H. A vent must not be installed within 3 feet (90 cm)
above a gas meter/regulator assembly when measured
from the horizontal center-line of the regulator.
I. The clearance to service regulator vent outlet must
be a minimum of 6 feet.
J. The clearance to a non-mechanical air supply inlet
to the building or the combustion air inlet to any other
appliance must be a minimum of 48”.
K. The clearance to a mechanical air supply inlet must
be a minimum of 10 feet.
()
L. The clearance above a paved sidewalk or a paved
driveway located on public property must be a mini-
mum of 7 feet.
M. The clearance under a veranda, porch, deck or
balcony must be a minimum of 12 inches.
NOTE: The clearance to vegetation and other exte-
rior combustibles such as mulch is 36” as measured
from the center of the outlet or cap. This 36” radius
continues to grade or a minimum of 7 feet below the
outlet.
Certain Canadian and or Local codes or regulations
may require different clearances.
A vent shall not terminate directly above a side-walk
or paved driveway which is located between two
single family dwellings and serves both dwellings.
Only permitted if veranda, porch, deck, or balcony
is fully open on a minimum of 2 sides beneath the
oor.
= Vent terminal
= Air Supply Intake = Area where vent terminal is not permitted
WARNING: Venting terminals must not be recessed
into a wall or siding.
NOTE: Only PL vent pipe wall pass-throughs and re
stops should be used when venting through combustible
materials.
NOTE: Always take into consideration the effect the
prevailing wind direction or other wind currents will
cause with yash and /or smoke when placing the
termination.
A. The clearance above grade must be a minimum of
18".
B. The clearance to a window or door that may be
opened must be a minimum of 48" to the side, 48" below
the window/door, and 12" above the window/door.
(
C. A 12" clearance to a permanently closed window
is recommended to prevent condensation on the win-
dow.
D. The vertical clearance to a ventilated soft located
above the terminal within a horizontal distance of 2 feet
(60 cm) from the center-line of the terminal must be a
minimum of 18".
E. The clearance to an unventilated soft must be a
minimum of 12".
F. The clearance to an outside corner is 11" from center
of pipe.
G. The clearance to an inside corner is 12".
KEEP COMBUSTIBLES AWAY
FROM FLUE OUTLET.
Keep combustible materials such as
grass, leaves, etc. at least 3 feet away
from the point directly under the vent
termination.
Other manuals for Advance Pellet Stove
2
This manual suits for next models
1
Table of contents
Other Harman Pellet Stove manuals
Harman
Harman PP38+ Installation instructions
Harman
Harman P35I User manual
Harman
Harman P43 User manual
Harman
Harman XXV User manual
Harman
Harman PELLET P61A Installation instructions
Harman
Harman The Accentra Pellet Stove Installation instructions
Harman
Harman PELLET P61A Installation instructions
Harman
Harman Accentra 52i User manual
Harman
Harman Accentra User manual
Harman
Harman Accentra 52i Pellet Insert User manual
Harman
Harman P43 User manual
Harman
Harman Accentra Freestanding Pellet Stove Installation instructions
Harman
Harman Absolute43 User manual
Harman
Harman PC45 Installation instructions
Harman
Harman Absolute43 User manual
Harman
Harman P43 Installation instructions
Harman
Harman P43 User manual
Harman
Harman XXV Installation instructions
Harman
Harman P35I User manual
Harman
Harman Advance Pellet Stove Installation instructions
Popular Pellet Stove manuals by other brands
Extraflame
Extraflame Comfort Plus manual
EdilKamin
EdilKamin MITO IDRO Installation, use and maintenance
Olsberg
Olsberg Levana manual
Hearth and Home Technologies
Hearth and Home Technologies Quadra-Fire CB1200M-MBK owner's manual
Pelpro
Pelpro PP130 owner's manual
England's Stove Works
England's Stove Works 25-EPI Installation and operation manual
Extraflame
Extraflame FIANDRA IDRO user manual
Piazzetta
Piazzetta P957 Instructions for installation, use and maintenance
Ravelli
Ravelli Vittoria V Deco Use and maintenance manual
FlumenFire
FlumenFire VESTA Use and maintenance manual
EdilKamin
EdilKamin CALGARY Installation, use and maintenance
Quadra-Fire
Quadra-Fire CASTILE-MBK-B owner's manual
Lopi
Lopi Leyden Pellet Stove user guide
Pelpro
Pelpro PP60 owner's manual
Enviro
Enviro M55C-FPI owner's manual
MCZ
MCZ PHILO COMFORT-AIR Use and installation manual
CASATELLI
CASATELLI CARLO DESCRIPTION / CLEANING / TECHNICAL DATA
Sierra Products
Sierra Products EasyFire EF4001C Installation & operating instructions
