HART HLVC01 User manual

HLVC01 40V
Leaf Vacuum
Aspirateur à feuilles
Aspiradora de hojas
OPERATOR’S MANUAL
Important Safety Instructions 2-4
Symbols 5-6
Features 6
 Assembly 6-7
 Operation 8-9
Maintenance 10
 Parts/Service
Back page
MANUEL D’UTILISATION
Instructions importantes 2-4
concernant la sécurité
Symboles 5-6
Caractéristiques 6
 Assemblage 6-7
 Utilisation 8-9
Entretien 10
 Commandedepiècesetdépannage
  Pagearrière
MANUAL DEL OPERADOR
 Instruccionesdeseguridad 2-4
importantes
Símbolos 5-6
Características 6
 Armado 6-7
 Funcionamiento 8-9
Mantenimiento 10
 Pedidosdepiezasyservicio
  Pág.posterior
THIS INSTRUCTION BOOKLET CONTAINS
IMPORTANT SAFETY INFORMATION. PLEASE
READ AND KEEP FOR FUTURE REFERENCE.
WARNING: To
reduce the risk of injury, the user must read
and understand the operator’s manual before
using this product.
CE LIVRET D’INSTRUCTIONS CONTIENT DES
CONSIGNES DE SÉCURITÉ IMPORTANTES.
VEUILLEZ LE LIRE ET LE CONSERVER POUR
TOUTE RÉFÉRENCE FUTURE.
AVERTISSEMENT:
Pour réduire les risques de blessures,
l’utilisateur doit lire et veiller à bien comprendre
le manuel d’utilisation avant d’employer ce
produit.
ESTE FOLLETO DE INSTRUCCIONES CONTIENE
INFORMACIÓN DE SEGURIDAD IMPORTANTE.
LÉALO Y CONSÉRVELO PARA REFERENCIA
FUTURA.
ADVERTENCIA:
Para reducir el riesgo de lesiones, el usuario
debe leer y comprender el manual del operador
antes de usar este producto.

ii
See this fold-out section for all the figures
referenced in the operator’s manual.
Voir que cette section d’encart pour toutes les
figures a adressé dans le manuel d’utilisation.
Vea esta sección de la página desplegable para todas las
figuras mencionó en el manual del operador.
A - Upper vacuum tube (tube d’aspiration supérieur, tubo superior de la aspiradora)
B - Lower vacuum tube (tube inférieur d’aspirateur, tubo inferior de la aspiradora)
C - Vacuum housing outlet (sortie du logement d’aspiratio, salida del alojamiento d’aspiration)
D - Switch trigger (gâchette, gatillo)
E - Variable speed dial (cadran de vitesse variable, selector de velocidad variable)
F - Handle (poignée, mango)
G - Wheel assembly (ensemble de roues, conjunto de las ruedas)
H - Leaf collection bag (sac de collecte de feuilles, bolsa de recogida de hojas)
I - Air inlet port (orifice d’entrée d’air, conexión de entrada de aire)
J - Flap (rabat, solapa)
K - Zipper pull (tirette de la fermeture à glissière, franja para tirar del cierre)
L - Dual zipper (double fermeture à glissière, cierre doble)
A - Vacuum housing outlet (sortie du
logement d’aspiratio, salida del alojamiento
d’aspiration)
B - Upper vacuum tube (tube d’aspiration
supérieur, tubo superior de la aspiradora)
C - Thumbscrew (vis à oreilles, tornillo de
mariposa)
D - Locking screw (vis de verrouillage, tornillo
de bloqueo)
A - Upper vacuum tube (tube d’aspiration
supérieur, tubo superior de la aspiradora)
B - Lower vacuum tube (tube inférieur
d’aspirateur, tubo inferior de la aspiradora)
C - Tab(s) [languette(s), orejeta(s)]
D - Slot(s) [rainure(s), ranura(s)]
FIG. 1
J
K
L
I
D
EF
C
A
B
GH
FIG. 2
FIG. 3
A
C
D
B
A
B
D
C

iii
A - Wheel assembly (ensemble de roues,
conjunto de las ruedas)
B - Bracket (support, soporte)
C - Tab (languette, orejeta)
A - Switch trigger (gâchette, gatillo)
B - Variable speed dial (cadran de vitesse
variable, selector de velocidad variable)
A - Tab (languette, orejeta)
B - Housing lower opening (ouverture inférieure
du logement, abertura inferior de la carcasa)
C - Housing base (base du logement, base de la
carcasa)
D - Leaf collection bag (sac de collecte de
feuilles, bolsa de recogida de hojas)
E - Open-ended tab (languette à bout ouvert,
orejeta de extremo abierto)
F - Hook (crochet, gancho)
A - Battery pack (bloc-pile, paquete de batería)
B - Battery port (logement de pile, receptáculo
para batería)
C - Latch (loquet, pestillo)
D - Groove (rainure, ranura)
E - Raised rib (épaulements surélevés, costillas
realzadas)
PRESS TAB TO ADJUST UP OR DOWN
APPUYER SUR LA LANGUETTE POUR
AJUSTER VER LE HAUT OU LE BAS
PRESIONE LA OREJETA PARA AJUSTAR
HACIA ARRIBA O HACIA ABAJO
PROPER OPERATING POSITION
BONNE POSITION DE TRAVAIL
POSICIÓN CORRECTA PARA EL MANEJO
DE LA HERRAMIENTA
FIG. 4 FIG. 7
FIG. 5 FIG. 8
FIG. 6
F
E
D
A
BC
C
A
E
D
B
BA
A
C
C
B

2 – English
Whenusinganelectricalappliance,basicprecautionsshould
alwaysbefollowed,includingthefollowing:
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
BEFORE USING THIS LEAF VACUUM. Toreducethe
riskofelectricshock,fireand/orseriouspersonalinjury.
Know your leaf vacuum. Read operator’s manual
carefully. Learn its applications and limitations, as
well as the specific potential hazards related to this
leaf vacuum. Followingthisrulewillreducetheriskof
electricshock,fire,orseriousinjury.
Do not permit children to use leaf vacuum. It is not a
toy.Closeattentionisnecessarywhenusednearchildren.
Use only accessories that are recommended by the
manufacturer for your model described in this manual.
Accessoriesthatmaybesuitableforoneleafvacuummay
createariskofinjurywhenusedonanotherleafvacuum.
Useonlyasdescribedinthismanual.
Do not handle charger, including charger plug, and
charger terminals with wet hands.
Do not put any object into openings. Do not use with
any opening blocked; keep free of dust, lint, hair, and
anything that may reduce air flow.
Do not charge the unit outdoors.
Keep hair, loose clothing, fingers, and all parts of body
away from openings and moving parts.
Turn off all controls before removing battery.
Use extra care when cleaning on stairs or steps.
Do not operate leaf vacuums in explosive atmospheres,
such as in the presence of flammable liquids, gases,
or dust.Batteryproductscreatesparkswhichmayignite
thedustorfumes.
Keep your work area clean and well lit. Cluttered
benchesanddarkareasinviteaccidents.
Keep bystanders, children, and visitors at least 50 ft.
away while operating a leaf vacuum. Distractions can
causeyoutolosecontrol.
A battery operated leaf vacuum with integral batteries
or a separate battery pack must be recharged only
with the specified charger for the battery. Acharger
that may be suitable for one type of battery may create
ariskoffirewhenusedwithanotherbattery.
Use battery operated leaf vacuum only with specifically
designated battery pack. Use of any other batteries may
createariskoffire.
Use this product only with batteries and chargers listed
in tool/appliance/battery pack/charger correlation
supplement 995000885.
Do not operate charger with a damaged cord or plug,
which could cause shorting and electric shock. If
damaged,havethechargerreplacedbyanauthorized
servicecenter.
If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into
water, return it to a service center.
Stay alert, watch what you are doing and use
common sense when operating a power leaf vacuum.
Do not use leaf vacuum while tired, upset, or under the
influence of drugs, alcohol, or medication.Amoment
ofinattentionwhileoperatingleafvacuumsmayresultin
seriouspersonalinjury.
Secure long hair above shoulder level to prevent
entanglement in moving parts.
Avoid accidental starting. Be sure switch is in the
locked or off position before inserting battery pack.
Carryingleafvacuumswithyourfingerontheswitchor
inserting the battery pack into a leaf vacuum with the
switchoninvitesaccidents.
Use safety equipment. Always wear eye protection.
Dustmask,non-skidsafetyshoes,hardhat,orhearing
protectionmustbeusedforappropriateconditions.
Do not wear loose clothing or jewelry. Contain long
hair. Looseclothes,jewelry,orlonghaircanbedrawn
intoairvents.
Do not use on a ladder, rooftop, tree, or other unstable
support. Stablefootingonasolidsurfaceenablesbetter
controloftheleafvacuuminunexpectedsituations.
Do not use leaf vacuum if switch does not turn it on or off.
Aleafvacuumthatcannotbecontrolledwiththeswitchis
dangerousandmustberepaired.
Disconnect battery pack from leaf vacuum or place
the switch in the locked or off position before making
any adjustments, changing accessories, or storing the
leaf vacuum.Suchpreventivesafetymeasuresreduce
theriskofstartingtheleafvacuumaccidentally.
When battery pack is not in use, keep it away from
other metal objects like: paper clips, coins, keys, nails,
screws, or other small metal objects that can make
a connection from one terminal to another. Shorting
the battery terminals together may cause sparks, burns,
orafire.
Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that may
affect the leaf vacuum’s operation. If damaged, have
the leaf vacuum serviced before using. Manyaccidents
arecausedbypoorlymaintainedleafvacuums.
IMPORTANT SAFETY INSTRUCTIONS

3 – English
Keep the leaf vacuum and its handle dry, clean and
free from oil and grease. Alwaysuseacleanclothwhen
cleaning. Never use brake fluids, gasoline, petroleum-
basedproducts,oranystrongsolventstocleanyourleaf
vacuum.Followingthisrulewillreducetheriskoflossof
controlanddeteriorationoftheenclosureplastic.
Always wear safety glasses with side shields.
Everydayglasseshaveonlyimpactresistantlenses.They
areNOTsafetyglasses.Followingthisrulewillreduce
theriskofeyeinjury.
Always wear eye protection with side shields marked
to comply with ANSI Z87.1 along with hearing
protection when operating this equipment.
Protect your lungs. Wear a face or dust mask if the
operation is dusty. Followingthis rulewillreduce the
riskofseriouspersonalinjury.
Protect your hearing. Wear hearing protection during
extended periods of operation. Following this rule will
reducetheriskofseriouspersonalinjury.
Battery leaf vacuums do not have to be plugged into
an electrical outlet; therefore, they are always in
operating condition. Be aware of possible hazards
when not using your battery powered leaf vacuum
or when changing accessories. Following this rule will
reducetheriskofelectricshock,fire,orseriouspersonal
injury.
Under abusive conditions, liquid may be ejected from
the battery; avoid contact.Ifcontactaccidentallyoccurs,
flushwithwater.Ifliquidcontactseyes,additionallyseek
medicalhelp.Liquidejectedfromthebatterymaycause
irritationorburns.
Do not use a battery pack or appliance that is damaged
or modified.Damagedormodifiedbatteriesmayexhibit
unpredictablebehaviorresultinginfire,explosionorrisk
ofinjury.
Do not expose a battery pack or appliance to fire or
excessive temperature.Exposuretofireortemperature
above265°Fmaycauseexplosion.
Do not modify or attempt to repair the appliance or the
battery pack except as indicated in the instructions
for use and care.
Do not place battery powered leaf vacuums or their
batteries near fire or heat. Thiswillreducetheriskof
explosionandpossiblyinjury.
Don’t expose leaf vacuums to rain or wet conditions.
Water entering a leaf vacuum will increase the risk of
electricshock.
Wear heavy long pants, long sleeves, boots, and
gloves.Avoidloosegarmentsorjewelrythatcouldget
caughtinmovingpartsofthemachineoritsmotor.
Do not operate the equipment while barefoot or when
wearing sandals or similar lightweight footwear.Wear
protectivefootwearthatwillprotectyourfeetandimprove
yourfootingonslipperysurfaces.
Keep firm footing and balance. Do not overreach.
Overreachingcanresultinlossofbalance.
Check the work area before each use. Remove all
objects such as rocks, broken glass, nails, wire, or
stringwhichcanbethrownorbecomeentangledinthe
machine.
Do not point the leaf vacuum nozzle in the direction
of people or pets.
Never run the unit without the proper equipment
attached. Always ensure the leaf vacuum tubes are
installed. Use of an improperly assembled unit could
resultinseriouspersonalinjury.
When not in use, leaf vacuum should be stored indoors
in a dry, locked up place—out of the reach of children.
Do not hang unit so that the switch trigger is
depressed.
Keep all bystanders, children, and pets at least 50 ft.
away.
Do not dispose of a severely damaged or worn out
battery pack or this leaf vacuum by incinerating. The
batterycanexplodeinfire.
Leaf vacuum service must be performed only by
qualified repair personnel. Service or maintenance
performedbyunqualifiedpersonnelmayresultinarisk
ofinjury.
 Stop the motor, wait until all moving parts come to a
complete stop, and remove the battery pack before
cleaningorperforminganymaintenance.
Never use water or any liquids to clean or rinse off
your product and do not expose the product to rain or
wet conditions. Store indoors in a dry area. Corrosive
liquids, water, and chemicals can enter the product’s
electroniccomponentsand/orbatterycompartmentand
damageelectroniccomponentsand/orthebatterypack,
whichcanresultinashortcircuit,increasedriskoffire,
andseriouspersonalinjury.Removeanybuildupofdirt
anddebrisbywipingtheproductcleanwithadrycloth
occasionally.
When servicing a leaf vacuum, use only identical
replacement parts. Follow instructions in the Maintenance
sectionofthismanual.Useofunauthorizedpartsorfailure
to follow Maintenance Instructions may create a risk of
shockorinjury.
Never use leaf vacuum near fires, fireplaces, hot
ashes, barbecue pits, etc. Use near fires or ashes can
spreadfiresandresultinseriousinjuryand/orproperty
damage.
IMPORTANT SAFETY INSTRUCTIONS

4 – English
Never use leaf vacuum to vacuum chemicals,
fertilizers, or any other toxic substances.Vacuuming
these substances could result in serious injury to the
operatororbystanders.
Never place leaf vacuum on any surface, except a
hard, clean surface when motor is running. Gravel,
sand, and other debris can be picked up by the air
inletandthrownattheoperatororbystanders,causing
possibleseriousinjuries.
For household use only.
Remove the battery pack from the tool when not in
use,beforeservicing,andbeforestoringthetool.Such
preventativesafetymeasuresreducetheriskofstarting
thetoolaccidentally.
Donotoperateinpoorlighting.
Donotpickupflammableorcombustibleliquidssuchas
gasolineoruseinareaswheretheymaybepresent.
Do not pick up anything that is burning or smoking such
ascigarettematchesorhotashes.
Donotputanyobjectintoopenings.Donotusewithany
openingblocked;keepfreeofdust,lint,hair,andanything
thatmayreduceairflow.
Donotpointtheleafvacuumnozzleinthedirectionof
peopleorpets.
Alwaysinstallthevacuumtubesandvacuumbag.Make
surethevacuumbagiscompletelyzippedwhentheunit
isrunningtoavoidflyingdebris.
Donotoperatevacuumwithoutvacuumbaginstalled;
flying debris could cause serious injury. Always close
vacuumbagcompletelybeforeoperating.
Rotatingimpellerbladescancausesevereinjury.Always
stopthemotor,removethebattery,andensureimpeller
bladeshavestoppedrotatingbeforeopeningthevacuum
doororinstalling/changingtubes.Donotputhandsor
anyotherobjectintothevacuum tubeswhiletheyare
installedontheunit.Failuretofollowtheseinstructions
canresultinseriouspersonalinjury.
Avoid situations that could catch the vacuum bag on
fire.Donotoperatenearanopenflame.Donotvacuum
warmashfromfireplaces,barbequepits,brushpiles,etc.
Donotvacuumdiscardedcigarsorcigarettesunlessthe
cindersarecompletelycool.
Maintain tool with care. Keep fan area clean for best
andsafestperformance.Followinstructionsforproper
maintenance.
Do not attempt to clear clogs from tool without first
removingthebatterypack.
Save these instructions. Refertothemfrequentlyand
usethemtoinstructotherswhomayusethispowertool.
If you loan someone this power tool, loan them these
instructionsalso.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS

5 – English

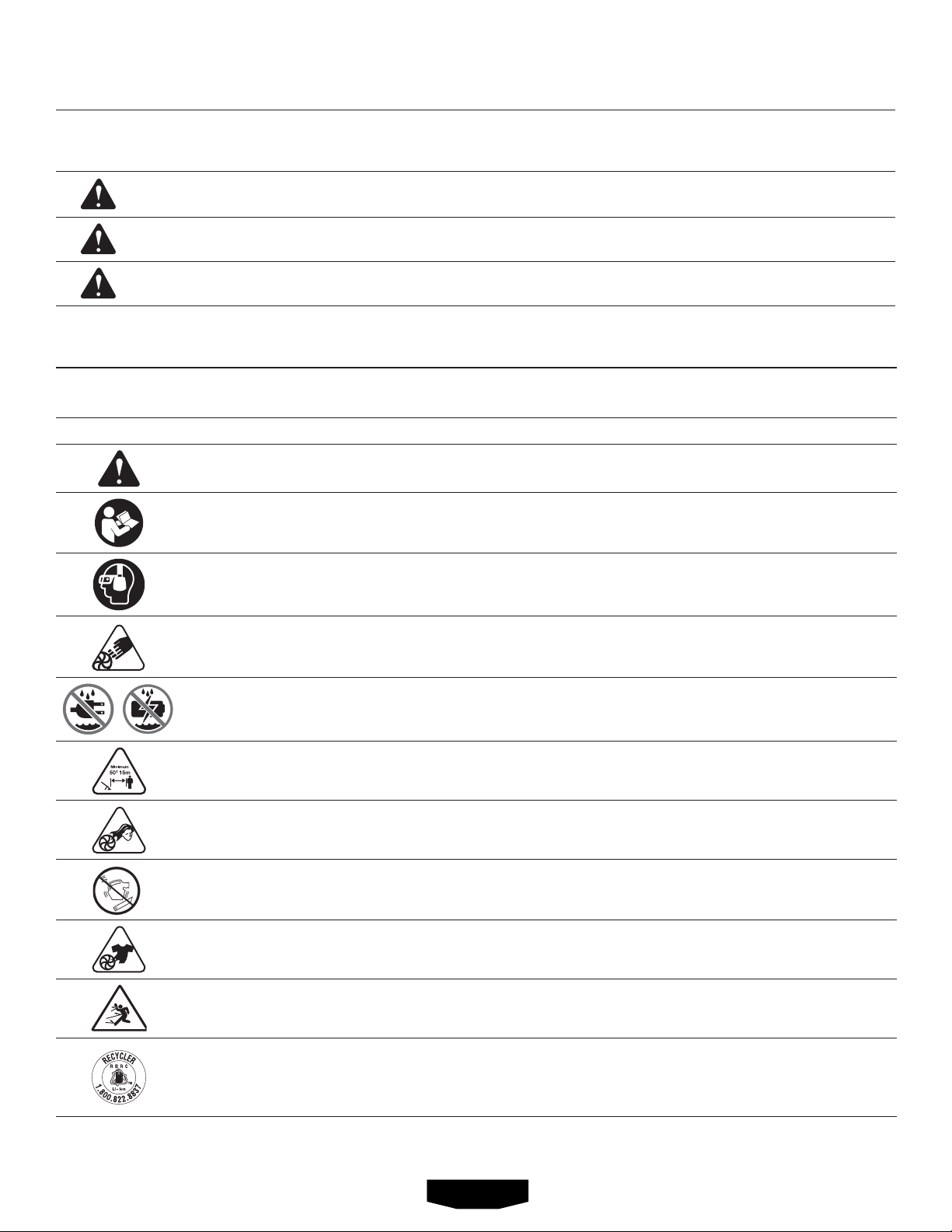

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
Safety Alert Indicatesapotentialpersonalinjuryhazard.
Read
Operator’s
Manual
Toreducetheriskofinjury,usermustreadandunderstandoperator’smanual
beforeusingthisproduct.
Eye and Hearing
Protection
AlwaysweareyeprotectionwithsideshieldsmarkedtocomplywithANSIZ87.1
alongwithhearingprotectionwhenoperatingthisequipment.
Impeller Blades Rotatingimpellerbladescancausesevereinjury.
Wet
Conditions Alert
Donotexposebattery,batterycompartment,orelectroniccomponentstorain,
water, or liquids. Do not charge battery or expose product to rain or damp
locations.
Keep Bystanders
Away Keepallbystandersatleast50ft.away.
Long Hair Failuretokeeplonghairawayfromtheairinletcouldresultinpersonalinjury.
Vacuum Tubes Donotoperatewithouttubesinplace.
Loose Clothing Failuretokeeplooseclothingfrombeingdrawnintoairintakecouldresultin
personalinjury.
Ricochet Thrownobjectscanricochetandresultinpersonalinjuryorpropertydamage.
Recycle Symbol
Thisproductuseslithium-ion(Li-ion)batteries.Local,state,orfederallawsmay
prohibitdisposalofbatteriesinordinarytrash.Consult your local waste authority
forinformationregardingavailablerecyclingand/ordisposaloptions.
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicatesahazardoussituation,which,ifnotavoided,willresultindeathorseriousinjury.
WARNING: Indicatesahazardoussituation,which,ifnotavoided,couldresultindeathorseriousinjury.
CAUTION: Indicatesahazardoussituation,that,ifnotavoided,mayresultinminorormoderateinjury.
NOTICE: (WithoutSafetyAlertSymbol)Indicatesinformationconsideredimportant,butnotrelated
toapotentialinjury(e.g.messagesrelatingtopropertydamage).
SYMBOLS

6 – English
PRODUCT SPECIFICATIONS
Motor.....................................................................................................................................................................40VoltsDC
Variablespeeddial........................................................................................................................... Variablefromlowtohigh
FEATURES
KNOW YOUR LEAF VACUUM
See Figure 1.
Thesafeuseofthisproductrequiresanunderstandingof
theinformationonthetoolandinthisoperator’smanualas
wellasaknowledgeoftheprojectyouareattempting.Before
use of this product, familiarize yourself with all operating
featuresandsafetyrules.
LEAF COLLECTION BAG
The zippered leaf collection bag is easy to remove and
empty.
LEAF VACUUM TUBES
Theleafvacuumtubesfeaturetool-freeassembly.
VARIABLE SPEED DIAL
The variable speed dial, conveniently located on the tool
handle,controlsthevacuumspeed.
WHEELED OPERATION
Thewheelassemblyfitsontothelowervacuumtubeandis
adjustabletouserpreference.
UNPACKING
Thisproductrequiresassembly.
 Carefullyremovetheproductandanyaccessoriesfrom
thebox.MakesurethatallitemslistedinthePacking
List areincluded.
WARNING:
DonotusethisproductifanypartsonthePacking
List arealreadyassembledtoyourproductwhenyou
unpackit.Partsonthislistarenotassembledtothe
product by the manufacturer and require customer
installation. Use of a product that may have been
improperlyassembledcouldresultinseriouspersonal
injury.
ASSEMBLY
 Inspecttheproductcarefullytomakesurenobreakage
ordamageoccurredduringshipping.
 Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
 If any parts are damaged or missing, please call
1-800-776-5191forassistance.
PACKING LIST
LeafVacuumHousing
UpperVacuumTube
LowerVacuumTube
WheelAssembly
Leaf Collection Bag
Operator’sManual
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
VVolts Voltage
min Minutes Time
Direct Current Type or a characteristic of current
n
o
No Load Speed Rotationalspeed,atnoload
.../min Per Minute Revolutions,strokes,surfacespeed,orbitsetc.,perminute
SYMBOLS

7 – English
ASSEMBLING THE VACUUM TUBES
See Figures 2 - 3.
 Loosen the thumbscrew above the vacuum housing
outlet.
 Pushtheuppertubeontothevacuumhousingoutlet.
NOTE: Thelockingscrewinthelowerholeispre-installed
andisspring-loaded.Itwillclickintoplacewhentheupper
vacuumtubeisfullyinserted.
 Securelytightenthethumbscrew.
NOTE: Thethumbscrewmustbefullytightenedorthe
vacuumwillnotstart.Thispreventsaccidentalstarting
whenthetubeisnotinstalled.
 Alignthetabsonthelowertubewiththeslotsintheupper
tube.Pushthelowertubeinuntilitclicksintoplace.
INSTALLING THE WHEEL ASSEMBLY
See Figure 4.
 Slidethewheelassemblyontothelowertubeasshown,
withthewheelspointedtowardtheendofthetube.
 Press the tab on the wheel assembly and slide it up
or down to adjust its position according to operator
preference.
ATTACHING THE LEAF COLLECTION BAG
See Figure 5.
 Slidethebagopeningoverthecurvedloweropeningin
thehousing.
 Hookthebagontotherearofthehousingbase.
 Pullthebagopeningforwarduntilitconnectstothefront
ofthehousingbaseandthetabclicksintoplace,securing
thebagtothehousing.
 Sliptheopen-endedtabontothehookontheuppertube
tofastenthebagtothetube.
ASSEMBLY
WARNING:
Ifanypartsaredamagedor missingdonot operate
thisproductuntiltheparts arereplaced.Useofthis
productwithdamagedormissingpartscouldresultin
seriouspersonalinjury.
WARNING:
Do not attempt to modify this product or create
accessoriesnot recommendedfor use with this leaf
vacuum.Anysuchalterationormodificationismisuse
andcouldresultinahazardousconditionleadingto
possibleseriouspersonalinjury.
WARNING:
Topreventaccidentalstartingthatcouldcauseserious
personalinjury,alwaysremovethebatterypackfrom
thetoolwhenassemblingparts.
WARNING:
Rotating impeller blades can cause severe injury.
Alwaysstopthemotor,removethebattery,andensure
impellerbladeshavestoppedrotatingbeforeremoving
theinletcoverorinstalling/changingtubes.Donotput
handsoranyotherobjectintothevacuumtubeswhile
theyareinstalledontheunit. Failuretofollowthese
instructionscanresultinseriouspersonalinjury.

8 – English
WARNING:
Do not allow familiarity with products to make you
careless.Rememberthatacarelessfractionofasecondis
sufficienttoinflictseriousinjury.
WARNING:
Alwaysweareyeprotectionwithsideshieldsmarkedto
complywithANSIZ87.1,alongwithhearingprotection.
Failuretodosocouldresultinobjectsbeingthrowninto
youreyesresultinginpossibleseriousinjury.
WARNING:
Do not use any attachments or accessories not
recommendedbythemanufacturerofthisproduct.The
useofattachmentsoraccessoriesnotrecommended
canresultinseriouspersonalinjury.
WARNING:
Verifythatallguardsandtubesareinplacepriortouse.
Ifthevacuumisdropped,stopvacuumandverifythat
nodamagehasoccurred.Ifanyguard,part,ortubeis
damagedormissing,donotusevacuumuntilithas
been repaired or replaced by an authorized service
center. Use of vacuum with damaged or missing
guards,parts,ortubescanresultinseriouspersonal
injuryorfurtherdamagetothevacuum.
NOTICE:
Before each use, inspect the entire product for
damaged,missing,orloosepartssuchasscrews,nuts,
bolts,caps,etc.Tightensecurelyallfastenersandcaps
and do not operate this product until all missing or
damagedpartsarereplaced.Pleasecontactcustomer
serviceoranauthorizedservicecenterforassistance.
APPLICATIONS
Youmayusethisproductforthepurposeslistedbelow:
Clearingleavesandotherdebrisfromyourlawn
Keepingdecksanddrivewaysfreefromgrassclippings,
leaves,pineneedles,andotherdebris
TO INSTALL/REMOVE BATTERY PACK
See Figure 6.
WARNING:
Alwaysremovebatterypackfromyourtoolwhenyou
areassemblingparts,makingadjustments,cleaning,
orwhennotinuse.Removingbatterypackwillprevent
accidentalstartingthatcouldcauseseriouspersonal
injury.
To install:
Aligntheraisedribonthebatterypackwithgrooveinthe
leafvacuum’sbatteryportandinsertthebatterypackinto
theproductasshown.
WARNING:
Make sure the latch on the battery pack snaps into
placeandthebatterypackisfullyseatedandsecurein
thebatteryportbeforebeginningoperation.Failureto
securelyseatthebatterypackcouldcausethebattery
packtofallout,resultinginseriouspersonalinjury.
NOTICE:
Whenplacingbatterypackinthetool,besureraised
rib on battery pack aligns with the bottom of the tool
andlatchesintoplaceproperly.Improperinstallation
of the battery pack can cause damage to internal
components.
To remove:
Locate the latch on the battery pack and depress to
release the battery pack from the leafvacuum.
WARNING:
Battery tools are always in operating condition.
Therefore,switchshouldalwaysbeintheOFFposition
when not in use or carrying at your side. Remove
batterypackwhentransportingorcarryingleafvacuum
to avoid accidental starting, which could result in
seriousinjury.
For complete charging instructions, see the operator’s
manualsforyourbatterypackandcharger.
OPERATION
