HARVEY Hydroclave MC8 User manual

1
BARNSTEAD THERMOLYNE CORPORATION
Harvey®
Hydroclave MC8
Hydroclave MC10
Steam Sterilizer
(With Optional Non-Recirculating System)
OWNER AND OPERATOR MANUAL

2
Table of Contents
Introduction ........................................................................................................................................................ 4
Operation Overview ..................................................................................................................................... 4
Hydroclave MC8 and MC10 Steam Sterilizer ........................................................................................4
Drying Cycle .......................................................................................................................................... 6
Operator Maintenance ................................................................................................................................. 6
Daily ...................................................................................................................................................... 6
Weekly .................................................................................................................................................. 7
Safety Information .............................................................................................................................................. 8
Declaration of Conformity ............................................................................................................................ 8

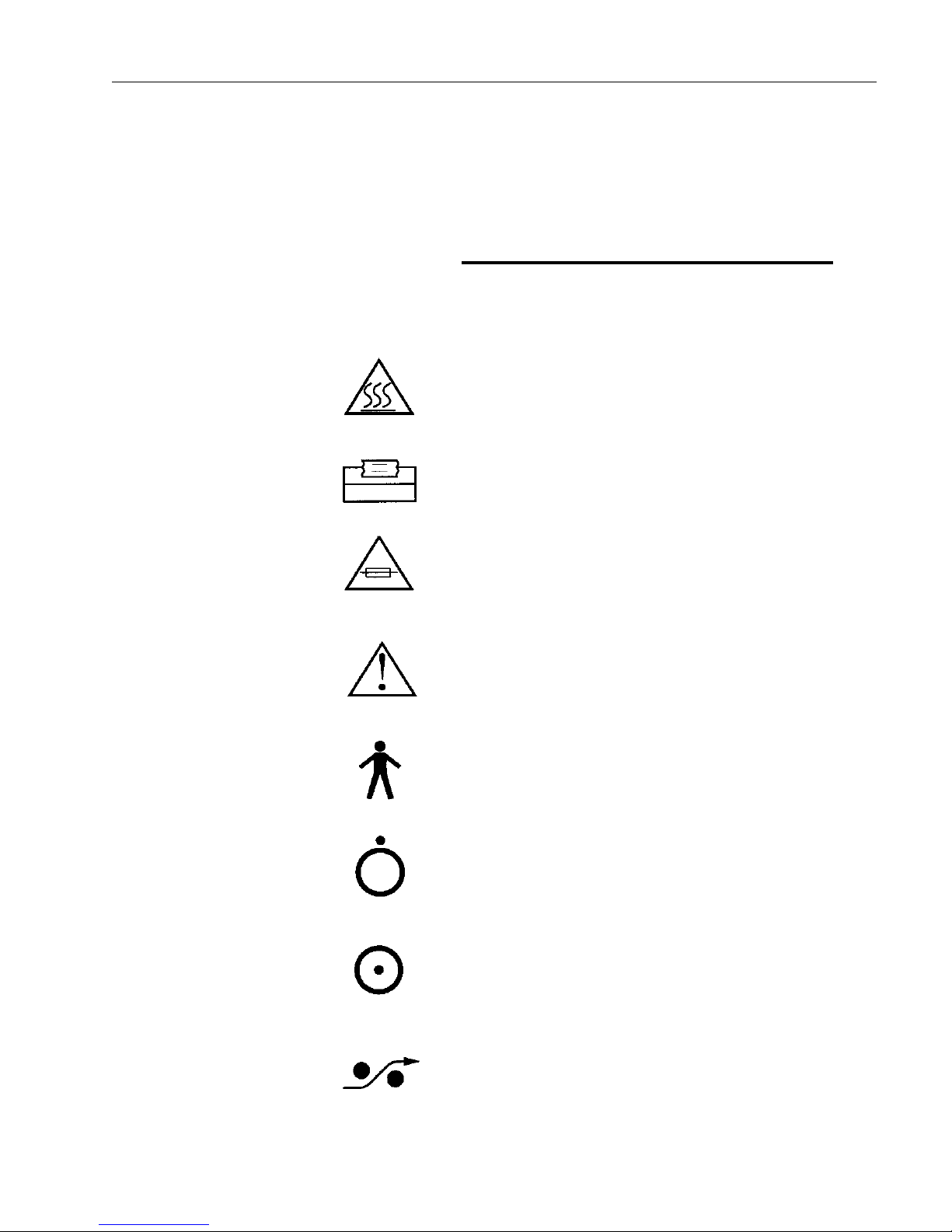

Description of Symbols on the Equipment ................................................................................................... 9
General Description ......................................................................................................................................... 11
Intended Use ............................................................................................................................................. 11
General Usage .......................................................................................................................................... 11
Operating Features .................................................................................................................................... 11
Printer ........................................................................................................................................................ 14
Non-Recirculating Water Accessory .......................................................................................................... 14
Recommended Steam Sterilization Monitoring Program ........................................................................... 14
Operation ......................................................................................................................................................... 16
Power On/Controls On .............................................................................................................................. 17
Filling Reservoir ......................................................................................................................................... 18
Filling Non-Recirculating Tank (Option) ..................................................................................................... 19
Emptying Collection Bottle ......................................................................................................................... 19
Installing Overflow Tube (Optional) ........................................................................................................... 20
Load Chart ................................................................................................................................................. 20
Preparing Items for Sterilization ................................................................................................................ 22
Loading ...................................................................................................................................................... 22
Selecting Cycle .......................................................................................................................................... 23
Starting Cycle ............................................................................................................................................ 24
Drying Phase ............................................................................................................................................. 24
Open Door Drying ...................................................................................................................................... 25
Removing Load ........................................................................................................................................ .26
Additional Information ...................................................................................................................................... 27
Cancel Cycle ............................................................................................................................................. 27
Emergency Power Off................................................................................................................................ 27
Power Failure During Cycle ....................................................................................................................... 27
Diagnostic Messages ....................................................................................................................................... 28
Troubleshooting ............................................................................................................................................... 29
Printer............................................................................................................................................................... 30
Installation ................................................................................................................................................. 30
MC8 ..................................................................................................................................................... 30
MC10 ................................................................................................................................................... 30
Operation ................................................................................................................................................... 30
Paper Roll Replacement ............................................................................................................................ 31
Ribbon Replacement ................................................................................................................................. 31
Printer Removal (MC10) ............................................................................................................................ 32
Operator Maintenance ..................................................................................................................................... 33
Daily ........................................................................................................................................................... 33

3
Cleaning Door Gasket ......................................................................................................................... 33
Weekly ....................................................................................................................................................... 33
Cleaning Chamber, Trays and Rack ................................................................................................... 33
Cleaning and Disinfecting Exterior Surfaces ....................................................................................... 34
Every 25 Cycles ......................................................................................................................................... 34
Cleaning Reservoir .............................................................................................................................. 34
Draining Reservoir .............................................................................................................................. 34
Cleaning Reservoir Filter ..................................................................................................................... 35
Cleaning Chamber Filter Screen ......................................................................................................... 36
When Required .......................................................................................................................................... 37
Emptying Non-Recirculating Collection Bottle ..................................................................................... 37
Cleaning Printer Recess (MC10) ........................................................................................................ 37
Replacing Door Gasket ....................................................................................................................... 37
Every 6 Months .......................................................................................................................................... 38
Cleaning Non-Recirculating Water Cooling Tank ................................................................................ 39
Recommended Spare Parts ............................................................................................................................. 40
Installation ........................................................................................................................................................ 41
Leveling Sterilizer Cabinet/Clearance/Electrical Connection .....................................................................41
Non-Recirculating Water Accessory Installation ........................................................................................ 42
Setting the Clock/Calendar ........................................................................................................................ 43
Technical Data .................................................................................................................................................. 48
Appendix .......................................................................................................................................................... 49
Voltage Conversion (Dual Voltage Models Only) ....................................................................................... 49
115 VAC to 230 VAC .................................................................................................................................. 50
Parts Required .................................................................................................................................... 50
230 VAC to 115 VAC .................................................................................................................................. 53
Parts Required .................................................................................................................................... 53
Two-Year Limited Warranty .............................................................................................................................. 56
TABLE OF CONTENTS

4
Introduction
As leaders in the field of sterilization, our goal is
to engineer and manufacture safe, efficient,
quality sterilization products. We are certain you
will agree that this sterilizer meets our goal.
Regardless of how well a piece of equipment is
designed, misuse, abuse, or neglect will deny its
owner the safe, efficient, quality service
expected. Often, misuse, abuse or neglect occurs
unintentionally because the operator is unaware
of the proper operating and maintenance
procedures. This manual provides you with the
information required to properly operate and
routinely maintain your sterilizer. The information
included in this manual applies to all models
unless noted for specific models.
We urge you to read this manual carefully before
operating the unit, and retain it for future
reference.
Operation Overview
Hydroclave MC8 and MC10
Steam Sterilizer
The MC8 and MC10 sterilizer operates on the
principle of heated water converted to steam in a
sealed pressure chamber.
What happens when the controls are turned
on?
• The chamber vent valve opens and the
heater turns on to warm up the chamber.
The items to be sterilized are placed on

5
the trays and the trays are placed
inside the sterilizer chamber. (Certain
parameters such as positioning and
size of the load must be observed for
proper operation and satisfactory
result.) Then, the door is closed and
latched, and the “START” button
pressed to start the cycle.
What happens when the cycle starts?
• The water fill valve opens and the
proper amount of water automatically
flows from the reservoir into the
chamber.
• The water in the chamber begins to
heat. As the water turns to steam, the
temperature and pressure increase,
forcing air from the chamber.
• When the temperature in the chamber
reaches the proper temperature (121
or 135°C) the exposure timer begins.
During this exposure time, the
temperature in the chamber is
automatically maintained at either 121
or 135°C, plus or minus about two
degrees.
• At the completion of the exposure time
a solenoid valve opens, allowing the
steam and water to vent back into the
reservoir. The steam reenters the
INTRODUCTION

6
reservoir through tubing below the water
level in the reservoir. The water in the
reservoir condenses the steam to a
liquid for reuse in the next cycle.
When the one minute timed vent is
complete an indicator light on the control
panel lights to alert the operator that the
cycle is complete.
Drying cycle
At the completion of the sterilization cycle, the
drying cycle automatically begins. This cycle
continues until the selected time has elapsed or
the door is opened.
To restart a drying cycle that has been terminated
by opening the door; close the door (DO NOT
LATCH) and press the “START” button.
Operator Maintenance
It is important to establish the maintenance
schedule called for in the Operator Maintenance
section of this manual.
Daily
Before each days use: Check the water level in
the reservoir. Refill with distilled or deionized
water if needed. Clean the door gasket and its
mating surface.
INTRODUCTION

7
Weekly
Clean the chamber, rack and trays once a week
to prevent a buildup of mineral deposits inside
the chamber. Normal tap water contains
chemicals and minerals, chlorine being the
most common. Chlorine is especially corrosive
to the stainless steel chamber, trays and rack
when water is turned to steam during the
sterilization process. It is important to remove
any mineral deposits regularly to ensure peak
operating efficiency.
Distilled or deionized water should always be
used in the MC8 and MC10 steam sterilizer.
Even when distilled or deionized water is used,
some contaminants can collect in the chamber,
rack and trays.
Clean the reservoir, reservoir filter and chamber
screen at least every 25 cycles. A clogged filter
and/or screen will result in restricted water flow
and prolong the time it takes to fill the chamber.
Maintaining a clean reservoir, filter and
chamber screen is especially important. Foreign
particles, such as bits of oil, adhesives,
amalgam, etc., can be picked up from items
being sterilized and returned to the reservoir,
clogging the filter and screen.
The daily and weekly maintenance should be
performed as outlined above to ensure long,
trouble-free service. Failure to routinely perform
maintenance procedures could result in
processing delays or equipment down time and
possible equipment repairs.
Detailed maintenance procedures for those
listed above and also other “as required” items
are shown in the Operator Maintenance
section of this manual.
INTRODUCTION

8
Safety Information
The special safety information instructions that
follow appear within the manual. Read them
carefully before operating the unit and follow
instructions.
Declaration of Conformity
Barnstead/Thermolyne hereby declares under its
sole responsibility that this product conforms with
the technical requirements of the following
standards (applies to -33 model(s) only):
EMC: EN 55011 Emission Standard
EN 60801 Immunity Standard
Safety: EN 60601 Medical Electrical
IEC 601-1 Equipment; Part 1:
General
Requirements for
Safety
per the provisions of the Electromagnetic
Compatibility Directive 89/336/EEC, as amended
by 92/31/EEC, and per the provisions of the Low
Voltage Directive 73/23/EEC, as amended by 93/
68/EEC.
Copies of the Declaration of Conformity are
available upon request.
Alert Signals
Caution
Cautions alert you to possibility
of damage to the equipment.
Hot Surface
Hot Surfaces alert you to a
possibility of personal injury if
you come in contact with a
surface during use or for a
period of time after use.
Note
Notes alert you to pertinent
facts and conditions.
Warning
Warnings alert you to a
possibility of personal injury.

9
SAFETY INFORMATION
Description of Symbols on the
Equipment
Hot Surface
Printer Receptacle
Fuse Type and Rating
Attention: Consult Accompanying Documents
(Refer to Warning and Caution notes in this
manual.)
Type B Equipment, Class I
(Refer to IEC Standard 601-1.)
OFF (Only for a part of equipment.)*
ON (Only for a part of equipment.)*
Paper Feed
* Does not disconnect equipment from mains voltage (AC
power)

10
Hydroclave MC8/MC10 Sterilizer Overview
Control Panel
MC10
Printer
(Optional)
Reservoir
Fill Funnel
Non-Recirculating
Water Accessory
(Optional)
Drain
Tube
Open
Lock
Printer
Receptacle
(MC8)
Fuses
Power Cord
Discharge Port
Non-Recirculating
Pressure
Relief
Valve
Water Fill
Port &
Chamber
Filter Screen
Reservoir
Drain Valve
Door
Gasket
Leveling
Feet
Push To
Release
Release
Tab
Click In
To Drain
Drain
Fitting
Reservoir
Filter
Screen
Locking
Handle

11
Intended Use
The Hydroclave MC8 and MC10 Sterilizers
have been designed for use in medical and
dental offices, hospitals, clinics, laboratories
and other facilities where a variety of materials
require processing.
This steam sterilizer can be used for wrapped
or unwrapped instruments, linen packs, and
liquids. Glassware may be processed using the
liquids cycle.
General Usage
Do not use this product for anything other than
its intended use.
Operating Features
• Four preset sterilizing cycles—
unwrapped instruments, wrapped
instruments, packs and liquids.
Exposure and drying times are
adjustable.
• Automatic closed door drying and
optional open door drying (except for
liquid cycle). Drying times are
adjustable.
• Cycle runs automatically when START
switch is pressed.
• Optional printer records temperature
and pressure during cycle.
• Chamber temperature may be
displayed in °C or °F.
• Chamber temperature is displayed
continuously throughout cycle
(excluding dry phase) and may be
displayed in psi, kPa or bars.
General Description
Warning
Volatile Reaction: Do not use
this sterilizer for processing
volatile substances or for any
purpose other than its intended
design. Failure to heed this
warning could cause personal
injury to personnel or damage to
equipment.

12
• Messages may be displayed in English,
French, Spanish or German.
• Clock format may be 12-hour or 24-hour.
• Non-recirculating discharge of steam is
available as an option. This option may
be installed in the field by a service
technician or purchased and installed by
the owner/operator.
GENERAL DESCRIPTION
Note
Refer to Service Manual for
setup of temperature unit, pres-
sure units, language, and clock
format.
Figure 1
Control Panel
Harvey Hydroclave MC8
Cycle Phase Indicators
Cycle Select Switches

13
GENERAL DESCRIPTION
Figure 3
Optional Accessories
Figure 2
Standard Accessories
MC8 MC10
Support
Flange
Tray Rack
(MC8 - Part No. 265002)
(MC10 - Part No. 2-513025)
Large Tray
(Part No. 2-57811)
Small Tray
(Part No. 265001)
Wrapped
Cassette
IMS Cassette
(Not Sold By B/T)
IMS
Cassette Rack (Holds
MC10 - Part No. 260761)
Four
Tray Rack
(MC8 - Part No. 265024)
Trays
MC8 MC10

14
Printer
The MC8 printer is a separate unit connected to
the sterilizer by a plug-in cable. The optional
MC10 printer is an integral part of the Control
Panel.
Non-Recirculating
Water Accessory
Standard MC8 and MC10 sterilizers discharge
steam back into the reservoir. For sterilizers with
the non-recirculating system, the distilled water is
used to make steam in the chamber for one cycle
only. Used water (steam) is exhausted into the
cooling tank which then overflows into the
collection bottle. The collection bottle is then
emptied when full.
An optional overflow tube is provided for
connection to the back of the cooling tank. This
feature allows the excess water to drain directly
into a sink or drain (if available), eliminating the
need to periodically empty the collection bottle.
Recommended Steam
Sterilization Monitoring Program
All functions of the sterilizer should be monitored
to provide maximum sterilization assurance.
The Joint Commission on Accreditation of
Hospitals and the American Dental Association
recommends that biological indicators be used at
least weekly to check the effectiveness of steam
GENERAL DESCRIPTION
Figure 5
Non-Recirculating Water Accessory
Waste Water
Cooling
Tank
Collection
Bottle
From
Sterilizer
Optional
Overflow
Drain
Figure 4
MC8 Printer
MC8
Printer

15
sterilizers to sterilize; i.e., to kill test organisms
of a known high resistance. (Bacillus
stearothermophilus is the recommended test
organism for monitoring steam sterilization.)
We recommend the use of process indicators
such as the B T Check Indicator within each
package of each cycle. For additional
assurance that minimum sterilizing conditions
have been achieved, a biological indicator such
as B T Sure should be used at least once a
week.
GENERAL DESCRIPTION
noitpircseD rebmuNtraP
sgaBgnilaeS-fleStsetimehC
)xobrep051("2/1-51x"2x"5:eziSyarT 100003032
)xobrep052("2/1-01x"2/1-1x"2/1-2:eziStnemurtsnI 100103032
sehcuoProtacidnIurhT-eeStsetimehC
)xobrep051("2/1-51x"5:eziSyarT 100203032
)xobrep052("21x"3:eziStnemurtsnI 100303032
srotacidnIlacigoloiB
)slaivrotacidnI5foxoB(rotacidnIlacigoloiBeruSTB
01noitalupoPeropS
5
1X957YA
)slaivrotacidnI001foxoB(rotacidnIlacigoloiBeruSTB
01noitalupoPeropS
5
3X957YA
)slaivrotacidnI001foxoB(rotacidnIlacigoloiBeruSTB
01noitalupoPeropS
6
8X957YA
srotacidnIssecorP
rotacidnIlacimehCeruSTB 2X957YA

16
1. Press Controls ON.
2. Fill Reservoir.
3. Load Chamber.
4. Lock Door.
5. Select Cycle.
6. Press START.
7. Open Door to Dry.*
8. Remove Load.
* Optional—Drying phase, if selected, will start
automatically without opening the door. Opening the door,
however, may improve drying efficiency.
Operation
Operation
Warning
Patient Safety Zone: Do not
operate this sterilizer within 6 ft.
(2 m) of patient treatment point.

17

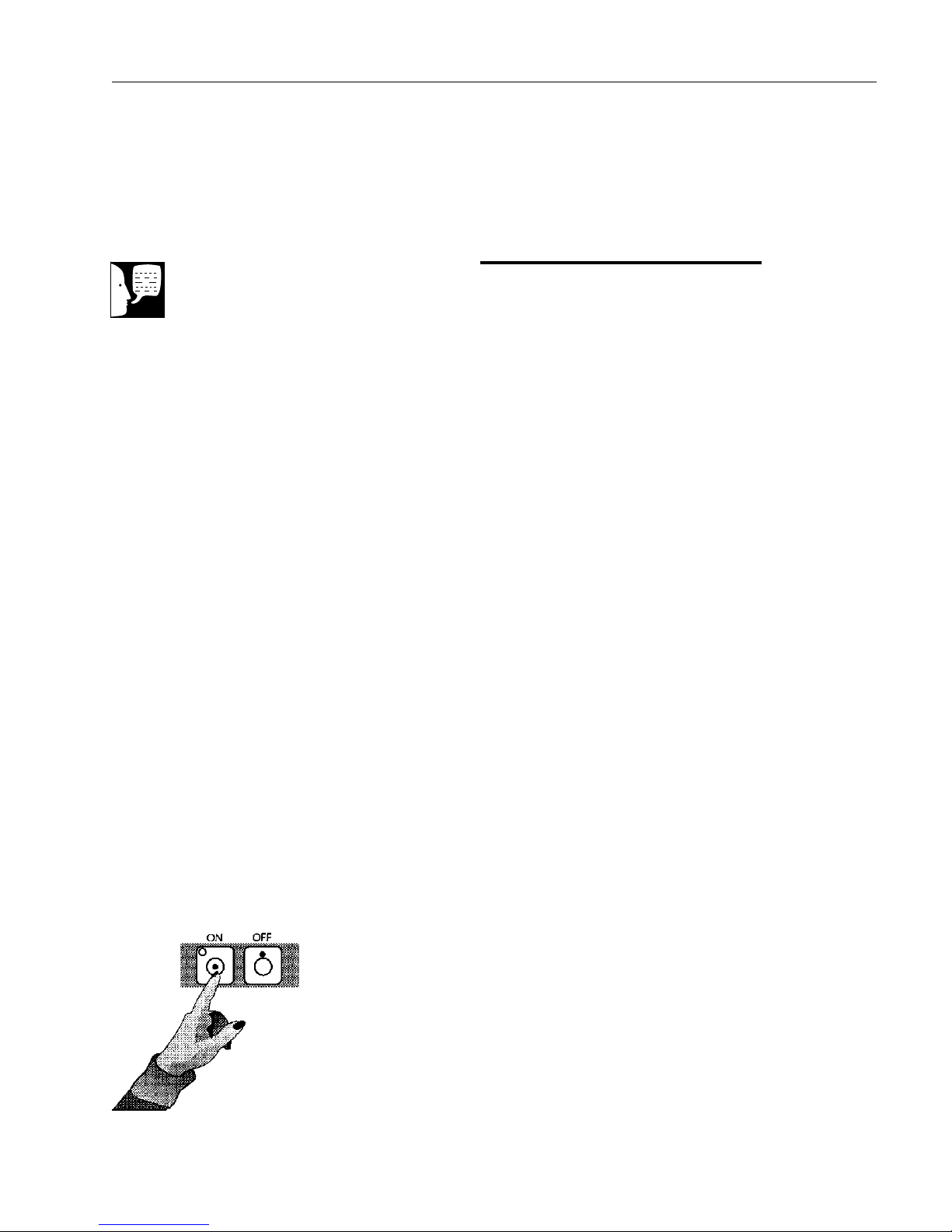

Power On/Controls On
1. When the sterilizer is plugged in and
the controls are off, the time and date
will be displayed.
2. Press Controls ON switch to turn on
the control panel. The cycle
temperature, exposure time and drying
time will be displayed and the Standby
Mode will begin. During the Standby
Mode, the heater turns on to warm the
chamber to approximately 38°C. The
heater then cycles ON and OFF to
maintain the warm temperature.
3. Turn ON the optional printer (see
Printer section).
OPERATION
Power On/Controls On
Note
If time and date are incorrect,
reset the clock/calendar.

18
Filling Reservoir
Add distilled or low quality deionized water (mini-
mum 0.5 megohm/cm, maximum 1.5 megohm/
cm) to the reservoir up to the fill line. The MC8
reservoir holds approximately 3 liters; the MC10
reservoir, 4 liters. Do not overfill.
OPERATION
Caution
Use only distilled or low
quality deionized water
(minimum 0.5 megohm/cm,
maximum 1.5 megohm/cm).
Normal tap water contains
minerals that will corrode
sterilizer parts.
Note
Be sure reservoir drain valve is
closed before filling the reservoir.
Warning
Burn Hazard: Do not add water
to the reservoir while sterilization
cycle is in progress. Steam
vented into reservoir at end of
cycle could result in possible
burns.
The water in the reservoir could
be HOT if multiple cycles have
been run in succession.
Reservoir lid must be in place
when sterilizer is in use.
Figure 7
Filling Reservoir
Fill Funnel
Use Distilled
or Low Quality
Deionized Water
Only
Fill To Mark
Refill
Fill

19
Filling Non-Recirculating Tank
(Option)
1. Remove the cap from the cooling tank.
2. Fill the cooling tank with distilled or
deionized water until the water begins
to flow from the cooling tank into the
collection bottle (or into the drain if the
overflow tube is installed).
3. Replace the cap.
Emptying Collection Bottle
1. Empty the collection bottle when the
water in the bottle reaches the FULL
mark.
2. Slide the bottle away from the cooling
tank to remove.
3. Pour the contents down the drain.
OPERATION
Note
The cooling tank must be
connected to the sterilizer before
filling the tank with water.
Note
Do not operate sterilizer unless
the cooling tank is filled with
distilled or deionized water and
attached to the sterilizer.
Hot Surface
Burn Hazard: Do not empty the
collection bottle when the
sterilizer is in operation.
Note
It is important to periodically
check the water level in the
collection bottle. Failure to empty
the bottle when full will result in
water overflowing onto
surrounding surfaces.
Figure 9
Emptying Collection Bottle
Optional
Overflow
Drain
Waste Water
Cooling
Tank
Collection
Bottle
From
Sterilizer
Figure 8
Non-Recirculating Water Accessory
Fill With Distilled or
Low Quality Deionized
Water Until It Overflows
Into the Collection Bottle
(Approx. 3 Gal.)
Collection
Bottle
Remove Cap
Optional
Overflow
Drain
Full Mark

20
Installing Overflow Tube
(Optional)
If the sterilizer is located within 5 ft. (1.5 m) of a
sink or drain, the overflow tube may be used. The
collection bottle will not require emptying while
the automatic overflow is used.
1. Push the overflow tube (supplied) into
the upper quick connect on the back of
the cooling tank.
2. Push the tube connector in until it
“clicks.”
3. Place the end of the overflow tube in a
sink or drain.
OPERATION
Load Chart
Note
The sink or drain must be below
the level of the cooling tank for
the water drain.
Note
Be sure to select the correct
cycle for the type of load.
Sterilization cannot be assured if
maximum load size and density
are exceeded. Total specified
weight should not be exceeded
for any sterilizer cycle.
Note
Use the LIQUIDS cycle to
process glassware.
Caution
Be sure items can withstand
cycle temperature before placing
them in sterilizer. If in doubt,
refer to device manufacturer’s
instructions.
Warning
Volatile Reaction: Do not use
this equipment for processing
volatile substances or for any
purpose other than its intended
design. Failure to observe this
warning could cause personal
injury or damage to equipment.
Warning
Burn Hazard: To prevent the
possibility of injury from liquids
boiling over and/or containers
exploding, use only self-venting
automatic sealing stoppers
recommended by manufacturers
when processing all container
liquids or media.
