HASEL HSL-BBP-03K User manual

NARROW IRONING TABLE
HSL-BBP-03K
HSL-BP-03K
HSL-VUP-03K
HSL-VUP-03S
ISO 9001:2000

HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 2
CONTENTS
Manufacturer Information:..............................:3
Meaning of Safety Symbols:...............................:4
Description And Intended Use:..........................:5
Technical Specifications: ...................................:6
Technique Drafting:............................................:7
Part List:.................................................................:8
Storage:..................................................................:8
Transport And Handling:..................................:9
General Safety Precautions:..............................:9-10
Mounting Instructions:......................................:10
Using Instructions:..............................................:11-12
Maintenance Instructions:..................................:12
Trouble Fixing:.......................................................:13

HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 3
MANUFACTURER INFORMATION
Dear Customer,
Firstly, congratulations for your selection.Hasel have been
manufactured industrial type ironing machines since 1985 in Turkey. In
production stage Hasel concerns about high quality, low price with no
compensation of quality and no harm to nature.
This manual contains information about usage of HSL-GP-03S,
HSL-GP-03K, HSL-GP-03KI. This information intended to help operator.
Any problems/questions about this manual should be informed to our head
office to obtain necessary information by e-mail or telephone.

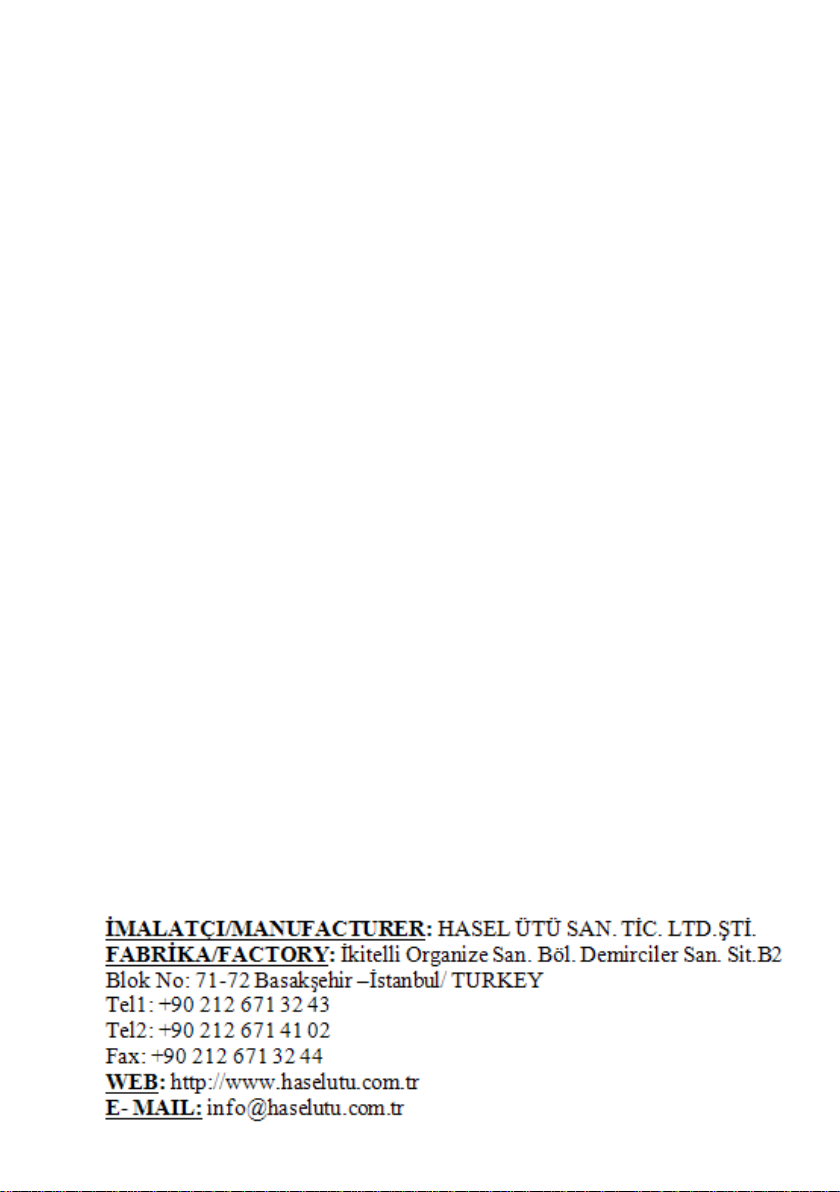

MANUFACTURER: HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ
FACTORY: İkitelli Organize San. Böl. Demirciler San. Sit.B2
Blok No: 71- 72 Başakşehir –İstanbul / TURKEY
Tel: [phone]
Tel:[phone]
Tel:[phone]
Fax:[phone]
WEB: http://www.haselutu.com.tr
E- MAIL:[e-mail]
DEAR CUSTOMER,
To obtain the highest efficiency from this product please read this
manual thoroughly before operating the product and retain it for
future reference.

HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 4

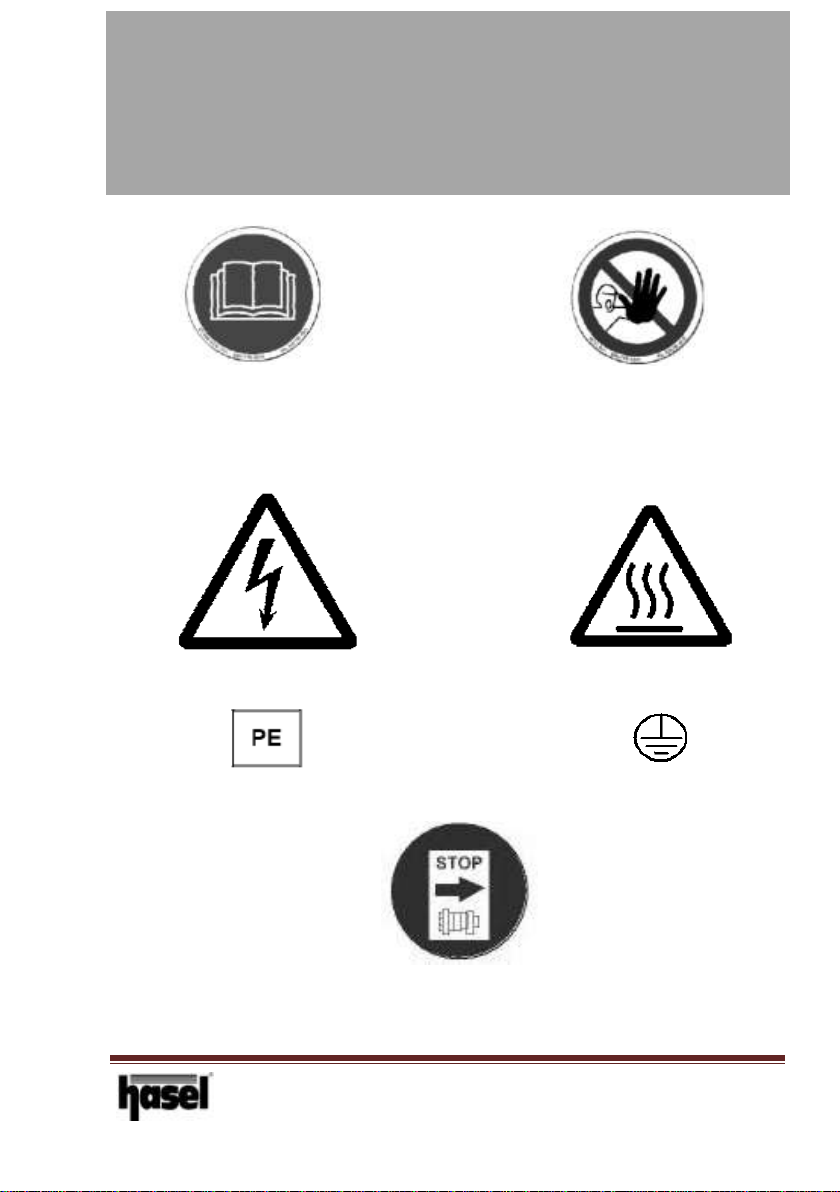

MEANING OF SAFETY SYMBOL
Read the manual Repairs should be made
before use by Qualified Person only
Electricity High Temperature
Main Grounding Internal Grounding
Stop the machine
Before maintenance

HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 5
DESCRIPTION AND INTENDED USE
Product Name: Narrow Ironing table within Vacuum and Air-blowing
Model No:
HSL-VUP-03S: Vacuum, Air-Blowing
HSL-VUP-03K: Vacuum, Air-Blowing, Swivel Arm
HSL-BP-03K: Vacuum, Air-Blowing, Swivel Arm, Chimney
HSL-BBP-03K: Vacuum, Air-Blowing, Swivel Arm, Chimney,
Lighting
HSL-VUP-03S, HSL-VUP-03K, HSL-BP-03K and HSL-BBP-03K are
wide type ironing tables. Used for ironing all types of clothes.
Models with arm, makes ironing easier and better for arms of clothes.
Using machine with the exception of above determined condition
eliminates manufacturer’ s responsible for damage and injury.

HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 6
TECHNICAL SPECIFICATIONS
(arm heating resistance 0,5 kW )
TYPE
HSL-VUP-03S
HSL-VUP-03K
Voltage
400 V ~3 NPE
400 V ~3 NPE
Frequency
50 Hz
50 Hz
Total Power
2,5 kW
2,5kW
Vacuum Motor
0,55 Kw
0,55 Kw
Blowing Motor
0,55 Kw
0,37 Kw
Table Heating El.
1,5 kW
1,5 kW
Arm Heating El.
------
-----
IP Code
Ip 54
Ip 54
Dimensions
80*140*92 cm
90*140*92cm
Weight
55 kg
61 kg
TYPE
HSL-BP-03K
HSL-BBP-03K
Voltage
400 V ~3 NPE
400 V ~3 NPE
Frequency
50 Hz
50 Hz
Total Power
2,5 kW
2,5 kW
Vacuum Motor
0,55 kW
0,55 kW
Blowing Motor
0,55 Kw
0,55 Kw
Table Heating El.
1,5 kW
1,5 kW
Arm Heating El.
-----
-----
IP Code
Ip 54
Ip 54
Dimensions
90*140*92cm
90*140*92cm
Weight
61 kg
61 kg

HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 7
TECHNIQUE DRAFTING

HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 8
PART LIST
STORAGE
Store the packed machine in an appropriate place, protected and not
subject to bad weather. For a temporary lack of usage, clean it
carefully and cover it with a cloth. Never subject to bad weather.
PART NAME
NO
Main Switch
1
Thermostat Signal Lamp
2
Thermostat
3
Vacuum Pedal
4
Blowing Pedal
5
Feet
6
Swivel Arm
7
Lighting
8
Arm Heating Switch
9
Balancer
10
Plug
11
Chimney
12
Seat For Iron
13
Changing Rod For Vacuuming and Blowing
14

HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 9
TRANSPORT AND HANDLING
To avoid damages to machine, people and environment, take the
maximum attention and care during handling of the machine. Comply
with the precautions necessary and marked on the cards on the packing
and follow chapters carefully.
Unpacking and Handling
Machine is packed in two ways
Wrapped by thick nylon or
Placed in a wooden cage.
If the machine is wrapped by a nylon cover, by putting on
transpalette or lifting up; carry it to where you want to place.
If the machine placed in a wooden cage, remove the straps and take it
out of the wooden structure. By putting on transpalette or lifting up;
carry it to where you want to place.
GENERAL SAFETY PRECAUTIONS
When using power tools, the following basic safety
measures are to be observed to protect against electrical
shock, personal injury and risk of fire.
Safe operation is enabling only if the operation manual is read entirely
before attempting to operate the machine and all the content is
conformed.
Disorder in the working area increases risk of an accident.

HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 10
GENERAL SAFETY PRECAUTIONS
Provide good lighting.
During any operation or fixing on the machine please take care
and consider all the precautions which is pointed on warning
signs and labels. All warning labels which are placed on
machine, meanings were pointed above. Please pay attention.
This machine is in accordance with the relevant safety
regulations. Repairs must be performed only by an electrical
specialist, otherwise accidents can result fort he operator.
Do not work the machine when it is out of its usage limits.
Use the identified spare parts and accessories in order to
improve the security
If it is necessary change the damaged parts with the original
ones. The manufacturer is not responsible any damage or injury
because of using unoriginal parts.
Fix the machine to contact arm for protection grounding. If the
machine is not earthed manufacturer doesn’t bear responsibility
for any damage or injury occurred by lack of rounding.
The power cable must be placed properly in order to prevent being
stepped on or being put anything on it. Check the cable especially
at out going points and connection points. Be careful not to allow
any bending or bowing on the cable
If the cable is damaged turn off the main switch. Do not allow
the machine to work with damaged cable. Let the authorized
electrician shift the cable.
User should not leave the machine alone while it is working.
After ironing, place hand iron on the hand iron mat.
Do not work machine upper 120°C long time. Table cover can
be burned.
IF THE USERS DO NOT FOLLOW THE CAUTIONS LISTED ABOVE MANUFACTURER WILL
NOT BE RESPONSIBLE OF ANY ACCIDENT AND INJURIES

HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 11
MOUNTING INSTRUCTIONS
Prepare a panel near to machine on the wall with 16 A an automatic
fuse, and earthed socket suitable for 400 V AC 50 Hz.
Put the plug (11) on the socket.
Let a qualified electrician prepare the electric connections
of the Machine. Your cable connection must be as it’s
written in the mounting instruction. Your machine can get
trouble by low or high voltage, and this situation is not in
guarantee. You can obviate the low or high voltage by using an
automatic voltage regulator.
USING INSTRUCTIONS
Usage of Counter Tables
1. Open the main switch (2).
2. urn the heater thermostat (3) Adjust working
temperature by using the table heater thermostat and
don’t exceed 120 o C. Do not forget if machine works
upper 120 o C long time, table cloth can be burned.
3. For vacuuming just pres the vacuum pedal (6), as long as
you pres pedal, you can get vacuuming.
Do not forget vacuuming continuously. This situation causes to get
upper table wet by cooling and break motor down by warming
extremely.

HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 12
USING INSTRUCTION
Usage of Swivel Arm
1. Pull swivel arm (9) on table.
2. Pull changing rod (5) to your direction for vacuuming.
3. For vacuuming just pres the vacuum pedal (6).
4. Kol ısıtmalı modellerde kol ısıtması isteniyorsa anahtarı(10)
açınız.
MAINTENANCE INSTRUCTIONS
Before repairing operation turn the main switch (1) absolutely off.
If you take away the protective parts during the maintenance, you have to
careful not to touch hot places. Certainly you must turn off the electricity
and steam out.
End of working , turn the main switch.(1)
Change table cloth when necessary.

HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 13
TROUBLE FIXING
PROBLEM
CAUSE
CHECKS
THE UPPER
PLATE IS NOT
GETTING HOT
*Table surface heating
element may be broken.
*Thermostat (3) may be
broken
*Call the service
* Thermostat (3) may be
switch off
*Control thermostat
adjustment
THE UPPER
PLATE IS
GETTING
VERY HOT
*Thermostat (3) may be
broken
*Call the service
*Thermostat adjustment
may be high.
*Control thermostat
adjustment
MOTOR DOES
NOT MAKE
VACUUMING
*Pedal switch may be
broken.
*Main switch(1) may be
broken
*Call the service
*Motor may be turning
wrong direction.
*Call electrician to check
electricity connection to
wall fuse.
MOTOR
WORKS
LOUDLY
*Motor fan maybe broken.
*Call the service
*Motor may be turning
wrong direction.
*Call electrician to check
electricity connection to
wall fuse.
THE UPPER
PLATE IS
GETTING
VERY HOT
*Thermostat (3) may be
broken
*Call the service
