HASEL HSL-GP-03S User manual

WIDE IRONING TABLE WITH VACUUM
HSL-GP-03S
HSL-GP-03K
HSL-GP-03KI

HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. 2
CONTENTS
Manufacturer Information:...........................:3
Meaning of Safety Symbols............................:4
Description And Intended Use:......................:5
Technical Specifications:................................:5
Technique Drafting: .......................................:6
Storage:............................................................:7
Transport And Handling:..............................:7
General Safety Precautions: ..........................:8-9
Mounting Instructions:...................................:10
Using Instructions:..........................................:10-11
Maintenance Instructions: .............................:11
Trouble Fixing:................................................:12

HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. 3
MANUFACTURER INFORMATION
Dear Customer,
Firstly, congratulations for your selection.Hasel have been
manufactured industrial type ironing machines since 1985 in
Turkey. In production stage Hasel concerns about high quality, low
price with no compensation of quality and no harm to nature.
This manual contains information about usage of HSL-GP-03S,
HSL-GP-03K, HSL-GP-03KI. This information intended to help
operator. Any problems/questions about this manual should be
informed to our head office to obtain necessary information by e-mail
or telephone.
MANUFACTURER: HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ
FACTORY: İkitelli Organize San. Böl. Demirciler San. Sit.B2 Blok
No: 71-72 K.çekmece –İstanbul/ TURKEY
Tel: [phone]
Fax:[phone]
WEB: http://www.haselutu.com.tr
E- MAIL:in[email protected]m.tr
DEAR CUSTOMER,
To obtain the highest efficiency from this product please read this
manual thoroughly before operating the product and retain it for
future reference.

HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. 4

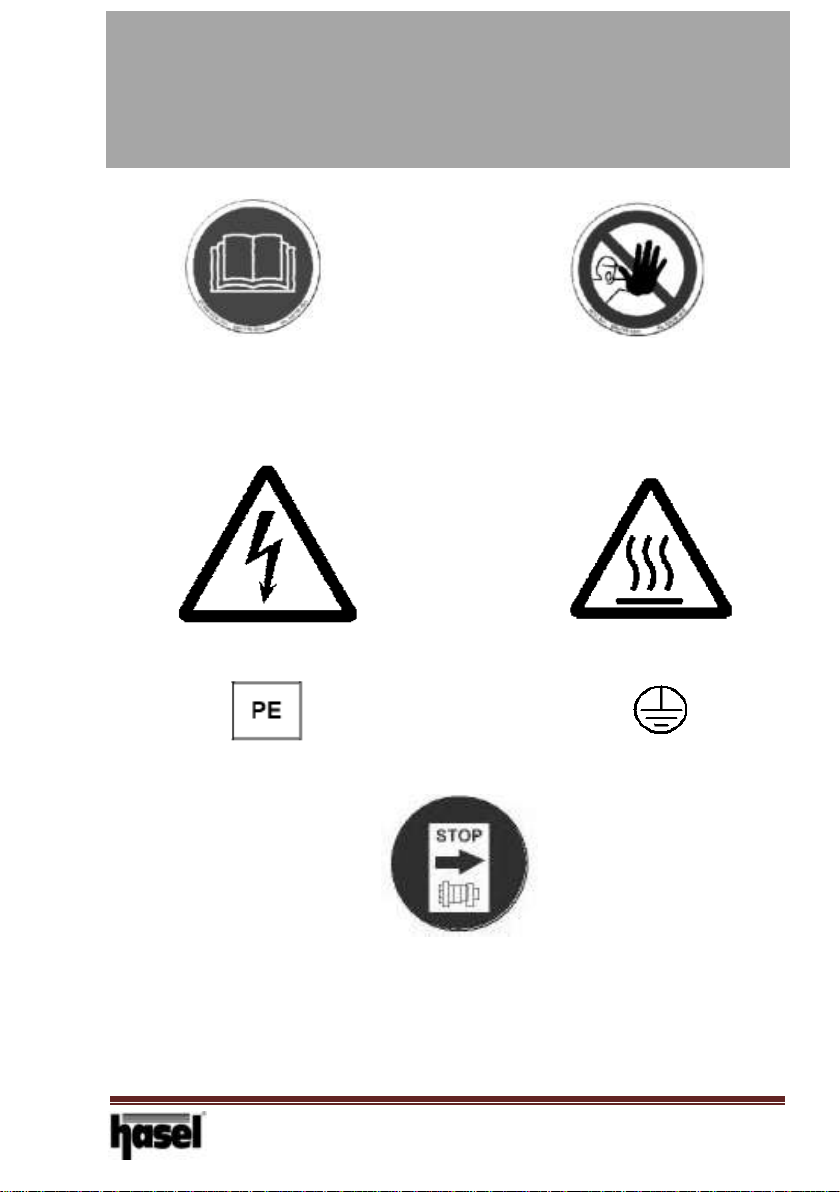

MEANING OF SAFETY SYMBOL
Read the manual Repairs should be made
before use by Qualified Person only
Electricity High Temperature
Main Grounding Internal Grounding
Stop the machine
Before maintenance

HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. 5
DESCRIPTION AND INTENDED USE
Product Name: Wide Ironing Table With Vacuum
Model No:
HSL-GP-03S: Wide Ironing Table With Vacuum
HSL-GP-03K: Wide Ironing Table With Vacuum and
Arm
HSL-GP-03KI: Wide Ironing Table With Vacuum
and Arm Heating.
HSL-GP-03S, HSL-GP-03K, HSL-GP-03KI are wide type
ironing tables. Used for ironing all types of clothes. Models with arm,
makes ironing easier and better for arms of clothes.
Using machine with the exception of above determined condition
eliminates manufacturer’ s responsible for damage and injury.
TECHNICAL SPECIFICATIONS
TYPE
HSL-GP-03S
HSL-GP-03K
HSL-GP-03KI
Voltage
220 V or 380V
220 V or 380V
220 V or 380V
Frequency
50 Hz
50 Hz
50 Hz
Total Power
3.55kW
3.55 kW
4 kW
Vacuum Motor
0,55 kW
0,55 kW
0,55 kW
Table Heating
El.
2*1,5 kW
2*1,5 kW
2*1,5 kW
Arm Heating El.
------
-----
0,5 kW
IP Code
Ip 54
Ip 54
Ip 54
Dimensions
140*80*91 cm
140*90*93 cm
140*90*93 cm
Weight
56kg
61 kg
61 kg

HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. 6
TECHNIQUE DRAFTING
HSL-GP-03KI
PART NAME
NO
Power Plug
1
Main Switch
2
Thermostat
3
Thermostat Signal Lamp
4
Changing Rod For Vacuuming
5
Vacuum Pedal
6
Feet
7
Table Frame
8
Swivel Arm
9
Arm Heating Switch
10
Seat For Iron
11

HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. 7
STORAGE
Store the packed machine in an appropriate place, protected
and not subject to bad weather. For a temporary lack of usage,
clean it carefully and cover it with a cloth. Never subject to bad
weather.
TRANSPORT AND HANDLING
To avoid damages to machine, people and environment, take the
maximum attention and care during handling of the machine.
Comply with the precautions necessary and marked on the cards on
the packing and follow chapters carefully.
Unpacking and Handling
Machine is packed in two ways
Wrapped by thick nylon or
Placed in a wooden cage.
If the machine is wrapped by a nylon cover, by putting on
transpalette or lifting up; carry it to where you want to place.
If the machine placed in a wooden cage, remove the straps and take
it out of the wooden structure. By putting on transpalette or lifting
up; carry it to where you want to place.

HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. 8
When using power tools, the following basic safety
measures are to be observed to protect against electrical
shock, personal injury and risk of fire.
Safe operation is enable only if the operation manual is read
entirely before attempting to operate the machine and all the
content is conformed.
Disorder in the working area increases risk of an accident.
Provide good lighting.
During any operation or fixing on the machine please take
care and consider all the precautions which is pointed on
warning signs and labels. All warning labels which are
placed on machine, meanings were pointed above. Please
pay attention.
Do not use machine in the vicinity of combustible fluids or
gases.
Do not let people other than those who are sufficiently
trained, to operate the machine.
This machine is in accordance with the relevant safety
regulations. Repairs must be performed only by an
electrical specialist, otherwise accidents can result fort he
operator.
Do not work the machine when it is out of its usage limits.
Use the identified spare parts and accessories in order to
improve the security.
If it is necessary change the damaged parts with the original
ones. The manufacturer is not responsible any damage or
injury because of using unoriginal parts.
GENERAL SAFETY PRECAUTIONS

HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. 9
Fix the machine to contact arm for protection grounding. If
the machine is not earthed manufacturer doesn’t bear
responsibility for any damage or injury occurred by lack of
rounding.
The power cable must be placed properly in order to prevent
being stepped on or being put anything on it. Check the cable
especially at out going points and connection points. Be careful
not to allow any bending or bowing on the cable
If the cable is damaged turn off the main switch. Do not
allow the machine to work with damaged cable. Let the
authorized electrician shift the cable.
User should not leave the machine alone while it is working.
After ironing, place hand iron on the hand iron mat.
Do not work machine upper 100°C long time. Table cover
can be burned.
Do not displace swivel arm.
Before start maintenance turn of main switch.
Do not touch hot places if the covers are removed at the
maintenance. Electric and steam output must be off.
Do not pull out the machine from grounding.
Do not start to work until fix cover.
The machine is under the acceptable noise merit. There is
no vibration and radiation spreading.
The machine can work in a closed area.
The machine can work between +5-40 °C
IF THE USERS DO NOT FOLLOW THE CAUTIONS LISTED ABOVE
MANUFACTURER WILL NOT BE RESPONSIBLE OF ANY
ACCIDENT AND INJURIES
GENERAL SAFETY PRECAUTIONS

HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. 10
MOUNTING INSTRUCTIONS
Prepare a panel near to machine on the wall with 16 A an
automatic fuse, and earthed socket suitable for 400 V AC 50
Hz.
Put the plug (1) on the socket.
Let a qualified electrician prepare the electric connections
of the Machine. Your cable connection must be as it’s
written in the mounting instruction. Your machine can get
trouble by low or high voltage, and this situation is not in
guarantee. You can obviate the low or high voltage by using an
automatic voltage regulator.
USING INSTRUCTIONS
Usage of Counter Tables
1. Open the main switch (2)
2. Turn the heater thermostat (3) Adjust working
temperature by using the table heater thermostat
and don’t exceed 100 o C. Do not forget if machine
works upper 100 o C long time, table cloth can be
burned.
3. For vacuuming just pres the vacuum pedal (6), as long
as you pres pedal, you can get vacuuming.

HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. 11
USING INSTRUCTIONS
Do not forget vacuuming continuously. This situation causes to get
upper table wet by cooling and break motor down by warming extremely.
Usage of Swivel Arm
1. Pull swivel arm (9) on table.
2. Pull changing rod (5) to your direction for vacuuming.
3. For vacuuming just pres the vacuum pedal (6).
4. For type of HSL-GP-03KI, open the arm heating switch (10)
if you want to heat the arm.
MAINTENANCE INSTRUCTIONS
Before repairing operation turn the main switch (2) absolutely off.
If you take away the protective parts during the maintenance, you have
to careful not to touch hot places. Certainly you must turn off the
electricity and steam out.
End of working , turn the main switch.(2)
Change table cloth when necessary.

HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. 12
TROUBLE FIXING
PROBLEM
CAUSE
CHECKS
THE UPPER
PLATE IS NOT
GETTING HOT
*Table surface heating
element may be broken.
*Thermostat (3) may be
broken
*Call the service
* Thermostat (3) may be
switch off
*Control thermostat
adjustment
THE UPPER
PLATE IS
GETTING
VERY HOT
*Thermostat (3) may be
broken
*Call the service
*Thermostat adjustment
may be high.
*Control thermostat
adjustment
MOTOR DOES
NOT MAKE
VACUUMING
*Pedal switch may be
broken.
*Main switch(2) may be
broken
*Call the service
*Motor may be turning
wrong direction.
*Call electrician to
check electricity
connection to wall fuse.
MOTOR
WORKS
LOUDLY
*Motor fan maybe
broken.
*Call the service
*Motor may be turning
wrong direction.
*Call electrician to
check electricity
connection to wall fuse.
