Kalorik USK SIT 25803 User manual

Steam press
Prensa de planchar
USK SIT 25803
120V~60Hz 1000W
www.KALORIK.com

2 USK SIT 25803 - 080425
I PORTANT SAFEGUARDS
1. READ ALL INSTRUCTIONS
2. Use this appliance for its intended use only.
3. Chec that your mains voltage corresponds to that stated on the
appliance.
4. To protect against a ris of electric shoc , do not immerse the
appliance in water or other liquids.
5. The iron should always be turned to OFF before plugging in or
unplugging from outlet. Never yan cord to disconnect from
outlet: instead, grasp plug and pull to disconnect.
6. Do not allow cord to touch hot surfaces.
7. The plug must be removed from the electric soc et before
cleaning, maintaining, or when filling with water or emptying and
when not in use.
8. Close supervision is necessary for any appliance being used by or
near children. This appliance is not intended for use by young
children.
9. The iron must not be left unattended while it is connected to the
supply mains.
10. Children should be supervised to ensure they do not play with the
appliance.
11. This appliance is not intended for use by persons(including
children) with reduced physical sensory or mental capabilities, or
lac of experience and nowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
12. Burns can occur from touching hot metal parts, hot water, or
steam. Use caution when you turn the steam iron upside down, as
there may be hot water in the outlet holes.
13. To avoid a circuit overload, do not operate another high
wattage appliances on the same circuit.
14. If an extension cord is absolutely necessary, a 10-ampere cord
should be used. Cord rated for less amperage may overheat.
Care should be ta en to arrange the cord so that it cannot be

3 USK SIT 25803 - 080425
pulled or tripped over.
15. If the supply cord is damaged, disconnect the appliance from
the soc et immediately and the supply cord must be replaced by
the manufacturer, its service agent or a similarly qualified person
in order to avoid a hazard.
16. Do not operate the appliance if it has been dropped or
damaged. To avoid the ris of electric shoc , do not disassemble
the appliance, ta e it to a service agent or a similarly qualified
person for examination and repair. Incorrect reassembly can
cause a ris of electric shoc when iron is used.
17. Do not continue to use this appliance if any part appears to be
faulty, missing or damaged.
18. Do not carry out maintenance wor other than that shown in this
manual.
19. Do not put anything other than water into the reservoir.
20. The iron must be used on a stable surface.
21. When placing the iron on its stand, ensure that the surface on
which the stand is placed is stable.
22. The iron is not to be used if it has been dropped, if there are
visible signs of damage or if it is lea ing.
SPECIAL INSTRUCTIONS
• To avoid a circuit overload, do not operate another high
wattage appliance on the same circuit.
• If an extension cord is absolutely necessary, a 10-ampere cord
should be used. Cords rated for less amperage may overheat.
Care should be ta en to arrange the cord so that it cannot be
pulled or tripped over.

4 USK SIT 25803 - 080425
SAVE THESE INSTRUCTIONS
POLARIZED PLUG INSTRUCTIONS
This appliance has a polarized plug (one blade is wider than the
other). To reduce the ris of electric shoc , this plug will fit into the
polarized outlet only one way. If the plug does not properly fit into
the outlet at first, reverse it. If it still does not fit, contact a competent
qualified electrician. Do not attempt to modify the plug in any way.
For appliances equipped with a standard plug, simply insert the plug
into the outlet without paying attention to the way you plug it.
SHORT CORD INSTRUCTIONS
A short detachable power supply cord is provided to reduce the
hazards resulting from becoming entangled in, or tripping over a
longer cord. Longer detachable power supply cords may be used if
care is exercised in their use.
• The electrical rating of the longer cord should be at least that
of the appliance. If the electrical rating of the extension cord
is too low, it could overheat and burn.
• The longer cord should be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on by
children or tripped over. The extension cord should be a
grounding-type 3-wire cord.

5 USK SIT 25803 - 080425
PART DESCRIPTION

6 USK SIT 25803 - 080425
These accessories are included with your appliance. Carefully chec
to ma e sure you have all the parts listed below.
Unit Features & Accessories
1. Hanger
2. Pole
3. Steam Iron
4. Iron Holder
5. Fabric Brush
6. Iron Brac et
7. Ironing Board
8. Main Brac et
9. Tilted Brac et
10. Steam Adjustment Knob
11. Water Reservoir Cap
12. Water level indicator light
13. Power Switch
14. Loc Button
15. Pole Fix Nut
16. Unloc Button
17. Rear Wheel
18. Bottom Cover
19. Water Filling Cup
20. Funnel
21. Brush
22. Screw Nut
23. Metal Screw
24. Left and Right Shafts
25. Screw covers
26. Brac et covers
27. Hoo s for holding power cord
28. Hoo s for holding power cord
29. Filter cartridge
30. Jewelry cleaner

7 USK SIT 25803 - 080425
Figure1: Ta e the main brac et with ironing
board part from pac age. First insert the pole
fixing nuts (part 15) into each pole then slide the
brac et into the holes at the bac of the front
cover (Part 18). Then push the two fixing nuts
down to secure the brac et firmly.
Figure 2: Inset the 2 shafts of the tilted brac et
into the front holes of the front cover, by
positioning the blac pegged parts into correct
position. Push down to fix firmly.
Figure 3: Clip on the two shaft covers (part 24).
Figure 4: Adjust the tilted brac et against the
main brac et, align the holes in the two
brac ets, and then use the metal screws and
nuts to secure the two brac ets together using
part 26. Clip on screw covers. Please use the
screws that do not have a plastic washer
Figure 5: Ta e the two parts of the ironing board
and clip them together.
Figure 6: Support the ironing board as shown by
inserting the diagonal bar into the clamp.
Figure 7a: The bolts to secure the diagonal
support brac ets have a plastic washer. This
washer must be placed between the two
brac ets.
Figure 7b: Sort into pairs and clip on the screw
covers. The cover with a hole in it is placed on
the side where the bolt is, sothat the bolt fits
inside the hole.

8 USK SIT 25803 - 080425
Figure 8: Attaching the iron holder: Align the holes
of the iron holder with the slots on the side of the
iron brac et, and push down to fix.
Figure 9: Attaching iron bracket to the frame: ta e
the assembled iron brac et (6), ma ing sure the
iron holder faces towards the ironing board, then
align the two pillar connectors with main brac et
holes and push down to loc .
Figure 10: Assemble the pole:
Insert the pole into the hole at the top of the iron
brac et.
Figure 11: Attaching the hanger: Ma e the hanger
face the direction as in figure 11, align the hole of
the hanger with top of pole, then push it down
firmly.
Figure 12: Placing the iron. Place the steam iron on
to the iron holder.
Figure 13: Attaching the fabric brush accessory:
Turn it and ma e the bristle face toward you and
align it with brush hanger on the brac et, then
slide the brush into its position on the iron brac et.
Figure 14: Slide the ironing board cover onto
board from the front end
first, smooth out and
fasten. The cover will be
creased at first, but these
creases can be steamed
out the first time you use
the ironing station.

9 USK SIT 25803 - 080425
INSTRUCTIONS FOR USE
FILLING RESERVOIR WITH WATER
Note: When the water level is low, the water level indicator will
illuminate. It is normal to hear a pumping sound coming from the
water reservoir when the water level is low. Adding water will stop
the sound.
Caution: Be sure that the power is OFF and the appliance is
unplugged before filling the water reservoir with water.
Warning: To prolong the life of this product and to ensure that the
ironing station’s performance is optimum, we strongly recommend
that you use distilled or cooled, pre-boiled water. Do not use bore-
hole water or water taken from a well. For complete care and
maintenance instructions please see the maintenance section in this
instruction manual.
1. Turn the reservoir cap counter-cloc wise to
open and remove the cap.
2. Using the measuring cup and funnel
provided, fill water reservoir with no more than
2500ml of water. (As shown in figure 15).
Do NOT add detergent or other chemicals to
the water reservoir. Doing so may result in
damage to the appliance.
3. Replace the reservoir cap and turn the arrow to closed position.
Figure 15

10 USK SIT 25803 - 080425
STEA SETTINGS
Figure 16
Both buttons can be either held down manually or loc ed into
position for ease of use when ironing or steaming for a lengthy period
of time. For ordinary steam, press and hold or press and loc the left
button.
For the steam jet first press and loc the steam button and then press
and loc the steam jet button. Should you only want a short burst of
steam, simply hold the steam jet button down for a few seconds
whilst using regular steam. These two buttons control the type of
steam output. To regulate the strength of the steam output, adjust
the nob on the top of the water reservoir.
REGULATING STEA OUTPUT
The nob on the top of the water reservoir can be turned to control
the steam output at various levels between minimum and maximum.
When steaming, you can regulate the strength of the steam
according to type and thic ness of fabric.
This nob also controls the moisture content of the steam. For steam
with a higher moisture content, turn the nob cloc wise towards
maximum. For drier steam, turn the nob anti-cloc wise towards
minimum. It is possible that some of the moisture will condensate
when the nob is turned all the way to maximum and this will
account for minor dripping, to prevent this, turn the nob slightly
bac towards minimum.

11 USK SIT 25803 - 080425
Figure 17
ATTACHING FABRIC BRUSH TO IRON
CAUTION: Use care when attaching fabric brush, as the sole plate
may be hot. Do not attempt to attach fabric brush while appliance is
emitting steam. As shown in figure 18 below, slide the fabric brush
over the sole plate until it clic s in place. When the fabric brush is
clipped in place you may begin steaming.
OPERATING THE IRONING STATION
1. NOTE: The very first time you use the ironing station, turn the steam
output dial to maximum, press and lock the regular steam button
and let the appliance run for 2 minutes on maximum. This is only
required the very first time you use the ironing station. For subsequent
use, it is not necessary to run the unit for 2 minutes, it can be used
immediately. For the first hour of use, the ironing station may not
perform at its optimum. This is due to the appliance needing time to
settle. After the first hour, performance will improve.

12 USK SIT 25803 - 080425

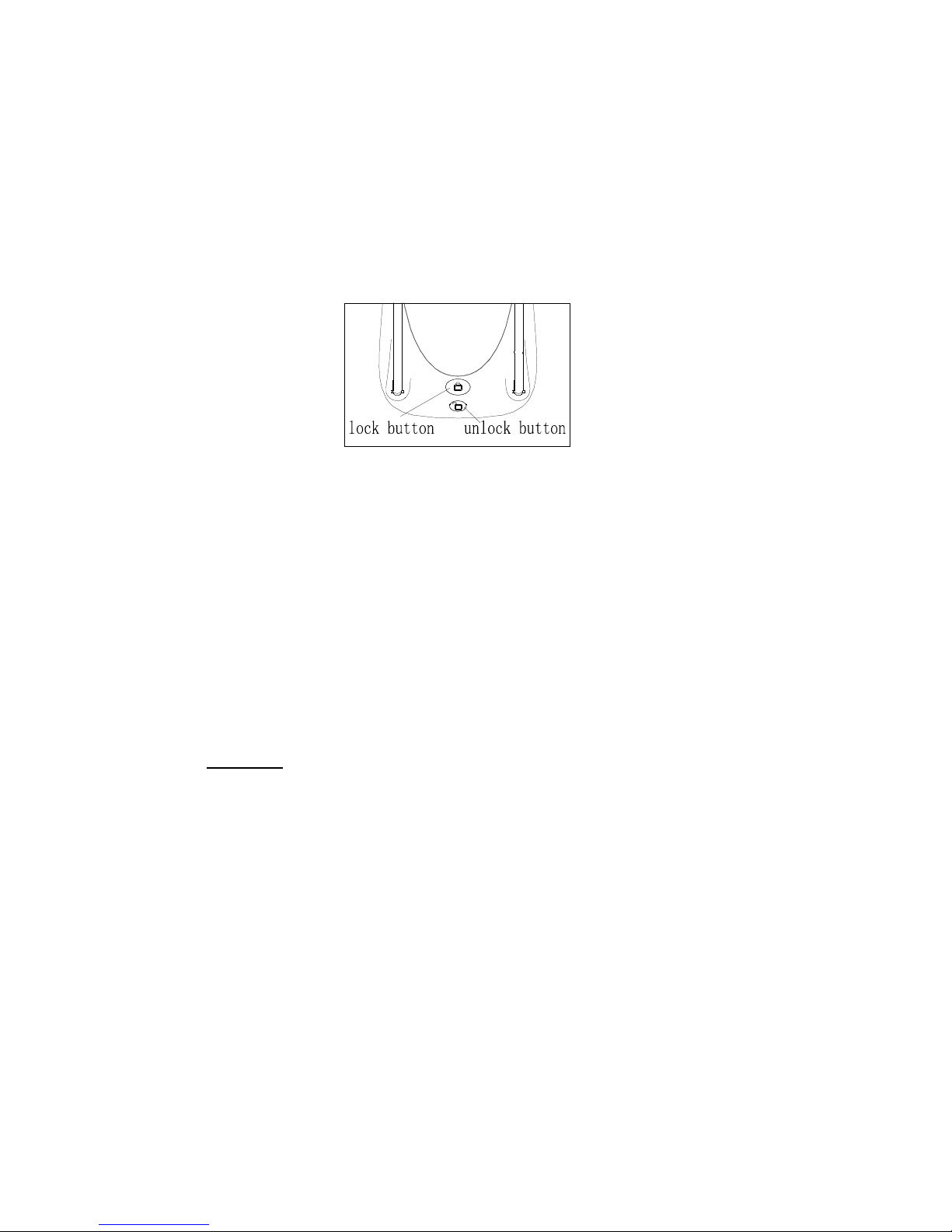

2. To prevent the appliance moving freely during use, push down
the loc button on the front to loc the appliance in place.
Figure 19
3. Plug power cord into a convenient electrical outlet.
4. Set Lighted ON/OFF switch to “ON”, and chec that the switch is
illuminated, the heater indicator light will illuminate indicating that
heater is active.
5. After approximately 30 to 40 seconds of heating time, the unit will
be ready for use.
6. Direct steam nozzle (with fabric brush, if desired) towards material
you wish to steam.
CAUTION:
* Always be sure that steam iron is pointed in a safe direction (away
from yourself, other people, pets and plants) before pressing the
steam button.
* If hot water drips from the soleplate during use, adjust the knob on
top of unit to anti-clockwise direction to regulate the output strength
of the steam.
7. To vertical steam your clothes:
Press and loc the left steam button, after a few seconds, the
appliance will begin producing a flow of steam. This unit has an
integrated clothes hanger, first hang your clothes on the hanger and
attach the brush to the iron. Keep the flow of steam focused on

13 USK SIT 25803 - 080425
material you are steaming. Using light bac and forth motions over
the area you are steaming will further enhance the process. If use for
a long period of time, some water might be sprin led on the clothes
if used from too near.
8. Press ironing your clothes:
Detach the brush, and lay the fabric flat on the ironing board, push
and loc the left steam button and then press the sole plate on the
fabric and ma e bac and forth movements, after several motions,
the clothes will be ironed.
CAUTION: Before doing flat ironing you should do a patch test on a
spare piece of fabric.
9. For convenience and safety always put the steam iron into the
safety holder when not in use or when turning over your garments
during ironing
10. To get a turbo jet of steam for stubborn creases, press the regular
steam button and the jet steam button.
11. When you are finished using your appliance, immediately set
lighted ON/OFF switch to OFF position and unplug power cord from
electrical outlet.
USING THE JEWELRY CLEANER ACCESSORY
Clip or attach desired item of jewelry into the appropriate place on
the jewelry cleaner. Using the steam jet function, aim the steam jet
at the item of jewelry and steam it clean. Please note, in order to
avoid scalding, hold the jewelry cleaner by its handle. The jewelry
cleaner can be stored underneath the ironing board as shown in the
picture below.
Figure 20

14 USK SIT 25803 - 080425
PROPER STORAGE
1. Turn the power switch to OFF and unplug power cord from
electrical outlet.
2. Allow unit to cool completely(at least 30 minutes)
3. Remove the Fabric brush attachment from unit (if attached,
please refer to following detaching steps)

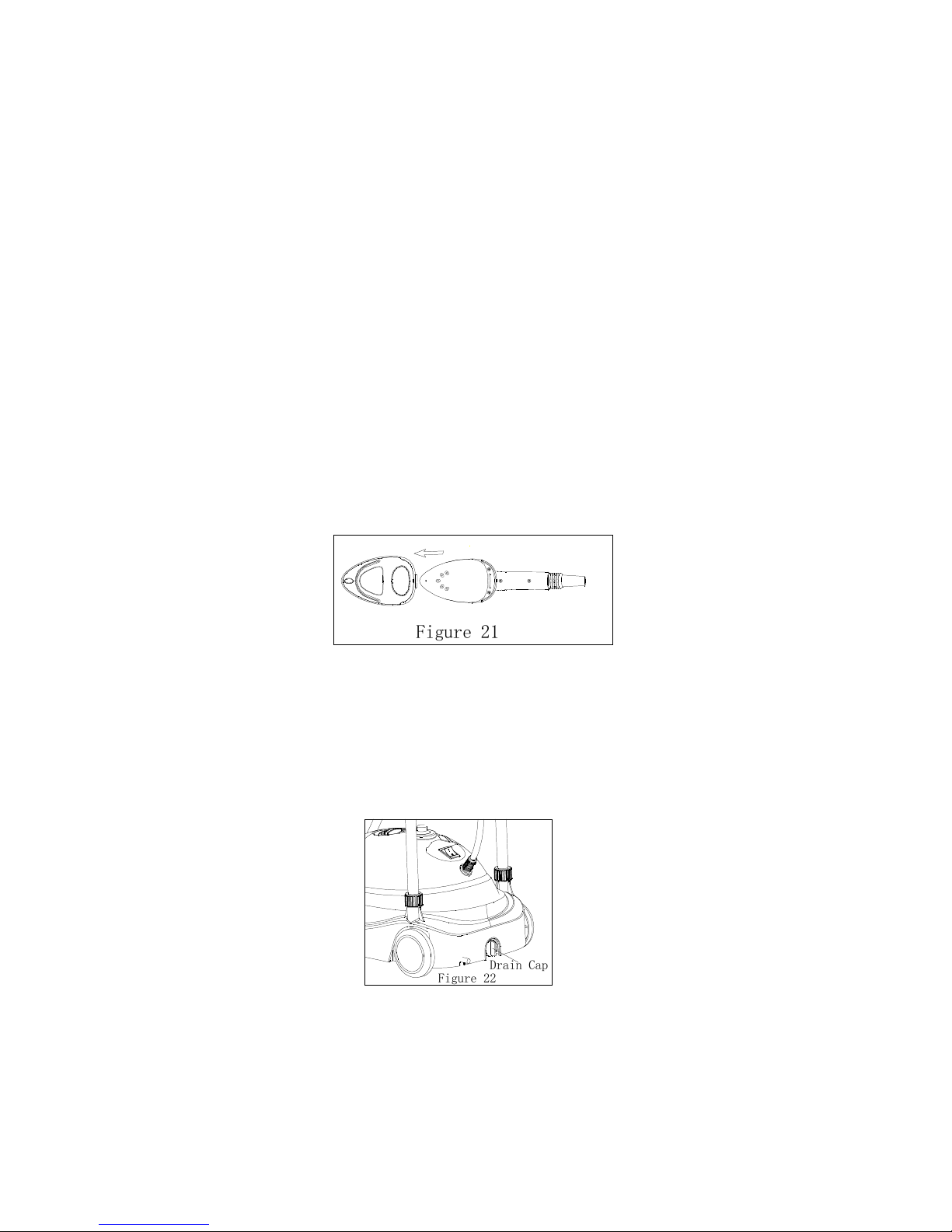

A. Use your finger to push the bac of the fabric brush to unloc
it.(figure 21)
B. Gently slide the fabric brush off the sole plate.
CAUTION: Do not attempt to detach the brush if the iron plate is hot!!
4. Push done on the wheel loc button to unloc wheels to allow
the unit to move freely.
5. Drain any remaining water in water reservoir into a sin or tub by
turning and removing the draining cap at bac of the appliance,
as shown in figure 22. Do not forget to put the draining cap in
place after draining.
Figure 22
Drain Cap
Figure 21

15 USK SIT 25803 - 080425
6. Wrap the power cord onto the cord clamp on the main brac et,
as figure 23 shows.
7. Set the ironing board to the lowered position as shown in figure
23.
8. Store the ironing station in a cool, dry place.
Figure 23
AINTENANCE
CHANGING THE FILTER CARTRIDGE
The filter cartridge is located inside the water reservoir. The filter
cartridge needs to be changed every 3 months. Failure to do so will
invalidate this appliance’s warranty. Before changing the filter
cartridge, ma e sure the appliance is switched off and unplugged. It
is recommended that you allow the appliance to cool. Please note
that when unscrewing the water drainage cap to change the filter
cartridge, residue water will automatically start to drain from the
reservoir. For this reason it is recommended that you open the
appliance over a basin. Once you have unscrewed and removed
the cap you will see a tubular object inside. Pull this out. This tubular
object is the filter cartridge.

16 USK SIT 25803 - 080425
Each new unit of the ironing station comes complete with a new filter
cartridge already inside the water reservoir and a spare filter
cartridge. Thereafter you will need to contact the retailer to
purchase replacement filter cartridges.

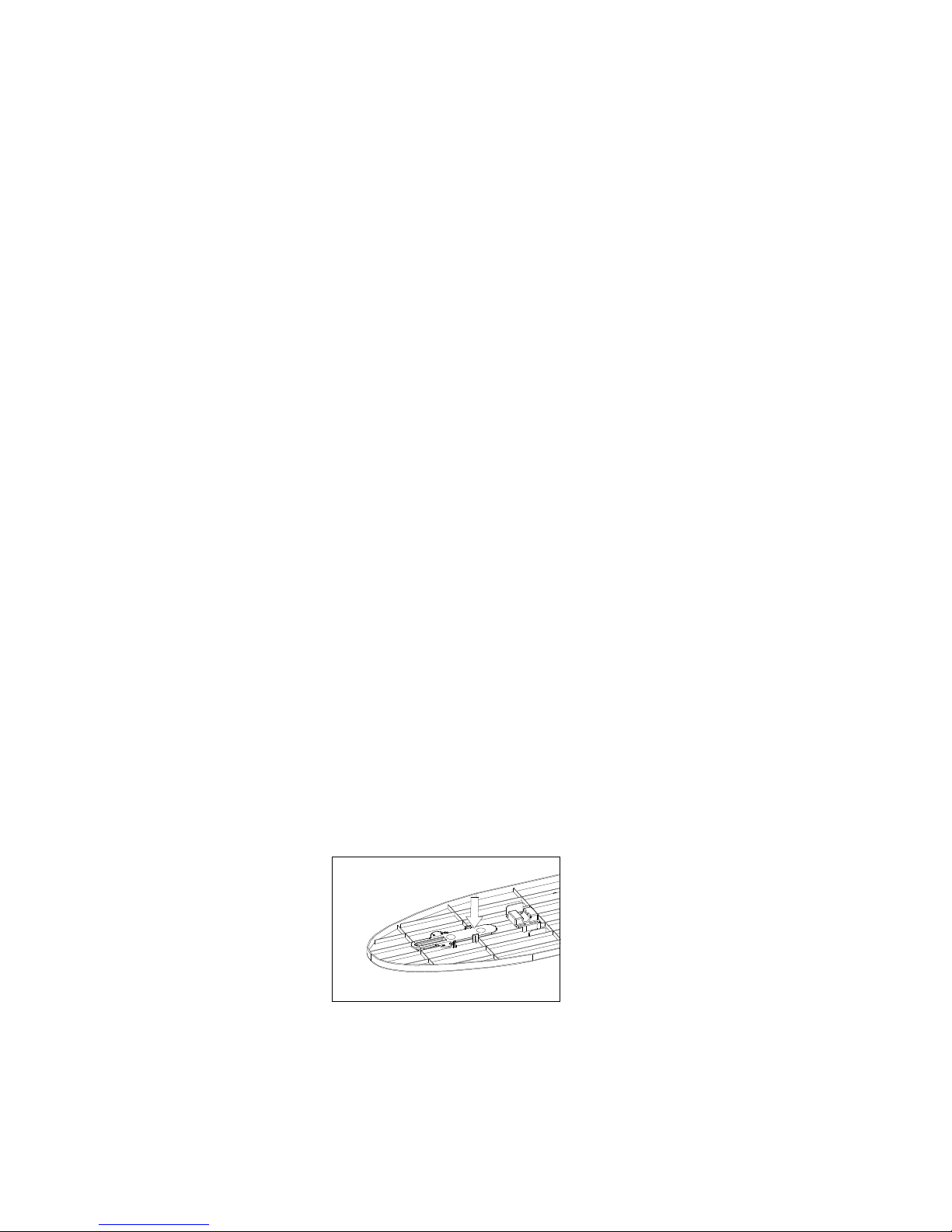

The spare filter cartridge can be found in the space under the ironing
board as shown in figure 25b below. This is to prevent the spare filter
cartridge from being misplaced.
Figure 25b
INUTE SELF CLEAN FUNCTION
To ensure optimum performance use the “3 minute self-cleaning
function” at least once a month. Whilst using this self-cleaning
function it is normal for water to drip from the steam holes on the sole
plate as there is an excessive amount of steam being forced out
through the steam holes.
Turn the steam strength dial to “Self-Clean”. Depress and clic the
left steam button on the iron. Allow the unit to run for 3 minutes or
until the steam and water being emitted runs clear. It is

17 USK SIT 25803 - 080425
recommended that you place a basin or a rag under the iron so as
to prevent the ironing board from getting wet.
NOTE: This function is solely for the purpose of cleaning the internal
structure
of this appliance. This function is not to be used during ironing as it
will soa the clothes and possibly stain the clothes with the mineral
residue that is being cleaned out of the system.
Figure 26
Caution: The steam being emitted during the self clean is very strong
and very hot. Take care to avoid scalding!
TROUBLE SHOOTING
PROBLE POSSIBLE
CAUSE
SOLUTION
Unit is not
plugged in
Plug electrical cord into
outlet
Unit fails to heat
up, heater
indicator light does
not illuminate.
Household
circuit Brea er/
Ground fault
interrupter has
tripped or
blown a fuse
Reset circuit
brea er/ground fault
Interrupter. Or replace
fuse. if you need
assistance, contact a
licensed electrician
Unit heats up, but
fails
to steam. (Note:
Water reservoir
is empty
Refill water reservoir
according to filling
procedure

18 USK SIT 25803 - 080425
allow proper time
for the unit
to heat up and
begin producing
steam)
Steam button is
not being
pressed
Press and hold the steam
button for a few seconds
for steam to begin flowing
Steam output
power is reduced
or intermittent.
Steam jet holes
have mineral
build up
bloc ing the
steam.
Use “self clean” function
cleaning for 3 minutes.
Loud pumping
sound when steam
button is pressed.
Low water
level in water
reservoir.
Refill water reservoir
according to filling
procedure
1. Used
incorrect water
type.
1. Immediately empty all
water from the reservoir
and refill using clean
water. Perform “self clean”
function to clear the
system and steam jet holes
of dirty water and mineral
build up.
2. Have not
routinely
performed the
“self-clean”
function.
2. Use “self clean” function
cleaning for 3 minutes.
Dirt/ mineral build
up coming out of
steam holes.
3. Have not
changed the
filter cartridge
at suggested
interval as
shown in
manual.
3. Change filter cartridge
as per instructions in
maintenance section.
Water level
indicator light
illuminates.
Reservoir is low
on water.
Refill reservoir according to
filling procedure.

19 USK SIT 25803 - 080425
DISPOSAL OF THIS APPLIANCE
This unit is mar ed to show that it should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can inform you where to return this product for
environmentally safe recycling.

20 USK SIT 25803 - 080425
WARRANTY
We suggest that you complete and return the enclosed Product
Registration Card promptly to facilitate verification of the date of
original purchase. However, return of the Product Registration Card is
not a condition of these warranties. You can also fill this warranty
card online, at the following address: www.KALORIK.com
This KALORIK product is warranted for 1 year from the date of
purchase against defects in material and wor manship. This warranty
is not transferable. Keep the original sales receipt. Proof of purchase
is required to obtain warranty performance.
During this period, the KALORIK product that, upon inspection by
KALORIK, is proved defective, will be repaired or replaced, at
KALORIK's option, without charge to the customer. If a replacement
product is sent, it will carry the remaining warranty of the original
product.
This warranty does not apply to any defect arising from a buyer's or
user's misuse of the product, negligence, failure to follow KALORIK
instructions noted in the user’s manual, use on current or voltage
other than that stamped on the product, wear and tear, alteration
or repair not authorized by KALORIK, or use for commercial purposes.
There is no warranty for glass parts, glass containers, filter bas et,
blades and agitators, and accessories in general. There is also no
warranty for parts lost by the user.
ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO
THIS PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY
PERIOD
Some states do not allow limitation on how long an implied warranty
lasts or do not allow the exclusion of incidental or consequential
damages, so the above limitations may not apply to you. This
warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
