HAWK ENTERPRISES HP1513HD User manual

HAWK ENTERPRISES 2902 Park Six Court, Elkhart, IN 46514 [phone] [phone]
www.hawkenterprises.com
Operation Care Service
Stripping, Scrubbing, Carpet Care
HAWK HD
Floor Machine
HAWK
ENTERPRISES

TABLE OF CONTENTS
Machine Specifications
............................................................................................1
Service Information .................................................................................................2
Important Safety Instructions ...................................................................................2
Grounding Instructions ............................................................................................3
Operations / Accessories ..........................................................................................3
Brush And Drive Block Installation ....................................................................4
Adjustments.........................................................................................................4
Controls ...............................................................................................................5
Guidelines For Operation ....................................................................................5
Cord Storage .......................................................................................................5
Clean Up And Storage .............................................................................................5

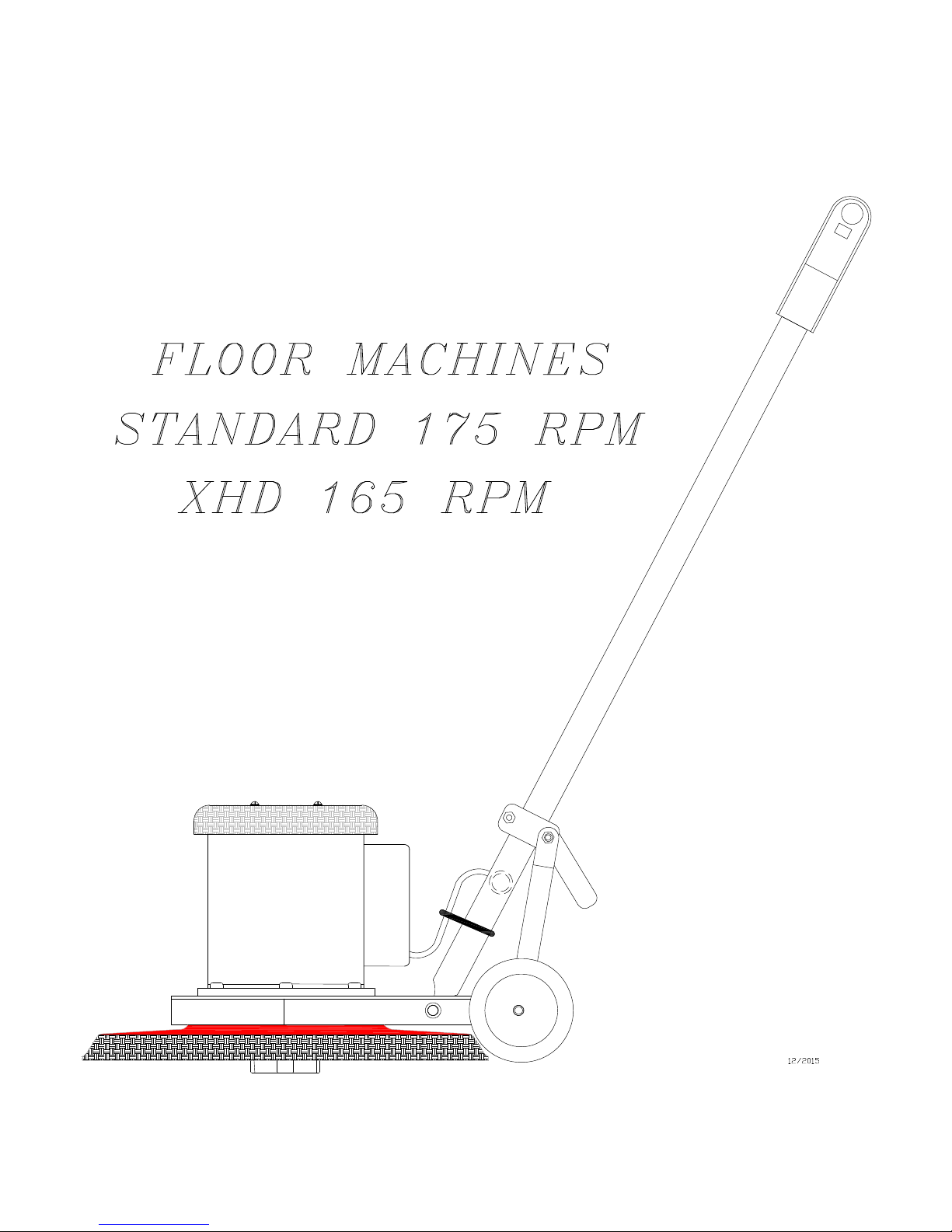

Floor Machine Assemblies .......................................................................................6
Floor Machine Parts List ...................................................................................... 7-8
Optional Accessories ................................................................................................9
Features ....................................................................................................................9
Limited Warranty ....................................................................................Back Cover
Machine Specifications
Specificaons
Model # HP1513HD HP1515HD HP1517HD HP1520HD
Part # F0013 F0006 F0009 F0012
Machine Size 13 inch 15 inch 17 inch 20 inch
Pad Size 12 inch 14 inch 16 inch 19 inch
Pad Speed 175 RPM 175 RPM 175 RPM 175 RPM
Current Draw 5.3 Amp 5.7 Amp 5.9 Amp 6.5 Amp
All Models
Motor 66 frame, 1.5 HP recfied AC motor
Power 115V / 60 Hz motor (230V opon).
Power Cord 50 . 14-3 STO industrial power cord w/molded plug
Drive System Triple-planetary HD 10:1 helical-cut commercial gears
dB Rang 60 dB - Meets GS42 Requirements

SERVICE INFORMATION
To obtain consistent performance over the life
of your equipment, read through these instruc-
tions and save them for future reference. If you
require service, contact the dealer from which the
machine was purchased or an authorized service
station. Always refer to your Limited Warranty for
complete service information.
The model, type, and serial number are indicated
on the data plate on the side of the handle. For
prompt and complete service, refer to these num-
bers when inquiring about service.
IMPORTANT SAFETY INSTRUCTION
When using an electrical appliance, basic precau-
tions should always be followed, including the
following:
READ ALL INSTRUCTIONS BEFORE US-
ING THIS FLOOR MACHINE.
l Your oor machine is equipped with a safety
switch lock and power switch triggers de
signed for your safety. Do not attempt to by
pass or defeat the safety switch lock. Never
use any device to lock the power switch trig
gers in the “ON” position.
l Do not leave the oor machine plugged in.
Turn off the switch and unplug the
electrical cord when not in use and before
servicing or changing the brushes or pads.
SERIAL NO. MODEL
VOLTS
MOTOR
PHASE
AMPS
HZ
H.P.
Write the model and serial number of your
unit in the space provided. Refer to the
data plate on unit.
SERIAL # MODEL #
Retain this owners manual for future reference.
WARNING: ELECTRIC SHOCK
CAN CAUSE SERIOUS INJURY OR
BE FATAL. PLEASE READ THE
FOLLOWING INSTRUCTIONS
ON THE USEAND
OPERATIONS OF FLOOR
FINISHING MACHINES.
l Do not allow the machine to be used as a toy.
Close attention is necessary when used near
children. Do not leave the machine connected to
an electrical outlet unattended.
l Use only as described in this manual. Use only
manufacturer’s recommended attachments.
l Do not use with a damaged cord or plug. If the
machine is not working as it should, has been
dropped, damaged, or left outdoors, return it to a
service center before using.
l Use care to keep the electrical supply cord
around sharp edges or corners. Keep the cord
away from the heated surfaces.
lConnect to properly grounded (3-wire) outlet
only. Refer to Grounding Instructions, Page 4.
l Do not use extension cords or outlets with
inadequate current carrying capacity.
lTurn off all controls before unplugging.
l Do not unplug by pulling on the cord. To unplug,
grasp the plug and pull.
l Do not handle the plug or oor machine with wet
hands.
l Wind the cord no tighter than is necessary to
retain it during storage. Refer to Cord Storage,
Page 5.
l Use extra care when working on or near stairs.
l Do not use in conjunction with ammable or
combustible liquids such as gasoline, or use in
areas where explosive vapor or dust may be
present.
l Store your oor machine indoors in a cool, dry
area.
l Keep your work area well lighted.
l WARNING: To avoid electrical shock, use
indoors only.
2

GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should mal-
function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. This appliance is equipped with a
cord that has an equipment-grounding conductor and
grounding plug. The plug must be plugged into an ap-
propriate outlet
that is properly installed and grounded in accordance
with all local codes and ordinances.
FOR FLOOR FINSIHING MACHINES RATED
LESS THAN 150 VOLTS
Improper connection of an equipment grounding con-
ductor can result in risk of electric shock. Check with
a qualied electrician or service person if you are in
doubt as to whether the outlet is properly grounded.
Do not modify the plug provided with the appliance.
If it will not t the outlet, have a proper outlet in-
stalled by a qualied electrician. This appliance is for
use on a nominal 120 volt circuit and has a ground-
ing plug that looks like the plug illustrated in Figure
1. A temporary adapter which looks like the adapter
illustrated in Figure 2 may be used to connect this
plug to a two pole receptacle, as shown, if a prop-
erly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded
outlet (Figure 1) can be installed by a qualied
electrician. The green colored rigid ear, lug, or the
like extending from the adapter must be connected to
a permanent ground such as a properly grounded out-
let box cover. Whenever the adapter is used, it must
be held in place by metal screw.
FOR FLOOR FINISHING MACHINES RATED
150-220 VOLTS:
If the machine is provided with an attachment plug cap
as shown in Figure 3, it is intended for use on a 240 volt
(nominal) circuit. No adapter is available for this cap.
WARNING: DO NOT USE
GROUNDING ADAPTERS ON
FLOOR MACHINES IN CANADA.
CHECK WITH CANADIAN CODES
FOR PROPER EQUIPMENT US-
AGE. IMPROPER USE OF GROUND
ADAPTORS CAN CAUSE SERIOUS
INJURY, FIRE, OR BE FATAL.
OPERATION / ACCESSORIES
CHOOSING THE RIGHT BRUSH AND DRIVE
BLOCK
Your oor machine is packed completely assembled
and ready for use after you install a brush or drive
block.
Your oor machine is designed to be used for many
different oor care applications. Make sure you use
the correct brush or pad for the type of job you want
to perform. (Accessories are available from the dealer
from whom the oor machine was purchased. See
Optional Accessories, Page 10)
When ordering brushes or drive blocks, refer to the
following chart and specify correct brush or block
diameter when ordering.
Machine Size Pad Driver Brush Diameter Block Diameter
13” 12” 13” 11”
15” 14” 15” 13”
17” 16” 17” 15”
20” 19” 20” 18”
Clutch plate A0019 is common on all models.
3

BRUSH AND PAD DRIVER
INSTALLATION
NOTE: Disconnect the power cord from the
electrical outlet before installing a brush or pad
driver.
To install a brush or pad driver, leave the handle in
the upright position and tip the machine backwards
so it rests on its wheels and upper handle section
(Figure 4). The brush and pad driver both attach in
the same manner; align the cut-outs on the inner
ring of the brush or pad driver with the tables on the
inside of the ring of the drive hub (Figure 5). Push
the brush or pad driver rmly in position, then turn
it counter-clockwise until it locks into place. To
remove, turn the brush or pad driver clockwise until
it stops, and then lift it off. NOTE: Always remove
the brush or pad driver when the machine is not in
use.
NOTE: Disconnect power cord from the
electrical outlet before installing or removing
brush, pad, or pad driver.
ADJUSTMENTS
HANDLE ADJUSTMENT
The handle can be adjusted to any desired work
position by simply pushing up on the handle lock
(Figure 5). Move the handle to the desired position,
then rmly push down on the handle lock which
will lock the handle in position.
HANDLE CAM LOCK ADJUSTMENT
With the handle cam lock in the “up” position
(unlocked), tighten the adjusting nuts until there is
a slight drag when the handle is raised or lowered.
The tube should be locked securely when the
handle lock is pressed downward (Figure 6).
ON OFF
UNLOCK
LOCK
UNLOCK
LOCK
ADJUSTING NUT
CONTROLS
ON/OFF POWER SWITCH TRIGGERS
The ON/OFF switch is conveniently located in the form
of dual triggers underneath the handle grips.
TO TURN THE MACHINE ON
The operating handle must be lowered to the operat-
ing position before switching the machine ON. Place
both hands rmly on the handle grips with your ngers
around the power triggers. Do NOT apply pressure on
the triggers before the safety switch lock is disengaged.
Disengage the safety switch lock by pushing it forward
with one thumb. Then, while holding the safety switch
lock in the disengaged position, squeeze the power trig-
gers toward the handle grips and return your thumb to
the handle grip. (See gure 7 )
To stop the machine, simply release the triggers. The
safety switch lock will automatically return to the
engaged position. (See gure 7 )
Figure 4
Figure 5
Figure 6
4

Push forward to
disengage safety
switch lock.
Figure 7
The model 175/300 RPM 2-Speed is a two-speed
oor machine designed for dual operation, scrubbing,
or bufng. A toggle switch on the left side of the
switch box selects the output speed, 175 RPM for
scrubbing or 300 RPM for bufng. DO NOT operate
this oor machine for bufng in low speed, it will
not do an effective job and tends to overload the mo-
tor unnecessarily.
GUIDELINES FOR OPERATION
• Your oor machine is a very sensitive, power-
ful unit. When in operation, it should be guided
gradually and smoothly without sudden or rough
motions. You will want to practice with your ma-
chine on a smooth surface until you have experi-
ence in operating it.
• For ease of operation, always keep the brush or
pad surface level, balanced, and at on the oor at
all times.
• Always adjust the operating handle to a comfort-
able height at which the brush or pad surface is
balanced before starting the machine. (See Handle
Adjustment Page 4)
• Your oor machine will operate differently on
various surfaces. For example, there will be much
more resistance when the machine is used with a
brush on carpeted surfaces than when it is used
with a pad on a smooth surface. The operator
should be prepared to adjust for these differences.
• BEGIN OPERATING THE FLOOR MA-
CHINE WITH THE BRUSH OR PAD SUR-
FACE LEVEL, BALANCED AND FLAT ON
THE FLOOR.
• To move the machine to the right, slowly apply
slight upward pressure on the handle.
• To move the machine to the left, slowly apply
slight downward pressure on the handle.
• To move the machine forward or backward, keep
the brush or pad at on the oor and push or pull
the machine in the desired direction.
DO NOT LET THE MACHINE REST ON THE
PAD OR BRUSH FOR AN EXTENDED PERIOD
OF TIME. This may alter the shape of the pad or
brush which may cause the machine to wobble.
CORD STORAGE
When not in use, loosely wind the power cord around
the cord storage hook on the handle shaft and both of
the handle grips, as shown:
CLEANUPAND STORAGE
After being used, your oor machine can be wiped
clean with a soft, damp cloth and should be stored in
a clean, dry place.
2

3/15/2016
DETAIL PART STANDARD 175 RPM MACHINES QTY.
NUMBER NUMBER DESCRIPTION REQ'D
1 HPW0001 FRAME STD. MACHINE 1
SEE DATA PLATE FOR PROPER BRUSH COVER SIZE
KIT3011RED BRUSH COVER 13 INCH W/BLK BUMPER 1
2 INC IN KIT3011RED BUMPER 13 INCH BLK (C0015-BLK) 1
2 INC IN KIT3011RED BUSH COVER 13 INCH - RED 1
KIT312RED BRUSH COVER 15 INCH W/BLK BUMPER 1
2 INC IN KIT3012RED BUMPER 15 INCH BLK (C0029-BLK) 1
2 INC IN KIT3012RED BUSH COVER 15 INCH - RED 1
KIT3013RED BRUSH COVER 17 INCH W/BLK BUMPER 1
2 INC IN KIT3013RED BUMPER 17 INCH BLK (C0001-BLK) 1
2 INC IN KIT3013RED BUSH COVER 17 INCH - RED 1
KIT3014RED BRUSH COVER 20 INCH W/BLK BUMPER 1
2 INC IN KIT3014RED BUMPER 20 INCH BLK (C0002-BLK) 1
2 INC IN KIT3014RED BUSH COVER 20 INCH - RED 1
KIT2015 BRUSH COVER HARDWARE MTG. KIT 1
4 INC IN KIT2015 SPACER 1.5 L 4
5 INC IN KIT2015 WASHER LOCK 5/16 4
6 INC IN KIT2015 SCREW SOCKET CAP 5/16-18 X 2.0L 4
KT2010 HARDWARE KIT STD. MACHINE 1
8 INC IN KIT2010 FLAT WASHER ZINC 10
9 INC IN KIT2010 COTTER PIN 3/32 X 1.0L ZN 4
10 INC IN KIT2010 PUSH NUT .500 PLATED 4
11 INC IN KIT2010 WASHER SPRING .505 ID ZN 4
12 INC IN KIT2010 COTTER PIN 5/32 X 1.25L ZN 1
KIT2007 WHEEL KIT STD. MACHINE COMPLETE W/HDWR 1
14 INC IN KIT2007 WHEEL 5.0 INCH W/BALL BEARING 2
15 INC IN KIT2007 AXLE WHEEL PLATED 1
INC IN KIT2007 KIT210 HARDWARE KIT STD. MACHINE 1
KIT3006BLK STANDARD MACHINE CONNECTING LEG KIT BLACK 1
17 INC IN KIT3006BLK CONNECTING LEG BLACK 2
INC IN KIT3006BLK KIT 210 HARDWARE KIT STD. MACHINE 1
KIT3010BLK HANDLE CLAMP, CORD HOOK & CAM LOCK ASSY KIT COMP 1
19 INC IN KIT3010BLK CORD HOOK CAP-BLK 1
20 INC IN KIT3010BLK CORD HOOK -BLK 1
21 INC IN KIT3010BLK NUT NYLOC THN .375-16 ZN 1
22 INC IN KIT3010BLK CAM LOCK ASSY - BLK 1
23 INC IN KIT3010BLK WASHER FLAT .375 BLK OXIDE 2
24 INC IN KIT3010BLK NUT NYLOC FULL .375-16 1
25 INC IN KIT3010BLK BOLT .375-16 X 2.0L GR8 BLK 1
KIT2018 HANDLE SHAFT STANDARD MACHINE KIT 1
27 INC IN KIT2018 HANDLE SHAFT STANDARD MACHINE PLATED 1
INC IN KIT2018 KIT210 HARDWARE KIT STD. MACHINE 1
KIT3003BLK MOTOR DRIP COVER / MTG KIT 1
29 INC IN KIT3003BLK MOTOR DRIP COVER - BLACK 1
30 INC IN KIT3003BLK SPACER .500 X .625L 3
31 INC IN KIT3003BLK WASHER LOCK #10 EXT 3
32 INC IN KIT3003BLK LABEL MOTOR 1
33 INC IN KIT3003BLK SCREW 10-24 X 1.0 TT 3
CONTINUED ON PAGE TWO

SEE DATA PLATE FOR PROPER MOTOR INFORMATION
MOTOR WITH GEARBOX INSTALLED
34 KIT1012BLACK MOTOR 1.5 HP 115/230V 60C W/ 3 IDLER GEARBOX BLACK
34 KIT1012CHROME MOTOR 1.5 HP 115/230V 60C W/ 3 IDLER GEARBOX CHROME
KIT1013BLACK MOTOR 1.5 HP W/ XHD GEAR UNIT BLACK
34 KIT1013CHROME MOTOR 1.5 HP W/ XHD GEAR UNIT CHROME
GEARBOX ONLY WITH FLANGE INSTALLED
34 KIT1015 STD GEARBOX W/FLANGE INSTALLED
34 KIT1016 XHD GEARBOX W/FLANGE INSTALLED
GEARBOX ONLY WITHOUT FLANGE
34 KIT1017 STD GEARBOX WO/FLANGE
34 KIT1018 XHD GEARBOX WO/FLANGE

3/15/2016
PART STANDARD HANDLE ASSY
DET. NO: NUMBER DESCRIPION QTY.
KIT3011BLK TRIGGER REPLACEMENT KIT 14 INCH BLK 1
1 INC IN KIT3011BLK TRIGGER 14 INCH - BLACK 1
2 INC IN KIT3011BLK ROLL PIN 2
3 INC IN KIT3011BLK SPRING - TRIGGER 2
KIT2011BLK HANDLE GRIP REPLACEMENT KIT 1
4 INC IN KIT2011BLK HANDLE GRIP - BLK 2
KIT1005 SWITCH - MAIN REPLACENENT KIT 1
5 INC IN KIT1005 SWITCH INSULATION 1
6 INC IN KIT1005 WASHER LOCK INT. TOOTH 3/8 ZN 1
7 INC IN KIT1005 WASHER FLAT STEEL ZN 5
8 INC IN KIT1005 WASHER FLAT 5/16 ZN 1
9 INC IN KIT1005 SWITCH - MAIN 1
KIT2006 SAFETY SWITCH REPLACEMENT KIT 1
10 INC IN KIT2006 SAFETY SWITCH 1
11 INC IN KIT2006 SPRING - SAFETY SWITCH 1
KIT2005 STRAIN RELIEF REPLACEMENT KIT 1
12 INC IN KIT2005 STRAIN RELIEF 1
13 INC IN KIT2005 NUT CONDUIT STRAIN RELIEF 1
14 INC IN KIT2005 WASHER STRAIN RELIEF-ZN 1
KIT1002 HANDLE (STD) HDWR & IN HANDLE CORD REPLACEMENT KIT 1
15 INC IN KIT1002 IN HANDLE REPLACEMENT CORD (STD) UNITS 1
16 INC IN KIT1002 GROMMET IN HANDLE CORD 1
17 INC IN KIT1002 SCREW 10-24 X .50 THRD ROLL PHIL PAN ZN 4
18 INC IN KIT1002 IN HANDLE LOOP CLAMP 1
19 INC IN KIT1002 WASHER #10 EXT. TOOTH LCK 5
20 INC IN KIT1002 WIRE NUT 3
KIT3008RED SWITCH BOX REPLACEMENT KIT 1
21 INC IN KIT1008RED LABEL - REAR SAFETY WARNING 1
22 INC IN KIT1008RED LABEL - FRONT 1
23 INC IN KIT1008RED SCREW 10-24 X .50 THRD ROLL PHIL PAN ZN 2
24 INC IN KIT1008RED WASHER #10 EXT. TOOTH LCK 2
25 INC IN KIT1008RED SWITCH BOX COVER - RED 1
KIT2020BLK HANDLE WDNT STD. WITH THE FOLLOWING KITS INSTALLED 1
26 HANDLE WDNT STD. WITH THE FOLLOWING KITS INSTALLED
INC IN KIT2020BLK HANDLE WDNT CHROME PLATED 1
INC IN KIT2020BLK KIT3011BLK TRIGGER REPLACEMENT KIT 14 INCH BLK 1
INC IN KIT2020BLK KIT2011BLK HANDLE GRIP REPLACEMENT KIT 1
INC IN KIT2020BLK KIT1005 SWITCH - MAIN REPLACENENT KIT 1
INC IN KIT2020BLK KIT2006 SAFETY SWITCH REPLACEMENT KIT 1
INC IN KIT2020BLK GROMMET IN HANDLE CORD 1
INC IN KIT2020BLK KIT2005 STRAIN RELIEF REPLACEMENT KIT 1
KIT1003 POWER CORD & STRAIN RELIEF REPLACEMENT KIT 1
27 INC IN KIT1003 POWER CORD 1
INC IN KIT1003 KIT 2005 STRAIN RELIEF KIT 1

OPTIONALACCESSORIES
Model
17” 1.5 HP 175 RPM Model 20” 1.5 HP 175 RPM Option Description
A0002 A0003 Polypropylene Brush
A0004 A0005 Polish Brush
A0006 A0007 Nylon Brush
A0008 A0009 Grit Brush
A0010 A0011 Pad Driver
A0001-NAT4 A0001-NAT Solution Tank Kit
A0019 A0019 Clutch Plate (Plastic)
A0019-1M A0019-1M Clutch Plate (Aluminium)
FEATURES
• Dual trigger negative pressure switch allows operator to run unit with either hand
• Safety switch lock mechanism prevents accidental start.
• Steel transmission gears give outstanding wear and durability
• Planetary gearbox means strength
• Premium 66 frame motors provide better cooling and more torque with longer motor life
• One piece welded heavy gauge handle gives superior handling stability
• Ergonomically designed foot operated positive lock handle adjustment eliminates bending
• High strength steel frames withstand heavy duty wear situations

LIMITED WARRANTY
Your HAWK equipment which has been manufactured, tested and inspected in accordance with carefully
specied engineering requirements, is warranted to be free from defects in material and workmanship. This
Limited Warranty is, however, subject to the Following qualications, conditions and limitations which are set
forth to provide you and all users of the HAWK equipment with information concerning the duration, extent,
availability, and applicability of this HAWK Limited Warranty, the procedure to be taken to obtain its
performance, and other information concerning the HAWK Limited Warranty policy.
The HAWK ENTERPRISES Limited Warranty is extended to the original end user as follows:
Machines: 3 year parts replacement and 1 year service labor warranty.
Replacement parts guaranteed for 90 days from date of installation against defects in material and
workmanship.
This Limited Warranty will not cover damage attributable to the following:
(1) Improper, unreasonable or negligent use or abuse of the equipment
(2) Abrasions or punctures of the equipment.
The start date of the Limited Warranty coverage shall be the purchase date of the original end user or six months
from the date the machine was shipped from the Factory, whichever comes rst.
PARTS OF EQUIPMENT NOT COVERED BY THE LIMITED WARRANTY
Certain parts of equipment require replacement in the ordinary use due to normal wear by reason of their
characteristics. Normal wear items such as cords, switches, bumpers, bearings, etc. are excluded from the
Limited Warranty.
EXCEPTIONS AND EXCLUSIONS FROM THE LIMITED WARRANTY
This equipment is required to be used on electric current as indicated on the data plate. Otherwise damage,
defects, malfunctions or other failure of the equipment arising from use on electric current not as indicated are
excepted and excluded from this Limited Warranty. Defects, malfunctions, failure or damage of the equipment
caused by improper, unreasonable or neglect use or abuse while in possession of the purchaser are likewise
excluded from this warranty. If repair is done on your equipment by anyone other than those designated as
authorized to perform such work without rst having obtained factory instructions, HAWK ENTERPRISES at
its sole option, my determine that this warranty will not apply and that reimbursement for such repair will not
be made because of the failure to comply with such factory specied instructions.
PROCEDURE TO BE TAKEN TO OBTAIN PERFORMANCE OF LIMITED WARRANTY REPAIR
To secure repair of the equipment or any warranted parts under this Limited Warranty, the following procedure
should be taken. The inoperative equipment or warranted parts, together with satisfactory evidence of the
purchase date, must be delivered, with shipping and delivery charges prepaid, to one of the following:
(1) The dealer from whom purchased;
(2) Any HAWK distributor’s service department in the United States;
(3) Any HAWK authorized service station in the United States.
If you are unable to locate any of the foregoing, you may write or otherwise communicate with HAWK
ENTERPRISES before repair service is performed by anyone else. In such event, HAWK ENTERPRISES will
provide either the location or a closely available HAWK distributor service department, or HAWK authorized
service station or other factory instructions. Upon compliance with the above procedure, all warranted defects
will be repaired, at no additional charge or costs to the customer, and the repaired product returned to the
customer, with all shipping and delivery charges pre-paid. In following the procedures set forth, PLEASE
MAKE CERTAIN to state the model, type and serial number as shown on the data plate of the equipment.
REPLACEMENT
In the event of a defect, malfunction or failure of your HAWK equipment or any warranted part to conform with
this warranty, HAWK may, at its sole option and own expense, replace the equipment or any warranted part
with another new, identical or reasonably equivalent model or part in lieu or repairing the defect.
NO REFUND OF PURCHASE PRICE
HAWK will not, as a matter of it’s Limited Warranty policy, refund the customer’s purchase price.
LIMITED WARRANTY REGISTRATION CARD FOR YOUR EQUIPMENTAND REQUEST FOR INFORMATION
Your HAWK distributor from whom you purchased your equipment is responsible for the registration of your
Limited Warranty with the factory. Any information or questions you may have concerning your HAWK
ENTERPRISES equipment or this Limited Warranty may likewise be secured from the factory. This Limited
Warranty will give you specic legal rights, and you may also have other rights which vary from state to state.
