HAWK ENTERPRISES REDTAIL2014 User manual

HAWK ENTERPRISES 2902 Park Six Court, Elkhart, IN 46514 [phone] [phone]
www.hawkenterprises.com
Operation Care Service
HAWK Red Tail 2014
Surface Prep Orbital Floor Machine
Surface Preparaon, Scrubbing, Refinishing
HAWK
ENTERPRISES
Specificaaons
Model# REDTAIL 2014
Part# F-REDTAIL-2014
Pad Size 20” x 14”
Pad Speed 1725 RPM
Weight 112 lbs.
2
Pad Pressure 0.4 lbs/in
Motor 1.0 HP, 56 frame, TEFC, dual capacitor AC motor
Power Source 115-230V, 50/60 Hz power
Power Cord 50 . 14-3 JT power cord with molded plug
Amp Draw 7.8 Amp
Drive System Essentric balanced orbital drive
Vibraon Isol tor (4) primary, (6) secondary
dB Rang 66 - Meets GS42 standard.

SERVICE INFORMATION
To obtain consistent performance over the life of your equipment, read though these
instructions and save them for future reference. If you require service, contact the
dealer from which the machine was purchased or an authorized service station.
Always refer to your limited Warranty for complete service information.
The model, type, and serial number are indicated on the data plate on the side of the
handle. From prompt and complete service, refer to these numbers when
inquiring about service.
Write the model and serial number of your
unit in the space provided. Refer to the
data plate on unit.
SERIAL # MODEL #
Retain this owners manual for future reference.
SERIAL NO. MODEL
VOLTS
MOTOR
PHASE
AMPS
HZ
H.P.
Service Information .................................................................................................2
Machine Specications ............................................................................................3
Features....................................................................................................................3
Important Safety Instructions...................................................................................4
Grounding Instructions ........................................................................................5-6
Operations ...............................................................................................................7
Guidelines For Operations.......................................................................................7
Controls...............................................................................................................7
Adjustments.........................................................................................................8
Cord Storage .......................................................................................................8
Clean Up And Storage .............................................................................................8
Limited Warranty....................................................................................Back Cover
2

3
Model # REDTAIL2014
Part # F-REDTAIL-2014
Pad Size 20” X 14”
Pad Driver Type Combination Pad
Holder/Diamond Pad Driver
Power Source 115V 60Hz
Motor/HP 1.0 HP TEFC
1740 Rpm
Amp Draw 7.8
Vibration
Compensator 1.25 Inches
Cord 50’14-3 SJT
Pad Pressure (lbs/in2)*** .40
Total Weight ** 162
Shipping Weight 198
**Weight is calculated without the power cord
***Pad pressure does not include the weight of the power
cord.
Specications subject to change without notice.
Features
• Twin (dual) capacitor 56-frame TEFC
(totally enclosed fan cooled) motor
keeps out dirt and dust for longer motor
life.
• Extra heavy duty spring steel cord
strain relief with a 50’14-3 power cord
• Low current draw
• Thumb-operated safety switch
• Negative pressure on/off switch
• Dual steel operating triggers for left- or
right-hand operation
• One-piece industrial powder coated
heavy duty steel handle for optimum
durability
• Welded frame for rugged, reliable
performance
• Non-marking, 2x6” ball bearing
wheels
• Multiple position handle adjustment
for operator comfort and safety
• Comfortable vinyl handle grips for
ease of use
• Full wraparound dust skirt

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
WARNING:
ELECTRIC SHOCK CAN CAUSE SERIOUS
INJURY OR BE FATAL. PLEASE READ THE
FOLLOWING INSTRUCTIONS ON THE USE
AND OPERATIONS OF FLOOR FINISHING
MACHINES.
• Your TigerHawk is equipped with a safety switch lock and power switch triggers de-
signed for your safety. Do not attempt to bypass or defeat the safety switch lock. Never
use any device to lock the power switch triggers in the “ON” position.
• Do not leave the TigerHawk plugged in. Turn off the switch and unplug the electrical
cord when not in use and before servicing or changing the brushes or pads.
• Do not allow the machine to be used as a toy. Close attention is necessary when used
near children. Do not leave the machine connected to an electrical outlet unattended.
• Use only as described in this manual. Use only manufacturer’s recommended attach-
ments.
• Do not use with a damaged cord or plug. If the machine is not working as it should, has
been dropped, damaged, or left outdoors, return it to a service center before using.
• Use care to keep the electrical supply cord around sharp edges or corners. Keep the cord
away from the heated surfaces.
• Connect to properly grounded (3-wire) outlet only. Refer to Grounding Instructions,
Page 5-6.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Turn off all controls before unplugging.
• Do not unplug by pulling on the cord. To unplug, grasp the plug and pull.
• Do not handle the plug or TigerHawk with wet hands.
• Wind the cord no tighter than is necessary to retain it during storage. Refer to Cord
Storage, Page 8.
• Use extra care when working on or near stairs.
• Do not use in conjunction with ammable or combustible liquids such as gasoline, or
use in areas where explosive vapor or dust may be present.
• Store your TigerHawk indoors in a cool, dry area.
• Keep your work area well lighted.
• WARNING: To avoid electrical shock, use indoor only.
4

GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should malfunction or break down, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This appliance is
equipped with a cord that has an equipment-grounding conductor and grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
FOR FLOOR FINISHING MACHINES RATED LESS THAN
150 VOLTS
Improper connection of an equipment grounding conductor can result in risk of electric shock.
Check with a qualied electrician or service person if you are in doubt as to whether the outlet is
properly grounded. Do not modify the plug provided with the appliance. If it will not t the outlet,
have a proper outlet installed by a qualied electrician. This appliance is for use on a nominal 120
volt circuit and has a grounding plug that looks like the plug illustrated in Figure 1.
A temporary adapter which looks like the adapter illustrated in Figure 2 may be used to connect this
plug to a two pole receptacle, as shown, if a properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet (Figure 1) can be installed by a qualied
electrician. The green colored rigid ear, lug, or the like extending from the adapter must be connected
to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it
must be held in place by metal screw.
FOR FLOOR FINISHING MACHINES RATED 150-220 VOLTS:
If the machine is provided with an attachment plug cap as shown in Figure 3, it is intended for use on
a 240 volt (nominal) circuit. No adapter is available for this cap.
WARNING:
RISK OF EXPLOSION. FLOOR SANDING
MACHINE CAN RESULT INAN EXPLOSIVE
MIXTURE OF FINE DUSTAND AIR. USE FLOOR
SANDING MACHINE ONLY IN A
WELL-VENTILATED AREA, FREE FROM ANY
FLAME OR MATCH
5

WARNING:
DO NOT USE GROUNDING
ADAPTERS ON TIGERHAWKS IN
CANADA. CHECK WITH CANADIAN CODE
FOR PROPER EQUIPMENT USAGE.
IMPROPER USE OF GROUND ADAPTORS CAN
CAUSE SERIOUS INJURY, FIRE, OR BE FATAL.
Grounding Instructions (Continued)
6

CONTROLS
TO TURN THE MACHINE ON
The operating handle must be lowered and locked to the proper operating position before switching the
machine ON. Place both hands rmly on the handle grips with your ngers around the power triggers.
Do NOT apply pressure on the triggers before the safety switch lock is disengaged.
Disengage the safety switch lock by pushing it forward with one thumb. Then, while holding the safety
switch lock in the disengaged position, squeeze the power triggers toward the handle grips and return
your thumb to the handle grip.
To stop the machine, simply release the triggers. The safety switch lock will automatically return to the
engaged position.
GUIDELINES FOR OPERATION
• Your RedTail is a very sensitive, powerful unit. When in operation, it should be guided gradually and
smoothly without sudden or rough motions. You will want to practice with your machine on a smooth
surface until you have experience in operating it.
• For ease of operation, always keep the brush or pad surface level, balanced, and at on the oor at all
times.
• Always adjust the operating handle to a comfortable height at which the brush or pad surface is
balanced before starting the machine. (See Handle Adjustment Page 4)
• Your RedTail will operate differently on various surfaces. For example, there will be much more
resistance when the machine is used on a rough surface, than when it is used on a smooth surface. The
operator should be prepared to adjust for these differences.
• BEGIN OPERATING THE REDTAIL
•
• WITH THE PAD SURFACE LEVEL, BALANCED AND FLAT ON THE FLOOR.
• To move the machine to the right, turn the unit to the right.
• To move the machine to the left, turn the unit to the left.
• To move the machine forward or backward, keep the brush or pad at on the oor and push or pull the
machine in the desired direction.
Push forward to disen-
gage safety switch lock.
7

CLEANUPAND STORAGE
After being used, your TigerHawk can be wiped clean with a soft damp cloth and should be
stored in a clean, dry place.
ADJUSTMENTS
HANDLE ADJUSTMENT
The handle can be adjusted to any desired work position by simply pulling on the pull
pin and move the handle to the desired position. Firmly push the pull pin back into the
adjustment holes. This will lock the handle in position.
Figure 5
Pull Knob
CORD STORAGE
When not in use, loosely coil the power cord and hang on
the handle.
8

9

10

11

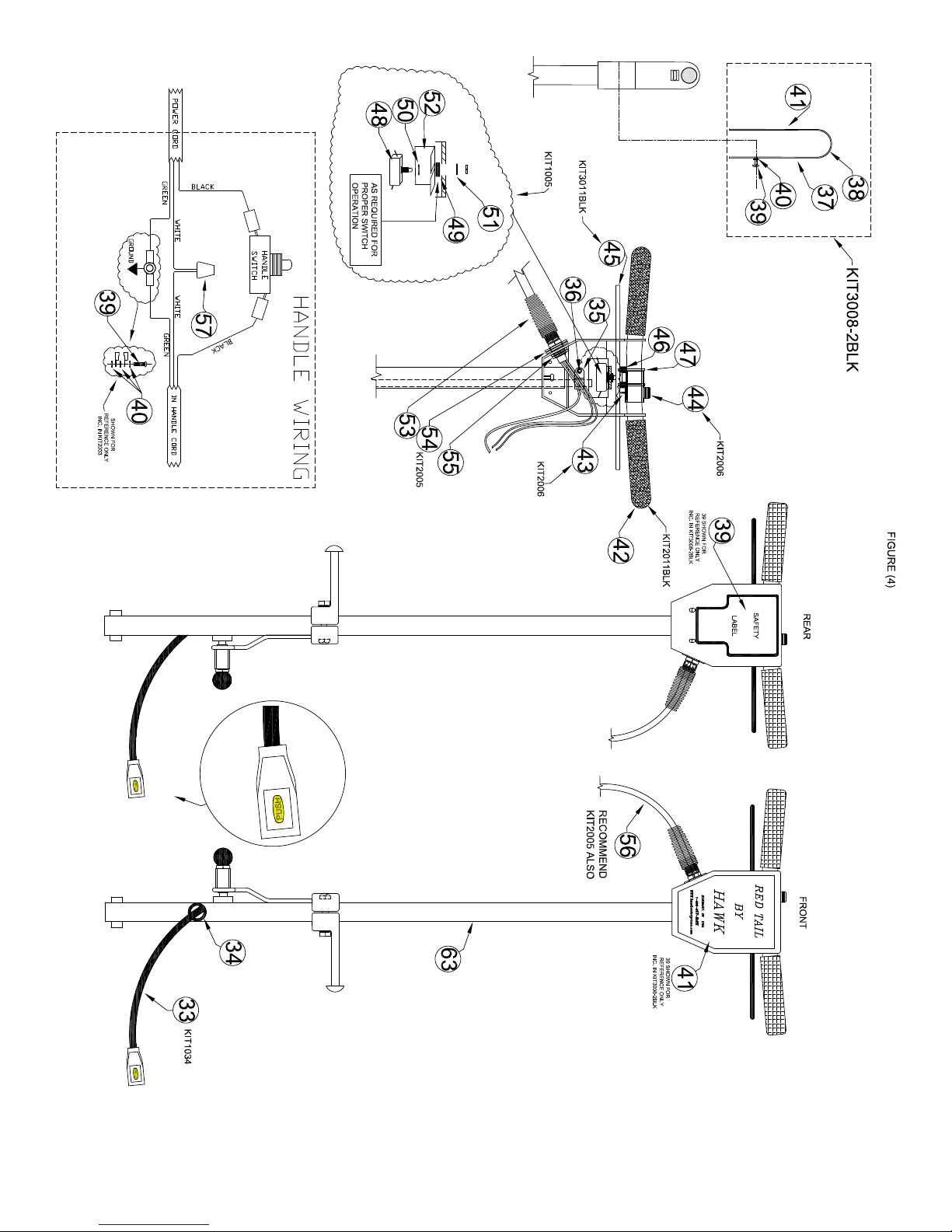

INSTALLATION SEQUENCE OF WHEELS AND HANDLE ASSEMBLY
1
23
REPEAT SEQUENCE #1
63
30 31 29
21
20
22 23
18 19
104
32
SEE FIGURE (3)
12

13
12 Downloaded from www.Manualslib.com manuals search engine

14

15
RED TAIL MAIN ASSY
DETAIL PART QTY
NUMBER NUMBER DESCRIPTION REQ'D
KIT1042 MOTOR KIT - RED TAIL 1
1 INC IN KIT1042 MOTOR 1
2 INC IN KIT1042 BOLT 4
3 INC IN KIT1042 LOCWASHER 4
KIT2037 SECONDARY ISOLATOR KIT - RED TAIL 1
4 INC IN KIT2037 BOLT 6
5 INC IN KIT2037 LOCKWASHER 6
6 INC IN KIT2037 ISSOLATOR 6
7 INC IN KIT2037 NUT 6
KIT2036 SECONDARY ISOLATOR BRACKET KIT - RED TAIL 1
8 INC IN KIT2036 PIVOT BUSHING KIT (KIT2023) 1
9 INC IN KIT2036 SECONDARY ISSOLATOR BRACKET - RED TAIL 1
KIT2023 PIVOT BUSHING KIT 1
8 INC IN KIT2023 BUSHINGS PIVOT NYLON 2
KIT2040 BUTTON PLUG KIT - RED TAIL 1
10 INC IN KIT2040 BUTTON PLUG 1/2 INCH 4
11 INC IN KIT2040 BUTTON PLUG 4
KIT3034RED FRAME KIT MAIN - RED TAIL 1
10 INC IN KIT3034 BUTTON PLUG KIT 1/2 INCH 1
11 INC IN KIT3034 BUTTON PLUG KIT 1
12 INC IN KIT3034 MAIN FRAME - RED TAIL 1
KIT2039 PRIMARY ISOLATOR KIT - RED TAIL 1
7 INC IN KIT2039 NUT 6
6 INC IN KIT2039 ISSOLATOR 6
13 INC IN KIT2039 SCREW 6
14 INC IN KIT2039 ECCENTRIC SCREW 6
KIT2041 ECCENTRIC KIT - RED TAIL 1
15 INC IN KIT2041 ECCENTRIC - RED TAIL 1
16 INC IN KIT2041 SET SCREW 1
14 INC IN KIT2041 ECCENTRIC PAD DRIVER SCREWS 6
13 INC IN KIT2041 PAD DRIVER SCREWS 6
17 INC IN KIT2041 MOTOR KEY 1
KIT2038 PAD DRIVER KIT - RED TAIL 1
100 INC IN KIT2038 PAD DRIVER - RED TAIL 1
101 INC IN KIT2038 PAD DRIVER FACE - RED TAIL 1
102 INC IN KIT2038 NYLON SPACER 6
13 INC IN KIT2038 SCREWS PAD DRIVER - RED TAIL 6
14 INC IN KIT2038 ECCENTRIC PAD DRIVER SCREWS 6
103 KIT2047 BACKER PAD - RED 1
INC IN KIT2047 RED PAD 2014X1 1
INC IN KIT2047 VELCRO 2
KIT2028 SPRING KNOB ASSY. 3
104 INC IN KIT2028 KNOB ASSY. 1
KIT2032 WHEEL KIT 2
18 INC IN KIT2032 BOLT HEX .500-13 X 3 1
19 INC IN KIT2032 NUT HEX .500-13 NYLOC 1
20 INC IN KIT2032 FLAT WASHER 5
21 INC IN KIT2032 WASHER SPRING WAVE 2
22 INC IN KIT2032 WHEEL 1
KIT3031 CARRAGE FRAME 1
23 INC IN KIT3031 CARRAGE FRAME (ONLY) 1

RED TAIL HANDLE ASSY
KIT3009-1BLK CORD HOOK KIT (SQUARE) 1
24 INC IN KIT3009-1BLK NUT 3/8-16 NYLOCK 2
25 INC IN KIT3009-1BLK CAP CORD HOOK SQUARE BLK 1
26 INC IN KIT3009-1BLK CORD HOOK SQUARE BLK 1
27 INC IN KIT3009-1BLK BOLT HEX 3/8-16 X 2 2
28 INC IN KIT3009-1BLK WASHER FLAT BLK 2
KIT2026-1 HANDLE MOUNTING HWDR KIT 1
29 INC IN KIT2026-1 BOLT HEX .500-13 X 3 1
30 INC IN KIT2026-1 NUT HEX .500-13 NYLOC 1
31 INC IN KIT2026-1 FLAT WASHER 2
32 INC IN KIT2026-1 WASHER SPRING WAVE 2
KIT1034 IN HANDLE CORD KIT 1
33 INC IN KIT1034 IN HANDLE CORD 1
34 INC IN KIT1034 GROMMET IN HANDLE 1
35 INC IN KIT1034 LOOP CLAMP 1
36 INC IN KIT1034 SCREW 10-24 X .50 THIRD ROLL PHILL PAN ZINC 1
40 INC IN KIT1034 WASHER # 10 EXTERNAL TOOTH LOCK - ZINC 4
57 INC IN KIT1034 WIRE NUT 1
39 INC IN KIT1034 SCREW 10-24 X .50 THIRD ROLL PHILL PAN ZINC 3
INC IN KIT1034 BUTTON PLUG (NOT SHOWN) 1
KIT3008-2BLK SWITCH BOX ASSY KIT 1
37 INC IN KIT3008-2BLK WARNING SWITCH BOX SAFETY LABEL REAR 1
38 INC IN KIT3008-2BLK SWITCH BOX COVER 1
39 INC IN KIT3008-2BLK SCREW 10-24 X .50 THIRD ROLL PHILL PAN ZINC 2
40 INC IN KIT3008-2BLK WASHER # 10 EXTERNAL TOOTH LOCK - ZINC 2
41 INC IN KIT3008-2BLK SWITCH BOX COVER LABEL FRONT 1
KIT2011BLK HABDLE GRIP KIT - BLK 1
42 INC IN KIT2011BLK HANDLE GRIP -BLK 2
KIT2006 SAFETY SWITCH KIT 1
43 INC IN KIT2006 SPRING 2LNG X .025 OD X .026 1
44 INC IN KIT2006 SAFETY SWITCH 1
KIT3011BLK TRIGGER REPLACEMENT KIT 1
45 INC IN KIT3011BLK TRIGGER - BLK 1
46 INC IN KIT3011BLK SPRING - TRIGGER 2
47 INC IN KIT3011BLK ROLL PIN 2
KIT1005 REPLACEMENT SWITCH KIT - MAIN 1
48 INC IN KIT1005 SWITCH 1
49 INC IN KIT1005 WASHER FLAT- ZINC 5
50 INC IN KIT1005 WASHER FLAT 5/16 USS - ZINC 1
51 INC IN KIT1005 WASHER 3/8 INTRNL TOOTH LOC-ZINC 1
52 INC IN KIT1005 SWITCH INSULATION 1
KIT3032 HANDLE ASSY LESS POWER CORD & SWITCH BOX COVER 1
63 INC IN KIT3032 HANDLE WDMT - BLK 1
INC IN KIT3032 KIT2005 STRAIN RELIEF REPLACEMENT KIT 1
INC IN KIT3032 KIT2033 HANDLE HARDWARE KIT 1
INC IN KIT3032 KIT3011BLK TRIGGER REPLACEMENT KIT 1
INC IN KIT3032 KIT2006 SAFETY SWITCH KIT 1
INC IN KIT3032 KIT3009-1BLK CORD HOOK KIT (SQUARE) 1
INC IN KIT3032 KIT1005 REPLACEMENT SWITCH KIT - MAIN 1
INC IN KIT3032 KIT2026-1 HANDLE MOUNTING HWDR KIT 1
INC IN KIT3032 KIT1043 IN-HANDLE CORD KIT 1
KIT2005 STRAIN RELIEF REPLACEMENT KIT
53 INC IN KIT2005 STRAIN RELIEF 1
54 INC IN KIT2005 WASHER STRAIN RELIEF - ZINC 2
55 INC IN KIT2005 NUT CONDUIT 1/2 1
56 E0003-2 POWER CORD 14-3 SJT BLK THIN 50 FT CORD 1
KIT2033 HANDLE HARDWARE KIT 1
57 INC IN KIT2033 WIRE NUT 1
39 INC IN KIT2033 SCREW 10-24 X .50 THIRD ROLL PHILL PAN ZINC 4
40 INC IN KIT2033 WASHER # 10 EXTERNAL TOOTH LOCK - ZINC 5
35 INC IN KIT2033 LOOP CLAMP 1
34 INC IN KIT2033 GROMMET IN HANDLE 1
16

LIMITED WARRANTY
Your HAWK equipment which has been manufactured, tested and inspected in accordance with carefully speci-
ed engineering requirements, is warrantied to be free from defects in material and workmanship. This Limited
Warranty is, however, subject to the Following qualications, conditions and limitations which are set forth to
provide you and all users of the HAWK equipment with information concerning the duration, extent, availabil-
ity, and applicability of this HAWK Limited Warranty, the procedure to be taken to obtain its performance, and
other information concerning the HAWK Limited Warranty policy.
The HAWK ENTERPRISES Limited Warranty is extended to the original end user as follows:
Motors 1 year parts and 6 months labor
Non-wear items: 1 year parts replacement and 1 year service labor warranty.
Replacement parts guaranteed for 90 days from date of installation against
defects in material and workmanship.
This Limited Warranty will not cover damage attributable to the following:
(1) Improper, unreasonable or negligent use of abuse of the equipment
(2) Abrasions or punctures of the equipment.
The start date of the Limited Warranty coverage shall be the purchase date of the original end user or six months
from the date the machine was shipped from the Factory, whichever comes rst.
PARTS OF EQUIPMENT NOT COVERED BY THE LIMITED WARRANTY
Certain parts of equipment require replacement in the ordinary use due to normal wear by reason of their char-
acteristics. Normal wear items such as cords, switches, bumpers, bearings, isolators, compensators, capacitors
etc. are excluded from the Limited Warranty.
EXCEPTIONS AND EXCLUSIONS FROM THE LIMITED WARRANTY
This equipment is required to be used on electric current as indicated on the data plate. Otherwise damage,
defects, malfunctions or other failure of the equipment arising from use on electric current not as indicated are
excepted and excluded from this Limited Warranty. Defects, malfunctions, failure or damage of the equipment
caused by improper, unreasonable or neglect use or abuse while in possession of the purchaser are likewise
excluded from this warranty. If repair is done on your equipment by anyone other than those designated as
authorized to perform such work without rst having obtained factory instructions, HAWK ENTERPRISES at
its sole option, my determine that this warranty will not apply and that reimbursement for such repair will not
be made because of the failure to comply with such factory specied instructions.
PROCEDURE TO BE TAKEN TO OBTAIN PERFORMANCE OF LIMITED WARRANTY REPAIR
To secure repair of the equipment or any warranted parts under this Limited Warranty, the following procedure
should be taken. The inoperative equipment or warranted parts, together with satisfactory evidence of the pur-
chase date, must be delivered, with shipping and delivery charges prepaid, to one of the following:
(1) The dealer from whom purchased;
(2) Any HAWK distributor’s service department in the United States;
(3) Any HAWK authorized service station in the United States.
If you are unable to locate any of the foregoing, you may write or otherwise communicate with HAWK
ENTERPRISES before repair service is performed by anyone else. In such event, HAWK ENTERPRISES will
provide either the location or a closely available HAWK distributor service department, or HAWK authorized
service station or other factory instructions. Upon compliance with the above procedure, all warranted defects
will be repaired, at no additional charge or costs to the customer, and the repaired product returned to the
customer, with all shipping and delivery charges pre-paid. In following the procedures set forth, PLEASE
MAKE CERTAIN to state the model, type and serial number as shown on the data plate of the equipment.
REPLACEMENT
In the event of a defect, malfunction or failure of your HAWK equipment or any warranted part to conform
with this warranty, HAWK may, at its sole option and own expense, replace the equipment or any warranted
part with another new, identical or reasonably equivalent model or part in lieu or repairing the defect. DO NOT
return any equipment or part to the factory without prior authorization.
NO REFUND OF PURCHASE PRICE
HAWK ENTERPRISES WILL NOT, as a matter of it’s Limited Warranty policy, refund the customer’s
purchase price.
LIMITED WARRANTY REGISTRATION CARD FOR YOUR EQUIPMENT AND REQUEST FOR INFORMATION
Your HAWK distributor from whom you purchased your equipment is responsible for the registration of your
Limited Warranty with the factory. Any information or questions you may have concerning your HAWK
ENTERPRISES equipment or this Limited Warranty may likewise be secured from the factory. This Limited
Warranty will give you specic legal rights, and you may also have other rights which vary from state to state.
