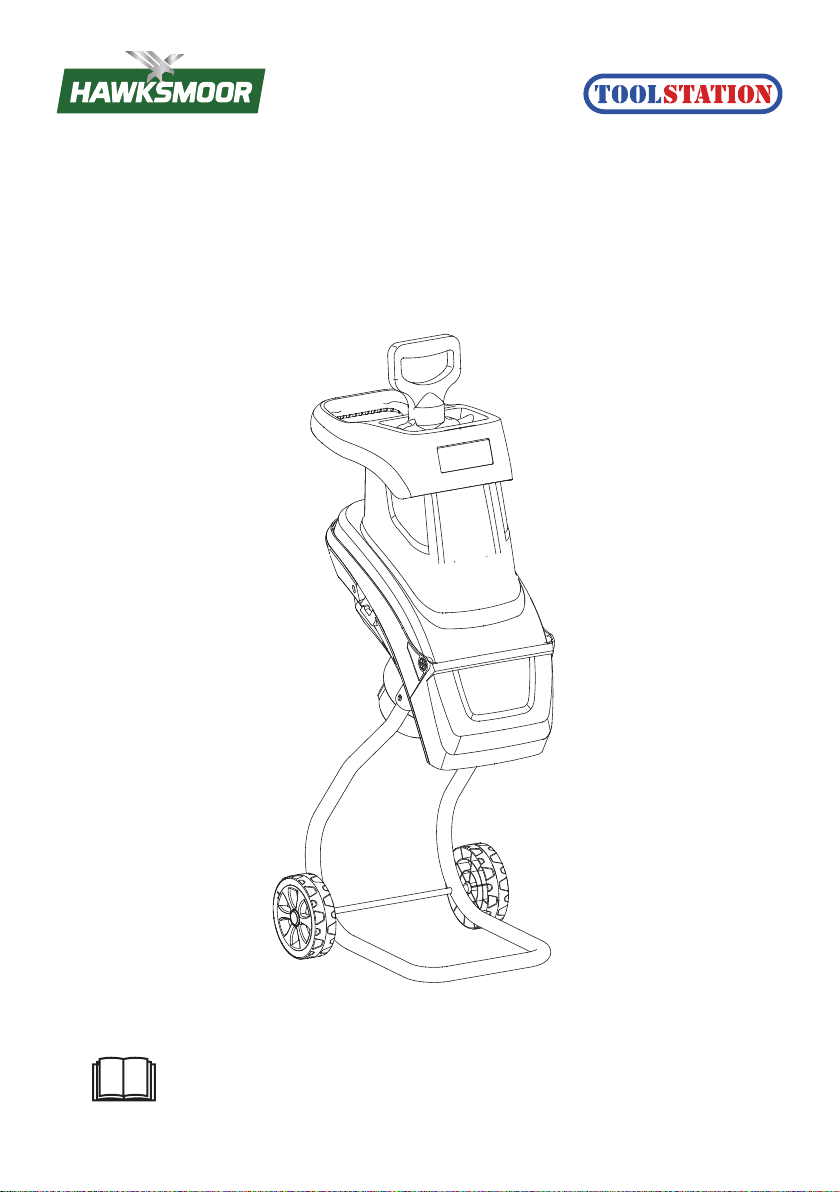

Hawksmoor SDEG09-2500 User manual

SKU: 90496
2500W Electric Cutting Shredder
Original User’s Instructions
READ BEFORE USE
PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE

2
CONTENT
∫WHAT’S IN THE BOX ---------------------------------------------------------- 3
∫TOOLS REQUIRED --------------------------------------------------------- 4
∫SPECIFICATIONS -------------------------------------------------------------- 4
∫EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS ---------- 5
∫IMPORTANT SAFETY WARNINGS -------------------------------------------- 6
∫PRODUCT DESCRIPTION AND IDENTIFICATIONS ------------------------ 15
∫ASSEMBLY AND OPERATING INSTRUCTIONS -----------------------------16
∫CARE AND CLEANING ------------------------------------------------------- 23
∫TROUBLE SHOOTING -------------------------------------------------------- 24
∫DECLARATION OF CONFORMITY / PERFORMANCE -------------------- 25
∫ENVIRONMENTAL INFORMATION ------------------------------------------26
∫GUARANTEE -------------------------------------------------------------------27
∫CUSTOMER SUPPORT ------------------------------------------------------- 27

3
WHAT'S IN THE BOX
If you do not have all these items, please contact:
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
Shredder housing Stand
Plunger
Collection bag
Wheels x 2
Wheel Caps x 2
Axle
(includes 4 x washers and 2 x split pins)
Screws x 2
Hex key M6

4
SPECIFICATION
Technical Data
Model SDEG09-2500
Rated voltage (V) 230-240V~ 50Hz
Rated power (W) 2500 (P40)
No-load speed (min-1) 4500
Max. cutting dia. (mm) Ø45
Measured sound pressure level dB(A) 97.9 (K=3)
Measured sound power level dB(A) 113.5 (K=3)
Cable PVC, 2x1.0mm², 2 meters, BS plug
IP rating IPX4
Net weight (kg) approx. 8.9
Note: The above specifications are the MAXIMUM capacities of the tool. The maximum branch
diameter depends on the hardness of the wood and its branches scale.
TOOLS REQUIRED

5
EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS
Please read this user manual carefully and keep it for further reference.
Warning of accident and injury to persons and serious damage to property.
Wear safety glasses and hearing protection for protection of your eyes and ears.
Wear protective gloves for protection of your hands.
Do not use the appliance in wet or humid conditions for protection of electric shock.
Warning! Switch off and remove the plug from mains before adjusting, cleaning or if
the cord is damaged.
Take care that no metal parts, stones, bottles, cans or other debris are included when
introducing material into the appliance.
Warning! Read the instruction manual, prior to use and familiaris yourself with the
controls and proper use of the appliance.
Danger! Rotating blades. Keep hands and feet out of openings while machine
is running. Do not reach into the intake opening or the discharge chute. The blades
will continue to rotate for approx. 5 seconds after the appliance has been switched
off.

6
Keep bystanders away.
117
Guaranteed sound power level.
Double insulation. Protection class II
The product complies with the applicable European Directives and an evaluation
method of conformity for these Directives was done.
UK Conformity Assessed
This marking indicates that this product should not be disposed with other household
wastes. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse
of material resources.
Blades continue to rotate after machine is switched off.

7
IMPORTANT SAFETY WARNINGS
General Safety Instructions
Warning: Please read the following instructions carefully,
failure to do so could lead to serious personal injury.
When using the eletctic cutting shredder,basic safety
precautions, including the following, should always
be followed to reduce the risk of fire,electric shock
and personal injury. Read all these instructions before
operating this product and save these instructions.
Become familiar with the owner’s manual before
attempting to operate this machine.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the appliance.
• Follow the checklist below, before attempting to use the
machine.
- The sheathing of the flex in the plug or socket is securely
gripped under the cord grip.
- There is no damage to the sheath of the extension lead.
- The cable is not trapped under the wheel or support feet to
avoid damage or accidental tripping.
- The lead is fully unwound from the reel to avoid overheating.

8
• Note:The electrical AC mains supply may experience voltage
drops when starting this equipment. This can influence
other equipment (e.g. blinking of a lights). If the AC mains
supply impedance Zmax is less than 0.40 Ohm at 50Hz, such
disturbances are not expected. If necessary, you may contact
your local supply authority for further information.
• Use outdoor extension leads: When this tool is used outdoors,
use only extension cords intended for outdoor use.
• Keep work area clean: Cluttered and untidy areas invite injuries.
• Consider work area environment
- Do not expose this shredder to rain.
- Do not use power tools in damp or wet conditions.
- Keep work areas well lit.
- Do not use power tools where there is a risk of causing fire
or explosion.
• Guard against electric shock: Avoid body contact with earthed
or grounded surfaces, e.g. pipes, cables etc.
• Keep children and pets away from the work area: Do not let
visitors touch the tool or extension cord. All visitors should be
kept away from the work area.
• Store idle tool: When not in use, tools should be stored in a dry,
high or locked up place, out of reach of children.
• Use the right tool: Do not force this shredder or attachments
to do the job of a heavy-duty tool. Do not use this tool for a
purpose for which it is not intended.
• Dress properly: Do not wear loose clothing or jewelry, they can
be caught in moving parts. Gloves and non-slip footwear are
recommended when working outdoors. Wear protective hair
covering to contain long hair.
• Use protective equipment: Use safety glasses, face or dust
mask if the cutting operation is dirty. When using for extended
periods, or when the noise level is high, use hearing protection.

9
• Do not force the tool: It will do the job better and safer at the
rate for which it was intended.
• Arrange cord: Ensure the cord is arranged so that it cannot be
tripped over, stopped on or have heavy weights rested on it and
make sure that the cord will not be subjected to any damage.
• Do not abuse the cable: Never carry the tool by the cord or pull
it to disconnect it from the socket. Keep the cord away from
heat, oil and sharp edges.
• Do not over reach: Keep proper footing and balance at all times.
• Maintaining your tool: Keep cutting blade sharp and clean for
better performance. Follow instructions for lubrication and
changing accessories. Inspect tool cable periodically and if
damaged have it repaired by an authorized service facility.
Inspect extension cable periodically and replace if damaged.
Keep handles dry, clean and free from oil and grease.
• Check damaged parts: Before further use of the tool, a guard
or other part that is damaged should be carefully checked
to determine that it would operate properly and perform its
intended function. Check for alignment of moving parts, free
running of moving parts, damage to parts, mounting and any
other conditions that may affect its operation. A guard or other
part that is damaged should be properly repaired or replaced
by an authorized service center unless otherwise indicated in
this instruction manual. Have defective switches replaced by an
authorized service facility. Do not use the tool if the switch does
not turn it on and off.
• Disconnect tools: When not in use, before servicing and when
changing accessories such as blades and cutters, always
ensure the machine is disconnected from the mains supply.
• Removing keys and wrenches: Form the habit of checking to
see that keys and adjusting wrenches are removed from the
tool before turning it on.

10
• Avoid unintentional starting: Do not move a plugged-in tool with
a finger on the switch. Ensure the switch is off when plugging
in.
• Stay alert: Watch what you are doing. Use common sense. Do
not operate tool when you are tired.
• Warning! The use of any accessory or attachment, other than
those recommended in this instruction manual, may present a
risk of personal injury.
• Have your tool repaired by a qualified person: This electric tool
is in accordance with the relevant safety requirements. Repairs
should only be carried out by qualified persons using original
spare parts, otherwise this may result in considerable danger
to the user. Do not attempt to open the casing of the tool.
The power supply cord of the tool should be replaced by an
authorized service agent.
Additional safety advice
• The supply voltage must correspond to the voltage specified on
the nameplate.
• It is recommended that the shredder should be used with a
Residual Current Device (R.C.D.) with a tripping current of no
more than 30mA.
• Only use extension cables no lighter than rubber-insulated
flexible cord (H07RN-F). Preferably use brightly colored
extension leads that are clearly visible.
• Watch what you are doing. Use common sense.
• Take care when the blades are in operation.
• Do not abuse the cable. Never move the shredder by the cable
or pull the cable to disconnect it from the socket. Keep the
cable away from heat, oil, and sharp edges. Ensure that the
cable is arranged so that it cannot be tripped over, stepped on
or have heavy weights rested on it. Make sure the cable will not
be subjected to any damage.

11
• Do not attempt to open the casing of the machine. Do not
attempt to modify the machine in any way.
• The supply cord should only be replaced by an authorized
service agent.
• Not to use the shredder, if the cords are damaged or worn.
• Not to connect a damaged cord to the mains supply or touch a
damaged cord before it is disconnected from the mains supply.
A damaged cord can lead to contact with live parts.
• Not to touch the shredding means before the machine is
disconnected from the mains supply and the shredding means
have come to a complete stop.
• To keep extension cords away from the shredding means. The
shredding means can cause damage to the cords and lead to
contact with live parts.
• Pull the plug from the socket:
- Whenever the machine is left unattended.
- Before cleaning a blockage.
- Before checking, cleaning or working on the appliance.
- After striking a foreign object, inspect the appliance for
damage and make repairs as necessary.
- Whenever the machine starts vibrating abnormally.
Cutting Shredder Warnings and Safety Instructions
Preparation
• Do not allow children to operate this equipment.
• Do not operate this equipment in the vicinity of bystanders.
• Do not connect a damaged cord to the mains supply or touch
a damaged cord before it is disconnected from mains supply. A
damaged cord can lead to be contacted with live parts.
• Wear ear protection and safety glasses at all times while
operating the machine.

12
• Avoid wearing clothing that is loose fitting or that has hanging
cords or ties.
• Only operate the machine in open space (e.g. not close to a wall
or other fixed object) and on a firm, level surface.
• Do not operate the machine on a paved or gravel surface where
ejected material could cause injury.
• Before starting the machine, check that all screws, nuts, bolts,
and other fasteners are properly secured and that guards and
screens are in place. Replace damaged or unreadable labels.
Operation
• Before starting the machine, look into the feeding funnel
chamber to make certain that it is empty.
• Keep your face and body away from the feed intake opening.
• Do not allow hands or any other part of the body or clothing
inside the feeding chamber, discharge chute, or near any
moving part.
• Keep proper balance and footing at all times. Do not overreach.
Never stand at a higher level than the base of the machine when
feeding material into it.
• Always stand clear of the discharge zone when operating this
machine.
• When feeding material into the machine be extremely careful
that pieces of metal, rocks, bottles, cans or other foreign
objects are not included.
• If the cutting mechanism strikes any foreign objects or if the
machine should start making any unusual noise or vibration,
shut off the power source and allow the machine to stop.
Disconnect from mains supply and take the following steps:
- Inspect for damage.
- Check for and tighten any loose parts.

13
- Have any damaged parts replaced or repaired with parts
having equivalent specifications.
• Do not allow processed material to build up in the discharge
zone; this may prevent proper discharge and can result in
kickback of material through the feed intake opening.
• If the machine becomes clogged, shut-off the power source
and disconnect from mains supply before clearing debris. Keep
the power source clear of debris and other accumulations
to prevent damage to the powered source or possible fire.
Remember that operating the starting mechanism on engine
powered machines will still cause the cutting means to move.
• Keep all guards and deflectors in place and in good working
condition.
• Do not transport this machine while the power source is
running;
• Shut off the power source and disconnect from mains supply
whenever you leave the work area.
• Do not tilt the machine while the power source is running.
• To keep extension cords away from the shredding means. The
shredding means can cause damage to the cords and lead to
contact with live parts.
Maintenance and storage
• When the machine is stopped for servicing, inspection, or
storage, or to change an accessory, shut off the power source,
disconnect from mains supply, make sure that all moving
parts have come to a complete stop and, where a key is fitted
remove the key. Allow the machine to cool before making any
inspections, adjustments, etc.
• Always allow the machine to cool before storing.

14
• When servicing the cutting means be aware that, even though
the power source will not start due to the interlock feature of
the guard, the cutting means can still be moved by a manual
starting mechanism.
• Keep the motor cooling vents clean of debris and other
accumulations to prevent damage to the motor or possible fire.
• If an extension cord is used it shall not be of lighter grade than
the supply cord already fitted to the appliance.
• Check the supply and any extension cord regularly for damage
or signs of ageing. Do not use the appliance, if the cords are
damaged.
• Never attempt to override the interlock feature of the hopper
assembly.

15
PRODUCT DESCRIPTION AND IDENTIFICATIONS
1
3
12
5
7
9
6
8
10
13
11
4
14
2
1. Transport handle
2. Hopper
3. Locking knob
4. On/Off switch
5. Power cord
6. Debris bag hook
7. Motor housing
Not all the accessories illustrated or described are included in standard delivery.
8. Discharge chute
9. Stand
10. Wheel
11. Plunger
12. Circuit breaker
13. Feeding funnel
14. Ventilation slot

16
ASSEMBLY AND OPERATING INSTRUCTIONS
Caution! Before starting the appliance, check the protective devices
and fastening elements for damage.
Do not use the appliance if it is damaged.
1. Inspect the material to be shredded before starting. Remove any objects that are not suitable for
shredding or could entangle the blades [metal parts, stones, bottles, cans, etc].
2. Place the appliance on a firm level ground and do not move it during operation. Make sure the
locking knob (3) is securely tightened.
3. Use the on/off switch (4) to switch the appliance on and wait until the motor has reached full
speed.
4. Insert the shredding material into the hooper (2), but do not overload the shredder.
5. Make sure the shredded material can move down freely from the discharge chute (8).
6. Use the plunger (11) to push smaller material down to the blades.
7. Regularly clean your shredder from shredded material.
How do I assemble this product?
Your shredder is supplied fully assembled with the exception of the stand (9).
Please follow assembly instructions as below:
1. Open the packaging and remove the machine from package.
2. Insert the stand (9) to the motor housing, align the holes on the housing and stand (9), and fix with
the 2 assembly screws using suitable screw driver.

17

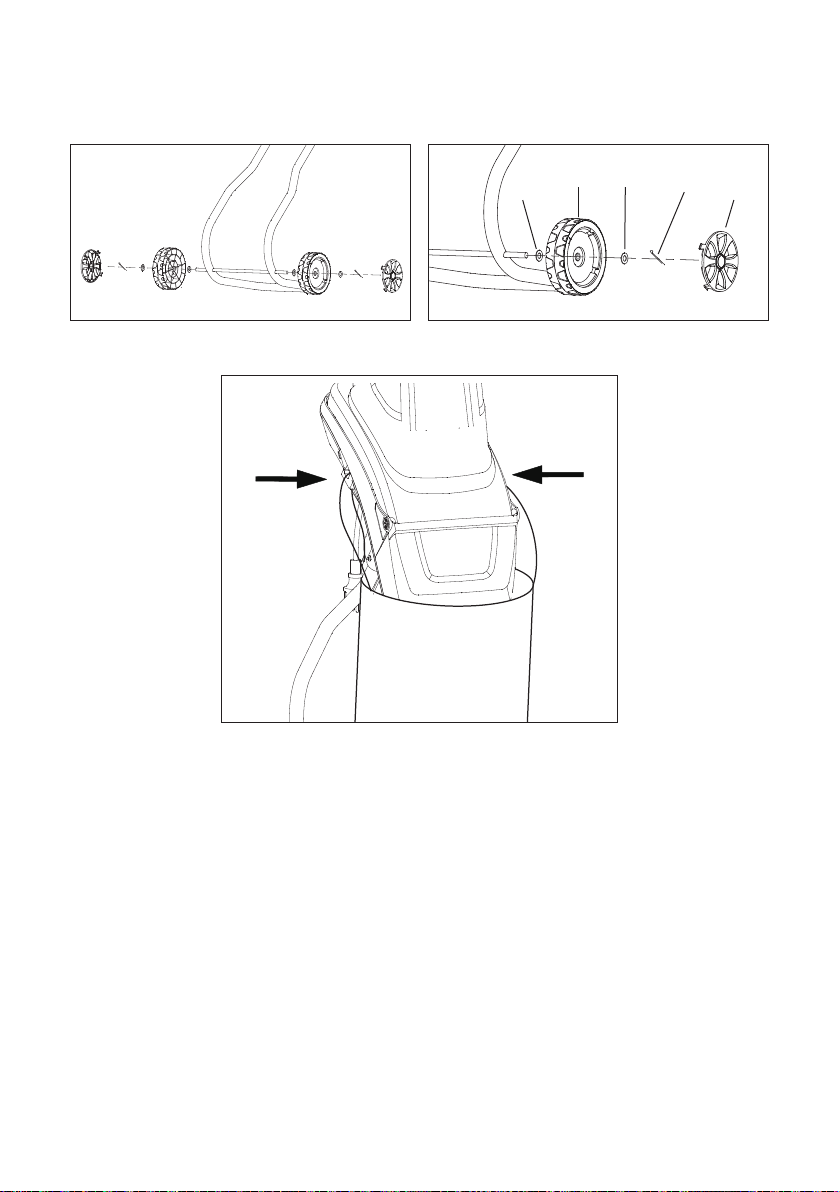

3. Remove the washers and split pins from the axle and fix the wheels as shown in the diagram
below.
4. Hang the debris bag onto the debris bag hook as shown below.
How do I use this product?
Before using the machine, read the instructions thoroughly and acquaint yourself with the
features of the machine.
Before inspecting or servicing any part of the machine, switch off, pull the plug from the mains
and make sure that all moving parts have come to a complete stop.
1. Inspect the material to be shredded before starting. Remove any objects or debris that could be
thrown, jammed or become entangled in the blades. Remove any soil from root balls. Foreign
bodies like stones, glass, metals, fabrics, or plastics must not enter the in-feed chute, these could
damage the blades.
2. Always place the machine on firm level ground. During operation, do not tilt or move.
3. Allow the cutting blades to reach full speed before feeding the material into the feeding funnel.
Washer Wheel cap
Washer Split pin Wheel

18
4. Use the machine to shred the following materials only:
Owing to the different shapes of branches, it is recommended to shred branches up to 40mm in
diameter.
∫Waste from pruning bushes
∫Waste from trimming hedges
∫Plant material and other garden waste
∫Leaves and plant roots (remove soil from roots before shredding)
5. Do not put soft waste such as kitchen rubbish into the shredder.
6. Feed the material to be shredded into the corner of the hopper, if it is not too bulky, the material
will be drawn in by the blades.
7. Only insert as much material so that the hopper does not become blocked.
Warning: Long material extending out from the machine could whip when being drawn in by
the blades, therefore please keep a safe distance from the shredder.
8. Ensure the shredded material can fall freely from the discharge chute.
9. To make finer chippings the shredded material can be shredded for a second time.
10. Do not allow the shredded material to build up to a level where it blocks the discharge chute. If
the material builds up too far it could reach the cutting blades and be thrown out of the hopper.
11. Organic material contains a large amount of water and sap that can stick to the shredder. To
avoid this the material should be left for a few days to dry out.
12. If during cutting the blade stalls, stop the shredder immediately and disconnect it from the mains
supply before investigating the cause.
13. Remove any jammed debris from the blades and examine them for any damage before re-
commencing shredding.
14. If the blade has stalled for more than 5 seconds the safety overload switch will automatically
switch the machine off. Allow the machine to cool down for at least 1 minute before re-starting.
Push the overload switch first and then push on the On/Off switch to re-start the machine.
15. If the cutting mechanism strikes any foreign object or if the shredder starts to make any unusual
noise or vibration, immediately switch off and allow the cutting blades to stop. Pull the plug from
the mains supply and take the following steps:
i) Inspect for damage.
ii) Replace or repair any damaged parts.
iii) Check for and tighten any loose parts.
16. If the shredder becomes clogged, switch off and allow the cutting means to stop. Pull the plug
from the mains supply before cleaning debris.
17. Keep the motor cooling vents clear of debris and other accumulations to prevent damage to the
motor or possible fire.
18. Switch off, allow the cutting blades to stop and pull the plug from the mains supply whenever you
leave the work area.
19. Do not allow processed material to build up in the discharge zone; this may prevent proper
discharge and can result in kickback of material through the feed intake opening.

19
Starting and Stopping the shredder
∫Press the switch marked “—” to start and marked “0” to stop the motor.
∫Press the “circuit breaker” button if the machine does not work, ensure you have connected to
the power supply.
∫When the motor has been running for a few seconds you can commence shredding.
The circuit breaker will be activated in the following circumstances:
a. A build up of shredded material around the cutting blades.
b. If the material being shredded is greater then the cutting capacity.
c. Where there is too much resistance against the cutting blade.
When the circuit breaker has been activated switch-off the shredder and disconnect the power
supply.
a. Unscrew the locking knob at the base and open hopper
b. Remove the debris or obstruction from the cutting area
c. Put the hopper back and tighten the locking knob.
d. Leave motor a few minutes to cool down
e. Reconnect to the power supply and press the circuit breaker button.
f. When ready to start shredding press the “—” switch.
Warning: NEVER slacken off the tightening knob without having turned off the On/Off
switch and pulled the plug out of the socket.
Warning: The shredder will stop within 5 seconds after switching off.

20
Using the Plunger
A plunger is provided to aid feeding less bulky material such as small twigs, leaves and other garden
waste into the feed funnel.
1. Load the material into the feed funnel.
2. Insert the plunger into the feed funnel pushing the material onto the blade disc.
3. Wait until all the material has been shredded before adding more material.
NOTE: Your fingers must never enter the feed funnel.
NOTE: Never use the tool if the hopper is not fitted.
NOTE: Do not over reach.
How do I collect the shredded material?
Shut-off the power unit before attaching or removing the bag.
You can use either the collection bag supplied or place the shredder on a tarpaulin sheet to catch the
shredded material.
When using the collection bag, you need to fit the collection bag hooks onto the sides of the
discharge chute.
Warning: The ventilation slots on the machine body must never be covered by the
collection bag or shredded material.
