Haws 8356WCDD Guide

10/21 Model 8356WCDD Page 1 of 5
1455 Kleppe Lane Sparks, NV 89431-6467 [phone] Fax [phone]
E-mail: [email protected]  website: www.hawsco.com
No. 0002080154 (8)
Model 8356WCDD
Pull-Down Shower Eye/Face Wash
INSTALLATION, OPERATION
&
MAINTENANCE INSTRUCTIONS
LIMITED WARRANTY
HAWS warrants that all of its products are guaranteed against defective material or poor workmanship for
a period of one year from the date of shipment. The foregoing notwithstanding, HAWS warrants certain
specific products or components thereof for an adjusted period. A list of these excepted products and
components and a description of their respective warranty terms may be found here:
www.hawsco.com/warranty. HAWS’liability under this warranty shall be discharged by furnishing without
charge F.O.B. HAWS factory any goods, or part thereof, which shall appear to the Company upon
inspection to be of defective material or not of first-class workmanship, provided that a claim is made in
writing to Company within a reasonable period after receipt of the product. Where claims for defects are
made, the defective part or parts shall be delivered to the Company, prepaid, for inspection. HAWS shall
not be liable for the cost of repairs, alterations or replacements, or the labor required to implement them,
or for any expense connected therewith made by the owner or owner’s agents, except upon written
authority from HAWS. HAWS shall not be liable for any damages caused by defective materials or poor
workmanship, except for replacements, as provided above. Buyer agrees that HAWS has made no other
warranties either express or implied in addition to those above stated, except that of title with respect to
any of the products or equipment sold hereunder and that HAWS shall not be liable for general, special,
incidental, or consequential damages claimed to arise under the contract of sale.
Equipment manufactured by HAWS is warranted to function if installation and maintenance instructions
provided are adhered to. The units also must be used for the purpose for which they were intended. Any
HAWS emergency equipment is intended to supplement first-aid treatment. Due to widely varying
conditions, HAWS cannot guarantee that the use of this emergency equipment will prevent serious injury
or the aggravation of existing or prior injuries.
EXCEPT AS EXPRESSLY STATED HEREIN, HAWS HEREBY DISCLAIMS ALL WARRANTIES,
WHETHER EXPRESS OR IMPLIED, ARISING BY LAW OR OTHERWISE, INCLUDING WITHOUT
LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THIS WARRANTY MAY NOT BE MODIFIED OR EXTENDED WITHOUT THE
WRITTEN CONSENT OF HAWS. REMEDIES AND REPLACEMENTS STATED HEREIN ARE
EXCLUSIVE. IN NO EVENT SHALL HAWS BE LIABLE FOR ANY SPECIAL, PUNITIVE,
CONSEQUENTIAL OR INCIDENTAL DAMAGES TO ANY PERSON INCLUDING BUT NOT LIMITED
TO DAMAGES FOR LOSS OF USE OR PROFITS, SUBSTITUTE PRODUCTS OR COSTS, PROPERTY
DAMAGE, OR OTHER MONETARY LOSS.
NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS
MODEL PLEASE CALL:
TECHNICAL SUPPORT: 1-800-766-5612
FOR CUSTOMER SERVICE: 1-888-640-4297

10/21 Model 8356WCDD Page 2 of 5
RECOMMENDED TOOLS: Adjustable wrench, pipe wrench, pipe joint sealant, Phillips
screw driver, ¼” hex key wrench.
LOCATION OF UNIT: The Model 8356WCDD eye/face wash should be installed in close
proximity to potential accident areas. It should be clearly identified free from obstructions
and easy to access. See ANSI Z358.1 guidelines for more information.
SUPPLY LINE: The minimum recommended line size is 1" IPS with 30-90 psi (2-6 ATM)
flowing pressure at supply inlet. Where sediment or mineral content is a problem, an inlet
filter is recommended.
PLUMBING CONNECTIONS: Inlet supply is male 1" IPS; waste is 2” IPS.
INSTALLATION PROCEDURE
Refer to installation drawing for clarification. Check Parts List to ensure all required parts are
included.
1.
Install all items at dimensions shown in installation drawing.
2.
Once valve assembly is installed, install mounting frame(s) over valve assembly.
3.
IMPORTANT: Showerhead must be positioned in-line with eye/face wash to allow for
simultaneous use by the same user per ANSI Z358.1.
4.
Install remaining items to dimensions shown.
5.
Each unit is factory preset to meet the 5 pound (22.2 N) maximum activation force
requirement for disabled persons. If adjustment is required after installation, follow the
adjustment directions below.
a)
Locate the two ball detents, one on each side of the eyewash tray. See installation
drawing.
b)
Using a flat screwdriver, adjust each ball detent to make slight contact with the
eyewash housing just before the ball detent snaps into its locating position on the
housing.
c)
Once both ball detents are adjusted as above, tighten each ball detent ¼ turn.
d)
Using a force gauge, ensure the force required to open the eyewash unit does not
exceed 5 pounds (22.2 N).
CLEANING INSTRUCTIONS FOR STAINLESS ELECTROPOLISH PRODUCTS
Haws recommended cleaning procedure for stainless electropolish products is as follows:
1. Use a stainless-steel polish and cleaner for removing stains and fingerprints.
2. Spray cleaner onto stainless surfaces and wipe dry with clean cloth.

10/21 Model 8356WCDD Page 3 of 5
INCLUDED PARTS
MODEL PACKAGE
QUANTITY
ITEMS INCLUDED
8356WCDD
1
Mounting Frame/Eyewash assembly
1
Valve assembly
1
Handle/screw assembly
1
Showerhead
1
Drain assembly
1
Escutcheon
1
1” x 5” Nipple
1
1” X 22” Nipple
1
1” Elbow
1
Emergency Eyewash/shower sign
1
Test Tag
TROUBLESHOOTING
PROBLEM
REPAIR CHECKLIST
1.
No flow.
1.
Check the main shut-off valve.
2.
Insufficient water flow at eye/face
wash.
2a.
Verify minimum 30 psi (2 ATM) flowing
supply line pressure.
b.
Probable clogging of flow control due to
inadequate line flushing. Unscrew eye/face
wash head and remove the four screws to
disassemble the head, clean the flow
control and reassemble head.
c.
Remove cap located on in-line strainer
housing using a ¼” Allen wrench to
access and clean filter screen. See
installation drawing for location.
3.
Eye/face wash streams do not meet
desired eye level.
3a.
Possible blocked flow control, see above
solution.
b.
Possible non-leveled eye/face wash
assembly.
c.
Possible low supply pressure.
4.
Insufficient water flow at the
showerhead, however, eye/face wash
is sufficient.
4.
Probable clogging of flow control inside
showerhead. Remove showerhead by
unscrewing it and clean rubber flow control.
5.
Tray too hard to open or does not
stay closed.
5.
See “Installation Procedure” Step 5.
For more information about Haws Products, see our website: www.hawsco.com.
© 2021 Haws®Corporation –All Rights Reserved
HAWS® and other trademarks usedin these materials are the exclusive property of Haws Corporation.

1
2
3

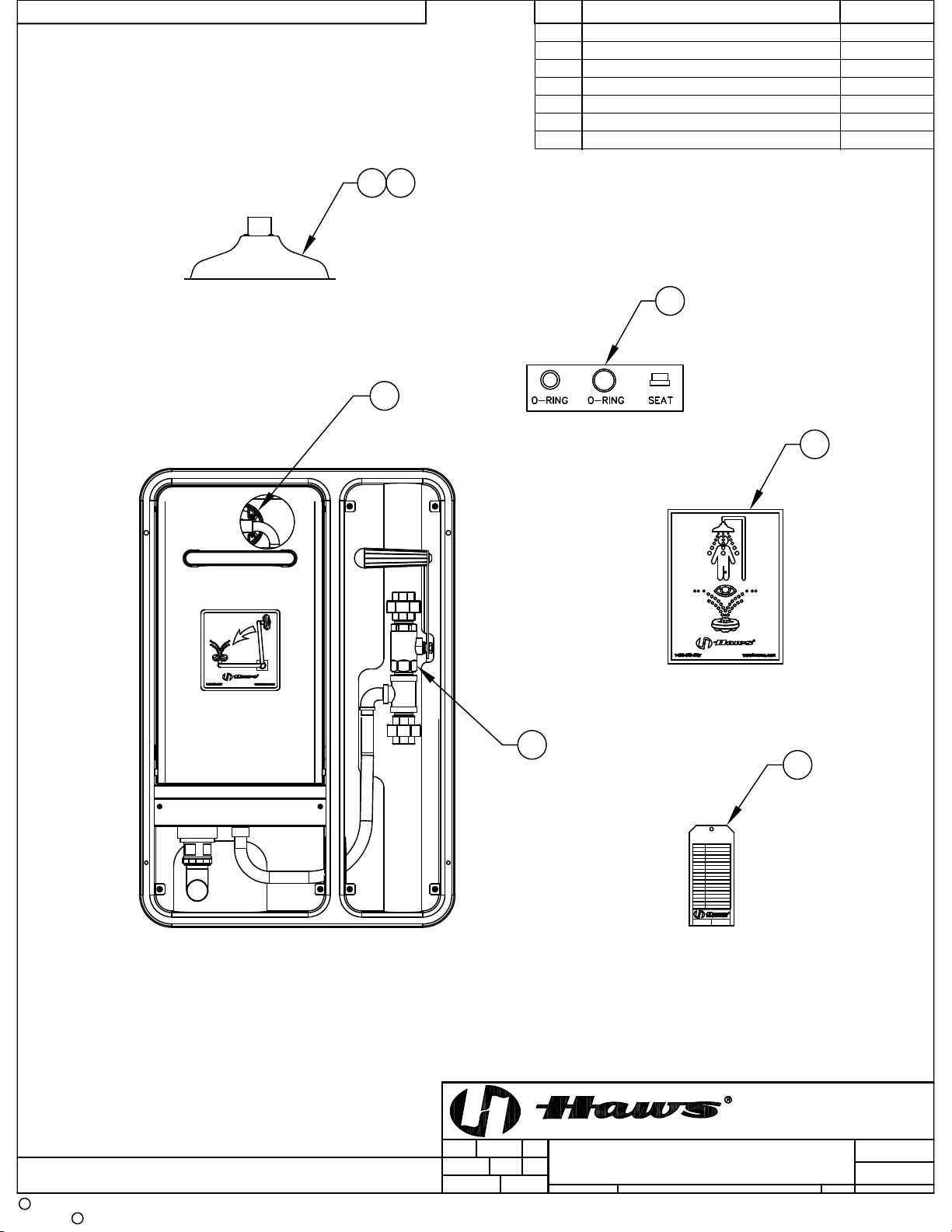

PARTS BREAKDOWN
4
2
1
5
3
4
6
5
6
7
7
APPROVED
DRAWN
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BYECN NO.
PAGE
DATE
DATE
ECN:
REVISED PER
CHKD
Haws Corporation - All Rights Reserved
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
C
R
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [e-mail]
WEBSITE: WWW.HAWSCO.COM
ITEM DESCRIPTION
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
WHEN ORDERING PARTS PLEASE SPECIFY MODEL NUMBER.
PART NO.
I.ROBERTS
7/12/10
8
0002080154
8356WCDD
NA
11
FV 10/19/21
4290
JL
4 OF 5
PARTS BREAKDOWN
5752
2021
FV
TEST TAG
SHOWER HEAD
1" IPS SHOWER BALL VALVE
FLOW CONTROL
SHOWER/EYEWASH SIGN
VALVE REPAIR KIT
EYE/FACE WASH
SP170
SP178
SP829SS
0006575900
0003138392.3
SP65PD
VRK 7650

32"
813mm
1-1/2" OD
DRAIN TAILPIECE
1" IPS
FEMALE
SUPPLY
INLET
REMOVABLE
ACCESS PANELS
(NOT SHOWN)
1" IPS BRASS
STAY OPEN
BALL VALVE
WITH INLET
AND OUTLET
UNION
OPTIONAL SHOWER HEAD
HANGER BRACKET
(NOT SUPPLIED)
1 X 22" S.S. NIPPLE
(SUPPLIED)
ESCUTCHEON
(SUPPLIED)
SUSPENDED
CEILING
22"
559mm
INSTALLATION
6X Ø3/16" 4
4.8mm
MOUNTING
HOLE
4X 4-1/2"
114mm
4"
102mm
20-1/8"
511mm
2-5/8"
67mm
1-7/8"
48mm
23-5/16"
592mm
2-11/16"
68mm
1 X 5" GALV NIPPLE
(SUPPLIED)
(9-1/2") (241mm)
Ø 10-1/2"
267mm
FLANGE
FLOOR LINE
1"
25mm
FLANGE
ALL AROUND
18-3/4"
476mm
3-1/2"
89 mm
10"
254mm
34"
864mm
RECOMMENDED
(29-5/8")
(752mm)
EXTERNAL
DRAIN COVER
DETAIL "A"
ROTATED FOR CLARITY
SEE DETAIL "A"
11"
BALL
DETENT
2X
IN-LINE STRAINER
HOUSING
APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
I. ROBERTS
7/12/10
8
0002080154.D
8356WCDD
NA
11
FV 10/19/21
4290
JL
5 OF 5
INSTALLATION
5752
2021
FV
(47-1/2")
(1207mm)
21-7/8" (556mm)
TO FINISHED FLOOR
(BOTTOM OF
ROUGH IN)
30-1/4"
768mm
NOTES:
1. WHEN INSTALLING THIS UNIT, LOCAL , STATE, OR FEDERAL CODES SHOULD BE ADHERED TO FOR INSTALLATION DIMENSIONS (LOCATIONS),
WASTE AND SUPPLY REQUIREMENTS OTHER THAN SHOWN.
2. TO COMPLY WITH ANSI Z358.1-2014 FOR EMERGENCY EYEWASH OR EYE/FACE WASH:
EYEWASH OR EYE/FACE WASH SHALL BE POSITIONED SUCH THAT FLUSHING FLUID PATTERN IS NOT LESS THAN 33" (838mm), NO GREATER
THAN 53" (1346mm) FROM SURFACE ON WHICH USER STANDS,AND 6.0" (153mm) MINIMUM FROM WALL OR NEAREST OBSTRUCTION.
3 SHOWER MUST BE POSITIONED IN-LINE WITH EYE/FACEWASH HEAD TO ALLOW FOR SIMULTANEOUS USE BY THE SAME USER PER ANSI Z358.1.
4 MOUNTING HARDWARE NOT SUPPLIED.
5. DIMENSIONS MAY VARY BY ±1/2" (13 mm).
82"-96"
2083mm-2438mm
33"-53"
838mm-1346mm
FLOW PATTERN
(34-5/8")
(879mm)
STAINLESS STEEL
SHOWER HEAD
WITH 20 GPM
FLOW CONTROL
1" IPS (NOT
SUPPLIED)
3
EYE/FACE WASH "PANIC BAR"
(SHOWN IN OFF POSITION-
PULL DOWN TO ACTIVATE)
PULL DOWN TO
ACTIVATE SHOWER
SHOWER "PANIC BAR"
IN OFF POSITION
EYE/FACE WASH
(SHOWN IN ON
POSITION)
(46")
(1168mm)
