This manual is intended to provide the information necessary Service of the
SUNRINGLE Super Bubba Hubs. We highly recommend installation be performed
by a qualied mechanic. These instructions can be downloaded from the Hayes
Disc Brake website at
www.hayesdiscbrake.com
INTRODUCTION
We highly recommend that service to this brake be performed by a certied
bicycle mechanic. Failure to follow instructions presented in this manual could
lead to serious injury or death. Any questions about the servicing of product or
the manual itself should be directed to Hayes Customer Support at:
WARNING
! !
Hayes
Bicycle
USA
5800 W Donges Bay Road Mequon WI 53092
Phone: [phone]
Email: [e-mail]
Hayes
Bicycle
Europe
Dirnismaning 20 a 85748 Garching (b. Munich) Germany
Phone: [phone]
Email: [e-mail]
Hayes
Bicycle
Asia
16F, No. 37, Sec. 3 Mincyuan E. Rd. Zhongshan District
Taipei City 10476 Taiwan ROC
Phone: [phone]

5
SUPER BUBBA SERVICE MANUAL
table of contents
SECTION PAGE NUMBER
Tools And Materials 6
Hub Disassembly 7–9
Freehub Disassemble 10-11
Bearing Removal 12
Bearing Rebuild 13
Freehub Install 14-15
Hub Rebuild 16-19
Exploded View 20

6SUPER BUBBA SERVICE MANUAL
tools and materials
Below is a list of tools and materials necessary for Servicing Super Bubba hubs.
• Two Pin Spanner (Example: Part Tool SPA-2)
• 90 Degree Pick Tool
• Bearing Puller OR Hammer and Punch
• Bearing press

7
SUPER BUBBA SERVICE MANUAL
HubDisassemblely
1Remove wheel from frame &
remove end caps.
2
3
Slide o the Free Hub Body.
Remove axle.

8SUPER BUBBA SERVICE MANUAL
Hub Disassemblely
4Remove lock ring with pin
spacer. The lock ring is LEFT
HAND THREADED.
Note: if you are having a hard
time removing the lock ring
attach two disk screws in the
hub 180 degrees from each
other, use these to hold the hub
in a vise.
5
6
Remove the crush tube.
Using the 90 Degree pick tool
pry out the top rachet ring.

9
SUPER BUBBA SERVICE MANUAL
Hub Disassemblely
7Remove the bottom rachet ring
as well with the pick tool.

10 SUPER BUBBA SERVICE MANUAL
FreeHub Disassemblely
1Remove the rst set of Pawls and
springs, three of each, they will
side out by hand.
2
3
Remove the pawl split ring with
the pick tool.
Slide out the second set of Pawls
and springs.

11
SUPER BUBBA SERVICE MANUAL
FreeHub Disassemblely
4Remove the Seal from the drive
side of the Free hub.

12 SUPER BUBBA SERVICE MANUAL

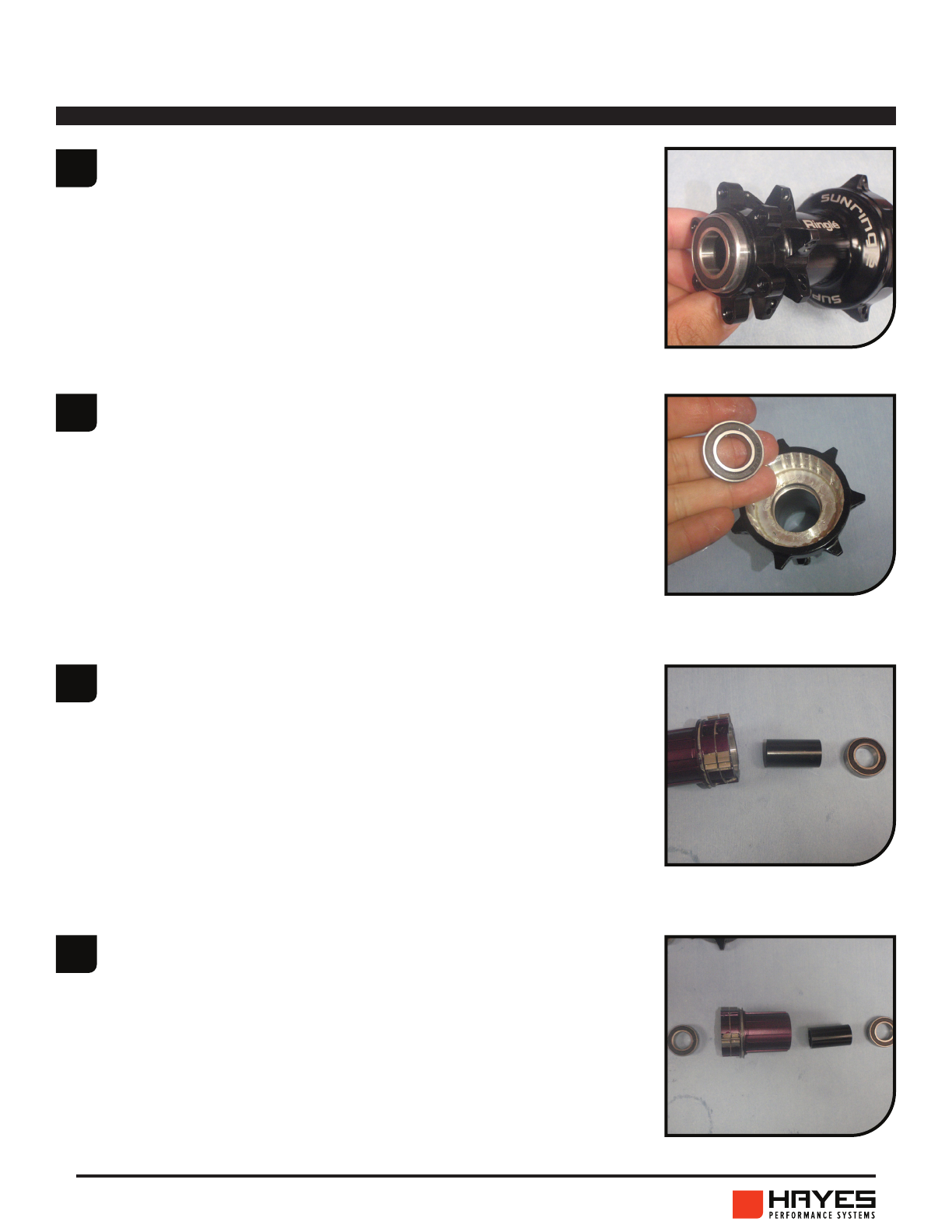

bearing Removal
Pull out the non-drive side (NDS)
bearing from the hub, behind
this bearing is a spacer.
2
3
Pull out the drive side bearing.
Pull out the inner bearing on
the freehub body, behind this
bearing is a spacer.
4Pull out the outer bearing on the
freehub body.
1

13
SUPER BUBBA SERVICE MANUAL
bearing Rebuild
1Press in a new bearing into the
Non-drive side (NDS) of the Hub.
2
3
Install the spacer and press in
the driver side (DS) bearing.
Press in the inside bearing on
the freehub body.
4Install the spacer and press in
the outside bearing.

14 SUPER BUBBA SERVICE MANUAL
FreeHub Install
1Install the rst set of springs and
Pawls.
2
3
Install the Pawl split ring onto
the free hub.
Install the second set of springs
and Pawls.

15
SUPER BUBBA SERVICE MANUAL
FreeHub Install

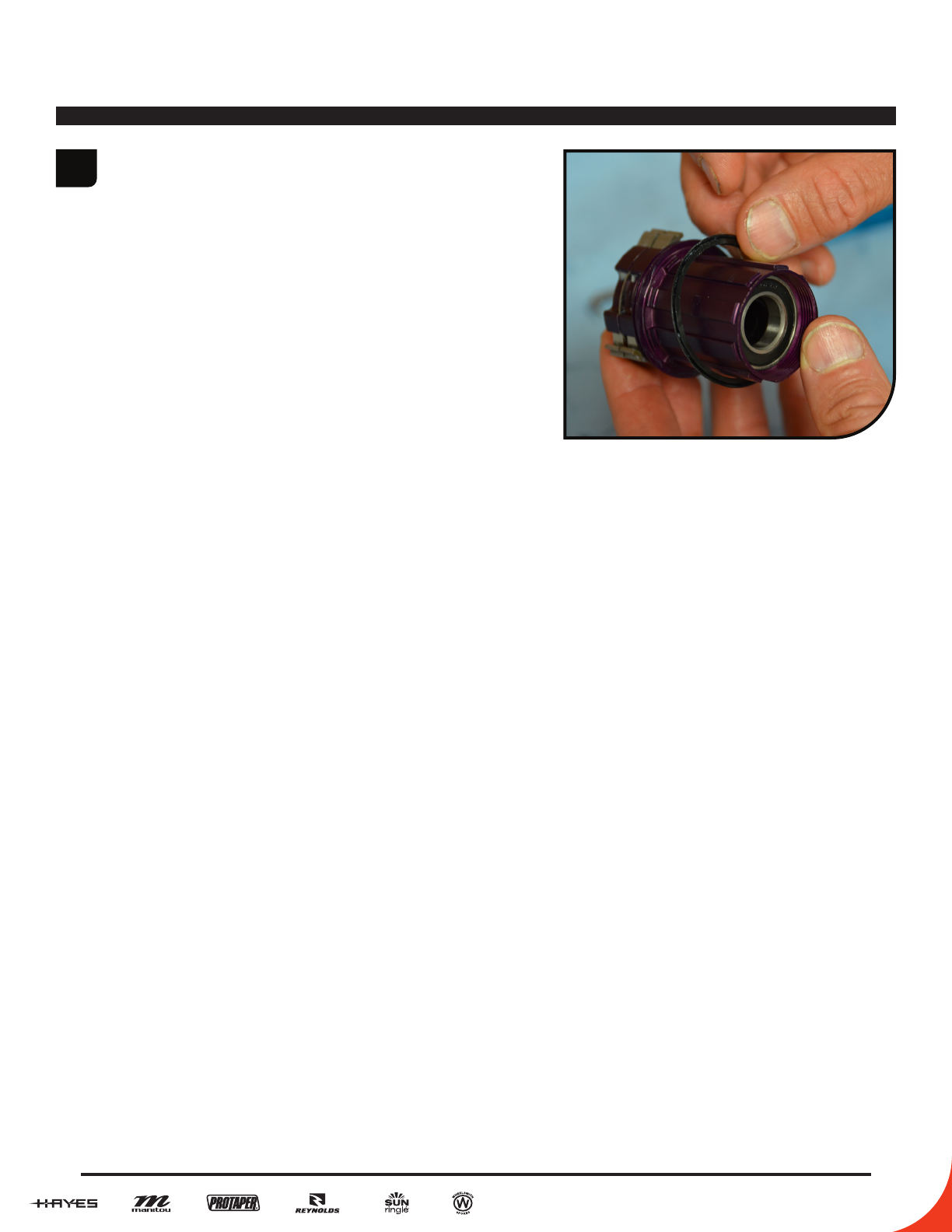

4Install the seal. (note the
lip must face out toward the
cassette)
Note: the seal must sit in its
grove without being twisted or
you will experience a high drag)

16 SUPER BUBBA SERVICE MANUAL

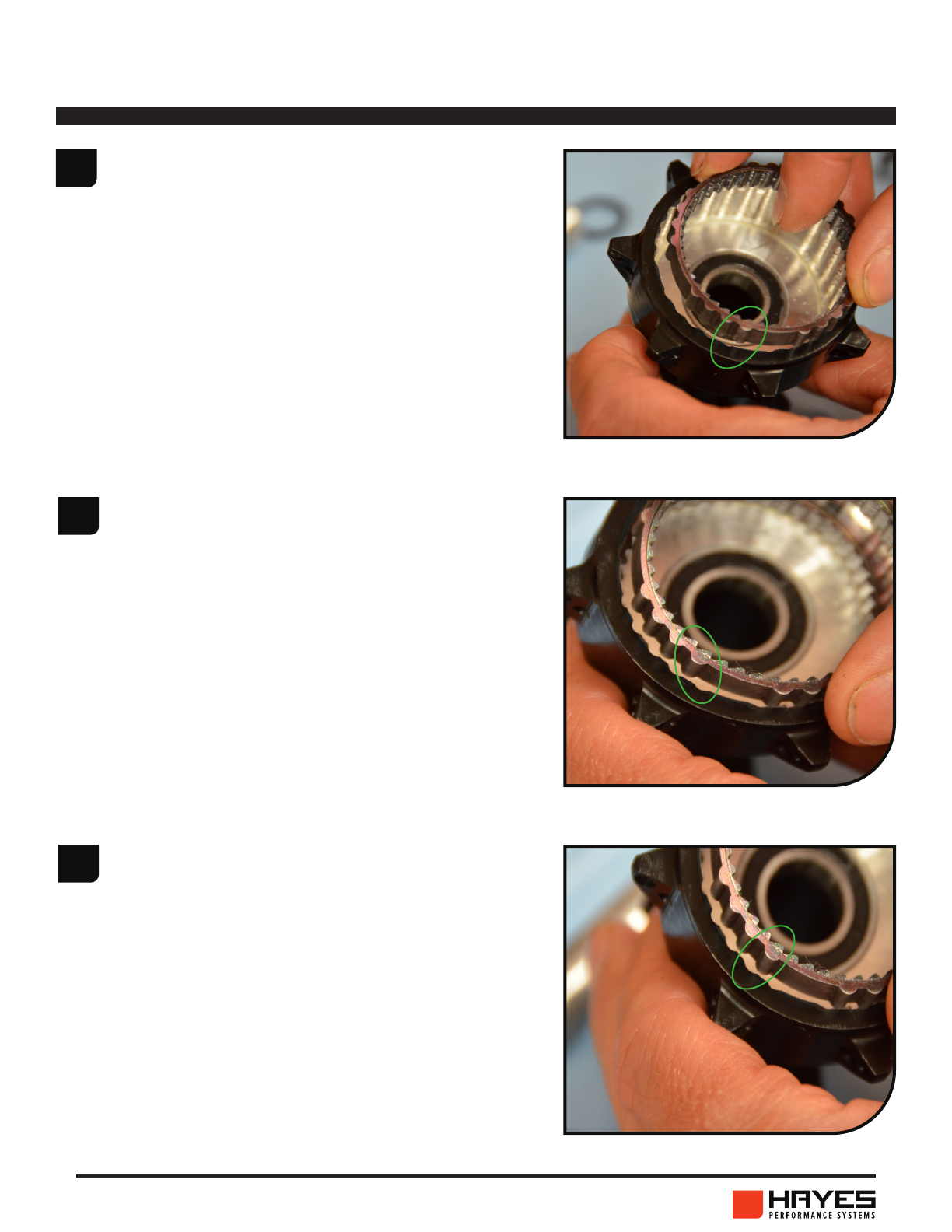

HubRebuild
1With the groove facing outward
slide the rst rachet ring down
into the hub, make sure you
have the rst lob of the rachet
ring in the rst notch of the hub.
2
3
For 8 degrees of engagement
install the second rachet ring,
with the groove up, with the rst
lob on the rachet ring in the rst
notch of the hub.
For 4 degrees of engagement
install the second rachet ring,
with the groove up, with the
rst lob on the rachet ring in the
second notch of the hub.

17
SUPER BUBBA SERVICE MANUAL
HubRebuild
4Reinstall the rachet ring with the
pin spanner tool.
5
6
Slide the axle back into the hub.
Install the crush tube.

18 SUPER BUBBA SERVICE MANUAL
HubRebuild

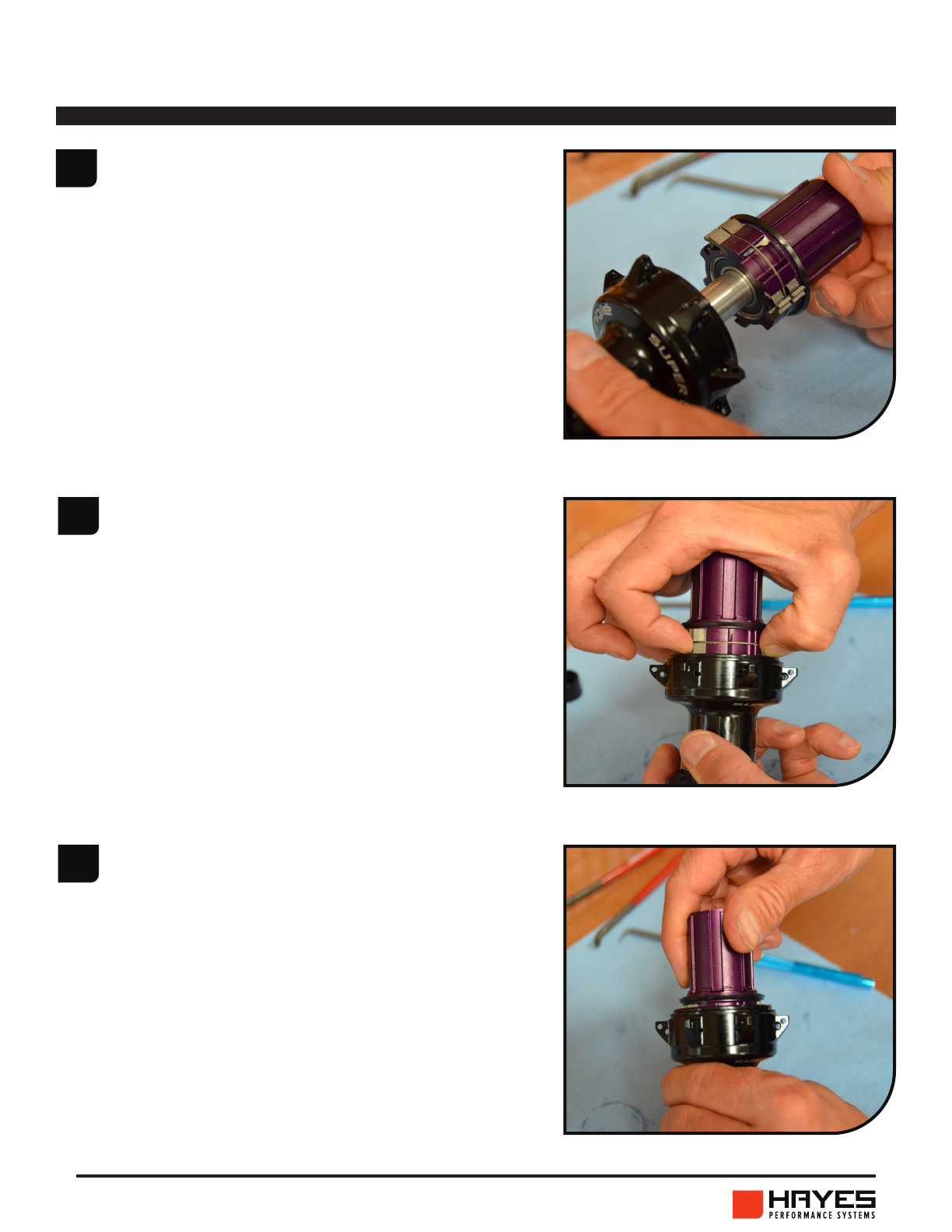

7Install the Free Hub Body onto
the axle.
8
9
Once the freehub is resting on
the hub, depress all three pawls
of the rst set and push down,
this will allow the freehub to
move into the hub up to the
second set of Pawls.
Repeat step 8 with the second
set of Pawls.

19
SUPER BUBBA SERVICE MANUAL
HubRebuild
10 Press the freehub body down
fully making sure the seal does
not get folded over.
11
12
Press the none drive side (NDS)
end cap on, press till the cap
touches the hub bearing, this
sets the axle.
Press on the drive side (DS)
endcap.

20 SUPER BUBBA SERVICE MANUAL
ExplodedView
