Hayter Green Series User manual

Form No. 3441-768 A
Operator’s Manual
Green Series Power System™
60V MAX Battery Charger
Model No. CODE102A - Serial No. 321000101 and Up
Model No. CODE104A - Serial No. 321000101 and Up
Model No. CODE106A - Serial No. 321000101 and Up
Model No. CODE107A - Serial No. 321000101 and Up
Model No. CODE120A - Serial No. 321000101 and Up
Model No. CODE121A - Serial No. 321000101 and Up
Original Instructions (EN)

THIS PAGE HAS INTENTIONALLY BEEN LEFT BLANK

Contents
Introduction 4
Safety 4 - 5
- Training 4
- Preparation 5
- Operation 5
- Maintenance and Storage 5
Safety and Instructional Decals 6 - 7
Setup 8
- Mounting the Battery Charger (Optional) 8
Product Overview 8
- Battery Charger 8
- Battery Pack 8
- Appropriate Temperature Ranges 8
Operation 8 - 9
- Charging the Battery Pack 8 - 9
Maintenance 9
- Storage 9
- Preparing the Battery Pack for Recycling 9
Troubleshooting 10
Privacy Policy 11
Blank Page 12

4Printed in China
All rights reserved
© 2020 - Hayter Limited
Spellbrook, Bishop’s Stortford, Herts CM23 4BU
Introduction
These battery packs and chargers are intended
to be used by residential homeowners. Battery
charger models CODE120A and CODE121A are
designed to charge lithium-ion battery pack
models CODE102A, CODE104A, CODE106A,
and CODE107A. They are not designed to charge
any other batteries. Using these products for
purposes other than their intended use could
prove dangerous to you and bystanders.
Battery pack models CODE102A, CODE104A,
CODE106A, and CODE107A are designed
primarily for use in most Green Series Power
System™ products.
Read this information carefully to learn how to
operate and maintain your product properly and
to avoid injury and product damage. You are
responsible for operating the product properly
and safely.
Visit www.hayter.co.uk for more information,
including safety tips, training materials,
accessory information, help finding a dealer, or to
register your product.
Safety
IMPORTANT SAFETY INSTRUCTIONS
1. SAVE THESE INSTRUCTIONS—This manual
contains important safety and operating
instructions for battery pack models
CODE102A, CODE104A, CODE106A, and
CODE107A and battery charger models
CODE120A and CODE121A.
2. Before using the battery charger, read all the
instructions and cautionary markings on the
battery charger, battery pack, and product
using the battery pack.
3. CAUTION—To reduce risk of injury,
charge battery pack models CODE102A,
CODE104A, CODE106A, and CODE107A
with battery charger models CODE120A and
CODE121A only. Other brands of battery
packs may burst, causing personal injury and
damage.
4. WARNING—Plugging the battery charger
into an outlet that is not 100 to 240 V can
cause a fire or electric shock. Do not plug
the battery charger into an outlet other
than 100 to 240 V. For a different style of
connection, use an attachment plug adapter
of the proper configuration for the power
outlet if needed.
5. CAUTION—A mistreated battery pack may
present a risk of fire or chemical burn. Do
not disassemble the battery pack. Do not
heat the battery pack above 68°C (154°F) or
incinerate it. Replace the battery pack with
a genuine Hayter battery pack only; using
another type of battery pack may cause a
fire or explosion. Keep battery packs out
of the reach of children and in the original
packaging until you are ready to use them.
Training
1. Do not allow people with reduced physical,
sensory, or mental capabilities or without
experience and knowledge to use the
battery charger unless they have received
instruction or supervision on using it safely
and understand the hazards involved while
using it.
2. Do not allow children to use or play with
the battery pack or battery charger; local
regulations may restrict the age of the
operator.
3. Use appliances only with specifically
designated battery packs. Using other types
of battery packs may create a risk of injury
and/or fire.
4. Do not use a damaged or modified battery
pack or battery charger. It may exhibit
unpredictable behavior, resulting in fire,
explosion, or risk of injury.
5. If the supply cord to the battery charger is
damaged, contact an Authorised Service
Dealer to replace it.

5Printed in China
All rights reserved
© 2020 - Hayter Limited
Spellbrook, Bishop’s Stortford, Herts CM23 4BU
Preparation
1. Use appliances only with specifically
designated battery packs. Using other types
of battery packs may create a risk of injury
and/or fire.
2. Do not use a damaged or modified battery
pack or battery charger. It may exhibit
unpredictable behavior, resulting in fire,
explosion, or risk of injury.
3. If the supply cord to the battery charger is
damaged, contact an Authorised Service
Dealer to replace it.
Operation
1. Do not use non-rechargeable batteries.
2. Charge the battery pack with only the
battery charger specified by Hayter. A
charger suitable for 1 type of battery pack
may create a risk of fire when used with
another battery pack.
3. Charge the battery pack in a well-ventilated
area only.
4. Do not expose a battery pack or battery
charger to fire or to temperatures higher
than 100°C (212°F).
5. Follow all charging instructions and do
not charge the battery pack outside of
the temperature range specified in the
instructions. Otherwise, you may damage
the battery pack and increase the risk of fire.
6. Under abusive conditions, the battery
pack may eject liquid; avoid contact. If you
accidently come into contact with the liquid,
flush with water. If the liquid contacts your
eyes, seek medical help. Liquid ejected from
the battery pack may cause irritation or
burns.
Maintenance and Storage
1. Do not allow children to clean or maintain
the battery charger without supervision.
2. When the battery pack is not in use, keep it
away from metal objects such as paper clips,
coins, keys, nails, and screws that can make
a connection from 1 terminal to another.
Shorting the battery terminals may cause
burns or a fire.
3. Do not attempt to repair the battery pack or
battery charger. Have an Authorised Service
Dealer perform service on the battery
pack or battery charger using identical
replacement parts to ensure that the
product is safely maintained.
4. Do not dispose of the battery in a fire. The
cell may explode. Check with local codes for
possible special disposal instructions.
SAVE THESE INSTRUCTIONS

6Printed in China
All rights reserved
© 2020 - Hayter Limited
Spellbrook, Bishop’s Stortford, Herts CM23 4BU
1 2 3 4
134-4217
1. The battery pack is
charging.
3. The battery pack is
over or under the
appropriate
temperature range.
2. The battery pack is
fully charged.
4. Battery pack
charging fault
1. Battery charge status
1
137-9461
1. Read the Operator’s
Manual.
3. For indoor use.
2. Do not discard. 4. Double insulated
134-4213
Model: / Code :
Code120A
Serial Number:
000000000
PATENT: www.ttcopats.com
Country of Origin: PRC
Date Code:
MM YY
LITHIUM-ION BATTERY CHARGER
Input: 100 - 240V AC 50Hz - 60Hz 2A
Output: 60V DC 2A
Backfeed Protection
Hayter Limited. Spellbrook Lane West
Spellbrook, Bishop’s Stortford,
Hertfordshire, CM23 4BU,
United Kingdom
1
23 4
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near
any area of potential danger. Replace any decal that is damaged or missing.
000000000 MM YY
1
234
134-5156
1. Read the Operator’s
Manual.
3. For indoor use.
2. Do not discard. 4. Double insulated

7Printed in China
All rights reserved
© 2020 - Hayter Limited
Spellbrook, Bishop’s Stortford, Herts CM23 4BU
Safety and Instructional Decals
PATENT: www.ttcopats.com
Country of Origin: PRC
Model:
Code:
Code102A
Serial Number: Date Code:
000000000 MM YY
PATENT: www.ttcopats.com
Country of Origin: PRC
For use with HAYTER Green Series
charger code120A
*Battery manufacturer rating = 60V
maximum & 54V nominal.
Actual voltage varies with load.
RECHARGEABLE LITHIUM ION BATTERY PACK/
BATTERIE RECHARGEABLE AU LITHIUM-ION
60V MAX* DC 2.5Ah, 135 Wh
15INR19/65
Hayter Limited. Spellbrook Lane West
Spellbrook, Bishop’s Stortford,
Hertfordshire, CM23 4BU,
United Kingdom
12 3 4 5
134-4212
Model:
Code:
Code612A
Serial Number: Date Code:
3180000000 MM YY
PATENT: www.ttcopats.com
Country of Origin: PRC
For use with HAYTER Green Series
charger code120A
*Battery manufacturer rating = 60V
maximum & 54V nominal.
Actual voltage varies with load.
RECHARGEABLE LITHIUM ION BATTERY PACK/
BATTERIE RECHARGEABLE AU LITHIUM-ION
60V MAX* DC 6.0Ah, 324 Wh
Model:
Code:
Code106A
Serial Number: Date Code:
3180000000 MM YY
15INR19/66-3
Hayter Limited. Spellbrook Lane West
Spellbrook, Bishop’s Stortford,
Hertfordshire, CM23 4BU,
United Kingdom
12 3 4 5
134-4214
1. Read the Operator’s
Manual.
4. Keep away from
open flames.
2. Recycle 5. Do not expose
to rain.
3. Contains lithium ions:
do not discard.
Model:
Code:
Code107A
Serial Number: Date Code:
3180000000 MM YY
PATENT: www.ttcopats.com
Country of Origin: PRC
PATENT: www.ttcopats.com
Country of Origin: PRC
For use with HAYTER Green Series
charger code120A
*Battery manufacturer rating = 60V
maximum & 54V nominal.
Actual voltage varies with load.
RECHARGEABLE LITHIUM ION BATTERY PACK/
BATTERIE RECHARGEABLE AU LITHIUM-ION
60V MAX* DC 7.5Ah, 405 Wh
Model:
Code:
Serial Number: Date Code:
3180000000 MM YY
15INR19/65-3
Hayter Limited. Spellbrook Lane West
Spellbrook, Bishop’s Stortford,
Hertfordshire, CM23 4BU,
United Kingdom
12 3 4 5
134-4215
1. Read the Operator’s
Manual.
4. Keep away from
open flames.
2. Recycle 5. Do not expose
to rain.
3. Contains lithium ions:
do not discard.
1. Read the Operator’s
Manual.
4. Keep away from
open flames.
2. Recycle 5. Do not expose
to rain.
3. Contains lithium ions:
do not discard.
Model:
Code:
CODE104A
Serial Number: Date Code:
3180000000 MM YY
PATENT: www.ttcopats.com
Country of Origin: PRC
PATENT: www.ttcopats.com
Country of Origin: PRC
Model:
Code:
Serial Number: Date Code:
0000000000 MM YY
15INR19/66-2
12 3 4 5
For use with HAYTER
Green Series chargers
RECHARGEABLE LITHIUM ION BATTERY PACK/
BATTERIE RECHARGEABLE AU LITHIUM-ION
60V MAX* DC 4.0Ah, 216 Wh
Hayter Limited. Spellbrook Lane West
Spellbrook, Bishop’s Stortford,
Hertfordshire, CM23 4BU,
United Kingdom
*Battery manufacturer rating = 60V DC
maximum & 54V DC nominal.
Actual voltage varies with load.
134-5169
1. Read the Operator’s
Manual.
4. Keep away from
open flames.
2. Recycle 5. Do not expose
to rain.
3. Contains lithium ions:
do not discard.

8Printed in China
All rights reserved
© 2020 - Hayter Limited
Spellbrook, Bishop’s Stortford, Herts CM23 4BU
Safety and Instructional Decals
Setup

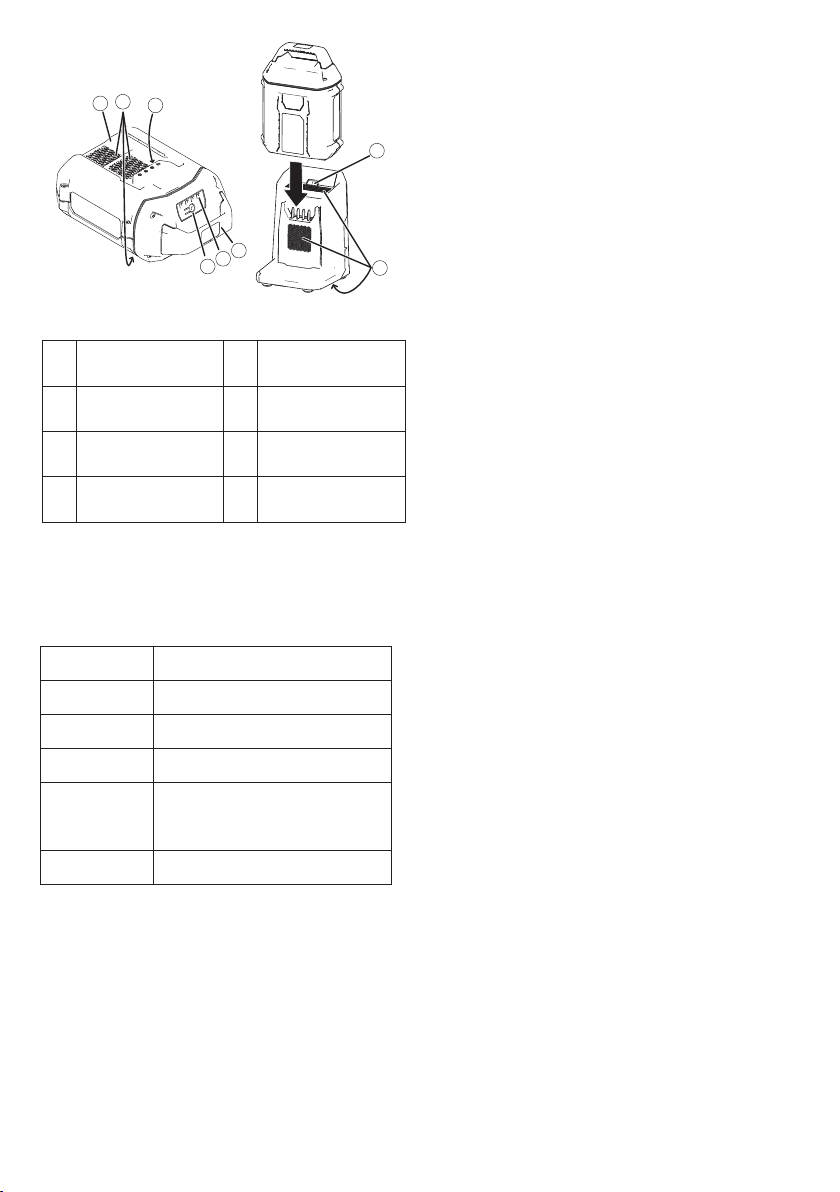

Mounting the Battery Charger
(Optional)
If desired, mount the battery charger securely on
a wall using the wall-mount key holes on the back
of the charger. Mount it indoors (such as a garage
or other dry place), near a power outlet, and out
of the reach of children.
Refer to Figure 1 for assistance in mounting the
charger.
Slide the charger over the appropriately
positioned hardware to secure the charger in
place (hardware not included).
101.6 mm
(4 inches)
Product Overview
Battery Charger
Model Type Input Output
CODE120A 60V MAX Lithium-
Ion Battery Charger
100 to 240V
AC 50/60Hz
Max 2.0A
60V MAX
DC 2.0A
CODE121A 60V MAX Lithium-
Ion Battery Rapid
Charger
100 to 240V
AC 50/60Hz
Max 5.0A
60V MAX
DC 5.5A
Battery Pack
Model Battery pack capacity
CODE102A 2.5 Ah / 135 Wh
CODE104A 4.0 Ah / 216 Wh
CODE106A 6.0 Ah / 324 Wh
CODE107A 7.5 Ah / 405 Wh
Battery manufacturer rating = 60V maximum and 54V nominal.
Actual voltage varies with load.
Appropriate Temperature Ranges
Charge battery pack at 5°C (41°F) to 40°C (104°F)*
Use battery pack at -20°C (-4°F) to 49°C (120°F)
Store battery
pack/charger at
5°C (41°F) to 40°C (104°F)*
*Charging time will increase if you do not charge
the battery within this range. Store the tool,
battery pack, and battery charger in an enclosed
clean, dry area.
Operation
Charging the Battery Pack
Important: The battery pack is not fully
charged when you purchase it. Before using
the tool for the first time, place the battery
pack in the charger and charge it until the
LED display indicates the battery pack is
fully charged. Read all safety precautions.
Important: Charge the battery pack
only in temperatures that are within the
appropriate range; refer to Specifications.
Note: At any time, press the battery-charge-
indicator button on the battery pack to display
the current charge (LED indicators).
1. Make sure that the vents on the battery are
clear of any dust and debris.
2. Line up the cavity in the battery pack (Figure
2) with the tongue on the charger.
3. Make sure that the vents on the battery
charger are clear of any dust and debris.
4. Slide the battery pack into the charger until
it is fully seated Figure 2.
Figure 1

9Printed in China
All rights reserved
© 2020 - Hayter Limited
Spellbrook, Bishop’s Stortford, Herts CM23 4BU
123
4
6
5
7
8
Figure 2
1. Battery pack cavity 5. LED indicators
(current charge)
2. Battery pack
venting areas
6. Handle
3. Battery pack
terminals
7. Charger LED
indicator light
4. Battery-charge-
indicator button
8. Charger venting
areas
5. To remove the battery pack, slide the
battery backward out of the charger.
6. Refer to the following table to interpret the
LED indicator light on the battery charger.
Indicator light Indicates
Off No battery pack inserted
Green blinking Battery pack is charging
Green Battery pack is charged
Red Battery pack and/or battery
charger is over or under the
appropriate temperature range
Red blinking Battery pack charging fault*
*Refer to Troubleshooting for more information.
Maintenance
Maintenance and servicing are not required under
normal conditions. When you clean the surface of
the equipment, wipe it only with a dry cloth.
Do not disassemble the equipment; if it is
damaged, contact your Authorised Service
Dealer.
Storage
Important: Store the tool, battery pack, and
charger only in temperatures that are within
the appropriate range; refer to Specifications.
Important: If you are storing the tool for a
year or longer, remove the battery pack from
the tool and charge the battery pack until 2
or 3 LED indicators turn green on the battery.
Do not store a fully charged or fully depleted
battery. When you are ready to use the tool
again, charge the battery pack until the left
indicator light turns green on the charger or all
4 LED indicators turn green on the battery.
• Disconnect the product from the power
supply (i.e., remove the battery pack) and
check for damage after use.
• Clean all foreign material from the product.
• When not in use, store the tool, battery
pack, and battery charger out of the reach
of children.
• Keep the tool, battery pack, and battery
charger away from corrosive agents, such
as garden chemicals and de-icing salts.
• To reduce the risk of serious personal
injury, do not store the battery pack
outside or in vehicles.
• Store the tool, battery pack, and battery
charger in an enclosed clean, dry area.
Preparing the Battery Pack for
Recycling
Important: Upon removal, cover the terminals of
the battery pack with heavy-duty adhesive tape.
Do not attempt to destroy or disassemble the
battery pack or remove any of its components.
Contact your local municipality or your
authorised Hayter distributor for more
information on how to responsibly recycle the
battery.

10 Printed in China
All rights reserved
© 2020 - Hayter Limited
Spellbrook, Bishop’s Stortford, Herts CM23 4BU
Troubleshooting
Perform only the steps described in these instructions. All further inspection, maintenance, and repair
work must be performed by an authorised service centre or a similarly qualified specialist if you cannot
solve the problem yourself.
Problem Possible Cause Corrective Action
The battery pack loses
charge quickly.
1. The battery pack is over or under
the appropriate temperature
range.
1. Move the battery pack to a
place where it is dry and the
temperature is between 5°C
(41°F) and 40°C (104°F).
The battery charger is not
working.
1. The battery charger is over
or under the appropriate
temperature range.
2. The outlet that the battery
charger is plugged into does not
have power.
1. Unplug the battery charger and
move it to a place where it is dry
and the temperature is between
5°C (41°F) and 40°C (104°F).
2. Contact your licensed electrician
to repair the outlet.
The LED indicator light on
the battery charger is red.
1. The battery charger and/or
battery pack is over or under the
appropriate temperature range.
1. Unplug the battery charger and
move the battery charger and
battery pack to a place where
it is dry and the temperature is
between 5°C (41°F) and 40°C
(104°F).
The LED indicator light on the
battery charger is blinking red.
1. There is an error in the
communication between the
battery pack and the charger.
2. The battery pack is weak.
1. Remove the battery pack from
the battery charger, unplug the
battery charger from the outlet,
and wait 10 seconds. Plug the
battery charger into the outlet
again and place the battery pack
on the battery charger. If the LED
indicator light on the battery
charger is still blinking red, repeat
this procedure again. If the LED
indicator light on the battery
charger is still blinking red after 2
attempts, properly dispose of the
battery pack at a battery recycling
facility.
2. Properly dispose of the battery
pack at a battery recycling facility.
The tool does not run or
does not run continuously.
1. There is moisture on the leads of
the battery pack.
2. The battery is not fully installed
into the tool.
1. Allow the battery pack to dry or
wipe it dry.
2. Remove and then replace the
battery into the tool making
sure that it is fully installed and
latched.
It is difficult to remove the
battery pack from the tool.
1. The battery pack/tool is new or
there is corrosion in the battery
terminals and/or the terminals on
the tool.
1. Clean the terminals on the
battery and the tool. Then apply
dielectric grease to the battery
terminals; do not use any other
type of lubricant as it can damage
the terminals.

11 Printed in China
All rights reserved
© 2020 - Hayter Limited
Spellbrook, Bishop’s Stortford, Herts CM23 4BU
EEA/UK Privacy Notice
Hayter’s Use of Your Personal Information
Hayter Limited, and its parent, The Toro Company, respect your privacy. When you purchase our
products, we may collect certain personal information about you, either directly from you or through
your local retail outlet. We use this information to fulfil contractual obligations - such as to register
your warranty, process your warranty claim or to contact you in the event of a product recall - and
for legitimate business purposes - such as to gauge customer satisfaction, improve our products
or provide you with product information which may be of interest. We may share your information
with The Toro Company, its subsidiaries or affiliates, or with our dealers, retailers or other business
partners in connection these activities. We may also disclose personal information when required by
law or in connection with the sale, purchase or merger of a business. We will never sell your personal
information to any other company for marketing purposes.
Retention of your Personal Information
We will keep your personal information as long as it is relevant for the above purposes and in
accordance with legal requirements. For more information about applicable retention periods please
contact [e-mail].
Hayter’s Commitment to Security
Your personal information may be processed in the US or another country which may have less strict
data protection laws than your country of residence. Whenever we transfer your information outside
of your country of residence, we will take legally required steps to ensure that appropriate safeguards
are in place to protect your information and to make sure it is treated securely.
Access and Correction
You may have the right to correct or review your personal data, or object to or restrict the processing
of your data. To do so, please contact us by email at [e-mail]. If you have concerns about the
way in which Hayter Ltd. has handled your information, we encourage you to raise this directly with us.
Please note that European residents have the right to complain to your Data Protection Authority.

THIS PAGE HAS INTENTIONALLY BEEN LEFT BLANK
