Aqua Creek F-045SCH User manual

Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15
PART #: F-045SCH
(For use with Revolution, Scout and Titan)
MANDATORY – LEAVE THIS MANUAL WITH LIFT OWNER
24V Solar Charger
Instructions
Read & follow all instructions
Lift safety can only be ensured if the lift is installed
and operated according to these instructions
For safety reasons, NEVER swim alone
SAVE a copy of these instructions
NEVER use the lift with a dry pool
NEVER apply direct water pressure to the electronics
NEVER permit children to play on or around the lift
Do not allow children to use the lift without adult supervision
9889 Garrymore Ln
Missoula, MT 59808
888-687-3552 | [phone]
aquacreek.com 1

Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15

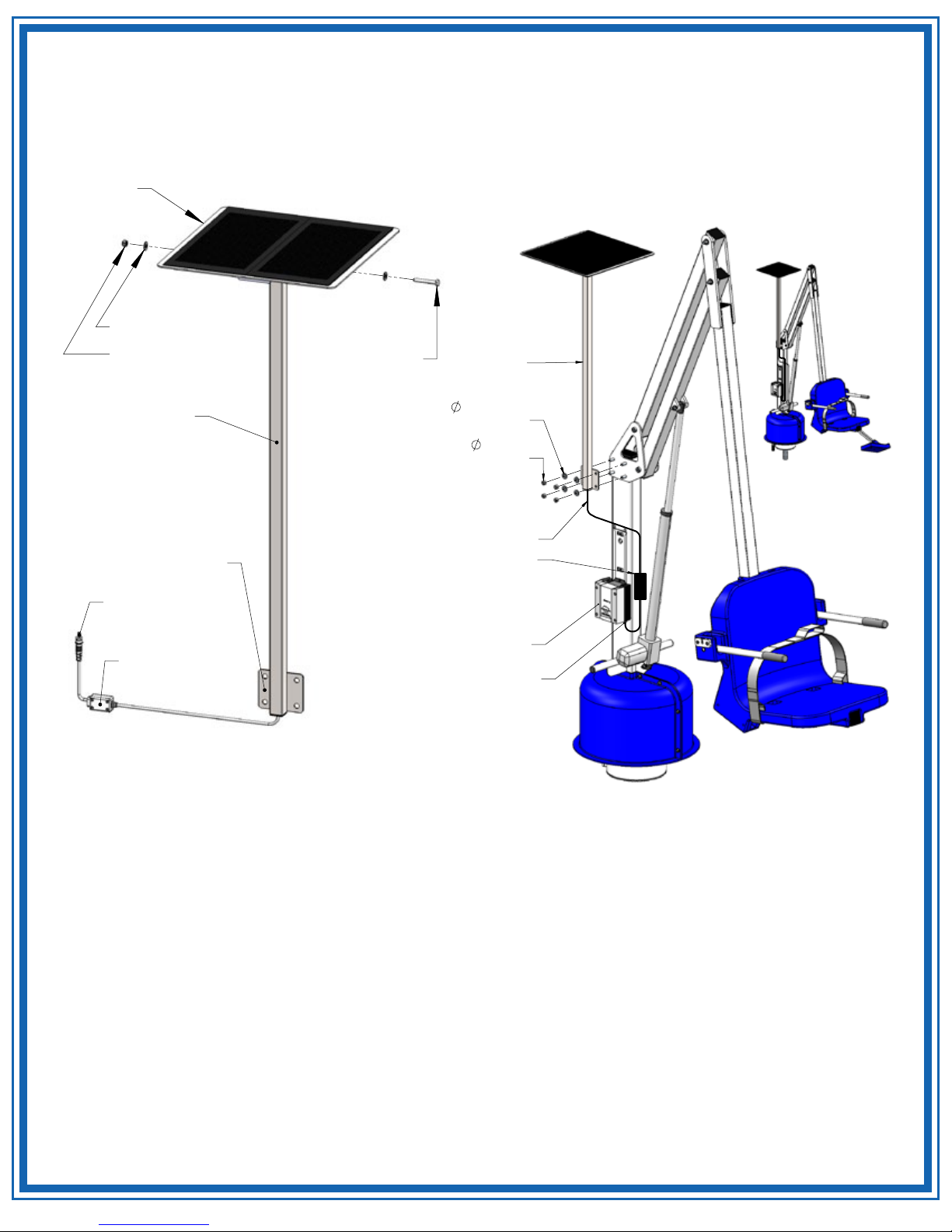

Unpacking and Installation
Before installing the 24V Solar Charger to the lift, ip-up the 24V Solar Panel Assembly and install the
1/4” hex bolt as shown in the diagram above. The 24V Solar Charger for the Revolution, Scout and Titan
lifts bolts directly to the mast, as shown above, and may be left on the unit 24 hours a day. In most cases
this will mean the battery will not need to be charged during the day, or for heavy usage will not need to
be put on the AC wall charger as often. To install the 24V Solar Charger, remove the four (4) 3/8” Nylock
nuts and at washers from the lift as shown, and install the charger. The control box connector plugs
directly into the control box as shown above and on the next page.
SOLAR
CHARGER
3/8"
NYLOCK (4)
3/8" FLAT
WASHER (4)
CHARGER
CABLE
CONTROL
BOX
PLUG INTO
CONTROL BOX
24V IN/OUT
(FAR RIGHT)
FUSE BOX
24V SOLAR PANEL
ASSEMBLY
SOLAR CHARGER
MAST POLE
SOLAR CHARGER
MOUNTING BRACKET
FUSE BOX
CONTROL BOX
CONNECTOR
1/4" HEX BOLT
1/4" FLAT WASHER (2)
1/4" NYLOCK NUT
2

Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15
TO OPEN THE CONTROL BOX
USE A TORX T20 DRIVER
Control Box Modication Instructions
“TORX”T20 DRIVER FOR
OPENING CONTROL-BOX
REMOVE THE FOUR (4) SCREWS FROM THE TOP OF THE CONTROL BOX: LEAVE SCREWS IN HOLES
Check to make sure the far right plug in does not have a plastic disk at the top of the hole. If it
has a plastic disk, follow the instructions on how to remove it. If the hole is clear, skip to “Solar
Charger Installation”.
3

Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15
Control Box Modication Instructions
REMOVE THE COVER AND PLACE ON TABLE RIGHT-SIDE UP: NOTE POSITION OF EMERGENCY-SWITCH CAP
USE A “TORX”T10 DRIVER TO REMOVE THE THREE (3) SCREWS FROM THE CONTROL BOARD
4

Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15
Control Box Modication Instructions

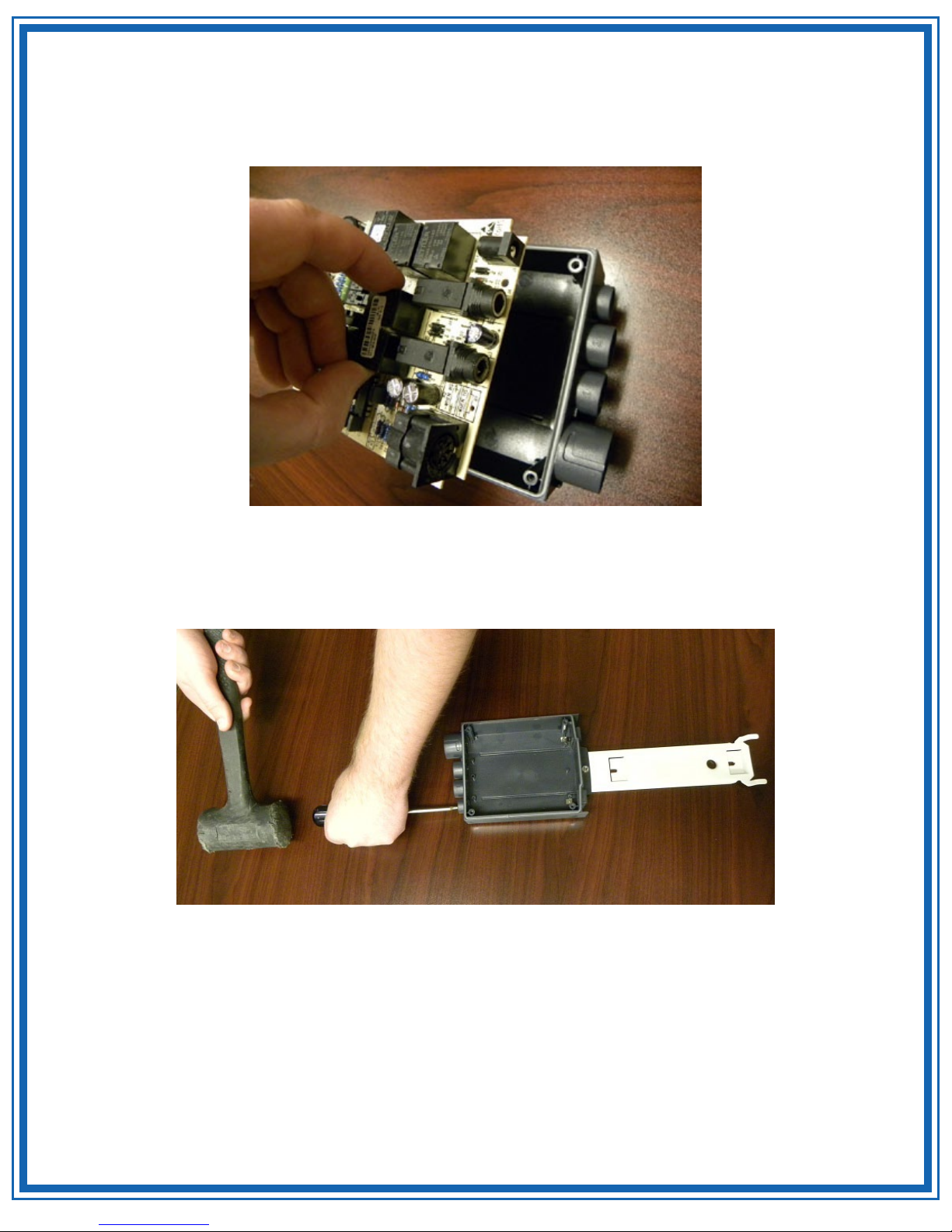

REMOVE THE CONTROL BOARD FROM THE CONTROL BOX
USE SCREWDRIVER, AND MALLET IF NECESSARY, TO PUNCH-OUT
AND REMOVE PLASTIC-DISC ON 24V INPUT/OUTPUT PORT
5

Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15
Control Box Modication Instructions
PLACE THE CONTROL BOARD BACK IN PLACE INSIDE THE CONTROL BOX
RETURN THE THREE (3) SCREWS TO SECURE
THE CONTROL BOARD BACK IN PLACE
REPLACE THE EMERGENCY-SWITCH CAP WITH
“ARROW” POINTING DOWN AS SHOWN
6

Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15
Control Box Modication Instructions
PUT COVER ON AND REINSTALL SCREWS
TEST EMERGENCY-SWITCH WITH DRIVER, LISTEN FOR“CLICK”
7

Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15

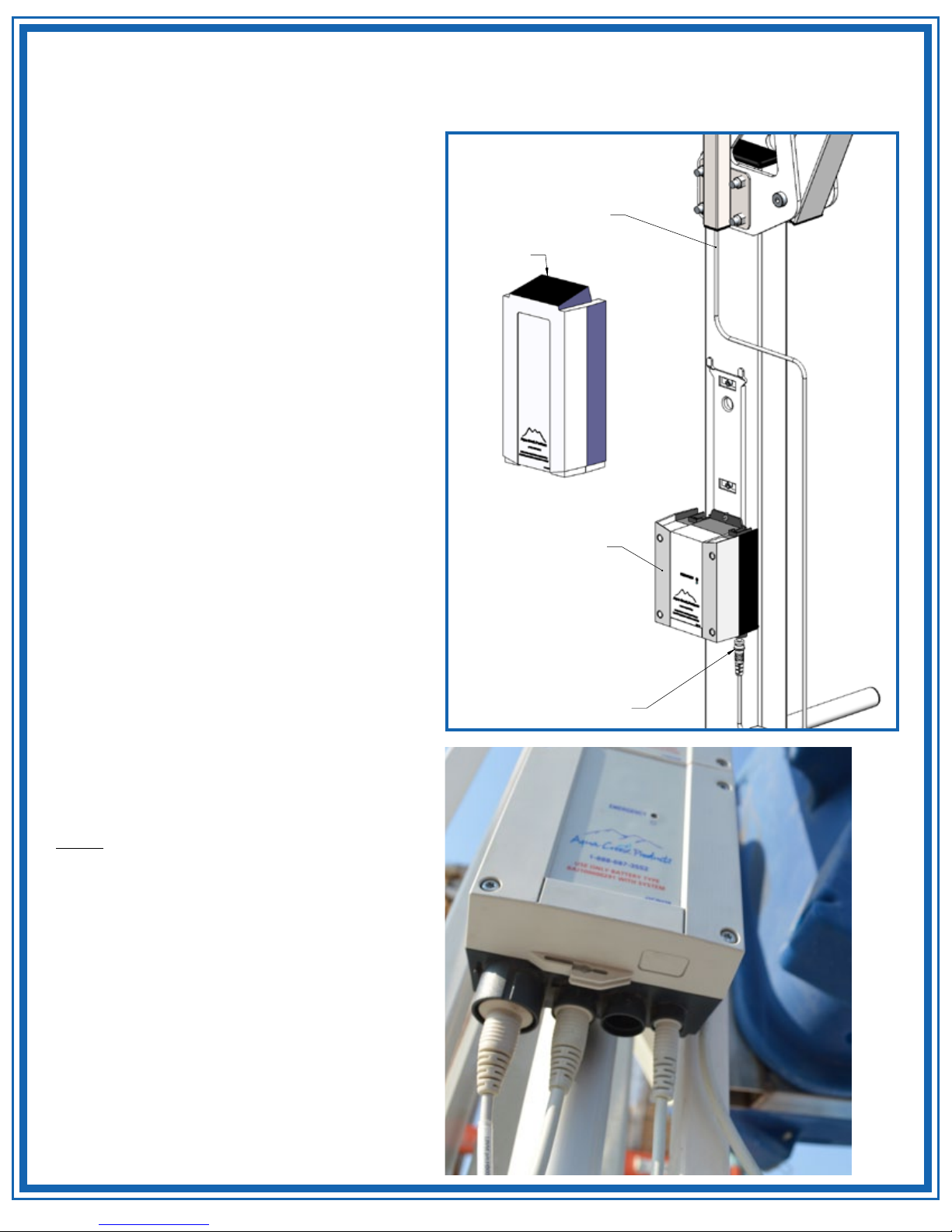

Solar Charger Installation
The CHARGER CABLE gets plugged into
the 24V in-out slot of the control box
which is located on the far right. Run
the battery cable along the side of the
CONTROL BOX bracket so it is out of the
way.
CHARGER
CABLE
CONTROL
BOX
PLUG INTO
24V IN-OUT
(FAR RIGHT)
24V
BATTERY
NOTE: Make sure the plug is fully
engaged into the control box. Make
sure the lights come on (see next page)
and the lift functions normally when
the 24V Solar Charger is installed. If
the lift does not function, check all
connections going into the control box
and make sure they are pressed all the
way in. When installed properly the
battery will charge as the lift operates
simultaneously.
8

Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15
Solar Charger Operation
Once the solar charger has been installed, and a battery is installed onto the lift the 24V Solar Charger
will turn on and start trickle-charging the battery. Without the battery installed the 24V Solar Charger
will be o, and will remain o until a battery is installed.
When a 24V battery is installed onto the lift the LED INDICATOR will ash“2”to show a 24V battery has
been detected and the charger is operational.
The Solar-Panel power indicator will light up (red) when the Solar Charger has been properly connected
to the battery. The charger will work even on cloudy days, but not as eciently.
When the battery is installed and there is sucient sunlight, the CHARGE INDICATOR will ash (red)
slowly, indicating the battery is being charged. When the controller detects the battery is fully charged
the ashing will stop. Under most conditions the CHARGE INDICATOR light will be ashing whenever a
battery has been installed.
The 24V Solar Charger will continue to charge the battery, even as the lift is being used. So once the 24V
Solar Charger has been installed it will function without any need for adjustment. The user should check
the indicators periodically to make sure it is working.
CHARGE
CONTROLLER
(UNDERNEATH)
24V BATTERY
2
WHEN THE BATTERY
IS CONNECTED THE
INDICATOR WILL
FLASH "2" AND THE
SOLAR CHARGER
WILL TURN ON
BATTERY POWER INDICATOR:
TURNS ON (RED) WHEN
THE BATTERY IS CONNECTED
CHARGE INDICATOR:
FLASHES SLOWLY (RED)
WHEN BATTERY IS CHARGING
9

Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15

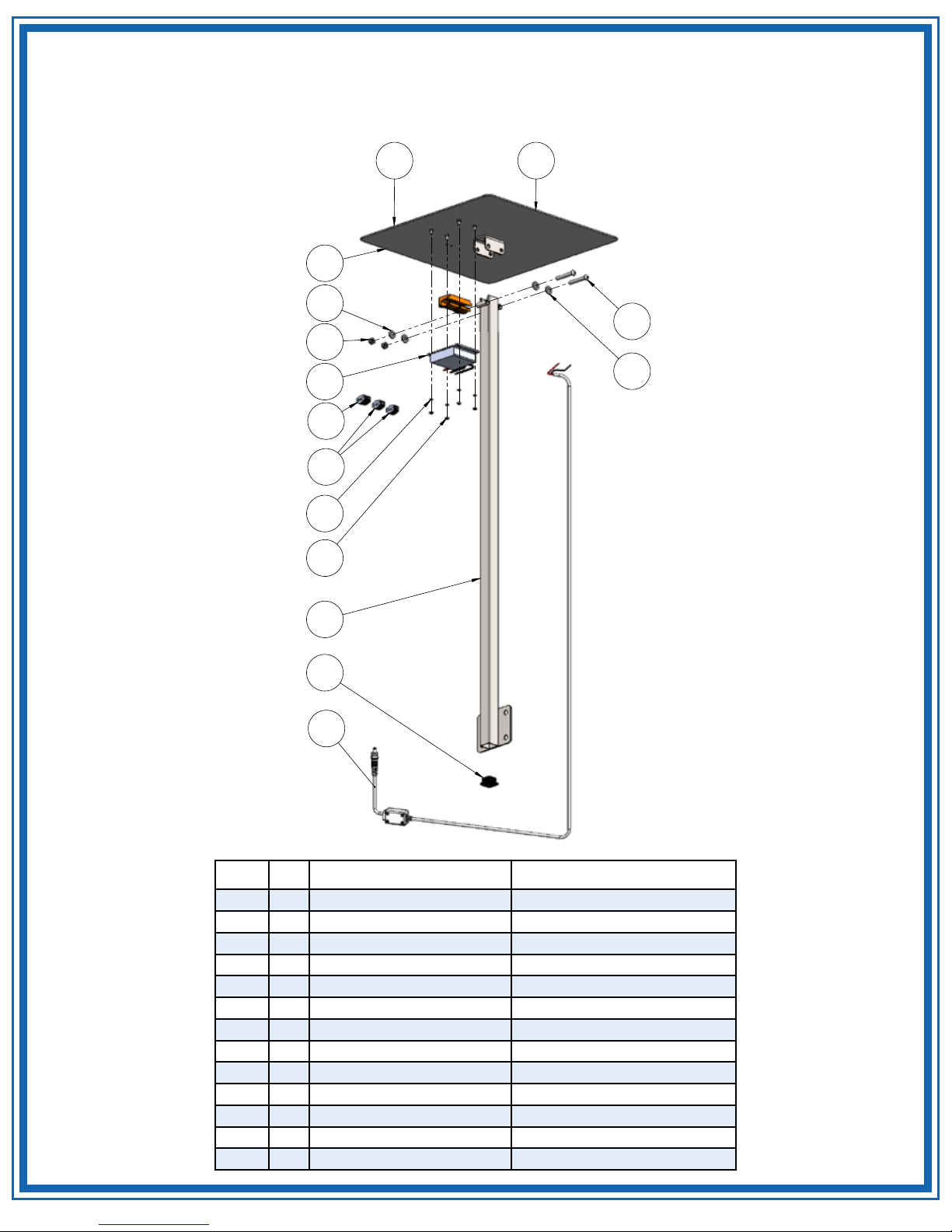

Solar Charger Parts List
1
2
33
5
6
7
8
9
10
12
12
13
11
4
ITEM # QTY PART # DESCRIPTION
1 1 RSC-100-00 REV SOLAR CHARGER LOWER WELDMENT
2 1 PSC-300-00 REV SOLAR CHARGER TOP WELDMENT
3 2 P-WSME-0040 4SOLAR PANEL, WATT MOBILE
4 1 VSCC1 SOLAR CHARGER CABLE, VITO
5 1 P-LCSC-A1 CONTROLLER, 12/24V SOLAR
6 1 222-413 CONNECTOR, WAGO, 3 LEVER
7 2 222-412 CONNECTOR, WAGO, 2 LEVER
8 1 SQR-1-14-20 CAP, PLASTIC, 1”X1” SQUARE
9 4 FLAT WASHER, #4 SS WASHER, FLAT, #4, 316 SS
10 4 NYLOCK, #4-40 SS NUT, 316 SS, NYLOCK, #4-40
11 2 BOLT, 1/4-20 X 1 3/4 BHSCS BOLT, 316 SS, 1/4-20 X 1 3/4 BHSCS
12 4 FLAT WASHER, 1/4 SS WASHER, FLAT, 1/4, 316 SS
13 2 NYLOCK, 1/4-20 SS NUT, 316 SS, NYLOCK, 1/4”-20 10
