Hayward SharkVAC XL User manual
SharkVAC XL™/ e.VAC PRO™
no installation, no attachments. Just drop it in and turn it on. Filter cleaning is much easier with the
optimizes cleaning routine for each individual pool size and shape. Electronic Self-Diagnostics,
Overload Protection, and simple Direct Drive design with non-corrosive bearings provide high reliability.
cleaner to perform in their pool.
SAVE THIS INSTRUCTION MANUAL
HAYWARD POOL EUROPE - 1070 Allée des Chênes - CS 20054 Saint Vulbas - 01154 Lagnieu Cedex - France
ISRC9740WCE - Rev D
ROBOTIC CLEANER
OWNER’S MANUAL
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 2 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
Basic safety precautions should always be followed, including the following: Failure to follow instructions can cause
severe injury and/or death.
⚠
following signal words and be alert to the potential for personal injury.
⚠WARNING warns about hazards that could cause serious personal injury, death or major property damage
and if ignored presents a potential hazard.
⚠CAUTION warns about hazards that will or can cause minor or moderate personal injury and/or property
damage and if ignored presents a potential hazard. It can also make consumers aware of actions that are unpredictable
and unsafe.
NOTICE label indicates special instructions that are important but not related to hazards.
⚠WARNING - Read and follow all instructions in this owner’s manual and on the equipment.
Failure to follow instructions can cause injury.
⚠WARNING – This document should be given to the owner of the swimming pool and must be
kept by the owner in a safe place.
⚠WARNING – This appliance is not intended for use by persons with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
⚠WARNING – Do not let children use or play with the cleaner.
⚠WARNING – Hayward only guarantees the quality, performance and safety of its products when
assembled with genuine Hayward manufactured parts. Use of non genuine Hayward manufactured
parts will void all warranty.
⚠CAUTION – Regularly inspect the cleaner and hoses; do not use if damaged or if any rough
edges are visible on the cleaner as this can cause damage to the pool.
⚠WARNING – Never operate the cleaner when there are people in the pool.
⚠WARNING – Before installing this product, read and follow all warning notices and instructions which
are included. Failure to follow safety warnings and instructions can result in severe injury, death, or property
damage.
⚠CAUTION – Deterioration, discoloration or brittleness of any pool finish can be caused over time
separately by, or in combination with, age, incorrect pool water chemistry, improper installation, and other
factors. Customer hereby disclaims any and all claims, and releases Manufacturer from any and all claims
for damages to any pool plaster or vinyl liner in Customer’s pool by reason of the use and/or operation of the
Cleaner. Under no circumstances shall the Manufacturer be liable for any loss or damage, whether direct,
consequential or incidental, arising out of the use or inability to use the cleaner in Customer’s pool.
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 3 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
CONSUMER INFORMATION AND SAFETY
⚠DANGER Risk of electrical shock or electrocution
local codes (see p17) and ordinances. Improper installation will create an electrical hazard
which could result in death or serious injury to pool users or others due to electrical
shock, and may also cause damage to property.
⚠WARNING Do not play with cleaner or cable or apply to body. Can trap or tear hair or body parts.
Cable can trip or entangle swimmers which could result in drowning.
⚠CAUTION
to automatically clean steps or to work under a solar cover. It was also not designed to do
initial cleanup for a new pool installation.
Operating the Cleaner
⚠WARNING A30 mAdifferential protection device must be installed to protect your electrical outlet and
to prevent any possible electric shock. Failure to do so could create an electrical hazard
which could result in death or serious injury to pool users or others due to electrical shock
and may also cause damage to property.
⚠CAUTION DO NOT switch the pool cleaner to “ON” if it is not immersed in the water. Operating the
cleaner out of the water may cause severe damage and will result in loss of warranty.
Always remember to turn off the power supply “OFF” and unplug it from the power outlet
before removing the cleaner from the pool.
⚠WARNING It is mandatory to allow a safety distance between the power supply and the pool as
required by the current installation standard (3.5 m minimum).
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 4 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
Dear Hayward Robotic Cleaner Owner:
these steps:
cleaner’s optimal performance.
excessively dirty.
understanding of the cleaner’s capabilities. Subsequent cleanings may only require the quick clean
cycle (90 minutes).
normal part of the programmed cycle.
the programmed cycle.
6. DO NOT start cleaner out of the water. Power button should only be switched to “On” position when
“OFF”
position when unit completes cleaning.
7. Plug in only to a protected 230 V
outlet that is close and protected from short circuits. Fit a 30 mA
differential protection device to protect people from electric shock caused by a possible break in the
electrical insulation.
8. Place the cleaner power supply so that it is at a minimum distance of 3.5 meters from the pool edge.
STOP READ THESE IMPORTANT OPERATING
TIPS BEFORE USING YOUR UNIT!
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 5 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
GENERAL OPERATING INSTRUCTION
Remove the cleaner by placing the carton down and removing
1.Select the nearest 230 V
outlet that is close and protected from short-circuits. Fit a 30 mAdifferential
protection device to protect people from electric shock caused by a possible break in the electrical
insulation.
2.Place the power supply so that it is at a minimum distance of 3.5
length of the standard cable is 16.76 meters.
Hayward.
4.Place the cleaner in the pool. It will slowly sink to the bottom of the pool as the air inside is released.
diagnostics routine for several minutes before starting the cleaning cycle.
⚠Caution: DO NOT switch power supply "ON"
damage to the pump and drive motor seals, which will VOID the warranty.
cleaning cycle. If your pool is cleaned in less time than 90 minutes, you may shut the cleaner off
manually by switching the power supply to the off position.
Should a second cleaning cycle be required, switch OFF the power supply for 10 seconds and
restart. (see Power Supply operating instructions)
Fig. 1
3.5 m
Fig. 2
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 6 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
7. After the pool has been cleaned, switch OFF the power supply before removing the cleaner from the
pool.
8. Remove the cleaner from the water at the shallow end of the pool by pulling the cable until the cleaner
reaches the surface. Then lift it out of the water using the handle, NOT the cable.
9. If the supply cord is damaged it must be replaced by the manufacturer, service agent, or similarly
(see p17).
Caution: When pulling the cable, reel it in hand-over-hand - do NOT reel it around your arm.
DO NOT ENTER THE SWIMMING POOL WHEN THE CLEANER IS OPERATING.
Optimum operating water temperature range for the cleaner is 10ºC - 35ºC.
Remove the cleaner from the pool after each use. Keeping the cleaner permanently in the pool may
result in additional service requirements.
POWER SUPPLY OPERATING INSTRUCTIONS
When the power supply is initially switched ON the quick clean cycle will be
cycle.
the cleaning operation. If the quick clean cycle has completed simply turn the
cleaner will automatically shut-off after 4-hours of operation on this cycle.
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 7 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
Fig. 3
14
5
12
11
9
10
13
7
6
8
1
4
2
3
1. Power Supply 8. Sealed Motor Unit
2. Floating Cable 9. Side Panel
3. Handle 10. Dome Assembly
4. On/Off Switch 11. Filter Bucket
5. Filter Cartridge 12. Wheel
13. Filter Door
7. Foam Roller 14. Float Assembly
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 8 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
CADDY CART INSTRUCTIONS - SEE DIAGRAM
- Caddy Cart will come partially assembled in the carton less the handle & tube.
- Insert the screw into the tube at the base of the caddy cart & secure with bolt (3)
- Insert the handle into the top of the tube & insert the screw securing it with the bolt (4)
X1 X1
X2 X2 X2 X1
1
2 3
54
X2
X1
1
2
2
1
2
2
Fig. 4
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 9 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
MAINTENANCE

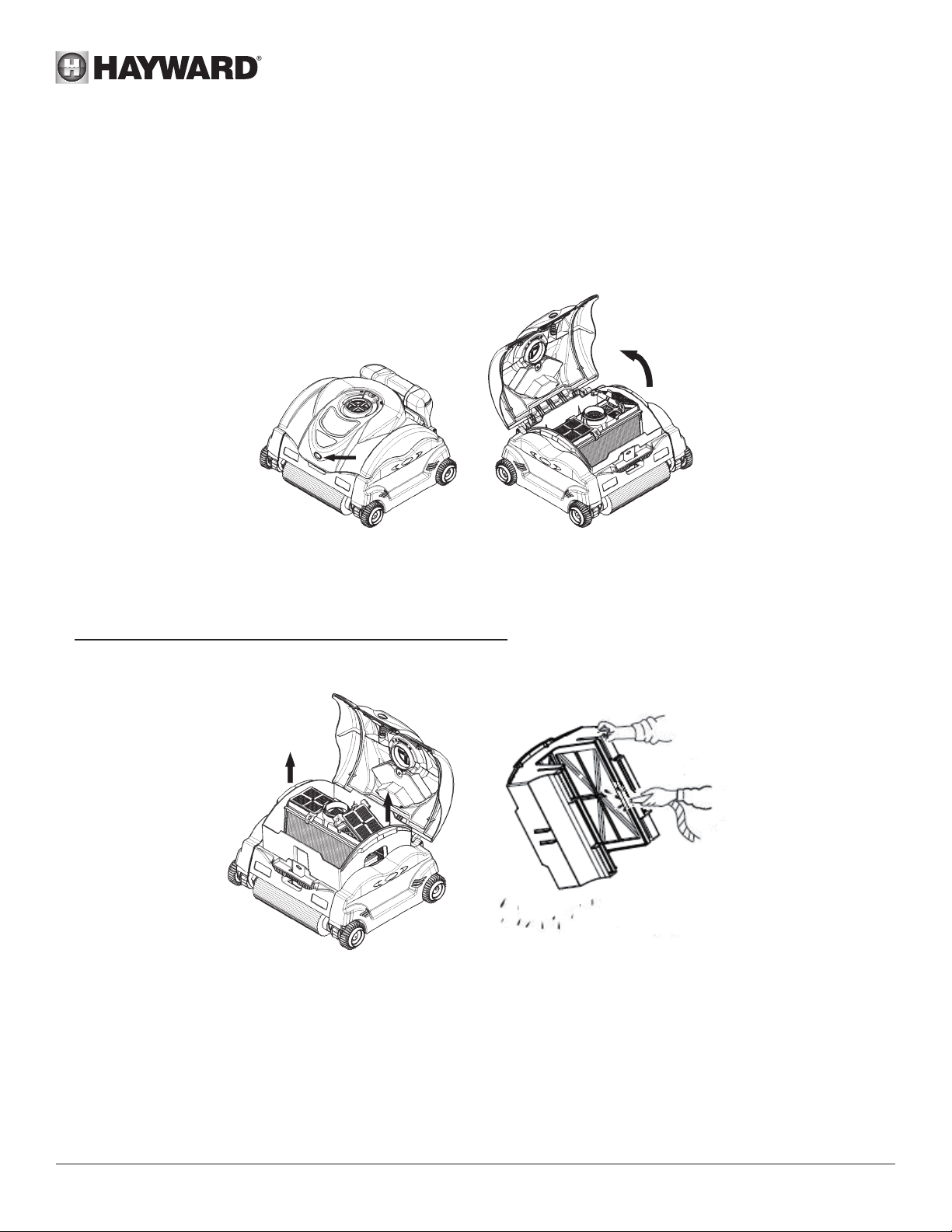

1. Open the cleaner by pressing the lid button and lifting up the dome cover.
3. Flip the bucket assembly over to remove the debris and then rinse with a garden hose to remove
small particles.
4. Filter cartridges do not need to be removed to clean.
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 10 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
facing inward
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 11 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
Periodic Cleaning of Moving Parts
⚠WARNING: Disconnect the power supply from electrical outlet before cleaning moving parts.
Storage
When unit is out of the water, store the cleaner in a dry, shady location at temperatures between
4°C-46°C
Cable Care
stretching the cord out in the sun should remove any cord twists.
IMPORTANT
back.
7. Close the dome and press the lid button to snap dome into place.
NOTE: Filter cleaning solution can be used to remove excessive dirt and/or sand.
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 12 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
Back side wall
climbing
Float Position
WATER
LINE
Method of
selection
Normal Clean
Water line scrubbing
Active Floor Clean
WALL CLIMBING FEATURE
position (I, II, and III) will provide different wall climbing action.
best cleaning behavior for most swimming pools.
Float position “II” will provide an additional angle in the movement where the cleaner will travel along the
Float position “III” will provides a reduced angle in the movement where the cleaner will spend more time
with slick surfaces such as tile and berglass.
Method of selection: Position may be set while the cover is closed using the slide handle, or while the
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 13 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
IMPORTANT TIPS
the cleaner in the pool.
operating the cleaner.
dealer service.
• The sealed Motor Unit and the Power Supply contain no user-serviceable parts. Opening them
will automatically VOID your warranty.
items can jam the cleaner and cause damage to the unit and/or your pool.
bottom to allow the unit to clear obstacles, such as elevated main drains and stair steps.
to allow free operation.
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 14 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
TROUBLESHOOTING
and/or sand
instructions in the maintenance section.
and clean if necessary.
drain for a short period of time, but will eventually free it’s self by virtue of the cleaner’s embedded
program.
operates at different times during each cycle. It is important to judge the performance of the cleaner
by observing improved pool cleanliness after the cleaner has run a complete cleaning cycle.
the area.
possible) in the sun; heat from the sun will help reduce the twisting.
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 15 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
SPECIFICATIONS
Weight (w/o cable) 10.45 Kg
16.76 m
Materials High Impact ABS - Metal Parts of Non-Ferous Stainless Steel
Motor Unit Pump Drive PCB
Speed (rpm) 2 700 55 -
Voltage 24 V ⎓22 V ⎓5 V ⎓
Current (amp) 2.62 A 0.63 A -
Waterproof Sealing
Motor Housing Sealed, Watertight, High Impact Polypropylene
Overload Protection Electronic Overload Monitoring with auto-shutoff
Optimum water operating
temperature 10°C - 35°C
Filter
Removable, Re-Usable, Pleated Element Cartridge
Media Pleated Cellulose/Polyester Blend
Cleaning Routine Control
Adaptive Seek Control Logic (ASCL®) Microprocessor
Cleaning Cycle Full Cycle
4 hours 90 minutes
Drive System
Stainless Steel Bearing System
Power Supply
Input Primary Voltage 230 V
Output Secondary Voltage 24 V ⎓
Rated Output Current 4 A
Weight 3.8 Kg
Shipping
Length Width Height
Carton Dimensions (mm) 620 440 752
Shipping Weight with Caddy 22.3 Kg
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 16 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
IMPORTANT SAFETY INSTRUCTIONS
for safety. We suggest the following safety precautions become part of your pool safety regulations:
SAVE THESE INSTRUCTIONS
.
CLEANER.
230 V
CLEANER.
6. ALWAYS STAY OUT OF THE POOL WHILE CLEANER IS IN OPERATION.
YOUR POOL WALL.
10.DO NOT BURY CORD. REPLACE DAMAGED CORDS.
11.
⚠WARNING - TO REDUCE THE RISK OF INJURY, DO NOT PERMIT CHILDREN TO USE THIS PRODUCT UNLESS
THEY ARE CLOSELY SUPERVISED AT ALL TIMES.
12.IF THE SUPPLY CORD IS DAMAGED IT MUST BE REPLACED BY THE MANUFACTURER, SERVICE AGENT, OR
SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD.
While the cleaner has been made to operate as safely as possible, we suggest you exercise reasonable care in the handling
of the vacuum and inspect the electrical cord frequently for damage or wear, as with any other electrical appliance. After
use, remove the unit and rinse with fresh water and remove any twists that may be present in the cord.
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 17 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
HAYWARD® Limited Warranty
All HAYWARD products are covered for manufacturing defects or material defects for a warranty period of 2 years as of date
of purchases. Any warranty claim should be accompanied by evidence of purchase, indicating date of purchase. We would
therefore advise you to keep your invoice.
have been subjected to normal use, in compliance with the guidelines given in their user guides, provided that the products
have not been altered in any way, and provided that they have been used exclusively with HAYWARD parts and components.
the warranty.
HAYWARD may not be held liable for any direct or indirect damage resulting from incorrect installation, incorrect connection,
or incorrect operation of a product.
In order to claim on a warranty and in order to request repair or replacement of an article, please ask your dealer.
No equipment returned to our factory will be accepted without our prior written approval.
Wearing parts are not covered by the warranty.
EXCEPTIONS AND EXCLUSIONS FROM WARRANTY
-
tions or other failures of the cleaner arising from use on electrical supply not as indicated are excepted and excluded from this
warranty.
Defects, malfunctions, failure or damage of the cleaner caused by improper, unreasonable, or negligent use or abuse by the
consumer, are excluded from this warranty.
If any repair is made on your cleaner by anyone other than authorized personnel (designated to perform such work) without
first having obtained factory instructions, HAYWARD, at its sole option, may determine that this warranty will not apply and that
reimbursement for such repair will not be made because of failure to comply with such factory specified instructions.
Filter cartridges are not covered by this warranty and will be replaced only with your prior approval of the charges.
Electric standard/country
FNF C 15-100 GB BS7671:1992
DDIN VDE 0100-702 EW EVHS-HD 384-7-702
AÖVE 8001-4-702 H
E MMSA HD 384-7-702.S2
IRL Wiring Rules + IS HD 384-7-702 PL PN-IEC 60364-7-702:1999
ICEI 64-8/7 CSN 33 2000 7-702
LUX 384-7.702 S2 SK
NL NEN 1010-7-702 SLO
P RSIUEE
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 18 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
1a RCX97471SB 12 RCX97445 24 RCX97505GR 36 RCX12011 48 RCX97511GR
1b RCX97471CY 13 RCX97407 25 RCX97435 37 RCX97459 49 RCX97409
2 RCX97477 14 RCX97414 26 RCX97507GR 38 RCX97429 50 RCX97410
3 RCX97423 15 RCX97455 27 RCX26000 39 RCX59002 51 RCX97427
4 RCX97472 16 RCX12010 28 RCX97461 40 RCX12301 52a RCX97480SB
5 RCX97431 17 RCX12002 29 RCX97525WCE 41 RCX59003 52b RCX97480CY
6 RCX97433 18 RCX11000 30 RCX97510GR 42 RCX12302
7 RCX70101 19 RCX97490 31 RCX97401GR 43 RCX59004
8 RCX97417 20 RCX40117 32 RCX97509GR 44 RCX59006
9 RCX97417S 21 RCX97501GR 33 RCX97445 45 RCX50062
10 RCX97405 22 RCX97502GR 34 RCX97403 46 a SharkVAC XL
11 RCX97415 23 RCX97506 35 RCX97508GR 47 RCX26008 b e.VAC PRO
Hayward only guarantees the quality, performance and safety of its products when assembled with genuine Hayward manufactured parts.
Use of non genuine Hayward manufactured parts will void all warranty.
Page 19 of 19 SharkVAC XL™/ eVAC PRO™Robotic cleaner Rev. D
manual contains important information regarding the operation and maintenance of your cleaner. Please
TO REGISTER YOUR CLEANER IN OUR DATABASE, GO TO:
www.hayward.fr (section Services)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Record the following information for your convenience:
1) Purchase Date_________________________________________________________
2) Complete Name ________________________________________________________
3) Address ______________________________________________________________
5) Email Address__________________________________________________________
6) Part number______________________Serial number__________________________
7) Pool Dealer____________________________________________________________
__
8) Address_______________________________________________________________
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Hayward Robotic Cleaners should not be used to clean the pool for spring start-up. On those occasions,
where your pool is subjected to an abnormal debris load, maintenance steps should be taken to return
the pool to “pre-installations” condition.
For Your Records
Note
OWNER'S MANUAL
Other manuals for SharkVAC XL
1
This manual suits for next models
1
Table of contents
Other Hayward Vacuum Cleaner manuals
Hayward
Hayward AquaVac 500 User manual
Hayward
Hayward AquaVac 6 Series User manual
Hayward
Hayward RC361248 User manual
Hayward
Hayward RC34 series User manual
Hayward
Hayward Aquashark Series User manual
Hayward
Hayward RC34 series User manual
Hayward
Hayward TigerShark User manual
Hayward
Hayward AquaVac 6 Series User manual
Hayward
Hayward TigerShark User manual
Hayward
Hayward SharkVAC XL Pilot User manual
