HBC FSE 514 Owner's manual

Notes on the Installation, Initial Start-up, Operation
Radio Receiver FSE 514
BE-514_I-V1-3-FCC.doc.doc [ Word 2000 ] MB Page 1 / 18
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
Information and specifications subject to change without notice. 30-04-2003
Radio System
HBC – Radio Control
R
Ra ad di io o R Re ec ce ei iv ve er r F FS SE E 5 51 14 4

Notes on the Installation, Initial Start-up, Operation
Radio Receiver FSE 514
Page 2 / 16 BE-514_I-V1-3-FCC.doc.DOC [ Word 2000 ] MB
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
30-04-2003 Information and specifications subject to change without notice.
Radio System
Manufacturer: HBC-radiomatic GmbH
Haller Strasse 49 - 53
74564 Crailsheim • Germany
Tel. +49 ( 0 ) 79 51 – 3 93 - 0
Fax +49 ( 0 ) 79 51 – 3 93 – 50
E-mail: [e-mail]
http://www.hbc-radiomatic.com
HBC radiomatic GmbH is not liable for any misprints or errors ! – All rights reserved.
™radiomatic is a registered German trademark.
© 2003 – 04, HBC-radiomatic GmbH , D-74564 Crailsheim
No part of any software or of the present document may be reproduced in any manner whatsoever without
the expressed written permission of HBC-radiomatic GmbH.

Notes on the Installation, Initial Start-up, Operation
Radio Receiver FSE 514
BE-514_I-V1-3-FCC.doc.doc [ Word 2000 ] MB Page 3 / 18
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
Information and specifications subject to change without notice. 30-04-2003
Radio System
Table of Contents
1 Description..................................................................................4
1.1 Unpacking and Examining the Consignment...............5
1.1.1 Transport Insurance............................................................5
2 Safety Instructions....................................................................6
2.1 Pictographs.....................................................................................6
2.2 General Safety Instructions...................................................7
2.3 Safety Instructions for Installation and Operation...8
2.4 FCC-Rules ...........................................................................................9
3 Installation and Mains Connection......................................10
Proper Installation of the FSE 514 Radio Receiver...............11
3.1 Radio Status Panel....................................................................12
3.2 Automatic HOLD Function Settings (Eltako)..............13
4 Fault Correction.......................................................................14
5 Maintenance..............................................................................15
5.1 In The Event of a Fault............................................................15
6 Technical Data..........................................................................16
6.1 Dimensions of the FSE 514 Radio Receiver............... 17

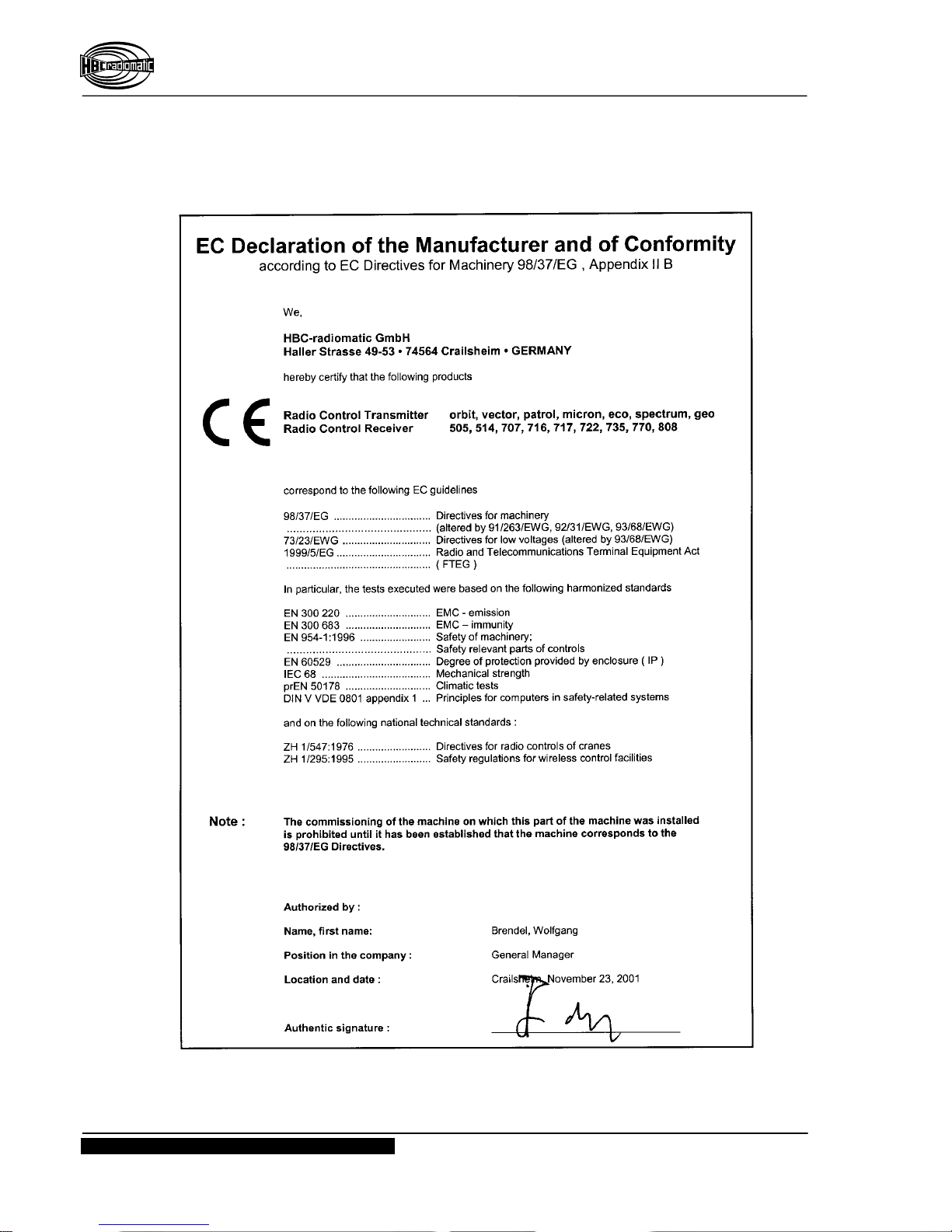

7 Certificates and Approvals...................................................18
Appendix:
– System-specific Projections
– System-specific Circuit Diagrams and Output Wiring

Notes on the Installation, Initial Start-up, Operation
Radio Receiver FSE 514
Page 4 / 16 BE-514_I-V1-3-FCC.doc.DOC [ Word 2000 ] MB
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
30-04-2003 Information and specifications subject to change without notice.
Radio System
1 Description
The FSE 514 radio receiver is designed for the wireless reception of command
instructions for controlling light-weight industrial cranes and small hoists.
The FSE 514 radio receiver can receive and process up to 14 control commands.
A non-interchangeable system address ensures the functional safety of the radio control
system when operating cranes or machines, This feature is particularly important when
several cranes or machines are in use, for example in halls and shops. The system
address is exclusively allocated to each HBC radio transmitter and its respective
receiver.
It is not possible to activate crane or machine functions using a radio control
system allocated to another crane or machine.
The radio receiver has general telecommunications approvals. It is not necessary to
have or to apply for a license to operate the receiver and the respective transmitter. The
radio receiver broadcasts in either a 30 cm or 70 cm bandwidth. The receiver is
equipped with < 5 mW or < 10 mW transmitting power.
Operating the radio receiver and transmitter using a different frequency range requires
the approval of the competent regulative authorities for telecommunications.
High-quality radio technology pursuant to the guidelines laid down by the German
Regulative Authorities for Telecommunications and Postal Services and the Regulations
For The Prevention of Accidents combined with perfected microprocessor technology
guarantees the highest degree of operative safety, service quality and serviceable life.

Notes on the Installation, Initial Start-up, Operation
Radio Receiver FSE 514
BE-514_I-V1-3-FCC.doc.doc [ Word 2000 ] MB Page 5 / 18
HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY
Information and specifications subject to change without notice. 30-04-2003
Radio System
1.1 Unpacking and Examining the Consignment
When unpacking your radio control system ensure that the contents of the consignment
correspond with the specification on the delivery note.
As a rule, the complete radio control system 514 consists of the following parts and
components :
– 1 transmitter
– 1 transmitter carrying set
– 2 rechargeable transmitter batteries
– 1 battery charger
– 1 transmitter operating instructions
– 1 FSE 514 radio receiver with
– 4 rubber vibration dampers including hardware
– 1 receiver operating instructions
("Installation, Commissioning and Operating Instructions")
To ensure that the radio control system arrives intact, HBC-radiomatic GmbH packs its
systems in reusable packaging material.
We recommend storing all packaging materials in a safe place in case of later use.
1.1.1 Transport Insurance
When unpacking your radio control system check for possible transport damage !
Deliveries ex works Crailsheim are insured against transport damage. Should any part or
component arrive damaged contact the carrier immediately (postal services, courier,
parcel service, forwarding agent), register complaint and have the damage inspected
and recorded. After having the reason for complaint recorded, assign the claim to the
manufacturer. You will find the necessary insurance forms together with the consignment
documents.
Note:
Failure to adhere to these instructions may render the transport insurance coverage
invalid.
