Mobile Power Operation Mannual
Portable Mobile Power Supply Specification
Application Scenarios
MODEL:DF-MP 7 W
Power Pack
1.this equipment widely used for temporary power supply for monitoring of municipal
motor vehicles, logistic storage cars, farm tractor. portable equipment , small size digital
electrical products.
2.adopt high energy panasonic lithium-ion core from Japan ,electrical energy parts compose
atvantages of high density energy, output power can be reach 24w. long cycling life, enviorment
protection.
3.small in size, strong magnetic inside . easy to assembly.
4.adopt US TEXAS safe protect curciut desigh for charge/discharge temperature control disable.
5.
DC5V fast charging is accepted, convert rates for charge/discharge port can be reach 93%
6. mating USB charging power line , charging interface can be used by any digital product,
7.stand-up power input /output disign. grade for protection: IP66
8.LED power indicated in red, yellow ,green color.
Input protection
I
X
Input over current protection
U
X
Output over voltage protection
℃
Temperature protection
X
Short circuit protection
Reset
Reset protection
PTC
Electric core PTC protection
Battery over charge/over discharge protection

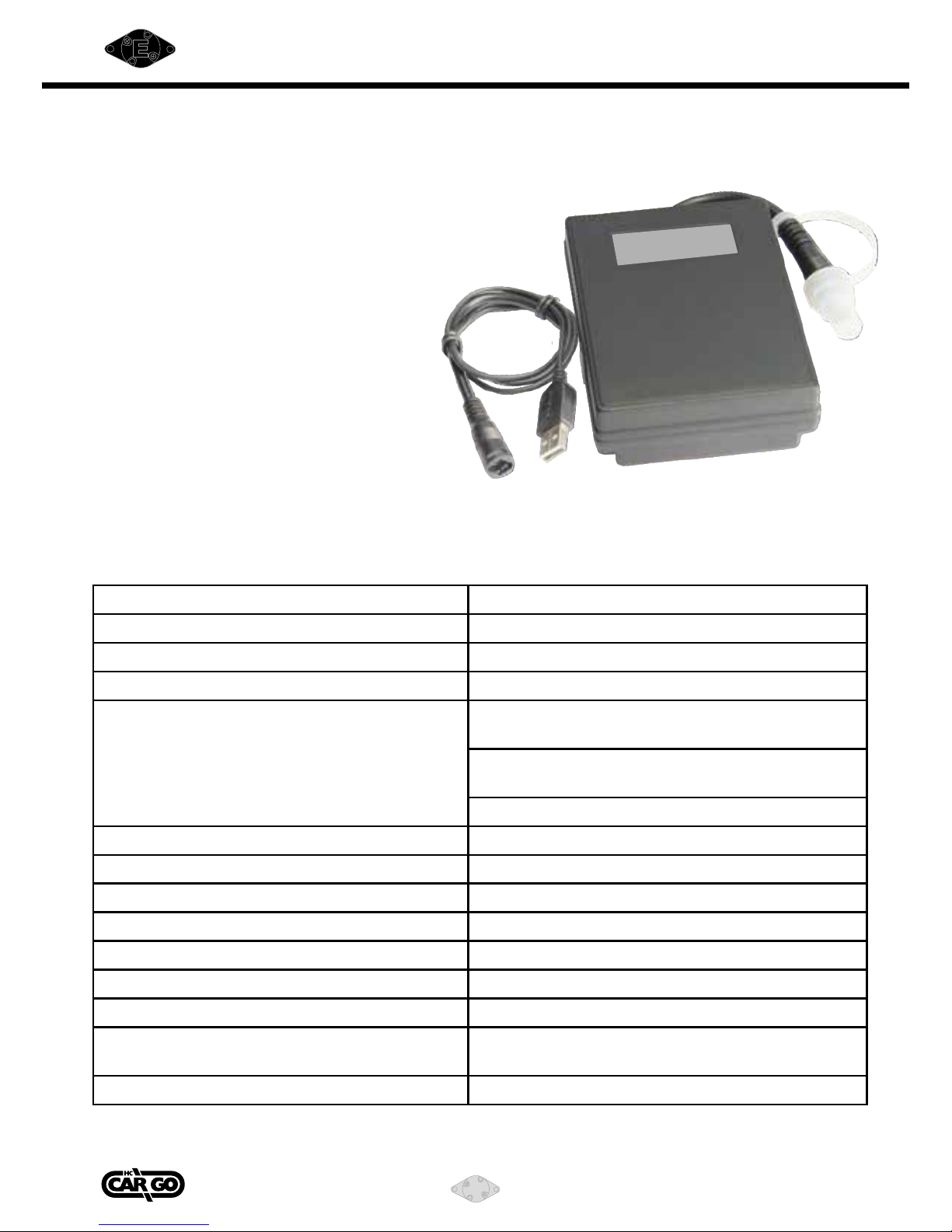

mobile power technical parameter
How to use
mobile power supply
Shell dimension(mm)
Name
DC Output
Charging Method
Charge / Discharge Interface
Waterproof Level
DF-MP7W
Mobile Power
> 800 cycles
DC Input
5V/10W
7W
Constant current (CC) 2A (0.2C) to 4.2V cut-off charge
Charging Working Temperature
Discharge Working Temperature
Storage Temperature
Dimensions (mm)
0℃ to +40℃
-20℃ to +60℃
-40℃ to +60℃
95mmX72mmx29mm(without tails)
Constant Voltage (CV) 4.2V 100mA to charge off
10A(1C)Charging
Charging times
Capacity 10000mA
Type Batteries
Lithium-ion batteries (Panasonic original import)
DC2.1 * 5.5 male
Shockproof Level 6G
IP66
Model
Weight (g) 280g
Use conventional digital product power adapter ,pc USB to charge
equipment. voltage range:DC5V/10W.

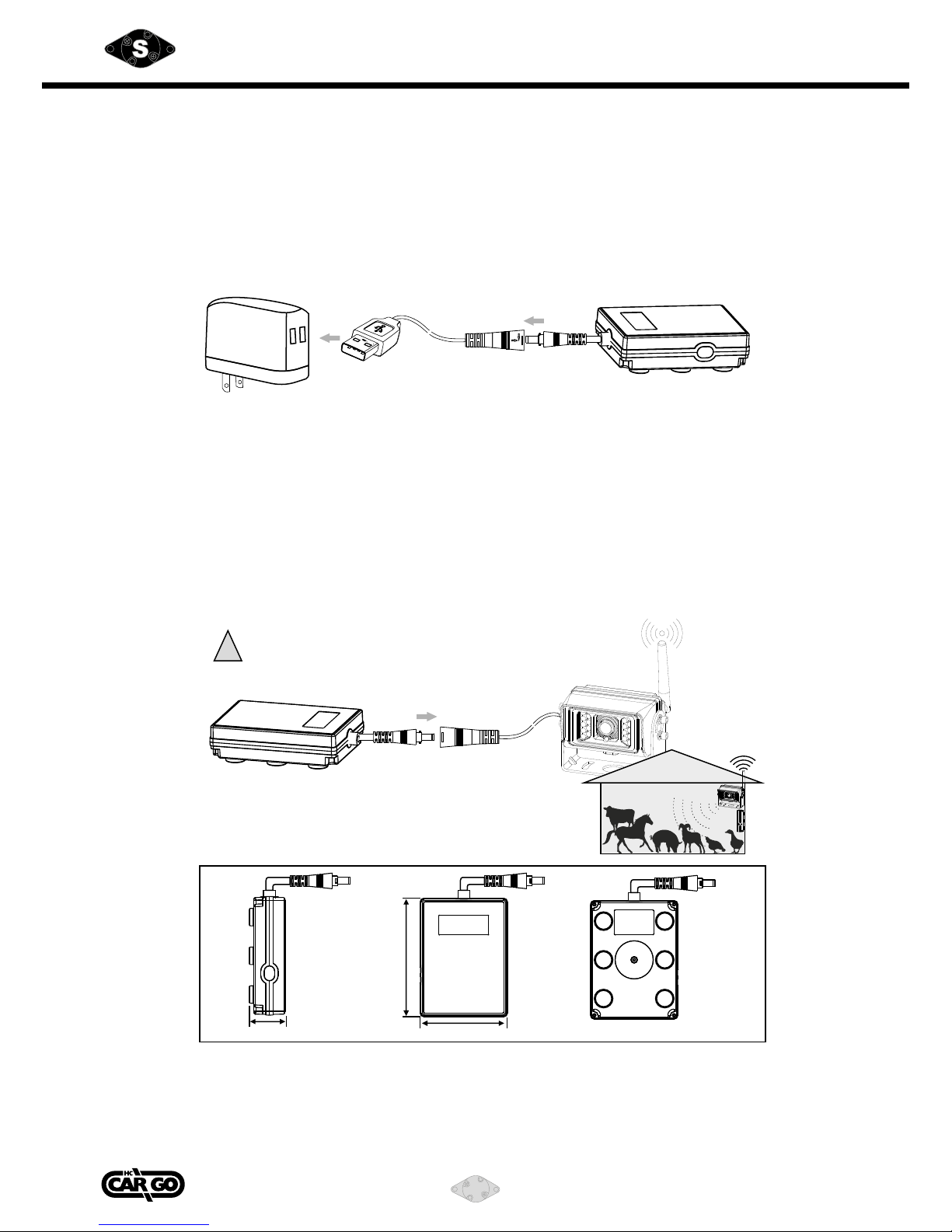

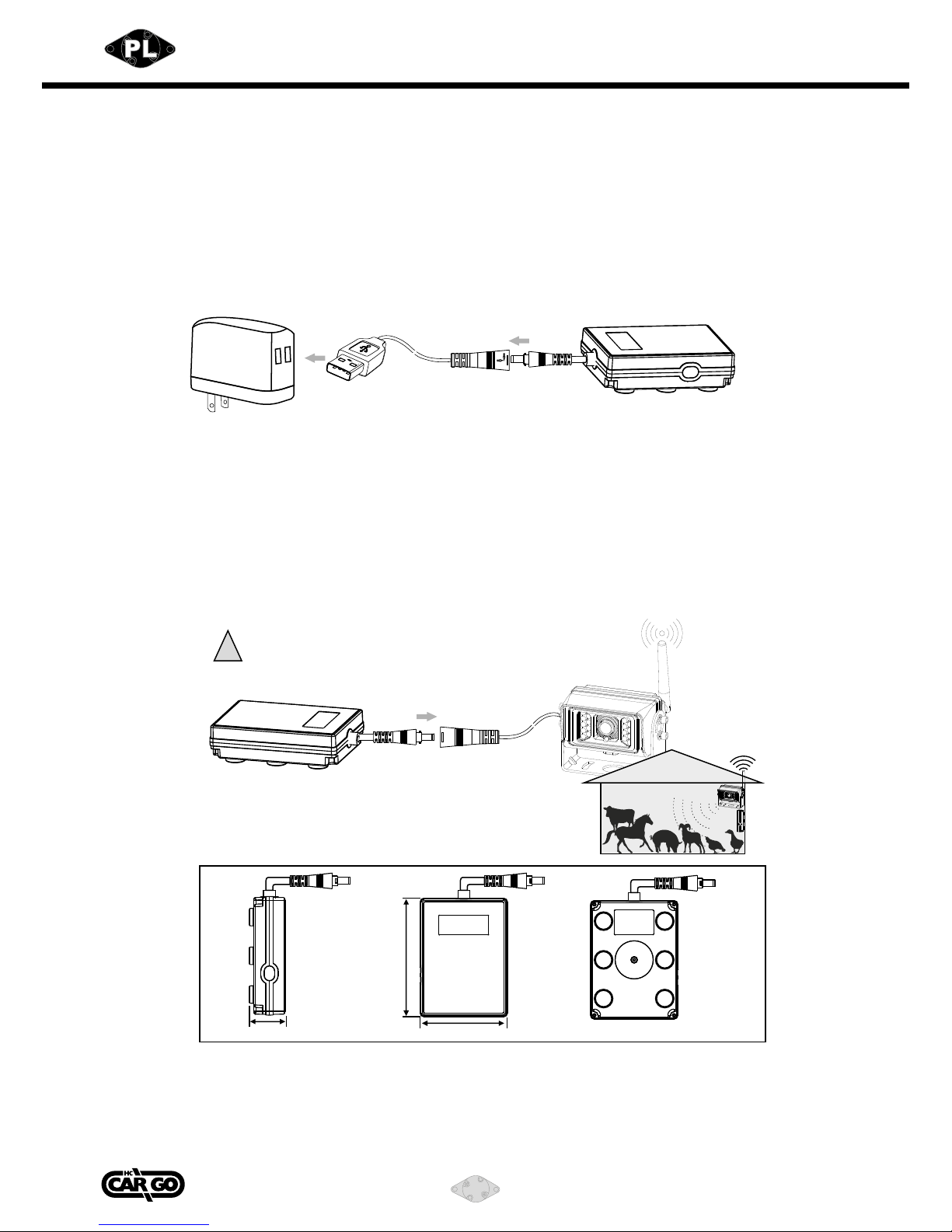

connect monitor camera to interface of mobile power . press
on/ off button to start charge.
dischage indicator: green light on 100%/ blue light on 75%/
red light on 25%.
Charge indicator: red light flash below 25%/ yellow below 50%/
blue below 100%.
! red light flash 60s then cut off power
output if below 10%.
29mm
95mm
70mm
5V
12V
Input:A C90-220V/0.5A
Output:D C5V/2A 12V/2A

Vedpak 221_Version 1_01.2018
Type Batteries Lithium-ion batteries
Capacity 10000mA
DC Input 5V / 10W
DC Output 7W
Constant current (CC) 2A (0.2C)
to 4.2V cut-o charge
Charging Method Constant Voltage (CV) 4.2V
100mA to charge o
10A(1C) Charging
Charging times >800 cycles
Charge / Discharge Interface DC2.1 * 5.5 male
Shockproof Level 6G
Waterproof Level IP66
Charging Working Temperature 0o to +40o
Discharge Working Temperature -20oto +60o
Storage Temperature -40oto +60o
Dimensions (mm) 95 mm x 72 mm x 29 mm
(without tails)
Weight (g) 280 g
