hc-cargo 160783 User manual

1Vedpak 120UK_Version 2_150909
160783
GB
1
Automotive components since 1963
GB
160783
SUPER 7" 3+1
REAR VIEW CAMERA
AND MULTIMEDIA KIT
USER MANUAL
Vedpak 120UK_Version 2_150909

2Vedpak 120UK_Version 2_150909
160783
GB
3
Active GND
Active Power Level Connect to Direction Light (Left Turn Light)
Active Power Level Connect to Direction Light (Right Turn Light)
Active Power Level Connect to reverse

2 3 Vedpak 120UK_Version 2_150909
160783
GB
CONTENT:
Features...........................................................................................................4
Installation of monitor.......................................................................................4
Signal cable description ...................................................................................4
Control cable description..................................................................................5
Front panel control ...........................................................................................6
OSD menu .......................................................................................................7
Display .............................................................................................................8
Installation for colour camera.........................................................................12
Vehicle installation..........................................................................................13
Monitor specications.....................................................................................14
Camera specications....................................................................................15
Accessories....................................................................................................17
PACKAGE CONTENTS:
1. 7" LED monitor 16:9.
2. Sun-hood.
3. Mounting brackets.
4. Mounting parts.
5. Control cable.
6. Camera w/ infrared LED’s and built-in microphone.
7. 20 mtr. camera cable.
8. User manual.
CAUTION:
Do not add any parts or use any accessories which are not
provided from the manufacturer.
Do not adjust system settings when driving to prevent trafc accidents.
Do not add pressure to the screen.
Do not sprinkle any liquid to clean the monitor. If you need to
clean it, please use a LCD cleaning cloth.

4Vedpak 120UK_Version 2_150909
160783
GB
5
FEATURES:
Supports up to 3 CCD Camera inputs (Mini DIN Connector).
Extra RCA input for multimedia (VCD, DVD, Game device).
Provide 1 Video / 1 Audio signal output.
Auto detection for NTSC / PAL System.
Signal Trigger for Cam A / Cam B / Cam R / AV View.
Auto brightness adjustment by CDS.
Back mirror status selection via OSD.
Video output select via OSD (Back / Door / AV).
Power latching.
Switch timer (2-100 sec.) Step selection via OSD (Cam A / Cam B / Cam R / AV View).
INSTALLATION OF MONITOR:
1. Check the package and make sure all parts are included.
2. Clip the sun-hood on to the monitor and make sure it is installed properly.
3. Install the monitor on to the bracket.
4. Adjust the monitor to an appropriate / comfortable viewing angle before tightening the screws.
5. Connect the control cable to the power socket which is located at the rear side of the monitor.
6. Monitor installation is now completed. Each control cable wire is attached with a sticker to indicate its signal function.

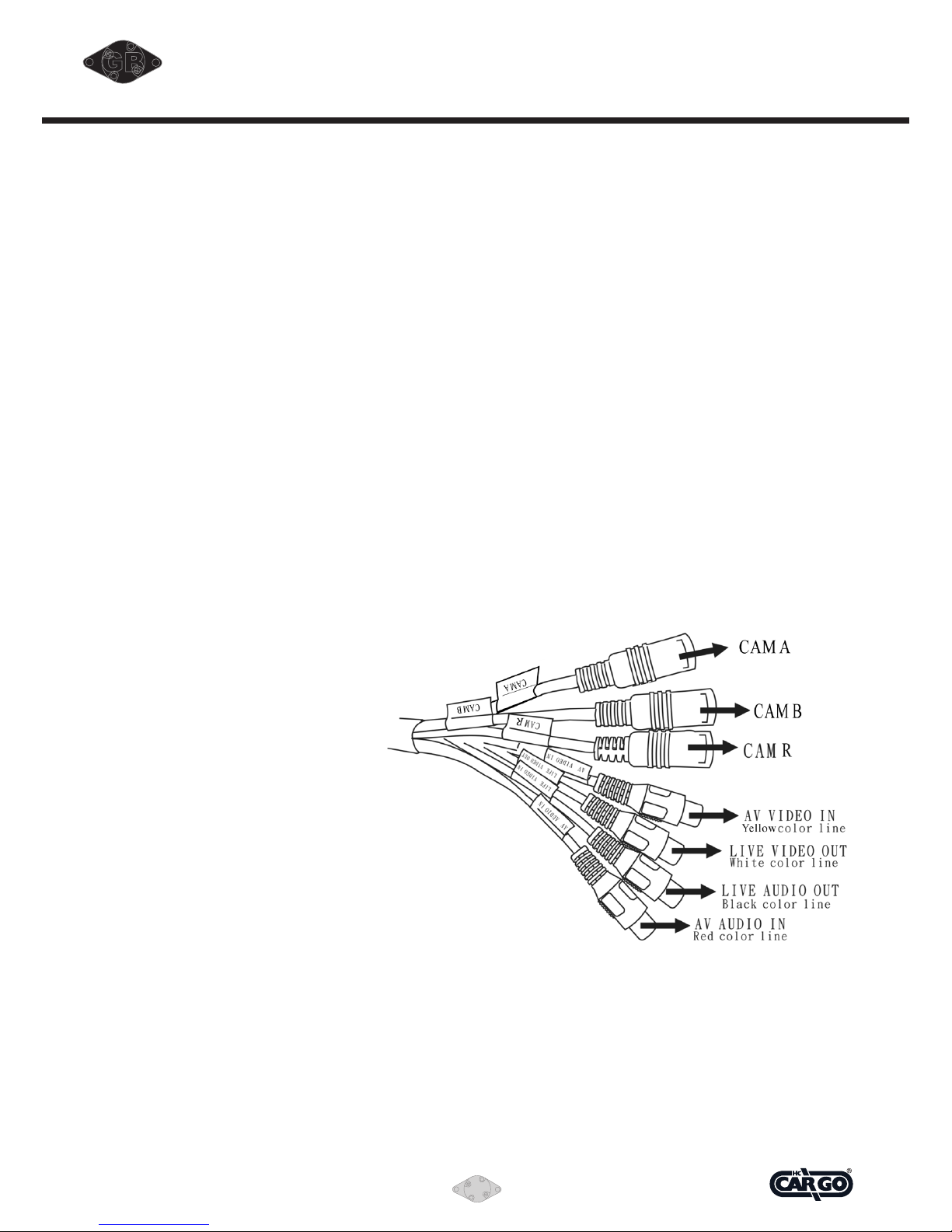

SIGNAL CABLE DESCRIPTION:
1. CAM A (Mini din)
Fixed for Direction Light (Left Turn Light) vision camera
2. CAM B (Mini din)
Fixed for Direction Light (Right Turn Light) vision camera
3. CAM R (Mini din)
Fixed for rear vision camera
4. LIVE VIDEO OUT (RCA - White wire).
On screen audio loop out (for recording, second monitor or other device).
5. LIVE AUDIO OUT (RCA - Black wire).
On screen audio loop out (for recording, second monitor or other device).
6. AV VIDEO IN (RCA - Yellow wire).
Connection for any Video signal (such as DVD, VCD, Game)
7. AV AUDIO IN (RCA - Red wire).
Connection for any Audio signal (such as DVD, VCD, Game)

4 5 Vedpak 120UK_Version 2_150909
160783
GB
CONTROL CABLE DESCRIPTION:
Cable conguration
Don’t connect the red wire (power
wire) of this product directly to the
battery. Connect the red wire of this
product to the ACC of the ignition key
switch. Failure to do so may result in
permanent damage of the product.
WIRE COLOUR
Red
Black
White
Yellow
Orange
Blue
FUNCTION
Acc power (DC 9.6-DC 32 V)
GND
Parking Control
Cam A
Cam B
Reverse Control
Cam R
REMARKS
Active GND
Allows AV or extra camera
Active Power Level.
Connect to Direction
Light (Left turn Light)
Active Power Level.
Connect to Direction
Light (Right Turn Light)
Active Power Level
Connect to Reverse
ON SCREEN VIEW

6Vedpak 120UK_Version 2_150909
160783
GB
7

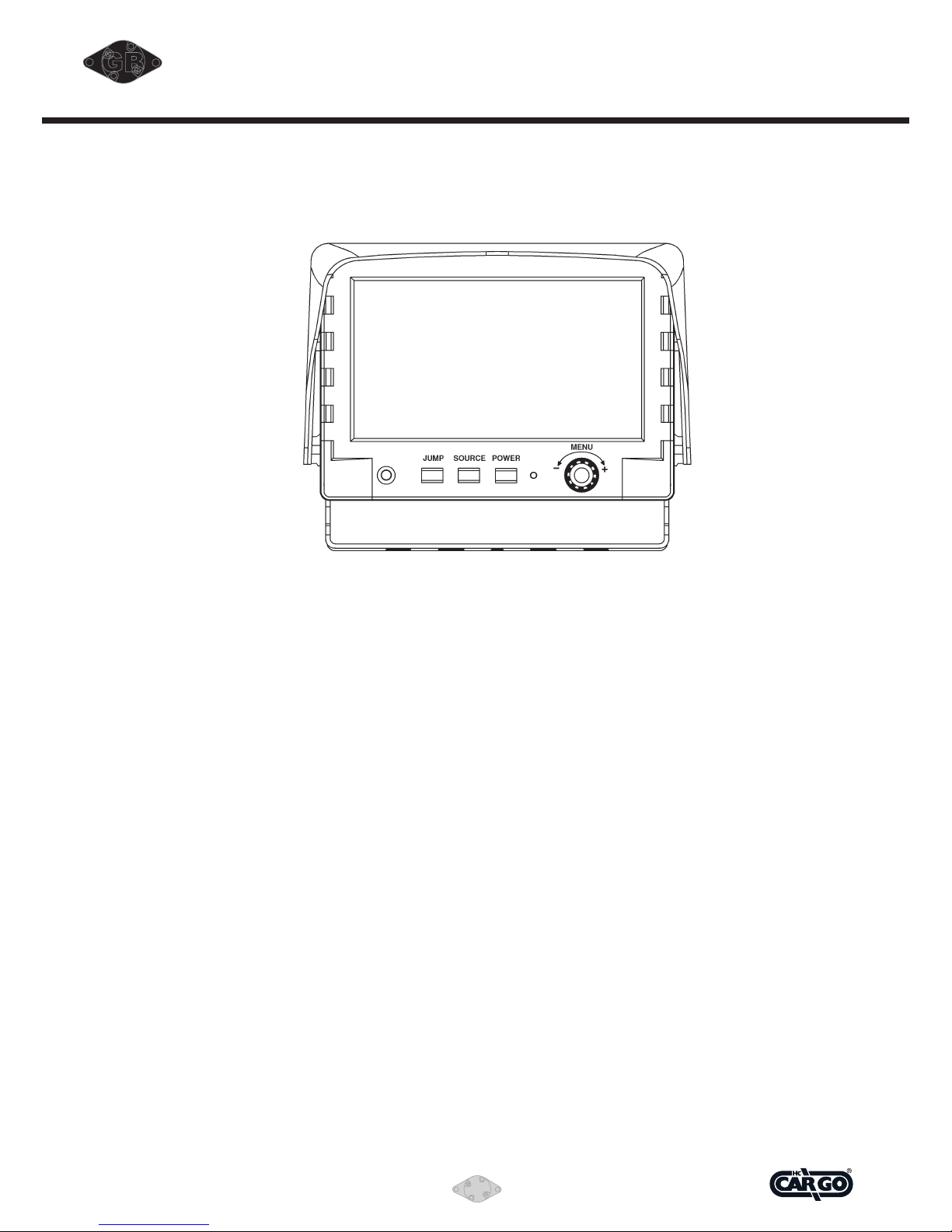

FRONT PANEL CONTROL:
POWER: Press the POWER button to activate the monitor or to keep the monitor under stand by mode.
SOURCE: Press this button to select image between
CAM A CAM B CAM R CAM A……..
With activated hand break, press this button to select image sequence
AV CAM A CAM B CAM R AV………..
JUMP: Press this button, it can switch CAM A, CAM B, CAM R recurrently.
With activated hand break and check the Jump AV option is ON, press
this button to select image sequence
AV CAM A CAM B CAM R AV………..
MENU: This encoder switch provides the following function:
1. Activate OSD menu.
Press the switch to activate the OSD menu.
2. Enter-function:
Press the encode switch to act as "Enter": Functions under the OSD menu.
3. Volume value:
Exit the OSD menu: user can turn this switch left or right to adjust the volume value.

6 7 Vedpak 120UK_Version 2_150909
160783
GB
OSD MENU:
1. Press the MENU button to enter the OSD Menu.
2. Turn the MENU button left or right to select the setting you wish to proceed.
The colour of the content will turn yellow to identify your selection.
3. Press the MENU button again until the colour of the value turns yellow.
Turn the MENU button left or right to adjust your setting value.
4. Press menu button again to return to OSD MENU.
Enter to main menu:

8Vedpak 120UK_Version 2_150909
160783
GB
9
SCREEN MENU:
This menu set up contains different setting for the TFT LCD.
Brightness:
Provide adjustment for the overall picture shade and brightness of the TFT display.
Setting value from 0 ~ 100. Default value 70.
Contrast:
Provide adjustment for the contrast level of the TFT display between the light and dark area.
Setting value from 0 ~ 100. Default value 50.
Saturation:
Provide adjustment for the colour of the TFT display between the light and dark area.
Setting value from 0 ~ 100. Default value 50.
Hue:
Provide adjustment for the picture TINT between light and dark area.
Setting value from 0 ~ 100. Default value 50. (Only in NTSC system available).
Sharpness:
Provide adjustment for the edge contrast (acutance) level of TFT display.
Setting value from 0 ~ 100. Default value is 50.
Return:
Return to OSD menu selection screen.

8 9 Vedpak 120UK_Version 2_150909
160783
GB

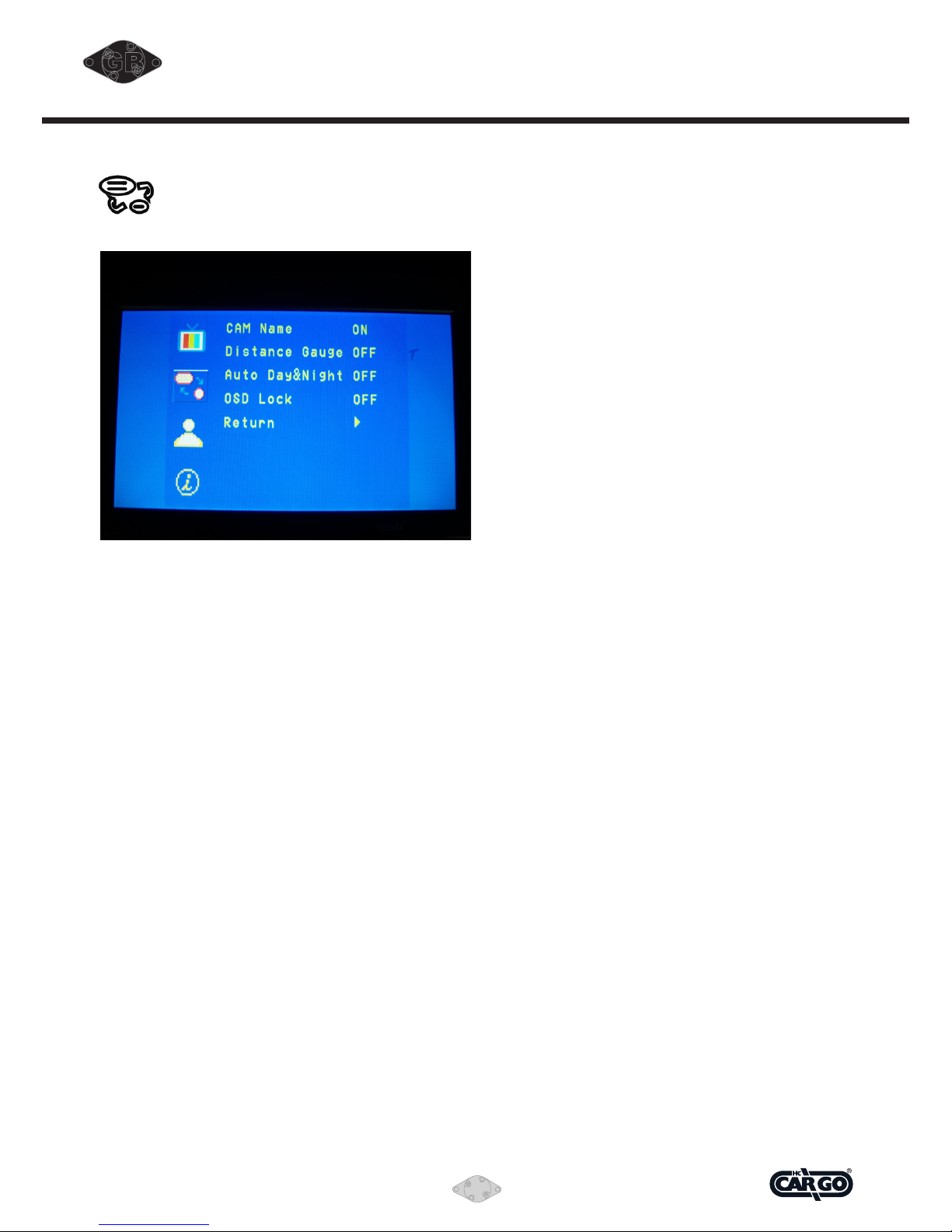

DISPLAY Menu
This menu set up contains the on screen identication
and the activation of the distance gauge.
Cam Name
Select “ON” to show the source of video input title on screen or “OFF” to keep it invisible.
Default value is ON.
Distance Gauge
Set the distance gauge “ON” to show the distance gauge on screen while reversing
or “OFF” to deactivate. Default value is ON.
(This “DISTANCE GAUGE” is for user’s reference only)
Auto Day&Night
Select “ON” to activate the auto day & night function or “OFF” to
deactivate it. Default value is OFF.
OSD Lock
This function provides protection when an unauthorized person tries to access the OSD settings.
Press JUMP and Source key simultaneously for over 5 seconds to unlock. Default value is OFF.
Users must turn on LCD in order to run unlock process. All function buttons are still
working during OSD Menu lock up period.
Return
Return to OSD menu selection screen.

10 Vedpak 120UK_Version 2_150909
160783
GB
11
CAMERA Menu
This menu set up contains the Camera and Jump setting.
CAM A MIRROR
Select “ON” to activate the mirror function for CAM A “OFF” for a normal image.
Default value is OFF.
CAM B MIRROR
Select “ON” to activate the mirror function for CAM B or “OFF” for a normal image.
Default value is OFF.
CAM R MIRROR
Select “ON” to activate the mirror function for CAM R or “OFF” for a normal image.
Default value is ON.
Jump Dwell
Setting Jump dwell value from 2~100.
Default value is “3”.
Jump AV
Jump function included AV channel or not. If setting is ON but system does not work, you should
check the PARK trigger status. Default value is “ON”.
RECALL
Recall factory default.
Return
Return to OSD menu selection screen.

10 11 Vedpak 120UK_Version 2_150909
160783
GB

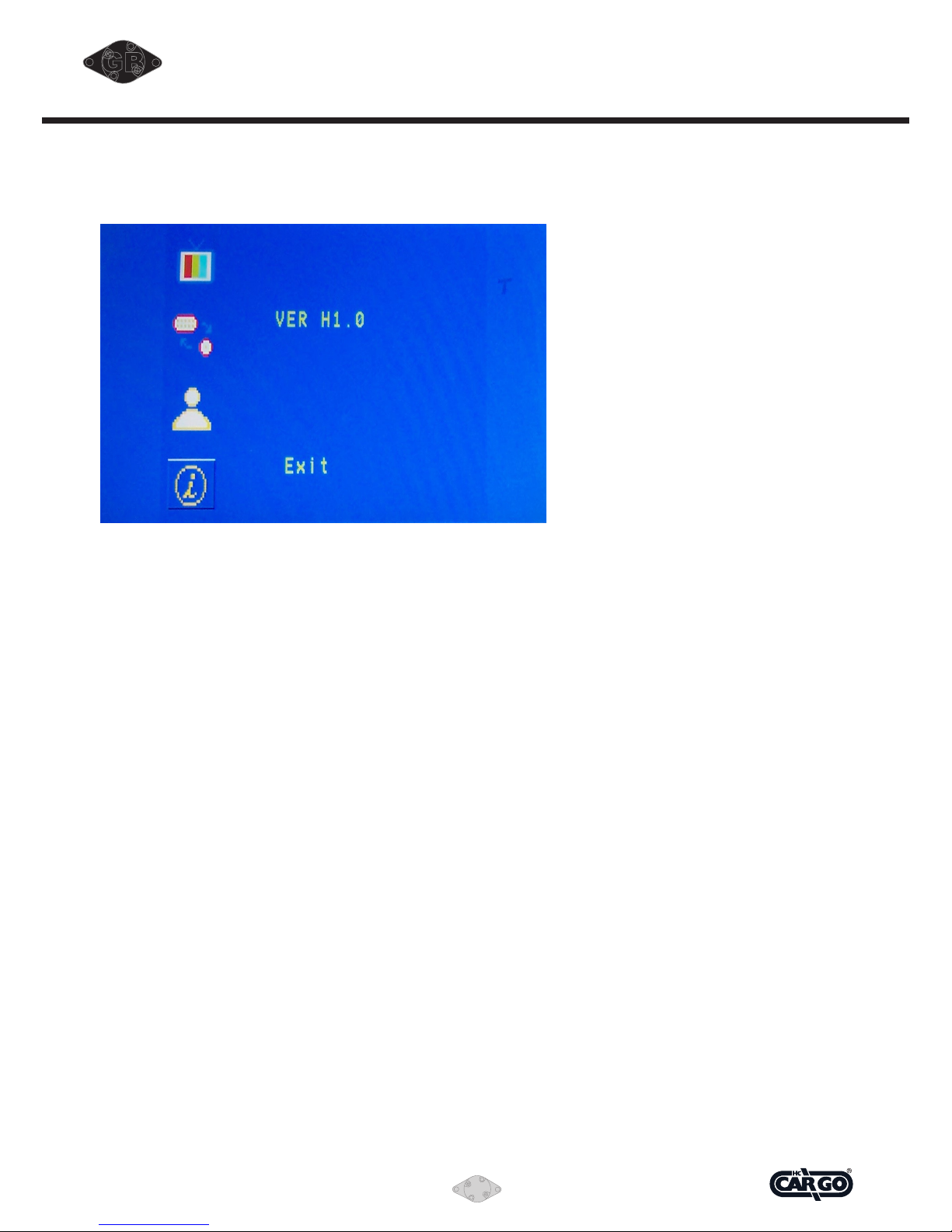

Information
This menu set up contains the Exit function and shows the rmware version.

12 Vedpak 120UK_Version 2_150909
160783
GB
13
INSTALLATION FOR COLOUR CAMERA
INSTALLATION
With standard mounting bracket and fasteners included in the package, the camera can be mounted rmly
at the required position of the vehicle.
1. Install the camera on the mounted camera bracket using proper fasteners (included in the package).
Decide direction for the camera to view when installing the camera on the bracket.
2. Run the built-in camera cable connection (1.5 mtr.) to monitor with camera extension cable
(20 mtr. standard length included in the package) into the vehicle body (make a 13 mm. (½") hole on
the vehicle body if necessary). Connect the cable connectors rmly inside the vehicle with aid of a
cable-tie, and use weather sealer strip to help protect the cable connection.
Seal the hole properly with weather sealant where the cable runs through vehicle body
3. For maximum weather protection, the cable connection is always recommended NOT to be left
outside the vehicle.
4. This device has the function of night viewing. In the dark, the IR will be enabled and the image is more clearly.
CONNECTION OF CAMERA 4
Connection of camera 4 is done using the adapter Cargo 160603.
Yellow RCA jack to VIDEO IN.
White RCA jack to AUDIO IN.
Furthermore 12 V / GND is connected to the camera via the red and black leads of the adapter.
CAUTION
1. Adjust the camera angle so that the rear bumper or the rear end of the vehicle is visible on the
monitor (at the bottom brim of the view).
2. To prevent vibration, be sure to install the camera in a position at which it can be installed securely.
Take the necessary measures for reinforcement if there is no place the camera can be installed securely.
3. Note that there will be blind spots if the camera is installed on the rear bumper, step, or in other low position.
Avoid installing the camera in places where the lens can be easily get dirty from mud, exhaust gases, etc.
4. Be sure to waterproof the holes used to install the camera mounting bracket on the car,
the bolts, and the cable holes.

12 13 Vedpak 120UK_Version 2_150909
160783
GB
VEHICLE INSTALLATION:
1. Install camera R (for rear view).
2. Use a measuring tool to mark out the distance behind the vehicle.
3. Adjust the viewing angle of the camera so that the distance gauge shown from the TFT
match to the distance behind the vehicle.
Switch to Rear view with source button, the screen always display on 16:9
While rear viewing, the screen always display on 4:3 to correct size percentage
SOURCE button: Rear viewing:
9
4
3
16

14 Vedpak 120UK_Version 2_150909
160783
GB
15
MONITOR SPECIFICATIONS:
Screen size 7" (Diagonal) 16:9.
Active area 154.08 x 86.58 mm.
Pixel conguration 0.107 x 0.370.
Resolution 1440 x 234.
Viewing angle 60°.
Power source DC 9.6 V. ~ DC 32 V.
Contrast ratio 300:1.*
Brightness 450 cd/cm².*
Input Interface
Composite connector RCA.
Input signal 1 Vpp.
Impedance 75 Ω.
Camera
Connector 6 pin mini din.
Input video signal level 1 Vpp.
Impedance 75 Ω.
Input audio signal level 1 Vpp.
Power output DC 12 V. 350 mAmp.
AV Audio In
Connector RCA.
Input signal level 1Vpp.
Impedance 75 Ω.
Output Interface
Composite Life video out.
Connector RCA.
Input signal level 1Vpp.
Composite Video Cam out.
Connector RCA.
Input signal level 1Vpp.
Impedance 75 Ω.
Audio Live Out
Connector RCA.
Input signal level 1Vpp.
Impedance 1 KΩ.
Weight Nt. 1.79 kg. Br. 2.2 kg.
Dimension L: 191 mm. H: 140 mm. D: 51 mm.
Environmental
Operation temp. -10C°~70C°.
Storage temperatur -30C°~80C°.
Humidity 20%~80%.
* The brightness and contrast ratio are from panel specication.
Design and specication are subject to change without notice VH 1.0.

14 15 Vedpak 120UK_Version 2_150909
160783
GB
Camera Harness:
Pin No.
1
2
3
4
5
6
7
Part description
GND
Video output
Power DC 12
Audio output
Normal / mirror
GND
GND
Camera Mirror (M) / Normal (N) adjustment
For mirror function -
Turn arrow to M.
For normal function -
Turn arrow to N.

16 Vedpak 120UK_Version 2_150909
160783
GB
17
CAMERA SPECIFICATIONS
Pick-up Device 1/3" image sensor interline transfer CCD
Image Size 4.82 x 3.64 mm.
Elements NTSC / EIA: 510 (H) x 492(V)
PAL / CCIR: 500 (H) x 582(V)
Horizontal Resolution More than 380 TV lines
Shutter Control NTSC 1/60-1/100.000 sec.
PAL 1/50-1/100.000 sec.
Scanning System 2:1 Interlace
Synchronization Internal
S/N Ratio More than 48dB (AGC OFF)
Gain Control AUTO
Sensitivity 0.5 lux / F2.0
Video Output Composite 1.0 Vp-p / 75 ohm
Power Consumption 2 W. (max.)
Dimensions 62 mm.(D) x 104.6 mm.(W) x 62 mm.(H)
Weight (per unit) 650 g.
Synchro NTSC / EIA: H: 15.750 KHZ V: 60 Hz
PAL / CCIR: H: 15.625 KHZ V: 50 Hz
DC Power Source DC 12 V.
Board Lens Mount 2.5 mm. / F 2.0
IR IR LED 850 nm Auto Control by CDS
Operation Temperature -20 to 50° C.
Storage Temperature -20 to 70° C.

16 17 Vedpak 120UK_Version 2_150909
160783
GB
ACCESSORIES:
160796
Camera w/ infrared LED’s for night vision.
Wide view angle, 112° horizontal, 91° vertical, 156° diagonal.
170942
Magnet w/ metalbase for cameras.
160663
Trailer cable Kit. W/ 3.5 mtr. coiled cable.
Switch w/ location and function light. ON/OFF.
180206 12 V.
180207 24 V.
160610
Camera, O.D. 30 mm. L. 70 mm.
Wide view angle, 130° diagonal.
160790
Camera, O.D. 21 mm. L. 40 mm.
Wide view angle, 170° diagonal.
Extension cables.
160672 6 mtr.
160613 10 mtr.
160612 15 mtr.
160611 20 mtr.
160603
Connection cable from 6 PIN MINI DIN to RCA.
Symbolplates for Cargo 180206 and 180207.
181462 Green.
181463 Red.
181464 Camera.

18 Vedpak 120UK_Version 2_150909
160783
GB
19

18 19 Vedpak 120UK_Version 2_150909
160783
GB

20 Vedpak 120UK_Version 2_150909
Automotive components since 1963
Vedpak 120UK_Version 2_150909
160783
