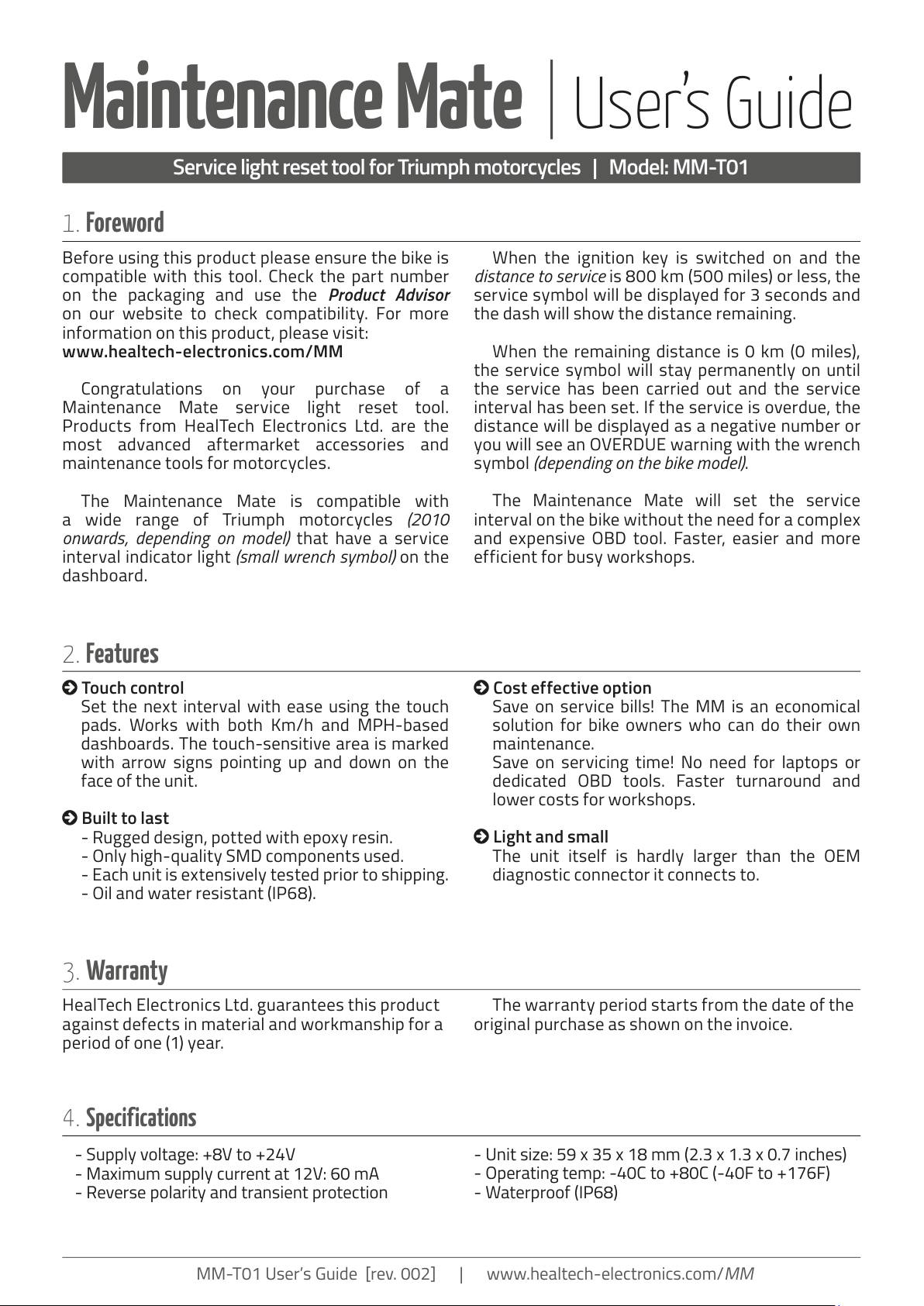

HealTech Electronics Maintenance Mate User manual

MM-T01 User’s Guide [rev. 002] | www.healtech-electronics.com/ MM
1. Foreword
2. Features
3. Warranty
4. Specifications
Before using this product please ensure the bike is
compatible with this tool. Check the part number
on the packaging and use the Product Advisor
on our website to check compatibility. For more
information on this product, please visit:
www.healtech-electronics.com/MM
Congratulations on your purchase of a
Maintenance Mate service light reset tool.
Products from HealTech Electronics Ltd. are the
most advanced aftermarket accessories and
maintenance tools for motorcycles.
The Maintenance Mate is compatible with
a wide range of Triumph motorcycles (2010
onwards, depending on model) that have a service
interval indicator light (small wrench symbol) on the
dashboard.
When the ignition key is switched on and the
distance to service is 800 km (500 miles) or less, the
service symbol will be displayed for 3 seconds and
the dash will show the distance remaining.
When the remaining distance is 0 km (0 miles),
the service symbol will stay permanently on until
the service has been carried out and the service
interval has been set. If the service is overdue, the
distance will be displayed as a negative number or
you will see an OVERDUE warning with the wrench
symbol (depending on the bike model).
The Maintenance Mate will set the service
interval on the bike without the need for a complex
and expensive OBD tool. Faster, easier and more
efficient for busy workshops.
 Touch control
Set the next interval with ease using the touch
pads. Works with both Km/h and MPH-based
dashboards. The touch-sensitive area is marked
with arrow signs pointing up and down on the
face of the unit.
 Built to last
- Rugged design, potted with epoxy resin.
- Only high-quality SMD components used.
- Each unit is extensively tested prior to shipping.
- Oil and water resistant (IP68).
 Cost effective option
Save on service bills! The MM is an economical
solution for bike owners who can do their own
maintenance.
Save on servicing time! No need for laptops or
dedicated OBD tools. Faster turnaround and
lower costs for workshops.
 Light and small
The unit itself is hardly larger than the OEM
diagnostic connector it connects to.
HealTech Electronics Ltd. guarantees this product
against defects in material and workmanship for a
period of one (1) year.
The warranty period starts from the date of the
original purchase as shown on the invoice.
- Supply voltage: +8V to +24V
- Maximum supply current at 12V: 60 mA
- Reverse polarity and transient protection
- Unit size: 59 x 35 x 18 mm (2.3 x 1.3 x 0.7 inches)
- Operating temp: -40C to +80C (-40F to +176F)
- Waterproof (IP68)
Service light reset tool for Triumph motorcycles | Model: MM-T01
Maintenance Mate User’s Guide
MM-T01 User’s Guide [rev. 002] | www.healtech-electronics.com/ MM
1. Foreword
2. Features
3. Warranty
4. Specifications
Before using this product please ensure the bike is
compatible with this tool. Check the part number
on the packaging and use the Product Advisor
on our website to check compatibility. For more
information on this product, please visit:
www.healtech-electronics.com/MM
Congratulations on your purchase of a
Maintenance Mate service light reset tool.
Products from HealTech Electronics Ltd. are the
most advanced aftermarket accessories and
maintenance tools for motorcycles.
The Maintenance Mate is compatible with
a wide range of Triumph motorcycles (2010
onwards, depending on model) that have a service
interval indicator light (small wrench symbol) on the
dashboard.
When the ignition key is switched on and the
distance to service is 800 km (500 miles) or less, the
service symbol will be displayed for 3 seconds and
the dash will show the distance remaining.
When the remaining distance is 0 km (0 miles),
the service symbol will stay permanently on until
the service has been carried out and the service
interval has been set. If the service is overdue, the
distance will be displayed as a negative number or
you will see an OVERDUE warning with the wrench
symbol (depending on the bike model).
The Maintenance Mate will set the service
interval on the bike without the need for a complex
and expensive OBD tool. Faster, easier and more
efficient for busy workshops.
 Touch control
Set the next interval with ease using the touch
pads. Works with both Km/h and MPH-based
dashboards. The touch-sensitive area is marked
with arrow signs pointing up and down on the
face of the unit.
 Built to last
- Rugged design, potted with epoxy resin.
- Only high-quality SMD components used.
- Each unit is extensively tested prior to shipping.
- Oil and water resistant (IP68).
 Cost effective option
Save on service bills! The MM is an economical
solution for bike owners who can do their own
maintenance.
Save on servicing time! No need for laptops or
dedicated OBD tools. Faster turnaround and
lower costs for workshops.
 Light and small
The unit itself is hardly larger than the OEM
diagnostic connector it connects to.
HealTech Electronics Ltd. guarantees this product
against defects in material and workmanship for a
period of one (1) year.
The warranty period starts from the date of the
original purchase as shown on the invoice.
- Supply voltage: +8V to +24V
- Maximum supply current at 12V: 60 mA
- Reverse polarity and transient protection
- Unit size: 59 x 35 x 18 mm (2.3 x 1.3 x 0.7 inches)
- Operating temp: -40C to +80C (-40F to +176F)
- Waterproof (IP68)
Service light reset tool for Triumph motorcycles | Model: MM-T01
Maintenance Mate User’s Guide

MM-T01 User’s Guide [rev. 002] | www.healtech-electronics.com/ MM

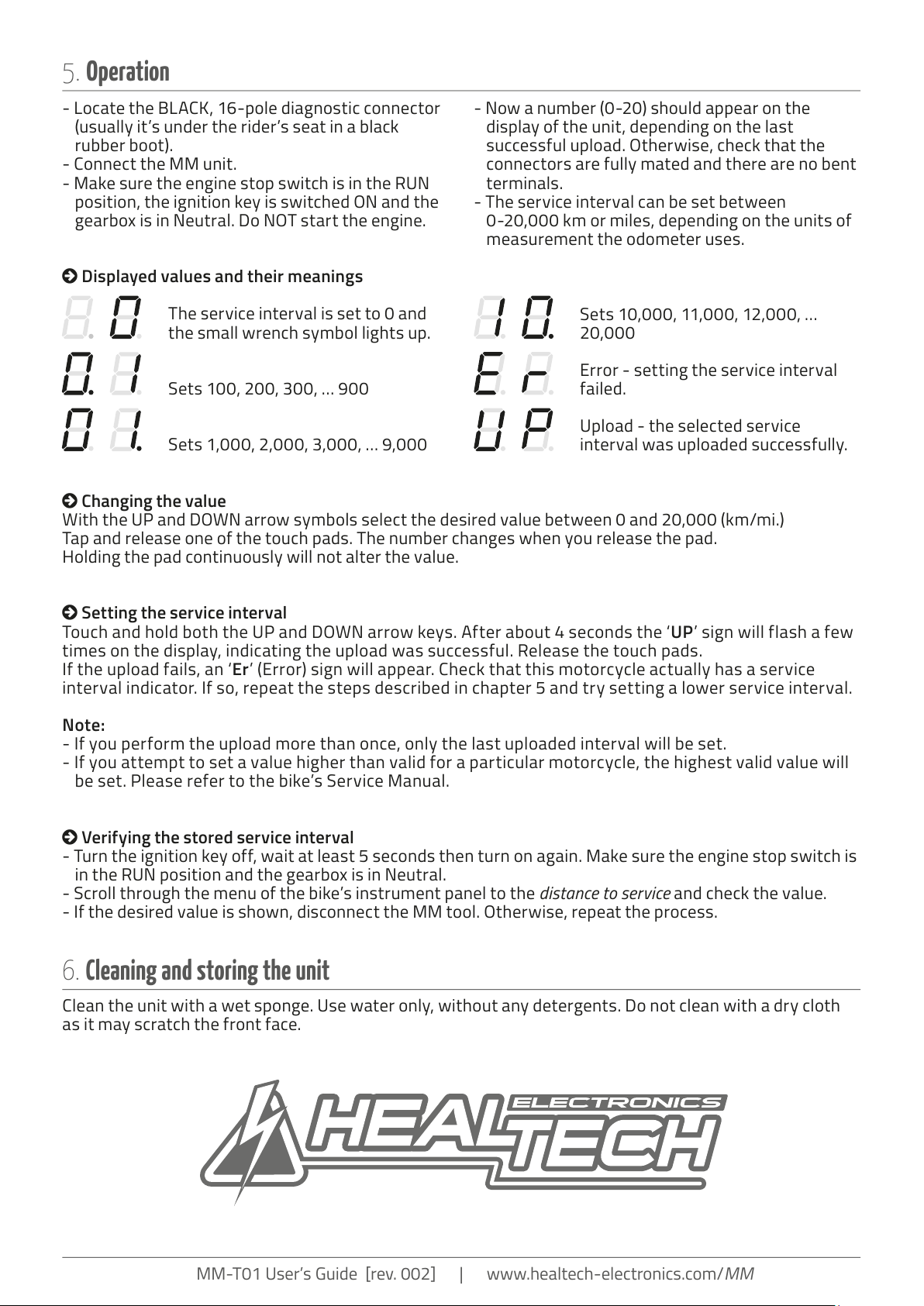

5. Operation
6. Cleaning and storing the unit
- Locate the BLACK, 16-pole diagnostic connector
(usually it’s under the rider’s seat in a black
rubber boot).
- Connect the MM unit.
- Make sure the engine stop switch is in the RUN
position, the ignition key is switched ON and the
gearbox is in Neutral. Do NOT start the engine.
- Now a number (0-20) should appear on the
display of the unit, depending on the last
successful upload. Otherwise, check that the
connectors are fully mated and there are no bent
terminals.
- The service interval can be set between
0-20,000 km or miles, depending on the units of
measurement the odometer uses.
Clean the unit with a wet sponge. Use water only, without any detergents. Do not clean with a dry cloth
as it may scratch the front face.
 Changing the value
With the UP and DOWN arrow symbols select the desired value between 0 and 20,000 (km/mi.)
Tap and release one of the touch pads. The number changes when you release the pad.
Holding the pad continuously will not alter the value.
 Setting the service interval
Touch and hold both the UP and DOWN arrow keys. After about 4 seconds the ‘UP’ sign will flash a few
times on the display, indicating the upload was successful. Release the touch pads.
If the upload fails, an ‘Er’ (Error) sign will appear. Check that this motorcycle actually has a service
interval indicator. If so, repeat the steps described in chapter 5 and try setting a lower service interval.
Note:
- If you perform the upload more than once, only the last uploaded interval will be set.
- If you attempt to set a value higher than valid for a particular motorcycle, the highest valid value will
be set. Please refer to the bike’s Service Manual.
 Verifying the stored service interval
- Turn the ignition key off, wait at least 5 seconds then turn on again. Make sure the engine stop switch is
in the RUN position and the gearbox is in Neutral.
- Scroll through the menu of the bike’s instrument panel to the distance to service and check the value.
- If the desired value is shown, disconnect the MM tool. Otherwise, repeat the process.
 Displayed values and their meanings
The service interval is set to 0 and
the small wrench symbol lights up.
Sets 100, 200, 300, … 900
Sets 1,000, 2,000, 3,000, … 9,000
Sets 10,000, 11,000, 12,000, …
20,000
Error - setting the service interval
failed.
Upload - the selected service
interval was uploaded successfully.
MM-T01 User’s Guide [rev. 002] | www.healtech-electronics.com/ MM
1. Foreword
2. Features
3. Warranty
4. Specifications
Before using this product please ensure the bike is
compatible with this tool. Check the part number
on the packaging and use the Product Advisor
on our website to check compatibility. For more
information on this product, please visit:
www.healtech-electronics.com/MM
Congratulations on your purchase of a
Maintenance Mate service light reset tool.
Products from HealTech Electronics Ltd. are the
most advanced aftermarket accessories and
maintenance tools for motorcycles.
The Maintenance Mate is compatible with
a wide range of Triumph motorcycles (2010
onwards, depending on model) that have a service
interval indicator light (small wrench symbol) on the
dashboard.
When the ignition key is switched on and the
distance to service is 800 km (500 miles) or less, the
service symbol will be displayed for 3 seconds and
the dash will show the distance remaining.
When the remaining distance is 0 km (0 miles),
the service symbol will stay permanently on until
the service has been carried out and the service
interval has been set. If the service is overdue, the
distance will be displayed as a negative number or
you will see an OVERDUE warning with the wrench
symbol (depending on the bike model).
The Maintenance Mate will set the service
interval on the bike without the need for a complex
and expensive OBD tool. Faster, easier and more
efficient for busy workshops.
 Touch control
Set the next interval with ease using the touch
pads. Works with both Km/h and MPH-based
dashboards. The touch-sensitive area is marked
with arrow signs pointing up and down on the
face of the unit.
 Built to last
- Rugged design, potted with epoxy resin.
- Only high-quality SMD components used.
- Each unit is extensively tested prior to shipping.
- Oil and water resistant (IP68).
 Cost effective option
Save on service bills! The MM is an economical
solution for bike owners who can do their own
maintenance.
Save on servicing time! No need for laptops or
dedicated OBD tools. Faster turnaround and
lower costs for workshops.
 Light and small
The unit itself is hardly larger than the OEM
diagnostic connector it connects to.
HealTech Electronics Ltd. guarantees this product
against defects in material and workmanship for a
period of one (1) year.
The warranty period starts from the date of the
original purchase as shown on the invoice.
- Supply voltage: +8V to +24V
- Maximum supply current at 12V: 60 mA
- Reverse polarity and transient protection
- Unit size: 59 x 35 x 18 mm (2.3 x 1.3 x 0.7 inches)
- Operating temp: -40C to +80C (-40F to +176F)
- Waterproof (IP68)
Service light reset tool for Triumph motorcycles | Model: MM-T01
Maintenance Mate User’s Guide
