USER'S MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satis-
faction through direct assis-
tance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our customer hot line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
Model No. HREX04981
Serial No.
Patent Pending

2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO OPERATE THE RECUMBENT CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
¨

3
1. Read all instructions in this manual before
using the RC150.
2. It is the responsibility of the owner to
ensure that all users of the RC150 are ade-
quately informed of all precautions. Use
the RC150 only as described in this manual.
3. Use the RC150 indoors on a level surface.
Keep the RC150 away from moisture and
dust. Place a mat under the RC150 to pro-
tect the floor or carpet.
4. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
5. Keep children under the age of 12 and pets
away from the RC150 at all times.
6. The RC150 should not be used by persons
weighing more than 250 pounds.
7. Wear appropriate clothing when exercising;
do not wear loose clothing that could
become caught on the RC150. Always wear
athletic shoes when using the RC150.
8. Always keep your back straight when using
the RC150. Do not arch your back.
9. If you feel pain or dizziness while exercis-
ing, stop immediately and cool down.
10. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended
only as an exercise aid in determining heart
rate trends in general.
11. The RC150 is intended for in-home use
only. Do not use the RC150 in a commer-
cial, rental, or institutional setting.

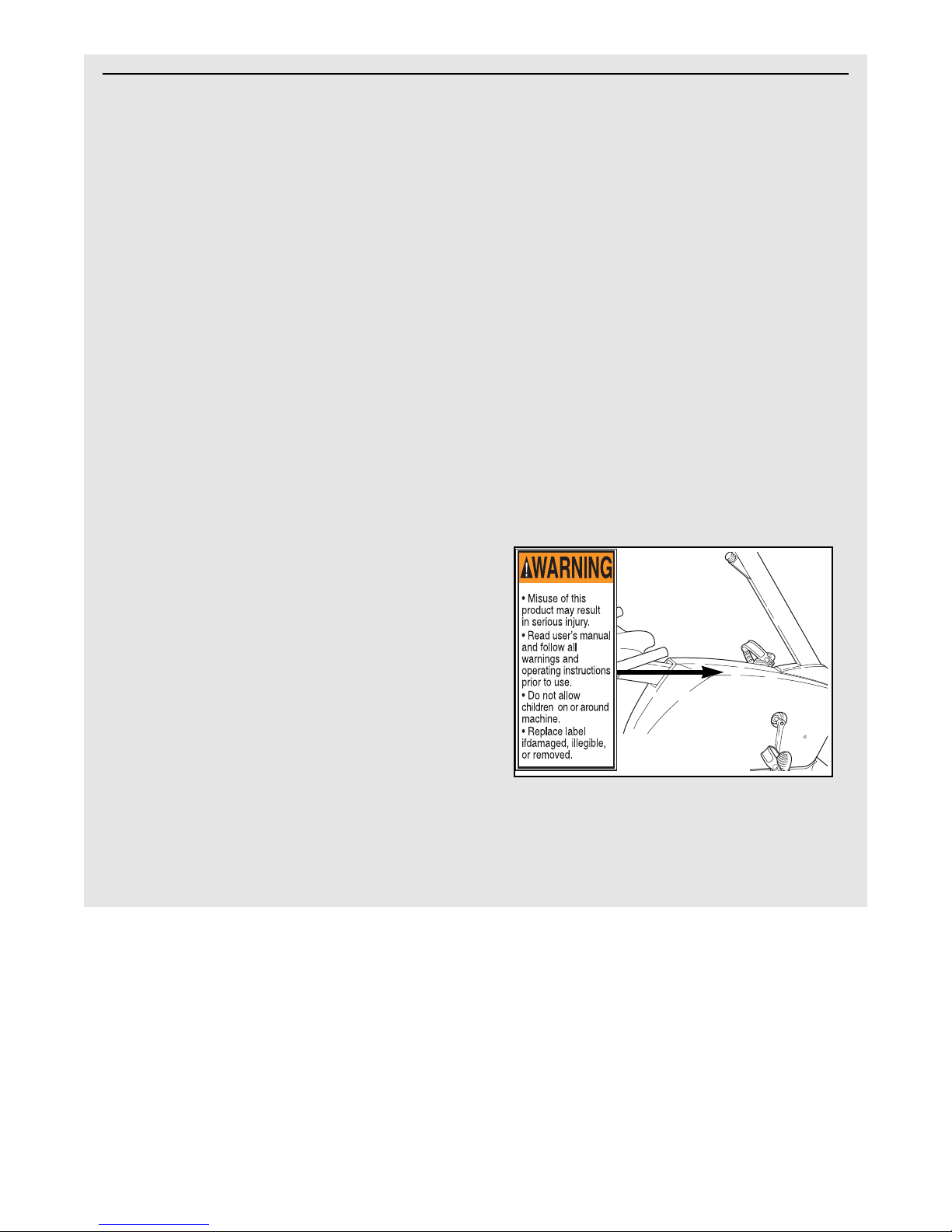

12. CAUTION DECAL PLACEMENT: The decal
shown below has been placed on the
RC150. If the decal is missing, or if it is not
legible, please call our Customer Service
Department toll-free at 1-800-999-3756 to
order a free replacement decal. Apply the
decal in the location shown.
WARNING: Before beginning this or any exercise program, consult your physician. This is espe-
cially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or prop-
erty damage sustained by or through the use of this product.
Decal shown at
75% actual size
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions before
using the exercise bike.

4
Congratulations for selecting the new HealthRider¨
RC150 recumbent cycle. Cycling is one of the most
effective exercises for increasing cardiovascular fit-
ness, building endurance, and toning the entire body.
The HealthRider¨RC150 offers an impressive array of
features designed to let you enjoy this healthful exer-
cise in the comfort and privacy of your home.
For your benefit, read this manual carefully before
you use the HealthRider¨RC150. If you have addi-
tional questions, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please
mention the product model number and serial number
when calling. The model number is HREX04981. The
serial number can be found on a decal attached to
the HealthRider¨RC150 (see the front cover of this
manual).

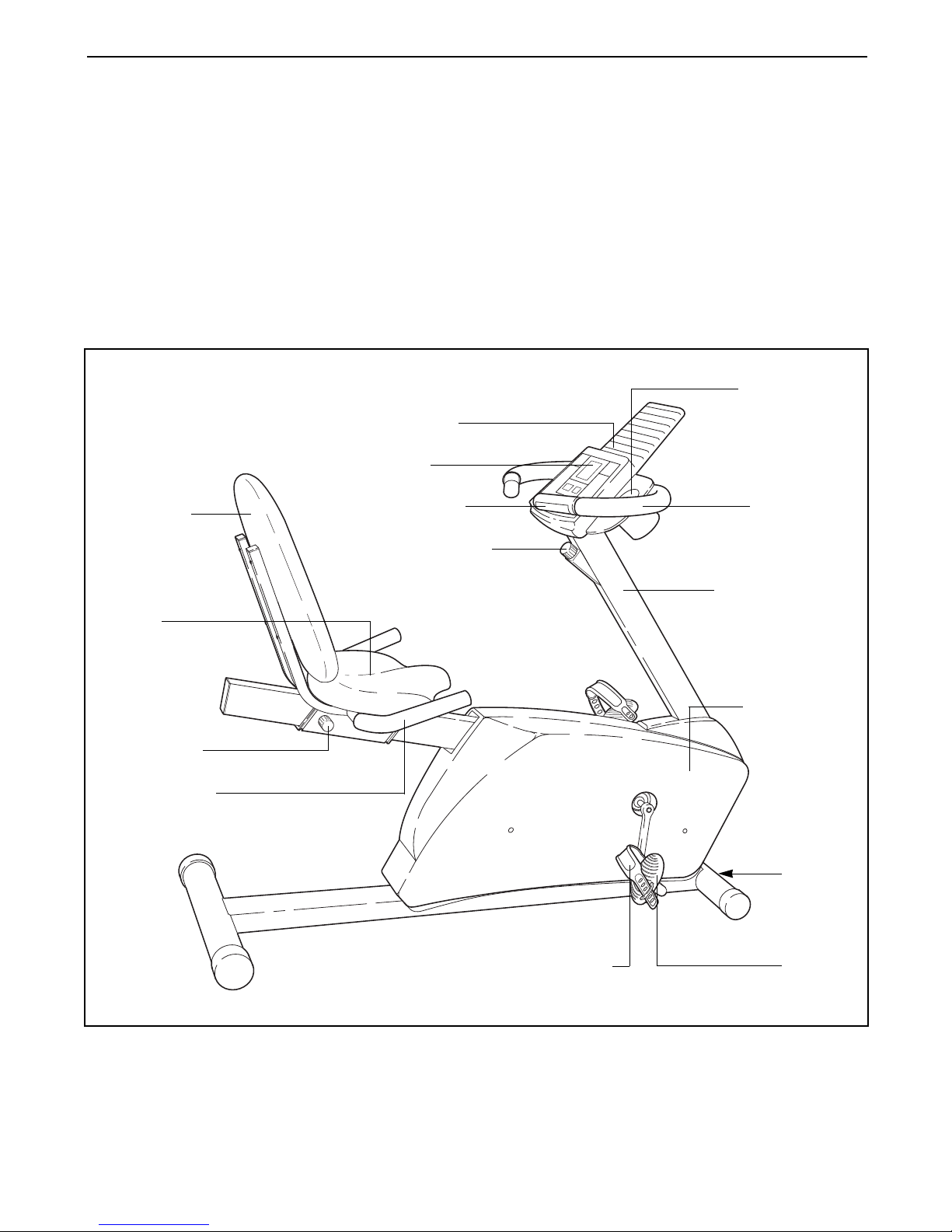

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Resistance Knob
Handlebar
Water Bottle
Holder (Bottle
not included)
FRONT
BACK
Seat
Backrest
Seat Knob
Side Shield
Handlebar Post
Roller
Pedal
Pedal Strap
Console
Book Holder
Seat Handle
RIGHT SIDE
BEFORE YOU BEGIN

5
ASSEMBLY
Assembly requires two persons. Place all parts of the recumbent cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench .
PART CHART
Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part, from the PART LIST on page 14. The second number refers
to the quantity used in assembly. Note: Some small parts may have been pre-attached for shipping. If a
part is not in the parts bag, check to see if it has been pre-assembled.
Console
Screw (20)Ð3
#10 x 5/8Ó
Screw (30)Ð1
M6 x 15mm
Hex Screw (29)Ð4
M5 x 15mm
Screw (69)Ð1
M8 x 80mm Carriage Bolt (63)Ð2
M4 x 25mm
Screw (21)Ð1
M8 x 15mm
Button Screw (74)Ð4
M8 x 70mm
Carriage Bolt (72)Ð2
M6 x 38mm
Hex Screw (73)Ð4
M8 x 40mm
Button Bolt (24)Ð4
M8 Black Flat
Washer (57)Ð16
M8 Nylon
Locknut (56)Ð8 M8 Curved
Washer (28)Ð7
M6 Nut
(78)Ð1
M8 x 45mm
Button Screw (17)Ð3

6
2
75
1
72
28 56
1. Attach the Front Stabilizer (2) to the front of the
Frame (1) with two M8 x 70mm Carriage Bolts (72),
two M8 Curved Washers (28), and two M8 Nylon
Locknuts (56). Make sure that the Front Stabilizer
is turned so the Roller (75) is not touching the
floor.
2. Attach the Rear Stabilizer (3) to the rear of the
Frame (1) with two M8 x 80mm Carriage Bolts (63),
two M8 Curved Washers (28), and two M8 Nylon
Locknuts (56).
3. While a second person holds the Upright (6) near
the Frame (1), route the Resistance Cable (67) up
through the Upright and out of the indicated hole.
Next, connect the Extension Wire (18) to the Reed
Switch Wire (44).
Carefully slide the Upright (6) onto the Frame (1).
Be careful to avoid pinching the wires. Attach the
Upright with four M8 x 15mm Button Screws (74)
and four M8 Black Flat Washers (57).
Next, connect the short cable on the Resistance
Control (8) to the Resistance Cable (67) in the fol-
lowing way:
¥ Refer to drawing A. Insert the tip of the short cable
into the wire clip on the Resistance Cable (67) as
shown.
¥ Refer to drawings B and C. Firmly pull the short
cable and slide it into the metal bracket as shown.
Push any excess Resistance Cable (67) into the
Upright (6). Attach the Resistance Control (8) to the
Upright with an M5 x 15mm Screw (69).
2
3
63
3
667
74
74
57
57
69
44
1
18
57
57
28
28
56
56
1
1
Short
Cable
Metal
Bracket
8
67
A
BC

7
4. The Console (9) requires two ÒAAÓ batteries (not
included); alkaline batteries are recommended.
Refer to drawing A. Remove the four indicated
screws and lift off the front of the Console. Press two
batteries into the battery holder as shown in drawing
B. Make sure that the negative (Ð) ends of the bat-
teries are touching the springs. Reattach the front of
the Console. Make sure that the three wires are
extending from the back of the Console.
While another person holds the Console (9) near
the Upright (6), plug the Extension Wire (18) into the
back of the Console. Next, attach the ground wire
and the Console (9) to the Upright (6) in the follow-
ing way:
¥ Peel the backing off one side of the Double-sided
Tape (81). Stick the Tape firmly to the underside of
the Upright (6) so it covers the indicated hole.
¥ Peel the backing off the other side of the Tape (81).
Slide a Star Washer (80) onto a M4 x 25mm Screw
(21) and push the Screw up through the Tape and
the indicated hole. Next, slide another Star Washer
(80) and the ground wire onto the Screw.
¥ Set the Console (9) on the Upright (6). Make sure
that there is one console wire in each of the
indicated slots in the Upright. Tighten the M4 x
25mm Screw (21) into the Console. Next, tighten
three Console Screws (20) into the Upright and
the Console.
6. Attach the Cup Holders (14) by firmly pushing them
down into the indicated holes in the Upright (6) until
they are seated fully.
14
14
6
4
6
9
Slots
80
81
80
Hole
Console
Wires
Ground
Wire
6
21
20
18
5. While another person holds the Handlebar (16) near
the Upright (6), connect the two Pulse Wires (22) to
the corresponding console wires on the Console.
Next, attach the Handlebar to the Upright with three
M8 x 45mm Button Screws (17) and three M8
Curved Washers (28). Make sure that the Pulse
Wires (22) are not caught between the
Handlebar and the Upright.
17
28
22
16
6
5
Screws
Batteries
Battery
Holder
B
A
Console
Wires
9
A
9

8
9. Attach the Backrest (13) to the Seat Frame (27)
with four M6 x 38mm Hex Screws (73) and four
5/16Ó Black Flat Washers (57).
13 27
73
73
57
57
9
8. Attach the Seat (12) to the Seat Frame (27) with
four M6 x 16mm Hex Screws (29) and four M8
Black Flat Washers (57).
57
29
57
12
27
8
7. Attach the Seat Carriage (11) to the Seat Frame
(27) using four M8 x 40mm Button Bolts (24), eight
M8 Black Flat Washers (57), and four M8 Nylon
Locknuts (56).
27
57
57
56
57
57 57
56
11
24
24
7

9
HOW TO ADJUST THE POSITION OF THE SEAT
For effective exercise,
the seat should be in
the proper position.
As you pedal, there
should be a slight
bend in your knees
when the pedals are
in the farthest posi-
tion. IMPORTANT:
After you adjust the
position of the seat,
make sure that your
knees will not hit
the console when you pedal. To adjust the seat, first
turn the seat knob counterclockwise two or three turns
to loosen it (if the seat knob is not loosened enough,
the seat knob may scratch the frame). Next, pull the
seat knob, slide the seat to the desired position, and
release the seat knob. Make sure to move the seat
back and forth slightly until it locks in position.
Then, turn the seat knob clockwise to tighten it.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal
straps, first pull the
straps off the tabs
on the pedals.
Press the straps
back onto the tabs
using different
holes in the straps.
Seat
Seat Knob
Strap
Tab
HOW TO OPERATE THE RECUMBENT CYCLE
10. Turn the Seat Knob (79) counterclockwise two or
three turns to loosen it (if the Seat Knob is not loos-
ened enough, the Seat Knob may scratch the
Frame [1]). Next, pull the Seat Knob and slide the
Seat Carriage (11) onto the Frame (1). Move the
Seat (12) to the desired position and release the
Seat Knob. Make sure to move the Seat Carriage
back and forth slightly until it locks in position.
Then, turn the Seat Knob clockwise to tighten it.
Attach the Nut (78) to the Frame (1) with the #10 x
5/8Ó Screw (30).
11. Identify the Left Pedal (40) (there is an ÒLÓ on the
Left Pedal for identification). Using an adjustable
wrench, tighten the Left Pedal counterclockwise into
the left Crank Arm (34).
Tighten the Right Pedal clockwise into the right
Crank Arm (not shown).
Adjust the Pedal Strap (41) on the Left Pedal (40) to
the desired position. Press the Pedal Strap onto the
tab on the Left Pedal. Adjust the Pedal Strap on the
Right Pedal in the same manner (not shown).
12
78
30
1
79
11
10
34
40
41
Tab
11
12. Make sure that all parts are tightened before you use the recumbent cycle. Place a mat beneath the
recumbent cycle to protect the floor.

10
HOW TO ADJUST THE RESISTANCE
To adjust the
intensity of your
exercise, the
resistance of the
pedals can be
adjusted. To
increase the
resistance, turn
the resistance
control clockwise;
to decrease the resistance, turn the control counter-
clockwise. Important: Stop turning the control when
rotation becomes difficult or damage may result.
DESCRIPTION OF THE CONSOLE
The innovative
console offers a
manual mode
and three pacer
programs. The
pacer programs
are designed to
help you reach
specific exercise
goals by pacing
your exercise.
You can choose
from a stamina-
building Interval
program, an
Aerobic program,
and a special Fat
Burn program.
As you exercise,
seven monitor
modes will provide continuous exercise feedback. The
monitor modes are described below:
SpeedÑThis mode shows your pedaling pace,
in kilometers or miles per hour (see HOW TO
SELECT KILOMETERS OR MILES on page 12).
TimeÑIf you select the manual mode, this mode
will show the elapsed time. If you select one of
the three pacer programs, this mode will count
down the time remaining in the program.
DistanceÑThis mode shows the distance you
have pedaled, in kilometers or miles.
LapÑThis mode shows the number of laps you
have completed. One lap equals 0.25 kilometers
or miles.
CalorieÑThis mode shows the approximate
number of calories you have burned.
ScanÑThis mode displays the above five
modes, for 5 seconds each, in a repeating cycle.
PulseÑThis mode shows your heart rate when
the pulse monitor is used. (See step 5 on page
11.)
HOW THE PACER PROGRAMS OPERATE
When you use a
pacer program,
two columns of
bars will appear in
the display. The
left column repre-
sents a target pace
and the right col-
umn shows your
actual exercising pace. The target pace will change
periodically during the program; as the target pace
changes, simply adjust your exercising pace to keep
both columns at the same height. Important: The tar-
get pace is a goal pace. Your actual pace may be
slower than the target pace, especially during the
first few months of your exercise program. Be sure
to exercise at a pace that is comfortable for you.
The three graphs
on the console
show how the
target pace will
change during the
programs. During
the Aerobic
program (P2), for example, the target pace will gradu-
ally increase during the first half of the program, and
gradually decrease during the last half of the program.
Each program will last for twenty minutes.
STEP-BY-STEP CONSOLE OPERATION
Before the console can be operated, two batteries
must be installed. (See BATTERY REPLACEMENT
on page 12.)
Turn on the power
To turn on the
power, press
the on/reset
button or simply
begin exercis-
ing. The entire
display will
appear for two seconds; the console will then be
ready for use. Note: If batteries were just
installed, the power will already be on.
1
Actual
Target
Resistance
Control
On/Reset
Button

11
Select one of the three pacer programs or the
manual mode
To select one
of the pacer
programs,
repeatedly
press the pro-
gram button.
The program
indicator will
show which
program you
have select-
ed. To select
the manual mode, press the program button until
the program indicator disappears. The programs
will be selected in the following order: program 1
(Interval), program 2 (Aerobic), program 3 (Fat
Burn), manual mode.
Begin your workout
If you select-
ed the manu-
al mode, go
to step 4. If
you selected
one of the
pacer pro-
grams, two
columns of
bars will appear in the display. The left column
will show one bar, indicating a relatively slow
pace. The right column will show your actual
exercising pace. Adjust your exercising pace until
only one bar appears in the right column. Each
time the target pace changes during the program,
adjust your exercising pace to keep both columns
at the same height.
Follow your progress with the LED track and
the seven monitor modes
The LED
trackÑThe
LED track
represents a
distance of
0.25 kilome-
ters or miles.
As you pedal,
the indicators
around the track will light one at a time until you
have completed one lap. A new lap will then begin.
The scan
modeÑ
Repeatedly
press the
mode button
until an arrow
appears under
the scan sym-
bol. When the
scan mode is
selected, the
console will display the speed, time, distance, lap
and calorie modes, for 5 seconds each, in a
repeating cycle.
The speed,
time, dis-
tance, lap,
or calorie
modeÑ
Repeatedly
press the
mode button
until an arrow appears below or above the
desired mode symbol. Make sure that there is not
an arrow under the scan symbol.
The pulse modeÑTo use the pulse mode, see
step 5.
To reset the display, press the on/reset button.
Measure your heart rate if desired
To use the
pulse sensor,
place your
hands on the
metal contacts.
Your palms
must be rest-
ing on the
upper contacts
and your fin-
gers must be
touching the lower contacts. Avoid moving your
hands. After a moment, the heart-shaped indica-
tor in the display will begin to flash and your heart
rate will be shown. For the most accurate heart
rate reading, continue to hold the contacts for
about 15 seconds.
Make sure that your hands are positioned as
described above, and that you are not moving
your hands excessively or squeezing the metal
contacts too tightly.
5
4
3
2
Mode
Arrow
Mode
Button
Program Indicator
Program Button
Actual
Target
Metal
Contacts

12
Inspect and tighten all parts of the recumbent cycle
regularly. The recumbent cycle can be cleaned with a
soft, damp cloth. To prevent damage to the console,
keep liquids away from the console and keep the con-
sole out of direct sunlight.
BATTERY REPLACEMENT
If the console does not function properly, the batteries
should be replaced. To replace the batteries, the
handlebar must be removed. See assembly step 4 on
page 7 to remove the handlebar. Next, refer to
assembly step 5 to install batteries.
PULSE SENSOR TROUBLE-SHOOTING
¥ Avoid moving your hands while using the pulse sen-
sor. Excessive movement may interfere with heart
rate readings.
¥ If your heart rate is not shown when the pulse sen-
sor is used, press the resistance Ð button to reset
the pulse sensor.
¥ Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
¥ For the most accurate heart rate reading, hold the
metal contacts for about 15 seconds.
¥ For optimal performance of the pulse sensor, keep
the metal contacts clean. The contacts can be
cleaned with a soft clothÑnever use alcohol,
abrasives, or chemicals.
MAINTENANCE AND TROUBLESHOOTING
Turn off the power
To turn off
the power,
simply wait
for about six
minutes. If
the pedals
are not
moved and
the console buttons are not pressed for six min-
utes, the power will turn off automatically.

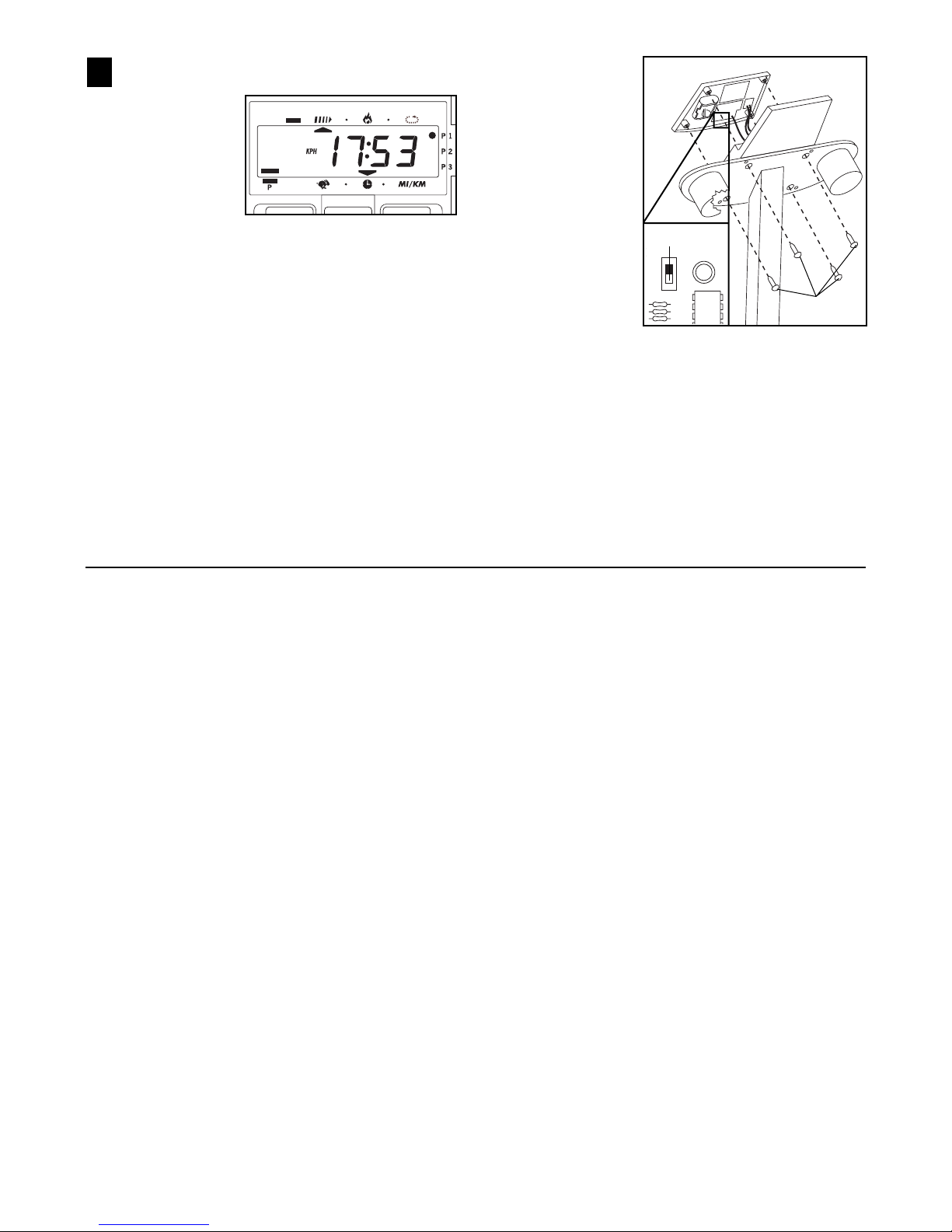

HOW TO SELECT KILOMETERS OR MILES
The console can display distance and speed in either
kilometers or miles. If a ÒKPHÓ appears in the display,
distance and speed will be shown in kilometers; if a
ÒKPHÓ does not appear, distance and speed will be
shown in miles.
To change the
unit of measure-
ment, see step 5
on page 7 and
remove the
Handlebar. Next,
remove the four
indicated screws
from the console.
Lift the console a
few inches and
turn it over; be
careful not to
pull on the
wires.
Locate the small switch on the back of the console.
Slide the switch up or down to change the unit of mea-
surement. Reattach the console with the four screws;
be careful not to pinch any of the wires.
6
Switch
Screws

13
Exercise has proven essential for good health and
well-being. Regular participation in a well-rounded
exercise program results in a stronger and more effi-
cient heart, improved respiratory function, increased
stamina, better weight management, increased ability
to deal with stress, and greater self-esteem.
EXERCISE INTENSITY
To maximize the benefits of exercising, it is important
to exercise with the proper intensity. The proper inten-
sity level can be found by using your heart rate as a
guide. For effective aerobic exercise, your heart rate
should be maintained at a level between 70% and
85% of your maximum heart rate as you exercise.
This is known as your training zone. You can find
your training zone in the table below. Training zones
are listed according to age and physical condition.
During the first few months of your exercise program,
keep your heart rate near the low end of your training
zone as you exercise. After a few months of regular
exercise, your heart rate can be increased until it is
near the middle of your training zone as you exercise.

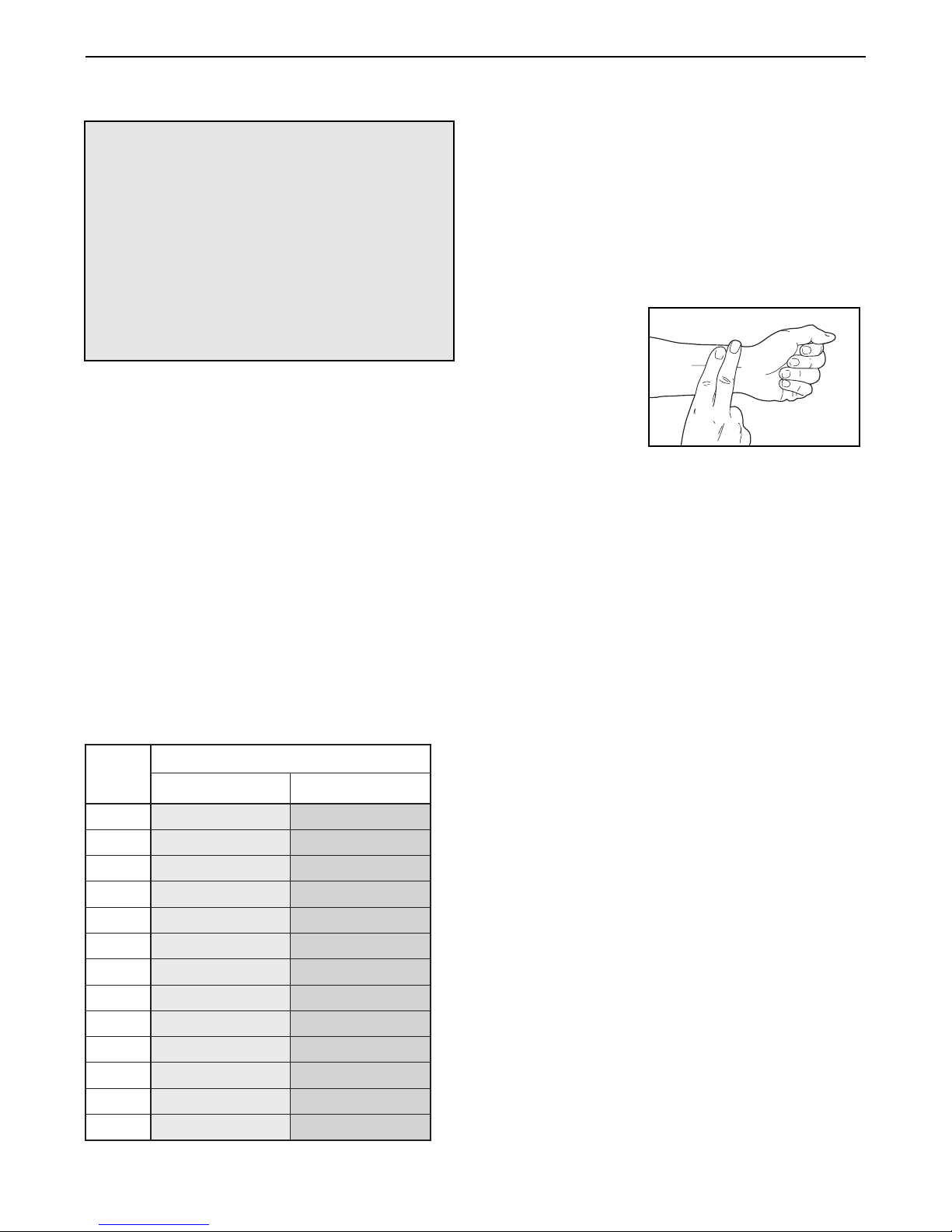

To measure your heart rate, use the built-in pulse
sensor. You can also measure your heart rate by plac-
ing two fingers on your wrist as shown. Stop exercis-
ing and take a six-
second heartbeat
count. Multiply the
result by ten to
find your heart
rate. (A six-second
count is used
because your
heart rate drops
quickly when you
stop exercising.) If your heart rate is too high,
decrease the intensity of your exercise. If your heart
rate is too low, increase the intensity of your exercise.
WORKOUT GUIDELINES
A well-rounded workout includes three important parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in prepa-
ration for exercise.
Training zone exercise, consisting of 20 to 40 min-
utes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise pro-
gram, do not keep your heart rate in your training
zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three work-
outs each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week, if
desired. Caution: Be sure to progress at your own
pace and avoid overdoing it. Incorrect or excessive
training may result in injury to your health.
Remember, the key to success is make exercise a
regular and enjoyable part of your everyday life.
TRAINING ZONE (BEATS/MIN.)
20
25
30
35
40
45
50
55
60
65
70
75
80
AGE CONDITIONEDUNCONDITIONED
133Ð162
132Ð160
130Ð158
129Ð156
127Ð155
125Ð153
124Ð150
122Ð149
121Ð147
119Ð145
118Ð144
117Ð142
115Ð140
138Ð167
136Ð166
135Ð164
134Ð162
132Ð161
131Ð159
129Ð156
127Ð155
126Ð153
125Ð151
123Ð150
122Ð147
120Ð146
WARNING: Before beginning this or any
exercise program, consult your physician.
This is especially important for individuals
over the age of 35 or individuals with pre-
existing health problems.
WARNING: The pulse sensor is not a med-
ical device. Various factors may affect the
accuracy of heart rate readings. The pulse
sensor is intended only as an exercise aid in
determining heart rate trends in general.
EXERCISE GUIDELINES

14
1 1 Frame 2 1 Front Stabilizer 3 1 Rear Stabilizer 4 1 Left Side Shield 5 1 Right Side Shield 6 1 Upright 7 1 Resistance Knob 8 1 Resistance Control 9 1 Console
10 2 Handlebar Foam
11 1 Seat Carriage
12 1 Seat 13 1 Seat Back 14 2 Cup Holder 15 2 Handlebar Endcap 16 1 Handlebar 17 3 M8 x 45mm Button Screw 18 1 Extension Wire 19 1 Pulley 20 3 Console Screw 21 5 M4 x 25mm Screw 22 2 Pulse Wire 23 1 Frame Endcap 24 4 M8 x 40mm Button Bolt 25 8 #8 x 1/4Ó Screw 26 2 Seat Carriage Bushing 27 1 Seat Frame 28 7 M8 Curved Washer 29 4 M6 x 15mm Hex Screw 30 1 #10 x 5/8Ó Screw
31 1 Magnet 32 2 Crank Bearing 33 1 Crank 34 2 Crank Arm 35 2 M8 x 20mm Washer Screw 36 2 Crank Cap 37 1 Right Pedal 38 1 Right Pedal Strap 39 1 Crank Nut 40 1 Left Pedal 41 1 Left Pedal Strap 42 2 Front Stabilizer Endcap 43 2 #4 x 3/8Ó Screw 44 1 Reed Switch/Wire 45 1 M10 Nylon Jam Nut 46 1 Idler Bushing 47 1 Idler Wheel 48 1 Idler Spacer 49 1 Idler Arm 50 1 M10 x 26mm Bolt 51 1 Idler Spring 52 1 M10 Nylon Locknut 53 2 M10 Black Flat Washer 54 1 Stop Bolt 55 1 M8 x 45mm Hex Bolt 56 11 M8 Nylon Locknut 57 18 M8 Black Flat Washer 58 1 Return Spring 59 1 ÒCÓ Magnet 60 1 M8 Zinc Flat Washer
61 3 M4 x 44mm Screw 62 3 M4 x 63.5mm Screw 63 2 M8 x 80mm Carriage Bolt 64 2 Rear Stabilizer Endcap 65 1 Axle Spacer 66 1 Axle 67 1 Resistance Cable 68 1 Belt 69 1 M5 x 15mm Screw 70 1 Flywheel 71 2 Pulse Handle Assembly 72 2 M8 x 70mm Carriage Bolt 73 4 M6 x 38mm Hex Screw 74 4 M8 x 15mm Button Screw 75 1 Roller 76 1 Roller Axle 77 2 M10 Black Nylon Locknut 78 1 Nut 79 1 Seat Knob 80 2 Star Washer 81 1 Double-sided Tape
# 1 UserÕs Manual # 1 Allen Wrench
Note: Ò#Ó indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this manual for information about ordering replacement parts.
EXPLODED DRAWINGÑModel No. HREX04981 R0199A
Key No. Qty. Description Key No. Qty. Description Key No. Qty. Description

15
28
17 17
28
16
14
14
20
20
20
18
67
87
69
67
71
6
57
57
57
57
74
74
75 77
77 76 72
72
41
40
34 32
39
35
36
42
2
43
44
28
56
28
56
57
60
70
58 59
55
56
1
54
42
9
32
31
19
33
22
36
35
34 37
38
12
50
49
48
47
46
45 52 53
51
15
64
23
26
29
57
56 28
28
56
63
3
64
26
25 24
24
25
24
25
25
57
29
57
27
57
57 57
15
13
57
73
73
57
56
57
65 66
21
61
61
62
62
68
21
4
21
61
21 10
5
11
57
57
57
78
30
79
80
80
81 56
57
56
56 56
21
EXPLODED DRAWINGÑModel No. HREX04981 R0199A

Part No. 153060 R0199A Printed in Taiwan © 1999 ICON Health & Fitness, Inc.
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be
prepared to give the following information when calling:
¥ The MODEL NUMBER of the product (HREX04981).
¥ The NAME of the product (HealthRider¨RC150 recumbent cycle).
¥ The SERIAL NUMBER of the product (see the front cover of this manual).
¥ The KEY NUMBER and DESCRIPTION of the part(s) from page 14 of this manual.
HealthRider¨is a registered trademark of ICON Health & Fitness, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-
chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-
ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center, products used
for commercial or rental purposes, or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other con-
sequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-
dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
