HEALTH RIDER N25 Exercise Bike User manual

Model No. HREX1395.0
Serial No.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are corn-
mitred to providing complete
customer satisfaction, if you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-888-922-4222
Mon.-Fri., 6 a.m.-6 p.m. MST
ON THE WEB:
www.healthriderservice.com
_CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
®
AUAL
www.healthrider.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ................................................................ 2
BEFORE YOU BEGIN ...................................................................... 3
ASSEMBLY ............................................................................... 4
HOW TO OPERATE THE EXERCISE CYCLE .................................................... 8
MAINTENANCE AND TROUBLESHOOTING ................................................... 12

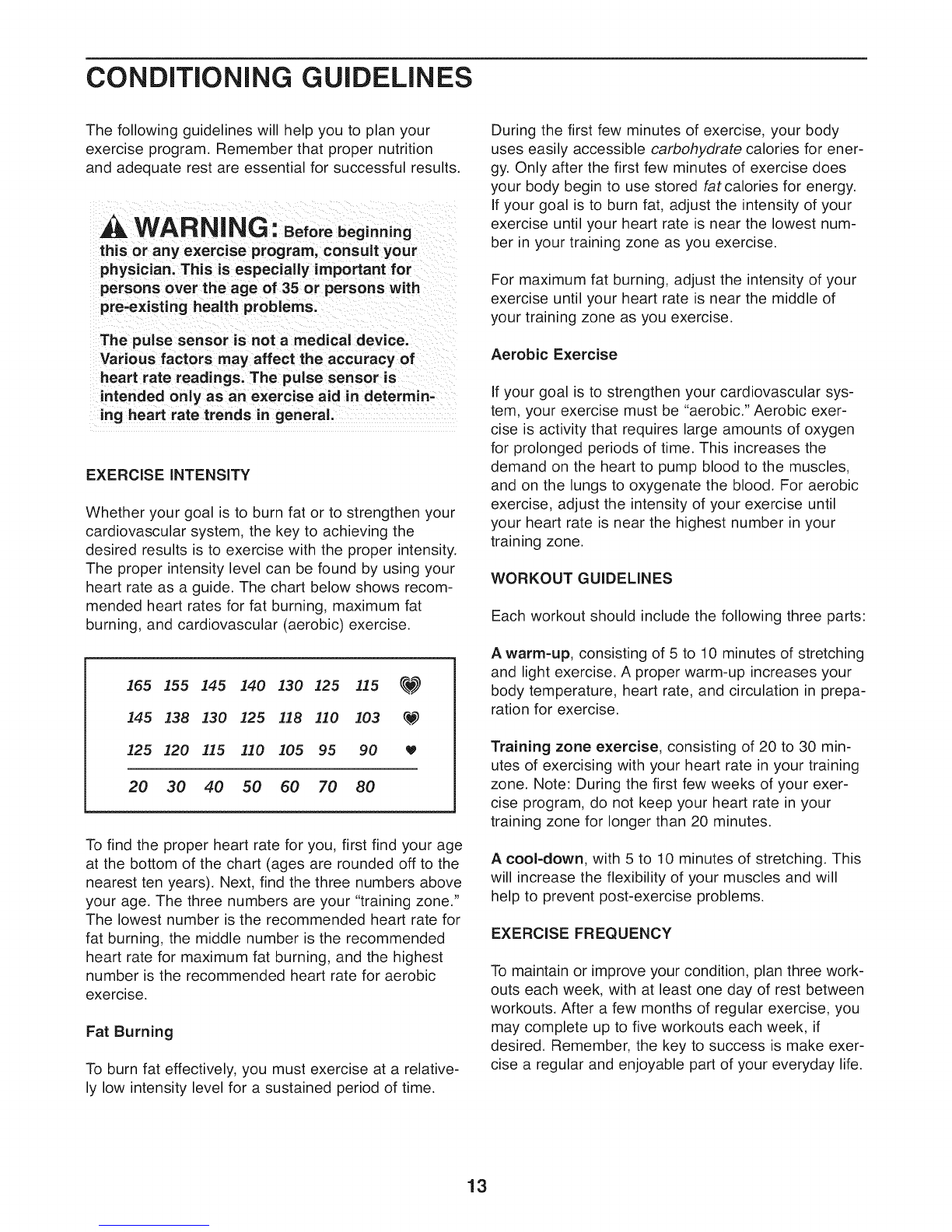

CONDITIONING GUIDELINES ............................................................... 13
PART LIST .............................................................................. 14
EXPLODED DRAWING .................................................................... 15
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY .............................................................. Back Cover
IMPORTANT PRECAUTIONS
m ....
AWARNING. To reduce the risk of serious injury, read the following important precau-
tions before using the exercise cycle.
1. Read all instructions in this manual and all
warnings on the exercise cycle before using
the exercise cycle.
2. Use the exercise cycle only as described in
this manual.
3. it is the responsibility of the owner to ensure
that all users of the exercise cycle are ade-
quately informed of all precautions.
4. The exercise cycle is intended for home use
only. Do not use the exercise cycle in
7. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
8. The exercise cycle should not be used by
persons weighing more than 250 pounds.
.Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise cycle. Always wear
athletic shoes for foot protection while using
the exercise cycle.
10. The pulse sensor is not a medical device.
a commercial, rental, or institutional setting ................ including the user's move-
ment, may affect the accuracy of heart rate
5. Keep the exercise cycle indoors, away from readings. The pulse sensor is intended only
moisture and dust. Place the exercise cycle as an exercise aid in determining heart rate
on alevel surface, with a mat beneath it to trends in general.
protect the floor. Make sure that there is
enough clearance around the exercise cycle 11. Always keep your back straight when using
to mount, dismount, and use it. the exercise cycle; do not arch your back.
6. inspect and properly tighten all parts regular- 12. if you feel pain or dizziness while exercising,
ly. Replace any worn parts immediately, stop immediately and cool down.
AWARNING: Beforebeginningth soranyexerciseprogram,consultyourphysician.Th s
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
2
BEFORE YOU BEGIN
Thank you for selecting the new HEALTHRIDER ®N25
exercise cycle. Cycling is one of the most effective
exercises for increasing cardiovascular fitness, building
endurance, and toning the body. The N25 exercise
cycle offers a selection of features designed to let you
enjoy this healthful exercise in the convenience and
privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before calling. The
model number is HREX1395.0. The serial number can
be found on a decal attached to the exercise cycle
(see the front cover of this manual for the location of
the decal).
To avoid a registration fee for any service needed
under warranty, you must register the exercise
cycle at www.healthriderservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Misuse of this
product may resumt
in serious injury.
Read user's
manual and follow
all warnings and
operating instruc=
tions prior to use.
Do not allow
children on or
around machine.
Maximum user
weight should not
exceed 2501bs.
Replace label if
damaged, illegible,
Seat
REAR
Console
FRONT
Pedal/Strap
Wheel
Handlebar
Pulse Sensor
Adjustment Knob
RIGHT SIDE
Leveling Cap
CAUTION: The warning decal shown above has been placed on the exercise cycle in the
location shown, if the decal is missing, or if it is not legible, call the toll-free telephone num-
ber on the front of this manual and order a free replacement decal. Apply the decal in the
location shown.
3
ASSEMBLY
To hire an authorized service technician to assemble the exercise cycle, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials, Do not dispose of the packing materials until assembly is completed, in addition to the included
hex keys, assembly requires a phillips screwdriver _ and an adjustable wrench
As you assemble the exercise cycle, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on page 14. The number following the
parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a
part is not in the parts bag, check to see if it has been pre-assembled.
M8 Nylon M8 Acorn Nut M8 Curved M4 x 12mm
Locknut (17)-2 (11)-2 Washer (107)-7 Screw (106)-4
M8 x 20mm
Washer (10)-8
M8 x 16mm
M8 x 16mm
Screw (62)-3 Bolt (87)-4
M8 x 70mm
Carriage Bolt (9)-2
M8 x 40mm
Screw (63)-2 M8 x 80mm Hex
Bolt (40)-2
4
1. 1
,
,
Insert the Seat Back Support (2) into the Seat Bracket
(3). Attach the Seat Back Support with two M8 x 80mm
Hex Bolts (40), four M8 x 20mm Washers (10), and
two M8 Nylon Locknuts (17).
Attach the Handlebar (7) to the Seat Bracket (3) with
two M8 x 40mm Screws (63) and two M8 Curved
Washers (107). Be careful to avoid pinching the
Pulse Wire (71).
Slide the Seat Frame (4) partially out of the Frame (1),
and align one of the adjustment holes in the Seat
Frame with the indicated hole in the Frame. Next,
tighten the Adjustment Knob (99) into the Frame.
Attach the Rear Stabilizer (8) to the Seat Frame (4)
with two M8 x 70mm Carriage Bolts (9), two M8
Curved Washers (107), and two M8 Acorn Nuts (11).
Note: After the exercise cycle is assembled, the posi-
tion of the Seat (not shown) should be adjusted; as you
pedal, there should be a slight bend in your knees
when the pedals are in the farthest forward position. To
adjust the Seat, first turn the Adjustment Knob (99)
counterclockwise two or three turns to loosen it. Next,
lift the Knob, slide the Seat Frame (4) to the desired
position, and then release the Knob. Slide the Seat
Frame in and out slightly until the pin on the Knob
engages one of the adjustment holes in the Seat
Frame. Then, retighten the Knob.
63
17
10
2
10
3
107
Hole
11
11 107
40
5
4. 4
.
.
Set the Seat Bracket (3) in the Seat Frame (4), and
align the holes. Attach the Seat Bracket with four M8 x
16mm Bolts (87) and four M8 x 20mm Washers (10).
Be careful to avoid pinching the Pulse Wire (71).
Connect the Pulse Wire (71) to the Lower Pulse Wire
(92).
While another person holds the Upright (5) near the
Frame (1), connect the Upper Wire Harness (77) to
the Lower Wire Harness (66). Next, connect the Upper
Pulse Wire (75) to the Center Pulse Wire (88). Insert
the excess wire into the Frame.
Slide the Upright (5) onto the Frame (1). Attach the
Upright with three M8 x 16mm Screws (62) and three
M8 Curved Washers (107). Be careful to avoid
pinching the wires.
The Console (76) requires four "C" batteries (not
included); alkaline batteries are recommended. Insert
four batteries into the back of the Console. Make sure
that the batteries are oriented as shown by the
markings inside of the Console.
While another person holds the Console (76) near the
Console Bracket (6), feed the console wires through
the large hole in the Console Bracket. Next, connect
the console wires to the Upper Wire Harness (77) and
the Upper Pulse Wire (75). Then, insert all wires into
the top of the Upright (5).
Attach the Console (76) to the Console Bracket (6)
with four M4 x 12mm Screws (106).
5
10 3
87
10
107
106
,107
77
76
6
7. 7
Identify the Left Pedal (98), which is marked with an
"L." Using an adjustable wrench, firmly tighten the
Left Pedal counterclockwise into the Left Crank Arm
(94). Tighten the Right Pedal (not shown) clockwise
into the Right Crank Arm. Important: Tighten both
Pedals as firmly as possible. After using the exer=
cise cycle for one week, retighten the Pedals. For
best performance, the Pedals must be kept tight=
ened.
Adjust the pedal straps to the desired position by
pressing the end of each pedal strap onto the tab on
each pedal.
Tab 98 94
8. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
7
HOW TO OPERATE THE EXERCISE CYCLE
IPROGRAMI
J
The advanced console offers a selection of features
designed to make your workouts more effective.
During each workout, the resistance of the pedals can
be changed with the touch of a button. As you exer-
cise, the console will display continuous exercise feed-
back--you can even measure your heart rate using
the built-in handgrip pulse sensor.
The console also features five preset workout pro-
grams and a heart rate program. Each program auto-
matically changes the resistance of the pedals as it
guides you through an effective workout.
Note: The console requires four "C" batteries. If
batteries have not been installed, see assembly
step 6 on page 6. If there is a sheet of clear plastic
on the face of the console, remove it.
HOW TO USE THE MANUAL MODE
gTurn on the console.
To turn on the console, press any button.
Select the manual mode.
Each time the
console is turned
on, the manual
mode will be
selected. If you
have selected a
program, select
the manual mode
by pressing the Up or Down button repeatedly
until the word "Manual" appears in the display.
8
Start your workout and adjust the resistance
of the pedals.
Press the
Program
Start/Stop but-
ton and then
begin pedaling.
As you pedal,
adjust the resis-
tance of the
pedals as desired by pressing the Up and Down
buttons. There are eight resistance levels. Note:
After the buttons are pressed, it will take a few
seconds for the pedals to reach the selected resis-
tance setting.
Follow your progress with the display.
After you start
your workout,
you can select
a display mode.
To view all
modes, press
the Mode/Enter
button repeat-
edly until the
SCAN indicator appears. As you pedal, the con-
sole will display several different modes: the
elapsed time, your pedaling speed, the distance
that you have pedaled, and the approximate num-
ber of calories you have burned. In addition, the
console will display a heart symbol when you use
the handgrip pulse sensor and it detects your
pulse.
SCAN Indicator
If desired, you can select a single mode for con-
tinuous display. Press the Mode/Enter button
repeatedly until only the TIME, DIST., or CAL.
indicator appears in the display. Make sure that
the SCAN indicator does not appear.
The resistance
bar on the left
part of the dis-
play will show
the resistance
level of the ped-
als.
Measure your heart rate if desired.
Note: If there
are sheets of Metal Contacts
clear plastic on
the metal con-
tacts on the
handgrip pulse
sensor, peel off
the plastic. To
use the handgrip
pulse sensor,
place your hands on the metal contacts, Avoid
moving your hands. When your pulse is detect-
ed, the heart-shaped indicator in the display will
flash each time your heart beats, For the most
accurate heart rate reading, continue to hold the
handgrips for about 15 seconds.
When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved and the console but-
tons are not pressed for a few minutes, the con-
sole will automatically turn off to conserve the
batteries.
9
HOW TO USE A WORKOUT PROGRAM
Turn on the console.
See step 1 on page 8.
Select a workout program.
Each time the
console is
turned on, the
manual mode
will be selected.
To select a work-
out program,
first make sure
:;IZ i_i ...........................ill i : ..........
-UU
that the word Stop is shown in the display. If it is
not shown, press the Program Start/Stop button
so the word Stop appears. Then, press the Up or
Down button repeatedly until the word Program
and the desired resistance profile appear in the
display.
The resistance profiles across the bottom of the
display show how the resistance level will change
during the workout programs. For example, the
third profile shows that when the third program is
selected, the resistance will gradually increase
during the first half of the program and then
decrease during the last half.
After you have selected a workout program, press
the Mode/Enter button.
Set your workout goals.
Once you have
selected a work-
out program, you
will be prompted
to set workout
goals. Press the
Up and Down
buttons to select
: i 1111111111121 ii i .........
U'UU
the number of minutes that you plan to exercise,
the number of miles that you plan to pedal, the
approximate number of calories you want to burn,
and/or a target heart rate (see EXERCISE INTEN-
SITY on page 13). After each selection, press the
Mode/Enter button.
Note: You can set one, two, three, or four goals
(or no goals). For example, if you want to set only
a time goal and a distance goal, select the num-
ber of minutes that you plan to exercise and then
press the Mode/Enter button. Next, select the dis-
tance that you plan to pedal and then press the
Mode/Enter button. Then, start the program (see
step 4).
Start the program.
To start the program, press the Program
Start/Stop button and begin pedaling. Each work-
out program is divided into ten periods. One resis-
tance setting is programmed for each period. (The
same resistance setting may be programmed for
two or more consecutive periods.) Note: The
amount of time in each period depends on the
time goal that you set for the program. For exam-
ple, if you set a 20-minute time goal, each period
will last for two minutes.
At the end of each period, the resistance of the
pedals will automatically change if a different
resistance setting is programmed for the next
period. Note: If the resistance level is too high or
too low, you can change the resistance level by
pressing the Up or Down button. However, when
the current period ends, the resistance level will
automatically change if a different resistance set-
ting is programmed for the next period.
Note: During the program, the console will display
the time remaining in the program if you have set
a time goal. If you have not set a time goal, the
time will count up in the same way that it does
when the manual mode is selected.
Follow your progress with the display.
See step 4 on page 9.
Measure your heart rate if desired.
See step 5 on page 9.
When you are finished exercising, the console
will automatically turn off.
See step 6 on page 9.
10
HOW TO USE THE HEART RATE PROGRAM
DTurn on the console.
See step 1 on page 8.
Select the heart rate program.
Each time the
console is
turned on, the
manual mode
will be selected.
To select the
heart rate pro-
gram, first make
sure that the word Stop is shown in the display. If
it is not shown, press the Program Start/Stop but-
ton so the word Stop appears. Then, press the Up
or Down button repeatedly until the heart symbol
begins to flash in the lower right part of the dis-
play. Then, press the Mode/Enter button.
Set a target heart rate.
The display will show a "P," for Pulse. Press the
Up and Down buttons to select a target heart rate
goal (see EXERCISE INTENSITY on page 13).
Then, press the Mode/Enter button to confirm
your goal.
Hold the handgrip pulse sensor.
It is not necessary to hold the handgrip pulse sen-
sor continuously during a heart rate program;
however, you must hold the handgrip pulse sen-
sor frequently for the program to function properly.
Each time you hold the handgrip pulse sensor,
keep your hands on the metal contacts for at
least 30 seconds.
Start the program.
To start the program, press the Program
Start/Stop button and begin pedaling. When you
hold the handgrip pulse sensor, the console will
compare your heart rate to the current target
heart rate. If your heart rate is too far above or
below the target heart rate, the resistance of the
pedals will automatically change to keep your
heart rate near the target heart rate.
Follow your progress with the display.
See step 4 on page 9.
When you are finished exercising, the console
will automatically turn off.
See step 6 on page 9.
11
MAINTENANCE AND TROUBLESHOOTING
Inspect and properly tighten all parts of the exercise
cycle regularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of liquid dishwashing soap. Important:
To avoid damage to the console, keep liquids
away from the console and keep the console out
of direct sunlight.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
If the handgrip pulse sensor does not function properly,
see step 5 on page 9.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, see
assembly step 6 on page 6.
HOW TO LEVEL THE EXERCISE CYCLE
If the exercise
cycle rocks on
your floor during
use, turn one or
both of the level-
ing caps on the
rear stabilizer until
the rocking motion
is eliminated. Leveling Caps
HOW TO ELIMINATE FLEXING IN THE CENTER OF
THE EXERCISE CYCLE
If the exercise cycle flexes in the center during use,
turn the frame foot until the flexing motion is eliminated.
Frame
Foot
12
CONDiTiONiNG GUiDELiNES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
WARNING: Beforebeginning
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
165 155 145 140 130 125 115 _
145 138 130 ]25 .U8 ,I.10 103 q,_)
125 120 115 1]0 105 95 90
20 30 40 50 60 70 80
To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers above
your age. The three numbers are your "training zone."
The lowest number is the recommended heart rate for
fat burning, the middle number is the recommended
heart rate for maximum fat burning, and the highest
number is the recommended heart rate for aerobic
exercise.
Fat Burning
To burn fat effectively, you must exercise at a relative-
ly low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for ener-
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy.
If your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest num-
ber in your training zone as you exercise.
For maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle of
your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be "aerobic." Aerobic exer-
cise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise, A proper warm-up increases your
body temperature, heart rate, and circulation in prepa-
ration for exercise.
Training zone exercise, consisting of 20 to 30 min-
utes of exercising with your heart rate in your training
zone, Note: During the first few weeks of your exer-
cise program, do not keep your heart rate in your
training zone for longer than 20 minutes.
Acool-down, with 5 to 10 minutes of stretching, This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three work-
outs each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week, if
desired. Remember, the key to success is make exer-
cise a regular and enjoyable part of your everyday life.
13
PART LISTmlVlodel No. HREX1395.0 R1205A
Key Key Key
No. Qty. Description No. Qty. Description No. Qty. Description
1 1 Frame 36 1 Clutch Bearing 74 4 Grommet
2 1 Seat Back Support 37 1 Flywheel Axle 75 1 Upper Pulse Wire
3 1 Seat Bracket 38 1 Flywheel Pulley 76 1 Console
4 1 Seat Frame 39 1 Flywheel 77 1 Upper Wire Harness
5 1 Upright 40 2 M8 x 80mm Hex Bolt 78 2 Handlebar Endcap
6 1 Console Bracket 41 1 Resistance Cable 79 4 M5 x 15mm Bolt
7 1 Handlebar 42 1 Resistance Motor 80 4 M4 x 20mm Screw
8 1 Rear Stabilizer 43 4 M6 x 15mm Bolt 81 2 Crank Ring
9 2 M8 x 70mm Carriage 44 2 M6 x 45mm Bolt 82 1 Left Side Shield
Bolt 45 6 M6 x 15mm Washer 83 1 Right Side Shield
10 15 M8 x 20mm Washer 46 1 Seat 84 2 Side Shield Disc
11 2 M8 Acorn Nut 47 1 Seat Back 85 1 Upright Ring
12 2 Leveling Cap 48 1 Seat Bracket Endcap 86 6 M5 x 8mm Screw
13 2 Transport Cap 49 1 M10 x 35mm Bolt 87 4 M8 x 16mm Bolt
14 2 M3 x 12mm Screw 50 2 M10 Nylon Locknut 88 1 Center Pulse Wire
15 1 "C" Magnet 51 1 M8 x 20mm Bolt 89 1 Large Pulley
16 1 M8 x 15mm Washer 52 4 M5 x 12mm Screw 90 1 Magnet
17 4 M8 Nylon Locknut 53 2 M8 Washer 91 1 Crank
18 1 M5 x 30mm Hex Head 54 1 Reed Switch/Wire 92 1 Lower Pulse Wire
Bolt 55 1 M12 x 16mm Washer 93 1 Large Snap Ring
19 1 M5 x 15mm Washer 56 2 M3 x 10mm Bolt 94 1 Left Crank Arm
20 1 Resistance Spring 57 1 M10 x 16mm x 6mm 95 1 Right Crank Arm
21 1 "C" Magnet Bracket Spacer 96 2 M10 Flanged Locknut
22 1 Right Pedal/Strap 58 1 Tension Spring 97 2 Crank Cap
23 1 M5 Nut 59 1 Idler Bushing 98 1 Left Pedal/Strap
24 3 M10 x 14mm Washer 60 1 Idler 99 1 Adjustment Knob
25 2 M10 x 16mm x 2.5mm 61 1 Spring Washer 100 1 Frame Foot
Spacer 62 3 M8 x 16mm Screw 101 4 Seat Frame Spacer
26 1 M10 x 16mm x 10mm 63 2 M8 x 40mm Screw 102 1 Frame Bushing
Spacer 64 1 Transformer Wire 103 4 M4 x 14mm Bolt
27 2 3/8" x 15mm Screw 65 1 M10 x 85mm Screw 104 4 M3 x 15mm Screw
28 2 3/8" Nylon Locknut 66 1 Lower Wire Harness 105 1 M5 x 30mm Round
29 1 Snap Ring 67 2 Nylon Washer Head Bolt
30 2 M6 Nylon Locknut 68 2 M10 x 19mm Washer 106 4 M4 x 12mm Screw
31 2 M6 Eyebolt 69 2 M10 Nut 107 7 M8 Curved Washer
32 2 "U" Bracket 70 2 Pulse Sensor Assembly # 2 Hex Key
33 1 Belt 71 1 Pulse Wire # 1 User's Manual
34 2 6000ZZ Bearing 72 2 Foam Grip
35 3 6003ZZ Bearing 73 1 Upright Endcap
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
14
t_
97
80
96
84
79 80
20
79
16
75
63
74
70
_78
83
89
33
84
86 1
8
91.
86 88 101 103
43
_101
3
103
72
78
12
45
11 107
22
79
79
47
45
/44
4O
40
10
44
2
12
"8
m
X
-,Q
r-'
0
m
m
Z
0
I
0
Q,.
n
Z
0
m
,,.r
m
X
t_
tj_
b
,_,&
r,o
o
ol
3>
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, please be prepared
to provide the following information:
• the MODEL NUMBER of the product (HREX1395.0)
• the NAME of the product (HEALTHRIDER N25 exercise cycle)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see pages 14 and 15)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-
chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-
ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer's responsibility. For
in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center; products used
for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-
dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH &FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 235784 R1205A Printed in USA@ 2005 ICON IP, Inc.

This manual suits for next models

1

Other HEALTH RIDER Exercise Bike manuals

HEALTH RIDER H25x Bike User manual

HEALTH RIDER

HEALTH RIDER H25x Bike User manual

HEALTH RIDER N35 Bike User manual

HEALTH RIDER

HEALTH RIDER N35 Bike User manual

HEALTH RIDER Health Rider R1000t Bike Quick start guide

HEALTH RIDER

HEALTH RIDER Health Rider R1000t Bike Quick start guide

HEALTH RIDER Health Rider R1000t Bike Operating and maintenance manual

HEALTH RIDER

HEALTH RIDER Health Rider R1000t Bike Operating and maintenance manual

HEALTH RIDER HRCR9155.0 User manual

HEALTH RIDER

HEALTH RIDER HRCR9155.0 User manual

HEALTH RIDER H25x Bike User manual

HEALTH RIDER

HEALTH RIDER H25x Bike User manual

HEALTH RIDER Health Rider R1000t Bike User guide

HEALTH RIDER

HEALTH RIDER Health Rider R1000t Bike User guide

HEALTH RIDER Health Rider R1000t Bike System manual

HEALTH RIDER

HEALTH RIDER Health Rider R1000t Bike System manual

HEALTH RIDER HREX1395.0 User manual

HEALTH RIDER

HEALTH RIDER HREX1395.0 User manual

HEALTH RIDER N40 User manual

HEALTH RIDER

HEALTH RIDER N40 User manual

HEALTH RIDER H35xr Bike User manual

HEALTH RIDER

HEALTH RIDER H35xr Bike User manual

HEALTH RIDER Crosstrainer R790 X Bike Quick start guide

HEALTH RIDER

HEALTH RIDER Crosstrainer R790 X Bike Quick start guide

HEALTH RIDER RC150 HREX04980 User manual

HEALTH RIDER

HEALTH RIDER RC150 HREX04980 User manual

HEALTH RIDER Crosstrainer R790 X Bike User manual

HEALTH RIDER

HEALTH RIDER Crosstrainer R790 X Bike User manual

HEALTH RIDER HREVEX83914.0 User manual

HEALTH RIDER

HEALTH RIDER HREVEX83914.0 User manual

HEALTH RIDER HRCCEX04210 User manual

HEALTH RIDER

HEALTH RIDER HRCCEX04210 User manual

HEALTH RIDER H45xr Bike User manual

HEALTH RIDER

HEALTH RIDER H45xr Bike User manual

HEALTH RIDER R850x User manual

HEALTH RIDER

HEALTH RIDER R850x User manual

HEALTH RIDER N35 HREX2076.1 User manual

HEALTH RIDER

HEALTH RIDER N35 HREX2076.1 User manual

HEALTH RIDER R850x User manual

HEALTH RIDER

HEALTH RIDER R850x User manual

HEALTH RIDER N35 HREX2076.0 User manual

HEALTH RIDER

HEALTH RIDER N35 HREX2076.0 User manual

HEALTH RIDER H10x Bike User manual

HEALTH RIDER

HEALTH RIDER H10x Bike User manual

HEALTH RIDER Health Rider R1000t Bike User manual

HEALTH RIDER

HEALTH RIDER Health Rider R1000t Bike User manual

HEALTH RIDER Crosstrainer R790 X Bike User manual

HEALTH RIDER

HEALTH RIDER Crosstrainer R790 X Bike User manual

Popular Exercise Bike manuals by other brands

BH FITNESS SB2.0 owner's manual

BH FITNESS

BH FITNESS SB2.0 owner's manual

Lifespan Fitnes EXER-90H owner's manual

Lifespan Fitnes

Lifespan Fitnes EXER-90H owner's manual

NordicTrack U100 Bike Bedienungsanleitung

NordicTrack

NordicTrack U100 Bike Bedienungsanleitung

Cateye EC3200E operating instructions

Cateye

Cateye EC3200E operating instructions

Weslo Pursuit2.2 Bike Manual Del Usuario

Weslo

Weslo Pursuit2.2 Bike Manual Del Usuario

SportsArt Fitness C5150 owner's manual

SportsArt Fitness

SportsArt Fitness C5150 owner's manual

NordicTrack Gx4.1 Bike Manuel de l'utilisateur

NordicTrack

NordicTrack Gx4.1 Bike Manuel de l'utilisateur

Casall 91002 manual

Casall

Casall 91002 manual

Sunny Health & Fitness SF-B1004 Assembly & user manual

Sunny Health & Fitness

Sunny Health & Fitness SF-B1004 Assembly & user manual

Weslo WLEX31310.1 user manual

Weslo

Weslo WLEX31310.1 user manual

Reebok Rb 310 Exercise Bike Manuel de l'utilisateur

Reebok

Reebok Rb 310 Exercise Bike Manuel de l'utilisateur

Keiser M3X user manual

Keiser

Keiser M3X user manual

Fitness Reality X CLASS 410 ST owner's manual

Fitness Reality

Fitness Reality X CLASS 410 ST owner's manual

Tunturi S30 user manual

Tunturi

Tunturi S30 user manual

Kettler GX 1 Assembly instructions

Kettler

Kettler GX 1 Assembly instructions

HASE Bikes ROLLER BAG user manual

HASE Bikes

HASE Bikes ROLLER BAG user manual

Insportline Jota user manual

Insportline

Insportline Jota user manual

NordicTrack C5 Zl Gw Bike Manual do utilizador

NordicTrack

NordicTrack C5 Zl Gw Bike Manual do utilizador

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
