HEALTH RIDER N40 User manual

USER'S MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. eep this manual
for future reference.
Serial
Number
Decal
Model No. HRCCEX71408.0
Serial No.
Write the serial number in the
space above for reference.
www.healthrider.com
Visit our website at
w
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-888-936-4266
Mon.–Fri., 8:00 until 17:00 EST
(excluding holidays)
OR E-MAIL US:
[e-mail]

2
TABLE OF CONTENTS
WARNINGDECALPLACE ENT ..............................................................2
I PORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSE BLY ...............................................................................5
HOWTOOPERATETHEEXERCISECYCLE...................................................10
AINTENANCEANDTROUBLESHOOTING ...................................................16
EXERCISEGUIDELINES ...................................................................17
PARTLIST ..............................................................................18
EXPLODEDDRAWING ....................................................................19
ORDERINGREPLACE ENTPARTS ..................................................BackCover
LI ITEDWARRANTY ..............................................................BackCover
HealthRider is a registered trademark of ICON IP, Inc.
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing or
illegible, call the telephone number on
the front cover of this manual and
request a free replacement decal. Apply
the decal in the location shown. Note:
The decal(s) may not be shown at actual
size.

3
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are ade-
quately informed of all precautions.
3. The exercise cycle is intended for home use
only. Do not use the exercise cycle in a com-
mercial, rental, or institutional setting.
4. eep the exercise cycle indoors, away from
moisture and dust. Place the exercise cycle
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is enough clearance around the exer-
cise cycle to mount, dismount, and use it.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. eep children under age 12 and pets away
from the exercise cycle at all times.
7. The exercise cycle should not be used by
persons weighing more than 250 lbs.
(113 kg).
8. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
9. Wear appropriate exercise clothes while
exercising; do not wear loose clothes that
could become caught on the exercise cycle.
Always wear athletic shoes for foot protec-
tion while exercising.
10. When adjusting the seat, make sure that the
seat knob is inserted into one of the adjust-
ment holes in the seat post.
11. eep your back straight while using the exer-
cise cycle; do not arch your back.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
14. Use the exercise cycle only as described in
this manual.
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise cycle before using your exercise
cycle. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
IMPORTANT PRECAUTIONS

4
Congratulations for selecting the new HealthRider®
N40 exercise cycle. Cycling is one of the most effec-
tive exercises for increasing cardiovascular fitness,
building endurance, and toning the body. The N40
exercise cycle offers a selection of features designed
to let you enjoy this healthful exercise in the conve-
nience and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Seat
Seat Knob
Pedal/Strap
Handgrip Pulse Sensor
Fan
Handlebar
Levelling Foot
BEFORE YOU BEGIN
Console

5
ASSEMBLY
To hire an authorized service technician to assemble the exercise cycle, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the included
tools and your own adjustable wrench and Phillips screwdriver .
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: Some small parts may have been preassembled.
If a part is not in the parts bag, check to see if it has been preassembled.
M8 Locknut
(10)–6
M8 Split Washer
(41)–10
M10 Locknut
(33)–4 M4 x 16mm
Screw (49)–4
M8 x 25mm Button
Screw (45)–6
M10 x 75mm Carriage Bolt (30)–4
M8 x 38mm Button
Screw (9)–2
1. Identify the Front Stabilizer (2).
See the inset drawing. Orient a Wheel (14) as shown
and attach it to one end of the Front Stabilizer (2) with
an 8 Locknut (10). Make sure that the Wheel turns
freely. Next, align the four posts on a Wheel Cover
(23) with the posts on the Wheel, and press the Wheel
Cover onto the Wheel. Assemble the other Wheel
(not shown) in the same way.
While another person lifts the front of the Frame (1),
attach the Front Stabilizer (2) to the Frame with two
10 x 75mm Carriage Bolts (30) and two 10
Locknuts (33) as shown.
2
33
30
1
1
2
14
23 10
Post

6
2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (6) with two 10 x 75mm
Carriage Bolts (30) and two 10 Locknuts (33).
30
6
1
33
33
2
3
55
41
41
45
45
1
13
36
3. While another person holds the Upright (13) in the
position shown, connect the Upper Wire Harness (36)
to the Lower Wire Harness (55).
Carefully pull the excess Upper Wire Harness (36) out
of the top of the Upright (13), and slide the Upright onto
the Frame (1). Do not pinch the Wire Harnesses (36,
55). Attach the Upright with three 8 x 25mm Button
Screws (45) and three 8 Split Washers (41).
Do not pinch the
Wire Harnesses
(36, 55) while
attaching the
Upright (13)

7
4
4. Attach the Handlebar (15) to the Upright (13) with two
8 x 38mm Button Screws (9).
13
15
9
5
5. The Console (16) requires four “D” batteries (not
included); alkaline batteries are recommended. Press
the tab on the battery door and remove the battery
door. Insert four batteries into the Console as shown.
Make sure that the batteries are oriented as shown
by the markings on the battery door. Then, reattach
the battery door.
16
Batteries
Batteries
Door
6. Hold the Console (16) near the Upright (13). Connect
the console wire to the Upper Wire Harness (36).
Insert the excess console wire and Upper Wire
Harness (36) down into the Upright (13). Next, attach
the Console (16) to the Upright with four 4 x 16mm
Screws (49). Do not pinch the wires.
16
6
Do not pinch
the wires
during this
step
13
49
36
Console
Wire

8
7. Attach the Seat Frame (28) to the Frame (1) with three
8 x 25mm Button Screws (45) and three 8 Split
Washers (41).
1
41
41
45
45
45
28
7
8. Turn the Seat Knob (11) counterclockwise and remove
it. Next, insert the Seat Post (5) into the Seat Frame
(28). Then, press the Seat Post Cap (54) into the lower
end of the Seat Post.
Align one of the adjustment holes in the Seat Post (5)
with the indicated hole in the Seat Frame (28). Insert
the Seat Knob (11) into the Seat Frame and the Seat
Post, and turn the Seat Knob clockwise until it is tight.
Make sure that the Seat nob is inserted into one
of the adjustment holes in the Seat Post. 28
5
11
54
Hole
Adjustment
Holes
8
9. Attach the Seat (12) to the Seat Post (5) with four 8
Locknuts (10) and four 8 Split Washers (41). Note:
The Locknuts and the Split Washers may be preat-
tached to the underside of the Seat.
9
41
10
12
5
41
10
41

9
11. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.

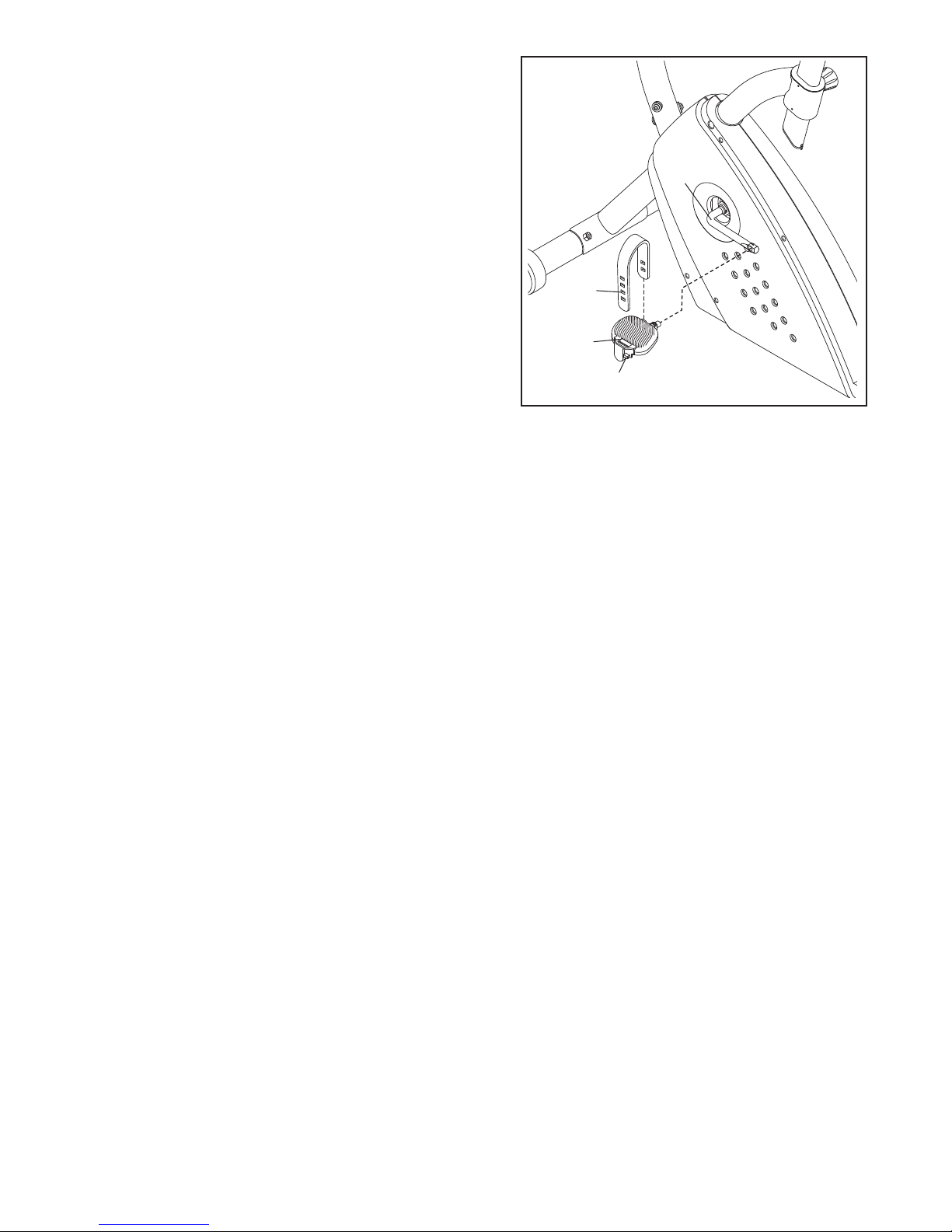

10. Identify the Left Pedal (24), which is marked with an
“L.” Using an adjustable wrench, firmly tighten the
Left Pedal counterclockwise into the left arm of the
Crank (21). Tighten the Right Pedal (not shown)
clockwise into the right arm of the Crank. Important:
Tighten both Pedals as firmly as possible. After
using the exercise cycle for one week, retighten
the Pedals. For best performance, the Pedals must
be kept tightened.
Adjust the Left Pedal Strap (25) to the desired posi-
tion, and press the end of the Left Pedal Strap onto
the tab on the Left Pedal (24). Adjust the Right Pedal
Strap (not shown) in the same way.
10
24
21
25
Tab

10
HOW TO OPERATE THE EXERCISE CYCLE
HOW TO ADJUST THE SEAT POST
For effective exer-
cise, the seat should
be at the proper
height. As you
pedal, there should
be a slight bend in
your knees when the
pedals are in the
lowest position. To
adjust the height of
the seat, first turn
the seat knob coun-
terclockwise and
remove it. Next,
slide the seat post up or down, and align one of the
adjustment holes in the seat post with the indicated
hole in the seat frame. Insert the seat knob into the
seat frame and the seat post, and turn the knob clock-
wise until it is tight. Make sure that the seat knob is
inserted into one of the adjustment holes in the
seat post.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal
straps, first pull the
ends of the straps off
the tabs on the ped-
als. Adjust the straps
to the desired posi-
tion, and then press
the ends of the straps
back onto the tabs.
HOW TO LEVEL THE EXERCISE CYCLE
If the exercise cycle
rocks on your floor
during use, turn one
or both of the level-
ling feet beneath the
rear stabilizer until
the rocking motion is
eliminated.
Strap
Tab
Knob
Hole
Seat
Levelling
Feet

11
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the pedals can be changed
with the touch of a button. As you pedal, the console
will provide continuous exercise feedback. You can
even measure your heart rate using the built-in hand-
grip pulse sensor.
In addition, the console features two pulse programs
that change the resistance of the pedals and help you
to maintain a steady pedaling pace to keep your heart
rate near a target heart rate setting while you exercise.
The console also offers two preset programs. Each
program automatically changes the resistance of the
pedals and prompts you to increase or decrease your
pedaling pace as it guides you through an effective
workout.
To use the manual mode, see page 12. To use a
pulse program, see page 13. To use a preset pro-
gram, see page 15.
Before using the console, make sure that batteries are
installed (see assembly step 5 on page 7). If there is a
sheet of clear plastic on the display, remove the plastic.
Fan
Button
Increase
Button
Program/ anual
Button
Program
Indicator
Display Pace
Guide
Decrease
Button
Program
Profiles
CONSOLE DIAGRAM

12
HOW TO USE THE MANUAL MODE
1. Turn on the console.
To turn on the console, press the Increase button
or begin pedaling. The pace guide will light for a
moment; the console will then be ready for use.
2. Select the manual mode.
When the power is turned on, the manual mode
will be selected. If you have selected a program,
reselect the manual mode by pressing the
Program/ anual button repeatedly until no pro-
gram indicators (see the drawing on page 11)
appear along the left side of the display.
3. Change the resistance of the pedals as desired.
As you pedal,
change the resis-
tance of the pedals
by pressing the
Increase and
Decrease buttons.
There are ten
resistance levels. Note: After the buttons are
pressed, it will take a moment for the pedals to
reach the selected resistance level.
4. Monitor your progress with the display.
The upper half of
the display will
show the elapsed
time, the distance
you have pedaled,
and the resistance
level of the pedals.
The display will change from one mode to the next
every few seconds.
The lower half of
the display will
show your pedaling
speed and the
approximate num-
ber of calories you
have burned. The
display will change from one mode to the other
every few seconds. The lower half of the display
will also show your heart rate when you use the
handgrip pulse sensor (see step 5). Note: When a
program is selected (except for pulse program 1),
the display will show the time remaining in the
program instead of the elapsed time.
Note: The console can display speed and dis-
tance in either miles or kilometers. The letters
“ PH” or “K /H” will appear in the lower half of
the display to show which unit of measurement is
selected. To change
the unit of measure-
ment, first hold
down the
Program/ anual
button for several
seconds. An “E” (for
English) or an “ ”
(for metric) will appear in the display. Press the
Increase button to change the unit of measure-
ment. When the desired unit of measurement is
selected, press the Program/ anual button again.
Note: When the batteries are replaced, you may
need to reselect the desired unit of measurement.
5. Measure your heart rate if desired.
If there are sheets
of clear plastic on
the metal contacts
on the handgrip
pulse sensor,
remove them.
Next, hold the hand-
grip pulse sensor
with your palms
resting on the contacts. When your pulse is
detected, the heart-shaped indicator in the lower
half of the display will flash each time your heart
beats, and your heart rate will be shown.
For the most accurate heart rate reading, continue
to hold the handgrip pulse sensor for about 30
seconds. Note: If you continue to hold the hand-
grip pulse sensor, the display will show your heart
rate for about 30 seconds. The display will then
show your heart rate along with the other modes.
If your heart rate is not shown, make sure that
your hands are positioned as described. Avoid
moving your hands excessively or squeezing the
metal contacts too tightly. For optimal perfor-
mance, periodically clean the metal contacts using
a soft cloth; never use alcohol, abrasives, or
chemicals.
Contacts

13
6. Turn on the fan if desired.
To turn on the fan at low speed, press the fan but-
ton. To turn on the fan at high speed, press the
fan button a second time. To turn off the fan, press
the fan button a third time. Note: If the fan is
turned on but the pedals are not moved for thirty
seconds, the fan will automatically turn off to con-
serve the batteries.
Slide the thumb
tab on the right
side of the fan to
adjust the angle
of the fan.
7. When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved for a few seconds, the
time will begin to flash and the console will pause.
If the pedals are not moved for a few minutes, the
console will turn off and the display will be reset.
HOW TO USE A PULSE PROGRAM
Pulse program 1 is designed to keep your heart rate
within a set range during your workout. Pulse program
2 is designed to keep your heart rate near a target
heart rate setting that you select.
Follow the steps below to use a pulse program.
1. Turn on the console.
See step 1 on page 12.
2. Select a pulse program.
To select pulse pro-
gram 1 or 2, press
the Program/ anual
button repeatedly
until the number 1
or 2 appears along
the left side of the
display.
3. Enter a target heart rate.
If pulse program 1 is selected, the maximum
target heart rate setting for the program will flash
in the display (see the drawing above). Press the
Increase and Decrease buttons to change the set-
ting, if desired (see EXERCISE INTENSITY on
page 17). If the maximum target heart rate setting
is increased or decreased, the intensity level of
the entire program will increase or decrease.
If pulse program 2 is selected, the target heart
rate setting for the entire program will flash in the
display. Press the Increase and Decrease buttons
to change the setting, if desired (see EXERCISE
INTENSITY on page 17).
4. Hold the handgrip pulse sensor.
It is not necessary to hold the handgrip pulse sen-
sor continuously during a pulse program; however,
you must hold the handgrip pulse sensor frequent-
ly. Each time you hold the handgrip pulse sen-
sor, keep your hands on the metal contacts for
at least 30 seconds. Note: When you are not
holding the handgrip pulse sensor, the letters PLS
will appear in the display instead of your heart
rate.
Thumb Tab

14
5. Begin pedaling to start the program.
Pulse program 1 is 30 minutes long, and is divid-
ed into several time periods of different lengths.
One target heart rate is programmed for each
period. Pulse program 2 is sixty minutes long
(you may choose to use only part of the program).
The same target heart rate is programmed for the
entire program.
During the program, the console will regularly
compare your heart rate to the target heart rate
setting. If your heart rate is too far below or above
the target heart rate setting, the resistance of the
pedals will automatically increase or decrease to
bring your heart rate closer to the target heart rate
setting. Note: If the resistance level is too high or
too low, you can override it by pressing the
Increase and Decrease buttons. However, when
the console compares your heart rate to the target
heart rate setting, the resistance may automatical-
ly change.
After the first minute of the program, the pace
guide will help you to maintain a steady pedaling
pace. When one of the two lower indicators lights,
increase your pace; when one of the two upper
indicators lights, decrease your pace. When the
center indicator lights, maintain your current pace.
Important: The pace guide is intended only to
provide a goal. Make sure to pedal at a pace
that is comfortable for you.
The display will show the time remaining in pulse
program 1, or the elapsed time in pulse program
2. If you stop pedaling for a few seconds, the pro-
gram will pause and the time will flash in the dis-
play. To restart the program, simply resume pedal-
ing.
6. Monitor your progress with the display.
See step 4 on page 12.
7. Turn on the fan if desired.
See step 6 on page 13.
8. When you are finished exercising, the console
will automatically turn off.
See step 7 on page 13.

15
HOW TO USE A PRESET PROGRAM
Preset programs 3 and 4 automatically change the
resistance of the pedals and prompt you to increase
or decrease your pedaling pace as they guide you
through effective workouts. The profiles printed on the
left side of the display show how the resistance level
and the target pace will change during the preset pro-
grams.
Follow the steps below to use a preset program.
1. Turn on the console.
See step 1 on page 12.
2. Select a preset program.
To select preset program 3 or 4, press the
Program/ anual button repeatedly until the num-
ber 3 or 4 appears along the left side of the dis-
play. When a preset program is selected, the dis-
play will show how long the program will last.
3. Begin pedaling to start the program.
Each preset pro-
gram consists of
several time peri-
ods of different
lengths. One resis-
tance level and one
target pace are
programmed for
each period.
At the end of each period of the program, the
resistance level will flash in the display for a few
seconds. The resistance of the pedals will then
automatically change to the resistance level that is
programmed for the next period. Note: If the resis-
tance level is too high or too low, you can override
it by pressing the Increase and Decrease buttons.
However, when the current period ends, the resis-
tance level will automatically change if a different
resistance level is programmed for the next period.
During the program, the pace guide will prompt
you to increase or decrease your pedaling pace.
When one of the two lower indicators lights,
increase your pace; when one of the two upper
indicators lights, decrease your pace. When the
center indicator lights, maintain your current pace.
Important: The pace guide is intended only to
provide a goal. Make sure to pedal at a pace
that is comfortable for you.
The display will show the time remaining in the
program. If you stop pedaling for a few seconds,
the program will pause and the time will flash in
the display. To restart the program, simply resume
pedaling.
4. Monitor your progress with the display.
See step 4 on page 12.
5. Measure your heart rate if desired.
See step 5 on page 12.
6. Turn on the fan if desired.
See step 6 on page 13.
7. When you are finished exercising, the console
will automatically turn off.
See step 7 on page 13.

16
Inspect and tighten all parts of the exercise cycle reg-
ularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of mild detergent. Important: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, see
assembly step 5 on page 7.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, the left shield must be removed.
Turn the Crank (21) to the position shown. Using an
adjustable wrench, turn the Left Pedal (24) clockwise
and remove it. Next, remove the indicated 4 x
25mm Screws (42) and the indicated 4 x 16mm
Screws (49). Then, carefully remove the Left Shield
(17).
Next, locate the Reed Switch (43). Turn the Crank
(21) until the agnet (38) is aligned with the Reed
Switch. Loosen, but do not remove, the indicated 4 x
16mm Screw (49). Slide the Reed Switch slightly clos-
er to or away from the agnet, and then retighten the
Screw. Turn the Crank for a moment. Repeat until the
console displays correct feedback. When the Reed
Switch is correctly adjusted, reattach the left shield
and the left pedal.
HOW TO LEVEL THE EXERCISE CYCLE
If the exercise cycle rocks on your floor during use,
see HOW TO LEVEL THE EXERCISE CYCLE on
page 10.
MAINTENANCE AND TROUBLESHOOTING
49
24
42
17
49
21
42
49
42
49
21
43 38
42

17
EXERCISE GUIDELINES
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WOR OUT GUIDELINES
Warming up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
WARNING: Before beginning
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.

18
11Frame
21Front Stabilizer
31 Spring
42Stabilizer Cap
51Seat Post
61Rear Stabilizer
72Handlebar Cap
82Foam Grip
92 8 x 38mm Button Screw
10 7 8 Locknut
11 1 Seat Knob
12 1 Seat
13 1 Upright
14 2 Wheel
15 1 Handlebar
16 1 Console
17 1 Left Shield
18 1 Right Shield
19 1 Resistance otor
20 1 Upright Cap
21 1 Crank/Pulley
22 1 Reed Switch Clamp
23 2 Wheel Cover
24 1 Left Pedal
25 1 Left Pedal Strap
26 1 Right Pedal
27 4 otor Screw
28 1 Seat Frame
29 1 Stop Bolt
30 4 10 x 75mm Carriage Bolt
31 1 Pillow Block
32 1 Idler Block
33 4 10 Locknut
34 4 5 Washer
35 2 Levelling Foot
36 1 Upper Wire Harness
37 1 Flywheel
38 1 agnet
39 1 Right Pedal Strap
40 1 C-magnet
41 10 8 Split Washer
42 4 4 x 25mm Screw
43 1 Reed Switch/Wire
44 1 Crank Bearing Set
45 6 8 x 25mm Button Screw
46 1 4 x 16mm Round Head Screw
47 4 Pillow Block Screw
48 1 Drive Belt
49 9 4 x 16mm Screw
50 1 Idler Block Screw
51 2 6 Nut
52 2 Frame Bushing
53 1 Resistance Cable
54 1 Seat Post Cap
55 1 Lower Wire Harness
56 4 4 x 12mm Screw
*–Userʼs anual
*–Assembly Tool
Note: Specifications are subject to change without notice. See the back cover of this manual for information
about ordering replacement parts. *These parts are not illustrated.
PART LIST—Model No. HRCCEX71408.0 R0609A
ey No. Qty. Description ey No. Qty. Description

19
1
2
3
4
4
5
7
8
10
12
13
15
16
17
18
22
25
24
26
39
36
37
40
43
44
6
48
19
30
30
33
33
33
49
41
42
49
49 34
45
45
45
41
41
41
27
38
21
55 53
7
49
49
42
41
10
47
34
28
9
20
11
56
56
52
52
56
54
41
45
45 41
45
41
23
23
14
31
47
35
35
50
32
10
42
49
42
46
29
51
10
10

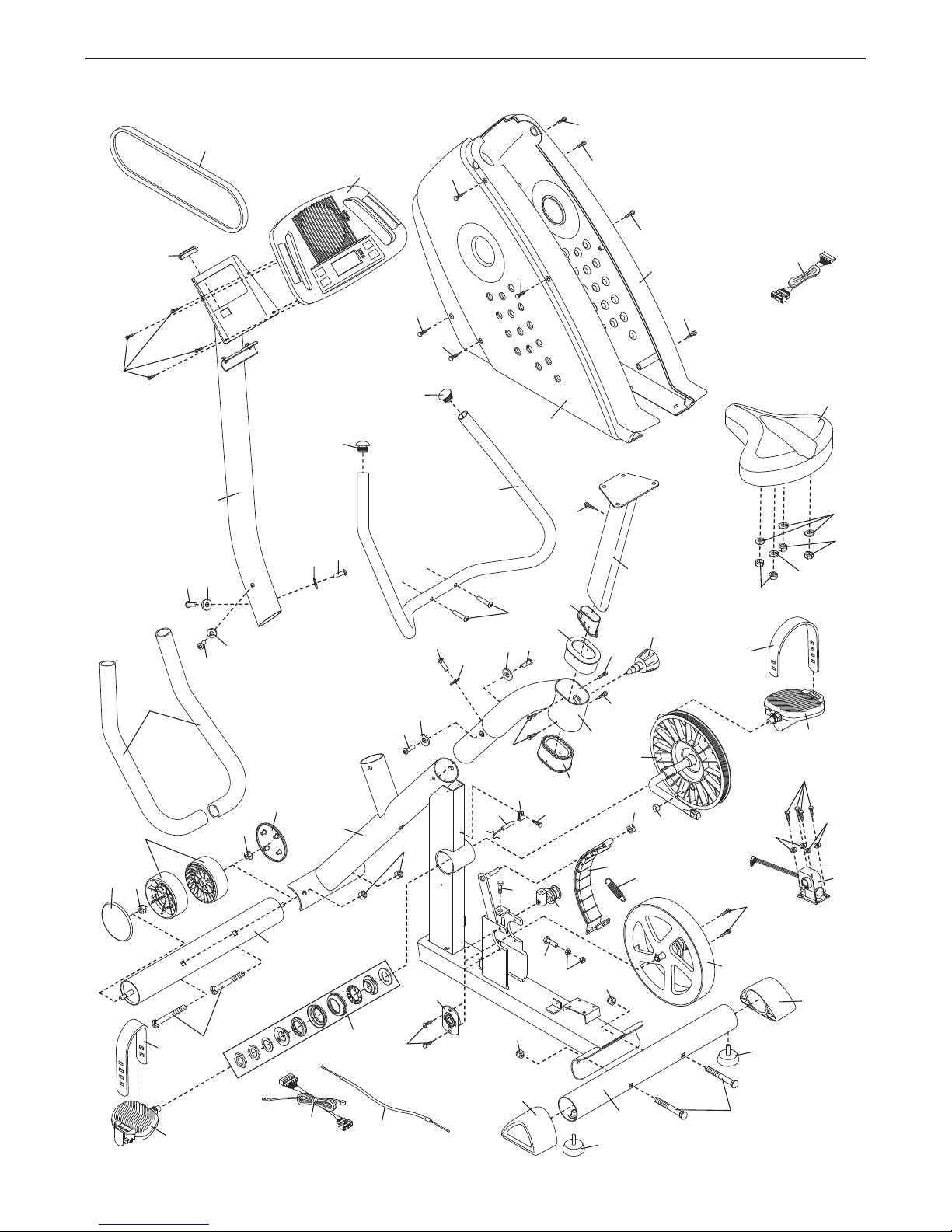

EXPLODED DRAWING—Model No. HRCCEX71408.0 R0609A

Part No. 267481 R0609A Printed in China © 2008 ICON IP, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
ICON of Canada, Inc. (ICON) warrants this product to be free from defects in workmanship and materi-
al, under normal use and service conditions. Parts are warranted for ninety (90) days from the date of
purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be preauthorized by ICON. This warranty does not
extend to any damage to a product caused by or attributable to freight damage, abuse, misuse, improp-
er or abnormal usage, or repairs not provided by an ICON authorized service center; products used for
commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or
other consequential damages of whatsoever nature. Some states do not allow the exclusion or limita-
tion of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties
of merchantability or fitness for a particular purpose are limited in their scope and duration to the terms
set forth herein. Some states do not allow limitations on how long an implied warranty lasts.
Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from province to
province.
ICON of Canada, Inc., 900 de lʼIndustrie, St. Jérôme, QC J7Y 4B8
