GFK-210-C Blower System
- Installation and Operating Instructions -
1.0 INTRODUCTION
The GFK-210-C Blower System has been designed to
circulate room air through the fireplace to enhance heat
output. The GFK-210-C blower system operates on 120
VAC, 60 Hz power. This is available through a receptacle
in the factory installed power cord assembly. The power
cordislocatedinthecontrolscompartmentofthefireplace.
An optional variable speed control is available for use
with the blower system to provide quiet forced air flow at
the desired speeds. A temperature sensor switch, which
automatically turns the blower ON/OFF, is also provided
with this kit. See Figure 2 and Section 8.0.
NOTICE: The variable speed control and temperature
sensor switch are not used with some remote control
systems.
3.0 INSTALLATION PRECAUTIONS
TheGFK-210-CBlowerKitis testedandsafe wheninstalled
inaccordance withthisinstallationmanual. Itisyour respon-
sibility to readall instructions before startinginstallation and
to follow these instructions carefully during installation to
assure maximum benefit from, and safe operation of, the
blower.
This blower is carefully engineered and must be installed
only as specified. If you modify it or any of its components,
youmaycausea fire hazard and will void the WARRANTY.
In addition, such action may void the coverage provided
by the owner's home insurance.
CAUTION: Allwiring should be doneby a qualifiedelectri-
cian and shall be in compliance with local codes and with
the National Electric Code ANSI/NFPA NO. 70-current (in
theUnitedStates), or with thecurrentCSAC22.1Canadian
Electric Code (in Canada).
CAUTION! DO NOT connect 110-120 VAC wiring to the
gas control valve of the fireplace.
WARNING! Risk of Shock! Turn electrical power off at
the circuit breaker before beginning this installation.
CAUTION! Do not install a damaged blower kit.
VARIABLE SPEED CONTROL
WING
NUT
CONTROL
KNOB
CONTROL
NUT
TEMPERATURE
SENSOR
SWITCH
OPTIONAL
RHEOSTAT/TEMPERATURE
SENSOR ASSEMBLY
Figure 2. Carton Contents - SRV2206-800
BLOWER CORD
FAN
BRACKETS
2.0 CHECK CONTENTS OF SHIPPING CARTON
Compare CONTENTS OF CARTON in Figure 1 with the
actualpartsreceived. If any parts are missing ordamaged,
contact your dealer before starting installation.

2 Hearth & Home Technologies • GFK-210-C Blower System Instructions 2201-938 Rev. F • 1/13
Figure 4. Remove Access Cover
Figure 5. Attach Blowers to Access Cover
Figure 3. Remove Blower Brackets
NOTE: Install the blower using the access panel located on
the back side of the appliance.
4.0 INSTALLING THE BLOWER (Metal Inserts)
1. Remove factory-installed blower brackets by removing
four screws. Brackets are only used for the FireBrick
inserts. See Figure 3.
2. Remove appliance from wall.
3. Remove access panel by removing screws. See Figure
4. Note: 35 inch models have two more screws than
30 inch models.
4. Screw blowers to access panel on rear of insert with
four screws. See Figure 5.
5. Plug the blower cord into the blower receptacle. Con-
nect the white, black, and green spade connectors
from blower cord harness to each blower. See Figure
1 and Figure 7.
6. Bundle and zip tie any wires to keep them from contact-
ing the fan blades. See Figure 7, Detail A.
7. Reinstall access panel.
35 INCH MODELS ONLY
BRACKET HOLES

3Hearth & Home Technologies • GFK-210-C Blower System Instructions 2201-938 Rev. F • 1/13
5.0 INSTALLINGTHEOPTIONALVARIABLESPEED
CONTROLAND TEMPERATURE SENSOR SWITCH
If using a remote control system that utilizes a blower
(fan) control, disregard steps 1-3 and follow remote con-
trol installation instructions.
NOTICE! The sensor switch and rheostat are not used
if the blower is controlled with the RC300 remote control.
1. Slide the variable speed control behind the control
panel. With the stem sticking out of the pre-punched
hole,attachthe locknut tightly and reattach theknobon
the stem. See Figure 6. Turn the speed control switch
to the "ON" position.
2. Slide the temperature sensor switch onto the blower
stud located on the bottom of the combustion box. See
Figure 3. Secure the temperature sensor switch with
the wing nut provided.
NOTICE: The blower stud is located on the bottom of the
combustion box. See Figure 6.
NOTICE:Thetemperature sensor switch must be installed
so that the sensor switch is facing the combustion box
surface. See Detail A of Figure 6.
3. Connectthevariablespeedcontroland the temperature
sensor switch to the power cord. See Figure 7.
4. Gather the loose wires underneath the appliance and
use the zip ties to restrain them and keep them away
from the blower wheel (fan blades). See Figure 7,
Detail A.
5. Turn the 110-120 VAC service "ON" at the circuit
breaker.
6.0 RECOMMENDED OPERATING PROCE-
DURES WHEN VARIABLE SPEED CONTROLAND
TEMPERATURE SENSOR SWITCH ARE USED
Ignitethefirein the fireplacewiththevariablespeedcontrol
switch in an "ON" position. The fan will automatically turn
on when the temperature sensor switch closes at approxi-
mately 110OF. Heated air will be delivered at the outlet
grille. The fan will continue to operate after the fireplace
is turned OFF until the temperature sensor switch opens.
NOTICE! During operation, ensure that all wiring is
kept away from the blower wheel (fan blades).
Various conditions (such as fireplace model, type of fire-
place installation, outside air temperature vs. inside air
temperature) can contribute to the length of the time the
blower remains on after the fireplace is turned OFF. The
blower can be turned off manually with the speed control
switch.
WARNING! Risk of Injury! DO NOT contact the blower
wheel (fan blades) during operation.
7.0 MAINTENANCE
Periodically check the fireplace and remove any dust, dirt
or obstructions.
8.0 REPLACEMENT PARTS AND CUSTOMER
SERVICE
Replacement parts and service may be obtained through
your dealer.
Rheostat/Temperature Sensor Assembly:
SRV2206-800
Figure 6.
TEMPERATURE SENSOR SWITCH
COMBUSTION BOX SURFACE
BLOWER STUD
BLOWER
STUD
VARIABLE
SPEED
CONTROL TEMPERATURE
SENSOR
SWITCH
DETAIL A

4 Hearth & Home Technologies • GFK-210-C Blower System Instructions 2201-938 Rev. F • 1/13
NOTE: IF ANY OF THE ORIGINAL
WIRE AS SUPPLIED WITH THE
APPLIANCE MUST BE REPLACED,
IT MUST BE REPLACED WITH
TYPE 1050C RATED WIRE.
BLOWERS
BLOWER
RECEPTACLE
BLK
GRN
BLK
BLK
GRN
BLK
WHT
GRN
BLK
BLK
GRN
WHT
BLK
BLK
BLK
BLK
PLUG INTO 120V
EXISTING OUTLET
TEMPERATURE
SENSOR SWITCH
VARIABLE SPEED
CONTROL
DC REGULATOR
RECEPTACLE
BLOWER
CORD
POWER
CORD
PLUG
120V EXISTING
OUTLET
BRN
REDBLACK
TO VALVE
TO VALVE BRACKET
(GROUND)
ORG
GRN
BLOWER
VARIABLE
SPEED
CONTROL
(RHEOSTAT)
TEMPERATURE
SENSOR
SWITCH CONTROL
PANEL
POWER CORD
BLOWER
CORD
DETAIL A

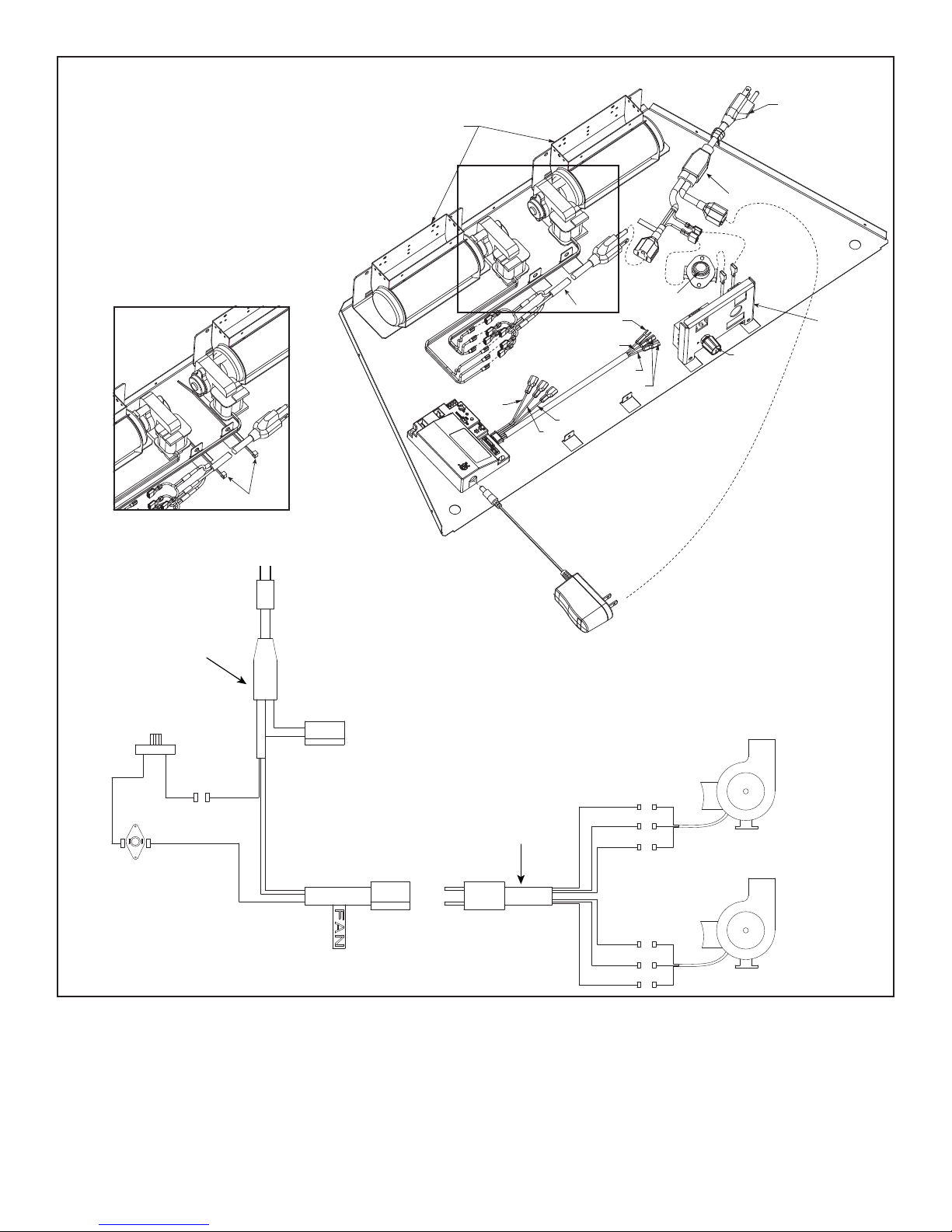

Figure 7. Fan Wiring Diagram - Metal Insert Without RC200/RC300
ZIP TIES
DETAIL A

5Hearth & Home Technologies • GFK-210-C Blower System Instructions 2201-938 Rev. F • 1/13

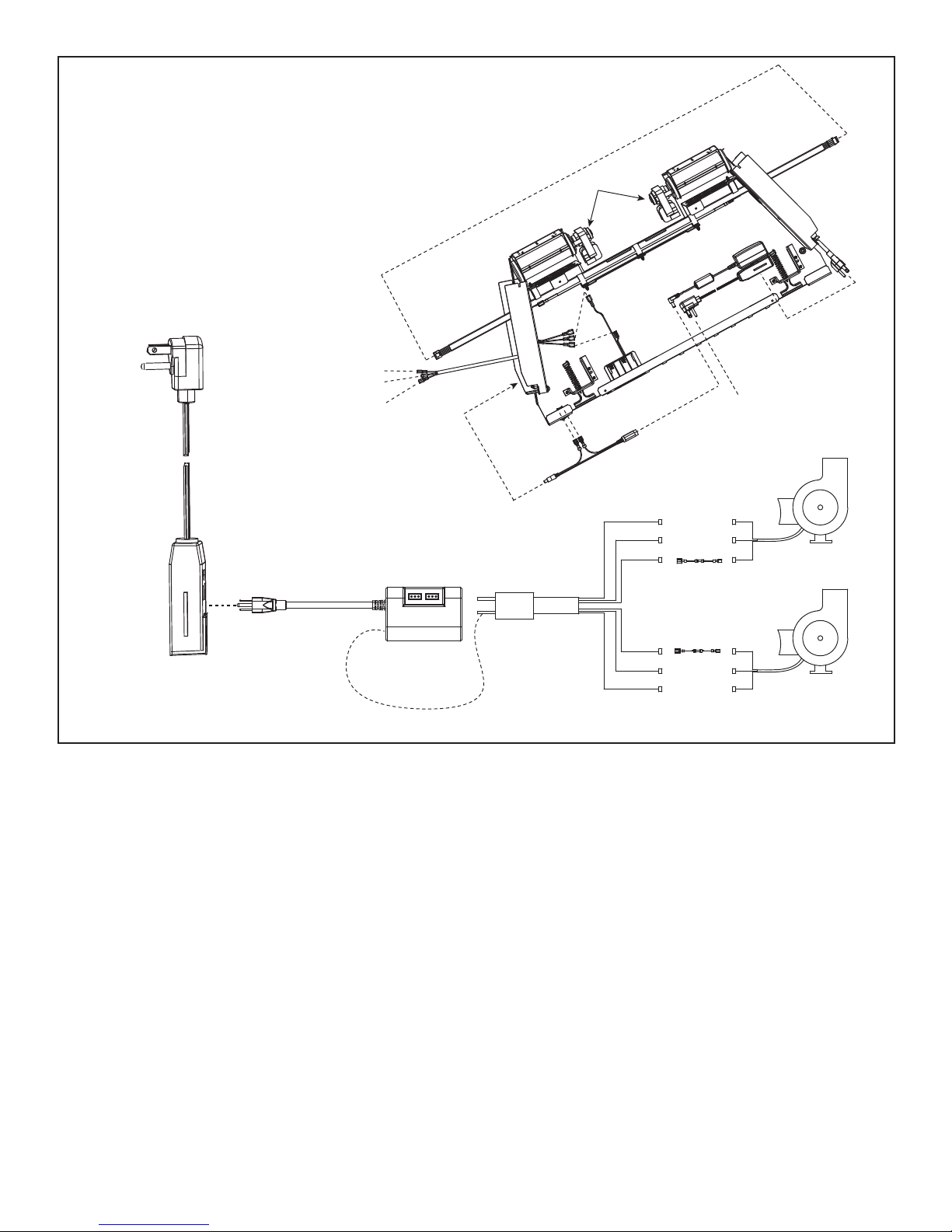

Figure 8. Fan Wiring Diagram - Metal Insert with RC200/RC300 Remote
PLUG
120V EXISTING
OUTLET
GRN (2)
BLK (2)
BLK (2)
GRN (2)
BLK (2)
STEPS
3 & 5
WHT (2)
BLOWER
SPEED CONTROL
(RHEOSTAT)
SENSOR SWITCH
STEPS
1 & 2
STEP 5
BLOWERS
BLOWER
RECEPTICLE
BLK
GRN
BLK
BLK
GRN
BLK
WHT
GRN
BLK
BLK
GRN
WHT
BLK
BLK
PLUG INTO 120V
EXISTING OUTLET
DC REGULATOR
RECEPTICLE AUX 300 MODULE
FAN
TO CONTROL
MODULE
FUSE WIRE
ASSEMBLY
FUSE WIRE
ASSEMBLY
9.0 Fan Wiring with Remote
This appliance may be used with an RC200 or RC300
remote control. See Figure 8.
1. Remove cord assembly spades from rheostat and
sensor switch.
NOTICE: Fan speed and operation are controlled by the
remote control. The sensor switch and rheostat are no
longer needed.
NOTE: USEZIPTIESTORESTRAIN
THE LOOSE WIRES UNDERNEATH
THE APPLIANCE AND KEEP THEM
AWAY FROMTHE BLOWER WHEEL
(FAN BLADES).
NOTE: IF ANY OF THE ORIGINAL
WIRE AS SUPPLIED WITH THE
APPLIANCE MUST BE REPLACED,
ITMUSTBEREPLACEDWITHTYPE
1050C RATED WIRE.
NOTE: SENSOR SWITCH AND
RHEOSTATSPEEDCONTROLMUST
BE REMOVED FROM CIRCUIT IF
SYSTEM IS CONTROLLED WITH
RC200/300 REMOTE.
2. Plug two cord assembly spade connectors together.
3. Unplug fan cord assembly from standard cord assembly.
4. Install fuse wire assembly in series between the black
lead wires of the fan cord and black lead wire on each
blower. See Figure 8.
5. Plug fan cord assembly into AUX300 module.
6. PlugAUX300 module into the standard cord assembly.

6 Hearth & Home Technologies • GFK-210-C Blower System Instructions 2201-938 Rev. F • 1/13
Figure 10. Remove Access Panel
10.0 INSTALLING THE BLOWER (FireBrick Inserts)
For Models: ESCAPE-I30FB, ESCAPE-I35FB,
QFI30FB, QFI35FB
The factory installed brackets must be replaced with the
brackets included in the instruction bag before proceeding
with blower installation instructions below. See Figure 9.
For Models: ESCAPE-I30-C, ESCAPE-I35-C,
QFI30FB-C, QFI35FB-C
Proceed as follows:
1. Remove appliance from wall.
2. Disconnect power by shutting off circuit breaker or
unplugging appliance power cord from its receptacle.
3. Remove access panel from lower rear of the fireplace
insert. See Figure 10.
4. Connect white and green wires from blower wire as-
sembly to each blower. See Figure 12. Connect the
fuse wire assembly in series between black wires of
blowerwireassemblyandeachblower. SeeFigure12.
5. Routeblowerplugassemblythroughbackof appliance
to right side of appliance. Ensure cable assembly is
routed in front of fan blade guard and through plastic
bushing on auxiliary mounting plate.
6. Insert plug from blower cable assembly into AUX300
receptacle. See Figure 12.
7. Positiontherightandleftblowerassemblyintotherear
opening. Fasten each assembly with two sheetmetal
screws. Take care to ensure that blower housing or its
motor is clear of any adjacent metal. This will ensure
that no undue noise occurs during blower operation.
8. Bundle and zip tie loose wires to keep them from con-
tacting blower impeller blades
9. Reinstall access panel.
10. Reconnect power to the insert and install into wall.
Figure 11. Attach Blower to Base
SCREWS
SCREWS
BRACKETS
(INCLUDED IN INSTRUCTION BAG)
Figure 9. Attach Brackets
BLOWER
ACCESS PANEL

7Hearth & Home Technologies • GFK-210-C Blower System Instructions 2201-938 Rev. F • 1/13
Please contact your Hearth & Home Technologies dealer
with any questions or concerns.
For the location of your nearest
Hearth & Home Technologies dealer,
please visit www.fireside.com.
Hearth & Home Technologies Inc.
7571 215th Street West, Lakeville, MN 55044
www.fireside.com
Figure 12. Fan Wiring Diagram - FireBrick Inserts
Note: ifanyof theoriginal wire as
supplied with the appliance must
be replaced, it must be replaced
with type 105 °C rated wire.
Note: use zip ties to restrain
the loose wires underneath the
appliance and keep them away
fromthe blowerwheel(fanblades).
BLOWERS
BLK
GRN
BLK
BLK
GRN
BLK
WHT
GRN
BLK
BLK
GRN
WHT
PLUG INTO 120V
EXISTING OUTLET
FUSE WIRE
ASSEMBLY
FUSE WIRE
ASSEMBLY
BLK
RED
BRN
ORANGE - TO VALVE
GROUND - TO VALVE
BRACKET
GREEN - TO VALVE
TO IPI MODULE
PLUG INTO
EXISTING
OUTLET
I
P
I
M
O
D
U
L
E
A
U
X
I
L
I
A
R
<



BLOWERS
