Hearth Technologies R-5500TRHC Assembly instructions

1
- Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
-What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
Model:
R-5500TRHC Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTYDAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER,SERVICEAGENCY,ORTHE
GAS SUPPLIER.
Underwriters
Laboratories Listed
364-900C 3/02
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THISINSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTURE REFERENCE.
1.This appliance may be installed in an af-
termarket, permanently located, manufac-
tured(mobile) home,where notprohibited
by local codes.
2.Thisappliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
Please contact your Hearth Technologiesdealer with any
questions or concerns. For the number of your nearest
Hearth Technologies dealer, please call 1-800-393-9484
Printed in U.S.A. Copyright 2002,
Royal, a division of Hearth Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWEDEXACTLY,AFIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. And foreign patents pending.

2
These unitsMUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide.NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside andMUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas applianceMUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLY be
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of theOwners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should bePERFORMED by a
qualified service person. The appliance and venting
system should beINSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It isIMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEANto provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACEDon or near the
appliance.
Children and adults should beALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young children should beCAREFULLY SUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
!

3
TABLE OF CONTENTS
Safety and Warning Information ................................................. 2
Service Parts Lists ...................................................................... 4
Section 1: Approvals and Codes................................................ 6
Appliance Certification.................................................................... 6
Installation Codes ........................................................................... 6
High Altitude Installations ................................................................ 6
Section 2: Getting Started .......................................................... 7
Introducing the Hearth Technologies Gas Fireplaces .................... 7
Pre-installation Preparation ............................................................ 7
Section 3: Installing the Fireplace ............................................. 9
Constructing the Fireplace Chase ................................................. 9
Step 1 Locating the Fireplace .................................................... 9
Step 2 Framing the Fireplace................................................... 10
Step 3 Installing the Vent System............................................. 12
A. Vent System Approvals............................................ 12
B. Installing Vent Components..................................... 19
C. Vent Termination...................................................... 23
Step 4 Positioning, Leveling, and
Securing the Fireplace.................................................. 26
Step 5 The Gas Control System .............................................. 26
Step 6 The Gas Supply Line .................................................... 37
Step 7 Gas Pressure Requirements ....................................... 37
Step 8 Wiring the Fireplace...................................................... 28
Step 9 Finishing ........................................................................ 29
Step 10 Installing Trim, Logs, and Ember Material .................... 29
Installing the Trim .......................................................... 29
Positioning the Logs ..................................................... 29
Shutter Settings ............................................................ 29
Placing the Ember Material........................................... 29
Step 11 Before Lighting the Fireplace........................................ 30
Step 12 Climate Control ............................................................. 30
After the Installation ...................................................................... 30
Section 4: Maintaining and Servicing Your Fireplace ......... 31
= Contains updated information.



6
Appliance Certification
The fireplace model discussed in thisInstallers Guide has
been tested to certification standards and listed by the
applicable laboratories.
Certification
MODELS: R-5500TRHC
LABORATORY: Underwriters Laboratories
TYPE: Direct Vent Gas Fireplace Heater
STANDARD: ANSIZ21.88-2000•CSA2.33-M98•UL307B
Installation Codes
Thefireplace installation must conform to local codes. Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
In the absence of local codes, the fireplace installation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
the United States) or the CAN/CGA-B149 Installation Codes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(inthe UnitedStates), orto the CSAC22.1 CanadianElectric
Code (in Canada).
This model may be installed in a bedroom or bed-sitting
room in the U.S.A. and Canada.
1Approvals and
Codes
High Altitude Installations
U.L. Listed gas fireplaces are tested and approved for
elevations from 0 to 2,000 feet in the U.S.A. and from 0 to
4,500 feet in Canada.
When installing this fireplace at an elevation above 2,000
feet (in the United States), it may be necessary to decrease
the input rating by changing the existing burner orifice to a
smaller size. Input should be reduced four percent (4%) for
each 1,000 feet above sea level, unless the heating value of
the gas has been reduced, in which case this general rule
will not apply. To identify the proper orifice size, check with
the local gas utility.
When installing this fireplace at an elevation between 2,000
and 4,500 feet (in Canada), the input rating must be reduced
by ten percent (10%).
When installing this fireplace at an elevation above 4,500
feet (in Canada), check with local authorities.
Consult your local gas utility for assistance in determining
the proper orifice for your location.

7
2Getting Started
Introducing the Hearth Technologies Gas
Fireplace
Hearth Technologies direct vent gas fireplaces are designed
to operate with all combustion air siphoned from outside of
the building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control sys-
tems. Gas fireplace diagrams, including the dimensions,
are shown in this section.
Pre-installation Preparation
This gas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment, par-
ticularly the condition of the glass.Do not install any unit
with damaged, incomplete, or substitute parts.
The vent system components and trim doors are shipped
in separate packages. The gas logs may be packaged
separately and must be field installed.
Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the own-
er’s warranty and may present a fire hazard.
The Hearth Technologies Warranty will be voided by, and
Hearth Technologies disclaims any responsibility for, the
following actions:
• Installation of any damaged fireplace or vent system
component.
• Modification of the fireplace or direct vent system.
• Installation other than as instructed by Hearth Technolo-
gies.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not manu-
factured and approved by Hearth Technologies, not with-
standing any independent testing laboratory or other party
approval of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•The vent system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framing and finishing details.
•Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

8
Figure 1. Diagram of the R-5500TRHC
41 1/8
[1044mm]
38
[965mm]
36 1/8
[916mm]
25 1/4
[642mm]
34 5/8
[879mm]
8 5/8
[219mm]
VENT
COLLARS
ELECTRICAL
ACCESS
26 7/8
[682mm]
12 3/4
[323mm]
3 1/2
[90mm]
GAS LINE
ACCESS
2 1/8
[55mm]
6 7/8 [174mm]
14 1/4
[362mm]
8 5/8 [219mm]
VENT COLLARS
21 1/2 [548mm]
11 5/8 [297mm]
28 1/2 [724mm]
TOP
STANDOFFS
HOOD
ELECTRICAL
ACCESS
GAS
CONTROLS
RATING
PLATE AND
LABELS
GAS
LINE
ACCESS -

9
3Installing the Fireplace
Step 1. Locating the Fireplace

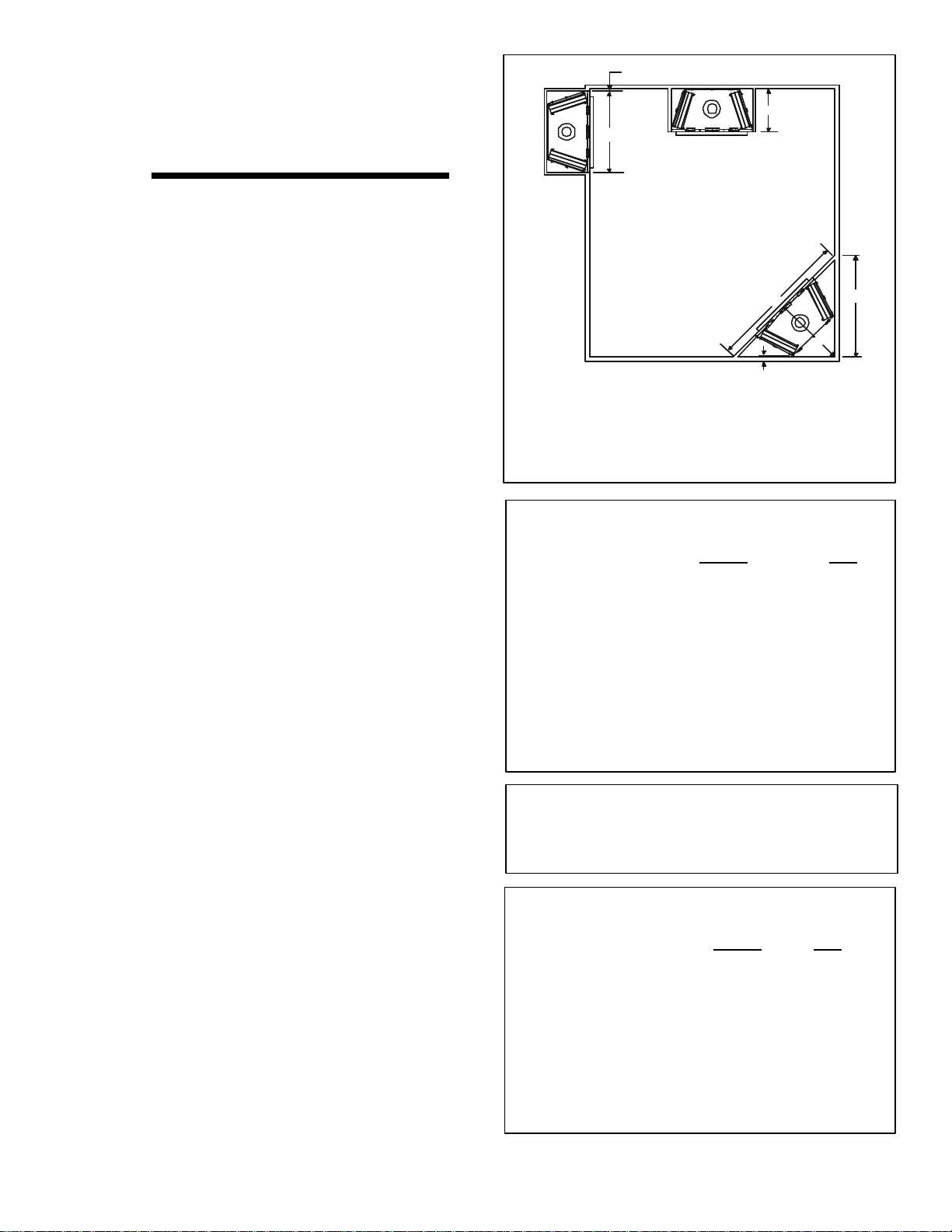

The following diagram shows space and clearance require-
ments for locating a fireplace within a room.
ABCD E
42” 22” 36” 51” 72”
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front ...................... 36....................914
Floor ................................. 0.......................0
Rear ................................1/2 ....................13
Sides ...............................1/2 ....................13
Surround Sides* ................ 0.......................0
Top ................................ 3 1/2...................89
Ceiling**........................... 31....................787
Figure 2. Fireplace Dimensions, Locations,
and Space Requirements
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections. .............1 ............... 25
Horizontal Sections
Top ...................................3 ............... 75
Bottom..............................1 ............... 25
Sides ................................1 ............... 25
At Wall Firestops
Top ................................2 1/2 ...........63.7
Bottom............................ 1/2.............. 13
Sides ................................1 ............... 25
* See Figure 3.
**The clearance to the ceiling is measured from the top
of the unit, excluding the standoffs (see Figure 38).
The distance from the unit to combustible construction
is to be measured from the unit outer wrap surface to
the combustible construction,NOT from the screw heads
that secure the unit together.
For minimum clearances, see the direct vent termination
clearance diagrams (see Figures 30 and 31).
1/2” MIN. (13mm)
D
C
E
B
1” MIN. (25mm)
A
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs. The minimum clearance to a perpendicular wall
extending past the face of the fireplace is one inch (25 mm).
The back of the fireplace may be recessed 21 1/2 inches
(546 mm) into combustible construction.
Constructing the Fireplace Chase
A chase is a vertical box-like structure built to enclose the
gas fireplace and/or its vent system. Vertical vents that run
on the outside of a building may be, but are not required to
be, installed inside a chase.
CAUTION: TREATMENT OF FIRESTOP SPACERS AND
CONSTRUCTION OF THE CHASE MAY VARY WITH THE
TYPE OF BUILDING. THESE INSTRUCTIONS ARE NOT
SUBSTITUTES FOR THE REQUIREMENTS OF LOCAL
BUILDING CODES. THEREFORE, YOUR LOCAL BUILD-
ING CODES MUST BE CHECKED TO DETERMINE THE
REQUIREMENTS FOR THESE STEPS.
Factory-built fireplace chases should be constructed in the
manner of all outside walls of the home to prevent cold air
drafting problems. The chase should not break the outside
building envelope in any manner.
This means that the walls, ceiling, base plate and cantile-
ver floor of the chase should be insulated. Vapor and air
infiltration barriers should be installed in the chase as per
regional codes for the rest of the home. Additionally, Heat-
N-Glo recommends that the inside surfaces be sheetrocked
and taped for maximum air tightness.
To further prevent drafts, the firestops should be caulked to
seal gaps. Gas line holes and other openings should be
caulked or stuffed with insulation. If the unit is being in-
stalled on a cement slab, we recommend that a layer of
plywood be placed underneath to prevent conducting cold
up into the room. Be sure to include spark arrestors for
woodburning units if they are required.
THE CHASE SHOULD BE CONSTRUCTED SO THAT ALL
CLEARANCES TO THE FIREPLACE ARE MAINTAINED
AS SPECIFIED WITHIN THIS INSTALLERS GUIDE.

10

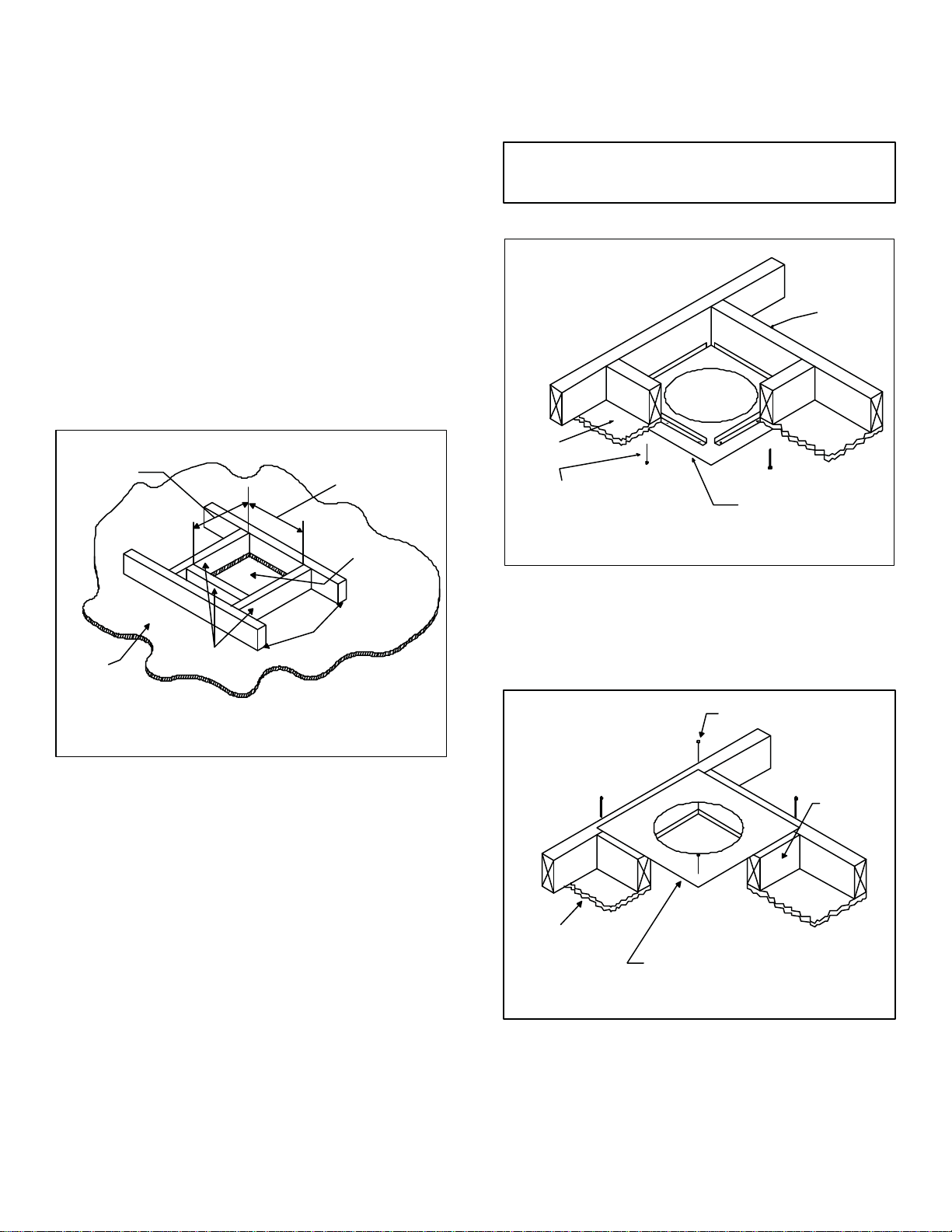

Framing should be
constructed of 2 X 4
lumber or heavier.
A. ...............42”*
B. ......... 38 1/2”
C. ................ 22”
D. ................ 42”
E........... 27 7/8”
Figure 3. Framing Dimensions
Step 2. Framing the Fireplace
Fireplace framing can be built before or after the fireplace is
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
gram below shows framing reference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFORE FRAMING.
Shows center of 12” x 12” vent framing
holes for top and rear venting. The center
oftheholeisone(1)inch(25.4mm)above
the center of the horizontal vent pipe.
A
B
C
1/2” CLEARANCE FROM BACK OF FIREPLACE TO COMBUSTIBLE
0” CLEARANCE TO
FRAMING MEMBER
0” CLEARANCE
1/2” CLEARANCE
FROM BOTH SIDES
OF FIREPLACE
TO COMBUSTIBLE
FRAMING
MEMBER
E D

11
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93mm) AT EACH JOINT.
Figure 4.

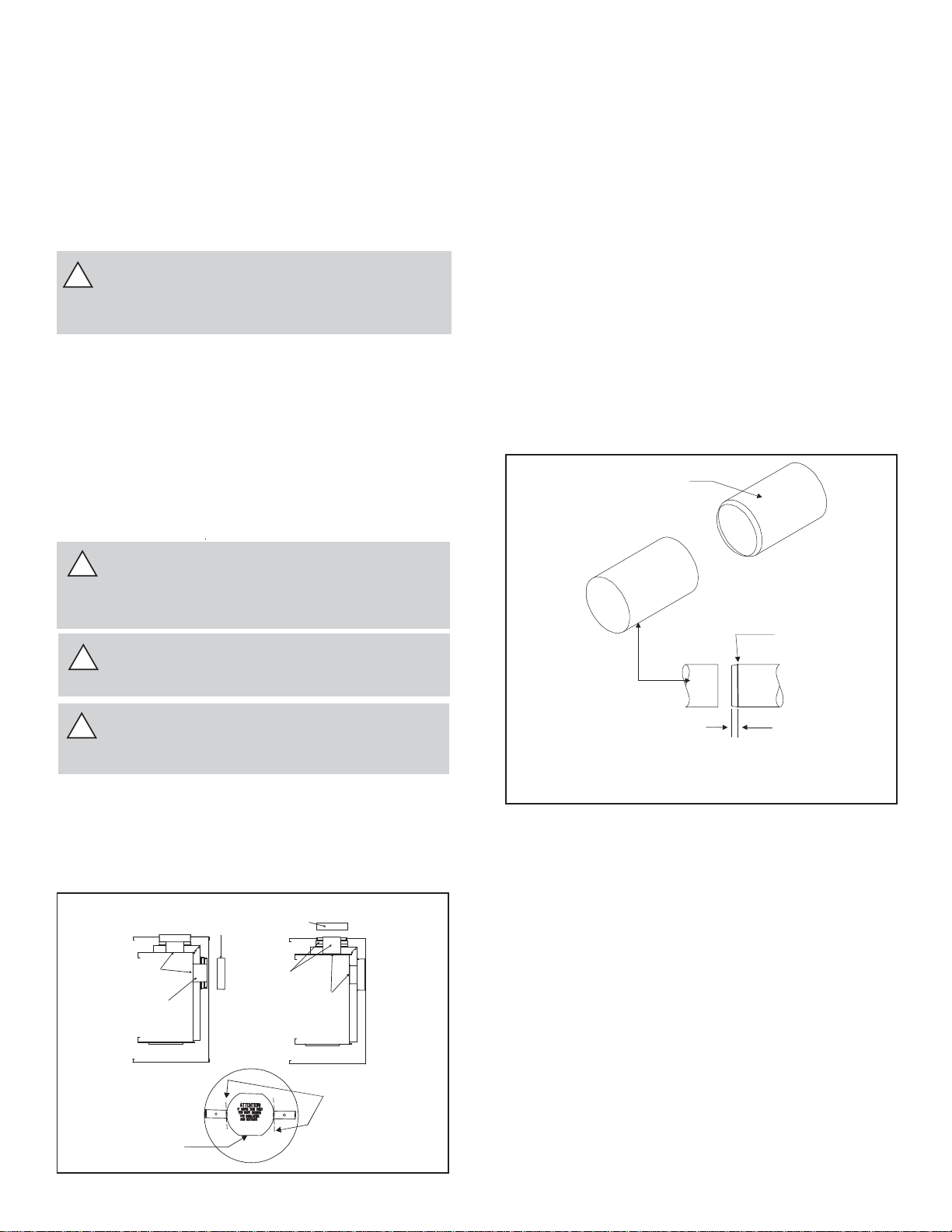

D-Series Direct Vent Component Specifications (5-inch inner pipe / 8 5/8-inch outer pipe)
DV-36D
5 3/4”
(146mm)
8 3/4”
(222mm)
11 3/4”
(298mm)
DV-48D
7 3/8”
(187mm)
6 5/32”
(156mm)
11 5/8”
(295mm)
8 5/8”
(220mm)
8 1/2”
(216mm)
6 7/16”
(164mm)
11 1/16”
(281mm) 6 1/2”
(165mm)
8 1/2”
(216mm)
5 1/16”
(129mm)
8 5/8”
(220mm)
35 3/4”
(908mm)
47 3/4”
(1.2m)
DV-12D DV-09D
DV-06D
DV-45D
DV-90D
11 15/16”
(303mm)
5 7/8”
(149mm)
120”
(3048mm)
24”
(610mm)
36”
(914mm)
60”
(1524mm)
DV-FLEX-10
DV-FLEX-5
DV-FLEX-3
DV-FLEX-2

12
Figure 5. Vent System Components and Termination Kits
Step 3. Installing the Vent System
A. Vent System Approvals
This model is approved to use D-series direct vent pipe
components and terminations (see Figures 4 and 5). Ap-
proved vent system components are labeled for identifica-
tion. This pipe is tested and listed as an approved compo-
nent of the fireplace. The pipe is tested to be run inside an
enclosed wall. There is no requirement for inspection open-
ings at each joint within the wall. There is no required pitch
for horizontal vent runs. NO OTHER VENTING SYSTEMS
OR COMPONENTS MAY BE USED.
Detailed installation instructions are included with each
vent termination kit and should be used in conjunction
with this Installers Guide. The flame and ember appear-
ance may vary based on the type of fuel burned and the
venting configuration used.
Identifying Vent Components
The vent systems installed on this gas fireplace may in-
clude one, two, or three 90° elbow assemblies. The rela-
tionships of vertical rise to horizontal run in vent configura-
tions using 90° elbows MUST BE strictly adhered to. The
rise to run relationships are shown in the venting drawings
and tables. Refer to the diagrams on the next several pages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Rise to run ratios in the vent system must
be followed if 45° elbows are used.
This model has vent starting collars on both the top and the
back of the unit. Depending upon the installation, decide
which ONE set of starting collars will be used to attach the
vent system. The starting collar sealing cap must remain
on the starting collar NOT used.
Terminations Kits
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
DVK-TVCD
DVK-01TRD
DV-FLEX2-01TRFDVK-SNKD DVK-01TRF*
* For use with flex vent only.

13
Figure 7.

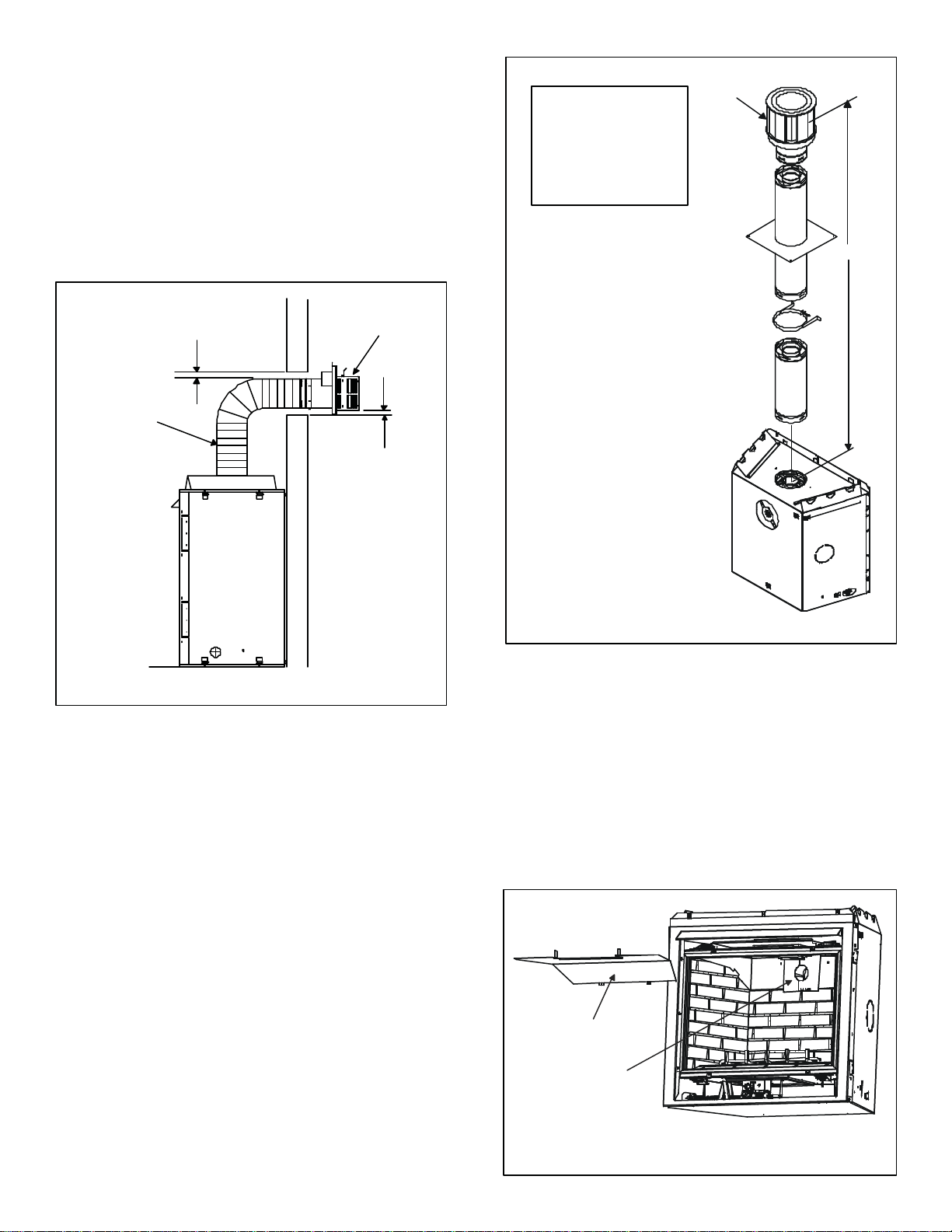

Straight Up Vertical Venting
STRAIGHT UP
VERTICAL VENTING
V (FT.)
40' MAX. (12.4 M)
Flue Restrictor Instructions
1. The flue restrictor plate is recommended for in-
stallations with 20 feet or more of vertical venting.
2. Remove refractory pieces. First remove grate
assembly and base pan. Then remove side and
rear refractory pieces.
3. Remove exhaust shield by removing screws on
rear of firebox (see Figure 8).
NOTE: On vertical venting
configurations you may
want to install the vertical
baffle (385-128). See flue
restrictor installation in-
structions.
CAP
V
Figure 8. Exhaust Shield
FLUE
RESTRICTOR
EXHAUST
SHIELD
Figure 6.
Flex Vent
The flex vent must be supported with the spacing between
support intervals not exceeding 4 feet, with no more than ½
inch sag between supports.
A support is required at each change in venting direction,
and in any location where it is necessary to maintain the
necessary clearance to combustibles. A simple “up and out”
installation (Figure 6) requires only enough support to main-
tain the necessary clearance to combustibles. However, the
vent attachment point and the firestop location are consid-
ered to be supports.
3” CLEARANCE TERMINATION
CAP
FLEX-VENT
1”
CLEARANCE

14

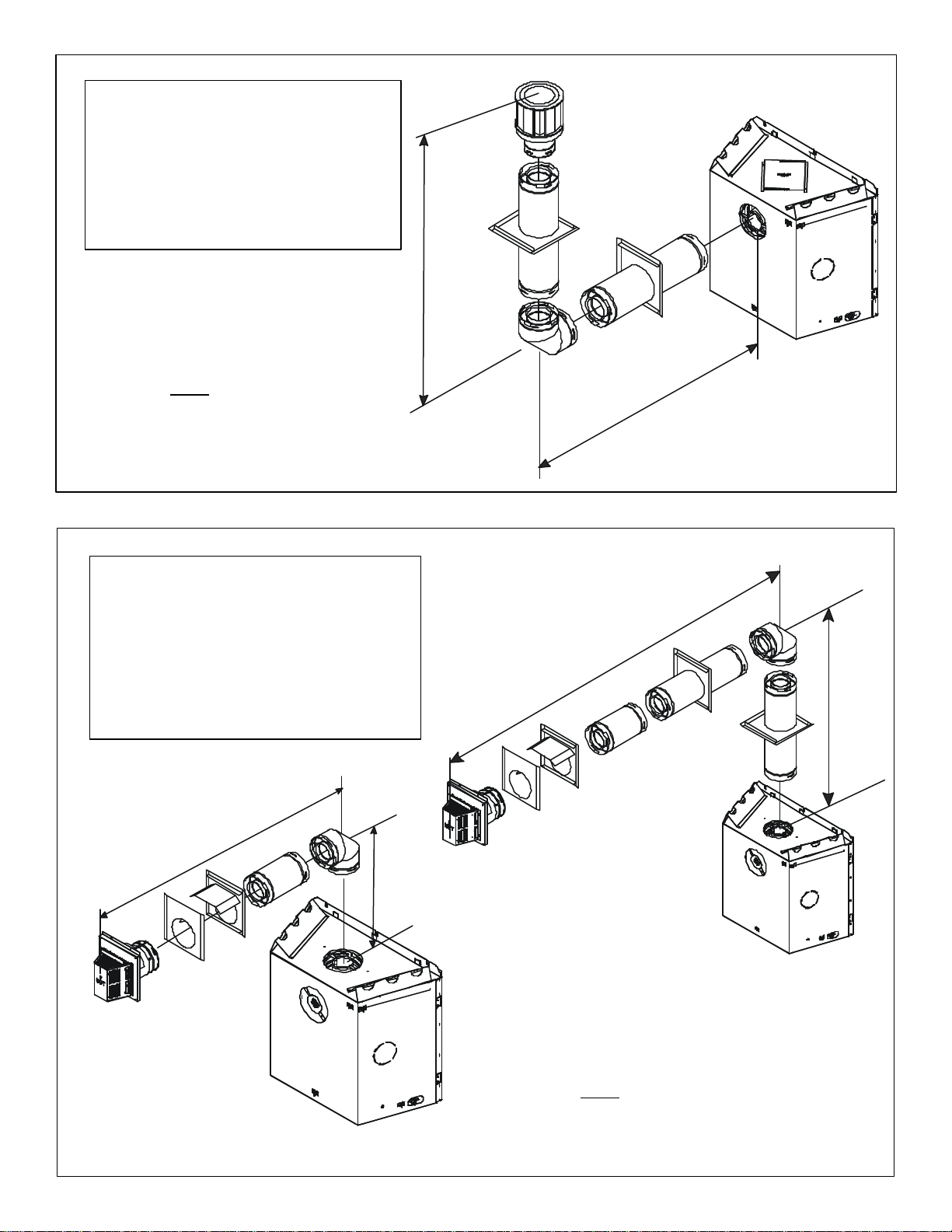

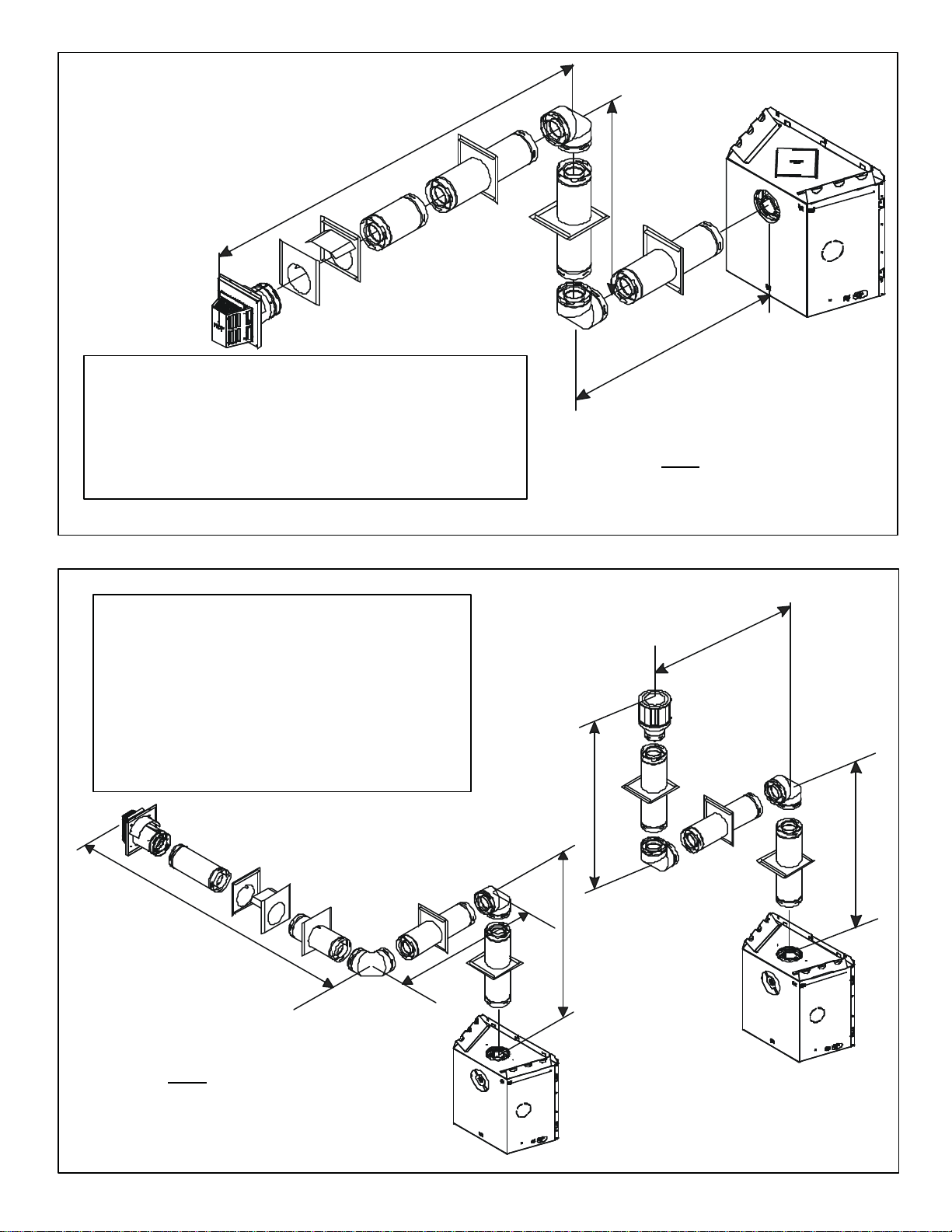

HORIZONTAL VENTING
Kit No. H Max. Run
DVK-01TRD 24" (610 mm)
Figure 11. Corner Installation
NOTE: This model is NOT tested and NOT ap-
proved to use 45° elbows in corner installations.
90° elbows may be used in corner installations.
1 2 3 4 5
SETTING
1 2 3 4 5
Figure 10.

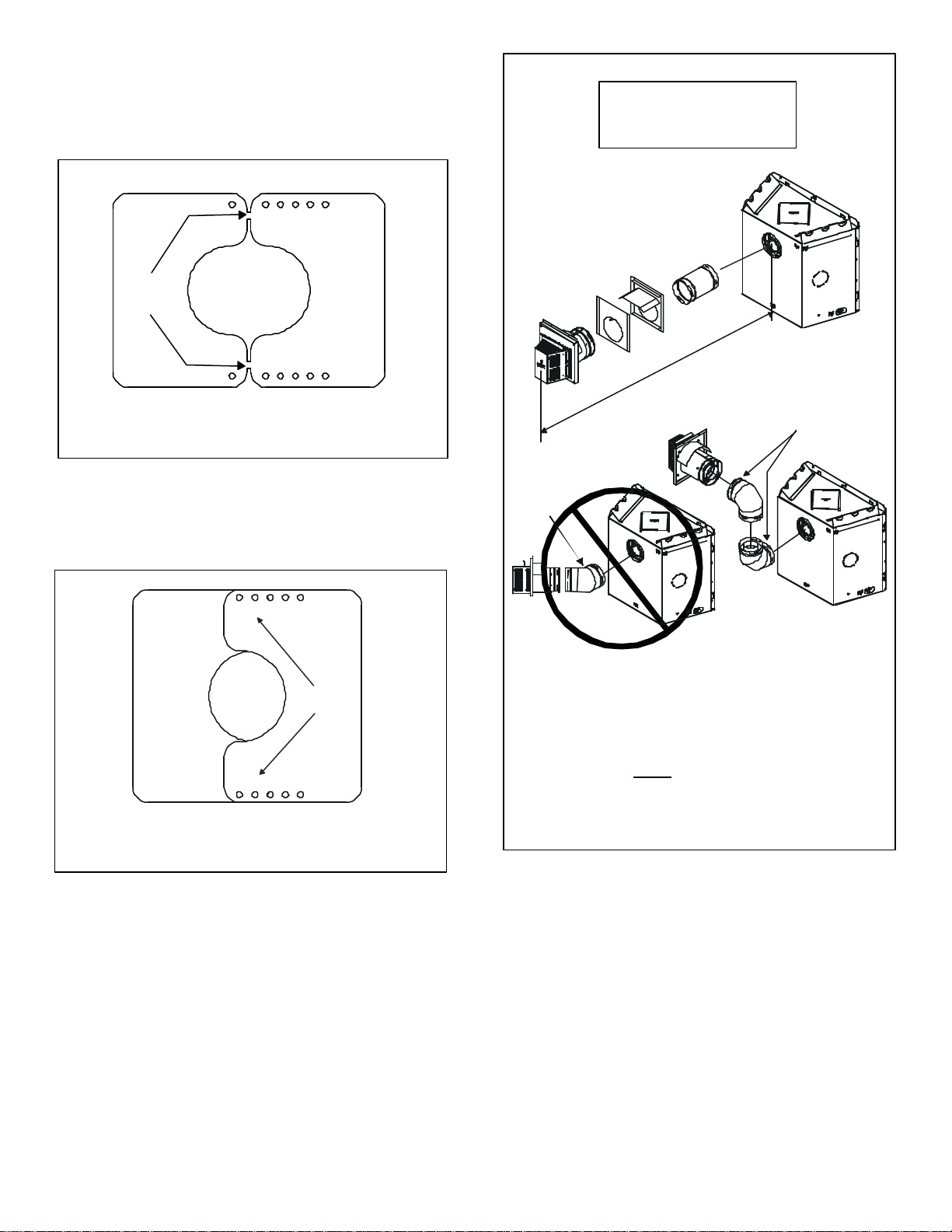

5. Center the Flue Restrictor on vent and secure in
place by using two self-tapping screws on setting
#2 (see Figure 10).
45-DEGREE
ELBOW
90-DEGREE
ELBOWS
H
Figure 9. Flue Restrictor
BREAK
HERE
4. Break the FlueRestrictor into two pieces. Do this
by bending the part back and forth until it breaks
(see Figure 9). This part is in the instruction bag
provided with the fireplace.
6. Reinstall the Exhaust Shield.
7. Reinstall the refractory pieces, installing rear re-
fractory first, then the sides.
NOTE: Secure in place using #2 hole setting ONLY.
NOTE: There MUST be a 25% reduction in total
H when using flex vent.

15
V H
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.4m)
V+H=40' MAX. (12.4m) H = 8' MAX. (2.4m)
NOTE: On vertical venting configurations where
the vertical component is over 10 feet, you may
want to install the vertical baffle included in the
manual bag assembly to improve flame
appearance.
Figure 12. Venting with One 90° Elbow
VENTING WITH ONE (1) 90° ELBOW
VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
V+H= 40’ MAX. (12.4MM) H = 20' MAX. (6.2m)
Figure 13. Venting with One 90° Elbow
NOTE: If a 90oelbow is first
attached to the unit, the
maximum horizontal run is
3-feet (914mm).
NOTE: For corner installations: A 6-inch (152mm)
section of straight pipe may need to be attached to
the fireplace before a 90oelbow, to allow the vent
pipe to clear the top standoffs.
H
V
H
V
H
V
NOTE: There MUST be a 25% reduction in total
H when using flex vent except when using the
simple up and out installation (see Figure 6).
NOTE: There MUST be a 25% reduction in total
H when using flex vent except when using the
simple up and out installation (see Figure 6).

16
Figure 14. Venting with Two 90° Elbows
VENTING WITH TWO (2)
90° ELBOWS
VHH+H
1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 5´ MAX. (1.52m)
2´ MIN. (610 mm) 4´MAX. (1.22 m) 10´ MAX. (3.1m)
3´ MIN. (914 mm) 6´MAX. (1.86 m) 15´ MAX. (4.65m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 20´ MAX. (6.2m)
V+H+H 1 = 40´ MAX. (12.4 m) H = 8´ MAX. (2.48 m) H+H
1
= 20´ MAX. (6.2m)
Figure 15. Venting with Two 90° Elbows
VENTING WITH TWO (2) 90oELBOWS
V FT. H + H1(FT.)
1' MIN. (305mm) 5´ MAX. (1.52m)
2' MIN. (610mm) 10´ MAX. (3.1m)
3' MIN. (914mm) 15´ MAX. (4.65m)
4' MIN. (1.22m) 20´ MAX. (6.2m)
V+H+H1= 40' MAX.(12.4m)
H+H
1
= 20´ MAX. (6.2m)
V+V1+H= 40' MAX.(12.4m)
H
V
H
1
V
V
1
H
H
1
H
V
NOTE: There MUST be a 25% reduction in total
H when using flex vent except when using the
simple up and out installation (see Figure 6).
NOTE: There MUST be a 25% reduction in total
H when using flex vent except when using the
simple up and out installation (see Figure 6).

17
Figure 16. Venting with three 90° elbows
VENTING WITH THREE (3) 90° ELBOWS
1´MIN. (305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN. (610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN. (914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN. (1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V+H+H
1
+H
2
= 40 ´ MAX. (12.4 m) H = 8´ MAX. (2.48 m) H+H 1 +H 2 = 20´ MAX. (6.2 m)
V H H + H1+ H2
1´MIN. (305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN. (610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN. (914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN. (1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V 1 +V+H+H 1 = 40 ´ MAX.(12.4 m) H = 8´MAX.(2.48 m) H+H 1 = 20´MAX.(6.2 m)
V H H + H1
H
1
V
1
H
V
H
1
V
H
2
H
1
NOTE: There MUST be a 25% reduction in total
H when using flex vent except when using the
simple up and out installation (see Figure 6).

18
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
NOTE: H + H1= 20' MAX. (6.2m)
V + V1+ H + H1= 40' MAX. (12.4m)
V (FT.) H + H1(FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
H +H1= 20' MAX. (6.2m)
NOTE: V+V1+H +H1= 40' MAX. (12.4m)
Figure 17. Venting with three 90° elbows
H
1
V
1
V
H
H
1
V
1
H
V
NOTE: There MUST be a 25% reduction in total
H when using flex vent except when using the
simple up and out installation (see Figure 6).

19
Figure 18.
B. Installing Vent Components
After determining which set of starting collars will be used
(topor rear), followventing instructionsaccordingly.
Venting Out the Rear Vent
Remove the installed rear seal cap from the rear starting
collars by cutting the strap at each end. (see Figure 18).
Followthe vent configuration tablesaccordingly.
Remove the insulation from the REAR five inch flue, pull
the heat shield out from outside of the firebox.
WARNING:THETOPHEATSHIELD(INSIDETHE
FIREBOX) MUST REMAIN ATTACHED IF THE
VENT SYSTEM IS ATTACHED TO THE REAR
STARTING COLLARS. SEE FIGURE 18.
Venting Out the Top Vent
Removethe two screwsin thetop ventcollar seal capand
remove the top vent collar seal cap and the two pieces of
insulationinsidethetop twostartingcollars(SeeFigure 18).
Remove the heat shield from inside the TOP five inch flue
fromoutside of thefirebox.
Youhaveto taketheglass offagainfor positioningthe logs
whentheunit isfinallyinstalledin placeandfinishedaround
it. Re-install the glass door. Attach vent system to the top
starting collars.
WARNING: FAILURE TO REMOVE INSULA-
TION IN THE SET OF COLLARS YOU ARE US-
ING COULD CAUSE A FIRE.
WARNING: THE REAR VENT COLLAR SEAL
CAPMUSTREMAINATTACHED TOTHE REAR
VENTCOLLARSIF THE VENTSYSTEMISATTACHED
TOTHE TOPSTARTING COLLARS. SEE FIGURE18.
WARNING: YOU MUST LEAVE THE INSULA-
TIONINPLACEINTHESETOFCOLLARSYOU
ARE NOT USING.
If your vertical vent component is over 10 feet, you may
want to install the included vertical baffle to improve flame
appearance.Verticalbaffle islocated inthe bag containing
theinstruction manual.Center thevertical baffleon thefive
inch flue being used, and with self tapping screws secure
the baffle to the inside of the firebox.
!
!
!
!
1. Attach the First Vent Component to Starting Collars
To attach the first vent component to the starting collars
ofthe fireplace:
• Apply a 3/8 inch (9.5mm) bead of stove cement around
the 5 inch (127mm) fireplace starting collar.
• Make sure that the fiberglass gasket supplied with the
fireplacesealsbetween thefirst8-5/8 inch(219mm)vent
componentand theouter fireplacewrap.
• Lockthe vent componentsinto place bysliding thecon-
centricpipe sectionswith four(4)equally spacedinterior
beadsinto the fireplacecollar orpreviously installedcom-
ponentendwithfour(4)equallyspacedindentedsections.
• When the internal beads of each 8-5/8 inch (219mm)
outer pipe line up, rotate the pipe section clockwise
aboutone-quarter(1/4) turn.Thevent pipeisnow locked
together.
• The first 90° elbow installed in the vent system of a
rear venting fireplace MUST BE ina verticalposition.
STARTING
COLLAR
STOVE
SEALANT
BEAD
1 INCH
(25.4mm)
FIRST VENT
COMPONENT
3/8”
(9.5mm)
Cut the seal cap
strapandremove white
gasketmaterial.
CUT
HERE
Venting Out Rear Venting Out Top
HEAT
SHIELD
DISCARD
INSULATION
and
HEAT SHIELD
HEAT
SHIELD
INSULATION
DISCARD BOTH
PIECES and
HEAT SHIELD
SEAL
CAP
SEAL
CAP
Figure 19.
Attaching First Vent Component to Starting Collars


20
2. Continue Adding Vent Components
WARNING: INSTALLATION OF THIS FIRE-
PLACE REQUIRES THE USE OF A HEAT
SHIELD ABOVE THE FIRST 900ELBOW IN THE
VENTING SYSTEM.
Figure 20.

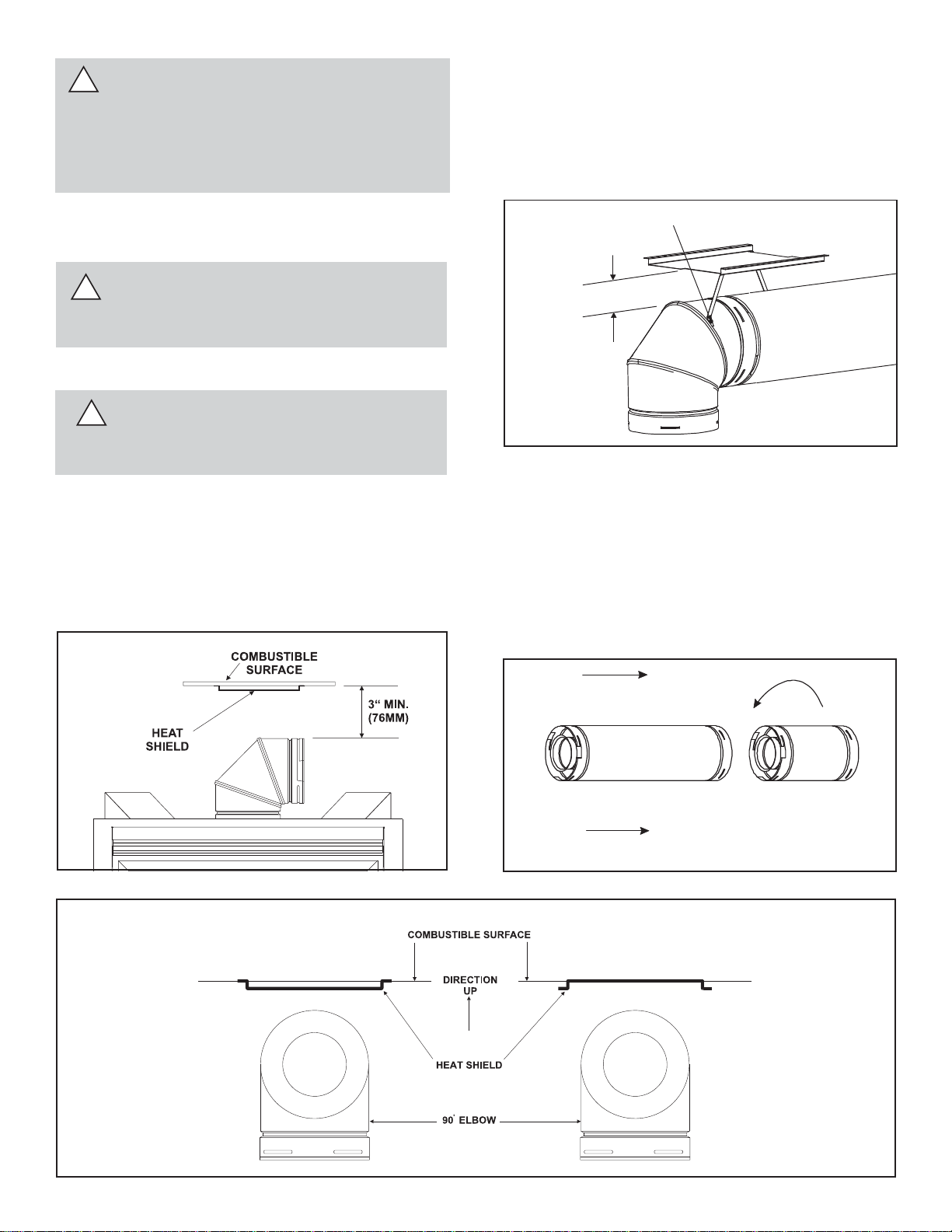

To Install the Heat Shield:
1. Determine if the heat shield is required. Do so by mea-
suring the vertical distance between the top horizontal
surfaceof the elbowto any combustiblesurface above.
If the distance is more than 4 inches, the heat shield is
NOT required. If it is 4 inches or less, the heat shield IS
REQUIRED.Installperthefollowingsteps.SeeFigure20.
!
• Continueaddingventcomponents,lockingeachsucceed-
ing component into place.
• Ensurethat eachsucceedingvent componentissecure-
ly fitted and locked into the preceding component in the
vent system.
• 90° elbows may be installed and rotated to any point
aroundthe precedingcomponent’s verticalaxis. Ifan el-
bow does not end up in a locked position with the pre-
ceding component, attach with a minimum of two (2)
sheet metal screws.
Figure 21.
CORRECT INCORRECT
2. Fastenthe shieldin place usingthe pilot holesprovided
in the part. The shield should be oriented such that the
13 1/8 inch dimension (longest dimension) is running in
thesamedirectiontheelbowispointing.Theshieldshould
becentered directly abovethe elbow, andpositioned so
that it creates a 1/2 inch airspace between the shield
and the combustible surface. See Figure 21.
Figure 23. Adding Venting Components
!
If the installation is for a termination cap attached directly
tothe fireplace,skip tothe sections, Install Firestops and
Vent Termination.
!
WARNING:ENSURETHATTHEFIBERGLASS
GASKET SUPPLIED WITH THE FIREPLACE
SEALSBETWEEN THE FIRST VENTCOMPONENT
ANDTHE OUTER FIREPLACEWRAP.
WARNING: A 3/8 INCH (9.5 MM) BEAD OF
STOVECEMENTMUSTBEPLACEDAROUND
THE5 INCH (127 MM)FIREPLACESTARTING COL-
LAR BEFOREATTACHING THE FIRST VENT COM-
PONENT. FAILURE TO SEAL THIS JOINT MAY
CAUSETHEFIREPLACETOOPERATEIMPROPER-
LY. SEE THE DIAGRAM .
Figure 22.
3”
(76mm)
SCREW


21
For Vertical Runs - The vent system must be supported
every eight (8) feet (2.4m) above the fireplace flue outlet by
wall brackets.
To install support brackets for vertical runs:
• Attach wall brackets to the vent pipe and secure the wall
bracket to the framing members with nails or screws.
Figure 24. Installing Support Brackets
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on both
sides of a combustible wall through which the vent passes.
NOTE: Model DVK-01TRD does not need an exterior
firestop on an exterior combustible wall.
To install firestops for horizontal runs that pass through
either interior or exterior walls:
• Cut a 12-inch by 12-inch (305mm X 305mm) hole through
the wall.
NOTE: The center of the hole is one (1) inch (25.4mm)
above the center of the horizontal vent pipe.
• Position the firestops on both sides of the hole previ-
ously cut and secure the firestops with nails or screws.
• The heat shields of the firestops MUST BE placed to-
wards the top of the hole.
• Continue the vent run through the firestops.
Figure 25. 12" x 12" Hole and Vent Pipe
Figure 26. Heat Shield, Interior & Exterior Firestops
V
ENT PIPE
1"
(
25.4 mm
)
12"
(305mm)
12"
(305mm)
TRIM HEAT
SHIELD IF TOO
LONG, ADD TO
SHIELD IF TOO
SHORT
EXTERIOR
FIRESTOP
INTERIOR
FIRESTOP
HEAT SHIELD
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.

22
For Vertical Runs - One ceiling firestop is REQUIRED at
the hole in each ceiling through which the vent passes.
To install firestops for vertical runs that pass through ceilings:
• Position a plumb bob directly over the center of the verti-
cal vent component.
• Mark the ceiling to establish the centerpoint of the vent.
• Drill a hole or drive a nail through this centerpoint.
• Check the floor above for any obstructions, such as wir-
ing or plumbing runs.
• Reposition the fireplace and vent system, if necessary,
to accommodate the ceiling joists and/or obstructions.
• Cut an 11-inch X 11-inch (280mm X 280mm) hole through
the ceiling, using the centerpoint previously marked.
• Frame the hole with framing lumber the same size as the
ceiling joists.
Figure 28. Ceiling Firestop (Ceiling Side)
If the area above the ceiling is NOT an attic, position and
secure the ceiling firestop on the ceiling side of the previously
cut and framed hole.
Figure 27. 11" x 11" Hole & New Framing Members
If the area above the ceiling IS an attic, position and secure
the firestop on top of the previously framed hole.
NOTE: Keep insulation away from the vent pipe at least
1 inch (25mm).
Figure 29. Attic Firestop
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
11" (280 mm) 11" (280mm)
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.
