Hearth Technologies Heat-N-Glo SL-550TRS-AU User manual

1
MODEL: SL-550TRS-AU
AUSTRALIAN GAS ASSOCIATION APPROVED
Approval Number 5666
THIS MANUAL MUST BE USED FOR INSTALLATION AND RETAINED
BY HOMEOWNER FOR OPERATION AND MAINTENANCE.
HEAT-N-GLO, a division of Hearth Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044 USA • [phone]
561-980C 6/01
INSTALLATION AND OPERATION
INSTRUCTIONS
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

2
IMPORTANT: Read all instructions carefully before starting installation.
Failuretofollowtheseinstallation instructions mayresult in apossible fire
hazard and will void the warranty. Save this Manual for future reference.
Copyright2000
Heat-N-Glo,a division ofHearth TechnologiesInc.
20802Kensington Boulevard,Lakeville, MN55044
Printed in U.S.A.
MODEL SL-550TRS-AU
IS AUSTRALIAN GAS ASSOCIATION
APPROVED FOR NATURAL GAS OR
PROPANE AS A BALANCED FLUE
HEATER.
Refer to the appliance data plates for gas
consumptions and pressures.
Installationof thisappliance shouldonly be
carried out by an authorized person in ac-
cordance with the manufacturer's instruc-
tions. All relevant codes and regulations
laid down by the gas piping authorities,
municipal building regulations, electrical
wiring regulations and the requirements of
theAGA GasInstallationCodemustbe ob-
served.
This appliance and its components are
tested and safe when installed in accor-
dancewith thisInstallationManual. Report
to your dealer any parts damaged in ship-
ment, specifically check glass condition.
The gas logs and flue system components
areinseparatepackages. Readall instruc-
tions before starting installation and follow
these instructions carefully during installa-
tionto ensuremaximumbenefit andsafety.
Failure to follow them will void your war-
ranty and may present a fire hazard.
The Heat-N-Glo, a division of Hearth Tech-
nologiesInc.warrantywillbevoidedby,and
Heat-N-Glo, a division of Hearth Technolo-
giesInc. disclaimsany responsibilityfor the
following actions:
• Installation of any damaged heater or
flue system component
• Modification of the heater or balanced
flue system installation other than as
instructed by Heat-N-Glo,a divisionof
Hearth Technologies Inc.
• Improper positioning of the gas logs or
the glass door
• Installation and/or use of any compo-
nentpartnotmanufacturedorapproved
byHeat-N-Glo, divisionof HearthTech-
nologiesInc., not withstanding any in-
dependent testing laboratory or other
party approval of such component
partoraccessory.
INSTALLATIONAND OPERATION INSTRUCTIONS
PLEASEREADTHIS MANUALBEFOREINSTALLING
AND USING THISAPPLIANCE.

3
TABLE OF CONTENTS
1.0 Installation Instructions.......................................................................................6
1.1 Introduction..................................................................................................6
1.2 Flue System Approvals and Installation ......................................................7
1.3 Connecting the Gas Supply.......................................................................22
1.4 Fan ............................................................................................................22
1.5 Finishing....................................................................................................24
1.6 Installer Testing..........................................................................................25
2.0 OperatingInstructions ......................................................................................27
2.1 Safety and Lighting Information .................................................................27
2.2 SafetyInformation......................................................................................28
2.3 Lighting Instructions...................................................................................29
2.4 Fan Operation............................................................................................30
3.0 Servicing and Maintenance .............................................................................30
3.1 Removal of Covers for Servicing ...............................................................31
3.2 Removal of Components for Service .........................................................31
3.3 Parts Replacement ....................................................................................31
3.4 Adjustments and Replacement Parts ........................................................31
3.5 Troubleshooting.........................................................................................32
4.0 Replacement Parts ..........................................................................................36
LimitedWarranty ..............................................................................................39
u= Contains updated information.
u
u

4

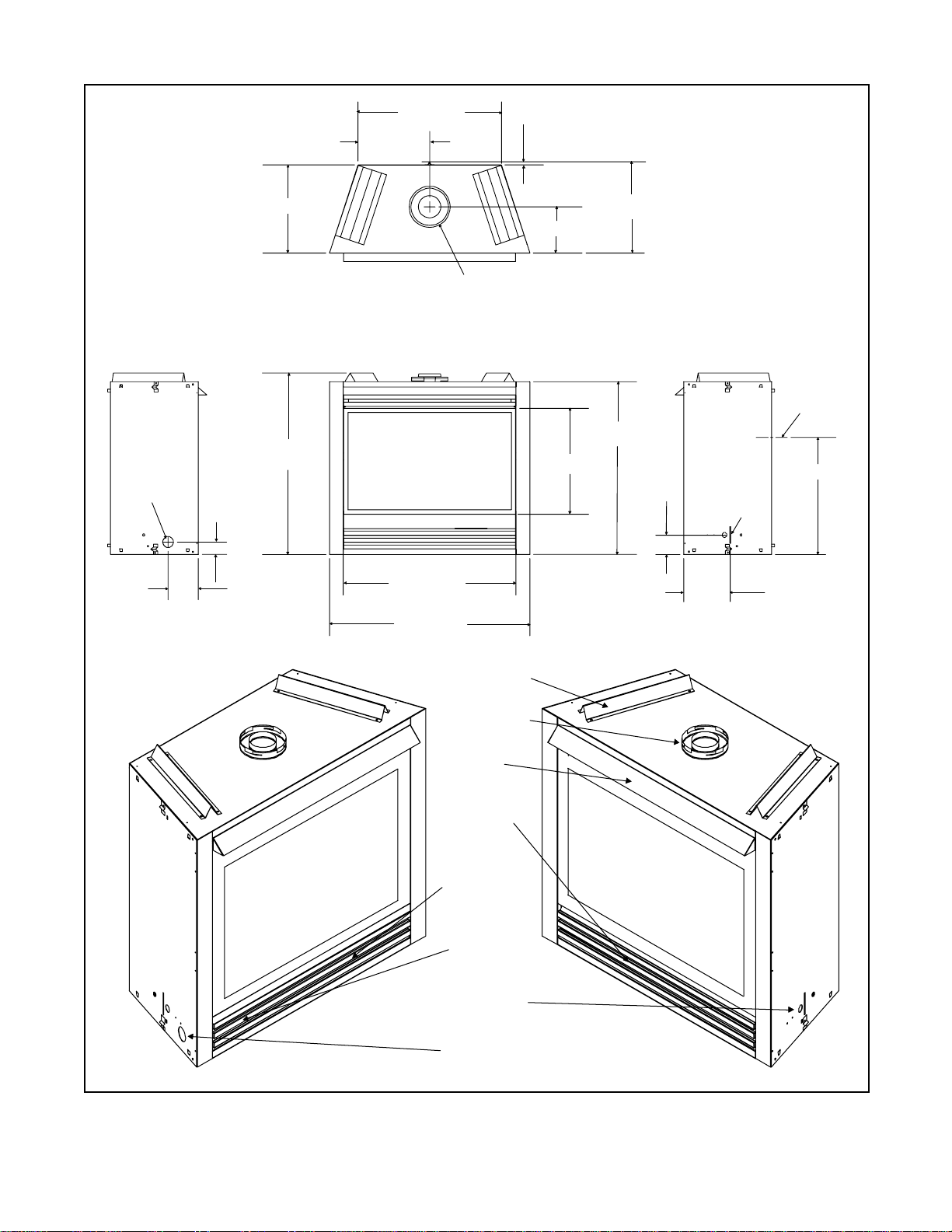

FIGURE1. Diagram of SL-550TRS-AU
25
(654mm)
3/4
3/4 (19mm)
16 1/4 (413mm)
8 3/4 (222mm)
6 5/8 (168mm)
15 7/8 (403mm)
12 7/8 (327mm)
GAS
LINE
ACCESS
5 3/8 (138mm)
2 1/4 (57mm)
32 7/8 (835mm)
31 (786mm)
36 (913mm)
19 (483mm)
31 (787mm)
8 (203mm)
ELECTRICAL
ACCESS
21 (534mm)
8 5/8 (219mm)
3 1/2 (89mm)
(TOP FLUE COLLARS)
(REAR FLUE
COLLARS
CENTER LINE)
TOP STANDOFFS
HOOD
VENT COLLARS
BOTTOM GRILLE
COVER
DATA BADGE
& LABELS
GAS
CONTROLS
ELECTRICAL
ACCESS
GAS LINE
ACCESS

5

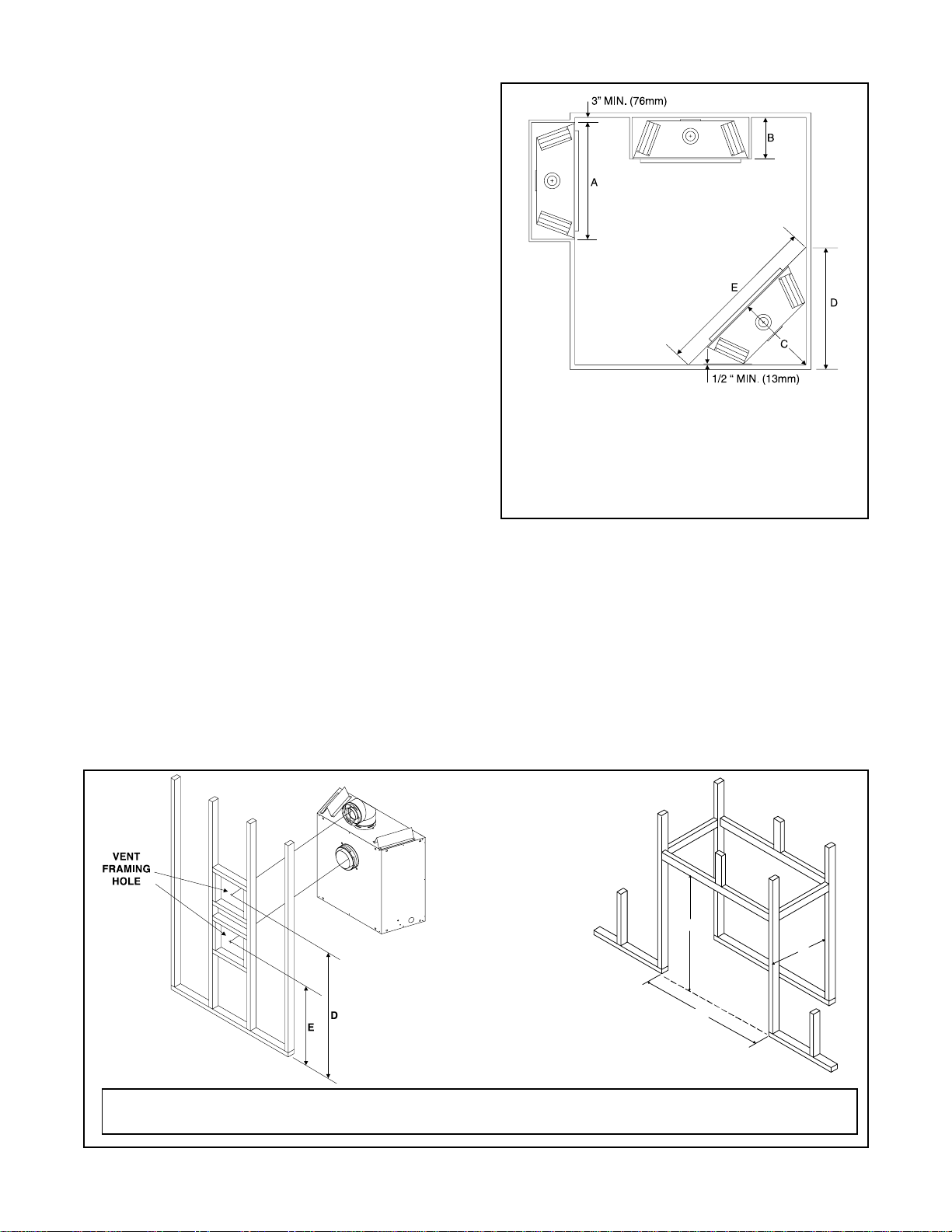

FIGURE 3. Framing Dimensions
1.0 INSTALLATION INSTRUCTIONS
In planning the installation for the heater it is neces-
sary to determine where the unit is to be installed, the
type of flue system to be used (straight out, corner, or
elevated), and whether optional accessories (wall
switchorremote control)aredesired. Gas supply pip-
ing should also be planned. Refer to the appliance
data plate on the base pan of the heater for all gas
pressuresand inputrate information.
The heater can be mounted on any of the following
surface:
1. A flat surface (minimun 6mm base).
2. Four(4) corner supports.
(Example: Four(4) concrete masonry blocks).These
supports must be positioned so they contact all four
(4) perimeter edges on the bottom of the unit.
Heater framing can be built before or after the heater is
set in place. Framing should be positioned to accom-
modate wall covering and heater facing material. The
heater framing should be constructed of 2" X 4" (51 x
102mm)lumber or heavier.The framingheaders may
rest on the heater standoffs. Refer to Figure 2 and
Figure3 for heaterand framingreference dimensions.
CAUTION: Measureheater dimensions, and verify
framingmethodsandwallcoveringdetails before fram-
ingconstruction begins.
1.1 INTRODUCTION
Thismodelisdesignedtooperatewithallcombustionair
being siphoned from the outside of the building and all
exhaust gases expelled to the outside of the building.
WARNING: THIS UNIT IS NOT FOR USE WITH
SOLID FUEL.
These units MUST usethe flue terminationdescribed
in the flueing section of the manual.
The control system for these models are a millivolt
type. It consists of a gas control valve/variable regu-
lator, a standingpilot/thermopile/thermocouple, apiezo
ignitor, andan ON/OFF switch.The controlsare located
behindthe lower grille. Access tothe controlsis gained
by rotating the grille up. See Figure 1.
Minimuminlet gas supply pressure forpurpose ofinput
adjustment is 4.5 inches w.c. (1.13kPa) for natural gas
and11inchesw.c.(2.75kPa)forpropane.Manifold(oulet)
pressures should be set at 3.0 inches w.c. (.75kPa) for
natural gas models and 9.6 inches w.c. (2.40kPa) for
propanemodels.
Framing should be constructed
of 2 X 4 lumber or heavier.
The framing headers may rest on
the fireplace stand-offs.
Model A B C D E
SL-550TRS-AU 37"(940mm) 33 1/2"(851mm) 171/4"(438mm) 361/2"(927mm) 22"(559mm)
ABCD E
SL-550TRS-AU 37 17 1/4 29 3/8 41 1/2 58 3/4
(940mm) (438mm) (746mm) (1054mm) (1492mm)
NOTE: DIMENSIONS SHOWN WITH THE SIDES,
BACK AND/OR CORNERS OF THE UNIT TOUCH-
ING THE WALL.
Figure2. FireplaceDimensions,Locations,and
SpaceRequirements
NOTE: Combustible
materials must not be
used to enclose the
top of the heater.
A
B
C

6

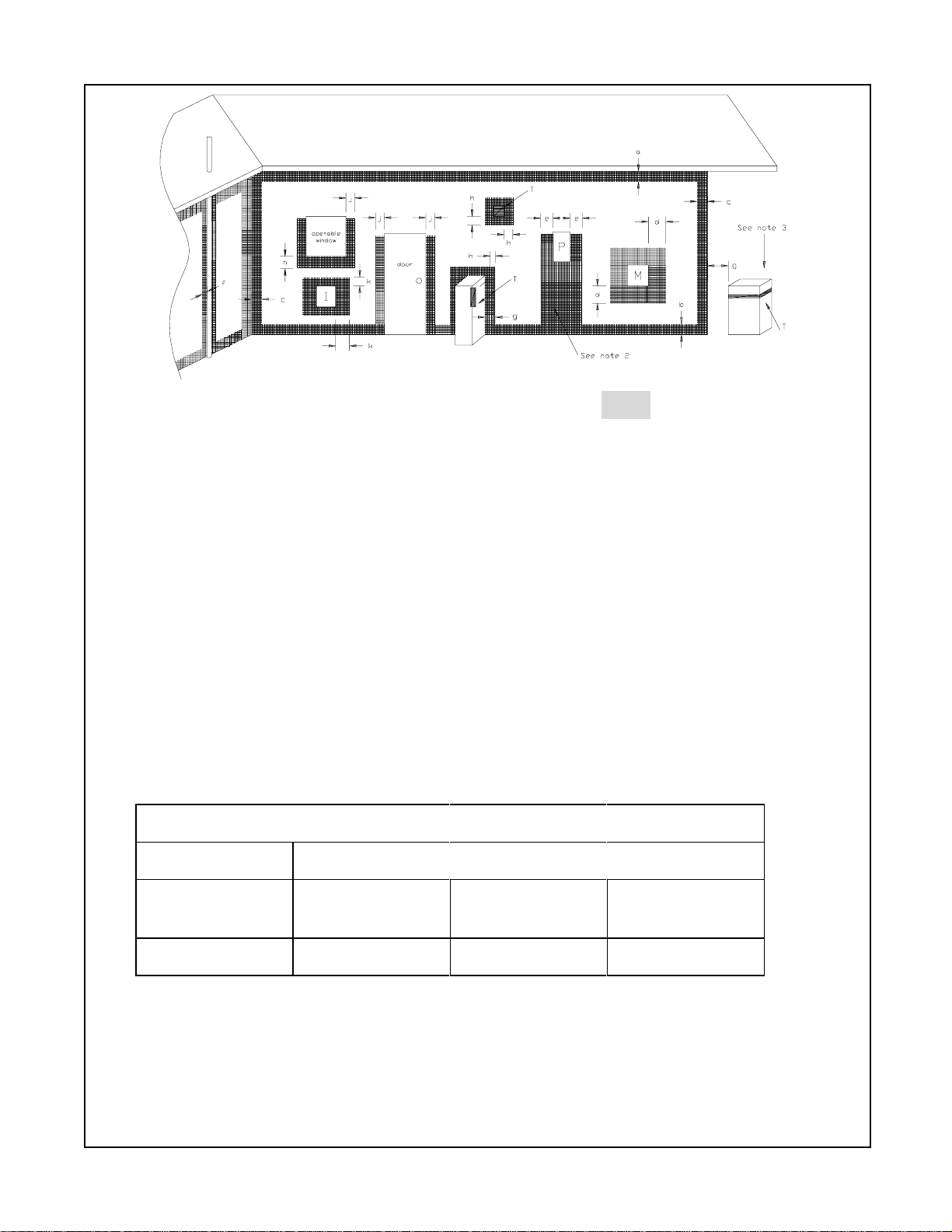

NOTES: 1. All distances are measured vertically or horizontally along the wall to a point
in line with the nearest part of the terminal.
2. Prohibited area below electricity meter or fuse box extends to ground level.
3. See clause 5.13.6.6 for restrictions on a flue terminal under a roofed area.
4. See Appendix J, Figure J1(a) and J2(a) for clearances required from a flue
terminal to a LP Gas cylinder. A flue terminal is considered to be a source of ignition.
MINIMUM CLEARANCES REQUIRED FOR BALANCED FLUE TERMINALS
OR THE FLUE TERMINALS OF OUTDOORAPPLIANCES
FIGURE 4
CLEARANCES ’n’ (mm)
Space heaters All other appliances
Up to 50 MJ/h
input UP to 50 MJ/h input Over 50 MJ/h & up
to 150 MJ/h
Over 150 MJ/h
input
150 500 1000 1500
T = Flue terminal M = Gas meter Shading indicates prohibited
I = Mechanical air inlet P = Electricity meter or fuse box areas for flue terminals
a - Below eaves, balconies or other projections: MIN. CLEARANCE(mm)
Appliances to 50 MJ/h input ................................................................................................300
Appliances over 50 MJ/h input............................................................................................ 500
b - From the ground or above a balcony...................................................................................... 300
c - From a return wall or external corner...................................................................................... 500
d - From a gas meter (M) ............................................................................................................1000
e - From an electricity meter or fuse box (P) ................................................................................500
f - From a drain or soil pipe ......................................................................................................... 150
g - Horizontally from any building structure (unless appliance approved
for closer installation) or obstruction facing a terminal .......................................................... 500
h - From any other flue terminal, cowl, or combustion air intake ................................................ 500
j - Horizontally from an openable window, door, non-mechanical air
inlet, or any other opening into a building, with the exception of
sub-floor ventilation:
Appliances up to 150 MJ/h input......................................................................................... 500
Appliances over 150 MJ/h input........................................................................................1500
k - From a mechanical air inlet, including a spa blower ..........................................................1500
n - Vertically below an openable window, non-mechanical air
inlet or any other opening into a building, with the exception of................................. See table
sub-floor ventilation............................................................................................................. below

7
TABLE 1
1.2 FLUE SYSTEM APPROVALS
Thesemodels have fluestarting collarson both thetop
and the back of the unit. Depending upon the installa-
tion, decide which ONE set of starting collars will be
usedto attach the flue system.Thestartingcollarsealing
cap must remain on the starting collar NOT used.
Thesemodels use SL-D-seriesdirect fluecomponents
when using the TOP flue collars and D-series direct
flue components when using the REAR flue collars.
WARNING:YOU MUST NOT MIX D-SERIESAND
SL D-SERIES COMPONENTS IN ANY FLUE
SYSTEM CONFIGURATION.
Approved flue system components are labeled for
identification. NO OTHER FLUEING SYSTEMS OR
COMPONENTS MAY BE USED. Detailed installation
instructions are included with each flue termination kit

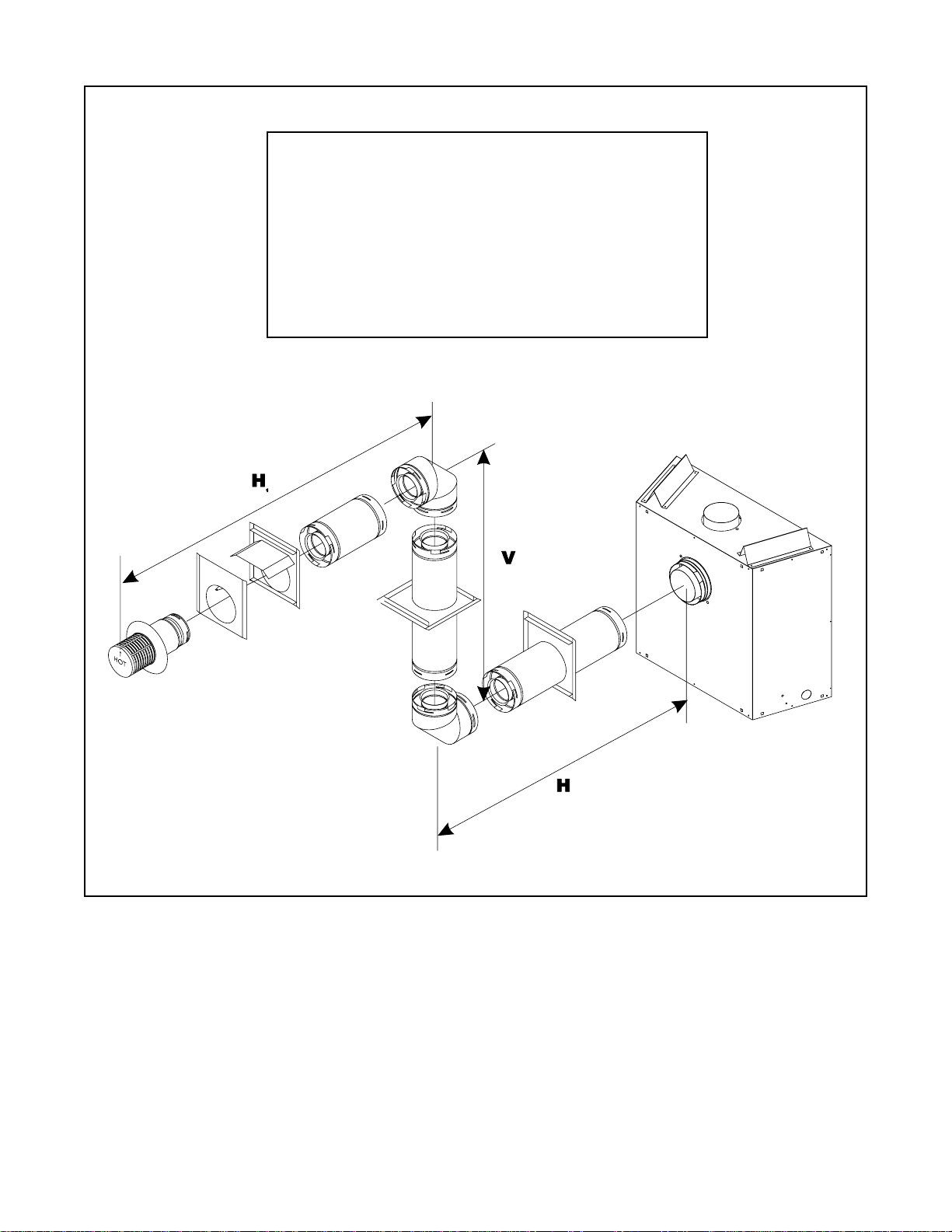

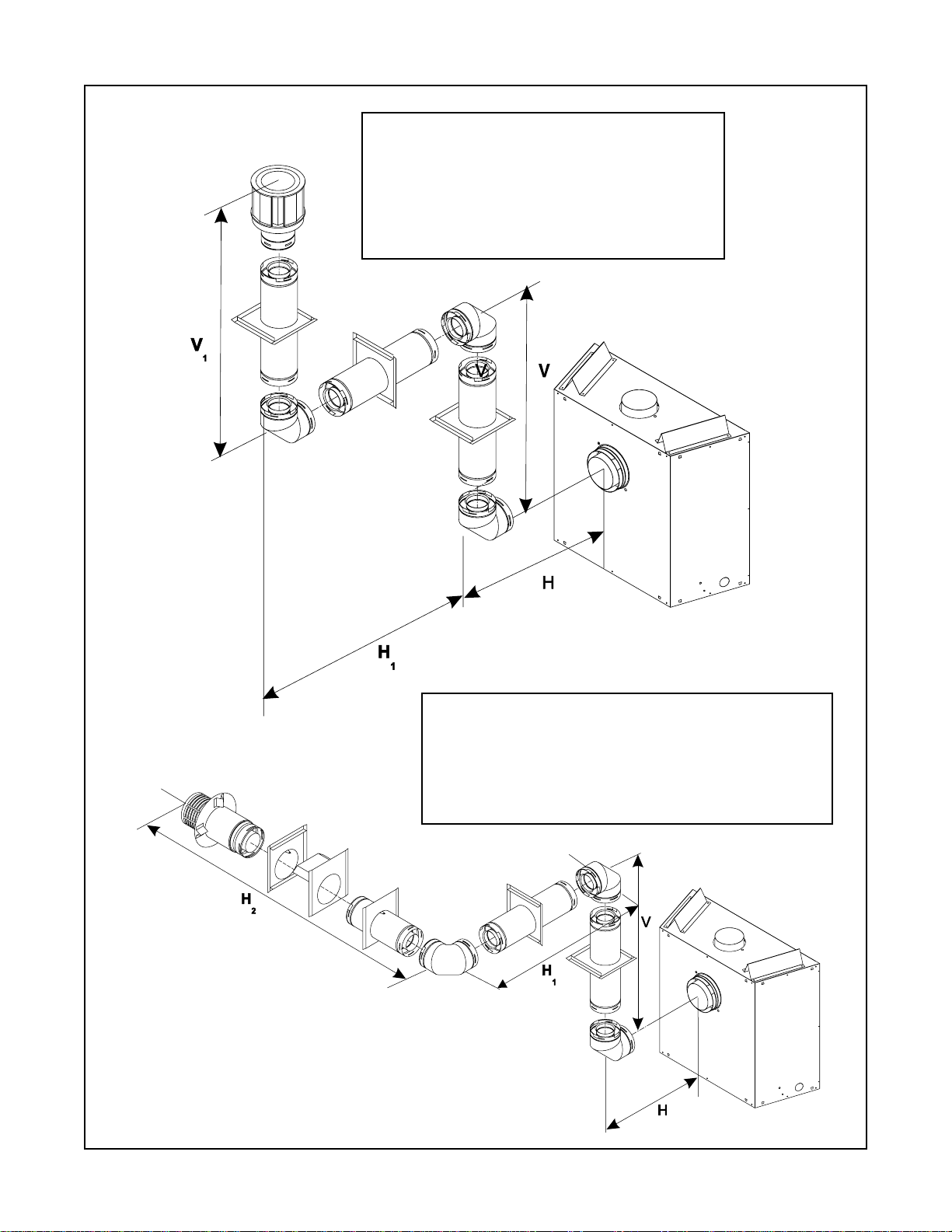

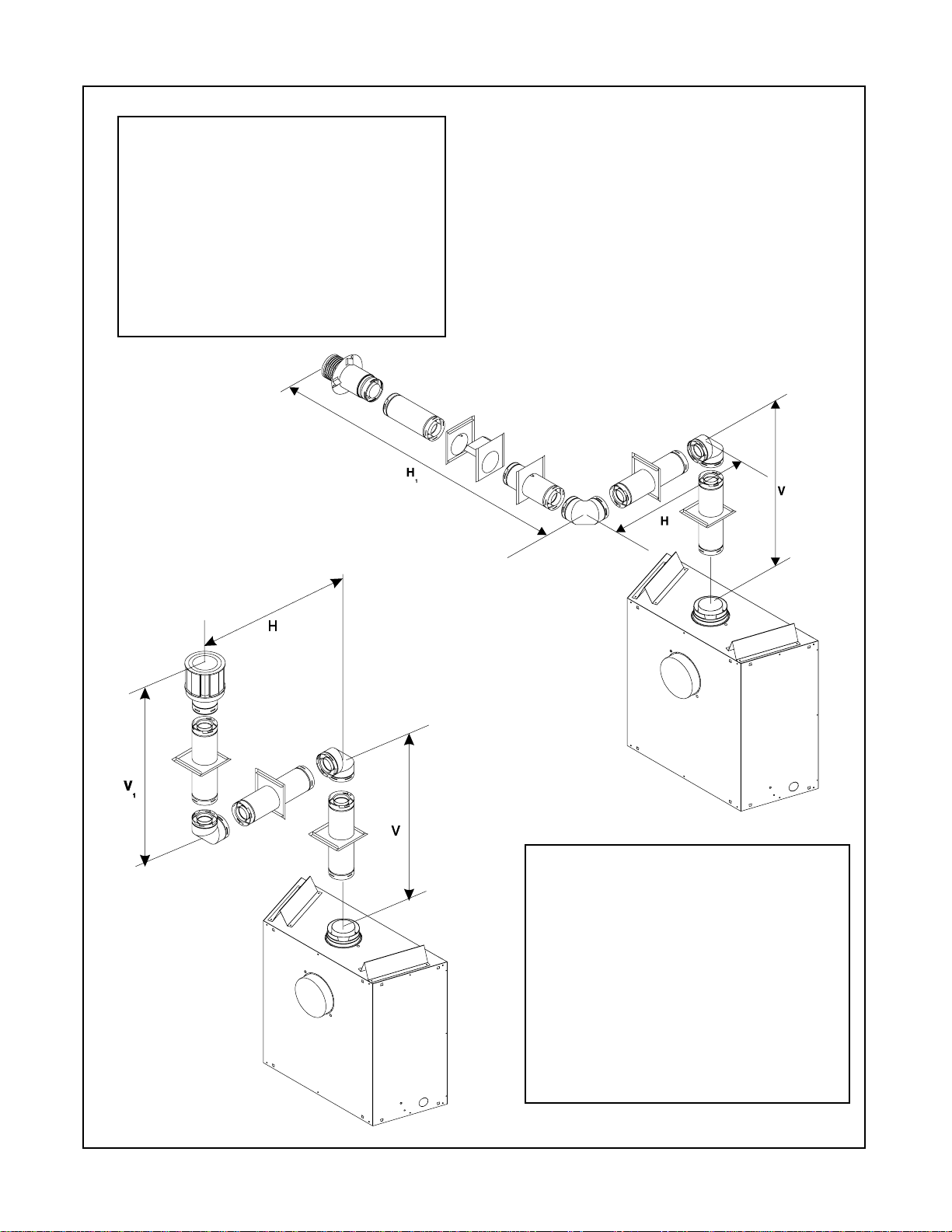

andshouldbeusedinconjunctionwiththis manual .Figure
5belowshowsfluesystemcomponentsandterminations.
Identifying Flue Components
The flue systems installed on this gas fireplace may
include one, two, or three 90°elbow assemblies. The
relationships of vertical rise to horizontal run in flue
configurations using 90° elbows MUST BE strictly
adhered to.The rise to run relationships are shown in
theflueing drawings andtables onthenext few pages.
Ifa 90°elbow isfirst attachedto theunit, themaximum
horizontal run is 2 feet (610mm).
WARNING:THISGASAPPLIANCEAND FLUEAS-
SEMBLY MUST FLUE DIRECTLY TO THE OUTSIDE
AND MUST NEVER BEATTACHED TOA CHIMNEY
SERVING ASEPARATE SOLID FUEL BURNINGAP-
PLIANCE. EACH GAS APPLIANCE MUST USE A
SEPARATE FLUE SYSTEM-COMMON FLUE SYS-
TEMS ARE PROHIBITED.
CAUTION: UNDER NO CONDITION SHOULD
COMBUSTIBLE MATERIAL BE CLOSER THAN 3
INCHES (2 1/2 INCHES (64MM) AT WALL FIRE-
STOPS) FROM THE TOP OF THE PIPE OR 1-INCH
TOTHESIDESANDTHEBOTTOMFORHORIZONTAL
SECTIONS OF THIS FLUE SYSTEM. VERTICAL
SECTIONS OF THIS SYSTEM REQUIRE A MINI-
MUM OF 1-INCH (25MM) CLEARANCE TO COM-
BUSTIBLE MATERIALS ALLAROUND THE PIPE.
For alternative installations, other than depicted, con-
tact your dealer for further information.
Refer to Figure 4 for required clearances to flue terminals.
Flue system termination kits Flue system components
SLD-SERIES
FIGURE 5 Flue Components and Terminations
MODEL
SL-550TRS-AU DVK-01DA & SLK-01DA HORIZONTALTERMINATIONCAP
DVK-TVCD & SLK-991DA VERTICALTERMINATION CAP
FLUE TERMINATIONAPPROVALS

8

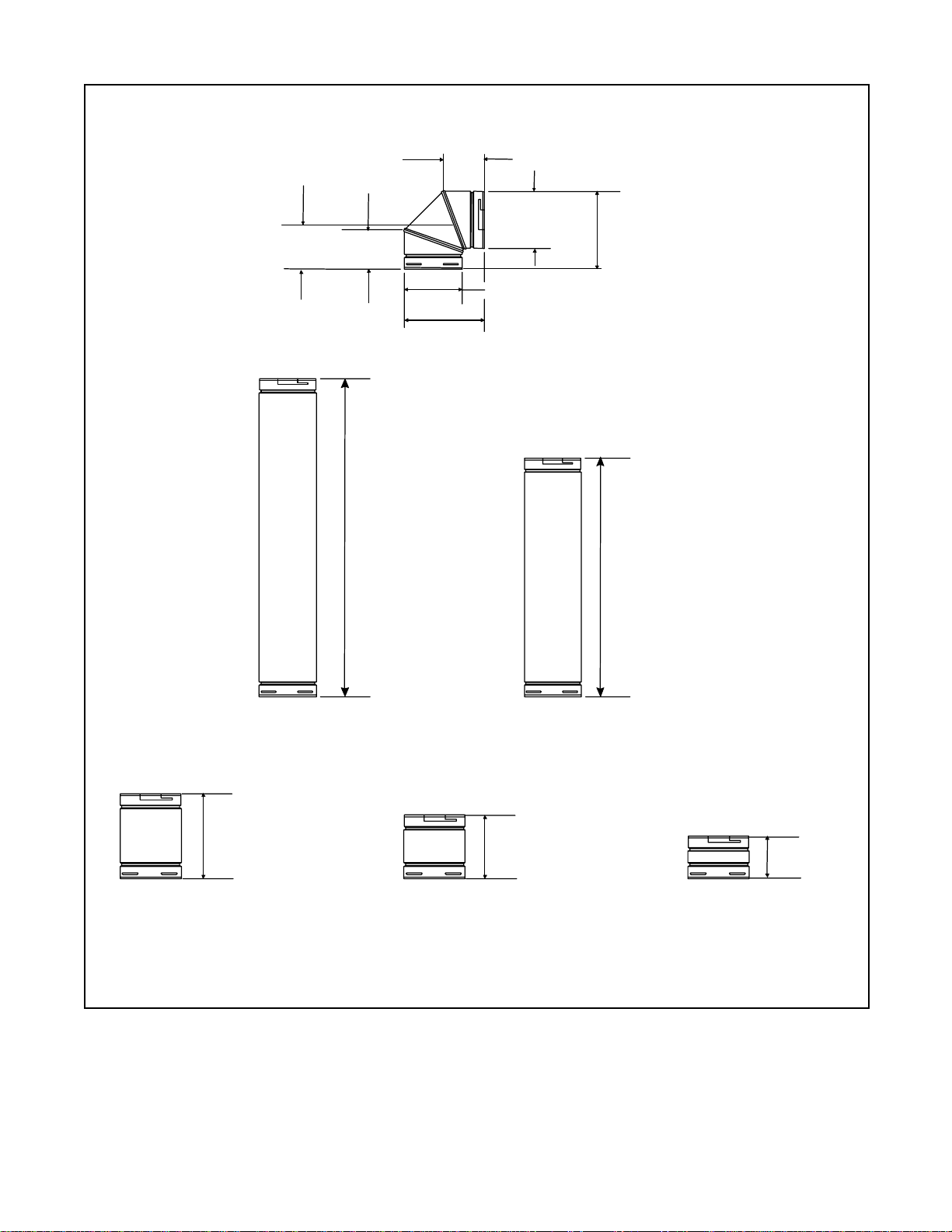

FIGURE 6 D-Series Balanced Flue Component Specifications
(5-inch (127mm) inner pipe / 8 5/8-inch (219mm) outer pipe)
NOTE: PIPES OVERLAP 1 3/8 INCHES (35MM) AT EACH JOINT.
DV-36D
35¾”
(908mm)
47¾”
(1.2m)
DV-48D
5 ¾”
(146mm)
8 ¾”
(222mm)
11 ¾”
(298mm)
DV-12D DV-09D
DV-06D
DV-90D
65/32
(156mm)
57/8
(149mm)
73/8
(187mm)
8½
(216mm)
115/8
(295mm)
85/8(219mm)
1115/16(303mm)

9
FIGURE 7 SL D-Series Balanced Flue Component Specifications
(4-inch (102mm) inner pipe / 6 5/8-inch (168mm) outer pipe)
NOTE: PIPES OVERLAP 1 3/8 INCHES (35mm) AT EACH JOINT.
6 5/8
(168mm)
9 5/8
(244mm)
6 3/8
(162mm)
6 3/8
(162mm) 6 ½
(165mm)
9 5/8
(244mm)
SL-90D
6 ½
(165mm)
6 5/8
(168mm)
5 ¾
(146mm)
11 ¾
(298mm)
SL-06D SL-12D SL-17/24D
17-24
(432-610mm)
SL-09D SL-12/17D SL-24D SL-36D SL-48D
8 ¾
(222mm)
12-17
(305-432mm)
23 ¾
(603mm)
35 ¾
(908mm)
47 ¾
(1213mm)

10
VERTICALFLUEING
V
FT. (M)
30' MAXIMUM (9.1M)
FIGURE 8
USE SL D-SERIES COMPONENTS ONLY.

11
FIGURE 9
USE D-SERIES COMPONENTS ONLY.
STRAIGHT OUT HORIZONTAL
FLUEING
H
Max. Run
24" (610mm)

12
FIGURE 10
NOTE: IFA 90° ELBOW IS
FIRSTATTACHED TO THE UNIT,
THE MAXIMUM HORIZONTAL
RUN H IS 2-FEET (.6M).
V H
FT. (M) FT. (M)
1' MIN.(.3M) 3' MAX.(.91M)
2' MIN.(.6M) 6' MAX.(1.8M)
3' MIN.(.9M) 9' MAX.(2.7M)
4' MIN.(1.2M) 12' MAX.(3.7M)
V + H = 30' (9.1M)
FLUEING WITH ONE (1) 90° ELBOW
USE SL D-SERIES COMPONENTS ONLY.

13
FIGURE 11
USE D-SERIES COMPONENTS ONLY.
FLUEING WITH ONE (1) 90oELBOW
V (FT.) H (FT.)
1' MIN. (.3M) 2' MAX. (.6M)
2' MIN. (.6M) 4' MAX. (1.2M)
3' MIN. (.9M) 6' MAX. (1.8M)
4' MIN. (1.2M) 8' MAX. (2.4M)
V+H =30' MAX. (9.1M) H= 8' MAX. (2.4M)

14
FIGURE 12
V H
FT. (M) FT. (M)
1' MIN.(.3M) 2' MAX.(.6M)
2' MIN.(.6M) 4' MAX. (1.2M)
3' MIN.(.9M) 6' MAX. (1.8M)
4' MIN.(1.2M) 8' MAX. (2.4M)
5' MIN.(1.5M) 10' MAX. (3.0M)
10' MAX.(3.0M)
NOTE: V + V1MAX 20' (6.1M)
FLUEING WITH TWO (2) 90° ELBOWS
V H + H1
FT. (M) FT. (M)
1' MIN.(.3M) 2' MAX.(.6M)
2' MIN.(.6M) 4' MAX.(1.2M)
3' MIN.(.9M) 6' MAX.(1.8M)
4' MIN.(1.2M) 8' MAX.(2.4M)
5' MIN.(1.5M) 10' MAX.(3.0M)
20' MAX.(6.1M) 10' MAX.(3.0M)
FLUEING WITH TWO (2) 90° ELBOWS
USE SL D-SERIES COMPONENTS ONLY.

15
FIGURE 13
USE D-SERIES COMPONENTS ONLY.
FLUEING WITH TWO (2) 90° ELBOWS
V H H + H1
1´ MIN. (.3M) 2´ MAX. (.6M) 4´ MAX. (1.2M)
2´ MIN. (.6M) 4´ MAX. (1.2M) 8´ MAX. (2.4M)
3´ MIN. (.9M) 6´ MAX. (1.8M) 12´ MAX. (3.6M)
4´ MIN. (1.2M) 8´ MAX. (2.4M) 16´ MAX. (4.8M)
H = 8´ MAX.(2.4M) H + H
1
= 16´ MAX. (4.8M)
V + H + H1= 30 (9.1M) MAX.

16
FLUEINGWITH THREE (3) 90° ELBOWS
V H H + H1
FT. (M) FT. (M) FT. (M)
1'MIN.(.3M) 2' MAX.(.6M) 4' MAX.(1.2M)
2'MIN.(.6M) 4' MAX.(1.2M) 8' MAX.(2.4M)
3'MIN.(.9M) 6' MAX.(1.9M) 10'MAX.(3.0M)
4'MIN.(1.2M) 6'MAX.(1.9M) 12'MAX.(3.6M)
V+V1 = 22' MAX (6.7M) 6' MAX (1.9M) 12' MAX (3.6M)
FLUEINGWITH THREE (3) 90° ELBOWS
FIGURE 14
V H + H1
FT. (M) FT. (M)
1'MIN.(.3M) 2' MAX.(.6M)
2'MIN.(.6M) 4' MAX.(1.2M)
3'MIN.(.9M) 6' MAX.(1.8M)
4'MIN.(1.2M) 8' MAX.(2.5M)
5'MIN.(1.5M) 10' MAX.(3.0M)
10' MAX.(3.0M)
NOTE:V+ V1MAX.20'(6.1M)
USE SL D-SERIES COMPONENTS ONLY.
V 1
H 1
H
V
H 1
H
V
1
V

17
FIGURE 15
FLUEING WITH THREE (3) 90° ELBOWS
1´ MIN. (.3M) 2´ MAX. (.6M) 4´ MAX. (1.2M)
2´ MIN. (.6M) 4´ MAX. (1.2M) 8´ MAX. (2.4M)
3´ MIN. (.9M) 6´ MAX. (1.9M) 12´ MAX. (3.6M)
4´ MIN. (1.2M) 8´ MAX. (2.4M) 16´ MAX. (4.8M)
H = 8´ MAX. (2.4M) H+H1= 16´ MAX. (4.8M)
NOTE: V + V, + H + H1= 30 (9.1M) MAX.
V (FT.) H (FT.) H + H1(FT.)
V (FT.) H (FT.) H + H1+ H2 (FT.)
1´ MIN. (.3M) 2´ MAX. (.6M) 4´ MAX. (1.2M)
2´ MIN. (.6M) 4´ MAX. (1.2M) 8´ MAX. (2.4M)
3´ MIN. (.9M) 6´ MAX. (1.9M) 12´ MAX. (3.6M)
4´ MIN. (1.2M) 8´ MAX. (2.4M) 16´ MAX. (4.8M)
V + H + H
1
+ H
2
= 30´ MAX. (9.1M) H = 8´ MAX. (2.4M) H + H
1
+ H
2
= 16´ MAX. (4.8M)
FLUEING WITH THREE (3) 90° ELBOWS
USE D-SERIES
COMPONENTSONLY.

18
Figure 16
WARNING: FAILURE TO REMOVE
INSULATION IN THE SET OF COL-
LARS YOU ARE USING COULD
CAUSE A FIRE.
WARNING: THE REAR FLUE COL-
LAR SEAL CAP MUST REMAIN AT-
TACHED TO THE REAR FLUE COL-
LARS IF THE FLUE SYSTEM IS AT-
TACHED TO THE TOP STARTING
COLLARS. SEE FIGURE 16.
WARNING:YOU MUST LEAVE THE
INSULATION IN PLACE IN THE
SET OF COLLARS YOU ARE NOT
USING.
FLUEING OUT REAR FLUEING OUT TOP
Vertical Flue Restrictor
If the heater installation requires a vertical flue exceeding 4.5m above the unit a vertical flue restrictor
must be installed. See instructions with the SRV-VBFFL kit.
Installing Flue Components
Afterdeterminingwhichsetofstartingcollarswillbe
used (top or rear), follow flueing instructions
accordingly.
Flueing Out the Rear Flue
Remove the rear collar seal cap by cutting the
strap at each end (See Figure 16).
Next, remove the insulation from the rear flue, pull
the heat shield out from outside of the heater.
WARNING: THE TOP FLUE COLLAR
SEAL CAP MUST REMAIN ATTACHED
TOTHETOPFLUECOLLARIFTHEFLUE
SYSTEM IS ATTACHED TO THE REAR
STARTING COLLARS. SEE FIGURE 16.
Flueing Out the Top Flue
Removethe two screwsinthe top collarseal cap.
Removethesealcapandboth pieces of insulation
in the top collars (See Figure 16). Remove the
heat shieldinside the topcollarsfrom the outside
of the heater.
!
!
!
!
Insert screwdriver
or similar object
here to remove cap.
CUT
HERE

19
1. Attach the First Flue Component to the
Starting Collars
To attach the first flue component to the starting
collars of the fireplace:
• Apply a 3/8 inch (10mm) bead of stove cement
around the inner pipe heater starting collar.
• Make sure that the heater rope gasket sup-
plied with the heater seals between the first
flue component and the outer heater wrap.
• Lock the flue components into place by sliding
theconcentricpipesectionswithfour(4) equally
spaced interior beads into the heater collar or
previouslyinstalledcomponentendwithfour(4)
equally spaced indented sections.
• When the internal beads of each outer pipe line
up, rotate the pipe section clockwise about one-
quarter (1/4) turn. The flue pipe is now locked
together.
Figure 17 Attaching the First Flue
Component to the Starting Collars
WARNING: A 3/8 INCH (10MM)
BEAD OF STOVE CEMENT MUST BE
PLACED AROUND THE INNER PIPE
HEATER STARTING COLLAR BEFORE
ATTACHING THE FIRST FLUE
COMPONENT. FAILURE TO SEAL THIS
JOINT MAY CAUSE THE HEATER TO
OPERATEIMPROPERLY.SEEFIGURE17.
WARNING: ENSURE THAT THE
FIBERGLASS ROPE GASKET
SUPPLIED WITH THE HEATER SEALS
BETWEEN THE FIRST FLUE COMPO-
NENT AND THE OUTER HEATER
WRAP.
2. Continue Adding Flue Components
Tocontinueaddingfluecomponentsinaccordance
with the pre-planned flue system configuration:
• Ensurethateachsucceedingfluecomponentis
securelyfittedandlockedintotheprecedingcom-
ponent in the flue system.
90°elbowsmaybeinstalledandrotatedtoanypoint
around the preceding component’s vertical axis. If
an elbow does not end up in a locked position with
the preceding component, attach with a minimum
of two (2) sheet metal screws.
3. Install Support Brackets
For Horizontal Runs - The flue system must be
supported every five (5) feet (1.5M) of horizontal
run by a horizontal pipe support.
To install support brackets for horizontal runs:
• Place the pipe supports around the flue pipe.
• Nail the pipe supports to the framing members.
!
!
STARTING
COLLAR
FIRST
FLUE
COMPONENT
STOVE
SEALANT
BEAD
3/8" (10mm)
1 INCH (25mm)

20
For Vertical Runs
The flue system must be supported every eight
(8)feet(2.4M)above the heater flue outlet bywall
brackets.
To install support brackets for vertical runs:
• Attach wall brackets to the flue pipe and se-
cure the wall bracket to the framing members
with nails or screws.
Use wall brackets to support vertical runs every
8 feet (2.4M) above the heater flue outlet.

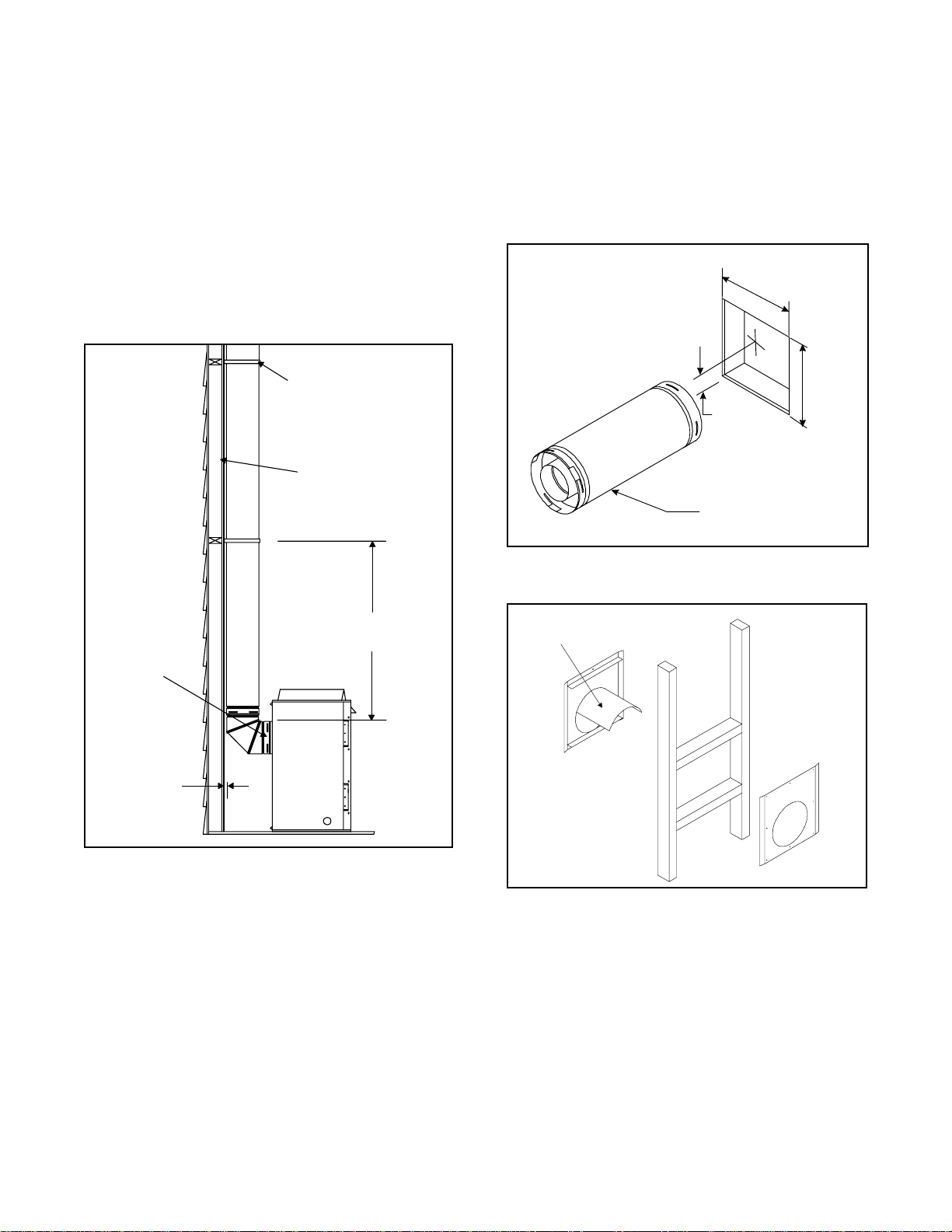

Figure 18 Installing Support Brackets
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED
on both sides of a combustible wall through which
the flue passes.
To install firestops for horizontal runs that pass
through either interior or exterior walls:
• Cut a 12-inch by 12-inch (305 mm X 305 mm)
holethroughthe wall for D-series ora 10-inch by
10-inch (254mm x 254mm) hole for SL D-series
pipe. The center of the hole is one (1) inch
(25mm) above the center of the horizontal
flue pipe.
• Position the firestops on both sides of the hole
previouslycutandsecurethefirestopswithnails
or screws.
• The heat shields of the firestops MUST BE
placed towards the top of the hole.
• Continue the flue run through the firestops.
Figure 19 Hole and Flue Pipe
Figure 20 Heat Shield, Interior and Exterior
Firestops
For Vertical Runs - One ceiling firestop is
REQUIRED at the hole in each ceiling through
which the flue passes.
Toinstallfirestopsforverticalrunsthatpassthrough
ceilings:
• Position a plumb bob directly over the center of
the vertical flue component.
• Mark the ceiling to establish the centerpoint of
theflue.
FLUE PIPE
1" (25mm)
12" (305mm)
12" (305mm)
TRIM HEAT
SHIELD IF TOO
LONG, ADD TO
SHIELD IF TOO
SHORT
EXTERIOR
FIRESTOP
INTERIOR
FIRESTOP
HEAT SHIELD
WALL BRACKET
WALL STUD
8 FT.
(2.4mm)
FLUE
OUTLET
1 INCH MIN.
(25mm)
