Hearth Technologies Royal Fireplaces R-5500RHT Assembly instructions

1
- Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
-What to do if you smell gas
 Do not try to light any appliance.
 Do not touch any electrical switch.
 Do not use any phone in your building.
 Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
 If you cannot reach your gas supplier call
the fire department.
- Installation and service must be performed by a
qualified installer service agency or the gas
supplier.
Model:
R-5500RHT
Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE OR ADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICE AGENCY, OR THE
GAS SUPPLIER.
Underwriters
Laboratories Listed
278-900B 5/00
READ THIS MANUAL BEF RE INSTALLING R
PERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE F R
FUTURE REFERENCE.
1. This appliance may be installed in an af-
termarket, permanently located, manufac-
tured (mobile) home, where not prohibited
by local codes.
2. This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not con ertible for use with
other gases, unless a certified kit is used.
Please contact your Hearth Technologies dealer with any
questions or concerns. For the number of your nearest
Hearth Technologies dealer please call 1-800-393-9484
Printed in U.S.A. Copyright 2000
Hearth Technologies Inc.
20802 Kensington Boulevard Lakeville MN 55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4, 2,9 3; 4,408,594; 4,422,426; 4,424,792; 4,520,79 ; 4,793,322;
4,852,548; 4,875,464; 5,000, 62; 5,0 6,609; 5,076,254 5, 9 ,877; 5,2 8,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,6 3,487; (Australia)
543790; 586383; (Canada) , 23,296; ,297,746; 2, 95,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. And foreign patents pending.

2
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide. NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
ma e sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, crac ed, or bro en. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT stri e or slam
the glass door.
The glass door assembly SHALL ONLY be
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance chec -up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the units
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young children should be CAREFULLY SUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!

3
TABLE OF CONTENTS
Safety and Warning Information ................................................ 2
Service Parts Lists ..................................................................... 4
Section 1: Approvals and Codes ............................................... 6
Approval Listings and Codes ........................................................ 6
Appliance Certification ................................................................... 6
Installation Codes .......................................................................... 6
High Altitude Installations ............................................................... 6
Section 2: Getting Started .........................................................
Introducing the Hearth Technologies Gas Fireplaces ....................
Pre-installation Preparation ...........................................................
Section 3: Installing the Fireplace ............................................ 9
Step 1 Locating the Fireplace ................................................... 9
Step 2 Framing the Fireplace.................................................... 9
Step 3 Installing the Vent System ............................................. 11
A. Vent System Approvals ............................................ 11
B. Installing Vent Components .................................... 15
C. Vent Termination .................................................... 19
Step 4 Positioning, Leveling, and
Securing the Fireplace................................................. 22
Step 5 The Gas Control System ............................................. 22
Step 6 The Gas Supply Line ................................................... 23
Step Gas Pressure Requirements ...................................... 24
Step 8 Wiring the Fireplace .................................................... 25
Step 9 Finishing ...................................................................... 26
Step 10 Installing Trim, Logs, and Ember Material.................... 26
Installing the Trim ......................................................... 26
Positioning the Logs .................................................... 46
Placing the Ember Material .......................................... 26
Step 11 Before Lighting the Fireplace ....................................... 2
Step 12 Lighting the Fireplace .................................................. 2
Step 13 Heating Control ............................................................ 2
After the Installation ..................................................................... 2
Section 4: Maintaining and Servicing Your Fireplace ......... 28
u = Contains updated information.
u
u
u
u

6
App iance Certification
The fireplace model discussed in this Installers Guide has
been tested to certification standards and listed by the
applicable laboratories.
Certification
M DELS: R-5500RHT
LAB RAT RY: Underwriters Laboratories
TYPE: Direct Vent Gas Fireplace Heaters
STANDARD: ANSI Z21.88CSA2.33
Insta ation Codes
The fireplace installation must conform to local codes. Before
installing the fireplace consult the local building code
agency to ensure that you are in compliance with all
applicable codes including permits and inspections.
In the absence of local codes the fireplace installation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
the United States) or the CAN/CGA-B149 Installation Codes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(in the United States) or to the CSA C22.1 Canadian Electric
Code (in Canada).
This model may be installed in a bedroom or bed-sitting
room in the U.S.A. and Canada.
1Approvals and
Codes
High A titude Insta ations
U.L. Listed gas fireplaces are tested and approved for
elevations from 0 to 2 000 feet in the U.S.A. and from 0 to
4 500 feet in Canada.
When installing this fireplace at an elevation above 2 000
feet (in the United States) it may be necessary to decrease
the input rating by changing the existing burner orifice to a
smaller size. Input should be reduced four percent (4%) for
each 1 000 feet above sea level unless the heating value of
the gas has been reduced in which case this general rule
will not apply. To identify the proper orifice size check with
the local gas utility.
When installing this fireplace at an elevation between 2 000
and 4 500 feet (in Canada) the input rating must be reduced
by ten percent (10%).
When installing this fireplace at an elevation above 4 500
feet (in Canada) check with local authorities.
Consult your local gas utility for assistance in determining
the proper orifice for your location.

7
2Getting Started
Introducing the Hearth Techno ogies Gas
Firep ace
Hearth Technologies direct vent gas fireplaces are designed
to operate with all combustion air siphoned from outside of
the building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide unless
noted otherwise applies to all models and gas control sys-
tems. Gas fireplace diagrams including the dimensions
are shown in this section.
Pre-insta Preparation
This gas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment par-
ticularly the condition of the glass. Do not install any unit
with damaged, incomplete, or substitute parts.
The vent system components and trim doors are shipped
in separate packages. The gas logs may be packaged
separately and must be field installed.
Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the own-
ers warranty and may present a fire hazard.
The Hearth Technologies Warranty will be voided by and
Hearth Technologies disclaims any responsibility for the
following actions:
 Installation of any damaged fireplace or vent system
component.
 Modification of the fireplace or direct vent system.
 Installation other than as instructed by Hearth Technolo-
gies.
 Improper positioning of the gas logs or the glass door.
 Installation and/or use of any component part not manu-
factured and approved by Hearth Technologies not with-
standing any independent testing laboratory or other party
approval of such component part or accessory.
ANY SUCH ACTI N MAY P SSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation its necessary to
determine:
Where the unit is to be installed.
The vent system configuration to be used.
Gas supply piping.
Electrical wiring.
Framing and finishing details.
Whether optional accessoriesdevices such as a fan
wall switch or remote controlare desired.
If the fireplace is to be installed on carpeting or tile or on
any combustible material other than wood flooring the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

8
Figure 1. Diagram of the R-5500RHT
41
(1043mm)
38
(965mm)
36 1/8
(916mm)
25 ¼
(642mm)
34 5/8
(879mm)
ELECTRICAL
ACCESS
10 ¼
(259mm)
3 ½
(90mm)
GAS LINE
ACCESS
2 1/8
(55mm)
6 7/8 (174mm)
14 ¼
(362mm)
8 5/8 (219mm)
VENT COLLARS
21 1/2 (548mm)
11 5/8 (297mm)
28 1/2 (724mm)

9
3Installing the Fireplace
Step 1. Locating the Firep ace
The diagram below shows space and clearance require-
ments for locating a fireplace within a room.
ABCD E
42 22 36 51 72
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front ........................ 36 .................... 914
Floor ................................... 0 ....................... 0
Rear ................................... 1/2 ..................... 13
Sides .................................1/2 ..................... 13
Top ................................... 3 1/2 ................... 89
Ceiling* .............................. 31 .................... 787
Figure 2. Fireplace Dimensions, Locations,
and Space Requirements
Clearance Requirements
The top back and sides of the fireplace are defined by
stand-offs. The minimum clearance to a perpendicular wall
extending past the face of the fireplace is one inch (25 mm).
The back of the fireplace may be recessed 21 1/2 inches
(546 mm) into combustible construction.
N TE: When venting with a 900 elbow as the first vent
component, an area 3 above the horizontal vent, the
entire width and depth of the firebox must be free of
combustibles. (See Figure 3)
Framing should be
constructed of 2 X 4
lumber or heavier.
A. ............... 42
B. ......... 38 1/2
C. ............... 22
D. ............... 42
Figure 3.
Framing
Dimensions
For minimum clearances see the direct vent termination
clearance diagrams on pages 20 and 21 in this manual.
The distance from the unit to combustible construction
is to be measured from the unit outer wrap surface to
the combustible construction N T from the screw
heads that secure the unit together.
Step 2. Framing the Firep ace
Fireplace framing can be built before or after the fireplace is
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
gram below shows framing reference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND ALL COVERING
DETAILS BEFORE FRAMING.
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections. ............. 1 ................ 25
Horizontal Sections
Top ..................................... 3 ................ 75
Bottom ............................... 1 ................ 25
Sides ................................. 1 ................ 25
At Wall Firesto s
Top .................................. 2 1/2 ............ 63.7
Bottom .............................. 1/2 ............... 13
Sides ................................. 1 ................ 25
* The clearance to the ceiling is measured from the top
of the unit excluding the standoffs (see Figure 28).
Shows center of 12 x 12
vent framing hole for top
and rear venting. The
center of the hole is one
inch (25.4mm) a ove the
center of the horizontal
vent pipe.
WALL STUD
3 1/2”
3”
NON-COMBUSTIBLE
MATERIAL SUPPLIED
NON-COMBUSTIBLE ZONE
IS DEFINED BY 3 ABOVE
THE ELBOW FOR THE
ENTIRE WIDTH AND DEPTH
(BEHIND THE FRONT
HEADER) OF THE FIREBOX.

10
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93 ) AT EACH JOINT.

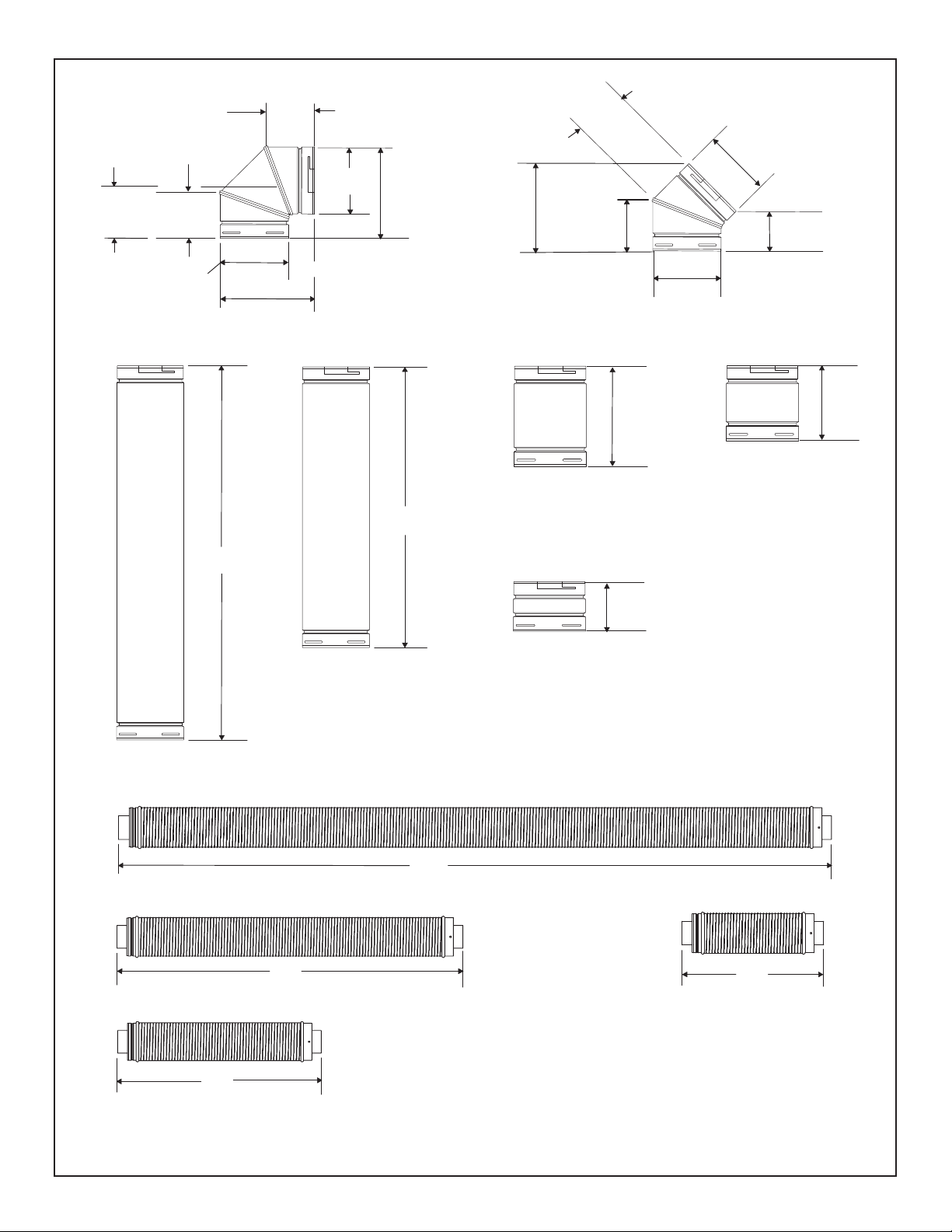

Figure 4.
D-Series Direct Vent and SL-Flex Vent Component Specifications (5-inch inner pipe / 8 5/8-inch outer pipe)
DV-36D
5 3/4”
(146mm)
8 3/4”
(222mm)
11 3/4”
(298mm)
DV-48D
7 3/8”
(187mm)
6 5/32”
(156mm)
11 5/8”
(295mm)
8 5/8”
(220mm)
8 1/2”
(216mm)
6 7/16”
(164mm)
11 1/16”
(281mm) 6 1/2”
(165mm)
8 1/2”
(216mm)
5 1/16”
(129mm)
8 5/8”
(220mm)
35 3/4”
(908mm)
47 3/4”
(1.2m)
DV-12D DV-09D
DV-06D
DV-45D
DV-90D
11 15/16”
(303mm)
5 7/8”
(149mm)
120”
(3048mm)
24”
(610mm)
36”
(914mm)
60”
(1524mm)
SL-FLEX-10
SL-FLEX-5
SL-FLEX-3
SL-FLEX-2

11
Figure 5. Vent System Components and Termination Kits
Step 3. Insta ing the Vent System
A. Vent System Approvals
This model is approved to use D-series and SL-Flex direct
vent pipe components and terminations (see Figures 4 and
5). Approved vent system components are labeled for iden-
tification. This pipe is tested and listed as an approved com-
ponent of the fireplace. The pipe is tested to be run inside
an enclosed wall. There is no requirement for inspection
openings at each joint within the wall. There is no required
pitch for horizontal vent runs. N THER VENTING SYS-
TEMS R C MP NENTS MAY BE USED.
Detailed installation instructions are included with each
vent termination kit and should be used in conjunction
with this Installers Guide. The flame and ember appear-
ance may vary based on the type of fuel burned and the
venting configuration used.
Terminations Kits
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION
STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
DVK-01D
DVK-01TRD
DVK-TVCD
Identifying Vent Components
The vent systems installed on this gas fireplace may in-
clude one two or three 90° elbow assemblies. The rela-
tionships of vertical rise to horizontal run in vent configura-
tions using 90° elbows MUST BE strictly adhered to. The
rise to run relationships are shown in the venting drawings
and tables. Refer to the diagrams on the next several pages.
N TE: Two 45° elbows may be used in place of one
90° elbow. Rise to run ratios in the vent system must
be followed if 45° elbows are used.

12

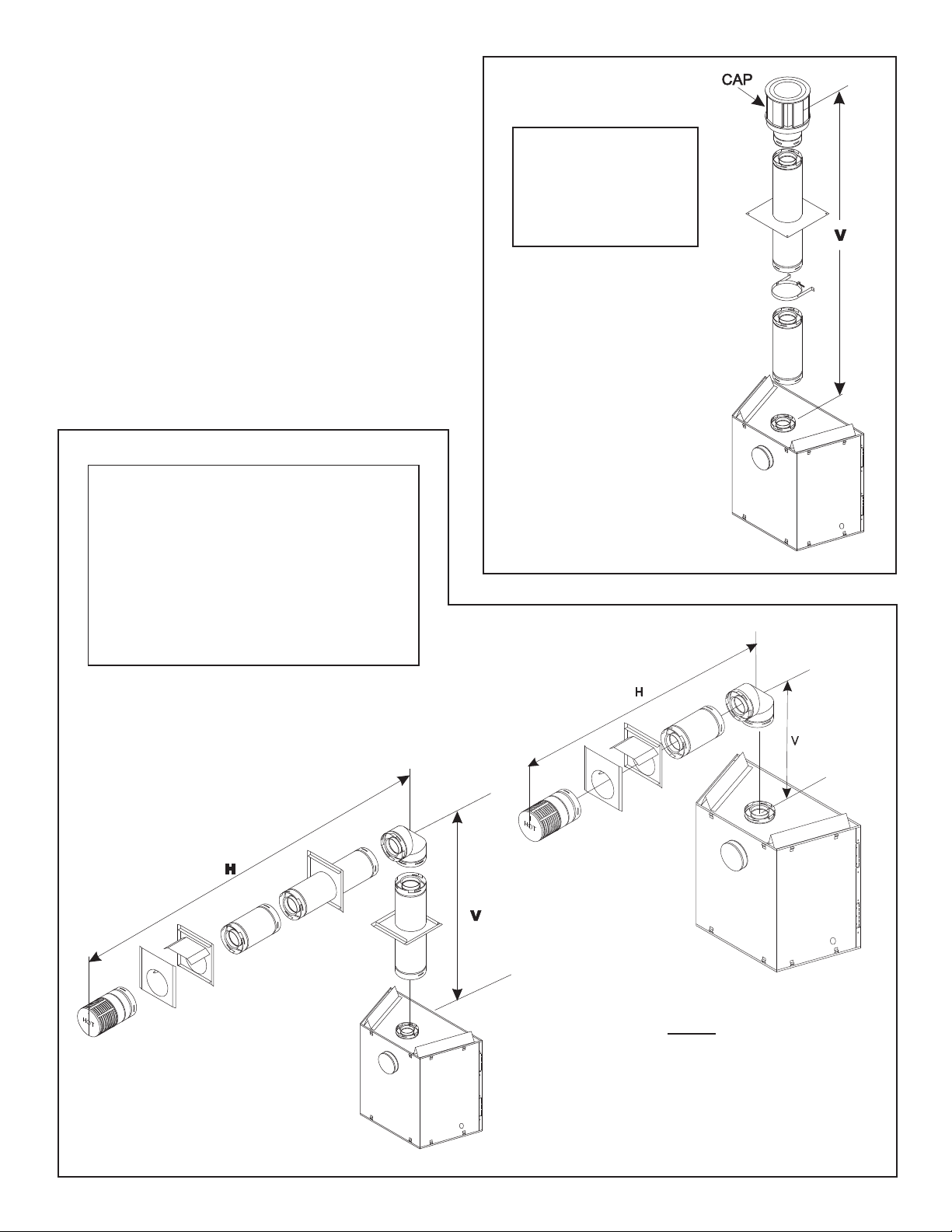

Figure 6.
Straight Up Vertical Venting
STRAIGHT UP
VERTICAL VENTING
V (FT.)
40' MAX. (12.4 M)
N TE: On vertical venting configurations where the vertical
component is over 10 feet you may want to install the
vertical baffle included in the manual bag assembly to
improve flame appearance (see Figure 6).
Figure .
Venting with One 90° Elbow
NOTE: IF A 90o ELBOW IS FIRST AT-
TACHED TO THE UNIT, THE MAXIMUM
HORIZONTAL RUN IS 3-FEET (914mm).
VENTING WITH NE (1) 90° ELB W
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
V+H= 40 MAX. (12.4MM) 20' MAX. (6.2m)
N TE: For corner installations: A 6-inch (152mm) MINIMUM
length of straight pipe must be attached to the fireplace
before 90o elbow. This will allow the vent pipe to clear the
top standoffs (see Figure 7).
NOTE: There MUST be a 25% reduction
in total H when using flex vent.

13
VENTING WITH TWO (2) 90o ELBOWS
V FT. H + H1 (FT.)
1' MIN. (305mm) 5´ MAX. (1.52m)
2' MIN. (610mm) 10´ MAX. (3.1m)
3' MIN. (914mm) 15´ MAX. (4.65m)
4' MIN. (1.22m) 20´ MAX. (6.2m)
V+H+H1= 40' MAX.(12.4m) 20´ MAX. (6.2m)
V+V1+H = 40' MAX.(12.4m)

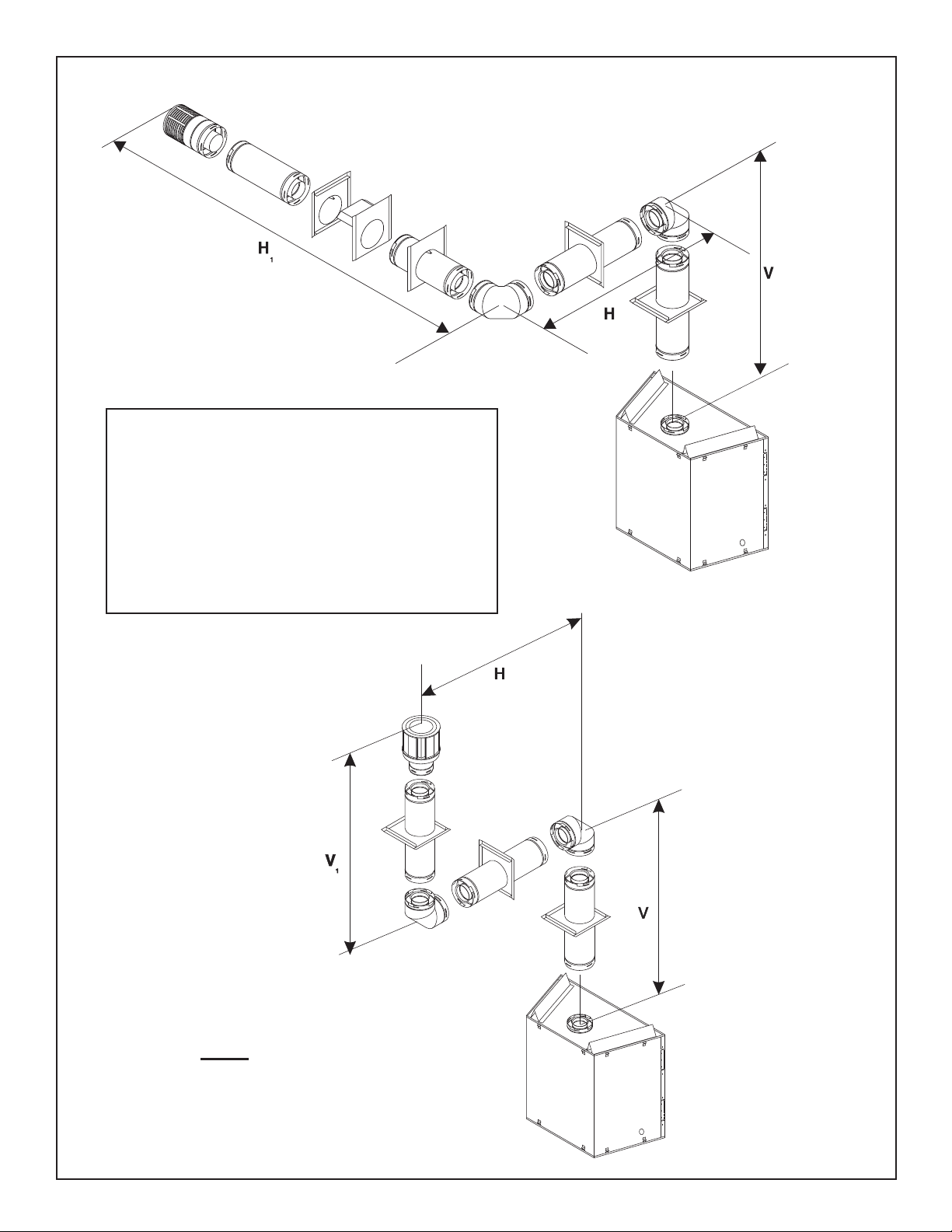

Figure 8. Venting with Two 90° Elbows
NOTE: There MUST be a 25% reduction
in total H when using flex vent.

14

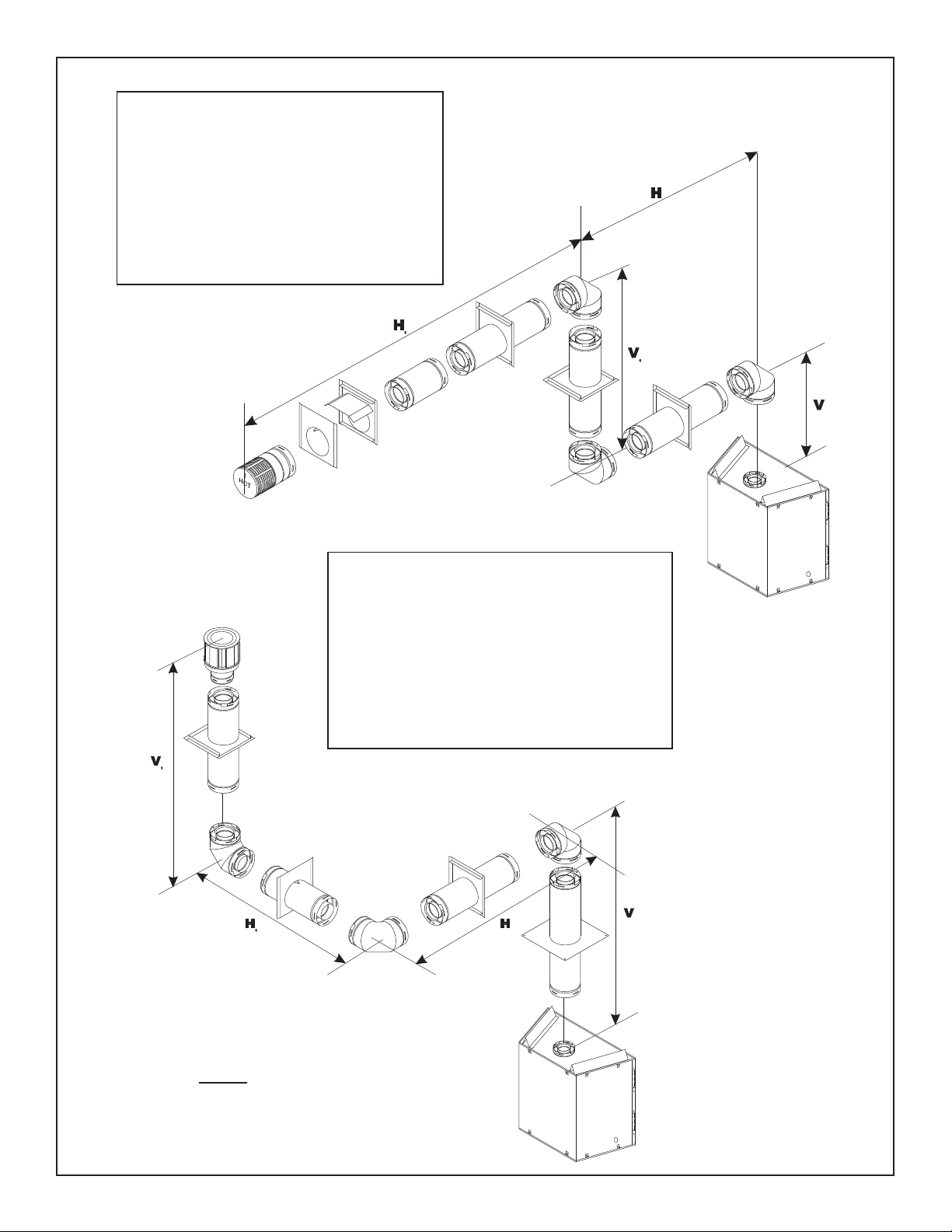

Figure 9. Venting with three 90° elbows
VENTING WITH THREE (3) 90° ELB WS
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
NOTE: H + H1 = 20' MAX. (6.2m)
V + V1 + H + H1= 40' MAX. (12.4m)
VENTING WITH THREE (3) 90° ELB WS
V (FT.) H + H1 (FT.)
1' MIN.(305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914Amm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
20' MAX. (6.2m)
NOTE: V+V1+H +H1 = 40' MAX. (12.4m)
NOTE: There MUST be a 25% reduction
in total H when using flex vent.

15
B. Installing Vent Components
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component to the starting collars
of the fireplace:
 Apply a 3/8 inch (9.5mm) bead of stove cement around
the 5 inch (127mm) fireplace starting collar.
 Make sure that the fireplace rope gasket supplied with
the fireplace seals between the first 8-5/8 inch (219mm)
vent component and the outer fireplace wrap.
 Lock the vent components into place by sliding the con-
centric pipe sections with four (4) equally spaced interior
beads into the fireplace collar or previously installed com-
ponent end with four (4) equally spaced indented sections.
 When the internal beads of each 8-5/8 inch (219mm)
outer pipe line up rotate the pipe section clockwise about
one-quarter (1/4) turn. The vent pipe is now locked together.
!
!
WARNING: ENSURE THAT THE FIBER-
GLASS R PE GASKET SUPPLIED WITH
THE FIREPLACE SEALS BETWEEN THE FIRST
VENT C MP NENT AND THE UTER FIREPLACE
WRAP.
If the installation is for a termination cap attached directly
to the fireplace skip to the sections Install Firestops and
Vent Termination.
Figure 10. Attaching the First Vent Component
to the Starting Collars
WARNING: A 3/8 INCH (9.5 MM) BEAD F
ST VE CEMENT MUST BE PLACED AR UND
THE 5 INCH (127 MM) FIREPLACE STARTING C L-
LAR BEF RE ATTACHING THE FIRST VENT C M-
P NENT. FAILURE T SEAL THIS J INT MAY
CAUSE THE FIREPLACE T PERATE IMPR PER-
LY. SEE THE DIAGRAM .
STARTING
COLLAR
STOVE
SEALANT
BEAD
1 INCH
(25.4mm)
FIRST VENT
COMPONENT
3/8
(9.5mm)

16
2. Continue Adding Vent Components
WARNING: INSTALLATI N F THE R-5500RHT
FIREPLACE REQUIRES THE USE F HEAT
SHIELD 570-290 AB VE THE FIRST 900 ELB W IN
THE VENTING SYSTEM.
Figure 11
To Install the Heat Shield:
1. Determine if the heat shield is required. Do so by mea-
suring the vertical distance between the top horizontal
surface of the elbow to any combustible surface above.
If the distance is more than 4 inches the heat shield is
N T required. If it is 4 inches or less the heat shield IS
REQUIRED. Install per the following steps. See Figure 11.
!
 Continue adding vent components locking each succeed-
ing component into place.
 Ensure that each succeeding vent component is secure-
ly fitted and locked into the preceding component in the
vent system.
 90° elbows may be installed and rotated to any point
around the preceding components vertical axis. If an el-
bow does not end up in a locked position with the pre-
ceding component attach with a minimum of two (2)
sheet metal screws.
Figure 12
CORRECT INCORRECT
2. Fasten the shield in place using the four pilot holes pro-
vided in the part. The shield should be oriented such that
the 13 1/8 inch dimension (longest dimension) is run-
ning in the same direction the elbow is pointing. The
shield should be centered directly above the elbow and
positioned so that it creates a 1/2 inch airspace between
the shield and the combustible surface. See Figure 12.
3. Install Support Brackets
For Horizontal Runs - The vent system must be supported
every five (5) feet of horizontal run by a horizontal pipe support.
To install support brackets for horizontal runs:
 Place the pipe supports around the vent pipe.
 Nail the pipe supports to the framing members.
Figure 13. Adding Venting Components

17
For Vertical Runs - The vent system must be supported
every eight (8) feet (2.4m) above the fireplace flue outlet by
wall brackets.
To install support brackets for vertical runs:
 Attach wall brackets to the vent pipe and secure the wall
bracket to the framing members with nails or screws.
Figure 14. Installing Support Brackets
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on both
sides of a combustible wall through which the vent passes.
NOTE: Model DVK-01TRD does not need an exterior
firesto on an exterior combustible wall.
To install firestops for horizontal runs that pass through
either interior or exterior walls:
 Cut a 12-inch by 12-inch (305mm X 305mm) hole through
the wall.
NOTE: The center of the hole is one (1) inch (25.4mm)
above the center of the horizontal vent i e.
 Position the firestops on both sides of the hole previ-
ously cut and secure the firestops with nails or screws.
 The heat shields of the firestops MUST BE placed to-
wards the top of the hole.
 Continue the vent run through the firestops.
Figure 15. 12" x 12" Hole and Vent Pipe
Figure 16. Heat Shield, Interior & Exterior Firestops
VENT PIPE
1" (25.4 mm)
12"
(305mm)
12"
(305mm)
TRIM HEAT
SHIELD IF TOO
LONG, ADD TO
SHIELD IF TOO
SHORT
EXTERIOR
FIRESTOP
INTERIOR
FIRESTOP
HEAT SHIELD

18
For Vertical Runs - One ceiling firestop is REQUIRED at
the hole in each ceiling through which the vent passes.
To install firestops for vertical runs that pass through ceilings:
 Position a plumb bob directly over the center of the verti-
cal vent component.
 Mark the ceiling to establish the centerpoint of the vent.
 Drill a hole or drive a nail through this centerpoint.
 Check the floor above for any obstructions such as wir-
ing or plumbing runs.
 Reposition the fireplace and vent system if necessary
to accommodate the ceiling joists and/or obstructions.
 Cut an 11-inch X 11-inch (280mm X 280mm) hole through
the ceiling using the centerpoint previously marked.
 Frame the hole with framing lumber the same size as the
ceiling joists.
Figure 18. Ceiling Firestop (Ceiling Side)
If the area above the ceiling is N T an attic position and
secure the ceiling firestop on the ceiling side of the previously
cut and framed hole.
Figure 17. 11" x 11" Hole & New Framing Members
If the area above the ceiling IS an attic position and secure
the firestop on top of the previously framed hole.
NOTE: Kee insulation away from the vent i e at least
1 inch (25mm).
Figure 19. Attic Firestop
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
11" (280 mm) 11" (280mm)

19
!
C. Vent Termination
For Horizontal Terminations - To attach and secure the
termination to the last section of horizontal vent:
 Rotate and interlock the ends as described at the begin-
ning of the Installing Vent Components section.
 The termination kit should pass through the wall firestops
from the exterior of the building.
 Adjust the termination cap to its final exterior position on
the building.
WARNING: THE TERMINATI N CAP MUST BE
P SITI NED S THAT THE ARR W IS
P INTING UP.
For roundcap termination kits:
 Use the exterior pipelock hole on the round flange of the
wall firestop to secure the vent pipe in place.
For trapezoidal cap termination kits:
 Using screws secure the cap to the exterior wall through
the flanges in the cap.
Figure 20. Round & Trapezoid Termination Caps
!
WARNING: THE B TT M F THE VENT
TERMINATI N CAP MUST BE A MINIMUM
F 12 INCHES (305 MM) AB VE GR UND LEVEL
(GRADE). THE T P F THE CAP MUST BE A MIN-
IMUM F 18 INCHES (457 MM) BEL W C MBUS-
TIBLE MATERIAL, SUCH AS A DECK. THE SIDE
F THE CAP MUST BE A MINIMUM F 6 INCHES
(152 MM) AWAY FR M A PARALLEL UTSIDE
WALL. VENTING TERMINALS SHALL N T BE RE-
CESSED INT A WALL R SIDING. SEE THE F L-
L WING DIAGRAM F R VENT TERMINATI N
CLEARANCES.
ROUND CAP TERMINATION
PERFORATION CANNOT BE
INSIDE THE WALL
7 1/2"
(191mm)
MINIMUM
TRAPEZOID CAP TERMINATION
7 1/4"
(184mm)

20
V=VENT TERMINAL X=AIR SUPPLY INLET
1234
1
23
4
1
23
4
1234
=AREA WHERE TERMINAL IS N T PERMITTED
* 30 minimum for vinyl clad soffits.
** a vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family
dwellings and serves both dwellings.
*** only permitted if veranda porch deck or balcony is fully open on a minimum of 2 sides beneath the floor.
NOTE: Local codes or regulations may require different clearances.
Figure 21. Vent Termination Minimum Clearances
CAUTION: IF EXTERIOR WALLS ARE FINISHED WITH VINYL SIDING, IT IS NECESSARY TO INSTALL THE VINYL
PROTECTOR KIT TO THE TOP OF THE EXTERIOR FIRESTOP (FOR ALL ROUND TERMINATION CAPS).
A = 12" .................... clearances above grade veran-
da porch deck or balcony
B = 12" .................... clearances to window or door
that may be opened
C = 9" (U.S.A.)
12" (Canada) ..... clearance to permanently
closed window.
*D = 18" .................... vertical clearance to ventilated
soffit located above the termi-
nal within a horizontal distance
of 2 feet (60 cm) from the cen-
ter-line of the terminal
*E = 18" .................... clearance to unventilated soffit
F = 9" ..................... clearance to outside corner
G = 6" ...................... clearance to inside corner
H = 3 ft. (Canada) .... not to be installed above a gas
meter/regulator assembly with-
in 3 feet (90cm) horizontally from
the center-line of the regulator
I = 3 ft. (U.S.A.)
6 ft. (Canada) ..... clearance to service regu-
lator vent outlet.
J = 9" (U.S.A.)
12" (Canada) ..... clearance to non-mechan-
ical air supply inlet to
building or the combustion
air inlet to any other ap-
pliance
K = 3 ft. (U.S.A.)
6 ft. (Canada) ..... clearance to a mechanical
air supply inlet
**L = 7 ft. ................... clearance above paved
sidewalk or a paved drive-
way located on public
property
***M = 18" .................... clearance under veranda
porch deck or balcony
DE
B
L
v
v
v
v
v
v
v
v
openable
C
BB
B
fixed closed
AH
M
X
J or K
I
A
G
F

21
For Vertical Terminations - To locate the vent and install
the vent sections:
 Locate and mark the vent centerpoint on the underside
of the roof and drive a nail through the centerpoint.
 Make the outline of the roof hole around the centerpoint
nail.
 The size of the roof hole framing dimensions depend on the
pitch of the roof. There MUST BE a 1-inch (25.4mm) clear-
ance from the vertical vent pipe to combustible materials.
 Mark the roof hole accordingly.
 Cover the opening of the installed vent pipes.
 Cut and frame the roof hole.
 Use framing lumber the same size as the roof rafters
and install the frame securely. Flashing anchored to the
frame must withstand heavy winds.
 Continue to install concentric vent sections up through
the roof hole (for inside vent installations) or up past the
roof line until you reach the appropriate distance above
the roof (for outside terminations).
WARNING: MAJ R U.S. BUILDING C DES
SPECIFY MINIMUM CHIMNEY AND/ R
VENT HEIGHT AB VE THE R F T P. THESE MIN-
IMUM HEIGHTS ARE NECESSARY IN THE INTER-
EST F SAFETY. SEE FIGURE 22 F R MINIMUM
HEIGHTS, PR VIDED THE TERMINATI N CAP IS
AT LEAST TW (2) FEET FR M A VERTICAL WALL
AND 2-FEET BEL W A H RIZ NTAL VERHANG.
NOTE: This also ertains to vertical vent systems in-
stalled on the outside of the building.
!
Roof Pitch H (min.) ft.
flat to 6/12 1.0
6/12 to 7/12 1.25
over 7/12 to 8/12 1.5
over 8/12 to 9/12 2.0
over 9/12 to 10/12 2.5
over 10/12 to 11/12 3.25
over 11/12 to 12/12 4.0
over 12/12 to 14/12 5.0
over 14/12 to 16/12 6.0
over 16/12 to 18/12 7.0
over 18/12 to 20/12 7.5
over 20/12 to 21/12 8.0
Figure 22. Minimum Height from Roof to
Lowest Discharge pening
To seal the roof hole and to divert rain and snow from the
vent system:
 Attach a flashing to the roof using nails and use a non-
hardening mastic around the edges of the flashing base
where it meets the roof.
 Attach a storm collar over the flashing joint to form a
water-tight seal. Place non-hardening mastic around the
joint between the storm collar and the vertical pipe.
 Slide the termination cap over the end of the vent pipe
and rotate the pipe clockwise 1/4 turn.
HORIZONTAL
OVERHANG
VERTICAL
WALL
TERMINATION
CAP
12 X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
2 FT.
MIN. 2 FT. MIN.

22
Step 4. Positioning, Leve ing, and
Securing the Firep ace
 Place the fireplace into position.
 Level the fireplace from side to side and from front to
back.
 Shim the fireplace with non-combustible material such
as sheet metal as necessary.
 Secure the fireplace to the framing by nailing or screwing.
!
!
The diagram below shows how to properly position level
and secure the fireplace.
Figure 23. Proper Positioning, Leveling, and
Securing of a Fireplace
Figure 24. Gas Control System
STANDING PIL T
Step 5. The Gas Contro System
WARNING: THIS UNIT IS N T F R USE WITH
S LID FUEL.
The type of gas control system used with this model is Stand-
ing Pilot Ignition.
Standing Pilot Ignition System
This system includes millivolt control valve standing pilot
thermopile/thermocouple flame sensor and piezo ignitor.
WARNING: 110-120 VAC MUST NEVER BE
C NNECTED T A C NTR L VALVE IN A
MILLIV LT SYSTEM.
