HearthPro SP6550OF User manual

Model#: SP6550OF
USER MANUAL
Keep this manual for future reference
QUESTIONS, PROBLEMS, OR MISSING PARTS?
Please Contact Customer Service Before Returning to Store
Please carefully check the unit and make sure there is no damage when you open the carton.
[email protected] [phone]
www.soupro.com
If parts are damaged or missing please call customer service for replacements.
DO NOT RETURN THIS PRODUCT TO THE RETAILER.

• GENERAL INFORMATION
Package Contents
Safety Instructions
Warranty
• ASSEMBLY INSTRUCTIONS
Preparation
Assembly
• FIREBOX OPERATIONS
Safety Information
Operating Instructions
Care And Maintenance
Troubleshooting
TABLE OF CONTENTS

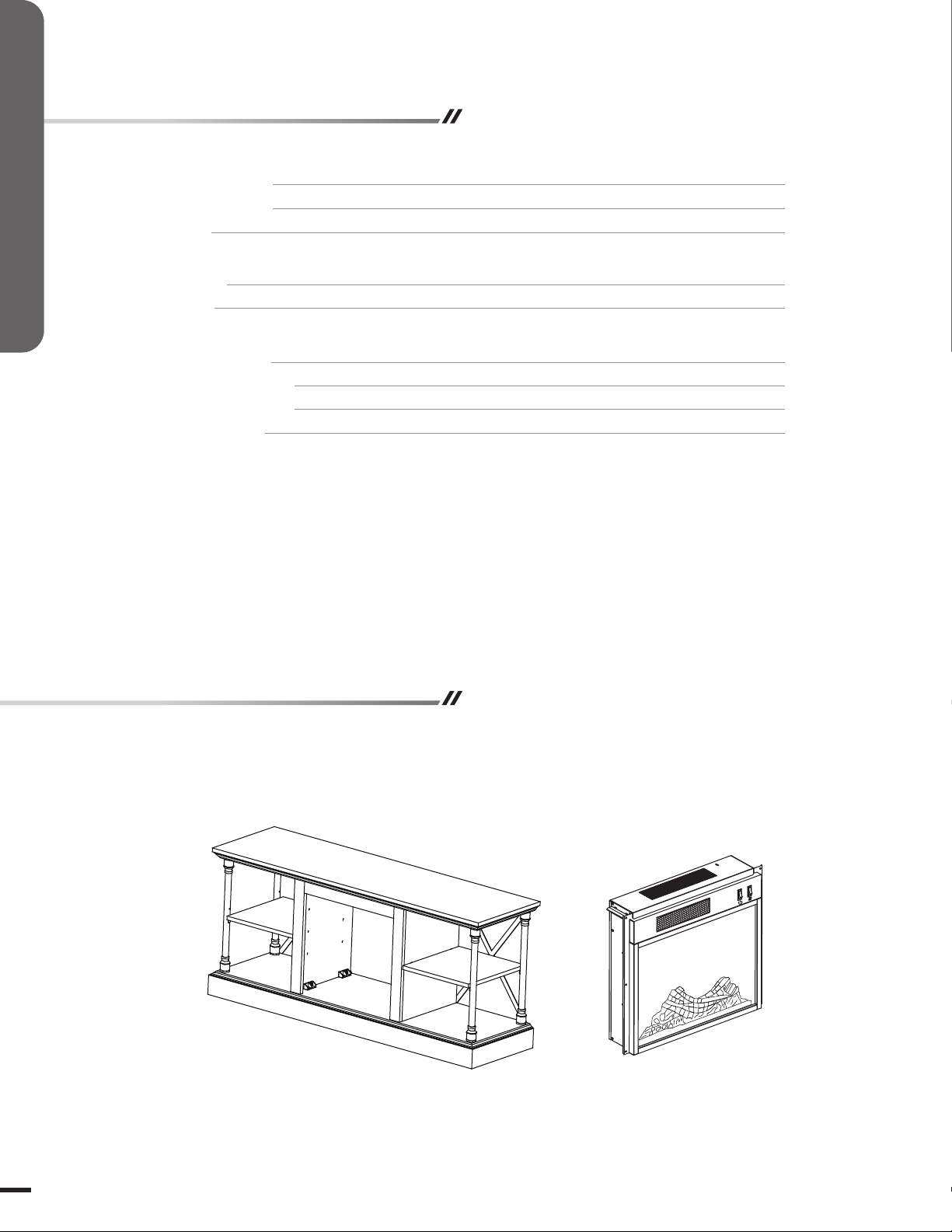

PACKAGE CONTENTS
Fireplace Mantel
SP6550OF
Firebox
2
GENERAL INFORMATION
2
3
4
5
7
12
13
14
14
SP1816SC-HE

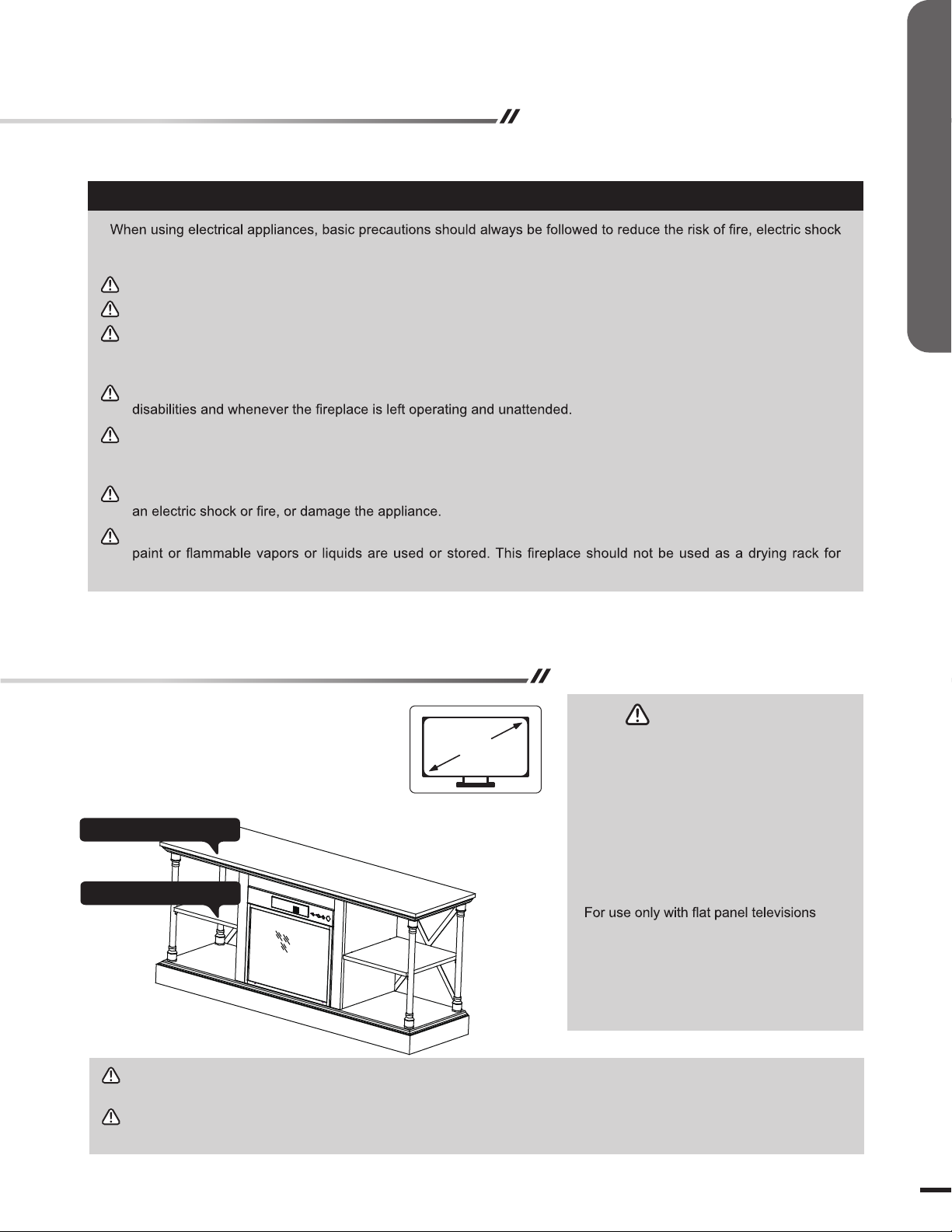

SAFETY INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, operate or install the product.
IMPORTANT NOTICE
and injury to persons, including the following:
WARNING: Place this unit in a location that avoids direct sunlight and high temperatures.
WARNING: Plastic bags, nails, etc. should be kept out of reach of children.
WARNING: This appliance is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. Keep
combustible material, such as furniture, pillows, bedding, papers, clothes and curtains, at least 3 feet from the front
of the heater and keep them away from the side and rear.
WARNING: Extreme caution is necessary when any heater is used by or near children or individuals with
WARNING: DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar covering.
Do not route cord under furniture or appliances. Arrange cord away from traffic areas and where it will not be
tripped over.
WARNING: DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause
WARNING: This appliance has hot and arcing or sparking parts inside. DO NOT use it in areas where gasoline,
clothing. Christmas stockings or decorations should not be hung in the area of it.
3
GENERAL INFORMATION
MAXIMUM LOAD WARNING
47"
CAUTION: This unit is intended for use only with the products and maximum weights indicated. Use with other
products or products heavier than the maximum weights indicated may result in instability causing possible injury.
NOTE: Flat panel TVs with base support should be placed squarely in the center of the stand with no overhang
on any side.
WARNING
Never use this furniture with a TV that is
too large or too heavy. Severe injury or
death can occur. The TV and furniture will
be unstable and may tip.
•The TV must weigh less than 50 lbs.
•The base of the TV must be able to sit
completely on the shelf.
measuring 47 in. wide or less.
Refer to instruction book for complete
safety information.
Max. 30 lbs (13.6 kg)
Max. 50 lbs (22.7 kg)

WARRANTY
1-YEAR LIMITED WARRANTY
Source Pro Industries Ltd. (hereinafter referred to collectively as “the Company”) warrants that your new HearthPo Electric
Fireplace is free from manufacturing and materials defects for a period of one (1) year from date of purchase. Subject to the
following conditions and limitations:
1. The electric fireplace must be installed and operated at all times in accordance with the installation
and operating instructions furnished with the product. Any unauthorized repair, alteration, willful abuse,
accident, or misuse of the product shall nullify this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that the purchase was
made through an authorized supplier of the Company.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in material or
workmanship – provided that such part(s) have been subjected to normal conditions of use and service –
remanufactured, or refurbished.
4. The Company may, at its discretion, require that any defective part(s) be returned in exchange for the
replacement part(s).
5. The Company may, at its discretion, fully discharge all obligations with respect to this warranty by
refunding the wholesale price of the defective part(s).
6.
7. Any installation, labor, construction, transportation, or other related costs/expenses arising from defective
part(s), repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the
Company assume responsibility for the same.
8. The owner/user assumes all other risks – if any – including but not limited to the risk of any direct, indirect
or consequential loss or damage arising out of the use, or inability to use the product, except as provided
by law.
9. All other warranties – express or implied – with respect to the unit, its components and accessories, or
any obligations/liabilities on the part of the Company are hereby expressly excluded.
10. The Company neitherassumes, norauthorizes anythird party to assume on its behalf, any otherliabilities
with respect to the sale of the unit.
11. The warranties as outlined within this document do not apply to non-accessories used in conjunction with
the installation of this product.
12.
state.
This warranty is void if:
(a)
(b) Any unauthorized alteration, willful abuse, accident, or misuse of the product.
(c) You do not have the original purchase receipt.
IF WARRANTY SERVICE IS NEEDED
Please Contact Customer Service
Make sure you have the following information ready:
• Warranty
• Sales Receipt
• Product Model/Serial Number
• Date of Purchase
• Location of Purchase
4
GENERALINFORMATION
[email protected] [phone]
www.soupro.com

PREPARATION
IMPORTANT INFORMATION
1. Before you begin, locate the instructions and hardware. Be sure you have all of the parts and can identify
them.
2.
cardboard.
3. Assembly of this product may require more than one person.
WARNING
1. Do not let any sharp objects touch or rub the surface of the product.
2. When assembling, do not let children play around the working area.
3.
4. Do not tighten all bolts and screws completely until the entire unit has been assembled and set up.
5. DO NOT USE POWER TOOLS. Power tools can overtighten screws and strip therads.

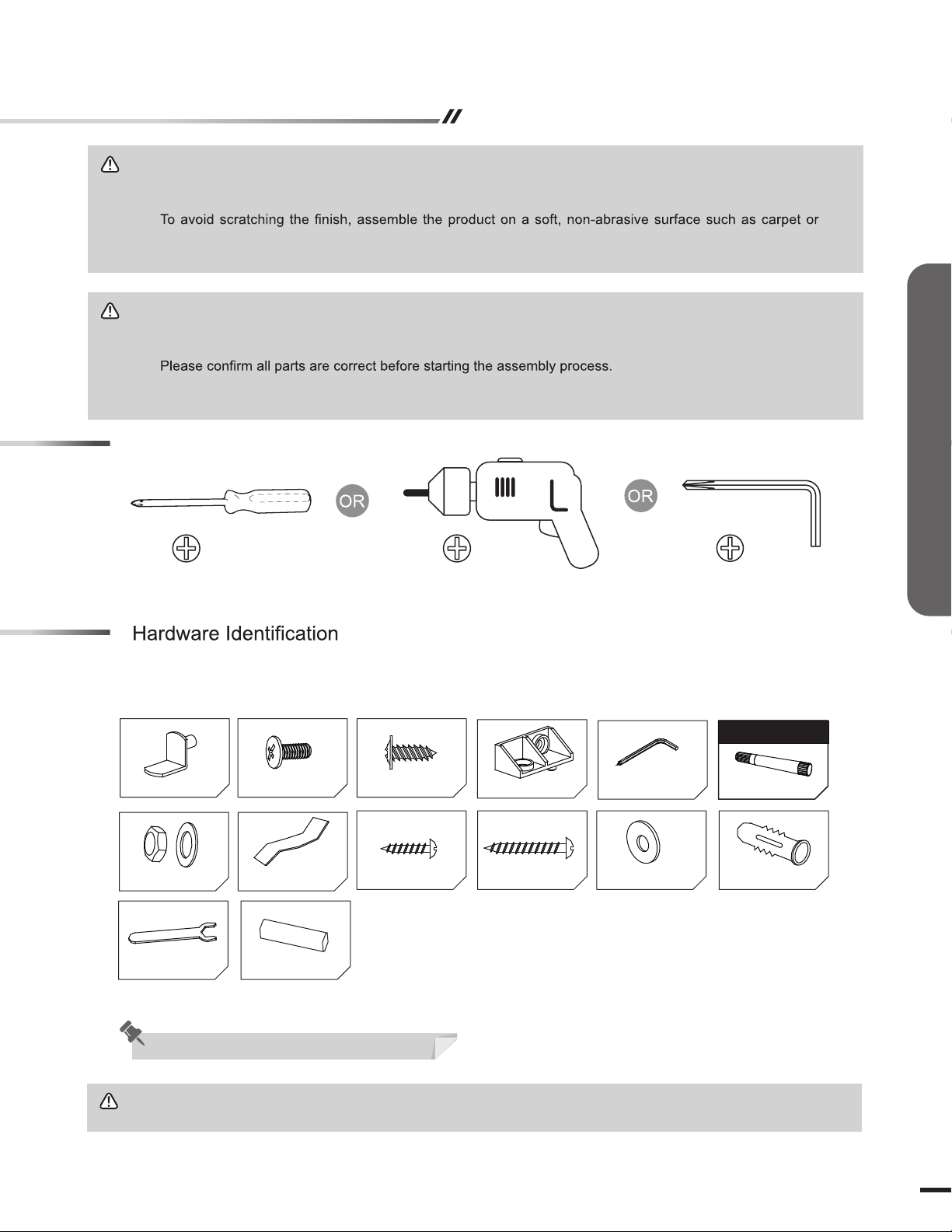

Tools Required
Philips Screwdriver Hand Drill Hex Key
5
ASSEMBLY INSTRUCTIONS
Number of spare hardware is indicated in ( ).
Use the Touch-up Pen to cover surface scratches.
WARNING: The included plastic wall anchors (OO) are intended for use with solid wall applications only (tile and
concrete). DO NOT USE WITH DRYWALL OR OTHER HOLLOW WALL APPLICATIONS.
EE x 10
KK x 2 OO x 2
BB x 20+(1) CC x 16+(1)
LL x 2 MM x 2 NN x 4
GG x 1
VV x 4
AA x 4 HH x 1
Touch Pen
II x 4YY x 1

Parts List
PREPARATION
6
ASSEMBLY INSTRUCTIONS
x 1
x 1
x 1
x 4
x 1
x 2
A
C
B
D
E
F
x 2
x 1
G
H

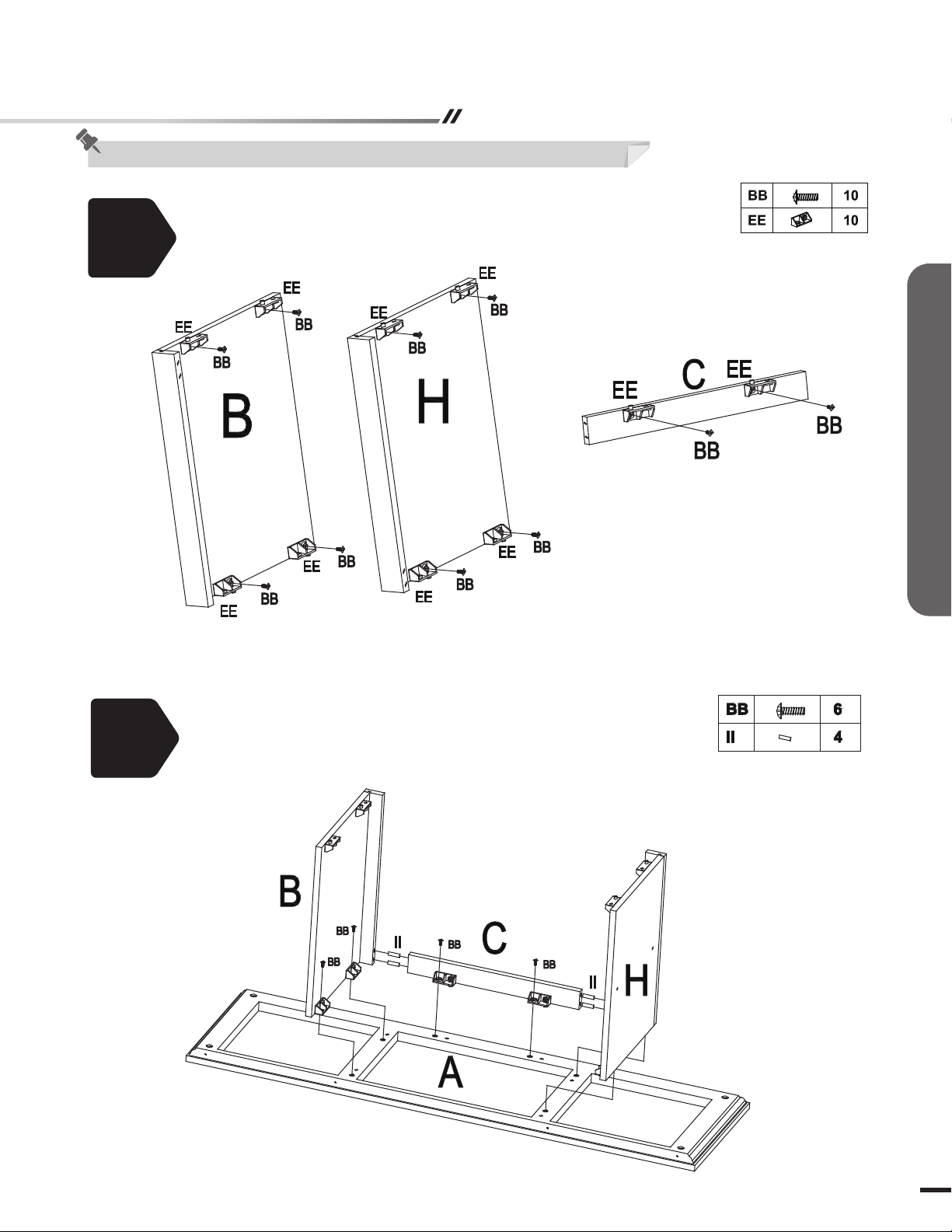

ASSEMBLY
1.
7
ASSEMBLY INSTRUCTIONS
Do not fully tighten screws during assembly. Only tighten when all parts are installed in place.
2.

ASSEMBLY
Do not fully tighten screws during assembly. Only tighten when all parts are installed in place.
8
ASSEMBLY INSTRUCTIONS
3.
4.

ASSEMBLY
Do not fully tighten screws during assembly. Only tighten when all parts are installed in place.
9
ASSEMBLY INSTRUCTIONS

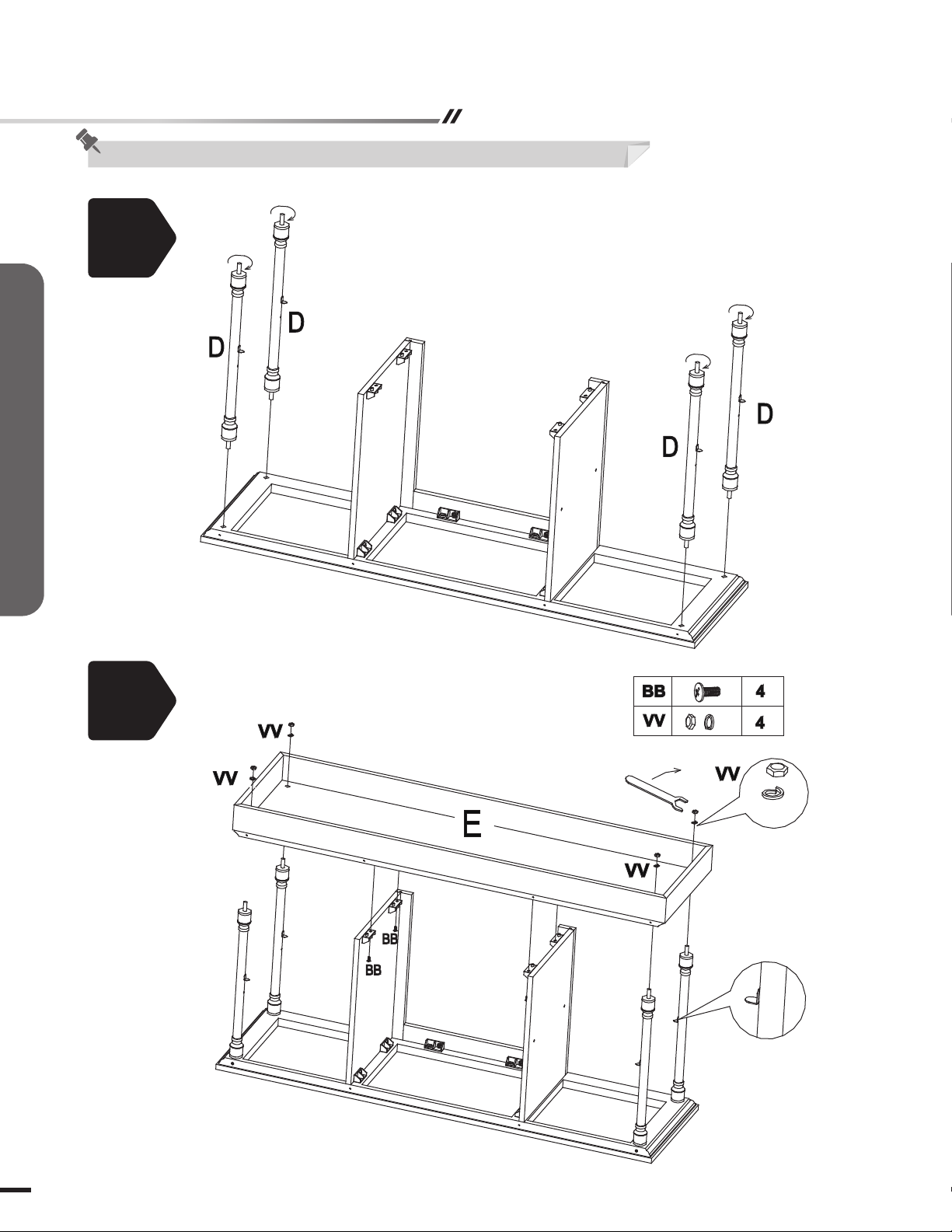

5.
6.

ASSEMBLY
Do not fully tighten screws during assembly. Only tighten when all parts are installed in place.
10
ASSEMBLY INSTRUCTIONS

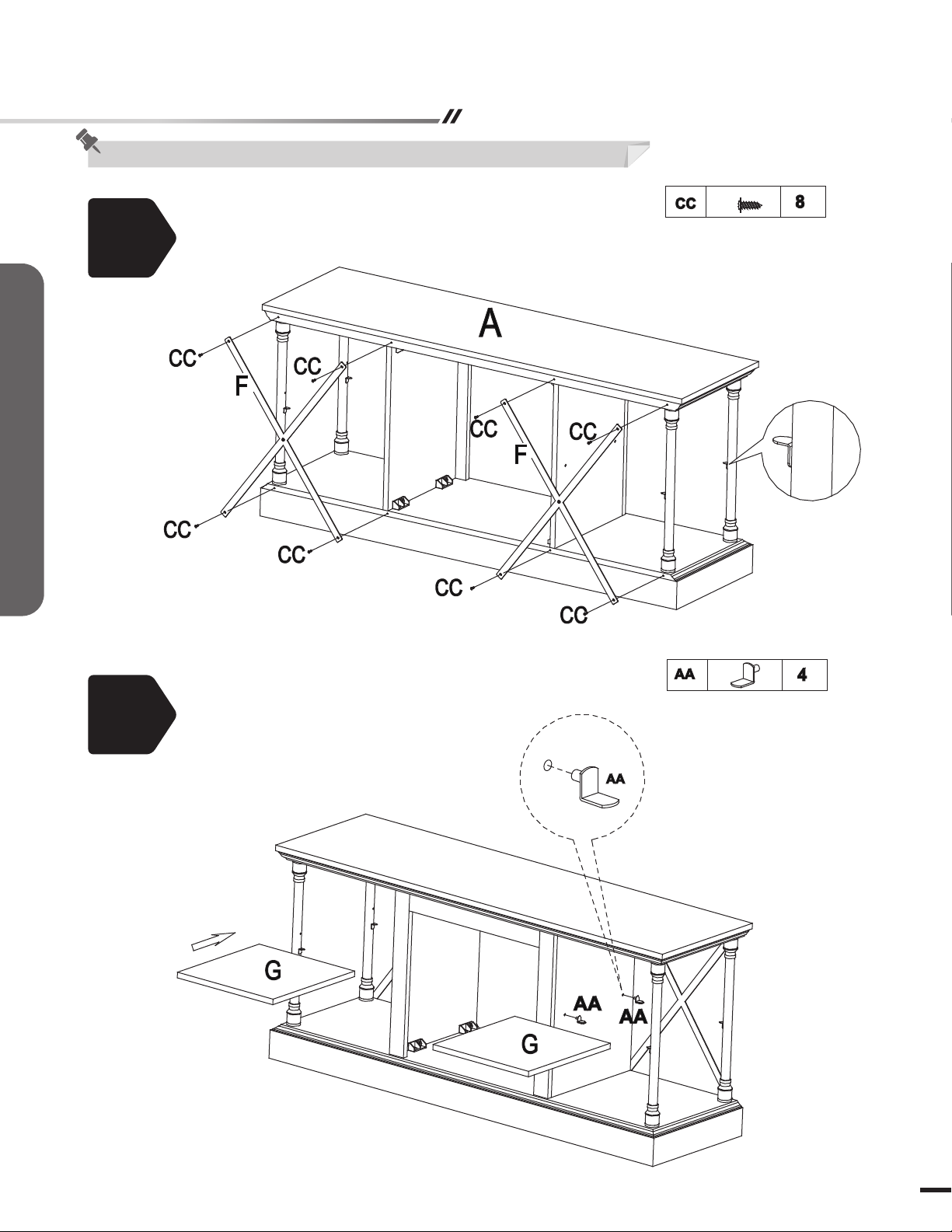

7.
8.

ASSEMBLY
Do not fully tighten screws during assembly. Only tighten when all parts are installed in place.
11
ASSEMBLY INSTRUCTIONS

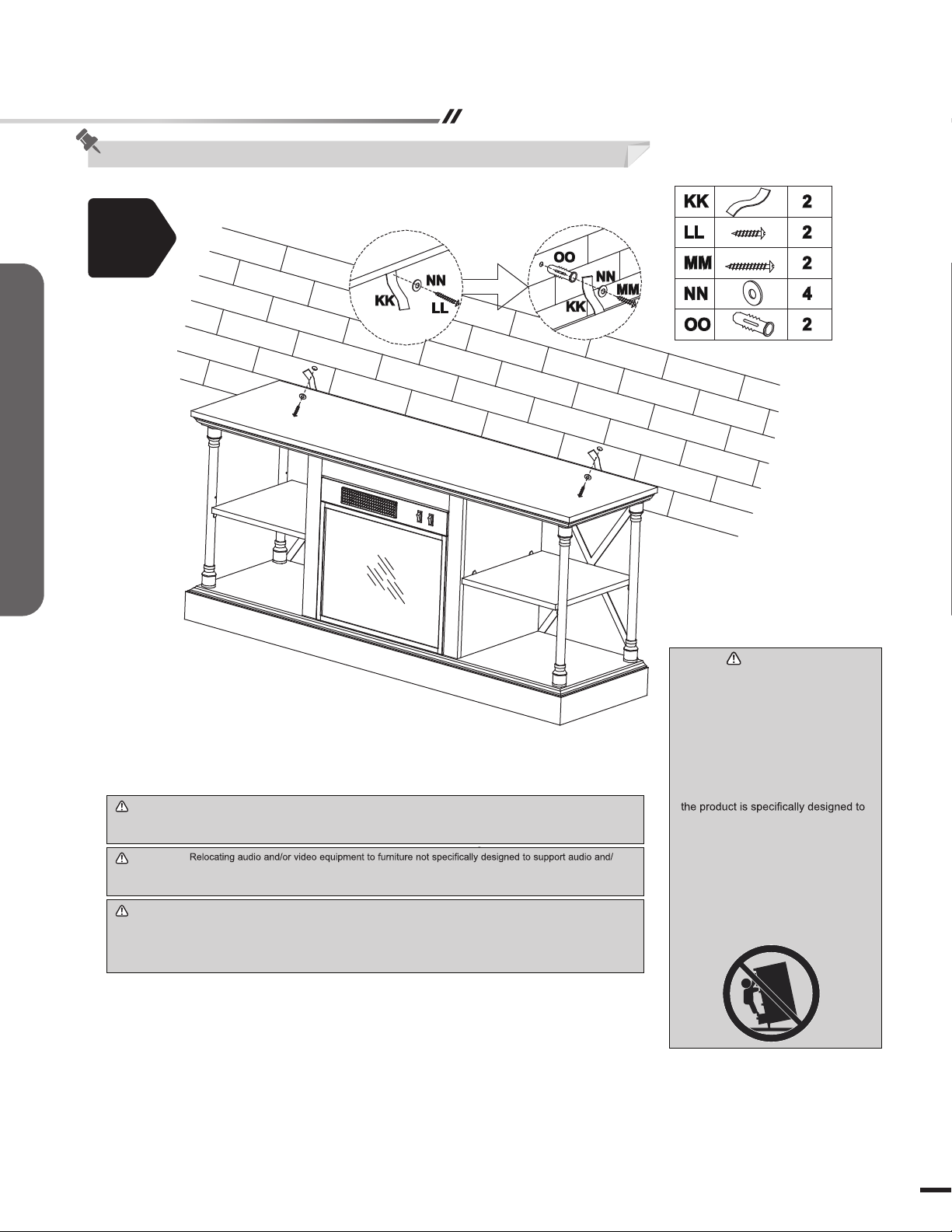

9.
Serious or fatal crushing injuries can
occur from furniture tip-over. To help
prevent tip-over:
•Instell tip-over restraint provided.
•Place heaviest items in the lowest
part of the unit.
•Do not set TV’s or other heavy
objects on top of this product, unless
accommodate them.
•Never allow children to climb or hang
on drawers, doors, or shelves.
•Never open more than one drawer at
a time.
•
Use of tip-over restraints may only
refuce, but not eliminate, the risk of
tip over.
WARNING
WARNING:
•If installing the mantel on drywall or other hollow wall applications, the safety mounting tape (KK) must be
fastened to studs, headers, or other structural wall members. The included plastic wall anchors (OO) are
intended for use with solid wall applications only (tile or concrete).
•DO NOT USE WITH DRYWALL OR OTHER HOLLOW WALL APPLICATIONS.
WARNING:
or video equipment may result in death or serious injury due to the furnishing collapsing or over turning onto a
child.
WARNING: Death or serious injury may occur when children climb on audio and/or video equipment furniture. A
remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result
the furnishing may tip over on to the child.

Firebox Model
12
FIREBOX OPERATIONS
ATTENTION:
warranty.
WARNING:
•If the information in this manual is not followed exactly, an electric shock or fire may result causing property
damage, personal injury or loss of life.
CAUTION:
•
(0.9m) from the front of the heater and away from the side and rear.
SP1816SC-HE
IMPORTANT INSTRUCTIONS
and injury to persons, including the following:
1. Read all instructions before installing or using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible
materials, such as furniture, pillows, bedding, papers, clothes, etc. and curtains at least 3 feet (0.9m) from the
front of the heater and keep them away from the sides and rear.
3. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is
left operating and unattended.
4. Do not operate any heater after it malfunctions. Disconnect power at service panel and have heater inspected by
a reputable electrician before reusing.
5. Do not use outdoors.
6. To disconnect heater, turn controls to off, and turn off power to heater circuit at main disconnect panel.
7. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric
8.
9.
vapors or liquids are used or stored.
10. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may
11. This heater includes an automatic protection system that will shut off the unit to prevent overheating. If the unit
is at risk of overheating, the front panel will display "E1" and a thermal cut out will shut off the heater to prevent
SAVE THESE INSTRUCTIONS
SAFETY INFORMATION

SAFETY INFORMATION
ELECTRICAL CONNECTION:
•A 15-amp, 120-volt, 60 Hz circuit with a properly grounded
outlet is required. Preferably, the fireplace will be on
a dedicated circuit as other appliances on the same
circuit may cause the circuit breaker to trip or the fuse
to blow when the heater is in operation. The unit comes
standard with 6-ft. three-wire cord, exiting from the rear
of the fireplace. DO NOT exceed the current rating of
the current tap. ALWAYS plug this unit directly into a wall
outlet/receptacle. NEVER use with an extension cord or
relocatable power tap (outlet/power strip).

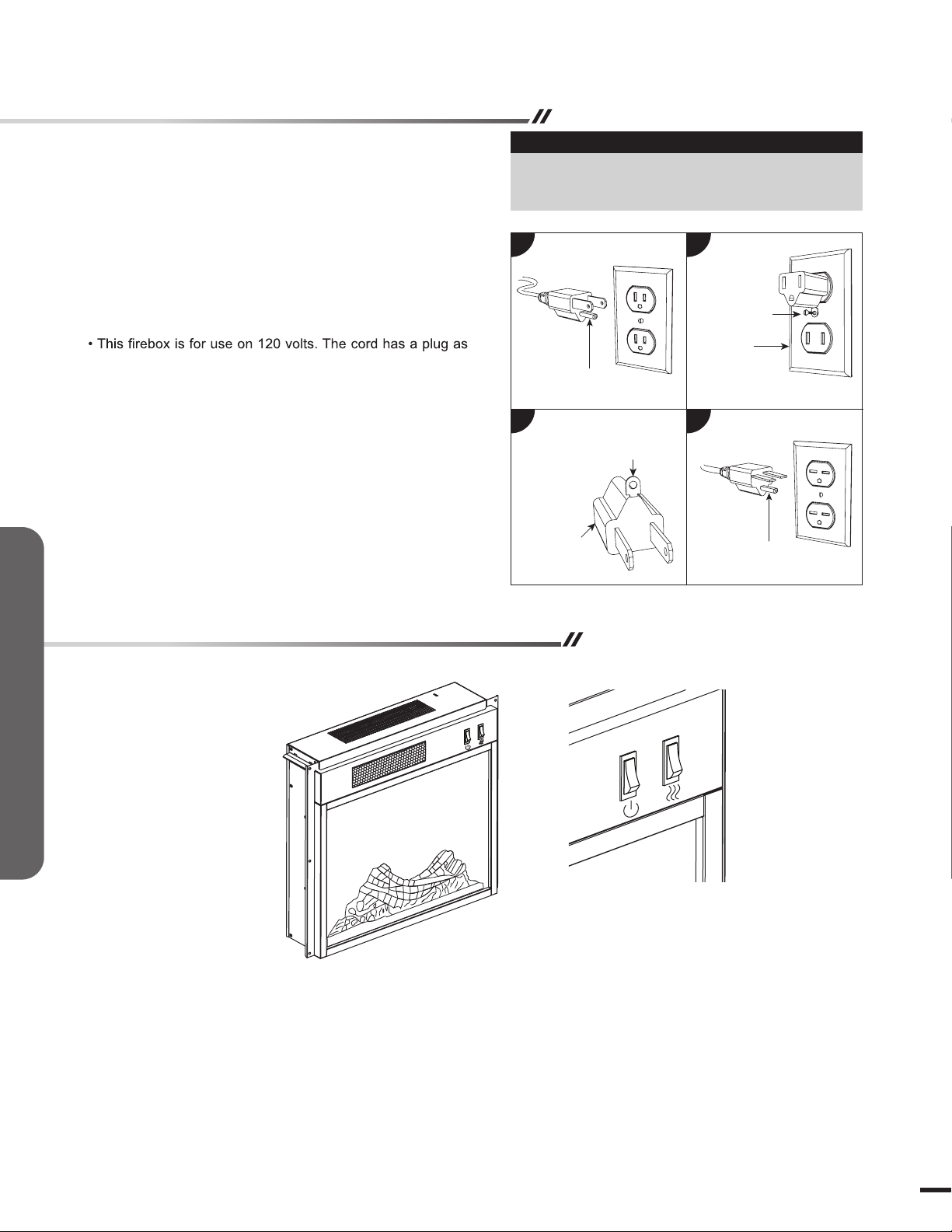

shown below. See illustration for grounding instruction. An
adapter as shown at C is available for connecting three-
blade grounding type plugs to two-slot receptacles. The
green grounding lug extending from the adapter must
be connected to a permanent ground such as a properly
grounded outlet box. The adapter should not be used if a
three-slot grounded receptacle is available.
Grounding Pin
Grounding Pin
Grounding Means
Adapter
A
C
B
D
Metal Screw
Cover of
Grounding Box
ELECTRICAL SPECIFICATIONS
Voltage:
Amps:
Watts:
120 VAC, 60 Hz
12.5 Amps
1500 Watts
13
FIREBOX OPERATIONS
OPERATING INSTRUCTIONS
TO ACCESS CONTROL PANEL
•Control panel can be accessed at upper right corner of insert.
POWER
•Press this switch for main power and flame effect. The indicator light will turn on.
HEATER
•The HEATER switch turns the heater ON and OFF.

14
FIREBOX OPERATIONS
CARE AND MAINTENANCE
NOTE: When the heater is not in use, it should be stored in a dry location, away from possible damage. The
power cord should be stored properly to avoid contact with hot or sharp objects.
WARNING: Make sure the power is turned off before proceeding. Any electrical repairs or rewiring of this unit
should be carried out by a licensed electrician in accordance with national and local codes.
If repairing or replacing an electrical component or wiring, the original wire routing, color coding and securing
locations must be followed.
WARNING: Electrical outlet wiring must comply with local building codes and other applicable regulations to
WARNING:
WARNING:
electrical shock or personal injury.
WARNING: During any service of this appliance, the power to the unit must be turned off. First turn the main
power switch to the "OFF" position. Then remove the electrical plug from the wall outlet.
CLEANING INFORMATION:
•Make sure the unit is turned off, unplugged and the heating elements of heater are cool whenever you are cleaning the
heater.
•Clean the metal trim using a water-dampened, soft, and clean cloth. DO NOT use brass polish or household cleaners as
these products will damage the metal trim.
•The motors used on the fan and the flame generator assembly are pre-lubricated for extended bearing life and
require no further lubrication. However, periodic cleaning/vacuuming of the fan/heater and air intake/output vents is
recommended.
PROBLEM POSSIBLE CAUSE SOLUTION
1. No power, logs do
not glow.
1. The unit does not have power. 1. Check that unit is plugged into a standard 120
volt outlet. Then make sure power is set at “ON”
2. Power cord gets
warm to the touch.
2. This is normal for a heater appliance as it
requires more current to operate. Check the
During use, check the plug and outlet frequently
the appliance and consult with a qualified
outlet(s).
excessively hot.
3. Flame effect
flash and heater
work.
3. Immediately turn the heater off, unplug the
unit and inspect for any objects on or adjacent to
the heater that may cause high temperatures.
TROUBLESHOOTING

Crafted in China
Distributed by Source Pro Industries Ltd. Workshop 15 & 18, 10/F Metro Centre
No. 32 Lam Hing Street, Kowloon Bay, Hong Kong
QUESTIONS, PROBLEMS, OR MISSING PARTS?
Please Contact Customer Service Before Returning to Store
[email protected] [phone]
www.soupro.com
Ver. 1
