Dimplex DF2524G User manual

7213530100R05
Owner’s Manual
Model
DF2524L
DF2524G
6908921359
6908921459
IMPORTANT SAFETY INFORMATION: Always read this manual rst
before attempting to install or use this replace. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.
To view the full line of Dimplex products, please visit
www.dimplex.com

2 www.dimplex.com
Table of Contents
Always use a qualied technician
or service agency to repair
this stove.
!NOTE: Procedures and
techniques that are
considered important
enough to emphasize.
CAUTION: Procedures and
techniques which, if not
carefully followed, will result
in damage to the equipment.
WARNING: Procedures
and techniques which, if not
carefully followed, will expose
the user to the risk of re,
serious injury, or death.
Welcome & Congratulations ..................3
IMPORTANT INSTRUCTIONS ................4
Fireplace Installation ........................6
Front Glass Installation .......................6
Mantel Installation ...........................7
Operation .................................8
Maintenance ..............................11
Warranty .................................12
Replacement Parts ..........................14

3
Welcome & Congratulations
Thank you and congratulations for choosing to purchase an electric
replace from Dimplex, the world leader in electric replaces.
Please carefully read and save these instructions.
CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result in a
possible electric shock, re hazard and will void the warranty.
Please record your model and serial numbers below for future
reference: model and serial numbers can be found on the Model and
Serial Number Label.
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-346-7539
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
Please have your model number and product serial
number ready. (See above)
S E R IAL No.
MODE L
MOD.

4 www.dimplex.com
When using electrical appliances,
basic precautions should always
be followed to reduce the risk of
fire, electric shock, and injury to
persons, including the following:
① Read all instructions before
using this heater.
② This heater is hot when in use.
To avoid burns, do not let bare
skin touch hot surfaces. The trim
around the heater outlet becomes
hot during heater operation.
WARNING: High tempera-
tures may be generated under
certain abnormal conditions.
Do not partially or fully cover
or obstruct the front of this
heater.
③ Extreme caution is necessary
when any heater is used by or
near children or invalids and
whenever the unit is left operating
and unattended.
④ Always unplug the heater when
not in use.
⑤ Do not operate any heater with
a damaged cord or plug, or if the
heater has malfunctioned, or if it
has been dropped or damaged
in any manner. Return heater
to authorized service facility
for examination, electrical or
mechanical adjustment, or repair.
IMPORTANT INSTRUCTIONS
⑥ Do not use outdoors.
⑦ This heater is not intended for
use in bathrooms, laundry areas
and similar indoor locations.
Never locate this heater where
it may fall into a bathtub or other
water container.
⑧ Do not run cord under
carpeting. Do not cover cord with
throw rugs, runners, or the like.
Arrange cord away from trafc
area and where it will not be
tripped over.
⑨ To disconnect heater, turn
controls to off, then remove plug
from outlet.
⑩Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or re, or
damage the heater.
⑪ To prevent a possible re, do
not block air intakes or exhaust
in any manner. Do not use on
soft surfaces, like a bed, where
openings may become blocked.
⑫ All electrical heaters have
hot and arcing or sparking parts
inside. Do not use in areas where
gasoline, paint, or ammable
liquids are used or stored or
where it will be exposed to
ammable vapors.

5
SAVE THESE INSTRUCTIONS
⑬ Do not modify the heater.
Use it only as described in
this manual. Any other use
not recommended by the
manufacturer may cause re,
electric shock, or injury to
persons.
⑭ To reduce the risk of electric
shock, this heater has a polarized
plug (one blade is wider than
the other). This plug will t in a
polarized outlet only one way.
If the plug does not t fully in
the outlet, reverse the plug.
If it still does not t, contact a
qualied electrician to install the
proper outlet. Do not change
the plug in any way. Always plug
heaters directly into a wall outlet/
receptacle. Never use with an
extension cord or relocatable
power tap (outlet/power strip).
⑮ Do not burn wood or other
materials in the replace.
⑯ Do not strike the front glass.
⑰Always use a certied
electrician should new circuits or
outlets be required.
⑱ Always use properly grounded,
fused and polarized outlets.
⑲ Disconnect all power supply
before performing any cleaning,
maintenance or relocation of the
heater.
⑳ When transporting or storing
the heater and cord, keep in a
dry place, free from excessive
vibration and store so as to avoid
damage.
WARNING: Remote control
contains a small battery.
Keep away from children. If
swallowed, seek medical attention
immediately.
WARNING: Do not install
battery backwards, charge, put
in re or mix with used or other
battery types - may explode or
leak causing injury.
!NOTE: Changes or
modications not expressly
approved by the party responsible
for compliance could void
user's authority to operate the
equipment.
IMPORTANT INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE

6 www.dimplex.com
Fireplace Installation
!NOTE: A 15 Amp, 120 Volt
alternating current (VAC) circuit
is required. A dedicated circuit
is preferred but not essential in
all cases. A dedicated circuit will
be required if, after installation,
the circuit breaker trips or fuse
blows on a regular basis when the
heater is operating. Additional
appliances on the same circuit
may exceed the current rating of
the circuit breaker.
WARNING: Ensure the power
cord is not installed so that it is
pinched or against a sharp edge
and ensure that the power cord is
stored or secured to avoid tripping
or snagging to reduce the risk
of re, electric shock or injury to
persons.
Construction and electrical outlet
wiring must comply with local
building codes and other applica-
ble regulations to reduce the risk
of re, electric shock and injury to
persons. Do not attempt to wire
your own new outlets or circuits.
To reduce the risk of re, electric
shock or injury to persons, always
use a licensed electrician.

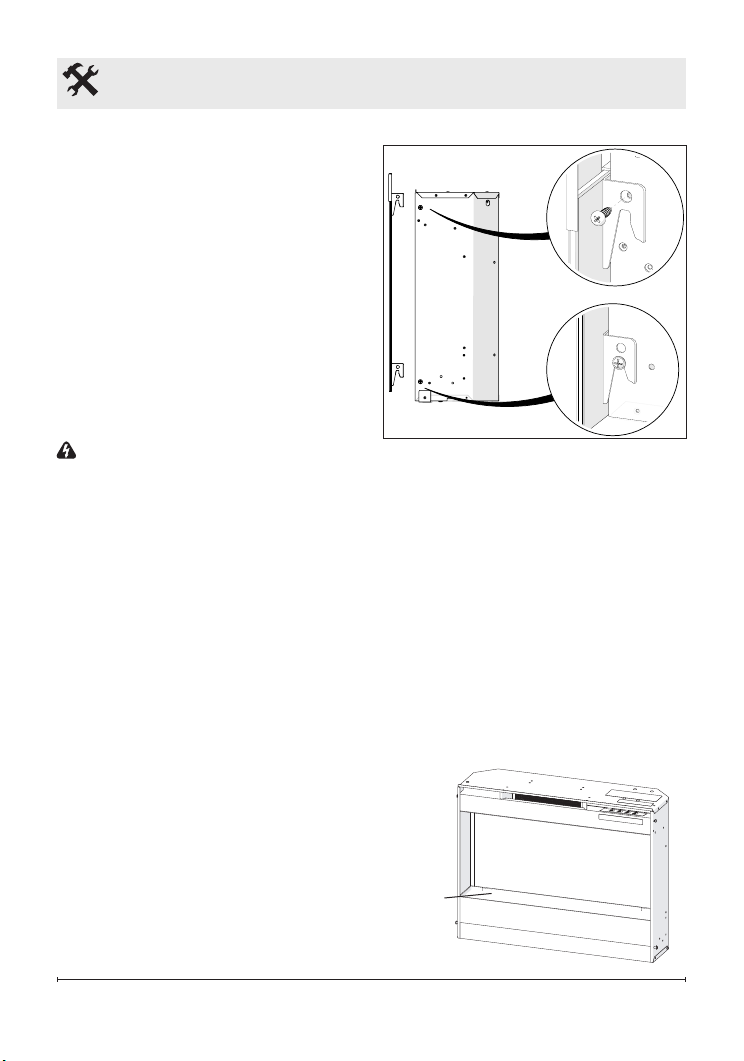

Front Glass Installation
1. Unpack the glass assembly.
2. If applicable, carefully pour
and evenly distribute the sup-
plied media in the Media tray
of the rebox (Figure 2).
3. Hang bottom bracket on
screw at the bottom of the
rebox. (Figure 1)
4. Secure the top bracket to re-
box using screws provided in
the hardware bag. (Figure 1)
Figure 1
Figure 2
Media
Tray

7

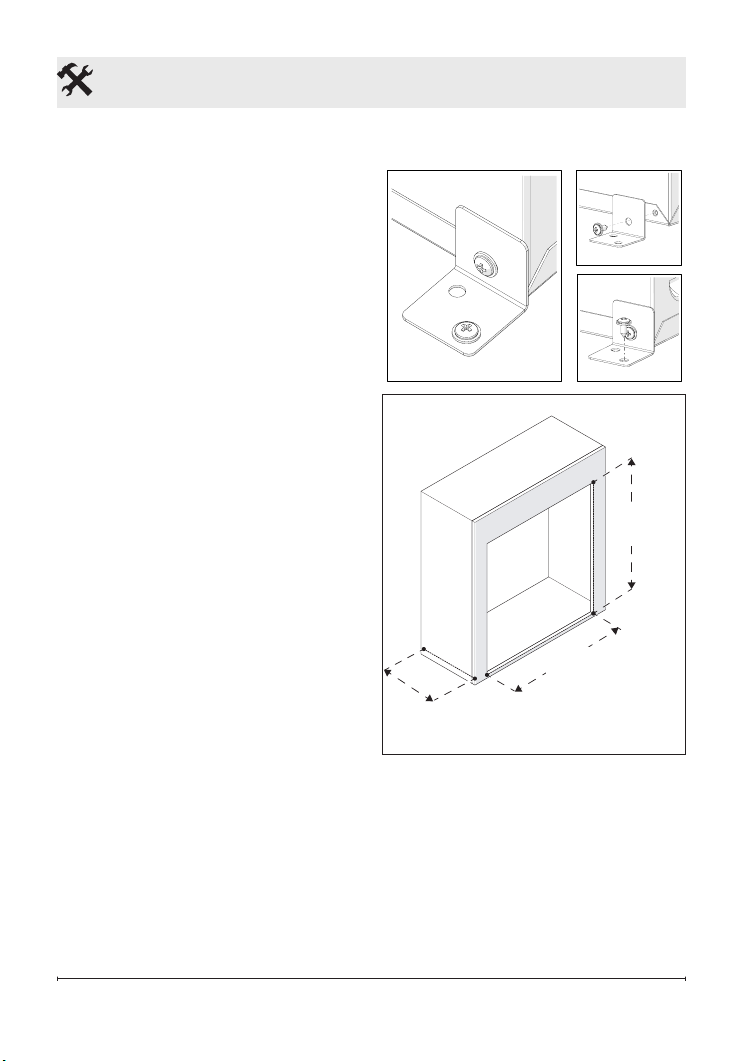

Mantel Installation
For use with a new or existing
mantel. Depending on the avail-
able space within the mantel cav-
ity, the unit can be secured to the
mantel at the bottom side or back.
Remove the screw on the bottom
ange in the most appropriate
place for securing and using the
provided L-bracket and the screw
that was removed attach the re-
box to the mantel. (Figure 3)
!NOTE: There are no guide
holes provided for the L-Brackets
in the mantel.
If not installing the unit into a
Dimplex mantel the required
opening dimensions for the
replace are: 24.0 in. (610 mm)
wide x 18 ⅜ in. (467 mm) high x
7 ½ in. (191 mm) deep (Figure 4).
The rebox is to be installed
from the front of the mantel and
inserted so that the anges are
ush against the front surface of
the mantel.
Fireplace Installation
Figure 3
Figure 4
24.0 in.
(610 mm)
18 ⅜ in.
(467 mm)
7 ½ in.
(191 mm)

8 www.dimplex.com
Operation
The unit can be controlled by
either the manual controls which
are located on the upper right of
the replace or the remote (Figure
5 & 6).
The replace is supplied with an
IR multifunction remote control.
!NOTE: To operate correctly,
the remote control must be point-
ed towards the front of the unit.
A. Standby
Turns the unit On and Off.
→ Activated by pressing the
Standby button on the remote or
the unit.
• The unit will turn on with the
same functions that it was set
to when it was turned Off and
the intake temperature will be
indicated on the On Screen
Display.
!NOTE: When any button is
pressed the intake tempera-
ture will be displayed on the On
Screen Display for 5 seconds.
B. Flame Effects
Units with Logsets
Cycles through the different
Lighting Effects: Flames and
Log, Flame only, Log Only,
Flames and Log Off.
→ Activated by pressing the
button on the remote or the unit.
Units with Glass Media
The Flames can be turned off
by pressing the button, then
again to turn back on.
→ Activated by pressing the
button on the remote or the unit.
Figure 6
Figure 5
AB C FA
D
BC
E
F
CF
On Screen Display

9
Operation
C. Heat ON/OFF
Turns the heater function On
and Off based on the thermostat
setpoint.
→ Activated by pressing the
button on the unit or the remote.
• Indicated by the icon and
the intake temperature being
displayed on the On Screen
Display, for 5 seconds before
turning off.
!NOTE: The unit can be oper-
ated in Heat Only Mode. When
the unit is only running with the
heater, the icon and the intake
temperature will continuously
be displayed on the On Screen
Display.
!NOTE: The heater may emit
a slight, harmless odor when rst
used. This odor is a normal con-
dition caused by initial heating of
internal heater parts and will not
occur again.
D & E. Thermostat Controls
Adjusts the temperature set point
to your individual requirements.
Once the desired set temperature
is reached the heater will turn off.
The heater will cycle on and off
to maintain the desired set tem-
perature. The default temperature
setting is 72°F (22°C).
→ Adjusted by pressing the
to decrease the setpoint and the
to increase the setpoint on the
remote.
• The On Screen Display will in-
dicate the temperature setpoint
as it is adjusted.
!NOTE: Holding the button
down on the unit will change the
temperature from °C to °F, or vice
versa.
Disable Heat
If desired, depending on the sea-
son, the heater on the unit can be
disabled. The unit will operate in
the same fashion, with remainder
of the controls.
Pressing the and buttons
on the unit at the same time and
holding for 2 seconds will disable
and enable the heater.
!NOTE: When the heater has
been disabled and either the
or the is pressed the On
Screen Display will indicate "--".
F. Sleep Timer
The Sleep Timer can be set to
automatically shut off the replace
after a preset time (from 30 min-

10 www.dimplex.com
Remote Control Battery
Replacement
To replace the battery:
1. On the back of the remote
control, turn the battery cover
counter-clockwise to remove
the cover.
2. Correctly install one 3 Volt
(CR2032) battery in the battery
holder.
3. Close the battery cover.
Battery must be recycled
or disposed of properly.
Check with your Local
Authority or Retailer for recycling
advice in your area
Operation
utes to 8 hours).
→ To set the timer press the timer
button on either the remote or the
unit, repeatedly, until the desired
time is displayed.
• The On Screen Display will
display the different times as it
is adjusted. Once the timer has
begun, pressing the button
will display the time remaining
before the unit turns Off.
!NOTE: The Sleep Timer can
be cancelled at any time by
pressing the button repeat-
edly until the sleep timer displays
nothing.
Resetting the Temperature
Cutoff Switch
Should the heater overheat, an
automatic cut out will turn the
heater off and it will not come
back on without being reset. It
can be reset by unplugging the
unit and waiting 5 minutes before
plugging the unit back in.
CAUTION: If you need to con-
tinuously reset the heater, unplug
the unit and call technical support
at 1-888-346-7539.

11
WARNING: Disconnect
power before attempting any
maintenance or cleaning to
reduce the risk of re, electric
shock or damage to persons.
Glass Cleaning
The glass is cleaned in the factory
during the assembly operation.
During shipment, installation,
handling, etc., the front glass
panel may collect dust particles;
these can be removed by dusting
lightly with a clean dry cloth.
To remove ngerprints or other
marks, the front glass panel can
be cleaned with a damp cloth.
The front glass panel should be
completely dried with a lint free
cloth to prevent water spots. To
prevent scratching, do not use
abrasive cleaners or spray liquids
on the glass surface.
Compact Fireplace
Surface Cleaning
Use warm water only to clean
painted surfaces of the Compact
Fireplace. Do not use abrasive
cleaners.
Servicing
Except for the cleaning described
above, an authorized service rep-
resentative should perform any
other servicing.
Maintenance

12 www.dimplex.com
One Year Limited Warranty
Products to which this limited warranty
applies
This limited warranty applies to your newly
purchased Dimplex electric replace. This
limited warranty applies only to purchases
made in any province of Canada except
for Yukon Territory, Nunavut, or Northwest
Territories or in any of the 50 States of
the USA (and the District of Columbia)
except for Hawaii and Alaska. This
limited warranty applies to the original
purchaser of the product only and is not
transferable.
Products excluded from this limited
warranty
Light bulbs are not covered by this
limited warranty and are the sole
responsibility of the owner/purchaser.
Products purchased in Yukon Territory,
Nunavut, Northwest Territories, Hawaii,
or Alaska are not covered by this limited
warranty. Products purchased in these
States, provinces, or territories are sold
AS IS without warranty or condition of
any kind (including, without limitation,
any implied warranties or conditions of
merchantability or tness for a particular
purpose) and the entire risk of as to the
quality and performance of the products
is with the purchaser, and in the event
of a defect the purchaser assumes the
entire cost of all necessary servicing or
repair.
What this limited warranty covers and for
how long
Products covered by this limited warranty
have been tested and inspected prior to
shipment and, subject to the provisions
of this warranty, Dimplex warrants such
products to be free from defects in
material and workmanship for a period
of 12 months from the date of the rst
purchase of such product.
The limited 12 month warranty period
also applies to any implied warranties that
may exist under applicable law. Some
jurisdictions do not allow limitations on
how long an implied warranty lasts, so
the above limitation may not apply to the
purchaser.
What this limited warranty does not cover
This limited warranty does not apply to
products that have been repaired (except
by Dimplex or its authorized service
representatives) or otherwise altered. This
limited warranty does further not apply
to defects resulting from misuse, abuse,
accident, neglect, incorrect installation,
improper maintenance or handling, or
operation with an incorrect power source.
What you must do to get service under
this limited warranty
Defects must be brought to the attention of
Dimplex Technical Service by contacting
Dimplex at 1-888-346-7539, or 1367
Industrial Road, Cambridge Ontario,
Canada N1R 7G8. Please have proof
of purchase, catalogue/model and serial
numbers available when calling. Limited
warranty service requires a proof of
purchase of the product.
What Dimplex will do in the event of a
defect
In the event a product or part covered
by this limited warranty is proven to be
defective in material or workmanship
during the 12 month limited warranty
period you have the following rights:
Warranty

13
• Dimplex will in its sole discretion
either repair or replace such
defective product or part without
charge. If Dimplex is unable to
repair or replace such product or
part, or if repair or replacement is
not commercially practicable or
cannot be timely made, Dimplex
may, in lieu of repair or replacement,
choose to refund the purchase price
for such product or part.
• Limited warranty service will be
performed solely by dealers or
service agents of Dimplex authorized
to provide limited warranty services.
• The purchaser is responsible for
removal and transportation of such
product or part (and any repaired
or replacement product or part) to
and from the authorized dealer’s or
service agent’s place of business.
• This limited warranty does not entitle
the purchaser to on-site or in-
home services. On-site or in-home
services may be performed at the
purchaser’s specic request and
expense at Dimplex’s then-current
rates for such services.
• Dimplex will not be responsible for,
and the limited warranty services
shall not include, any expense
incurred for installation or removal
of the product or part (or any
replacement product or part) or
any labour or transportation costs.
Such costs shall be the purchaser’s
responsibility.
What Dimplex and its dealers and service
agents are also not responsible for:
IN NO EVENT WILL DIMPLEX, OR ITS
DIRECTORS, OFFICERS, OR AGENTS,
BE LIABLE TO THE PURCHASER OR
ANY THIRD PARTY, WHETHER IN
CONTRACT, IN TORT, OR ON ANY
OTHER BASIS, FOR ANY INDIRECT,
SPECIAL, PUNITIVE, EXEMPLARY,
CONSEQUENTIAL, OR INCIDENTAL
LOSS, COST, OR DAMAGE ARISING
OUT OF OR IN CONNECTION WITH
THE SALE, MAINTENANCE, USE, OR
INABILITY TO USE THE PRODUCT,
EVEN IF DIMPLEX OR ITS DIRECTORS,
OFFICERS, OR AGENTS HAVE BEEN
ADVISED OF THE POSSIBILITY OF
SUCH LOSSES, COSTS OR DAMAGES,
OR IF SUCH LOSSES, COSTS, OR
DAMAGES ARE FORESEEABLE. IN
NO EVENT WILL DIMPLEX, OR ITS
OFFICERS, DIRECTORS, OR AGENTS
BE LIABLE FOR ANY DIRECT LOSSES,
COSTS, OR DAMAGES THAT EXCEED
THE PURCHASE PRICE OF THE
PRODUCT.
SOME JURISDICTIONS DO NOT
ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATION OR EXCLUSION
MAY NOT APPLY TO THE PURCHASER.
How State and Provincial law apply
This limited warranty gives you specic
legal rights, and you may also have other
rights which vary from jurisdiction to
jurisdiction. The provisions of the United
Nations Convention on Contracts for
the Sale of Goods shall not apply to this
limited warranty or the sale of products
covered by this limited warranty.
Warranty

14 www.dimplex.com
Replacement Parts
© 2014 Dimplex North America Limited
Dimplex North America Limited
1367 Industrial Road
Cambridge ON
Canada N1R 7G8
Flicker Motor ................................ 2000220100RP
Heater Assembly (with Cutout) .................. 2203610100RP
Thermistor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3001380100RP
Cord Set ................................... 4100090204RP
Flicker Rod ................................. 5902620200RP
Partially Reective Panel ....................... 5902580200RP
Front Glass ................................. 5902640100RP
Felt Feet Pads (set of 4) ....................... 8600140101RP
Log Set Assembly ............................ 0440590400RP
Glass Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1400070100RP
Display/ Control Board
Units with Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3001350200RP
Units with Glass Media. . . . . . . . . . . . . . . . . . . . . . 3001350300RP
Switchboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3001370100RP
Relay Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3001360100RP
AC/DC Adapter .............................. 2100250100RP
LED Light Assembly (2 LED's). . . . . . . . . . . . . . . . . . . 3001390100RP
LED Light Assembly (3 LED's). . . . . . . . . . . . . . . . . . . 3001390200RP
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6700510200RP
