Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08 1
Owner’s Manual
Installation and Operation
Models:
Dakota 42-B
Dakota 42H-B
DO NOT DISCARD THIS MANUAL
CAUTION
• Important operating
and maintenance
instructions included.
• Leave this
manual with party
responsible for use
and operation.
• Read, understand
and follow these
instructions for safe
installation and
operation.
DO NOT
DISCARD
Installation and service of this appliance should
be performed by qualified personnel. Hearth &
Home Technologies suggests NFI certified or
factory-trained professionals, or
technicians supervised by an NFI
certified professional.
This appliance must be installed outside.
Note: An arrow (¨) found in the text signifies change in
content.
If the information in these instruc-
tions is not followed exactly, a
fire may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas:
- Do not try to light any appliance.
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or
the gas supplier.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation and cool down.
WARNING
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other combustibles
away.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away

2 Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.
Congratulations on selecting a Heat & Glo LifeStyle Collection
gas appliance—an elegant and clean alternative to wood
burning appliances. The Heat & Glo LifeStyle Collection gas
appliance you have selected is designed to provide the utmost
in safety, reliability, and efficiency.
As the owner of a new appliance, you’ll want to read and
carefully follow all of the instructions contained in this owner’s
manual. Pay special attention to all cautions and warnings.
This owner’s manual should be retained for future reference.
We suggest you keep it with your other important documents
and product manuals.
The information contained in this owner’s manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Heat & Glo LifeStyle Collection gas appliance will
give you years of durable use and trouble-free enjoyment.
Welcome to the Heat & Glo LifeStyle Collection family of
appliance products!

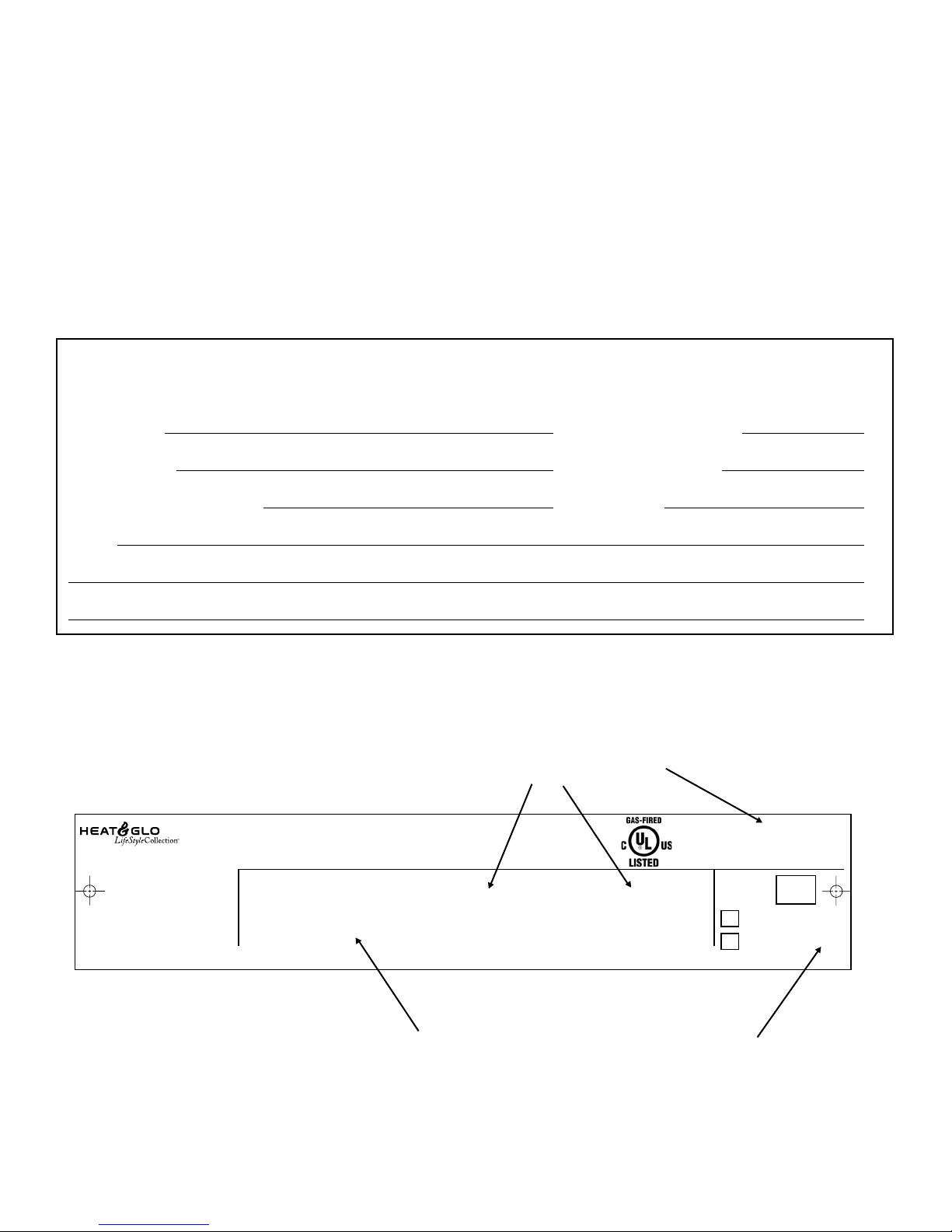

Homeowner Reference Information
Model Name: Date purchased/installed:
Serial Number: Location on appliance:
Dealership purchased from: Dealer phone:
Notes:
We recommend that you record the following pertinent
information about your appliance:
Listing Label Information/Location
The model information regarding your specific appliance can be found on the rating plate usually located in the control area
of the appliance.
Congratulations
Model Number
Serial Number
Type of Gas
Gas and Electric Information
This appliance must be installed in accordance with local codes, if any; if not, follow ANSI Z223.1 in
the USA installation codes.
ANSI Z21.50-2003 - CSA 2.22-M2003
Serial (Serie):
Mfg. Date:
Vented gas fireplace - for outdoor installation
only. Not for use with solid fuel. (Foyer au
gaz à évacuation - pour installation à
l'extérieur seulement. Ne doit pas entre
utilise avec un combustible solide.)
Minimum Permissible Gas Supply for Purposes
of Input Adjustment. Natural Gas Propane Gas
Approved Minimum (De Gaz) Acceptable . . 7.0 in. w.c. (Po. Col. d'eau) . . .11.0 in. w.c. (Po. Col. d'eau)
Maximum Pressure (Pression) . . . . . . . . . . 10.0 in. w.c. (Po. Col. d'eau) . .14.0 in. w.c. (Po. Col. d'eau)
Maximum Input BTUH: . . . . . . . . . . . . . . . . 60,000 . . . . . . . . . . . . . . . . . . .53,000
Orifice Size: . . . . . . . . . . . . . . . . . . . . . . . . #25DMS . . . . . . . . . . . . . . . . . .#44DMS
This product is covered by one or more of the following patents: (Nos produits sont couverts par un ou plusieurs des brevels suivants): (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322; 4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254; 5,191,877;
5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia) 543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending (ou autres brevets americains et etrangers en attente).
DAKOTA42-B
DAKOTA42L-B
4036-994A
MADE
IN USA
Model
(Modele):
VENTED GAS
FIREPLACE
8R54
Heat & Glo Lifestyle Products
Hearth & Home Technologies Inc.
20802 Kensington Blvd., Lakeville, MN 55044
OD

Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08 3
Table of Contents
1 Listing and Code Approvals
A. Appliance Certification. . . . . . . . . . . . . . . . . . . . . . . . . 4
B. Glass Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 4
C. BTU Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
D. High Altitude Installations . . . . . . . . . . . . . . . . . . . . . . 4
2 Getting Started
A. Design and Installation Considerations . . . . . . . . . . . . 5
Moisture Resistance: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
B. Tools and Supplies Needed. . . . . . . . . . . . . . . . . . . . . 6
C. Inspect Appliance and Components . . . . . . . . . . . . . . 6
3 Framing and Clearances
A. Select Appliance Location . . . . . . . . . . . . . . . . . . . . . . 7
B. Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

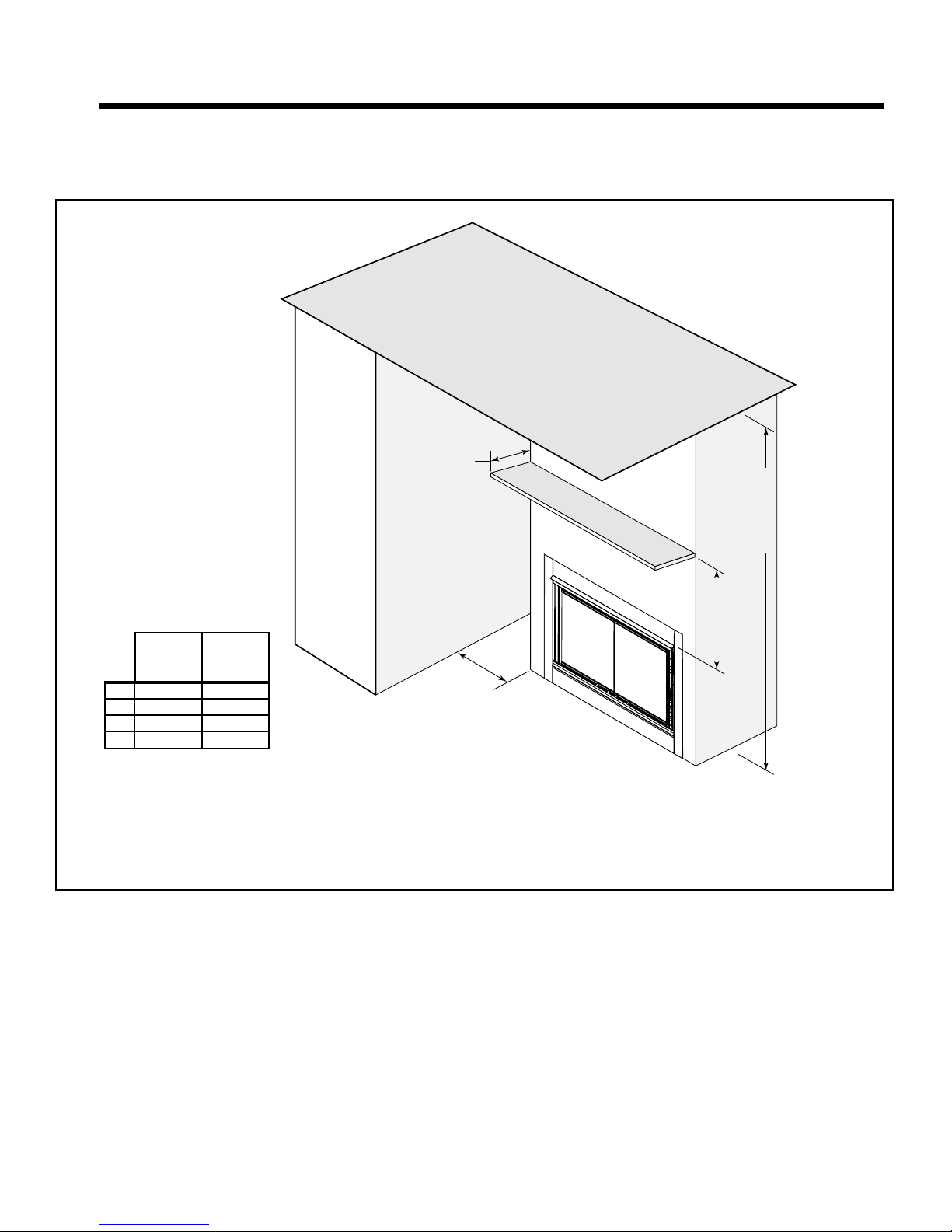

C. Mantel Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4 Termination Locations

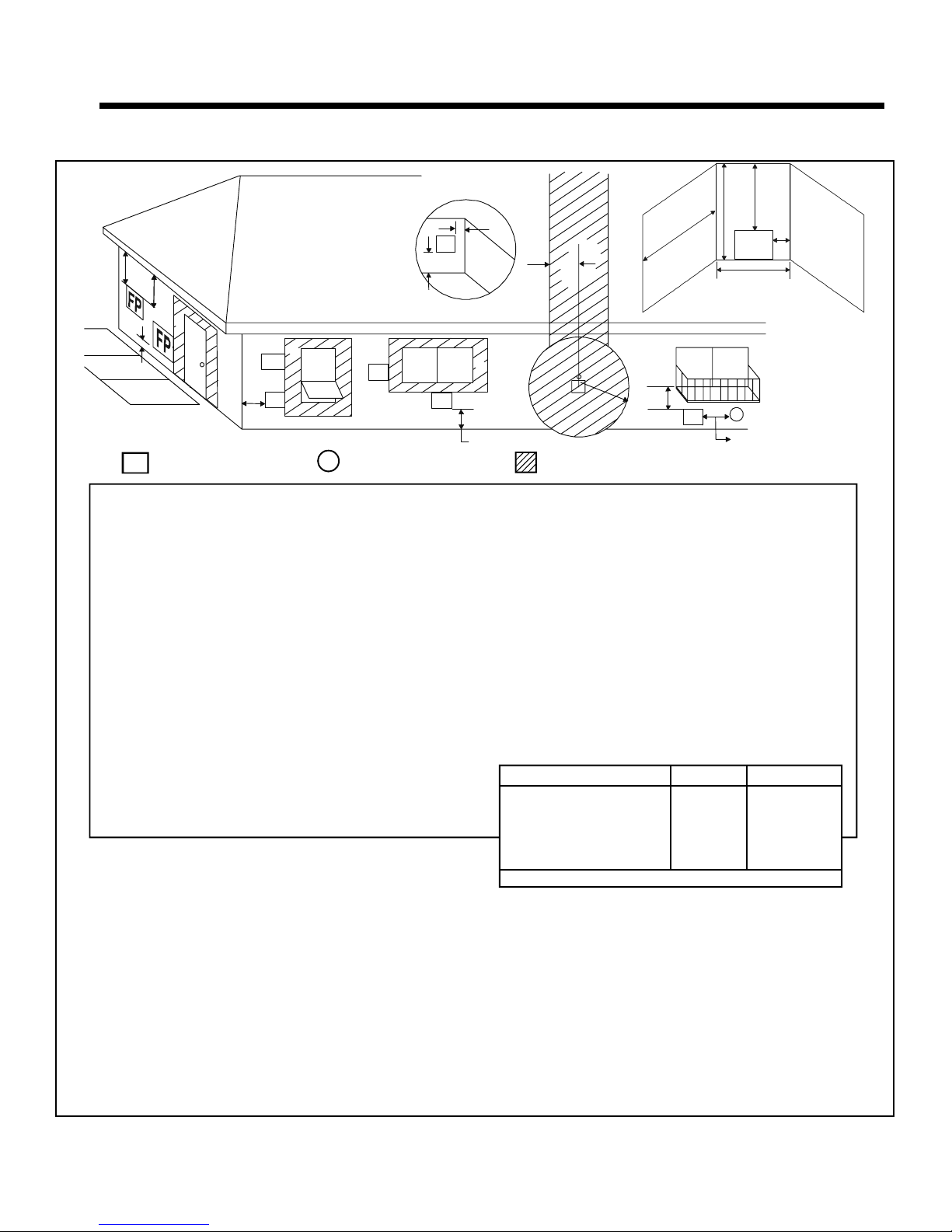

A. Vent Termination Minimum Clearances . . . . . . . . . . . . 9
5 Appliance Preparation
A. Remove Logs and Shipping Cover . . . . . . . . . . . . . . 10
B. Securing and Leveling Appliance . . . . . . . . . . . . . . . 10
6 Gas Information
A. Fuel Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
B. Gas Pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
C. Gas Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
D. High Altitude Installations . . . . . . . . . . . . . . . . . . . . . 12
E. Valve Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7 Electrical Information
A. Intellifire Ignition System Wiring . . . . . . . . . . . . . . . . 14
8 Finishing
A. Mantel Projections. . . . . . . . . . . . . . . . . . . . . . . . . . . 15

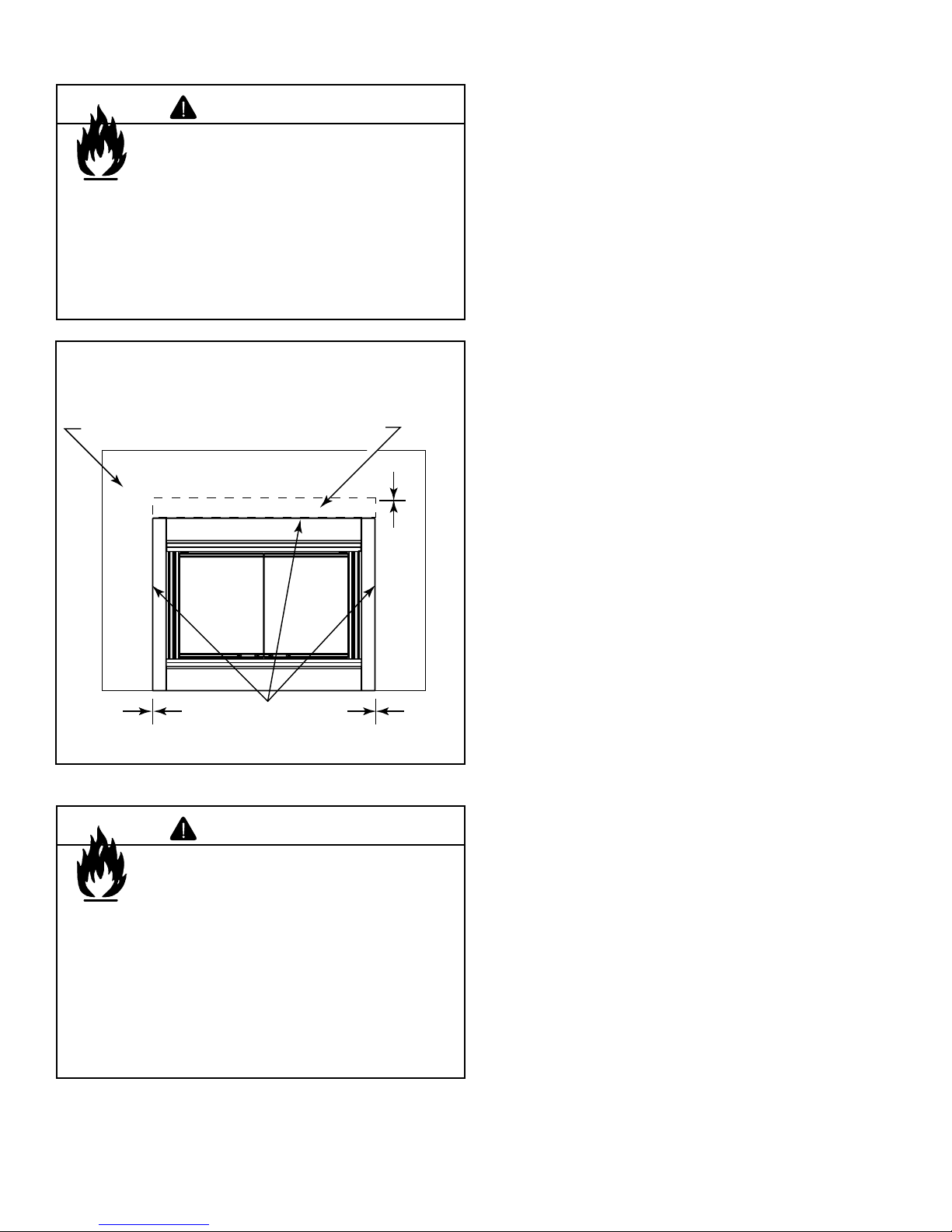

B. Facing Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9 Appliance Setup
A. Clean the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . 17
B. Grate Assembly Placement . . . . . . . . . . . . . . . . . . . . 17

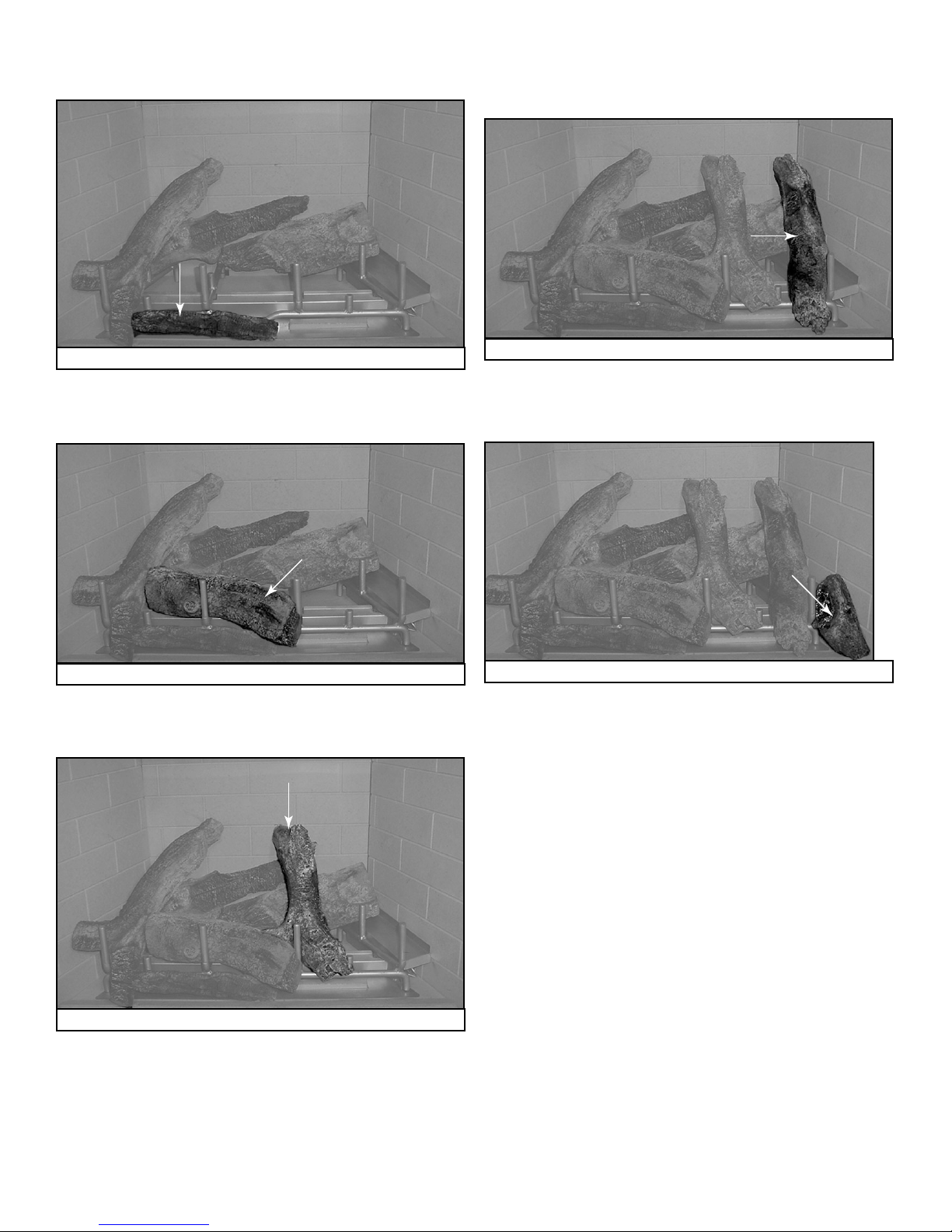

C. Positioning the Logs . . . . . . . . . . . . . . . . . . . . . . . . . 17
D. Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
E. Placing Lava Rock. . . . . . . . . . . . . . . . . . . . . . . . . . . 19
F. Reinstall Door Lock . . . . . . . . . . . . . . . . . . . . . . . . . . 19
10 Operating Instructions
A. Before Lighting Appliance . . . . . . . . . . . . . . . . . . . . . 20
B. Lighting the Appliance . . . . . . . . . . . . . . . . . . . . . . . . 21
C. After the Appliance is Lit . . . . . . . . . . . . . . . . . . . . . . 22
D. Frequently Asked Questions . . . . . . . . . . . . . . . . . . . 22
11 Troubleshooting
A. Intellifire Ignition System . . . . . . . . . . . . . . . . . . . . . . 23
12 Maintaining and Servicing the Appliance
A. Valve Service and Replacement . . . . . . . . . . . . . . . . 25
B. Battery Replacement. . . . . . . . . . . . . . . . . . . . . . . . . 26
B. Maintenance and Service Tasks:. . . . . . . . . . . . . . . . 27
13 Reference Materials
A. Appliance Dimension Diagram . . . . . . . . . . . . . . . . . 28
B. Service Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
C. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
D. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . 36

4 Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08
1
1 Listing and Code Approvals
A. Appliance Certification
This product is listed to ANSI standards for “Vented Gas
Fireplaces” and applicable sections of “Gas Burning Heating
Appliances for Manufactured Homes and Recreational Vehi-
cles”, and “Gas Fired Appliances for Use at High Altitudes”.
Do NOT use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
WARNING
MODELS: Dakota 42-B, Dakota 42H-B
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Vented Gas Appliance
STANDARD: ANSI Z21.50-2003—CSA2.22-M2003
Note: This installation must conform with local codes. In the
absence of local codes you must comply with the National
Fuel Gas Code, ANSI Z223.1-latest edition in the U.S.A.
and the CAN/CGA B149 Installation Codes in Canada.
B. Glass Specifications
Hearth & Home Technologies appliances manufactured with
tempered glass may be installed in hazardous locations such
as bathtub enclosures as defined by the Consumer Product
Safety Commission (CPSC). The tempered glass has been
tested and certified to the requirements of ANSI Z97.1 and
CPSC 16 CFR 1202 (Safety Glazing Certification Council
SGCC# 1595 and 1597. Architectural Testing, Inc. Reports
02-31919.01 and 02-31917.01).
This statement is in compliance with CPSC 16 CFR Section
1201.5 “Certification and labeling requirements” which refers
to 15 U.S. Code (USC) 2063 stating “…Such certificate shall
accompany the product or shall otherwise be furnished to
any distributor or retailer to whom the product is delivered.”
Some local building codes require the use of tempered glass
with permanent marking in such locations. Glass meeting
this requirement is available from the factory. Please contact
your dealer or distributor to order.
Models
Maximum
Input BTUH
Orifice Size
(DMS)
Dakota 42-B (NG) 60,000 25
Dakota 42-B (LP) 53,000 44
D. High Altitude Installations
U.L. Listed gas appliances are tested and approved without
requiring changes for elevations from 0 to 2000 feet in the
U.S.A. and Canada.
When installing this appliance at an elevation above 2000 ft,
it may be necessary to decrease the input rating by chang-
ing the existing burner orifice to a smaller size. Input rate
should be reduced by 4% for each 1000 ft above a 2000 ft
elevation in the U.S.A., or 10% for elevations between 2000
and 4500 ft in Canada. If the heating value of the gas has
been reduced, these rules do not apply. To identify the prop-
er orifice size, check with the local gas utility.
If installing this appliance at an elevation above 4500 ft (in
Canada), check with local authorities.
C. BTU Specifications

Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08 5
A. Design and Installation Considerations
Check building codes prior to installation.
• Installation MUST comply with local, regional,
state and national codes and regulations.
• Consult insurance carrier, local building, fire
officials or authorities having jurisdiction about
restrictions, installation inspection, and permits.
CAUTION
When planning an appliance installation, it’s necessary to
determine the following information before installing:
• Where the appliance is to be installed.
• Gas supply piping.
• Electrical wiring.
• Framing and finishing details.
2
2 Getting Started
Moisture Resistance:
This outdoor fireplace will shed moderate amounts of water,
but is not waterproof. Water and condensing water vapor
may enter the chase under certain conditions.
The fireplace will not perform as an exterior wall. Moisture
penetration must be considered for construction that places
the fireplace in structure walls or on moisture sensitive sur-
faces.
When installed on exterior walls: Hearth & Home Tech-
nologies recommends that the fireplace chase be con-
structed outside the structure’s weather envelope. Where
the platform meets the wall, use a flashing detail similar to
that required for attached decks. Chase platforms, including
hearths should slope away from the structure at 1/8 in. to
1/4 in. per foot. The fireplace can be shimmed level.
When installed on surfaces where water may collect or
cause damage: Hearth & Home Technologies recommends
that a drainage pan be placed under the unit. This can be
constructed of metal, adhesive polymer membrane (such as
ice and water shield) or other suitable materials. A means of
drainage out of the pan such as tubes or weep holes should
be provided. A slope of 1/8 in. to 1/4 in. per foot towards
the drain port is suggested. The fireplace can be shimmed
level.
Hearths should slope away from the front of the fireplace
and chase at 1/8 in. to 1/4 in. per foot. Spark strips must be
on top of any combustible hearth materials used for moisture
management.
These appliances must be installed outdoors.
The Dakota 42-B Series Outdoor Gas Fireplace is designed
for outdoor use. It may also be installed in screened porches
and lanais that meet these minimum requirements:
• Minimum porch area - 96 square feet
• Minimum ceiling height - 84 in.
A minimum of two walls can be screened but must be open
to outside ventilation.
• Minimum screen area - 64 square feet
• Minimum screen top height - 80 in.
Refer to Section 3.B. for clearances.

6 Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08
B. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Reciprocating saw Framing material
Pliers Hi temp caulking material
Hammer Gloves
Phillips screwdriver Framing square
Flat blade screwdriver Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Manometer Voltmeter
Tape measure Level
Non-corrosive leak check solution
1/2 - 3/4 inch length, #6 or #8 Self-drilling screws
C. Inspect Appliance and Components
• Carefully remove the appliance and components from the
packaging.
• The gas logs may be packaged separately and must be
field installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
• Read all of the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety and
benefit.
Inspect appliance and components for
damage. Damaged parts may impair safe
operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
WARNING
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
• Installation and use of any damaged appliance or
vent system component.
• Modification of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass
door.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
Any such action may cause a fire hazard.
WARNING

Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08 7
B
A
G
E
Note: If this surface is
inside the building’s
warm air envelope... ...then this surface
must be an exterior
wall system.
C
D
FF
C
D
G
F
E
57-3/4 in.
(1467 mm)
81-3/4 in.
(2076 mm)
Note:
• Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design
preference.
Fire Risk
Provide adequate clearance:
• Around air openings.
• To combustibles.
• For service access.
Locate appliance away from traffic areas.
WARNING
A. Select Appliance Location
When selecting a location for your appliance it is important to
consider the required clearances to walls (See Figure 3.1).
Note: For actual appliance
dimensions refer to Section 13.
Figure 3.1 Appliance Locations
3
3 Framing and Clearances
ABCDEFG
in. 24-3/4 24-1/8 48 49 5/8 1/2 1-1/2
mm 629 613 1219 1245 16 13 38
Fire Risk
Odor Risk
• Install appliance on hard metal or wood
surfaces extending full width and depth
of appliance.
• Do NOT install appliance directly on
carpeting, vinyl, tile or any combustible
material other than wood.
WARNING
Fire Risk
• Locate and install appliance to all
clearance specifications in manual.
WARNING

8 Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08
Fireplace Structure
Mantel
B
A
If Ais:
Then B
must be at
least:
in. 6 - 36 26
mm 152 - 914 660
in. 36 or more 18
mm 914 or more 457
84 in.
(2134 mm)
minimum
height
Additional Structure
or Sidewall
Roof or
Overhang
12 in. (305 mm)
max. combustible
mantel depth
B. Clearances
Figure 3.3 Clearances to Mantels or Other Combustibles Above Appliance
BD
Header height.
Use only noncombustible
material below the top of
the top standoffs.
A
C
84 in.
(2134 mm)
to ceiling
0 in.
0 in. to level
of standoffs
Combustible Object
36 in.
(914 mm)
Combustible flooring may be installed next
to the front of the appliance.
1-1/2 in. (38 mm)
Drywall
0 in.
1/2 in. (13 mm)
1-1/2 in.
(38 mm)
Upper front can be
covered with
non-combustible
material or removed
and replaced with
non-combustible
material.
Figure 3.2 Framing Dimensions
C. Mantel Projections
Framing Dimensions
ABCD
in. 24-1/8 43-7/8 49 43-7/8
mm 613 1114 1245 1114
Fire Risk
• Comply with all minimum
clearances to combustibles
as specified.
• Framing or finishing
material used on the
front of, or in front of, the
appliance closer than the
minimums listed, must
be constructed entirely of
noncombustible materials
(i.e., steel studs, concrete
board, etc.).
Failure to comply may cause
fire.
WARNING

Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08 9
FP = FIREPLACE OPENING X = AIR SUPPLY INLET = AREA WHERE FIREPLACE IS NOT PERMITTED
O
N
P
R
Q
FP
(See Note 2)
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
Q
MIN R MAX
Dakota 10 feet 2 x Q
ACTUAL
1 additional termination cap Q + 3 feet 1 x Q
ACTUAL
2 additional termination caps Q + 6 feet 2/3 x Q
ACTUAL
3 additional termination caps Q + 9 feet 1/2 x Q
ACTUAL
R
MAX
= (2 / # caps plus fireplace ) x Q
ACTUAL
D
E
L
FP
A
H
M
X
J or K
I
A
G
F
FP
FP
FP
FP
FP
B
B
B
A = 0 in. . . . . . . . . . clearances above grade,
veranda, porch, deck or
balcony.
B = 12 in. . . . . . . . . . clearances to window or door
that may be opened, or to
permanently closed window.
36 in. . . . . . . . . . vinyl windows or siding.
D** = 47 in. . . . . . . . . . vertical clearance to unventi-
lated soffit or to ventilated soffit
located above the terminal.
60 in. . . . . . . . . . vinyl clad soffits.
F = 9 in. . . . . . . . . . clearance to outside corner.
G* = 6 in. . . . . . . . . . clearance to inside corner.
48 in. . . . . . . . . . vinyl windows or siding.
H = 3 ft. (Canada) . not to be installed above a gas
meter/regulator assembly within
3 ft (914 mm) horizontally from
the center line of the regulator.
I = 3 ft. (USA)
6 ft. (Canada) . clearance to service regulator
vent outlet and electric service.
J = 9 in. (USA)
12 in. (Canada) . clearance to non-mechanical air
supply inlet to building or the
combustion air inlet to any other
appliance.
K = 3 ft. (USA)
6 ft. (Canada) . clearance to a mechanical air
supply inlet.
L*** = 54 in. . . . . . . . . . clearance above paved sidewalk
(See note 1) or a paved driveway located on
public property.
M****= 47 in. . . . . . . . . . clearance under veranda, porch,
deck, balcony or overhang.
Not allowed: . . . . . . vinyl
N = 6 in. . . . . . . . . . non-vinyl siding.
P = 84 in.
* 48 in. minimum for vinyl windows or vinyl siding.
** Not allowed for vinyl clad soffits.
*** a fireplace shall not open directly above a sidewalk or paved
driveway which is located between two single family dwellings
and services both dwellings.
**** only permitted if veranda, porch, deck or balcony is fully open
on a minimum of 2 sides beneath the floor, or if the screened
porch guidelines are followed.
Note 1: Local codes or regulations may require different clearances.
Note 2: Termination in an alcove space (spaces open only on one
side and with an overhang) are permitted with the dimensions
specified for vinyl or non-vinyl siding and soffits. 1) There must
be a 3 ft minimum between terminations or between the
fireplace and termination. 2) All mechanical air intakes within 10
ft of a termination must be a minimum of 3 ft below the fireplace
hood. 3) All gravity air intakes within 3 ft of the fireplace hood
must be a minimum of 1 ft below the termination.
This fireplace is approved for installation onto screen porches with the
following guidelines:
Minimum porch area: 96 sq ft
Minimum ceiling height: 84 in.
Minimum of two walls must be screened
Minimum top of screen height, side walls: 6 ft 8 in.
Minimum screen area: 64 sq ft
Note 2: There may be some odor and small amounts of soot associated
with burning the Dakota on a screened porch. Ensuring good cross
draft ventilation and routine maintenance of the fireplace will maximize
comfort and cleanliness.
A. Vent Termination Minimum Clearances
Figure 4.1 Minimum Clearances
4
4 Termination Locations

10 Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08
5
5 Appliance Preparation
Sharp Edges
• Wear protective gloves
and safety glasses during
installation.
CAUTION
A. Remove Logs and Shipping Cover
Remove locking screw at the top of the doors (shown in Fig-
ure 5.1).
Open the doors by sliding the handles toward the outside
edges of the doors. Remove the cartons of logs from their
shipping location in the appliance.
Set the logs and door lock bracket screw aside for later re-
installation.
Open Open
Locking Screw
Figure 5.1 Door Operation
Do NOT notch into the framing around the appliance
spacers.
CAUTION
NAILING TABS
Upper front can be
covered with
non-combustible
material or removed
and replaced with
non-combustible
material.
Figure 5.2 Proper Positioning, Leveling and Securing of an
Appliance
B. Securing and Leveling Appliance
The diagram shows how to properly position, level, and se-
cure the appliance (see Figure 5.2). Nailing tabs are pro-
vided to secure the appliance to the framing members.
• Place the appliance into position on either a combustible
or non-combustible continuous flat surface.
Note: Remove the top standoffs before sliding appliance
into position if using an FPS prefab enclosure.
• Level the appliance from side to side and front to back.
• Shim the appliance with non-combustible material, such
as sheet metal, as necessary.
• Bend out nailing tabs on each side.
• Keep nailing tabs flush with the framing.
• Secure the appliance to the framing by using nails or
screws through the nailing tabs.
Fire Risk
• Prevent contact with sagging, loose
insulation.
• Do NOT install against vapor barriers or
exposed insulation.
WARNING

Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08 11
A. Fuel Conversion
Before making gas connections ensure appliance being in-
stalled is compatible with the available gas type.
Any natural or propane gas conversions necessary to meet
the appliance and locality needs must be made by a quali-
fied technician using Hearth & Home Technologies specified
and approved parts.
Pressure requirements for appliance are shown in table
below.
Note: Have the gas supply line installed in accordance
with local building codes, if any. If not, follow ANSI
223.1. Installation should be done by a qualified installer
approved and/or licensed as required by the locality. (In
the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fitter.)
Note: A listed (and Commonwealth of Massachusetts
approved) 1/2 in. (13 mm) T-handle manual shut-off valve
and flexible gas connector are connected to the 1/2 in.
(13 mm) control valve inlet.
• If substituting for these components, please consult
local codes for compliance.
Note: The gap between supply piping and gas access hole
may be plugged with non-combustible unfaced insulation
to prevent cold air infiltration.
B. Gas Pressure
Proper input pressures are required for optimum appliance
performance. Gas line sizing requirements need to be made
following NFPA51.
WARNING
Gas Leak Risk
• Support control when attaching pipe to
prevent bending gas line.
Fire Risk
Explosion Risk
Verify inlet pressures.
• High pressure may cause overfire
condition.
• Low pressure may cause explosion.
Install regulator upstream of valve if line
pressure is greater than 1/2 psig.
WARNING
6
6 Gas Information
Fire Risk
Explosion Risk
High pressure will damage valve.
• Disconnect gas supply piping BEFORE
pressure testing gas line at test pressures
above 1/2 psig.
• Close the manual shutoff valve BEFORE
pressure testing gas line at test pressures
equal to or less than 1/2 psig.
WARNING
Note: Gas line MUST be run from right side of appliance.
These pressures can be verified through the internal valve
access panels as shown in Section E. Valve Access.
Pressure Natural Gas Propane
Minimum Inlet Pressure 5.0 inches w.c. 11.0 inches w.c.
Maximum Inlet Pressure 7.0 inches w.c. 14.0 inches w.c.
Manifold Pressure 3.5 inches w.c. 10.5 inches w.c.
C. Gas Connection
Optional: A 5 ft flexible gas line is available to those regions
which do not require black pipe to be used. See Service
Parts List (Section 13).
• Ensure that gas line does not come in contact with outer
wrap of appliance. Follow local codes.
• Incoming gas line should be piped into the valve
compartment and connected to the 1/2 in. connection on
the manual shutoff valve.

12 Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08
WARNING
Fire Risk
Explosion Risk
• Gas build-up during line purge may
ignite.
• Purge should be performed by qualified
technician.
• Ensure adequate ventilation.
• Ensure there are no ignition sources such
as sparks or open flames.
WARNING
CHECK FOR GAS LEAKS
Fire Risk
Explosion Risk
Asphyxiation Risk
• Check all fittings and connections.
• Do not use open flame.
• After the gas line installation is complete,
all connections must be tightened and
checked for leaks with a commercially
available, non-corrosive leak check
solution. Be sure to rinse off all leak check
solution following testing.
Fittings and connections may have loosened
during shipping and handling.
D. High Altitude Installations
U.L. listed gas appliances are tested and approved without
requiring changes for elevations from 0 to 2000 ft in the USA
and Canada.
When installing this appliance at an elevation above 2000 ft,
it may be necessary to decrease the input rating by chang-
ing the existing burner orifice to a smaller size. Input rate
should be reduced by 4% for each 1000 ft above a 2000 ft
elevation in the U.S.A., or 10% for elevations between 2000
and 4500 ft in Canada. If the heating value of the gas has
been reduced, these rules do not apply. To identify the prop-
er orifice size, check with the local gas utility.
If installing this appliance at an elevation above 4500 ft (in
Canada), check with local authorities.
WARNING
Fire Risk
Explosion Risk
Do NOT change the valve settings.
• This valve has been preset at the
factory.
• Changing valve settings may result in fire
hazard or bodily injury.
• A small amount of air will be in the gas supply lines. When
first lighting appliance it will take a short time for air to
purge from lines. When purging is complete, the appliance
will light and operate normally.

Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08 13
E. Valve Access
Washer
Figure 6.1 Lift Out Doors
Figure 6.3 Loosen Refractory Retaining Strip
Figure 6.4 Remove Valve Access Panel
Figure 6.5 Remove Exterior Valve Access Panel
Figure 6.6 Connect Manometer
• The gas valve can be accessed behind the cement
refractory panel on the right side of the fireplace.
• Lift doors out and set aside. There is a washer under each
door. Be careful not to loose those washers.
• Use a phillips screwdriver to remove the exterior valve
access panel (remove four screws).
• Use a manometer on the lower out pressure tap. Start
up the fireplace to verify the pressure and adjust as
necessary. Reverse these steps to reassemble before log
positioning.
• Remove logs if access is necessary after installation is
complete. See Section 9.C. Remove logs in reverse order
of set up.
• Remove grate if access is necessary after installation is
complete. (Refer to Section 9.B.)
• Remove two screws on side of pilot shield and remove
shield.
• Remove the inside valve access panel by lifting it up and
out.
Figure 6.2 Remove Pilot Shield
• Use a phillips screwdriver to remove the two screws
securing the refractory retaining strip. Remove the
refractory side panel and set aside.

14 Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08
Battery polarity must be correct or module damage will
occur.
CAUTION
A. Intellifire Ignition System Wiring
• This appliance is equipped with an Intellifire control valve
which operates on a 3 volt system.
• This appliance is supplied with a battery pack which is
located in the ON/OFF switch terminal box. A wiring
diagram is shown in Figure 7.1.
• The battery pack requires two D cell batteries (not
included). See Section 12.B. for battery replacement.
7
7 Electrical Information
Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
CAUTION
Shock Risk
• Replace damaged wire with type 105° C
rated wire.
• Wire must have high temperature
insulation.
WARNING
IGNITION MODULE
3 VAC
GRN
ORG
INTERMITTENT
PILOT
IGNITOR
IGNITION
MODULE
(3V)
ON/OFF
WALL
SWITCH
LOW VOLTAGE
BATTERY
PACK
FLAME SPARKER/
SENSOR
SEE NOTE 1
ORG
WHT
PIGGYBACK
ON/OFF SWITCH
BRN
BRN
VALVE
VALVE
GROUND TO
FIREPLACE
CHASSIS
I
S
BLACK
RED
BATTERY
PACK
Figure 7.1 Intellefire Pilot Ignition (IPI) Wiring Diagram

Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08 15
A. Mantel Projections
Figure 8.1 shows the minimum vertical dimension of appliance mantels or other combustible projections above the top front
edge of the appliance.
Fireplace Structure
Mantel
B
A
If Ais:
Then B
must be at
least:
in. 6 - 36 26
mm 152 - 914 660
in. 36 or more 18
mm 914 or more 457
84 in.
(2134 mm)
minimum
height
Additional Structure
or Sidewall
Roof or
Overhang
12 in. (305 mm)
max. combustible
mantel depth
Figure 8.1 Clearances to Mantels or other Combustibles above Appliance.
8
8 Finishing

16 Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08
Sealant Material
0 in.
0 in.
0 in.
Upper front can be covered
with non-combustible
material or removed and
replaced with non-
combustible material.
Finish wall material
may be combustible,
top & sides.
Fire Risk
Do NOT obstruct air inlet or outlet grilles.
Do NOT modify grilles.
• Modifying or covering grilles could cause
temperature rise and fire hazard.
Finishing materials must not interfere with:
• Air flow through grilles or louvers.
• Operation of louvers or doors.
• Access for service.
WARNING
B. Facing Material
Figure 8.2 Noncombustible Facing Diagram
Fire Risk
Finish all edges and fronts to clearances and
specifications listed in manual.
WARNING
• Metal appliance front may be covered with non-
combustible material only.
• Do NOT overlap combustible materials onto appliance
front.
• Install combustible materials up to specified clearances
on top front and side edges.
• Seal joints between the finished wall and appliance
top and sides using only a 300° F minimum sealant.

Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08 17
A. Clean the Appliance
Clean/vacuum any sawdust that may have accumulated in-
side the firebox or underneath in the control cavity.
Shock Risk
Fire Risk
Use ONLY optional accessories approved
for this appliance.
• Using non-listed accessories voids
warranty.
• Using non-listed accessories may result
in a safety hazard.
• Only Hearth & Home Technologies
approved accessories may be used
safely.
WARNING
Back Legs in Grate Brackets
Figure 9.1 Back Legs in Grate Brackets
9
9 Appliance Setup
B. Grate Assembly Placement
• Ensure grate assembly is over burner assembly, centered
from left to right, and back legs are in grate brackets (see
Figure 9.1)
Figure 9.2 Right Rear Log (SRV720)
Figure 9.4 Left Side Log (SRV723)
Figure 9.3 Left Rear Log (SRV728)
C. Positioning the Logs
• See Section 13.B. for log descriptions and illustrations.
• Place right rear log on the grate against the appliance right
side wall.
• Place the fork of log onto the left front bar and rest its back
on right rear log.
• Place the left rear log on the grate against the left wall and
rest it on log.

18 Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08
Figure 9.6 Front Left Log (SRV722)
Figure 9.5 Front Log (SRV727)
• Place front left log between locating bars so it rests against
log left side log and on top of front log.
• Place front log in front of the main grate with its left end
resting on left rear log as shown.
Figure 9.7 Front Right Log (SRV724)
• Place right center log between the 4th and 5th vertical
bars on the log grate, resting the back on right rear log.
Figure 9.8 Right Side Log (SRV740)
• Place right log against the rightmost front grate bar and
rest its rear on right rear log, angled towards the corner
as shown.
Figure 9.9 Right Front Corner Log (SRV742)
• Place right front corner log between the right hand side
wall and right hand side grate bar as shown.

Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08 19
Handle glass with care.
• Inspect the glass for cracks, chips or
scratches.
• Do NOT strike, slam or scratch glass.
• Do NOT operate appliance with glass
door removed, cracked, broken or
scratched.
• Replace glass door assembly as a
complete assembly.
WARNING
D. Glass Assembly
• The glass doors are included with and pre-installed in the
appliance.
• To adjust doors, open them and loosen screws on top
and bottom pivot pins. Slide each door as necessary and
tighten screws.
• To adjust handle, loosen screws to move handles as
necessary and tighten screws.
Glass Specifications
Dakota42-B: Tempered
Dakota42L-B: Tempered
Dakota42H-B: Tempered
Dakota42HL-B: Tempered
Ashlip
Rock Pan
Figure 9.10 Placement of Lava Rocks
E. Placing Lava Rock
• After logs have been placed spread part of the lava
rock (included) between the rock pan and ashlip (see
Figure 9.10).
F. Reinstall Door Lock
When logs and lava rock have been installed, or if the glass
assembly has been adjusted, reinstall the door lock by
inserting the screw at the top of the door. Tighten screw. You
may refer to Section 5.A. if needed.
Open Open
Locking Screw
Figure 9.11 Reinstall Door Lock

20 Heat & Glo LifeStyle Collection • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev J 11/08
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer
to the owner’s information manual provided with this
appliance. For assistance or additional information consult
a qualified installer, service agency or the gas supplier.
WARNING
Do NOT use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
WARNING
10
10 Operating Instructions
A. Before Lighting Appliance
Before operating this appliance, have a qualified
technician:
• Remove all shipping materials from inside and/or
underneath the firebox.
• Review proper placement of logs, rockwool, lava rock and
vermiculite.
• Check the wiring.
• Check the air shutter adjustment.
• Ensure that there are no gas leaks.
• Ensure that the flow of combustion and ventilation air is
not obstructed (front grilles).
HOT SURFACES!
Glass and other surfaces are hot during
operation and cool down.
WARNING
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other combustibles
away.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
