Heat & Glo 7000XLT Assembly instructions

1
- Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
-What to do if you smell gas
 Do not try to light any appliance.
 Do not touch any electrical switch.
 Do not use any phone in your building.
 Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
 If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
Models:
7000XLT
6000XLTB
Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE OR ADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICE AGENCY, OR THE
GAS SUPPLIER.
Underwriters
Laboratories Listed
391-900F 9/00
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTURE REFERENCE.
1. This appliance may be installed in an af-
termarket, permanently located, manufac-
tured (mobile) home, where not prohibited
by local codes.
2. This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
Please contact your Heat-N-Glo dealer for any
questions or concerns. For the number of your
nearest Heat-N-Glo dealer, please call 952-985-6000.
Printed in U.S.A. Copyright 2000,
Heat-N-Glo, a division of Hearth Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

2
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide. NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLY be
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the units
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young children should be CAREFULLY SUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!

3
TABLE OF CONTENTS
Safety and Warning Information ................................................ 2
Service Parts Lists ..................................................................... 4
Section 1: Approvals and Codes ............................................... 8
Approval Listings and Codes ........................................................ 8
Appliance Certification................................................................... 8
Installation Codes .......................................................................... 8
High Altitude Installations ............................................................... 8
Section 2: Getting Started ......................................................... 9

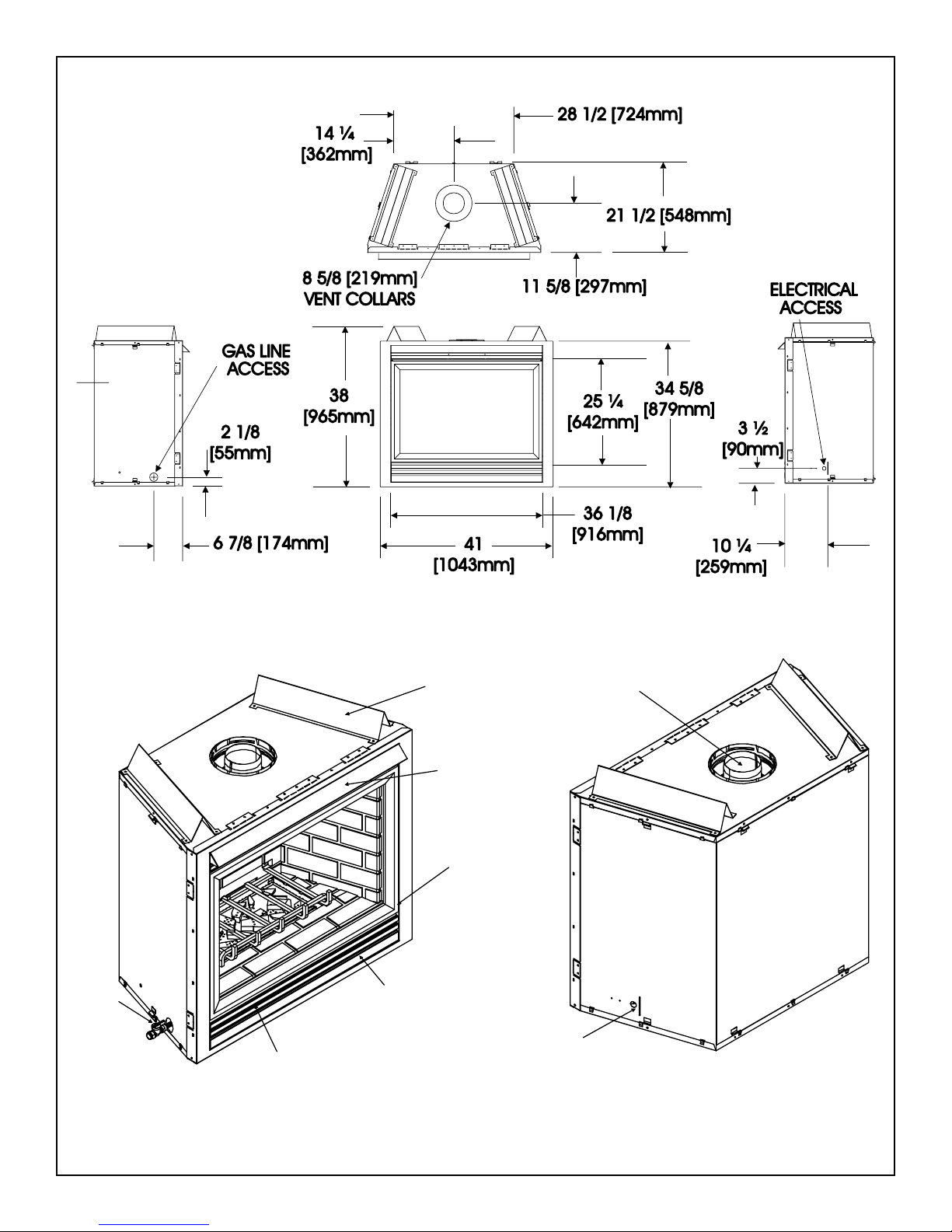

Introducing the Heat-N-Glo Gas Fireplaces .................................. 9
Pre-installation Preparation ........................................................... 9
Section 3: Installing the Fireplace ........................................... 11
Step 1 Locating the Fireplace .................................................. 11
Step 2 Framing the Fireplace................................................... 11

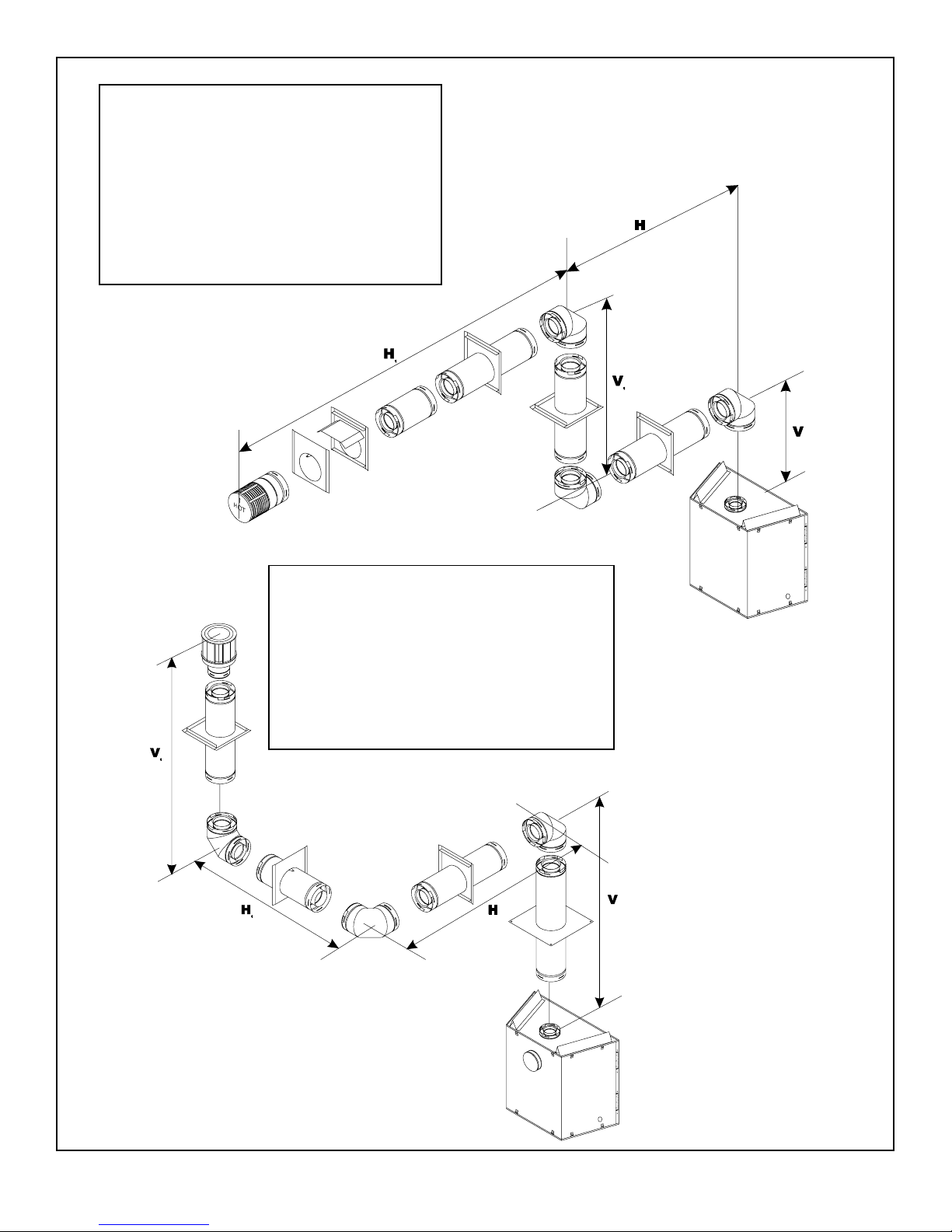

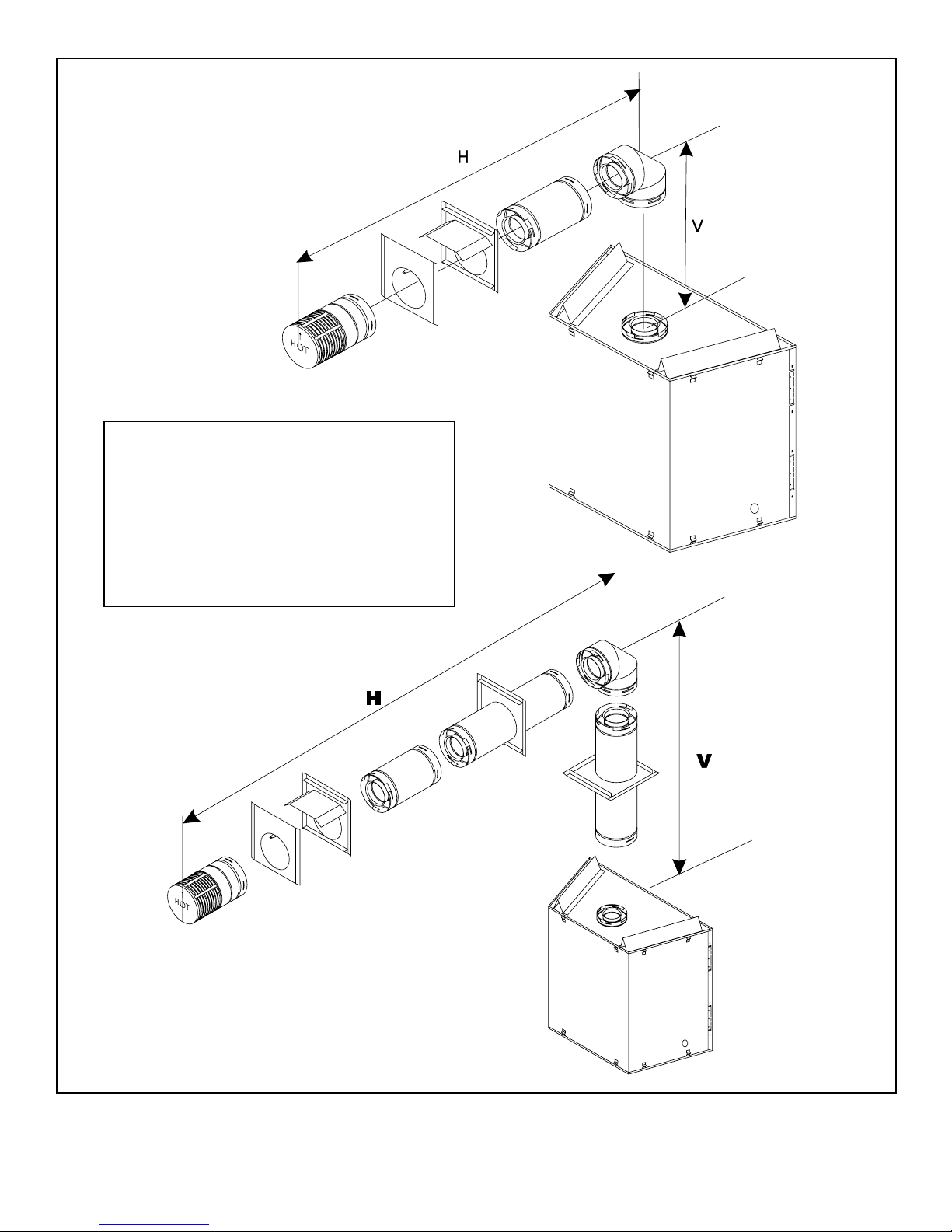

Step 3 Installing the Vent System ............................................ 14
A. Vent System Approvals ........................................... 14

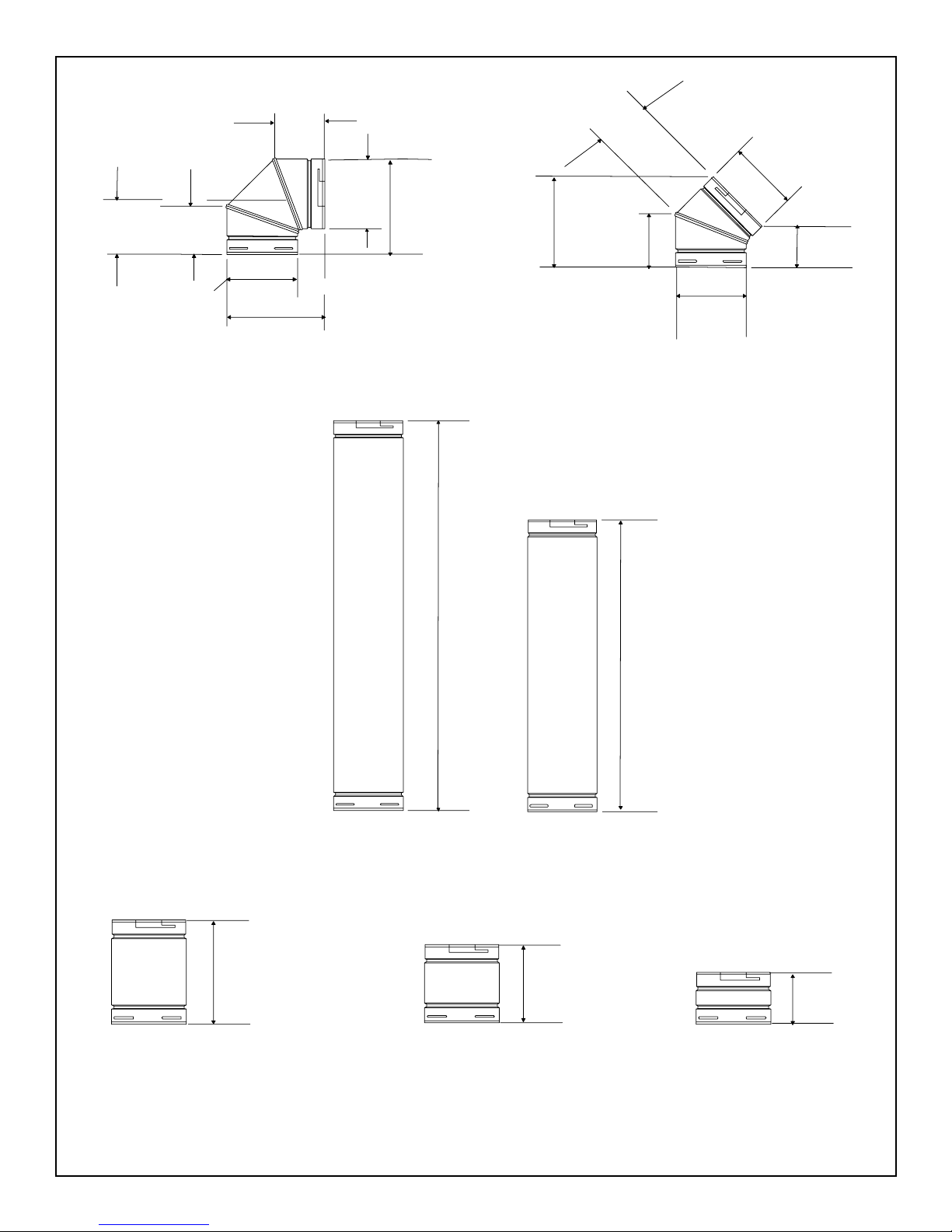

B. Installing Vent Components .................................... 18
C. Vent Termination .................................................... 22
Step 4 Positioning, Leveling, and
Securing the Fireplace................................................. 25
Step 5 The Gas Control Systems ........................................... 25
Step 6 The Gas Supply Line ................................................... 26
Step 7 Gas Pressure Requirements ...................................... 26
Step 8 Wiring the Fireplace .................................................... 27
Step 9 Finishing ...................................................................... 28
Step 10 Installing Trim, Logs, and Ember Material ..................... 29
Installing the Trim ......................................................... 29
Positioning the Logs .................................................... 29
Placing the Ember Material .......................................... 29
Step 11 Before Lighting the Fireplace ....................................... 30
Step 12 Lighting the Fireplace .................................................. 30
Step 13 Heating Control ............................................................ 30
After the Installation ..................................................................... 30
Section 4: Maintaining and Servicing Your Fireplace ......... 31
u= Contains updated information.
u
u
u

4
2
12
4
8
10
5
15
13
6
14
19
18
17
16
3
1
11
20
7
9

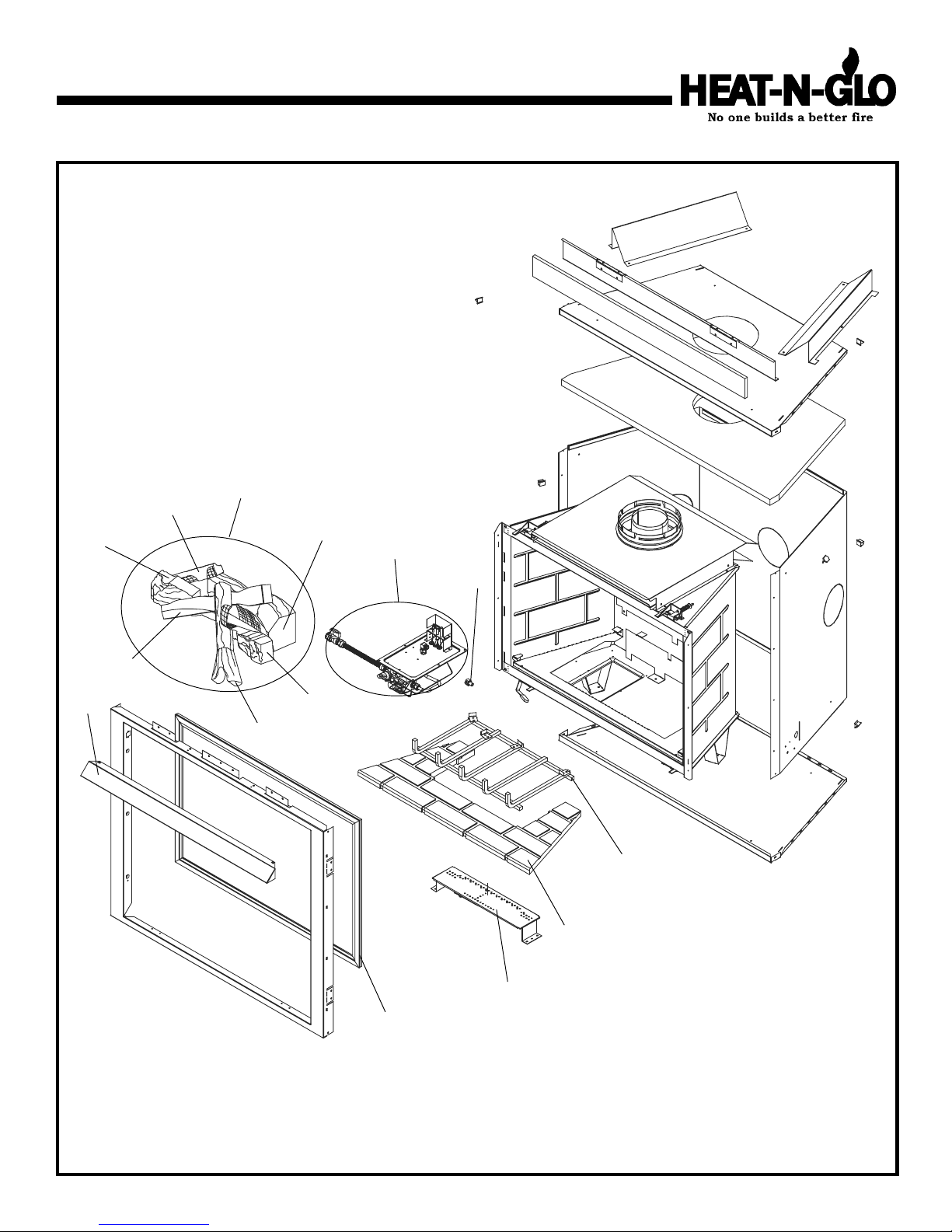

7000XLT (NG, LP) Exploded Parts Diagram / 7000XLT (GN, PL) Vue éclatée des pièces
*Part number list on following page.
*La liste des numéros de pièce se trouve à la page suivante.
Service Parts

5
7000XLT (NG, LP) Service Parts List / 7000XLT (GN, PL) Liste des pièces de rechange
ITEM /
PIÈCE STANDING PILOT IGNITION / ALLUMAGE UNE VEILLEUSE SERIAL # /N°DE SÉRIE PART NUMBER / N° DE PIÈCE
Robertshaw Valve
Valve NG / Valve GN 060-522
Valve LP / Valve PL 060-523
Pilot Assembly NG / Module de veilleuse GN 485-510A
Pilot Assembly LP / Module de veilleuse PL 485-511A
Pilot Orifice NG / Orifice de veilleuse GN 446-505
Pilot Orifice LP / Orifice de veilleuse PL 446-517
Thermocouple / Thermocouple 446-511
Thermopile / Thermopile 060-512
Piezo Ignitor / Allumage Piézo 418-513
Burner Tube / Tube de brûleur 477-312
1 Junction Box / Boîtier de raccordement 100-250A
2 Burner Orifice NG (#31A) / Orifice de brûleur GN (#31A) 506-800
2 Burner Orifice LP (#49A) / Orifice de brûleur PL (#49A) 065-801
3 Burner NG, LP / Brûleur GN, PL 521-131A
4 Glass Door Assembly / Module de Porte en verre GLA-750S
5 Log Grate / Grille de Bûche 521-360A
6 Base Refractory, NG / Réfractaire, GN PRE 2086
POST 2086 SRV520-370 SRV520-370-UM
6 Base Refractory, LP / Réfractaire, PL PRE 1375
POST 1375 SRV520-370 SRV520-370-UM
7 Refractory, Right Side, NG / Réfractaire, GN PRE 2086
POST 2086 SRV520-371 SRV520-371-UM
7 Refractory, Right Side, LP / Réfractaire, PL PRE 1375
POST 1375 SRV520-371 SRV520-371-UM
8 Refractory, Left Side, NG / Réfractaire, GN PRE 2086
POST 2086 SRV520-372 SRV520-372-UM
8 Refractory, Left Side, LP / Réfractaire, PL PRE 1375
POST 1375 SRV520-372 SRV520-372-UM
9 Refractory, Back, NG / Réfractaire, GN PRE 2086
POST 2086 SRV520-373 SRV520-373-UM
9 Refractory, Back, LP / Réfractaire, PL PRE 1375
POST 1375 SRV520-373 SRV520-373-UM
10 Refractory, Right Top, NG / Réfractaire, GN PRE 2086
POST 2086 SRV520-374 SRV520-374-UM
10 Refractory, Right Top, LP / Réfractaire, PL PRE 1375
POST 1375 SRV520-374 SRV520-374-UM
11 Refractory, Back Top, NG / Réfractaire, GN PRE 2086
POST 2086 SRV520-375 SRV520-375-UM
11 Refractory, Back Top, LP / Réfractaire, PL PRE 1375
POST 1375 SRV520-375 SRV520-375-UM
12 Hood / Hotte SRV60-143-BK
13 Log Set Assembly / Jeu de Bûches LOGS-7XLS
14 Log 1 / Bûche 1 SRV520-700
15 Log 2 / Bûche 2 SRV528-702
16 Log 3 / Bûche 3 SRV520-701
17 Log 4 / Bûche 4 SRV528-704
18 Log 5 / Bûche 5 SRV528-703
19 Log 6 / Bûche 6SRV520-706
20 Log 7 / Bûche 7 SRV520-702
Conversion Kit NG / Module de conversion GN NGK-7XLS
Conversion Kit LP / Module de conversion PL LPK-7XLT
IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on your dealers VIP site. When
ordering, supply serial and model numbers to ensure correct service parts.

6
4
*Part number list on following page.
*La liste des numéros de pièce se trouve à la page suivante.
1
2
7
8
6
9
14
13
12
3
10
11
5
6000XLTB (NG, LP) Exploded Parts Diagram / 6000XLTB (GN, PL) Vue éclatée des pièces
Service Parts

7
6000XLTB (NG, LP) Service Parts List / 6000XLTB (GN, PL) Liste des pièces de rechange
ITEM /
PIÈCE STANDING PILOT IGNITION / ALLUMAGE UNE VEILLEUSE SERIAL # /N° DE SÉRIE PART NUMBER / N° DE PIÈCE
1 Valve Assembly NG / Module de Valve GN 389-005A
1 Valve Assembly LP / Module de Valve PL 389-006A
Valve NG / Valve GN 060-522
Valve LP / Valve PL 060-523
Pilot Assembly NG / Module de veilleuse GN 485-510A
Pilot Assembly PL / Module de veilleuse PL 485-511A
Pilot Orifice NG / Orifice de veilleuse GN 446-505
Pilot Orifice PL / Orifice de veilleuse PL 446-517
Thermocouple / Thermocouple 446-511
Thermopile / Thermopile 060-512
Piezo Ignitor / Allumage Piézo 418-513
Junction Box - Pilot / Boîtier de raccordement - de veilleuse 100-250A
Burner Tube NG, LP / Tube de brûleur GN, PL 477-312
2 Burner Orifice NG (#32A) / Orifice de brûleur GN (#32A) 420-800
2 Burner Orifice LP (#50A) / Orifice de brûleur PL (#50A) 446-801
3 Burner NG / Brûleur GN 390-376A
3 Burner LP / Brûleur PL 390-375A
4 Glass Door Assembly / Module de Porte en verre GLA-750S
5 Log Grate / Grille de Bûche 390-360A
6 Base Refractory NG / Réfractaire Base GN PRE 2528
POST 2528 SRV389-338 SRV389-338-UM
6 Base Refractory LP / Réfractaire Base PL PRE 1607
POST 1607 SRV389-338 SRV389-338-UM
7 Hood / Hotte SRV60-143-BK
8 Log Set Assembly / Jeu de Bûches Logs-CAMP
9 Log 1 / Bûche 1 SRV446-701
10 Log 2 / Bûche 2 SRV446-702
11 Log 3 / Bûche 3 SRV446-703
12 Log 4 / Bûche 4 SRV446-704
13 Log 5 / Bûche 5 SRV446-705
14 Log 6 / Bûche 6 SRV446-706
Conversion Kit NG / Module de conversion GN NGK-6XLB
Conversion Kit LP / Module de conversion PL LPK-6XLB
IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on your dealers VIP site. When
ordering, supply serial and model numbers to ensure correct service parts.

8
Appliance Certification
The Heat-N-Glo fireplace models discussed in this Installers
Guide have been tested to certification standards and listed
by the applicable laboratories.
Certification
MODELS: 7000XLT, 6000XLTB
LABORATORY: Underwriters Laboratories
TYPE: Direct Vent Gas Fireplace Heaters
STANDARD: ANSI Z21.88CSA2.33
Installation Codes
The fireplace installation must conform to local codes. Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
In the absence of local codes, the fireplace installation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
the United States) or the CAN/CGA-B149 Installation Codes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(in the United States), or to the CSAC22.1 Canadian Electric
Code (in Canada).
These models may be installed in a bedroom or bed-sitting
room in the U.S.A. and Canada.
1Approvals and
Codes
High Altitude Installations
U.L. Listed gas fireplaces are tested and approved for
elevations from 0 to 2,000 feet in the U.S.A. and from 0 to
4,500 feet in Canada.
When installing this fireplace at an elevation above 2,000
feet (in the United States), it may be necessary to decrease
the input rating by changing the existing burner orifice to a
smaller size. Input should be reduced four percent (4%) for
each 1,000 feet above sea level, unless the heating value of
the gas has been reduced, in which case this general rule
will not apply. To identify the proper orifice size, check with
the local gas utility.
When installing this fireplace at an elevation between 2,000
and 4,500 feet (in Canada), the input rating must be reduced
by ten percent (10%).
When installing this fireplace at an elevation above 4,500
feet (in Canada), check with local authorities.
Consult your local gas utility for assistance in determining
the proper orifice for your location.
Heat-N-Glo Quality
Systems registered
by SGS ICS

9
2Getting Started
Introducing the Heat-N-Glo Gas Fireplaces
Heat-N-Glo direct vent gas fireplaces are designed to oper-
ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems. Gas fireplace diagrams, including the dimensions,
are shown in this section.
Pre-install Preparation
This gas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The vent system components and trim doors are shipped
in separate packages. The gas logs may be packaged
separately and must be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the
owners warranty and may present a fire hazard.
The Heat-N-Glo Warranty will be voided by, and Heat-N-Glo
disclaims any responsibility for, the following actions:
 Installation of any damaged fireplace or vent system
component.
 Modification of the fireplace or direct vent system.
 Installation other than as instructed by Heat-N-Glo.
 Improper positioning of the gas logs or the glass door.
 Installation and/or use of any component part not manu-
factured and approved by Heat-N-Glo, not withstanding
any independent testing laboratory or other party approval
of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, its necessary to
determine:
Where the unit is to be installed.
The vent system configuration to be used.
Gas supply piping.
Electrical wiring.
Framing and finishing details.
Whether optional accessoriesdevices such as a fan,
wall switch, or remote controlare desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

10
Figure 1. Diagram of the 7000XLT and 6000XLTB
TOP VENT COLLARS
GAS
LINE
ACCESS ELECTRICAL
ACCESS
GAS
CONTROLS
RATING PLATE
AND LABELS
TRIM
DOOR
HOOD
TOP STANDOFFS

11
3Installing the Fireplace
Step 1. Locating the Fireplace
The diagram below shows space and clearance require-
ments for locating a fireplace within a room.
ABCD E
42 22 36 51 72
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front ........................ 36 .................... 914
Floor ................................... 0 ....................... 0
Rear ...................................1/2 ..................... 13
Sides .................................1/2 ..................... 13
Top ................................... 3 1/2 ................... 89
Ceiling* .............................. 31 .................... 787
Figure 2. Fireplace Dimensions, Locations,
and Space Requirements
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs. The minimum clearance to a perpendicular wall
extending past the face of the fireplace is one inch (25 mm).
The back of the fireplace may be recessed 21 1/2 inches
(546 mm) into combustible construction.
For minimum clearances, see the direct vent termination
clearance diagrams on pages 23 and 24 in this manual.
NOTE: When venting with a 900elbow as the first vent com-
ponent, an area 3 above the horizontal vent, the entire width
and depth of the firebox must be free of combustibles (See
Figure 3).
Step 2. Framing the Fireplace
Fireplace framing can be built before or after the fireplace is
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
gram below shows framing reference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFORE FRAMING.
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections. ............. 1 ................ 25
Horizontal Sections
Top ..................................... 3 ................ 75
Bottom ............................... 1 ................ 25
Sides ................................. 1 ................ 25
At Wall Firestops
Top .................................. 2 1/2 ............ 63.7
Bottom .............................. 1/2 ............... 13
Sides ................................. 1 ................ 25
* The clearance to the ceiling is measured from the top
of the unit, excluding the standoffs and collars (see
Figure 28).
The distance from the unit to combustible construction
is to be measured from the unit outer wrap surface to
the combustible construction, NOT from the screw
heads that secure the unit together.

12
A. ............. 42
B. ....... 38 1/2
C. ............. 22
D. ............. 42
Figure 3. Framing Dimensions
Framing should be
constructed of 2 X 4
lumber or heavier.
Shows center of 12 x 12 vent
framing hole for top and rear
venting. The center of the hole is
one inch (25.4mm) above the
center of the horizontal vent pipe.

13
Figure 4. D-Series Direct Vent Component Specifications
(5-inch inner pipe / 8 5/8-inch outer pipe)
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93mm) AT EACH JOINT.
DV-36D
5 3/4”
(146mm)
8 3/4”
(222mm)
11 3/4”
(298mm)
DV-12D DV-09D DV-06D
DV-48D
DV-90D
73/8”
(187mm)
65/32”
(156mm)
115/8”
(295mm)
1115/16”
(303mm)
57/8”
(149mm)
8 5/8”
(220mm)
81/2”
(216mm)
67/16”
(164mm)
DV-45D
111/16”
(281mm)61/2”
(165mm)
81/2”
(216mm)
51/16”
(129mm)
85/8”
(220mm)
35 3/4”
(908mm)
47 3/4”
(1.2m)

14
Figure 6. Straight Up Vertical Venting
Figure 5. Vent System Components and Termination Kits
Step 3. Installing the Vent System
A. Vent System Approvals
These models are approved to use D-series direct vent pipe
components and terminations (see Figures 4 and 5).Approved
vent system components are labeled for identification. This
pipe is tested and listed as an approved component of the
fireplace. The pipe is tested to be run inside an enclosed
wall. There is no requirement for inspection openings at each
joint within the wall. There is no required pitch for horizontal
vent runs. NO OTHER VENTING SYSTEMS OR COMPO-
NENTS MAY BE USED.
Detailed installation instructions are included with each vent
termination kit and should be used in conjunction with this
Installers Guide.
The flame and ember appearance may vary based on the type of
fuel burned and the venting configuration used.
Identifying Vent Components
The vent systems installed on this gas fireplace may include
one, two, or three 90°elbow assemblies. The relationships of
vertical rise to horizontal run in vent configurations using 90°
elbows MUST BE strictly adhered to. The rise to run relation-
ships are shown in the venting drawings and tables. Refer to
the diagrams on the next several pages.
NOTE: Two 45° elbows may be used in place of one 90°
elbow. Rise to run ratios in the vent system must be
followed if 45° elbows are used.
This model has vent starting collars on both the top and the
back of the unit. Depending upon the installation, decide
which ONE set of starting collars will be used to attach the
vent system. The starting collar sealing cap must remain on
the starting collar NOT used.
Terminations Kits
HORIZONTAL
TERMINATION
WALLFIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
DVK-01D DVK-TVCD
DVK-01TRD
Vent system components
STRAIGHT UP
VERTICAL VENTING
V (FT.)
40' MAX. (12.4 M)
NOTE: On vertical
venting configurations
where the vertical
component is over 10
feet, you may want to
install the vertical baffle
included in the manual
bag assembly to improve
flame appearance.

15
VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
V+H= 40 MAX. (12.4MM) 20' MAX. (6.2m)
Figure 7. Venting with One 90° Elbow
NOTE: IF A 90oELBOW IS FIRST AT-
TACHED TO THE UNIT, THE MAXIMUM
HORIZONTAL RUN IS 3-FEET (914mm).
NOTE: For corner installations: A 6-inch (152mm) MINIMUM length of straight pipe must be attached to the
fireplace before 90o elbow. This will allow the vent pipe to clear the top standoffs.

16
VENTING WITH TWO (2) 90oELBOWS
V FT. H + H1(FT.)
1' MIN. (305mm) 5´ MAX. (1.52m)
2' MIN. (610mm) 10´ MAX. (3.1m)
3' MIN. (914mm) 15´ MAX. (4.65m)
4' MIN. (1.22m) 20´ MAX. (6.2m)
V+H+H1= 40' MAX.(12.4m) 20´ MAX. (6.2m)
V+V1+H= 40' MAX.(12.4m)
Figure 8. Venting with Two 90° Elbows

17
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
NOTE: H + H1= 20' MAX. (6.2m)
V + V1 + H + H1= 40' MAX. (12.4m)
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H + H1 (FT.)
1' MIN.(305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
20' MAX. (6.2m)
NOTE: V+V1+H +H1= 40' MAX. (12.4m)
Figure 9. Venting with three 90° elbows

18
B. Installing Vent Components
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component to the starting collars
of the fireplace:
 Apply a 3/8 inch (9.5mm) bead of stove cement around
the 5 inch (127mm) fireplace starting collar.
 Make sure that the fireplace rope gasket supplied with
the fireplace seals between the first 8-5/8 inch (219mm)
vent component and the outer fireplace wrap.
 Lock the vent components into place by sliding the con-
centric pipe sections with four (4) equally spaced interior
beads into the fireplace collar or previously installed com-
ponent end with four (4) equally spaced indented sections.
 When the internal beads of each 8-5/8 inch (219mm)
outer pipe line up, rotate the pipe section clockwise about
one-quarter (1/4) turn. The vent pipe is now locked together.
 The first 90° elbow installed in the vent system of a rear
venting fireplace MUST BE in a vertical position.
!
Figure 10. Attaching the First Vent Component
to the Starting Collars
WARNING: A 3/8 INCH (9.5 MM) BEAD OF
STOVE CEMENT MUST BE PLACED AROUND
THE 5 INCH (127 MM) FIREPLACE STARTING COL-
LAR BEFORE ATTACHING THE FIRST VENT COM-
PONENT. FAILURE TO SEAL THIS JOINT MAY
CAUSE THE FIREPLACE TO OPERATE IMPROPER-
LY. SEE THE DIAGRAM .
STARTING
COLLAR
STOVE
SEALANT
BEAD
1 INCH
(25.4mm)
FIRST VENT
COMPONENT
!
WARNING: ENSURE THAT THE FIBER-
GLASS ROPE GASKET SUPPLIED WITH
THE FIREPLACE SEALS BETWEEN THE FIRST
VENT COMPONENT AND THE OUTER FIREPLACE
WRAP.
If the installation is for a termination cap attached directly
to the fireplace, skip to the sections, Install Firestops and
Vent Termination.

19
2. Continue Adding Vent Components
WARNING: INSTALLATION OF THE 7000XLT
FIREPLACE REQUIRES THE USE OF HEAT
SHIELD 570-290 ABOVE THE FIRST 900ELBOW IN
THE VENTING SYSTEM. (HEAT SHIELD NOT RE-
QUIRED FOR 6000XLTB).
Figure 11
To Install the Heat Shield:
1. Determine if the heat shield is required. Do so by mea-
suring the vertical distance between the top horizontal
surface of the elbow to any combustible surface above.
If the distance is more than 4 inches, the heat shield is
NOT required. If it is 4 inches or less, the heat shield IS
REQUIRED. Install per the following steps. See Figure 11.
!
 Continue adding vent components, locking each succeed-
ing component into place.
 Ensure that each succeeding vent component is secure-
ly fitted and locked into the preceding component in the
vent system.
 90° elbows may be installed and rotated to any point
around the preceding components vertical axis. If an el-
bow does not end up in a locked position with the pre-
ceding component, attach with a minimum of two (2)
sheet metal screws.
Figure 12
CORRECT INCORRECT
2. Fasten the shield in place using the four pilot holes pro-
vided in the part. The shield should be oriented such that
the 13 1/8 inch dimension (longest dimension) is run-
ning in the same direction the elbow is pointing. The
shield should be centered directly above the elbow, and
positioned so that it creates a 1/2 inch airspace between
the shield and the combustible surface. See Figure 12.
3. Install Support Brackets
For Horizontal Runs - The vent system must be supported
every five (5) feet of horizontal run by a horizontal pipe support.
To install support brackets for horizontal runs:
 Place the pipe supports around the vent pipe.
 Nail the pipe supports to the framing members.
Figure 13. Adding Venting Components

20
For Vertical Runs - The vent system must be supported
every eight (8) feet (2.4m) above the fireplace flue outlet by
wall brackets.
To install support brackets for vertical runs:
 Attach wall brackets to the vent pipe and secure the wall
bracket to the framing members with nails or screws.
Figure 14. Installing Support Brackets
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on both
sides of a combustible wall through which the vent passes.
NOTE: Model DVK-01TRD does not need an exterior
firestop on an exterior combustible wall.
To install firestops for horizontal runs that pass through
either interior or exterior walls:
 Cut a 12-inch by 12-inch (305mm X 305mm) hole through
the wall.
NOTE: The center of the hole is one (1) inch (25.4mm)
above the center of the horizontal vent pipe.
 Position the firestops on both sides of the hole previ-
ously cut and secure the firestops with nails or screws.
 The heat shields of the firestops MUST BE placed to-
wards the top of the hole.
 Continue the vent run through the firestops.
Figure 15. 12" x 12" Hole and Vent Pipe
Figure 16. Heat Shield, Interior & Exterior Firestops
VENT PIPE
1" (25.4 mm)
12"
(305mm)
12"
(305mm)
TRIM HEAT
SHIELD IF TOO
LONG, ADD TO
SHIELD IF TOO
SHORT
EXTERIOR
FIRESTOP
INTERIOR
FIRESTOP
HEAT SHIELD
