Heat & Glo FB-GRAND Assembly instructions

1
-Do not store or use gasoline or other flam-
mablevaporsandliquidsinthevicinityofthis
orany otherappliance.
-What to do if you smell gas
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your building.
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
•If you cannot reach your gas supplier, call
thefiredepartment.
-Installationandservicemustbeperformedbya
qualified installer, service agency, or the gas
supplier.
Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURYOR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT AQUALIFIED IN-
STALLER, SERVICEAGENCY, OR THE
GAS SUPPLIER.
Underwriters
Laboratories Listed
783-900C 12/02
READ THIS MANUAL BEFORE INSTALLING OR
OPERATINGTHISAPPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
Please contact your Heat-N-Glo dealer with any
questions or concerns. For the number of your nearest
Heat-N-Glo dealer, please call 1-888-427-3973.
Printedin U.S.A. Copyright 2002,
Heat-N-Glo,adivision of HearthTechnologiesInc.
20802KensingtonBoulevard,Lakeville,MN55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, AFIRE OR
EXPLOSION MAYRESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.
Models:
FB-Grand
FB-IN
CFX-Grand-B
CFX-IN-B
1. Thisappliancemaybeinstalledinanafter-
market,permanentlylocated,manufactured
(mobile)home,wherenotprohibitedbylo-
calcodes.
2. Thisapplianceisonlyforusewiththetype
of gas indicated on the rating plate. This
appliance is not convertible for use with
othergases,unlessacertifiedkitisused.

2
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide. NO OTHER vent systems or
components MAYBE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLYbe
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAYAWAYto avoid burns or clothing ignition.
Young children should be CAREFULLYSUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
!

3
TABLE OF CONTENTS
Safety and Warning Information ............................................... 2
Service Parts Lists.................................................................... 4
Section 1: Approvals and Codes ............................................ 10
Appliance Certification ............................................................... 10
Installation Codes ...................................................................... 10
HighAltitude Installations............................................................ 10
Section 2: Getting Started ...................................................... 11
Introducingthe Heat-N-GloGasAppliances ............................... 11
Pre-installation Preparation ........................................................ 11
Venting and Installation............................................................... 11
Section 3: Installing the Insert ............................................... 14
Step 1Installing the Vent System ........................................... 14
Step 2Positioning, Leveling, and Securing the Insert............. 18
Step 3The Gas Control Systems .......................................... 18
Step 4The Gas Supply Line .................................................. 18
Step 5Gas Pressure Requirements...................................... 19
Step 6WiringtheAppliance ................................................... 19
Step 7Installing Logs and Ember Material ............................. 21
Shutter Settings.......................................................... 21
Positioning the Logs ................................................... 21
Placing the Ember Material ......................................... 21
Step 8InstallingTrimSurround .............................................. 21
Step 9Before Lighting theAppliance...................................... 22
Step 10 LightingtheAppliance ................................................. 22
Afterthe Installation.................................................................... 22
Section 4: Maintaining and Servicing Your Appliance ........ 23
u= Contains updated information.
u
u

4
*Part number list on following page.
*La liste des numéros de pièce se trouve
àla pagesuivante.
FB-GRAND SHOWN
2
1 3
*Part number list on following page.
*La liste des numéros de pièce se trouve
àla pagesuivante.
9
10
11
12
4 Log Set Assembly
5
67
8
13
19
20
17
16
21
22
18
15
u
14

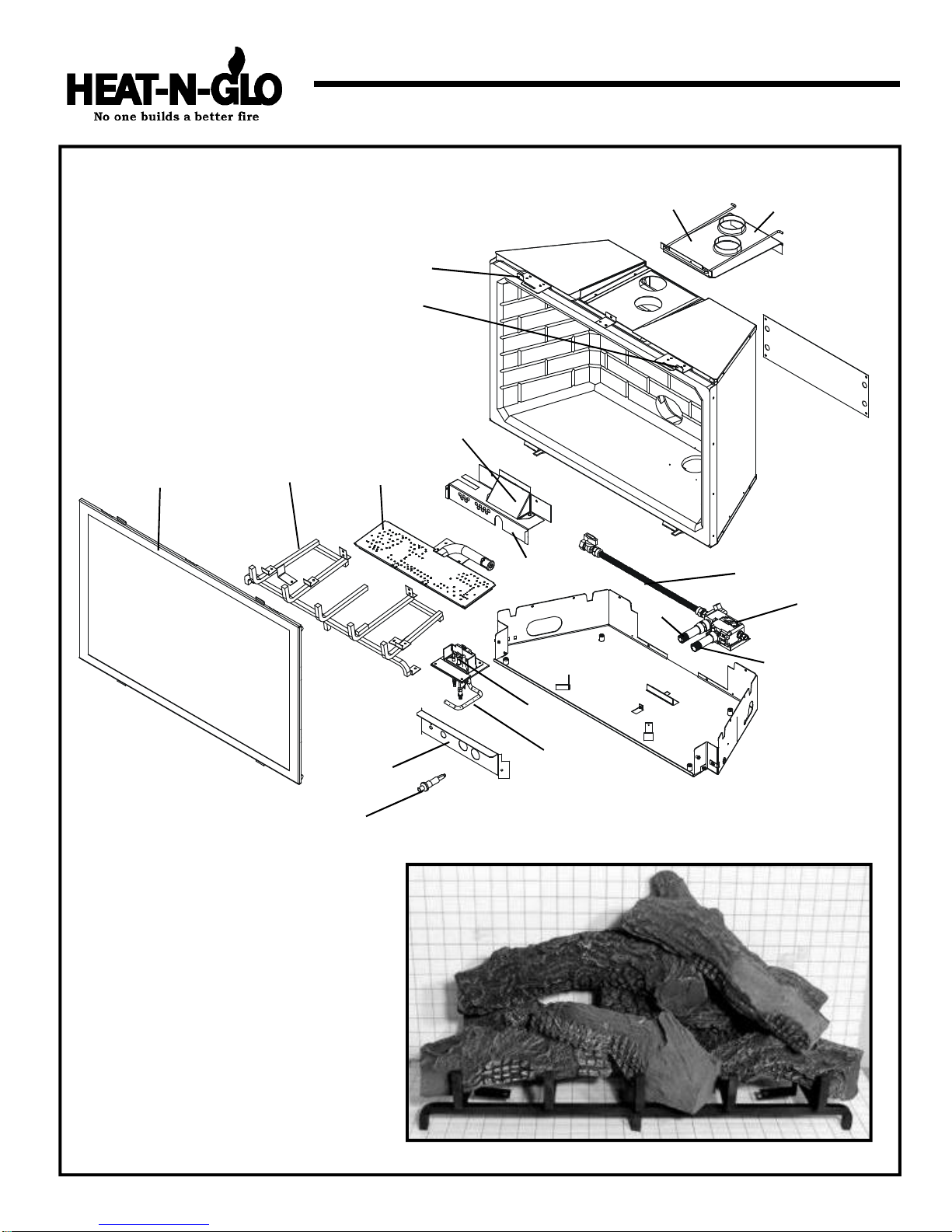

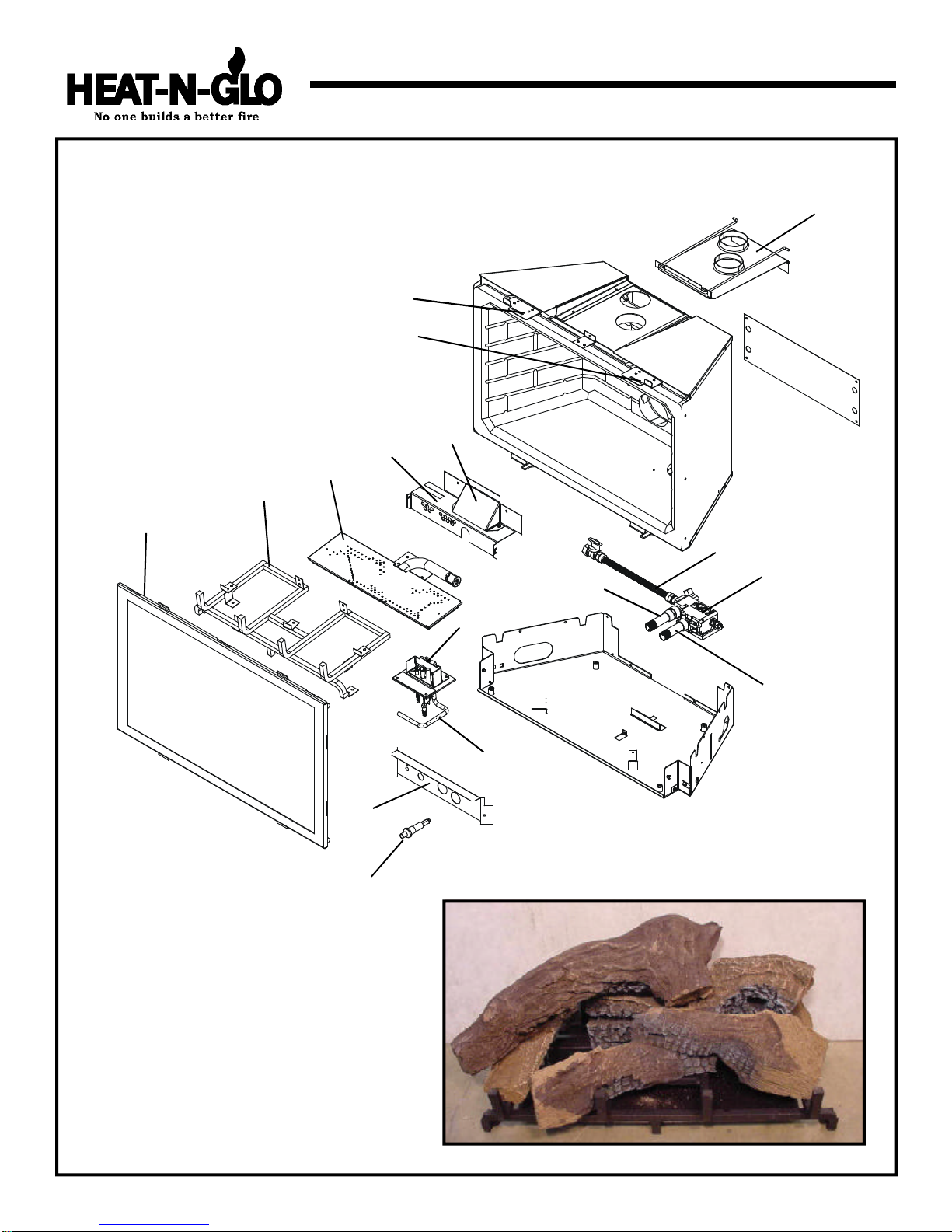

(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces
Service Parts FB-GRAND, CFX-GRAND-B
CFX-Grand-B: Manufacturing Dates: 9-01 to 12-02
FB-Grand-B: Manufacturing Dates:8-02 to _____

5
(NG, LP) Service Parts List / Liste des pièces de rechange
ITEM /
PIÈCE Description PART NUMBER / N° DE PIÈCE
ON/OFF Rocker Switch / Interrupteur à bascule marche/arrêt 680-528
Burner Orifice NG (.125) / Orifice de brûleur GN (.125) 768-801
Burner Orifice LP (#49) / Orifice de brûleur PL (#49) 065-801
1Glass Door Assembly, Ceramic / Porte en verre GLA-FBG
2Burner NG / Brûleur GN 778-176A
2Burner LP / Brûleur PL 768-175A
3Log Grate / Grille de Bûche 768-360A
4Log Set Assembly / Jeu de Bûches LOGS-CFXGB
5Log 1 / Bûche 1 SRV768-701
6Log 2 / Bûche 2 SRV768-704
7Log 3 / Bûche 3 SRV768-705
8Log 4 / Bûche 4 SRV582-705
9Pilot Control Knob 571-530
10 Flame Control Knob 571-531
11 Valve Cover Plate 768-120
12 Air Passage: Slide Plate Assembly with Handle /
Assemblée de Plat de Diapositive(Glissade) avec Poignée 783-108A
13 Slide Plate Handle / Poignée de Plat de Diapositive(Glissade) 768-351
14 Piezo Ignitor / Allumage Piézo 418-513
15 Burner Tube / Tube de brûleur 477-301A
16 Flex Ball Valve Assembly / Fléchir l'Assemblée de Soupape de Balle 302-320A
17 Valve NG / Valve GN 060-522
17 Valve LP / Valve PL 060-523
18 Pilot Assembly NG / Module de veilleuse GN 485-510A
18 Pilot Assembly LP / Module de veilleuse PL 485-511A
19 Glass Tab - Right / Étiquette de Verre - Droit 783-133
20 Glass Tab - Left / Étiquette de Verre - Gauche 783-134
21 Baffle - top / Déconcertez le Sommet 768-148
22 Baffle - bottom / Déconcertez - le fond(bas) 768-146
Pilot Bracket Gasket / Joint de Parenthèse Pilote 768-432
Pilot Orifice NG / Orifice de veilleuse GN 446-505
Pilot Orifice LP / Orifice de veilleuse PL 446-517
Thermocouple / Thermocouple 446-511
Thermopile / Thermopile 060-512
Pilot Tube / Tube de veilleuse SRV485-301
Fan/Blower / Ventilateur GFK-160A
Junction Box (Required if installing blower) / Boîtier de dérivation (Exigé, s'installant la soufflerie) 040-250A
Conversion Kit NG / Module de conversion GN NGK-FBG
Conversion Kit LP / Module de conversion PL LPK-FBG
IMPORTANT: THISISDATEDINFORMATION.The most currentinformationislocated on yourdealersVIPsite. When ordering,
supplyserial and modelnumbers toensurecorrect serviceparts. / IMPORTANT:L'informationfourniedanscette brochuren'est
valide que pendant une courte période. Les sites VIP des distributeurs disposent des renseignements les plus récents. Lors
d'unecommande, veuillezfournir les numéros de sérieet demodèles pourun remplacementadéquat des pièces.
FB-GRAND
u
u
u
u
u
u
u
u
u

6
(NG, LP) Service Parts List / Liste des pièces de rechange
ITEM /
PIÈCE Description PART NUMBER / N° DE PIÈCE
ON/OFF Rocker Switch / Interrupteur à bascule marche/arrêt 680-528
Burner Orifice NG (.125) / Orifice de brûleur GN (.125) 768-801
Burner Orifice LP (#49) / Orifice de brûleur PL (#49) 065-801
1Glass Door Assembly, Ceramic (NG) / Porte en verre PRE 002108516
POST 002108516 GLA-CFXGB GLA-FBG
1Glass Door Assembly, Ceramic (LP) / Porte en verre PRE 002106948
POST 002106948 GLA-CFXGB GLA-FBG
2Burner NG / Brûleur GN 778-176A
2Burner LP / Brûleur PL 768-175A
3Log Grate / Grille de Bûche 768-360A
4Log Set Assembly / Jeu de Bûches LOGS-CFXGB
5Log 1 / Bûche 1 SRV768-701
6Log 2 / Bûche 2 SRV768-704
7Log 3 / Bûche 3 SRV768-705
8Log 4 / Bûche 4 SRV582-705
9Pilot Control Knob 571-530
10 Flame Control Knob 571-531
11 Valve Cover Plate 768-120
12 Air Passage: Slide Plate Assembly with Handle /
Assemblée de Plat de Diapositive(Glissade) avec Poignée 783-108A
13 Slide Plate Handle / Poignée de Plat de Diapositive(Glissade) 768-351
14 Piezo Ignitor / Allumage Piézo 418-513
15 Burner Tube / Tube de brûleur 477-301A
16 Flex Ball Valve Assembly / Fléchir l'Assemblée de Soupape de Balle 302-302A
17 Valve NG / Valve GN 060-522
17 Valve LP / Valve PL 060-523
18 Pilot Assembly NG / Module de veilleuse GN 485-510A
18 Pilot Assembly LP / Module de veilleuse PL 485-511A
19 Glass Tab - right / Étiquette de Verre - droit 783-133
20 Glass Tab - Left / Étiquette de Verre - Gauche 783-134
21 Baffle Top / Déconcertez le Sommet 786-148
22 Baffle - bottom / Déconcertez - le fond(bas) 768-146
Pilot Bracket Gasket / Joint de Parenthèse Pilote 768-432
Pilot Orifice NG / Orifice de veilleuse GN 446-505
Pilot Orifice LP / Orifice de veilleuse PL 446-517
Thermocouple / Thermocouple 446-511
Thermopile / Thermopile 060-512
Pilot Tube / Tube de veilleuse SRV485-301
Junction Box / Boîtier de dérivation 040-250A
Conversion Kit NG / Module de conversion GN NGK-CFXGB
Conversion Kit LP / Module de conversion PL LPK-CFXGB
IMPORTANT: THISISDATEDINFORMATION.The most currentinformationislocated on yourdealersVIPsite. When ordering,
supplyserial and modelnumbers toensurecorrect serviceparts. / IMPORTANT:L'informationfourniedanscette brochuren'est
valide que pendant une courte période. Les sites VIP des distributeurs disposent des renseignements les plus récents. Lors
d'unecommande, veuillezfournir les numéros de sérieet demodèles pourun remplacementadéquat des pièces.
CFX-GRAND-B
u
u
u
u
u
u
u
u

7
*Part number list on following page.
*La liste des numéros de pièce se trouve
àla pagesuivante.
4 Log Set Assembly
2
13
5
67
8
9
10
11
12
FB-IN SHOWN
20
19
21
22
16 17
18
14
15
(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces
Service Parts FB-IN, CFX-IN-B
u
CFX-IN-B: Manufacturing Dates: 12-02 to 9-01
FB-IN: Manufacturing Dates:8-02 to ____

8
Service Parts List / Liste des pièces de rechange
ITEM /
PIÈCE DESCRIPTION PART NUMBER / N° DE PIÈCE
ON/OFF Rocker Switch / Interrupteur à bascule marche/arrêt 680-528
Burner Orifice NG (#31) / Orifice de brûleur GN (#31) 506-800
Burner Orifice LP (#49) / Orifice de brûleur PL (#49) 065-801
1Glass Door Assembly, Ceramic / Porte en verre GLA-FBIN
2Burner NG / Brûleur GN 773-176A
2Burner LP / Brûleur PL 773-175A
3Log Grate / Grille de Bûche 773-360A
4Log Set Assembly / Jeu de Bûches LOGS-CFXINB
5Log 1 / Bûche 1 SRV773-701
6Log 2 / Bûche 2 SRV773-702
7Log 3 / Bûche 3 SRV768-704
8Log 4 / Bûche 4 SRV573-702
9Pilot Control Knob 571-530
10 Flame Control Knob 571-531
11 Valve Cover Plate 768-120
12 Air Passage: Slide Plate Assembly with Handle /
Assemblée de Plat de Diapositive(Glissade) avec Poignée 783-108A
13 Slide Plate Handle / Poignée de Plat de Diapositive(Glissade) 768-351
14 Piezo Ignitor / Allumage Piézo 418-513
15 Burner Tube / Tube de brûleur 477-301A
16 Flex Ball Valve Assembly / Fléchir l'Assemblée de Soupape de Balle 302-320A
17 Valve NG / Valve GN 060-522
17 Valve LP / Valve PL 060-523
18 Pilot Assembly NG / Module de veilleuse GN 485-510A
18 Pilot Assembly LP / Module de veilleuse PL 485-511A
19 Glass Tab - Right / Étiquette de Verre - Droit 783-133
20 Glass Tab - Left / Étiquette de Verre - Gauche 783-134
21 Baffle - top / Déconcertez le Sommet 768-148
22 Baffle - bottom / Déconcertez - le fond(bas) 768-146
Pilot Bracket Gasket / Joint de Parenthèse Pilote 768-432
Pilot Orifice NG / Orifice de veilleuse GN 446-505
Pilot Orifice LP / Orifice de veilleuse PL 446-517
Thermocouple / Thermocouple 446-511
Thermopile / Thermopile 060-512
Pilot Tube / Tube de veilleuse SRV485-301
Junction Box / Boîtier de dérivation 040-250A
Conversion Kit NG / Module de conversion GN NGK-FBIN
Conversion Kit LP / Module de conversion PL LPK-FBIN
Fan Kit / Module de ventilateur GFK-160A
IMPORTANT: THISISDATEDINFORMATION.The most currentinformationislocated on yourdealersVIPsite. When ordering,
supplyserial and modelnumbers toensurecorrect serviceparts. / IMPORTANT:L'informationfourniedanscette brochuren'est
valide que pendant une courte période. Les sites VIP des distributeurs disposent des renseignements les plus récents. Lors
d'unecommande, veuillezfournir les numéros de sérieet demodèles pourun remplacementadéquat des pièces.
FB-IN
u
u
u
u
u
u
u
u

9
(NG, LP) Service Parts List / Liste des pièces de rechange
ITEM /
PIÈCE DESCRIPTION PART NUMBER / N° DE PIÈCE
ON/OFF Rocker Switch / Interrupteur à bascule marche/arrêt 680-528
Burner Orifice NG (#31) / Orifice de brûleur GN (#31) 506-800
Burner Orifice LP (#49) / Orifice de brûleur PL (#49) 065-801
1Glass Door Assembly, Ceramic (NG) / Porte en verre (GN) PRE 002131269
POST 002131269 GLA-CFXINB GLA-FBIN
1Glass Door Assembly, Ceramic (LP) / Porte en verre (GN) PRE 002133705
POST 002133705 GLA-CFXINB GLA-FBIN
2Burner NG / Brûleur GN 773-176A
2Burner LP / Brûleur PL 773-175A
3Log Grate / Grille de Bûche 773-360A
4Log Set Assembly / Jeu de Bûches LOGS-CFXINB
5Log 1 / Bûche 1 SRV773-701
6Log 2 / Bûche 2 SRV773-702
7Log 3 / Bûche 3 SRV768-704
8Log 4 / Bûche 4 SRV573-702
9Pilot Control Knob 571-530
10 Flame Control Knob 571-531
11 Valve Cover Plate 768-120
12 Air Passage: Slide Plate Assembly with Handle /
Assemblée de Plat de Diapositive(Glissade) avec Poignée 783-108A
13 Slide Plate Handle / Poignée de Plat de Diapositive(Glissade) 768-351
14 Piezo Ignitor / Allumage Piézo 418-513
15 Burner Tube / Tube de brûleur 477-301A
16 Flex Ball Valve Assembly / Fléchir l'Assemblée de Soupape de Balle 302-320A
17 Valve NG / Valve GN 060-522
17 Valve LP / Valve PL 060-523
18 Pilot Assembly NG / Module de veilleuse GN 485-510A
18 Pilot Assembly LP / Module de veilleuse PL 485-511A
19 Glass Tab - Right / Étiquette de Verre - Droit 783-133
20 Glass Tab - Left / Étiquette de Verre - Gauche 783-134
21 Baffle - top / Déconcertez le Sommet 768-148
22 Baffle - bottom / Déconcertez - le fond(bas) 768-146
Pilot Bracket Gasket / Joint de Parenthèse Pilote 768-432
Pilot Orifice NG / Orifice de veilleuse GN 446-505
Pilot Orifice LP / Orifice de veilleuse PL 446-517
Thermocouple / Thermocouple 446-511
Thermopile / Thermopile 060-512
Pilot Tube / Tube de veilleuse SRV485-301
Junction Box / Boîtier de dérivation 040-250A
Conversion Kit NG / Module de conversion GN NGK-CFXINB
Conversion Kit LP / Module de conversion PL LPK-CFXINB
IMPORTANT: THISISDATEDINFORMATION.The most currentinformationislocated on yourdealersVIPsite. When ordering,
supplyserial and modelnumbers toensurecorrect serviceparts. / IMPORTANT:L'informationfourniedanscette brochuren'est
valide que pendant une courte période. Les sites VIP des distributeurs disposent des renseignements les plus récents. Lors
d'unecommande, veuillezfournir les numéros de sérieet demodèles pourun remplacementadéquat des pièces.
CFX-IN-B
u
u
u
u
u
u
u
u

10
Appliance Certification
The Heat-N-Glo appliance models discussed in this
Installers Guide havebeentested tocertification standards
and listed by the applicable laboratories.
Certification
MODELS: FB-GRAND,FB-IN
CFX-GRAND-B,CFX-IN-B
LABORATORY: UnderwritersLaboratories
TYPE: Vented Gas Fireplace Heaters
STANDARD:
ANSI Z21.88-2002•CSA2.33-2002•UL307B
Installation Codes
The appliance installation must conform to local codes.
Before installing the appliance, consult the local building
code agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
Intheabsence oflocalcodes, thefireplaceinstallation must
conformtothe NationalFuel GasCodeANSIZ223.1(inthe
United States) or the CAN/CGA-B149 Installation Codes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(intheUnitedStates),ortothe CSAC22.1CanadianElectric
Code(in Canada).
Thesemodels may be installed ina bedroomor bed-sitting
Approvals and
Codes
room in the U.S.A. and Canada.
HighAltitudeInstallations
U.L. Listed gas appliances are tested and approved with-
out requiring changes for elevations from 0 to 2,000 feet in
the U. S.A. and in Canada.
Wheninstalling this appliance at an elevation above2,000
feet, it may be necessary to decrease the input rating by
changingthe existing burnerorifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between2000 and4500 feetin Canada. Ifthe heatingvalue
of the gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local gas
utility.
If installing this appliance at an elevation above 4,500 feet
(in Canada), check with local authorities.
Heat-N-GloQuality
Systems registered
by SGS ICS
u

11
!
!
!
!
!
!
Getting Started
Introducing the Heat-N-Glo Gas Appliances
Heat-N-Glo direct vent gas appliances are designed to
operate with all combustion air siphoned from outside of
the building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems.Gasappliancediagrams,includingthedimensions,
are shown in this section.
Pre-install Preparation
This gas insert fireplace and its components are tested
and safe when installed in accordance with this Installers
Guide.Reporttoyourdealeranypartsdamagedinshipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
Theventsystemcomponentsandtrimsurroundsareshipped
in separate packages. The gas logs are packaged
separately and must be field installed.
Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the own-
er’s warranty and may present a fire hazard.
TheHeat-N-GloWarrantywillbe voided by,andHeat-N-Glo
disclaims any responsibility for, the following actions:
•Installationofdamagedfireplaceorventsystemcomponent.
•Modification of the fireplace or direct vent system.
•Installation other than as instructed by Heat-N-Glo.
•Improper positioning of the gas logs or the glass door.
•Installationand/or use of any component part notmanu-
factured and approved by Heat-N-Glo, not withstanding
anyindependent testing laboratoryor otherpartyapproval
of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.

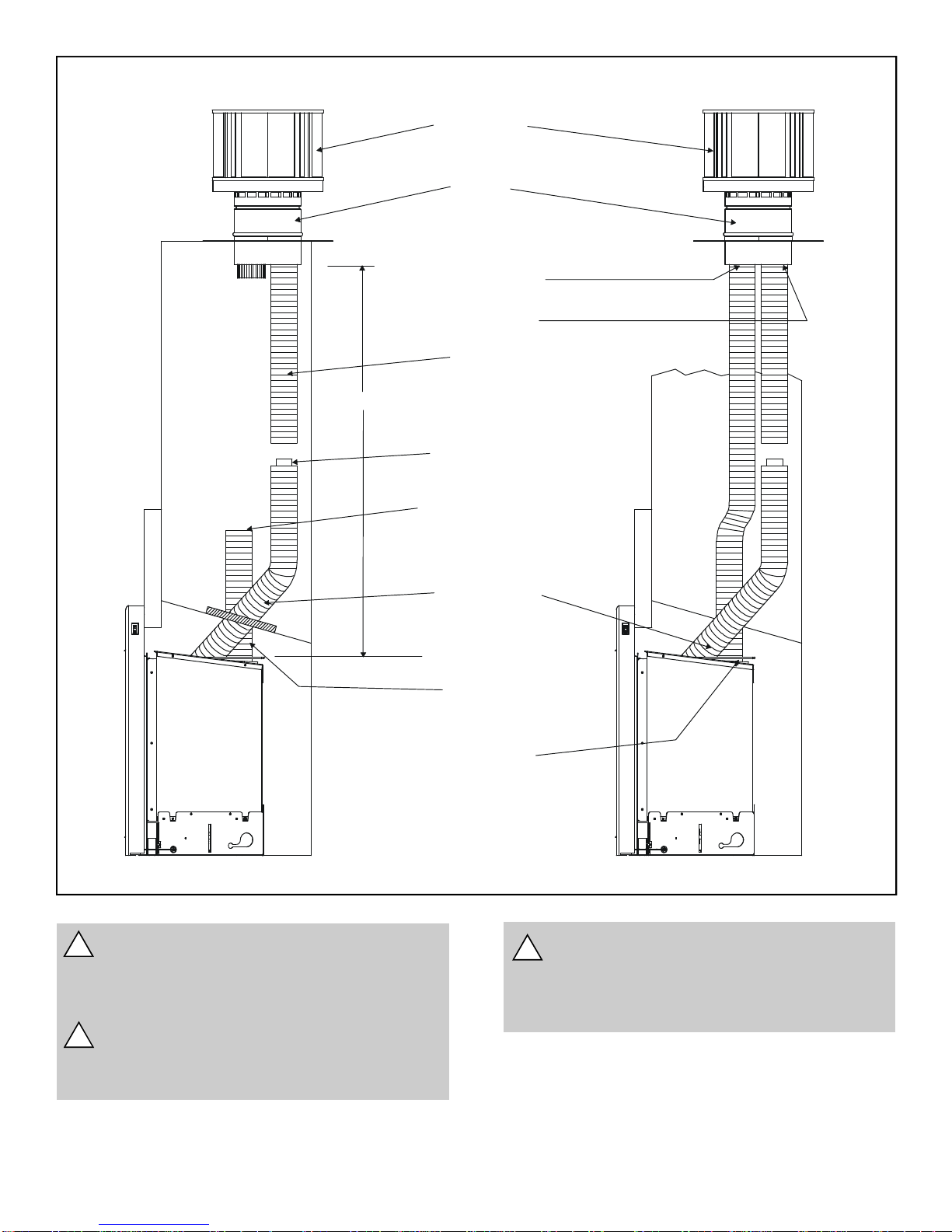

VENTINGAND INSTALLATION
1. Heat-N-Glogas insertsare designedfor recessedinstal-
lations into solid fuel masonry or factory built non-com-
bustiblefireplacesthat have beeninstalledin accordance
withtheNational,Provincial,Stateandlocalbuildingcodes.
2. Minimum fireplace opening requirements are shown in
Figures1 and 2of this installation manual. Thefirebrick
(refractory)can be removedfrom afactory built fireplace
inordertogainminimumgasinsertopeningrequirements.
WARNING: Under no circumstances is cutting
ofsheetmetalsurfacesallowedforinstallation.
If the factory built fireplace has no gas ac-
cess holes provided, an access hole of 1” di-
ameter (25mm) or less may be drilled through the
lower sides or bottom of the combustion chamber
in a proper workmanship like manner.
3. Toassuretop performance,safety and efficiency,inserts
mustbeinstalled withanapproved flue linerasper CAN/
CGAB-149or NationalFuelCodeANSIZ223and these
instructions.
WARNING: A HEARTH OR HEARTH EXTEN-
SION (IF PRESENT) MUST COMPLYWITH EI-
THER OF THE FOLLOWING: 1) THE SOLID-FUEL
BURNING FIREPLACE MANUFACTURER’S SPECI-
FICATION, OR 2) LOCAL BUILDING CODES RE-
QUIRED BYAUTHORITYHAVING JURISDICTION.
WARNING:THE SOLIDFUELFIREPLACEHAS
BEEN CONVERTED FOR USE WITH GAS
ONLYAND CANNOT BEUSEDFORBURNING
WOOD OR SOLID FUELS UNLESS ALL ORIGINAL
PARTS HAVE BEEN REPLACED AND THE FIRE-
PLACEHASBEEN REAPPROVEDBYTHEAUTHOR-
ITY HAVING JURISDICTION.
4. Thesolidfuelfireplace’s flue dampermustbefullylocked
inthe open positionor removed forinstallation.
5. Thechimneymust be cleanedandin goodworkingorder
andconstructed of noncombustible materials.
6. Make sure that all chimney cleanouts fit properly so air
cannot leak into the chimney.
7. Install the insert without the trim surround and make all
gas, venting, and electrical connections.
WARNING: Modification of any sheetmetal or
fiber surfaces is strictly PROHIBITED in the
installation of this appliance.
Only trim kit(s) supplied by the manufacturer shall
be used in the installation of this appliance.
8. Install decorative trim surround. The surround is tested
ANDapprovedwith thisgasinsertANDmaycover exist-
ingair circulation vents or grillson thesolid fuel fireplace
into which it is installed. Should the surround not cover
all ventilation grill surfaces, the grill should be left open.
NOTE: DECORATIVE TRIM SURROUND HAS BEEN
TESTED AND APPROVED TO COVER EXISTING AIR
CIRCULATION VENTS OR GRILLS.
WARNING: Only the surround, as supplied,
may be used to cover integral grills on the
solid fuel burning fireplace. No other components
such as shrouds, sheet metal plates, etc. may be
used to seal off vents. Remote grills or openings
outside of the surround MUST NOT be covered or
sealed.

12
MINIMUM FIREPLACE SIZE
Location CFX-GRAND-B and FB-GRAND CFX-IN-B and FB-IN
Inches Millimeters Inches Millimeters
AFront Width 35 889 30-1/4 768.4
BRear Width 22-5/8 574.7 19 482.6
CDepth 14-1/8 358.8 14-1/8 358.8
*Height 25-3/4 654 22-1/2 571.5
* NOTE: If exhaust collar on insert and fireplace damper do not line up, add 4 inches (102mm) to minimum
fireplace height for bends in vent pipe. /
Figure 1. Diagram of insert
GAS ACCESS
SURROUND
DOOR
GLASS
ASSEMBLY
LOWER GRILLE
GAS CONTROL VALVE
RATING PLATE
ELECTRICAL JUNCTION
BOX ACCESS
INLET AIR STARTING COLLAR
EXHAUST STARTING
COLLAR
LOW VOLTAGE
WIRES
ON/OFF
SWITCH
B
2”
(50.8mm)
A
C
TOP VIEW

13
MODEL DIMENSIONS
Location CFX-GRAND-B and FB-GRAND CFX-IN-B and FB-IN
Inches Millimeters Inches Millimeters
A22-1/2 571 18 457
B8-3/4 222 6-1/2 165
C33-3/4 857.2 29-3/8 746.1
D30-9/16 776 26-1/16 661
E23-7/8 606 20-5/8 524
F18-7/16 468 15-3/16 385
G25-3/8 644 22-1/8 562
H24-1/2 622 21-1/4 540
Dimensions in brackets
aremillimeters.
Figure 2. Diagram and dimension of all models
D
F
EH
1-9/16
40[ ] 6-5/8
169[ ]
ø
(2)
2-13/16
71[ ]
G
3-9/16
91[ ]
1-1/16
28[ ]
ELECTRICAL
ACCESS
(IF EQUIPPED)
GAS INLET
C
13-3/4
350[ ]
A
5-9/16
142[ ]
2-1/2
64[ ]
B
2-1/16
52[ ]
3-1/8
80[ ]
REF
4
102[ ]

14
Installing the Insert
Step 1. Installing the Vent System
Vent System Installation Precautions
Before starting installation of vent kits, the installer should
read these instructions and the Vent Kit Instructions to
ensure that a proper vent installation is completed.
Consult your local building codes before beginning the
installation.
WARNING: THIS GAS INSERT AND VENT AS-
SEMBLYMUSTBEVENTED DIRECTLYTOTHE
OUTSIDEAND MUST NEVER BEATTACHED TOA
CHIMNEY SERVING ASEPARATE SOLID FUEL
BURNING APPLIANCE. EACH GAS APPLIANCE
MUSTUSEASEPARATE VENTSYSTEM.COMMON
VENT SYSTEMS ARE PROHIBITED.
ModelsCFX-Grand-B,CFX-IN-B,FB-INand FB-GRAND is
approvedwith vent terminationkits LINK-DV-30, LINK-DV-
30B,LINK-DV4-30 andLINK-DV4-30B.Approvedvent sys-
temterminations arelabeled for identification.3-inch diam-
eterlisted flexible aluminum and stainlesssteel gasvent is
used for both the incoming combustion air and exhaust
vent pipes. NO OTHER VENTING SYSTEMS OR COM-
PONENTS MAYBE USED. Detailed installation instruc-
tionsare includedwith each venttermination kitand should
be used in conjunction with this manual.
Horizontal Venting
The vent system on this model CANNOT be terminated
horizontally.
Vertical Venting
The vent pipes MUST be connected to the proper collars
onthe unit ANDtheexhaust ventpipe MUST beconnected
tothe terminationcap or theunit willnot operate.The com-
bustion air vent pipe CAN be connected to the termination
cap (LINK-DV30, LINK-DV30B) or it can terminate inside
the chimney (LINK-DV4-30, LINK-DV4-30B). The bottom
opening of the chimney must be sealed around the vent
pipes if the combustion air vent is NOT connected to the
termination cap. See Figures 3 and 4.
NOTE: Theminimum vertical rise (exhaustvent) is 14 feet
andthemaximumvertical riseis40feet. Thesedimensions
aremeasured from the starting collarsof the unitto theend
Vent System Approvals
!
ofthe lastsectionof ventpipe. Seedimension VinFigure 4.
A vertical vent termination system installed on this model
willinclude one (1) length of3-inch flexible ventpipe forthe
combustionair,one (1) lengthof3-inch flexibleventpipe for
the exhaust air, one (1) pipe-to-cap adaptor, and one (1)
SLK-991DAor SLK-980D VerticalTerminationCap.
!
NOTE: The damper of the masonry chimney may need to
beremoved to allowinstallation of theflexible-vent pipe.
This fireplace has been altered to accommodate an
insert and should be inspected by a qualified person
priorto re-use asa conventional fireplace.
NOTE: Theabovelabel,located in theinstructionpackage,
mustbe affixedto theexisting fireplaceprior toinstallation.
Forzero clearance factorybuilt woodburningfireplaces,the
use of kit LINK-ZC-ADP in place of the standard square
flashing will allow you to mount the adaptor and cap on
metal pipe. Additionally, the use of kit FLASH-DAMP will
seal off the damper opening when terminating the inlet air
vent pipe just above the damper. These 2 kits are
recommendedforzero clearance,factorybuilt woodburning
fireplaces.
Connecting the Vent Pipe
Installthe3” flexibleventpipe(s)down throughthechimney.
Secure the end of the flexible vent pipe for exhaust to the
provided3’ section ofstainless steel flexiblevent pipe.A3”
collar is factory installed on one end for mating the two
endsof flexible pipe.
WARNING: THE 3’ SECTION OF STAINLESS
STEELFLEXIBLEPIPEMUSTBEATTACHEDDI-
RECTLYTO THE EXHAUST COLLAROFTHE UNIT.
Attach either 4’ or 30’ section of intake liner to the intake
collaronthecollar slide-plate using3screws.Thisassembly
mayberemovedfrom theunittoaid installation. Slideinsert
into position, while pulling intake collar assembly towards
the front of the unit. Slide the gas insert into place, and
position any excess flexible vent pipe back up into the
chimney. This assembly will be secured in place when the
pullhandle can be lockedinto position at locking brackets.

15
!
Slide the gas insert into place, and
positionanyexcessflexibleventpipeback
up into the chimney. Attach the pipe-to-
cap adaptor to the termination cap and
tothe top of the flexiblevent pipeand set
thecap in placeat thetop ofthechimney.
See Figures 4 and 5.
CAUTION: TO AVOID DOWNDRAFTS
AND/OR COLD AIR PROBLEMS, IT IS
RECOMMENDED TO SEAL OFF THE
AREA BETWEEN THE TERMINATION
CAP AND THE TOP OF THE SOLID-
FUEL CHIMNEY OPENING INTO
WHICH THE VENT CAP HAS BEEN IN-
STALLED.
WHEN USING THE LINK-DV4-30 VENT
SYSTEM, IT IS REQUIRED TO SEAL
AROUND THE FLEXIBLE VENT PIPES
IN THE DAMPER AREA. SEE FIGURE
5. USE FIBERGLASS INSULATIONOR
OTHER SUITABLE NON-COMBUSTI-
BLE MATERIAL.
WARNING: MAJOR U.S.
BUILDING CODES SPECIFY
MINIMUMCHIMNEY AND/OR VENT
HEIGHT ABOVE THE ROOF TOP.
THESE MINIMUM HEIGHTS ARE
NECESSARYIN THE INTEREST OF
SAFETY. SEE THE FOLLOWING
DIAGRAMFOR MINIMUM HEIGHTS,
PROVIDEDTHE TERMINATIONCAP
ISAT LEAST 2-FEET FROM AVER-
TICAL WALL AND 2-FEET BELOW
AHORIZONTAL OVERHANG.
NOTE: Thisalso pertains tovertical vent
systems installed on the outside of the
building.
RoofPitch H (min.) ft.
flat to 6/12 1.0
6/12 to 7/12 1.25
over 7/12 to 8/12 1.5
over 8/12 to 9/12 2.0
over9/12 to 10/12 2.5
over10/12to 11/12 3.25
over11/12to 12/12 4.0
over12/12to 14/12 5.0
over14/12to 16/12 6.0
over16/12to 18/12 7.0
over18/12to 20/12 7.5
over20/12to 21/12 8.0

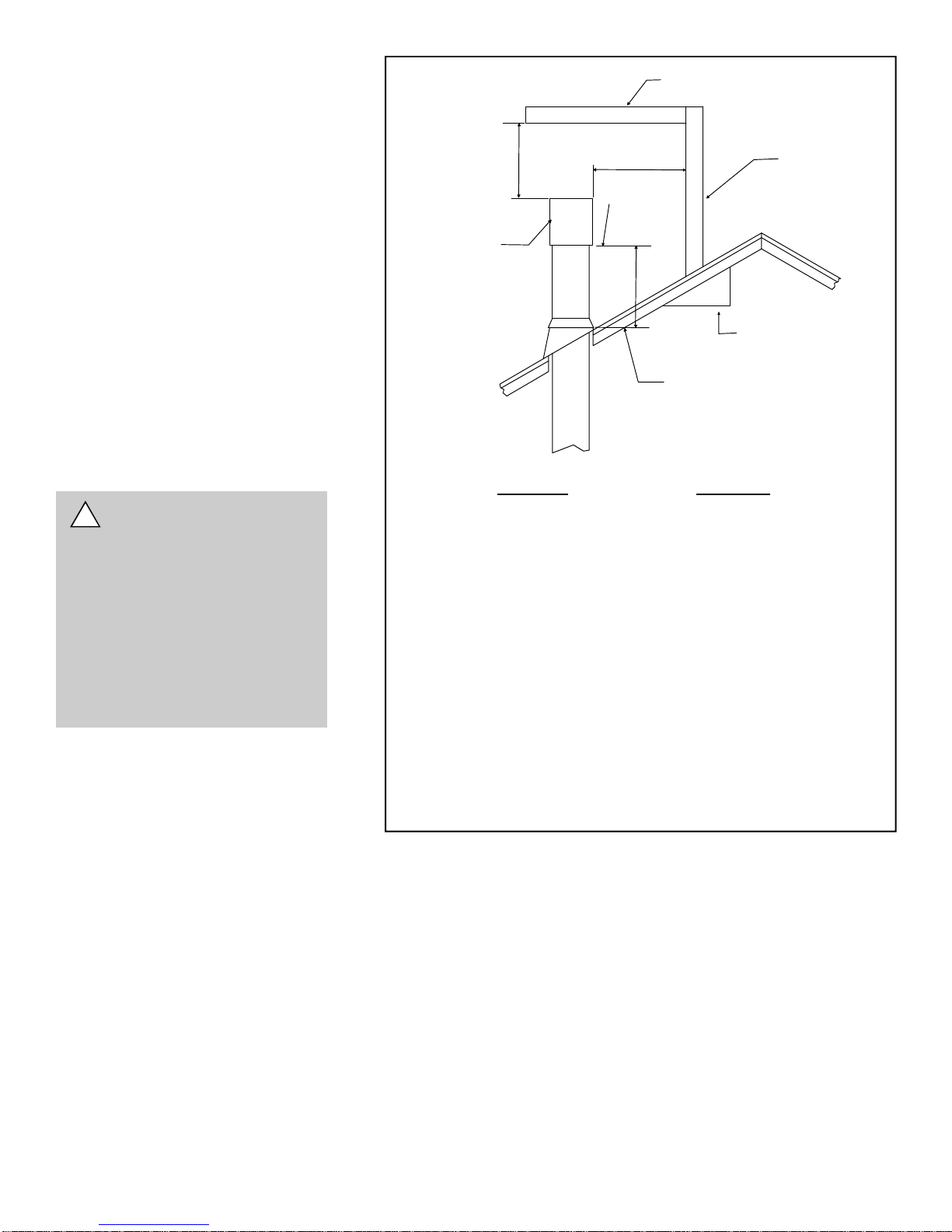

Figure 3. Minimum Height from Roof to Lowest
Discharge Opening
HORIZONTAL OVERHANG
VERTICAL WALL
TERMINATION CAP
12
X
ROOF PITCH IS X/ 12
LOWEST
DISCHARGE
OPENING
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
2 FT.
MIN. 2 FT. MIN.

16
Figure 4.
This option shows both exhaust and inlet
air vent pipes attached to the adaptor.
WARNING: THE EXHAUST VENT PIPE MUST
ONLYBE CONNECTED TO THE EXHAUST
STARTING COLLAR OF THE UNIT AND THE
CENTERCOLLAR OF THE TERMINATION CAP.
A3 FOOT SECTION OF STAINLESS STEEL
FLEXIBLE LINER MUST BE ATTACHED
DIRECTLYTO THE EXHAUST COLLAR ON
COLLAR SLIDE PLATE.
!
THE INLET AIR PIPE MUST ONLYBE
CONNECTED TO THE INLET AIR COLLAR OF
THE UNIT AND EITHER ATTACHED TO THE
INLETAIRCOLLAROFTHETERMINATIONCAP
ORTERMINATED IN THECHIMNEY.
!
!
TERMINATION
CAP
ADAPTOR
EXHAUST
VENT PIPE
V= 14 FT. MINIMUM
40FT. MAXIMUM
3 INCH COLLAR
(Factory installed to
stainless steel section)
WARNING: DO NOT
BLOCK PIPE END WITH
INSULATION OR ANY OTHER
SEALING MATERIAL
STAINLESS STEEL
PIPE - 3 FT. MIN.
REQUIRED (INCLUDED)
INLET AIR
VENT PIPE
COLLAR ATTACHMENT
BRACKET
EXHAUST COLLAR
INLET AIR COLLAR

17
Figure 5. Typical configuration of vent liners.
Note: Inspect for exhaust
collar gasket to insure
positive exhaust seal.
TERMINATION
CAP
ADAPTOR
STAINLESS STEEL
ADAPTER FOR EXHAUST
(MUST BE INSTALLED)
EXHAUST VENT PIPE SUPPLIED
WITH TERMINATION KIT
INLET AIR VENT COLLAR
(LINK-DV30 SHOWN)
INLET AIR VENT PIPE
3 INCH
COLLAR
LOCKING
TABS
LOCKING
HANDLE
SLIDING
PLATE

18
Step 2. Positioning, Leveling, and
Securing the Insert
•Place the insert into position.
•Levelthe insert from sideto side and from front to back.
Use the leveling legs included with the manual
bag if necessary to set each corner of the base.
!
!
Step 3. The Gas Control System
WARNING:THIS UNIT IS NOT FOR USEWITH
SOLID FUEL.
Thesemodels use a standing pilot ignition typeof gas con-
trol system.
Standing Pilot Ignition System
This system includes millivolt control valve, standing pilot,
thermopile/thermocoupleflame sensor,and piezo ignitor.
WARNING: 110-120 VAC MUST NEVER BE
CONNECTED TO ACONTROL VALVE IN A
MILLIVOLT SYSTEM.
STANDINGPILOT
Figure 6. Gas Controls System
Step 4. The Gas Supply Line
NOTE: Have the gas supply line installed in accordance
with local building codes by a qualified installer
approved and/or licensed as required by the locality.
(In the state of Massachusetts installation must be
performed by a licensed plumber or gas fitter).
NOTE: Before the first firing of the fireplace, the gas
supply line should be purged of any trapped air.
NOTE: Consult local building codes to properly size
the gas supply line leading to the 1/2 inch (13 mm)
hook-up at the unit.
This gas fireplace is designed to accept a 1/2 inch
(13 mm) gas supply line. To install the gas supply line:
•Alisted (andState ofMassachusetts approved)1/2 inch
(13mm) tee-handle manual shut-off valve and a listed
flexible gas connector are connected to the 1/2 inch
(13mm) inlet of the control valve.NOTE: If substituting
for these components, please consult local codes for
compliance.
•Locate the gas line access hole in the outer casing of
thefireplace.
•Open the lower grille, insert the gas supply line through
the gas line hole, and connect it to the shut-off valve.
•Whenattaching the pipe, support thecontrol sothat the
lines are not bent or torn.
•After the gas line installation is complete, use a soap
solutionto carefully check all gasconnections for leaks.
WARNING: DO NOT USE AN OPEN FLAME
TO CHECK FOR GAS LEAKS.
!
Figure 7. Gas Supply Line
Remote Control
The receiver for the remotes must be installedBETWEEN
thebase panof the insertand thefirebox ofthe wood-burn-
ingfireplace (seephoto below).
EXISTINGBOTTOM
OFFIREPLACE
REMOTE
RECEIVER
UNIT
EXISTINGSIDE
REFRACTORY
GAS
SHUT-OFF
FLEXIBLE
GAS LINE
CONTROLS

19
Step 5. Gas Pressure Requirements
Pressurerequirements for thesegas appliancesareshown
in the table below.
Pressure Natural Gas Propane
Minimum 5.0 inches 11.0 inches
InletPressure w.c. w.c.
MaximumInlet 14.0 inches 14.0 inches
GasPressure w.c. w.c.
Manifold 3.5 inches 10.0 inches
Pressure w.c. w.c.
Inletand outlet pressure taps areprovided onthe front face
of the gas control for a test gauge connection to measure
themanifold pressure. Usea smallflat bladescrewdriverto
crack open the screw in the center of the tap. Position a
rubber hose over the tap to obtain the pressure reading.
THE FIREPLACE AND ITS INDIVIDUAL SHUT-OFF
VALVE MUST BE DISCONNECTED FROM THE GAS
SUPPLYPIPING SYSTEMAND ISOLATED DURINGANY
PRESSURE TESTING OF THE SYSTEM AT TEST
PRESSURES EQUAL TO OR IN EXCESS OF ONE-HALF
(1/2) PSIG (3.5 KPA).
Step 6. Wiring the Fireplace
NOTE: Electrical wiring must be installed by a li-
censed electrician.
CAUTION: DISCONNECT REMOTE CONTROLS IF AB-
SENTFOR EXTENDED TIME PERIODS. THIS WILLPRE-
VENTACCIDENTAL APPLIANCE OPERATION.
For Standing Pilot Ignition Wiring
Appliance Requirements
•ThisapplianceDOESNOTrequire110-120VACtooperate.
•Models FB-Grand and FB-IN require 110-120 VAC if op-
tional blower is added to the system.
WARNING: DONOT CONNECT110-120 VAC TO
THE GAS CONTROL VALVE OR THE APPLI-
ANCE WILL MALFUNCTION AND THE VALVE
WILL BE DESTROYED.
!
Figure 8. Standing Pilot Ignition Wiring Diagram
THERMOCOUPLE
GAS
VALVE
OPTIONAL WALL SWITCH
THERMOSTAT OR REMOTE
ON
OFF
ROCKER
SWITCH
THERMOPILE
WHITE T2
RED T1
!
Wall Switch
Position the wall switch in the desired position on a wall.
Run a maximum of 25 feet (7.8 m) or less length of 18
A.W.G. minimum wire and connect it to the fireplace valve
pigtails.
WARNING: DO NOT CONNECT 110-120 VAC
TO THE WALL SWITCH OR THE CONTROL
VALVE WILL BE DESTROYED.
CAUTION: LABEL ALL WIRES PRIOR TO DISCONNEC-
TIONWHEN SERVICING CONTROLS. WIRING ERRORS
CANCAUSEIMPROPERANDDANGEROUSOPERATION.
VERIFY PROPER OPERATION AFTER SERVICING.

20
!
Optional Accessories
Installationof the electricaljunction box is required ifusing
a blower or remote. To install:
•Uncoil the junction box cord and feed the end of the
cord through the hole on the right side of the base pan.
•Turn the junction box at a 45-degree angle and insert it
into the sidewall of the base pan.
•Turn junction box so it is flush with sidewall and screw
into place with the screw provided in the manual bag.
•Gently pull the end of the cord until cord is tight. Place
thestrain reliefon thecord andthen place it into holeon
base pan.
•Plug the cord into a convenient outlet. An electrician
may install an outlet box inside the fireplace. Place the
outletin the lower,back cornerof thefireplace supplied.
Make sure fan doesn’t touch back wall.
Fan Option (FB-IN & FB-Grand ONLY)
Onunits already installed removal ofdecorative front, sur-
round and gas insert is required.
•Detach flexible liner from back of unit.
•Removethefourscrewsonthecoverplate(seeFigure11).
•Bend up the tabs on the base pan (see Figure 10).
•Place the blower in between the bend up tabs.
•Install and wire the blower per instruction shipped with
thefan.
•The ground wire of the fan can clip on the side of the
base pan.
•Reinstall the cover plate back on the unit. Make sure
the fan does not make contact with the back wall.
Figure 9.
Junction box installation
JUNCTION
BOX
SIDEWALL
FEED PLUG
THROUGH HOLE
INSERT STRAIN RELIEF
AROUND CORD IN THIS END
FROM OUTSIDE OF UNIT
SCREW
PROVIDED
Figure 10. Fan Wiring Diagram
NOTE: IFANYOFTHEORIGINALWIRE ASSUP-
PLIED WITH THE APPLIANCE MUST BE RE-
PLACED, IT MUST BE REPLACED WITH TYPE
1050C RATED WIRE.
WARNING: MUST USE THE CORD SUPPLIED
WITH THE J-BOX.
JUNCTION BOX
VARIABLE SPEED CONTROL
TEMPERATURE
SENSOR SWITCH
WHT
GRN
BLK
BLK
110-120 VAC
BLOWER
BLOWER RECEPTACLE
BLK
BLK
BLK
BLK
WHT
GROUND
WHT
BLK
BLK
BLK
FAN
TEMPERATURE
SENSOR SWITCH
SPEED CONTROL
(RHEOSTAT)
JUNCTION
BOX
GROUND WIRE
(ATTACH TO ANY
METAL SURFACE)
Figure 11.
FAN
COVER
PLATE
GROUND
WIRE
