Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/14
Installation Manual
Installation and Appliance Setup
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT discard this manual!
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fitter.
See Table of Contents for location of additional Commonwealth
of Massachusetts requirements.
Models:
ESCAPE-I35-F
ESCAPE-I35LP-F
ESCAPE-I30-F
ESCAPE-I30LP-F
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer’s
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.



Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/142
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
Table of Contents
Installation Standard Work Checklist. . . . . . . . . . . . . . . . . . . . 3
1 Product Specific and Important Safety Information
A. Appliance Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
B. Glass Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
C. BTU Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
D. High Altitude Installations . . . . . . . . . . . . . . . . . . . . . . . . . . 4
E. Non-Combustible Materials Specification. . . . . . . . . . . . . . 4
F. Combustible Materials Specification . . . . . . . . . . . . . . . . . 4
G. Electrical Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Getting Started
A. Design and Installation Considerations . . . . . . . . . . . . . . . 5
B. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . . . . 5
C. Inspect Appliance and Components. . . . . . . . . . . . . . . . . . 5
3 Framing and Clearances
A. Appliance/Decorative Front Dimension Diagram . . . . . . . . 6
4 Fireplace Size Requirements
A. Minimum Fireplace Opening . . . . . . . . . . . . . . . . . . . . . . 10
5 Termination Location and Vent Information

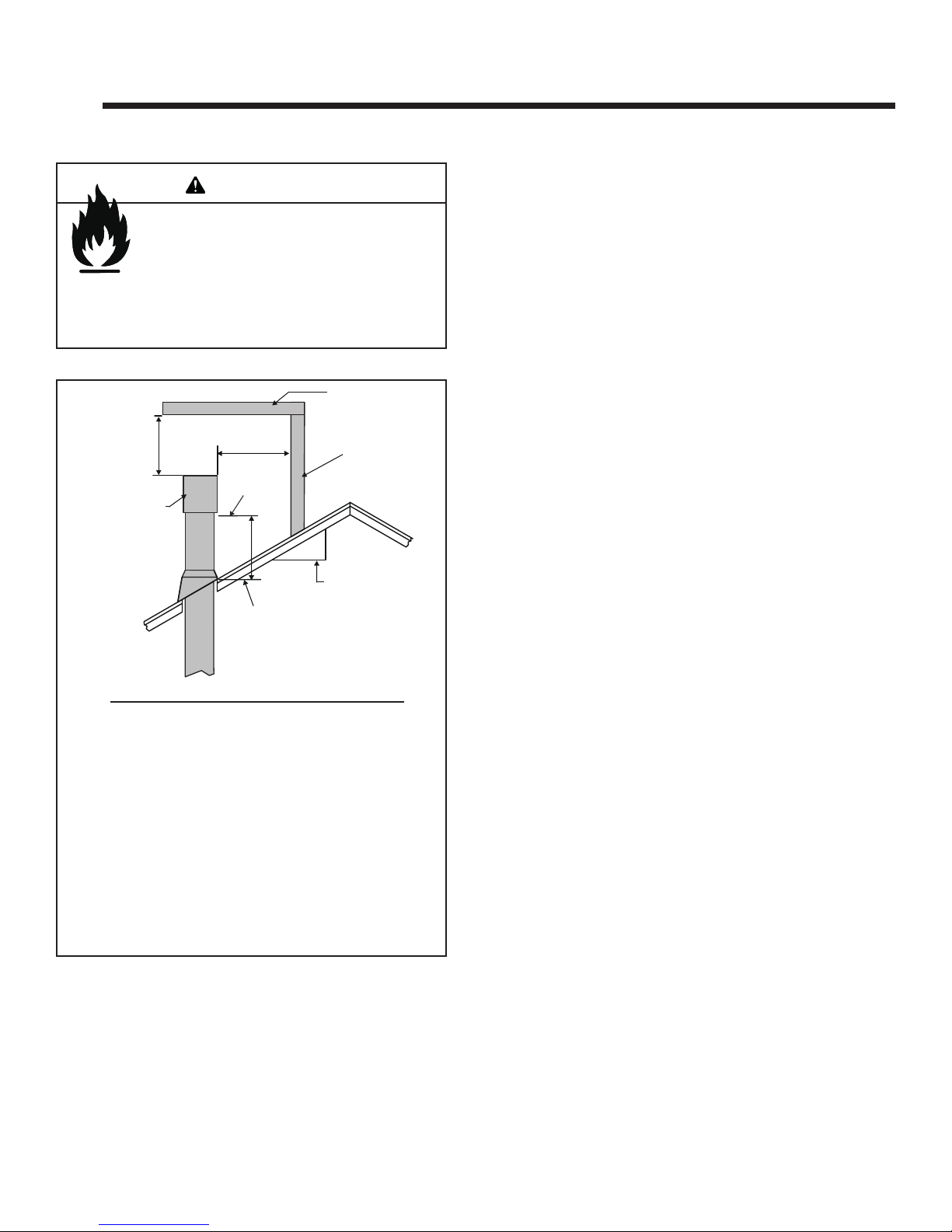

A. Vent Termination Minimum Clearances . . . . . . . . . . . . . . 12
6 Installation Preparation
A. Inspection and Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . 13
B. Flue Damper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
C. Gas Line. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
D. Fireplace Conversion Notice . . . . . . . . . . . . . . . . . . . . . . 13
E. Electrical Outlet Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
F. Remote Control Configuration . . . . . . . . . . . . . . . . . . . . . 13
7 Installing Vent Pipe and Appliance
A. Vent Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
B. Venting Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

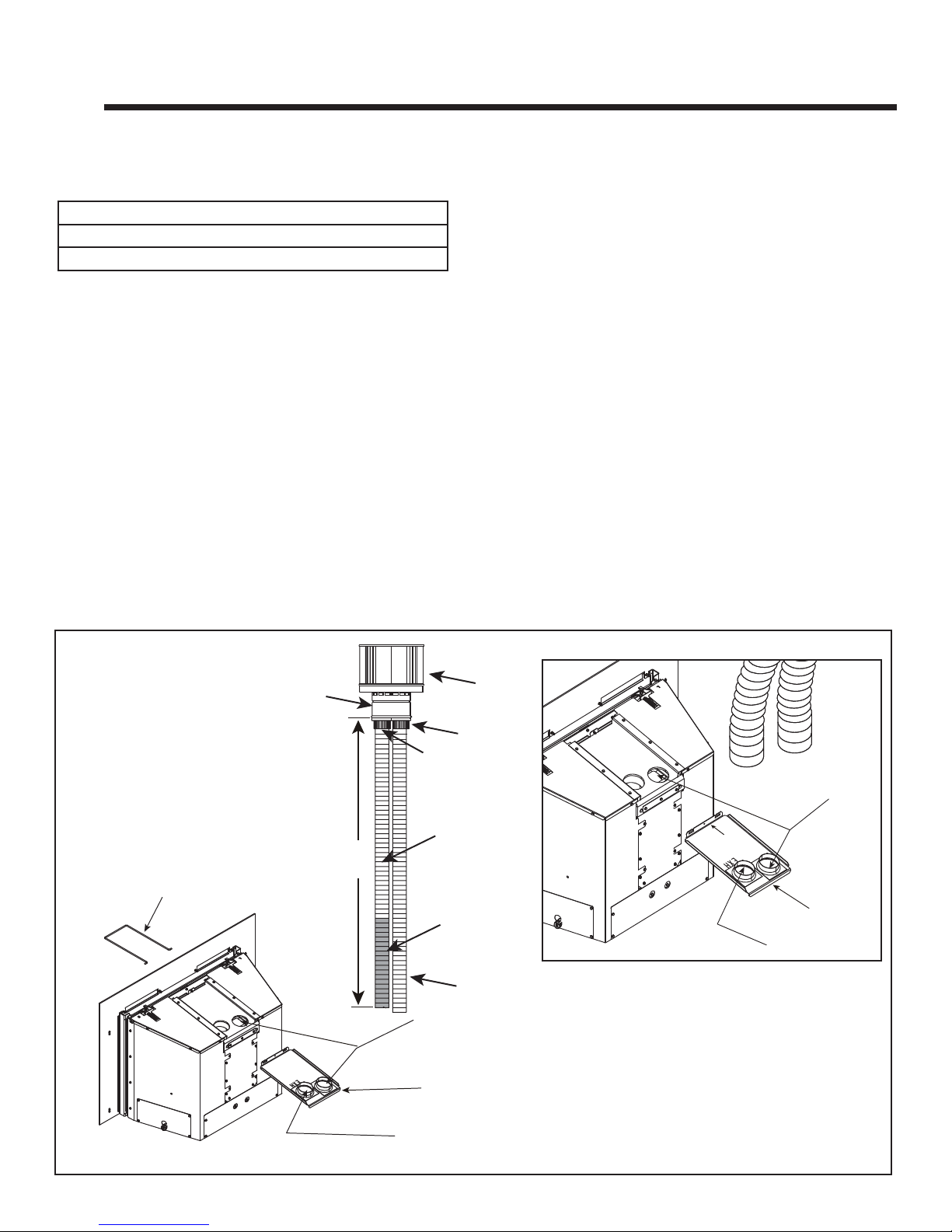

C. Connecting Vent Pipe. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
D. Placing, Securing and Leveling the Appliance 16
E. Installing Adaptor and Termination Cap . . . . . . . . . . . . . . 17
8 Electrical Information
A. General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

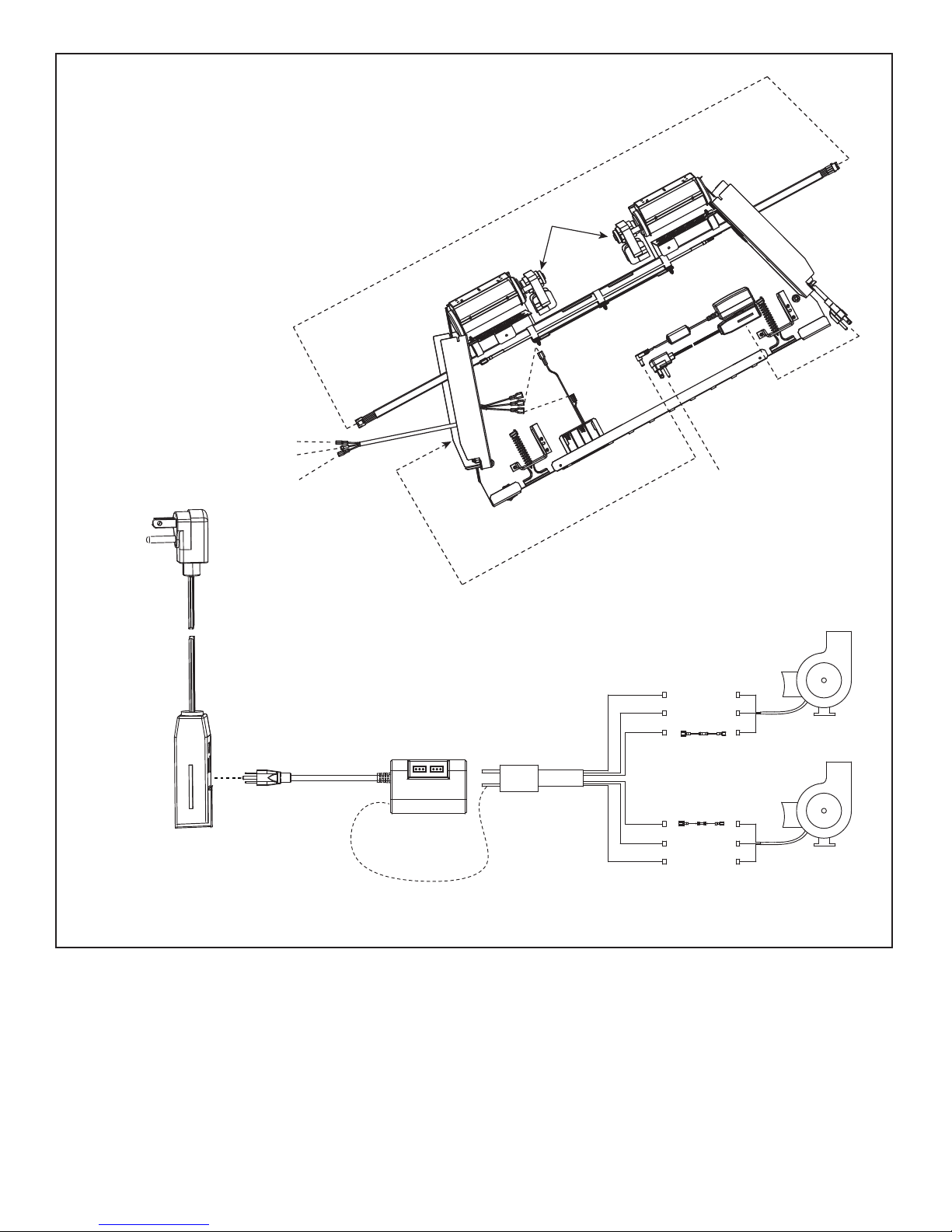

B. Wiring Requirements - IntellifireTM Plus Ignition
System Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
C. Programming the RC300 to the Control Module . . . . . . . 20
9 Gas Information
A. Fuel Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
B. Gas Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
C. Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
D. High Altitude Installations . . . . . . . . . . . . . . . . . . . . . . . . . 21
E. Air Shutter Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
10 Finishing
A. Mantel and Wall Projections. . . . . . . . . . . . . . . . . . . . . . . 23
11 Appliance Setup
A. Fixed Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
B. Remove the Shipping Materials . . . . . . . . . . . . . . . . . . . . 25
C. Inspect Firebox. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
D. Clean the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
E. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
F. Place the Lava Rock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
G. Ember Placement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
H. Install the Log Assembly and Glass Rock . . . . . . . . . . . . 27
I. Install Decorative Front/Surround. . . . . . . . . . . . . . . . . . . 33
12 Reference Materials
A. Vent Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
B. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
= Contains updated information.




3
Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/14
Installation Standard Work Checklist
Customer:
Lot/Address:
Model (circle one): ESCAPE-I30-F ESCAPE-I30LP-F
ESCAPE-I35-F ESCAPE-I35LP-F
Date Installed:
Location of Fireplace:
Installer:
Dealer/Distributor Phone #
Serial #:
Comments: Further description of the issues, who is responsible (Installer/ Builder/ Other Trades, etc) and corrective
action needed _____________________________________________________________________________________
_________________________________________________________________________________________________
_________________________________________________________________________________________________
Comments Communicated to party responsible ____________________ by ______________________on ___________
(Builder / Gen. Contractor/) (Installer) (Date)
Appliance Install YES IF NO, WHY?
Verify ¿replace is clean and remove/block open damper/modify
damper for vent pipe clearance (Pg. 13) . __________________________
Appliance is leveled and secured (Pg. 16). __________________________
Venting/Chimney Section 7 (Pg. 14-17)
Exhaust stainless steel Àex is properly formed and routed through
existing ¿replace damper. ___________________________
Vent intake and exhaust liners are properly installed to the correct collars,
sealed and secured to top plate and to the termination cap. ___________________________
Termination cap installed, secured and sealed to top plate. ___________________________
Electrical Section 8 (Pg. 18-20)
Unswitched power (110-120 VAC) provided to the appliance. ___________________________
ON/OFF switch wires properly connected, if installed. ___________________________
Gas Section 9 (Pg. 21-22)
Veri¿ed appliance is using proper fuel type. ___________________________
If converted, veri¿ed proper fuel conversion kit was used. ___________________________
Veri¿ed that gas components are leak free and ¿replace is operating under
correct pressures. ___________________________
Finishing Section 10 (Pg. 23)
Combustible materials not installed in non-combustible areas. ___________________________
Veri¿ed all clearances meet installation manual requirements. ___________________________
Mantels and wall projections comply with installation manual requirements. ___________________________
Appliance Setup Section 11 (Pg. 24-33)
All packaging and protective materials removed (inside & outside of appliance). ___________________________
Refractories, logs, media and embers installed correctly. ___________________________
Glass assembly installed and secured. ___________________________
Accessories installed properly. ___________________________
Surround or decorative front properly installed. ___________________________
Manual bag and all of its contents are removed from inside/under
the appliance and given to party responsible for use and operation. ___________________________
Remote control is programmed, functions veri¿ed using remote control
instructions. ___________________________
Veri¿ed proper air shutter setting for installation type. (Pg. 22) ___________________________
2347-982 Rev. C 11/14
Î= Contains updated information.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your ¿le.
• That this checklist remain visible at all times on the appliance until the installation is complete.
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this
installation manual.
WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions can
lead to a ¿re or explosion.
ATTENTION INSTALLER:
Follow this Standard Work Checklist


Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/144
A. Appliance Certification
E. Non-Combustible Materials Specification
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in
a Vertical Tube Furnace at 750 ºC shall be considered
non-combustible materials.
F. Combustible Materials Specification
Materials made of or surfaced with wood, compressed pa-
per, plant fibers, plastics, or other material that can ignite
and burn, whether flame proofed or not, or plastered or
unplastered shall be considered combustible materials.
G. Electrical Codes
NOTICE: This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
• A 110-120 VAC circuit for this product must be pro-
tected with ground-fault circuit-interrupter protection,
in compliance with the applicable electrical codes,
when it is installed in locations such as in bathrooms
or near sinks.
1
1 Product Specific and Important Safety Information
MODELS: ESCAPE-I30-F ESCAPE-I30LP-F,
ESCAPE-I35-F, ESCAPE-I35LP-F
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Direct Vent Heater
STANDARD: ANSI Z21.88-2014 • CSA 2.33-2014
This product is listed to ANSI standards for “Vented Gas
Fireplace Heaters” and applicable sections of “Gas Burn-
ing Heating Appliances for Manufactured Homes and
Recreational Vehicles”, and “Gas Fired Appliances for
Use at High Altitudes”.
Heat & Glo gas inserts are designed for installations into
solid fuel masonry or factory built fireplaces that have been
installed in accordance with the National, Provincial, State
and local building codes. Fireplaces are to be constructed
of non-combustible materials and, in the absence of local
or regional codes, meet criteria of NFPA 211. No additional
outside air source is required.
NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.
This appliance is tested and approved as either supplemen-
tal room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
National Fuel Gas Code, ANSI Z223.1-latest edition in
the U.S.A. and the CAN/CGA B149 Installation Codes in
Canada.
B. Glass Specifications
This appliance is equipped with 5 mm ceramic glass. Re-
place glass only with 5 mm ceramic glass. Please contact
your dealer for replacement glass.
C. BTU Specifications
D. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 feet elevation:
• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.
• In CANADA: Reduce input rate 10% for elevations
between 2000 feet and 4500 feet. Above 4500 feet,
consult local gas utility.
Check with your local gas utility to determine proper
orifice size.
Models
(U.S. or Canada)
Maximum
Input
BTU/h
Minimum
Input
BTU/h
Orifice
Size
(DMS)
ESCAPE-I30-F
(NG)
US
(0-2000 FT) 36,000 17,000 33
CANADA
(2000-4500 FT) 33,250 16,750 34
ESCAPE-I30LP-F
(LP)
US
(0-2000 FT) 36,000 19,000 50
CANADA
(2000-4500 FT) 31,000 15,500 51
Escape-I35-F
(NG)
US
(0-2000 FT) 40,000 20,000 31
CANADA
(2000-4500 FT) 37,000 19,250 32
ESCAPE-I35LP-F
(LP)
US
(0-2000 FT) 38,000 19,000 49
CANADA
(2000-4500 FT) 35,000 17,000 50


5
Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/14
2
2 Getting Started
C. Inspect Appliance and Components
• Carefully remove the appliance and components from
the packaging.
• The vent system components and decorative doors and
fronts may be shipped in separate packages.
• If packaged separately, the log set and appliance grate
must be installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
•Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged, in-
complete or substitute components. Keep appliance dry.
Hearth & Home Technologies disclaims any responsibility for,
and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modification of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
Any such action may cause a fire hazard.
WARNING! Risk of Fire, Explosion or Electric Shock!
DO NOT use this appliance if any part has been under
water. Call a qualified service technician to inspect the
appliance and to replace any part of the control system
and/or gas control which has been under water.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualified
service technician, service agency or your dealer.
Installation and service of this appliance should be
performed by qualified personnel. Hearth & Home
Technologies suggests NFI certified or factory
trained professionals, or technicians supervised by
an NFI certified professional (www.nficertified.org).
A. Design and Installation Considerations
Heat & Glo gas inserts are designed for installations into
solid fuel masonry or factory built fireplaces that have
been installed in accordance with the National, Provin-
cial, State and local building codes. Fireplaces are to be
constructed of non-combustible materials and, in the ab-
sence of local or regional codes, meet criteria of NFPA
211. No additional outside air source is required.
Installation MUST comply with local, regional, state and na-
tional codes and regulations. Consult insurance carrier, local
building inspector, fire officials or authorities having jurisdic-
tion over restrictions, installation inspection and permits.
Prior to installing the gas insert:
• Have the chimney and adjacent structure inspected
and cleaned by qualified professionals. Hearth & Home
Technologies recommends that NFI or CSIA certified
professionals, or technicians under the direction of certi-
fied professionals, conduct a minimum of a NFPA 211
Level 2 inspection of the chimney.
• Replace component parts of the chimney and fireplace
as specified by the professionals.
• Ensure combustible mantel and surround clearances
comply with applicable codes and regulations for solid-
fuel fireplaces. In the absence of local or regional codes,
refer to NFPA 211.
• Ensure all joints are properly engaged and the chimney
is properly secured.
• Minimum fireplace size. See Section 4.A.
• Gas supply piping requirements.
• Electrical wiring requirements.
• Finishing details.
• Whether optional accessories—devices such as a wall
switch or remote control—are desired.
B. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure Pliers
Hammer Phillips screwdriver
Voltmeter Electric drill and bits (1/4 in.)
Gloves Safety glasses
Level Reciprocating saw
Manometer Flat blade screwdriver
Noncorrosive leak check solution
1/2 - 3/4 inch length, #6 or #8 Self-drilling screws
Caulking material (300ºF minimum continuous exposure
rating)

Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/146
3
3 Framing and Clearances
A. Appliance/Decorative Front Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 4.
Figure 3.1 Appliance Dimensions
A
B
C
D
E
F
H
L
M
R
S
H
O
Q
P
N
K
J
I
T
U
LOWER ACCESS PANEL
EXHAUST
INTAKE
MODEL DIMENSIONS
Location
Escape-I35-F
ESCAPE-I35LP-F
ESCAPE-I30-F
ESCAPE-I30LP-F
Inches Millimeters Inches Millimeters
A 25-1/4 641 21-1/4 552
B 34-3/4 882 30 762
C 31-1/2 800 26-3/4 679
D 20 508 18 457
E 24-5/8 626 22-9/16 573
F 17 432 15-5/8 397
G 10-11/16 271 8-11/16 221
H 21-11/16 551 19-15/16 506
I 1-9/16 40 1-9/16 40
J 8-3/4 222 8-3/4 222
MODEL DIMENSIONS
Location
Escape-I35-F
ESCAPE-I35LP-F
ESCAPE-I30-F
ESCAPE-I30LP-F
Inches Millimeters Inches Millimeters
K 7-13/16 183 6-3/8 162
L 1-7/16 37 1-7/16 37
M 8-1/2 216 7-1/8 181
N 3-11/16 94 3-11/16 94
O 6-3/8 162 6-3/16 157
P 1-13/16 46 1-15/16 49
Q 1-3/8 35 1-1/16 28
R 4-1/2 114 4-3/16 106
S 13-3/8 340 12-1/8 308
T 12 305 10-3/4 273
U 2-3/8 59 2-1/4 57


7
Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/14
FS-EI30, FS-EI35 DECORATIVE FRONTS
Figure 3.2 Decorative Front Dimensions - FS-EI30/FS-EI35 and FSI-EI30/FSI-EI35
FSI-EI30, FSI-EI35 DECORATIVE FRONTS
ABC D E F G
FS-EI30 in. 26-7/8 17-7/8 2-1/4 36-1/2 25-7/16 25 7/16
mm 683 454 57 927 646 635 11
FS-EI35 in. 31-7/16 20 2-3/16 38-7/16 27-7/16 27 7/16
mm 799 508 56 976 697 686 11
ABC D E F G
FSI-EI30 in. 26-7/8 17-7/8 2-1/4 36-1/2 25-7/16 25 7/16
mm 683 454 57 927 646 635 11
FSI-EI35 in. 30-11/16 20 2-3/16 38-1/2 27-7/16 27 7/16
mm 779 508 56 978 697 686 11
G
A
B
C
D
EF
G
A
B
C
D
EF


Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/148
CHAF-EI30, CHAF-EI35 DECORATIVE FRONTS
HALST-EI30, HALST-EI35 DECORATIVE FRONTS
ABC D E F G
CHAF-EI30 in. 28-11/16 17-15/16 2-15/16 36-1/2 25-7/16 25 7/16
mm 729 456 75 927 646 635 11
CHAF-EI35 in. 30-13/16 19-13/16 3-1/16 28-1/2 27-7/16 27 7/16
mm 783 503 78 724 697 686 11
ABC D E F G
HALST-EI30 in. 31-5/8 15-9/16 5-1/8 36-9/16 25-1/2 25 1/2
mm 803 395 130 928 647 635 13
HALST-EI35 in. 33-5/8 17-9/16 5-1/8 38-9/16 27-1/2 27 1/2
mm 854 446 130 979 699 686 13
G
A
B
C
D
EF
G
A
B
C
D
EF
Figure 3.3 Decorative Front Dimensions - CHAF-EI30/CHAF-EI35 and HALST-EI30/HALST-EI35


9
Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/14
GAL-EI30, GAL-EI35 DECORATIVE FRONTS
ABC D E F G
GAL-EI30 in. 32-3/16 18-3/16 2-7/8 36-11/16 25-1/2 25 1/2
mm 818 462 73 932 648 635 13
GAL-EI35 in. 34-3/16 20-11/16 2-7/8 38-11/16 28-7/16 27-15/16 1/2
mm 868 525 73 983 722 710 13
Figure 3.4 Decorative Front Dimensions - GAL-EI30/GAL-EI35
G
A
B
C
D
EF


Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/1410
4
4 Fireplace Size Requirements
A. Minimum Fireplace Opening
Minimum fireplace opening requirements are shown in
Figure 4.2.
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be locat-
ed out of traffic and away from furniture and draperies.
• The firebrick (refractory), glass doors, screen rails, screen
mesh and log grates can be removed from a factory
built firebox in order to gain minimum gas insert opening
requirements.
• Any smoke shelves, shields and baffles may be removed
from the factory built firebox if attached with mechanical
fasteners.
• The appliance may not be placed directly on the base of
the outer wrap, a 1/4 inch airspace MUST be provided
between the insert and the floor of the outer wrap. Use
the levelling legs to raise the insert a minimum of 1/4
inch. The original fireplace may never be returned to solid
fuel in this condition. The sidewalls and top structure
of the firebox may not be altered with the exception of
removable baffles and dampers.
• The metal floor of the factory-built fireplace may be
removed to facilitate the installation of the insert.
• Cutting of any sheet metal parts of the fireplace in which
the gas fireplace insert is to be installed is prohibited,
except the floor as tested for and as noted above and in
Figure 4.1.
• A minimum 1/2 inch gap from the bottom of the
appliance to the metal floor of the factory-built firebox
is RECOMMENDED for optimal fan performance. See
side view in Figure 4.1.
• If the recommended 1/2 inch leveling leg height can not
be achieved, a section of the factory-built metal floor may
be removed. See Figure 4.1-B.
Note: The metal warning plate, noting that the factory-built
fireplace has been converted for use with a gas fireplace
insert, must be affixed to the appliance. It is included in
the manual bag assembly.
1/2 IN. MINIMUM LEVELING HEIGHT
(RECOMMENDED)
1/4 IN. REQUIRED
12 IN.
5 IN.
6 IN.
11-1/4
IN.
TOP VIEW
SIDE VIEW
EXISTING FACTORY-BUILT FIREBOX
ESCAPE-I35-F
ESCAPE-I30-F
METAL FLOOR OF EXISTING FACTORY-BUILT FIREBOX
THIS SECTION OF
METAL FLOOR
HAS BEEN REMOVED
METAL FLOOR OF EXISTING
FACTORY-BUILT FIREPLACE
REMOVE THIS
SECTION OF
METAL FLOOR
5 IN.
11-1/4
IN.
6 IN.
12 IN.
Figure 4.1-A Figure 4.1-B

11
Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/14
Figure 4.2 Fireplace Opening
In addition to these dimensions, also reference
Mantel and Wall Projections (Section 10.A).
EFRONT VIEW D
C
F
A
TOP VIEW
B
G**
H**
EXHAUST
INTAKE
MINIMUM FIREPLACE SIZE
Location
ESCAPE-I35-F
ESCAPE-I35LP-F
ESCAPE-I30-F
ESCAPE-I30LP-F
Inches Millimeters Inches Millimeters
A Rear Width 25-1/2 648 21-1/2 546
B Front Width 35 889 30-1/4 768
C Glass Opening Width 31-1/2 800 26-3/4 679
D Glass Opening Height 20 508 18 457
E Height-Front 24-7/8 632 22-7/8 581
F Height-Rear 22-1/4 565 20-5/8 524
G** Unit Depth 18-1/4 464 16-7/8 429
H** Venting Depth 13-3/8 340 12-1/8 308
* Note: If exhaust collar on insert and fireplace damper do not line up, add 4 inches (102 mm) to minimum
fireplace height for bends in vent pipe.
**Unit depth is measured to the back of the surround to give the depth needed for installation.

Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/1412
A. Vent Termination Minimum Clearances
Roof Pitch H (Min.) Ft.
Flat to 6/12...........................................................1.0*
Over 6/12 to 7/12.................................................1.25*
Over 7/12 to 8/12.................................................1.5*
Over 8/12 to 9/12.................................................2.0*
Over 9/12 to 10/12...............................................2.5*
Over 10/12 to 11/12 .............................................3.25
Over 11/12 to 12/12 .............................................4.0
Over 12/12 to 14/12.............................................5.0
Over 14/12 to 16/12.............................................6.0
Over 16/12 to 18/12.............................................7.0
Over 18/12 to 20/12.............................................7.5
Over 20/12 to 21/12.............................................8.0
Figure 5.1 Minimum Height From Roof To Lowest Discharge
Opening
* 3 foot minimum in snow regions
HORIZONTAL
OVERHANG
VERTICAL
WALL
GAS DIRECT VENT
TERMINATION CAP
12
X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
2 FT.
MIN.
20 INCHES MIN.
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
5
5 Termination Location and Vent Information
Fire Risk.
Maintain vent clearance to combustibles as
specified.
• DO NOT pack air space with insulation or other
materials.
Failure to keep insulation or other materials away
from vent pipe may cause overheating and fire.
WARNING

13
Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/14
6
6 Installation Preparation
Prepare the existing solid fuel masonry or factory built
non-combustible firebox for installation.
A. Inspection and Cleaning
Prior to installing the gas insert:
• Have the chimney and adjacent structure inspected
and cleaned by qualified professionals. Hearth & Home
Technologies recommends that NFI or CSIA certified
professionals, or technicians under the direction of certi-
fied professionals, conduct a minimum of a NFPA 211
Level 2 inspection of the chimney.
• Replace component parts of the chimney and fireplace
as specified by the professionals.
• Ensure all joints are properly engaged and the chimney
is properly secured.
• Ensure combustible mantel and surround clearances
comply with applicable codes and regulations for solid-
fuel fireplaces. In the absence of local or regional codes,
refer to NFPA 211.
• Ensure chimney is constructed of non-combustible
materials.
• Ensure chimney is clean and in good working order.
• Ensure that all chimney cleanouts fit properly to prevent
air leakage into chimney.
B. Flue Damper
Fully lock the solid fuel fireplace’s flue damper in the open
position, OR completely remove it.
C. Gas Line
Note: If the factory built fireplace has no gas access hole
provided, an access hole of 1 inch (25 mm) diameter or
less may be drilled through the lower sides or bottom of the
firebox in a proper workmanship - like manner. This access
hole must be plugged with non-combustible insulation after
the gas supply line has been installed.
• Install gas line into firebox cavity.
• Check local codes and gas line sizing requirements
following NFPA51. See Section 9.
E. Electrical Outlet Box
An outlet box may be installed in a bottom back corner of
the existing solid fuel masonry or factory built fireplace to
permit blowers or other optional accessories to be used.
Alternatively, the supplied power cord may be routed out
onto the hearth to a nearby outlet.
D. Fireplace Conversion Notice
Permanently attach the label with the following warning to
the inside lower back of the fireplace firebox into which the
insert is being installed. Silicone or mechanical fasteners
may be required to properly secure the label.
WARNING! Risk of Fire! This fireplace has been con-
verted for use with a gas fireplace insert only and cannot
be used for burning wood or solid fuels unless all original
parts have been replaced, and the fireplace re-approved
by the authority having jurisdiction.
F. Remote Control Configuration
The IntellifireTM Plus should be programmed to the RC300
remote control prior to the installation of the insert into the
existing solid fuel masonry or factory built fireplace.
The control is accessed by removing the lower access
panel on the left side of the insert. See Figure 3.1 for
location of lower access panel.

Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/1414
B. Venting Components
CAUTION! Risk of Cuts/Abrasions/Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
The vertical vent termination system installed on this model
includes:
• One 3-foot section stainless steel flexible pipe (included
with insert).
• One length of 3-inch flexible vent pipe for exhaust air
(included with vent kit).
• One length of 3-inch flexible vent pipe for combustion
air (included with vent kit).
• One pipe-to-cap adaptor (included with vent kit).
• One vertical termination cap (included with vent kit).
• Installation instructions for use in venting installation
(included with the vent kit).
Figure 7.1
WARNING! Risk of Fire/Explosion/Asphyxiation! Do
NOT connect this gas appliance to a chimney flue serving
a separate solid fuel or gas burning appliance.
• May impair safe operation of this appliance or other
appliances connected to the flue.
• Vent this appliance directly outside.
• Use separate vent system for this appliance.
Horizontal venting is NOT allowed.
Vertical terminations are measured to top of chimney.
This appliance is listed for use with LINK-DV systems
and components only. It is permissible to extend venting
above existing chimney (within specified maximum verti-
cal limits) using SL-D series or Dura Vent GS series 4 in.
x 6-5/8 in. gas direct-vent pipe. Connection is made us-
ing DV-46DVA-GK. The vent must be terminated with the
cap supplied with the LINK-series vent kit.
A. Vent Limits
The abbreviations listed in this vent table key are used in
the vent diagrams.
Description
Minimum Vertical Run Length 10 ft.
Maximum Vertical Run Length 50 ft.
CAUTION! ALL vent specifications MUST be followed.
This product is tested and listed to these specifications.
Appliance performance will suffer if specifications are not
followed.
EXHAUST
AIR
VENT PIPE
TERMINATION
CAP
EXHAUST STARTING COLLAR
STARTING COLLAR BRACKET
INLET AIR STARTING COLLAR
INLET AIR
VENT PIPE
ADAPTER
V = 10 FT. MINIMUM
50 FT. MAXIMUM
NOTE: TO ACHIEVE OPTIMUM PERFORMANCE,
MINIMIZE OR AVOID BENDS IN EXHAUST VENT
PIPE.
EXHAUST
COLLAR
INLET
COLLAR
HANDLE
REQUIRED 4 FT.
STAINLESS STEEL
SECTION
EXHAUST
STARTING
COLLAR
INLET AIR
STARTING
COLLAR
STARTING
COLLAR
BRACKET
LOCKING
FLANGE
7
7 Installing Vent Pipe and Appliance

15
Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/14
C. Connecting Vent Pipe
Reference instructions in the termination kit.
• Install the 3-inch flexible vent pipe(s) down through the
chimney.
• Secure the exhaust flexible vent pipe to the 3 foot section
stainless steel flexible vent pipe using the factory-
installed 3-inch collar in the stainless steel section of
pipe (see Figure 7.1).
• Secure the stainless flexible vent pipe to the exhaust
starting collar on top of the appliance with three screws.
• Use 3 screws to attach the section of inlet air vent to
the inlet collar on the collar slide plate. See Figure 7.1.
NOTE: The collar slide plate may be removed from
appliance to aid installation.
Figure 7.2
CUT AND BEND
FLASHING AS NEEDED
TO FIT CHIMNEY
SEALANT
ADHESIVE
• Trim chimney top plate to minimize excess overhang or
bend over flue tile (see Figure 7.2).
• Place 3/8 inch bead of 300ºF silicone on flue tile top.

Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/1416
WARNING! Risk of Fire! Only an approved Hearth &
Home Technologies surround may be used to cover inte-
gral grills on solid fuel burning fireplaces. No other com-
ponents such as shrouds, sheetmetal plates, etc., may be
used to seal off vents.
WARNING! Risk of Explosion! Failure to position the
parts in accordance with these diagrams or failure to use
only parts specifically approved with this appliance may
result in property damage or personal injury.
REAR LEVELING LEGS
SHIPPED IN THIS
POSITION
THE FRONT LEVELING
LEGS ARE SHIPPED
WITH THE SURROUND.
THEY SHOULD BE
INSTALLED AS SHOWN.
LOCATION A
REAR LEVELING LEGS MAY BE RELOCATED
TO LOCATION A OR LOCATION B
LOCATION B
FRONT LEVELING LEGS MAY BE
MOVED TO THIS LOCATION
Figure 7.3
D. Placing, Securing and Leveling the
Appliance
WARNING! Risk of Explosion/Combustion Fumes!
Connect vent sections per installation instructions.
• The 3 foot section of stainless steel flexible pipe MUST
be attached directly to the exhaust collar on the collar
slide plate.
• Connect exhaust vent pipe ONLY to exhaust starting
collar and termination cap center collar.
• Connect inlet air vent ONLY to inlet air collar on
appliance and either the termination cap inlet air collar
OR terminate within chimney.
• DO NOT allow vent to sag below connection point to
appliance.
• Remove rear leveling legs from shipping position and
relocate to one of the positions shown in Figure 7.3.
Remove both screws that secure the leveling leg to the
side of the appliance. Turn the leveling leg around so
that the foot is facing out and downward. Line up the
two holes on the leg with the holes on the appliance and
secure with screws. See Figure 7.3.
• Front leveling legs are shipped with surround and may
be installed in one of two locations. See Figure 7.3.
• Install insert (without surround attached) into existing
fireplace while pulling collar slide plate forward.
• Install gas line into hole provided on side.
• Secure collar slide plate to appliance by placing locking
handle into position with locking tabs (see Figure 7.1)
and secure with #8 screw.
• Level the appliance from side to side and front to back.
Adjust leveling bolts to desired vertical position so
appliance is level. Use the leveling bolts included with
the manual bag.
• A minimum 1/2 inch gap from the bottom of the appliance
to a metal surface is recommended for optimal fan
performance. See Figure 4.1-A and Figure 4.1-B.
• Position any excess flexible vent pipe back up into
chimney without sagging. Twist and push flex vent
together to shorten.
• Attach surround. Follow instructions for surround
installation included with the front.
• Push insert into the opening so that it tightly overlaps the
fireplace opening.

17
Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/14
E. Installing Adaptor and Termination Cap
CAUTION! Risk of Cuts/Abrasions/Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
For installation of termination cap see minimum vent
heights for various pitched roofs (see Figure 7.4) .
To install adaptor see Figure 7.5.
To prevent odors and cold drafts, the chimney must be
sealed around the vent with non-combustible blanket in-
sulation or field fabricated metal plates.
Roof Pitch H (Min.) Ft.
Flat to 6/12....................1.0*
Over 6/12 to 7/12........1.25*
Over 7/12 to 8/12..........1.5*
Over 8/12 to 9/12..........2.0*
Over 9/12 to 10/12........2.5*
Over 10/12 to 11/12 ..... 3.25
Figure 7.4 Minimum Height from Roof to Lowest Discharge
Opening
* 3 foot minimum in snow regions
Roof Pitch H (Min.) Ft.
Over 11/12 to 12/12 ....... 4.0
Over 12/12 to 14/12....... 5.0
Over 14/12 to 16/12....... 6.0
Over 16/12 to 18/12....... 7.0
Over 18/12 to 20/12....... 7.5
Over 20/12 to 21/12....... 8.0
Figure 7.5
Masonry Factory Built
Wood Burning
Remove 18 inch x 18 inch flashing on cap by removing 3
screws. Connect both the LINK-ZC-ADPB to Class A Pipe
and the termination cap to the LINK-ZC-ADPB with the
self tapping screws provided.
OPTIONAL LINK-ZC-ADPB
FOR USE WITH CLASS A
WOODBURNING PIPE
HORIZONTAL
OVERHANG
VERTICAL
WALL
GAS DIRECT VENT
TERMINATION CAP
12
X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
2 FT.
MIN.
20 INCHES MIN.
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
EXHAUST
AIR
VENT PIPE
TERMINATION
CAP
LINK-DV30B
LINKSQ-DV30
Installation
LINK-DV4-30B
LINKSQ-DV4-30
Installation
INLET AIR
VENT PIPE
WARNING:
DO NOT BLOCK
THIS PIPE END!
INLET AIR
VENT PIPE
EXHAUST
AIR
VENT PIPE
Note: Untwist the
pipe while extend-
ing it, to achieve full
30’ length.
OR
To help eliminate cold air drafts, it may be necessary to
place non-combustible insulation around the flues as they
go though the damper.

Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/1418
A. General Information
WARNING! Risk of Shock or Explosion! DO NOT wire
110-120 VAC to the valve or to the appliance wall switch.
Incorrect wiring will damage controls.
NOTICE: This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
• Wire the appliance junction box to unswitched 110-
120 VAC. This is required for proper operation of the
appliance.
• This appliance comes with a 110-120 VAC cord
assembly. This is required for proper operation of the
appliance (IntellifireTM Plus Ignition). An outlet box may
be installed in a bottom back corner of the existing solid
fuel masonry or factory built fireplace to plug in the cord
assembly, or the supplied power cord may be routed out
onto the hearth to a nearby outlet.
• A 110-120 VAC circuit for this product must be protected
with ground-fault circuit-interrupter protection, in
compliance with the applicable electrical codes, when
it is installed in locations such as in bathrooms or near
sinks.
• Low voltage and 110-120 VAC voltage cannot be shared
within the same wall box.
8
8 Electrical Information
Electrical Service and Repair
WARNING! Risk of Shock! Label all wires prior to dis-
connection when servicing controls. Wiring errors can
cause improper and dangerous operation. Verify proper
operation after servicing.
WARNING! Risk of Shock! Replace damaged wire with
type 105º C rated wire. Wire must have high temperature
insulation.
• Refer to Service Parts section of appliance Owner’s
Manual for replacement part information.

19
Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/14
B. Wiring Requirements - IntellifireTM Plus Ig-
nition System Wiring
NOTICE: Batteries should only be used as a power source
in the event of an emergency power outage. Batteries
should not be used as a primary long-term power source.
Battery polarity must be correct when installing batteries.
When using batteries as a power source, the 6 volt
transformer must be unplugged from the receptacle.
Do not store batteries in the battery pack when the
appliance is powered by the 6 volt transformer connected
to permanent electrical service
• Wire an outlet box (110-120 VAC) in the bottom back
corner of the existing solid fuel masonry or factory built
fireplace to plug in the cord assembly, or the supplied
cord assembly may be rerouted out onto the hearth to a
nearby outlet for proper operation of the appliance.
WARNING! Risk of Shock or Explosion! DO NOT wire
IPI controlled appliance junction box to a switched circuit.
Incorrect wiring will override IPI safety lockout.
• Refer to Figure 8.1, IPI Plus Wiring Diagram.
• This appliance is equipped with an IntelliFire™ Plus
control valve which operates on a 6 volt/1.5 AMP system.
• Plug the 6 volt transformer plug into the appliance cord
assembly to supply power to the unit OR install 4 AA cell
batteries (not included) into the battery tray before use.
See Section 3.H in Owner’s Manual for instructions on
locating battery tray and installing batteries.
Figure 8.1 IntellifireTM Plus Pilot Ignition (IPI) Wiring Diagram
AUX WIRE EXTENSION
LIGHT WIRE ASSEMBLY
OPTIONAL
TO CORD ASSEMBLY
120VAC
AUX 300
MODULE
AUX1 AUX2
FAN
BATTERY PACK
6V DC (AA X 4)
EMBER BULB 50W (2)
ORANGE
(PILOT)
GREEN
(MAIN)
TO CORD ASSEMBLY
120VAC
MODULE ORG
WHT
INTERMITTENT PILOT IGNITOR
BLACK
RED
AUX2 NOT USED FOR INSERT MODELS.
PROTECTIVE COVER INCLUDED.
RC300 4.5V DC
(AAA X 3)
MODULE RESET
SWITCH
WIRE ASSEMBLY
NOTE: SEE FIGURE 8.2 FOR ADDITIONAL INFORMATION
EMC FILTER UNIT
BROWN
GROUND
GROUND
IPI Battery Tray/Battery Installation
The IntelliFireTM Plus system has a battery backup option.
Batteries should only be placed in the battery pack when
110-120 VAC is not available. See Section 3.H of Owner’s
manual.
Control Module Operation
See Section 3.I of Owner’s Manual for control module
operation instructions.

Heat & Glo • Escape-I35-F, Escape-I30-F Installation Manual • 2347-980 Rev. G • 11/1420
Figure 8.2 Fan Wiring Diagram
Note: if any of the original wire as
supplied with the appliance must
be replaced, it must be replaced
with type 105 °C rated wire.
BLK
RED
BRN
ORANGE - TO VALVE
GROUND - TO VALVE
BRACKET
GREEN - TO VALVE
PLUG INTO
EXISTING
OUTLET
,
3
,
0
2
'
8
/
(
$
8
;
,
/
,
$
5
<



BLOWERS
TO IPI MODULE
BLOWERS
BLK
GRN
BLK
BLK
GRN
BLK
WHT
GRN
BLK
BLK
GRN
WHT
PLUG INTO 120V
EXISTING OUTLET
FUSE WIRE
ASSEMBLY
FUSE WIRE
ASSEMBLY
NOTE: SEE FIGURE 8.1 FOR ADDITIONAL INFORMATION
C. Programming the RC300 to the Control
Module
CAUTION! Risk of burns! DO NOT program the remote
control to the control module when fireplace is hot.
• Refer to the RC300 Installation Instructions included
in appliance manual bag to program the RC300 to the
control module.
