Heat & Glo Heat-N-Glo 6000TR Assembly instructions

1
- Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
-What to do if you smell gas
 Do not try to light any appliance.
 Do not touch any electrical switch.
 Do not use any phone in your building.
 Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
 If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
Heat-N-Glo
Models:
6000TR
6000XLT-CDN
6000ARCH
6000XLS
Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE OR ADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICE AGENCY, OR THE
GAS SUPPLIER.
525-983C 1/00
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALL-
ERS GUIDE MUST BE LEFT WITH THE APPLI-
ANCE FOR FUTURE REFERENCE.
1. This appliance may be installed in an
aftermarket,permanentlylocated,
manufactured (mobile) home, where not
prohibited by local codes.
2.This appliance is only for use with the
type of gas indicated on the rating plate.
This appliance is not convertible for use
with other gases, unless a certified kit is
used.
Please contact your Heat-N-Glo dealer for any
questions or concerns. For the number of your
nearest
Heat-N-Glo dealer, please call 612-985-6000.
Printed in U.S.A. Copyright 2000,
Heat-N-Glo, a division of Hearth Technologies Inc.
20802 Kensington Boulevard, Lakeville, Mn 55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE,
PERSONAL INJURY, OR DEATH.
Underwriters
Laboratories Listed
1
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

2
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
READ and UNDERSTAND all instructions carefully before starting the installation.
FAILURE TO FOLLOW these installation instructions may result in a possible fire
hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the Using Your Fireplace section of the
Owners Guide.
DO NOT USE this appliance if any part has been under water. Immediately CALL a
qualified service technician to inspect the unit and to replace any part of the control
system and any gas control which has been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a qualified service person. The
appliance and venting system should be INSPECTED before initial use and at least
annually by a professional service person. More frequent cleaning may be required due
to excessive lint from carpeting, bedding material, etc. It is IMPERATIVE that the units
control compartment, burners, and circulating air passageways BE KEPT CLEAN to
provide for adequate combustion and ventilation air.
Always KEEP the appliance clear and free from combustible materials, gasoline, and
other flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and ventilation air. Keep the front of the
appliance CLEAR of all obstacles and materials for servicing and proper operations.
Due to the high temperature, the appliance should be LOCATED out of traffic areas
and away from furniture and draperies. Clothing or flammable material SHOULD NOT
BE PLACED on or near the appliance.
Children and adults should be ALERTED to the hazards of high surface temperature
and should STAY AWAY to avoid burns or clothing ignition. Young children should be
CAREFULLY SUPERVISED when they are in the same room as the appliance.
These units MUST use one of the vent systems described in the Installing the Fireplace
section of the Installers Guide. NO OTHER vent systems or components MAY BE USED.
This gas fireplace and vent assembly MUST be vented directly to the outside and
MUST NEVER be attached to a chimney serving a separate solid fuel burning
appliance. Each gas appliance MUST USE a separate vent system. Common vent
systems are PROHIBITED.
INSPECT the external vent cap on a regular basis to make sure that no debris is
interfering with the air flow.
The glass door assembly MUST be in place and sealed, and the trim door assembly
MUST be in place on the fireplace before the unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass door removed, cracked, or broken.
Replacement of the glass door should be performed by a licensed or qualified service
person. DO NOT strike or slam the glass door.
The glass door assembly SHALL ONLY be replaced as a complete unit, as supplied
by the gas fireplace manufacturer. NO SUBSTITUTE material may be used.
DO NOT USE abrasive cleaners on the glass door assembly. DO NOT ATTEMPT to
clean the glass door when it is hot.
Turn off the gas before servicing this appliance. It is recommended that a qualified
service technician perform an appliance check-up at the beginning of each heating
season.
Any safety screen or guard removed for servicing must be replaced before operating
this appliance.

3
TABLE
OF
CONTENTS
Safety and Warning Information ......................... 2
Section 1: Approvals and Codes ...................... 4
Approval Listings and Codes ................................... 4
Appliance Certification ............................................. 4
Installation Codes .................................................... 4
HighAltitude Installations.......................................... 4
Section 2: Getting Started ................................ 5
Introducing the Heat-N-Glo Gas Fireplaces .............. 5
Pre-installation Preparation...................................... 5
Section 3: Installing the Fireplace .................... 8
Step 1 Locating the Fireplace ............................... 8
Step 2 Framing the Fireplace ............................... 9
Step 3 Installing the Vent System ........................ 10
A. Vent System Approvals ........................ 10
B. Installing Vent Components ................. 20
C. Vent Termination ................................. 26
Step 4 Positioning, Leveling, and
Securing the Fireplace ............................. 31
Step 5 The Gas Control Systems ....................... 31
Step 6 The Gas Supply Line ............................... 32
Step 7 Gas Pressure Requirements ................... 33
Step 8 Wiring the Fireplace ................................ 34
Step 9 Finishing ................................................. 36
Step 10 Installing Trim, Logs, and
Ember Material ........................................ 37
Installing the Trim ..................................... 37
Positioning the Logs ................................ 38
Placing the Ember Material ...................... 38
Step 11 Before Lighting the Fireplace .................... 40
Step 12 Lighting the Fireplace............................... 40
Step 13 Heating Control - 6000XLT-CDN .............. 41
Step 14 Relief Ports - 6000ARCH ......................... 41
After the Installation ............................................... 41
Section 4: Maintenance and Servicing .......... 42
Section 5: Replacement Parts
and Accessories ................................................. 44
Replacement Parts ............................................... 44
Accessories ......................................................... 48

4
Approval Listings
and Codes
Appliance Certification
The Heat-N-Glo models discussed in this Installers
Guide have been tested to certification standards
and listed by the applicable laboratories.
CERTIFICATION
MODEL LABORATORY TYPE STANDARD
6000TR & Underwriters Vented Gas ANSI Z21.50 CGA2.22/IR#41
6000ARCH Laboratories Fireplace
6000XLT-CDN Underwriters Vented Gas Fireplace ANSI Z21.50 CGA2.22
Laboratories & Vented Gas ANSI Z21.88 CSA2.33
Fireplace Heater
6000XLS Underwriters Vented Gas ANSI Z21.88 CSA2.33
Fireplace Heater
Installation Codes
The fireplace installation must conform to local codes. Before installing the
fireplace, consult the local building code agency to ensure that you are in
compliance with all applicable codes, including permits and inspections.
In the absence of local codes, the fireplace installation must conform to the
National Fuel Gas Code ANSI Z223.1 (in the United States) or the CAN/CGA-
B149 Installation Codes (in Canada). The appliance must be electrically
grounded in accordance with local codes or, in the absence of local codes
with the National Electric Code ANSI/NFPA No. 70 (in the United States), or to
the CSA C22.1 Canadian Electric Code (in Canada).
These models may be installed in a bedroom or bed-sitting room in the U.S.A.
and Canada.
High Altitude Installations
U.L. Listed gas fireplaces are tested and approved for elevations from 0 to
2,000 feet in the U.S.A. and from 0 to 4,500 feet in Canada.
When installing this fireplace at an elevation above 2,000 feet (in the United
States), it may be necessary to decrease the input rating by changing the
existing burner orifice to a smaller size. Input should be reduced four percent
(4%) for each 1,000 feet above sea level, unless the heating value of the gas
has been reduced, in which case this general rule will not apply. To identify the
proper orifice size, check with the local gas utility.
When installing this fireplace at an elevation between 2,000 and 4,500 feet (in
Canada), the input rating must be reduced by ten percent (10%).
When installing this fireplace at an elevation above 4,500 feet (in Canada),
check with local authorities.
Consult your local gas utility for assistance in determining the proper orifice for
your location.
1
Approvals
and Codes

5
2
Getting
Started
Heat-N-Glo direct vent gas fireplaces are designed to
operate with all combustion air siphoned from outside
of the building and all exhaust gases expelled to the
outside.
The information contained in this Installers Guide,
unless noted otherwise, applies to all models and
gas control systems.

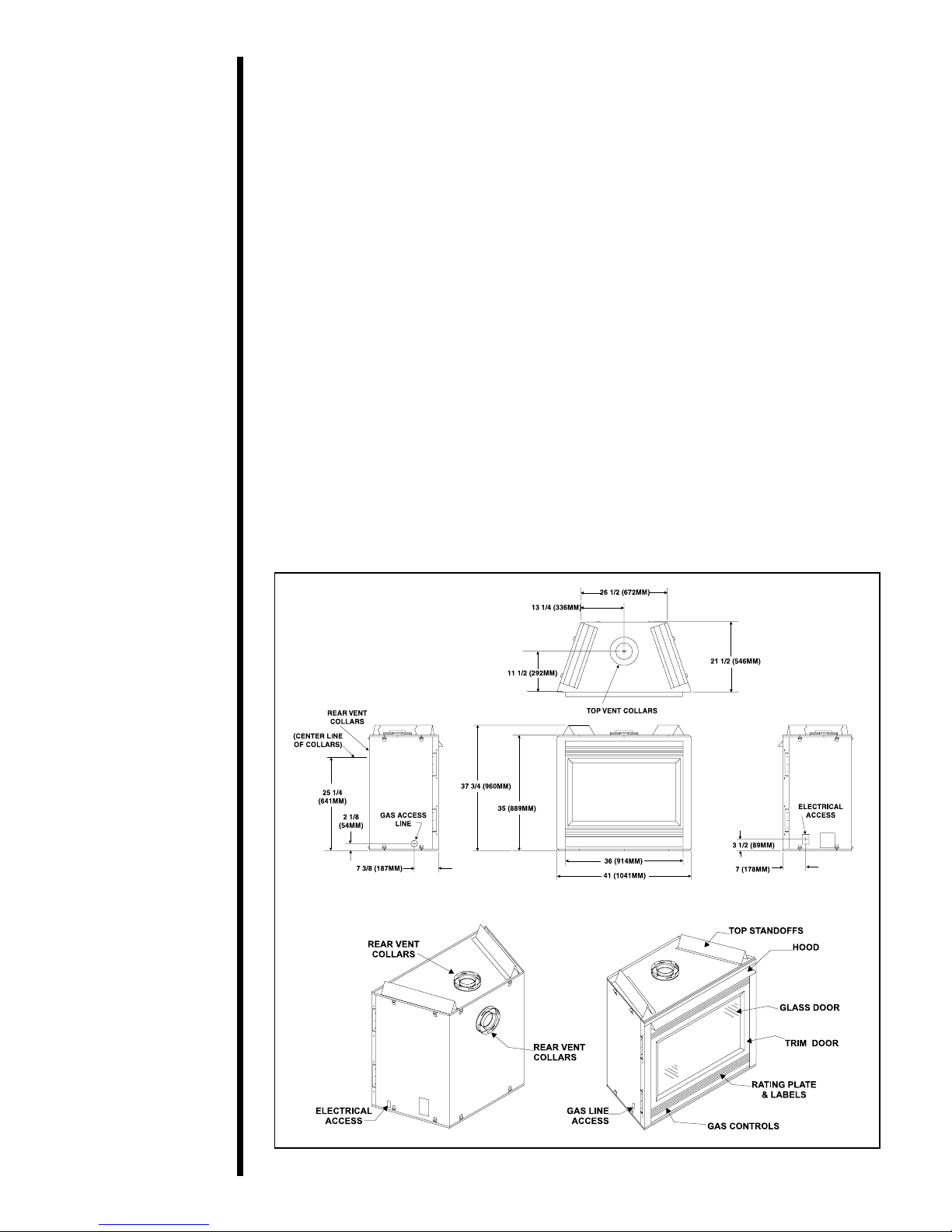

Gas fireplace diagrams, including the dimensions,
are shown in this section.
This gas fireplace and its components are tested
and safe when installed in accordance with this
Installers Guide. Report to your dealer any parts
damaged in shipment, particularly the condition of
the glass. Do not install any unit with damaged,
incomplete, or substitute parts.
NOTE: FOR MODEL 6000TR ONLY:
These fireplaces are shipped from the factory with a
BTU rating of 27,000 BTUs. The fireplace can be
installed with the vent pipe coming off the top of the
unit or the rear of the unit. If you install the unit with
the vent pipe coming off the top of the unit, you may
run the unit at 31,000 BTU (NG) (30,000 BTU LP),
replace the burner orifice with the orifice included in
the manual bag. DO NOT REPLACE THE ORIFICE
IF YOU ARE USING THE REAR SET OF VENT
COLLARS.
Changing the orifice when venting out the top.
1. Remove the glass door.
2. Using a 1/4 socket, remove the sheetmetal
screws holding the long refractory clip in place.
Remove the logs and refractory as one piece.
3. Remove the protective plastic from the logs.
4. Remove the two sheetmetal screws holding the
burner and remove the burner.
5. Replace the burner orifice with the orifice in-
cluded in the plastic manual bag (#36DMS for
natural gas or #51DMS for propane). Be careful
to hold the brass elbow so you dont kink the
aluminum tube.
6. Reverse the steps to replace the burner, logs,
refractory, and clip.
The vent system components and trim doors are
shipped in separate packages. The gas logs may
be packaged separately and must be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum
safety and benefit. Failure to follow these
instructions will void the owners warranty and
may present a fire hazard.
Introducing the
Heat-N-Glo
Gas Fireplaces
Pre-install
Preparation

6
Figure 1. Diagram of the 6000TR, 6000XLT-CDN and 6000XLS
The Heat-N-Glo Warranty will be voided by, and Heat-N-Glo disclaims any
responsibility for, the following actions:
 Installation of any damaged fireplace or vent system component.
 Modification of the fireplace or direct vent system.
 Installation other than as instructed by Heat-N-Glo.
 Improper positioning of the gas logs or the glass door.
 Installation and/or use of any component part not manufactured and approved by
Heat-N-Glo, not withstanding any independent testing laboratory or other party
approval of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE HAZARD.
When planning a fireplace installation, its necessary to determine:
Where the unit is to be installed.
The vent system configuration to be used.
Gas supply piping.
Electrical wiring.
Framing and finishing details.
Whether optional accessoriesdevices such as a fan, wall switch, or remote
controlare desired.
If the fireplace is to be installed on carpeting or tile, or on any combustible
material other than wood flooring, the fireplace should be installed on a metal or
wood panel that extends the full width and depth of the fireplace.
Left Side Front Right Side
NOTE:
6000TR has top and rear collars.
6000XLT-CDN has top collars only.
6000XLS has rear collars only.

7
Figure 2. Diagram of the 6000ARCH

8
3
Installing the
Fireplace
Step 1
Locating the
Fireplace
The diagram below shows space and clearance
requirements for locating a fireplace within a room.
MODEL A B C D E
6000TR & 42 22 37 1/8 52 1/2 74 1/4
6000XLS
6000XLT-CDN 42 22 35 1/4 49 3/4 70 3/8
6000ARCH 42* 22 35 1/4 49 3/4 70 3/8
48 1/4 **
* SURROUND IN FRONT OF FINISHED WALL
** SURROUND FLUSH WITH FINISHED WALL.
NOTE: DIMENSIONS SHOWN IN INCHES.

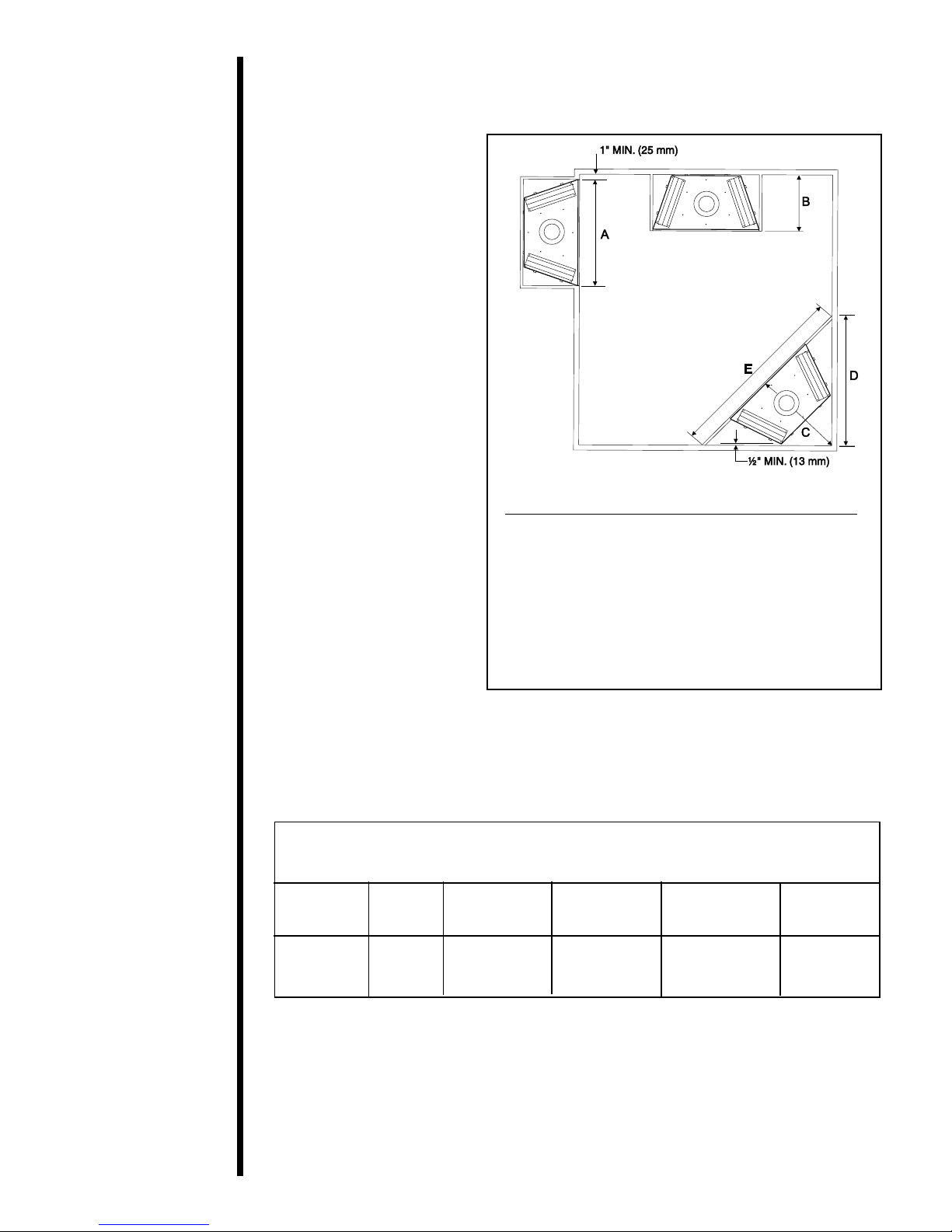

Figure 3. Fireplace Dimensions, Locations, and
Space Requirements
Clearance Requirements
The top, back, and sides of the fireplace are defined
by stand-offs.
Minimum Clearances from the Fireplace to
Combustible Materials
Glass Rear of Sides of Top of
Front Floor Fireplace Fireplace Fireplace Ceiling
36 inches 0 1/2 inch 1/2 inch 3-1/2 inches 31 inches
(914 mm) (13 mm) (13 mm) (89 mm) (787 mm)
The minimum clearance to a perpendicular wall extend-
ing past the face of the fireplace is one inch (25 mm).
The back of the fireplace may be recessed 21 1/2
inches (546 mm) into combustible construction.

9
A
B
C
Framing should be
constructed of 2 X 4
lumber or heavier.
Model A B C D E
6000TR 42 38 1/4 22 42 26 1/4
6000XLS 42 38 1/4 22 N/A 26 1/4
6000XLT-CDN 42 38 1/4 22 42 N/A
6000ARCH 42* 41 7/8 22 53 5/8 N/A
48 1/4 **
* SURROUND IN FRONT OF FINISHED WALL
** SURROUND FLUSH WITH FINISHED WALL
NOTE: DIMENSIONS SHOWN IN INCHES
D
E
SHOWS CENTER OF12" X 12"
VENT FRAMING HOLES FOR
TOP & REAR VENTING.
Figure 4. Framing Dimensions
Minimum Clearances from the Vent Pipe to
Combustible Materials
For Vertical
For Horizontal Sections Sections At Wall Firestops
Top Bottom Sides Top Bottom Sides
3 inches 1 inch 1 inch 1 inch 2-1/2 inches 1/2 inch 1 inch
(75 mm) (25 mm) (25 mm) (25 mm) (63.7 mm) (13 mm) (25 mm)
For minimum clearances, see the direct vent
termination clearance diagrams on pages 28 and 30 in
this manual.
Step 2
Framing the
Fireplace
Fireplace framing can be built before or after the
fireplace is set in place. Framing should be positioned
to accommodate wall coverings and fireplace facing
material. The diagram below shows framing reference
dimensions.
CAUTION MEASURE FIREPLACE DIMENSIONS, AND
VERIFY FRAMING METHODS AND WALL
COVERING DETAILS, BEFORE FRAMING
CONSTRUCTION BEGINS.

10
VENT SYSTEM
TERMINATION KITS
VENT SYSTEM COMPONENTS
Figure 5. Vent Components and Terminations
Step 3
Installing the
Vent System
A. Vent System Approvals
These models are approved to use D-series direct vent
pipe components and terminations. Approved vent
system components are labeled for identification. NO
OTHER VENTING SYSTEMS OR COMPONENTS
MAY BE USED. Detailed installation instructions are
included with each vent termination kit and should be
used in conjunction with this Installers Guide. The
drawing below shows vent system components and
terminations.
The flame and ember appearance may vary based on the
type of fuel burned and the venting configuration used.
Identifying Vent Components
The vent systems installed on this gas fireplace may
include one, two, or three 90° elbow assemblies. The
relationships of vertical rise to horizontal run in vent
configurations using 90° elbows MUST BE strictly
adhered to. The rise to run relationships are shown in
the venting drawings and tables. Refer to the diagrams
on the next several pages.
NOTE: TWO 45° ELBOWS MAY BE USED IN PLACE
OF ONE 90° ELBOW. RISE TO RUN RATIOS IN THE
VENT SYSTEM MUST BE FOLLOWED IF 45°
ELBOWS ARE USED.
This model has vent starting collars on both the top and
the back of the unit. Depending upon the installation,
decide which ONE set of starting collars will be used to
attach the vent system. The starting collar sealing cap
must remain on the starting collar NOT used.

11
DV-90D
65/32
57/873/8
DV-45D
67/16
11 1/16 61/2
85/8
81/2
51/16
8/12 11 5/8
85/8
11 15/16
DV-36D
35 3/4
47 3/4
DV-48D
5 3/4
8 3/4
11 3/4
DV-12D DV-09D DV-06D
6-5/32"
(156 mm)
7-3/8" 5-7/8"
(187 mm) (149 mm)
8-1/2"
(216 mm)
8-5/8"
(220 mm)
11-15/16"
(303 mm)
11-5/8"
(295 mm) 11-1/16"
(281 mm) 6-1/2"
(165 mm)
8-5/8"
(220 mm)
5-1/16"
(129 mm)
8-1/2"
(216 mm)
6-7/16"
(164 mm)
35-3/4"
(908 mm)
47-3/4"
(1.2 m)
11-3/4"
(298 mm) 8-3/4"
(222 mm) 5-3/4"
(146 mm)
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93 mm) AT EACH JOINT.

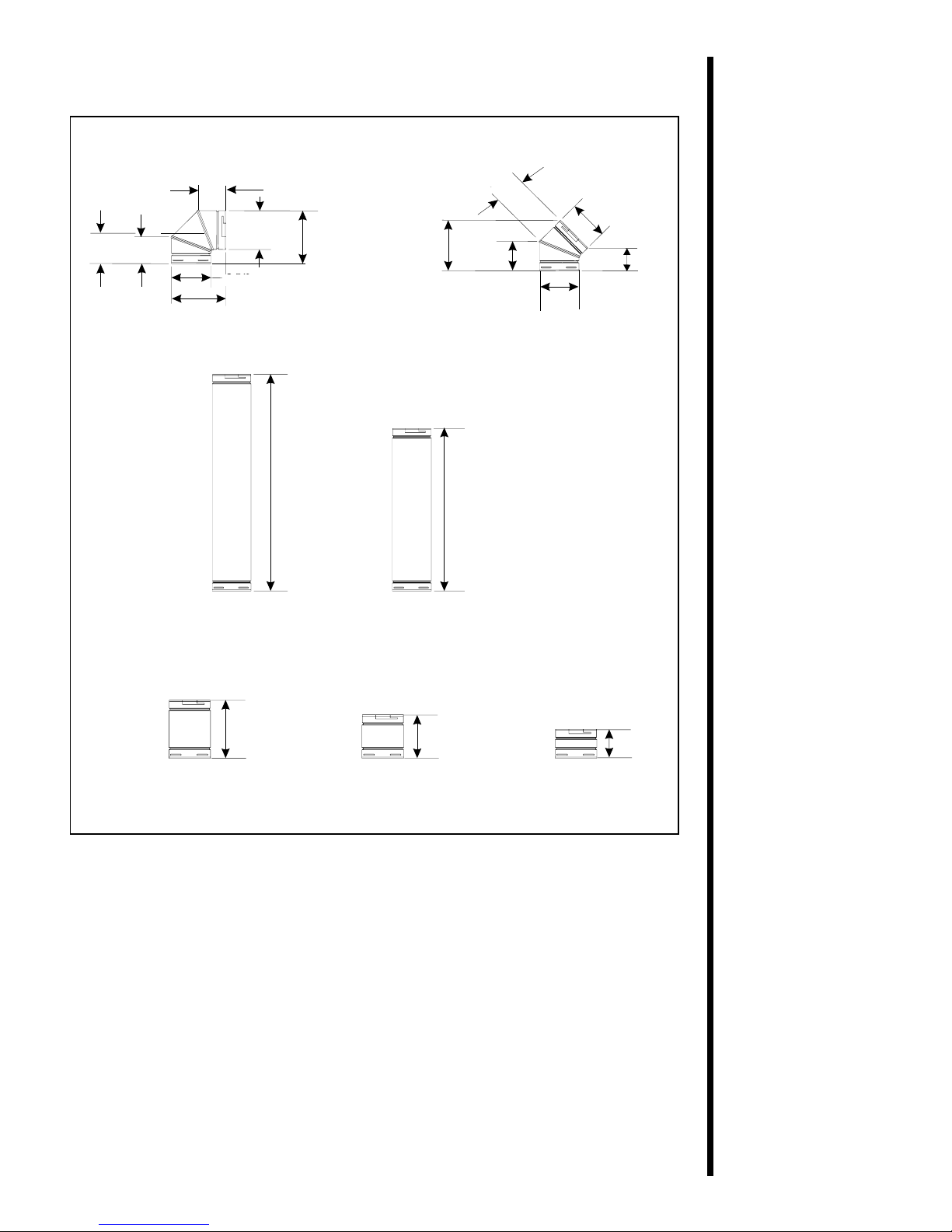

Figure 6. D-Series Direct Vent Component Specifications
(5-inch inner pipe/ 8 5/8-inch outer pipe)

12

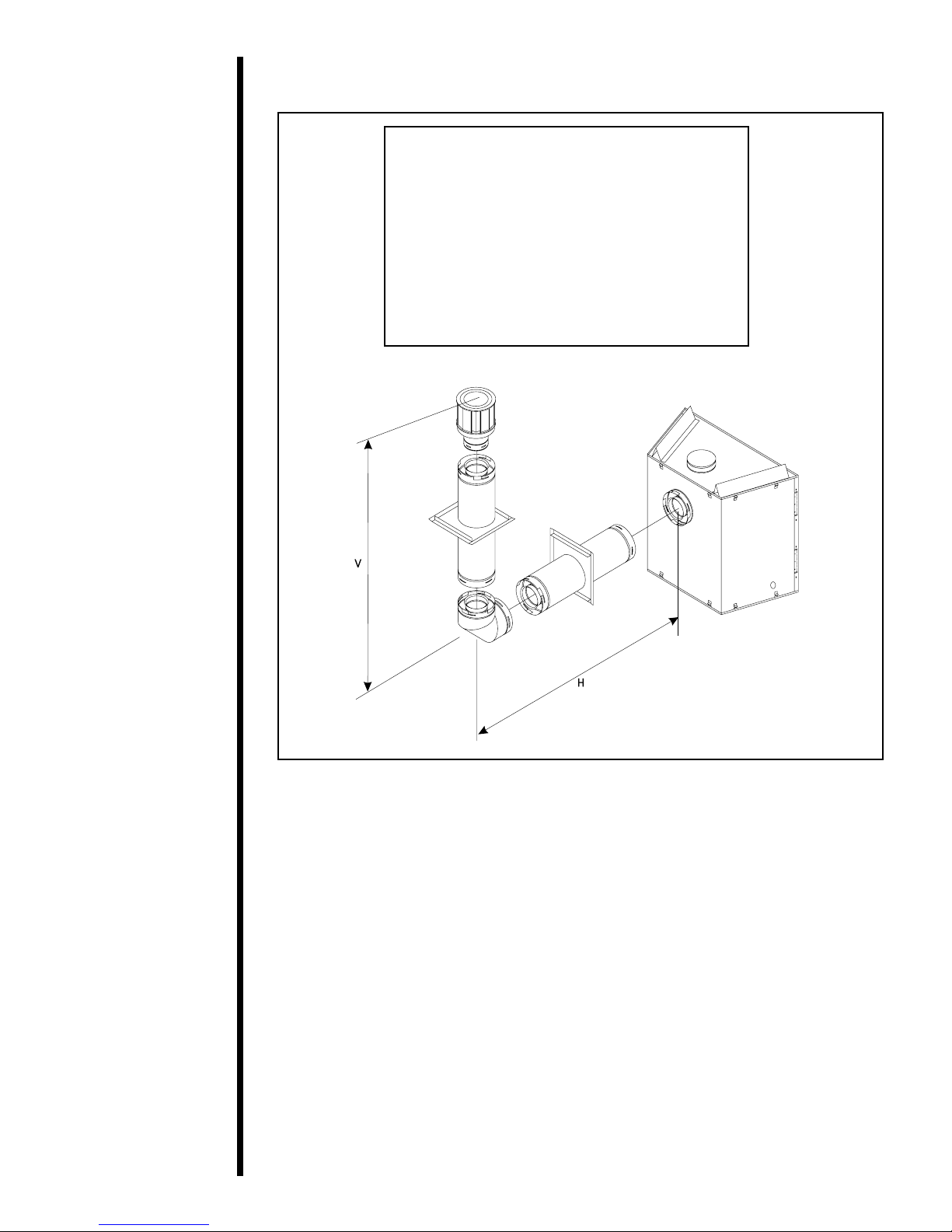

Figure 7. Straight Up Vertical Venting
STRAIGHT UP
VERTICAL VENTING
V (FT.)
40' MAX. (12.4 M)
NOTE: Model 6000ARCH
A 12-inch length of straight vent
pipe MUST be the first vent
component attached to the unit.

13
HORIZONTAL VENTING
H
Kit No. Max. Run
DVK-01D
DVK-01TRD 24" (610 mm)
NOTE: Models 6000TR and 6000XLS are tested and approved to
use 45° elbows in corner installations. However, 90° elbows will result
in better performance.

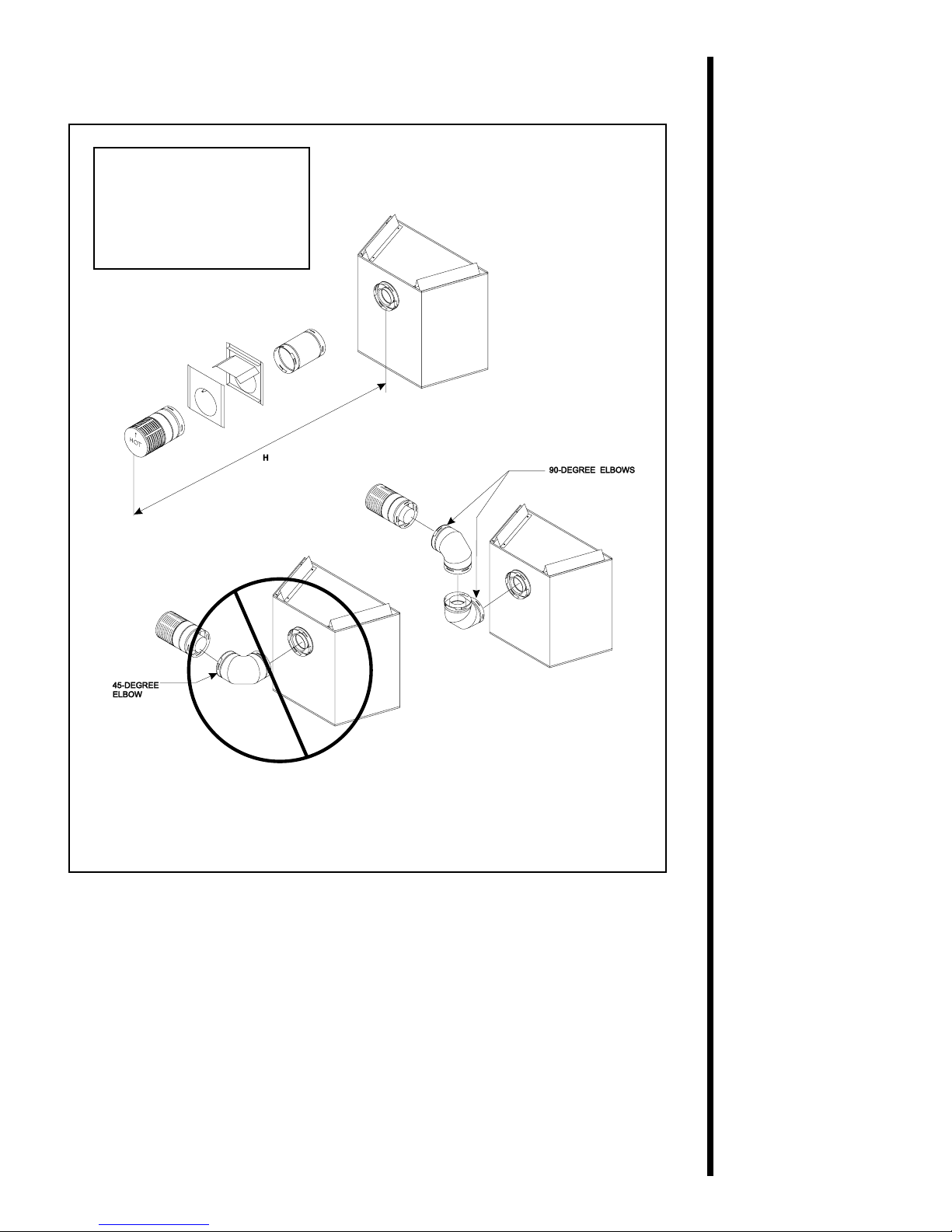

Figure 8. Corner Installation

14

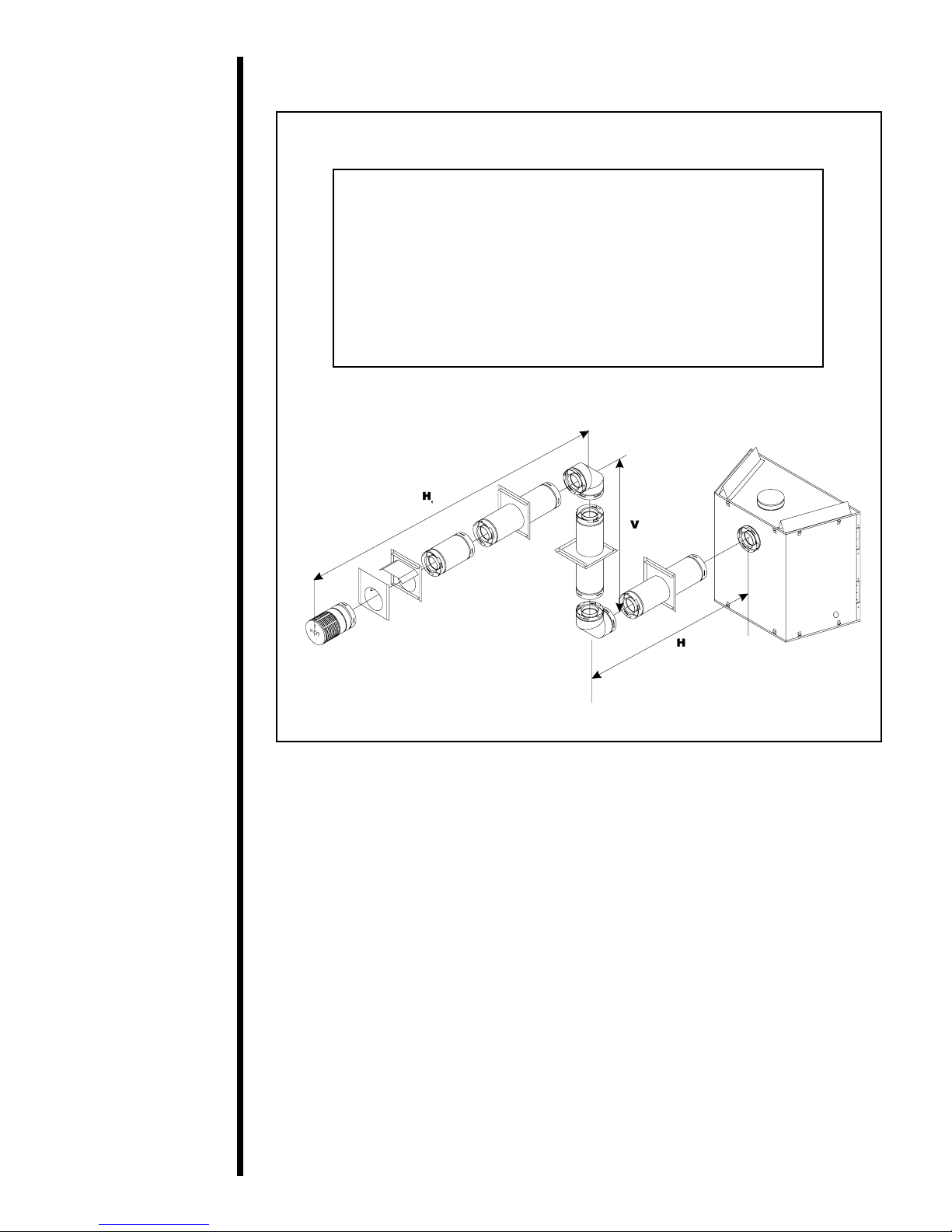

VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.4m)
H = 8' MAX. (2.4m)
V+H = 40' MAX. (12.4m)
Figure 9. Venting with One 90° Elbow

15
VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
H = 20' MAX. (6.2m)
V + H = 40 MAX. (12.4mm)

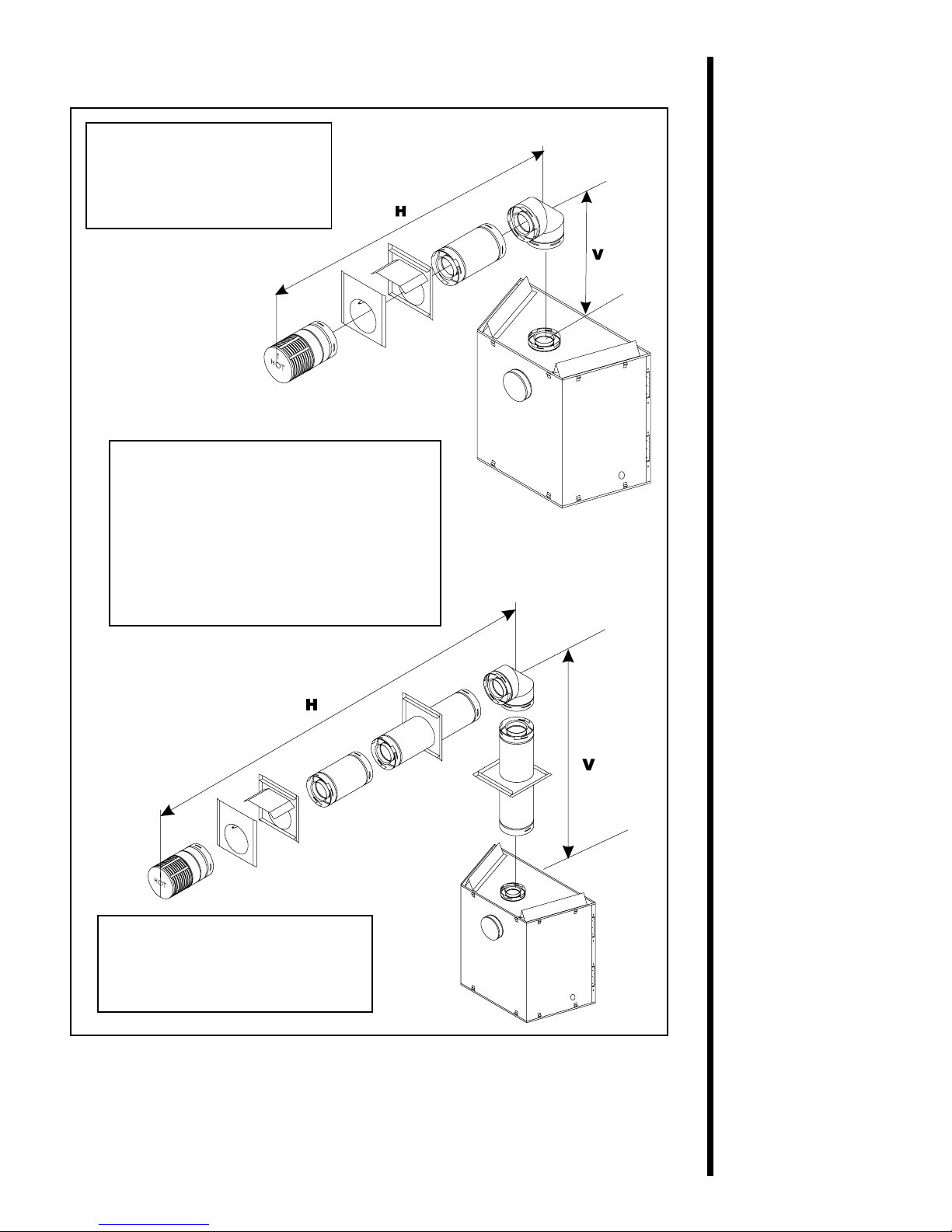

Figure 10. Venting with One 90° Elbow
FOR 6000TR & 6000XLT-CDN
NOTE: If a 90oelbow is first at-
tached to the unit, the maximum
horizontal run is 3-feet (914mm).
NOTE: For corner installations: A 6-inch (152mm) MINIMUM length of straight
pipe must be attached to the fireplace before 90o elbow. This will allow the vent
pipe to clear the top standoffs.
NOTE: MODEL 6000ARCH
A 12-inch length of straight vent
pipe MUST be the first vent
component attached to the unit.

16
VENTING WITH TWO (2) 90° ELBOWS
V H H + H1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 5´ MAX. (1.52m)
2´ MIN. (610 mm) 4´ MAX. (1.22 m) 10´ MAX. (3.1m)
3´ MIN. (914 mm) 6´ MAX. (1.86 m) 15´ MAX. (4.65m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 20´ MAX. (6.2m)
V+H+H 1 = 40´ MAX. (12.4 m) H = 8´ MAX. (2.48 m) H+H
1
= 20´ MAX. (6.2m)
Figure 11. Venting with Two 90° Elbows

17
VENTING WITH TWO (2) 90oELBOWS
V (FT.) H + H1(FT.)
1' MIN. (305mm) 5´ MAX. (1.52m)
2' MIN. (610mm) 10´ MAX. (3.1m)
3' MIN. (914mm) 15´ MAX. (4.65m)
4' MIN. (1.22m) 20´ MAX. (6.2m)
V+H+H
1
= 40' MAX.(12.4m) H+H
1
= 20´ MAX. (6.2m)
Figure 12. Venting with Two 90° Elbows
NOTE: MODEL
6000ARCH
A 12-inch length
of straight vent
pipe MUST be
the first vent
component
attached to
the unit.
VENTING WITH TWO (2) 90
o
ELBOWS
V (FT.) H (FT.)
1' MIN. (305mm) 5´ MAX. (1.52m)
2' MIN. (610mm) 10´ MAX. (3.1m)
3' MIN. (914mm) 15´ MAX. (4.65m)
4' MIN. (1.22m) 20´ MAX. (6.2m)
H = 20´ MAX. (6.2m)
V+V1+H= 40' MAX.(12.4m)

18
1´ MIN. (305 mm) 2´ MAX. (610 mm) 5´ MAX. (1.52 m)
2´ MIN. (610 mm) 4´ MAX. (1.22 m) 10´ MAX. (3.1 m)
3´ MIN. (914 mm) 6´ MAX. (1.86 m) 15´ MAX. (4.65 m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 20´ MAX. (6.2 m)
V+H+H
1
+H
2
= 40´ MAX.(12.4 m) H=8´MAX.(2.48 m) H+H
1
+H
2
=20´ MAX. (6.2 m)
VENTING WITH THREE (3) 90° ELBOWS
V H H + H1 + H2
1´ MIN. (305 mm) 2´ MAX. (610 mm) 5´ MAX. (1.52 m)
2´ MIN. (610 mm) 4´ MAX. (1.22 m) 10´ MAX. (3.1 m)
3´ MIN. (914 mm) 6´ MAX. (1.86 m) 15´ MAX. (4.65 m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 20´ MAX. (6.2 m)
V
1
+V+H+H
1
=40 ´ MAX.(12.4m) H=8´MAX.(2.48m) H+H
1
=20´MAX.(6.2m)
VENTING WITH THREE (3) 90° ELBOWS
V H H + H1
Figure 13. Venting with three 90° elbows

19
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
NOTE: H + H1= 20' MAX. (6.2m)
V + V1 + H + H1= 40' MAX. (12.4m)
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H + H1 (FT.)
1' MIN.(305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
H + H1= 20' MAX. (6.2m)
NOTE: V+V1+H+H1= 40' MAX. (12.4m)
Figure 14. Venting with three 90° elbows
NOTE: MODEL
6000ARCH
A 12-inch length of
straight vent pipe
MUST be the first
vent component at-
tached to the unit.

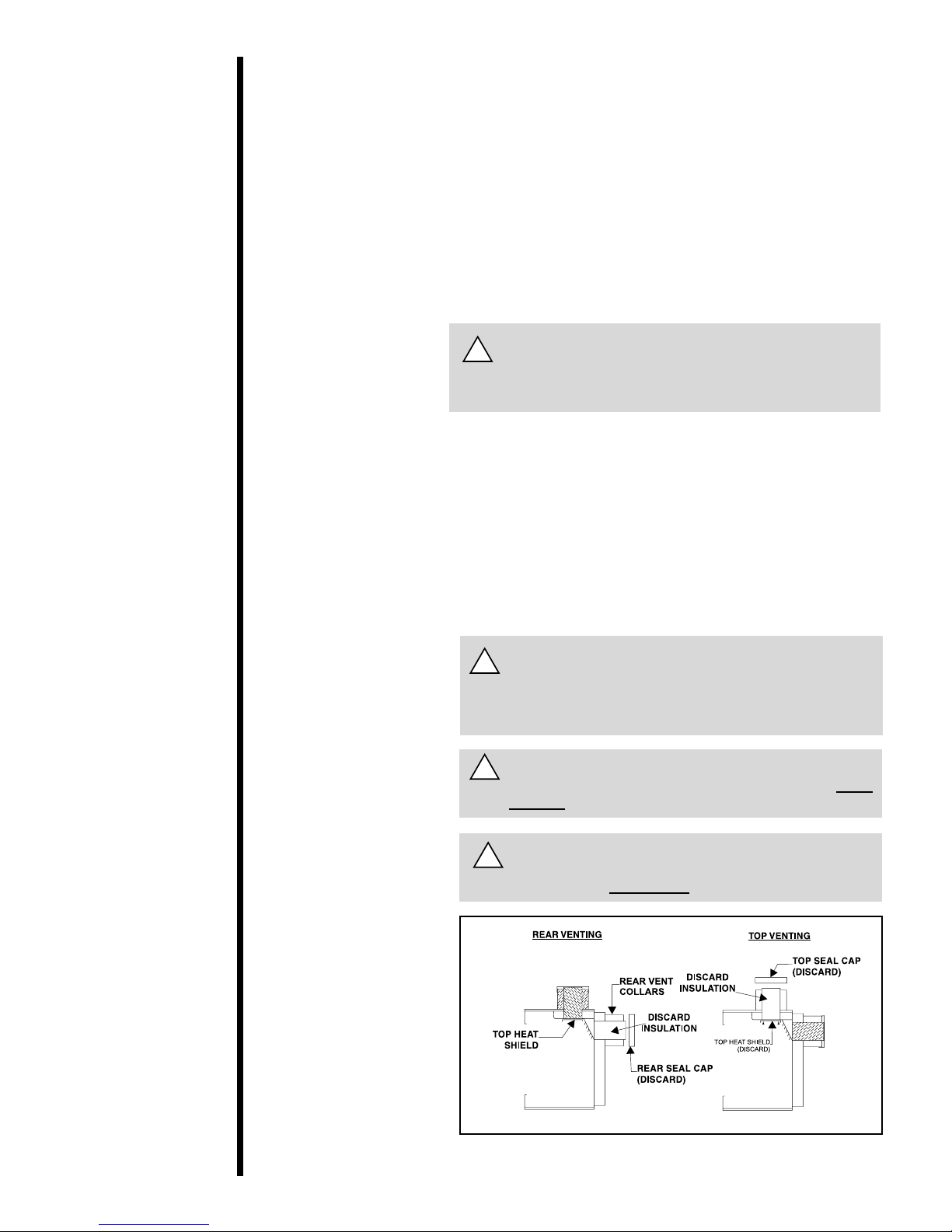

20 Figure 15 For Model 6000TR
B. Installing Vent Components
For Model 6000TR
After determining which set of starting collars will be used
(top or rear), follow venting instructions accordingly.
Venting Out the Rear Vent
Remove the installed rear seal cap from the rear starting
collars by cutting the strap at each end. (See Figure 15).
Follow the vent configuration tables accordingly.
Remove the insulation from the REAR five inch flue. Pull
the heat shield out from outside of the firebox.
WARNING: THE TOP HEAT SHIELD (INSIDE
THE FIREBOX) MUST REMAIN ATTACHED
IF THE VENT SYSTEM IS ATTACHED TO THE
REAR STARTING COLLARS. SEE FIGURE 15.
Venting Out the Top Vent
Remove the top vent collar seal cap and the two
pieces of insulation inside the top two starting
collars (See Figure 15). Next remove the glass door.
Remove the heat shield from inside the TOP five inch flue
from outside of the firebox.
You have to take the glass off again for positioning the logs
when the unit is finally installed in place and finished
around it. Reinstall the glass door. Attach vent system to
the top starting collars.
WARNING: FAILURE TO REMOVE INSULA-
TION IN THE SET OF COLLARS YOU ARE
USING COULD CAUSE A FIRE.
WARNING: THE REAR VENT COLLAR SEAL
CAP MUST REMAIN ATTACHED TO THE
REAR VENT COLLARS IF THE VENT SYS-
TEM IS ATTACHED TO THE TOP STARTING
COLLARS. SEE FIGURE 15.
WARNING: YOU MUST LEAVE THE INSU-
LATION IN PLACE IN THE SET OF COL-
LARS YOU
ARE NOT USING.
!
!
!
!
