Heat & Glo 8000TRD Assembly instructions

1
-Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
-What to do if you smell gas
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your building.
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
•If you cannot reach your gas supplier, call
the fire department.
-Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURYOR PROPERTYDAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT AQUALIFIED IN-
STALLER,SERVICEAGENCY,ORTHE
GAS SUPPLIER.
Underwriters
Laboratories Listed
380-900O 1/04
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THISINSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTURE REFERENCE.
1.This appliance may be installed in an af-
termarket, permanently located, manufac-
tured(mobile) home,where notprohibited
by local codes.
2.Thisapplianceisonly for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
Please contact your Heat-N-Glo dealer for any questions
or concerns. For the number of your nearest Heat-N-
Glo dealer, please call 1-888-427-3973.
Printed in U.S.A. Copyright 2004,
Heat-N-Glo, a brand of Hearth & Home Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWEDEXACTLY,AFIRE OR
EXPLOSION MAYRESULTCAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.
Models:
8000TRD
8000TRD-IPI

2
These unitsMUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide. NO OTHER vent systems or
components MAYBE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside andMUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas applianceMUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLYbe
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of theOwners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should bePERFORMED by a
qualified service person. The appliance and venting
system should beINSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It isIMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEANto provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACEDon or near the
appliance.
Children and adults should beALERTED to the
hazards of high surface temperature and should
STAYAWAYto avoid burns or clothing ignition.
Young children should beCAREFULLYSUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
!

3
TABLE OF CONTENTS
Safety and Warning Information ................................................. 2
Service Parts Lists ...................................................................... 4
Section 1: Approvals and Codes................................................ 8
Appliance Certification.................................................................... 8
Installation Codes ........................................................................... 8
High Altitude Installations ................................................................ 8
Section 2: Getting Started .......................................................... 9
Introducing the Heat-N-Glo Gas Fireplaces ................................... 9
Pre-installation Preparation ............................................................ 9
Section 3: Installing the Fireplace ............................................11
Constructing the Fireplace Chase ................................................11
Step 1 Locating the Fireplace ...................................................11
Step 2 Framing the Fireplace................................................... 12
Step 3 Installing the Vent System............................................. 14
A. Vent System Approvals............................................ 14
B. Installing Vent Components..................................... 22
C. Vent Termination...................................................... 25
Step 4 Positioning, Leveling, and
Securing the Fireplace.................................................. 27
Step 5 The Gas Control Systems............................................ 28
Step 6 The Gas Supply Line .................................................... 29
Step 7 Gas Pressure Requirements ....................................... 29
Step 8 Wiring the Fireplace...................................................... 30
Step 9 Finishing........................................................................ 32
Step 10 Installing Trim, Logs, and Ember Material...................... 33
Installing the Trim .......................................................... 33
Positioning the Logs ..................................................... 33
Shutter Settings ............................................................ 33
Placing the Ember Material........................................... 33
Glass Specifications ..................................................... 34
Step 11 Before Lighting the Fireplace........................................ 34
Step 12 Lighting the Fireplace.................................................... 34
After the Installation ...................................................................... 34
Section 4: Maintaining and Servicing Your Fireplace ......... 35
u= Contains updated information.
u
u
u

4
*Part number list on following page.
*La liste des numéros de pièce se
trouve à la page suivante.
10
11
12
13
14
16
15
18
17
2
3
4
5
6
7
8
1
9Log Set Assembly

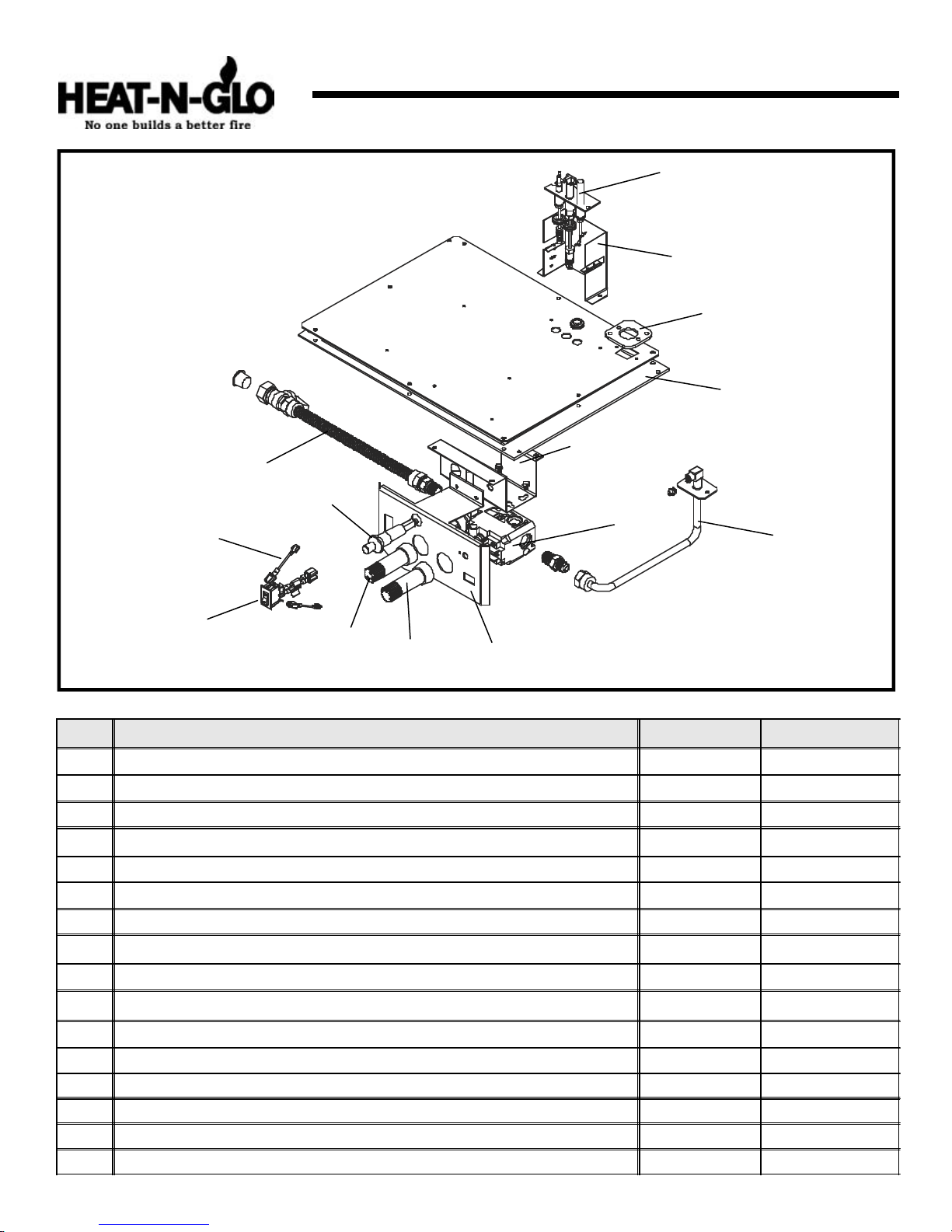

(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces
Service Parts 8000TRD, 8000TRD-IPI
8000TRD Beginning Manufacturing Date: 6-01
8000TRD-IPI Beginning Manufacturing Date: 8-01
Ending Manufacturing Date: ________________
19

5
Service Parts List / Liste des pièces de rechange
IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on your dealers VIP site. When ordering,
supply serial and model numbers to ensure correct service parts. / IMPORTANT : L'information fournie dans cette brochure
n'est valide que pendant une courte période. Les sites VIP des distributeurs disposent des renseignements les plus récents.
Lors d'une commande, veuillez fournir les numéros de série et de modèles pour un remplacement adéquat des pièces.
ITEM /
PIÈCE COMMON PARTS / PIÉCES COMMUNES SERIAL # / N°DESÉRIE PART NUMBER / N° DE PIÈCE
Burner Orifice NG (#31) / Orifice de brûleur GN (#31) 582-831
Burner Orifice LP (1.8mm) / Orifice de brûleur PL (1.8mm) 582-818
2Burner NG / Brûleur GN 380-378A-UM
2Burner LP / Brûleur PL 2028-009
3Glass Door Assembly / Porte en verre GLA-8TRD
4Log Grate / Grille de Bûche 582-360A
5Refractory Base / Réfractaire Base SRV582-370-UM
6Refractory Left Base / Réfractaire SRV582-376-UM
7Refractory Right Base / Réfractaire SRV582-377-UM
8Hood / Hotte SRV560-175
9Log Set Assembly / Jeu de Bûches LOGS-8TRC
10 Log 1 / Bûche 1 SRV582-701
11 Log 2 / Bûche 2 SRV582-703
12 Log 3 / Bûche 3 SRV582-702
13 Log 4 / Bûche 4 SRV582-704
14 Log 5 / Bûche 5 SRV402-701
15 Log 6 / Bûche 6 SRV582-706
16 Log 7 / Bûche 7 SRV582-707
17 Log 8 / Bûche 8 SRV582-705
18 Surround / Entourage 380-130
19 Insulation Board / Conseil d'Isolation 380-401
Flue Restrictor / Restricteur de conduite de cheminée 385-128
STANDING PILOT IGNITION* / D’ALLUMAGE PAR VEILLEUSE
1Junction Box - Pilot / Boîtier de raccordement - de veilleuse PRE 002324001
POST 002324001 100-250A 4021-013
Pilot Orifice NG / Orifice de veilleuse GN 446-505
Pilot Orifice PL / Orifice de veilleuse PL 446-517
Thermocouple / Thermocouple 446-511
Thermopile / Thermopile 060-512
Conversion Kit NG / Module de conversion GN Pre 2300
Post 2300 NGK-8TRD NGK-8TRD-A
Conversion Kit LP / Module de conversion PL Pre 1326
Post 1326 LPK-8TRD LPK-8TRD-A
IPI IGNITION* / ALLUMAGE IPI
1Junction Box / Boîtier de dérivation PRE 002324001
POST 002324001 383-250A 4021-013
Conversion Kit - IPI LP / Module de conversion - IPI PL LPK-8TRD-IPI
8000TRD, 8000TRD-IPI
* Also see pages 6 and 7 for additional IPI and Standing Pilot Ignition service part numbers.
u
u

6
(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces
Service Parts
Beginning Manufacturing Date: 8-01
Ending Manufacturing Date: ______
ITEM /
PIÈCE DESCRIPTION SERIAL # /N° DE SÉRIE PART NUMBER / N° DE PIÈCE
1ON/OFF Rocker Switch / Interrupteur à bascule MARCHE/ARRÊT060-521A
2Valve NG / Valve GN 750-500
2Valve LP / Valve PL 750-501
3Flexible Gas Connector / Tuyau à gaz flexible PRE 22099930
POST 22099930 477-301A 383-302A
4Module / Module 593-592
5Wire Assembly / Module de fil 593-590A
6Pilot Assembly NG / Module de veilleuse GN PRE 002324001
POST 002324001 385-510A 4021-025
6Pilot Assembly LP / Module de veilleuse PL PRE 002324001
POST 002324001 385-511A 4021-026
7Pilot Bracket / Parenthèse Pilote 530-164
8Gasket Orifice / Orifice de Joint 438-407
9Valve Bracket / Parenthèse de Valve PRE 002324001
POST 002324001 385-169 2025-101
10 Flex Ball Valve Assembly / Fléchir l'Assemblée de Soupape de Balle 302-320A
11 Valve Plate Gasket / Joint de Plat de Valve 385-402
12 Ground Strap / Courroie de Raison(Terre) 2025-512
Transformer / Transformateur 593-593A
Battery Pack / Paquet de Batterie(Pile) 593-594A
Intermittent Pilot Ignition
ValveAssembly
8000TRD-IPI
6
78
11
4
5
2
10
1
3
9
u
12

7
(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces
Service Parts
Beginning Manufacturing Date: 6-03
Ending Manufacturing Date: ______
ITEM /
PIÈCE DESCRIPTION SERIAL # /N° DESÉRIE PART NUMBER / N° DE PIÈCE
1ON/OFF Rocker Switch / Interrupteur à bascule MARCHE/ARRÊT060-521A
2Valve NG / Valve GN 060-522
2Valve LP / Valve PL 060-523
3Flexible Gas Connector / Tuyau à gaz flexible PRE 22099930
POST 22099930 477-301A 383-302A
4Valve Plate Gasket / Joint de Plat de Valve 385-402
5Burner Neck Gasket / Joint de Cou de Brûleur 438-407
6Pilot Bracket / Parenthèse Pilote 530-164
7Pilot Assembly NG / Module de veilleuse GN 485-510A
7Pilot Assembly LP / Module de veilleuse PL 485-511A
8Flex Ball Valve Assembly / Fléchir l'Assemblée de Soupape de Balle 302-320A
9Wire Assembly / Module de fil 049-552A
10 Piezo Ignitor / Allumeur piézo 291-513
11 Pilot Control Knob / Piloter le Bouton de Contrôle 571-530
12 Flame Control Knob / Flamber le Bouton de Contrôle 571-531
13 Control Panel / Tableau de commande avant 385-154
14 Valve Bracket / Parenthèse de Valve 550-169
Standing Pilot Ignition
ValveAssembly
8000TRD
7
6
5
4
13
2
14
8
1
3
12
11
910

8
Appliance Certification
The Heat-N-Glo fireplace models discussed in thisInstallers
Guide have been tested to certification standards and listed
by the applicable laboratories.
Certification
MODEL: 8000TRD
LABORATORY: Underwriters Laboratories
TYPE: Direct Vent Gas Fireplace
STANDARD:
ANSI Z21.50b-2000•CSA2.22b-2000•UL307B
Installation Codes
Thefireplace installationmust conformto localcodes. Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
In the absence of local codes, the fireplace installation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
the United States) or the CAN/CGA-B149 Installation Codes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(inthe UnitedStates), orto the CSAC22.1 Canadian Electric
Code (in Canada).
These models may be installed in a bedroom or bed-sitting
room in the U.S.A. and Canada.
1
Approvals and
Codes
High Altitude Installations
U.L. Listed gas appliances are tested and approved with-
out requiring changes for elevations from 0 to 2,000 feet in
the U. S. A. and in Canada.
When installing this appliance at an elevation above 2,000
feet, it may be necessary to decrease the input rating by
changing the existing burner orifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between 2000 and 4500 feet in Canada. If the heating value
of the gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local gas
utility.
If installing this appliance at an elevation above 4,500 feet
(in Canada), check with local authorities.
Heat-N-Glo Quality
Systems registered
by SGS ICS

9
2
Getting Started
Introducing the Heat-N-Glo Gas Fireplaces
Heat-N-Glo direct vent gas fireplaces are designed to oper-
ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems. Gas fireplace diagrams, including the dimensions,
are shown in this section.
Pre-install Preparation
This gas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The vent system components are shipped in separate
packages. The gas logs may be packaged separately and
must be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the
owner’s warranty and may present a fire hazard.
The Heat-N-Glo Warranty will be voided by, and Heat-N-Glo
disclaims any responsibility for, the following actions:
•Installation of any damaged fireplace or vent system
component.
•Modification of the fireplace or direct vent system.
•Installation other than as instructed by Heat-N-Glo.
•Improper positioning of the gas logs or the glass door.
•Installation and/or use of any component part not manu-
factured and approved by Heat-N-Glo, not withstanding
any independent testing laboratory or other party approval
of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•The vent system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framing and finishing details.
•Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

10
Figure 1. Diagram of the 8000TRD
9 1/8
(233mm)
GAS LINE
ACCESS
2 1/4
(56mm)
40 3/8
(1026mm)
43(1091mm)
48 3/8 (1229mm)
26 7/8
(681mm)
36 3/4
(932mm)
8 3/8
(212mm)
3 1/2
(89mm)
29 1/8
(740mm)
Ø
8
(203mm)
ELECTRICAL
ACCESS
Ø8 (203mm) 21 1/2 (548mm)
11 3/4 (297mm)
35 1/2 (902mm)
17 3/4 (450mm)
TOP STANDOFFS
TOP VENT
COLLARS
HOOD
RATING PLATE
AND LABELS
GAS CONTROLS
GAS LINE ACCESS ELECTRICAL
ACCESS

11
3Installing the Fireplace
Step 1. Locating the Fireplace
The following diagram shows space and clearance require-
ments for locating a fireplace within a room.
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front ...................... 36....................914
Floor ................................. 0.......................0
Rear ................................1/2 ....................13
Sides ...............................1/2 ....................13
Top ................................ 3 1/2...................89
Ceiling**........................... 31....................787
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs. The minimum clearance to a perpendicular wall
extending past the face of the fireplace is one inch (25 mm).
The back of the fireplace may be recessed 21 1/2 inches
(546 mm) into combustible construction.
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections. ............ 1............... 25
Horizontal Sections
Top .................................. 3............... 75
Bottom............................. 1............... 25
Sides ............................... 1............... 25
At Wall Firestops
Top .................................. 3............... 75
Bottom............................. 1............... 25
Sides ............................... 1............... 25
* See Figure 3.
**The clearance to the ceiling is measured from the top
of the unit, excluding the standoffs (see Figure 38).
The distance from the unit to combustible con-
struction is to be measured from the unit outer
wrap surface to the combustible construction,NOT
fromthe screwheads thatsecure theunit together.
For minimum clearances, see the direct vent termination
clearance diagrams on pages 26 and 27 in this manual.
1/2” MIN. (13mm)
D
C
E
B
1” MIN. (25mm)
A
Figure 2. Fireplace Dimensions, Locations,
and Space Requirements
Constructing the Fireplace Chase
A chase is a vertical box-like structure built to enclose the
gas fireplace and/or its vent system. Vertical vents that run
on the outside of a building may be, but are not required to
be, installed inside a chase.
CAUTION: TREATMENT OF FIRESTOP SPACERS AND
CONSTRUCTION OF THE CHASE MAYVARYWITH THE
TYPE OF BUILDING. THESE INSTRUCTIONS ARE NOT
SUBSTITUTES FOR THE REQUIREMENTS OF LOCAL
BUILDING CODES. THEREFORE, YOUR LOCAL BUILD-
ING CODES MUST BE CHECKED TO DETERMINE THE
REQUIREMENTS FOR THESE STEPS.
Factory-built fireplace chases should be constructed in the
manner of all outside walls of the home to prevent cold air
drafting problems. The chase should not break the outside
building envelope in any manner.
This means that the walls, ceiling, base plate and cantilever
floor of the chase should be insulated. Vapor and air infiltra-
tion barriers should be installed in the chase as per regional
codes for the rest of the home. Additionally, Heat-N-Glo rec-
ommendsthatthe insidesurfacesbe sheetrocked andtaped
for maximum air tightness.
To further prevent drafts, the firestops should be caulked to
seal gaps. Gas line holes and other openings should be
caulked or stuffed with insulation. If the unit is being in-
stalled on a cement slab, we recommend that a layer of
plywood be placed underneath to prevent conducting cold
up into the room.
THE CHASE SHOULD BE CONSTRUCTED SO THAT ALL
CLEARANCES TO THE FIREPLACE ARE MAINTAINED
AS SPECIFIED WITHIN THIS INSTALLERS GUIDE.
*NOTE:If venting with (2) 900elbows off rear of unit
the dimensions C, D, and E, will change.
VENTING A B C D E
Top 49" 22" 39-1/2" 56" 79"
Rear 49" 22" 43-1/2" 62" 87"
*

12
Framing should be
constructed of 2 X 4
lumber or heavier.
A. ...............49”*
B. ......... 40 1/2”
C. ................ 22”
D. ......... 44 1/8”
E........... 30 1/8”

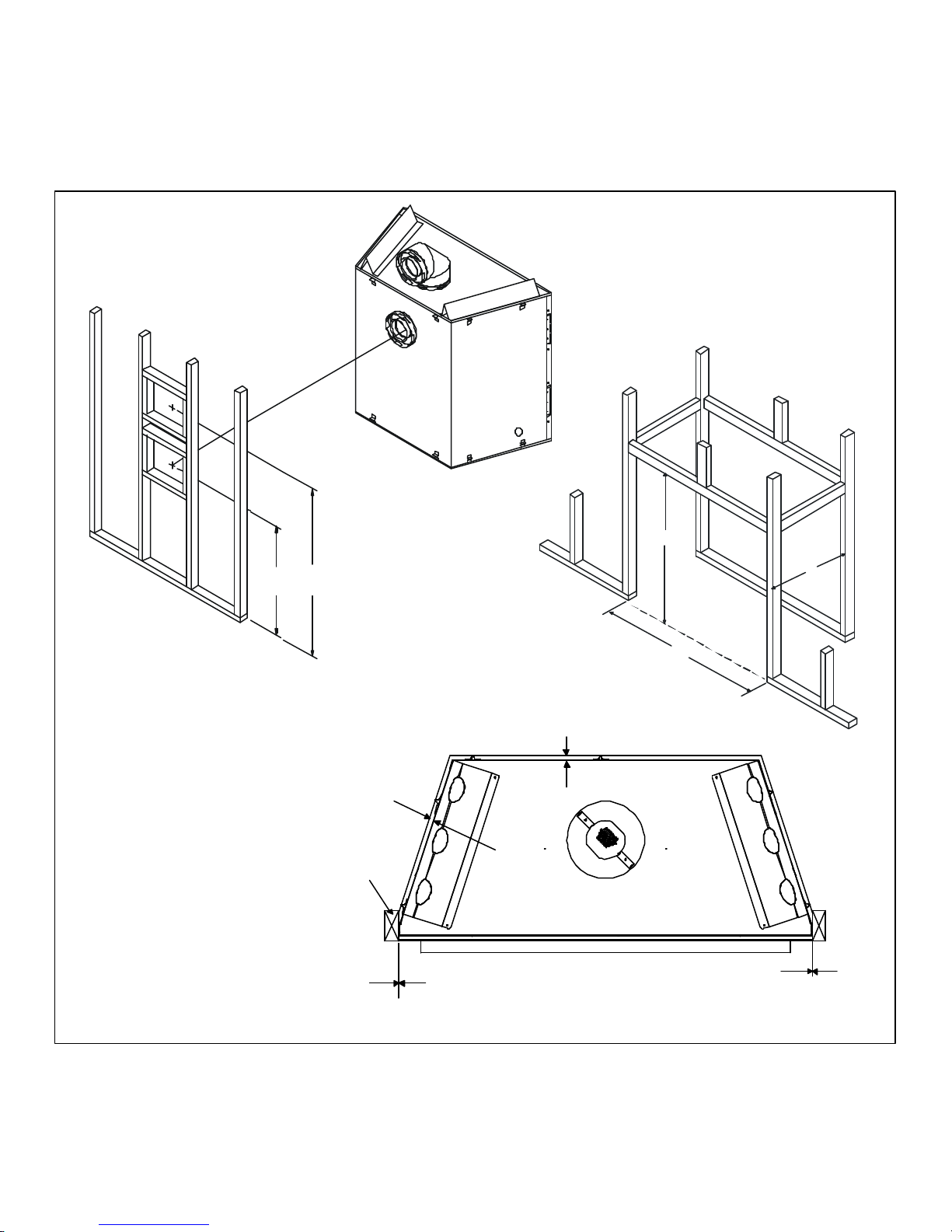

Figure 3. Framing Dimensions
Step 2. Framing the Fireplace
Fireplace framing can be built before or after the fireplace is
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
gram below shows framing reference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFORE FRAMING.
Shows center of 10” x 12” vent framing
holes for top and rear venting. The center
oftheholeisone(1)inch(25.4mm)above
the center of the horizontal vent pipe.
D
E
A
B
C
1/2” CLEARANCE FROM BACK OF FIREPLACE TO COMBUSTIBLE
0” CLEARANCE TO
FRAMING MEMBER
0” CLEARANCE
1/2” CLEARANCE
FROM BOTH SIDES
OF FIREPLACE
TO COMBUSTIBLE
FRAMING
MEMBER

13

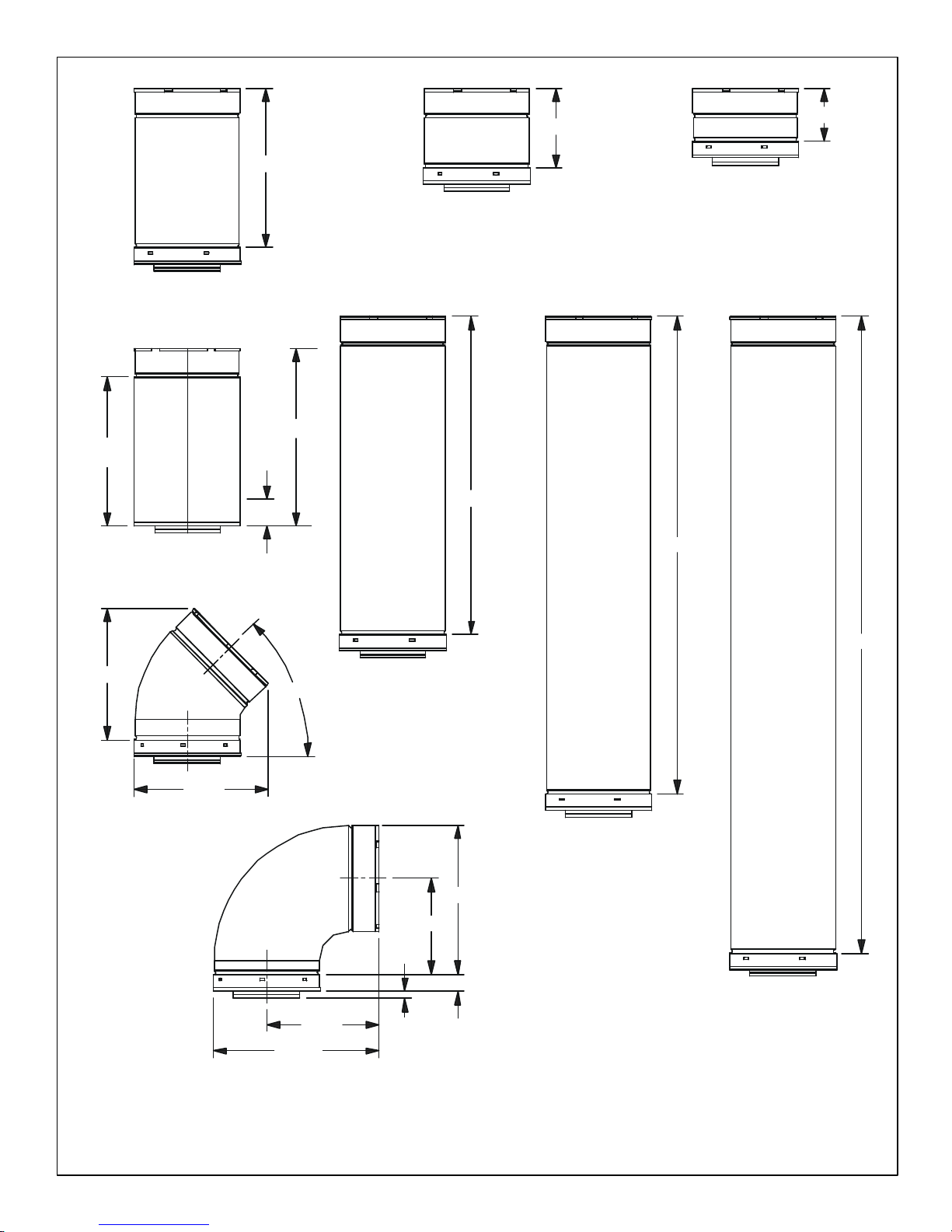

Figure 4. DVP-Series Direct Vent Component Specifications (5-inch inner pipe / 8-inch outer pipe)
NOTE: PIPES OVERLAP 1-1/4 INCHES AT EACH JOINT.
D
V
P
9
0
S
T
12-9/16
11-1/4
7-1/4
1-1/4 TYP
1/2 TYP8-9/16
DVP36
DVP48
48
24
36
4
6
DVP4
DVP6
12
DVP12
2
MIN.
DVP12A
12-3/16
MAX.
DVP24
9-7/8
45.0
O
10-1/4
DVP45
14-1/4

14

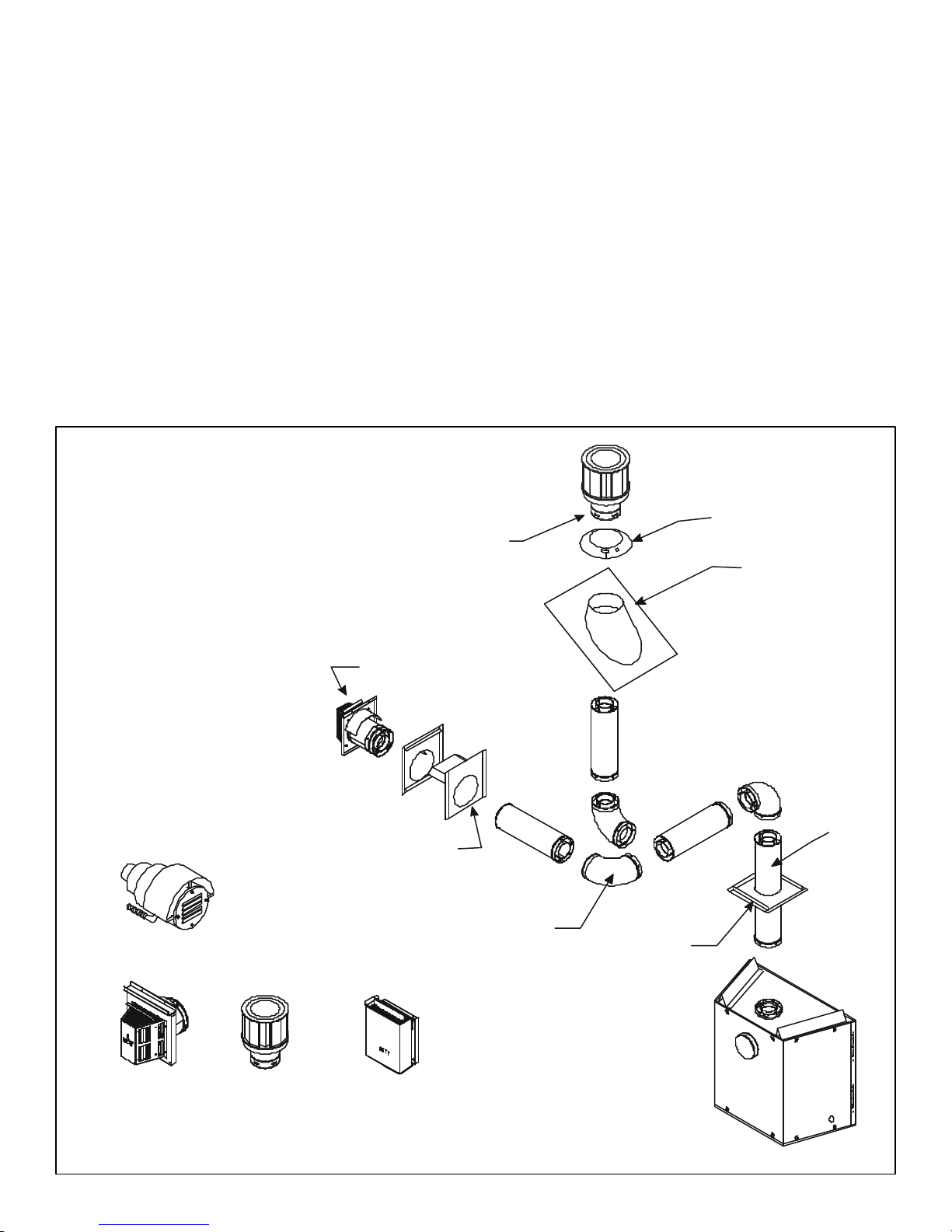

Figure 5. Vent System Components and Termination Kits
Step 3. Installing the Vent System
A. Vent System Approvals
These models are approved to use DVP-series direct vent
pipe components and terminations (see Figures 4 and 5).
Approved vent system components are labeled for identifi-
cation. This pipe is tested and listed as an approved com-
ponent of the fireplace. The pipe is tested to be run inside
an enclosed wall. There is no requirement for inspection
openings at each joint within the wall. There is no required
pitch for horizontal vent runs. NO OTHER VENTING SYS-
TEMS OR COMPONENTS MAY BE USED.
Detailed installation instructions are included with each vent
termination kit and should be used in conjunction with this
Installers Guide.
The flame and ember appearance may vary based on the type
of fuel burned and the venting configuration used.
Identifying Vent Components
The vent systems installed on this gas fireplace may in-
clude one, two, or three 90° elbow assemblies. The rela-
tionships of vertical rise to horizontal run in vent configura-
tions using 90° elbows MUST BE strictly adhered to. The
rise to run relationships are shown in the venting drawings
and tables. Refer to the diagrams on the next several pages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Rise to run ratios in the vent system must
be followed if 45° elbows are used.
This model has vent starting collars on both the top and the
back of the unit. Depending upon the installation, decide
which ONE set of starting collars will be used to attach the
vent system. The starting collar sealing cap must remain
on the starting collar NOT used.
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
PIPE LENGTH
CEILING
FIRESTOP
VERTICAL
TERMINATION STORM COLLAR
ROOFFLASHING
Terminations Kits
(For use on IPI units only)
DVP-TVPVK-80
DVP-TVHW
DVP-TRAP
DVP-TB1
(Required to have a minimum of 3
feet of vertical in the vent system)
SERIES

15
Figure 6.
Straight Up Vertical Venting
STRAIGHT UP
VERTICAL VENTING
V (FT.)
40' MAX. (12.4 M)
CAP
V
Flue Restrictor Instructions
1. Remove Exhaust Shield using a 1/4” nut driver by
removingthefourscrewssecuringitinplace(see
Figure 7).
Figure 8. Flue Restrictor
BREAK
HERE
Figure 7
EXHAUST
SHIELD
FLUE
RESTRICTOR
2. Break the FlueRestrictor into two pieces. Do this
by bending the part back and forth until it breaks
(see Figure 8).
NOTE: On vertical venting
configurations over 10 feet
install the flue restrictor
(385-128). See flue restric-
tor installation instructions.

16
HORIZONTAL VENTING
Kit No. H Max. Run
DVP-TRAP 24" (610 mm)
Figure 11. Corner Installation
NOTE: This model is tested and approved to
use 45° elbows in corner installations. Howev-
er, 90° elbows will result in better performance.
45-DEGREE
ELBOW
90-DEGREE
ELBOWS
H
3. Match the amount of vertical you have in the sys-
tem with the chart to find the appropriate position
to set the Flue Restrictor (see Figure 9).
1 2 3 4 5
SETTINGS
1 2 3 4 5
Figure 10
4.Center the Flue Restrictor on vent and secure in
place by using two self-tapping screws (see Fig-
ure 10).
5. Reinstall the Exhaust Shield.
- CHART -
Vertical Top Vent
NG Top Vent LP Rear Vent NG Rear Vent LP
4' 1-1 No
Restrictor No Restrictor No Restrictor
8' 2-2 1-2 1-1 No
Restrictor
15' 3-3 3-2 2-2 1-2
20' 3-4 3-3 3-3 2-3
25' 3-4 3-3 3-3 2-3
30' 4-4 3-4 3-4 3-3
35' 4-4 3-4 3-4 3-3
40' 5-4 4-4 4-4 3-4
Figure 9.

17
VH
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.4m)
V+H=40' MAX. (12.4m) H = 8' MAX. (2.4m)
NOTE: On vertical venting configurations, where
the vertical component is over 10 feet, install
the flue restrictor included in the manual bag
assembly to improve flame appearance.
Figure 12. Venting with One 90° Elbow
VENTING WITH ONE (1) 90° ELBOW
VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
V+H= 40’ MAX. (12.4MM) H = 20' MAX. (6.2m)
Figure 13. Venting with One 90° Elbow
NOTE: If a 90oelbow is first attached to the unit,
the maximum horizontal run is 3-feet (914mm). (In
an LP unit the maximum horizontal run in this
situation is 30 inches (762mm).
NOTE: For corner installations: A 6-inch (152mm)
section of straight pipe may need to be attached to
the fireplace before a 90o elbow, to allow the vent
pipe to clear the top standoffs.
H
V
V
H
H
V

18
Figure 14. Venting with Two 90° Elbows
VENTING WITH TWO (2)
90° ELBOWS
VHH + H1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 5´ MAX. (1.52m)
2´ MIN. (610 mm) 4´ MAX. (1.22 m) 10´ MAX. (3.1m)
3´ MIN. (914 mm) 6´ MAX. (1.86 m) 15´ MAX. (4.65m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 20´ MAX. (6.2m)
V+H+H 1 = 40´ MAX. (12.4 m) H = 8´ MAX. (2.48 m) H+H
1
= 20´ MAX. (6.2m)
Figure 15. Venting with Two 90° Elbows
VENTING WITH TWO (2) 90oELBOWS
V FT.H + H1(FT.)
1' MIN. (305mm) 5´ MAX. (1.52m)
2' MIN. (610mm) 10´ MAX. (3.1m)
3' MIN. (914mm) 15´ MAX. (4.65m)
4' MIN. (1.22m) 20´ MAX. (6.2m)
V+H+H1= 40' MAX.(12.4m) H+H
1
= 20´ MAX. (6.2m)
V+V1+H= 40' MAX.(12.4m)
H
1
V
H
H
1
H
V
V
V
1
H

19
Figure 16. Venting with Two 90° Elbows
V
H
H
1
Venting with Two 90° Elbows
V (FT) H + H1(FT)
1' MIN. (305 mm) 2' MAX. (610 mm)
2' MIN. (610 mm) 4' MAX. (1.22 m)
3' MIN. (914 mm) 6' MAX. (1.86 m)
4' MIN. (1.22 m) 8' MAX. (2.48 m)
H + H1= 8' MAX. (2.48 m)
V + H + H1= 40' (12.2m) MAX.

20

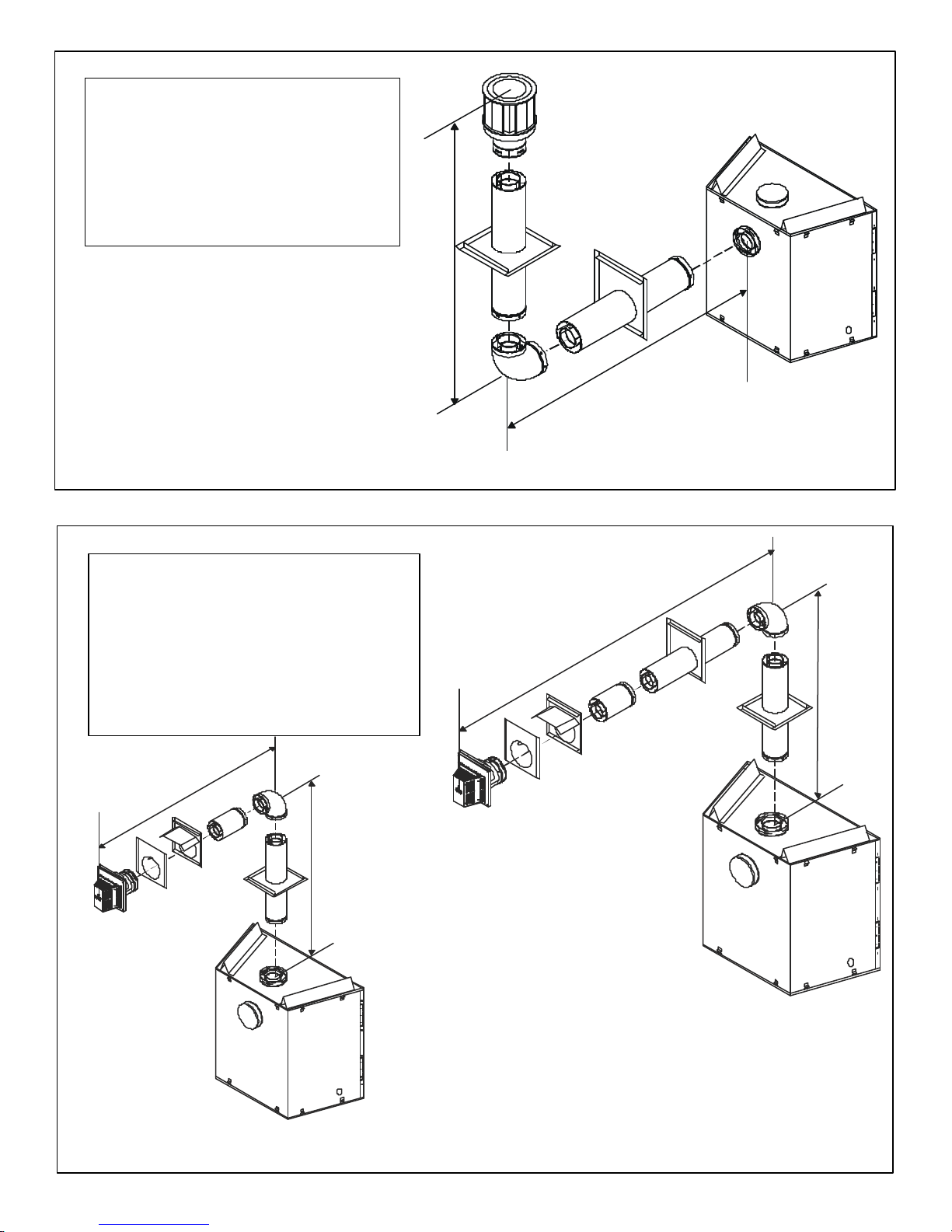

Figure 17. Venting with three 90° elbows
VENTING WITH THREE (3) 90° ELBOWS
1´MIN. (305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN. (610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN. (914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN. (1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V+H+H
1
+H
2
= 40 ´ MAX. (12.4 m) H = 8´ MAX. (2.48 m) H+H 1 +H 2 = 20´ MAX. (6.2 m)
V HH + H1 + H2
1´MIN. (305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN. (610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN. (914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN. (1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V 1 +V+H+H 1 = 40 ´ MAX.(12.4 m) H = 8´MAX.(2.48 m) H+H 1 = 20´MAX.(6.2 m)
V H H + H1
H
H
1
H
2
V
H
V
H
1
V
1
