Heat & Glo XLR-N-CE User manual

1Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/13
Model:
XLR-N-CE
XLR-PB-CE
• DO NOT store or use gasoline or other am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• Whattodoifyousmellgas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the re department.
• Installation and service must be performed
by a qualied installer, service agency, or the
gas supplier.
WARNING:Iftheinformationinthese
instructionsisnotfollowedexactly,are
orexplosionmayresultcausingproperty
damage,personalinjury,ordeath.
Owner’sManual
InstallationandOperation
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the xed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOTSURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hotglasswillcauseburns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
replace.
• Alert children and adults to hazards of high temperatures.
Hightemperaturesmayigniteclothingorotherammable
materials.
• Keep clothing, furniture, draperies and other ammable
materials away.
EC-87/09/058
This is a room sealed appliance and no other ventilation is
required than what is provided.
These instructions are valid for the following countries: GB, IE.
These instructions are only valid if the following country symbol is
on the appliance. If this symbol is not present on the appliance,
it is necessary to refer to the technical instructions which will
provide the necessary information concerning the modication
of the appliance to the conditions of use for the country.
DONOTDISCARDTHISMANUAL
NOTICE
• Leave this manual with
party responsible for use
and operation.
DO NOT
DISCARD
• Important operating
and maintenance
instructions included.
• Read, understand and follow
these instructions for safe
installation and operation.

Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/132

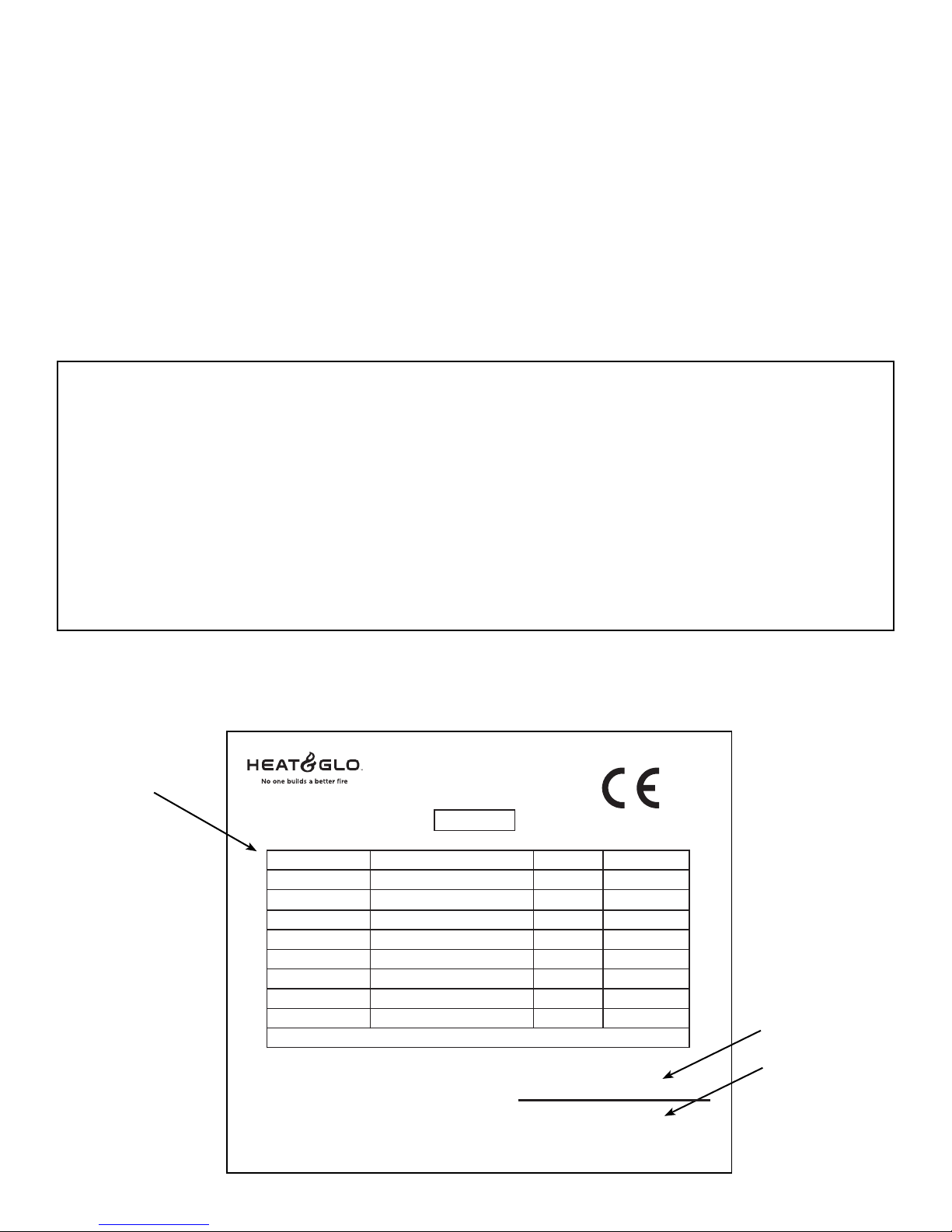

ListingLabelInformation/Location
Model Name: ___________________________________________ Date purchased/installed:__________________
Serial Number:__________________________________________ Location on replace: _____________________
Dealership purchased from: _______________________________ Dealer Phone: __________________________
Notes: _______________________________________________________________________________________
_____________________________________________________________________________________________
A. Congratulations
Congratulations on selecting a Heat & Glo gas replace, an
elegant and clean alternative to wood burning replaces.
The Heat & Glo gas replace you have selected is designed
to provide the utmost in safety, reliability, and efciency.
As the owner of a new replace, you’ll want to read and
carefully follow all of the instructions contained in this
owner’s manual. Pay special attention to all cautions and
warnings.
This owner’s manual should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this owner’s manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Heat & Glo gas replace will give you years of
durable use and trouble-free enjoyment. Welcome to the
Heat & Glo family of replace products!
We recommend that you record the following pertinent
information about your replace.
Serial Number
Type of Gas
The model information regarding your specic replace can be found on
the rating plate usually located in the control area of the replace.
HomeownerReferenceInformation
Model Number
SAMPLE
Heat & Glo, a brand of Hearth & Home Technologies Inc.
7571 215th Street West, Lakeville, MN 55044 USA
PIN: 87BU58
MADE IN USA
Gas Type G20 G20 G20/25
AT,ES,DK,GB,GR,LU,NO,SK
CAT I I I
2H 2E 2E+
Pn 20 mbar 20 mbar 20/25 mbar
8.7 mbar 9.5 mbar 9.5/11.5 mbar
Injector #42 DMS #42 DMS #42 DMS
Efficiency Class 2 2 2
Gas Rate / .70 .70 .70/.68
m3 h
This appliance must be installed in accordance with
the rules in force, and used only in a sufficiently
vented space. Consult instructions before installa-
tion and use of this appliance.
DO NOT REMOVE OR COVER THIS LABEL.
XXXXXXXX
XXXXXXXX
XXXX-XXX
Model:
Serial:
DE FR
Destination
Heat Input (Net) 7.32 kW 7.32 kW 7.32 kW
Electrical Requirements: 230 V / 50 hz / 1A
Burner Pressure
GL Industries Ltd
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.

3Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/13
SafetyAlertKey:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
TableofContents
A. Congratulations .................................2
B. Limited Lifetime Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1ListingandCodeApprovals 
A. Appliance Certication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
A. Additional Related Standards . . . . . . . . . . . . . . . . . . . . . . . 7
B. Gas Pressure Requirements . . . . . . . . . . . . . . . . . . . . . . . 7
C. Non-Combustible Materials Specication. . . . . . . . . . . . . . 7
D. Combustible Materials Specication . . . . . . . . . . . . . . . . . 7
E. Electrical Codes .................................7
User Guide
2OperatingInstructions 
A. Gas Fireplace Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
B. Your Fireplace ..................................8
C. Clear Space ....................................9
D. Decorative Doors and Fronts . . . . . . . . . . . . . . . . . . . . . . . 9
E. Decorative Media Options . . . . . . . . . . . . . . . . . . . . . . . . . 9
F. Fixed Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
G. Remote Controls, Wall Controls and Wall Switches . . . . . . 9
H. Before Lighting Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . . 9
I. Control Module Operation . . . . . . . . . . . . . . . . . . . . . . . . 10
J. Lighting Instructions (IPI) . . . . . . . . . . . . . . . . . . . . . . . . . 11
K. Battery Tray/Battery Installation . . . . . . . . . . . . . . . . . . . . 12
M. Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . 12
L. After Fireplace is Lit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3MaintenanceandService 
A. Maintenance Tasks-Homeowner . . . . . . . . . . . . . . . . . . . 13
B. Maintenance Tasks-Qualied Service Technician . . . . . . 14
Installer Guide
4GettingStarted 
A. Typical Appliance System. . . . . . . . . . . . . . . . . . . . . . . . . 15
B. Design and Installation Considerations . . . . . . . . . . . . . . 16
C. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . . . 16
D. Inspect Appliance and Components . . . . . . . . . . . . . . . . . 16
5FramingandClearances 
A. Selecting Appliance Location . . . . . . . . . . . . . . . . . . . . . . 17
B. Constructing the Appliance Chase . . . . . . . . . . . . . . . . . . 18
C. Clearances ....................................19
D. Mantel and Wall Projections . . . . . . . . . . . . . . . . . . . . . . . 20
6TerminationLocations 
A. Vent Termination Minimum Clearances . . . . . . . . . . . . . . 21
7VentInformationandDiagrams 
A. Approved Pipe .................................23
B. Vent Table Key .................................23
C. Use of Elbows .................................23
D. Measuring Standards ............................23
E. Vent Diagrams .................................23
8VentClearancesandFraming 
A. Pipe Clearances to Combustibles . . . . . . . . . . . . . . . . . . 30
B. Wall Penetration Framing . . . . . . . . . . . . . . . . . . . . . . . . . 30
C. Install the Ceiling Firestop . . . . . . . . . . . . . . . . . . . . . . . . 31
D. Install Attic Insulation Shield . . . . . . . . . . . . . . . . . . . . . . . 32
9AppliancePreparation 
A. Top Vent ......................................33
B. Securing and Leveling the Appliance . . . . . . . . . . . . . . . . 34
10InstallingVentPipe(SLPPipe) 
A. Assemble Vent Sections. . . . . . . . . . . . . . . . . . . . . . . . . . 35
B. Assemble Slip Sections . . . . . . . . . . . . . . . . . . . . . . . . . . 36
C. Secure The Vent Sections . . . . . . . . . . . . . . . . . . . . . . . . 36
D. Disassemble Vent Sections . . . . . . . . . . . . . . . . . . . . . . . 37
E. Install Decorative Ceiling Components . . . . . . . . . . . . . . 37
F. Install Metal Roof Flashing . . . . . . . . . . . . . . . . . . . . . . . . 38
G. Assemble and Install Storm Collar . . . . . . . . . . . . . . . . . . 38
H. Install Vertical Termination Cap . . . . . . . . . . . . . . . . . . . . 39
I. Install Decorative Wall Components . . . . . . . . . . . . . . . . 39
J. Heat Shield Requirements for Horizontal Termination . . . 39
K. Install Horizontal Termination Cap . . . . . . . . . . . . . . . . . . 40
11GasInformation 
A. Gas Pressure Requirements . . . . . . . . . . . . . . . . . . . . . . 41
B. Gas Connection ................................41
C. Access Through the Valve Assembly . . . . . . . . . . . . . . . . 41
12ElectricalInformation 
A. Wiring Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
B. IntelliFire Plus™ Ignition System Wiring . . . . . . . . . . . . . 42
C. Optional Accessories Requirements . . . . . . . . . . . . . . . . 42
D. Electrical Service and Repair . . . . . . . . . . . . . . . . . . . . . . 43
E. Junction Cord Information . . . . . . . . . . . . . . . . . . . . . . . . 43
F. Blower .......................................43
13Finishing 
A. Framing and Finishing Instructions . . . . . . . . . . . . . . . . . 44
B. Mantel and Wall Projections . . . . . . . . . . . . . . . . . . . . . . . 47
C. Facing Material .................................47



Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/134
 = Contains updated information.
D. Decorative Fronts ...............................49
14ApplianceSetup 
A. Remove Fixed Glass Assembly . . . . . . . . . . . . . . . . . . . . 50
B. Remove the Shipping Materials . . . . . . . . . . . . . . . . . . . . 50
C. Clean the Appliance .............................50
D. Accessories ...................................50
E. Fixed Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
F. Install the Mesh ................................50
G. Air Shutter Setting ..............................51
H. Media Options .................................51
15Troubleshooting 
A. IntelliFire Plus™ Ignition System . . . . . . . . . . . . . . . . . . . 52
16ComponentAccess 
A. Decorative Front and Fixed Glass Assembly Removal . . 54
B. Valve Pressure Taps .............................54
C. Control Module Access. . . . . . . . . . . . . . . . . . . . . . . . . . . 54
D. Media Tray Removal ............................54
E. Burner and Base Pan Removal . . . . . . . . . . . . . . . . . . . . 54
F. Access Through the Valve Assembly . . . . . . . . . . . . . . . . 55
G. Gas Valve Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 56
H. Pilot Assembly Replacement . . . . . . . . . . . . . . . . . . . . . . 56
17ReferenceMaterials 
A. Appliance Dimension Diagram . . . . . . . . . . . . . . . . . . . . . 57
B. Vent Components Diagrams . . . . . . . . . . . . . . . . . . . . . . 58
C. Service Parts ..................................62
D. Contact Information .............................65

5Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/13
B. LimitedLifetimeWarranty
4021-645C 12-29-10 Page 1 of 2
Hearth & Home Technologies Inc.
LIMITED LIFETIME WARRANTY
Hearth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for
HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer.
WARRANTY COVERAGE:
HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership
of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance
will be free from defects in materials and workmanship at the time of manufacture. After installation, if covered compo-
nents manufactured by HHT are found to be defective in materials or workmanship during the applicable warranty period,
HHT will, at its option, repair or replace the covered components. HHT, at its own discretion, may fully discharge all of its
obligations under such warranties by replacing the product itself or refunding the verified purchase price of the product
itself. The maximum amount recoverable under this warranty is limited to the purchase price of the product. This warranty
is subject to conditions, exclusions and limitations as described below.
WARRANTY PERIOD:
Warranty coverage begins on the date of original purchase. In the case of new home construction, warranty coverage
begins on the date of first occupancy of the dwelling or six months after the sale of the product by an independent,
authorized HHT dealer/ distributor, whichever occurs earlier. The warranty shall commence no later than 24 months
following the date of product shipment from HHT, regardless of the installation or occupancy date. The warranty period for
parts and labor for covered components is produced in the following table.
The term “Limited Lifetime” in the table below is defined as: 20 years from the beginning date of warranty coverage for
gas appliances, and 10 years from the beginning date of warranty coverage for wood, pellet, and coal appliances. These
time periods reflect the minimum expected useful lives of the designated components under normal operating conditions.
See conditions, exclusions, and limitations on next page.
Parts Labor Gas Wood Pellet EPA
Wood
Coal Electric Venting
XXXXXXX
All parts and material except as
covered by Conditions,
Exclusions, and Limitations
listed
XXX Igniters, electronic components,
and glass
X X X X X Factory-installed blowers
X Molded refractory panels
X Firepots and burnpots
5 years 1 year X X Castings and baffles
7 years 3 years X X X Manifold tubes,
HHT chimney and termination
10
years
1 year X Burners, logs and refractory
Limited
Lifetime
3 years X X X X X Firebox and heat exchanger
XXXXXXX All replacement parts
beyond warranty period
Warranty Period HHT Manufactured Appliances and Venting
1 Year
Components Covered
3 years
2 years
90 Days

Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/136
B. LimitedLifetimeWarranty (continued)
4021-645C 12-29-10 Page 2 of 2
WARRANTY CONDITIONS:
• This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of
HHT authorized dealers is available on the HHT branded websites.
• This warranty is only valid while the HHT appliance remains at the site of original installation.
• Contact your installing dealer for warranty service. If the installing dealer is unable to provide necessary parts, contact
the nearest HHT authorized dealer or supplier. Additional service fees may apply if you are seeking warranty service
from a dealer other than the dealer from whom you originally purchased the product.
• Check with your dealer in advance for any costs to you when arranging a warranty call. Travel and shipping charges
for parts are not covered by this warranty.
This warranty is void if:
• The appliance has been over-fired or operated in atmospheres contaminated by chlorine, fluorine, or other damaging
chemicals. Over-firing can be identified by, but not limited to, warped plates or tubes, rust colored cast iron, bubbling,
cracking and discoloration of steel or enamel finishes.
• The appliance is subjected to prolonged periods of dampness or condensation.
• There is any damage to the appliance or other components due to water or weather damage which is the result of, but
not limited to, improper chimney or venting installation.
LIMITATIONS OF LIABILITY:
• The owner’s exclusive remedy and HHT’s sole obligation under this warranty, under any other warranty, express or
implied, or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as specified above. In no
event will HHT be liable for any incidental or consequential damages caused by defects in the appliance. Some states
do not allow exclusions or limitation of incidental or consequential damages, so these limitations may not apply to you.
This warranty gives you specific rights; you may also have other rights, which vary from state to state. EXCEPT TO
THE EXTENT PROVIDED BY LAW, HHT MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY
SPECIFIED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE
EXPRESSED WARRANTY SPECIFIED ABOVE.
WARRANTY EXCLUSIONS:
This warranty does not cover the following:
• Changes in surface finishes as a result of normal use. As a heating appliance, some changes in color of interior and
exterior surface finishes may occur. This is not a flaw and is not covered under warranty.
• Damage to printed, plated, or enameled surfaces caused by fingerprints, accidents, misuse, scratches, melted items,
or other external sources and residues left on the plated surfaces from the use of abrasive cleaners or polishes.
• Repair or replacement of parts that are subject to normal wear and tear during the warranty period. These parts
include: paint, wood, pellet and coal gaskets, firebricks, grates, flame guides, light bulbs, batteries and the discolor-
ation of glass.
• Minor expansion, contraction, or movement of certain parts causing noise. These conditions are normal and com-
plaints related to this noise are not covered by this warranty.
• Damages resulting from: (1) failure to install, operate, or maintain the appliance in accordance with the installation
instructions, operating instructions, and listing agent identification label furnished with the appliance; (2) failure to
install the appliance in accordance with local building codes; (3) shipping or improper handling; (4) improper opera-
tion, abuse, misuse, continued operation with damaged, corroded or failed components, accident, or improperly/
incorrectly performed repairs; (5) environmental conditions, inadequate ventilation, negative pressure, or drafting
caused by tightly sealed constructions, insufficient make-up air supply, or handling devices such as exhaust fans or
forced air furnaces or other such causes; (6) use of fuels other than those specified in the operating instructions; (7)
installation or use of components not supplied with the appliance or any other components not expressly authorized
and approved by HHT; (8) modification of the appliance not expressly authorized and approved by HHT in writing;
and/or (9) interruptions or fluctuations of electrical power supply to the appliance.
• Non-HHT venting components, hearth components or other accessories used in conjunction with the appliance.
• Any part of a pre-existing fireplace system in which an insert or a decorative gas appliance is installed.
• HHT’s obligation under this warranty does not extend to the appliance’s capability to heat the desired space. Informa-
tion is provided to assist the consumer and the dealer in selecting the proper appliance for the application. Consider-
ation must be given to appliance location and configuration, environmental conditions, insulation and air tightness of
the structure.

7Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/13
A. ApplianceCertication
NOTINTENDEDFORUSEASAPRIMARYHEATSOURCE.
This appliance is tested and approved as either supplemen-
tal room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
C. Non-CombustibleMaterialsSpecication
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
StandardTestMethodforBehaviorofMaterialsina
Vertical Tube Furnace at 750 ºC and UL763 shall be
considered non-combustible materials.
D. CombustibleMaterialsSpecication
Materials made of or surfaced with wood, compressed pa-
per, plant bers, plastics, or other material that can ignite
and burn, whether ame proofed or not, or plastered or
unplastered shall be considered combustible materials.
E. ElectricalCodes
All electrical safety testing has been done following the EN
60335-2-102 standard. Local codes apply.
1 ListingandCodeApprovals 
MODELS: XLR-N-CE,XLR-PB-CE
LABORATORY: GLIndustriesLtd.
TYPE: GasFireplace
STANDARD:LatestversionofBSEN613:2001
DIRECTIVE: GAD90/396/EEC
The Heat & Glo gas appliances discussed in this Installer’s
Guide have been tested to certication standards and listed
by the applicable laboratories.
This appliance must be installed in accordance with the
rules in force.
NOX Class 5 for G20, NOX Class 5 for G31
NaturalGas
(G20)
Propane
(G31)
Propane
(G31)
Butane
(G30)
Butane
(G30)
NaturalGas
(G25)
CAT I2H, I2E, I2E+ I3P I3P I3B/P I3B/P I2E+
Inlet Pressure 20 mbar 30 mbar 50 mbar 30 mbar 50 mbar 25 mbar
Burner Pressure 8.7 mbar 25 mbar 25 mbar 25 mbar 25 mbar 8.7 mbar
Gas Rate .405 m3/h.134 m3/h.134 m3/h.111 m3/h.111 m3/h.40 m3/h
Heat Input (Net) 7.32 kW 6.74 kW 6.74 kW 6.44 kW 6.44 kW 7.32 kW
Burner Injector DMS 42 DMS .057 DMS .057 DMS 55 DMS 55 DMS 42
Pilot Injector 51 30 30 30 30 51
B. GasPressureRequirements
Pressure requirements for XLR replaces are shown in
table below.
Two taps are provided on the right hand side of the gas
control for a test gauge connection to measure the inlet
and outlet pressures.
Columns highlighted in gray = The gas control valve supplied with this product is approved for a maximum
inlet pressure of 37 mbar. For pressures over 37 mbar, an in line pressure regulator must be installed
upstream from the gas control valve.
A. AdditionalRelatedStandards
The installation must comply with these installation instruc-
tions and all relevant parts of Local and National Building
Standards Regulations and those relevant recommenda-
tions of the following British Standards. BS 5871: Part 1
BS 8303 BS 5440: Parts 1 & 2 BS 6891 BSEN1856 Parts
1 & 2 BS 5482 Part 1, as well as IGE/UP/7.
The replace and its individual shut-off valve must be dis-
connected from the gas supply piping system during any
pressure testing of the system at test pressures in excess
of 60 mbar.
If the replace must be isolated from the gas supply pip-
ing system by closing an individual shut-off valve, it must
be of the handle-less type.


Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/138
Figure2.1GeneralOperatingParts
B. YourFireplace
WARNING! DO NOT operate replace before read-
ing and understanding operating instructions. Failure
to operate replace according to operating instructions
could cause re or injury.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capa-
bilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
A. GasFireplaceSafety
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the xed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOTSURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hotglasswillcauseburns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
ammablematerials.
• Keep clothing, furniture, draperies and other ammable
materials away.
If you expect that small children or vulnerable adults may
come into contact with this replace, the following precau-
tions are recommended:
• Install a physical barrier such as:
- A decorative rescreen.
- Adjustable safety gate.
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
• Never leave children alone near a hot replace, whether
operating or cooling down.
• Teach children to NEVER touch the replace.
• Consider not using the replace when children will be
present.
To prevent unintended operation when not using your re-
place for an extended period of time (summer months,
vacations, trips, etc):
• Remove batteries from remote controls.
• Turn off wall controls.
• Unplug 6 volt adapter plug and remove batteries on IPI
models.
2 OperatingInstructions 
User Guide
CLEAR SPACE
SECTION 2.C.
DECORATIVE DOORS
SECTION 2.D.
MEDIA OPTIONS
SECTION 2.E
MEDIA - BLACK, CLEAR, AMBER, COLBALT
MEDIA - BK2 - GEMS, MEDIA WH2-GEMS
MEDIA-STONES-2
XLR-LOGS
FIXED GLASS ASSEMBLY
(NOT SHOWN)
SECTION 14.E.
RC100
(OPTIONAL
REMOTE CONTROL)
SECTION 2.G
WARNING! Choking Hazard! Keep glass rock media
out of reach of children.

9Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/13
C. ClearSpace
WARNING! DO NOT place combustible objects in front
of the replace or block louvers. High temperatures may
start a re. See Figure 2.2.
Avoid placing candles and other heat-sensitive objects on
mantel or hearth. Heat may damage these objects.

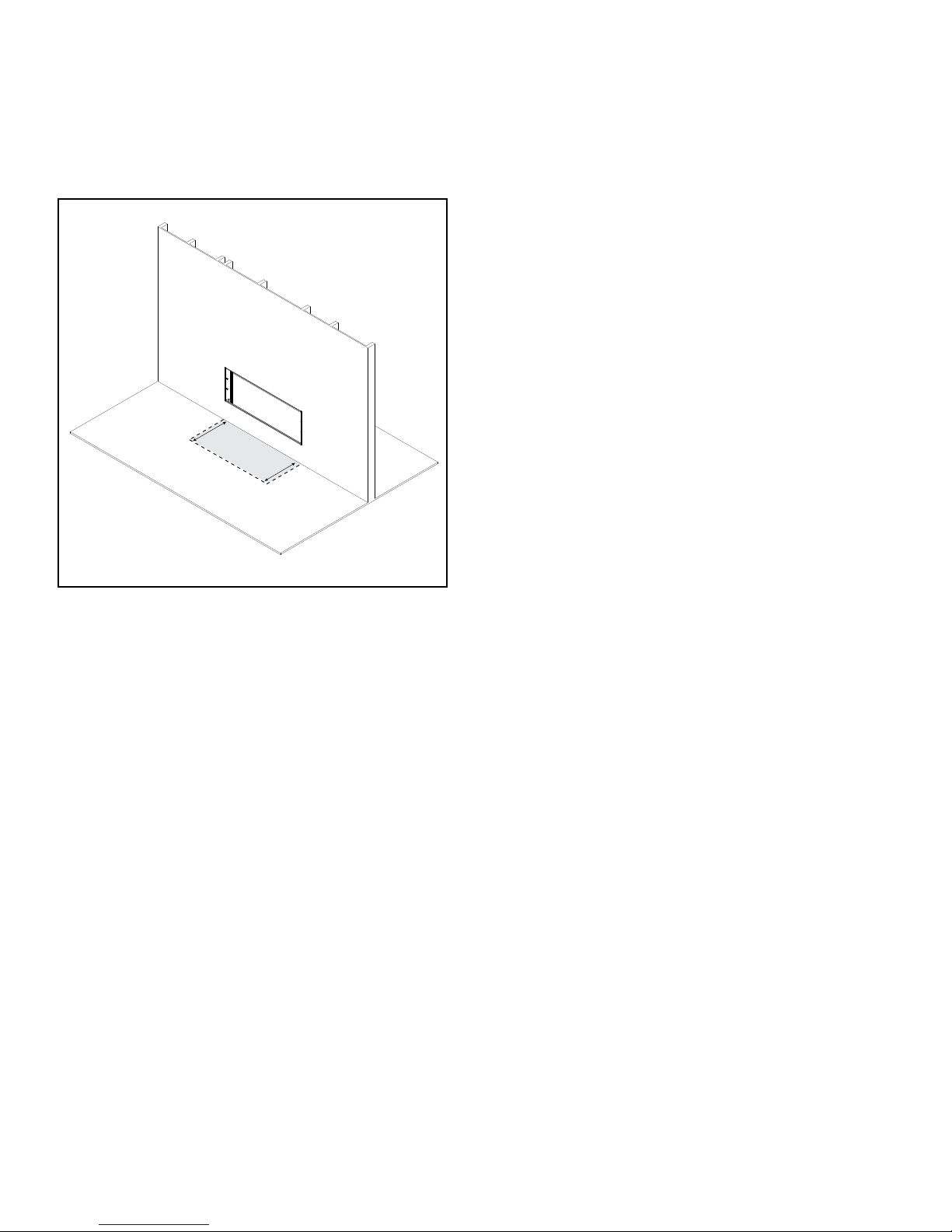

Figure2.2 ClearSpace
F. FixedGlassAssembly
See Section 14.E.
G. RemoteControls,WallControlsandWall
Switches
Follow the instructions supplied with the control installed
to operate your replace:
For safety:
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
See your dealer if you have questions.
H. BeforeLightingFireplace
Before operating this replace for the rst time, have a
qualiedservicetechnician:
• Verify all shipping materials have been removed from
inside and/or underneath the rebox.
• Verify that rock media tray is securely fastened to the
base pan.
• Check the wiring.
• Check the air shutter adjustment.
• Ensure that there are no gas leaks.
• Ensure that the glass is sealed and in the proper position
and that the integral barrier is in place.
WARNING! Risk of Fire or Asphyxiation! DO NOT op-
erate replace with xed glass assembly removed.
D. DecorativeDoorsandFronts
WARNING! Risk of Fire! Install ONLY doors or fronts
approved by Hearth & Home Technologies. Unapproved
doors or fronts may cause replace to overheat.
This decorative front has been supplied with an
integral barrier to prevent direct contact with the xed
glass panel. DO NOT operate the replace with the
barrier removed.
Contact your dealer or Hearth & Home Technologies if
the barrier is not present or help is needed to properly
install one.
For more information refer to the instructions supplied with
your decorative door or front.
E. DecorativeMediaOptions
This appliance ships standard without a decorative media
option. For installation and removal of these decorative
media options, refer to installation instructions which ship
with the media options.
CLEAR SPACE
3 FT. IN FRONT
OF FIREPLACE

Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/1310
I. ControlModuleOperation
1. The control module has an ON/OFF/REMOTE selector
switch that must be set. See Figure 2.3.
OFF Position: Appliance will ignore all power inputs and
will not respond to any commands from a wall switch or
optional remote. The unit should be in the OFF position
during installation, service, battery installation, , fuel
conversion, and in the event that the control goes into
LOCK-OUT mode as a result of an error code.
ON Position: Appliance will ignite and run continuously
in the HI ame setting, with no adjustment in ame
output. This mode of operation is primarily used for
initial installation or power outage operation with battery
backup.
REMOTE Position: Appliance will initiate commands
from a wired wall switch and/or one of the optional
wireless remote options.
2. A wall switch can be wired into the control module brown
and red wires. See Figure 12.1.
3. The control module has safety feature that automatically
shuts down the replace after 9 hours of continuous
operation without receiving a command from the wall
switch or optional remote.
4. If you intend to use both a wired wall switch and an optional
remote control to operate your replace, the wall switch
will override any commands given by the remote.

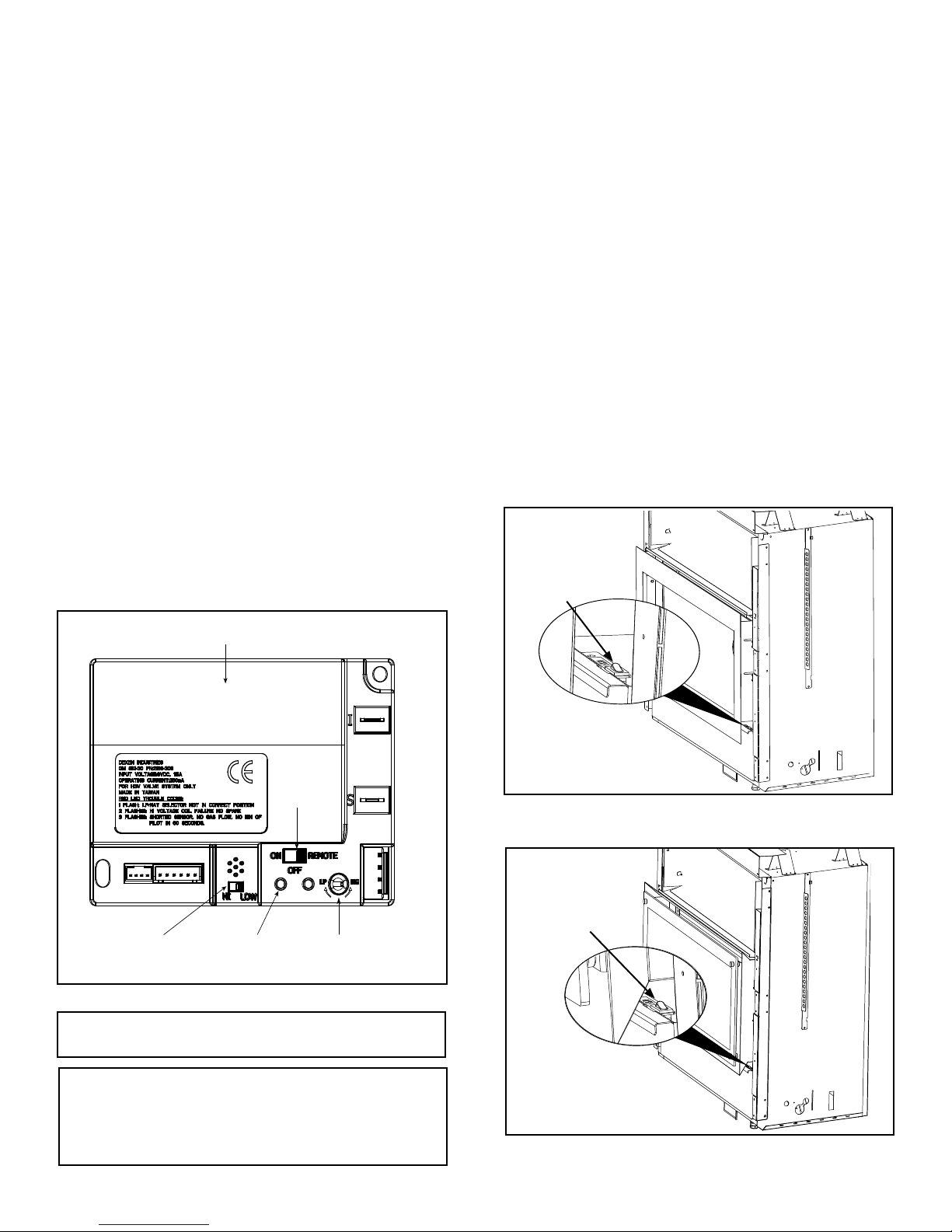

Figure2.3ControlModule
NG/LP GAS-TYPE
SELECTOR SWITCH
SELECTOR
SWITCH
FLAME HI/LOW
SWITCH
STATUS
INDICATOR LED
MODULE
Note: The HI/LO and LP/NG switches on the control module
are non-functional on the XLR replace.
5. ModuleResetSwitch
This module may lock-out under certain conditions.
When this occurs, the appliance will not ignite or
respond to commands. The module will go into lock-out
mode by emitting three audible beeps, then continuously
displaying an error code at its status indicator LED.
• Check battery tray. Remove batteries if installed.
Batteries should only be installed for use during power
outages. See Section H.
• Locate the module reset switch. See Figure 2.4 or 2.5.
• Set the module reset switch to the RESET position.
• Wait ve (5) minutes to allow possible accumulated gas
to clear.
• Set the module reset switch to ON.
• Start the appliance.
WARNING! Risk of Explosion! DO NOT press the mod-
ule reset switch more than one time within a ve minute
time period. Gas may accumulate in rebox. Call a quali-
ed service technician.
Figure2.4LocationofModuleResetSwitch-TonicFront
MODULE RESET
SWITCH
Figure2.5LocationofModuleResetSwitch-MartiniFront
MODULE RESET
SWITCH
NineHourSafetyShutdownFeature
This appliance has a safety feature that automatically
shuts down the replace after nine hours of continuous
operation with receiving a command from the wall
switch or optional remote.

11Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/13
1. This appliance is equipped with an ignition
device which automatically lights the burner.
DO NOT try to light the burner by hand.
2. Wait ve (5) minutes to clear out any gas.
Then smell for gas, including near the oor. If
you smell gas, STOP! Follow “B” in the Safety
Information located on the left side of this la-
bel. If you do not smell gas, go to next step.
3. To light the burner:
Equipped with wall switch: Turn ON/OFF switch
to ON.
Equipped with remote or wall control: Press
ON or FLAME button.
Equipped with thermostat: Set temperature to
desired setting.
4. If the appliance does not light after three tries,
call your service technician or gas supplier.
J. LightingInstructions(IPI)
The IPI system may be operated with two D-cell batteries. When using batteries, unplug the transformer. To prolong battery
life, remove them when using the transformer.
LIGHTING
INSTRUCTIONS(IPI)
TO TURN OFF
GASTOAPPLIANCE
1. Equipped with wall switch: Turn ON/OFF switch
to OFF.
Equipped with remote or wall control: Press
OFF button.
Equipped with thermostat: Set temperature to
lowest setting.
2. Service technician should turn off electric
power to the control when performing service.
FORYOURSAFETY
READBEFORELIGHTING
WARNING:If you do not follow these instructions exactly, a re or explosion
may result causing property damage, personal injury or loss of life.
CAUTION:
NOT FOR USE
WITHSOLIDFUEL
WARNING:
593-913G
GAS
VALVE
For additional information on operating your
Hearth & Home Technologies replace, please refer to www.replaces.com.
A. This appliance is equipped with an
intermittent pilot ignition (IPI) device
which automatically lights the burn-
er. DO NOT try to light the burner by
hand.
B. BEFORELIGHTING, smell all around
the appliance area for gas. Be sure to
smell next to the oor because some
gas is heavier than air and will settle
on the oor.
WHATTODOIFYOUSMELLGAS
• DO NOT try to light any appliance.
• DO NOT touch any electric switch; do
not use any phone in your building.
DO NOT CONNECT LINE VOLT-
AGE (110/120 VAC OR 220/240
VAC)TOTHECONTROLVALVE.
Improper installation, adjustment, al-
teration, service or maintenance can
cause injury or property damage. Re-
fer to the owner’s information manual
provided with this appliance.
This appliance needs fresh air for
safe operation and must be installed
so there are provisions for adequate
combustion and ventilation air.
If not installed, operated, and main-
tained in accordance with the manufac-
turer’s instructions, this product could
expose you to substances in fuel or
fuel combustion which are known to the
State of California to cause cancer, birth
defects, or other reproductive harm.
Keep burner and control compartment
clean. See installation and operating
instructions accompanying appliance.
Hot while in operation. DO NOT touch.
Keep children, clothing, furniture, gaso-
line and other liquids having ammable
vapors away.
DO NOT operate the appliance with
xed glass assembly removed, cracked
or broken. Replacement of the xed
glass assembly should be done by a
licensed or qualied service person.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas sup-
plier, call the re department.
C.DONOT use this appliance if any
part has been under water. Imme-
diately call a qualied service tech-
nician to inspect the appliance and
to replace any part of the control
system and any gas control which
has been under water.
For use with natural gas and propane.
A conversion kit, as supplied by the
manufacturer, shall be used to convert
this appliance to the alternate fuel.
Also Certied for Installation in a
BedroomoraBedsittingRoom.
For assistance or additional informa-
tion, consult a qualied installer, ser-
vice agency or the gas supplier.
Finalinspectionby

Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/1312
L. AfterFireplaceisLit
InitialBreak-inProcedure
• The fireplace should be run three to four hours
continuously on high.
• Turn the replace off and allow it to completely cool.
• Remove xed glass assembly. See Section 14.E.
• Clean xed glass assembly. See Section 3.
• Replace the xed glass assembly and run continuously
on high an additional 12 hours.
This cures the materials used to manufacture the re-
place.
NOTICE! Open windows for air circulation during re-
place break-in.
• Some people may be sensitive to smoke and odors.
• Smoke detectors may activate.
M.FrequentlyAskedQuestions
ISSUE SOLUTIONS
Condensation on the glass This is a result of gas combustion and temperature variations. As the replace warms, this con-
densation will disappear.
Blue ames This is a result of normal operation and the ames will begin to yellow as the replace is allowed
to burn for 20 to 40 minutes.
Odor from replace
When rst operated, this replace may release an odor for the rst several hours. This is caused
by the curing of materials from manufacturing. Odor may also be released from nishing materials
and adhesives used near the replace. These circumstances may require additional curing related
to the installation environment.
Film on the glass This is a normal result of the curing process of the paint. Glass should be cleaned within 3 to 4
hours of initial burning. A non-abrasive cleaner such as gas appliance glass cleaner may be neces-
sary. See your dealer.
Metallic noise
Noise is caused by metal expanding and contracting as it heats up and cools down, similar to the
sound produced by a furnace or heating duct. This noise does not affect the operation or longevity
of the replace.
Power Outages (battery backup)
This appliance can operated on battery power in the event of a power outage. To access the bat-
tery pack, the decorative front, mesh and glass assembly must be removed. Refer to Section 12
for more details.
Wall above appliance feels hot to
the touch.
No action necessary. This appliance ships with a non-combustible material attached. Specica-
tions of the attached non-combustible material are listed in Section 1.E.
K. BatteryTray/BatteryInstallation
The IntelliFire PlusTM system has a battery backup option.
Battery longevity and performance will be affected by the
service temperatures of this appliance. Batteries should
only be used as a power source in the event of an emer-
gency such as an outage.

13Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/13
GlassCleaning
Frequency:Seasonally
By:Homeowner
Tools Needed: Protective gloves, glass cleaner, drop
cloth and a stable work surface.
CAUTION! Handle xed glass assembly with care.
Glass is breakable.
• Avoid striking, scratching or slamming glass
• Avoid abrasive cleaners
• DO NOT clean glass while it is hot
•Prepare a work area large enough to accommodate xed
glass assembly and door frame by placing a drop cloth
on a at, stable surface.
Note: Fixed glass assembly and gasketing may have res-
idue that can stain carpeting or oor surfaces.
•Remove door or decorative front from replace and set
aside on work surface.
• See Section 14.E for instructions to remove xed glass
assembly.
• Clean glass with a non-abrasive commercially available
cleaner.
- Light deposits: Use a soft cloth with soap and water
- Heavy deposits: Use commercial fireplace glass
cleaner (consult with your dealer)
• Reinstall door or decorative front.
3 MaintenanceandService 
A. MaintenanceTasks-Homeowner
The following tasks may be performed annually by the
homeowner. If you are uncomfortable performing any of
the listed tasks, please call your dealer for a service ap-
pointment.
CAUTION! Risk of Burns! The replace should be turned
off and cooled before servicing.
When properly maintained, your replace will give you
many years of trouble-free service. We recommend an-
nual service by a qualied service technician.
DecorativeDoors
Frequency:Annually
By:Homeowner
Toolsneeded: Protective gloves, stable work surface
• Refer to the installation instructions which ship with the
decorative door.
• Assess condition of screen and replace as necessary.
• Inspect for scratches, dents or other damage and repair
as necessary.
•Check that louvers are not blocked.
•Vacuum and dust surfaces.
Venting
Frequency:Seasonally
By:Homeowner
Toolsneeded: Protective gloves and safety glasses.
• Inspect venting and termination cap for blockage or
obstruction such plants, bird nests, leaves, snow, debris,
etc.
• Verify termination cap clearance to subsequent construc-
tion (building additions, decks, fences, or sheds). See
Section 6.
• Inspect for corrosion or separation.
• Verify weather stripping, sealing and ashing remains
intact.
• Inspect draft shield to verify it is not damaged or missing.
DecorativeMediaOptions
Frequency:Maintenance is not required
By:Homeowner
Toolsneeded: Protective gloves and safety glasses.
• The decorative media options DO NOT require routine
maintenance if they are properly installed. Refer to the
installation instructions which ship the decorative media
to verify correct installation.
Any safety screen or guard removed for servicing must be
replaced prior to operating the replace.
Installation and repair should be done by a qualied service
technician only. The replace should be inspected before
use and at least annually by a professional service person.
All parts listed in this manual may be ordered from an au-
thorized dealer. A list of available service parts is located in
Section 16.C of this manual and in the installation instruc-
tions included in decorative media.

Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/1314
B. MaintenanceTasks-QualiedService
Technician
To prevent inadvertent burner operation while servicing
this appliance:
• Unplug DC regulator from junction cord.
• Remove batteries from battery pack (if installed).
• Shut off gas supply to the appliance.
The following tasks must be performed by a qualied ser-
vice technician.
GasketSealandGlassAssemblyInspection
Frequency:Annually
By:Qualied Service Technician
Toolsneeded: Protective gloves, drop cloth and a stable
work surface.
• Inspect gasket seal and its condition.
• Inspect xed glass assembly for scratches and nicks that
can lead to breakage when exposed to heat.
• Conrm there is no damage to glass or glass frame.
Replace as necessary.
• Verify that xed glass assembly is properly retained and
attachment components are intact and not damaged.
Replace as necessary.
Firebox
Frequency:Annually
By:Qualied Service Technician
Toolsneeded: Protective gloves, sandpaper, steel wool,
cloths, mineral spirits, primer and touch-up paint.
• Inspect for paint condition, warped surfaces, corrosion
or perforation. Sand and repaint as necessary.
• Replace replace if rebox has been perforated.
ControlCompartmentandFireboxTop
Frequency:Annually
By:Qualied Service Technician
Toolsneeded: Protective gloves, vacuum cleaner, dust
cloths
• Vacuum and wipe out dust, cobwebs, debris or pet hair.
Use caution when cleaning these areas. Screw tips that
have penetrated the sheet metal are sharp and should
be avoided.
• Remove all foreign objects.
• Verify unobstructed air circulation.
GasPressureInformation
Frequency: Upon initial installation and gas valve re-
placement or service.
By:Qualied Service Technician
Toolsneeded: Protective gloves, manometer, ashlight,
screw driver set.
• Gas pressure taps are accessible by removing the deco-
rative front and xed glass assembly. Refer to Section
11.A for information related to the gas valve and gas
pressure settings.
BurnerIgnitionandOperation
Frequency:Annually
By:Qualied Service Technician
Toolsneeded: Protective gloves, vacuum cleaner, whisk
broom, ashlight, voltmeter, indexed drill bit set, and a
manometer.
• Verify burner is properly secured and aligned with pilot
or igniter.
• Clean off burner top, inspect for plugged ports, corrosion
or deterioration. Replace burner if necessary.
• Verify batteries have been removed from battery back-
up IPI systems to prevent premature battery failure or
leaking.
• Check for smooth lighting and ignition carryover to all
ports. Verify that there is no ignition delay.
• Inspect for lifting or other ame problems.
• Verify air shutter setting is correct. See Section 14.G for
required air shutter setting. Verify air shutter is clear of
dust and debris.
• Inspect orice for soot, dirt and corrosion. Verify orice
size is correct. See Service Parts List for proper orice
sizing.
• Verify manifold and inlet pressures. Adjust regulator as
required.
• Inspect pilot ame pattern and strength. See Figure 3.1
for proper pilot ame pattern. Clean or replace orice
spud as necessary.
• Inspect IPI ame sensing rod for soot, corrosion and
deterioration. Polish with ne steel wool or replace as
required.
• Verify IPI millivolt output. Replace as necessary.
• Verify that there is not a short in ame sense circuit
by checking continuity between pilot hood and ame
sensing rod. Replace pilot as necessary.

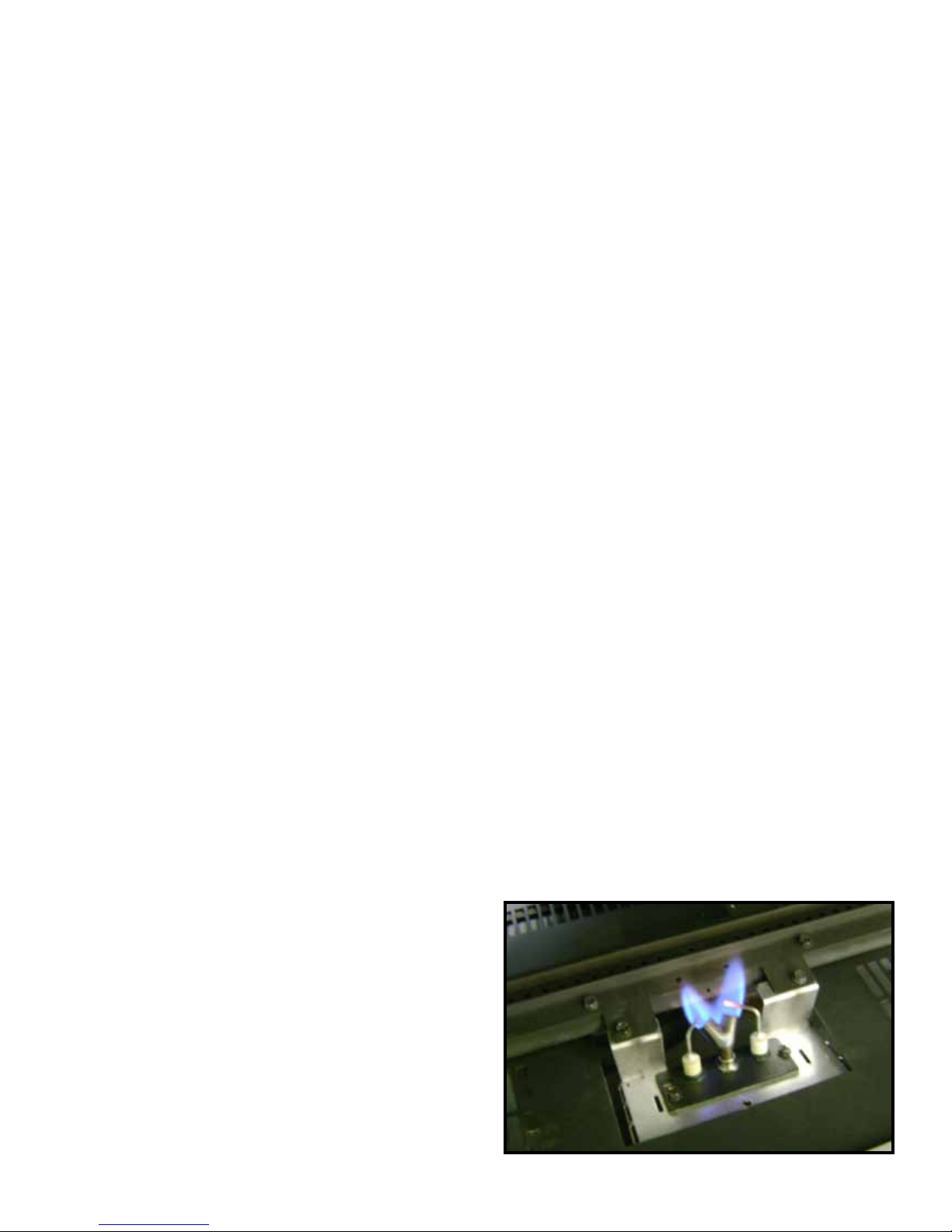

Figure3.1IPIPilotFlamePattern

15Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/13
A. TypicalApplianceSystem
NOTICE: Illustrations and photos reect typical installations and are for design purposes only. Illustrations/diagrams are not
drawn to scale. Actual product may vary from pictures in manual
Figure4.1 TypicalSystem
4 GettingStarted 
Installer Guide
HORIZONTAL
TERMINATION CAP
(SECTION 10.K)
WALL PENETRATION
FRAMING (SECTION 8.B)
VERTICAL TERMINATION CAP
(SECTION 10.H)
NON-COMBUSTIBLE ROOF
FLASHING MAINTAINS MINIMUM
CLEARANCE AROUND PIPE
(SECTION 10.F)
STORM COLLAR
(SECTION 10.G)
VENT PIPE
(SECTIONS 7 and 8)
CEILING FIRESTOP
ON FLOOR OF ATTIC
(SECTION 8.C)
FRAMING/HEADER
(SECTION 5)
GAS LINE
(SECTION 11)
WALL SWITCH
FRAMING HEADED
OFF IN CEILING
JOISTS (SECTION 8.C)
ATTIC INSULATION
SHIELD (NOT SHOWN)
MUST BE USED HERE
TO KEEP INSULATION
AWAY FROM VENT PIPE
IF ATTIC IS INSULATED.
(SECTION 8.D)
VENT PIPE PENETRATES
ROOF PREFERABLY
WITHOUT AFFECTING
ROOF RAFTERS
(SECTION 8.C)

Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/1316
B. DesignandInstallationConsiderations
Heat & Glo direct vent gas appliances are designed to
operate with all combustion air siphoned from outside of
the building and all exhaust gases expelled to the outside.
No additional outside air source is required.
Before installing, determine the following:
• Where the appliance is to be installed.
• The vent system conguration to be used.
• Gas supply piping.
• Electrical wiring requirements.
• Framing and nishing details.
• Whether optional accessories—devices such as a wall
switch or remote control—are desired.
D. InspectApplianceandComponents
• Carefully remove the appliance and components from
the packaging.
• The vent system components and decorative doors and
fronts may be shipped in separate packages.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
• Readalloftheinstructionsbeforestartingtheinstal-
lation.Followtheseinstructionscarefullyduringthe
installationtoensuremaximumsafetyandbenet.
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged, in-
complete or substitute components. Keep appliance dry.
Hearth & Home Technologies disclaims any responsibility for,
and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modication of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
Anysuchactionmaycausearehazard.
WARNING! Risk of Fire, Explosion or Electric Shock!
DO NOT use this appliance if any part has been under
water. Call a qualied service technician to inspect the
appliance and to replace any part of the control system
and/or gas control which has been under water.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualied
service technician, service agency or your dealer.
C. ToolsandSuppliesNeeded
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure Framing material
Pliers Hammer
Phillips screwdriver Manometer
Gloves Framing square
Voltmeter Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Level Reciprocating saw
Flat blade screwdriver
Non-corrosive leak check solution
1/2 - 3/4 in. length, #6 or #8 Self-drilling screws
Caulking material (150 ºC minimum continuous exposure
rating)
One 1/4 in. female connection (for optional fan).

17Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/13
5 FramingandClearances 
A. SelectingApplianceLocation
When selecting a location for the appliance it is important to
consider the required clearances to walls (see Figure 5.1).
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be locat-
ed out of trafc and away from furniture and draperies.
NOTICE: Illustrations reect typical installations and are
FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale. Actual installation may vary due to
individual design preference.
2,54 cm
A
E
A
B
CTOP VENT
ONE 90º ELBOW
ALCOVE
INSTALLATION
D*
TOP VENT
ONE 90° ELBOW
B
F
Figure5.1 ApplianceLocations
AB C D* E F
Centimeters 135 122 191 See Section D.
Figure 5.6 49 45

Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/1318
B. ConstructingtheApplianceChase
A chase is a vertical box-like structure built to enclose the
gas appliance and/or its vent system. In cooler climates
the vent should enclosed inside the chase.
NOTICE: Treatment of ceiling restops and wall shield
restops and construction of the chase may vary with the
type of building. These instructions are not substitutes
for the requirements of local building codes. Therefore,
you MUST check local building codes to determine the
requirements to these steps.
Chases should be constructed in the manner of all out-
side walls of the home to prevent cold air drafting prob-
lems. The chase should not break the outside building
envelope in any manner.
The factory-supplied non-combustible board must be
used in all installations. It must be directly attached to
structural framing adjacent to the appliance. Screw fas-
teners should be installed in the pilot holes provided in
the outer perimeter of the non-combustible board. See
Figure 13.3.
The factory-supplied board is designed such that its edg-
es will be at the approximate center of the adjacent fram-
ing, assuming it is 3,8 nominal thickness. This will allow
the wallboard joints to occur on the center of the framing
where the panels can be fastened properly. If the framing
thickness is less than 3,8 nominal, such as with formed
steel systems, then it may be necessary to adjust the ad-
jacent framing dimensions so that the non-combustible
board and wallboard joints are centered on the framing.

19Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/13
C. Clearances
NOTICE: Install appliance on hard metal or wood surfaces
extending full width and depth. DO NOT install directly
on carpeting, vinyl, tile or any combustible material other
than wood.
WARNING! Risk of Fire! Maintain specied air space
clearances to appliance and vent pipe:
• Insulation and other materials must be secured to prevent
accidental contact.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with replace or chimney.
• Failure to maintain airspace may cause overheating and
a re.
Note: Figure 5.2 shows the replace installed on the
oor. However, this replace can be elevated off the oor
provided that the replace is properly supported by framing
materials and the ceiling clearances are maintained.
C
B
D
A
Figure5.2ClearancestoCombustibles
H
E
I
F
J
G
MEASURE FROM TOP OF
FIREPLACE OPENING
MINIMUMFRAMINGDIMENSIONS*
AB C D E F GHIJ
Rough
Opening
(Vent Pipe)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Clearance
to Ceiling
Combustible
Floor
Combustible
Flooring
Behind
Appliance
Sides of
Appliance
Front of
Appliance
Centimeters 22 107 46 127 79 0 0 3 3 91

Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/1320

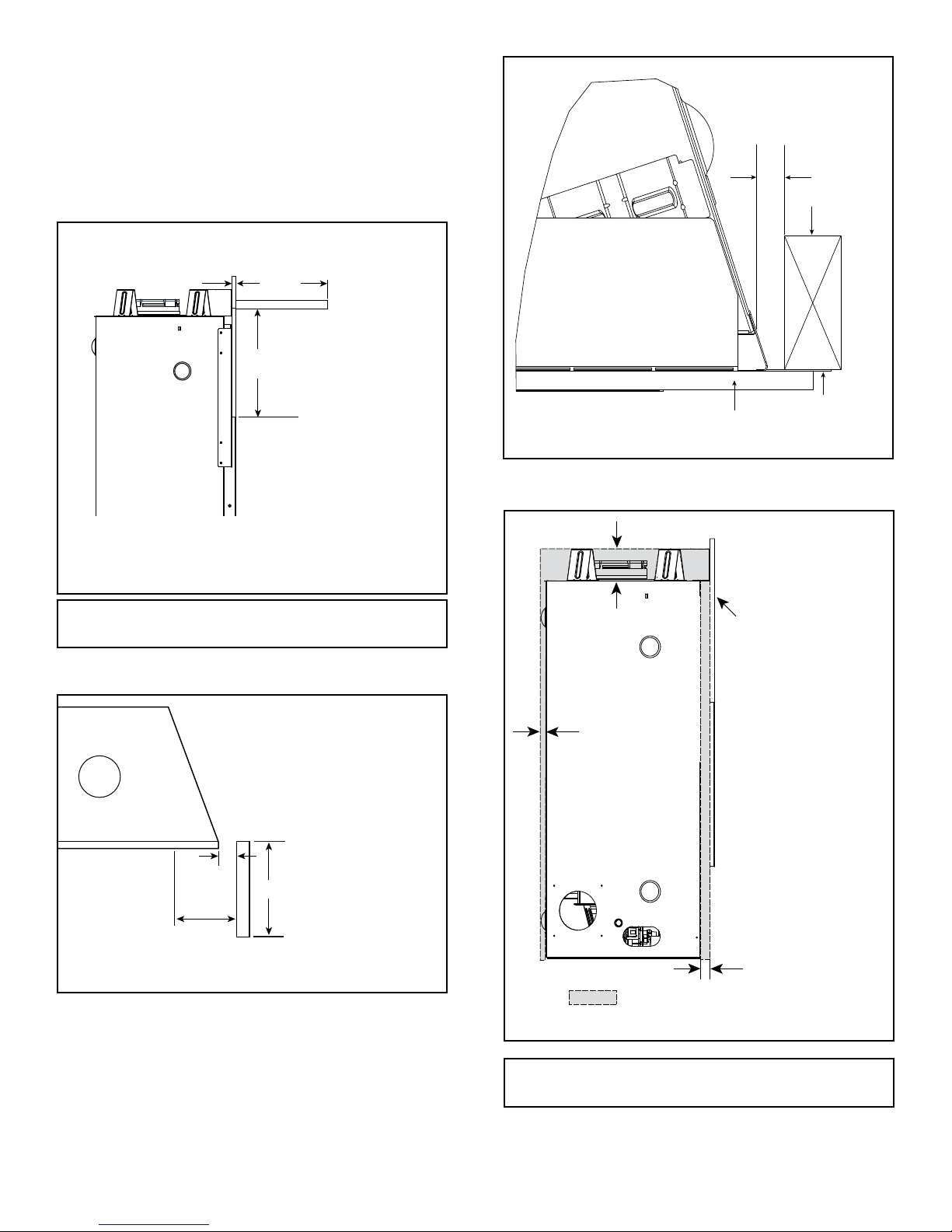

D. MantelandWallProjections
WARNING! Risk of Fire! Comply with all minimum clear-
ances to combustibles as specied. Framing or nishing
material closer than the minimums listed must be construct-
ed entirely of noncombustible materials (i.e., steel studs,
concrete board, etc).
Figure5.3 ClearancesToCombustible/Non-Combustible
MantelsOrOtherCombustibles/Non-Combust-
 iblesAboveAppliance.
Mantels(Combustible/Non-Combustible)
Figure5.4Non-CombustibleMantelLegorWallProjections
 (Acceptableonbothsidesofopening)
UNLIMITED
TOP VIEW
18 cm
8 cm
MINIMUM
36 cm
MIN.
30 cm
MAX.
1,3 cm
Thick Wall
Sheathing
MEASUREMENT
FROM TOP OF
FIREPLACE
OPENING
Note:For non-combustible replace nish material (marble,
stone, etc) specications refer to Section 13.C.
MantelLeg(Combustible/Non-Combustible)
8,90 cm
2,5 cm
AIR SPACE
NON-COMBUSTIBLE
BOARD SHIPPED
WITH APPLIANCE
2,5 cm
Figure5.6Non-CombustibleZone
Note: AIR SPACE denoted in Figure 5.6 is dened by the
nailing tabs and metal standoffs.
Note: Factory installed non-combustible board may only
be replaced with HHT product code SUPERM-60 material
and must be fully replaced in its entirety.
Figure5.5 FrontSideFinishingDetail
2,5 cm
FRAMING
1,2 cm FACTORY-SUPPLIED
NON-COMBUSTIBLE BOARD
NAILING TAB
