1Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
Models:
8000TV-OAK
8000TV-OAK-IPI
8000TVLP-OAKIPI
In the Commonwealth of Massachusetts:
• installation must be performed by a licensed plumber
or gas fitter;
• a CO detector shall be installed in the room where the
appliance is installed.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas
- Do not try to light any appliance
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
bya qualifiedinstaller, serviceagency,or the
gas supplier.
WARNING: If the information in these
instructions is not followed exactly, a
fire or explosion may result causing prop-
erty damage, personal injury, or death.
Owner’s Manual
Installation and Operation
DO NOT DISCARD THIS MANUAL
CAUTION
Installation and service of this appliance should be
performed by qualified personnel. Hearth & Home
Technologies suggests NFI certified or factory trained
professionals, or technicians supervised by an NFI
certified professional.
• Leave this manual with
party responsible for use
and operation.
DO NOT
DISCARD
• Important operating
and maintenance
instructions included.
• Read,understandandfollow
these instructions for safe
installation and operation.
Para obtener un ejemplar en Español de este
Manual del propietario, visite www.heatnglo.com. Pour demander un exemplaire en français de ce Manuel du propriétaire, visitez www.heatnglo.com.
This appliance may be installed as an OEM installation in
manufactured home (USA only) or mobile home and must be
installedinaccordancewith the manufacturer’s instructionsand
themanufactured home constructionandsafetystandard, Title
24CFR,Part3280 or Standard for Installation inMobileHomes,
CAN/CSA Z240MH.
This appliance is only for use with the type(s) of gas indicated
on the rating plate.
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT SURFACES!
Glassandothersurfacesarehotduring
operation AND cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
materials away.

2 Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
Congratulations
Listing Label Information/Location
Model Name:___________________________________________ Date purchased/installed:__________________
Serial Number:__________________________________________ Location on appliance: ____________________
Dealership purchased from: _______________________________ Dealer Phone: __________________________
Notes: _______________________________________________________________________________________
_____________________________________________________________________________________________
Congratulations on selecting a Heat & Glo gas appliance
—an elegant and clean alternative to wood burning
appliances. The Heat & Glo gas appliance you have
selected is designed to provide the utmost in safety,
reliability, and efficiency.
As the owner of a new appliance, you’ll want to read and
carefully follow all of the instructions contained in this
Owner’s Manual. Pay special attention to all Cautions and
Warnings.
This Owner’s Manual should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this Owner’s Manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Heat & Glo gas appliance will give you years of
durable use and trouble-free enjoyment. Welcome to the
Heat & Glo family of appliance products!
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.
We recommend that you record the following pertinent
information about your appliance.
Gas and Electric
Information
Serial Number
Type of Gas

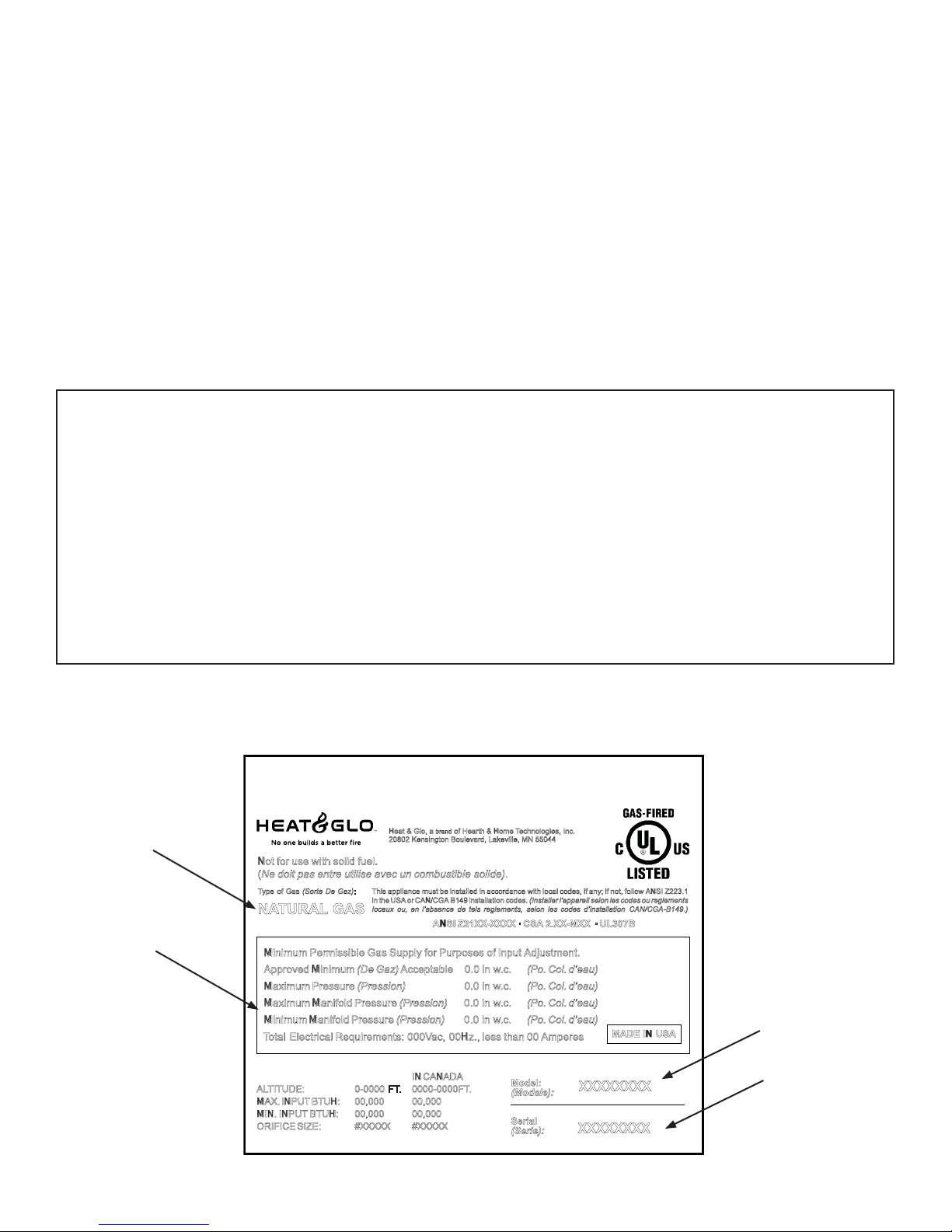

The model information regarding your specific appliance can be found on
the rating plate usually located in the control area of the appliance.
Homeowner Reference Information
Heat & Glo, a of Hearth & Home Technologies, Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
brand
Not for use with solid fuel.
(Ne doit pas entre utilise avec un combustible solide).
This appliance must beinstalled in accordance with local codes, if any;if not, follow ANSI Z223.1
intheUSAorCAN/CGA B149installation codes.(Installerl’appareilselonlescodesoureglements
locaux ou,en l’absence de tels reglements, selon les codes d’installation CAN/CGA-B149.)
Type of Gas (Sorte De Gaz):
NATURAL GAS
MADE IN USA
Minimum Permissible Gas Supply for Purposes of Input Adjustment.
ApprovedMinimum(DeGaz)Acceptable0.0in w.c. (Po.Col.d’eau)
MaximumPressure (Pression) 0.0in w.c. (Po.Col.d’eau)
MaximumManifoldPressure(Pression) 0.0in w.c. (Po.Col.d’eau)
MinimumManifoldPressure(Pression) 0.0in w.c. (Po.Col.d’eau)
Model:
(Modele):
Serial
(Serie):
ANSI Z21XX-XXXX · CSA 2.XX-MXX · UL307B
XXXXXXXX
INCANADA
ALTITUDE:0-0000 FT.0000-0000FT.
MAX.INPUTBTUH: 00,000 00,000
MIN.INPUT BTUH: 00,000 00,000
ORIFICESIZE: #XXXXX #XXXXX XXXXXXXX
Total Electrical Requirements: 000Vac, 00Hz., less than 00 Amperes
This product may be covered by one or more of the following patents: (Nos produits sont couverts par un ou plusieurs des brevets suivants): (United States)
4593510, 4686807, 4766876, 4793322, 4811534, 5000162, 5016609, 5076254, 5113843, 5191877, 5218953, 5263471, 5328356, 5341794, 5347983, 5429495,
5452708,5542407, 5601073, 5613487,5647340, 5688568,5762062,5775408, 5890485, 5931661, 5941237,5947112, 5996575, 6006743,6019099,6048195,
6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226, 6484712, 6543698, 6550687, 6601579, 6672860, 6688302B2, 6715724B2,
6729551, 6736133, 6748940, 6748942, D320652, D445174, D462436; (Canada)1297749, 2195264, 2225408; or other U.S. and foreign patents pending (ou
autresbrevetsamericains etetrangers enattente).
Model Number

3Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
Î= Contains updated information.
Table of Contents
1 Listing and Code Approvals
A. Appliance Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
B. Glass Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
C. BTU Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
D. High Altitude Installations. . . . . . . . . . . . . . . . . . . . . . . . . . 4
E. Non-Combustible Materials Specification. . . . . . . . . . . . . . 5
F. Combustible Materials Specification . . . . . . . . . . . . . . . . . 5
G. Electrical Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Getting Started
A. Design and Installation Considerations . . . . . . . . . . . . . . . 6
B. Negative Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
C. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . . . . 8
D. Inspect Appliance and Components. . . . . . . . . . . . . . . . . . 8
3 Framing and Clearances
A. Selecting Appliance Location . . . . . . . . . . . . . . . . . . . . . . . 9
B. Constructing the Appliance Chase. . . . . . . . . . . . . . . . . . 10
C. Clearances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
D. Mantel Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
4 Termination Locations
A. Vent Termination Minimum Clearances . . . . . . . . . . . . . . 12
5 Vent Information and Diagrams
A. Vent Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
B. Vent System Configuration. . . . . . . . . . . . . . . . . . . . . . . . 13
6 Vent Clearances and Framing
A. Pipe Clearances to Combustibles . . . . . . . . . . . . . . . . . . 15
B. Vertical Penetration Framing . . . . . . . . . . . . . . . . . . . . . . 15
7 Appliance Preparation
A. Installing Outside Air Kit Damper Assembly. . . . . . . . . . . 16
B. Gas and Electrical Connections. . . . . . . . . . . . . . . . . . . . 16
C. Securing and Leveling Appliance. . . . . . . . . . . . . . . . . . . 16
D. Completing Grate Set-up . . . . . . . . . . . . . . . . . . . . . . . . . 17
E. Checking Pilot Plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
8 Installing Vent Pipe
A. Assembly of Vent Sections. . . . . . . . . . . . . . . . . . . . . . . . 18
B. Attaching Vent to Firebox. . . . . . . . . . . . . . . . . . . . . . . . . 18
C. Securing Vent Sections . . . . . . . . . . . . . . . . . . . . . . . . . . 18
9 Gas Information
A. Fuel Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
B. Gas Pressures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
C. Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
10 Electrical Information
A. Recommendation for Wire . . . . . . . . . . . . . . . . . . . . . . . . 21
B. Connecting to the Appliance. . . . . . . . . . . . . . . . . . . . . . . 21
C. Intellifire Ignition System Wiring. . . . . . . . . . . . . . . . . . . . 22
D. Standing Pilot Ignition System Wiring . . . . . . . . . . . . . . . 23
E. Junction Box Installation. . . . . . . . . . . . . . . . . . . . . . . . . . 24
F. Wall Switch Installation for Fan (Optional) . . . . . . . . . . . . 24
11 Finishing
A. Mantel Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
B. Facing Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
12 Appliance Setup
A. Remove Shipping Materials . . . . . . . . . . . . . . . . . . . . . . . 26
B. Clean the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
C. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
D. Install the Refractory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
E. Ember Placement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
F. Positioning the Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
G. Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
H. Screen Mesh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
I. Grilles and Trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
J. Hood. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
K. Shutter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
13 Operating Instructions
A. Before Lighting Appliance. . . . . . . . . . . . . . . . . . . . . . . . . 30
B. Check Appliance Draft . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
C. Lighting Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
D. After Appliance is Lit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
E. Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . 33
14 Troubleshooting
A. Standing Pilot Ignition System . . . . . . . . . . . . . . . . . . . . . 34
B. Intellifire Ignition System . . . . . . . . . . . . . . . . . . . . . . . . . 36
15 Maintaining and Servicing Appliance
A. Maintenance Tasks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
16 Reference Materials
A. Appliance Dimension Diagram. . . . . . . . . . . . . . . . . . . . . 40
B. Service Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
C. Limited Lifetime Warranty. . . . . . . . . . . . . . . . . . . . . . . . . 45
D. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

4 Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
MODELS: 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: B-Vent Decorative
STANDARD: ANSI Z21.50-2002 • CGA2.2
B. Glass Specifications
Hearth&HomeTechnologiesappliancesmanufacturedwith
tempered glass may be installed in hazardous locations
such as bathtub enclosures as defined by the Consumer
Product Safety Commission (CPSC). The tempered glass
has been tested and certified to the requirements of ANSI
Z97.1andCPSC16 CFR 1202(SafetyGlazingCertification
CouncilSGCC# 1595 and1597.ArchitecturalTesting, Inc.
Reports 02-31919.01 and 02-31917.01).
This statement is in compliance with CPSC 16 CFR
Section 1201.5 “Certification and labeling requirements”
which refers to 15 U.S. Code (USC) 2063 stating “…Such
certificate shall accompany the product or shall otherwise
be furnished to any distributor or retailer to whom the
product is delivered.”
Some local building codes require the use of tempered
glass with permanent marking in such locations. Glass
meeting this requirement is available from the factory.
Please contact your dealer or distributor to order.
A. Appliance Certification
NOTINTENDED FORUSEASAPRIMARY HEATSOURCE.
Thisapplianceistested and approved aseither supplemental
room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
C. BTU Specifications
This product is listed to ANSI standards for “Vented Gas
Fireplaces” and “Gas Fired Appliances for Use at High
Altitudes”.
This model (natural gas and propane) can be installed in
a bedroom (in the United States) which has a total volume
of unconfined space appropriate to the particular installa-
tion. Refer to the National Fuel Gas CodeANSI Z223.1/
NFPA54 (current edition), The Uniform Mechanical
Code - (current edition), and local Building Officials for
the options allowed in obtaining an effective bedroom vol-
ume of unconfined space.
This model (natural gas and propane) can be installed in
a bedroom (in Canada) if a thermostat (Model WH-STAT)
is installed with the unit. Consult local code authorities.
Detailed installation instructions for Model WH-STAT are
included with the kit. D. High Altitude Installations
U.L.Listed gasappliances aretested andapproved without
requiring changes for elevations from 0 to 2000 feet in the
U.S.A. and Canada.
When installing this appliance at an elevation above 2000
feet, it may be necessary to decrease the input rating by
changing the existing burner orifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above
a 2000 foot elevation in the U.S.A., or 10% for elevations
between 2000 and 4500 feet in Canada. If the heating
value of the gas has been reduced, these rules do not
apply. To identify the proper orifice size, check with the
local gas utility.
If installing this appliance at an elevation above 4500 feet
(in Canada), check with local authorities.
1
1 Listing and Code Approvals
Do NOT use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
WARNING
Note: This installation must conform with local codes. In the
absence of local codes you must comply with the National
Fuel Gas Code, ANSI Z223.1-latest edition in the U.S.A. and
the CAN/CGA B149 Installation Codes in Canada.
Models
(U.S. or Canada)
Maximum
Input
BTU/h
Minimum
Input
BTU/h
Orifice
Size
(DMS)
8000TV-OAK
US
0-2000 FT 37,500 26,000 #31
CAN
2000-4500 FT 33,750 23,400 #32
8000TVLP-OAK-IPI
US
0-2000 FT 37,500 24,000 1.8 mm
CAN
2000-4500 FT 33,750 21,600 #51
8000TV-OAKIPI
US
0-2000 FT 37,500 26,000 #31
CAN
2000-4500 FT 33,750 23,400 #32

5Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
E. Non-Combustible Materials Specification
Material which will not ignite and burn. Such materials
are those consisting entirely of steel, iron, brick, tile,
concrete, slate, glass or plasters, or any combination
thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a Ver-
tical Tube Furnace at 750ºC, shall be considered non-
combustible materials.
F. Combustible Materials Specification
Materials made of or surfaced with wood, compressed
paper, plant fibers, plastics, or other material that can ig-
nite and burn, whether flame proofed or not, or whether
plastered or unplastered shall be considered combustible
materials.
G. Electrical Codes
NOTICE: This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
• A 110-120 VAC circuit for this product must be protected
with ground-fault circuit-interrupter protection, in
compliance with the applicable electrical codes, when it is
installed in locations such as in bathrooms or near sinks.
Î

6 Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
A. Design and Installation Considerations
Heat & Glo B-type vent gas appliances are designed to
operate with all exhaust gases expelled to the outside of
the building, and combustion air pulled from the room.
When planning an appliance installation, it’s necessary to
determine the following information before installing:
•Where the appliance is to be installed. See Sections 3
and 4.
•Theventsystem configurationto beused.See Sections
5 and 6.
•Gas supply piping. See Sections 7 and 9.
•Electrical wiring. See Sections 7 and 10.
•Framing and finishing details. See Sections 3, 6 and 11.
•Whetheroptionalaccessories—devicessuchasafan,wall
switch, or remote control—are desired. See Section 10.
2
2 Getting Started
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consultlocalbuilding,fireofficialsorauthoritieshavingjurisdic-
tion about restrictions, installation inspection, and permits.
CAUTION
Fire Risk
Explosion Risk
Keep appliance dry.
• Mold or rust may cause odors.
• Water may damage controls.
WARNING

7Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
Recommended
Location
Marginal
Location
Location
Not
Recommended
Recommended
Location
Location NOT
Recommended
Multi-level Roofs
Windward
Leeward
Figure 2.1
B. Negative Pressure
Draft is the pressure difference needed to vent fireplaces
successfully. Considerations for successful draft include:
• Preventing negative pressure
• Location of fireplace and chimney
Negative pressure results from the imbalance of air
available for the fireplace to operate properly. Causes for
this imbalance include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water heat-
ers and other combustion appliances
• Clothes dryers
• Location of return-air to furnace or air conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks (recessed lighting, attic hatch
opening, duct leaks)
To minimize the effects of negative air pressure, the fol-
lowing must be considered:
• Install the fresh air kit. Install the intake on the side of
the house towards prevailing winds during the heating
season.
• Ensure adequate outdoor air is supplied for combustion
appliances and exhaust equipment.
• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the fireplace.
• Avoid installing the fireplace near doors, walkways or
small isolated spaces.
• Recessed lighting should be of “sealed can” design; at-
tic hatches weather stripped or sealed; and attic mount-
ed ductwork and air handler joints and seams taped or
sealed.
• Basement installations should be avoided due to stack
effect. Stack effect creates negative pressure in lower
levels. Hearth & Home Technologies recommends the
use of direct vent fireplaces in basements.
Location of the fireplace and chimney will affect perfor-
mance. As shown in Figure 2.1, the chimney should:
• Be installed through the warm space enclosed by the
building envelope. This helps to produce more draft, es-
pecially during lighting and die-down of the fire.
• Penetrate the highest part of the roof. This minimizes
the effects of wind turbulence.
• Be located away from trees, adjacent structures, un-
even roof lines and other obstructions.
Offsets can restrict draft so their use should be minimized.
Consider the fireplace location relative to floor and ceiling
and attic joists.
Asphyxiation Risk.
• Negative pressure can cause spillage of
combustion fumes and soot.
• Fireplace needs to draft properly for safety.
WARNING

8 Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
D. Inspect Appliance and Components
C. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Reciprocating saw Framing material
Pliers Hi temp caulking material
Hammer Gloves
Phillips screwdriver Framing square
Flat blade screwdriver Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Level Tape measure
Manometer Voltmeter
Non-corrosive leak check solution
1/2 - 3/4 inch length, #6 or #8 Self-drilling screws
One 1/4 inch female connection (for optional fan).
Figure 2.2 Typical Vertical Installation
The following B-vent components are needed for installa-
tion (see Figure 2.2).
• Fireplace Box
• Pipe Components
• Firestops
• Attic Insulation Shield
• Elbows
• Strapping
• Roof Flashing or Chase Top
• Termination Cap
• Storm Collar
• Carefully remove the appliance and components from
the packaging.
• Thevent systemcomponentsandtrimdoorsareshipped
in separate packages.
• The gas logs may be packaged separately and must be
field installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
• Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
VERTICAL TERMINATION CAP
STORM COLLAR
ATTIC INSULATION SHIELD
GAS B-VENT
PIPE SECTION (S)
FIRESTOP SPACER
ROOF FLASHING
OR CHASE TOP
Hearth & Home Technologies disclaims any
responsibilityfor,andthe warranty willbe voided
by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modification of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installationand/oruseofanycomponentpartnotapproved
by Hearth & Home Technologies.
Any such action may cause a fire hazard.
WARNING
Inspectapplianceandcomponents for damage.
Damaged parts may impair safe operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
WARNING

9Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
ABC D EFG
Inches 55-7/8 1/2 79 49 Min. 1 37-3/8 22
Millimeters 1419 13 2007 1245 25 949 559
Figure 3.1 Appliance Locations
In addition to these framing dimensions, also reference the following sections:
• Clearances and Mantel Projections (Sections 3.C and 3.D)
• Vent Clearances and Framing (Section 6).
3
3 Framing and Clearances
Note:
• Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design
preference.
Fire Risk
Provide adequate clearance:
• Around air openings
• To combustibles
• For service access
Locate appliance away from traffic areas.
A. Selecting Appliance Location
Whenselectingalocationforyour applianceitisimportantto
consider the required clearances to walls (see figure 3.1). NOTE: For actual appliance dimensions refer to Sec-
tion 16.
WARNING
A
BA
C
D
EF
D
G
D
B

10 Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
CLEARANCES TO COMBUSTIBLES
ABCD E F G H IJ
Rough
Opening
(Vent Pipe)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Clearance
to Ceiling Combustible Floor Combustible Flooring Behind Appliance Sides of Appliance Front of Appliance
Inches 10 40-1/2 22 49 32 0 0 1/2 1/2 36
mm 254 1029 559 1245 813 0 0 13 13 914
Fire Risk.
• Constructchase to all clearancespecifications
in manual.
• Locate and install appliance to all clearance
specifications in manual.
B. Constructing the Appliance Chase
A chase is a vertical boxlike structure built to enclose the
gas appliance and/or its vent system. Vertical vents that
run on the outside of a building may be, but are not re-
quired to be, installed inside a chase.
Construction of the chase may vary with the type of build-
ing. These instructions are not substitutes for the require-
ments of local building codes. Local building codes MUST
be checked.
Chases should be constructed in the manner of all out-
side walls of the home to prevent cold air drafting prob-
lems. The chase should not break the outside building
envelope in any manner.
Walls, ceiling, base plate and cantilever floor of the chase
should be insulated. Vapor and air infiltration barriers
should be installed in the chase as per regional codes for
the rest of the home. Additionally, in regions where cold
air infiltration may be an issue, the inside surfaces may be
sheetrocked and taped for maximum air tightness.
To further prevent drafts, the wall shield and ceiling fire-
stops should be caulked with high temperature caulk to
seal gaps. Gas line holes and other openings should be
caulked with high temp caulk or stuffed with unfaced insu-
lation. If the appliance is being installed on a cement slab,
a layer of plywood may be placed underneath to prevent
conducting cold up into the room.
C. Clearances
Figure 3.2 Clearances to Combustibles
Fire Risk.
Odor Risk.
• Installapplianceonhardmetalorwood surfaces
extending full width and depth of appliance.
• Do NOT install appliance directly on carpeting,
vinyl,tileor any combustible materialother than
wood.
• DoNOTplacefurnitureoranyothercombustible
household objects within 36 inches of the
appliance front.
C
B
D
A
J
I
H
E
F
TOP OF
HOOD
TO
CEILING
G
WARNING
WARNING

11Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
D. Mantel Projections
1/2 INCH
(13 mm)
32 IN.
(813 mm)
TOP OF HOOD
12 IN.
(305 mm)
NON-COMBUSTIBLE
MATERIAL ONLY
13 IN.
(330 mm)
CEILING
TOP FRONT EDGE OF FIREPLACE
Note: Clearance from opening
to perpendicular wall.
1 in.
MIN.
3 in.
MIN. 3 ft.
MAX.
TOP VIEW
Figure 3.3 Clearances to mantels or other combustibles
above appliance
Figure 3.4 Clearances to Mantel Legs or Wall Projections
(Acceptable on both sides of opening.)

12 Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
Roof Pitch H (Min.) Ft.
Flat to 6/12...........................................................1.0*
Over 6/12 to 7/12.................................................1.25*
Over 7/12 to 8/12.................................................1.5*
Over 8/12 to 9/12.................................................2.0*
Over 9/12 to 10/12...............................................2.5*
Over 10/12 to 11/12.............................................3.25
Over 11/12 to 12/12.............................................4.0
Over 12/12 to 14/12.............................................5.0
Over 14/12 to 16/12.............................................6.0
Over 16/12 to 18/12.............................................7.0
Over 18/12 to 20/12.............................................7.5
Over 20/12 to 21/12.............................................8.0
Figure 4.1 specifies minimum vent heights for various
pitched roofs.
* 3 foot minimum in snow regions
18 IN.
A
8 FEET
(MINIMUM) TO
PERPENDICULAR
WALL (GAS ONLY)
GAS OR WOOD
TERMINATION
GAS
TERMINATION
VERTICAL
WALL
TERMINATION
CAP
12 X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
8 FEET
Termination Clearances
Gas Wood
A6 inches 20 inches
A. Vent Termination Minimum Clearances
Fire Risk.
Explosion Risk.
Maintain vent clearance to combustibles as
specified.
• Donot pack airspace withinsulationor other
materials.
Failure to keep insulation or other materials
away from vent pipe may cause fire.
4
4 Termination Locations
WARNING
Figure 4.1 Minimum height from roof to lowest discharge
opening
Figure 4.2 Multiple Vertical Termination

13Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
METAL
PLUMBER’S
STRAP
9 FEET
MINIMUM
VENT SUPPORTS ARE PER
VENT MANUFACTURER’S
SPECIFICATIONS
MINIMUM CLEARANCES
ARE PER VENT
MANUFACTURER’S
SPECIFICATIONS
METAL
PLUMBERS' STRAP
MAXIMUM HORIZONTAL RUN IS 50%
OF VERTICAL. HORIZONTAL RUN
CANNOT BE MORE THAN 15 FT.
VENT SUPPORTS
ARE PER VENT
MANUFACTURER'S
SPECIFICATIONS.
Note: A rise of 1/4 inch
per foot of horizontal
run is required.
Note: A rise of 1/4 inch per foot of horizontal run is required.
Note: Other vent
components are
noted in Figure 2.2
5
5 Vent Information and Diagrams
B. Vent System Configuration
Figure 5.1
A. Vent Guidelines
Figure 5.2
Rise to Run Ratio = 2:1
Maximum Total Horizontal Run = 15 Feet
Minimum Total Vertical Rise = 9 Feet
Maximum Total Vertical Rise = 30 Feet
Maximum Number of Elbows: Two 900or Four 450
This model requires the following size B-vent double wall,
or single wall rigid or flex vent pipe.
Fire Risk.
Asphyxiation Risk.
This appliance requires the specified pipe for
operation.
• Incorrectpipemaycause spillage, condensation
and overheating.
• Follow pipe manufacturer’s installation guidelines when
installing the appliance.
Models Pipe Size
8000TV-OAK 6 inch
WARNING
Fire Hazard.
Explosion Risk.
Asphyxiation Risk.
DoNOTconnect this gasappliance to a chimney
flue serving a separate solid-fuel or gas burning
appliance.
• Vent this appliance directly outside.
• Use separate vent system for this appliance.
May impair safe operation of this appliance or
other appliances connected to the flue.
CAUTION
ALL vent configuration specifications MUST be followed.
• This product is tested and listed to these specifications.
• Applianceperformance will suffer if specificationsarenot
followed.
WARNING
Note: Other vent
components are
noted in Figure 2.2

14 Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
Fire Risk.
Explosion Risk.
Insulation and other combustibles must not
infringe on clearances.
• ALWAYS maintainspecifiedclearances around
venting and firestop systems.
• Install firestops as specified.
Failure to keep insulation or other material away
from vent pipe may cause fire.
Figure 5.3
45 DEGREES
ELBOW
90 DEGREES
ELBOW
OFFSETS EXCEEDING
45 DEGREES ADAPT
HORIZONTAL LIMITATIONS
MAXIMUM
HORIZONTAL
15 FEET
MINIMUM
VERTICAL
9 FEET
Note: Maximum
horizontal distance
is 50% vertical vent
height or up to
maximum of 15 feet.
WARNING

15Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
Note: This product MUST terminate vertically.
Follow vent pipe manufacturer’s instructions for all clear-
ances around pipe.
B. Vertical Penetration Framing
Use B-vent manufacturer’s firestops to provide adequate
clearances.
Fire Hazard
Keep loose materials or blown insulation from
touching the vent pipe.
• National building codes recommend using
attic shield to keep loose materials/ blown
insulation from contacting vent.
• Hearth&HomeTechnologiesrequires the use
of an attic shield.
A. Pipe Clearances to Combustibles
6
6 Vent Clearances and Framing
Fire Risk.
Explosion Risk.
Maintain vent clearance to combustibles as
specified.
• Donotpackairspace with insulation or other
materials.
• National building codes recommend using
atticshieldtokeeploosematerials/insulation
from contacting vent.
WARNING
Failure to keep insulation or other materials away from vent
pipe may cause fire.
WARNING

16 Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
A. Installing Outside Air Kit Damper
Assembly
Asphyxiation Risk.
Fire Risk.
Do NOT draw outside combustion air from:
• Wall, floor or ceiling cavity.
• Enclosed space such as an attic or garage.
• Close proximity to exhaust vents or chimneys.
Fumes or odor may result.
• Remove and discard cover plate or knockout from side
of appliance.
• Open air kit damper slightly.
• Locate door hinge toward back of appliance (see Figure
7.1).
• Attach damper assembly to appliance using screws
provided (see Figure 7.2).
• Insert narrow end of handle through tab and into upper
slot of door.
• Check handle operation. Pull handle out to open, and in
to close.
Figure 7.2 Outside Air Kit Installation
Figure 7.1 Damper Assembly and Handle
HANDLE
HINGE
DOOR
B. Gas and Electrical Connections
Ifapplicable, ensurethat gasand electricalconnections are
installedatthis time.Referto Sections9(Gas Information)
and 10 (Electrical Information).
7
7 Appliance Preparation
CAUTION
Sharp Edges
• Wearprotective glovesand safety
glasses during installation.
WARNING
C. Securing and Leveling Appliance
The diagram shows how to properly position, level, and
securetheappliance (seeFigure 7.3). Nailing tabs are pro-
vided to secure the appliance to the framing members.
• Place the appliance into position.
• Level the appliance from side to side and front to back.
• Shimtheappliance, asnecessary. Itisacceptable touse
wood shims.
• Bend out nailing tabs on each side.
• Keep nailing tabs flush with the framing.
• Secure the appliance to the framing by using nails or
screws through the nailing tabs.
Fire Risk.
• Prevent contact with sagging, loose insulation.
• Do NOT install against combustible materials
suchasexposedinsulation,plasticandinsulation
backer.
WARNING

17Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
Figure 7.3 Proper Positioning, Leveling and Securing of a
Appliance
NAILING TABS
(BOTH SIDES)
Fire Risk.
• ALWAYS maintain specified
clearances around the appliance.
• Do NOT notch into the framing around the appliance spacers.
Failuretokeep insulation, framing orother materialaway from
the appliance may cause fire.
WARNING
Figure 7.6
E. Checking Pilot Plate
D. Completing Grate Set-up
1. Straighten the tabs on the grate bracket (see Figure
7.4) and remove grate from unit.
2. Remove grate bracket (see Figure 7.4) by bending it
back and forth until it breaks. Discard grate bracket.
3. Remove4tabs holdingbaserefractory (seeFigure7.4)
by bending tabs back and forth until they break.
Figure 7.5 Re-install grate in unit
Figure 7.4 Removing Grate
Note: Ensurepilotplateisin place.Thiswillensure pilot
stability (see Figure 7.6)
PILOT
PLATE
RE-INSTALL
INTO THE UNIT
REMOVE GRATE
REMOVE GRATE BRACKET
REMOVE TAB HOLDING DOWN
BASE REFRACTORY (4 PLACES)
STRAIGHTEN TO
REMOVE GRATE
4. Reinstall grate into unit (see Figure 7.5).

18 Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
A. Assembly of Vent Sections
This appliance requires a 6-inch B-vent double-wall pipe.
Followthe pipemanufacturer’sinstallation guidelineswhen
installing the unit. This will ensure proper operation and
prevent safety hazards.
Fire Risk
Exhaust Fumes Risk
Impaired Performance of Appliance
• Assemble pipe sections per B-vent manufac-
turer’s instructions.
• Use support tabs for screws.
• Screws must not exceed one inch long and
must not penetrate inner lining.
• Pipe may separate if not properly joined.
B. Attaching Vent to Firebox
Attach the first B-Vent component to the flue outlet collar
using 3 self-tapping screws. See Figure 8.1.
Figure 8.1
Fire Risk.
Explosion Risk.
Combustion Fume Risk.
Use vent run supports per vent manufacturer’s
installation instructions.
Connect vent sections per vent manufacturer’s
installation instructions.
• Maintain all clearances to combustibles.
• Maintain specified slope (if required).
Improper support may allow vent to sag or
separate.
C. Securing Vent Sections
Secure vent sections with vent supports following B-vent
manufacturer’s instructions.
B-VENT
SECURING
SCREWS
FLUE OUTLET
COLLAR
8
8 Installing Vent Pipe
WARNING
WARNING

19Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
Note: Have the gas supply line installed in accordance
with local building codes, if any. If not, follow ANSI
223.1. Installation should be done by a qualified installer
approved and/or licensed as required by the locality. (In
the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fitter).
A. Fuel Conversions
Before making gas connections ensure that appliance be-
ing installed is compatible with the available gas type.
Any natural or propane gas conversions necessary to
meet the appliance and locality needs must be made by
a qualified technician using Hearth & Home Technologies
specified and approved parts.
B. Gas Pressures
Proper input pressures are required for optimum appli-
ance performance. Gas line sizing requirements need to
be made following NFPA51.
Fire Risk.
Explosion Hazard.
High pressure will damage valve.
• Disconnect gas supply piping BEFORE
pressure testing gas line at test pressures
above 1/2 psig.
• Close the manual shutoff valve BEFORE
pressure testing gas line at test pressures
equal to or less than 1/2 psig.
C. Gas Connection
Verify inlet pressures.
• High pressure may cause overfire condition.
• Low pressure may cause explosion.
• Verify minimum pressures when other
household gas appliances are operating.
Install regulator upstream of valve if line
pressure is greater than 1/2 psig.
9
9 Gas Information
Note: Gas line may be run from either side of the appliance
provided the hole in the outer wrap does NOT exceed 2-1/2
inches in diameter and does not penetrate the firebox.
Note: A listed (and Commonwealth of Massachusetts ap-
proved) 1/2 inch (13 mm) T-handle manual shut-off valve and
flexible gas connector are connected to the 1/2 inch (13 mm)
control valve inlet.
• If substituting for these components, please consult
local codes for compliance.
Pressure requirements for appliance are shown in the
table below. Minimum pressures must be met when other
household gas appliances are operating.
Refer to Reference Section 16 for location of gas line
access in appliance.
Gas Leak Risk
• Support control when attaching pipe to
prevent bending gas line.
Note: The gap between supply piping and gas access hole
may be caulked with high temperature caulk or stuffed with
non-combustible, unfaced insulation to prevent cold air
infiltration.
WARNING
WARNING
Pressure Natural Gas Propane
Minimum inlet pressure 5.0 inches
w.c. 11.0 inches w.c.
Maximum inlet gas pressure 14.0 inches
w.c. 14.0 inches w.c.
Manifold pressure 3.5 inches
w.c. 10.0 inches w.c.
WARNING

20 Heat & Glo • 8000TV-OAK, 8000TV-OAK-IPI, 8000TVLP-OAKIPI • 2058-900 Rev. L • 08/08
Fire hazard.
Do NOT change the valve settings.
• This valve has been preset at the factory.
• Changing valve settings may result in fire
hazard or bodily injury.
HIGH ALTITUDE INSTALLATIONS
U.L. Listed gas appliances are tested and approved without
requiring changes for elevations from 0 to 2000 feet in the
U.S.A. and Canada.
Wheninstallingthis applianceatanelevationabove 2000feet,
itmay be necessary todecreasetheinput rating bychanging
the existing burner orifice to a smaller size. Input rate should
be reduced by 4% for each 1000 feet above a 2000 foot
elevation in the U.S.A., or 10% for elevations between 2000
and 4500 feet in Canada. If the heating value of the gas has
beenreduced,these rules do notapply.Toidentifytheproper
orifice size, check with the local gas utility.
If installing this appliance at an elevation above 4500 feet (in
Canada), check with local authorities.
• Ensure that gas line does not come in contact with outer
wrap of appliance. Follow local codes.
• Incoming gas line should be piped into the valve
compartment and connected to the 1/2 inch connection
on the manual shutoff valve.
CHECK FOR GAS LEAKS
Explosion Risk
Fire Risk
Asphyxiation Risk
• Check all fittings and connections.
• Do not use open flame.
• Afterthegaslineinstallationiscomplete,all
connectionsmustbetightenedandchecked
for leaks with a commercially-available,
non-corrosive leak check solution. Be sure
to rinse off all leak check solution following
testing.
Fittings and connections may have loosened
during shipping and handling.
Fire or Explosion Hazard
• Gas buildup during line purge may ignite.
• Purge should be performed by qualified technician.
• Ensure adequate ventilation.
• Ensure there are no ignition sources such as
sparks or open flames.
• A small amount of air will be in the gas supply lines.
When first lighting appliance it will take a short time for
air to purge from lines. When purging is complete the
appliance will light and operate normally.
WARNING
WARNING
WARNING
