Heat & Glo Pier-HVB-IPI User manual

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev.M• 8/06 1
Models:
Pier-HVB-IPI
ST-HVB-IPI
LCOR-HVB-IPI
RCOR-HVB-IPI
Underwriters
Laboratories Listed
IntheCommonwealthofMassachusetts:
• installation must be performed by a licensed
plumberorgasfitter;
• a CO detector shall be installed in the room
where the appliance is installed.
- Do not store or use gasoline or other flam-
mablevaporsandliquidsinthevicinityofthis
oranyotherappliance.
- What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Donotuseanyphoneinyourbuilding.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
thefiredepartment.
- Installationandservicemustbeperformedbya
qualified installer, service agency, or the gas
supplier.
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICEAGENCY, OR THE
GAS SUPPLIER.
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THISAPPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
1.This appliance may be installed in an af-
termarket,permanentlylocated,manufac-
tured(mobile)home,wherenotprohibited
bylocalcodes.
2. Thisapplianceisonlyfor usewiththetype
of gas indicated on the rating plate. This
appliance is not convertible for use with
othergases,unlessacertifiedkitisused.
Please contact your Heat-N-Glo dealer with any
questionsorconcerns.For the number ofyournearest
Heat-N-Glodealer,please call 1-888-427-3973.
Printed in U.S.A. Copyright 2006
Heat &Glo,abrandof Hearth & HomeTechnologiesInc.
20802KensingtonBoulevard,Lakeville,MN55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY,AFIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
Owner’s Manual
Installation and Operation
Thisproductmaybecoveredbyoneormoreofthefollowingpatents:(United States)4593510, 4686807, 4766876, 4793322, 4811534,5000162,5016609,5076254,5113843,5191877,5218953,5263471,
5328356,5341794,5347983,5429495,5452708,5542407,5601073,5613487,5647340,5688568,5762062,5775408,5890485,5931661,5941237,5947112,5996575,6006743,6019099,6048195,6053165,
6145502,6170481,6237588,6296474,6374822, 6413079, 6439226,6484712,6543698,6550687,6601579,6672860,6688302B2,6715724B2,6729551,6736133,6748940,6748942,6769426,6774802,
6796302,6840261,6848441,6863064,6866205, 6869278, 6875012, 6880275, 6908039,6919884,D320652,D445174,D462436; (Canada) 1297749,2195264, 2225408, 2313972; (Australia) 780250,
780403,1418504 or otherU.S.and foreign patentspending.

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06
2
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide.NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLY be
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young childrenshould be CAREFULLYSUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
Safety and Warning Information
!
!

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06 3
Safety and Warning Information.................................................. 2
Service Parts List ......................................................................... 4
Approvals and Codes ................................................................ 13
ApplianceCertification ................................................................................. 13
InstallationCodes ........................................................................................ 13
HighAltitude Installations............................................................................. 13
Getting Started............................................................................ 14
IntroducingtheHeat&GloGasFireplaces .................................................. 14
Pre-installPreparation ................................................................................. 14
Installing the Fireplace ............................................................... 18
Step 1. Locating the Fireplace .................................................................... 18
Step 2. Framing the Fireplace..................................................................... 18
Step 3. Installing the Vent System.............................................................. 21
A. Vent SystemApprovals ......................................................... 21
B. Installing Vent Components ................................................... 28
C. VentTermination.................................................................... 30
Step 4. Positioning,Leveling, and Securing the Fireplace ........................... 33
Step 5. The Gas Control System ................................................................ 33
Step 6. The Gas Supply Line ...................................................................... 34
Step 7. Gas Pressure Requirements........................................................... 34
Step 8. Wiring the Fireplace........................................................................ 35
Step 9. Finishing......................................................................................... 37
Step 10. Installing Trim, Logs & Ember Material .......................................... 38
InstallingtheTrim .......................................................................... 38
PositioningtheLogs...................................................................... 38
Shutter Settings ............................................................................ 38
GlassSpecifications...................................................................... 38
PlacingtheEmberMaterial ........................................................... 39
EmberLightBulbReplacement ..................................................... 39
Step 11. Before Lighting the Fireplace........................................................ 40
Step 12. Lighting the Fireplace ................................................................... 40
AftertheInstallation ..................................................................................... 40
Maintaining and Servicing Your Fireplace................................41
Î= Containsupdatedinformation.
Table of Contents
Î

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06 13
Appliance Certification
TheHeat& Glo fireplacemodelsdiscussedin this Installers
Guidehavebeentested tocertificationstandardsand listed
bytheapplicablelaboratories.
Certification
MODELS: PIER-HVB-IPI, ST-HVB-IPI,
LCOR-HVB-IPI, RCOR-HVB-IPI
LABORATORY: UnderwritersLaboratories
TYPE: Vented Gas Fireplace Heater
STANDARD: ANSI Z21.88•CGA2.22•UL307B
Installation Codes
Thefireplaceinstallationmustconformto localcodes.Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
Intheabsence oflocalcodes,the fireplaceinstallationmust
conformtotheNational FuelGasCodeANSI Z223.1(inthe
United States) or the CAN/CGA-B149 Installation Codes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric CodeANSI/NFPANo. 70
(inthe UnitedStates),ortothe CSAC22.1CanadianElectric
Code(inCanada).
Thesemodelsmaybeinstalledin a bedroom or bed-sitting
room in the U.S.A. and Canada.
1Approvals and
Codes
HighAltitude Installations
U.L. Listed gas appliances are tested and approved with-
outrequiringchangesforelevationsfrom0to2,000feetin
the U. S.A. and in Canada.
Wheninstallingthisapplianceatanelevationabove2,000
feet, it may be necessary to decrease the input rating by
changingtheexistingburnerorificetoasmallersize.Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between2000and 4500feetinCanada.Iftheheating value
of the gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local gas
utility.
Ifinstalling this appliance at an elevation above 4,500 feet
(in Canada), check with local authorities.
Heat & Glo Quality Systems
registeredby SGS ICS

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06
14
2Getting Started
Introducing the Heat & Glo Gas Fireplaces
Heat&Glodirectventgasfireplaces are designed to oper-
ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control

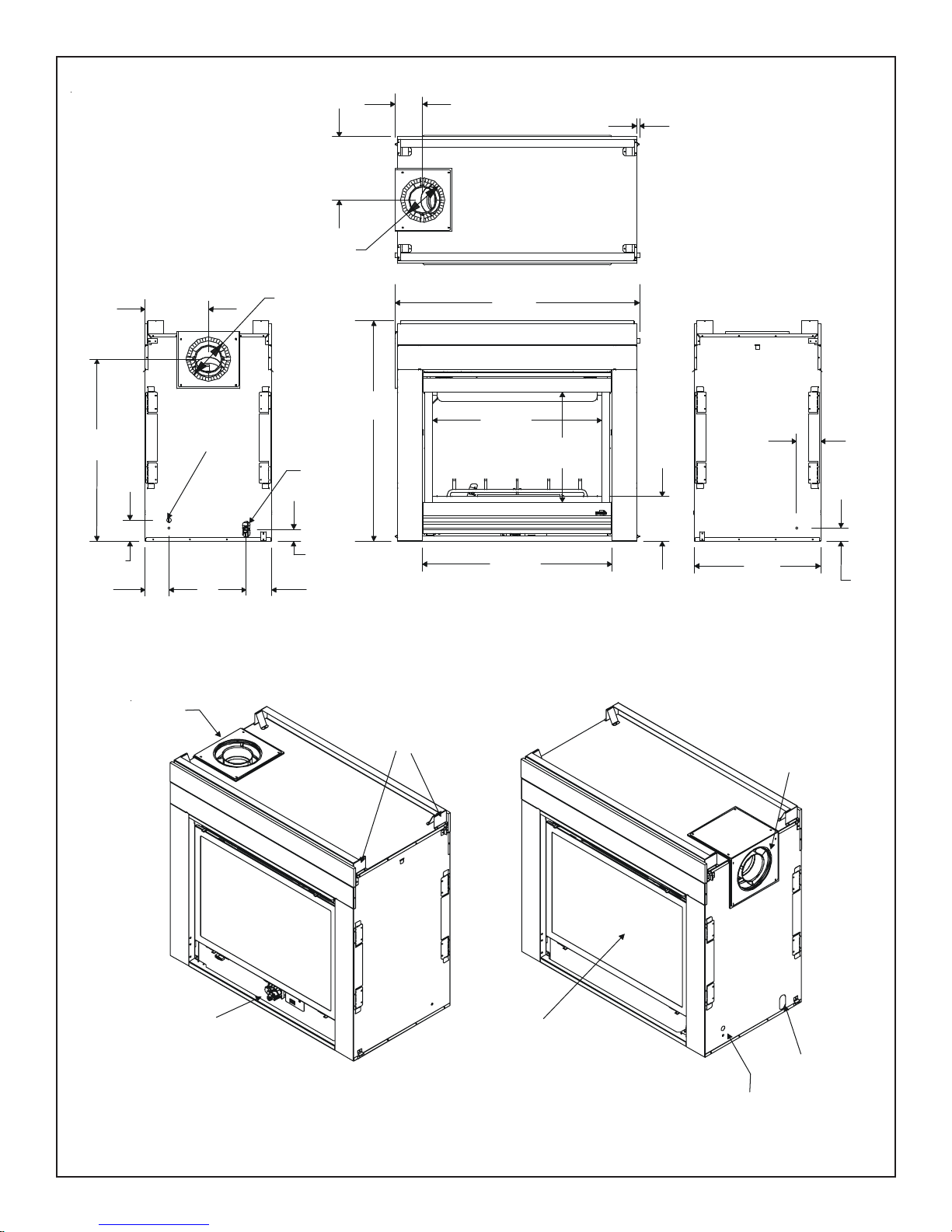

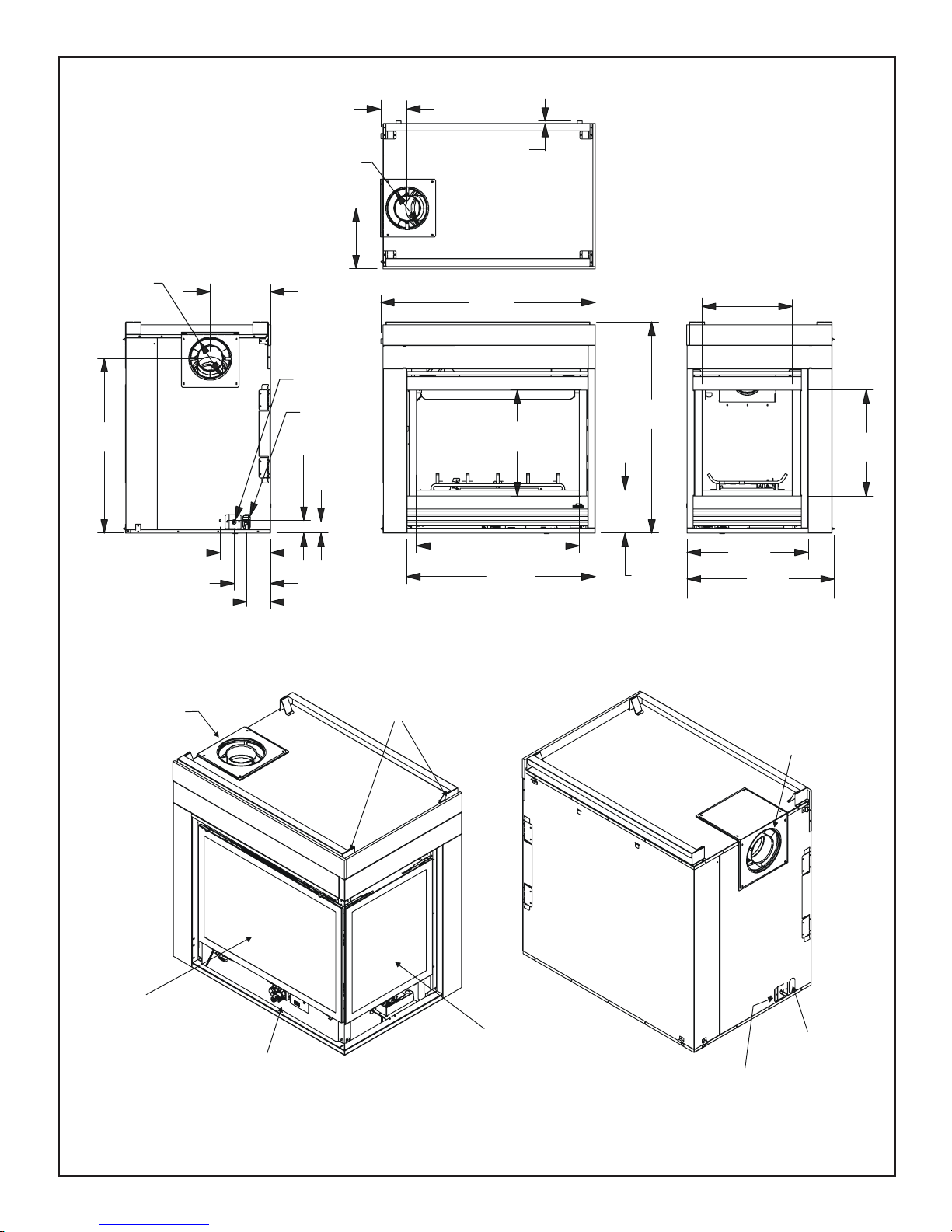

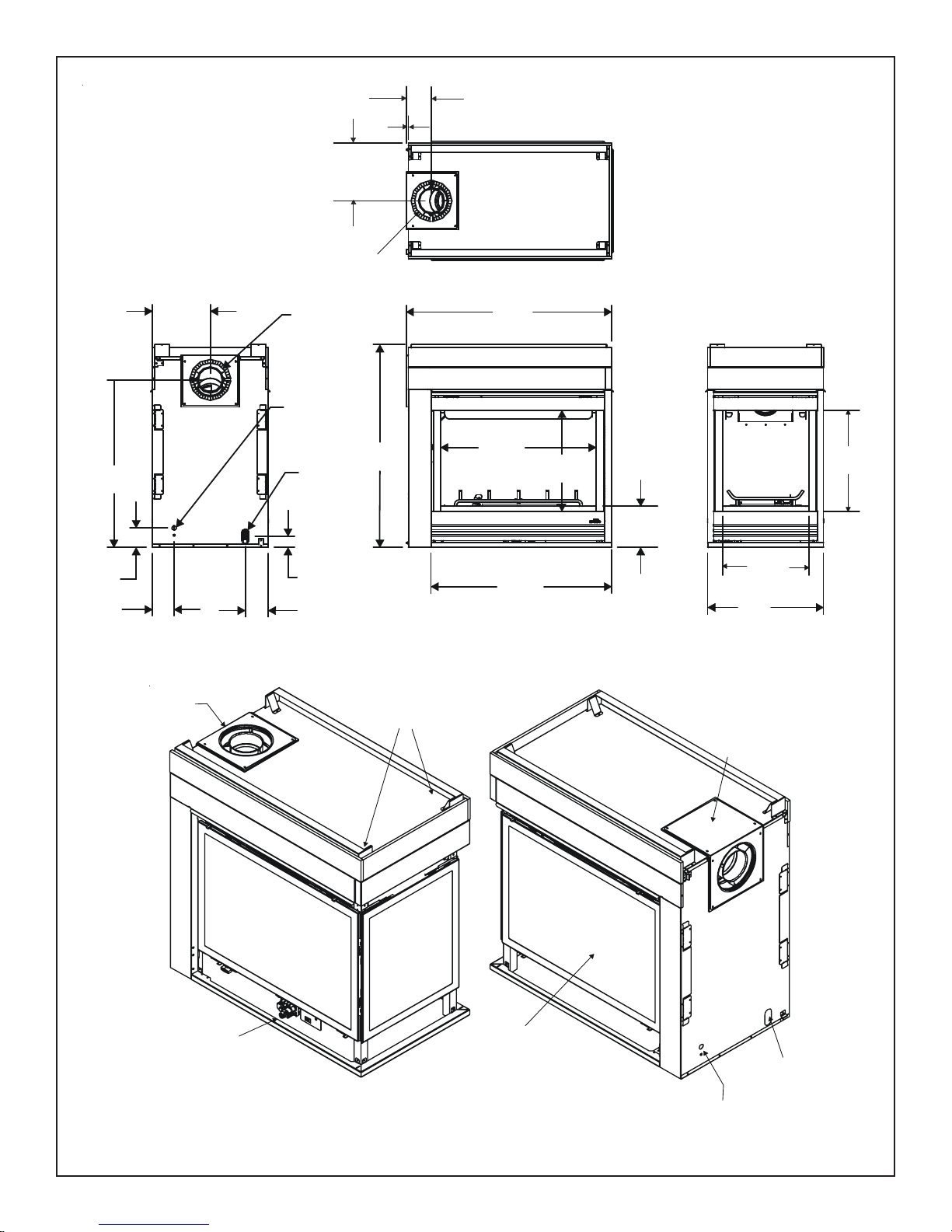

systems.Gasfireplace diagrams,includingthe dimensions,
are shown in this section.
Pre-install Preparation
Thisgas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
Theventsystemcomponentsare shippedinseparatepack-
ages. The gas logs are packaged separately and must be
fieldinstalled.
Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the own-
er’s warranty and may present a fire hazard.
TheHeat&GloWarrantywillbevoidedby, and Heat & Glo
disclaims any responsibility for, the following actions:
• Installation of any damaged fireplace or vent system
component.
• Modification of the fireplace or direct vent system.
• Installation other than as instructed by Heat & Glo.
• Improper positioning of the gas logs or the glass door.
• Installationand/oruseof any componentpartnotmanu-
factured and approved by Heat & Glo, not withstanding
anyindependenttestinglaboratoryorotherpartyapproval
of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary
to determine:
•Where the unit is to be installed.
•The vent system configuration to be used.
•Gas supply piping.
•Electricalwiring.
•Framingandfinishingdetails.
•Whether optional accessories—devices such as a fan,
wallswitch, or remote control—are desired.
If the fireplace is to be installed on carpeting or tile,
or on any combustible material other than wood
flooring, the fireplace should be installed on a metal
or wood panel that extends the full width and depth
of the fireplace.

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06 15
Figure 1. Diagram of the PIER-HVB-IPI
42-5/8
(1082mm)
Ø8
(204mm)
12
(305mm)
ELECTRICAL
ACCESS
GAS LINE
ACCESS
34-3/4
(882mm)
4-1/16
(102mm)
4-1/2
(114mm) 4-3/4
(121mm)
2-5/16
(58mm) 37-7/16
(950mm)
32-5/16
(820mm) 21
(533mm)
42
(1067mm)
17-15/16
(455mm)
24
(610mm)
21
(533mm)
5-1/4
(133mm)
1/2
(13mm)
(2)
12
(306mm)
Ø8
(204mm)
8-1/2
(216mm)
REAR VENT
COLLARS
ELECTRICAL
ACCESS
GAS LINE
ACCESS
GAS CONTROLS
& LABELS
SIDE GLASS
DOOR
TOP STANDOFFS
TOP VENT
COLLARS

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06
16
Figure 2. Diagram of the ST-HVB-IPI
5-14
(133mm)
12
(306mm)
1/2
(13mm)
(4)
46-5/8
(1183mm)
42
(1067mm) 32-5/16
(820mm)
21
(533mm)
36-3/16
(919mm)
2-5/16
(58mm)
4-3/4
(121mm)
4-1/16
(102mm)
4-1/2
(114mm)
ELECTRICAL
ACCESS
GAS LINE
ACCESS
12
(305mm)
4-1/2
(114mm)
2-9/16
(64mm)
24
(610mm)
8-1/2
(216mm)
34-3/4
(882mm)
Ø8
(204mm)
Ø8
(204mm)
REAR VENT
COLLARS
ELECTRICAL
ACCESS
GAS LINE
ACCESS
GAS CONTROLS
& LABELS SIDE GLASS
DOOR
TOP STANDOFFS
TOP VENT
COLLARS

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06 17
Figure 3. Diagram of the LCOR-HVB-IPI and RCOR-HVB-IPI
12
(305mm)
Ø8
(204mm)
34-3/4
(882mm)
4-3/4
(121mm)
37-7/16
(950mm)
ELECTRICAL
ACCESS
GAS LINE
ACCESS
42-5/8
(1082mm
2-5/16
(58mm)
21
(533mm)
24-1/8
(612mm)
8-1/2
(216mm)
21
(533mm)
42
(1066mm
32-5/16
(820m)
17-15/16
(455mm)
2-9/16
(64mm)
1/2
(13mm)
(4)
5-1/4
(133mm)
12
(305mm)
29-1/4
(743mm)7-1/4
(184mm)
Ø8
(204mm)
10
(254mm)
REAR VENT
COLLARS
ELECTRICAL
ACCESS
GAS LINE
ACCESS
GAS CONTROLS
& LABELS
END GLASS
DOOR
TOP STANDOFFS
TOP VENT
COLLARS
SIDE GLASS
DOOR

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06
18
3Installing the Fireplace
Step 1. Locating the Fireplace
The diagram below shows space and clearance require-
ments for locating a fireplace within a room.

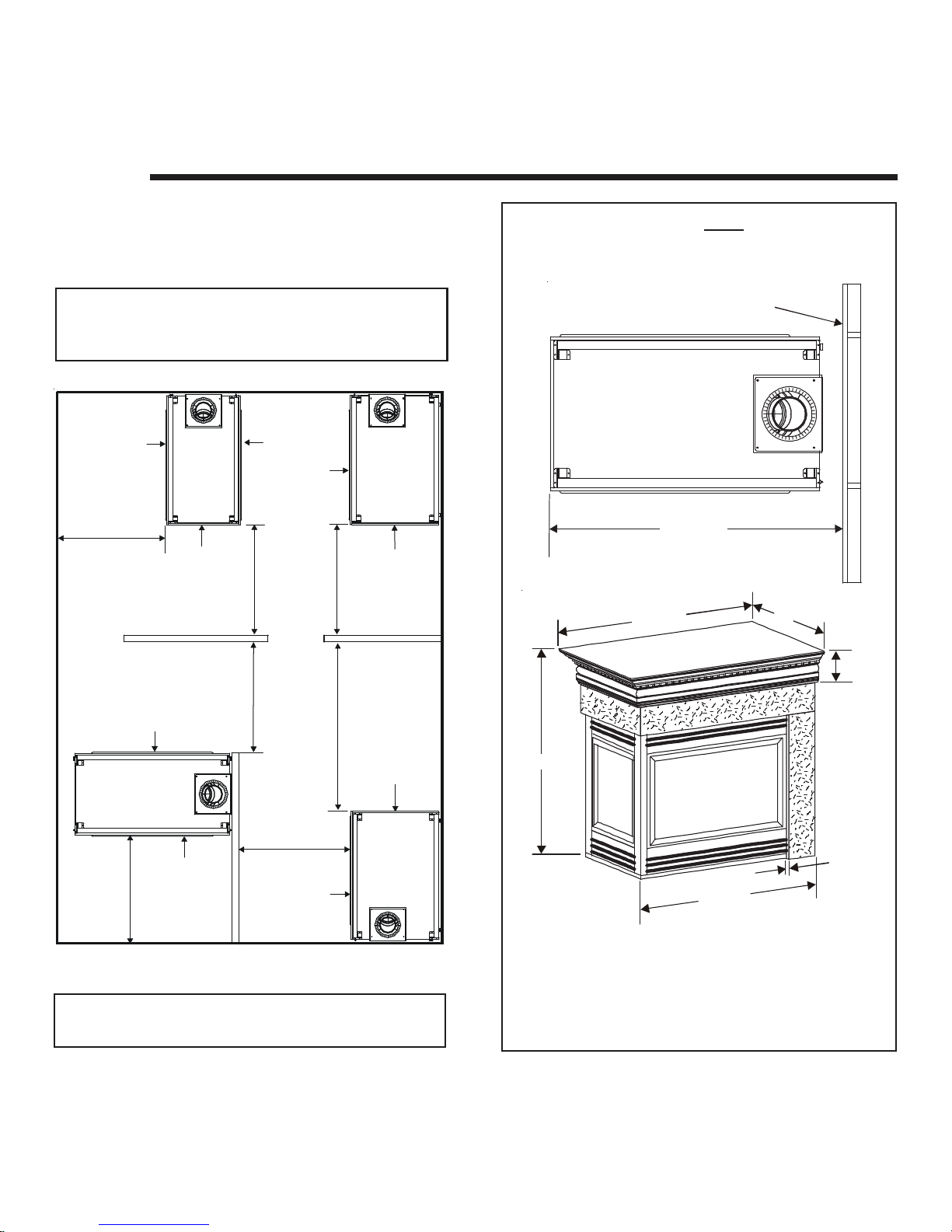

Figure 4A. Fireplace Dimensions and Locations
36"
GLASS
GLASS
GLASS
36"
GLASS
GLASS
36"
GLASS
36"
GLASS
GLASS
GLASS
36"
36"
36"
PIER-HVB-IPI
TOP VIEW RCOR-HVB-IPI
TOP VIEW
LCOR-HVB-IPI
TOP VIEW
ST-HVB-IPI
TOP VIEW
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs.Theminimumclearanceto a perpendicular wall
extendingpastthe faceofthefireplaceis oneinch(25mm).
ThemetalendsofthefireplacemayNOT berecessedinto
combustible construction.
Note: Refer to Figure 4B for dimensionsandappliance
locations if installing a Pier-HVB unit with a Catalina
shelf and/or marble package.
Note: Refer to the Catalina installation instruction
included with kit for assembly and installation. Figure 4B.
50-1/2 in.
34-1/2 in.
7 in.
47-1/2 in.
45-1/4 in.
13/16 in.
Marble sizes (inches):
Header.................................. 26 x 8
Side headers ..................45-1/2 x 8
Legs................................33-1/2 x 7
45 -1/4 in.
(1149mm)
FINISHED
WALL
Fireplace Locations/Dimensions with
Catalina Shelf/Marble Package ONLY
Î
Note: This location diagram MUST be followed when in-
stalling a Pier-HVB with a Catalina shelf/marble package
since the fireplace is installed further from finished wall.

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06 19
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Sides or Ends.......... 36 .................... 914
Floor ................................... 0 ....................... 0
RearVent...........................1/2 ..................... 13
Metal Sides or Ends ..........1/2..................... 13
Top................................... 2 1/2 ................... 64
Ceiling* .............................. 31 .................... 787
For minimum clearances, see the direct vent termination
clearance diagrams on pages 31 and 32 in this manual.
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections. ............. 1 ................ 25
Horizontal Sections
Top..................................... 3 ................ 75
Bottom ............................... 1 ................ 25
Sides ................................. 1 ................ 25
At Wall Firestops
Top.................................. 2 1/2 ............63.7
Bottom ..............................1/2............... 13
Sides ................................. 1 ................ 25
* The clearance to the ceiling is measured from the top of
the unit, excluding the standoffs (see Figures 37 & 38).
Thedistancefromtheunit to combustible constructionisto
be measured from the unit outer wrap surface to the com-
bustible construction, NOT from the screw heads that se-
curetheunittogether.
!
WARNING: FRAMING DIMENSIONS ASSUME
USE OF 1/2 INCH THICK WALL COVERING
MATERIALSONEXTERIOR OFFRAMINGONLYAND
NO SHEETROCK ON INTERIOR OF FRAMING.
Step 2. Framing the Fireplace
Fireplaceframingcanbe builtbeforeorafter thefireplaceis
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
grambelowshowsframing referencedimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFORE FRAMING.

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06
20
Framingshouldbe
constructedof2X4
lumberorheavier.
Model A B C D E
PIER-HVB-IPI 42-1/8 42-1/2 23 35-3/4 48
ST-HVB-IPI 47-5/8 42-1/2 23 35-3/4 48
L&RCOR-HVB-IPI 42-1/8 42-1/2 28-3/4 35-3/4 48
Figure 5. Framing Dimensions
NOTE: DIMENSIONS SHOWN IN INCHES
Shows center of 10” x 12” vent framing holes for top and rear venting. The center
of the hole is one inch (25.4mm) above the center of the horizontal vent pipe.
PIER-HV-IPI
ST-HV-IPI L & R-COR-HV-IPI
A
C
B
D
B
C
A
A
C
B
E

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06 21
NOTE: PIPES OVERLAP 1-1/4 INCHES
AT EACH JOINT.

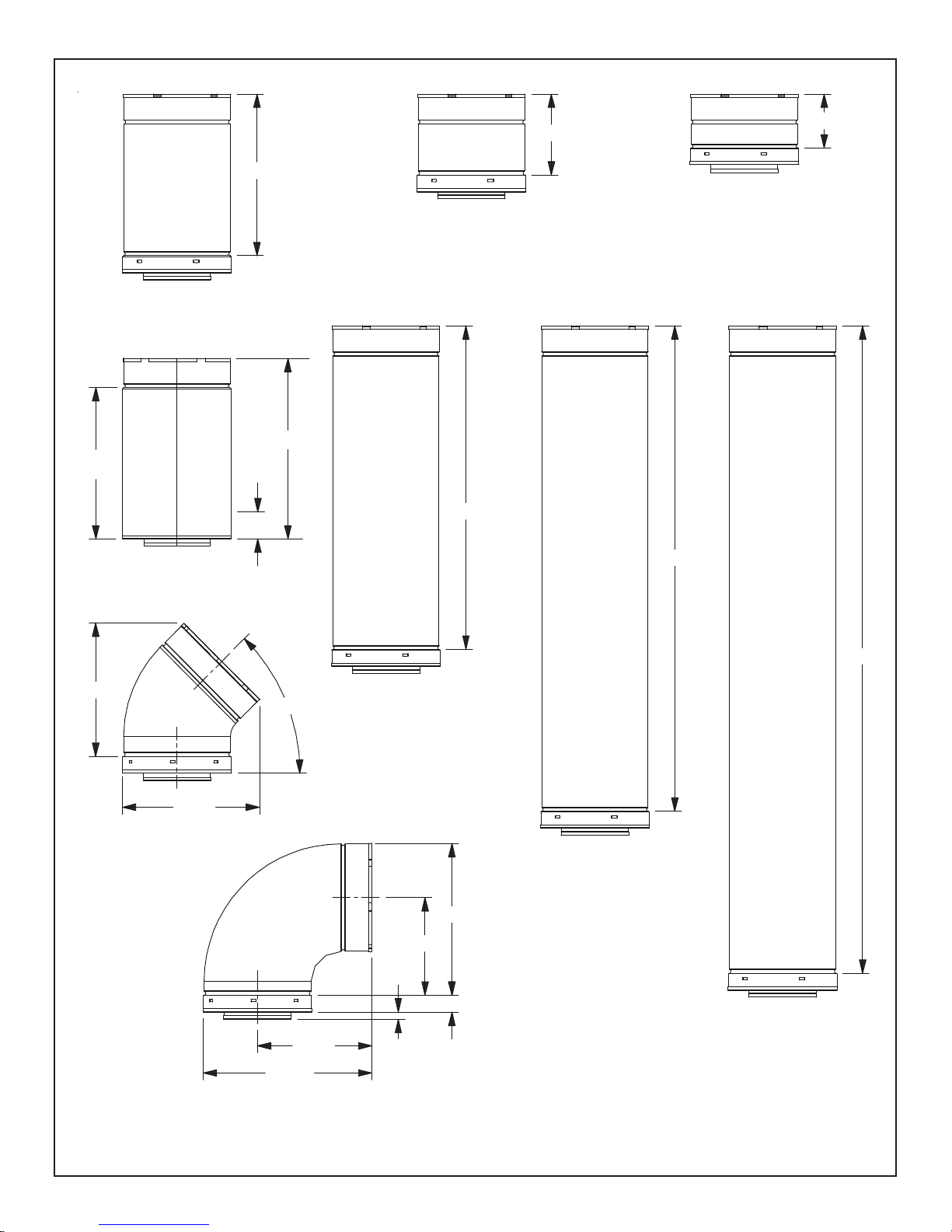

Figure 6. DVP-Series Direct Vent Component Specifications (5-inch inner pipe / 8-inch outer pipe)
DVP90ST
12-9/16
11-1/4
7-1/4
1-1/4 TYP
1/2 TYP
8-9/16
DVP36
DVP48
48
24
36
4
6
DVP4
DVP6
12
DVP12
2
MIN.
DVP12A
12-3/16
MAX.
DVP24
9-7/8
45.0
O
10-1/4
DVP45
14-1/4

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06
22

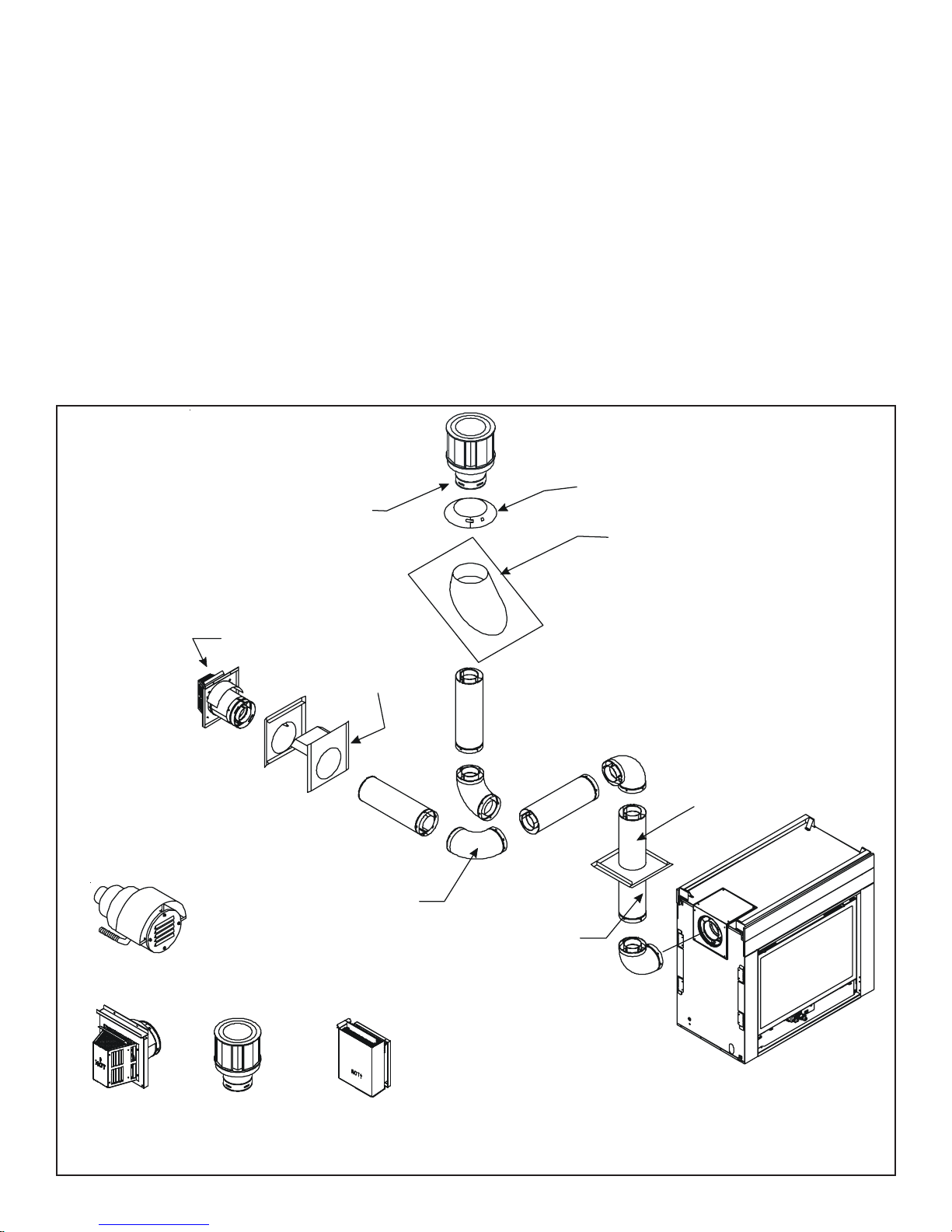

Figure 7. Vent System Components and Termination Kits
Step 3. Installing the Vent System
A. Vent System Approvals
Thesemodels are approved to use DVP series direct vent
pipe components and terminations (see Figures 6 and 7).
Approvedventsystemcomponentsarelabeled for identifi-
cation. This pipe is tested and listed as an approved com-
ponent of the fireplace. The pipe is tested to be run inside
an enclosed wall. There is no requirement for inspection
openingsateachjointwithinthewall.Thereisnorequired
pitchforhorizontalventruns.NO OTHER VENTING SYS-
TEMS OR COMPONENTS MAY BE USED.
Detailedinstallationinstructions areincludedwith eachvent
termination kit and should be used in conjunction with this
InstallersGuide.
The flame and ember appearance may vary based on the
typeoffuelburnedandtheventingconfigurationused.
Identifying Vent Components
The vent systems installed on this gas fireplace may in-
clude one, two, or three 90°elbow assemblies. The rela-
tionshipsofverticalrisetohorizontalruninventconfigura-
tions using 90° elbows MUST BE strictly adhered to. The
risetorunrelationshipsareshownintheventingdrawings
andtables.Refertothe diagramsonthenextseveralpages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Rise to run ratios in the vent system must
be followed if 45° elbows are used.
This model has a 450elbow built into it. It may be posi-
tionedtovent eitherhorizontalorvertical. Dependingonthe
installation,decidewhichdirection theelbowshouldbe fac-
ing.Removethe8screwsfromthecornercoverplate.Po-
sitionthe450elbowasdesiredandreplacethecornercov-
er plate with the 8 screws.
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
PIPE LENGTH
CEILING
FIRESTOP
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
Terminations Kits
(Required to have a minimum of 3
feet of vertical in the vent system)
DVP-TVPVK-80
DVP-TVHW
DVP-TRAP DVP-TB1
SERIES

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06 23
Figure 8
NOTE: Onverticalventing
configurations you may
want to install the flue re-
strictor (385-128).Seeflue
restrictor installation in-
structions.

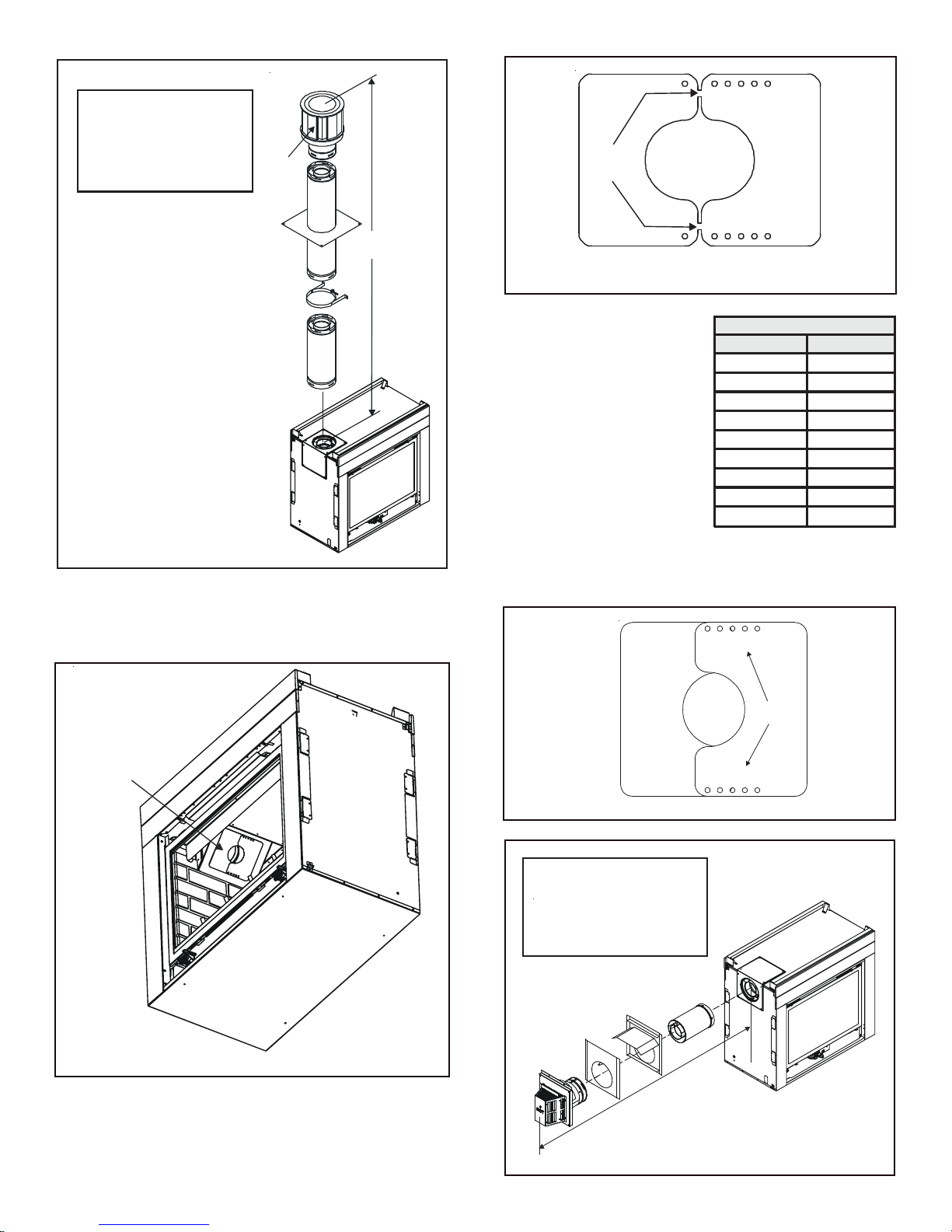

Flue Restrictor Instructions
1. Locate the Flue Restrictor which is in the manual
bag.
Figure 10. Flue Restrictor
BREAK
HERE
Figure 9
2. Break the Flue Restrictor into two pieces. Do this
by bending the part back and forth until it breaks
(see Figure 10).
1 2 3 4 5
SETTINGS
1 2 3 4 5
4.Center the Flue Restrictor on vent and secure in
place using two self-tapping screws (see Figure 11).
STRAIGHTOUT
HORIZONTALVENTING
H
Max. Run
24"(610mm)
Figure 12.
V
CAP
H
3. Match the amount of
vertical in the system
withthe charttofind the
appropriate position to
set the Flue Restrictor.
Figure 11
- CHART -
Vertical Settings
4' 1-1
8' 1-2
15' 2-2
20' 2-3
25' 3-3
30' 4-3
35' 4-4
40' 4-4
50' 4-5
FLUE
RESTRICTOR
STRAIGHTUP
VERTICALVENTING
V (FT.)
50' MAX. (15.2 M)

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06
24
Figure 14. Venting with One 90° Elbow
Figure 13. Venting with One 90° Elbow
V
H
H
V
NATURAL GAS - VENTING WITH ONE 90° ELBOW
V (FT.) H (FT.)
1'MIN.(305mm) 3' MAX. (914mm)
2'MIN.(610mm) 6' MAX. (1.83m)
3'MIN.(914mm) 9' MAX. (2.7m)
4'MIN. (1.22m) 12' MAX. (3.6m)
5’MIN.(1.5m) 15’ MAX. (4.5m)
6’MIN. (1.83m) 18’ MAX. (5.5m)
V + H = 50’ MAX. (15.2m)(11.3m)
PROPANE - VENTING WITH ONE 90° ELBOW
V (FT.) H (FT.)
1'MIN.(305mm) 2' MAX. (610mm)
2'MIN.(610mm) 4' MAX. (1.22m)
3'MIN.(914mm) 6’ MAX. (1.83m)
4'MIN. (1.22m) 8' MAX. (2.4m)
5’MIN.(1.5m) 10' MAX. (3.0m)
6’MIN. (1.83m) 12' MAX. (3.6m)
V + H = 50’ MAX. (15.2m)
NATURAL GAS
VENTING WITH ONE 90° ELBOW
V (FT.) H (FT.)
900Elbow on top 2.5’ MAX. (64mm)
1'MIN.(305mm) 3' MAX. (914mm)
2'MIN.(610mm) 6' MAX. (1.83m)
3'MIN.(914mm) 9' MAX. (2.7m)
4'MIN. (1.22m) 12' MAX. (3.6m)
5’MIN.(1.5m) 15’ MAX. (4.5m)
6’MIN. (1.83m) 18’ MAX. (5.5m)
V + H = 50’ MAX. (15.2m)
PROPANE
VENTING WITH ONE 90° ELBOW
V (FT.) H (FT.)
900Elbow on top 2’ MAX. (610mm)
1'MIN.(305mm) 2' MAX. (610mm)
2'MIN.(610mm) 4' MAX. (1.22m)
3'MIN.(914mm) 6’ MAX. (1.83m)
4'MIN. (1.22m) 8' MAX. (2.4m)
5’MIN.(1.5m) 10' MAX. (3.0m)
6’MIN. (1.83m) 12' MAX. (3.6m)
V + H = 50’ MAX. (15.2m)

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06 25

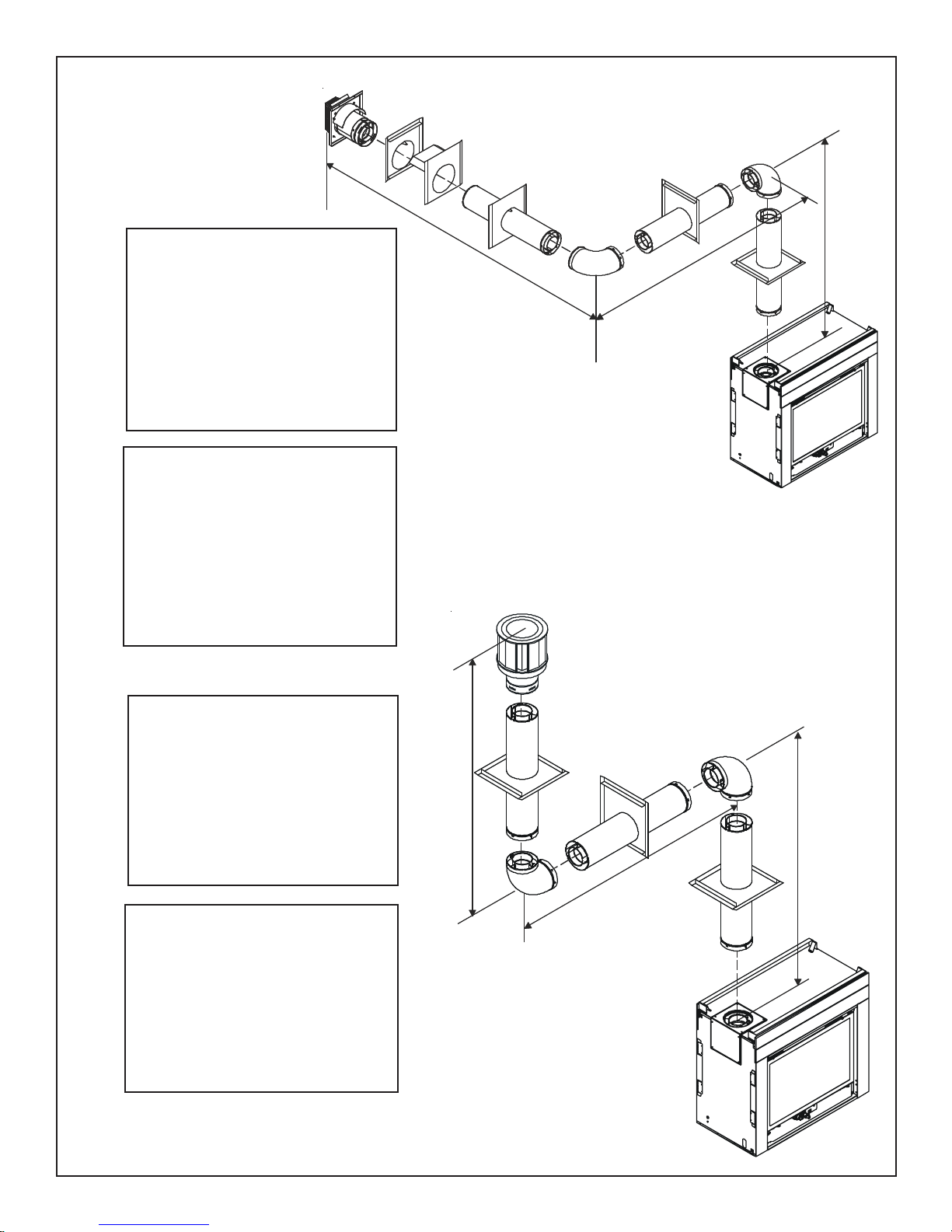

Figure 15. Venting with Two 90° Elbows
H
1
H
V
V
V
1
H
NATURAL GAS
VENTING WITH TWO 90° ELBOWS
V (FT.) H + H1(FT.)
900Elbow on top 2.5’ MAX. (64mm)
1'MIN.(305mm) 3' MAX. (914mm)
2'MIN.(610mm) 6' MAX. (1.83m)
3'MIN.(914mm) 9' MAX. (2.7m)
4'MIN. (1.22m) 12' MAX. (3.6m)
5’MIN.(1.5m) 15’ MAX. (4.5m)
6’MIN. (1.83m) 18’ MAX. (5.5m)
V + H + H1= 50’ MAX. (15.2m)
PROPANE
VENTING WITH TWO 90° ELBOWS
V (FT.) H + H1(FT.)
900Elbow on top 2’ MAX. (610mm)
1'MIN.(305mm) 2' MAX. (610mm)
2'MIN.(610mm) 4' MAX. (1.22m)
3'MIN.(914mm) 6’ MAX. (1.83m)
4'MIN. (1.22m) 8' MAX. (2.4m)
5’MIN.(1.5m) 10' MAX. (3.0m)
6’MIN. (1.83m) 12' MAX. (3.6m)
V + H + H1= 50’ MAX. (15.2m)
NATURAL GAS
VENTING WITH TWO 90° ELBOWS
V + V1(FT.) H (FT.)
900Elbow on top 2.5’ MAX. (64mm)
1'MIN.(305mm) 3' MAX. (914mm)
2'MIN.(610mm) 6' MAX. (1.83m)
3'MIN.(914mm) 9' MAX. (2.7m)
4'MIN. (1.22m) 12' MAX. (3.6m)
5’MIN.(1.5m) 15’ MAX. (4.5m)
6’MIN. (1.83m) 18’ MAX. (5.5m)
V + V1+ H = 50’ MAX. (15.2m)
PROPANE
VENTING WITH TWO 90° ELBOWS
V + V1(FT.) H (FT.)
900Elbow on top 2’ MAX. (610mm)
1'MIN.(305mm) 2' MAX. (610mm)
2'MIN.(610mm) 4' MAX. (1.22m)
3'MIN.(914mm) 6’ MAX. (1.83m)
4'MIN. (1.22m) 8' MAX. (2.4m)
5’MIN.(1.5m) 10' MAX. (3.0m)
6’MIN. (1.83m) 12' MAX. (3.6m)
V + V1+ H = 50’ MAX. (15.2m)
H + H1= 18’ MAX. (5.5m)
H + H1= 12’ MAX. (3.6m)

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06
26

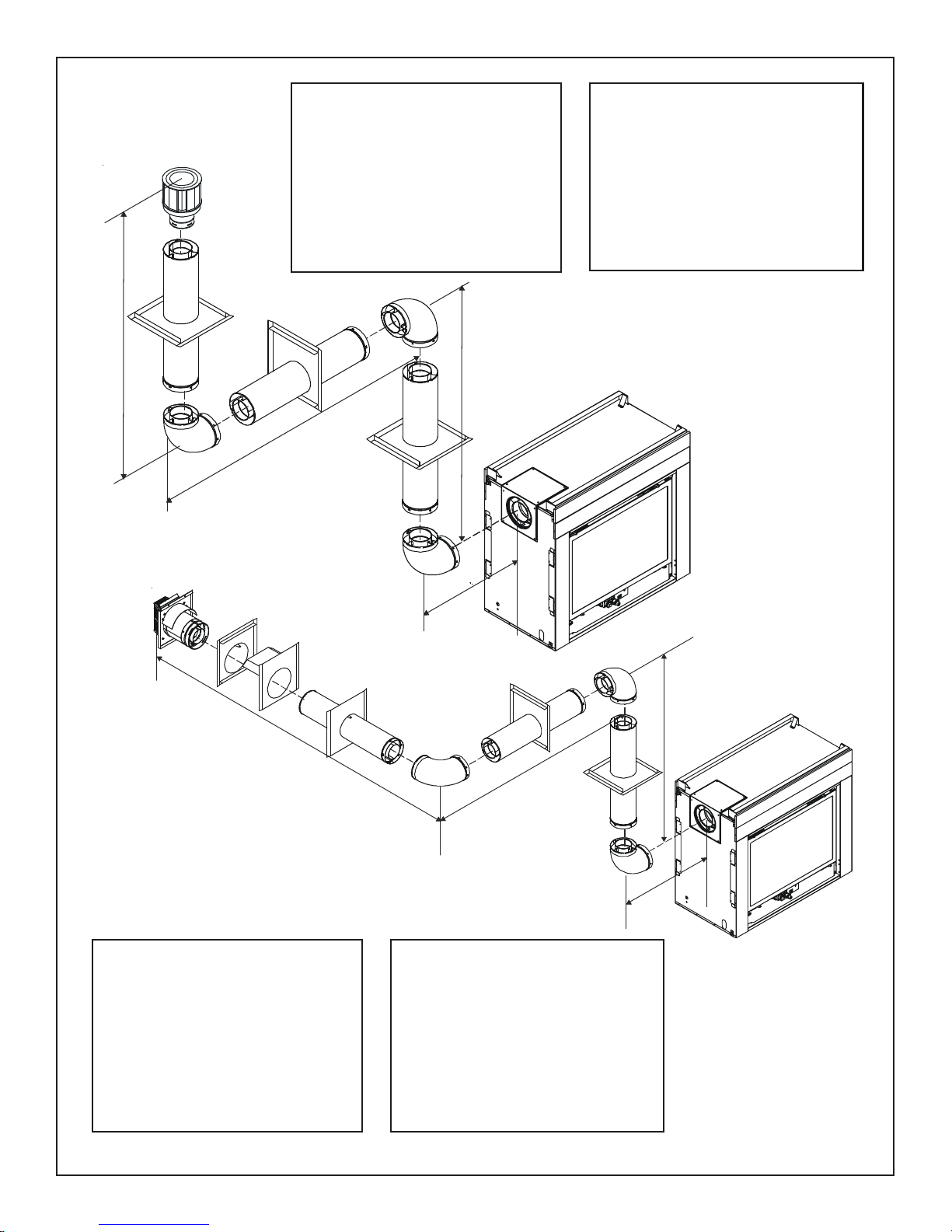

Figure 16.
Venting with Two 90° Elbows
Figure 17. Venting with Two 90° Elbows
H
1
V
H
V
H
H
1
NATURAL GAS
VENTING WITH TWO 90° ELBOWS
V (FT.) H + H1(FT.)
1'MIN.(305mm) 3' MAX. (914mm)
2'MIN.(610mm) 6' MAX. (1.83m)
3'MIN.(914mm) 9' MAX. (2.7m)
4'MIN. (1.22m) 12' MAX. (3.6m)
5’MIN.(1.5m) 15’ MAX. (4.5m)
6’MIN. (1.83m) 18’ MAX. (5.5m)
V + H + H1= 50’ MAX. (15.2m)
PROPANE
VENTING WITH TWO 90° ELBOWS
V (FT.) H + H1(FT.)
1'MIN.(305mm) 2' MAX. (610mm)
2'MIN.(610mm) 4' MAX. (1.22m)
3'MIN.(914mm) 6’ MAX. (1.83m)
4'MIN. (1.22m) 8' MAX. (2.4m)
5’MIN.(1.5m) 10' MAX. (3.0m)
6’MIN.(1.83m) 12' MAX. (3.6m)
V + H + H1= 50’ MAX. (15.2m)
H + H1= 12’ MAX. (3.6m)
H + H1= 18’ MAX. (5.5m)
NATURAL GAS
VENTING WITH TWO 90° ELBOWS
V (FT.) H + H1(FT.)
1'MIN.(305mm) 3' MAX. (914mm)
2'MIN.(610mm) 6' MAX. (1.83m)
3'MIN.(914mm) 9' MAX. (2.7m)
4'MIN. (1.22m) 12' MAX. (3.6m)
5’MIN.(1.5m) 15’ MAX. (4.5m)
6’MIN. (1.83m) 18’ MAX. (5.5m)
V + H + H1= 50’ MAX. (15.2m)
PROPANE
VENTING WITH TWO 90° ELBOWS
V (FT.) H + H1(FT.)
1'MIN.(305mm) 2' MAX. (610mm)
2'MIN.(610mm) 4' MAX. (1.22m)
3'MIN.(914mm) 6’ MAX. (1.83m)
4'MIN. (1.22m) 8' MAX. (2.4m)
5’MIN.(1.5m) 10' MAX. (3.0m)
6’MIN. (1.83m) 12' MAX. (3.6m)
V + H + H1= 50’ MAX. (15.2m)
H + H1= 12’ MAX. (3.6m)
H + H1= 18’ MAX. (5.5m)

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06 27
Figure 18. Venting with three 90° elbows
H
H
1
H
2
V
H
V
H
1
V
1
NATURAL GAS
VENTING WITH THREE 90° ELBOWS
V + V1(FT.) H + H1+ H2(FT.)
1'MIN.(305mm) 3' MAX. (914mm)
2'MIN.(610mm) 6' MAX. (1.83m)
3'MIN.(914mm) 9' MAX. (2.7m)
4'MIN. (1.22m) 12' MAX. (3.6m)
5’MIN.(1.5m) 15’ MAX. (4.5m)
6’MIN. (1.83m) 18’ MAX. (5.5m)
V+ V1+ H + H1+ H2= 50’ MAX. (15.2m)
PROPANE
VENTINGWITH THREE 90° ELBOWS
V + V1(FT.) H + H1+ H2(FT.)
1'MIN.(305mm) 2' MAX. (610mm)
2'MIN.(610mm) 4' MAX. (1.22m)
3'MIN.(914mm) 6’ MAX. (1.83m)
4'MIN. (1.22m) 8' MAX. (2.4m)
5’MIN.(1.5m) 10' MAX. (3.0m)
6’MIN. (1.83m) 12' MAX. (3.6m)
V+ V1+ H + H1+ H2= 50’ MAX. (15.2m)
H + H1+ H2= 12’ MAX. (3.6m)
H + H1+ H2= 18’ MAX. (5.5m)
NATURAL GAS
VENTING WITH THREE 90° ELBOWS
V + V1(FT.) H + H1(FT.)
1'MIN.(305mm) 3' MAX. (914mm)
2'MIN.(610mm) 6' MAX. (1.83m)
3'MIN.(914mm) 9' MAX. (2.7m)
4'MIN. (1.22m) 12' MAX. (3.6m)
5’MIN.(1.5m) 15’ MAX. (4.5m)
6’MIN. (1.83m) 18’ MAX. (5.5m)
V+ V1+ H + H1= 50’ MAX. (15.2m)
PROPANE
VENTINGWITH THREE 90° ELBOWS
V + V1(FT.) H + H1(FT.)
1'MIN.(305mm) 2' MAX. (610mm)
2'MIN.(610mm) 4' MAX. (1.22m)
3'MIN.(914mm) 6’ MAX. (1.83m)
4'MIN. (1.22m) 8' MAX. (2.4m)
5’MIN.(1.5m) 10' MAX. (3.0m)
6’MIN.(1.83m) 12' MAX. (3.6m)
V+ V1+ H + H1= 50’ MAX. (15.2m)
H + H1= 12’ MAX. (3.6m)
H + H1= 18’ MAX. (5.5m)

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06
28
Figure 19. Venting with three 90° elbows
V
H
H
1
V
1
V
H
H
1
V
1
NATURAL GAS
VENTING WITH THREE 90° ELBOWS
V + V1(FT.) H + H1(FT.)
900Elbow on top 2.5’ MAX. (64mm)
1'MIN.(305mm) 3' MAX. (914mm)
2'MIN.(610mm) 6' MAX. (1.83m)
3'MIN.(914mm) 9' MAX. (2.7m)
4'MIN. (1.22m) 12' MAX. (3.6m)
5’MIN.(1.5m) 15’ MAX. (4.5m)
6’MIN. (1.83m) 18’ MAX. (5.5m)
V+ V1+ H + H1= 50’ MAX. (15.2m)
PROPANE
VENTINGWITH THREE 90° ELBOWS
V + V1(FT.) H + H1(FT.)
900Elbow on top 2’ MAX. (610mm)
1'MIN.(305mm) 2' MAX. (610mm)
2'MIN.(610mm) 4' MAX. (1.22m)
3'MIN.(914mm) 6’ MAX. (1.83m)
4'MIN. (1.22m) 8' MAX. (2.4m)
5’MIN.(1.5m) 10' MAX. (3.0m)
6’MIN.(1.83m) 12' MAX. (3.6m)
V+ V1+ H + H1= 50’ MAX. (15.2m)
H + H1= 12’ MAX. (3.6m)
H + H1= 18’ MAX. (5.5m)

Heat&Glo • PIER-HVB-IPI,ST-HVB-IPI,LCOR-HVB-IPI,RCOR-HVB-IPI • 2006-900 Rev. M• 8/06 29
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component to the starting collars
ofthefireplace:
• Slidethefirstventsectionontotheunitandpushinuntil
they snap lock in position.
• Rotate this section to the desired position.
• Using the two tabs provided on the elbow cover plate,
secure the first section of venting to the fireplace with
two screws.
Refer to Cinch Pipe and Termination Cap installation
instructions.
If the installation is for a termination cap attached directly
tothefireplace,skiptothesections,Install Firestops and
Vent Termination.
B. Installing Vent Components
Afterdeterminingwhich directionthe45Oelbowwillbe used
followventinginstructionsaccordingly.
• Thisfireplacecomesreadytovent vertically.
• To vent off the unit horizontally, the elbow cover plate
must first be removed from the unit (see Figure 20).
• Theelbowcanberemoved from the unit byaligningthe
seams of the elbow to the arrows on the surrounding
heat shield (see Figure 21).
• Positiontheelbowinthe vertical position.Snapinplace
with the starting collar.
• Replacetheelbowcoverplatealigning it with the elbow
and secure in place with the 8 screws.
• Place the rope ring around the first section of pipe and
slide it up against the cover plate.
NOTE: The rope ring is needed for the heat manage-
mentand to prevent cold air infiltration.
Venting Out Vertically
Ifthe vertical vent component is over 4 feet, you may want
to install the flue restrictor (located in the bag containing
the install manual) to improve flame appearance. Center
the flue restrictor on the 5” flue being used, and with self
tapping screws secure the restrictor to the inside of the
firebox as shown in Figure 22.

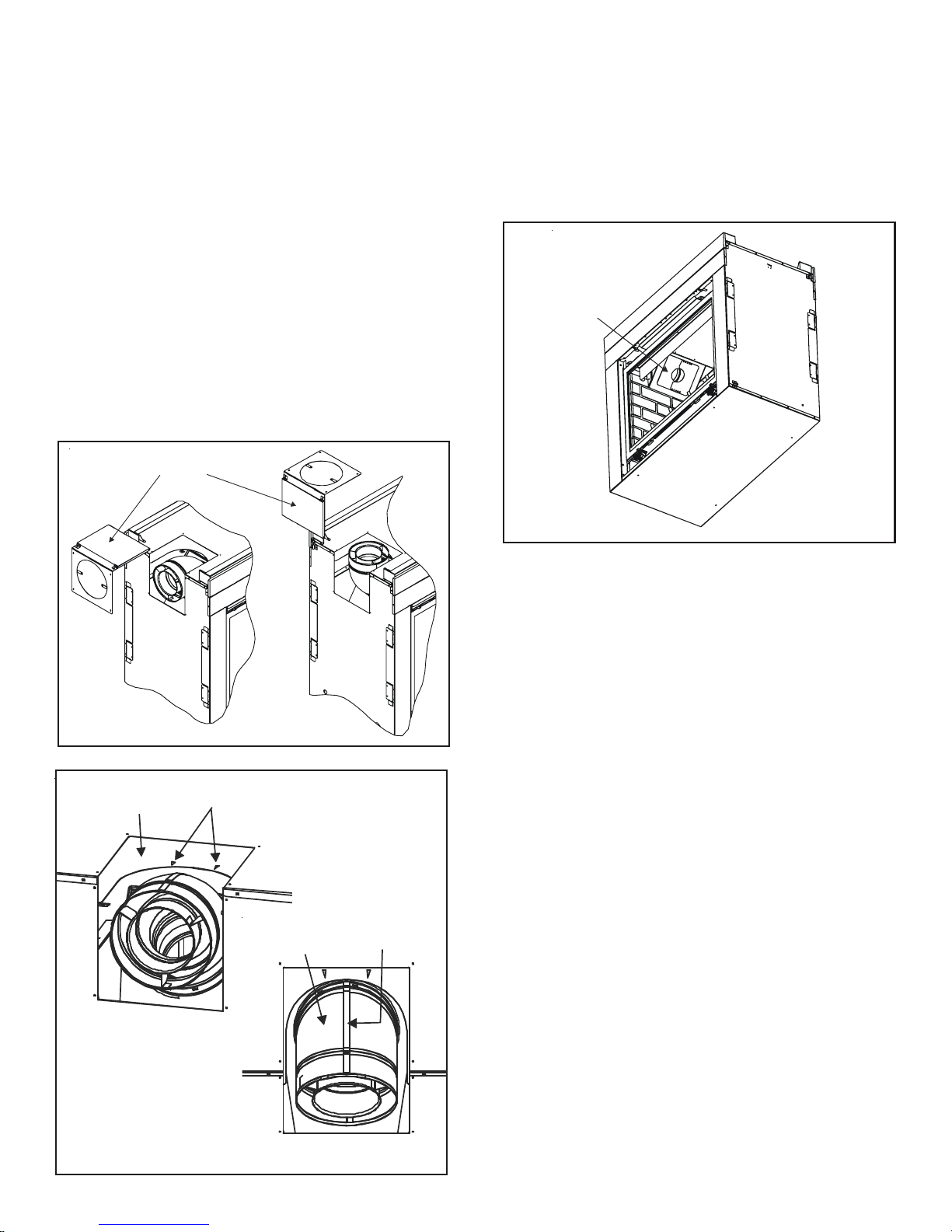

Figure 20
Figure 22
FLUE
RESTRICTOR
ELBOW COVER PLATE
Figure 21 TOP VIEW
HEAT
SHIELD ARROWS
ELBOW ELBOW SEAM
FRONT VIEW
Î
Î
