Heatilator E36 Manual

08/04 17335 Rev L 1
WARNING!
Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this
manual. For assistance or additional information, consult a qualified installer, service agency or the gas supplier.
INSTALLATION & OPERATING
INSTRUCTIONS
E36 E39 E42
WOODBURNING FIREPLACE
Note: An arrow () found in the text signifies change in content.

2 17335 Rev L 07/04
E36/39/42 INSTALLATION INSTRUCTIONS
CAUTION:
Do not expose the fireplace to the elements (i.e. rain, etc.) and keep the fireplace dry at all times. Wet insulation
will produce an odor when the fireplace is used.
Table of Contents
Design and Installation Considerations ........................................................................................... 3
A. Listings and Code Approvals .......................................................................................................... 4
B. Description of the Fireplace System .............................................................................................. 4
C. Fireplace System Components ...................................................................................................... 5
D. Pre-Installation Preparation .......................................................................................................... 10
E. Chimney Requirements ................................................................................................................ 12
F. Installation of Fireplace ................................................................................................................ 15
G. Constructing a Chase .................................................................................................................. 22
H. Operating Instructions .................................................................................................................. 25
I. Maintenance Instructions ............................................................................................................. 29
Index ........................................................................................................................................... 31
Warranty ...................................................................................................................................... 32
Safety Precautions
1. Please read these installation instructions completely before beginning installation procedures. Failure to follow
them could cause a fireplace malfunction resulting in serious injury and/or property damage.
2. Always check your local building codes prior to installation. The installation must comply with all local, regional,
state and national codes and regulations.
3. An adequate supply of replacement combustion air from outside the house must be available to the fire for the
fireplace to operate properly. To achieve this, the use of the optional outside air kit is highly recommended.
In the event the home is unusually tightly sealed, the optional combustion air kit may not provide all the air required
to support combustion. Hearth & Home Technologies is not responsible for any smoking or related problems that
may result from the lack of adequate combustion air. It is the responsibility of the builder/contractor to ensure that
adequate combustion air has been provided for the fireplace.
4. The fireplace must be installed with the Hearth & Home Technologies SL Series Chimney System.
The chimney system must always terminate outside the building. Be sure to follow all chimney specifications given
in these installation instructions.
5. NEVER leave children unattended when there is a fire burning in the fireplace.
6. This fireplace is built for solid fuel only. NEVER use gasoline, gasoline type lantern fuel, kerosene, charcoal light
fluid, or similar liquids in this fireplace. Keep any flammable liquids a safe distance from the fireplace.
7. DO NOT use chimney cleaners or flame colorants in your fireplace.
8. The flue damper must be open at all times when the fireplace is in use.
9. While servicing this fireplace, always shut off any electricity or gas to the fireplace. This will prevent possible electric
shock or burns. Also, make sure the fireplace is completely cooled before servicing.
10. To ensure a safe fireplace system and to prevent the build up of soot and creosote, inspect and clean the fireplace
and chimney prior to use and periodically during the burning season. See “Maintenance Instructions” in this manual
for cleaning instructions.
WARNING!
This fireplace is tested and listed for use only with the optional accessories listed in these instructions. Use of
optional accessories not specifically tested for this appliance could void the warranty and/or result in a safety
hazard.

08/04 17335 Rev L 3
E36/39/42 INSTALLATION INSTRUCTIONS
DESIGN AND INSTALLATION CONSIDERATIONS
When selecting a location for your woodburning fireplace, it is important to evaluate a number of considerations. Modern
construction techniques can create conditions that may not allow your chimney to draft properly. This may result in
smoke spillage from your fireplace, as well as cause other combustion appliances to operate incorrectly.
Tightly sealed construction is important for energy efficiency. Unfortunately, a great deal of effort has been directed to
tightening up sidewall construction, while considerably less attention has been paid to tightening upper portions of the
warm air envelope (insulated ceilings). This has increased the “Stack Effect”, a condition that increases the negative
pressure generated by the structure. This negative pressure will directly affect the drafting performance of a fireplace
chimney. To minimize the negative pressure generated by stack effect, make certain that all duct work installed in the attic
spaces is sealed airtight. Minimize the number of recessed light fixtures installed in the insulated ceiling, and use sealed
recessed light fixtures. Finally, make certain the whole house fans and attic access panels are tightly sealed. These are
important design considerations that must be observed during the design and construction stage of the home.
If you desire to put a fireplace in your basement, we recommend that you consider a direct vent gas fireplace. Basements
always have a significant negative air pressure that causes the fireplace system to be more susceptible to smoke
spillage and cold flue back drafting. Since direct vent gas fireplaces are sealed, they are not affected by the negative
pressure that exists in basements.
Finally, woodburning fireplaces perform best when their chimney (roof termination) is located on the upper half of the
roof, especially when cathedral ceilings are present. Chimneys that are located on the lower half of the roof realize what
is known as “lazy flue” and will not draft as well as a chimney that is located in the upper portion of the roof. The reason
for this is that the stack effect generated by the overall height of the living spaces inside the house will exceed the draft
generated by the chimney system. If you desire to place a woodburning fireplace in a location where the termination cap
would be located on the lower half of a roof, such as on an outside wall at the base of a cathedral ceiling, we recommend
that you consider using a direct vent gas fireplace. This will assure the homeowner a fireplace that operates correctly.
These properties do not affect just your woodburning factory built fireplace. They can cause any woodburning fireplace as
well as any conventionally vented (B-vent) gas appliance to operate improperly. Careful planning at this stage of your
project will ensure satisfaction with the operation of your fireplace once it is completed.

4 17335 Rev L 07/04
E36/39/42 INSTALLATION INSTRUCTIONS
WARNING!
This fireplace and its components are designed to be installed and operated as a system. Any alteration to or
substitution for items in this system, unless allowed by these installation instructions, will void the Underwrit-
ers Laboratories listing and may void the product warranty. It may also create a hazardous installation. Read
through these instructions thoroughly before starting your installation and follow them carefully throughout
your project.
1. The Heatilator fireplace system consists of the following:
a. Fireplace/Integral Grate
b. Refractory
c. Chimney Termination Cap
d. Chimney System
e. Hearth Extension
2. Optional Components Include:
a. Glass Doors
b. Chimney Air Kit
c. Outside Combustion Air System
Note: Illustrations used throughout these instructions
reflect “typical installations” and are for design purposes
only. Actual installation may vary slightly due to individual
design preferences. However, minimum and maximum
clearances must be maintained at all times.
The illustrations and diagrams used throughout these
installation instructions are not drawn to scale.

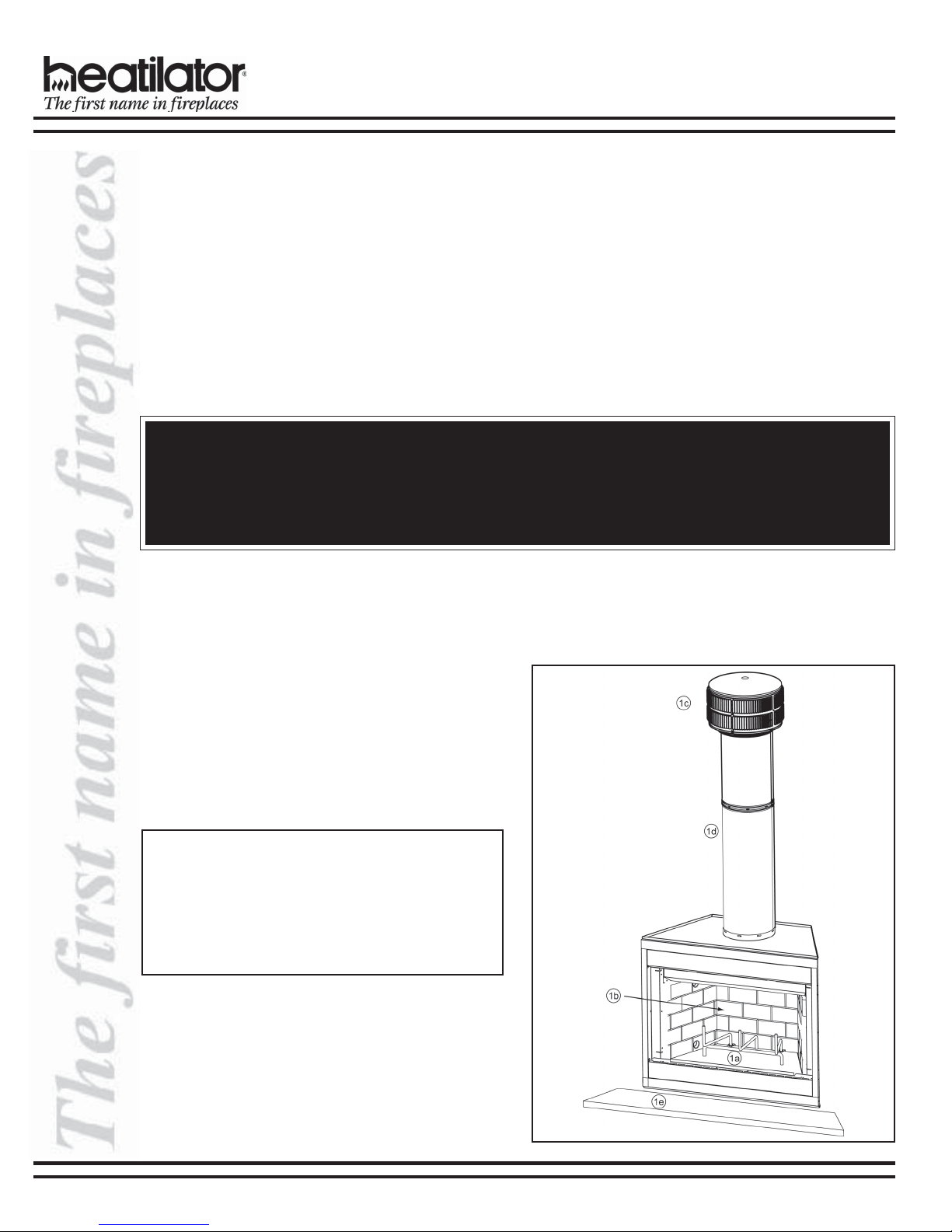

Figure 1 - Typical Fireplace System
B. DESCRIPTION OF THE FIREPLACE SYSTEM
A. LISTINGS AND CODE APPROVALS
This fireplace system has been tested and listed in
accordance with UL 127 and ULC-S610 standards, and
has been listed by Underwriters Laboratories Inc. for
installation and operation in the United States and Canada
as described in this manual.
This fireplace has been tested and listed for use with the
optional components listed on page 5. These optional
components may be purchased separately and installed
at a later date. However, installation of an outside air kit
will require significant reconstruction, and should be
installed at the time of the initial fireplace installation.
Check with your local building code agency prior to installing
this fireplace to ensure compliance with local codes,
including the need for permits and follow-up inspections. If
you need assistance during installation, please contact your
local dealer or the Heatilator Technical Services
Department, Hearth & Home Technologies Inc., 1915 W.
Saunders St., Mt. Pleasant, Iowa 52641 (1-800-927-6841).
Heatilator® is a registered trademark of Hearth & Home
Technologies Inc.

08/04 17335 Rev L 5
E36/39/42 INSTALLATION INSTRUCTIONS
C. SYSTEM COMPONENTS
1. Fireplace Components
GR4
GR5
GR6
INTEGRAL GRATE
(Supplied)
GLASS DOORS
HEARTH EXTENSION
AB
DP1036 DP1036B DP1036S
DP1042 DP1042B DP1042S
Perception Glass Doors
DM1036 DM1036B DM1036S
DM1039 DM1039B DM1039S
DM1042 DM1042B DM1042S
Bifold Glass Doors
DMA1036B
DMA1042B
Arched Cabinet Glass Doors
Catalog # Description:
E36 E39 E42 Fireplace, includes integral grate and hearth protection strips
HX3 HX3 HX4 Hearth Extension
DM1036 DM1039 DM1042 Original Bifold Glass Doors - Black Finish
DM1036B DM1039B DM1042B Original Bifold Glass Doors - Polished Brass Finish
DM1036S DM1039S DM1042S Original Bifold Glass Doors - Stainless Steel Finish
DP1036 none DP1042 Perception Glass Doors - Black Finish
DP1036B none DP1042B Perception Glass Doors - Polished Brass Finish
DP1036S none DP1042S Perception Glass Doors - Stainless Steel Finish
DMA1036B none DMA1042B Arched Cabinet Style Glass Doors - Polished Brass Finish
GR4 GR5 GR6 Integral Grate (included with fireplace)
AK14 Outside Air Kit
Cat # A B
HX3 52 in. 16 in.
HX4 66 in. 20 in.

6 17335 Rev L 07/04
E36/39/42 INSTALLATION INSTRUCTIONS
OUTSIDE AIR KIT
AK14
Fireplace Dimensions
Cat # A B C D
E/EC36 36 in.
914 mm
41 in.
1041 mm
25-1/4 in.
641 mm
12-5/8 in.
321 mm
E/EC39 39 in
991 mm
44 in.
1118 mm
28-1/4 in.
718 mm
14-1/8 in.
359 mm
E/EC42 42 in.
1067 mm
47 in.
1194 mm
31-1/4 in.
794 mm
15-5/8 in.
397 mm

08/04 17335 Rev L 7
E36/39/42 INSTALLATION INSTRUCTIONS
2. Chimney Components
The following pictures show only those chimney components which may be safely used with this fireplace.
Catalog # Description:
CAK4A Chimney Air Kit
ID 4 Insula te d D uc t/Outsi d e A i r
UD4 Uninsulated Duct/Outside Air
SL306 Chimney Section - 6 in. long
SL312 Chimney Section - 12 in. long
SL318 Chimney Section - 18 in. long
SL324 Chimney Section - 24 in. long
SL336 Chimney Section - 36 in. long
SL348 Chimney Section - 48 in. long
SL3 Chimney Stabilizer
SL315 Chimney Offset/Return - 15-degree
SL330 Chimney Offset/Return - 30-degree
FS338 Firestop - Straight
FS339 Firestop - 15-degree
FS340 Firestop - 30-degree
AS8 SL300 Straight Attic Insulation Shield, 24 in.
JB877 Chimney Joint Band
CB876 Chimney Bracket
RF370 Roof Flashing - Flat to 6/12 Pitch
RF371 Roof Flashing - 6/12 to 12/12 Pitch
TR344 Round Termination Cap
TR342 Round Telescoping Termination Cap
ST375 Square Termination Cap
TS345 Square Termination Cap
TS345P Square Termination Cap - Painted
TCT375 Terra Cotta Termination Cap
CT35 Chase Top
LDS33 Decorative Shroud - 3 ft x 3 ft
LDS46 Decorative Shroud - 4 ft x 6 ft

8 17335 Rev L 07/04
E36/39/42 INSTALLATION INSTRUCTIONS
SL3 - Chimney Stabilizer SL330 - Offset/Return
RF370 - Roof Flashing
Flat to 6/12 Pitch
RF371 - Roof Flashing
6/12 to 12/12 Pitch
CB876
Chimney Bracket
AS8
Straight Attic
Insulation Shield
Chimney Sections
Firestop Spacer
JB877
Joint Band
Catalog # A B
SL306 6 in. 4-3/4 in.
SL312 12 in. 10-3/4 in.
SL318 18 in. 16-3/4 in.
SL324 24 in. 22-3/4 in.
SL336 36 in. 34-3/4 in.
SL348 48 in. 46-3/4 in.
A = Actual length
B = Effective length (length
of chimney part after it
has been snapped to
another)
Catalog # A B
FS338 0-deg. 14-1/2 in.
FS339 15-deg. 18-3/8 in.
FS340 30-deg. 23 in.

08/04 17335 Rev L 9
E36/39/42 INSTALLATION INSTRUCTIONS

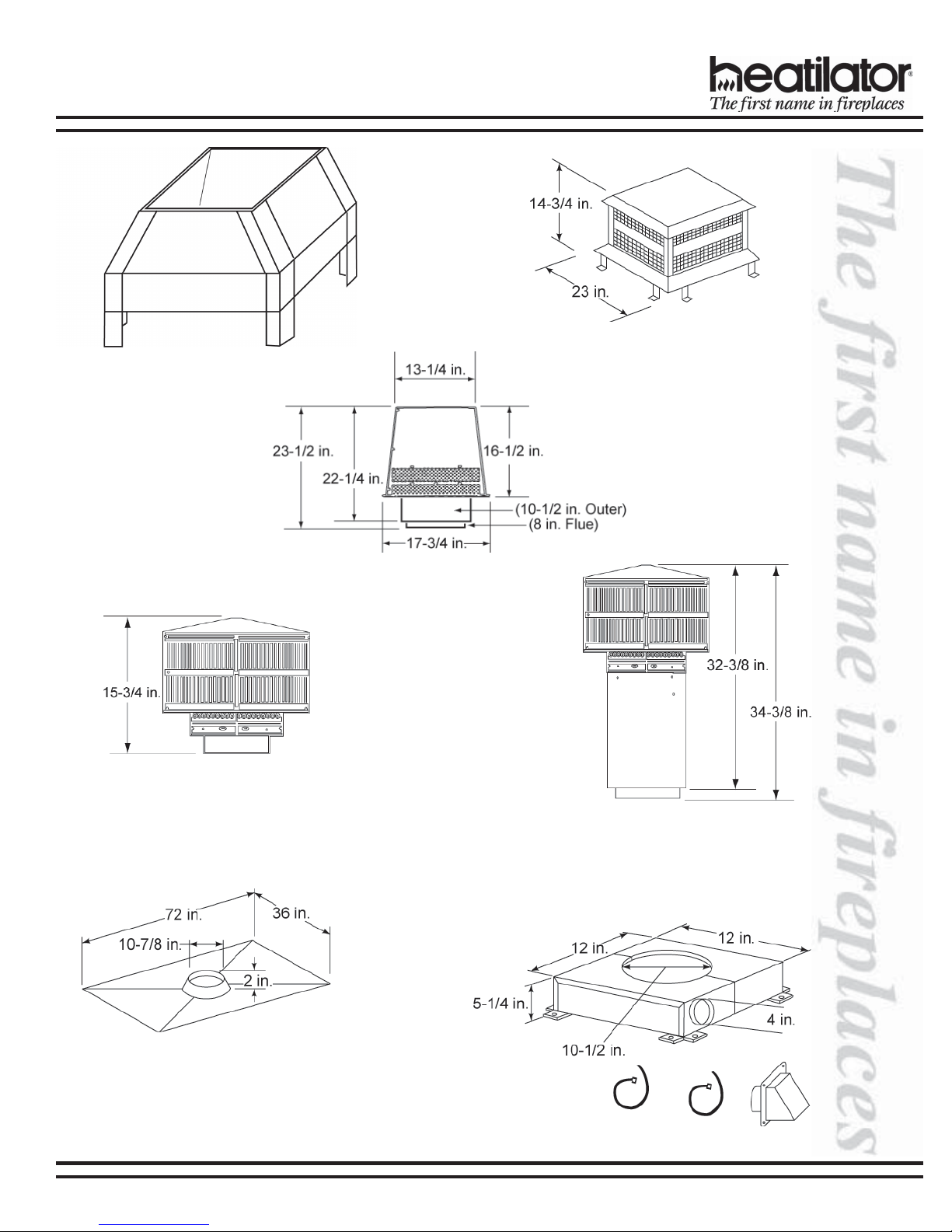

LDS33 (3 ft x 3 ft)
LDS46 (4 ft x 6 ft)
Decorative Shroud
TR344
Round
Termination Cap
TR342
Round Telescoping
Termination Cap
CT35
Chase Top
CAK4A
Chimney Air Kit
TS345/TS345P
Square
Termination Cap
ST375
Square
Termination Cap

10 17335 Rev L 07/04
E36/39/42 INSTALLATION INSTRUCTIONS
Figure 3
Installation Along a Wall or an Exterior Chase
Figure 4
Corner Installation
WARNING!
Do not draw outside air from garage spaces. Exhaust products of gasoline engines are hazardous.
Do not install outside air ducts such that the air may be drawn from attic spaces, basements or above the
roofing where other heating appliances or fans and chimneys exhaust or utilize air. These precautions will
reduce the possibility of fireplace smoking or air flow reversal.
WARNING!
To prevent contact with sagging or loose insulation, the fireplace must not be installed against vapor barriers
or exposed insulation. Localized overheating could occur and a fire could result.
Figure 2 - Fireplace Locations
1. Fireplace Locations and Space Requirements
Several options are available to you when choosing a location for your fireplace. This fireplace may be used as a
room divider, installed along a wall, across a corner or used in an exterior chase. See Figure 2.
Locating the fireplace in a basement, near frequently opened doors, central heat outlets or returns, or other locations
of considerable air movement can affect the performance and cause intermittent smoke spillage from the front of
the fireplace. Consideration should be given to these factors before deciding on a location.
CLEARANCES!
A minimum 1/2 in. air
clearance must be
maintained at the back and
sides of the fireplace
assembly.
Chimney sections at any level
require a 2 in. minimum air
space clearance between the
framing and chimney section.
D. PRE-INSTALLATION PREPARATION
Figures 3 and 4 show two typical installations assuming an outside air kit is being used. Therefore, an allowance must
be made for 90-deg bends. Less space is required when ducting goes directly outside without forming elbows.
Cat#ABCDE
E/EC36 42 in.
1067 mm
72-3/4 in.
1848 mm
36-3/8 in.
924 mm
15-5/8 in.
397 mm
51-3/8 in.
1305 mm
E/EC39 45 in.
1143mm
75-3/4 in.
1924 mm
37-7/8 in.
962 mm
16-5/8 in.
422 mm
53-1/2 in.
1359 mm
E/EC42 48 in.
1219 mm
78-3/4 in.
2000 mm
39-3/8 in.
1000 mm
17-5/8 in.
448 mm
55-3/8 in.
1407 mm
Cat # A B
E/EC36 42 in
1067 mm
45 in.
1143 mm
E/EC39 45 in.
1143 mm
48 in.
1219 mm
E/EC42 48 in.
1219 mm
51 in.
1295 mm
These are
rough
framing
dimensions
only.

08/04 17335 Rev L 11
E36/39/42 INSTALLATION INSTRUCTIONS
WARNING!
Do not apply combustible finishing materials over any part of the black face of this fireplace or a structure fire
may result. The black metal fireplace front may only be covered with noncombustible materials such as ce-
ramic tile, brick, or stone. Do not cover or block any cooling air slots. Do not cover any portion of the opening
to the fireplace that would prevent the installation of an authorized glass door.
2. Frame the Fireplace
The E Series fireplace will fit the framed opening width shown in the table below x 40-1/4 in. tall. The finished cavity
depth must be no less than 23-1/2 in.
Figure 5 shows a typical framing (using 2 x 4 lumber) of the fireplace, assuming combustible materials are used.
All required clearances to combustibles around the fireplace must be adhered to. Any framing across the top of the
fireplace must be above the level of the top standoffs. Chimney sections at any level require a 2 in. minimum air
space clearance between the framing and chimney section.
CLEARANCES!
A minimum 1/2 in. air clearance must
be maintained at the back and sides
of the fireplace assembly.
Chimney sections at any level require
a 2 in. minimum air space clearance
between the framing and chimney
section.

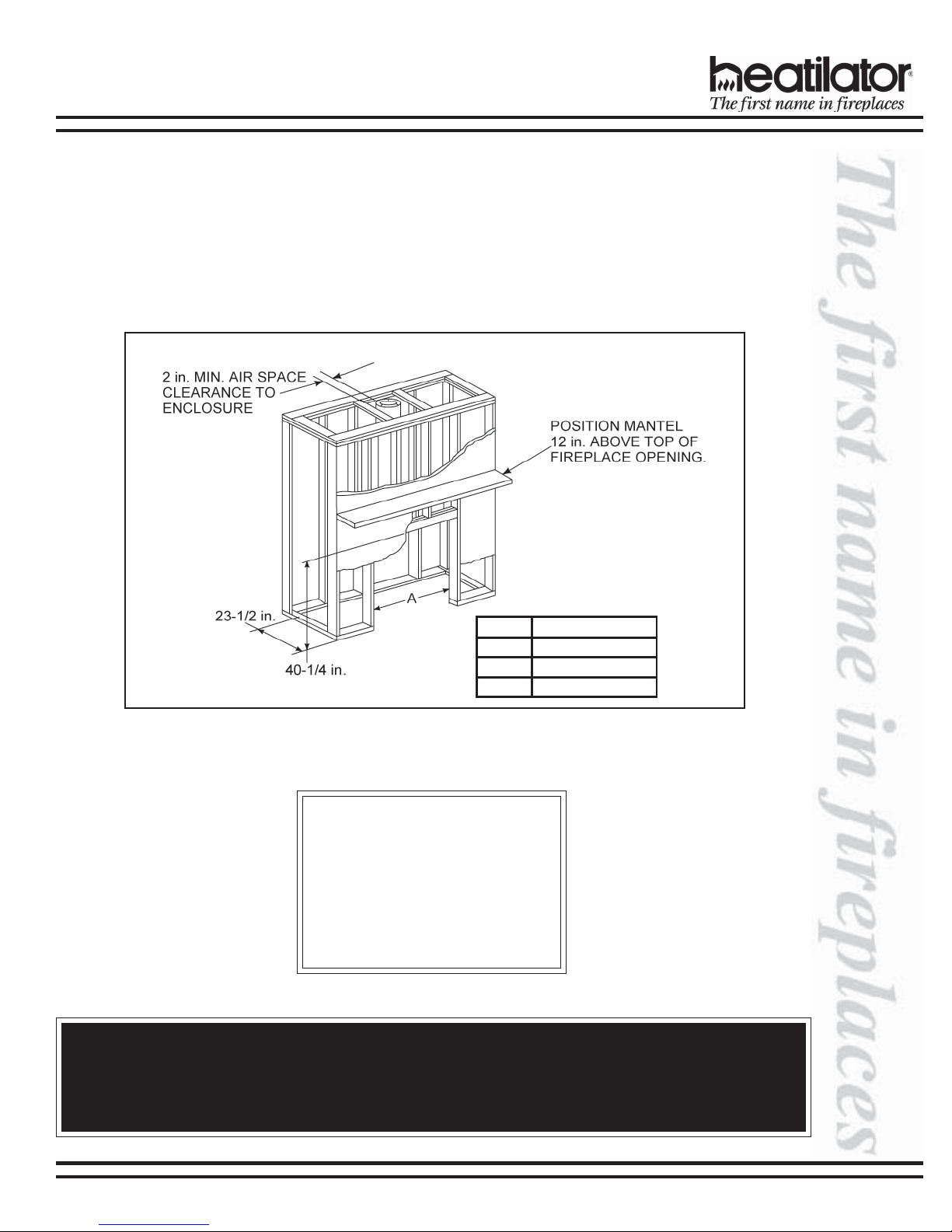

Figure 5 - Framing the Fireplace
Cat # A
E/EC36 42 in. - 1067 mm
E/EC39 45 in. - 1143 mm
E/EC42 48 in. - 1219 mm

12 17335 Rev L 07/04
E36/39/42 INSTALLATION INSTRUCTIONS
Figure 6 - Sidewalls and Surrounds
E. CHIMNEY REQUIREMENTS
When planning your fireplace location, the chimney construction and necessary clearances must be considered. The
fireplace system and chimney components have been tested to provide flexibility in construction. The following figures
are the minimum distances from the base of the fireplace.
1. Minimum overall straight height 13 ft
2. Minimum height with offset/return 14.5 ft
3. Maximum height 90 ft
4. Maximum chimney length between an offset and return 12 ft
5. Maximum distance between chimney stabilizers 35 ft
6. Double offset/return minimum height 20 ft
7. Maximum unsupported chimney length between the offset and return 6 ft
8. Maximum straight unsupported chimney height above the fireplace 35 ft
3. Sidewalls/Surrounds
Adjacent combustible side walls must be located a minimum of 12 in. from the fireplace opening. See Figure 6. If
you are using a decorative surround constructed of combustible material, it must be located within the shaded area
defined in Figure 6. Short stub walls are also acceptable if they are contained within the shaded area.
Cat # A B
E/EC36 36 in. - 914 mm 41 in. - 1041 mm
E/EC39 39 in. - 991 mm 44 in. - 1118 mm
E/EC42 42 in. - 1067 mm 47 in. - 1194 mm

08/04 17335 Rev L 13
E36/39/42 INSTALLATION INSTRUCTIONS
WARNING!
Do not combine offsets to create an offset greater than 30 degrees from verti-
cal. This may create a fire hazard since the natural draft may be restricted.
a. To bypass any overhead obstructions, the chimney may be offset using a 15-deg or a 30-deg offset/return.
Perform the following steps to determine the correct chimney component combination for your particular
installation.
b. An offset and return may be attached together or a chimney section(s) may be used between an offset and
return.
1) Measure how far the chimney needs to be shifted to enable it to avoid the overhead obstacle. See Figure 7,
dimension “A” to determine chimney sections required to achieve the needed shift.
2) After determining the offset dimension, refer to Table 1 and find the “A” dimension closest to but not less
than the distance of shift needed for your installation.
3) The “B” dimension that coincides with the “A” dimension represents the required vertical clearance that is
needed to complete the offset and return.
4) Read across the chart and find the number of chimney sections required and the model number of those
particular chimney parts.
5) Whenever the chimney penetrates a floor/ceiling, a firestop spacer must be installed.
6) The effective height of the fireplace assembly is measured from the base of fireplace to top of starter collar.
See Figure 6.
Example: Your “A”
dimension from Figure 7 is
14-1/2 in.. Using Table 1 the
dimension closest to, but not
less than 14-1/2 in. is
14-5/8 in. using a 30-deg
offset/return. It is then
determined from the table
that you would need 33 in.
(Dimension “B”) between
the offset and return. The
chimney components that
best fit your application are
two SL312s.

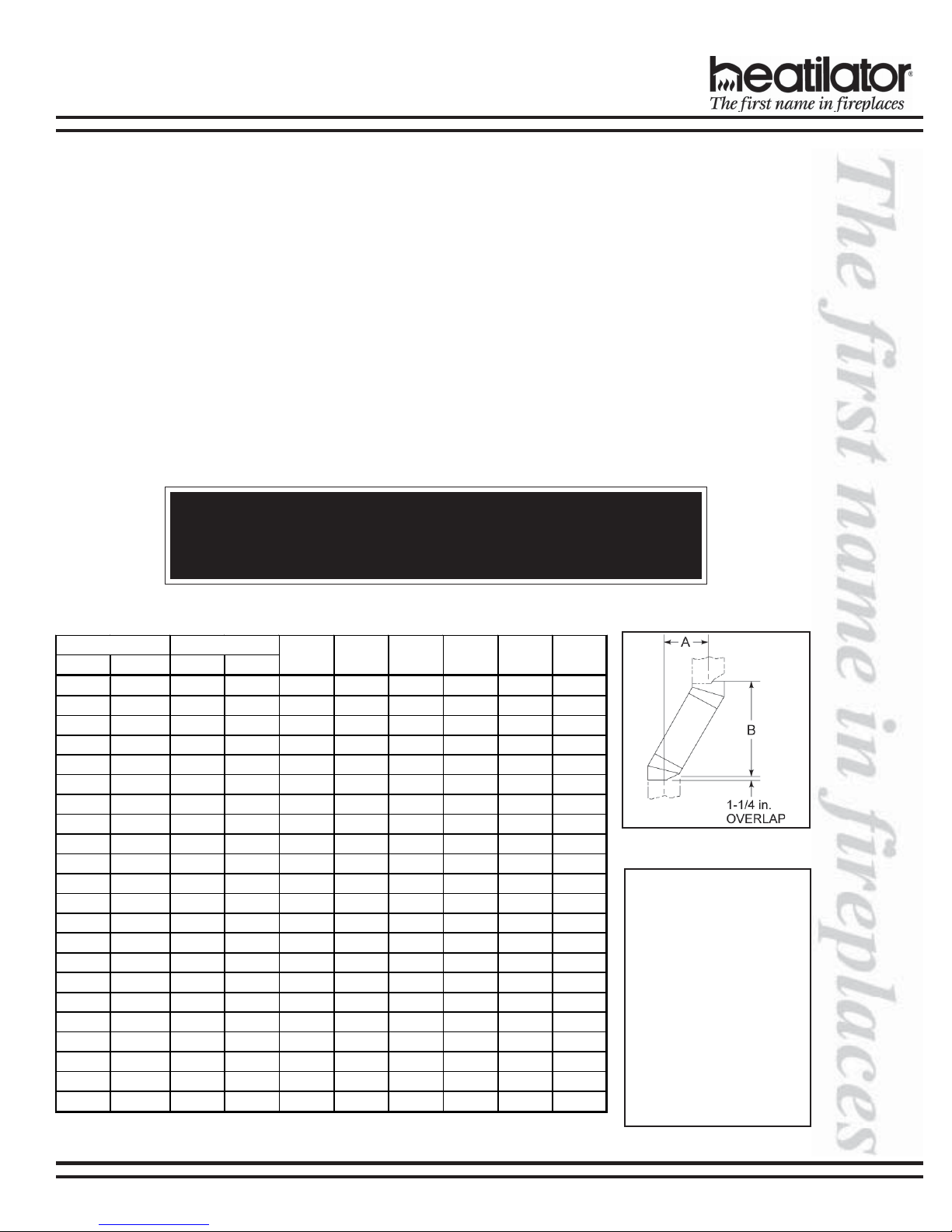

Figure 7 - Chimney Offset/
Return
* Proper assembly of air cooled chimney parts result in an overlap at chimney
joints of 1-1/4 in. Effective length is built into this chart.
Table 1 Offset Chart*
1. Using Offsets and Returns

ABAB
1-5/8in.13-3/8in.3-7/8in.14-1/2in.------
2-7/8in.17-3/4in.6-1/4in.18-5/8in.1-----
4-1/8in.22-3/8in.8-5/8in.22-3/4in.2-----
4-1/2 in. 23-5/8 in. 9-1/4 in. 23-3/4 in. - 1 - - - -
5-3/4 in. 28-1/4 in. 11-5/8 in. 27-7/8 in. 1 1 - - - -
6 in. 29-3/8 in. 12-1/4 in. 29 in. - - 1 - - -
7-1/4 in. 34 in. 14-5/8 in. 33 in. - 2 - - - -
7-3/4 in. 36-1/8 in. 15-1/4 in. 34-1/8 in. - - - 1 - -
8-3/4 in. 39-3/4 in. 17-5/8 in. 38-1/4 in. 1 - - 1 - -
10-3/8 in. 45-5/8 in. 20-5/8 in. 43-1/2 in. - - 2 - - -
10-5/8in.46-3/4in.21-1/4in.44-5/8in.----1-
11-7/8 in. 51-3/8 in. 23-5/8 in. 48-3/8 in. 1 - - - 1 -
13-1/2 in. 57-1/4 in. 26-5/8 in. 53-7/8 in. - - - 2 - -
13-3/4in.58-3/8in.27-1/4in.55-3/4in.-----1
15in.63in.29-5/8in.59in.1----1
16-1/2 in. 68-3/4 in. 32-5/8 in. 64-1/4 in. - 1 - - - 1
18 in. 74-5/8 in. 35-5/8 in. 69-1/2 in. - - 1 - - 1
19-5/8 in. 80-3/8 in. 38-5/8 in. 74-5/8 in. - - - 1 - 1
20-5/8 in. 84-1/8 in. 41 in. 78-3/4 in. 1 - - 1 - 1
22-3/4in.91-7/8in.44-5/8in.85in.----11
24 in. 96-1/2 in. 47 in. 89-1/8 in. 1 - - - 1 1
25-7/8 in. 103-1/2 in. 50-5/8 in. 95-1/2 in. -----
SL318 SL324 SL336 SL348
15-degree 30-degree
SL306 SL312

14 17335 Rev L 07/04
E36/39/42 INSTALLATION INSTRUCTIONS

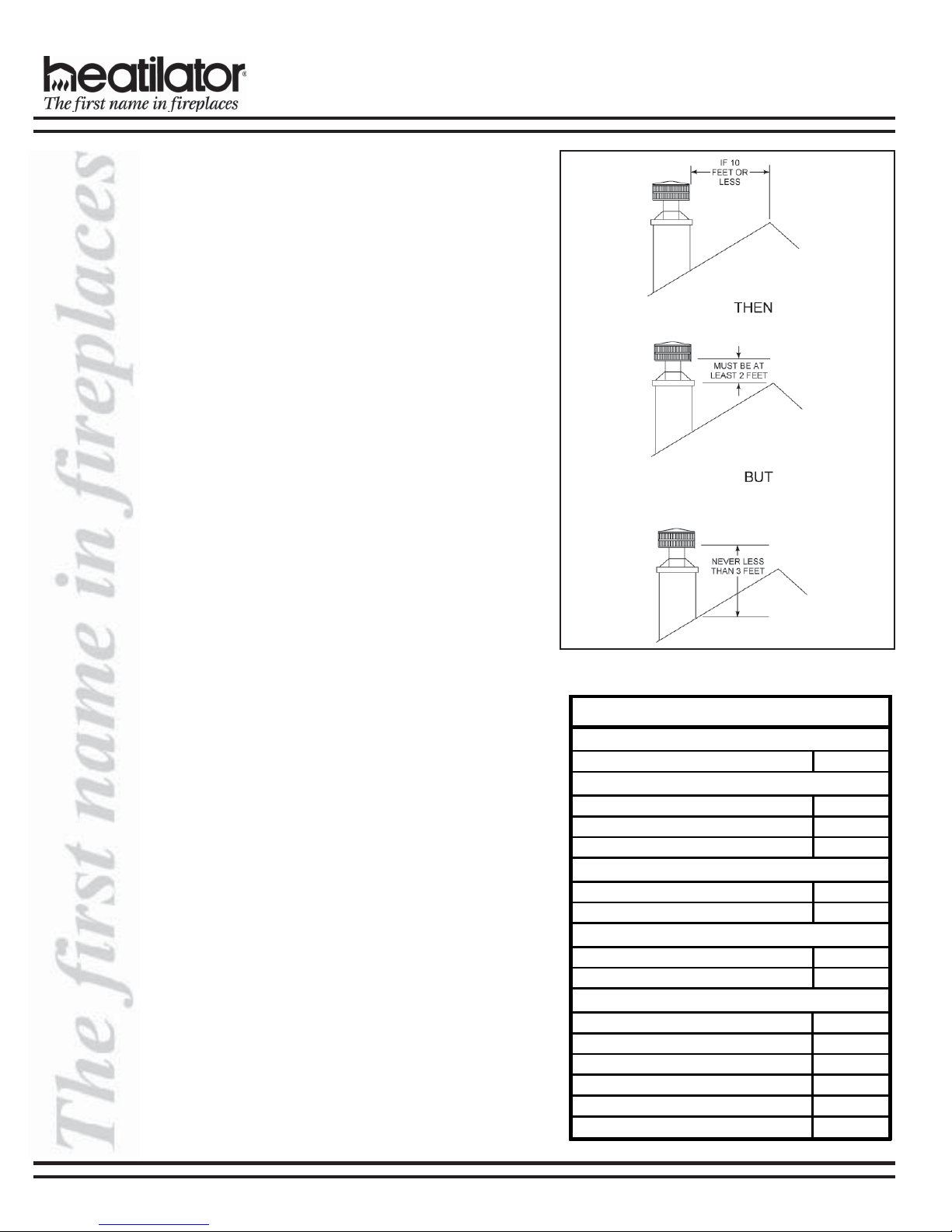

Figure 8 - Chimney Height
Table 2
3. Number of Sections Required
To determine the chimney components needed to
complete your particular installation, follow the steps
below:
a. Determine the total vertical height of the fireplace
installation. This dimension is measured from
the base of the fireplace assembly to the point
where the smoke exits the termination cap.
b. Subtract the effective height of the fireplace
assembly from the overall height of the fireplace
installation (measured from the base of the
fireplace to the bottom of the termination cap).
c. Refer to Table 2 to determine what components
must be selected to complete the fireplace
installation.
d. Determine the number of firestop spacers,
stabilizers, roof flashing, etc. required to
complete the fireplace installation.
2. Chimney Height Requirements (above
roof line)
a. Major building codes specify a minimum chimney
height above the roof top. These specifications
are summarized in what is known as the Ten Foot
Rule. This rule states:
“If the horizontal distance from the side of the
chimney to the peak of the roof is 10 ft or less, the
top of the chimney must be at least 2 ft above the
peak of the roof, but never less than 3 ft in overall
height above the highest point where it passes
through the roof.
“If the horizontal distance from the side of the
chimney to the peak of the roof is more than 10 ft,
a chimney height reference point is established
on the surface of the roof a distance of 10 ft from
the side of the chimney in a horizontal plane. The
top of the chimney must be at least 2 ft above this
reference point, but never less than 3 ft in height
above the highest point where it passes through
the roof.” See Figure 8.
b. These chimney heights are necessary in the
interest of safety but do not ensure smoke-free
operation. Trees, buildings, adjoining roof lines,
adverse wind conditions, etc. may create a need
for a taller chimney should smoking occur.
HEIGHT OF CHIMNEY COMPONENTS
Chimney Stabilizer
SL3 4-3/4 in.
Firestop Spacers
FS338 0 in.
FS339 0 in.
FS340 0 in.
Offsets/Returns
SL315 13-3/8 in.
SL330 14-1/2 in.
Roof Flashing
RF370 0 in.
RF371 0 in.
Chimney Sections*
SL306 4-3/4 in.
SL312 10-3/4 in.
SL318 16-3/4 in.
SL324 22-3/4 in.
SL336 34-3/4 in.
SL348 46-3/4 in.
* Dimensions reflect effective height

08/04 17335 Rev L 15
E36/39/42 INSTALLATION INSTRUCTIONS
F. INSTALLATION OF FIREPLACE
WARNING!
Before starting, do the following:
1. Wear gloves and safety glasses for protection.
2. Keep hand tools in good condition. Sharpen cutting edges and make sure tool handles are secure.
3. Always maintain the minimum air space required to the enclosure to prevent fire.
Important: To ensure proper fit of the glass doors,
check the fireplace opening for square. Measure
diagonal distances of the opening to make sure
they are equal. If they are not equal, continue to
shim the fireplace until those diagonals are equal.
Figure 9 - Positioning the Metal Strips
1. Position the Fireplace
This fireplace may be placed on either a combustible
or noncombustible continuous flat surface. Follow the
instructions for framing on pages 10-12. Slide the
fireplace into position. Be sure to provide the
minimum air clearance at the sides and back of the
fireplace assembly.
2. Place the Protective Metal Hearth Strips
Included with your fireplace you will find two metal
hearth strips measuring approximately 26 in. x 4 in.
These strips are used to provide added protection
where the fireplace and the hearth extension meet.
Slide each metal strip 2 in. under the front edge of the
fireplace. The individual pieces must overlap each
other by 1 in. minimum in the middle of the fireplace
to provide continuous coverage of the floor. See
Figure 9. These metal strips should extend from the
front and sides of the fireplace opening by 2 in.
3. Level the Fireplace
Level the fireplace side-to-side and front-to-back.
Shim with noncombustible material, such as sheet
metal, as necessary. Secure the fireplace (using the
nailing flanges located on either side of the fireplace)
to the vertical framing.

16 17335 Rev L 07/04
E36/39/42 INSTALLATION INSTRUCTIONS

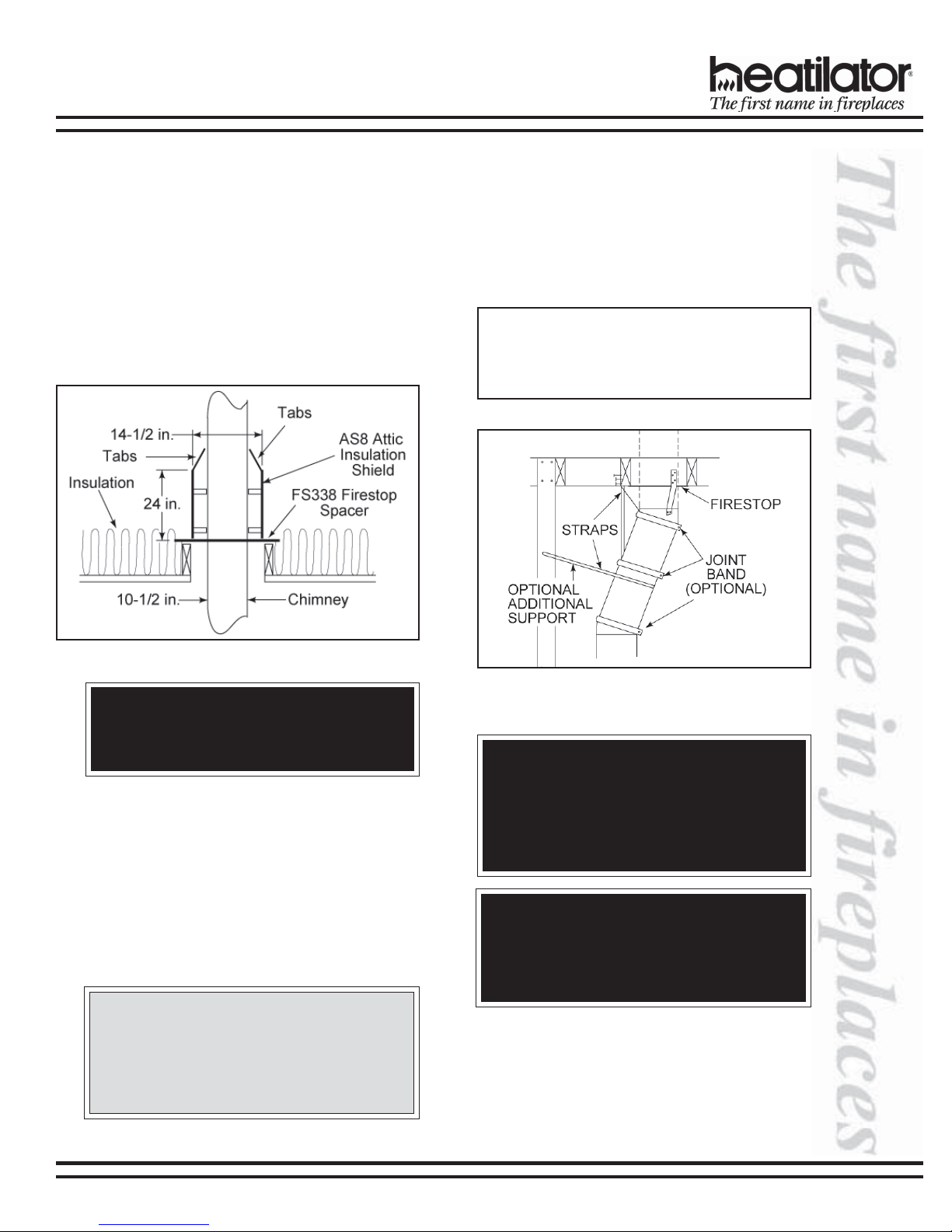

Figure 11
Installing the Firestop Spacer
CAUTION:
Firestop spacers must be used whenever the
chimney penetrates a ceiling/floor area.
Figure 10
Assembling Chimney
Sections
WARNING!
Carefully follow the instructions for assembly
of the pipe and other parts needed to install this
fireplace system. Failure to do so may result in
a fire, especially if combustibles are too close
to the fireplace or chimney and air spaces are
blocked, preventing the free movement of cool-
ing air.
4. Assemble Chimney Sections
Attach either a straight chimney section or an offset
to the top of the fireplace (depending on your
installation requirement). Chimney sections are
locked together by pushing downward until the top
section meets the stop bead on the lower section.
The inner flue is placed to the inside of the flue section
below it. The outer casing is placed outside the outer
casing of the chimney section below it. See Figure 10.
5. Install Firestop Spacers
Mark and cut out an opening in the ceiling for the
firestop spacer being utilized (14-1/2 in. x 14-1/2 in.
for an FS338, 14-1/2 in. x 18-3/8 in. for an FS339 and
14-1/2 in. x 23 in. for an FS340). Frame the opening
with the same dimension lumber used in the ceiling
joists.
Install the firestop spacer.
These firestop spacers are designed to provide the
minimum 2 in. air space required around the chimney.
In all situations, the firestop spacers are to be nailed
to the ceiling joists from the bottom or fireplace side,
EXCEPT when the space above is an insulated ceiling
or attic space. In this situation, the firestop spacer
must be nailed from the top side to prevent loose
insulation from falling into the required 2 in. air space
around the chimney. See Figure 11.

08/04 17335 Rev L 17
E36/39/42 INSTALLATION INSTRUCTIONS
WARNING!
Maintain a minimum of 2 in. air clearance to all
parts of the chimney system at all times! Failure
to maintain this 2 in. air clearance will cause a
structure fire.
CAUTION:
Inner flue and outer liner sections cannot be
disassembled once locked together. Plan ahead
to ensure the proper installation height is
achieved with the selected chimney compo-
nents.
Figure 12 - Installing an Attic Insulation Shield
Note: You must provide support for the pipe dur-
ing construction and check to be sure inadvertent
loading has not dislodged the chimney section from
the fireplace or at any chimney joint.
WARNING!
When chimney sections exceeding 6 ft in length
are installed between an offset and return,
structural support must be provided to reduce
off-center loading and prevent chimney sections
from separating at the chimney joints.
Figure 13 - Offset/Return with Stabilizer
7. Double-check the Chimney Assembly
Continue assembling the chimney sections up through
the firestop spacers as needed. While doing so, be
aware of the height and unsupported chimney length
limitations that are given on page 12 under “Chimney
Requirements”.
Check each section by pulling up slightly from the top
to ensure proper engagement before installing the
succeeding sections. If they have been connected
correctly, they will not disengage when tested.
8. Secure the Chimney System
When offsets and returns are joined to straight pipe
sections, they must be locked into position with the
screws provided (outer only), using the predrilled
holes. To prevent gravity from pulling the chimney
sections apart, the returns and the chimney stabilizers
have straps for securing these parts to joists or rafters.
See Figure 13.
WARNING! RISK OF FIRE.
Do not fill the space between the chimney sec-
tion and the insulation shield with insulation.
6. Attic Insulation Shield
An insulation shield should be installed when there
is a possibility of insulation coming into contact with
the factory built chimney system.
a. Bend the tabs at the top of the attic insulation
shield inward. This will help keep the chimney
section centered in the shield.
b. Position the shield over the vertical chimney
section where it penetrates a firestop spacer.
c. Slide the shield down until it rests on the firestop
spacer. The firestop spacer will support the
insulation shield. See Figure 12.

18 17335 Rev L 07/04
E36/39/42 INSTALLATION INSTRUCTIONS

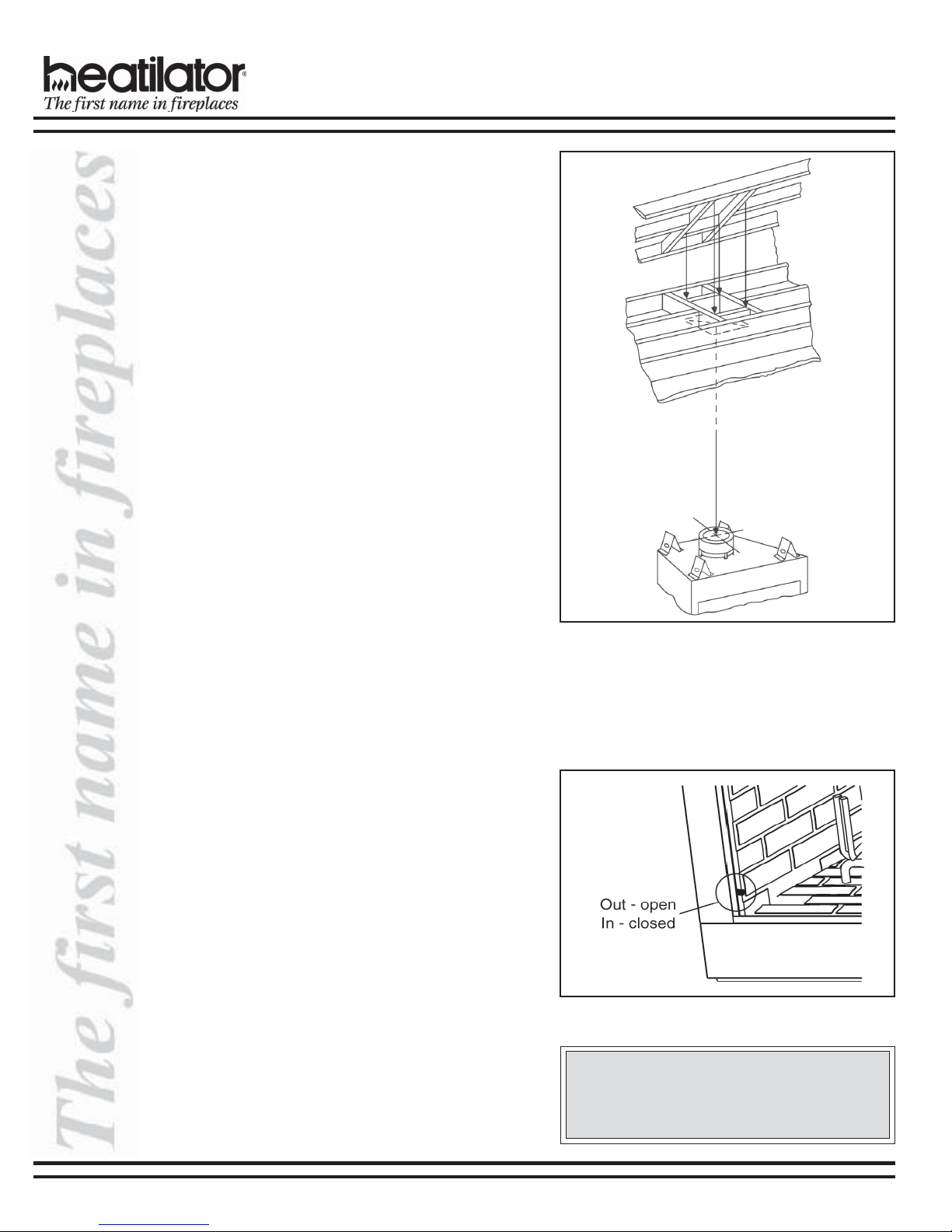

Figure 14 - Ceiling/Attic Construction
Figure 15 - Air Kit Handle Location
9. Mark the Exit Point of the Roof
Locate the point where the chimney will exit the roof
by plumbing down to the center of the chimney. Drive
a nail up through the roof to mark the center. See
Figure 14.
10. Cut out the Hole in the Roof
Measure to either side of the nail and mark the
14-1/2 in. x 14-1/2 in.opening required. This is
measured on the horizontal; actual length may be
larger depending on the pitch of the roof. Cut out and
frame the opening. See Chapter 25 of the Uniform
Building Code for roof framing details.
Be sure to maintain a 2 in. minimum air space
between the chimney section and the roof.
11. Assemble the Chimney Sections
Through the Roof
Continue to add chimney sections through the roof
opening, maintaining at least a 2 in. air space.
12. Install the Roof Flashing
If a roof flashing is to be used, install the roof flashing
appropriate to the roof pitch and install a round
termination cap following the instructions shipped
with the cap.
For chase installations you can use a round
termination cap (TR344), a round telescoping
termination cap (TR342) or a square termination cap
(ST375, TS345, or TS345P). A chase installation must
use a chase top. Chase tops are available from your
Heatilator distributor. See page 22 for building a chase.
13. Install the Outside Air Kit
The outside air kit is available with this fireplace and
its use is highly recommended to minimize the effects
of negative pressure within the structure. It is
recommended to utilize the shortest duct run to
optimize the performance of the outside air kit. The
outside air kit inlet thimble should be positioned at
least 4 ft above the ground level, in a manner that will
not allow snow, leaves, etc. to block the inlet.
The outside air kit can be installed on either side of
the fireplace. Remove the cover plate from the side of
the fireplace assembly where the air kit is to be
installed. See Figure 15 for handle location/operation.
14. Install the Chimney Air Kit (required in
Canada)
When installing the chimney air kit, follow the
instructions provided with this accessory.
CAUTION:
The air kit handle may get hot while burning
the fireplace. Use care when operating the
handle.

08/04 17335 Rev L 19
E36/39/42 INSTALLATION INSTRUCTIONS
Note: Use only a noncombustible material to finish
the face of the fireplace below the level of the front
standoffs. A noncombustible material such as USG
MICORE CV230 Mineral Fiber Board, or USG
DUROCK Cement Board is recommended for this
purpose.
Figure 16 - Air Clearance Around Gas Line
15. Completion of the Enclosure
Complete the fireplace enclosure, allowing space for
outside air ducts and gas piping if desired. Electrical
wiring should not come in contact with the fireplace.
A minimum clearance of 1/2 in. must be maintained
between the fireplace sides and the enclosure as
well as the fireplace back and the enclosure. See
pages 10-12 for framing details.
CAUTION:
When using a gas log set, the fireplace damper
must be set in the fully open position. This en-
sures proper venting of combustion products.
WARNING!
This fireplace was not tested by the fireplace
manufacturer for use with an unvented gas log
heater. To reduce risk of injury, do not install an
unvented gas log heater in this fireplace unless
it has been specifically tested and listed by
Underwriter’s Laboratories Inc. for use in this
specific model fireplace. Unless the unvented
gas log heater is tested and listed for use in this
factory built fireplace, a fire hazard may be cre-
ated that can result in a structure fire.
16. Gas Log/Lighter Provisions
Knockouts are provided on both sides of the fireplace
to allow for connection of a certified gas log lighter or
a decorative gas appliance with a maximum input of
100,000 BTU/hour, incorporating an automatic gas
shut-off device and complying with the Standard for
Decorative Gas Appliances for Installation in
Vented Fireplaces, ANSI Z21.60. The decorative gas
appliance should be installed in accordance with the
National Fuel Gas Code, ANSI Z223.1-1980. The side
refractories are designed to allow 1/2 in. iron pipe to
pass through. Use a noncombustible sealant to seal
any opening between the gas pipe and refractory on
the inside. Repack the insulation removed to seal
around the gas pipe where it exits the side of the
fireplace. A minimum 1-1/1 in. air clearance must be
provided around the 1/2 in. iron pipe for a minimum of
4 in. beyond the fireplace. See Figure 16.
CLEARANCES!
A minimum 1/2 in. air clearance must be maintained
at the back and sides of the fireplace assembly.
Chimney sections at any level require a 2 in.
minimum air space clearance between the framing
and chimney section.

20 17335 Rev L 07/04
E36/39/42 INSTALLATION INSTRUCTIONS
Figure 17 - Factory Built Hearth Extension
Figure 18 - Field Constructed Hearth Extension
WARNING!
Hearth extensions are to be installed only as illustrated to prevent high temperatures from occurring
on concealed combustible materials. Hearth sealing strips prevent burning or hot particles from
inadvertently falling directly on combustible surfaces in the event the building should settle and
disturb the original construction.
17. Hearth Extension
A hearth extension must be installed with all fireplaces to protect the combustible floor in front of the fireplace from
both radiant heat and sparks.
The construction of, and materials used for a hearth extension are shown in Figures 17 and 18. A hearth extension
of this construction may be covered with any noncombustible decorative material and may have a maximum thickness
as per the illustration. Seal gaps between the hearth extension and the front of the fireplace with a bead of
noncombustible sealant.
Field constructed hearth extensions should be constructed in accordance with the instructions in Figure 18. The
field constructed hearth extension must be constructed from 1/2 in. MICORE CV230, or a material with an equivalent
insulation value.
Cat # A B
E/EC36 52 in.
1321 mm
16 in.
406 mm
E/EC39 52 in.
1321 mm
16 in.
406 mm
E/EC42 66 in.
1676 mm
20 in.
508 mm
