NASIM
27 REAR DIRECT VENT
DECORATIVE GAS APPLIANCE
INSTALLATION & OPERATING INSTRUCTIONS
WARNING: If the information in this manual
is not followed exactly, a fire or explosion may
result causing property damage, personal in-
jury or loss of life.
 Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
 What to do if you smell gas
 Do not try to light any appliance.
 Do not touch any electrical switch; do not use
any phone in your building.
 Immediately call your gas supplier from a
neighbors phone. ollow the gas suppliers
instructions.
 If you cannot reach your gas supplier, call the
fire department.
 Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
For Residential Use
Meets all HUD Requirements for
Manufactured Housing Installations.
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this
manual. For assistance or additional information, consult a qualified installer, service agency or the gas supplier.
WARNING
Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any gas control which has been under water.
CAUTION:
Do not expose appliance to the elements such as rain, etc.).
All manuals and user guides at all-guides.com
all-guides.com

30532 Rev D 2 09-02
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
1. Please read these installation instructions completely
before beginning installation procedures. ailure to
follow them could cause an appliance malfunction
resulting in serious injury and/or property damage.
2. Always check your local building codes prior to
installation. This installation must comply with all
local, regional, state and national codes and
regulations.
3. Installation and repair should be done by a qualified
service person. This appliance should also be
inspected annually by a qualified service person. More
frequent inspections/cleaning may be required due
to excessive lint from carpeting, bedding materials,
etc. It is imperative that the control compartment,
burners and circulating air passageways of the
appliance be kept clean.
4. The NASIM is a vented decorative gas appliance. Do
not burn wood or other material in this appliance.
5. NEVER leave children unattended when there is a fire
burning in the appliance.
SAFETY PRECAUTIONS
6. This appliance may only use the approved venting
systems shown in these installation instructions.
Venting must not be connected to chimney flue
servicing a solid fuel burning appliance or a gas fuel
burning appliance.
7. NEVER use gasoline, gasoline-type lantern fuel,
kerosene, charcoal lighter fluid, or similar liquids in
this appliance. Keep any flammable liquids a safe
distance from the appliance.
8. While servicing this appliance, always shut off all
electricity and gas to the appliance. This will prevent
possible electrical shock or burns. Also, make sure
the appliance is completely cooled before servicing.
9. Do not use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
10. Be sure to provide adequate clearances around the air
openings into the appliance and adequate accessibility
clearances for servicing and proper operation.
WARNING
Do NOT use this appliance if any part has been under wter. Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system and any gas control which has been under water.
Table of Contents
A. Appliance Specifications ................................................................................................................................................. 3
NASIM Components....................................................................................................................................................... 4
Optional Installation Components ................................................................................................................................... 4
B. Location & Clearances ................................................................................................................................................... 5
D. Setting the Appliance ...................................................................................................................................................... 6
C. raming .......................................................................................................................................................................... 6
E. Venting ........................................................................................................................................................................... 7
. Assembling the Vent Sections ...................................................................................................................................... 13
G. Utilities .......................................................................................................................................................................... 15
H. inishing ....................................................................................................................................................................... 21
I. Appliance Preparation .................................................................................................................................................. 22
J. Lighting Instructions ...................................................................................................................................................... 23
K. Seasonal Checklist ....................................................................................................................................................... 24
L. ield uel Conversion ................................................................................................................................................... 25
M. Start-up Issues .............................................................................................................................................................. 25
N. Maintenance Instructions .............................................................................................................................................. 26
O. Optional Components ................................................................................................................................................... 28
P. Replacement Parts ....................................................................................................................................................... 29
Index ............................................................................................................................................................................ 31
Warranty ....................................................................................................................................................................... 32
All manuals and user guides at all-guides.com

09-02 3 30532 Rev D
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC
A. APPLIANCE SPECIFICATIONS
1. U.S. AND CANADA CERTIFICATION
The NASIM Gas Appliance has been tested in
accordance with the ANSI standard Z21.50-1998, CSA
2.22-M98, and UL 307B. It has been listed by
Underwriters Laboratories Inc. for installation as
described in this manual. All components are UL, AGA,
CGA or CSA safety certified.
2. LOCAL CODES
This installation must conform with local codes. In the
absence of local codes you must comply with the
National uel Gas Code, ANSI Z223.1-latest edition in
the U.S.A. and the CAN/CGA B149 Installation Codes
in Canada.
The NASIM gas appliance (Decorative) has been tested
and listed for use in manufactured housing (mobile
homes). These installation instructions conform with the
Manufactured Home Construction and Safety Standard,
Title 24 C R, Part 3280, or when such a standard is not
applicable, the Standard for Manufactured Home
Installations, ANSI A225.1.
or assistance during installation contact your local
dealer or contact the Heatilator Technical Services
Department, Hearth Technologies Inc., 1915 W.
Saunders Street, Mt. Pleasant, Iowa 52641.
HEATILATOR® is a registered trademarks of Hearth
Technologies Inc., Division, HON INDUSTRIES.
3. GLASS SPECIFICATIONS/CERTIFICATIONS
Heatilator gas appliances manufactured with tempered
glass may be installed in hazardous locations such as
bathtub enclosures as defined by the CPSC. The
tempered glass has been tested and certified to the
requiements of ANSI Z97.1-1984 and CPSC 16 C R
1202. (Safety Glazing Certification Council SGCC# 1595
and 1597. Architectural Testing, Inc. Reports 02-
31919.01 and 02-31917.01.)
This statement is in compliance with SPCS 16 C R
Section 1201.5 Certification and labeling requirements
which refers to 15 USC 2063 stating Such certificate
shall accompany the product or shall otherwise be
furnished to any distributor or retailer to whom the
product is delivered.
Some local building codes require the use of tempered
glass with permanent marking in such locations. Glass
meeting this requirement is available from the factory.
Please contact your dealer or distributor to order.
Typical Vertical Install Typical Horizontal Install
Vertical Termination Cap
Roof lashing
irestop Spacer
Direct Vent
Section(s)
90° Elbow
Rear Vent
Heat Shield
Wall Shield
Direct Vent
Section(s)
Horizontal Termination Cap
All manuals and user guides at all-guides.com

30532 Rev D 4 09-02
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC
Note: Minimum and maximum clearances must be
maintained at all times. Illustrations throughout these
instructions reflect typical installations and are for
design purposes only. Actual installation may vary
slightly due to individual design preferences.
The illustrations and diagrams used throughout these
installation instructions are not drawn to scale.
Tools and building supplies normally required
for installation:
Saw Wall-finishing materials
Pliers raming material
Hammer Appliance surround
Phillips screwdriver Caulking material
Tape measure Gloves
Plumb line raming square
Level Electric drill and bits
Safety glasses
#golataCnoitpircseD
VT-PV,VT-PVANpaCnoitanimreTlacitreV
54PV,54PVANwoblE°54
09PV,09PVANwoblE°09
6SF,6SFAN)noitanimreTlacitreVrecapSpotseriF
6FR,6FRAN)noitanimreTlacitreVgnihsalFfooR
21PV,21PVANepiPtneVhtgnel"21
63PV,63PVANepiPtneVhtgnel"63
84PV,84PVANepiPtneVhtgnel"84
IM21PV)htgnelottucebnacdezitinu-non-epiPtneV"21
IM42PV)htgnelottucebnacdezitinu-non-epiPtneV"42

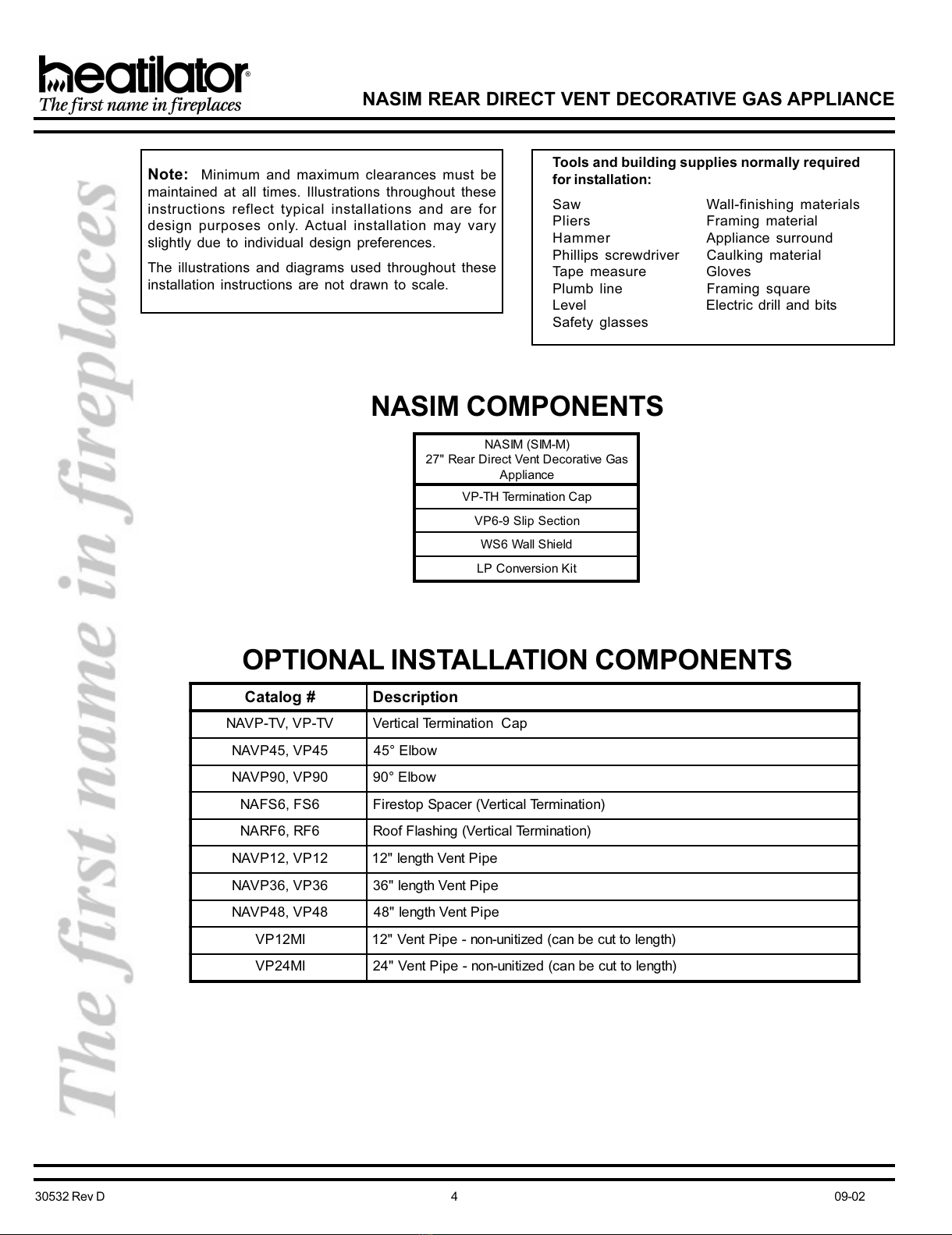

OPTIONAL INSTALLATION COMPONENTS
NASIM COMPONENTS
)M-MISMISAN
saGevitaroceDtneVtceriDraeR"72
ecnailppA
paCnoitanimreTHT-PV
noitceSpilS9-6PV
dleihSllaW6SW
tiKnoisrevnoCPL
All manuals and user guides at all-guides.com

09-02 5 30532 Rev D
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC
WARNING
Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
1. APPLIANCE LOCATIONS AND SPACE
REQUIREMENTS
igure 1 illustrates a variety of ways the appliance
may be located in a room. The NASIM may be
installed directly on the floor or raised on a hearth.
These appliances are certified for installation in a
bedroom, bed/sitting room or in mobile homes in the
U.S. and Canada.
2. CLEARANCES
igure 2 shows all clearances that must be maintained
around the appliance. See page 10 for termination
cap clearances.
Figure 1
Appliance Locations
Figure 2
Appliance Clearances to Combustible Materials
CAUTION:
Do not expose appliance to the elements such as
rain, etc.).
Dimensions
B. LOCATION & CLEARANCES
All manuals and user guides at all-guides.com

30532 Rev D 6 09-02
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC
C. FRAMING
igure 3 shows a typical framing of this appliance using combustible materials. igure 4 shows the mantel heights for mantel
projections. All required clearances to combustibles must be adhered to.
Figure 3 - Framing
Figure 4 - Mantel Heights
CAUTION:
Wear gloves and safety glasses for protection.
CAUTION:
Provide adequate clearances around the air
openings into the combustion chamber and
adequate accessibility clearances for servicing and
proper operation.
D. SETTING THE APPLIANCE
POSITIONING THE APPLIANCE
This appliance may be placed on a smooth combustible or noncombustible continuous, flat surface. When the appliance
is installed directly on carpeting, tile or other combustible material other than wood flooring, the appliance shall be
installed on a metal or wood panel extending the full width and depth of the appliance. Slide the appliance into
position and level the appliance from side-to-side and front-to-back. Shim with noncombustible material as necessary.
Secure the appliance by bending out the nailing flanges on each side of the appliance and nail to framing. The nailing
flanges have been positioned 5/8 inch back from the front of the appliance to allow the addition of drywall.
WARNING
To prevent contact with sagging or loose insulation, the appliance must not be installed against vapor barriers
or exposed insulation. Localized overheating could occur and a fire could result.
All manuals and user guides at all-guides.com
all-guides.com

09-02 7 30532 Rev D
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC
E. ENTING

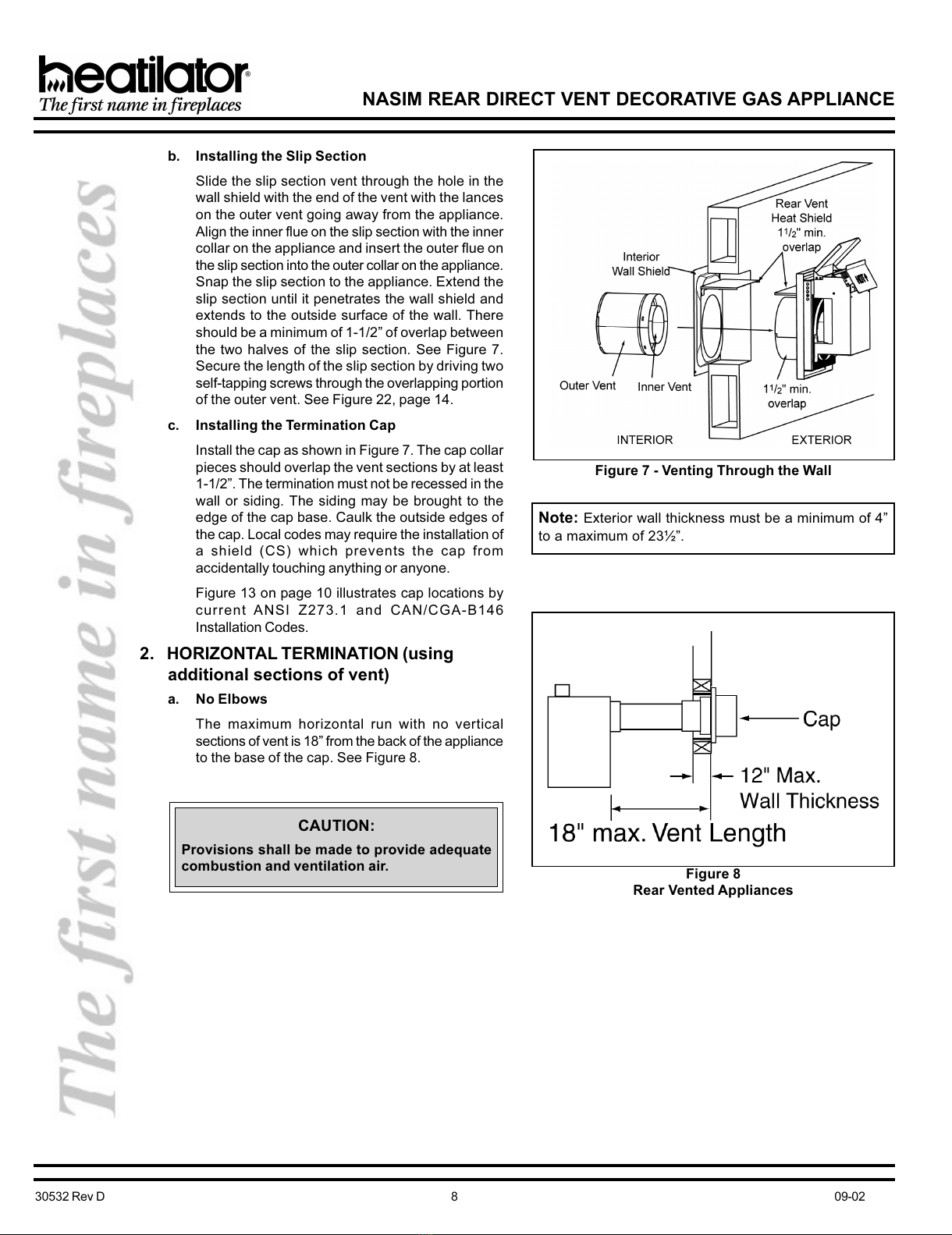

1. HORIZONTAL TERMINATION (using
su lied venting)
This kit is supplied with a standard vent kit that will meet
the majority of installations for this NASIM appliance. This
kit consists of a 6 - 9 slip section, a wall shield, and a
termination cap. A typical installation is diagrammed in
igure 5.
WARNING - RISK OF FIRE
Air space clearances must be maintained at all times.
 Horizontal termination (using supplied venting) - see below.
 Horizontal termination (using additional venting) - see page 8.
 Vertical termination - see page 11.
Figure 5 - Typical Installation
WARNING - RISK OF FIRE
The horizontal run of vent must have a 1/4 rise for
every 1 ft. of run towards the termination. Never al-
low the vent to run downward. This could cause high
temperatures and may present a fire hazard.
WARNING - RISK OF FIRE
If you have chosen horizontal termination, be sure
there are no present nor future obstructions from
trees, bushes, snow drifts, etc.
a. Installing the Interior Wall Shield
rame a hole in a combustible wall for an interior
wall shield as shown in igure 6. This shield
maintains minimum clearances and prevents cold
air infiltration.
The termination cap height must meet all local and
national codes and not be easily blocked or
obstructed. If the material being penetrated is of
noncombustible materials, a 9 diameter hole is
acceptable.
Secure the shield to the framing as shown in
igure6.
Figure 6 - Interior Wall Shield
All manuals and user guides at all-guides.com

30532 Rev D 8 09-02
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC
b. Installing the Slip Section
Slide the slip section vent through the hole in the
wall shield with the end of the vent with the lances
on the outer vent going away from the appliance.
Align the inner flue on the slip section with the inner
collar on the appliance and insert the outer flue on
the slip section into the outer collar on the appliance.
Snap the slip section to the appliance. Extend the
slip section until it penetrates the wall shield and
extends to the outside surface of the wall. There
should be a minimum of 1-1/2 of overlap between
the two halves of the slip section. See igure 7.
Secure the length of the slip section by driving two
self-tapping screws through the overlapping portion
of the outer vent. See igure 22, page 14.
c. Installing the Termination Cap
Install the cap as shown in igure 7. The cap collar
pieces should overlap the vent sections by at least
1-1/2. The termination must not be recessed in the
wall or siding. The siding may be brought to the
edge of the cap base. Caulk the outside edges of
the cap. Local codes may require the installation of
a shield (CS) which prevents the cap from
accidentally touching anything or anyone.
igure 13 on page 10 illustrates cap locations by
current ANSI Z273.1 and CAN/CGA-B146
Installation Codes.
2. HORIZONTAL TERMINATION (using
additional sections of vent)
a. No Elbows
The maximum horizontal run with no vertical
sections of vent is 18 from the back of the appliance
to the base of the cap. See igure 8.
Figure 7 - Venting Through the Wall
Note: Exterior wall thickness must be a minimum of 4
to a maximum of 23½.
CAUTION:
Provisions shall be made to provide adequate
combustion and ventilation air. Figure 8
Rear Vented Appliances
All manuals and user guides at all-guides.com

09-02 9 30532 Rev D
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC
).nimv).xamhh+h
1
h+
2
).xam
'1'1'3
'2'2'6
'3'3'01
'4'4'21
).xam'02'4'21
b. A 45° Elbow
or corner venting, a maximum of one 45° elbow
(NAVP45) may be used. The maximum horizontal
run following the elbow is 12 to the base of the
cap. See igure 9.
c. Two Elbows
igure 10 shows various venting configurations
using two elbows to terminate horizontally. The
maximum vertical run is 20 and the maximum
horizontal run is 14.
d. Three Elbows
igure 11 shows various venting configurations
using three elbows to terminate horizontally. A
minimum 1 of vertical vent is required any time
90° elbows are used when rear venting the
appliance. The maximum vertical run is 20 and the
maximum horizontal run is 12.
e. Assembling Chimney Sections
Use only pipe supplied and listed for use with this
appliance. See page 4 for a description of the listed
components. See the directions on page 13 for
assembling vent sections.
Figure 9
One 45° Elbow
Figure 10
Two Elbows
Figure 11
Three Elbows
Starter elbows cannot be used in
any rear venting configuration.
Starter elbows cannot be used in
any rear venting configuration.
Starter elbows cannot be
used in any rear venting
configuration.
f. Termination
Vent termination must not be recessed in the wall.
Siding may be brought to the edge of the caps base.
Install the cap as shown in igure 12 . The cap pipe
sections should overlap the vent pipe by 1-1/2.
Caulk the outside edges of the cap.
Local codes may require the installation of a shield
(product #CS) which prevents the cap from
accidentally touching anything or anyone.
igure 13 illustrates cap locations prescribed by
current ANSI Z273.1 and CAN/CGA-B149
Installation Codes.
Figure 12 - Rear Vent Heat Shield
All manuals and user guides at all-guides.com

30532 Rev D 10 09-02
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC
Figure 13 - Termination Cap Locations
Dimension Descriptions
A Clearance above the ground, a veranda, orch, deck or balcony
- 12 inches (30 cm) minimum. *
B Clearance to window or door that may be o ened  10,000 BTUs
or less, 6 inches (15 cm) minimum; 10,000-50,000 BTUs, 9
inches (23 cm) minimum; over 50,000 BTUs, 12 inches (30 cm)
minimum. *
C Clearance to ermanently closed window  12inches (30 cm)
minimum - recommended to revent condensation on window.
D Vertical clearance to ventilated soffit located above the
termination within a horizontal distance of 2 feet (60 cm) from
the centerline of the termination  18inches (46 cm) minimum.
**
E Vertical clearance to unventilated soffit - 12 inches (30 cm)
minimum. **
F Clearance to outside corner - 6 inches (15 cm) minimum.
G Clearance to inside corner - 6 inches (15 cm) minimum.
H Not to be installed above a meter/regulator assembly within 3
feet (90 cm) horizontally* from the center line of the regulator
I Clearance to service regulator vent outlet - 6 feet (1.8m)
minimum. *
J Clearance to non-mechanical air su ly inlet into building or the
combustion air inlet to any other a liance - 12 inches (30 cm)
minimum. *
K Clearance to mechanical air su ly inlet - 6 feet (1.8 m)
minimum. *
L Clearance above a aved sidewalk or aved driveway located
on ublic ro erty - 7 feet (2.1m) minimum.
A vent may not terminate directly above a sidewalk or aved
driveway which is located between two single family dwellings
and serves both dwellings.
M Clearance under veranda, orch, deck or balcony - 12 inches
(30 cm) minimum. * Recommended 30 inches (76 cm) for vinyl
or lastic.
Only ermitted if veranda, orch, deck or balcony is fully o en
on a minimum of 2 sides beneath the floor. *
N Vertical clearance between two horizontal termination ca s  12
inches (30 cm) minimum.
O Horizontal clearance between two horizontal termination ca s 
12 inches (30 cm) minimum.
* As s ecified in CGA B149 Installation Codes
Note: Local codes or regulations may require different
clearances.
** Clearance required to vinyl soffit material  30inches (76 cm)
minimum. With a vinyl soffit shield  18 inches (46 cm) minimum.
WARNING!
In the U.S.: Vent system termination is NOT ermitted in
screened orches. You must follow side wall, overhang and
ground clearances as stated in the instructions.
In Canada: Vent system termination is NOT ermitted in
screened orches. Vent system termination is ermitted in orch
areas with two or more sides o en. You must follow all side wall,
overhang and ground clearances as stated in the instructions.
Hearth Technologies Inc. assumes no res onsibility for the
im ro er erformance of the a liance when the venting system
does not meet these requirements.
Figure 14
Horizontal Cap Clearance
All manuals and user guides at all-guides.com

09-02 11 30532 Rev D
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC
3. VERTICAL TERMINATION
a. Clearances
See igure 15 for clearance information.
b. Vent Lengths
Various venting configurations are shown in igure
16 and 17 from which the maximum vent runs can
be determined.
Figure 15
Vent Clearances
Figure 16 - Vent Lengths
Figure 17
Vent Support
WARNING
A gas appliance must not be connected to a chim-
ney flue servicing a separate solid fuel burning ap-
pliance.
WARNING - RISK OF FIRE
Always maintain minimum clearances or greater
around the chimney system. Do not pack air spaces
with insulation or other material.
WARNING
The horizontal run of vent must have a 1/4 rise for
every 1 ft. of run towards the termination. Never al-
low the vent to run downward. This could cause high
temperatures and present a fire hazard.
Starter elbows cannot
be used in any rear
venting configuration.
Starter elbows
cannot be used
in any rear
venting
configuration.
Starter elbows
cannot be used in
any rear venting
configuration.
All manuals and user guides at all-guides.com
all-guides.com

30532 Rev D 12 09-02
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC

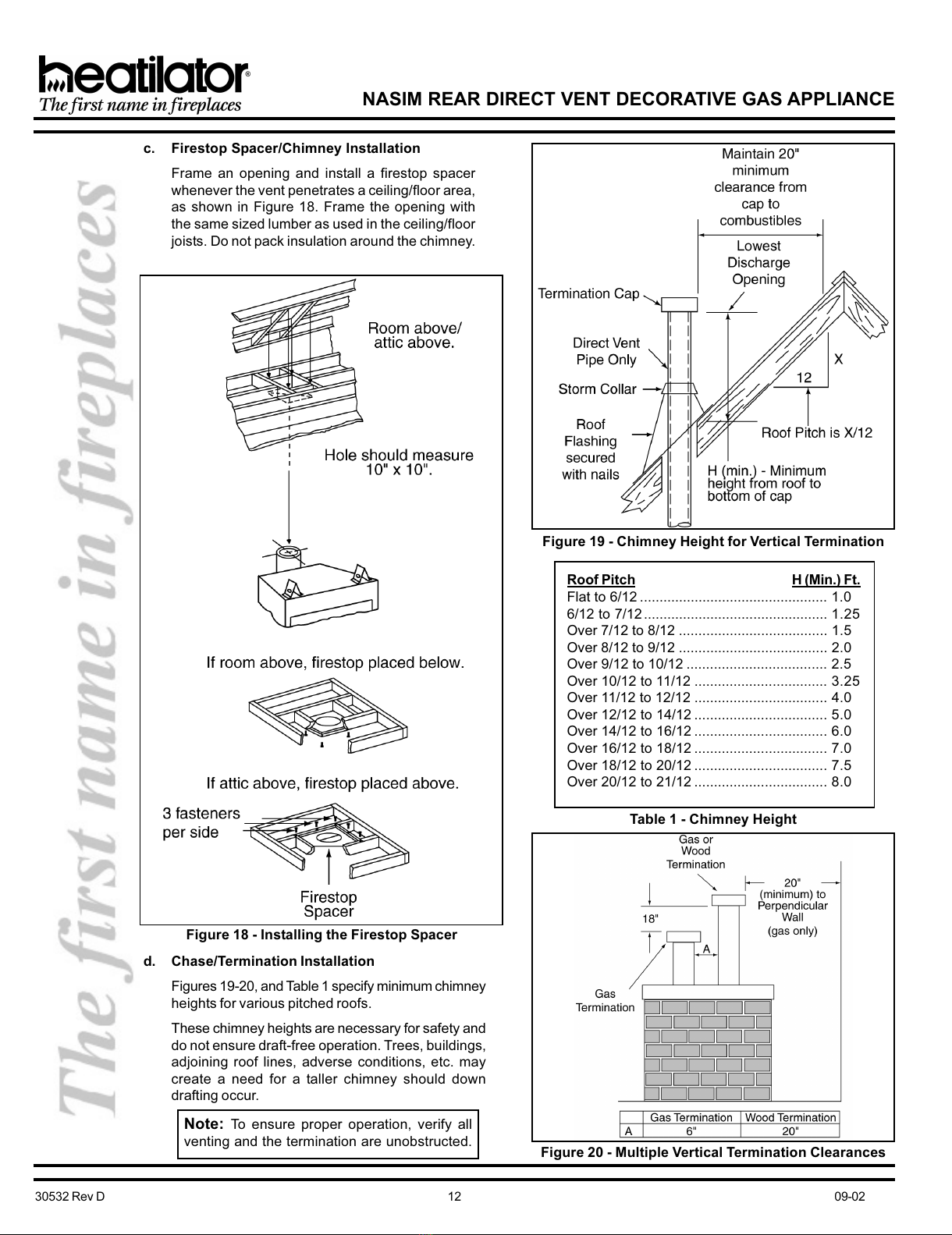

c. Firestop Spacer/Chimney Installation
rame an opening and install a firestop spacer
whenever the vent penetrates a ceiling/floor area,
as shown in igure 18. rame the opening with
the same sized lumber as used in the ceiling/floor
joists. Do not pack insulation around the chimney.
d. Chase/Termination Installation
igures 19-20, and Table 1 specify minimum chimney
heights for various pitched roofs.
These chimney heights are necessary for safety and
do not ensure draft-free operation. Trees, buildings,
adjoining roof lines, adverse conditions, etc. may
create a need for a taller chimney should down
drafting occur.
Figure 18 - Installing the Firestop Spacer
Figure 19 - Chimney Height for Vertical Termination
Roof Pitch H Min.) Ft.
lat to 6/12 ................................................ 1.0
6/12 to 7/12 ............................................... 1.25
Over 7/12 to 8/12 ...................................... 1.5
Over 8/12 to 9/12 ...................................... 2.0
Over 9/12 to 10/12 .................................... 2.5
Over 10/12 to 11/12 .................................. 3.25
Over 11/12 to 12/12 .................................. 4.0
Over 12/12 to 14/12 .................................. 5.0
Over 14/12 to 16/12 .................................. 6.0
Over 16/12 to 18/12 .................................. 7.0
Over 18/12 to 20/12 .................................. 7.5
Over 20/12 to 21/12 .................................. 8.0
Table 1 - Chimney Height
Figure 20 - Multiple Vertical Termination Clearances
Note: To ensure proper operation, verify all
venting and the termination are unobstructed.
All manuals and user guides at all-guides.com

09-02 13 30532 Rev D
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC
F. ASSEMBLING THE ENT SECTIONS
1. ATTACHING THE VENTING TO THE
APPLIANCE
To attach the first pipe section to the collars, simply slide
the flared end of the inner flue of the pipe section over
the inner collar on the appliance. At the same time, insert
the outer flue into the outer collar on the appliance. Push
the vent section into the appliance collar until all the
lances have snapped into place. Tug slightly on the vent
to confirm it has completely locked in place.
2. ASSEMBLING VENT SECTIONS
a. Start the flared inner flue of Section A over the
inner flue of Section B.
b. Insert the outer flue of Section A into the outer
flue of Section B. See igure 21.
Once both inner and outer flues are started, press
Section A into Section B firmly until all lances
have snapped into place. Tug slightly on Section
A to confirm it has completely locked into place.
See igure 22.
Note: Squeezing the pipe slightly to fit may be necessary.
Note: Make sure that the seams are NOT aligned in
order to prevent unintentional disconnection.
3. ASSEMBLING MINIMUM INSTALLATION
(MI) SECTIONS
MI sections are non-unitized so that they can be cut to a
certain length. To use these sections, they must be cut
to length from the non-expanded end. See igure23.
They can then be attached by first connecting the
expanded end of the MI inner flue with the inner flue
from the adjacent vent section and securing with three
screws. The expanded portion of the MI inner flue must
overlap completely with the untreated end of the adjacent
vent section. The outer flue can then be inserted into
the adjacent outer flue expanded end and attached to
the next vent section with three screws. The other end
of the MI vent section can then be attached by fitting a
snap lock section to it and snapping it together as normal.
Figure 21
Figure 22
Figure 23
All manuals and user guides at all-guides.com

30532 Rev D 14 09-02
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC
4. ASSEMBLING THE SLIP SECTIONS
Slip sections should be snapped into the first mating
piece, then expanded to their desired length, making
sure that a 1.5 overlap is maintained between the
two sections of the slip section. The two sections of
the slip section then need to be secured by driving
two screws through the overlapping portions of the
vent. See igure 24. This will secure the slip section to
the desired length and prevent it from separating. The
slip section can then be attached to the next section of
vent.
5. DISASSEMBLING VENT SECTIONS (only
if necessary)
To disassemble any two pieces of pipe, simply rotate
either section so that the seams on both pipe sections
are aligned as shown in igure 25. They can then be
carefully pulled apart.
Figure 24
Figure 25
All manuals and user guides at all-guides.com

09-02 15 30532 Rev D
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC
G. UTILITIES
1. GAS LINE CONNECTION
Open the control access panel as shown in igure 26. See igure 27 to connect the gas line properly. All connections
must be checked for leaks with a soap and water solution or a leak detector. Bleed the gas line to extract any air that may
have been trapped inside the pipe.
Figure 26
Control Access Panel
Note: This appliance and its manual shutoff valve must
be disconnected from the gas supply piping system dur-
ing any pressure testing of that system at test pressures
in excess of 1/2 psi (3.5 kPa). The appliance must be
isolated from the gas supply piping system by closing its
manual shutoff valve during any pressure testing of the
gas supply piping system at test pressures equal to or
2. GAS PRESSURE
On the standing pilot gas control valve, a pressure tap is
included on the front face of the valve.
Table 2 shows the optimum gas pressure information.
Consult your local gas company for assistance in
determining the proper orifice for your altitude or refer
to ANSI Z223.1 - latest edition.
Figure 27
Gas Line
MISAN
erusserpylppussagtelnI
)saglarutan
*).xam0.7-).nim5.4
erusserpdlofinammumitpO
)saglarutan
*5.3
erusserpylppussagtelnI
)sagPL
*).xam0.41-).nim0.11
erusserpdlofinammumitpO
)sagPL
*0.01
)saglarutanetartupnI
)sagenaporpetartupnI
.rh/UTB000,02
.rh/UTB005,81
ezisecifirosaglarutaN
ezisecifirosagenaporP
.mm62.2/.ni980.
.mm23.1/.ni250.
nmuloCretaWfosehcnI*
Table 2 - Gas Information for Standing Pilot Appliances
Figure 28- L.P. Conversion Kit
Optional: Seal around the gas line to
prevent cold air leakage.
3. CONVERSION TO PROPANE GAS
(IF APPLICABLE)
This appliance is equipped for natural gas. In the event
your appliance must be converted to propane, a
conversion kit is supplied to allow that to be done. The
conversion should only be done by a qualified
technician using these Hearth Technologies Inc.
specified and approved parts. See igure 28.
All manuals and user guides at all-guides.com

30532 Rev D 16 09-02
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC
RESTRICTIONS
In the United States:
WARNING
This conversion kit is to be installed by a qualified service technician in accordance with the manufacturers
installation instructions and all codes and requirements of the authority having jurisdiction. Failure to follow
the instructions could result in a fire, explosion or production of carbon monoxide causing property damage,
serious injury or loss of life. The qualified agency performing this work assumes responsibility for proper
installation of this kit. The installation is not proper and complete until the operation of the converted appliance
is checked as specified in the installation instructions supplied with the kit.
In Canada:
WARNING
The conversion shall be carried out in accordance with the requirements of the provincial authorities
having jurisdiction and in accordance with the requirements of the CAN1-B149.1 and .2 installation code.
Step 1.
Open the control access panel so you can observe the control area of the gas appliance. See igure 29 below.
Step 2. Turn off Gas and Electrical Power
To turn off gas, locate the manual shutoff valve in
the control area in the bottom of the appliance. See
igure 29above. Turn the manual shutoff valve so it
is perpendicular to the gas line. See igure 30.
If electricity has been brought to the appliance for a
fan or remote control, shut off all power by turning
off the appropriate circuit breaker or removing the
fuse at the electrical panel.
Figure 29 - Opening the Control Access Panel
Figure 30
Manual Shutoff Valve
All manuals and user guides at all-guides.com
all-guides.com

09-02 17 30532 Rev D
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC

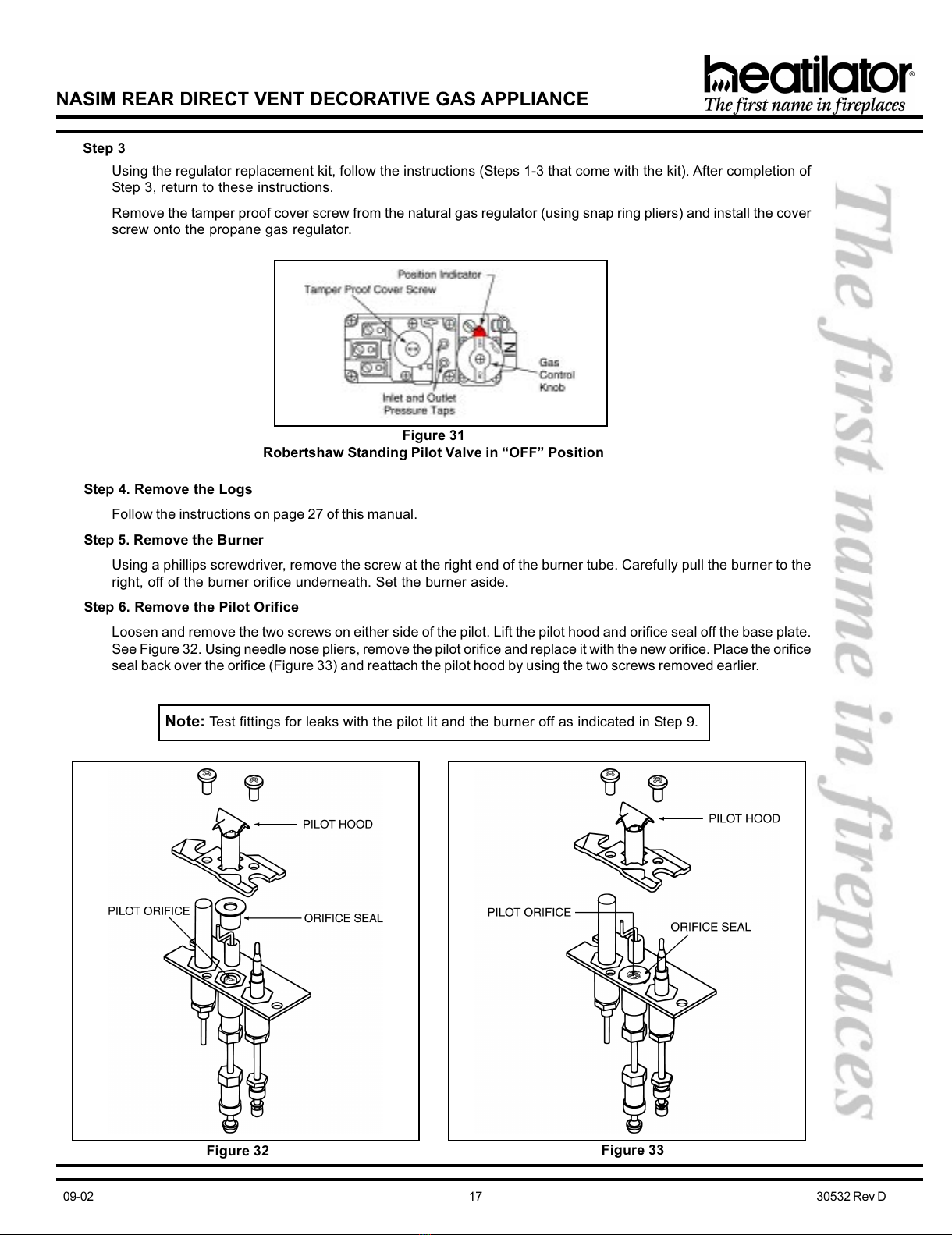

Step 3
Using the regulator replacement kit, follow the instructions (Steps 1-3 that come with the kit). After completion of
Step 3, return to these instructions.
Remove the tamper proof cover screw from the natural gas regulator (using snap ring pliers) and install the cover
screw onto the propane gas regulator.
Step 4. Remove the Logs
ollow the instructions on page 27 of this manual.
Step 5. Remove the Burner
Using a phillips screwdriver, remove the screw at the right end of the burner tube. Carefully pull the burner to the
right, off of the burner orifice underneath. Set the burner aside.
Step 6. Remove the Pilot Orifice
Loosen and remove the two screws on either side of the pilot. Lift the pilot hood and orifice seal off the base plate.
See igure 32. Using needle nose pliers, remove the pilot orifice and replace it with the new orifice. Place the orifice
seal back over the orifice ( igure 33) and reattach the pilot hood by using the two screws removed earlier.
Figure 31
Robertshaw Standing Pilot Valve in OFF Position
Figure 32 Figure 33
Note: Test fittings for leaks with the pilot lit and the burner off as indicated in Step 9.
All manuals and user guides at all-guides.com

30532 Rev D 18 09-02
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC

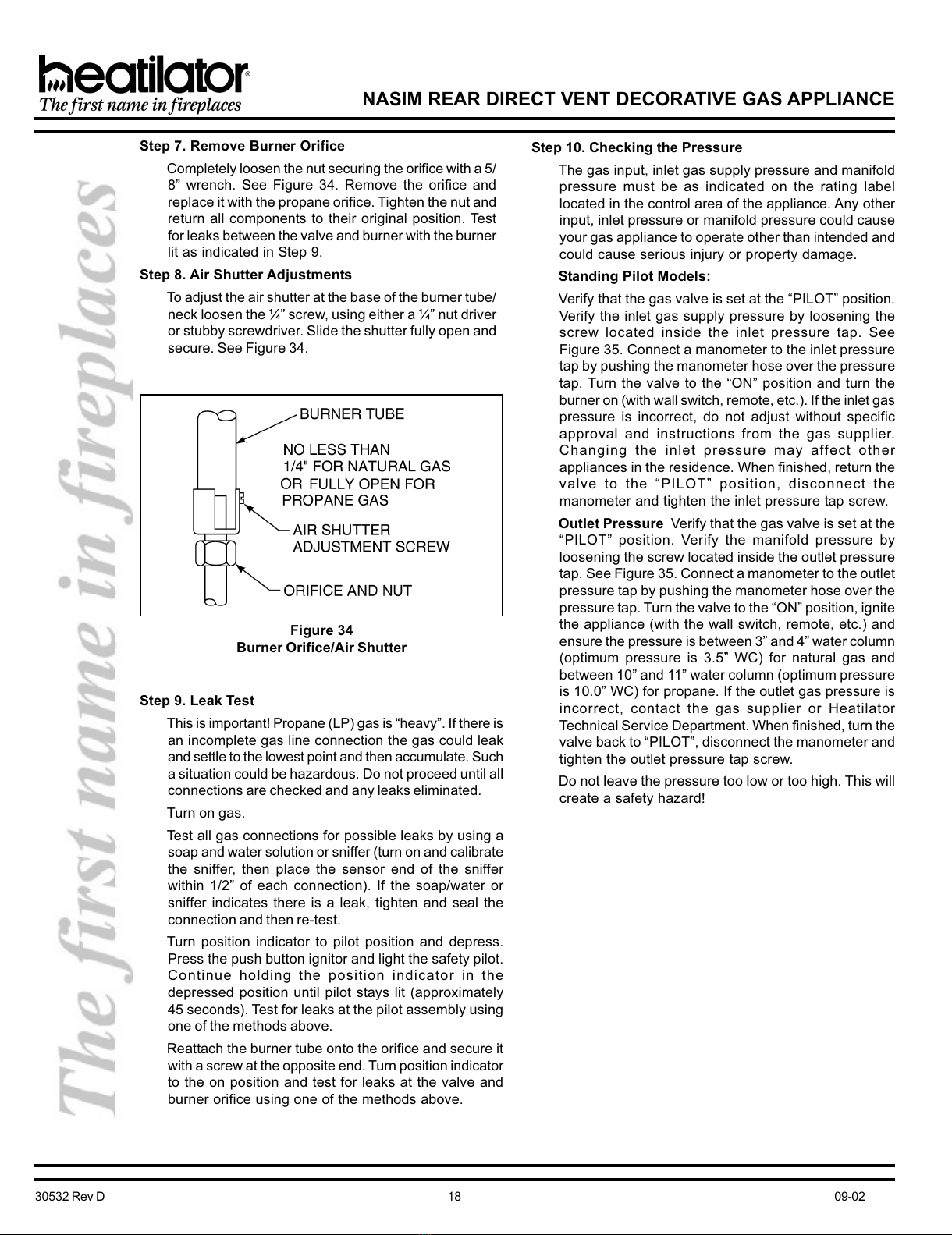

Step 7. Remove Burner Orifice
Completely loosen the nut securing the orifice with a 5/
8 wrench. See igure 34. Remove the orifice and
replace it with the propane orifice. Tighten the nut and
return all components to their original position. Test
for leaks between the valve and burner with the burner
lit as indicated in Step 9.
Step 8. Air Shutter Adjustments
To adjust the air shutter at the base of the burner tube/
neck loosen the ¼ screw, using either a ¼ nut driver
or stubby screwdriver. Slide the shutter fully open and
secure. See igure 34.
Step 10. Checking the Pressure
The gas input, inlet gas supply pressure and manifold
pressure must be as indicated on the rating label
located in the control area of the appliance. Any other
input, inlet pressure or manifold pressure could cause
your gas appliance to operate other than intended and
could cause serious injury or property damage.
Standing Pilot Models:
Verify that the gas valve is set at the PILOT position.
Verify the inlet gas supply pressure by loosening the
screw located inside the inlet pressure tap. See
igure35. Connect a manometer to the inlet pressure
tap by pushing the manometer hose over the pressure
tap. Turn the valve to the ON position and turn the
burner on (with wall switch, remote, etc.). If the inlet gas
pressure is incorrect, do not adjust without specific
approval and instructions from the gas supplier.
Changing the inlet pressure may affect other
appliances in the residence. When finished, return the
valve to the PILOT position, disconnect the
manometer and tighten the inlet pressure tap screw.
Outlet Pressure Verify that the gas valve is set at the
PILOT position. Verify the manifold pressure by
loosening the screw located inside the outlet pressure
tap. See igure 35. Connect a manometer to the outlet
pressure tap by pushing the manometer hose over the
pressure tap. Turn the valve to the ON position, ignite
the appliance (with the wall switch, remote, etc.) and
ensure the pressure is between 3 and 4 water column
(optimum pressure is 3.5 WC) for natural gas and
between 10 and 11 water column (optimum pressure
is 10.0 WC) for propane. If the outlet gas pressure is
incorrect, contact the gas supplier or Heatilator
Technical Service Department. When finished, turn the
valve back to PILOT, disconnect the manometer and
tighten the outlet pressure tap screw.
Do not leave the pressure too low or too high. This will
create a safety hazard!
Step 9. Leak Test
This is important! Propane (LP) gas is heavy. If there is
an incomplete gas line connection the gas could leak
and settle to the lowest point and then accumulate. Such
a situation could be hazardous. Do not proceed until all
connections are checked and any leaks eliminated.
Turn on gas.
Test all gas connections for possible leaks by using a
soap and water solution or sniffer (turn on and calibrate
the sniffer, then place the sensor end of the sniffer
within 1/2 of each connection). If the soap/water or
sniffer indicates there is a leak, tighten and seal the
connection and then re-test.
Turn position indicator to pilot position and depress.
Press the push button ignitor and light the safety pilot.
Continue holding the position indicator in the
depressed position until pilot stays lit (approximately
45 seconds). Test for leaks at the pilot assembly using
one of the methods above.
Reattach the burner tube onto the orifice and secure it
with a screw at the opposite end. Turn position indicator
to the on position and test for leaks at the valve and
burner orifice using one of the methods above.
Figure 34
Burner Orifice/Air Shutter
All manuals and user guides at all-guides.com

09-02 19 30532 Rev D
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC
Step 11. Attaching Labels
The installer conversion label and valve
manufacturer labels must be completed and
installed by the individual completing the
conversion. This must be finished or the
conversion is not complete. See igures 34
through 38.
To fill out the installer conversion label, follow the
example in igure 36. After filling out the label, clean
an area near the existing rating label and attach.
Attach the valve manufacturer conversion labels as
indicated in igures 37 and 38.
Figure 36
Conversion Label example)
THIS CONTROL
HAS BEEN
CONVERTED TO
LP
Figure 37
Robertshaw Conversion Label
Figure 38
Robertshaw Conversion Label Placement
Figure 35
Standing Pilot Valve Manometer Adjustment
CKP THIS PLATE MUST BE AFFIXED AS CLOSE AS
POSSIBLE TO THE EXISTING RATING PLATE.
THE FOLLOWING MUST BE COMPLETED BY THE
INDIVIDUAL CONVERTING THIS APPLIANCE FROM
PROPANE GAS TO NATURAL GAS.
This a liance has been converted on (date) MO-DAY-YEAR to
ro ane with Kit * CKP by (name and address of organization making
this conversion) JOHN SMITH DISTRIBUTING, 1 34
ANYWHERE RD., ANYWHERE, STATE/PROVINCE .
who acce ts the res onsibility for the correctness of this
conversion.
20836A
All manuals and user guides at all-guides.com

30532 Rev D 20 09-02
NASIM R AR DIR CT V NT D CORATIV GAS APPLIANC
4. WIRING
Standing Pilot Ignition - Millivolt System
a. Appliance Requirements. A wiring diagram is
shown in igure 39.
b. Optional Accessories Requirements. Wiring for
optional accessories should be done now to avoid
reconstruction.
Note: This appliance must be electrically wired and
grounded in accordance with local codes. In the absence
of local codes, the wiring must comply with the National
Electric Code ANSI/N PA 70 - latest edition or the
Canadian Electric Code, CSA C22.1.
WARNING
This standing pilot appliance does not require a 110V AC power supply
for operation. Connecting the appliance/wall switch to a 110V AC will
cause the appliance to malfunction and destroy the valve and
thermopile.
Figure 39
Standing Pilot Ignition Wiring Diagram
14-3 with Ground Romex is the recommended
wiring to the appliance junction box.
Detailed picture of the junction box
(optional for standing pilot appliances). Break the tab between
the two hot connectors.
All manuals and user guides at all-guides.com
