Heatmiser Touch User manual

1Model: PRT-RPTS Model: Touch

Touch Series
1
Model: Touch

2
1
2
3-4
5-6
7-8
9
10
11-12
13
13
14
3-4
10
1
13
7-8
14

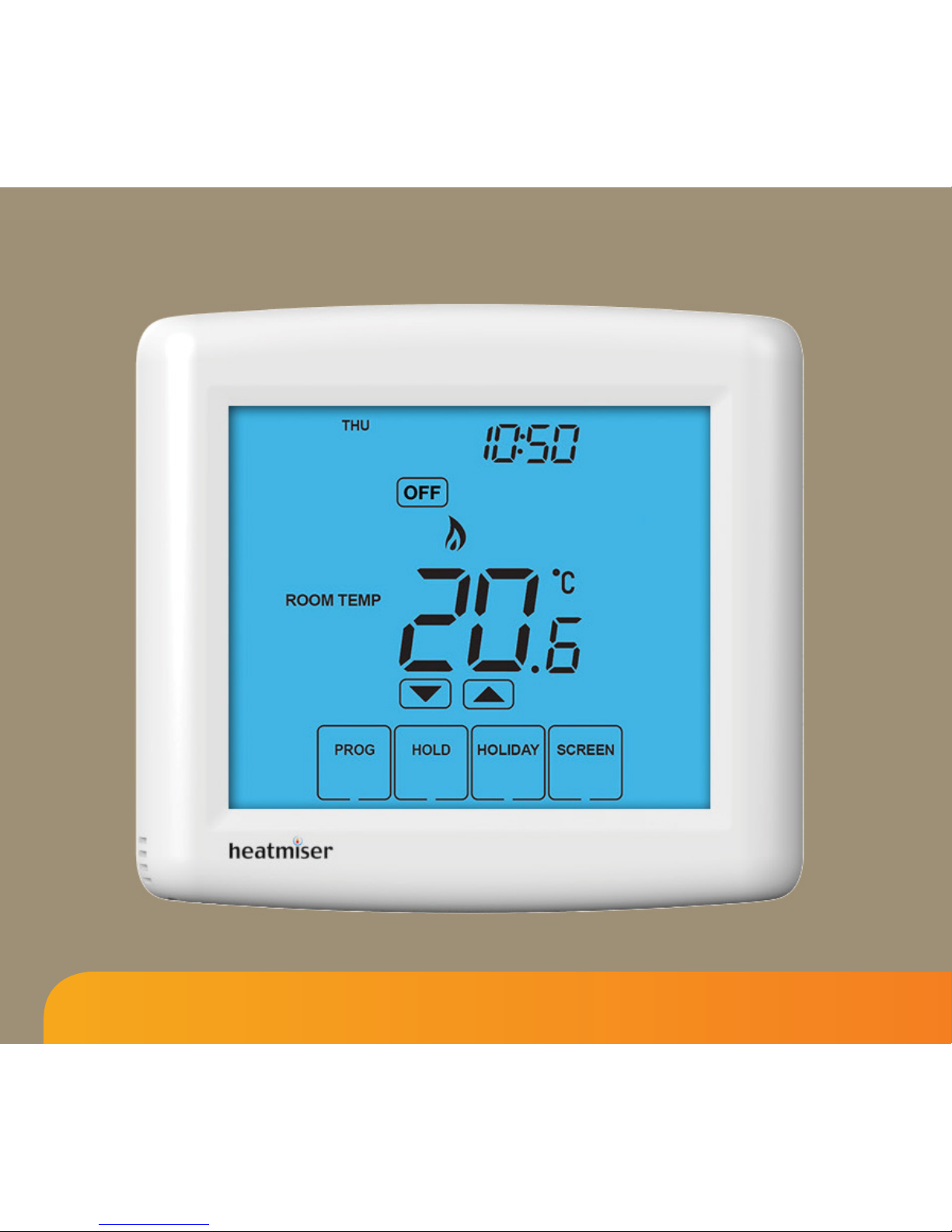

Product Image
Table of Contents
What is a Programmable Room
Thermostat?
Installation Procedure
LCD Display
Setting the Clock
Temperature Display
Comfort Levels Explained
Clean Screen
Locking the Keypad
Temperature Control
What is a Programmable Room
Thermostat?
LCD Display
Clean Screen
Temperature Display
Product Image
Temperature Control
15
16
17
18
19-20
21
22
23
24
25
26-28
29-30
15
19-20
24
17
22
26-28
Temperature Hold
Holiday Programming
Frost Protection
Heating ON/OFF
Optional Features Explained
Adjusting the Optional Settings
Optional Settings - Features Table
Re-calibrating the Thermostat
Factory Reset
Error Code E2
Wiring Diagrams
Notes
Temperature Hold
Optional Features Explained
Factory Reset
Frost Protection
Optional Settings - Features Table
Wiring Diagrams
Table Of Contents
2
Model: Touch

3 Touch Series
What is a Programmable Room Thermostat?
A programmable room thermostat is both a programmer and a room thermostat.
The programmer allows you to set“On” and “Off” periods to suit your own lifestyle.
The room thermostat works by sensing the air temperature, switching on the heating
when the air temperature falls below the thermostat setting, and switching it off once this
set temperature has been reached.
So a programmable room thermostat lets you choose what times you want the heating
to be on, and what temperature it should reach while it is on. It will allow you to select
different temperatures in your home at different times of the day (and days of the week)
to meet your particular needs and preferences.
Setting a room thermostat to a higher temperature will not make the room heat up
any faster. How quickly the room heats up depends on the design & size of the heating
system.
Similarly reducing the temperature setting does not affect how quickly the room cools
down. Setting a programmable room thermostat to a lower temperature will result in the
room being controlled at a lower temperature, and saves energy.
The way to set and use your programmable room thermostat is to find the lowest
temperature settings that you are comfortable with at the different times you have
chosen, and then leave it alone to do its job.

4
The best way to do this is to set the room thermostat to a low temperature
– say 18°C , and then turn it up by 1°C each day until you are comfortable with the
temperature. You won’t have to adjust the thermostat further. Any adjustment above
this setting will waste energy and cost you more money.
If your heating system is a boiler with radiators, there will usually be only one
programmable room thermostat to control the whole house. But you can have
different temperatures in individual rooms by installing thermostatic radiator valves
(TRVs) on individual radiators.
If you don’t have TRVs, you should choose a temperature that is reasonable for the
whole house. If you do have TRVs, you can choose a slightly higher setting to make
sure that even the coldest room is comfortable, then prevent any overheating in other
rooms by adjusting the TRVs.
You are able to temporarily adjust the heating program by overriding or using the
temperature hold feature. These features are explained further on pages 14 and 15 of
this manual.
Programmable room thermostats need a free flow of air to sense the temperature,
so they must not be covered by curtains or blocked by furniture. Nearby electric
fires, televisions, wall or table lamps may also prevent the thermostat from working
properly.
Model: Touch

5 Touch Series
Installation Procedure
This Touch Series thermostat is designed to be flush mounted and requires a back
box of 35mm (minimum depth) to be sunk into the wall prior to installation.
Step 1
Carefully separate the front half of the thermostat from the back plate by placing a
small flat head terminal driver into the slots on the bottom face of the thermostat.
Step 2
Place the thermostat front somewhere safe.
Terminate the thermostat as shown in the diagrams on pages 26-28 of this booklet.
Step 3
Screw the thermostat back plate securely into the back box.
Step 4
Clip the front of the thermostat back onto the thermostat back plate.
Do
Mount the thermostat at eye level.
Read the instructions fully so you get the best from our product.
Don’t
Do not install near to a direct heat source as this will affect functionality. Do
not push hard on the LCD screen as this may cause irreparable damage.

6
1 2
3 4
Model: Touch

1 432 5
9
8
17
16
13
6
10
11
12
15
18
7
14
7 Touch Series

1. Day Indicator - Displays the day of the week.
2. Holiday Indicator - Displayed when the thermostat is in Holiday mode.
3. Temperature Hold - Displayed when the thermostat is in Hold mode.
4. Clock - Displays time in normal operation, time left in hold or days left in
holiday mode.
5. Up/Down Keys - Increase or decrease values shown on top digit group.
6. Flame Icon - Displayed when the thermostat is calling for heat, the flame icon
will flash when optimum start function is in operation.
7. Keypad Lock Icon - Displayed when the keypad is locked.
8. OFF Button - Single press to enable/disable frost protection or press and hold
to turn off display.
9. Frost Icon - Displayed when the thermostat is in frost protection mode.
10. Room Temp - Indicates current temperature sensor mode.
11. Set - Indicates when changes are being made to programs or temperature set
points.
12. Clean Screen - Freezes screen temporarily to enable cleaning.
13. Up/Down Keys - Increase or decrease values shown on bottom digit group.
14. Cancel Button - Used to exit setup/program operations.
15. Setup/Programming Keys - Used to navigate setup options.
16. Current Temp - Indicates the current sensor temperature.
17. Units of Temperature - Degrees Celsius or Fahrenheit.
18. Comfort Level Selection Keys - Used in comfort level setup (see page 11).
LCD Display
8Model: Touch

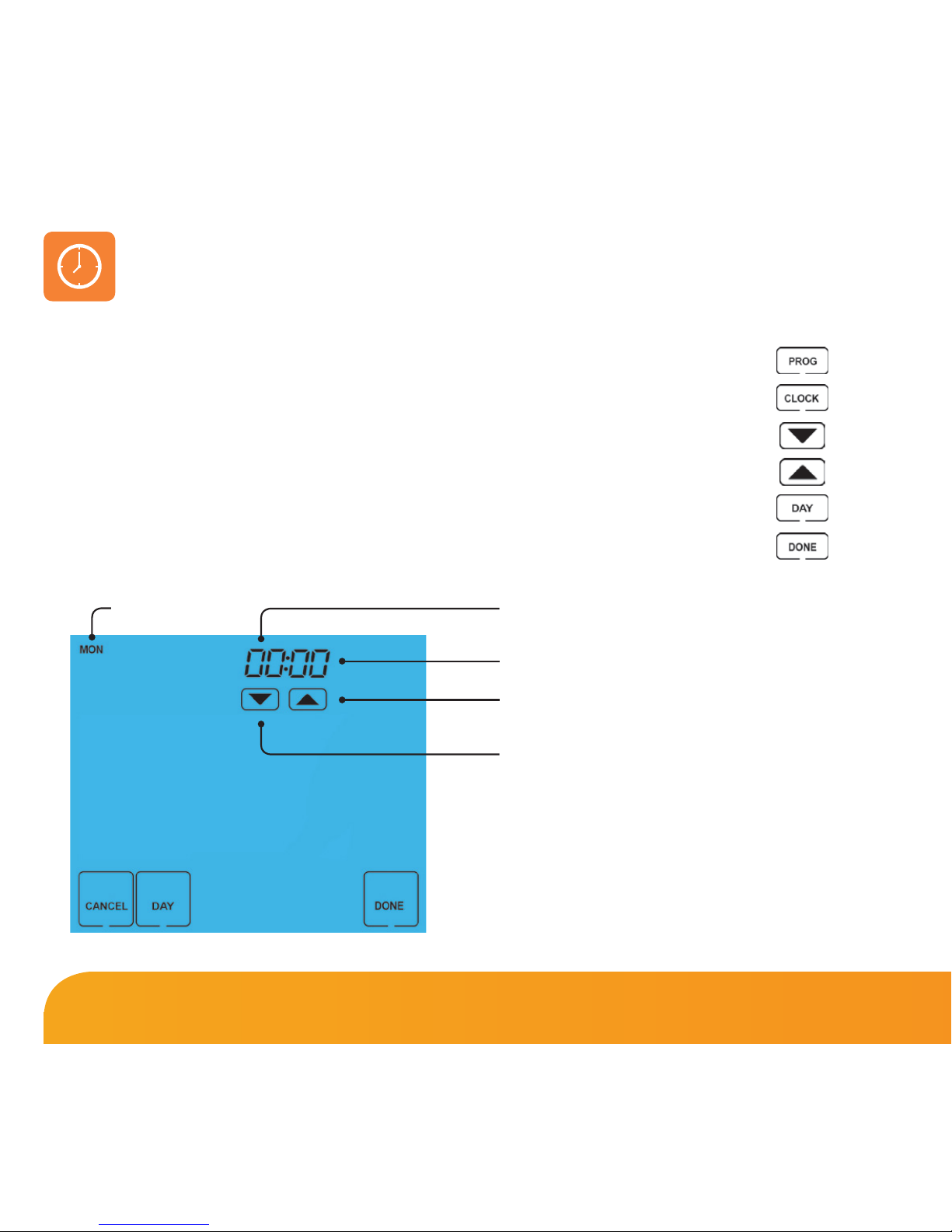

To set the clock, follow these steps.
• Press PROG ...............................................................................................................
• Press CLOCK .............................................................................................................
• Use the Down key to set the hours .................................................................
• Use the Up key to set the minutes ..................................................................
• Use the Day key to set the day of the week .................................................
• Press DONE to confirm and exit ........................................................................
Setting the Clock
Hours
Change Hours
Minutes
Day
Change Minutes
9 Touch Series

10
Room Temperature SET Temperature
Temperature Display
The temperature display information is driven by two different inputs; the sensor
measurement and the target temperature you have set.
This is the current room temperature. This is the temperature you are trying to
achieve in your home.
Model: Touch

11 Touch Series
Comfort levels allow you to set different temperatures throughout the day. For example,
you may want the home warm in the morning when you are getting ready for work,
cooler during the day when the house is unoccupied and then warmer in the evening
when you are home relaxing.
The thermostat offers the following program mode options;
Non-Programmable – Basic up/down override temperature control.
5/2 Day Programming – 4 levels for the weekdays and 4 different levels for the weekend.
7 Day Programming – 4 levels for each day.
See page 21 for details on how to switch between these modes.
Tip! If you don’t want to use all of the comfort levels, just set the time to --.--
Default comfort levels are pre-programmed but you can change them easily.
Weekday Level Time Temp
Wake 08:00 21°C
Leave 09:30 16°C
Return 16:30 22°C
Sleep 23:00 17°C
Weekend Level Time Temp
Wake 09:00 21°C
Leave 22:00 16°C
Return --,-- --°C
Sleep --,-- --°C
Comfort Levels Explained

12
• Press PROG ......................................................................................................
• Select WAKE .....................................................................................................
• Use the Up/Down keys to set the time for WAKE period ...............
• Use the Up/Down keys to set the temperature in °C ........................
• Repeat these steps for the LEAVE, RETURN & SLEEP periods ........
• Press DAY to select the next day to program and repeat ...............
• When complete, press DONE to confirm settings and exit ............
In 5/2 Day mode the thermostat will display
“Sat Sun” prompting you to program the
temperature levels for the weekend.
In 7 Day mode, the thermostat will
display Tue.
Model: Touch

13 Touch Series
Locking the Keypad
The thermostat has a keypad lock facility.
• To activate the lock press the bottom right corner of the display and hold for 10 secs.
• When activated, you will see the Keypad Lock symbol.
• To cancel, press the bottom right corner of the display again for 10 secs.
Clean Screen
Pressing will disable all buttons, providing you 15 seconds to wipe the
screen clean before the buttons are re-activated.
Pressing will disable all buttons, providing you 15 seconds to wipe the
Keypad Lock Indicator

14
The keys under the temperature display allow
you to adjust the set temperature.
When you press either of these keys, you will see the temperature and
the word SET appear on screen.
Select the desired temperature and press to confirm and exit.
Note: In programmable mode, this new temperature is maintained only until the next
programmed comfort level.
In non-programmable mode, this temperature will be constantly maintained.
Temperature Control
Select the desired temperature and press to confirm and exit.
The keys under the temperature display allow
The keys under the temperature display allow
Set Temperature
Set Icon
Model: Touch

15 Touch Series
The Temperature Hold function allows you to manually override the current
operating program and set a different temperature for a desired period.
• Press HOLD .........................................................................................................................
• Use the top set of Up/Down keys to set the hold period .................................
• Use the center set of Up/Down keys to set the hold temperature ................
• Press DONE to confirm and exit .................................................................................
To cancel a Temperature Hold, follow the same steps but reduce the time to 00:00.
Temperature Hold
Hold Icon
Hold Time
Hold Temperature

16
The Holiday function reduces the set temperature in your home to the frost protection
temperature setting (see page 19).
The thermostat will maintain this temperature for the duration of the holiday and will
then automatically return to the program mode on your return.
• Press HOLIDAY .............................................................................................
• Enter the desired duration in days .......................................................
• Press DONE to confirm and exit .............................................................
To cancel a Holiday setting, reduce the Holiday time to 00 days.
Holiday
Holiday Icon
Holiday Days
Note: A holiday period does not start until 00:00 the next day. For example, if you set a holiday
period on Friday for 2 days, Saturday will be counted as the first day and the thermostat will
revert back to the programmed schedule at 00:00 on Monday.
Model: Touch

17 Touch Series
Pressing the button once will place the thermostat in frost protect mode.
In this mode, the thermostat will display the frost icon and will only turn the heating on
should the room temperature drop below the set frost temperature (see page 19).
Should the heating be turned on whilst in frost mode, the flame symbol will be
displayed.
To cancel the frost protect mode, press the OFF button ....................................................
Pressing the button once will place the thermostat in frost protec
Frost Mode
Frost Protection Mode Enabled

18
The heating is indicated ON when the flame icon is displayed.
When the flame icon is absent, there is no requirement for heating to achieve the set
temperature but the thermostat remains active.
To turn the thermostat OFF completely, press and hold the OFF key ....................
The display and heating output will be turned off completely.*
To turn the thermostat back ON, press the ON key once .............................................
Heating On/Off
Thermostat completely OFF Thermostat powered ON
*See Feature 3 on page 19
Model: Touch

19 Touch Series
THE FOLLOWING SETTINGS ARE OPTIONAL AND IN MOST CASES
NEED NOT BE ADJUSTED
Feature 01 – Temperature Format: This function allows you to select between °C or °F.
Feature 02 – Switching Differential: This function allows you to increase the switching
differential of the thermostat. The default is 1°C which means the thermostat will
switch the heating on 1°C below the set temperature and will turn it off when the set
temperature is achieved. With a 2°C differential, the heating will switch on 2°C below the
set temperature and will switch off when the set temperature is achieved.
Feature 03 – Frost Protect: You can set whether the thermostat will maintain the frost
temperature when the thermostat display is turned off. As a default, this is enabled.
Feature 04 – Frost Protect Temperature: This is the temperature maintained when the
thermostat is in frost mode. The range is 07-17°C. The default is 12°C and is suitable for
most applications.
Feature 05 – Output Delay: To prevent rapid switching, an output delay can be entered.
This can be set from 00 -15 minutes. The default is 00 which means there is no delay.
Feature 06 – Communication Address: Not used on this model.
Feature 07 – Temperature Up/Down Limit: This function allows you to limit the use of
the up and down keys. This limit is also applicable when the thermostat is locked and so
allows you to give others limited control over the heating system.
Optional Features Explained
