HEIN-WERNER AUTOMOTIVE HW93765 Instructions for use

Operating Instructions & Parts Manual
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
[email protected]
Model Number Capacity
HW93765 3/4 Ton
Hydraulic
Wheel Dolly
Read this manual and follow all the Safety Rules and Operating Instructions before using this product
HW93765-M0 rev 11172008
Obey all safety messages that follow this symbol to avoid possible injury or death.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
!
Made in the
U.S.A.

2
•Read, understand and follow all printed materials provided with and on this wheel dolly.
•Do Not exceed rated capacity.
•Before positioning wheel dolly, ensure that the vehicle is securely positioned and
supported by a pair of appropriately rated jack stands.
•Use only on smooth, hard and level surfaces capable of sustaining the load.
•Chock each unlifted wheel assembly in both directions.
•Be alert and sober when using this product! Never operate this equipment when under
the inuence of drugs or alcohol.
•Before moving, lower the load to the lowest possible point and assure that the load is
centered and secured with a load restraint device.
•Only attachments and/or adapters supplied by the manufacturer shall be used.
•No alterations shall be made to this product.
•Never use hydraulic power unit (jack) as a stand alone device.
•Apply load as close to the vertical position of the lifting member as possible.
WARNING
!
Model Capacity Lift Range Lifting Arm
Length
Lifting Arm
Spread
Overall Size
(L x W x H)
HW93765 3/4 ton 4" - 9" 23" 24" 36" x 35-1/2" x 31-1/2"
SPECIFICATIONS
!
NEVER load this device with more than the weight of the wheel assembly to be removed!
ENSURE that the vehicle is securely positioned and supported by a pair of appropriately rated jack stands.
NEVER use a wheel dolly as a wheel pulling device. Before transporting wheel assembly ensure that it is
free from the hub or drum assembly and that it is secured to the wheel dolly using the provided securing
means.
!
PRODUCT DESCRIPTION
Hein-Werner hydraulic wheel dolly is designed to facilitate the removal and installation of pneumatic tires and wheel
assemblies found on many trucks, buses and trailers. This is NOT suitable for use as a wheel and tire puller. It is de-
signed ONLY for use in removing up to rated capacity tire and wheel assemblies which are not bound and/or seized up
at the brake drum or hub assemblies. This device is designed to be used in conjunction with jacks and jack stands.
Inspect before each use. Do not use if broken, bent, cracked, or damaged parts (including labels) are noted. Any
wheel dolly that appears damaged in any way, operates abnormally or is missing parts, shall be removed from service
immediately and the manufacturer notied. If you suspect that the product was subjected to a shock load (a load dropped
suddenly, unexpectedly upon it), immediately discontinue use until it has been checked by a factory authorized service
center (contact distributor or manufacturer for list of Authorized Service Centers). It is recommended that an annual
inspection be done by qualied personnel. Replace worn or damaged parts with Hein-Werner Authorized Replacement
Parts only. Labels and owner’s manuals are available from manufacturer.
SAFETY and GENERAL INFORMATION
Save these instructions. For your safety, read, understand, and follow the information provided with and on this wheel
dolly before using. The owner and/or operator of this equipment shall have an understanding of this equipment and
safe operating procedures before attempting to use. The owner and/or operator shall be aware that use and repair
of this product may require special skills and knowledge. Instructions and safety information shall be conveyed in the
operator's native language before use of this product is authorized. If any doubt exists as to the safe and proper use of
this wheel dolly, remove from service immediately.
To avoid crushing and related injuries and or property damage:

3
BEFORE USE (refer to Figures 1,2, and 3)
1. Verify that the product and the application are compatible, if in doubt call Hein-Werner Technical Service (816) 891-
6390.
2. Before using this product, read the owner's manual completely and familiarize yourself thoroughly with the product,
its components, and recognize the hazards associated with its use.
3. Assemble the handle for hydraulic unit.
4. To familiarize yourself with basic operation; position the hydraulic unit upright as shown in Fig. 2., assemble the handle,
locate and engage the release valve with the slotted portion of the provided handle, then turn the release valve:
a. Clockwise until rm resistance is felt to further turning of the handle. This is the ‘CLOSED’ release valve position used
to raise the load.
b. Counter-clockwise, but no more than 1 turn from the closed position. This is the ‘OPEN’ release valve position used
to lower the load.
5. With ram plunger fully lowered, locate and remove the oil ller plug. Insert the handle into the handle sleeve; then
pump 6 to 8 full strokes. Check oil level. Proper oil level is level with the bottom of the oil ller plug hole. Adjust as
needed, reinstall the oil ller plug.
6. Place the hydraulic unit (Fig. 2) into the hydraulic unit holder located beneath the tool tray. Position the unit such
that the saddle mates with the provided indentation. Adjustment of the saddle extension screw may be necessary.
7. Check to ensure the wheel dolly rolls freely and the hydraulic unit operates smoothly before putting into service.
Replace worn or damaged parts with factory Authorized Replacement Parts only. Contact the manufacturer or dis-
tributor of this product for a list of factory authorized service centers. Lubricate as instructed in Maintenance Sec-
tion.

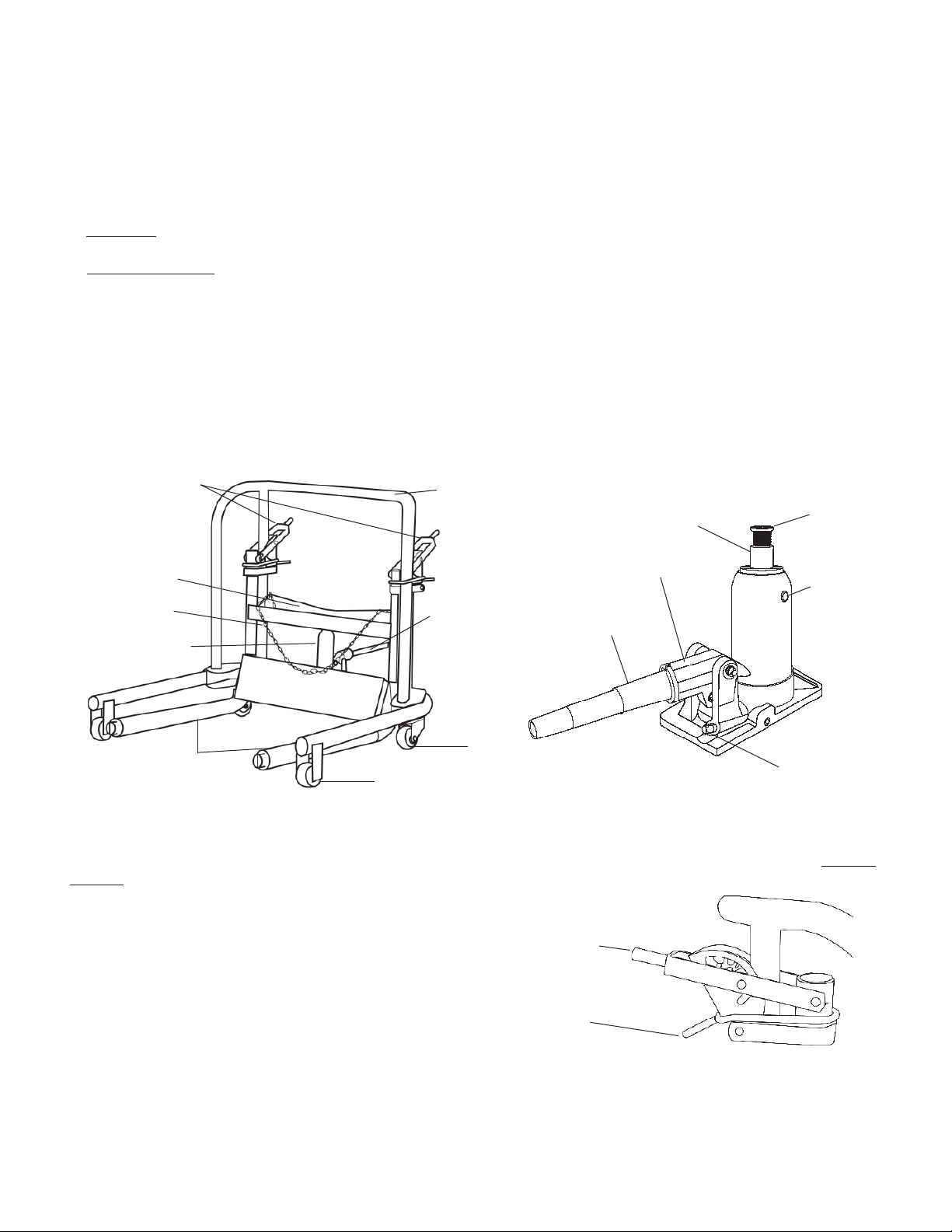

Figure 1 - Wheel Dolly Components
Caster
Front Wheel
Hydraulic Unit
Hydraulic Unit
Handle
Restraint
Frame
Handle
Lifting Arms
Tool Tray
Figure 2 - Hydraulic Unit Components
Handle
Assembly
Oil Filler
Plug
Release
Valve
Saddle/
Extension
Screw
Handle
Sleeve
Ram
Plunger
Lift Arm Level
Control
(see Fig. 3)
Lift Arm Level Control (see Fig.3)
Pull the Lift Arm Level Control (upper lever) upward and push the Lift Arm Level Lock (lower lever) downward simulta-
neously to adjust the lifting arms to a wide variety positions and angles.
Lift Arm Level Control
Lever
Figure 3 - Lift arm Leveling Mechanism
Lift Arm Level
Lock
Bleeding / Venting Trapped Air
With the release valve in the OPEN position (4b. above) and with saddle fully lowered, locate and remove the oil ller
plug. Insert the handle into the handle sleeve; then pump 6 to 8 full strokes. This will help release any pressurized air
which may be trapped within the reservoir. Reinstall the oil ller plug.
If necessary, use the hydraulic unit handle to engage the
Lift Arm Level Control lever to allow easier operation.

4
OPERATION (refer to Fig. 1,2, & 3)
VEHICLE PREPARATION
1. Locate vehicle on a hard, level surface, such as reinforced concrete, large enough to accommodate vehicle, jacks,
jack stands, and wheel dolly.
2. Set the emergency brake unless the rear drum, tire and wheel are all to be removed as an assembly.
3. Chock all unlifted tires in both directions AND take every precaution necessary to ensure the set up is stable and
will prevent all inadvertent vehicle movement.
RAISING THE LIFTING ARMS
1. Locate and enagage the release valve using the provided handle assy, then turn handle clockwise until rm
resistance is felt to further thread engagement.
Follow the vehicle manufacturers recommended removal and installation procedures for tire, wheel, hub,
or axle assemblies as needed! DO NOT remove more than is recommended by the vehicle manufacturer!
2. After the tire, wheel assembly has been loosened from the hub or axle and is ready to be removed, position the
dolly under the assembly to be removed. Pump until load reaches desired height. Adjust lift arm tilt such that the tire,
wheel assembly will nest securely between the lift arms without falling forward (toward the front wheels).
LOADING THE WHEEL DOLLY
NEVER load this device with more than the weight of the wheel assembly to be removed!
ENSURE that the vehicle is securely positioned and supported by a pair of appropriately rated jack stands.
NEVER use a wheel dolly as a wheel pulling device. Before transporting wheel assembly, ensure that it is
free from the hub or drum assembly and secured to the wheel dolly with the provided restraint.
1. When the weight of the loosened tire and wheel assembly is supported by the wheel dolly, carefully roll the wheel
dolly away from the drum or axle.
LOWERING
1. Engage and slowly turn the release valve counterclockwise, but never more than 1 full turn.
TRANSPORTING LOADED WHEEL DOLLY
1. Ensure that wheel assembly is secured to the wheel dolly by means of the provided restraint.
2. When wheel assembly has cleared the hub or the axle, lower the lift arms to the lowest position that will still allow
wheel dolly wheel and caster movement.
3. Push or pull to desired location.
Follow the vehicle manufacturers recommended removal and installation procedures for tire, wheel,
hub, or axle assemblies as needed!
If the operating handle is worn, operates abnormally, or will not positively engage the release valve,
immediately discontinue use of the jack until a replacement handle assembly can be acquired.
!
!
!
!
!

MAINTENANCE
Important: Use only a good grade hydraulic jack oil. Avoid mixing different types of uid and NEVER use brake uid,
turbine oil, transmission uid, motor oil or glycerin. Improper uid can cause failure of the jack and the potential for sudden
and immediate loss of load. We recommend Hein-Werner hydraulic jack oil HW93291 or equivalent.
ADDING OIL TO HYDRAULIC UNIT
1. With saddle fully lowered set jack in its upright, level position. Locate and remove oil ller plug.
2. Fill with oil even with the bottom of oil ller plug hole. Reinstall the oil ller plug.
CHANGING OIL IN HYDRAULIC UNIT
For best performance and longest life, replace the complete uid supply at least once per year.
1. Remove hydraulic unit from wheel dolly. Set hydraulic unit upright on a hard, level surface.
2. With saddle fully lowered, remove the oil ller plug.
3. Lay the jack on its side and drain the uid into a suitable container.
Note: Dispose of hydraulic uid in accordance with local regulations.
4. Fill with oil even with the bottom of oil ller plug hole. Reinstall the oil ller plug.
LUBRICATION
A periodic coating of light lubricating oil to wheel dolly and hydraulic unit pivot points will help to ensure that all moving
parts function smoothly.
CLEANING
Periodically check the pump piston and ram for signs of rust or corrosion. Clean as needed and wipe with an oily
cloth.
Note: Never use sandpaper or abrasive material on these surfaces.
STORAGE
Store the jack with the pump piston, ram plunger, and saddle fully lowered and the release valve open, but never more
than 1 turn. This will help prevent rust and corrosion to those critical surfaces.
5
TROUBLESHOOTING
(*) "bleeds off" refers to an unexpected loss of load height due to a loss of hydraulic pressure
Symptom Possible Causes Corrective Action
Hydraulic unit will not lift load • Release valve not tightly closed • Ensure release valve tightly closed
Hydraulic unit *bleeds off after
lifting
• Release valve not tightly closed
• Hydraulic unit malfunction
• Ensure release valve tightly closed
• Contact Hein-Werner Tech. Service
Hydraulic unit will not lower after
unloading
• Reservoir overlled
• Linkages binding
• Drain uid to proper level
• Clean and lubricate moving parts
Poor performance • Fluid level low
• Air trapped in system
• Ensure proper uid level
• With ram fully retracted, remove oil
ller plug to let pressurized air escape,
then reinstall oil ller plug
Will not lift to full extension • Fluid level low • Ensure proper uid level

6
REPLACEMENT PARTS
Not all components of the wheel dolly are replacement items, but are illustrated as a convenient reference of location
and position in the assembly sequence. When ordering parts, give Model number, parts number and parts description.
Call or write for current pricing: Hein-Werner Customer Support, 10939 N. Pomona Ave. Kansas City, MO 64153
E-mail: [email protected] Phone:[phone]

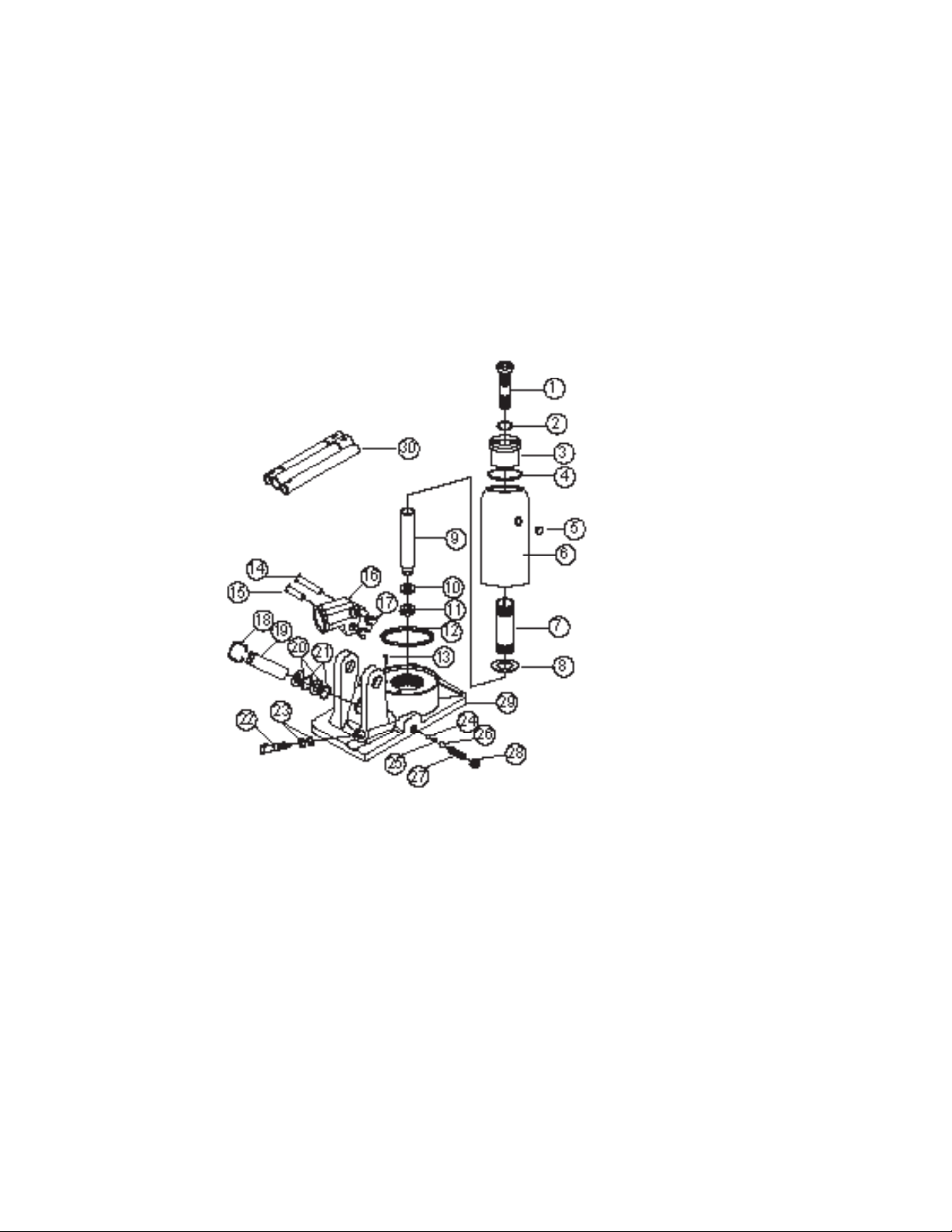

Figure 4 - Parts Illustration for Wheel Dolly HW93765 - Hydraulic Unit

Figure 5 - Parts Illustration for Wheel Dolly HW93765 - Main Frame
52

Replacement Parts List for HW93765
(*) indicates items included in Repair Kit
7
Item Part No. Description Qty
1 N/A Extension Screw 1
2 * O-ring 1
3 N/A Top Nut 1
4 * Gasket 1
5 * Filler Plug 1
6 N/A Reservoir 1
7 N/A Cylinder 1
8 5308-00235-000 Washer 1
9 N/A Ram Plunger 1
10 * Back-up Ring 1
11 * U-cup 1
12 * Gasket 1
13 B020-10003-000 Filter 1
14 5403-10031-000 Pin 1
15 5903-10064-000 Pin 1
16 B02B-10004-000 Handle Sleeve 1
17 5305-00008-000 Washer 2
18 B02B-14002-000 Pump Piston Ring 1
19 B02B-14001-000 Pump Piston 1
20 * O-ring 2
21 * Back-up Ring 2
22 * Release Valve 1
23 * O-ring 2
24 5601-00476-000 Steel Ball, 4.76mm dia 1
25 B02B-10006-000 Spring 1
26 5601-00750-000 Steel Ball, 7.5mm dia 1
27 B02B-10005-000 Spring
28 5109-11085-000 Screw
29 N/A Base
30 B02B-20000-000 Handle Assy 1
(*) B02B0S-031 Repair Kit, Hydraulic
Unit
1
Item Part No. Description Qty
31 207169 Nut 2
32 209964 Washer 2
33 214557 Retaining Ring 2
34 214567 Button Plug
35 221346 Caster
36 221384 Roller
37 221385 Roller
38 221386 Pin
39 221390 Washer
40 221406 Chain
41 221407 Tension Spring
42 221408 Cotter Pin
43 221409 Handle Socket &
Bracket
44 221412 Adjusting Dog &
Handle
45 260485 Handle
46 231236 Roller & Bearing
47 233153 Wheel & Bushing Ass'y.
48 233154 Screw
49 233869 Cotter Pin
50 233153 Wheel
51 234001 Bushing
52 HW2023 Hydraulic Unit
1
1
1

TWO YEARS LIMITED WARRANTY
For a period of two (2) years from date of purchase, SFA Companies will repair or replace, at its option, without charge,
any of its products which fails due to a defect in material or workmanship under normal usage. This limited warranty is
a consumer’s exclusive remedy.
Performance of any obligation under this warranty may be obtained by returning the warranted product, freight prepaid,
to SFA Companies Warranty Service Department, 10939 N. Pomona Ave., Kansas City, MO 64153.
Except where such limitations and exclusions are specically prohibited by applicable law:
(1) THE CONSUMER’S SOLE AND EXCLUSIVE REMEDY SHALL BE THE REPAIR OR REPLACEMENT OF DEFECTIVE
PRODUCTS AS DESCRIBED ABOVE
(2) SFA COMPANIES SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGE OR LOSS
WHATSOEVER.
(3) ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO TWO YEARS,
OTHERWISE THE REPAIR, REPLACEMENT OR REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED
WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED.
(4) ANY MODIFICATION, ALTERATION, ABUSE, UNAUTHORIZED SERVICE OR ORNAMENTAL DESIGN VOIDS
THIS WARRANTY AND IS NOT COVERED BY THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you. This warranty gives you specic legal rights, and you may also have other rights which
vary from state to state.
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
816-891-6390
[email protected]
