Heinner HCNF-H320A+ User manual

COMBI FRIDGE
Model: HCNF-H320A+
www.heinner.ro
•Combi fridge
•Energy class: A+
•Net capacity: 320 L

www.heinner.com
1
Please read the instructions carefully and keep the manual for future information.
This manual is designed to give all necessary instructions concerning installation, use and
maintenance of the unit. In order to operate the unit correctly and safely, please read this
instruction manual carefully before installation and use.
I. INTRODUCTION
II. YOUR PACKAGE CONTAINS
➢Combi fridge
➢User manual
➢Certificate of warranty
Thank you for choosing this product!

www.heinner.com
2
III. SAFETY INFORMATION
In the interest of your safety and to ensure the correct use, before installing and
first using the appliance, read this user manual carefully, including its hints and
warnings. To avoid unnecessary mistakes and accidents, it is important to ensure
that all people using the appliance are thoroughly familiar with its operation and
safety features. Save these instructions and make sure that they remain with the
appliance if it is moved or sold, so that everyone using it through its life will be
properly informed on appliance use and safety. For the safety of life and property
keep the precautions of these user’s instructions as the manufacturer is not
responsible for damages caused by omission.
Children and vulnerable people safety
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given super vision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children should be supervised to ensure that they do not play with the appliance.
Cleaning and user maintenance shall not be made by children unless they are aged
from 8 years and above and supervised.
Keep all packaging well away from children. There is risk of suffocation.
If you are discarding the appliance pull the plug out of the socket, cut the
connection cable (as close to the appliance as you can) and remove the door to
prevent playing children to suffer electric shock or to close themselves into it.
If this appliance featuring magnetic door seals is to replace an older appliance
having a spring lock (latch) on the door or lid, be sure to make that spring lack
unusable before you discard the old appliance. This will prevent it from becoming a
death trap for a child.
General safety
WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING! Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
WARNING! Do not damage the refrigerant circuit.

www.heinner.com
3
Safety information
WARNING! Do not use other electrical appliances (such as ice cream makers) inside
of refrigerating appliances, unless they are approved for this purpose by the
manufacture.
WARNING! Do not touch the light bulb if it has been on for a long period of time
because it could be very hot.
•Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
•The refrigerant isobutane (R600a) is contained within the refrigerant circuit
of the appliance, a natural gas with a high level of environmental
compatibility, which is nevertheless flammable.
•During transportation and installation of the appliance, be certain that none
of the components of the refrigerant circuit become damaged.
avoid open flames and sources of ignition
thoroughly ventilate the room in which the appliance is situated
•It is dangerous to alter the specifications or modify this product in any way.
Any damage to the cord may cause a short circuit, fire and/or electric shock.
•This appliance is intended to be used in household only.
WARNING! Any electrical components (plug, power cord, compressor and etc.) must
be replaced by a certified service agent or qualified service personnel.
WARNING! The light bulb supplied with this appliance is a “special use lamp bulb”
usable only with the appliance supplied. This “special use lamp” is not usable for
domestic lighting.1
Safety information
•Power cord must not be lengthened.
•Make sure that the power plug is not squashed or damaged by the back of
the appliance. A squashed or damaged power plug may overheat and cause
a fire.
•Make sure that you can come to the mains plug of the appliance. Do not pull
the mains cable.
•If the power plug socket is loose, do not insert the power plug. There is a risk
of electric shock or fire.
•You must not operate the appliance without the lamp.
•This appliance is heavy. Care should be taken when moving it.
•Do not remove nor touch items from the freezer compartment if your hands
are damp/wet, as this could cause skin abrasions or frost/freezer burns.
•Avoid prolonged exposure of the appliance to direct sunlight.
1) if there is a light in the compartment

www.heinner.com
4
IV. DAILY USE
Do not put hot on the plastic parts in the appliance.
Do not place food products directly against the rear wall.
Frozen food must not be re-frozen once it has been thawed out.
Store pre-packed frozen food in accordance with the frozen food manufacture’s
instructions.
Appliance’s manufactures storage recommendations should be strictly adhered to. Refer
to relevant instructions.
Do not place carbonated of fizzy drinks in the freezer compartment as it creates
pressure on the container, which may cause it to explode, resulting in damage to the
appliance.
Ice lollies can cause frost burns if consumed straight from the appliance.
V. CLEANING AND MAINTENANCE
Before maintenance, switch off the appliance and disconnect the mains plug from the
mains socket.
Do not clean the appliance with metal objects.
Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.1)
Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the
drain. If the drain is blocked, water will collect in the bottom of the appliance.2)
1) If there is a freezer compartment
2) If there is a fresh-food storage compartment

www.heinner.com
5
VI. INSTALLATION
Important!
For electrical connection carefully follow the instructions given in specific paragraphs.
Unpack the appliance and check if there are damages on it. Do not connect the appliance
if it is damaged. Report possible damages immediately to the place you bought it. In that
case retain packing.
It is advisable to wait at least four hours before connecting the appliance to allow the oil
to flow back in the compressor.
Adequate air circulation should be around the appliance, lacking this leads to
overheating. To achieve sufficient ventilation, follow the instructions relevant to
installation.
Wherever possible the spacers of the product should be against a wall to avoid touching
or catching warm parts (compressor, condenser) to prevent possible burn.
The appliance must not be located close to radiators or cookers.
Make sure that the mains plug is accessible after the installation of the appliance.
Service
Any electrical work required to do the servicing of the appliance should be carried out by a
qualified electrician or competent person.
This product must be serviced by an authorized Service Center, and only genuine spare
parts must be used.
Don’ t put hot food in the appliance.
Don’ t pack food close together as this prevents air circulating.
Make sure food don’ t touch the back of the compartment(s).
If electricity goes off, don’ t open the door(s).
Don’ t open the door(s) frequently.
Don’ t keep the door(s) open for too long time.
Don’ t set the thermostat on exceeding cold temperatures.
Some accessories, such as drawers, can be removed to get larger storage volume and
lower energy consumption.
VII. SERVICE AND ENERGY SAVING

www.heinner.com
6
Above picture is for reference only. Real appliance probably is different.
VIII. ENVIRONMENT PROTECTION
Packaging materials
The materials with the symbol are recyclable. Dispose the packaging in a suitable collection
containers to recycle it.
Disposal of the appliance
1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.
IX. PRODUCT DESCRIPTION

www.heinner.com
7
X. SPACE REQUIREMENT
•Select a location without direct exposure to sunlight;
•Select a location with enough space for the refrigerator doors to open easily;
•Select a location with level (or nearly level) flooring;
•Allow sufficient space to install the refrigerator on a flat surface;
•Allow clearance to the right, left, back and top when installing. This will help
reduce power consumption and keep your energy bills lower.
•Keep at least 50mm gap at two sides and back.
Positioning
Install this appliance at a location where the ambient temperature corresponds to the
climate class indicated on the rating plate of the appliance:
Location
The appliance should be installed well away from sources of heat such as radiators,
boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the
cabinet. To ensure best performance, if the appliance is positioned below an
overhanging wall unit, the minimum distance between the top of the cabinet and the
wall unit must be at least 100 mm. Ideally, however, the appliance should not be
positioned below overhanging wall units. Accurate leveling is ensured by one or more
adjustable feet at the base of the cabinet.
•Warning! It must be possible to disconnect the appliance from the mains
power supply; the plug must therefore be easily accessible after installation.
Electrical connection
Before plugging in, ensure that the voltage and frequency shown on the rating plate
correspond to your domestic power supply. The appliance must be earthed. The power
supply cable plug is provided with a contact for this purpose. If the domestic power
supply socket is not earthed, connect the appliance to a separate earth in compliance
with current regulations, consulting a qualified electrician.
•The manufacturer declines all responsibility if the above safety precautions are
not observed. This appliance complies with the E.E.C. Directives.

www.heinner.com
8
Fig. 6
Fig. 7 & 8 Fig. 9 & 10
Fig. 11 & 12 Fig. 13
XI. REVERSE DOOR
Before reversing the door, please be prepared below tools and material: straight
screwdriver, cross screwdriver, spanner and the components included in the poly bag:
Decorative cover of the right door
1. Please remove the assembly by following sequence: right side door ground cover,
reaming decorative cap and right side door hinge
2. Take off the upper door, take out the screw from the middle hinge by cross
screwdriver, then take off the lower door.

www.heinner.com
9
3. Laying down the refrigerator, take out the adjusting feet as below, then take off the lower
hinge by cross screwdriver.
4. Adjunsting the hinge core position of the lower hinge and upper hinge to opposite
position.
5. Install the lower hinge under the refrigerator, screwing in the adjusting feet, make
sure the position is orizontal.
6. Install the lower door, adjust and fix the middle hinge onto the cabinet.
7. Install the door.
8. Install left door hinge cover and door hinge hole trim cover.

www.heinner.com
10
User interface
1. Setting panel:
2. Button and display
Setting button
3. Displays operation
1) Super freezing: LED’s on means starting supper freezing. Reversely, supper
freezing is off.
2) Setting temperature of fridge compartment. The number under which LED is on is
the setting temperature.
4. Operating condition
After power on, all LED lights on panel are lit up for 1 second, and the appliance will
run with same setting (mode and temperature) that last time the appliance was set. If
it is switched on first time, it runs with default setting.
5. Super freezing
1) Enter into super freezing mode
When you want to freeze food in a short time, you can apply super freezing
model. Constantly press key A for over 3 seconds, super freezing mode can be
activated. LED under super will be switched on.
2) Quit from super freezing mode
Quit by below conditions:
-press key A for over 3 seconds to choose other setting
-running time of super freezing mode is more than 50 hours
3) After exit super freezing mode, the appliance will run with same setting before
you start super freezing mode. LED light under super will be switchd off.
4) Under super freezing mode, you can’t change setting temperature of fridge
compartment by pressing button A. When you try to do so, LED under super will
flick for 3 seconds to remind you of wrong operation.
6. Temperature setting of the fridge compartment
Under non-super freezing mode, repeatedly press „A” bottom, setting
temperature will be changed in a circle of „2C, 3C, 4C, 6C, 8C”. If you press one
time, the temeperature is changed once, the number under which LED is lighted
on the setting temperature.
XII. DAILY USE

www.heinner.com
11
Useful hints:
Please follow the below table to choose setting temperature of fridges
Environment Temperature
Recommended temperature
Summer (>32 grades C)
4C, 6C, 8C
Normal
4C
Winter (<13 grades C)
2C, 3C, 4C
7. Temperature display
Display shows the setting temperature of the fridge
8. Memory function after Power off
The settings at the moment that power is off will be remembered .the appliance will
automatically re-start to run with setting of the moment that power is off when the
powersupply is restored.
9. Delay protection function
The appliance has a function that delay to start compressor resulting in protecting
compressor, Once compressor is stopped, the time from this stop of compressor to next
start of compressor must be at least 5 minutes.
10. Troubleshooting tips
•if temperature sensor of fridge compartment is flawed, light under 2C flickering
continuously.
•defrost sensor is flawed, light under 3C flickering continuously.
•ambient temperature sensor flawed, light under 3C flickering continuously.
•if communication is flawed, all lights in display will be flickering continuously.
11. Temperature control of the freezer compartment

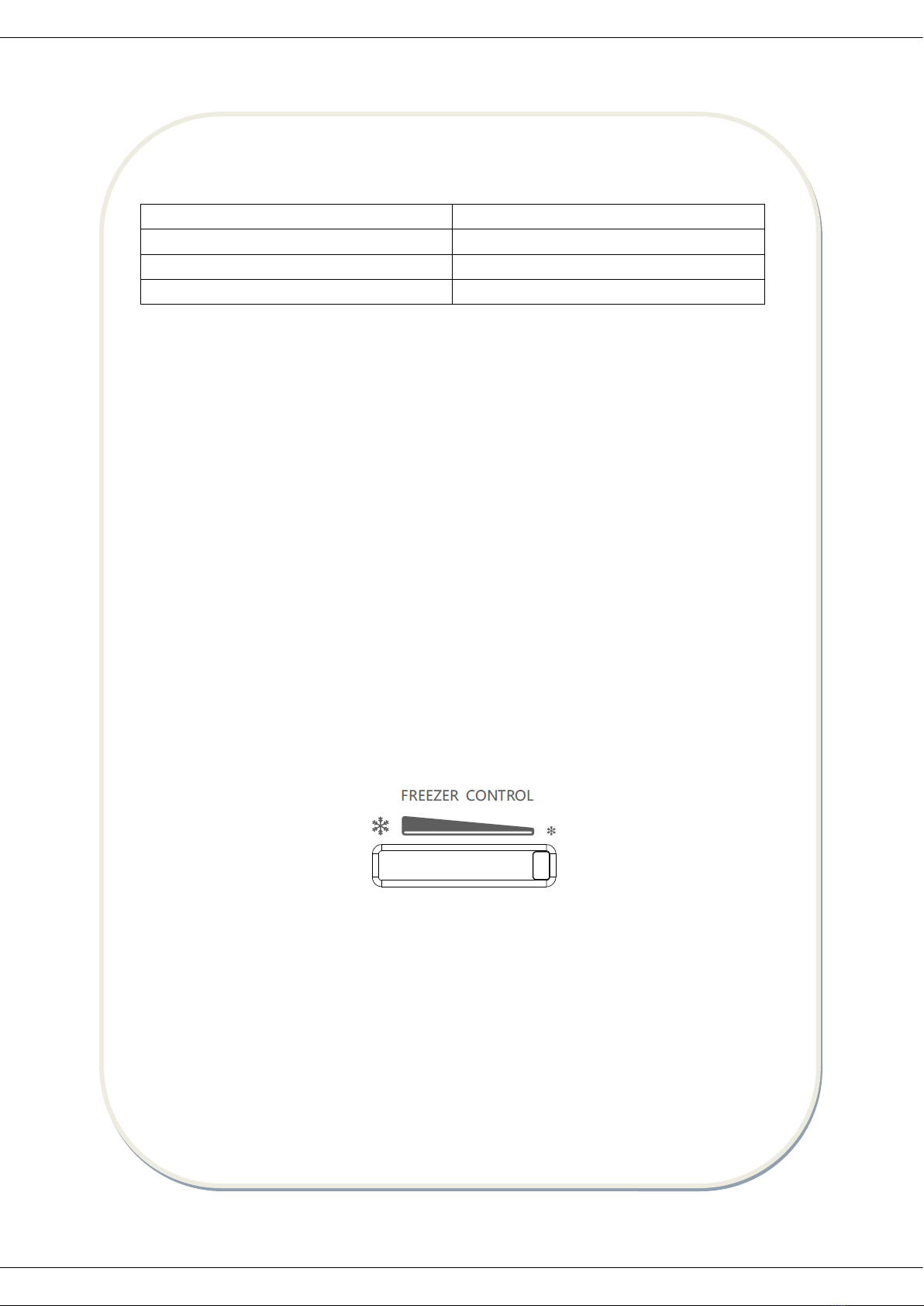

The freezer temperature setting knob:
The freezer temperature can be adjusted by changing the knob to change the air distribution
between freezer and fridge.
The freezer temperature adjustement
1. Freezer compartment temp can be adjusted, the temperature rise gradually when the
knob is moved from left to right
2. When the knob is set at min position, air flow from freezer to fridge will increase to
max level, the temperature of freezer will increase. Kindly recommend that this mode
only is used when the freezer is empty or rarely food is preserved in freezer
compartment.

www.heinner.com
12
XIII. DAILY USE
First use
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal
accessories with lukewarm water and some neutral soap so as to remove the typical
smell of a brand new product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the finish.
Daily use
•Freezing fresh food
•The freezer compartment is suitable for freezing fresh food and storing frozen and
deep-frozen food for a long time.
•Place the fresh food to be frozen in the bottom compartment.
•The maximum amount of food that can be frozen in 24 hours is specified on the
rating plate.
•The freezing process lasts 24 hours: during this period do not add other food to be
frozen.
Storing frozen food
When first starting-up or after a period out of use. Before putting the product in the
compartment let the appliance run at least 2 hours on the higher settings.
Important! In the event of accidental defrosting, for example the power has been off for
longer than the value shown in the technical characteristics chart under “rising time”, the
defrosted food must be consumed quickly or cooked immediately and then re-frozen (after
cooked).
Thawing
Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or
at room temperature, depending on the time available for this operation.
Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking
will take longer.
3. When knob is set at max position, air flow from freezer to fridge will decrease to min level,
the temperature of freezer will decrease. Kindly recommend that this mode is only used when
mounts of food is stored in freezer compartment.
4. Kindly advice the user to move the temeprature knob into the middle position at normal
conditions, however, user can also adjust the temperature range according to the food storage
situation.

www.heinner.com
13
Helpful hints and tips
To help you make the most of the freezing process, here are some important hints:
•the maximum quantity of food which can be frozen in 24 hrs. is shown on the
rating plate;
•the freezing process takes 24 hours. No further food to be frozen should be
added during this period;
•only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
•prepare food in small portions to enable it to be rapidly and completely frozen
and to make it possible subsequently to thaw only the quantity required;
•wrap up the food in aluminium foil or polythene and make sure that the
packages are airtight;
•do not allow fresh, unfrozen food to touch food which is already frozen, thus
avoiding a rise in temperature of the latter;
•lean foods store better and longer than fatty ones; salt reduces the storage life
of food;
•water ices, if consumed immediately after removal from the freezer
compartment, can possibly cause the skin to be freeze burnt;
•it is advisable to show the freezing in date on each individual pack to enable
you removal from the
•freezer compartment, can possibly cause the skin to be freeze burnt;
•it is advisable to show the freezing in date on each individual pack to enable
you to keep tab of the storage time.
Hints for storage of frozen food
To obtain the best performance from this appliance, you should:
•make sure that the commercially frozen foodstuffs were adequately stored by
the retailer;
•be sure that frozen foodstuffs are transferred from the food store to the freezer
in the shortest possible time;
•not open the door frequently or leave it open longer than absolutely necessary.
Once defrosted, food deteriorates rapidly and cannot be refrozen.
Do not exceed the storage period indicated by the food manufacture.
Hints for fresh food refrigeration
To obtain the best performance:
•Do not store warm food or evaporating liquids in the refrigerator
•Do cover or wrap the food, particularly if it has a strong flavour

www.heinner.com
14
XIV. CLEANING
For hygienic reasons the appliance interior, including interior accessories, should be
cleaned regularly.
Caution! The appliance may not be connected to the mains during cleaning. Danger of
electrical shock! Before cleaning switch the appliance off and remove the plug from the
mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance
with a steam cleaner. Moisture could accumulate in electrical components, danger of
electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must
be dry before it is placed back into service.
Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or
the juice form orange peel, butyric acid, cleanser that contain acetic acid.
•Do not allow such substances to come into contact the appliance parts.
•Do not use any abrasive cleaners
•Remove the food from the freezer. Store them in a cool place, well covered.
•Switch the appliance off and remove the plug from the mains, or switch off or
turn out the circuit breaker of fuse.
•Clean the appliance and the interior accessories with a cloth and lukewarm
water. After cleaning wipe with fresh water and rub dry.
•After everything is dry place appliance back into service.
Hints for refrigeration
Useful hints:
•Make (all types): wrap in polythene bags and place on the glass shelves above the
vegetable drawer.
•For safety, store in this way only one or two days at the most.
•Cooked foods, cold dishes, etc...: these should be covered and may be placed on
any shelf.
•Fruit and vegetables: these should be thoroughly cleaned and placed in the special
drawer(s) provided.
•Butter and cheese: these should be placed in special airtight containers or wrapped
in aluminum foil or polythene bags to exclude as much air as possible.
•Milk bottle: these should have a cap and should be stored in the balconies on the
door.
•Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

www.heinner.com
15
Troubleshooting
Caution! Before troubleshooting, disconnect the power supply. Only a qualified
electrician of competent person must do the troubleshooting that is not in this
manual.
Important! There are some sounds during normal use (compressor, refrigerant
circulation).
Problem
Possible cause
Solution
Appliance does not work
Mains plug in not plugged
in or is loose
Insert mains plug
Fuse has blown or is
defective
Check fuse, replace if
necessary
Socket is defective
Mains malfunctions are to be
corrected by an electrician
Appliance freezes or
cools too much
Turn the temperature
regulator to a warmer setting
temporarily
The food is not frozen
enough
Temperature is not
properly adjusted
Please look at the initial
temperature setting section
Door was open for an
extended period
Open the door only as long as
necessary
A large quantity of warm
food was placed in the
appliance within the las
24 hours
Trun the temperature
regulation to a colder setting
temporarily
The appliance is nearly a
heat source
Please look in the installation
location section
Heavy build up of frost on
the door seal
Door seal in not air tight
Carefully warm the leaking
section of the door with a
hair dryer (on a cool setting).
At the same time shape the
warmed door seal bu hand
such that it sits correctly
Unusual noises
Appliance is not level
Re-adjust the feet
The appliance is touching
the wall or other objects
Move the appliance slighly
A component, e.g. a pipe,
on the rear is toching
another part of the
appliance or the wall
If necessary, carefully bend
the component out of the
way

www.heinner.com
16
PRODUCT FICHE COMBI FRIDGE HEINNER
HCNF-H320A+
Brand
HEINNER
Category
Combi fridge
Code
HCNF-H320A+
Energy efficiency class
A+
Cooling system
Full No frost
Energy consumption
kWh/an
306
Total gross volume
litri
358 (234/124)
Total net volume
litri
320
Fridge net volume
litri
225
Freezer net volume
litri
95
Climate class
T
Refrigerant
R/g
R600a/52
Noise level (max)
dB
43
Control system
Electronic
Autonomy
h
18.3
Reversible doors
Da
Adjustable thermostat
Da
Fridge
Shelves
3
Shelves material
sticla
Crisper drawer
3
Bottle shelf
Da
Interior light
LED 1W
Freezer
Cooling capacity
kg/24h
4.5
Shelves
3
Accessories
Egg tray
Da
Ice cube tray
Da
Logistic data
Power supply cord length
cm
160
Net dimensions (WxDxH)
cm
60 x 68.5 x 185.5
Gross dimensions (WxDxH)
cm
64.3 x 72 x 192.8
Net weight
kg
70
Gross weight
kg
76

www.heinner.com
17
Environment friendly disposal
You can help protect the environment!
Please remember to respect the local regulations: hand in the non-working electrical equipment’s to
an appropriate waste disposal center.
HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product
names are trademarks or registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from NETWORK
ONE DISTRIBUTION.
Copyright © 2013 Network One Distribution. All rights reserved.
www.heinner.com, http://www.nod.ro
http://www.heinner.com, http://www.nod.ro
This product is in conformity with norms and standards of European Community.
Importer: Network One Distribution
Marcel Iancu, 3-5, Bucharest, Romania
Tel: [phone], www.heinner.com , www.nod.ro

www.heinner.com
18
COMBINĂ FRIGORIFICĂ
Model: HCNF-H320A+
www.heinner.ro
•Combină frigorifică
•Clasa de eficiență energetică: A+
•Capacitate netă: 320 L

www.heinner.com
19
Vă rugăm să citiți instrucțiunile cu atenție și să păstrați manualul pentru consultări ulterioare.
Acest manual are scopul de a vă oferi toate instrucțiunile necesare cu privire la instalarea,
utilizarea și întreținerea aparatului. Pentru utilizarea corectă și în siguranță a aparatului, vă
rugam să citiți cu atenție acest manual de instrucțiuni înainte de instalare și utilizare.
I. INTRODUCERE
II. CONȚINUTUL PACHETULUI DUMNEAVOASTRĂ
➢Combină frigorifică
➢Manual de utilizare
➢Certificat de garanție
Vă mulțumim pentru alegerea acestui produs!
