Heinner HC-H273WA+ User manual

COMBI FRIDGE
Model: HC-H273WA+
www.heinner.ro
Combi fridge
Energy class: A+
Net capacity: 273 L

www.heinner.com
1
Please read the instructions carefully and keep the manual for future information.
This manual is designed to give all necessary instructions concerning installation, use and
maintenance of the unit. In order to operate the unit correctly and safely, please read this
instruction manual carefully before installation and use.
I. INTRODUCTION
II. YOUR PACKAGE CONTAINS
Combi fridge
User manual
Certificate of warranty
Thank you for choosing this product!

www.heinner.com
2
III. SAFETY INFORMATION
In the interest of your safety and to ensure the correct use, before installing and
first using the appliance, read this user manual carefully, including its hints and
warnings. To avoid unnecessary mistakes and accidents, it is important to ensure
that all people using the appliance are thoroughly familiar with its operation and
safety features. Save these instructions and make sure that they remain with the
appliance if it is moved or sold, so that everyone using it through its life will be
properly informed on appliance use and safety. For the safety of life and property
keep the precautions of these user’s instructions as the manufacturer is not
responsible for damages caused by omission.
Children and vulnerable people safety
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given super vision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children should be supervised to ensure that they do not play with the appliance.
Cleaning and user maintenance shall not be made by children unless they are aged
from 8 years and above and supervised.
Keep all packaging well away from children. There is risk of suffocation.
If you are discarding the appliance pull the plug out of the socket, cut the
connection cable (as close to the appliance as you can) and remove the door to
prevent playing children to suffer electric shock or to close themselves into it.
If this appliance featuring magnetic door seals is to replace an older appliance
having a spring lock (latch) on the door or lid, be sure to make that spring lack
unusable before you discard the old appliance. This will prevent it from becoming a
death trap for a child.
General safety
WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING! Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
WARNING! Do not damage the refrigerant circuit.

www.heinner.com
3
Safety information
WARNING! Do not use other electrical appliances (such as ice cream makers) inside
of refrigerating appliances, unless they are approved for this purpose by the
manufacture.
WARNING! Do not touch the light bulb if it has been on for a long period of time
because it could be very hot.
Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
The refrigerant isobutane (R600a) is contained within the refrigerant circuit of
the appliance, a natural gas with a high level of environmental compatibility,
which is nevertheless flammable.
During transportation and installation of the appliance, be certain that none of
the components of the refrigerant circuit become damaged.
avoid open flames and sources of ignition
thoroughly ventilate the room in which the appliance is situated
It is dangerous to alter the specifications or modify this product in any way. Any
damage to the cord may cause a short circuit, fire and/or electric shock.
This appliance is intended to be used in household only.
WARNING! Any electrical components(plug, power cord, compressor and etc.) must
be replaced by a certified service agent or qualified service personnel.
WARNING! The light bulb supplied with this appliance is a “special use lamp bulb”
usable only with the appliance supplied. This “special use lamp” is not usable for
domestic lighting.1
Safety information
Power cord must not be lengthened.
Make sure that the power plug is not squashed or damaged by the back of the
appliance. A squashed or damaged power plug may overheat and cause a fire.
Make sure that you can come to the mains plug of the appliance. Do not pull the
mains cable.
If the power plug socket is loose, do not insert the power plug. There is a risk of
electric shock or fire.
You must not operate the appliance without the lamp.
This appliance is heavy. Care should be taken when moving it.
Do not remove nor touch items from the freezer compartment if you hands are
damp/wet, as this could cause skin abrasions or frost/freezer burns.
Avoid prolonged exposure of the appliance to direct sunlight.
1) if there is a light in the compartment

www.heinner.com
4
IV. DAILY USE
Do not put hot on the plastic parts in the appliance.
Do not place food products directly against the rear wall.
Frozen food must not be re-frozen once it has been thawed out.
Store pre-packed frozen food in accordance with the frozen food manufacture,s
instructions.
Appliance s manufactures storage recommendations should be strictly adhered to.
Refer to relevant instructions.
Do not place carbonated of fizzy drinks in the freezer compartment as it creates
pressure on the container, which may cause it to explode, resulting in damage to the
appliance.
Ice lollies can cause frost burns if consumed straight from the appliance.
V. CLEANING AND MAINTENANCE
Before maintenance, switch off the appliance and disconnect the mains plug from the
mains socket.
Do not clean the appliance with metal objects.
Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.1)
Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the
drain. If the drain is blocked, water will collect in the bottom of the appliance.2)
1) If there is a freezer compartment
2) If there is a fresh-food storage compartment

www.heinner.com
5
VI. INSTALLATION
Important!
For electrical connection carefully follow the instructions given in specific paragraphs.
Unpack the appliance and check if there are damages on it. Do not connect the appliance
if it is damaged. Report possible damages immediately to the place you bought it. In that
case retain packing.
It is advisable to wait at least four hours before connecting the appliance to allow the oil
to flow back in the compressor.
Adequate air circulation should be around the appliance, lacking this leads to
overheating. To achieve sufficient ventilation follow the instructions relevant to
installation.
Wherever possible the spacers of the product should be against a wall to avoid touching
or catching warm parts (compressor, condenser) to prevent possible burn.
The appliance must not be located close to radiators or cookers.
Make sure that the mains plug is accessible after the installation of the appliance.
Any electrical work required to do the servicing of the appliance should be carried out by a
qualified electrician or competent person.
This product must be serviced by an authorized Service Center, and only genuine spare
parts must be used.
Don’ t put hot food in the appliance.
Don’ t pack food close together as this prevents air circulating.
Make sure food don’ t touch the back of the compartment(s).
If electricity goes off, don’ t open the door(s).
Don’ t open the door(s) frequently.
Don’ t keep the door(s) open for too long time.
Don’ t set the thermostat on exceeding cold temperatures.
Some accessories, such as drawers, can be removed to get larger storage volume and lower
energy consumption.
VII. SERVICE AND ENERGY SAVING

www.heinner.com
6
This illustration is only for hinting, the detail please check your appliance.
VIII. ENVIRONMENT PROTECTION
Packaging materials
The materials with the symbol are recyclable. Dispose the packaging in a suitable collection
containers to recycle it.
Disposal of the appliance
1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.
IX. PRODUCT DESCRIPTION

www.heinner.com
7
X. REVERSE DOOR
Tool required: Philips screwdriver, Flat
bladed screwdriver, Hexagonal spanner.
Ensure the unit is unplugged and empty.
To take the door off, it is necessary to tilt the
unit backwards. You should rest the unit on
something solid so that it will not slip during
the door reversing process.
All parts removed must be saved to do the
reinstallation of the door.
Do not lay the unit flat as this may damage
the coolant system.
It’s better that 2 people handle the unit
during assembly.
1. Remove four screws in top cover and
then lift it.
2. Unscrew top hinge and then remove
upper door and place it on a soft pad to
avoid scratch.
3. Remove the pin with a screwdriver and
flip the hinge bracket. Then refit the pin
to hinge bracket.
4. Unscrew middle hinge. Then lift lower
door and place it on a soft pad to
avoid scratch.
5. Move the hinge hole covers from left
side to right side.
6. Unscrew bottom hinge. Then remove
the adjustable feet from both side.
7. Unscrew and remove the bottom
hinge pin, turn the bracket over and
replace it.

www.heinner.com
8

www.heinner.com
9
8. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. Transfer
the lower door to the property position.
9. Make the middle hinge reverse the direction180oC, then transfer it to the left
property position. Make the middle hinge pin in the upper hole of the lower door, then
tight the bolts.
10. Place the upper door back on. Ensure the door is aligned horizontally and vertically
so that the seal are closed on all sides before finally tightening the top hinge. Then inert
the hinge and screw it to the top of the unit.
11. Put the top cover and then screw back.

www.heinner.com
10

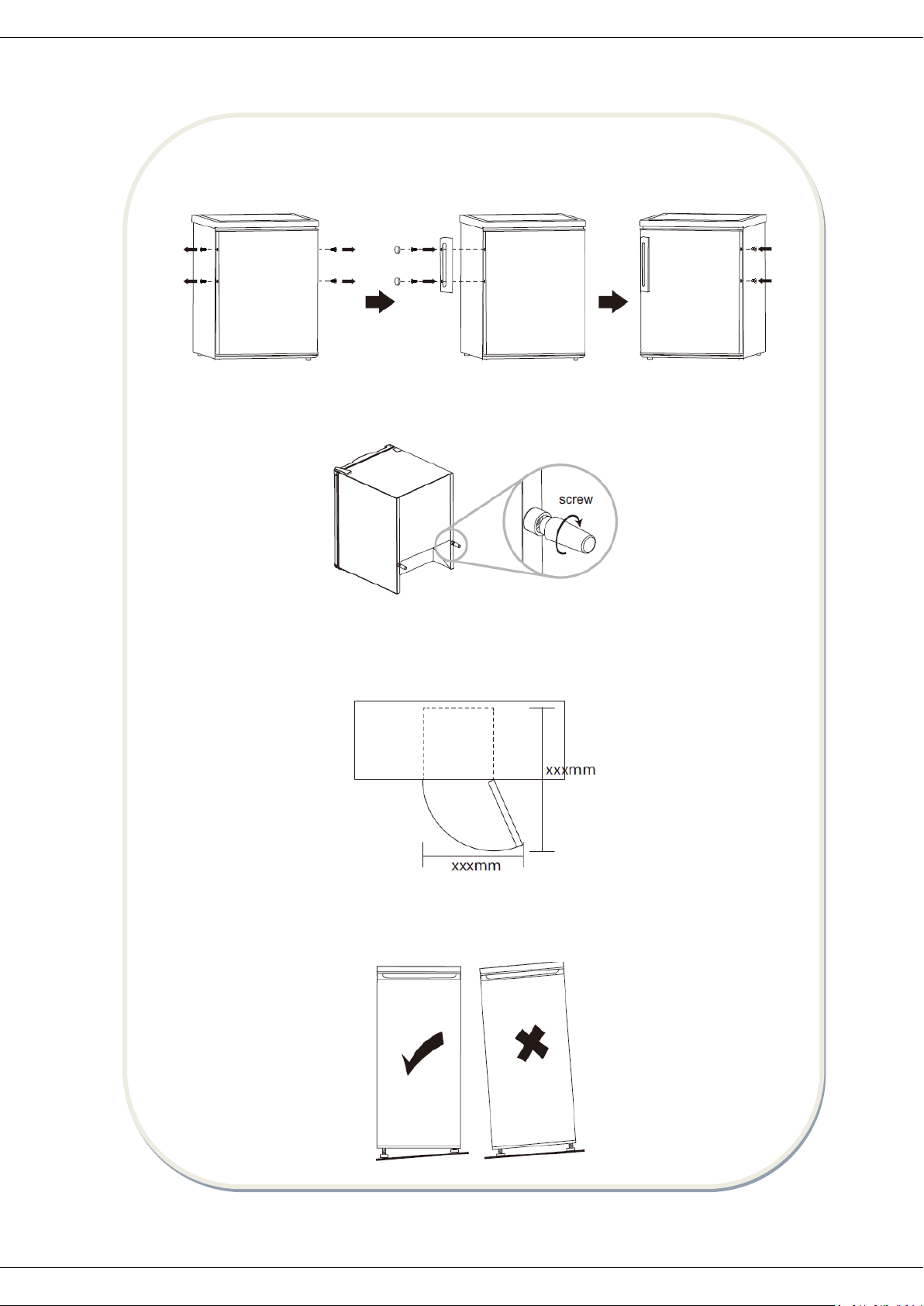

Install door external handle (if external handle is present)
Rear spacer
Screw the rear spacers at the rear of the unit.
Space Requirement
Keep enough space of door open.
Keep at least 50mm gap at two sides.
Levelling the unit
To do this adjust the two levelling feet at front of the unit. If the unit is not level, the
doors and magnetic seal alignments will not be covered properly.

www.heinner.com
11
Positioning

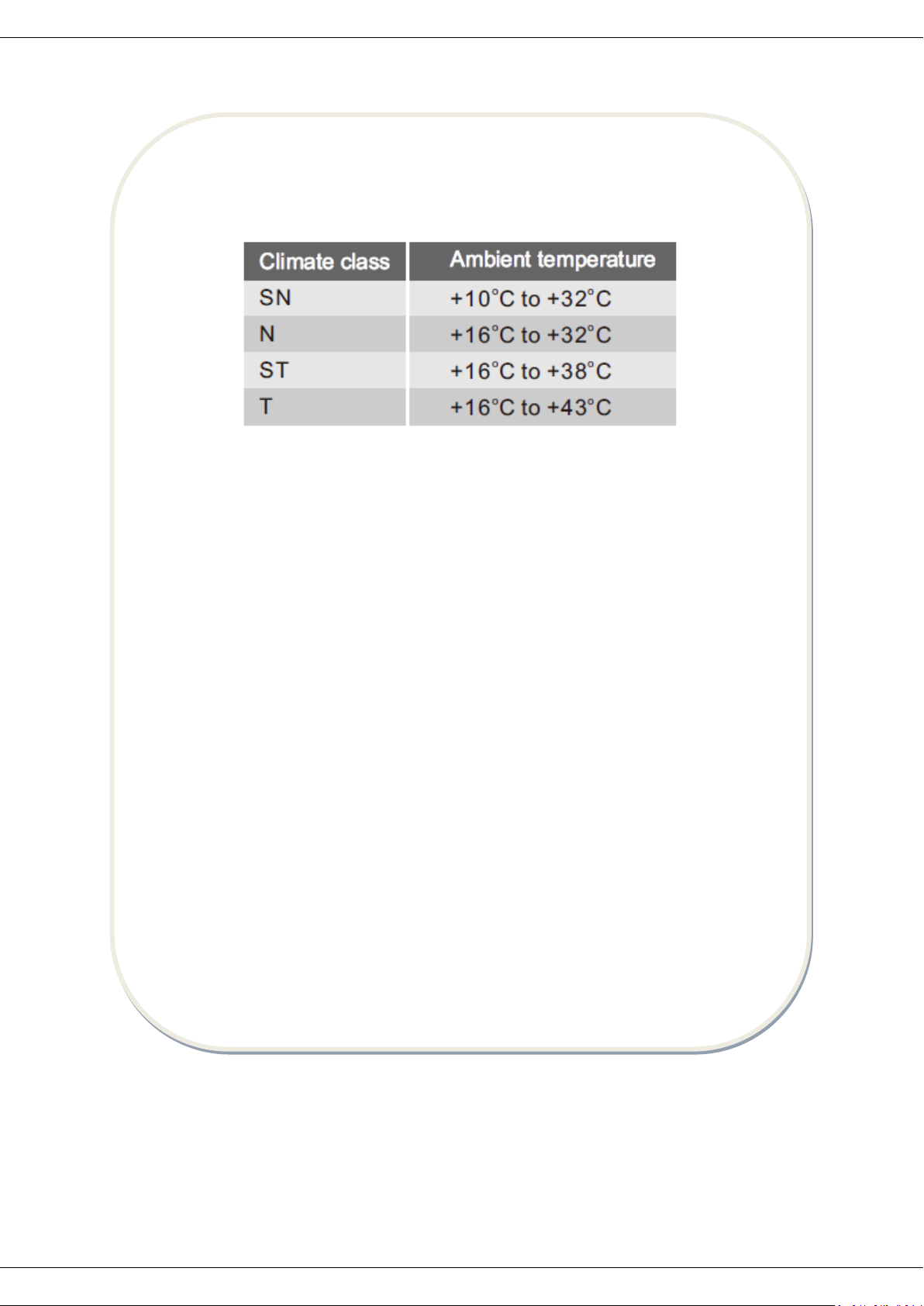

Install this appliance at a location where the ambient temperature corresponds to the
climate class indicated on the rating plate of the appliance:
Location
The appliance should be installed well away from sources of heat such as radiators,
boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the
cabinet. To ensure best performance, if the appliance is positioned below an
overhanging wall unit, the minimum distance between the top of the cabinet and the
wall unit must be at least 100 mm. Ideally, however, the appliance should not be
positioned below overhanging wall units. Accurate leveling is ensured by one or more
adjustable feet at the base of the cabinet.
Warning! It must be possible to disconnect the appliance from the mains power
supply; the plug must therefore be easily accessible after installation.
Electrical connection
Before plugging in, ensure that the voltage and frequency shown on the rating plate
correspond to your domestic power supply. The appliance must be earthed. The power
supply cable plug is provided with a contact for this purpose. If the domestic power
supply socket is not earthed, connect the appliance to a separate earth in compliance
with current regulations, consulting a qualified electrician.
The manufacturer declines all responsibility if the above safety precautions are not
observed. This appliance complies with the E.E.C. Directives.

www.heinner.com
12
XII. DAILY USE
First use
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal
accessories with lukewarm water and some neutral soap so as to remove the typical
smell of a brand new product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the finish.
Temperature Setting
Plug on your appliance. The internal temperature is controlled by a thermostat. There
are 8 settings . 1 is warmest setting and 7 is coldest setting and 0 is off.
The appliance may not operate at the correct temperature if it is in a particularly hot or
if you open the door often.
Freezing fresh food
The freezer compartment is suitable for freezing fresh food and storing frozen and
deep-frozen food for a long time.
Place the fresh food to be frozen in the freezer compartment.
The maximum amount of food that can be frozen in 24 hours is specified on the rating
plate.
The freezing process lasts 24 hours: during this period do not add other food to be
frozen.
Storing frozen food
When first starting-up or after a period out of use, before putting the product in the
compartment let the appliance run at least 2 hours on the higher settings.
Important! In the event of accidental defrosting, for example the power has been off
for longer than the value shown in the technical characteristics chart under “rising
time”, the defrosted food must be consumed quickly or cooked immediately and then
re-frozen (after cooked).
Thawing
Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment
or at room temperature, depending on the time available for this operation.
Small pieces may even be cooked still frozen, directly from the freezer. In this case,
cooking will take longer.
Ice-cube
This appliance may be equipped with one or more ice-cube to produce ice.

www.heinner.com
13
XIII. ACCESORIES
Movable shelves
The walls of the refrigerator are equipped with a series of runners so that the shelves
can be positioned as desired.
Positioning the door balconies
To permit storage of food packages of various sizes, the door balconies can be placed at
different heights. To make these adjustments proceed as follows: gradually pull the
balcony in the direction of the arrows until it comes free, then reposition as required.
Helpful hints and tips
To help you make the most of the freezing process, here are some important hints:
the maximum quantity of food which can be frozen in 24 hrs. is shown on the
rating plate;
the freezing process takes 24 hours. No further food to be frozen should be added
during this period;
only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
prepare food in small portions to enable it to be rapidly and completely frozen and
to make it possible subsequently to thaw only the quantity required;
wrap up the food in aluminium foil or polythene and make sure that the packages
are airtight;
do not allow fresh, unfrozen food to touch food which is already frozen, thus
avoiding a rise in temperature of the latter;
lean foods store better and longer than fatty ones; salt reduces the storage life of
food;
water ices, if consumed immediately after removal from the freezer compartment,
can possibly cause the skin to be freeze burnt;
it is advisable to show the freezing in date on each individual pack to enable you
removal from the
freezer compartment, can possibly cause the skin to be freeze burnt;
it is advisable to show the freezing in date on each individual pack to enable you to
keep tab of the storage time.

www.heinner.com
14
Hints for storage of frozen food
To obtain the best performance from this appliance, you should: make sure that the
commercially frozen foodstuffs were adequately stored by the retailer; be sure that
frozen foodstuffs are transferred from the food store to the freezer in the shortest
possible time;
not open the door frequently or leave it open longer than absolutely necessary.
Once defrosted, food deteriorates rapidly and cannot be refrozen.
Do not exceed the storage period indicated by the food manufacture.
Hints for fresh food refrigeration
To obtain the best performance:
Do not store warm food or evaporating liquids in the refrigerator
Do cover or wrap the food, particularly if it has a strong flavour
Make (all types): wrap in polythene bags and place on the glass shelves above the
vegetable drawer.
For safety, store in this way only one or two days at the most.
Cooked foods, cold dishes, etc...: these should be covered and may be placed on
any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the special
drawer(s) provided.
Butter and cheese: these should be placed in special airtight containers or wrapped
in aluminum foil or
Polythene bags to exclude as much air as possible.
Milk bottle: these should have a cap and should be stored in the balconies on the
door.
Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

www.heinner.com
15
XIV. CLEANING AND DEFROSTING THE FREEZER
Cleaning
For hygienic reasons the appliance interior, including interior accessories, should be
cleaned regularly.
Caution! The appliance may not be connected to the mains during cleaning. Danger
of electrical shock! Before cleaning switch the appliance off and remove the plug
from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the
appliance with a steam cleaner. Moisture could accumulate in electrical
components, danger of electrical shock! Hot vapors can lead to the damage of
plastic parts. The appliance must be dry before it is placed back into service.
Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon
juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.
Clean drain hole
To avoid defrost water overflowing into the fridge, periodically clean the drain hole
at back of fridge compartment. Use a cleaner to clean the hole as showed in right
picture.
Do not allow such substances to come into contact the appliance parts.
Do not use any abrasive cleaners
Remove the food from the freezer. Store them in a cool place, well covered.
Switch the appliance off and remove the plug from the mains, or switch off or turn
out the circuit breaker of fuse.
Clean the appliance and the interior accessories with a cloth and lukewarm water.
After cleaning wipe with fresh water and rub dry.
After everything is dry place appliance back into service.

www.heinner.com
16
Defrosting of the freezer
The freezer compartment, however, will become progressively covered with frost.
This should be removed.
Never use sharp metal tools to scrape off frost from the evaporator as you could
damage it.
However, when the ice becomes very thick on the inner liner, complete defrosting
should be carried out as follows:
pull out the plug from the socket;
remove all stored food, wrap it in several layers of newspaper and put it in a
cool place;
keep the door open, and placing a basin underneath of the appliance to
collect the defrost water;
when defrosting is completed, dry the interior thoroughly
replace the plug in the power socket to run the appliance again.
Replace the lamp
The internal light is a LED type. To replace the lamp, please contact qualified
technician.

www.heinner.com
17
Troubleshooting
Caution! Before troubleshooting, disconnect the power supply. Only a qualified
electrician of competent person must do the troubleshooting that is not in this
manual.
Important! There are some sounds during normal use (compressor, refrigerant
circulation).
Problem
Possible Cause
Solution
Appliance does not
work
Temperature regulation knob
is set at number "0"
Set the knob at other number
to switch on the appliance.
Mains plug is not plugged in or
is loose
Insert mains plug
Fuse has blown or is defective
Check fuse, replace if
necessary
Socket is defective
Mains malfunctions are to be
corrected by an electrician.
The food is too
warm
Temperature is not properly
adjusted.
Please look in the initial
Temperature Setting section
Door was open for an
extended period
Open the door only as long as
necessary
A large quantity of warm food
was placed in the appliance
within the last 24 hours
Turn the temperature
regulation to a colder setting
temporarily.
The appliance is near a heat
source
Please look in the installation
location section
Appliance cools too
much
Temperature is set too cold
Turn the temperature
regulation knob to a warmer
setting temporarily
Unusual noises
Appliance is not level
Re-adjust the feet
The appliance is touching the
wall or other objects.
Move the appliance slightly
A component, e.g. a pipe, on
the rear of the appliance is
touching another part of the
Appliance or the wall
If necessary, carefully bend
the component out of the
way.
Water on the floor
Water drain hole is blocked
See the Cleaning section
Side panel is hot
Condenser is inside the panel
It's normal

www.heinner.com
18
PRODUCT FICHE COMBI FRIDGE HEINNER HC-H273WA+ , HC-H273SA+
Brand
HEINNER
Product Type
Combi fridge
Model
HC-H273WA+ / HC-H273SA+
Energy efficiency class
A+
Energy consumption
kWh/an
248
Total gross volume (fridge/freezer)
litres
282 (208/74)
Total net volume
litres
273
Fridge net volume
litres
205
Freezer net volume
litres
68
Climate class
N, ST
Refrigerant
R/g
R600a/76
Cooling capacity
kg/24h
3
Noise level (max)
dB
42
Temperature rise time
h
15.8
Fridge defrosting
Automatic
Freezer defrosting
Manual
Control system
Mechanical
Temperature range
°C
0℃≤tma≤8℃；tf≤-18℃
Reversible doors
Yes
Adjustable thermostat
Yes
Fridge
Shelves
3
Shelves material
glass
Crisper drawer
Yes
Bottle shelf
Yes
Freezer
Drawers
3
Shelves
-
Accessories
Fridge lamp
1W LED
Freezer lamp
-
Egg tray
Yes
Ice cube tray
Yes
Adjustable feet
Yes
Logistic data
Power supply cable length
cm
160
Net dimensions (WxDxH)
cm
55 x 54 x 173
Gross dimensions (WxDxH)
cm
57.5 x 60.5 x 180.7
Net weight
kg
48.9
Gross weight
kg
52.8

www.heinner.com
19
Environment friendly disposal
You can help protect the environment!
Please remember to respect the local regulations: hand in the non-working electrical equipment’s to
an appropriate waste disposal center.
HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product
names are trademarks or registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from NETWORK
ONE DISTRIBUTION.
Copyright © 2013 Network One Distribution. All rights reserved.
www.heinner.com, http://www.nod.ro
http://www.heinner.com, http://www.nod.ro
This product is in conformity with norms and standards of European Community.
Importer: Network One Distribution
Marcel Iancu, 3-5, Bucharest, Romania
Tel: [phone], www.heinner.com , www.nod.ro
